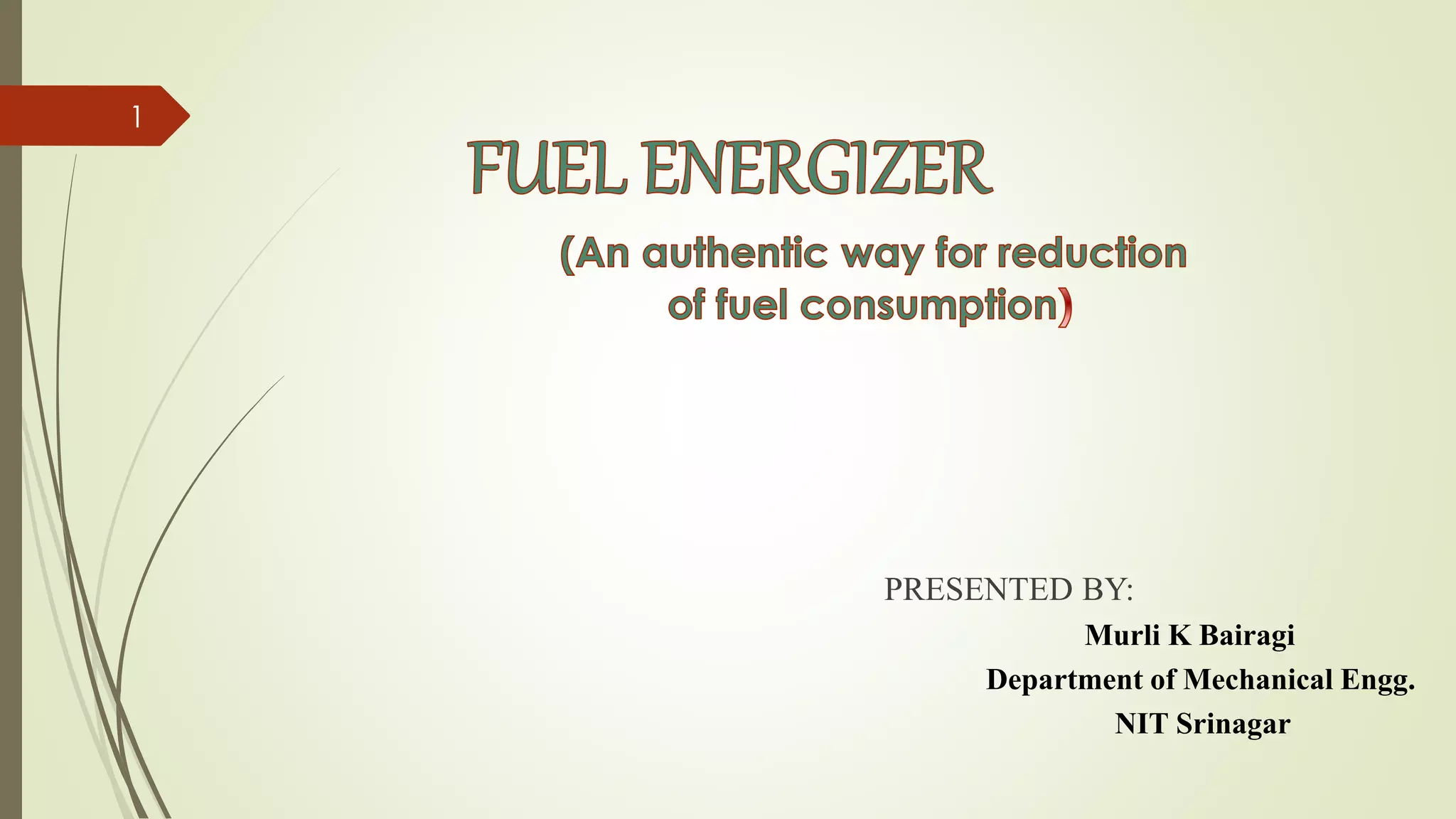

1. PRESENTED BY:
Murli K Bairagi
Department of Mechanical Engg.
NIT Srinagar
1

2. INTRODUCTION
 Conservation of fuel is the main important criterion for nations
development.
 Pollution level is also increasing day by day is due to incomplete
combustion of fuel in automobiles.
 It results in decrease in brake thermal efficiency, brake power, and
also results in detonation and knocking.
 Incomplete combustion of fuel results in the formation of CO, Nox
in atmosphere, resulting adverse effect on environment.
2

3. WHY DOES INCOMPLETE COMBUSTION
OCCUR ?
 When stoichiometric air-fuel ratio (A/F) < 1.
 Hydrocarbons have basically a "cage like"
structure. That is why during the combustion
process oxidizing of their inner carbon atoms does
not completely takes place due to steric hindrance
of hydrogen atoms.
 Hydrogen exists in its less reactive para state.
3
CH4 structure

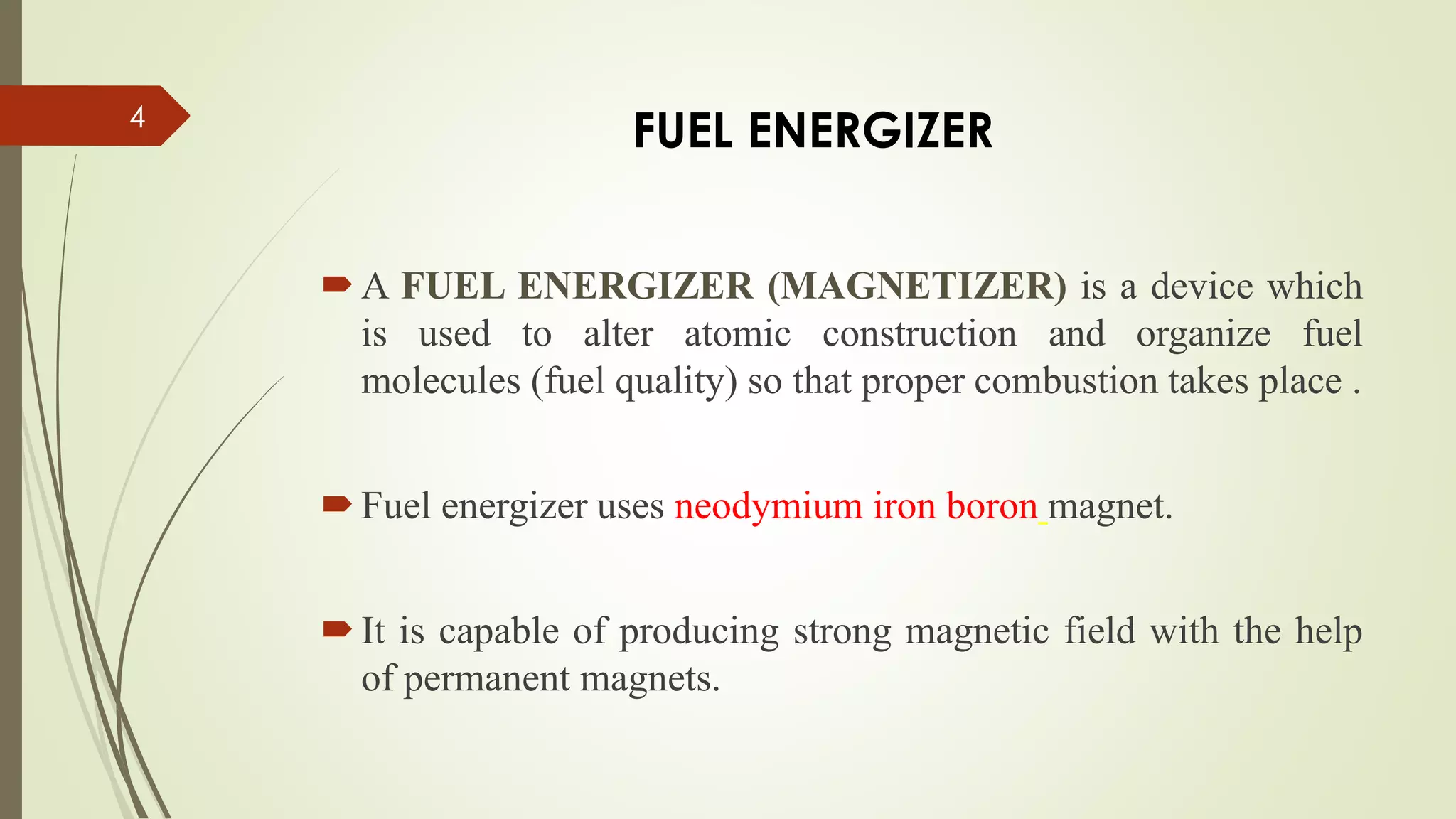

4. A FUEL ENERGIZER (MAGNETIZER) is a device which
is used to alter atomic construction and organize fuel
molecules (fuel quality) so that proper combustion takes place .
Fuel energizer uses neodymium iron boron magnet.
It is capable of producing strong magnetic field with the help
of permanent magnets.
4
FUEL ENERGIZER

5. 5

6. WORKING OF FUEL ENERGIZER
 Magnetic fuel treatment works on the principle of magnetic field
interaction with hydrocarbon molecules of fuel and oxygen
molecules.
 Liquid fuel is a mixture of organic chemical compound consisted
predominantly of carbon and hydrogen atoms - hydrocarbons.
 Due to various physical attraction forces, they form densely packed
structures called pseudo compounds which can further organize into
clusters or associations.
 These structures are relatively stable and during air/fuel mixing
process, oxygen atoms cannot penetrate into their interior.
6

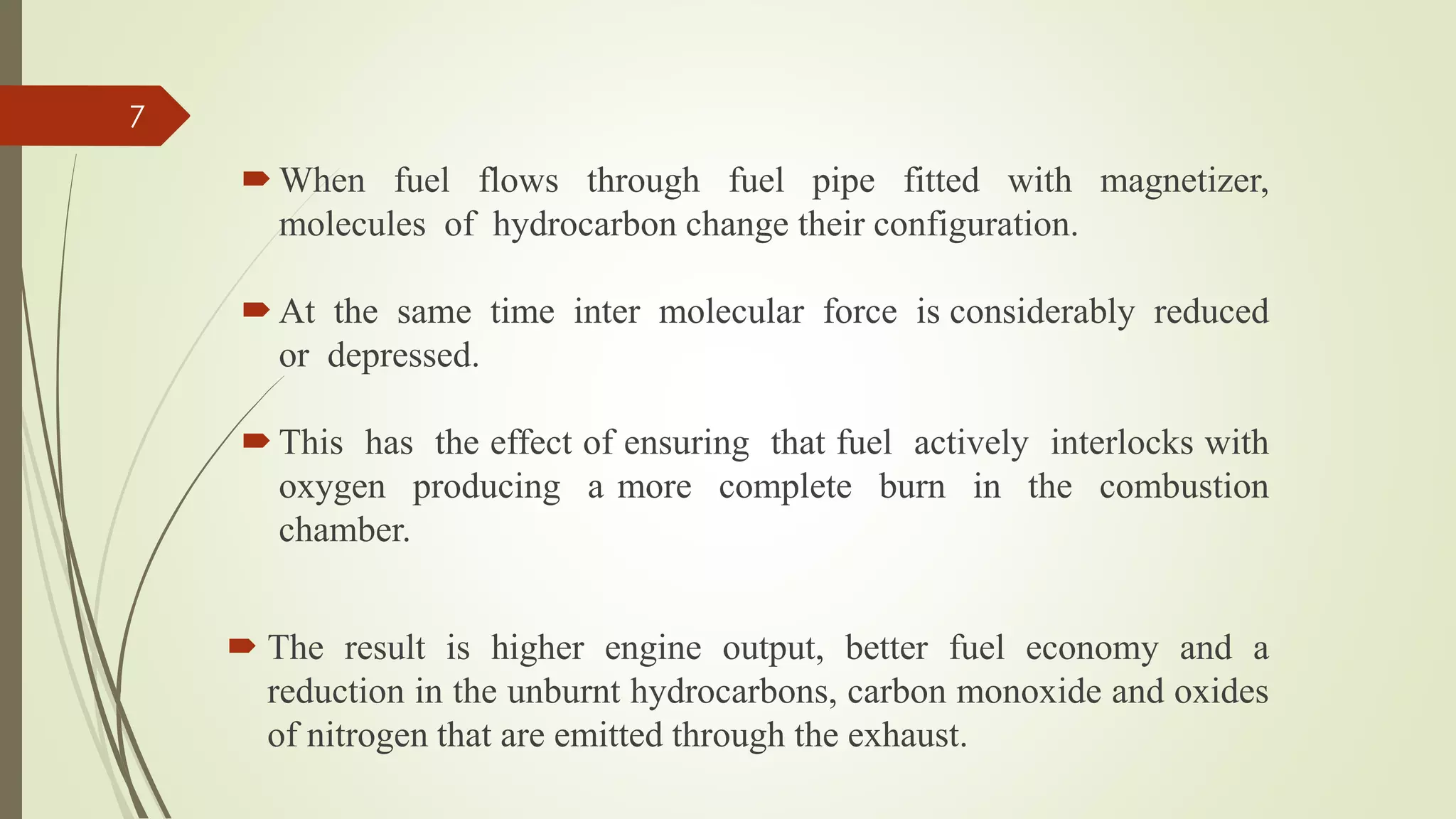

7.  When fuel flows through fuel pipe fitted with magnetizer,
molecules of hydrocarbon change their configuration.
 At the same time inter molecular force is considerably reduced
or depressed.
 This has the effect of ensuring that fuel actively interlocks with
oxygen producing a more complete burn in the combustion
chamber.
 The result is higher engine output, better fuel economy and a
reduction in the unburnt hydrocarbons, carbon monoxide and oxides
of nitrogen that are emitted through the exhaust.
7

8. EFFECT OF MAGNETIC FIELD ON FUEL STRUCTURE
 When the fuel passes through a magnetic field, created by the strong
permanent magnets, due to that magnetic field hydrocarbon change
their orientation and convert from para state to ortho state.
 These two forms are characterized by the different opposite nucleus
spins.
 The ortho state can be achieved by applying strong magnetic field
along the fuel line.
 In the para Hydrogen molecule, which occupies the anti-parallel
rotation, the spin state of one atom relative to another is in the
opposite direction, therefore it is diamagnetic.
 In the ortho molecule, which occupies the parallel rotational levels,
the spin state of one atom relative to another is in the same direction,
therefore it is paramagnetic.
8

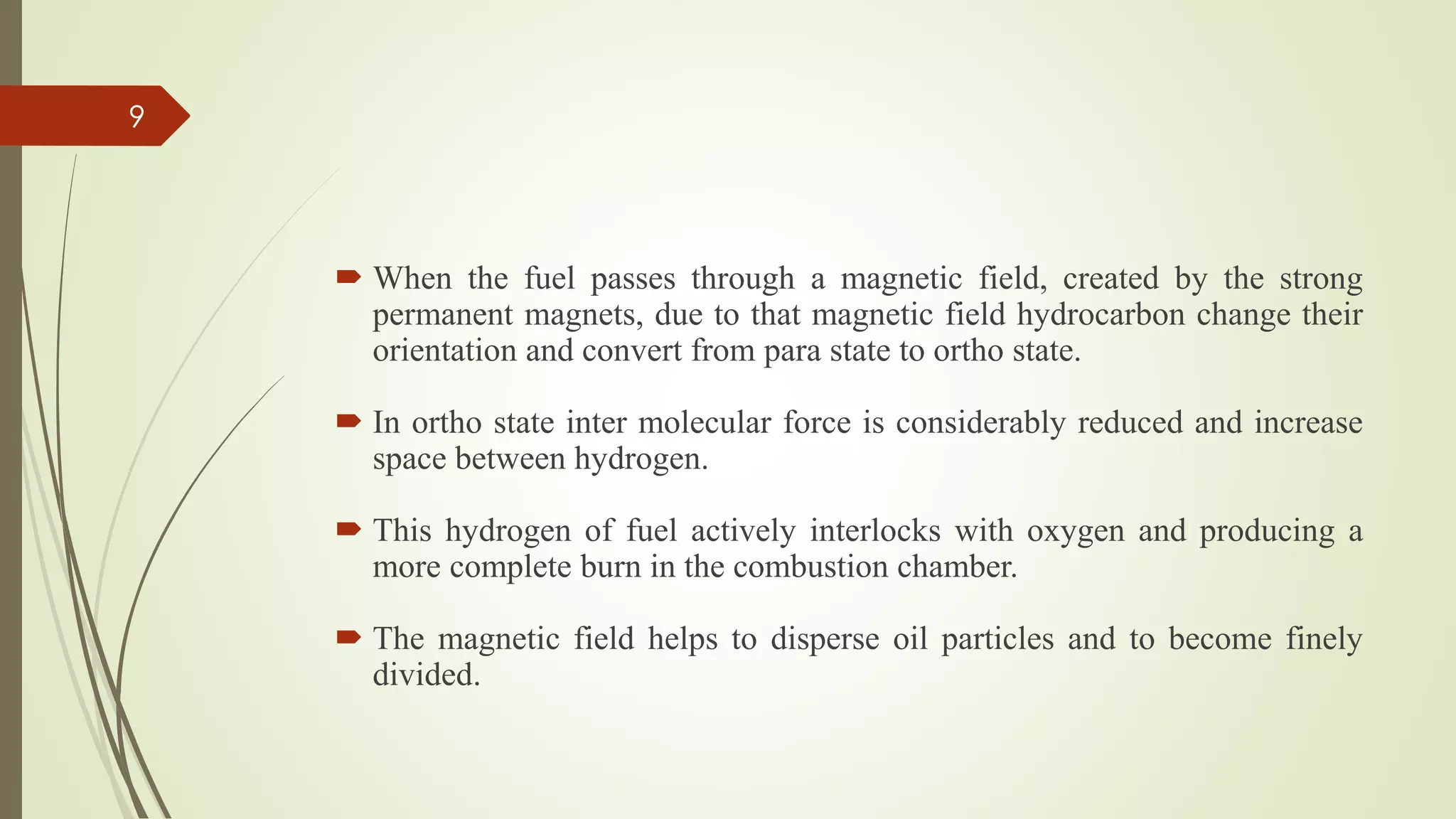

9.  When the fuel passes through a magnetic field, created by the strong
permanent magnets, due to that magnetic field hydrocarbon change their
orientation and convert from para state to ortho state.
 In ortho state inter molecular force is considerably reduced and increase
space between hydrogen.
 This hydrogen of fuel actively interlocks with oxygen and producing a
more complete burn in the combustion chamber.
 The magnetic field helps to disperse oil particles and to become finely
divided.
9

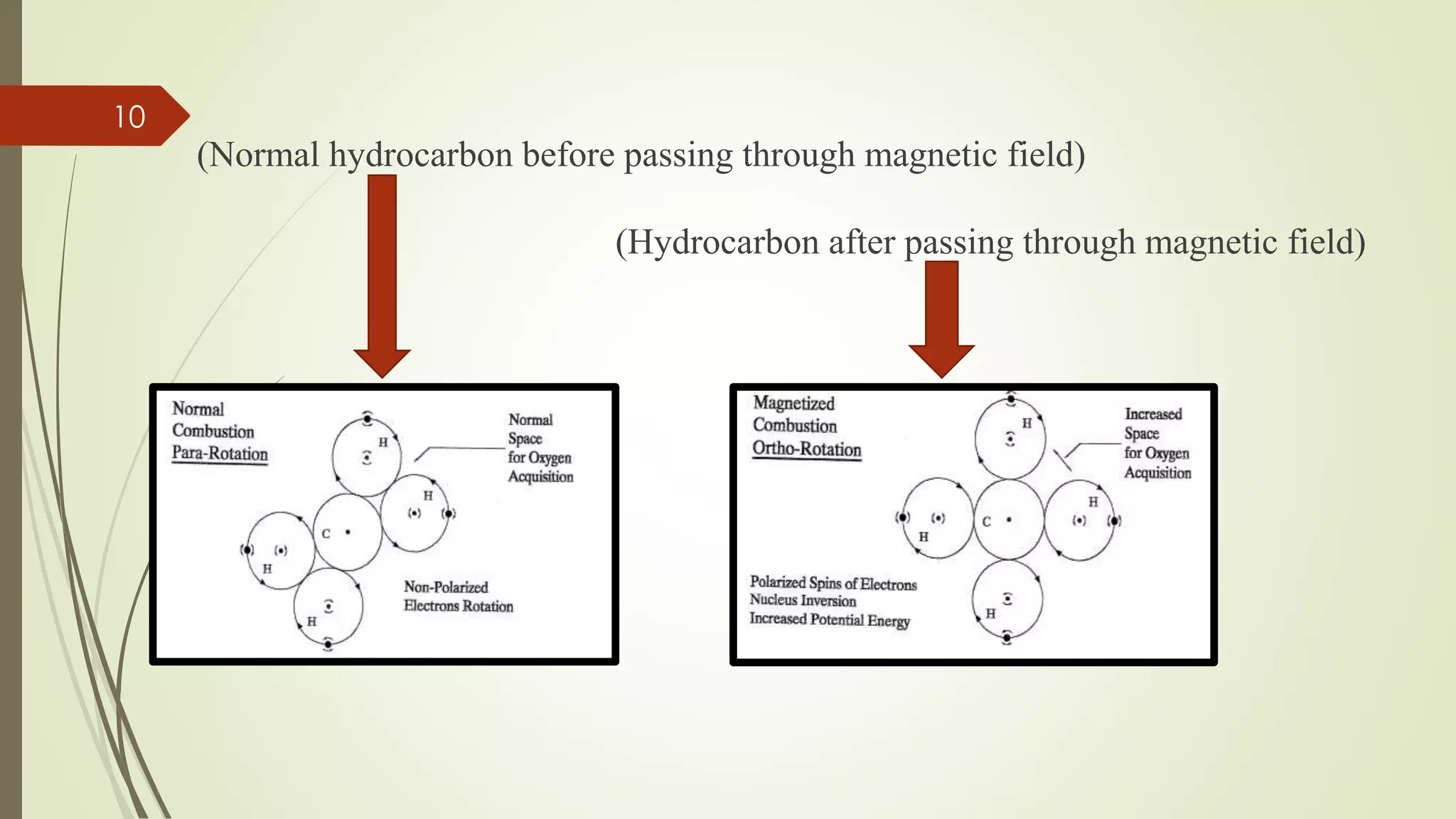

10. (Normal hydrocarbon before passing through magnetic field)
(Hydrocarbon after passing through magnetic field)
10

11. 11

12. 12 PARAMETER OF FUEL ENERGIZER
η = f(α, β, γ, δ,ρ)
Where
η = fuel efficiency using fuel energizer
α = installation position of fuel energizer
β = length of F.E. device
γ = Selection of permanent magnet
δ = Magnetic strength
ρ = diameter of F.E. device
Magnetizer
Fuel tank
Fuel line
Carburetor
Engine

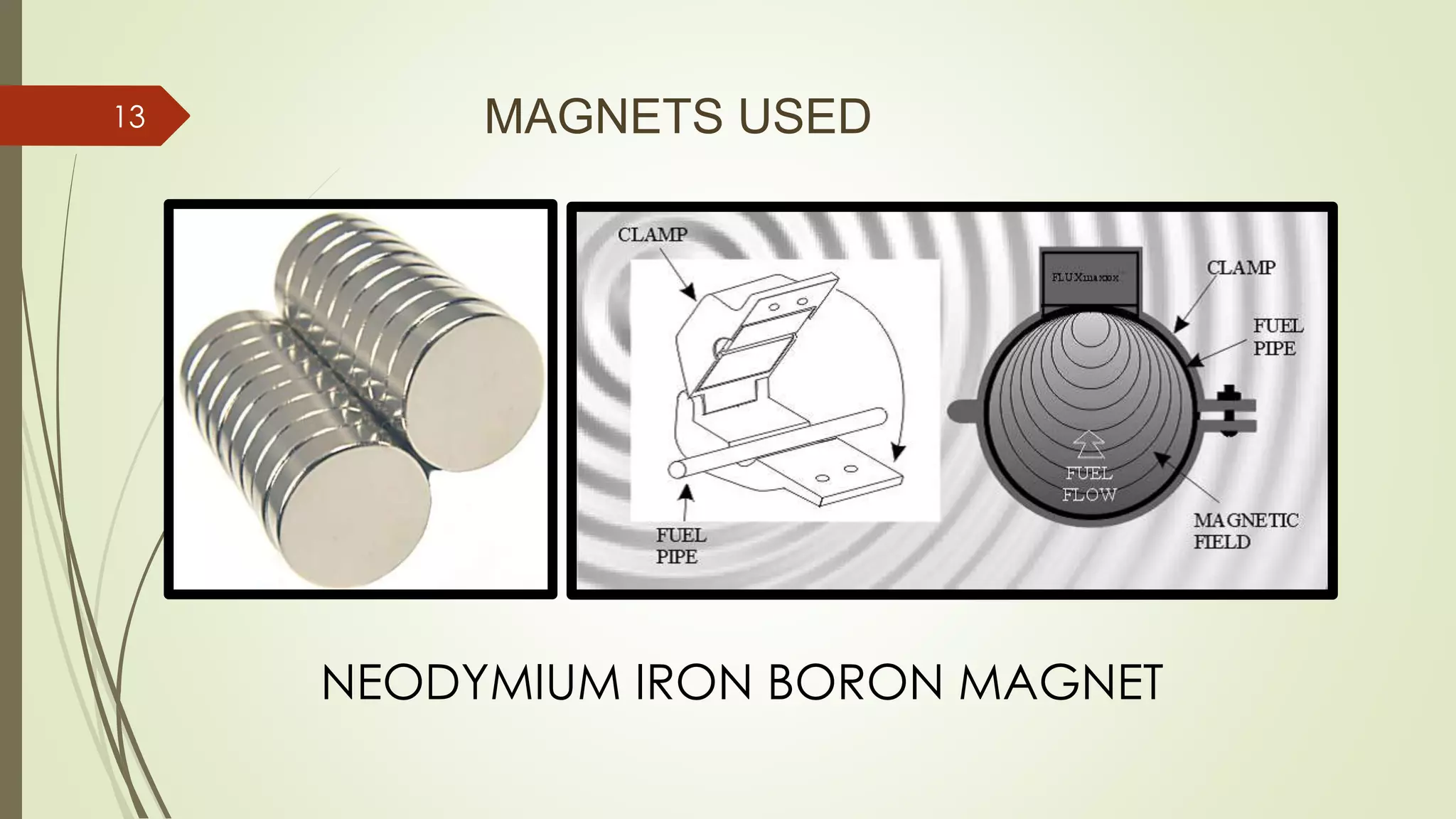

13. MAGNETS USED
NEODYMIUM IRON BORON MAGNET
13

14. MAGNETS USED
 A neodymium magnet (also known as Neo magnet) is a type of rare
earth magnet.
 Permanent magnet made from alloy of neodymium, iron and boron
to form Nd2Fe14B.
 It is tetragonal crystalline structure.
 It is the strongest type of permanent magnet having magnetic field
of 3000 gauss .
 The crystal structure has high uniaxial magneto crystalline
anisotropy. This gives the potential to have high coercivity.
14

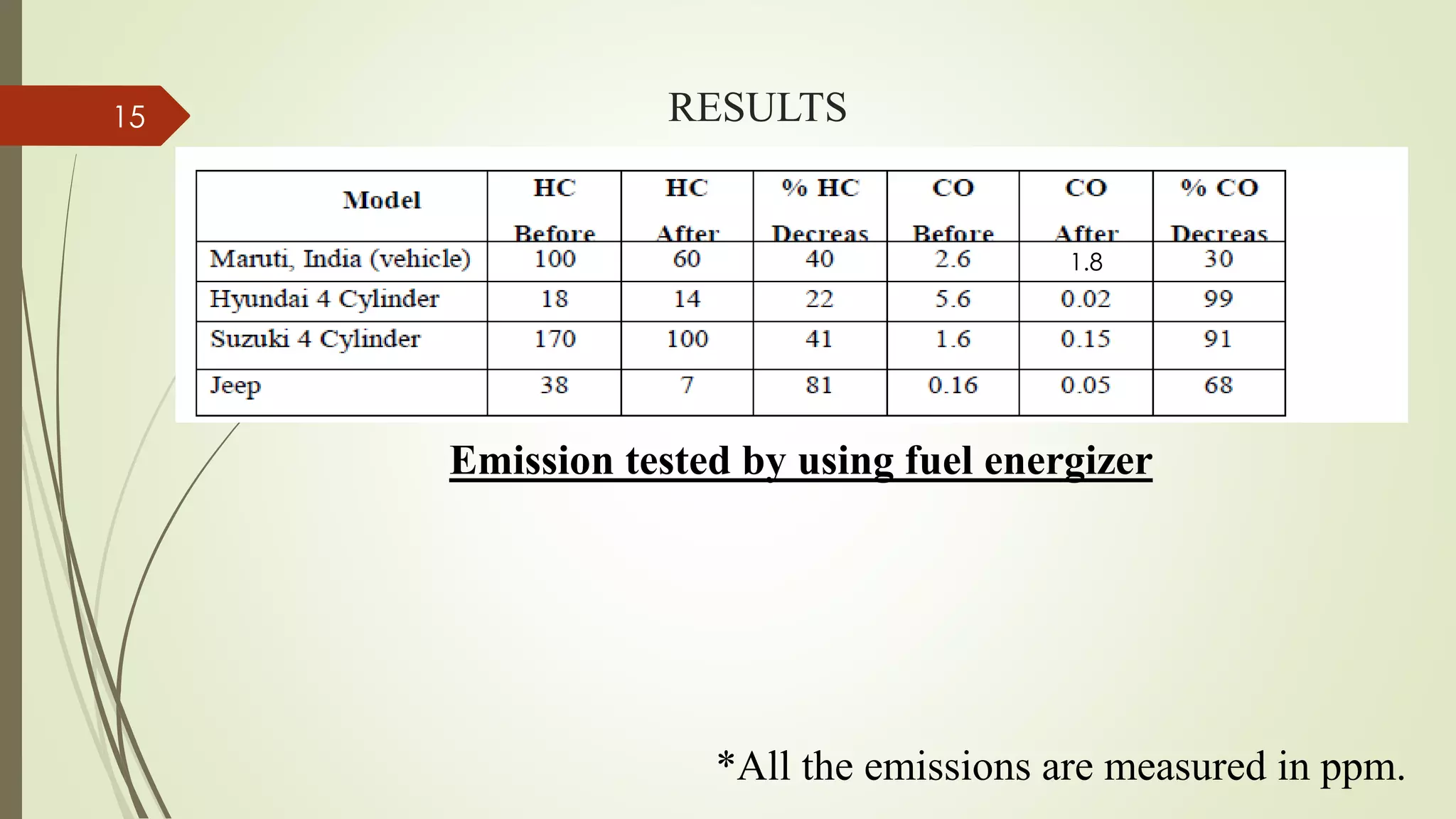

15. RESULTS
Emission tested by using fuel energizer
*All the emissions are measured in ppm.
1.8
15

16. 16
60002000 40000 8000 10000
1000
1100
1200
1300
1400
1500
1600
1700
1800
1900
Magnetic intensity (Gauss)
Fuelconsumption(ml)
--------- 5000 r.p.m
--------- 4500 r.p.m
--------- 3500 r.p.m

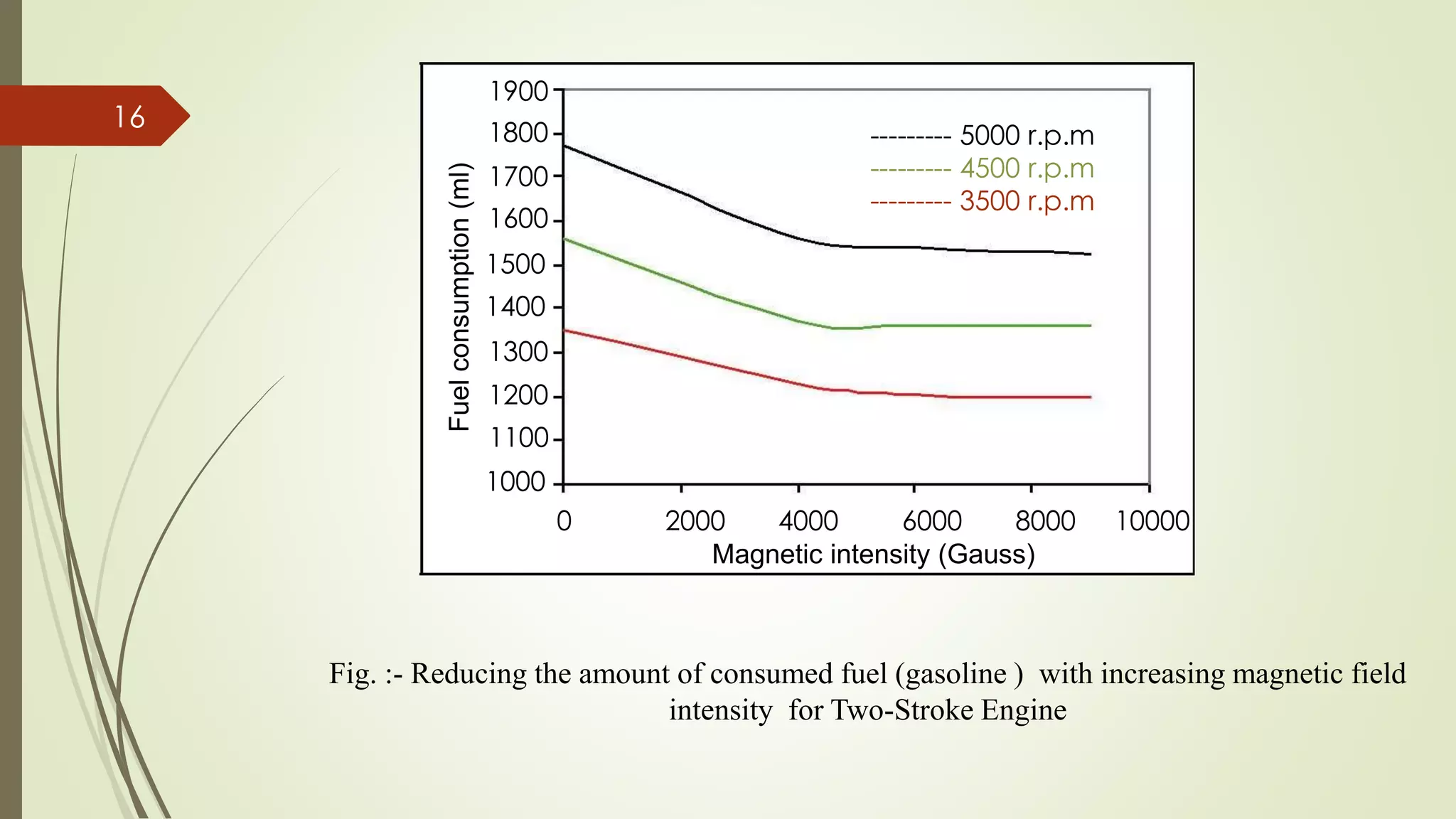

Fig. :- Reducing the amount of consumed fuel (gasoline ) with increasing magnetic field
intensity for Two-Stroke Engine

17. 17
COReduction%
60002000 40000 8000 10000
0
0.5
1
1.5
2
2.5
3
3.5
4
Magnetic intensity (Gauss)
--------- 5000 r.p.m
--------- 4500 r.p.m
--------- 3500 r.p.m

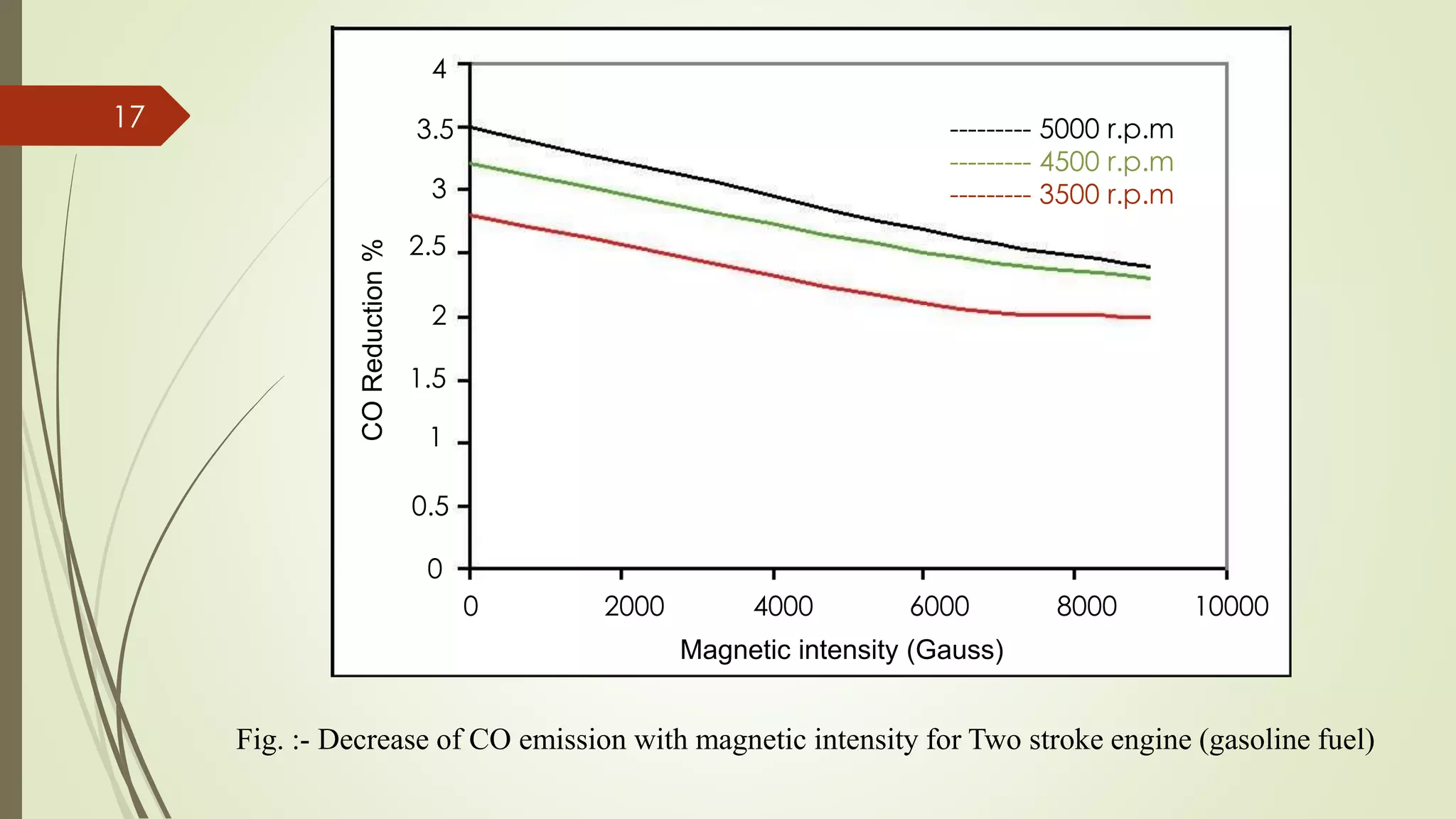

Fig. :- Decrease of CO emission with magnetic intensity for Two stroke engine (gasoline fuel)

18. 18
60002000 40000 8000 10000
0
0.5
1.5
2
2.5
3
3.5
4
4.5
Magnetic intensity (Gauss)
--------- 5000 r.p.m
--------- 4500 r.p.m
--------- 3500 r.p.m
1
CO2increase%

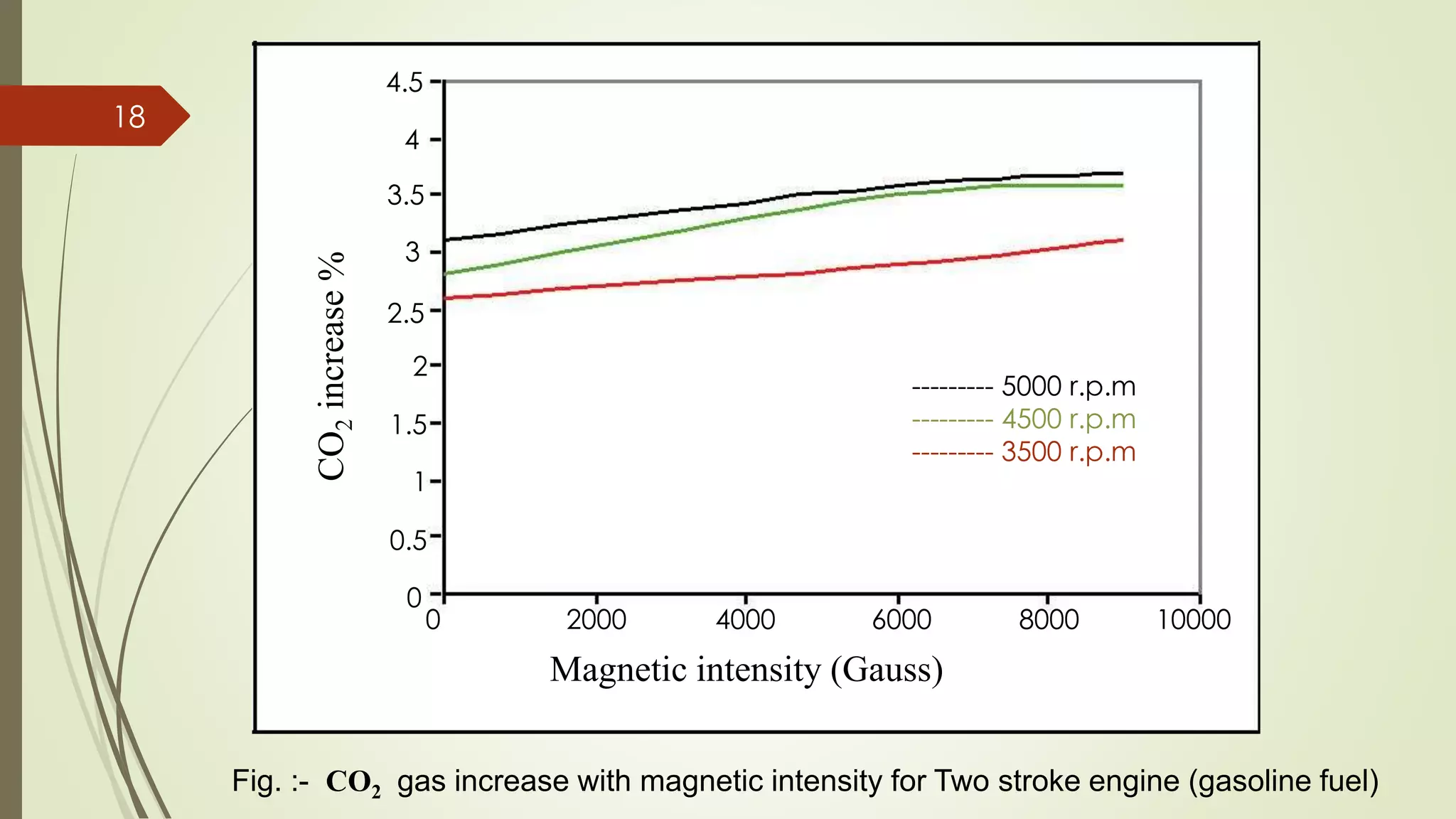

Fig. :- CO2 gas increase with magnetic intensity for Two stroke engine (gasoline fuel)

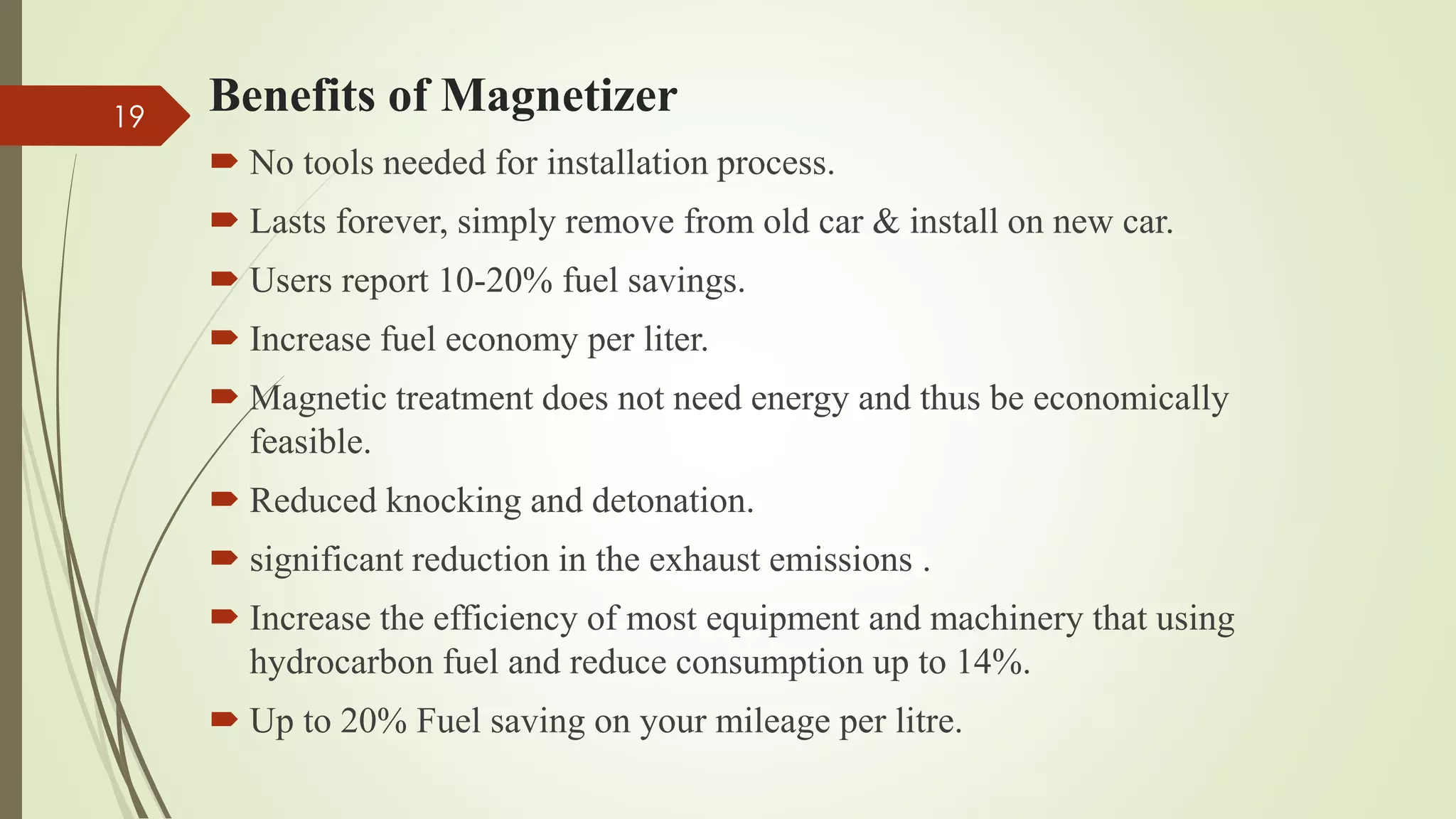

19. Benefits of Magnetizer
 No tools needed for installation process.
 Lasts forever, simply remove from old car & install on new car.
 Users report 10-20% fuel savings.
 Increase fuel economy per liter.
 Magnetic treatment does not need energy and thus be economically
feasible.
 Reduced knocking and detonation.
 significant reduction in the exhaust emissions .
 Increase the efficiency of most equipment and machinery that using
hydrocarbon fuel and reduce consumption up to 14%.
 Up to 20% Fuel saving on your mileage per litre.
19

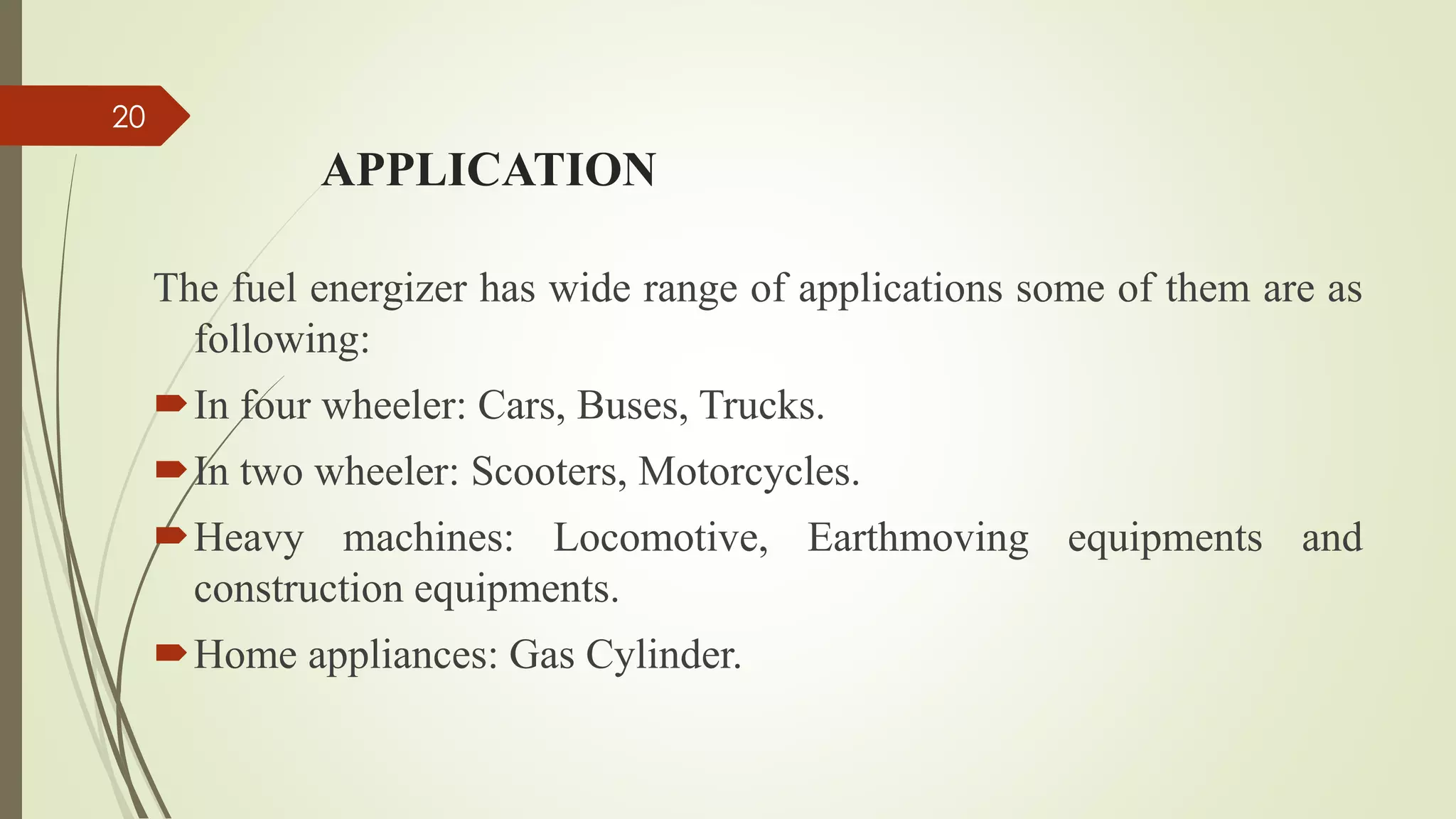

20. APPLICATION
The fuel energizer has wide range of applications some of them are as
following:
In four wheeler: Cars, Buses, Trucks.
In two wheeler: Scooters, Motorcycles.
Heavy machines: Locomotive, Earthmoving equipments and
construction equipments.
Home appliances: Gas Cylinder.
20

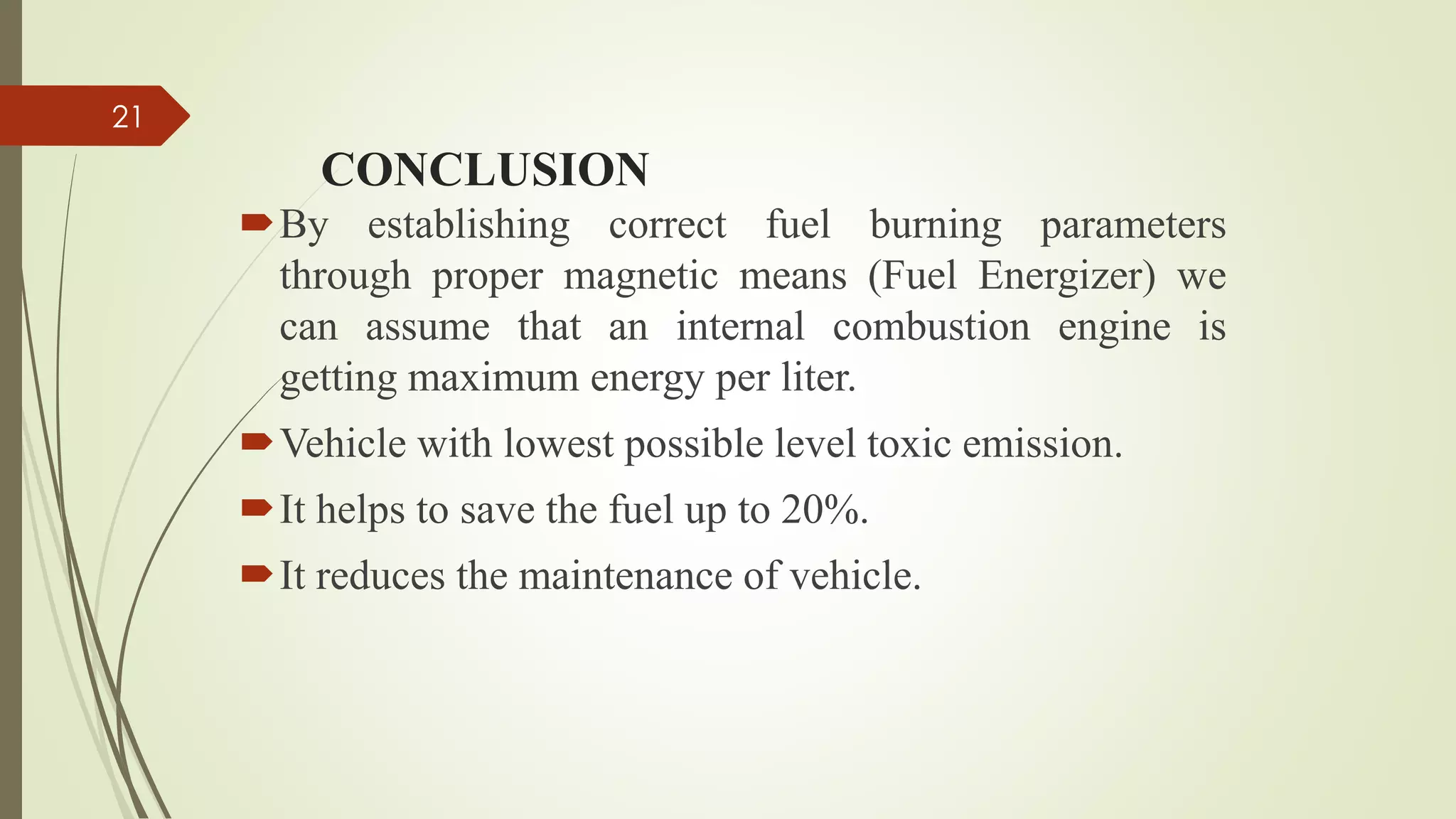

21. CONCLUSION
By establishing correct fuel burning parameters
through proper magnetic means (Fuel Energizer) we
can assume that an internal combustion engine is
getting maximum energy per liter.
Vehicle with lowest possible level toxic emission.
It helps to save the fuel up to 20%.
It reduces the maintenance of vehicle.
21

22. THANK YOU
