ELECTROMAGNETIC BRAKES

1. Deepak Kumar
+91-8950783197

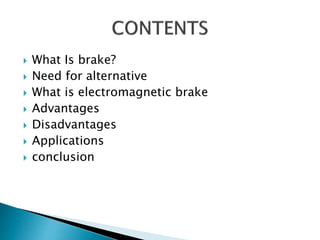

3.  What Is brake?
 Need for alternative
 What is electromagnetic brake
 Advantages
 Disadvantages
 Applications
 conclusion

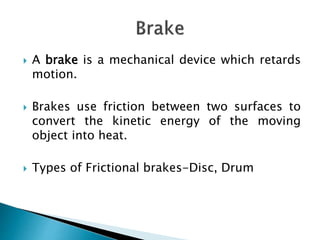

4.  A brake is a mechanical device which retards
motion.
 Brakes use friction between two surfaces to
convert the kinetic energy of the moving
object into heat.

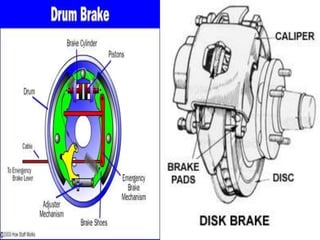

 Types of Frictional brakes-Disc, Drum

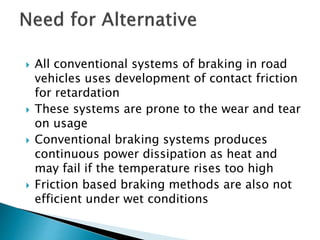

6.  All conventional systems of braking in road
vehicles uses development of contact friction
for retardation
 These systems are prone to the wear and tear
on usage
 Conventional braking systems produces
continuous power dissipation as heat and
may fail if the temperature rises too high
 Friction based braking methods are also not
efficient under wet conditions

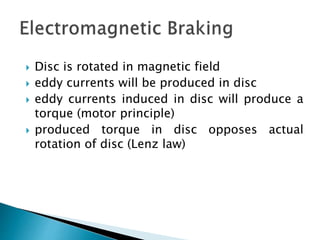

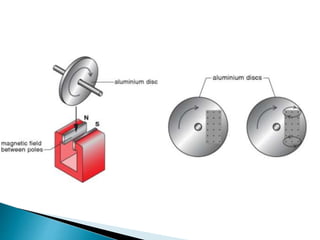

7.  Disc is rotated in magnetic field
 eddy currents will be produced in disc
 eddy currents induced in disc will produce a
torque (motor principle)
 produced torque in disc opposes actual
rotation of disc (Lenz law)

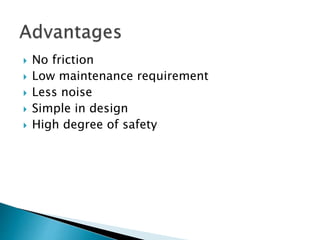

9.  No friction
 Low maintenance requirement
 Less noise
 Simple in design
 High degree of safety

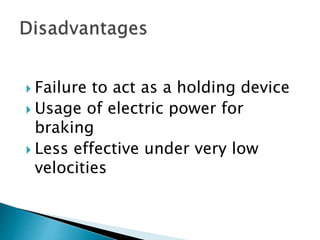

10.  Failure to act as a holding device
 Usage of electric power for
braking
 Less effective under very low
velocities

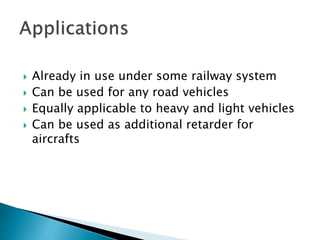

11.  Already in use under some railway system
 Can be used for any road vehicles
 Equally applicable to heavy and light vehicles
 Can be used as additional retarder for
aircrafts

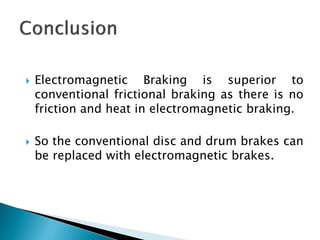

12.  Electromagnetic Braking is superior to
conventional frictional braking as there is no
friction and heat in electromagnetic braking.
 So the conventional disc and drum brakes can
be replaced with electromagnetic brakes.
