The document discusses Flynn's taxonomy for classifying computer architectures based on the number of instruction streams and data streams. It describes the four classifications: SISD (single instruction, single data), SIMD (single instruction, multiple data), MISD (multiple instruction, single data), and MIMD (multiple instruction, multiple data). SISD refers to classical von Neumann architectures that execute one instruction on individual data sequentially. SIMD executes a single instruction on multiple data values in parallel using multiple processors. MIMD allows different programs to execute different instructions on different data simultaneously using multiple processors.

1. Flynn’s Classification
UNIT-5
Hamidul Islam
Roll-1654510006
2nd year , CSE branch
JET, Barabanki
Hami
dul

2. Flynn’s Classification of Computer
Architecture
 In 1996, Michel Flynn proposed a classification for computer architectures
based on the number of instruction steams and data steams (Flynn’s
Taxonomy).
 Flynn’s uses the steam concept for describing a machine’s structures.
 A steam simply means a sequence of items (data or instructions).
17-11-2017 HAMIDUL ISLAM JETGI 2

3. Flynn’s Taxonomy
 SISD: Single Instruction Single Data
---Classical von Neuman Architecture
 SIMD: Single Instruction Multiple Data
 MISD: Multiple instruction Single Data
---Non existent, just listed for completenes
 MIMD: Multiple Instruction Multiple Data
---Most common and general parallel machine
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 3

4. Data Stream
Instruction Signal
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 4

5. SISD
Control Unit tProcessors Memory
IS DS
IS
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 6

6. SISD
 SISD machines executes a signal instruction on individual data
values using a single processor.
 Instructions are executed sequentially or serially, one step
after the next.
 Until most recently, most computers are of SISD type.
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 7

7. SIMD
Control Unit
Processor
Processor
Memory
IS
DS
DS
IS
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 9

8. SIMD
 An SIMD machine executes a single instruction on multiple data values
using many processors.
 SIMD architectures include array processors.
 Instruction but on different set of data; hence the name SIMD.
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 10

9. MIMD
Control
unit
Control
unit
Processor
Processor
Memo
ry
IS
IS
IS
DS
DS
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 12

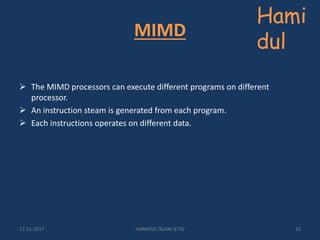

10. MIMD
 The MIMD processors can execute different programs on different
processor.
 An instruction steam is generated from each program.
 Each instructions operates on different data.
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 13

11. MISD
Control
unit
Control
unit
Processor
Processor
Memo
ry
IS
IS
IS
DS
DS
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 15

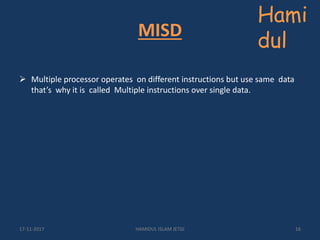

12. MISD
 Multiple processor operates on different instructions but use same data
that’s why it is called Multiple instructions over single data.
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 16

13. Analogy of Flynn’s Classifications
 An analogy of Flynn’s classification is the check-in desk at an airport.
SISD: a single desk
SIMD: Many desk and a supervisor with a megaphone giving
instructions that every desk obey.
MIMD: Many desk working at their own pace, synchronized
through a central database.
Hami
dul
17-11-2017 HAMIDUL ISLAM JETGI 17

14. .....................................................
THANK YOU!
ANY QUERY
....................................................
17-11-2017 HAMIDUL ISLAM JETGI 18
