This document summarizes a presentation on using Flow Builder with Aura components. The presentation covers advantages of using Flow and Aura together, how to retrieve records using SOQL in Flow, exposing attributes in Flow Builder using design attributes, and an example of building an Aura component to customize a Flow screen and pass record data between the Flow and component. The presentation includes demos of building a Flow with an Aura component that dynamically displays contact fields based on a selected account record.

1. Salesforce Admin Group, Trichy
Flow Builder with Aura

2. Kadhar Basha J
Salesforce Admin Group, Trichy
Trailblazer Community Group Leader
Sundaravel J
Salesforce Admin Group, Trichy
Trailblazer Community Group Co-Leader
Salesforce Admin Group, Trichy

3. Salesforce Admin Group, Trichy
Speaker
Kadhar Basha J

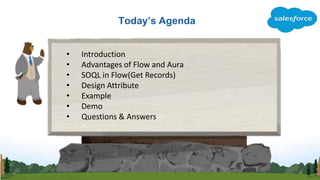

4. Today’s Agenda
• Introduction
• Advantages of Flow and Aura
• SOQL in Flow(Get Records)
• Design Attribute
• Example
• Demo
• Questions & Answers

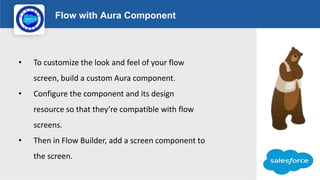

5. Flow with Aura Component
Logo
• To customize the look and feel of your flow
screen, build a custom Aura component.
• Configure the component and its design
resource so that they’re compatible with flow
screens.
• Then in Flow Builder, add a screen component to
the screen.

6. Features
Logo
• Configure Components for Flow Screens
• Control Flow Navigation from an Aura Component
• Customize the Flow Header with an Aura Component
• Dynamically Update a Flow Screen with an Aura Component

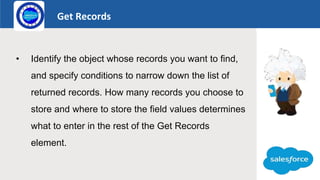

7. Get Records
Logo
• Identify the object whose records you want to find,
and specify conditions to narrow down the list of
returned records. How many records you choose to
store and where to store the field values determines
what to enter in the rest of the Get Records
element.

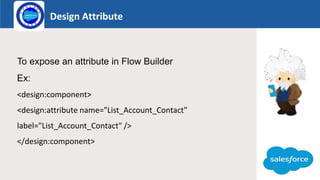

8. Design Attribute
Logo
To expose an attribute in Flow Builder
Ex:
<design:component>
<design:attribute name="List_Account_Contact"
label="List_Account_Contact" />
</design:component>

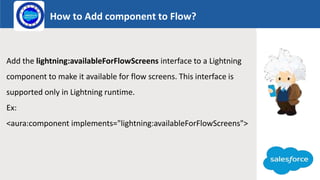

9. How to Add component to Flow?
Logo
Add the lightning:availableForFlowScreens interface to a Lightning
component to make it available for flow screens. This interface is
supported only in Lightning runtime.
Ex:
<aura:component implements="lightning:availableForFlowScreens">

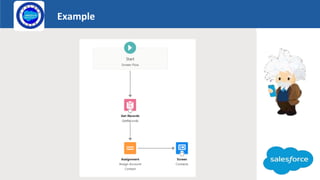

10. Example
Logo

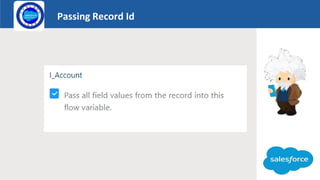

11. Passing Record Id
Logo

12. Flow in Record Page
Logo

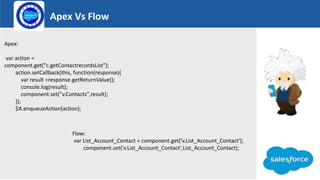

13. Apex Vs Flow
Logo
Apex:
var action =
component.get("c.getContactrecordsList");
action.setCallback(this, function(response){
var result =response.getReturnValue();
console.log(result);
component.set("v.Contacts",result);
});
$A.enqueueAction(action);
Flow:
var List_Account_Contact = component.get('v.List_Account_Contact');
component.set('v.List_Account_Contact',List_Account_Contact);

14. Component
Logo
<aura:component implements="lightning:availableForFlowScreens" access="global" >
<aura:attribute name="List_Account_Contact" type="Contact[]" default="[]" access="global"/>
<aura:attribute name="Email" type="String" />
<aura:attribute name="MobilePhone" type="String" />
<aura:handler name="init" value="{!this}" action="{!c.doinit}" />

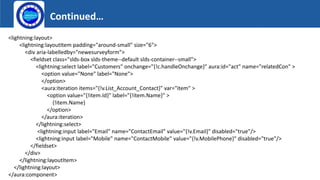

15. Continued…
Logo
<lightning:layout>
<lightning:layoutItem padding="around-small" size="6">
<div aria-labelledby="newesurveyform">
<fieldset class="slds-box slds-theme--default slds-container--small">
<lightning:select label="Customers" onchange="{!c.handleOnchange}" aura:id="act" name="relatedCon" >
<option value="None" label="None">
</option>
<aura:iteration items="{!v.List_Account_Contact}" var="item" >
<option value="{!item.Id}" label="{!item.Name}" >
{!item.Name}
</option>
</aura:iteration>
</lightning:select>
<lightning:input label="Email" name="ContactEmail" value="{!v.Email}" disabled="true"/>
<lightning:input label="Mobile" name="ContactMobile" value="{!v.MobilePhone}" disabled="true"/>
</fieldset>
</div>
</lightning:layoutItem>
</lightning:layout>
</aura:component>

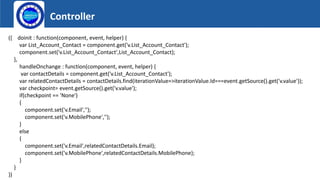

16. Controller
Logo
({ doinit : function(component, event, helper) {
var List_Account_Contact = component.get('v.List_Account_Contact');
component.set('v.List_Account_Contact',List_Account_Contact);
},
handleOnchange : function(component, event, helper) {
var contactDetails = component.get('v.List_Account_Contact');
var relatedContactDetails = contactDetails.find(iterationValue=>iterationValue.Id===event.getSource().get('v.value'));
var checkpoint= event.getSource().get('v.value');
if(checkpoint == 'None')
{
component.set('v.Email','');
component.set('v.MobilePhone','');
}
else
{
component.set('v.Email',relatedContactDetails.Email);
component.set('v.MobilePhone',relatedContactDetails.MobilePhone);
}
}
})

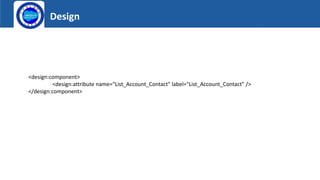

17. Design
Logo
<design:component>
<design:attribute name="List_Account_Contact" label="List_Account_Contact" />
</design:component>

18. Launch
DEMO
