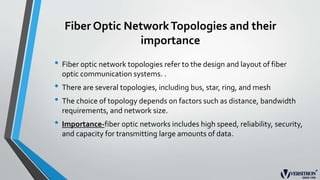

2. Fiber Optic NetworkTopologies and their
importance
• Fiber optic network topologies refer to the design and layout of fiber
optic communication systems. .
• There are several topologies, including bus, star, ring, and mesh
• The choice of topology depends on factors such as distance, bandwidth
requirements, and network size.
• Importance-fiber optic networks includes high speed, reliability, security,
and capacity for transmitting large amounts of data.
3. Essential components in these networks.
Essential components in modern computer networks include hardware and
software components such as routers, switches, servers, firewalls, and protocols
likeTCP/IP.
• These components work together to enable
data communication and transfer across
different devices and networks. Extrinsic
Factors
• Understanding these components is crucial for
troubleshooting and configuring networks as
well as for securing them against cyber
threats. Fiber Length and Cable Quality
4. NetworkTopologies

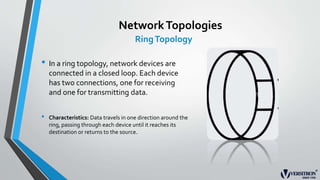

RingTopology
• In a ring topology, network devices are
connected in a closed loop. Each device
has two connections, one for receiving
and one for transmitting data.
• Characteristics: Data travels in one direction around the
ring, passing through each device until it reaches its
destination or returns to the source.
5. NetworkTopologies

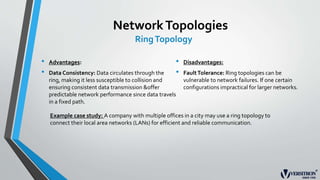

RingTopology
• Advantages:
• Data Consistency: Data circulates through the
ring, making it less susceptible to collision and
ensuring consistent data transmission &offer
predictable network performance since data travels
in a fixed path.
• Disadvantages:
• FaultTolerance: Ring topologies can be
vulnerable to network failures. If one certain
configurations impractical for larger networks.
Example case study: A company with multiple offices in a city may use a ring topology to
connect their local area networks (LANs) for efficient and reliable communication.
6. NetworkTopologies
StarTopology
• In a star topology, all network devices are
connected to a central switch or hub.The
central switch or hub acts as a "star" with
all devices connecting to it.
• Characteristics: If one connection fails, it does not
affect the other devices, as they have independent links
to the hub.
7. NetworkTopologies

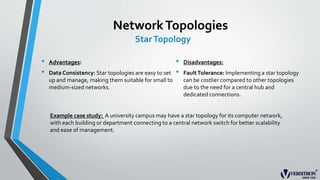

StarTopology
• Advantages:
• Data Consistency: Star topologies are easy to set
up and manage, making them suitable for small to
medium-sized networks.
• Disadvantages:
• FaultTolerance: Implementing a star topology
can be costlier compared to other topologies
due to the need for a central hub and
dedicated connections.
Example case study: A university campus may have a star topology for its computer network,
with each building or department connecting to a central network switch for better scalability
and ease of management.
8. NetworkTopologies

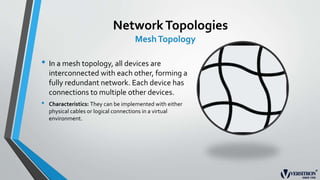

MeshTopology
• In a mesh topology, all devices are
interconnected with each other, forming a
fully redundant network. Each device has
connections to multiple other devices.
• Characteristics: They can be implemented with either
physical cables or logical connections in a virtual
environment.
9. NetworkTopologies

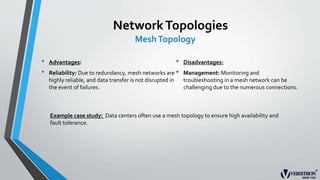

MeshTopology
• Advantages:
• Reliability: Due to redundancy, mesh networks are
highly reliable, and data transfer is not disrupted in
the event of failures.
• Disadvantages:
• Management: Monitoring and
troubleshooting in a mesh network can be
challenging due to the numerous connections.
Example case study: Data centers often use a mesh topology to ensure high availability and
fault tolerance.

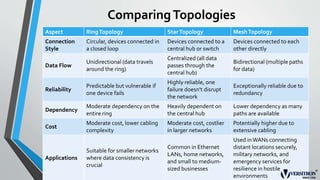

10. Aspect RingTopology StarTopology MeshTopology
Connection
Style
Circular, devices connected in
a closed loop
Devices connected to a
central hub or switch
Devices connected to each
other directly
Data Flow
Unidirectional (data travels
around the ring)
Centralized (all data
passes through the
central hub)
Bidirectional (multiple paths
for data)
Reliability
Predictable but vulnerable if
one device fails
Highly reliable, one
failure doesn't disrupt
the network
Exceptionally reliable due to
redundancy
Dependency
Moderate dependency on the
entire ring
Heavily dependent on
the central hub
Lower dependency as many
paths are available
Cost
Moderate cost, lower cabling
complexity
Moderate cost, costlier
in larger networks
Potentially higher due to
extensive cabling
Applications
Suitable for smaller networks
where data consistency is
crucial
Common in Ethernet
LANs, home networks,
and small to medium-
sized businesses
Used inWANs connecting
distant locations securely,
military networks, and
emergency services for
resilience in hostile
environments
ComparingTopologies

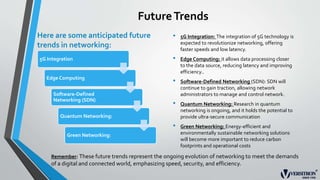

11. FutureTrends
Here are some anticipated future
trends in networking:
5G Integration
Edge Computing
Software-Defined
Networking (SDN)
Quantum Networking:
Green Networking:
• 5G Integration: The integration of 5G technology is
expected to revolutionize networking, offering
faster speeds and low latency.
• Edge Computing: it allows data processing closer
to the data source, reducing latency and improving
efficiency..
• Software-Defined Networking (SDN): SDN will
continue to gain traction, allowing network
administrators to manage and control network.
• Quantum Networking: Research in quantum
networking is ongoing, and it holds the potential to
provide ultra-secure communication
• Green Networking: Energy-efficient and
environmentally sustainable networking solutions
will become more important to reduce carbon
footprints and operational costs
Remember: These future trends represent the ongoing evolution of networking to meet the demands
of a digital and connected world, emphasizing speed, security, and efficiency.
12. Conclusion
• we've explored the fascinating world of fiber optic network topologies, including
the Ring, Star, and Mesh configurations. Here atVersitron, we understand the
significance of reliability, speed, and adaptability in the world of fiber optic
networking.
• Whether you're building a ring network with consistent data flow or a star
network for simplicity and reliability, or a mesh network for ultimate fault
tolerance,Versitron's solutions are your dependable companions in this journey.
• You can be assured of quality by sourcing your devices and cables from trusted
manufacturers likeVERSITRON.
• The company provides fiber optic devices such as fiber optic network switches,
high definition transmitters and receivers, fiber optic media converters, video
distribution amplifiers, and CCTV fiber optic video kits.
