The document provides an overview of various types of surgical scalpels offered by Feather, focused primarily on ophthalmic surgery, including the features and benefits of each type. It highlights the quality and consistency of the cutting instruments, detailing specifications like blade shape, angle, and handle materials across different scalpel types such as phaco, MVR, paracentesis, and enlargement scalpels. Additionally, it outlines practical advantages such as optimal handling, safety features, and sterilization processes.

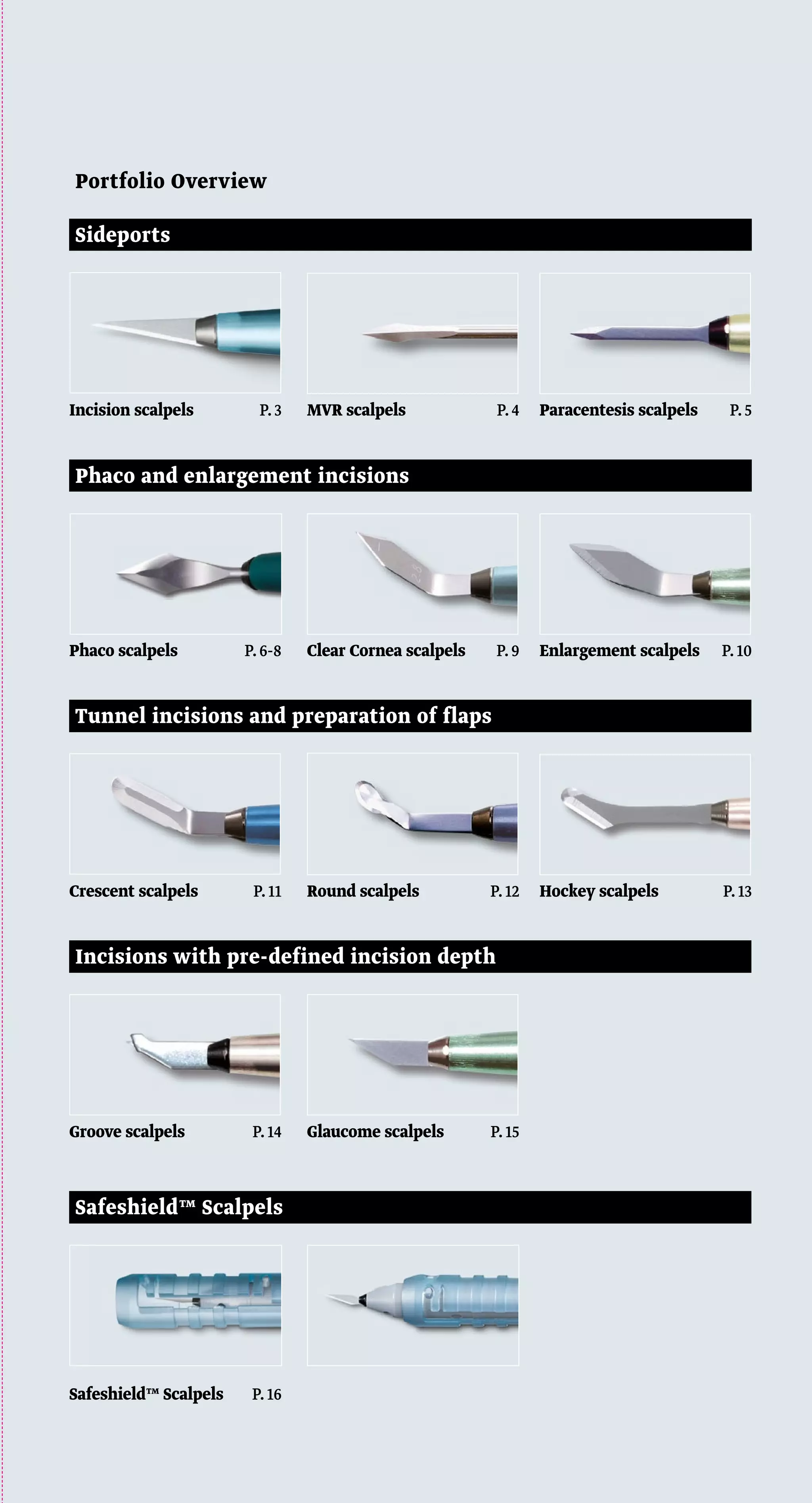

1. Portfolio Overview
Sideports
Phaco and enlargement incisions
Tunnel incisions and preparation of flaps
Incisions with pre-defined incision depth
Safeshield™ Scalpels
Quality and Experience
MICRO FEATHER®
‹ Sideports
‹ Phaco and enlargement
incisions
‹ Tunnel incisions and
preparation of flaps
‹ Incisions with pre-defined
incision depth
FEATHER® - World class in quality and
consistency for cutting instruments
www.pfmmedical.com
Incision scalpels P.3
Phaco scalpels P.6-8
Crescent scalpels P.11
Groove scalpels P.14
Safeshield™ Scalpels P.16
MVR scalpels P.4
Clear Cornea scalpels P.9
Round scalpels P.12
Glaucome scalpels P.15
Paracentesis scalpels P.5
Enlargement scalpels P.10
Hockey scalpels P.13

2. Portfolio Overview
Sideports
Phaco and enlargement incisions
Tunnel incisions and preparation of flaps
Incisions with pre-defined incision depth
Safeshield™ Scalpels
Quality and Experience
MICRO FEATHER®
‹ Sideports
‹ Phaco and enlargement
incisions
‹ Tunnel incisions and
preparation of flaps
‹ Incisions with pre-defined
incision depth
FEATHER® - World class in quality and
consistency for cutting instruments
www.pfmmedical.com
Incision scalpels P.3
Phaco scalpels P.6-8
Crescent scalpels P.11
Groove scalpels P.14
Safeshield™ Scalpels P.16
MVR scalpels P.4
Clear Cornea scalpels P.9
Round scalpels P.12
Glaucome scalpels P.15
Paracentesis scalpels P.5
Enlargement scalpels P.10
Hockey scalpels P.13

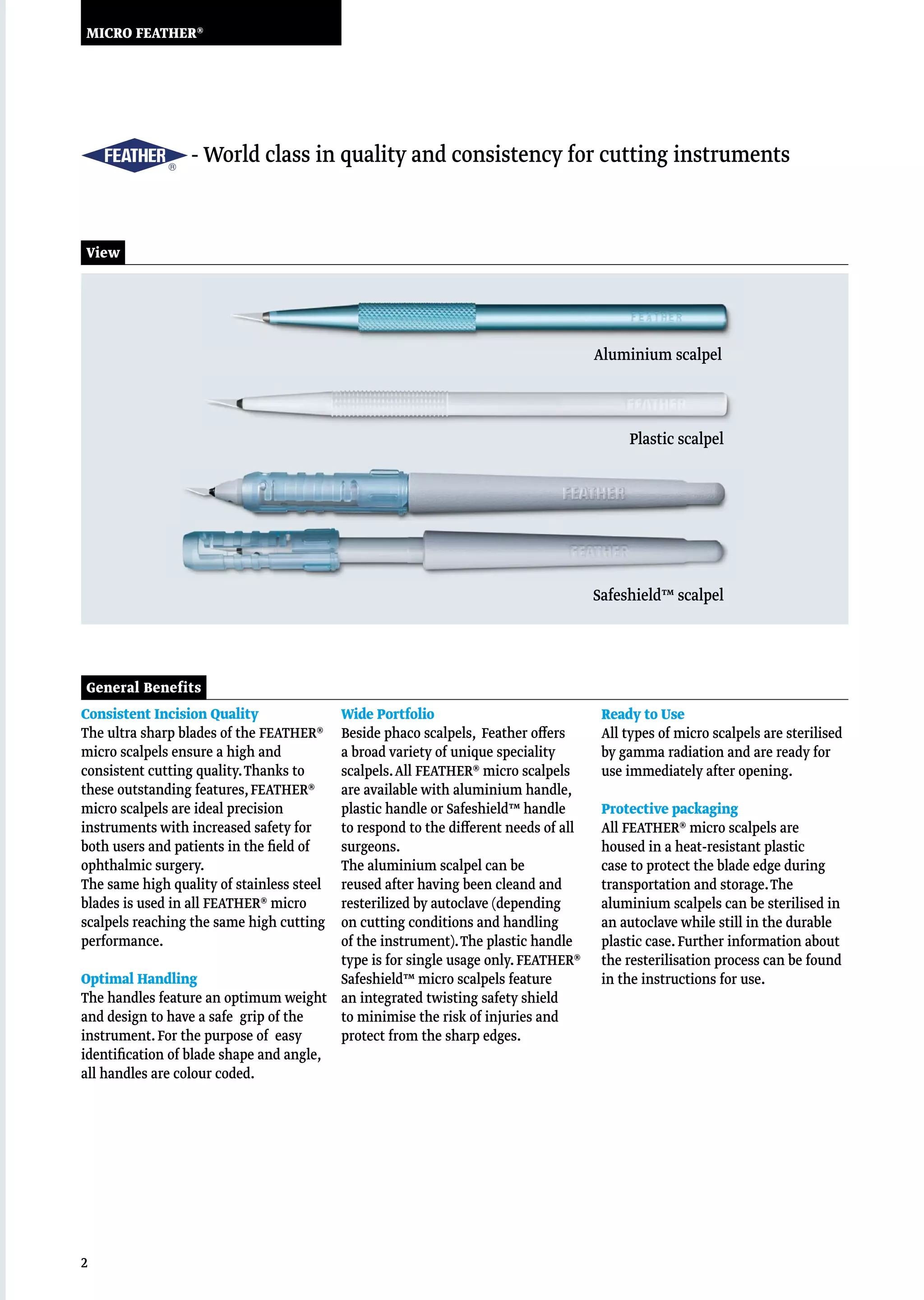

3. 2
MICRO FEATHER®
General Benefits
Consistent Incision Quality
The ultra sharp blades of the FEATHER®
micro scalpels ensure a high and
consistent cutting quality.Thanks to
these outstanding features,FEATHER®
micro scalpels are ideal precision
instruments with increased safety for
both users and patients in the field of
ophthalmic surgery.
The same high quality of stainless steel
blades is used in all FEATHER® micro
scalpels reaching the same high cutting
performance.
Optimal Handling
The handles feature an optimum weight
and design to have a safe grip of the
instrument.For the purpose of easy
identification of blade shape and angle,
all handles are colour coded.
Wide Portfolio
Beside phaco scalpels, Feather offers
a broad variety of unique speciality
scalpels.All FEATHER® micro scalpels
are available with aluminium handle,
plastic handle or Safeshield™ handle
to respond to the different needs of all
surgeons.
The aluminium scalpel can be
reused after having been cleand and
resterilized by autoclave (depending
on cutting conditions and handling
of the instrument).The plastic handle
type is for single usage only.FEATHER®
Safeshield™ micro scalpels feature
an integrated twisting safety shield
to minimise the risk of injuries and
protect from the sharp edges.
Ready to Use
All types of micro scalpels are sterilised
by gamma radiation and are ready for
use immediately after opening.
Protective packaging
All FEATHER® micro scalpels are
housed in a heat-resistant plastic
case to protect the blade edge during
transportation and storage.The
aluminium scalpels can be sterilised in
an autoclave while still in the durable
plastic case.Further information about
the resterilisation process can be found
in the instructions for use.
- World class in quality and consistency for cutting instruments
View
Safeshield™ scalpel
Plastic scalpel
Aluminium scalpel

4. 3
Sideports
The straight,ultra-sharp blades of the FEATHER® Incision scalpels are precisely honed in micro units for optimum incisions
of the sclera and cornea.
Incision Scalpels
View
Technical Data
▸ Blade angle: 0° to 45°
▸ Handle: aluminium handle,plastic handle and Safeshield™ handle
Ordering Information
Incision Scalpels › Aluminium handle › Plastic handle › Safeshield™ handle
Blade
shape
Blade
angle
Aluminium handle Plastic handle Safeshield™ handle
REF Type REF Type REF Type PU
0° 200300700 700 200200700 P-700 - - 5
15° 200300715 715 200200715 P-715 200800715 PSS-715 5
22.5° 200300722 722 200200722 P-722 200800722 PSS-722 5
30° 200300730 730 200200730 P-730 200800730 PSS-730 5
45° 200300745 745 200200745 P-745 200800745 PSS-745 5

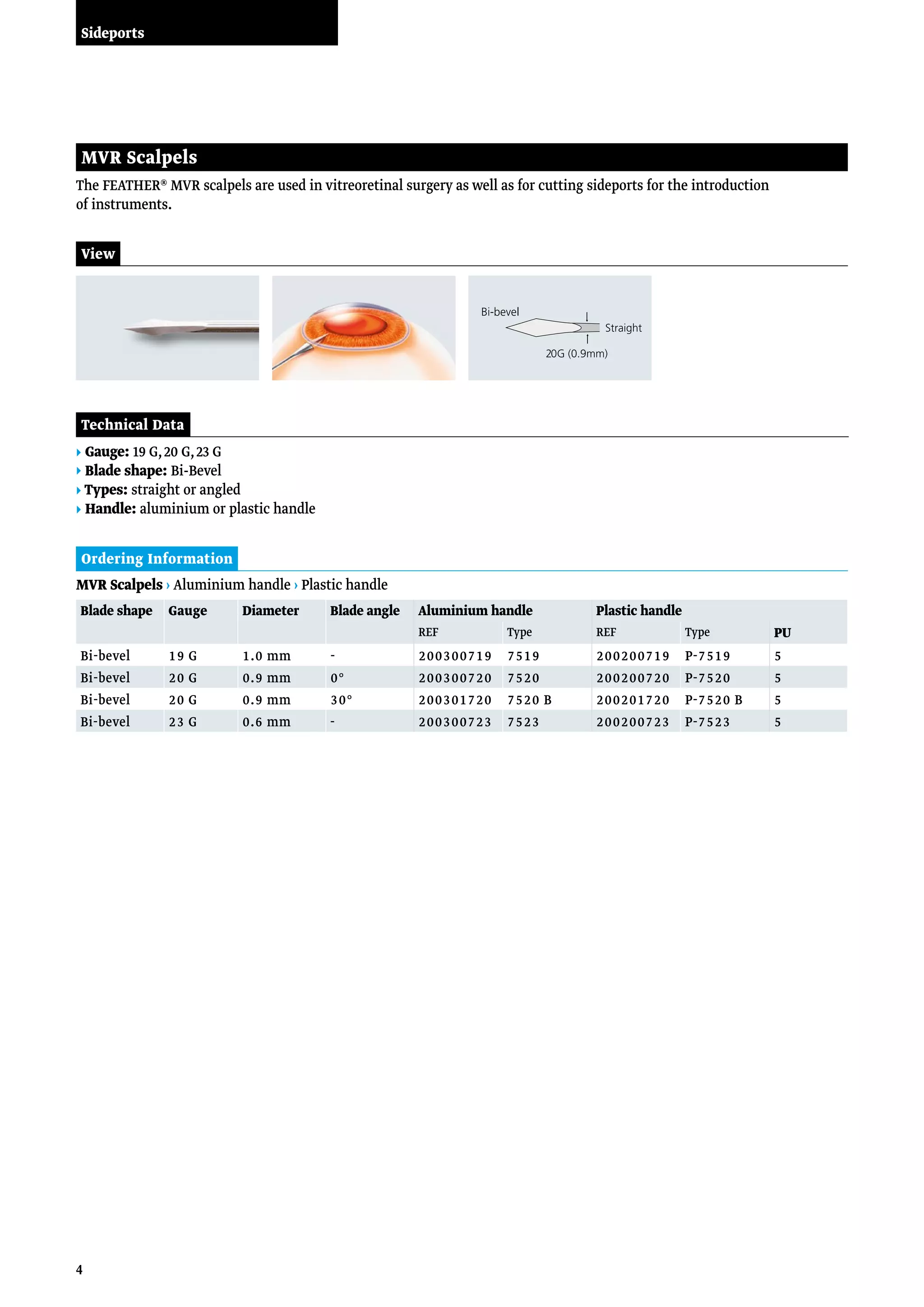

5. 4
Sideports
Ordering Information
The FEATHER® MVR scalpels are used in vitreoretinal surgery as well as for cutting sideports for the introduction
of instruments.
MVR Scalpels
▸ Gauge: 19 G,20 G,23 G
▸ Blade shape: Bi-Bevel
▸ Types: straight or angled
▸ Handle: aluminium or plastic handle
MVR Scalpels › Aluminium handle › Plastic handle
View
Technical Data
Blade shape Gauge Diameter Blade angle Aluminium handle Plastic handle
REF Type REF Type PU
Bi-bevel 19 G 1.0 mm - 200300719 7519 200200719 P-7519 5
Bi-bevel 20 G 0.9 mm 0° 200300720 7520 200200720 P-7520 5
Bi-bevel 20 G 0.9 mm 30° 200301720 7520 B 200201720 P-7520 B 5
Bi-bevel 23 G 0.6 mm - 200300723 7523 200200723 P-7523 5

6. 5
Sideports
The FEATHER® Paracentesis scalpels are suitable for making 1.0 mm incisions for sideports for the introduction of
instruments in a wide range of applications.
Paracentesis Scalpels
View
Ordering Information
Technical Data
▸ Blade width: 1.0 mm
▸ Blade shape: BU
▸ Blade angle: 40°
▸ Type: straight
▸ Handle: aluminium handle,plastic handle and Safeshield™ handle
Paracentesis Scalpels › Aluminium handle › Plastic handle › Safeshield™ handle
Blade
shape
Blade
width
Blade
angle
Blade Aluminium handle Plastic handle Safeshield™ handle
REF Type REF Type REF Type PU
single-bevel 1.0 mm 40° straight 200301760 7610 200201760 P-7610 200801760 PSS-7610 5

7. 6
Phaco and enlargement incisions
Technical Data
Blade shapes
The FEATHER® Phaco scalpels are available in different types to meet the needs
of as many surgeons as possible.
Views
Phaco Scalpel BUC
As the blade is made from round stain-
less steel,the blade tip can be grinded
extremely sharp.Thanks to an ultra-
thin coating and rounded blade design
the insertion resistance can be decrea-
sed significantly.Following heat treat-
ment,the stainless steel is extremely
durable.The enlarged bevel surfaces lead
to an increased wound configuration
Phaco Scalpel BUC
▸ Blade width: 1.4 - 3.2 mm
▸ Blade shape: BUC
▸ Blade angle: 45°
▸ Blade angle Safeshield™: 40°
▸ Handle: aluminium handle,
plastic handle and Safeshield™ handle
B
Bi-bevel
blade is honed on both sides
Phaco Scalpel Standard
The diamond-shaped blade tip enables
optimal penetration into the eye.
Phaco Scalpel Standard
▸ Blade width: 1.0 - 2.75 mm
▸ Blade shape: BU B
▸ Blade angle: 40°,60°
▸ Handle: aluminium handle and
plastic handle
BU
Bevel-up
blade is honed on one side
Phaco Scalpel BUPS
The gliding edge of the BUPS phaco
scalpel avoids accidental enlargement
of the incision and increases cutting
consistency.The thin blade minimises
cutting resistance.
Phaco Scalpel BUPS
▸ Blade width: 2.2 - 3.2 mm
▸ Blade shape: BUPS
▸ Blade angle: 50°
▸ Blade angle Safeshield™: 40°
▸ Handle: aluminium handle,
plastic handle or Safeshield™ handle
BUPS
Bevel-up Parallel Sided
blade is honed on one side
including blade sides
BUC
Bevel-up Coated
blade is coated and honed
on one side
Bi-bevel Bevel-up Bevel-up parallel sided Bevel-up coated

8. 7
Phaco and enlargement incisions
The coated FEATHER® Round Shaft Phaco scalpels with new blade design are used for sclerocorneal and clear corneal inci-
sions during cataract surgery.
Phaco Scalpels BUC
Benefits
▸ The unique blade made from round steel and with a wide polished edge significantly reduces cutting resistance.
▸ Thanks to an ultra-thin coating and rounded blade design the insertion resistance can be decreased significantly.
▸ The highly consistent edge is produced by high precision grinding technology in addition to electrical and
chemical treatment.
▸ Following heat treatment,the stainless steel is extremely durable.
Ordering Information
Technical Data
▸ Blade width: 1.4 - 3.2 mm
▸ Blade shape: BUC
▸ Blade angle: 45° (Safeshield™ 40°)
▸ Handle: aluminium handle,plastic handle and Safeshield™ handle
Coated Round Shaft Phaco Scapels › Aluminium handle › Plastic handle › Safeshield™ handle
View
Blade
shape
Blade
width
Blade
angle
Aluminium handle Plastic handle Safeshield™ handle
REF Type REF Type REF Type PU
Bevel-up 1.4 mm 45° 200312614 0614BUC 200212614 P-0614BUC 200812614 PSS-0614BUC 5
Bevel-up 1.6 mm 45° 200312616 0616BUC 200212616 P-0616BUC 200812616 PSS-0616BUC 5
Bevel-up 1.8 mm 45° 200312618 0618BUC 200212618 P-0618BUC 200812618 PSS-0618BUC 5
Bevel-up 2.0 mm 45° 200312620 0620BUC 200212620 P-0620BUC - - 5
Bevel-up 2.2 mm 45° 200312622 0622BUC 200212622 P-0622BUC 200812622 PSS-0622BUC 5
Bevel-up 2.4 mm 45° 200312624 0624BUC 200212624 P-0624BUC 200812624 PSS-0624BUC 5
Bevel-up 2.75 mm 45° 200312275 06275BUC 200212275 P-06275BUC 200812275 PSS-06275BUC 5
Bevel-up 2.8 mm 45° 200312768 0628BUC 200212768 P-0628BUC 200812768 PSS-0628BUC 5
Bevel-up 3.0 mm 45° 200312761 0630BUC 200212761 P-0630BUC 200812761 PSS-0630BUC 5
Bevel-up 3.2 mm 45° 200312763 0632BUC 200212763 P-0632BUC 200812763 PSS-0632BUC 5

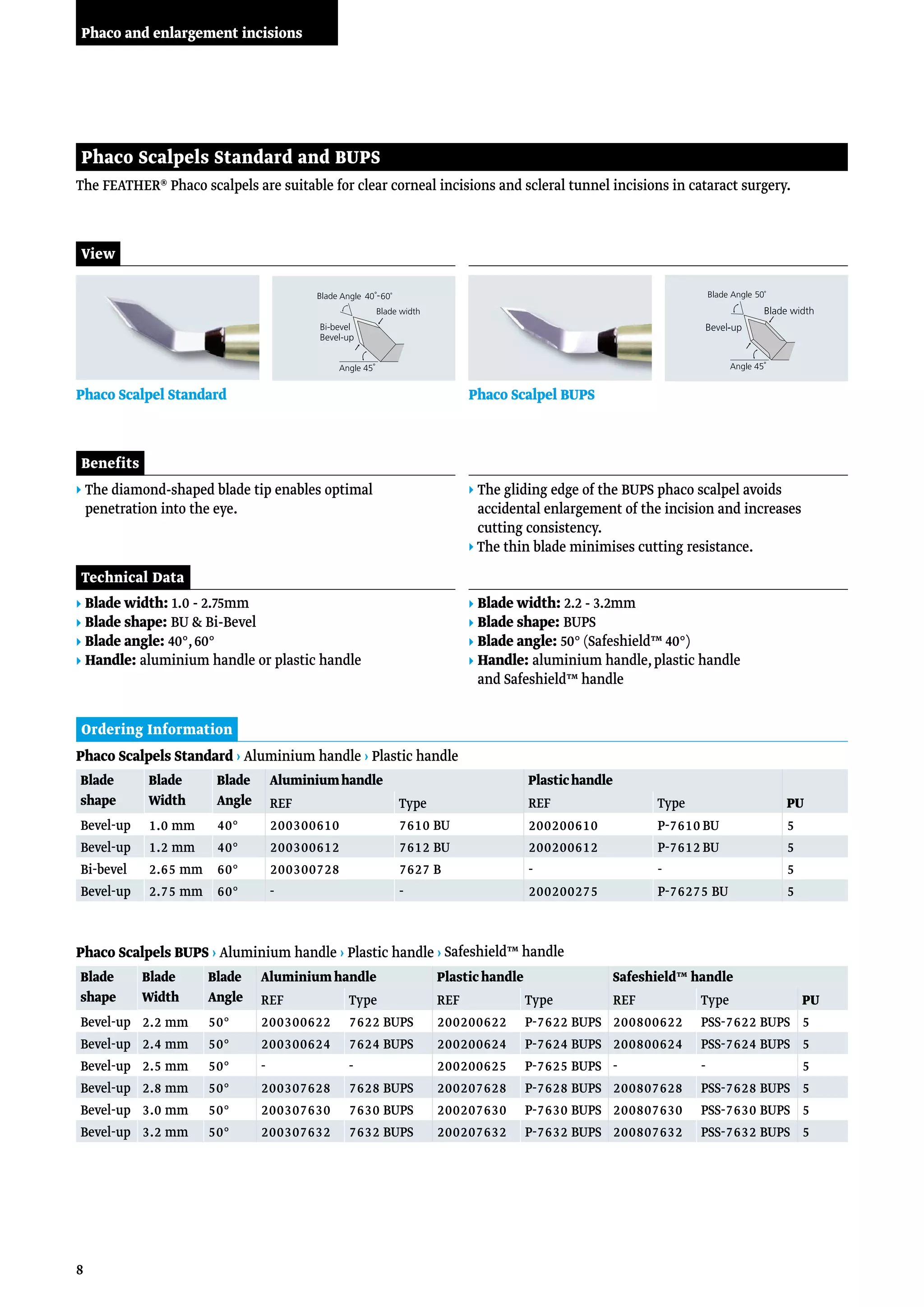

9. 8
The FEATHER® Phaco scalpels are suitable for clear corneal incisions and scleral tunnel incisions in cataract surgery.
Phaco Scalpels Standard and BUPS
Benefits
▸ The diamond-shaped blade tip enables optimal
penetration into the eye.
▸ The gliding edge of the BUPS phaco scalpel avoids
accidental enlargement of the incision and increases
cutting consistency.
▸ The thin blade minimises cutting resistance.
Technical Data
▸ Blade width: 1.0 - 2.75mm
▸ Blade shape: BU Bi-Bevel
▸ Blade angle: 40°,60°
▸ Handle: aluminium handle or plastic handle
▸ Blade width: 2.2 - 3.2mm
▸ Blade shape: BUPS
▸ Blade angle: 50° (Safeshield™ 40°)
▸ Handle: aluminium handle,plastic handle
and Safeshield™ handle
View
Ordering Information
Blade
shape
Blade
Width
Blade
Angle
Aluminium handle Plastic handle
REF Type REF Type PU
Bevel-up 1.0 mm 40° 200300610 7610 BU 200200610 P-7610 BU 5
Bevel-up 1.2 mm 40° 200300612 7612 BU 200200612 P-7612 BU 5
Bi-bevel 2.65 mm 60° 200300728 7627 B - - 5
Bevel-up 2.75 mm 60° - - 200200275 P-76275 BU 5
Phaco Scalpels Standard › Aluminium handle › Plastic handle
Blade
shape
Blade
Width
Blade
Angle
Aluminium handle Plastic handle Safeshield™ handle
REF Type REF Type REF Type PU
Bevel-up 2.2 mm 50° 200300622 7622 BUPS 200200622 P-7622 BUPS 200800622 PSS-7622 BUPS 5
Bevel-up 2.4 mm 50° 200300624 7624 BUPS 200200624 P-7624 BUPS 200800624 PSS-7624 BUPS 5
Bevel-up 2.5 mm 50° - - 200200625 P-7625 BUPS - - 5
Bevel-up 2.8 mm 50° 200307628 7628 BUPS 200207628 P-7628 BUPS 200807628 PSS-7628 BUPS 5
Bevel-up 3.0 mm 50° 200307630 7630 BUPS 200207630 P-7630 BUPS 200807630 PSS-7630 BUPS 5
Bevel-up 3.2 mm 50° 200307632 7632 BUPS 200207632 P-7632 BUPS 200807632 PSS-7632 BUPS 5
Phaco Scalpels BUPS › Aluminium handle › Plastic handle › Safeshield™ handle
Phaco Scalpel Standard Phaco Scalpel BUPS
Phaco and enlargement incisions

10. 9
The FEATHER® Clear Cornea scalpels are perfect for single-plane and two-plane incisions.
Clear Cornea Scalpels
Ordering Information
Technical Data
▸ Blade width: 2.8 - 3.2 mm
▸ Blade shape: Bi-Bevel
▸ Blade angle: 60°
▸ Handle: aluminium handle or plastic handle
View
Clear Cornea Scalpels › Aluminium handle › Plastic handle
Blade
shape
Blade
width
Blade
angle
Aluminium handle Plastic handle
REF Type REF Type PU
Bi-bevel 2.8 mm 60° 200300628 9628 B 200200628 P-9628 B 5
Bi-bevel 3.0 mm 60° 200300630 9630 B 200200630 P-9630 B 5
Bi-bevel 3.2 mm 60° 200300632 9632 B - - 5
Phaco and enlargement incisions

11. 10
View

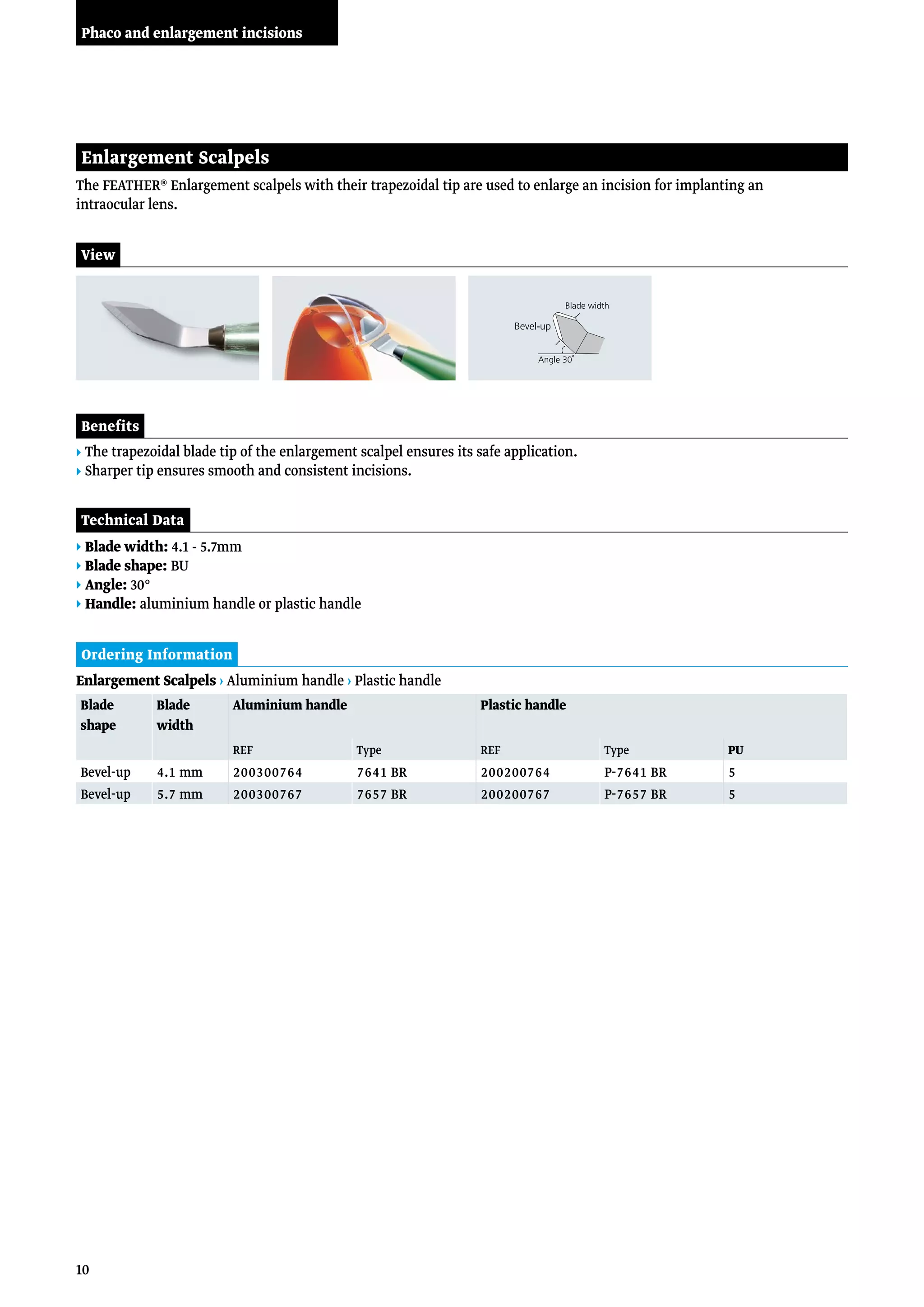

The FEATHER® Enlargement scalpels with their trapezoidal tip are used to enlarge an incision for implanting an
intraocular lens.
Enlargement Scalpels
Benefits
▸ The trapezoidal blade tip of the enlargement scalpel ensures its safe application.
▸ Sharper tip ensures smooth and consistent incisions.
Technical Data
▸ Blade width: 4.1 - 5.7mm
▸ Blade shape: BU
▸ Angle: 30°
▸ Handle: aluminium handle or plastic handle
Ordering Information
Enlargement Scalpels › Aluminium handle › Plastic handle
Blade
shape
Blade
width
Aluminium handle Plastic handle
REF Type REF Type PU
Bevel-up 4.1 mm 200300764 7641 BR 200200764 P-7641 BR 5
Bevel-up 5.7 mm 200300767 7657 BR 200200767 P-7657 BR 5
Phaco and enlargement incisions

12. 11
Tunnel incisions and preparation of flaps
View
Due to its sharp blade with straight sides and a rounded tip,the FEATHER® Crescent scalpels are perfect for creating scleral
tunnel flaps.
Crescent Scalpels
Benefits
▸ Optimum wound healing and incision quality due to unique blade design.
Ordering Information
Technical Data
▸ Blade width: 2.2 - 2.6mm
▸ Blade shape: Bi-Bevel BU
▸ Angle: 45° (Safeshield™ 40°)
▸ Handle: aluminium handle,plastic handle and Safeshield™ handle
Crescent Scalpels › Aluminium handle › Plastic handle › Safeshield™ handle
Blade
shape
Blade
width
Aluminium handle Plastic handle Safeshield™ handle
REF Type REF Type REF Type PU
Bi-bevel 2.2 mm 200300792 7922 B - - - - 5
Bi-bevel 2.6 mm 200300791 7926 B 200200791 P-7926 B 200800791 PSS-7926 B 5
Bevel-up 2.6 mm - - 200202791 P-7926 BU - - 5

13. 12

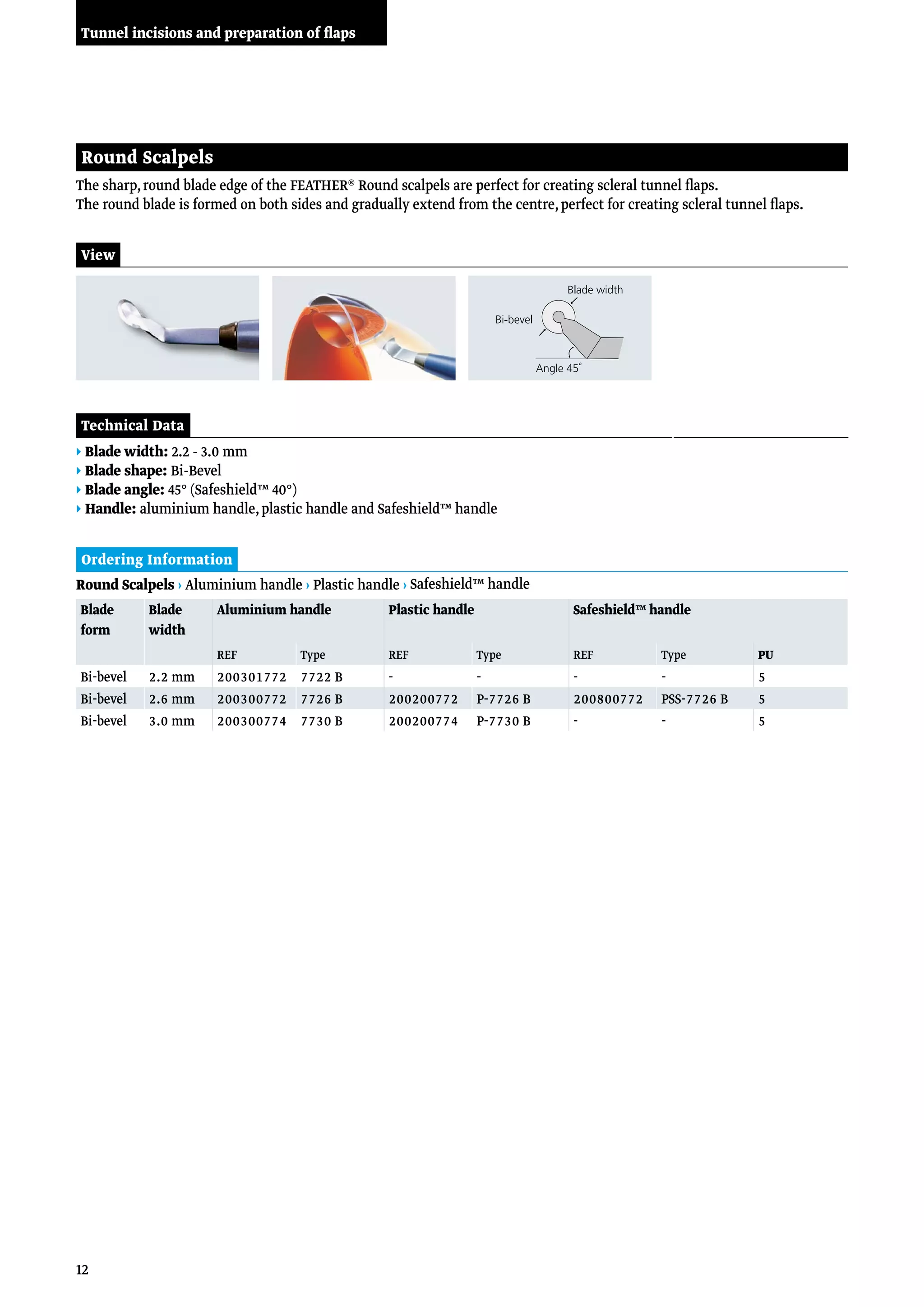

The sharp,round blade edge of the FEATHER® Round scalpels are perfect for creating scleral tunnel flaps.
The round blade is formed on both sides and gradually extend from the centre,perfect for creating scleral tunnel flaps.
Round Scalpels
Ordering Information
Technical Data
▸ Blade width: 2.2 - 3.0 mm
▸ Blade shape: Bi-Bevel
▸ Blade angle: 45° (Safeshield™ 40°)
▸ Handle: aluminium handle,plastic handle and Safeshield™ handle
Round Scalpels › Aluminium handle › Plastic handle › Safeshield™ handle
View
Blade
form
Blade
width
Aluminium handle Plastic handle Safeshield™ handle
REF Type REF Type REF Type PU
Bi-bevel 2.2 mm 200301772 7722 B - - - - 5
Bi-bevel 2.6 mm 200300772 7726 B 200200772 P-7726 B 200800772 PSS-7726 B 5
Bi-bevel 3.0 mm 200300774 7730 B 200200774 P-7730 B - - 5
Tunnel incisions and preparation of flaps

14. 13
Technical Data
▸ Radius of the blade edge: 1.0 mm
▸ Blade shape: Bi-Bevel
▸ Handle: aluminium handle
The FEATHER® Hockey scalpels are suitable for a number of applications in ophthalmic surgery,including making incisions
in the sclera.It can also be used to remove or push aside corneal epithelium using the LASEK method or for creating scleral
flaps during glaucoma surgery.
Hockey Scalpels
View
Ordering Information
Hockey Scalpels › Aluminium handle
Blade form Radius of blade edge REF Type PU
Bi-bevel 1.0 mm 200300780 780 5
Tunnel incisions and preparation of flaps

15. 14

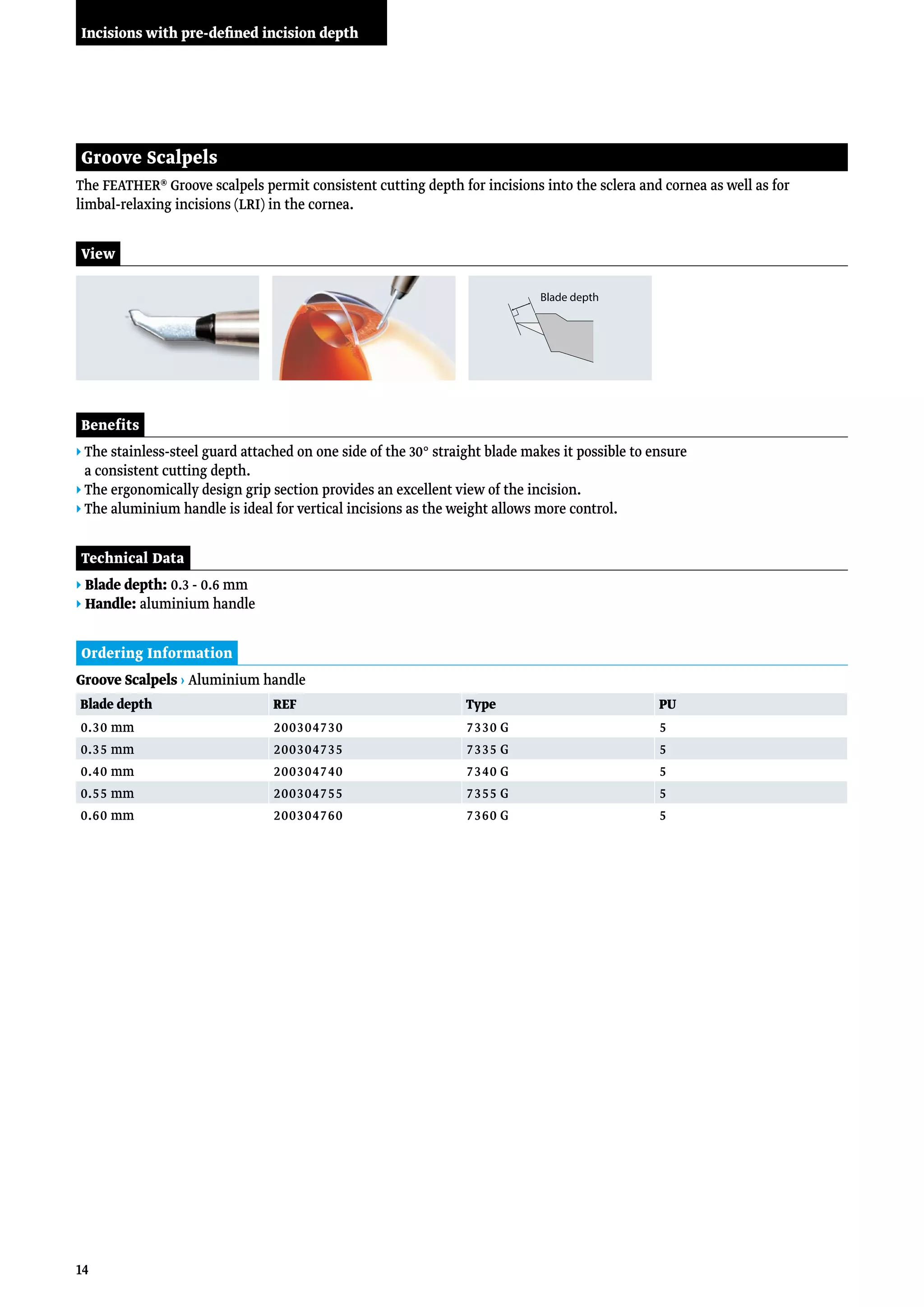

The FEATHER® Groove scalpels permit consistent cutting depth for incisions into the sclera and cornea as well as for
limbal-relaxing incisions (LRI) in the cornea.
Groove Scalpels
Benefits
▸ The stainless-steel guard attached on one side of the 30° straight blade makes it possible to ensure
a consistent cutting depth.
▸ The ergonomically design grip section provides an excellent view of the incision.
▸ The aluminium handle is ideal for vertical incisions as the weight allows more control.
Ordering Information
Technical Data
▸ Blade depth: 0.3 - 0.6 mm
▸ Handle: aluminium handle
Groove Scalpels › Aluminium handle
View
Blade depth REF Type PU
0.30 mm 200304730 7330 G 5
0.35 mm 200304735 7335 G 5
0.40 mm 200304740 7340 G 5
0.55 mm 200304755 7355 G 5
0.60 mm 200304760 7360 G 5
Incisions with pre-defined incision depth

16. 15
The FEATHER® Glaucoma scalpels are specially developed for performing sclerotomy with a pre-defined incision depth
for glaucoma surgery.
Glaucoma Scalpels
Benefits
▸ Due to the pre-defined incision depths,the glaucoma scalpel enables optimal cutting performance and consistency.
▸ The stainless steel guard of 0.1 mm thickness on one side of the 30° straight blade makes it possible to ensure a fixed
cutting depth for incisions in the upper half of the sclera.
View
Ordering Information
Technical Data
▸ Blade depth: 0.2 - 0.3 mm
▸ Handle: aluminium handle
Glaucoma Scalpels › Aluminium handle
Blade depth REF Type PU
0.2 mm 207300623 6320 G 5
0.3 mm 207300633 6330 G 5
Incisions with pre-defined incision depth

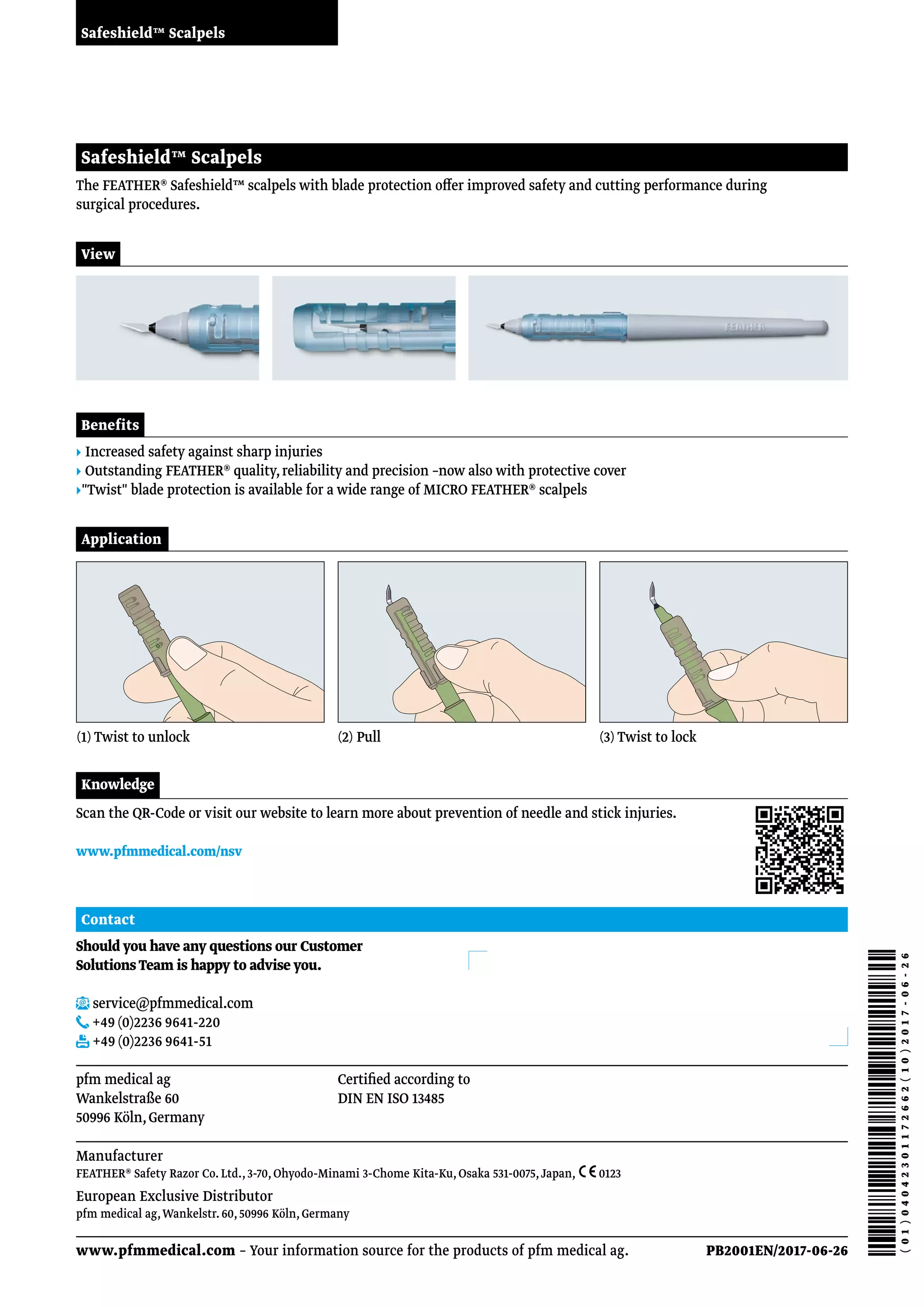

17. Safeshield™ Scalpels
View
The FEATHER® Safeshield™ scalpels with blade protection offer improved safety and cutting performance during
surgical procedures.
Safeshield™ Scalpels
Benefits
▸ Increased safety against sharp injuries
▸ Outstanding FEATHER® quality,reliability and precision –now also with protective cover
▸Twist blade protection is available for a wide range of MICRO FEATHER® scalpels
Application
(1) Twist to unlock (2) Pull (3) Twist to lock
Should you have any questions our Customer
Solutions Team is happy to advise you.
service@pfmmedical.com
+49 (0)2236 9641-220
+49 (0)2236 9641-51
Contact
www.pfmmedical.com – Your information source for the products of pfm medical ag.
pfm medical ag
Wankelstraße 60
50996 Köln,Germany
Certified according to
DIN EN ISO 13485
PB2001EN/2017-06-26
Knowledge
Scan the QR-Code or visit our website to learn more about prevention of needle and stick injuries.
www.pfmmedical.com/nsv
Manufacturer
FEATHER® Safety Razor Co.Ltd.,3-70,Ohyodo-Minami 3-Chome Kita-Ku,Osaka 531-0075,Japan, 0123
European Exclusive Distributor
pfm medical ag,Wankelstr.60,50996 Köln,Germany
