Wera Screwdrivers Catalog

The document provides information on various screwdriver models from Wera, including: - The Kraftform Plus Series 900 features an ergonomic handle design that transfers force efficiently and prevents injuries even with intensive use. Models include chiseldrivers and sets. - Handles are made from multiple materials, with harder zones for grip and softer friction zones for torque transfer. - The Kraftform design has been optimized since the 1960s based on studies of hand anatomy, but maintains its proven shape to fit the human hand.

Embed presentation

Downloaded 18 times
02 Screwdrivers Kraftform Series 900 30 Kraftform Series 300 37 Kraftform Series Comfort 58 Kraftform Series Classic 65 Flagdriver, Stubbies 68 Accessories 70 Kraftform Micro Series 73 400 T-Handle Series 85 VDE Tools 90 Kraftform Series 100 Kraftform Kompakt VDE Kraftform Series Comfort VDE Kraftform Series Classic VDE ESD Tools 113 Screwdrivers 29
30 Kraftform Plus Series 900
31 Screwdrivers
32 A hexagon blade made out of high-quality bit material extends right through the handle – thereby ensuring full transfer of force, even when struck with a hammer. The ductile tempered material prevents the blade from splintering or breaking. Ever misused a screwdriver? The Chiseldriver is the solution whenever the job requires more than just screwdriving. It is suitable for fastening, chiselling and loosening seized screws or screw clamps. The Wera Chiseldriver: the screwdriver you need when the going gets tough! An integrated impact cap lengthens the service life and reduces the danger of splintering. Nevertheless, always wear protective goggles.
33 The outstanding design of the Kraftform handle that fits perfectly into the hand. Prevents hand injuries such as blisters and calluses. Wera Kraftform: a synonym for "graspable" ergonomics! The hexagonal non-roll feature prevents any annoying rolling away at the workplace. Even higher torque can be transferred by connecting the square drive version to a T-handle, Zyklop ratchet or Bit Ratchet. Greater torque can be transferred by fitting an open-jaw or ring spanner over the integrated hex bolster. The hard materials used for the handle ensure rapid hand repositioning without any danger of the skin "sticking" to the handle. The softer "anti-slip" zones provide increased grip, enabling the low– loss transfer of high forces. Screwdrivers
? Code mm mm mm mm mm mm 05018260002 0.6 3.5 4 80 81 9 /64 " 3 1 /8 " 10 05018262002 0.8 4.5 5 8 90 98 0.178" 3 1 /2 " 10 05018264003 1.0 5.5 6 10 100 105 7 /32 " 4" 10 05018266003 1.2 7.0 6 10 125 105 9 /32 " 5" 10 05018268002 1.6 9.0 8 13 150 112 11 /32 " 6" 10 05018270003 1.6 10.0 8 13 175 112 3 /8 " 7" 5 05018272002 2.0 12.0 10 16 200 117 1 /2 " 8" 2 05018274002 2.5 14.0 10 16 250 117 9 /16 " 10" 2 Code mm mm mm mm mm mm 05018300002 0.8 4.5 5 8 100 98 0.178" 4 3 /64 " 10 05018301002 1.0 5.5 6 10 103 105 7 /32 " 4 1 /16 " 10 05018302002 1.2 7.0 6 10 138 105 9 /32 " 5 7 /16 " 10 Code mm mm mm mm 05017005002 PH 1 5 8 80 98 3 1 /8 " 10 05017010002 PH 2 6 10 100 105 4" 10 05017015002 PH 3 8 13 150 112 6" 5 05017020003 PH 4 10 16 200 117 8" 2 34 Kraftform Plus – Series 900 The chiseldriver for fastening and chiselling 932 A Screwdriver for slotted screws Application: Slotted screws Blade: Hexagonal throughout with impact cap, hexagonal bolster from 0.8 x 4.5 Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component, sizes 2.0 x 12.0, 2.5 x 14.0: Kraftform with non-roll feature, WeralitII, single-component 932 AS Screwdriver for slotted screws Application: Slotted screws Blade: Hexagonal throughout, impact cap with integrated square socket for insertion of 1 /4 " blades for higher torque, hexagonal bolster Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component 917 SPH Screwdriver for Phillips screws Application: Phillips screws Blade: Hexagonal throughout with impact cap, hexagonal bolster for sizes 1 - 4 Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component, size 4/200: Kraftform with non-roll feature, Weralit II, single-component Impact cap with square drive, directly connected to the blade Even higher torque can be transferred by connecting the square drive version to a T-handle, Zyklop ratchet or Bit Ratchet. A screwdriver is very often misused, in that it is struck with a hammer for light chiselling jobs or for loosening rusted screws. This is dangerous because conventional screwdrivers are not appropriate for work of that kind – the grip and/or blade could splinter and cause injuries. The Wera Chiseldriver has been developed specifically for these applications. The head of the handle is fitted with a robust, metal impact cap which is directly connected to the hexagonal blade that extends right through the handle. The full force of hammer blows is thereby transferred. The special, ductile tempering of the blade prevents any splintering and injuries. Even more force can be transferred when screwdriving by fitting an open-jaw or ring spanner over the hex bolster. Can the screwdriver occasionally be struck with a hammer?

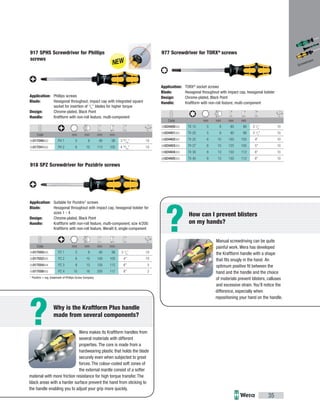

? ? Code mm mm mm mm 05017040002 PH 1 5 8 90 98 3 35 /64 " 10 05017041002 PH 2 6 10 113 105 4 29 /64 " 10 Code mm mm mm mm 05017050005 PZ 1 5 8 80 98 3 1 /8 " 10 05017052005 PZ 2 6 10 100 105 4" 10 05017054004 PZ 3 8 13 150 112 6" 5 05017056002 PZ 4 10 16 200 117 8" 2 Code mm mm mm mm 05024400003 TX 15 5 8 80 98 3 1 /8 " 10 05024401003 TX 20 5 8 90 98 3 1 /2 " 10 05024402003 TX 25 6 10 100 105 4" 10 05024403003 TX 27 6 10 125 105 5" 10 05024404003 TX 30 8 13 150 112 6" 10 05024405003 TX 40 8 13 150 112 6" 10 35 917 SPHS Screwdriver for Phillips screws Application: Phillips screws Blade: Hexagonal throughout, impact cap with integrated square socket for insertion of 1 /4 " blades for higher torque Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component 918 SPZ Screwdriver for Pozidriv screws Application: Suitable for Pozidriv*) screws Blade: Hexagonal throughout with impact cap, hexagonal bolster for sizes 1 - 4 Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component, size 4/200: Kraftform with non-roll feature, Weralit II, single-component *) Pozidriv = reg. trademark of Phillips Screw Company. 977 Screwdriver for TORX® screws Application: TORX® socket screws Blade: Hexagonal throughout with impact cap, hexagonal bolster Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component Wera makes its Kraftform handles from several materials with different properties. The core is made from a hardwearing plastic that holds the blade securely even when subjected to great forces. The colour-coded soft zones of the external mantle consist of a softer material with more friction resistance for high torque transfer. The black areas with a harder surface prevent the hand from sticking to the handle enabling you to adjust your grip more quickly. Why is the Kraftform Plus handle made from several components? Manual screwdriving can be quite painful work. Wera has developed the Kraftform handle with a shape that fits snugly in the hand. An optimum positive fit between the hand and the handle and the choice of materials prevent blisters, calluses and excessive strain. You’ll notice the difference, especially when repositioning your hand on the handle. How can I prevent blisters on my hands? Screwdrivers
Code 05018283002 1917 SPHS 1 x PH 1x90; 1 x PH 2x113 932 A 1 x 0.6x3.5x80 932 AS 1 x 0.8x4.5x100; 1 x 1.0x5.5x103; 1 x 1.2x7.0x138 Code 05024410003 1977 TORX® 1 x TX 15x80; 1 x TX 20x90; 1 x TX 25x100; 1 x TX 27x125; 1 x TX 30x150; 1 x TX 40x150 Code 05018282006 1917 SPH 1 x PH 1x80; 1 x PH 2x100 932 A 1 x 0.6x3.5x80; 1 x 0.8x4.5x90; 1 x 1.0x5.5x100; 1 x 1.2x7.0x125 36 Kraftform Plus – Series 900 The chiseldriver for fastening and chiselling 932 S/6 Screwdriver set Kraftform Wera: Chiseldriver and rack Application: Slotted and Phillips screws, impact cap with integrated square socket for insertion of 1 /4 " blades for higher torque Content: 6-piece set and rack in display carton 977/6 TORX® Screwdriver set Kraftform Wera: Chiseldriver and rack Application: TORX® Content: 6-piece set and rack in display carton 932/6 Screwdriver set Kraftform Wera: Chiseldriver and rack Application: Slotted and Phillips screws Content: 6-piece set and rack in display carton
37 Kraftform Plus Series 300 Screwdrivers
38 Ever worked in a truly ergonomic manner? Kraftform Plus prevents injuries – even long-term. Kraftform Plus screwdrivers enable a higher transfer of force with less effort and relieve the entire hand-arm system – even with intensive use. Combined with other technical and practical product advantages such as the Lasertip for a secure fit in the screw head, Kraftform screwdrivers are the ideal choice for manual screwdriving jobs.
39 The basic idea for the prototype of the Kraftform handle – that the hand should dictate the design – has, right through to today, proved to be correct. In cooperation with the internationally recognised Fraunhofer- Institut, Wera developed a screwdriver handle designed to match the shape of the human hand as long ago as the 1960s. After a long development phase, the Wera Kraftform handle was launched to the market in 1968. It has been optimised through the years with new technologies, but has kept its proven shape. After all, the human hand has not changed either. The large contact area – with particularly high friction to the soft zones – results in high torque transfer without any bruising from the edges. The Kraftform handle functions superbly in all application situations, and it really has to. The application environment often does not allow any direct tool access. The hard materials used for the handle ensure rapid hand repositioning without any danger of the skin "sticking" to the handle. The surrounding hard zones with large diameters glide like wheels across the hand. The outstanding design of the Kraftform handle that fits perfectly into the hand prevents hand injuries such as blisters and calluses. *) Pozidriv = reg. trademark of Phillips Screw Company. Wera Lasertip "bites" itself into the screw head and prevents any slips out of the recess. It can be used for slotted, Phillips and Pozidriv*) screws. Screwdrivers
40 A precisely-focused laser creates a sharp-edged surface structure. This laser treatment results in an edge hardness of up to 1000 HV 0.3. The hexagonal non-roll feature prevents any rolling away at the workplace. The Wera TORX® HF profile (HF = Holding Function) securely holds TORX® screws on the tool tip thanks to its drive geometry and the wedging forces associated with this. Ideal for work in difficult-to-access areas e.g. screw connections in deep blind holes. The screw symbol and tip size identification markings on the handle make it easier to find the right screwdriver in the tool case or at the workplace. Wera Lasertip reduces the contact pressure required and enhances force transfer - meaning less screwdriving effort is required. Screwdriving becomes safer and easier. The Wera Hex-Plus profile with its improved geometry prevents damage to the heads of hexagonal socket screws. A higher torque transfer of up to 20 % is possible. This also makes screwdriving safer and more convenient.
41 Lasertip is also ideal for oily and greasy applications, circumstances that would otherwise favour the slipping out of the tool from the screw. The screwdriver sets are always supplied with a wall-mountable rack. This ensures organised storage and quick access. The rack is also available as an individual item. Screwdrivers
? Code mm mm mm mm mm 05008006002 1) 0.4 2.0 60 70 2.5 5 /64 " 2 3 /8 " 10 05110000004 1) 0.4 2.5 60 70 2.5 3 /32 " 2 3 /8 " 10 05008007003 1) 0.4 2.5 75 70 2.5 3 /32 " 3" 10 05008008002 1) 0.5 3.0 150 81 4.0 1 /8 " 6" 10 05008009002 1) 0.5 3.0 200 81 4.0 1 /8 " 8" 5 05110001004 1) 0.5 3.0 80 81 3.0 1 /8 " 3 1 /8 " 10 05008015003 0.6 3.5 100 81 3.5 9 /64 " 4" 10 05110002002 0.6 3.5 125 81 3.5 9 /64 " 5" 10 05110003002 0.6 3.5 200 81 3.5 9 /64 " 8" 5 05110004004 0.8 4.0 100 98 4.0 5 /32 " 4" 10 05110005002 0.8 4.0 150 98 4.0 5 /32 " 6" 10 05110006002 0.8 4.0 200 98 4.0 5 /32 " 8" 5 05008027004 1) 0.8 4.0 300 98 4.0 5 /32 " 12" 2 05110007003 1.0 5.5 125 98 5.5 7 /32 " 5" 10 05008055002 1.0 5.5 150 98 5.5 7 /32 " 6" 10 05110008002 1.0 5.5 200 98 5.5 7 /32 " 8" 5 05008060002 1) 1.0 5.5 300 98 5.5 7 /32 " 12" 2 05008061002 1.2 6.0 100 105 6.0 5 /16 " 4" 10 Code mm mm mm mm mm 05007610002 0.8 5.0 100 98 5.0 3 /16 " 4" 10 05007620002 1.0 6.0 125 105 6.0 1 /4 " 5" 10 05340330003 1.0 6.0 150 105 6.0 1 /4 " 6" 10 05110010003 1.2 6.5 150 105 6.0 1 /4 " 6" 10 05007635002 1.2 7.0 150 105 7.0 9 /32 " 6" 10 05007621002 1.2 6.5 200 105 7.0 9 /32 " 8" 5 05110011005 1.2 8.0 175 112 7.0 5 /16 " 7" 5 05007640002 1.6 8.0 175 112 7.0 5 /16 " 7" 5 05110104004 1.6 10.0 200 112 9.0 3 /8 " 8" 5 05110105003 1) 2.0 12.0 250 117 10.0 1 /2 " 10" 2 05018274001 2.5 14.0 250 117 16.0 9 /16 " 10" 2 Code mm mm mm mm mm mm 05007670003 0.6 3.5 4 - 75 81 9 /64 " 3" 10 05007671003 0.8 4.0 4 - 90 81 5 /32 " 3 1 /2 " 10 05007672002 0.8 4.5 5 8 90 98 0.178" 3 1 /2 " 10 05007673003 1.0 5.5 6 10 100 98 7 /32 " 4" 10 05007674002 1.2 6.5 6 10 125 105 1 /4 " 5" 10 05007675003 1.2 7.0 6 10 125 105 9 /32 " 5" 10 05007676003 1.6 9.0 8 13 150 112 11 /32 " 6" 10 05007677002 1.6 10.0 8 13 175 112 3 /8 " 7" 5 42 It happens time and time again that the tip slips out of the screw head when screwdriving, sometimes damaging valuable surfaces or even causing injury. The tips of the Wera Lasertip screwdrivers are microscopically roughened by means of a laser. This rough surface literally "bites" itself firmly into the screw head. Slipping out becomes a thing of the past. How to prevent the screwdriver from slipping out of the screw head Kraftform Plus – Series 300 The right tool for every application 335 Screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip 334 Screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component, sizes 2.0 x 12.0, 2.5 x 14.0: Kraftform with non-roll feature, Weralit II, single-component 1) without Lasertip 334 SK Screwdriver for slotted screws Application: Slotted screws Blade: Hexagonal with bolster from 0.8 x 4.5 Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component
? Code mm mm mm mm mm 05008069002 0.4 2.5 75 98 2.5 5 /64 " 3" 10 05008070002 0.6 3.5 100 81 3.5 9 /64 " 4" 10 05008075002 0.8 4.0 100 98 4.0 5 /32 " 4" 10 05008080002 1.0 5.5 150 98 5.5 7 /32 " 6" 10 Code mm mm mm 05008705004 1) PH 0 60 81 3.0 2 3 /8 " 5 05008706002 1) PH 0 100 81 3.0 4" 5 05008710003 PH 1 80 98 4.5 3 1 /8 " 10 05008712003 PH 1 200 98 4.5 8" 2 05008715002 1) PH 1 300 98 4.5 12" 2 05008720003 PH 2 100 105 6.0 4" 10 05008723002 PH 2 150 105 6.0 6" 10 05008725002 PH 2 200 105 6.0 8" 2 05008730006 1) PH 2 300 105 6.0 12" 2 05008735003 PH 3 150 112 8.0 6" 5 05008740002 1) PH 4 200 112 10.0 8" 2 Code mm mm mm mm 05008750003 1) PH 0 4 60 81 2 3 /8 " 5 05008751003 PH 1 5 8 80 98 3 1 /8 " 10 05008752003 PH 2 6 10 100 105 4" 10 05008753002 PH 3 8 13 150 112 6" 5 43 Wera makes its Kraftform handles from several materials with different properties. The core is made from a hardwearing plastic that holds the blade securely even when subjected to great forces. The colour-coded soft zones of the external mantle consist of a softer material with more friction resistance for high torque transfer. The black areas with a harder surface prevent the hand from sticking to the handle enabling you to adjust your grip more quickly. Why is the Kraftform Plus handle made from several components? 335 FK Screwdriver for slotted screws Application: Actuating tool for spring-loaded terminal blocks in switch cabinet construction Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component 350 PH Screwdriver for Phillips screws Application: Phillips screws Blade: Round Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip 350 SK PH Screwdriver for Phillips screws Application: Phillips screws Blade: Hexagonal, sizes 1 - 3 with bolster Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip Screwdrivers
Code 05073700002 31441 2 x 4.5 - 6.0x41.0 350 PH 1 x PH 1x80; 1 x PH 2x100 44 350 PH1/2 + 1441 SB Application: Attachment with holding function for screws, holds all screw profiles and sizes securely on the tool, suitable for round and hexagon blades with a diameter from 4.5 mm to 6 mm Design: Elastomer Kraftform Plus – Series 300 The right tool for every application Push the screw gripper onto the tip of the screwdriver until the end of the blade protrudes from the rubber blade holder. Attach the screw to the tip of the blade and secure it in the screw gripper. Pull the screw gripper towards the screwdriver handle until the two arms of the gripper sit against the head of the screw and are spread slightly apart. The Wera screw gripper releases the screw automatically after it has been fastened. The two gripper arms spread further apart as they are pushed against the surface and automatically snap back when the head of the screw is countersunk. When fastening screws in blind holes the screw gripper is pushed back, making it possible to reach even deep-seated screws. And this is how the gripper works:
Code mm mm mm 05009305003 1) PZ 0 60 81 3.0 2 3 /8 " 10 05009310003 PZ 1 80 98 4.5 3 1 /8 " 10 05009312002 PZ 1 200 98 4.5 8" 2 05009313002 1) PZ 1 300 98 4.5 12" 2 05009315003 PZ 2 100 105 6.0 4" 10 05009317002 PZ 2 200 105 6.0 8" 2 05347743002 PZ 2 250 105 6.0 10" 2 05009319002 1) PZ 2 300 105 6.0 12" 2 05009320002 PZ 3 150 112 8.0 6" 5 05009325002 1) PZ 4 200 112 10.0 8" 2 Code mm mm mm mm 05009340002 1) PZ 0 4 60 81 2 3 /8 " 5 05009341003 PZ 1 5 8 80 98 3 1 /8 " 10 05009342003 PZ 2 6 10 100 105 4" 10 05009343002 PZ 3 8 13 150 112 6" 5 Code 05073701002 31441 2 x 4.5 - 6.0x41.0 355 PZ 1 x PZ 1x80; 1 x PZ 2x100 45 355 PZ Screwdriver for Pozidriv screws Application: Suitable for Pozidriv*) screws Blade: Round Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip *) Pozidriv = reg. trademark of Phillips Screw Company. 355 SK PZ Screwdriver for Pozidriv screws Application: Suitable for Pozidriv*) screws Blade: Hexagonal, sizes 1 - 3 with bolster Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip *) Pozidriv = reg. trademark of Phillips Screw Company. 355 PZ1/2 + 1441 SB Application: Attachment with holding function for screws, holds all screw profiles and sizes securely on the tool, suitable for round and hexagon blades with a diameter from 4.5 mm to 6 mm Design: Elastomer Screwdrivers Individual grippers please see page 72, 360.
? Code mm mm mm mm 05023105002 2.0 75 70 3.0 3" 5 05023107002 2.5 75 81 3.0 3" 10 05023110003 3.0 75 81 4.0 3" 10 05023115003 4.0 75 98 5.0 3" 10 05023120003 5.0 80 105 6.0 3 1 /8 " 10 05023125004 6.0 80 105 7.0 3 1 /8 " 5 05023130004 8.0 100 112 10.0 4" 5 05023135002 10.0 100 112 12.0 4" 5 Code mm mm mm 05022795005 1.5 60 70 2 3 /8 " 10 05022800004 2.0 100 70 4" 10 05138070003 2.5 100 81 4" 10 05022805005 3.0 100 81 4" 10 05022810006 4.0 100 98 4" 10 05022815005 5.0 100 105 4" 10 05022820005 6.0 125 105 5" 5 05022825005 8.0 150 112 6" 5 05022830004 10.0 150 112 6" 5 05022835003 12.0 150 117 6" 5 05022905002 5 /32 " 100 98 4" 5 05022910002 3 /16 " 100 105 4" 5 05022915002 7 /32 " 100 105 4" 5 05022920002 1 /4 " 125 105 5" 5 05022925002 5 /16 " 150 112 6" 5 05022930002 3 /8 " 150 112 6" 5 05022935002 1 /2 " 150 117 6" 5 46 The spherical drive profile means that it is possible to swivel the axis of the tool to that of the screw, and therefore enable angled, "around-the-corner" screwdriving jobs. This ball tip geometry – often found on L-keys – is now available on a number of Wera bits. TORX® ball tip and hexagon ball tip Hexagon socket screws are a problem, because the contact surfaces that transfer the force of the tool to the screw are very narrow. The consequence: the head of the screw can be damaged, usually rounding out the recess. Hex-Plus tools have larger contact surfaces to prevent this, driving from the flats of the recess, rather than the corners. Good to know: Hex-Plus tools fit into every standard hexagon socket screw! How to prevent rounded screw heads with Hex-Plus 354 Screwdriver for hexagon socket screws Application: Hexagon socket screws Blade: Round Design: Hex-Plus, chrome-plated Handle: Kraftform with non-roll feature, multi-component Kraftform Plus – Series 300 The right tool for every application 352 Ball end screwdriver for hexagon socket screws Application: Hexagon socket screws Blade: Hexagonal Design: Ball end hexagon, chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component, sizes W/F 12.0, W/F 1 /2 ": Kraftform with non-roll feature, Weralit II, single- component
? Code mm mm mm 05028048003 TX 8 60 81 3.5 2 3 /8 " 10 05028049003 TX 9 60 81 4.0 2 3 /8 " 10 05028050004 TX 10 80 81 4.0 3 1 /8 " 10 05028051004 TX 15 80 98 4.0 3 1 /8 " 10 05028052004 TX 20 100 98 4.5 4" 10 05028053004 TX 25 100 105 5.0 4" 10 05028054002 TX 27 115 105 5.5 4 9 /16 " 10 05028055004 TX 30 115 105 6.0 4 9 /16 " 10 05028056002 TX 40 130 112 7.0 5 3 /16 " 10 Code mm mm mm 05028070002 TX 20 300 98 4.5 12" 4 05028071002 TX 25 300 105 6.0 12" 4 05028072002 TX 27 300 105 6.0 12" 4 05028073002 TX 30 300 105 6.0 12" 4 Code mm mm mm 05028000003 TX 5 60 70 3.5 2 3 /8 " 10 05028001003 TX 6 60 70 3.5 2 3 /8 " 10 05028002003 TX 7 60 70 3.5 2 3 /8 " 10 05028003003 TX 8 60 81 3.5 2 3 /8 " 10 05028004003 TX 9 60 81 4.0 2 3 /8 " 10 05028005004 TX 10 80 81 4.0 3 1 /8 " 10 05028008004 TX 15 80 98 4.0 3 1 /8 " 10 05028010004 TX 20 100 98 4.5 4" 10 05028012004 TX 25 100 105 5.0 4" 10 05028013004 TX 27 115 105 5.5 4 9 /16 " 10 05028015004 TX 30 115 105 6.0 4 9 /16 " 10 05028020005 TX 40 130 112 7.0 5 1 /8 " 10 05028025004 TX 45 130 112 8.0 5 1 /8 " 10 47 In tight assembly or disassembly situations, for example in engine compartments, it is not possible to securely hold the screw with the hand on the screwdriver, and the screw subsequently often gets lost. Lengthy searches or the loss of the screw (with the associated danger that could bring about) are the consequence. The TORX® HF tools developed by Wera are ideal because they feature an optimised geometry of the original TORX® profile. The wedging forces resulting from the surface pressure between the drive tip and the screw profile mean that the screw is securely held on the tool! What is the purpose of the TORX® HF profile? 367 TORX® HF screwdriver with holding function for TORX® screws Application: TORX® socket screws Blade: Round Design: Holding function for TORX® screws made according to Acument Intellectual Properties specifications, chrome-plated Handle: Kraftform with non-roll feature, multi-component 367 TORX® HF screwdriver with holding function for TORX® screws Application: TORX® socket screws Blade: Round Design: Holding function for TORX® screws made according to Acument Intellectual Properties specifications, chrome-plated, extra long blade to enable work on low-down, difficult to access screws Handle: Kraftform with non-roll feature, multi-component 367 TORX® screwdriver for TORX® screws Application: TORX® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component Screwdrivers
? Code mm mm mm 05027950004 TX 15 80 98 4.0 3 1 /8 " 5 05027952004 TX 20 100 98 4.5 4" 5 05027954005 TX 25 100 105 5.0 4" 5 05027956004 TX 27 115 105 5.5 4 9 /16 " 5 05027958004 TX 30 115 105 6.0 4 9 /16 " 5 05027960003 TX 40 130 112 7.0 5 3 /16 " 5 05027962002 TX 45 130 112 8.0 5 3 /16 " 5 Code mm mm mm 05138257002 TX 7 60 70 3.5 2 3 /8 " 5 05138258002 TX 8 60 81 3.5 2 3 /8 " 5 05138259002 TX 9 60 81 4.0 2 3 /8 " 5 05138267002 TX 9 300 81 4.0 12" 5 05138260002 TX 10 80 81 4.0 3 1 /8 " 5 05138268002 TX 10 300 81 4.0 12" 5 05138261004 TX 15 80 98 4.0 3 1 /8 " 5 05138269002 TX 15 300 98 4.0 12" 2 05138262004 TX 20 100 98 4.5 4" 5 05138270002 TX 20 300 98 4.5 12" 2 05138263002 TX 25 100 105 5.0 4" 5 05138264002 TX 27 115 105 5.5 4 9 /16 " 5 05138265002 TX 30 115 105 6.0 4 9 /16 " 5 05138266002 TX 40 130 112 7.0 5 3 /16 " 5 Code mm mm mm 05028029003 5 IP 60 70 3.5 2 3 /8 " 5 05028030003 6 IP 60 70 3.5 2 3 /8 " 5 05028031003 7 IP 60 70 3.5 2 3 /8 " 5 05028032003 8 IP 60 70 3.5 2 3 /8 " 5 05028033003 9 IP 60 81 4.0 2 3 /8 " 5 05028034003 10 IP 80 81 4.0 3 1 /8 " 5 05028035003 15 IP 80 98 4.0 3 1 /8 " 5 05028036003 20 IP 100 98 4.5 4" 5 05028037003 25 IP 100 105 5.0 4" 5 05028028002 27 IP 115 105 5.5 4 9 /16 " 5 05028038003 30 IP 115 105 6.0 4 9 /16 " 5 05028039002 40 IP 130 112 7.0 5 3 /16 " 5 48 TORX® tools with a borehole prevent the unauthorised unfastening of safety screws. The screws contain a pin that protrudes into the drive profile so that "normal" TORX® tools cannot be used. This pin fits into the borehole of TORX® BO tools allowing safety screws to be unfastened. TORX® with borehole 367 K Ball end TORX® screwdriver for TORX® screws Application: TORX® socket screws Blade: Round Design: Ball end, chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component 367 TORX® BO screwdriver for tamper-proof TORX® screws Application: TORX® screws with safety pin (BO = with bore hole) Blade: Round Design: Bore hole in TORX® section, chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component Kraftform Plus – Series 300 The right tool for every application 367 TORX PLUS® screwdriver for TORX PLUS® screws Application: TORX PLUS® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component
TORX® Code mm mm mm mm 05028130002 6 80 98 4.5 3 1 /8 " 5 05028132002 8 100 105 6.0 4" 5 05028134002 10 100 105 6.0 4" 5 05028136002 1 /4 " 125 112 8.0 5" 5 Code mm mm mm 05117680003 # 00 60 81 3.5 2 3 /8 " 5 05117681003 # 0 60 81 4.0 2 3 /8 " 5 05117682003 # 1 80 98 4.5 3 1 /8 " 5 05117683003 # 1 200 98 4.5 8" 5 05117684003 # 2 100 105 6.0 4" 5 05117685003 # 2 200 105 6.0 8" 5 05117691003 # 2 300 105 6.0 12" 2 05117686003 # 3 150 112 8.0 6" 5 05117687004 # 4 200 112 8.0 8" 5 05117688002 # 01 25 54 4.5 1" 5 05117689002 # 02 25 54 6.0 1" 5 ? WeraTORQ-SET® Mplus TORQ-SET® 49 Compared with the "normal" TORX® profile, the elliptical instead of circular profile enlarges the 6 flanks that transfer torque between the tool and the screw. This means that the force applied when screwdriving is spread across a larger surface area. Higher torque is transferred and, in addition, the service life of the screw and tool are lengthened. The so-called centre-lock screws on cutting tools represent a typical use of this type of screw profile. The thermal influences on such holders for carbide insert tips often "bake" the retaining screws so firmly that it is important to have a profile that considerably enhances the loosening torque capability of the screws. For this reason a torque-stable screw profile is necessary to avoid any possible damage to the screw and to exclude the possibility of an otherwise costly machine downtime. TORX PLUS® 371 TORQ-SET® Mplus screwdriver for TORQ-SET® screws Application: TORQ-SET® screws Blade: Round Design: Mplus for higher breaking torque and longer service life, chrome-plated Handle: Kraftform with non-roll feature, multi-component 368 Screwdriver for square socket head screws Application: Square socket screws Blade: Round Design: Chrome-plated, Black Point except for sizes 01+02 Handle: Kraftform with non-roll feature, multi-component, # 2/300, # 01/25, # 02/25: Weralit II, single-component Wera developed the Mplus profile with stronger flanks compared with tools with a conventional TORQ-SET® profile. This results in approximately 70 % extra torsional strength and greatly extends the service life of Wera Mplus tools. How can I prevent frequent breakages of TORQ-SET® bits? Screwdrivers
Code mm mm mm 05028116003 0 80 81 3.5 3 1 /8 " 5 05028118003 1 80 81 3.5 3 1 /8 " 5 05028120004 2 80 98 4.5 3 1 /8 " 5 05028122004 3 80 98 4.5 3 1 /8 " 5 05028124004 4 100 98 6.0 4" 5 05028126003 5 100 98 6.0 4" 5 Code mm mm mm mm 05029460002 5.0 70 98 7.2 2 25 /32 " 5 05029461002 5.5 70 98 7.2 2 25 /32 " 5 05029462002 6.0 70 98 7.2 2 25 /32 " 5 05029463002 7.0 80 105 7.2 3 5 /32 " 5 05029464002 8.0 80 105 9.3 3 5 /32 " 5 05029465002 10.0 80 112 9.3 3 5 /32 " 5 05029466002 13.0 80 112 11.0 3 5 /32 " 5 Code mm mm mm 05029501002 3 /16 " 70 98 7.2 2 25 /32 " 5 05029502002 1 /4 " 70 98 7.2 2 25 /32 " 5 05029503002 5 /16 " 80 105 9.3 3 5 /32 " 5 05029504004 11 /32 " 80 105 9.3 3 5 /32 " 5 05029505002 3 /8 " 80 112 9.3 3 5 /32 " 5 05029506002 7 /16 " 80 112 11.0 3 5 /32 " 5 05029507002 1 /2 " 80 112 11.0 3 5 /32 " 5 ? 50 375 TRI-WING® screwdriver for TRI-WING® screws Application: TRI-WING® screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, multi-component 395 HO Nutdriver Application: Hexagon headed bolts, screws and nuts Blade: Round Design: Hollow shaft for protruding threaded rods, chrome-plated Handle: Kraftform with non-roll feature, multi-component TIP: The hollow shaft enables seized screws or those on long threads to be tightened and loosened Kraftform Plus – Series 300 The right tool for every application 395 HO Nutdriver, imperial Application: Hexagon headed bolts, screws and nuts Blade: Round Design: Chrome-plated, hollow shaft for protruding threaded rods Handle: Kraftform with non-roll feature, multi-component TIP: The hollow shaft enables seized screws or those on long threads to be tightened and loosened A screwdriver with a hollow shaft is needed whenever there are screwdriving jobs involving threaded rods i.e. the threaded rod through the nut can slip into the hollow shaft of the screwdriver. What is the purpose of a screwdriver with hollow shaft?
Code 05105650006 1334 1 x 1.2x6.5x150 335 1 x 0.5x3.0x80 1) ; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 350 PH 1 x PH 1x80; 1 x PH 2x100 Code 05007680003 1334 SK 1 x 0.6x3.5x75; 1 x 0.8x4.0x90; 1 x 1.0x5.5x100; 1 x 1.2x6.5x125 350 SK PH 1 x PH 1x80; 1 x PH 2x100 Code 05346278001 1334 1 x 1.2x6.5x150 334 SK 1 x 1.2x6.5x125 335 1 x 0.5x3.0x80 1) ; 1 x 1.0x5.5x150; 1 x 1.2x6.0x100 350 PH 1 x PH 1x80; 1 x PH 2x100 ? 51 334/6 Rack screwdriver set Kraftform Plus Lasertip + rack Lasertip round blades and rack Application: Slotted and Phillips screws Content: 6-piece set and rack in display carton 1) without Lasertip 334 SK/6 Rack screwdriver set Kraftform Plus Lasertip + rack Lasertip hexagon blades and rack Application: Slotted and Phillips screws Content: 6-piece set and rack in display carton 334/335/350/7 Rack screwdriver set Kraftform Plus Lasertip + rack Lasertip round blades + rack Application: Slotted and Phillips screws Content: 7-piece set and rack in display carton 1) without Lasertip Hexagon Wera makes its Kraftform handles from several materials with different properties. The core is made from a hardwearing plastic that holds the blade securely even when subjected to great forces. The colour-coded soft zones of the external mantle consist of a softer material with more friction resistance for high torque transfer. The black areas with a harder surface prevent the hand from sticking to the handle enabling you to adjust your grip more quickly. Why is the Kraftform Plus handle made from several components? Screwdrivers
Code 05346300001 1350 PH 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150; 1 x PH 4x200 1) Stubby PH 1 x PH 02x25 Code 05346301001 1355 PZ 1 x PZ 1x80; 1 x PZ 2x100; 1 x PZ 3x150; 1 x PZ 4x200 1) Stubby PZ 1 x PZ 02x25 Code 05346302001 1334 1 x 0.8x5.0x100; 1 x 1.2x6.5x150; 1 x 1.2x8.0x175; 1 x 1.6x10.0x200 336 Stubby 1 x 1.2x6.5x25 Code 05347901001 1334 1 x 1.2x6.5x150 335 1 x 0.4x2.5x60 1) ; 1 x 0.5x3.0x80 1) ; 1x0.6x3.5x100;1x0.8x4.0x100;1x1.0x5.5x125 350 PH 1 x PH 0x60 1) ; 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150 368 1 x # 1x80; 1 x # 2x100 52 Kraftform Plus – Series 300 The right tool for every application 350/5 Screwdriver set Kraftform Plus Lasertip Application: Phillips screws Content: 5-piece set 1) without Lasertip 355/5 Screwdriver set Kraftform Plus Lasertip Application: Pozidriv*) screws Content: 5-piece set 1) without Lasertip *) Pozidriv = reg. trademark of Phillips Screw Company. 334/336/5 Screwdriver set Kraftform Plus Lasertip Application: Slotted screws Content: 5-piece set 334/368/12 screwdriver set Kraftform Plus Application: Slotted, Phillips-Recess and square socket screws Content: 12-piece set 1) without Lasertip

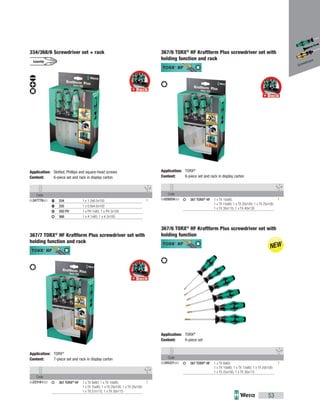

Code 05347778001 1334 1 x 1.2x6.5x150 335 1 x 0.8x4.0x100 350 PH 1 x PH 1x80; 1 x PH 2x100 368 1 x # 1x80; 1 x # 2x100 Code 05223161002 1367 TORX® HF 1 x TX 8x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 27x115; 1 x TX 30x115 Code 05345221001 1367 TORX® HF 1 x TX 8x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 30x115 Code 05028059003 1367 TORX® HF 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 30x115; 1 x TX 40x130 53 334/368/6 Screwdriver set + rack Application: Slotted, Phillips and square-head screws Content: 6-piece set and rack in display carton 367/7 TORX® HF Kraftform Plus screwdriver set with holding function and rack Application: TORX® Content: 7-piece set and rack in display carton 367/6 TORX® HF Kraftform Plus screwdriver set with holding function Application: TORX® Content: 6-piece set 367/6 TORX® HF Kraftform Plus screwdriver set with holding function and rack Application: TORX® Content: 6-piece set and rack in display carton Screwdrivers
? Code 05028074002 1367 TORX HF L 1 x TX 20x300; 1 x TX 25x300; 1 x TX 27x300; 1 x TX 30x300 Code 05028062004 1367 TORX® 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 30x115; 1 x TX 40x130 Code 05345220001 1367 TORX® 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 30x115 54 In tight assembly or disassembly situations, for example in engine compartments, it is not possible to securely hold the screw with the hand on the screwdriver, and the screw subsequently often gets lost. Lengthy searches or the loss of the screw (with the associated danger that could bring about) are the consequence. The TORX® HF tools developed by Wera are ideal because they feature an optimised geometry of the original TORX® profile. The wedging forces resulting from the surface pressure between the drive tip and the screw profile mean that the screw is securely held on the tool! What is the purpose of the TORX® HF profile? 367/4 TORX® HF Kraftform Plus screwdriver set with holding function and 300 mm-long blades Application: TORX® with holding function, extra long (300 mm) blade Content: 4-piece set 367/6 Screwdriver set Kraftform Plus TORX® and rack Application: TORX® Content: 6-piece set and rack in display carton 367/5 Screwdriver set Kraftform Plus TORX® Application: TORX® Content: 5-piece set Kraftform Plus – Series 300 The right tool for every application

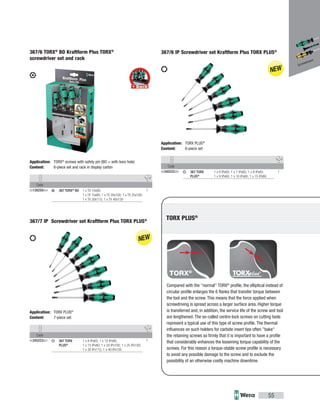

Code 05138250004 1367 TORX® BO 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 30x115; 1 x TX 40x130 Code 05345223001 1367 TORX PLUS® 1 x 8 IPx60; 1 x 10 IPx80; 1 x 15 IPx80; 1 x 20 IPx100; 1 x 25 IPx100; 1 x 30 IPx115; 1 x 40 IPx130 TORX® Code 05345222001 1367 TORX PLUS® 1 x 6 IPx60; 1 x 7 IPx60; 1 x 8 IPx60; 1 x 9 IPx60; 1 x 10 IPx80; 1 x 15 IPx80 55 367/6 TORX® BO Kraftform Plus TORX® screwdriver set and rack Application: TORX® screws with safety pin (BO = with bore hole) Content: 6-piece set and rack in display carton 367/7 IP Screwdriver set Kraftform Plus TORX PLUS® Application: TORX PLUS® Content: 7-piece set Compared with the "normal" TORX® profile, the elliptical instead of circular profile enlarges the 6 flanks that transfer torque between the tool and the screw. This means that the force applied when screwdriving is spread across a larger surface area. Higher torque is transferred and, in addition, the service life of the screw and tool are lengthened. The so-called centre-lock screws on cutting tools represent a typical use of this type of screw profile. The thermal influences on such holders for carbide insert tips often "bake" the retaining screws so firmly that it is important to have a profile that considerably enhances the loosening torque capability of the screws. For this reason a torque-stable screw profile is necessary to avoid any possible damage to the screw and to exclude the possibility of an otherwise costly machine downtime. TORX PLUS® 367/6 IP Screwdriver set Kraftform Plus TORX PLUS® Application: TORX PLUS® Content: 6-piece set Screwdrivers
? Code 05029510002 1395 HO 1 x 5.0x70; 1 x 5.5x70; 1 x 6.0x70; 1 x 7.0x80; 1 x 8.0x80; 1 x 10.0x80; 1 x 13.0x80 Code 05345230001 1395 HO Inch 1 x 3/16"x70; 1 x 1/4"x70; 1 x 5/16"x80; 1 x 11/32"x80; 1 x 3/8"x80; 1 x 7/16"x80; 1 x 1/2"x80 Code 05029508002 1395 HO Inch 1 x 3/16"x70; 1 x 1/4"x70; 1 x 5/16"x80; 1 x 3/8"x80; 1 x 7/16"x80; 1 x 1/2"x80 56 A screwdriver with a hollow shaft is needed whenever there are screwdriving jobs involving threaded rods i.e. the threaded rod through the nut can slip into the hollow shaft of the screwdriver. What is the purpose of a screwdriver with hollow shaft? Kraftform Plus – Series 300 The right tool for every application 395 HO/7 SM Nutdriver set Application: Hexagon headed bolts, screws and nuts Content: 7-piece set in display carton TIP: The hollow shaft enables seized screws or those on long threads to be tightened and loosened 395 HO/7 SZ Nutdriver Set Application: Hexagon headed bolts, screws and nuts Content: 7-piece set TIP: The hollow shaft enables seized screws or those on long threads to be tightened and loosened 395 HO/6 SZ Nutdriver Set Application: Hexagon headed bolts, screws and nuts Content: 6-piece set TIP: The hollow shaft enables seized screws or those on long threads to be tightened and loosened
Code 05051010003 1160 i VDE 1 x 0.4x2.5x80 1) ; 1 x 0.6x3.5x100 247 1 x 0.5x3.0x70 334 1 x 1.2x6.5x150 335 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 350 PH 1 x PH 1x80; 1 x PH 2x100 355 PZ 1 x PZ 1x80; 1 x PZ 2x100 932 A 1 x 1.0x5.5x100; 1 x 1.2x7.0x125 Rack 2 x 190.0x50,0 Code 05347105001 1160 i VDE 1 x 0.4x2.5x80 1) ; 1 x 0.6x3.5x100 247 1 x 0.5x3.0x70 334 1 x 1.2x6.5x150 335 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 350 PH 1 x PH 1x80; 1 x PH 2x100 368 1 x # 1x80; 1 x # 2x100 932 A 1 x 1.0x5.5x100; 1 x 1.2x7.0x125 Rack 2 x 190.0x50,0 Code 05030005002 10 57 Kraftform XXL 12-piece screwdriver set for all-round applications 1) without Lasertip Kraftform XXL 2 12-piece screwdriver set for all-round applications 1) without Lasertip With original Kraftform handle Bottle opener Screwdrivers
The multi-component Kraftform handle for quick and low-exertion working. The screw symbol and tip size identification markings on the handle make it easier to find the right screwdriver in the tool case, or at the workplace. The hexagonal non-roll feature prevents any annoying rolling away. The bit material used for manufacturing is subjected to a specific Wera hardening process, and this ensures longer product service life. The Wera Black Point tip and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit. Kraftform Comfort The Kraftform Comfort series offers a wide and diverse range of screwdrivers for universal use, with the distinctive Kraftform handle. 58
Kraftform Classic also offers the distinctive Kraftform handle in a single-component variant. The ergonomic Kraftform handle prevents injury to the hand-arm system. The hexagonal non-roll feature prevents any annoying rolling away at the workplace. The Wera Black Point tip and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit. The bit material used for manufacturing is subjected to a specific Wera hardening process and this ensures longer product service life. Kraftform Classic Screwdrivers 59
Code mm mm mm mm mm 05031400002 0.4 2.0 60 81 2.5 5 /64 " 2 3 /8 " 10 05031401002 0.4 2.5 75 81 2.5 3 /32 " 3" 10 05031402002 0.5 3.0 80 81 3.0 1 /8 " 3 1 /8 " 10 05031403002 0.5 3.0 150 81 3.0 1 /8 " 6" 10 05031404002 0.5 3.0 200 81 3.0 1 /8 " 8" 5 05031405002 0.6 3.5 100 81 3.5 9 /64 " 4" 10 05031406002 0.6 3.5 125 81 3.5 9 /64 " 5" 10 05031407002 0.6 3.5 200 81 3.5 9 /64 " 8" 5 05031408002 0.8 4.0 100 98 4.0 5 /32 " 4" 10 05031409002 0.8 4.0 150 98 4.0 5 /32 " 6" 10 05031410002 0.8 4.0 200 98 4.0 5 /32 " 8" 5 05031411002 0.8 4.0 300 98 4.0 5 /32 " 12" 2 05345283001 0.8 4.5 100 98 4.5 5 /32 " 4" 10 05031412002 1.0 5.5 125 98 5.5 7 /32 " 5" 10 05031413002 1.0 5.5 150 98 5.5 7 /32 " 6" 10 05031414002 1.0 5.5 200 98 5.5 7 /32 " 8" 5 05031415002 1.0 5.5 300 98 5.5 7 /32 " 12" 2 05031416002 1.2 6.0 100 105 6.0 15 /64 " 4" 10 Code mm mm mm mm 05031420002 0.8 5.0 100 98 3 /16 " 4" 10 05031421002 1.0 6.0 125 105 15 /64 " 5" 10 05031422002 1.2 6.5 150 105 1 /4 " 6" 10 05031423002 1.2 6.5 200 105 1 /4 " 8" 5 05031424002 1.2 7.0 150 105 9 /32 " 6" 10 05031425002 1.2 8.0 175 112 5 /16 " 7" 5 05031426002 1.6 8.0 175 112 5 /16 " 7" 5 05031427002 1.6 10.0 200 112 3 /8 " 8" 5 Code mm mm mm mm mm mm 05031430002 0.6 3.5 4 - 75 81 9 /64 " 3" 10 05031431002 0.8 4.0 4 - 90 81 5 /32 " 3 1 /2 " 10 05031432002 0.8 4.5 5 8 90 98 0.178" 3 1 /2 " 10 05031433002 1.0 5.5 6 10 100 98 7 /32 " 4" 10 05031434002 1.2 6.5 6 10 125 105 1 /4 " 5" 10 05031435002 1.2 7.0 6 10 125 105 9 /32 " 5" 10 05031436002 1.6 9.0 8 13 150 112 11 /32 " 6" 10 05031437002 1.6 10.0 8 13 175 112 3 /8 " 7" 5 Code mm mm mm 05031440002 PH 0 60 81 3.0 2 3 /8 " 5 05031441002 PH 1 80 98 4.5 3 1 /8 " 10 05031442002 PH 1 200 98 4.5 8" 2 05031443002 PH 1 300 98 4.5 12" 2 05031444002 PH 2 100 105 6.0 4" 10 05031445002 PH 2 200 105 6.0 8" 2 05031446002 PH 2 300 105 6.0 12" 2 05031447002 PH 3 150 112 8.0 6" 5 05031448002 PH 4 200 112 10.0 8" 2 Kraftform Comfort Convenient, safe, good! 1335 Screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1334 Screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1334 SK Screwdriver for slotted screws Application: Slotted screws Blade: Hexagonal with bolster from 0.8 x 4.5 Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1350 PH Screwdriver for Phillips screws Application: Phillips screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 60
Code mm mm mm mm 05031450002 PH 0 4 60 81 2 3 /8 " 5 05031451002 PH 1 5 8 80 98 2 3 /8 " 10 05031452002 PH 2 6 10 100 105 4" 10 05031453002 PH 3 8 13 150 112 4" 5 Code mm mm mm 05031500002 TX 5 60 81 3.5 2 3 /8 " 10 05031501002 TX 6 60 81 3.5 2 3 /8 " 10 05031502002 TX 7 60 81 3.5 2 3 /8 " 10 05031503002 TX 8 60 81 3.5 2 3 /8 " 10 05031504002 TX 9 60 81 4.0 2 3 /8 " 10 05031505002 TX 10 80 81 4.0 3 1 /8 " 10 05031506002 TX 15 80 98 4.0 3 1 /8 " 10 05031507002 TX 20 100 98 4.5 4" 10 05031508002 TX 25 100 105 5.0 4" 10 05031509002 TX 27 115 105 5.5 4 9 /16 " 10 05031510002 TX 30 115 105 6.0 4 9 /16 " 10 05031511002 TX 40 130 112 7.0 5 3 /16 " 10 05031512002 TX 45 130 112 8.0 5 1 /8 " 10 Code mm mm mm 05031520002 TX 7 60 81 3.5 2 3 /8 " 5 05031521002 TX 8 60 81 3.5 2 3 /8 " 5 05031522002 TX 9 60 81 4.0 2 3 /8 " 5 05031523002 TX 10 80 81 4.0 3 1 /8 " 5 05031524002 TX 15 80 98 4.0 3 1 /8 " 5 05031525002 TX 20 100 98 4.5 4" 5 05031526002 TX 25 100 105 5.0 4" 5 05031527002 TX 27 115 105 5.5 4 9 /16 " 5 05031528002 TX 30 115 105 6.0 4 9 /16 " 5 05031529002 TX 40 130 112 7.0 5 1 /8 " 5 1350 SK PH Screwdriver for Phillips screws Application: Phillips screws Blade: Hexagonal, sizes 1 - 3 with bolster Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1367 TORX® screwdriver for TORX® screws Application: TORX® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1367 TORX® BO screwdriver for tamper-proof TORX® screws Application: TORX® socket screws with safety pin (BO = with bore hole) Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component TORX® tools with a borehole prevent the unauthorised unfastening of safety screws. The screws contain a pin that protrudes into the drive profile so that "normal" TORX® tools cannot be used. This pin fits into the borehole of TORX® BO tools allowing safety screws to be unfastened. TORX® with borehole Screwdrivers 61
Code 05031551002 11334 1 x 1.2x6.5x150 1335 1 x 0.5x3.0x80; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 1350 PH 1 x PH 1x80; 1 x PH 2x100 Code 05031556002 11334 SK 1 x 0.6x3.5x75; 1 x 0.8x4.0x90; 1 x 1.0x5.5x100; 1 x 1.2x6.5x125 1350 SK PH 1 x PH 1x80; 1 x PH 2x100 Code 05345246001 11334 SK 1 x 1.2x6.5x125; 1 x 1.6x9.0x150 1335 1 x 0.8x4.0x100; 1 x 0.8x4.0x150; 1 x 0.8x4.5x100 1350 PH 1 x PH 1x80; 1 x PH 2x100 Code 05345249001 11334 1 x 1.2x6.5x150 1335 1 x 0.5x3.0x80; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 1350 PH 1 x PH 1x80; 1 x PH 2x100 1334/6 Screwdriver set Kraftform Comfort Application: Slotted and Phillips screws Content: 6-piece set in display carton Kraftform Comfort Convenient, safe, good! 1334 SK/6 Screwdriver set Kraftform Comfort Application: Slotted and Phillips screws Content: 6-piece set in display carton 1334/1335/1350/7 Screwdriver set Kraftform Comfort Application: Slotted and Phillips screws Content: 7-piece set 1335/1350/6 Screwdriver set Kraftform Comfort Application: Slotted and Phillips screws Content: 6-piece set Hexagon 62
Code 05345248001 11334 1 x 1.2x6.5x150 1335 1 x 0.5x3.0x80; 1 x 0.8x4.0x100 1350 PH 1 x PH 1x80; 1 x PH 2x100 Code 05031554002 11367 TORX® 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 30x115; 1 x TX 40x130 Code 05345256001 11367 TORX® 1 x TX 6x60; 1 x TX 7x60; 1 x TX 8x60; 1 x TX 9x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 27x115; 1 x TX 30x115; 1 x TX 40x130 Code 05345255001 11367 TORX® 1 x TX 6x60; 1 x TX 8x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 27x115; 1 x TX 30x115 1335/1350/5 Screwdriver set Kraftform Comfort Application: Slotted and Phillips screws Content: 5-piece set 1367/6 TORX® screwdriver set Kraftform Comfort Application: TORX® screws Content: 6-piece set in display carton 1367/11 TORX® screwdriver set Kraftform Comfort Application: TORX® screws Content: 11-piece set 1367/8 TORX® screwdriver set Kraftform Comfort Application: TORX® screws Content: 8-piece set Screwdrivers 63
Code 05345254001 11367 TORX® 1 x TX 6x60; 1 x TX 7x60; 1 x TX 8x60; 1 x TX 9x60; 1 x TX 10x80; 1 x TX 15x80 Code 05345257001 11367 TORX® 1 x TX 8x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100 Code 05345258001 11367 TORX® BO 1 x TX 7x60; 1 x TX 8x60; 1 x TX 9x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100 1367/6 TORX® screwdriver set Kraftform Comfort Application: TORX® screws Content: 6-piece set Kraftform Comfort Convenient, safe, good! 1367/5 TORX® screwdriver set Kraftform Comfort Application: TORX® screws Content: 5-piece set 1367/7 TORX® BO screwdriver set Kraftform Comfort for tamper-proof TORX® screws Application: TORX® screws with safety pin (BO = with bore hole) Content: 7-piece set TORX® drive profiles transfer torque between tool and screw by line or surface contact rather than point contact as many other profiles. This protects both the screw and the tool profile. It also increases the amount of torque and power that can be transferred. TORX® 64

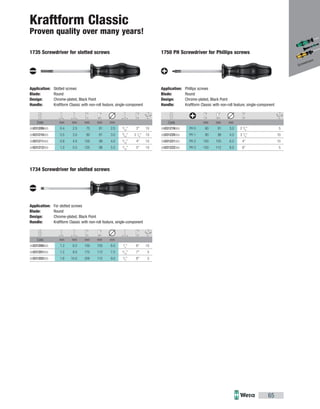

Code mm mm mm mm mm 05031209003 0.4 2.5 75 81 2.5 3 /32 " 3" 10 05031210003 0.5 3.0 80 81 3.0 9 /64 " 3 1 /8 " 10 05031211003 0.8 4.0 100 98 4.0 5 /32 " 4" 10 05031212003 1.0 5.5 125 98 5.5 7 /32 " 5" 10 Code mm mm mm mm mm 05031200003 1.2 6.5 150 105 6.0 1 /4 " 6" 10 05031201003 1.2 8.0 175 112 7.0 5 /16 " 7" 5 05031202003 1.6 10.0 200 112 9.0 3 /8 " 8" 5 Code mm mm mm 05031219003 PH 0 60 81 3.0 2 3 /8 " 5 05031220003 PH 1 80 98 4.5 3 1 /8 " 10 05031221003 PH 2 100 105 6.0 4" 10 05031222003 PH 3 150 112 8.0 6" 5 Kraftform Classic Proven quality over many years! 1735 Screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Classic with non-roll feature, single-component 1734 Screwdriver for slotted screws Application: For slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Classic with non-roll feature, single-component 1750 PH Screwdriver for Phillips screws Application: Phillips screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Classic with non-roll feature, single-component Screwdrivers 65
Code 05031280002 11734 1 x 1.2x6.5x150 1735 1 x 0.5x3.0x80; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 1750 PH 1 x PH 1x80; 1 x PH 2x100 Code mm mm mm 05031300002 TX 8 60 81 3.5 2 3 /8 " 10 05031301002 TX 9 60 81 4.0 2 3 /8 " 10 05031302002 TX 10 80 81 4.0 3 1 /8 " 10 05031303002 TX 15 80 98 4.0 3 1 /8 " 10 05031304002 TX 20 100 98 4.5 4" 10 05031305002 TX 25 100 105 5.0 4" 10 05031308002 TX 27 115 105 5.5 4 9 /16 " 10 05031306002 TX 30 115 105 6.0 4 9 /16 " 10 05031307002 TX 40 130 112 7.0 5 1 /8 " 10 1734/6 Screwdriver set Kraftform Classic Application: Slotted and Phillips screws Content: 6-piece set in display carton Kraftform Classic Proven quality over many years! 1767 Screwdriver for TORX® screws Application: TORX® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Classic with non-roll feature, single-component The hexagonal non-roll feature prevents any annoying rolling away at the workplace. Non-roll feature The Wera Black Point tip and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit. Black Point Tip 66
Code 05345240001 11767 TORX® 1 x TX 6x50; 1 x TX 8x60; 1 x TX 10x80; 1 x TX 15x80; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 27x115; 1 x TX 30x115 1767/8 TORX® screwdriver set Kraftform Classic Application: TORX® screws Content: 8-piece set TORX® drive profiles transfer torque between tool and screw by line or surface contact rather than point contact as many other profiles. This protects both the screw and the tool profile. It also increases the amount of torque and power that can be transferred. TORX® Screwdrivers 67
Flagdriver and Stubby Series The right tool for every application 1267 A TORX® flagdriver for TORX® screws Application: TORX® socket screws Blade: Round Design: BlackLaser surface Handle: Multi-component 1267 A TORX PLUS® flagdriver for TORX PLUS® screws Application: TORX PLUS® socket screws Blade: Round Design: BlackLaser surface Handle: Multi-component 1267 B TORX® combination flagdriver for TORX® and hexagon socket screws Application: TORX® and hexagon socket screws Blade: Hexagon Design: TORX® and hexagon, BlackLaser surface Handle: Multi-component 1267 B TORX PLUS® combination flagdriver for TORX PLUS® and hexagon socket screws Application: TORX PLUS® and hexagon socket screws Blade: Hexagon Design: TORX PLUS® and hexagon, BlackLaser surface Handle: Multi-component Code mm mm mm 05026350003 TX 6 33 62.0 3.0 1 19 /64 " 10 05026351003 TX 7 33 62.0 3.0 1 19 /64 " 10 05026352002 TX 8 40 69.0 3.0 1 37 /64 " 10 05026353003 TX 9 40 69.0 3.0 1 37 /64 " 10 05026354002 TX 10 40 69.0 3.0 1 37 /64 " 10 Code mm mm mm 05026360002 6 IP 33 62.0 3.0 1 19 /64 " 10 05026361003 7 IP 33 62.0 3.0 1 19 /64 " 10 05026362002 8 IP 40 69.0 3.0 1 37 /64 " 10 05026363003 9 IP 40 69.0 3.0 1 37 /64 " 10 05026364002 10 IP 40 69.0 3.0 1 37 /64 " 10 Code mm mm mm 05026370002 TX 9 3.5 42 81.0 1 5 /8 " 10 05026371002 TX 10 3.5 42 81.0 1 5 /8 " 10 05026372003 TX 15 3.5 47 86.0 1 27 /32 " 10 05026373004 TX 15 4 47 86.0 1 27 /32 " 10 05026374002 TX 20 4 47 86.0 1 27 /32 " 10 Code mm mm mm 05026380003 9 IP 3.5 42 81.0 1 5 /8 " 10 05026381002 10 IP 3.5 42 81.0 1 5 /8 " 10 05026382003 15 IP 3.5 47 86.0 1 27 /32 " 10 05026383003 15 IP 4 47 86.0 1 27 /32 " 10 05026384002 20 IP 4 47 86.0 1 27 /32 " 10 68
336 Stubby/Carburettor screwdriver Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, Weralit II, single-component Stubby/Carburettor screwdriver Application: Phillips screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform, with non-roll feature, Weralit II, single-component Code mm mm mm mm mm 05110068002 0.6 3.5 25 54 3.5 9 /64 " 1" 5 05110069003 0.8 4.0 25 54 4.0 5 /32 " 1" 5 05110070003 1.0 5.5 25 54 5.5 7 /32 " 1" 5 05110075003 1.2 6.5 25 54 6.5 1 /4 " 1" 5 05110078002 1.2 8.0 25 54 8.0 5 /16 " 1" 5 Code mm mm mm 05008775003 PH 01 25 54 4.5 1" 5 05008780005 PH 02 25 54 6.0 1" 5 05008782002 PH 03 25 54 6.0 1" 5 69 Screwdrivers
Accessories Indispensable aids for screwdriving jobs 335 MS Slotted screwdriver Application: Suitable for less demanding screwdriving jobs and for general uses such as e.g. depth of profile measurements, checking for signs of rusting, removal of dirt Blade: Round Design: Stainless steel for high corrosion protection Handle: Kraftform with non-roll feature, single-component, cellulose acetate, equipped with practical clip for attaching e. g. to the breast pocket Wera Star - Magnetiser / Demagnetiser 1427 Awl Handle: Weralit II, single-component Blade: Extends through handle ? Code mm mm mm mm mm 05008004002 0.5 3.0 50 70 3.0 1 /8 " 2" 5 Code mm 05073403002 48.0 1 Code mm mm 05027405004 105 92 4 3 /16 " 5 70 The Wera magnetiser/demagnetiser: simply run the tool down the positive side of the Wera magnetiser/demagnetiser and the tool immediately becomes magnetised and is able to hold the screw securely on the blade. To demagnetise the tool, simply run it down one of the four negative sides. How to hold any screw securely on the screwdriver
Rack for Kraftform screwdrivers Rack for Kraftform Micro screwdrivers Code mm mm 05134001002 190.0 50,0 1 Code mm mm 05134002002 190.0 80 1 Screwdrivers 71
1441 Screw gripper attachment for screwdriver blades, long bits and L-keys with holding function for screws Application: Attachment with holding function for screws, holds all screw profiles and sizes securely on the tool, suitable for round and hexagon blades with a diameter from 4.5 mm to 6.0 mm Design: Elastomer 1440/1442 Screw gripper set Application: Attachment with holding function for screws, holds all screw profiles and sizes securely on the tool, suitable for round and hexagon blades with a diameter from 4.5 mm to 6.0 mm and 6.5 mm to 8.0 mm Construction: Elastomer Code mm mm 05073681002 4.5-6.0 41.0 1 Code 05073680002 51440 1 x 4.5 - 6.0x41.0 1442 1 x 6.5 - 8.0x41.0 For screw gripper sets see page 44, 45, 101, 351, 353, 355, 360 72 Push the screw gripper onto the tip of the screwdriver until the end of the blade protrudes from the rubber blade holder. Attach the screw to the tip of the blade and secure it in the screw gripper. Pull the screw gripper towards the screwdriver handle until the two arms of the gripper sit against the head of the screw and are spread slightly apart. The Wera screw gripper releases the screw automatically after it has been fastened. The two gripper arms spread further apart as they are pushed against the surface and automatically snap back when the head of the screw is countersunk. When fastening screws in blind holes the screw gripper is pushed back, making it possible to reach even deep-seated screws. And this is how the gripper works: Accessories Indispensable aids for screwdrivers.
Screwdrivers 73 Kraftform Micro Series
74 The highly precise Wera manufacturing quality is indispensable whenever minimum dimensions are concerned. The three-zone concept reduces fastening time and distinctly lowers the cost for each screw connection. Ever lost patience with precision screw connections? Kraftform Micro is the ideal screwdriving partner for electronics or precision engineering applications.
75 The spinning cap and the fast-turning zone just below the head allow rapid twisting. This makes time-consuming grip adjustments, as required with other conventional precision screwdrivers, unnecessary. The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw. The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work. The Wera Black Point tip, as well as a refined hardening process, ensure long service life and enhanced corrosion protection. Multi-component screwdriver handle for ergonomic working. Indispensable for many users, including electronics technicians, opticians, precision engineers, jewellers, EDP hardware fitters and model-makers. Screwdrivers
??????????????????? Code mm mm mm mm mm 05117990002 0.16 0.8 40 97 2.0 1 /32 " 1 9 /16 " 10 05117991002 0.18 1.0 40 97 2.0 0.04" 1 9 /16 " 10 05117992002 0.20 1.2 40 97 2.0 0.05" 1 9 /16 " 10 05118002003 0.23 1.5 40 97 2.0 1 /16 " 1 9 /16 " 10 05118003002 0.23 1.5 60 97 2.0 1 /16 " 2 3 /8 " 10 05118000002 0.25 1.2 40 97 2.0 0.05" 1 9 /16 " 10 05118001002 0.25 1.2 60 97 2.0 0.05" 2 3 /8 " 10 05117993002 0.30 1.8 40 97 2.0 0.07" 1 9 /16 " 10 05118004002 0.30 1.8 60 97 2.0 0.07" 2 3 /8 " 10 05118017002 0.30 2.0 50 97 2.0 0.07" 2" 10 05118005002 0.40 2.0 40 97 2.5 5 /64 " 1 9 /16 " 10 05345287001 0.40 2.0 50 97 2.5 5 /64 " 2" 10 05118006004 0.40 2.0 60 97 2.5 5 /64 " 2 3 /8 " 10 05118007002 0.40 2.0 100 97 2.5 5 /64 " 4" 10 05117994002 0.40 2.5 50 97 2.5 3 /32 " 2" 10 05118008004 0.40 2.5 80 97 2.5 3 /32 " 3 1 /8 " 10 05118009002 0.40 2.5 100 97 2.5 3 /32 " 4" 10 05117995002 0.50 3.0 50 97 3.0 1 /8 " 2" 10 05118010003 0.50 3.0 80 97 3.0 1 /8 " 3 1 /8 " 10 05118011002 0.50 3.0 100 97 3.0 1 /8 " 4" 10 05117996002 0.50 3.0 150 97 4.0 1 /8 " 6" 10 05118012004 0.60 3.5 80 97 4.0 9 /64 " 3 1 /8 " 10 05118014004 0.80 4.0 80 97 4.0 5 /32 " 3 1 /8 " 10 05118015002 0.80 4.0 100 97 4.0 5 /32 " 4" 10 05118016002 0.80 4.0 150 97 4.0 5 /32 " 6" 10 Code mm mm mm 05118019002 PH 00 40 97 2.5 1 9 /16 " 10 05118020004 PH 00 60 97 3.0 2 3 /8 " 10 05118022004 PH 0 60 97 3.0 2 3 /8 " 10 05118023002 PH 1 60 97 4.0 2 3 /8 " 10 05118024004 PH 1 80 97 4.0 3 1 /8 " 10 05118025002 PH 1 100 97 4.0 4" 10 Code mm mm mm 05118030003 PZ 0 60 97 3.0 2 3 /8 " 10 05118032003 PZ 1 80 97 4.0 3 1 /16 " 10 76 The electronic TORX® HF screwdriver with holding function literally presses the screw onto the screwdriver. The conical driving flanks that taper toward the tip of the tool, the optimised flank base and the ideal engage depth hold the screw securely on the blade. How can I hold my TORX® screw securely on the screwdriver? Series Kraftform Micro The superior screwdriver for electronics technicians 2035 Screwdriver for slotted screws for electronic applications Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2050 PH Screwdriver for Phillips screws for electronic applications Application: Phillips screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2055 PZ Screwdriver for Pozidriv screws for electronic applications Application: Suitable for Pozidriv*) screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component *) Pozidriv = reg. trademark of Phillips Screw Company.
??????????????????? Code mm mm mm 05118180002 TX 4 40 97 2.5 1 9 /16 " 5 05118181002 TX 5 40 97 3.0 1 9 /16 " 5 05118182002 TX 6 40 97 3.0 1 9 /16 " 5 05118183002 TX 7 60 97 3.0 2 3 /8 " 5 05118184002 TX 8 60 97 3.0 2 3 /8 " 5 05118185002 TX 9 60 97 4.0 2 3 /8 " 5 05118186002 TX 10 60 97 4.0 2 3 /8 " 5 05118187002 TX 15 60 97 4.0 2 3 /8 " 5 05118188002 TX 20 60 97 4.0 2 3 /8 " 5 Code mm mm mm 05118035002 TX 1 40 97 2.0 1 9 /16 " 5 05118036002 TX 2 40 97 2.0 1 9 /16 " 5 05118037002 TX 3 40 97 2.0 1 9 /16 " 5 05118039002 TX 4 40 97 2.5 1 9 /16 " 5 05118040003 TX 5 40 97 3.0 1 9 /16 " 5 05118042003 TX 6 40 97 3.0 1 9 /16 " 5 Code mm mm mm 05118044003 TX 7 60 97 3.0 1 9 /16 " 5 05118046003 TX 8 60 97 3.0 2 3 /8 " 5 05118048003 TX 9 60 97 4.0 2 3 /8 " 5 05118050003 TX 10 60 97 4.0 2 3 /8 " 5 05118052003 TX 15 60 97 4.0 2 3 /8 " 5 05118054003 TX 20 60 97 4.0 2 3 /8 " 5 77 The Kraftform Micro, with its three zones and their specific arrangement, satisfies these requirements perfectly. The free-turning cap that provides support for the hand works with these advantages, enabling quick and easy precision work. How to perform precision screwdriving jobs quickly whilst still applying the required degree of force 2067 TORX® HF Screwdriver for TORX® screws for electronic applications with holding function Application: TORX® socket screws Blade: Round Design: Holding function for TORX® screws made according to Acument Global Technologies Inc. specifications, chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2067 TORX® Screwdriver for TORX® screws for electronic applications Application: TORX® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2067 TORX® BO Screwdriver for tamper-proof TORX® screws for electronic applications Application: TORX® socket screws with safety pin (BO = with bore hole) Blade: Round Design: Bore hole in TORX® section, chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component Screwdrivers
? Code mm mm mm mm 05118060003 0.7 40 97 3.0 1 9 /16 " 5 05118062003 0.9 40 97 3.0 1 9 /16 " 5 05118064003 1.3 40 97 3.0 1 9 /16 " 5 05118066002 1.5 60 97 3.0 2 3 /8 " 5 05118068003 2.0 60 97 3.0 2 3 /8 " 5 05118070003 2.5 60 97 4.0 2 3 /8 " 5 05118072003 3.0 60 97 4.0 2 3 /8 " 5 05345284001 0,028" 40 97 3.0 1 9 /16 " 5 05345285001 0,035" 40 97 3.0 1 9 /16 " 5 05118074002 0.05" 40 97 3.0 1 9 /16 " 5 05118076002 1 /16 " 60 97 3.0 2 3 /8 " 5 05118078002 5 /64 " 60 97 3.0 2 3 /8 " 5 05118080002 3 /32 " 60 97 4.0 2 3 /8 " 5 05118082002 7 /64 " 60 97 4.0 2 3 /8 " 5 05118075002 1 /8 " 60 97 4.0 2 3 /8 " 5 Code mm mm mm mm 05118089002 1.3 60 97 3.0 2 3 /8 " 5 05118090002 1.5 60 97 3.0 2 3 /8 " 5 05118092002 2.0 60 97 3.0 2 3 /8 " 5 05118094002 2.5 60 97 4.0 2 3 /8 " 5 05118096002 3.0 60 97 4.0 2 3 /8 " 5 05118098002 1 /16 " 60 97 3.0 2 3 /8 " 5 05118100002 5 /64 " 60 97 3.0 2 3 /8 " 5 05118102002 3 /32 " 60 97 3.0 2 3 /8 " 5 05118106002 7 /64 " 60 97 4.0 2 3 /8 " 5 05118103002 1 /8 " 60 97 4.0 2 3 /8 " 5 Code mm mm mm 05118200002 IP 4 40 97 2.5 1 9 /16 " 5 05118201002 IP 5 40 97 3.0 1 9 /16 " 5 05118202002 IP 6 40 97 3.0 1 9 /16 " 5 05118203002 IP 7 60 97 3.0 2 3 /8 " 5 05118204002 IP 8 60 97 3.0 2 3 /8 " 5 05118205002 IP 9 60 97 4.0 2 3 /8 " 5 05118206002 IP 10 60 97 4.0 2 3 /8 " 5 05118207002 IP 15 60 97 4.0 2 3 /8 " 5 05118208002 IP 20 60 97 4.0 2 3 /8 " 5 78 The Wera magnetiser/demagnetiser: simply run the tool down the positive side of the Wera magnetiser/demagnetiser and the tool immediately becomes magnetised and is able to hold the screw securely on the blade. To demagnetise the tool, simply run it down one of the four negative sides. See page 70. How to hold any screw securely on the screwdriver Series Kraftform Micro The superior screwdriver for electronics technicians 2054 Screwdriver for hexagon socket screws for electronic applications Application: Hexagon socket screws Blade: Round Design: Hex-Plus, chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2052 Ball end screwdriver for hexagon socket screws for electronic applications Application: Hexagon socket screws Blade: Round Design: Hexagon ball end, chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2067 TORX PLUS® screwdriver for TORX PLUS® screws for electronic applications Application: TORX PLUS® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component
? Code mm mm mm mm 05118108002 1.5 60 97 4.0 2 3 /8 " 5 05118109002 1.8 60 97 4.0 2 3 /8 " 5 05118110002 2.0 60 97 4.0 2 3 /8 " 5 05118112002 2.5 60 97 4.0 2 3 /8 " 5 05118114002 3.0 60 97 5.0 2 3 /8 " 5 05118116002 3.2 60 97 5.0 2 3 /8 " 5 05118118002 3.5 60 97 5.3 2 3 /8 " 5 05118120002 4.0 60 97 5.5 2 3 /8 " 5 05118122002 4.5 60 97 6.2 2 3 /8 " 5 05118124002 5.0 60 97 7.0 2 3 /8 " 5 05118126002 5.5 60 97 7.8 2 3 /8 " 5 05345281001 6.0 60 97 8.5 2 3 /8 " 5 05118128002 3 /32 " 60 97 5.7 2 3 /8 " 5 05118130002 7 /64 " 60 97 5.7 2 3 /8 " 5 05118132002 1 /8 " 60 97 5.7 2 3 /8 " 5 05118134002 9 /64 " 60 97 5.7 2 3 /8 " 5 05118136002 5 /32 " 60 97 5.7 2 3 /8 " 5 05118135002 3 /16 " 60 97 - 2 3 /8 " 5 05118137002 7 /32 " 60 97 - 2 3 /8 " 5 05345282001 1 /4 " 60 97 8.5 2 3 /8 " 5 Code 05118150003 12035 Micro 1 x 0.30x1.8x60; 1 x 0.40x2.0x60; 1 x 0.40x2.5x80; 1 x 0.50x3.0x80 2050 PH Micro 1 x PH 00x60; 1 x PH 0x60 Code 05118152003 12035 Micro 1 x 0.40x2.5x80; 1 x 0.50x3.0x80; 1 x 0.60x3.5x80; 1 x 0.80x4.0x80 2050 PH Micro 1 x PH 0x60; 1 x PH 1x80 79 Every challenging screwdriving job merits a perfect problem solution. Therefore, the extent and depth of the range is aligned to the needs of professional users. Why is the Micro range so extensive? 2069 Nutdriver for electronic applications Application: Hexagon headed bolts, screws and nuts Blade: Round Design: Chrome-plated Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 2035/6 A Screwdriver set and rack for electronic applications Application: Slotted and Phillips screws Content: 6-piece set and rack in display carton 2035/6 B Screwdriver set and rack for electronic applications Application: Slotted and Phillips screws Content: 6-piece set and rack in display carton Screwdrivers

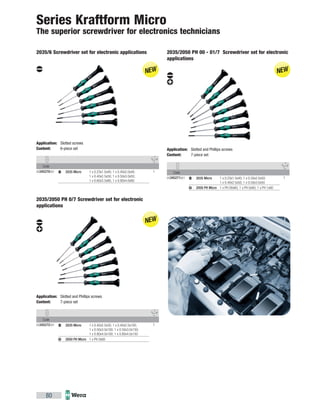

Code 05345270001 12035 Micro 1 x 0.23x1.5x40; 1 x 0.40x2.0x40; 1 x 0.40x2.5x50; 1 x 0.50x3.0x50; 1 x 0.60x3.5x80; 1 x 0.80x4.0x80 Code 05345272001 12035 Micro 1 x 0.40x2.5x50; 1 x 0.40x2.5x100; 1 x 0.50x3.0x100; 1 x 0.50x3.0x150; 1 x 0.80x4.0x100; 1 x 0.80x4.0x150 2050 PH Micro 1 x PH 0x60 Code 05345271001 12035 Micro 1 x 0.23x1.5x40; 1 x 0.30x2.0x50; 1 x 0.40x2.5x50; 1 x 0.50x3.0x50 2050 PH Micro 1 x PH 00x60; 1 x PH 0x60; 1 x PH 1x60 80 Series Kraftform Micro The superior screwdriver for electronics technicians 2035/6 Screwdriver set for electronic applications Application: Slotted screws Content: 6-piece set 2035/2050 PH 0/7 Screwdriver set for electronic applications Application: Slotted and Phillips screws Content: 7-piece set 2035/2050 PH 00 - 01/7 Screwdriver set for electronic applications Application: Slotted and Phillips screws Content: 7-piece set
Code 05345276001 12067 TORX® HF 1 x TX 5x40; 1 x TX 6x40; 1 x TX 7x60; 1 x TX 8x60; 1 x TX 9x60; 1 x TX 10x60; 1 x TX 15x60 Code 05345277001 12067 TORX® HF 1 x TX 6x40; 1 x TX 7x60; 1 x TX 8x60; 1 x TX 9x60; 1 x TX 10x60; 1 x TX 15x60 ??????????????????? 81 2067/7 HF TORX® screwdriver set with holding function for electronic applications Application: TORX® socket screws Content: 7-piece set 2067/6 TORX® HF TORX® screwdriver set with holding function for electronic applications Application: TORX® socket screws Content: 6-piece set The electronic TORX® HF screwdriver with holding function literally presses the screw onto the screwdriver. The conical driving flanks that taper toward the tip of the tool, the optimised flank base and the ideal engage depth hold the screw securely on the blade. How can I hold my TORX® screw securely on the screwdriver? Screwdrivers
Code 05345274001 12054 Micro 1 x 0,028"x40; 1 x 0,035"x40; 1 x 0.05"x40; 1 x 1/16"x60; 1 x 5/64"x60; 1 x 3/32"x60; 1 x 7/64"x60; 1 x 1/8"x60 Code 05345273001 12054 Micro 1 x 0.7x40; 1 x 0.9x40; 1 x 1.3x40; 1 x 1.5x60; 1 x 2.0x60; 1 x 2.5x60; 1 x 3.0x60 Code 05118154003 12067 TORX® BO Micro 1 x TX 7x60; 1 x TX 8x60; 1 x TX 9x60; 1 x TX 10x60; 1 x TX 15x60; 1 x TX 20x60 ? 82 Series Kraftform Micro The superior screwdriver for electronics technicians 2054/8 Hexagon screwdriver set for electronic applications Application: Hexagon socket screws Content: 8-piece set 2054/7 Hexagon screwdriver set for electronic applications Application: Hexagon socket screws Content: 7-piece set 2067/6 TORX® BO screwdriver set and rack for electronic applications Application: TORX® socket screws with safety pin (BO = with bore hole) Content: 6-piece set and rack in display carton TORX® tools with a borehole prevent the unauthorised unfastening of safety screws. The screws contain a pin that protrudes into the drive profile so that "normal" TORX® tools cannot be used. This pin fits into the borehole of TORX® BO tools allowing safety screws to be unfastened. TORX® with borehole
Code 05118156003 12052 Micro 1 x 1.5x60; 1 x 2.0x60; 1 x 2.5x60; 1 x 3.0x60 2054 Micro 1 x 0.9x40; 1 x 1.3x40 Code 05345275001 12052 Micro 1 x 1.3x60; 1 x 1.5x60; 1 x 2.0x60; 1 x 2.5x60; 1 x 3.0x60 83 2052/6 Hexagon screwdriver set and rack for electronic applications Application: Ball end for hexagon socket screws Content: 6-piece set and rack in display carton 2052/5 Hexagon screwdriver set for electronic applications Application: Ball end for hexagon socket screws Content: 5-piece set The multi-component Kraftform Micro screwdriver handle is perfect for ergonomic working. The three-zone concept reduces fastening time and distinctly lowers the cost for each screw connection. Multi-component handle The Wera Black Point tip, as well as a refined hardening process, ensure long service life and enhanced corrosion protection. Black Point Tip Screwdrivers

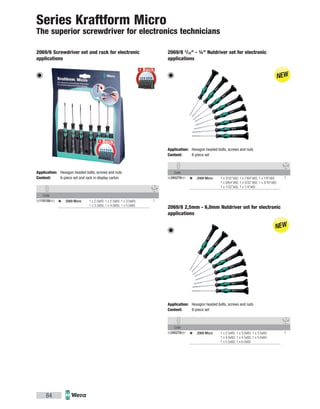

Code 05345278001 12069 Micro 1 x 2.5x60; 1 x 3.0x60; 1 x 3.5x60; 1 x 4.0x60; 1 x 4.5x60; 1 x 5.0x60; 1 x 5.5x60; 1 x 6.0x60 Code 05345279001 12069 Micro 1 x 3/32"x60; 1 x 7/64"x60; 1 x 1/8"x60; 1 x 9/64"x60; 1 x 5/32"x60; 1 x 3/16"x60; 1 x 7/32"x60; 1 x 1/4"x60 Code 05118158003 12069 Micro 1 x 2.0x60; 1 x 2.5x60; 1 x 3.0x60; 1 x 3.5x60; 1 x 4.0x60; 1 x 5.0x60 84 2069/8 2,5mm - 6,0mm Nutdriver set for electronic applications Application: Hexagon headed bolts, screws and nuts Content: 8-piece set 2069/8 3 /32" - ¼" Nutdriver set for electronic applications Application: Hexagon headed bolts, screws and nuts Content: 8-piece set 2069/6 Screwdriver set and rack for electronic applications Application: Hexagon headed bolts, screws and nuts Content: 6-piece set and rack in display carton Series Kraftform Micro The superior screwdriver for electronics technicians

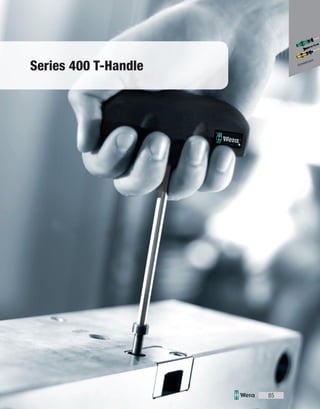

85 Series 400 T-Handle Screwdrivers
86 The ergonomic design of the T-handle fills the palm of the hand. The fingers rest in the soft, rounded recess, and the whole hand is in contact with the handle - so there is no friction loss between the hand and handle. The ergonomic design of the handle enables high torque to be applied for loosening or tightening jobs. The blades are made out of special alloy steels for superior wear resistance and robustness. Hex-Plus provides more contact surface inside the screw head.This reduces the notching effect to a minimum, and more or less eliminates the risk of rounding out the screw head. The T-handle series is needed whenever particularly high torque for loosening or tightening jobs needs to be applied. Especially high force can be transferred by using the blade as an extension of the lower arm. The power is transferred positively, i.e. there is no frictional loss between the hand and the handle. Ever needed more leverage?
Code mm mm mm 05013300002 2 100 27 61 4" 5 05013301002 2 200 27 61 8" 5 05013302004 2.5 100 27 61 4" 5 05013303002 2.5 200 27 61 8" 5 05013304002 3 100 33 70 4" 5 05013305002 3 150 33 70 6" 5 05013330002 3 200 33 70 8" 5 05013331002 3 350 33 70 14" 5 05013332003 4 100 33 70 4" 5 05013306002 4 150 33 70 6" 5 05013307002 4 200 33 70 8" 5 05013333002 4 350 33 70 14" 5 05013334002 5 100 44 87 4" 5 05013308002 5 150 44 87 6" 5 05013309002 5 200 44 87 8" 5 05013335002 5 350 44 87 18" 5 05013336002 5 450 44 87 14" 5 05013337002 6 100 44 87 4" 5 05013338002 6 150 44 87 6" 5 05013310002 6 200 44 87 8" 5 05013339002 6 350 44 87 14" 5 05013311002 7 200 44 87 8" 5 05013340002 8 100 44 87 4" 5 05013341002 8 150 44 87 6" 5 05013312002 8 200 44 87 8" 5 05013313002 8 350 44 87 14" 5 05013342002 10 100 44 87 4" 5 05013314002 10 200 44 87 8" 5 87 Hex-Plus tools for hexagon socket screws provide more contact surface inside the screw profile. This reduces the notching effect to a minimum and protects the head of the screw. Series 400 T-Handle Ideal for high torque 454 T-handle hexdriver Application: Hexagon socket screws Blade: Hexagon Design: Hex-Plus, chamfered, chrome-plated Handle: T-handle, Weralit II, single-component Screwdrivers
Code mm mm mm 05344536002 3 /32 " 100 27 61 4" 5 05344537002 7 /64 " 100 27 61 4" 5 05344538002 1 /8 " 100 33 70 4" 5 05344546002 9 /64 " 150 33 70 6" 5 05344545002 5 /32 " 150 33 70 6" 5 05344544002 3 /16 " 150 44 87 6" 5 05344543002 7 /32 " 150 44 87 6" 5 05344542002 1 /4 " 200 44 87 8" 5 05344541002 5 /16 " 200 44 87 8" 5 05344540002 3 /8 " 200 44 87 8" 5 Code mm mm mm mm 05013350002 TX 6 100 27 61 4" 3.0 5 05013352002 TX 7 100 27 61 4" 3.0 5 05013354002 TX 8 100 27 61 4" 3.5 5 05013356002 TX 9 100 27 61 4" 3.5 5 05013358002 TX 10 100 27 61 4" 4.0 5 05013360002 TX 15 100 33 70 4" 4.0 5 05013362002 TX 20 100 33 70 4" 4.5 5 05013364003 TX 20 200 33 70 8" 4.5 5 05013366002 TX 25 100 33 70 4" 5.0 5 05013368003 TX 25 200 33 70 8" 5.0 5 05013370003 TX 27 200 44 87 8" 6.0 5 05013372003 TX 30 200 44 87 8" 6.0 5 05013374003 TX 40 200 44 87 8" 8.0 5 05013376003 TX 45 200 44 87 8" 9.0 5 Code mm mm mm 05013250002 1 /4 " 115 44 87 4 9 /16 " 5 05013252004 1 /4 " 230 44 87 9" 5 88 Series 400 T-Handle Perfect for high torque 454 T-handle hexdriver, imperial Application: Hexagon socket screws Blade: Hexagon Design: Hex-Plus, chamfered, chrome-plated Handle: T-handle, Weralit II, single-component 467 T-handle TORX® driver Application: TORX® screws Blade: Round Design: Chrome-plated, Black Point Handle: T-handle, Weralit II, single-component 410 T-handle ¼" square drive socket adaptor Application: 1 /4 " drive sockets Blade: Round Design: 1 /4 " square drive, chrome-plated Handle: T-handle, Weralit II, single-component
Code mm mm mm 05013390002 1 /4 " 45 44 87 1 25 /32 " 2 Code 05345235001 1467 TORX® 1 x TX 9x100; 1 x TX 10x100; 1 x TX 15x100; 1 x TX 20x100; 1 x TX 25x100; 1 x TX 27x200; 1 x TX 30x200 89 Rapid-in and self-lock The bit can be pushed into the adaptor without moving the sleeve. The lock is activated automatically as soon as the bit is applied to the screw. Bits are held securely and wobble-free. Rapid-out Simply push the sleeve forward to change the bit. The spring mechanism lifts the bit off the magnet and unlocks the tool. The bit can be easily removed. The rapid-out function makes it easy to remove even the smallest bits without extra tools. Chuck-all The Rapidaptor quick-release chucks hold ¼" DIN 3126-C 6.3 and E 6.3 as well as Wera series 1 and 4 bits. Single-hand function Every function of the Rapidator quick-release chuck, such as inserting or releasing bits, can be carried out with one hand. This is faster, more economical and more ergonomic. There are no unnecessary manoeuvres. Rapidaptor489 R T-handle Rapidaptor Application: Suitable for 1 /4 " DIN 3126-C 6.3 and E 6.3 (ISO 1173) hexagon insert bits und Wera Series 1 and 4 Drive: 1 /4 " hexagon with Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and single-hand technology, magnetic Handle: T-handle, multi-component 467/7 Screwdriver set T-handle TORX® driver Application: TORX® screws Content: 7-piece set Screwdrivers
90
91 VDE Insulated Safety Tools Kraftform Plus Series 100 94 Kraftform Kompakt VDE 102 Kraftform Comfort VDE 108 Kraftform Classic VDE 112 VDE Tools
92 The individual testing in a water bath at 10,000 volts, in accordance with DIN EN 60900 (IEC 60900:2004), ensures safe working with loads up to 1,000 volts. Impact strength tested at - 40°C, guaranteeing safety even under extreme conditions. The outstanding design of the Kraftform handle ensures that it fits perfectly into the hand, preventing hand injuries such as blisters and calluses. The hard materials used for the handle ensure rapid hand repositioning, without any danger of the skin "sticking" to the handle. The softer "anti-slip" zones enable the low-loss transfer of high forces – resulting in less screwdriving effort being required. Ever had an electric shock? Kraftform Plus screwdrivers enable a higher transfer of force with less effort, and relieve the entire hand-arm system – even with intensive use. In addition, the safety issue, always a top priority at Wera, is very much in focus for series 100 VDE screwdrivers. The quality of the blades exceeds current standards with regard to hardness and torque strength. Every tool is tested individually for dielectric strength under a load of 10,000 volts, so as to ensure safe working with loads up to 1,000 volts. Wera VDE tools provide more safety than required by current regulation.
93 The screw symbol and tip size identification markings on the handle make it easier to find the right screwdriver in the tool case or at the workplace. The hexagonal non-roll feature prevents any annoying rolling away at the workplace. Laser treatment burns a micro-rough surface into the tip of the blade with an edge hardness of up to 1,000 Vickers. The drive end literally "bites" into the head of the screw. The advantages: safer working and less slipping. The screwdriver sets are supplied with a rack that can be attached to the wall. This ensures organised storage and quick & easy access. The rack is also available as an individual item. VDE Tools

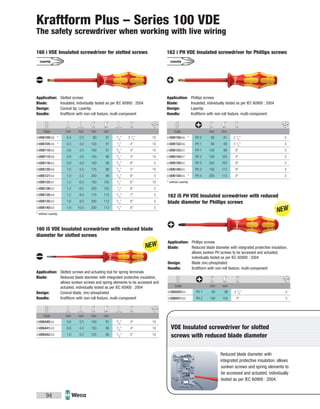

Code mm mm mm mm 05006100006 1) 0.4 2.5 80 81 3 /32 " 3 1 /8 " 10 05006105005 1) 0.5 3.0 100 81 1 /8 " 4" 10 05006110005 0.6 3.5 100 81 9 /64 " 4" 10 05006115006 0.8 4.0 100 98 5 /32 " 4" 10 05006116002 0.8 4.0 150 98 5 /32 " 6" 5 05006120006 1.0 5.5 125 98 7 /32 " 5" 10 05006121002 1.0 5.5 200 98 7 /32 " 8" 5 05006125007 1.2 6.5 150 105 1 /4 " 6" 10 05006126002 1.2 6.5 200 105 1 /4 " 8" 5 05006130006 1.2 8.0 175 112 5 /16 " 7" 5 05006135002 1.6 8.0 200 112 5 /16 " 8" 5 05006140003 1.6 10.0 200 112 3 /8 " 8" 5 Code mm mm mm mm 05006440002 0.6 3.5 100 81 9 /64 " 4" 10 05006441002 0.8 4.0 100 98 5 /32 " 4" 10 05006442002 1.0 5.5 125 98 7 /32 " 5" 10 Code mm mm 05006150006 1) PH 0 80 81 3 1 /8 " 5 05006152006 PH 1 80 98 3 1 /8 " 5 05006153002 PH 1 150 98 6" 5 05006154007 PH 2 100 105 4" 5 05006159002 PH 2 200 105 8" 5 05006156005 PH 3 150 112 6" 5 05006158005 1) PH 4 200 112 8" 2 Code mm mm 05006450002 PH 1 80 98 3 1 /8 " 5 05006451002 PH 2 100 105 4" 5 94 Reduced blade diameter with integrated protective insulation, allows sunken screws and spring elements to be accessed and actuated, individually tested as per IEC 60900 : 2004. VDE Insulated screwdriver for slotted screws with reduced blade diameter Kraftform Plus – Series 100 VDE The safety screwdriver when working with live wiring 160 i VDE Insulated screwdriver for slotted screws Application: Slotted screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Conical tip, Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip 160 iS VDE Insulated screwdriver with reduced blade diameter for slotted screws Application: Slotted screws and actuating tool for spring terminals Blade: Reduced blade diameter with integrated protective insulation, allows sunken screws and spring elements to be accessed and actuated, individually tested as per IEC 60900 : 2004 Design: Conical blade, zinc-phosphated Handle: Kraftform with non-roll feature, multi-component 162 i PH VDE Insulated screwdriver for Phillips screws Application: Phillips screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip 162 iS PH VDE Insulated screwdriver with reduced blade diameter for Phillips screws Application: Phillips screws Blade: Reduced blade diameter with integrated protective insulation, allows sunken PH screws to be accessed and actuated, individually tested as per IEC 60900 : 2004 Design: Blade zinc-phosphated Handle: Kraftform with non-roll feature, multi-component
? ? Code mm mm 05006460002 PZ 1 80 98 3 1 /8 " 5 05006461002 PZ 2 100 105 4" 5 Code mm mm 05006160005 1) PZ 0 80 81 3 1 /8 " 5 05006162007 PZ 1 80 98 3 1 /8 " 5 05006163002 PZ 1 150 98 6" 5 05006164008 PZ 2 100 105 4" 5 05006165002 PZ 2 200 105 8" 5 05006166007 PZ 3 150 112 6" 5 05006168004 1) PZ 4 200 112 8" 2 95 A dielectric strength test under a 10,000 volt load in a water bath is the only way of reassuring users that their screwdrivers have been exhaustively tested for their most important feature: their insulation. Each individual Wera VDE screwdriver is subjected to this test to guarantee safe working up to 1,000 volts. How do you know a VDE screwdriver is safe? It happens time and time again that the tip slips out of the screw head when screwdriving, potentially damaging surfaces, and occasionally even making contact with live components. The tips of the Wera Lasertip screwdrivers are microscopically roughened by means of a laser. This rough surface literally "bites" itself firmly into the screw head – preventing slips. This allows the user to feel secure in their safety, particularly when working on live wires. How to prevent the screwdriver from slipping out of the screw head 165 iS PZ VDE Insulated screwdriver with reduced blade diameter for Pozidriv screws Application: Suitable for Pozidriv*) screws Blade: Reduced blade diameter with integrated protective insulation, allows sunken PZ screws to be accessed and actuated, individually tested as per IEC 60900 : 2004 Design: Blade zinc-phosphated Handle: Kraftform with non-roll feature, multi-component *) Pozidriv = reg. trademark of Phillips Screw Company. 165 i PZ VDE Insulated screwdriver for Pozidriv screws Application: Suitable for Pozidriv*) screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Lasertip Handle: Kraftform with non-roll feature, multi-component 1) without Lasertip *) Pozidriv = reg. trademark of Phillips Screw Company. VDE Tools
Code mm mm 05006455002 # 1 80 98 3 1 /8 " 5 05006456002 # 2 100 105 4" 5 Code mm mm 05006190002 # 1 80 98 3 1 /8 " 5 05006191002 # 2 100 105 4" 5 Code mm mm 05006380002 # 1 80 98 3 1 /8 " 5 05006381002 # 2 100 105 4" 5 96 For the use in terminal blocks, control cabinets, switches, relays, sockets etc. PlusMinus screwdrivers 162 iS PH/S VDE Insulated screwdriver for PlusMinus screws (Phillips/slotted) with reduced blade diameter Application: PlusMinus screws (Phillips/slotted) Blade: Reduced blade diameter with integrated protective insulation, allows sunken PlusMinus screws to be accessed and actuated, individually tested as per IEC 60900 : 2004 Design: Combination profile Phillips/slotted, blade zinc-phosphated Handle: Kraftform with non-roll feature, multi-component Kraftform Plus – Series 100 VDE The safety screwdriver when working with live wiring 165 i PZ/S VDE Insulated screwdriver for PlusMinus screws (Pozidriv/slotted) Application: For PlusMinus screws (Pozidriv*) /slotted) Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: PlusMinus (Pozidriv*) /slotted) Handle: Kraftform with non-roll feature, multi-component *) Pozidriv = reg. trademark of Phillips Screw Company. Reduced blade diameter with integrated protective insulation, allows sunken screws and spring elements to be accessed and actuated, individually tested as per IEC 60900 : 2004. VDE Insulated screwdriver for slotted screws with reduced blade diameter 162 i PH/S VDE Insulated screwdriver for PlusMinus screws (Phillips/slotted) Application: PlusMinus screws (Phillips/slotted) Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: PlusMinus (Phillips/slotted) Handle: Kraftform with non-roll feature, multi-component
? Code mm mm 05006465002 # 1 80 98 3 1 /8 " 5 05006466002 # 2 100 105 4" 5 Code mm mm 05006181002 TX 5 80 81 3 1 /8 " 5 05006182002 TX 6 80 81 3 1 /8 " 5 05006183002 TX 7 80 81 3 1 /8 " 5 05006184002 TX 8 80 81 3 1 /8 " 5 05006169002 TX 9 80 81 3 1 /8 " 5 05006170003 TX 10 80 81 3 1 /8 " 5 05006172003 TX 15 80 98 3 1 /8 " 5 05006174003 TX 20 80 98 3 1 /8 " 5 05006176003 TX 25 100 105 4" 5 05006177002 TX 27 100 105 4" 5 05006178003 TX 30 100 105 4" 5 05006179002 TX 40 150 112 6" 5 Code mm mm mm 05004650002 2.5 80 98 3 1 /8 " 5 05004655002 3.0 80 98 3 1 /8 " 5 05004660002 4.0 80 98 3 1 /8 " 5 05004665002 5.0 80 105 3 1 /8 " 5 05004670002 6.0 100 105 4" 5 05004675002 8.0 100 112 4" 5 Code mm mm 05004780003 # 1 80 98 3 1 /8 " 5 05004783002 # 1 150 98 6" 5 05004781003 # 2 100 105 4" 5 05004784002 # 2 200 105 8" 5 05004782002 # 3 150 112 6" 5 97 All Kraftform Plus screwdrivers are marked with their drive profile and size. This enables faster and more reliable selection of the correct tool from the tool case. How to find the correct screwdriver quickly 165 iS PZ/S VDE Insulated screwdriver for PlusMinus screws (Pozidriv/slotted) with reduced blade diameter Application: For PlusMinus screws (Pozidriv*) /slotted) Blade: Reduced blade diameter with integrated protective insulation, allows sunken PlusMinus screws to be accessed and actuated, individually tested as per IEC 60900 : 2004 Design: PlusMinus (Pozidriv*) /slotted), blade zinc-phosphated Handle: Kraftform with non-roll feature, multi-component *) Pozidriv = reg. trademark of Phillips Screw Company. 167 i VDE Insulated TORX® screwdriver Application: TORX® socket screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Zinc-phosphated Handle: Kraftform with non-roll feature, multi-component 164 i VDE Insulated hexagon screwdriver Application: Hexagon socket screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Zinc-phosphated Handle: Kraftform with non-roll feature, multi-component 168 i VDE Insulated screwdriver for square socket head screws Application: Square socket head screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Zinc-phosphated Handle: Kraftform with non-roll feature, multi-component VDE Tools
? Code mm mm mm mm 05005300004 5.5 125 98 11.0 5" 5 05005305002 6.0 125 98 12.0 5" 5 05005310003 7.0 125 105 14.0 5" 5 05005315002 8.0 125 105 15.0 5" 5 05005320003 9.0 125 105 16.0 5" 5 05005325002 10.0 125 112 17.0 5" 5 05005330003 11.0 125 112 19.0 5" 5 05005335003 12.0 125 112 20.0 5" 5 05005340003 13.0 125 112 21.0 5" 5 05104900002 3 /16 " 125 98 11.0 5" 10 05345280001 7 /32 " 125 98 12.0 5" 10 05104905002 1 /4 " 125 98 13.0 5" 10 05104901003 5 /16 " 125 105 15.0 5" 10 05104906003 3 /8 " 125 105 17.0 5" 10 05104902003 7 /16 " 125 112 19.0 5" 10 05104904002 1 /2 " 125 112 21.0 5" 10 05104903002 9 /16 " 125 112 23.0 5" 10 05104907002 5 /8 " 125 112 25.0 5" 10 Code mm mm mm mm 05005655008 0.5 3.0 70 3.0 1 /8 " 2 3 /4 " 5 Code 05006145006 1160 i VDE 1 x 0.4x2.5x80 1) ; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 162 i PH VDE 1 x PH 1x80; 1 x PH 2x100 98 Wera produces the Kraftform handle out of several materials with different properties. A resistant plastic is used for the core which ensures that the blade is held securely even under high strain. A softer material is used for the coloured soft zones, which provides high frictional resistance and allows the transfer of high forces – resulting in less required screwdriving effort. The red sections with their hard surfaces prevent any "sticking" of the hand to the handle, making rapid repositioning of the hand possible. Why is the Kraftform Plus handle made out of several components? 190 i VDE Insulated nutdriver Application: Hexagon headed bolts, screws and nuts Blade: Insulated, individually inspected as per IEC 60900 : 2004 Design: Zinc-phosphated Handle: Kraftform with non-roll feature, multi-component 247 UL Single-pole voltage tester Application: Voltage testing Standard: ISO 57680/6 and VDE 0680/6 for 80 to 250 V Kraftform Plus – Series 100 VDE The safety screwdriver when working with live wiring 160 i/6 Rack Screwdriver Set Kraftform Plus Series 100 + Rack Kraftform: The safety screwdriver. Lasertip blade + rack Application: For slotted and Phillips screws Content: 6-pieces set and rack in display carton 1) without Lasertip
? Code 05073600002 1162 i PH/S VDE 1 x # 1x80; 1 x # 2x100 Code 05073601003 1165 i PZ/S VDE 1 x # 1x80; 1 x # 2x100 99 VDE tools are often used under extreme conditions, such as very low temperatures. Safety must be guaranteed even under these conditions. The plastics used for the handle of Wera VDE screwdrivers are guaranteed to meet the most stringent test requirements for low-temperature impact strength at -40 °C. Where can I find tools that are resistant to extreme temperatures? 162 i PH/S # 1+2 Screwdriver set Application: PlusMinus screws (Phillips/slotted) Content: 2-piece set in display pack 165 i PZ/S # 1+2 Screwdriver set Application: PlusMinus screws (Pozidriv*) /slotted) Content: 2-piece set in display pack *) Pozidriv = reg. trademark of Phillips Screw Company. VDE Tools
Code 05347777001 1160 i VDE 1 x 0.6x3.5x100; 1 x 1.0x5.5x125 162 i PH VDE 1 x PH 1x80; 1 x PH 2x100 168 i VDE 1 x # 1x80; 1 x # 2x100 ? Code 05347900001 1160 i VDE 1 x 0.4x2.5x80 1) ; 1 x 0.5x3.0x100 1) ; 1x0.6x3.5x100;1x0.8x4.0x100;1x1.0x5.5x125; 1 x 1.2x6.5x150 162 i PH VDE 1 x PH 0x80 1) ; 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150 168 i VDE 1 x # 1x801) ; 1 x # 2x1001) Code 05346279001 11440 1 x 4.5 - 6.0x41.0 1442 1 x 6.5 - 8.0x41.0 160 i VDE 1 x 0.8x4.0x100; 1 x 1.0x5.5x125; 1 x 1.2x6.5x150 162 i PH VDE 1 x PH 1x80; 1 x PH 2x100 168 i VDE 1 x # 2x100 247 UL 1 x 0.5x3.0x70 100 160 i/168 i/6 Rack Screwdriver set Kraftform Plus Series 100 + Rack Kraftform: The safety screwdriver. Lasertip blade + rack Application: For slotted, Phillips and square socket screws Content: 6-pieces set and rack in display carton Kraftform Plus – Series 100 VDE The safety screwdriver when working with live wiring All Kraftform screwdrivers have a non-roll feature at the lower end of the handle. The hexagonal design prevents any annoying rolling away of the screwdriver at the workplace. How to prevent the screwdriver from rolling away 160 i/12 screwdriver set Kraftform Plus Series 100 Kraftform: The safety screwdriver with Lasertip blade Application: Slotted, Phillips and square socket head screws Content: 12-piece set 1) without Lasertip 160 i/162 i/168 i/7 Rack Screwdriver set Kraftform Plus Series 100 + voltage tester+ rack + screw gripper Kraftform: The safety screwdriver. Lasertip blade + screw gripper + voltage tester + rack Application: Slotted, Phillips and square socket head screws, screw gripper with holding function for screws; fixes all screw profiles and sizes securely to the screw Content: 9-pieces set and rack in display carton *) Pozidriv = reg. trademark of Phillips Screw Company.
Code 05073690002 51440 1 x 4.5 - 6.0x41.0 1442 1 x 6.5 - 8.0x41.0 162 i PH VDE 1 x PH 1x80; 1 x PH 2x100 Code 05345200001 1190 i VDE 1 x 7/32"x125; 1 x 1/4"x125; 1 x 5/16"x125; 1 x 3/8"x125; 1 x 1/2"x125 Code 05345201001 1190 i VDE 1 x 3/16"x125; 1 x 7/32"x125; 1 x 1/4"x125; 1 x 5/16"x125; 1 x 3/8"x125; 1 x 7/16"x125; 1 x 1/2"x125 ? 101 162 PH1/2 + 1440/1442 SB Screwdriver set Application: Attachment with holding function for screws, holds all screw profiles and sizes securely on the tool, suitable for round and hexagon blades with a diameter from 2.5 mm to 4.5 mm and 4.5 mm to 6 mm Construction: Elastomer 190 i/5 Nutdriver set Kraftform Plus Series Kraftform: The safety screwdriver Application: Hexagon headed bolts, screws and nuts Content: 5-piece set 190 i/7 Nutdriver set Kraftform Plus Series Kraftform: The safety screwdriver Application: Hexagon headed bolts, screws and nuts Content: 7-piece set Our screwdrivers are tested for dielectric strength under a 10,000 volt load in a water bath to make sure that their most important property, their insulation, has been exhaustively tested. Each individual Wera VDE screwdriver is subjected to this test to guarantee safe working up to 1,000 volts. Where can I find a safe VDE screwdriver? VDE Tools
102 Kraftform Kompakt VDE
103 The tools can be stored and carried in a robust belt pouch, keeping them always to hand. The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications. Each Kraftform Kompakt VDE set has been tested individually in a water bath at 10,000 volts, in accordance with DIN EN 60900 (IEC 60900:2004). This ten-times-higher testing load guarantees safe working at their maximum permitted load of 1,000 volts. The 18-piece set includes blades for PlusMinus screws, various keys for switch cabinets and a voltage tester. Kraftform Kompakt VDE sets come with an insulated handle and insulated interchangeable blades, that can be exchanged without any special tools. Kraftform Kompakt VDE Versatile tools for work on live wiring VDE Tools
? Code 05003470003 1817 VDE 1 x 9x102 KK 60 i 1 x 0.4x2.5x154; 1 x 0.6x3.5x154; 1 x 0.8x4.0x154; 1 x 1.0x5.5x154 KK 62 i 1 x PH 1x154; 1 x PH 2x154 Code 05003473002 1817 VDE 1 x 9x102 KK 60 i 1 x 0.6x3.5x154; 1 x 1.0x5.5x154 KK 62 i 1 x PH 1x154; 1 x PH 2x154 KK VDE 68 i 1 x # 1x154; 1 x # 2x154 Code 05003471008 1817 VDE 1 x 9x102 247 UL 1 x 0.5x3.0x70 KK 60 i 1 x 0.4x2.5x154; 1 x 0.6x3.5x154; 1 x 0.8x4.0x154; 1 x 1.0x5.5x154 KK 62 i 1 x PH 1x154; 1 x PH 2x154 KK 62 i PH/S 1 x # 1x154; 1 x # 2x154 KK 65 i PZ 1 x PZ 1x154; 1 x PZ 2x154 KK 65 i PZ/S 1 x # 1x154; 1 x # 2x154 KK 96 VK 6,3 1 x 6.3x89 KK 97 VK 8,1 1 x 8.1x89 KK 98 DK 1 x 89 KK 99 FL 1 x 89 104 Kraftform Kompakt VDE sets come with an insulated handle and insulated interchangeable blades, that can be exchanged without any special tools. Kraftform Kompakt VDE sets Kraftform Kompakt VDE Versatile tools for work on live wiring Kraftform Kompakt VDE 60 i/7 1 Kraftform hand-held bit holder 817 VDE for Wera interchangeable blades VDE interchangeable blades (each 154 mm long) 7-piece set Kraftform Kompakt VDE 60 i/68 i/7 1 Kraftform hand-held bit holder 817 VDE for Wera VDE interchangeable blades VDE interchangeable blades (each 154 mm long) 7-piece set Kraftform Kompakt VDE 60 i/62 i/65 i/18 1 Kraftform hand-held bit holder 817 VDE for Wera VDE interchangeable blades VDE interchangeable blades (each 154 mm long) Single-pole voltage tester 18-piece set
Code 05347163003 1817 VDE 1 x 9x102 247 UL 1 x 0.5x3.0x70 KK 60 i 1 x 0.4x2.5x154; 1 x 0.6x3.5x154; 1 x 0.8x4.0x154; 1 x 1.0x5.5x154 KK 62 i 1 x PH 1x154; 1 x PH 2x154 KK 62 i PH/S 1 x # 1x154; 1 x # 2x154 KK 65 i PZ/S 1 x # 1x154; 1 x # 2x154 KK 68 i 1 x # 1x154; 1 x # 2x154 KK 96 VK 6,3 1 x 6.3x89 KK 97 VK 8,1 1 x 8.1x89 KK 98 DK 1 x 89 KK 99 FL 1 x 89 Code mm mm 05003990002 9 102 1 Code mm mm mm 05003400002 0.4 2.5 154 3 /32 " 6 1 /16 " 5 05003401002 0.5 3.0 154 1 /8 " 6 1 /16 " 5 05003402002 0.6 3.5 154 9 /64 " 6 1 /16 " 5 05003403002 0.8 4.0 154 5 /32 " 6 1 /16 " 5 05003404002 1.0 5.5 154 7 /32 " 6 1 /16 " 5 05003405002 1.2 6.5 154 1 /4 " 6 1 /16 " 5 Code mm 05003410002 PH 0 154 6 1 /16 " 5 05003411002 PH 1 154 6 1 /16 " 5 05003412002 PH 2 154 6 1 /16 " 5 Code mm 05003450002 PZ 0 154 6 1 /16 " 5 05003451002 PZ 1 154 6 1 /16 " 5 05003452002 PZ 2 154 6 1 /16 " 5 105 Kraftform Kompakt VDE 60 i/62 i/68 i/18 1 Kraftform handle 817 VDE for Wera VDE interchangeable blades VDE interchangeable blades (154 mm long) 18-piece set 817 VDE Kraftform blade holder Application: Wera interchangeable VDE blades Handle: Kraftform with non-roll feature, multi-component Kraftform Kompakt VDE 60 i Application: Slotted screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: Conical blade, zinc-phosphated, Black Point Kraftform Kompakt VDE 62 i Application: Phillips screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: Zinc-phosphated, Black Point Kraftform Kompakt VDE 65 i Application: Pozidriv*) screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: Zinc-phosphated, Black Point *) Pozidriv = reg. trademark of Phillips Screw Company. VDE Tools
Code mm 05003440002 # 1 154 6 1 /16 " 5 05003441002 # 2 154 6 1 /16 " 5 Code mm 05003445002 # 1 154 6 1 /16 " 5 05003446002 # 2 154 6 1 /16 " 5 Code mm 05003415002 # 1 154 6 1 /16 " 5 05003416002 # 2 154 6 1 /16 " 5 Code mm mm 05003420002 2.5 154 6 1 /16 " 5 05003421002 3.0 154 6 1 /16 " 5 05003422002 4.0 154 6 1 /16 " 5 05003423002 5.0 154 6 1 /16 " 5 05003424002 6.0 154 6 1 /16 " 5 Code mm 05003430002 TX 9 154 6 1 /16 " 5 05003431002 TX 10 154 6 1 /16 " 5 05003432002 TX 15 154 6 1 /16 " 5 05003433002 TX 20 154 6 1 /16 " 5 05003434002 TX 25 154 6 1 /16 " 5 05003435002 TX 27 154 6 1 /16 " 5 05003436002 TX 30 154 6 1 /16 " 5 106 Kraftform Kompakt VDE Versatile tools for work on live wiring Kraftform Kompakt VDE 62 i PH/S Application: PlusMinus screws, slotted/Phillips Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: PlusMinus, slotted/Phillips, zinc-phosphated, Black Point Kraftform Kompakt VDE 65 i PZ/S Application: PlusMinus screws, slotted/Pozidriv*) Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: PlusMinus, slotted/Pozidriv, zinc-phosphated, Black Point *) Pozidriv = reg. trademark of Phillips Screw Company. Kraftform Kompakt VDE 68 i Application: Square socket head screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: Zinc-phosphated, Black Point Kraftform Kompakt VDE 64 i Application: Hexagon socket screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: Zinc-phosphated, Black Point Kraftform Kompakt VDE 67 i TORX® Application: TORX® socket screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Drive: 9 mm hexagonal with entry chamfer Design: Zinc-phosphated, Black Point
Code mm mm 05003460002 6.3 89 3 9 /16 " 5 Code mm mm 05003461002 8.1 89 3 9 /16 " 5 Code mm 05003462002 89 3 9 /16 " 5 Code mm 05003463002 89 3 9 /16 " 5 6 mm 8 mm 8 mm 14 mm 107 The 18-piece set includes blades for PlusMinus screws, various keys for switch cabinets and a voltage tester. Kraftform Kompakt switch cabinet keys Kraftform Kompakt 96 VK 6,3 Switch cabinet key, 6.3 mm Kraftform Kompakt 97 VK 8,1 Switch cabinet key, 8.1 mm Kraftform Kompakt 98 DK Switch cabinet key Kraftform Kompakt 99 FL Switch cabinet key VDE Tools
108 The Kraftform Comfort VDE series offers a wide and diverse range of screwdrivers for universal use, with the distinctive Kraftform handle. Kraftform Classic VDE also offers the distinctive Kraftform handle, in a single- component variant. Multi-component Kraftform handle, for quick and low-exertion working. Screw symbol and tip size identification markings on the Comfort handle make it easier to find the right screwdriver in the tool case or at the workplace. Hexagonal non-roll feature prevents any annoying rolling away at the workplace. The bit material used for manufacturing is subjected to a specific Wera hardening process, ensuring longer product service life. VDE tools: The individual testing in a water bath at 10,000 volts, in accordance with DIN EN 60900 (IEC 60900:2004), ensures safe working under a load of up to 1,000 volts. Wera Black Point tips and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit. Kraftform Comfort VDE and Classic VDE
Code mm mm mm mm 05031580002 0.4 2.5 80 81 3 /32 " 3 1 /8 " 10 05031581002 0.5 3.0 100 81 1 /8 " 4" 10 05031582002 0.6 3.5 100 81 9 /64 " 4" 10 05031583002 0.8 4.0 100 98 5 /32 " 4" 10 05031584002 0.8 4.0 150 98 5 /32 " 6" 5 05031587002 1.0 5.5 125 98 7 /32 " 5" 10 05031585002 1.0 5.5 200 98 7 /32 " 8" 5 05031588002 1.2 6.5 150 105 1 /4 " 6" 10 05031586002 1.2 6.5 200 105 1 /4 " 8" 5 05031589002 1.2 8.0 175 112 5 /16 " 7" 5 05031590002 1.6 8.0 200 112 5 /16 " 8" 5 05031591002 1.6 10.0 200 112 3 /8 " 8" 5 Code mm mm 05031600002 PH 0 80 81 3 1 /8 " 5 05031601002 PH 1 80 98 3 1 /8 " 5 05031602002 PH 1 150 98 6" 5 05031603002 PH 2 100 105 4" 5 05031604002 PH 2 200 105 8" 5 05031605002 PH 3 150 112 6" 5 05031606002 PH 4 200 112 8" 2 Code mm mm 05031610002 PZ 0 80 81 3 1 /8 " 5 05031611002 PZ 1 80 98 3 1 /8 " 5 05031612002 PZ 1 150 98 6" 5 05031613002 PZ 2 100 105 4" 5 05031614002 PZ 2 200 105 8" 5 05031615002 PZ 3 150 112 6" 5 ? 109 1160 i VDE Insulated screwdriver for slotted screws Application: Slotted screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Conical tip, chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1162 i PH VDE Insulated screwdriver for Phillips screws Application: Phillips screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component 1165 i PZ VDE Insulated screwdriver for Pozidriv screws Application: Suitable for Pozidriv*) screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Chrome-plated, Black Point Handle: Kraftform Comfort with non-roll feature, multi-component *) Pozidriv = reg. trademark of Phillips Screw Company. A dielectric strength test under a 10,000-volt load in a water bath is the only way of reassuring users that their screwdrivers have been exhaustively tested for their most important feature: their insulation. Each individual Wera VDE screwdriver is subjected to this test to guarantee safe working up to 1,000 volts. How do you know a VDE screwdriver is safe? VDE Tools
Code 05345211001 11160 i VDE 1 x 0.4x2.5x80; 1 x 0.5x3.0x100; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 0.8x4.0x150; 1 x 1.0x5.5x125; 1 x 1.2x6.5x150; 1 x 1.2x8.0x175; 1 x 1.6x10.0x200 1162 i PH VDE 1 x PH 0x80; 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150 Code 05031575002 11160 i VDE 1 x 0.4x2.5x80; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 1162 i PH VDE 1 x PH 1x80; 1 x PH 2x100 4115 1 x 0.5x3.0x65 ? ? 110 Kraftform Comfort VDE 1160i/1162i/13 Safety screwdriver set Kraftform Comfort VDE Application: Slotted and Phillips screws Content: 13-piece set 1160 i/7 Safety screwdriver set Kraftform Comfort VDE and voltage tester Application: Slotted and Phillips screws Content: 7-piece set in display carton Screwdriving by hand can actually be quite painful, particularly during extended use. Wera developed the Kraftform handle with this in mind. Its design fits exactly to the hand, and this ergonomic handle, which perfectly fits the hand, and the materials used combine to prevent blisters, calluses and strain. This is particularly noticeable when changing the position of grip. This makes the concept of ergonomics "graspable". How to avoid bruising and injuries to the hands All Kraftform screwdrivers have a non-roll feature at the lower end of the handle. The hexagonal design prevents any annoying rolling away of the screwdriver at the workplace. How to prevent the screwdriver from rolling away
Code 05345210001 11160 i VDE 1 x 0.4x2.5x80; 1 x 0.5x3.0x100; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125; 1 x 1.2x6.5x150 1162 i PH VDE 1 x PH 0x80; 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150 Code 05345213001 11160 i VDE 1 x 0.6x3.5x100; 1 x 1.0x5.5x125; 1 x 1.2x6.5x150 1162 i PH VDE 1 x PH 1x80; 1 x PH 2x100; 1 x PH 3x150 Code 05345212001 11160 i VDE 1 x 0.8x4.0x100; 1 x 1.2x6.5x150 1162 i PH VDE 1 x PH 1x80; 1 x PH 1x150 111 1160i/1162i/10 Safety screwdriver set Kraftform Comfort VDE Application: Slotted and Phillips screws Content: 10-piece set 1160i/1162i/6 Safety screwdriver set Kraftform Comfort VDE Application: Slotted and Phillips screws Content: 6-piece set 1160i/1162i/4 Safety screwdriver set Kraftform Comfort VDE Application: Slotted and Phillips screws Content: 4-piece set VDE Tools
? Code mm mm mm mm 05031240003 0.4 2.5 80 81 3 /32 " 3 1 /8 " 10 05031239002 0.5 3.0 100 81 1 /8 " 4" 10 05031241003 0.6 3.5 100 81 9 /64 " 4" 10 05031242003 0.8 4.0 100 98 5 /32 " 4" 10 05031243003 1.0 5.5 125 98 7 /32 " 5" 10 05031244003 1.2 6.5 150 105 1 /4 " 6" 10 05031245002 1.6 8.0 200 112 3 /8 " 8" 5 Code mm mm 05031249002 PH 0 80 81 3 1 /8 " 5 05031250003 PH 1 80 98 3 1 /8 " 10 05031251003 PH 2 100 105 4" 10 05031252002 PH 3 150 112 6" 5 Code 05031282002 11760 i VDE 1 x 0.4x2.5x80; 1 x 0.6x3.5x100; 1 x 0.8x4.0x100; 1 x 1.0x5.5x125 1762 i PH VDE 1 x PH 1x80; 1 x PH 2x100 112 Kraftform Classic VDE Screwdriving by hand can actually be quite painful, particularly during extended use. Wera developed the Kraftform handle with this in mind. Its design fits exactly to the hand, and this ergonomic handle, which perfectly fits the hand, and the materials used combine to prevent blisters, calluses and strain. This is particularly noticeable when changing the position of grip. This makes the concept of ergonomics "graspable". How to avoid bruising and injuries to the hands Kraftform Classic VDE 1760 i VDE Insulated screwdriver for slotted screws Application: Slotted screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Conical tip, zinc-phosphated, Black Point Handle: Kraftform Classic with non-roll feature, single-component 1762 i PH VDE Insulated screwdriver for Phillips screws Application: Phillips screws Blade: Insulated, individually tested as per IEC 60900 : 2004 Design: Zinc-phosphated, Black Point Handle: Kraftform Classic with non-roll feature, single-component 1760 i/6 Screwdriver set Kraftform Classic VDE Application: Slotted and Phillips screws Content: 6-piece set in display carton
ESD 113 ESD Series ESD Tools
114 The electric surface resistance of the Wera ESD material is between 106 – 109 ohm. This securely protects components against electrostatic energy and associated damage. Wera Black Point tips and a refined hardening process ensure long service life of the tip, improved corrosion protection and an exact fit. How to safely fasten electrostatic-sensitive components? The use of large-scale integrated circuits – known as ICs – means that electrical appliances are getting smaller and smaller. However, ICs malfunction or fail completely when exposed to electrostatic energy fields. This makes ESD-safe screwdrivers indispensable.
ESD 115 The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies. The power zone has integrated soft zones near the blade tip to ensure high torque transfer for loosening or tightening screws without losing contact with the screw. The precision zone directly above the blade gives the user a better feel for the right rotation angle during fine adjustment work. The spinning cap and the fast-turning zone just below the head allow rapid twisting. This makes time-consuming grip adjustments as with other conventional precision screwdrivers unnecessary. ESD Tools
Code mm mm mm mm mm 05030101002 0.23 1.5 40 97 2.5 1 /16 " 1 9 /16 " 5 05030100002 0.25 1.2 40 97 2.5 0.05" 1 9 /16 " 5 05030102002 0.30 1.8 60 97 2.5 0.07" 2 3 /8 " 5 05030103002 0.40 2.0 60 97 2.5 5 /64 " 2 3 /8 " 5 05030104002 0.40 2.5 80 97 2.5 3 /32 " 3 1 /8 " 5 05030105002 0.50 3.0 80 97 3.0 1 /8 " 3 1 /8 " 5 05030106002 0.60 3.5 80 97 4.0 9 /64 " 3 1 /8 " 5 05030107002 0.80 4.0 80 97 4.0 5 /32 " 3 1 /8 " 5 Code mm mm mm mm mm 05030046002 1.0 5.5 200 98 5.5 7 /32 " 8" 5 05030048002 1.0 6.0 125 98 6.0 15 /64 " 5" 5 05030050002 1.2 6.5 150 98 6.0 1 /4 " 6" 5 05030052002 1.2 7.0 150 112 7.0 9 /32 " 6" 5 05030054002 1.2 8.0 175 112 7.0 5 /16 " 7" 5 Code mm mm mm 05030110002 PH 00 60 97 2.5 2 3 /8 " 5 05030111002 PH 0 60 97 3.0 2 3 /8 " 5 05030112002 PH 1 80 97 4.0 3 1 /8 " 5 Code mm mm mm 05030064002 PH 1 200 98 4.5 8" 5 05030066002 PH 2 100 98 6.0 4" 5 05030068002 PH 2 200 98 6.0 8" 5 05030070002 PH 3 150 112 8.0 6" 5 Code mm mm mm 05030120002 TX 4 40 97 2.5 1 9 /16 " 5 05030121002 TX 5 40 97 3.0 1 9 /16 " 5 05030122002 TX 6 40 97 3.0 1 9 /16 " 5 116 ESD Series ESD-safe tools 1578 A Kraftform Micro screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 1578 A Screwdriver for slotted screws Application: Slotted screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, Weralit ESD 1550 PH Kraftform Micro screwdriver for Phillips screws Application: Phillips screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 1550 PH Screwdriver for Phillips screws Application: Phillips screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform with non-roll feature, Weralit ESD 1567 TORX® Kraftform Micro screwdriver for TORX® screws Application: TORX® socket screws Blade: Round Design: Chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component
Code mm mm mm 05030123002 TX 7 60 97 3.0 2 3 /8 " 5 05030124002 TX 8 60 97 3.0 2 3 /8 " 5 05030125002 TX 9 60 97 4.0 2 3 /8 " 5 05030126002 TX 10 60 97 4.0 2 3 /8 " 5 Code mm mm mm 05030131002 TX 10 80 81 4.0 3 1 /8 " 5 05030127002 TX 15 80 98 4.0 3 1 /8 " 5 05030128002 TX 20 100 98 4.5 4" 5 05030129002 TX 25 100 98 5.0 4" 5 05030130002 TX 30 115 98 6.0 4 9 /16 " 5 Code mm mm mm 05030150002 5.0 60 97 7.0 2 3 /8 " 5 05030151002 5.5 60 97 7.8 2 3 /8 " 5 Code 05030170002 11550 PH Micro 1 x PH 0x60; 1 x PH 1x80 1578 A Micro 1 x 0.23x1.5x40; 1 x 0.25x1.2x40; 1 x 0.30x1.8x60; 1 x 0.40x2.5x80 ESD 117 1567 TORX® BO Kraftform Micro screwdriver for tamper-proof TORX® screws Application: TORX® socket screws with safety pin (BO = with bore hole) Blade: Round Design: Bore hole in TORX® section, chrome-plated, Black Point Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 1567 TORX® BO screwdriver for tamper-proof TORX® screws Application: TORX® socket screws with safety pin (BO = with bore hole) Blade: Round Design: Bore hole in TORX® section, chrome-plated, Black Point Handle: Kraftform with non-roll feature, Weralit ESD 1569 ESD nutdriver Application: Hexagon headed bolts, screws and nuts Blade: Round Design: Chrome-plated Handle: Kraftform Micro with non-roll feature and rotating cap, multi- component 1578 A/6 Screwdriver set and rack for electronic applications Application: Slotted and Phillips screws Content: 6-piece set and rack in display carton ESD Tools
Code mm mm mm 05328458002 6 10 98 2 Code mm mm 05328463002 1 /4 " 100 112 4" 2 Code mm mm 05051106002 1 /4 " 10 54 3 /8 " 2 Code mm 05051273002 1 /4 " 90 2 Code mm 05051464003 1 /4 " 119 2 Code 05056677002 1813 R ESD 1 x 1/4"x90 800/1 TZ 1 x 0.5x4.0x25; 1 x 1.0x5.5x25 851/1 TZ PH 1 x PH 1x25; 1 x PH 2x25 855/1 TZ PZ 1 x PZ 1x25; 1 x PZ 2x25 867/1 TZ TORX® 1 x TX 10x25; 1 x TX 15x25; 1 x TX 20x25 118 ESD Series ESD-safe tools 80 ESD Vario handle Application: 6 mm Vario blades and adaptors Handle: Kraftform with non-roll feature, Weralit ESD, 10 mm bolster 810/1 ESD bitholding screwdriver with retaining ring suitable for all ¼" bits as per DIN 3126-C 6.3 Application: Suitable for 1 /4 " DIN 3126-C 6.3 (ISO 1173) hexagon insert bits and Wera Series 1 Blade: Hexagon Design: 1 /4 " hexagon socket with retaining ring, chrome-plated Handle: Kraftform with non-roll feature, Weralit ESD 811/1 ESD bitholding screwdriver Application: Suitable for 1 /4 " DIN 3126-C 6.3 (ISO 1173) hexagon socket bits and Wera Series 1 Design: Extra short, 1 /4 " hexagon insert bits with retaining ring Handle: Kraftform, Weralit ESD 813 R ESD bitholding screwdriver, non-magnetic Application: Suitable for 1 /4 " DIN 3126-C and E 6.3 (ISO 1173) hexagon insert bits and Wera Series 1 and 4 Design: 1 /4 " hexagon socket with Wera quick-release chuck and Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and single-hand technology Handle: Kraftform with non-roll feature, multi-component 816 R ESD bitholding screwdriver, non-magnetic Application: Suitable for 1 /4 " DIN 3126-C and E 6.3 (ISO 1173) hexagon insert bits and Wera Series 1 and 4 Design: 1 /4 " hexagon socket with Wera quick-release chuck and Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and single-hand technology Handle: Kraftform with non-roll feature, multi-component Kraftform Kompakt 10 ESD 10-piece set 1 hand-held bit holder 813 R ESD Kraftform with quick-release chuck Rapidaptor
! Code 05056678002 1813 R ESD 1 x 1/4"x90 800/1 Z 1 x 0.5x3.0x25 851/1 TZ PH 1 x PH 1x25 851/1 Z PH 1 x PH 0x25 867/1 TZ TORX® 1 x TX 5x25; 1 x TX 6x25; 1 x TX 7x25; 1 x TX 8x25; 1 x TX 9x25; 1 x TX 10x25 Code Nm Nm mm 05074730002 7440 ESD 1 /4 " 0.3-1.2 0.05 155 6" 1 05074731002 7441 ESD 1 /4 " 1.2-3.0 0.10 155 6" 1 Code in. lbs. in. lbs. mm 05074733002 7445 ESD 1 /4 " 2.5-11.5 0.5 155 6" 1 05074734002 7446 ESD 1 /4 " 11.0-29.0 1.0 155 6" 1 ESD 119 All Wera torque tools are supplied with a calibration certificate. Our workshop offers a full service for all Wera torque tools. Please contact us with any queries regarding our service, recalibration or repairs on +1-905-637-0003. Full service Kraftform Kompakt 11 ESD 10-piece set 1 hand-held bit holder 813 R ESD Kraftform with quick-release chuck Rapidaptor Series 7400 Kraftform ESD adjustable torque screwdrivers with Rapidaptor quick-release chuck Application: Suitable for 1 /4 " DIN 3126 C 6.3 and E 6.3 (ISO 1173) hexagon insert bits und Wera Series 1 and 4 Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and single-hand technology, non-magnetic Accuracy: ±6 % (EN ISO 6789) Handle: Kraftform with non-roll feature, multi-component Series 7400 Kraftform ESD adjustable torque screwdrivers with Rapidaptor quick-release chuck Application: Suitable for 1 /4 " DIN 3126 C 6.3 and E 6.3 (ISO 1173) hexagon insert bits und Wera Series 1 and 4 Design: Rapidaptor rapid-in, rapid-out, rapid-spin, chuck-all and single-hand technology, non-magnetic Accuracy: ±6 % (EN ISO 6789) Handle: Kraftform with non-roll feature, multi-component ESD Tools
