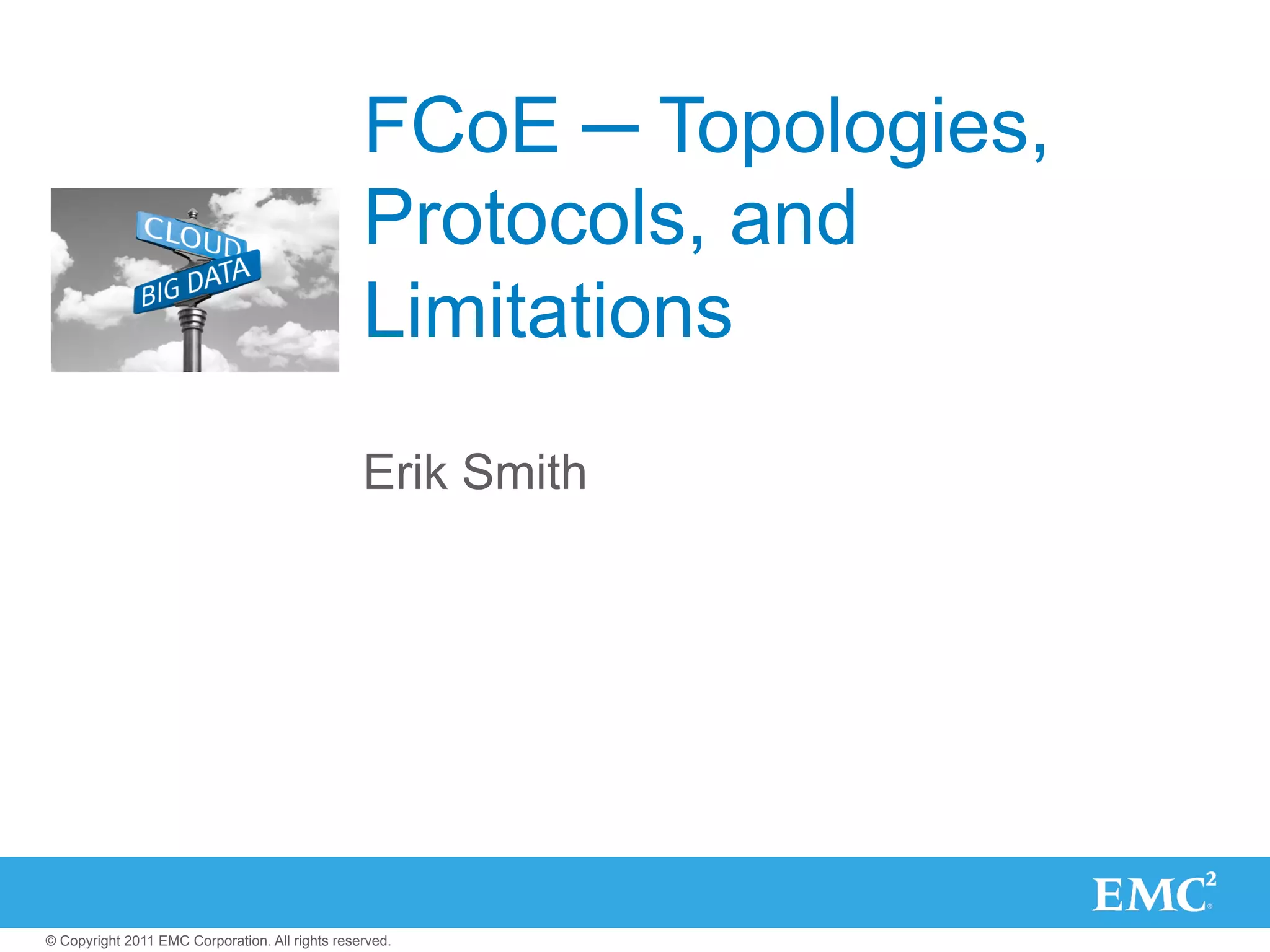

The document explains Fibre Channel over Ethernet (FCoE) topologies, protocols, and limitations, focusing on key elements like Data Center Bridging Capability Exchange (DCBX), Priority Flow Control (PFC), Enhanced Transmission Selection (ETS), and the FCoE Initialization Protocol (FIP). It outlines various topologies including zero-hop and multi-hop configurations, emphasizing their real-world applications and advantages. Additionally, it provides insights into EMC's product roadmap and the networking challenges these technologies aim to address.

1. FCoE ─ Topologies,
Protocols, and
Limitations
Erik Smith
© Copyright 2011 EMC Corporation. All rights reserved.

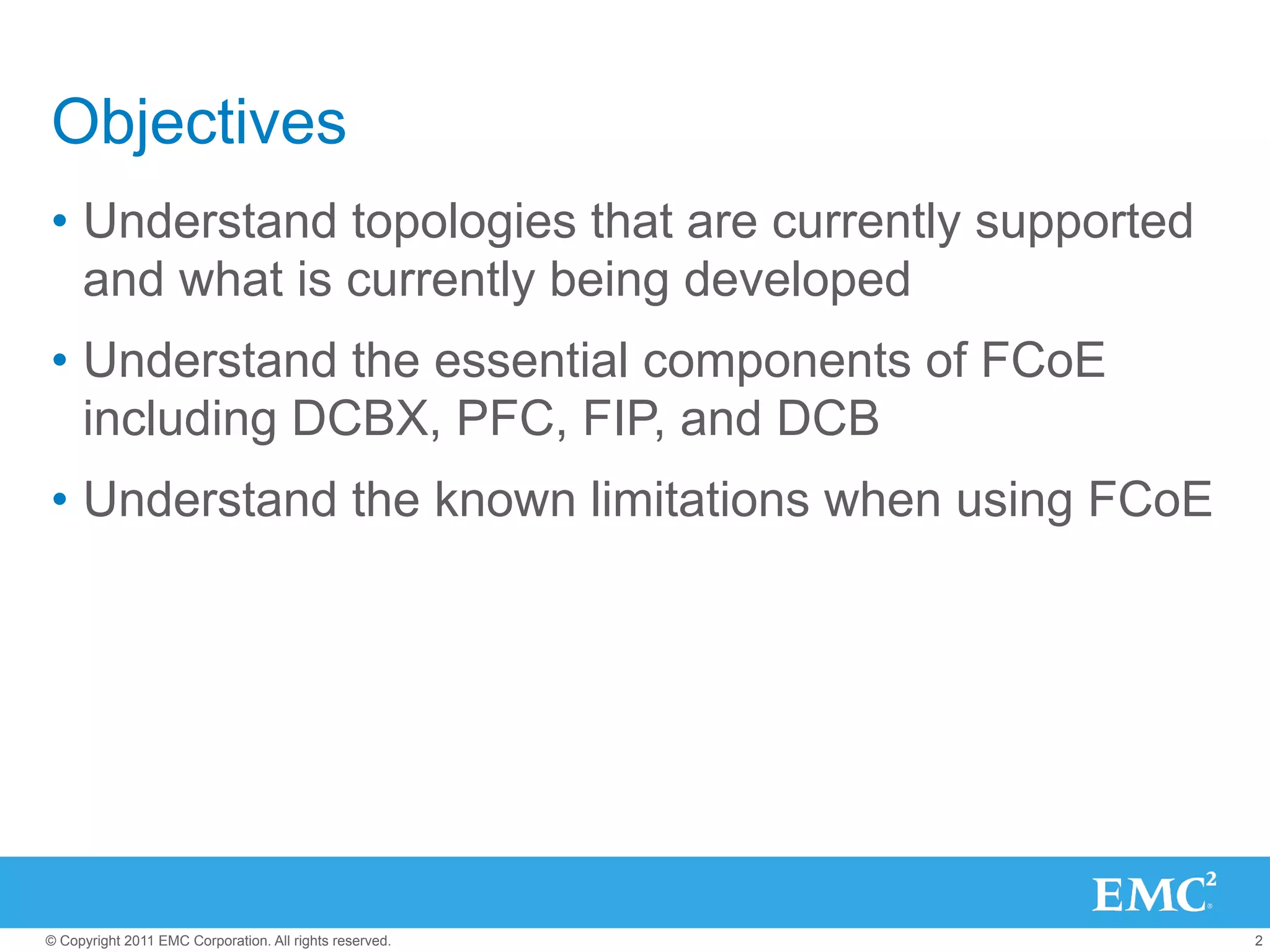

2. Objectives
• Understand topologies that are currently supported
and what is currently being developed
• Understand the essential components of FCoE
including DCBX, PFC, FIP, and DCB
• Understand the known limitations when using FCoE
© Copyright 2011 EMC Corporation. All rights reserved. 2

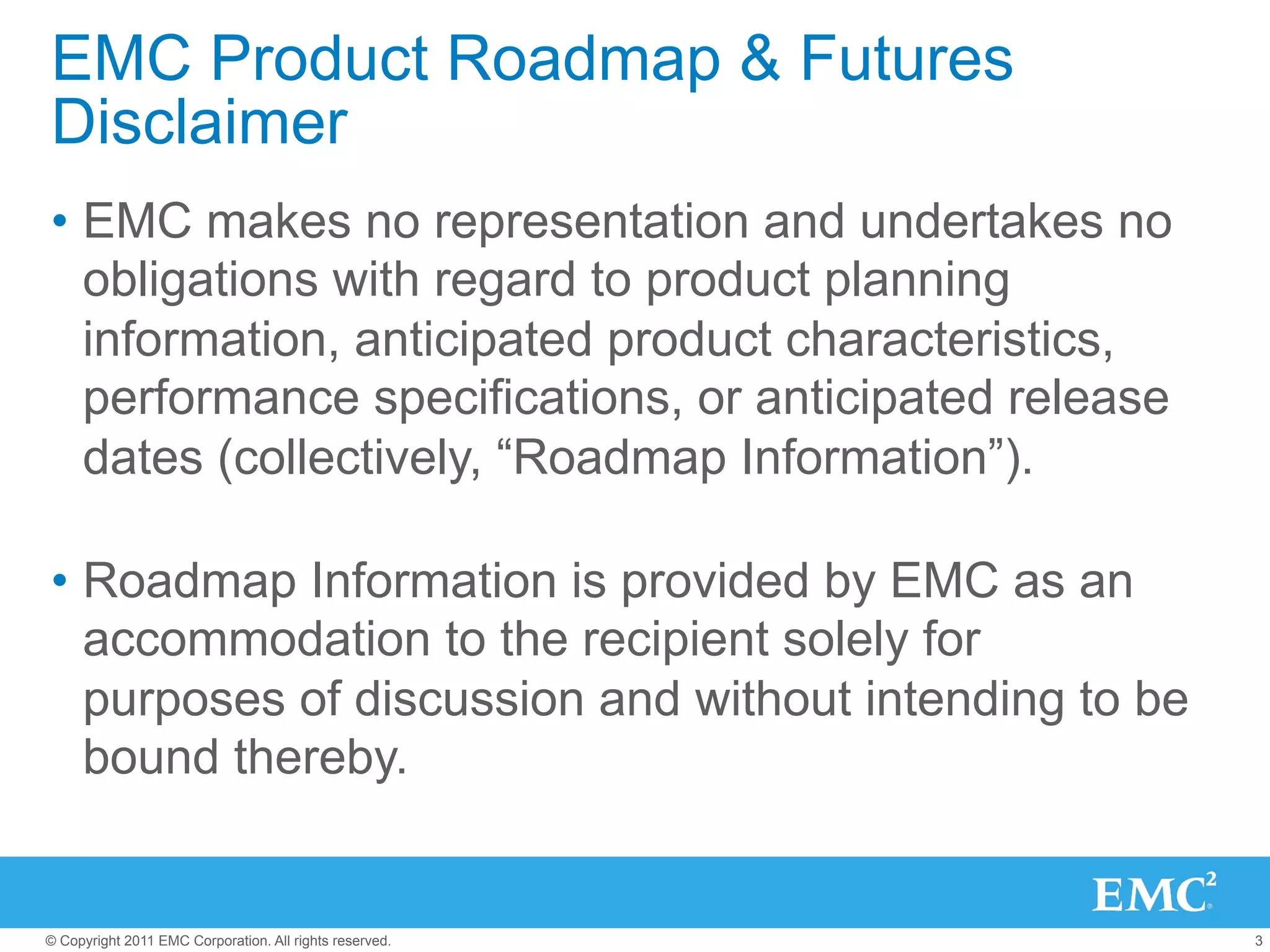

3. EMC Product Roadmap & Futures
Disclaimer
• EMC makes no representation and undertakes no
obligations with regard to product planning
information, anticipated product characteristics,
performance specifications, or anticipated release
dates (collectively, “Roadmap Information”).
• Roadmap Information is provided by EMC as an
accommodation to the recipient solely for
purposes of discussion and without intending to be
bound thereby.
© Copyright 2011 EMC Corporation. All rights reserved. 3

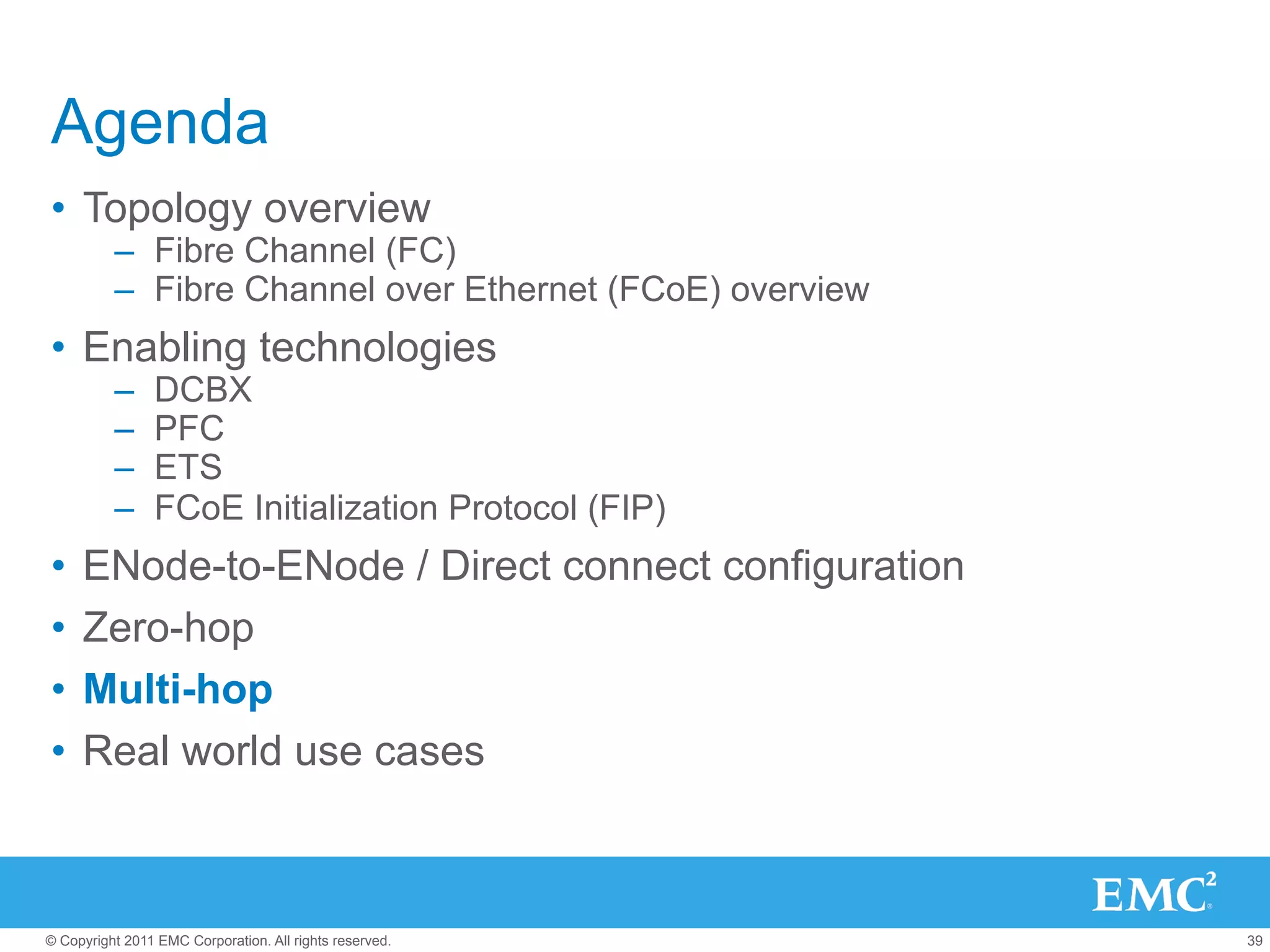

4. Agenda
• Topology overview
– Fibre Channel (FC)
– Fibre Channel over Ethernet (FCoE) overview
• Enabling technologies
– DCBX
– PFC
– ETS
– FCoE Initialization Protocol (FIP)
• ENode-to-ENode / Direct connect configuration
• Zero-hop
• Multi-hop
• Real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 4

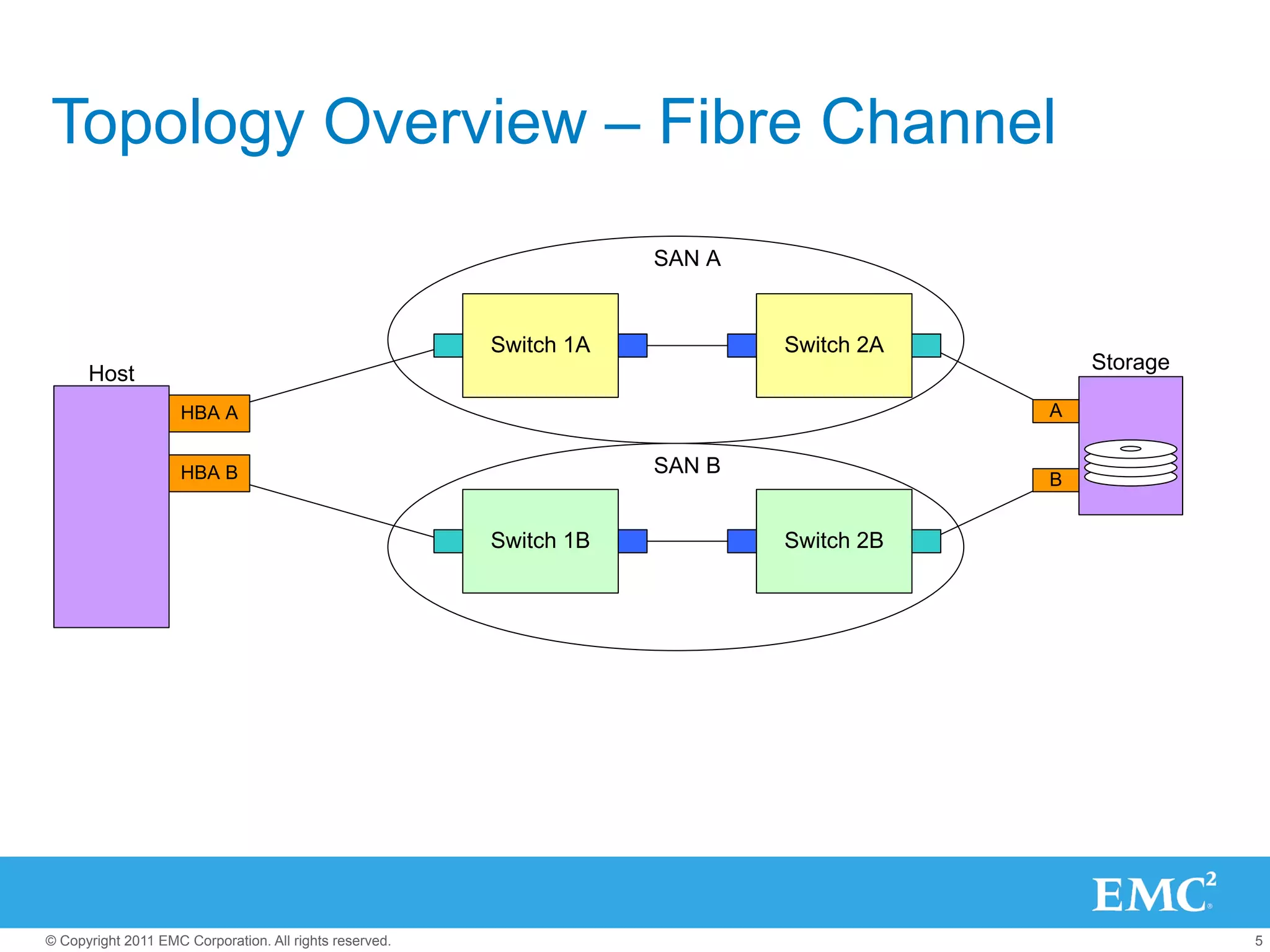

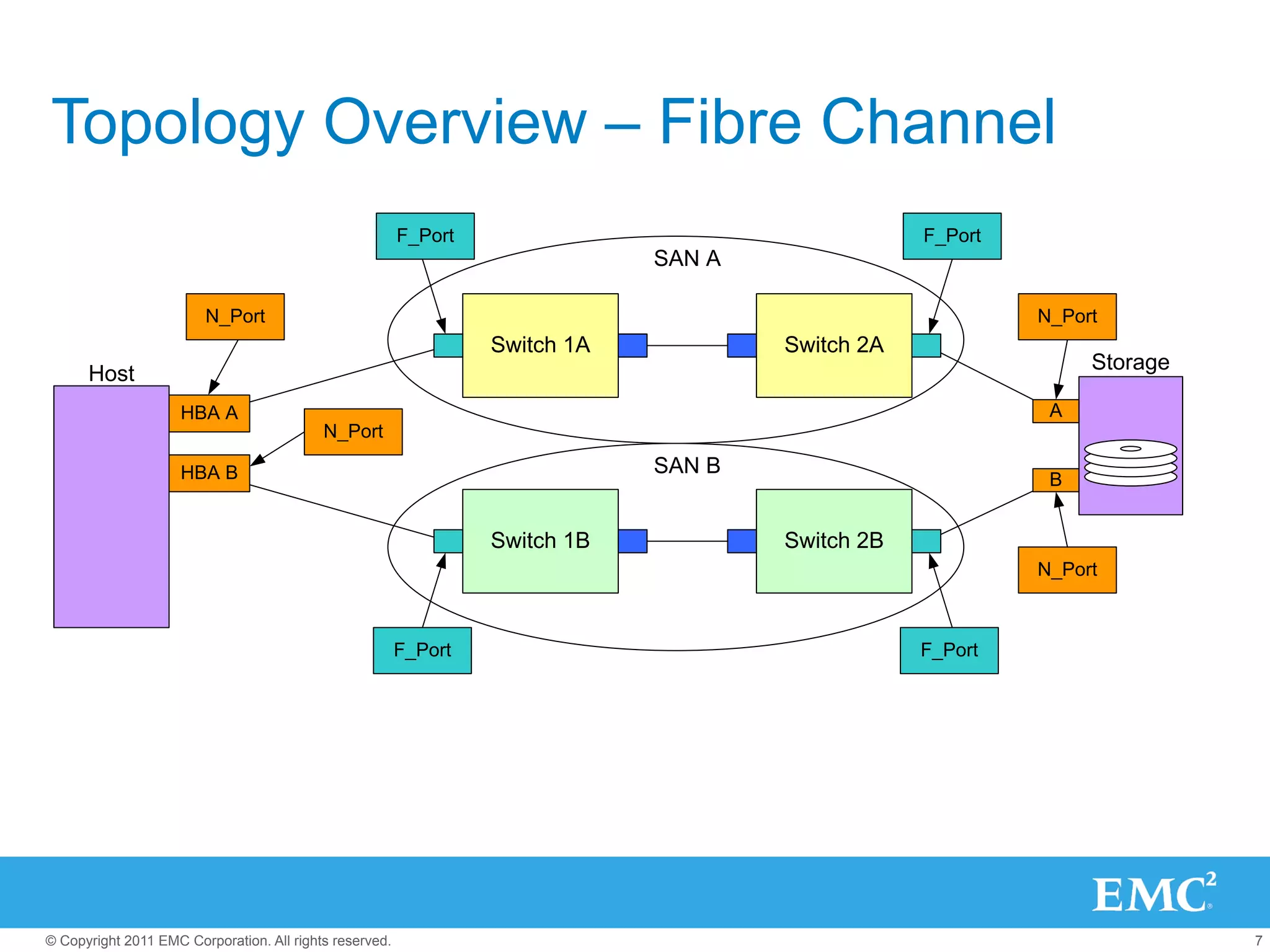

5. Topology Overview – Fibre Channel
SAN A
Switch 1A Switch 2A
Storage
Host
HBA A A
HBA B SAN B
B
Switch 1B Switch 2B
© Copyright 2011 EMC Corporation. All rights reserved. 5

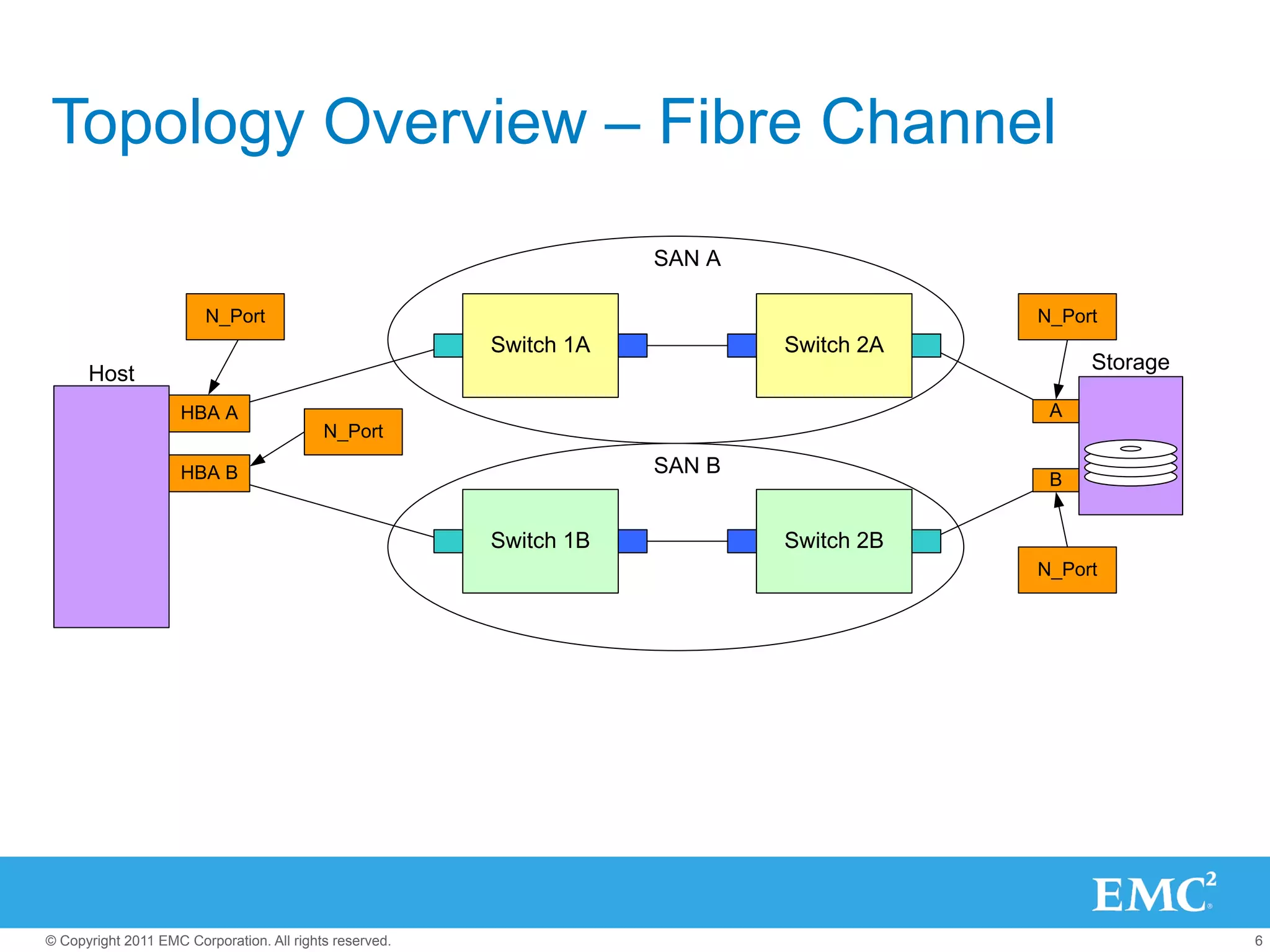

6. Topology Overview – Fibre Channel
SAN A
N_Port N_Port
Switch 1A Switch 2A
Storage
Host
HBA A A
N_Port
HBA B SAN B
B
Switch 1B Switch 2B
N_Port
© Copyright 2011 EMC Corporation. All rights reserved. 6

7. Topology Overview – Fibre Channel
F_Port F_Port
SAN A
N_Port N_Port
Switch 1A Switch 2A
Storage
Host
HBA A A
N_Port
HBA B SAN B
B
Switch 1B Switch 2B
N_Port
F_Port F_Port
© Copyright 2011 EMC Corporation. All rights reserved. 7

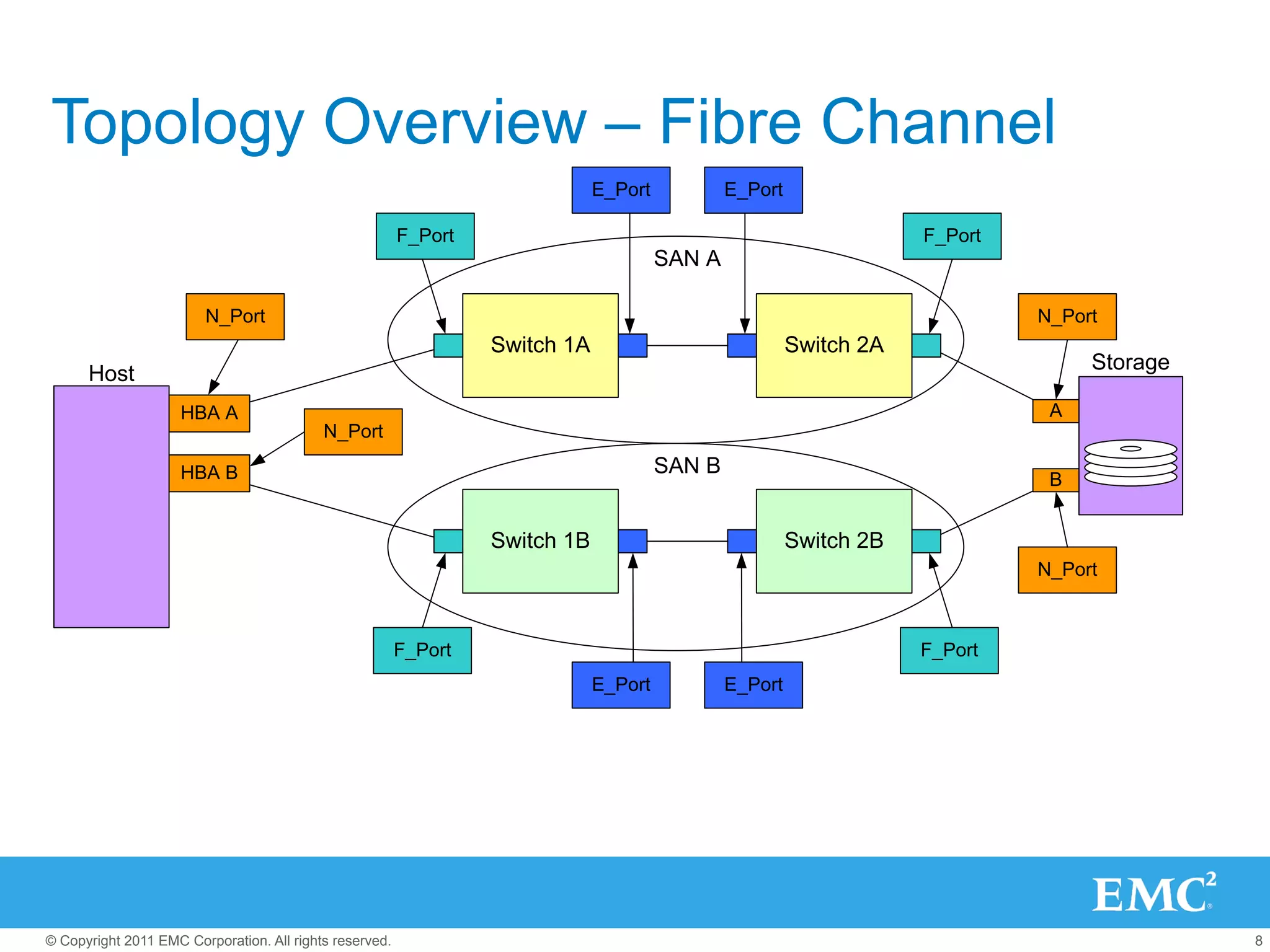

8. Topology Overview – Fibre Channel
E_Port E_Port
F_Port F_Port
SAN A
N_Port N_Port
Switch 1A Switch 2A
Storage
Host
HBA A A
N_Port
HBA B SAN B
B
Switch 1B Switch 2B
N_Port
F_Port F_Port
E_Port E_Port
© Copyright 2011 EMC Corporation. All rights reserved. 8

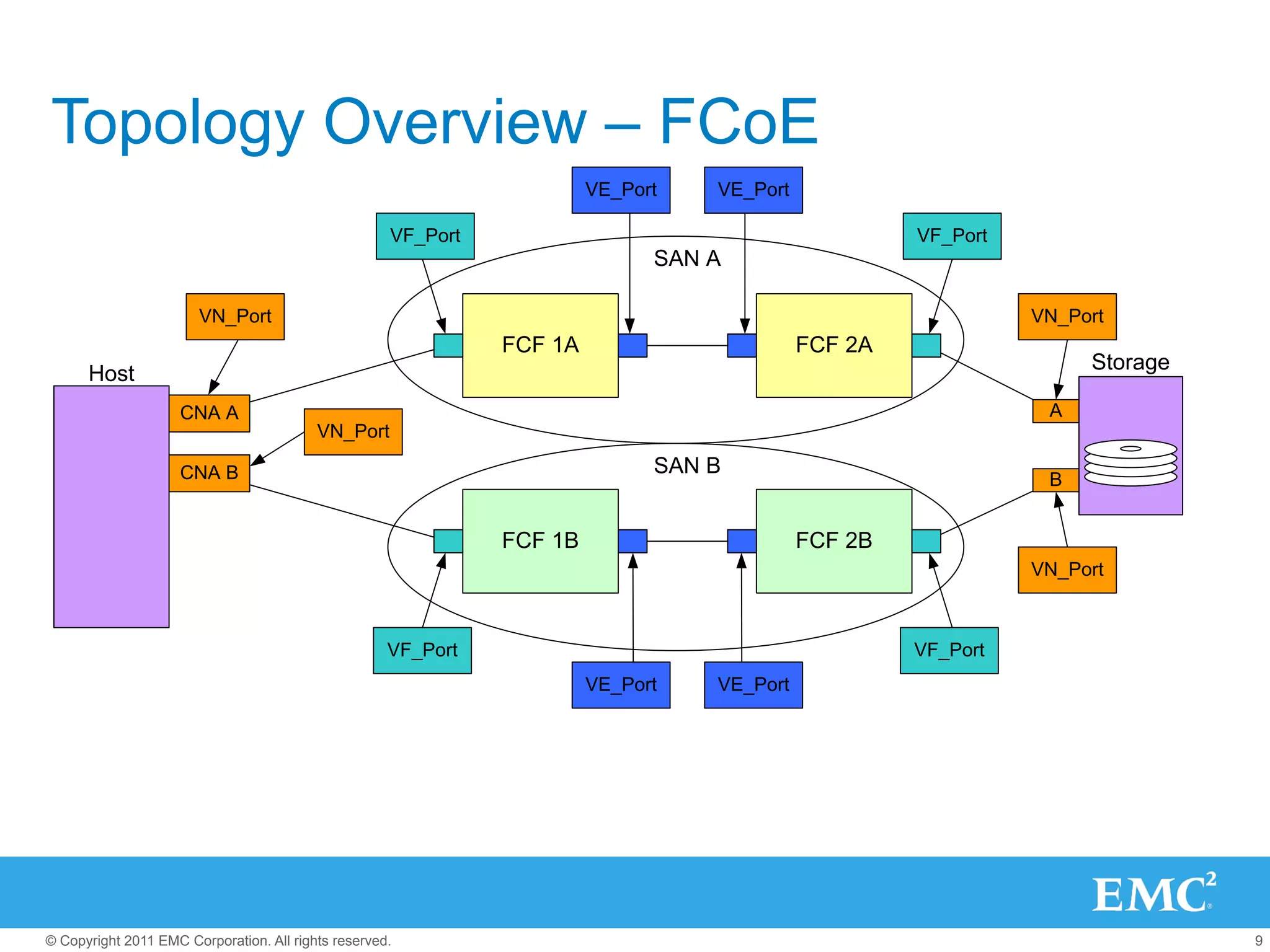

9. Topology Overview – FCoE
VE_Port VE_Port
VF_Port VF_Port
SAN A
VN_Port VN_Port
FCF 1A FCF 2A
Storage
Host
CNA A A
VN_Port
CNA B SAN B
B
FCF 1B FCF 2B
VN_Port
VF_Port VF_Port
VE_Port VE_Port
© Copyright 2011 EMC Corporation. All rights reserved. 9

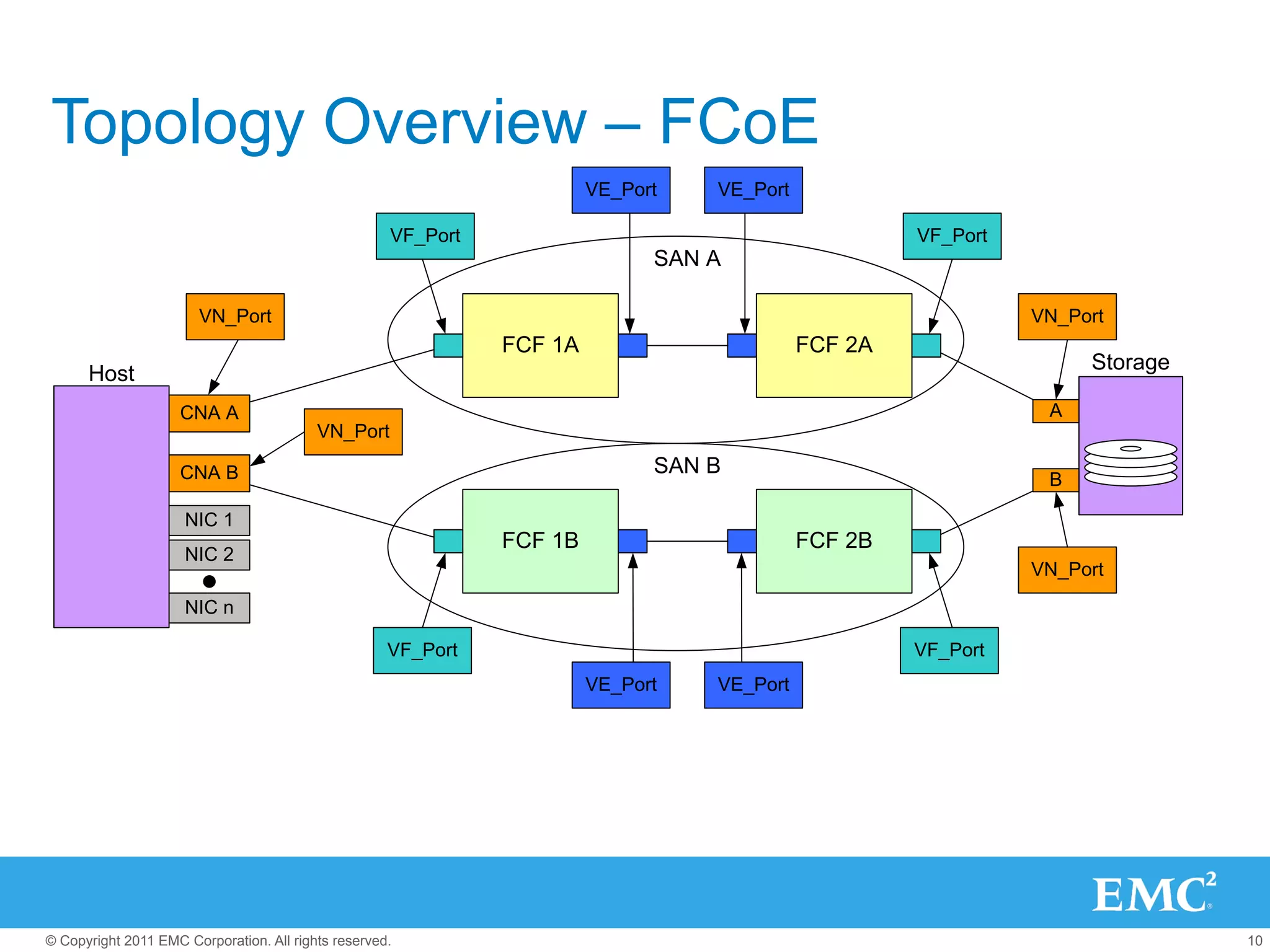

10. Topology Overview – FCoE
VE_Port VE_Port
VF_Port VF_Port
SAN A
VN_Port VN_Port
FCF 1A FCF 2A
Storage
Host
CNA A A
VN_Port
CNA B SAN B
B
NIC 1
FCF 1B FCF 2B
NIC 2
VN_Port
NIC n
VF_Port VF_Port
VE_Port VE_Port
© Copyright 2011 EMC Corporation. All rights reserved. 10

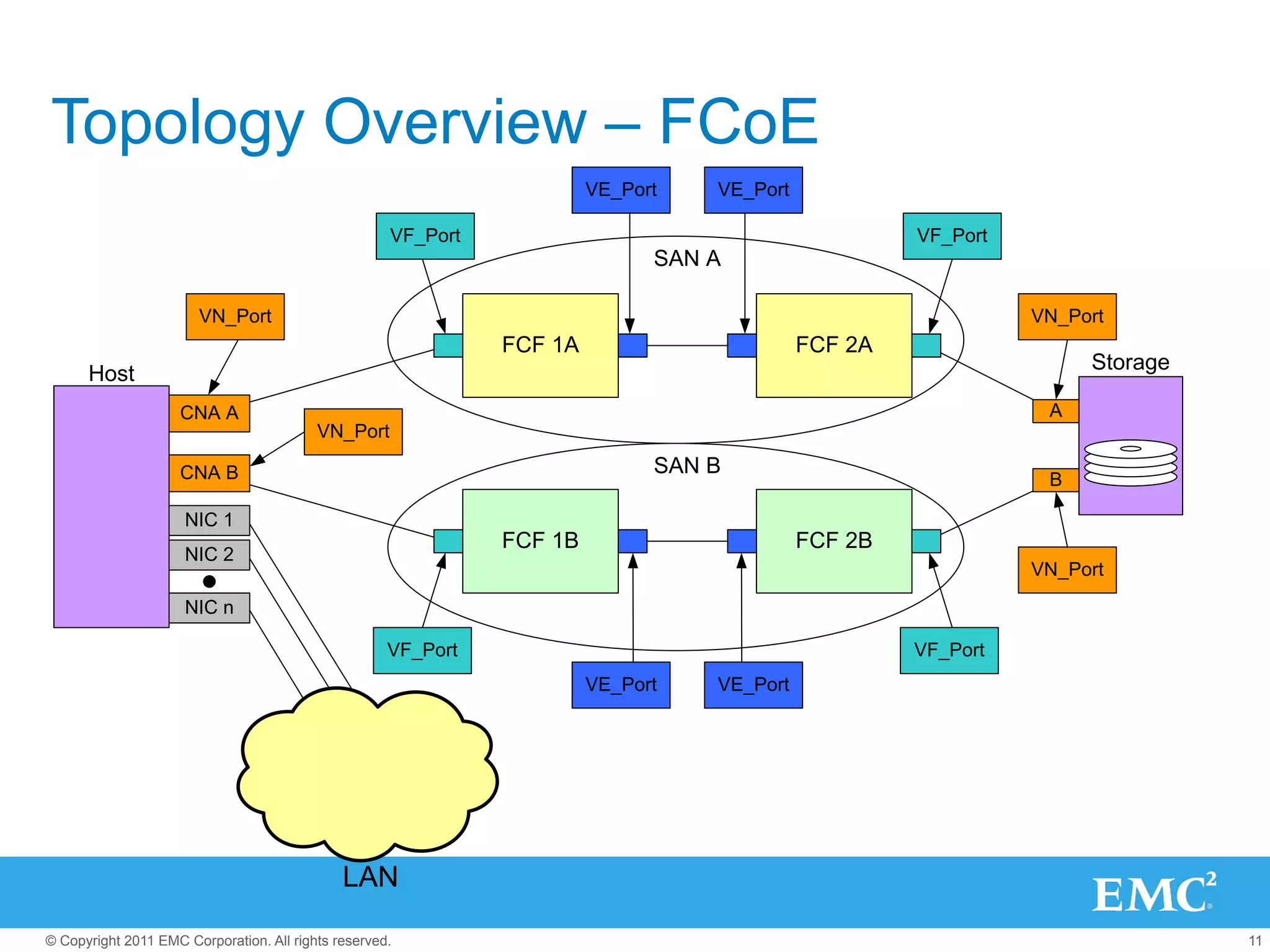

11. Topology Overview – FCoE
VE_Port VE_Port
VF_Port VF_Port
SAN A
VN_Port VN_Port
FCF 1A FCF 2A
Storage
Host
CNA A A
VN_Port
CNA B SAN B
B
NIC 1
FCF 1B FCF 2B
NIC 2
VN_Port
NIC n
VF_Port VF_Port
VE_Port VE_Port
LAN
© Copyright 2011 EMC Corporation. All rights reserved. 11

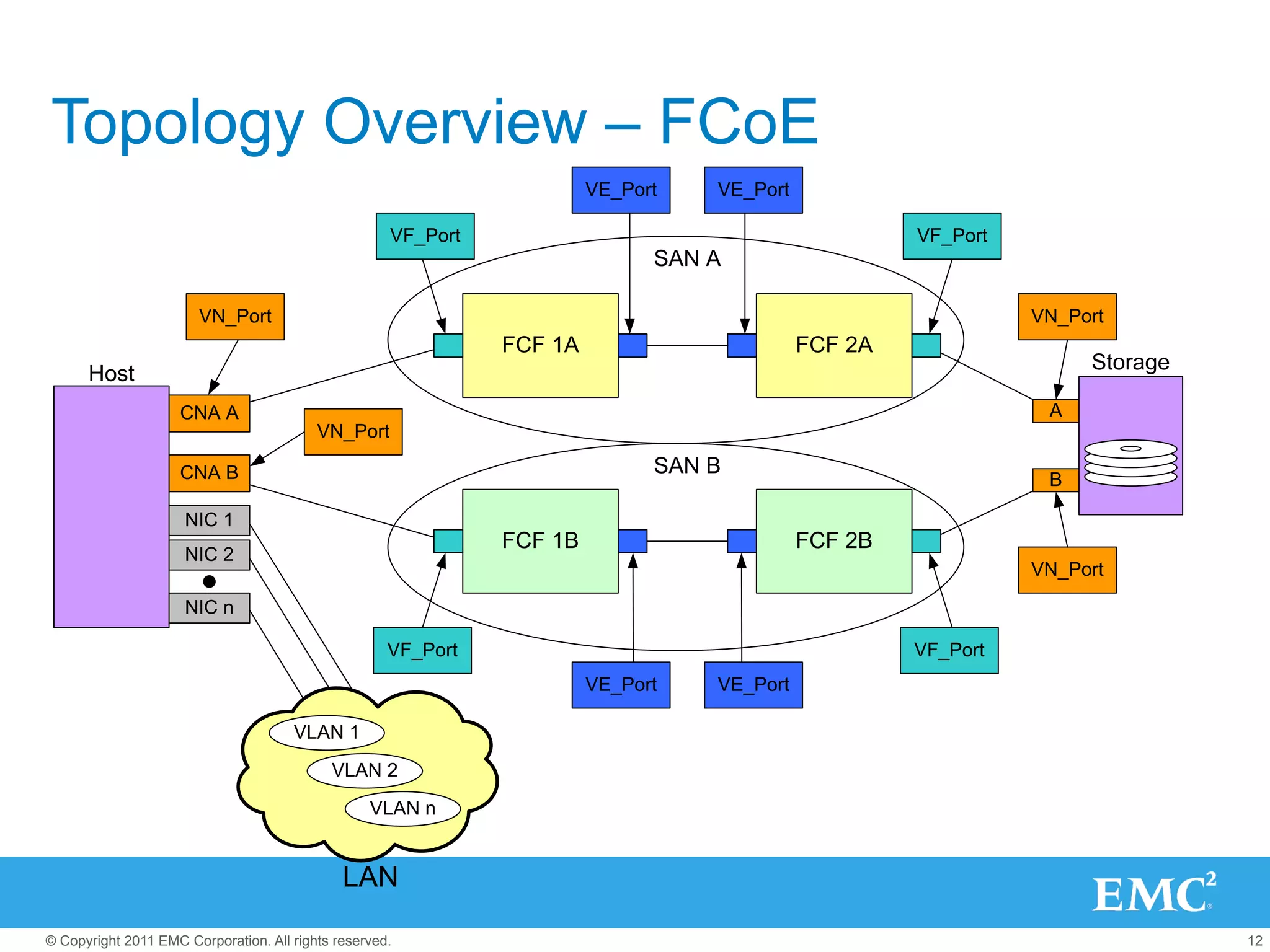

12. Topology Overview – FCoE
VE_Port VE_Port
VF_Port VF_Port
SAN A
VN_Port VN_Port
FCF 1A FCF 2A
Storage
Host
CNA A A
VN_Port
CNA B SAN B
B
NIC 1
FCF 1B FCF 2B
NIC 2
VN_Port
NIC n
VF_Port VF_Port
VE_Port VE_Port
VLAN 1
VLAN 2
VLAN n
LAN
© Copyright 2011 EMC Corporation. All rights reserved. 12

13. Topology Overview – FCoE
VE_Port VE_Port
VF_Port VF_Port
SAN A
VN_Port VN_Port
FCF 1A FCF 2A
Storage
Host
CNA A A
VN_Port
CNA B SAN B
B
NIC 1
FCF 1B FCF 2B
NIC 2
VN_Port
NIC n
VF_Port VF_Port
VE_Port VE_Port
VLAN 1
VLAN 2
VLAN n
LAN
© Copyright 2011 EMC Corporation. All rights reserved. 13

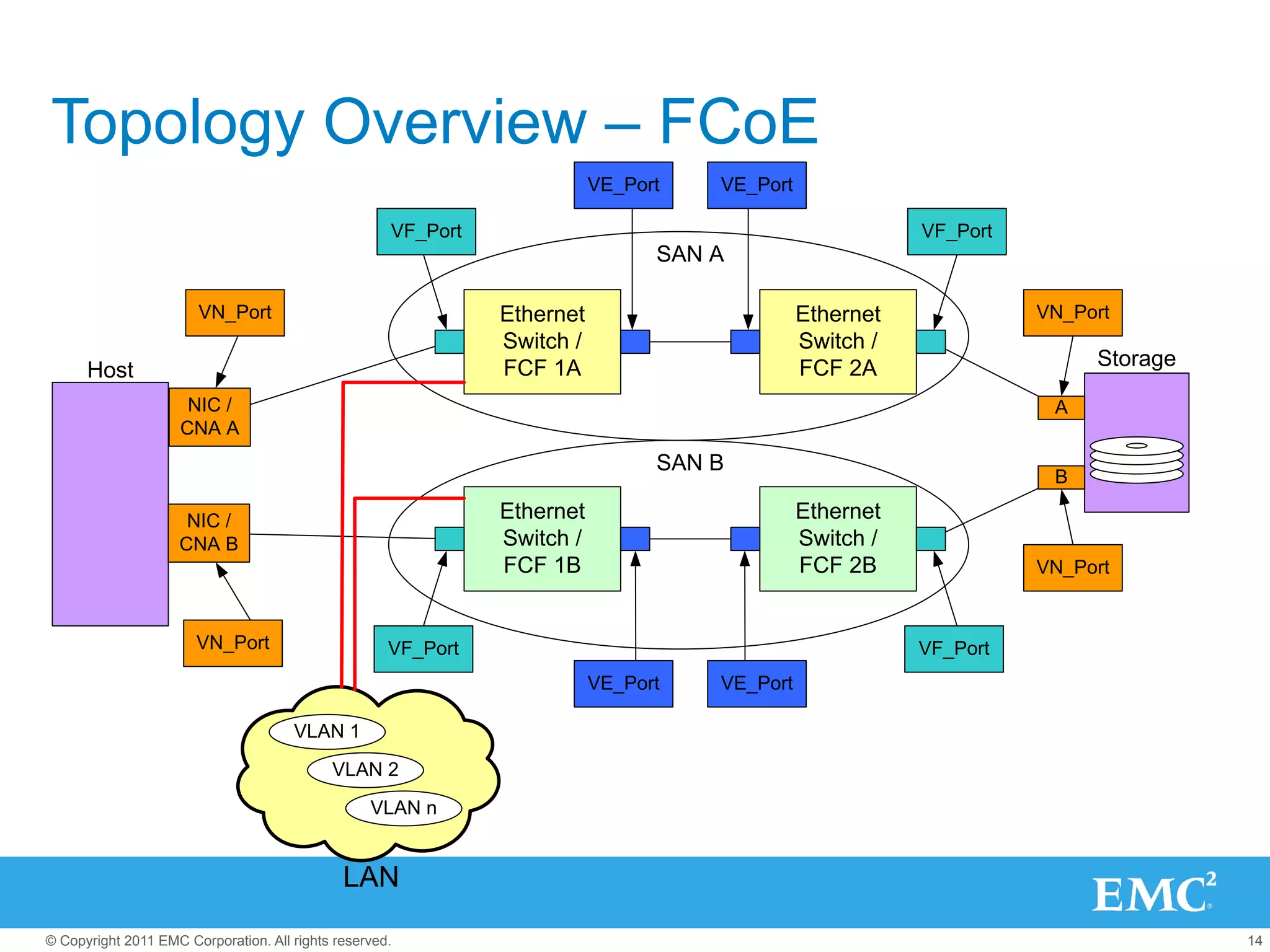

14. Topology Overview – FCoE
VE_Port VE_Port
VF_Port VF_Port
SAN A
VN_Port Ethernet Ethernet VN_Port
Switch / Switch /
FCF 1A FCF 2A Storage
Host
NIC / A
CNA A
SAN B
B
NIC / Ethernet Ethernet
CNA B Switch / Switch /
FCF 1B FCF 2B VN_Port
VN_Port VF_Port VF_Port
VE_Port VE_Port
VLAN 1
VLAN 2
VLAN n
LAN
© Copyright 2011 EMC Corporation. All rights reserved. 14

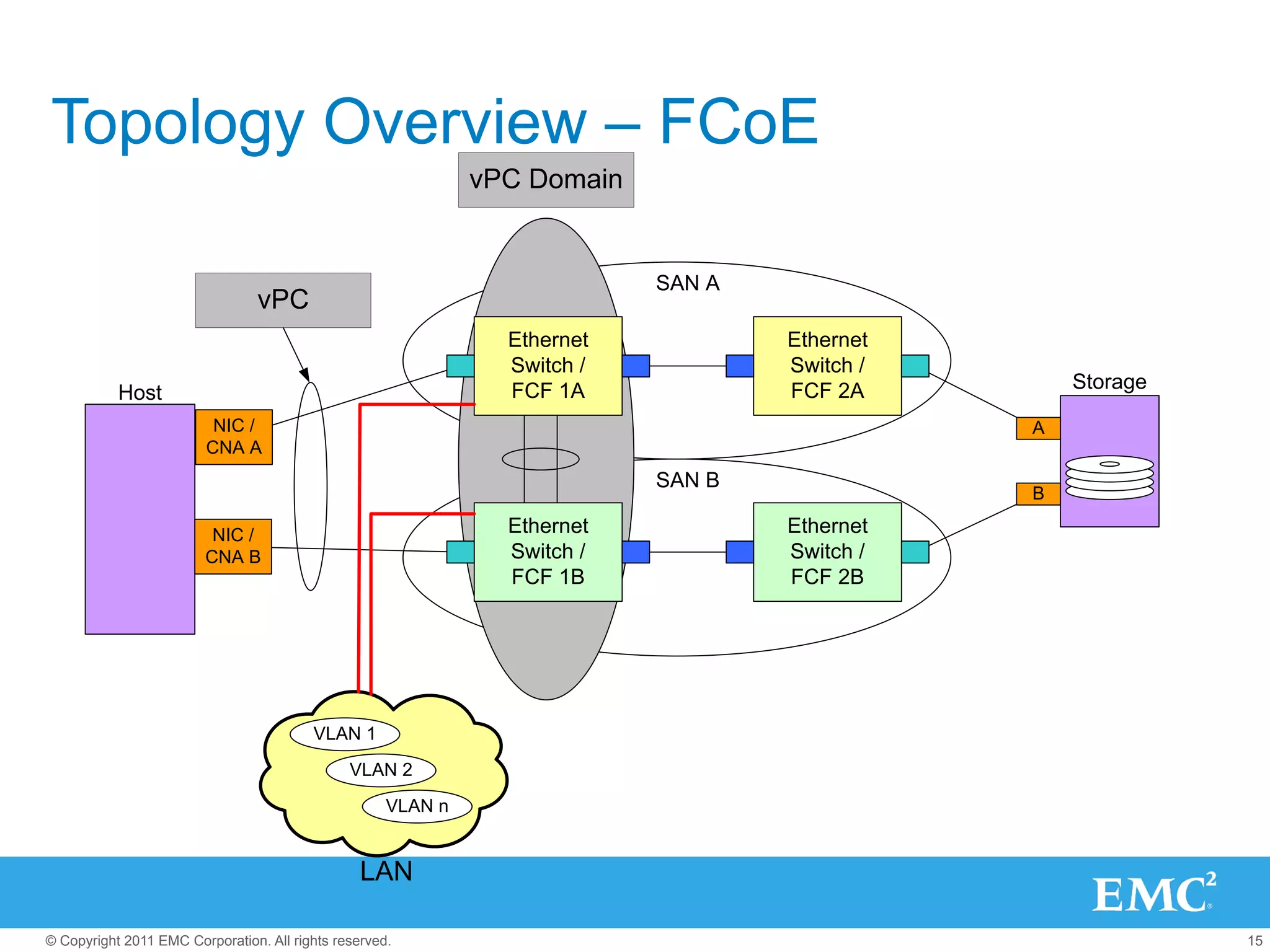

15. Topology Overview – FCoE
vPC Domain
SAN A
vPC
Ethernet Ethernet
Switch / Switch /
FCF 1A FCF 2A Storage
Host
NIC / A
CNA A
SAN B
B
NIC / Ethernet Ethernet
CNA B Switch / Switch /
FCF 1B FCF 2B
VLAN 1
VLAN 2
VLAN n
LAN
© Copyright 2011 EMC Corporation. All rights reserved. 15

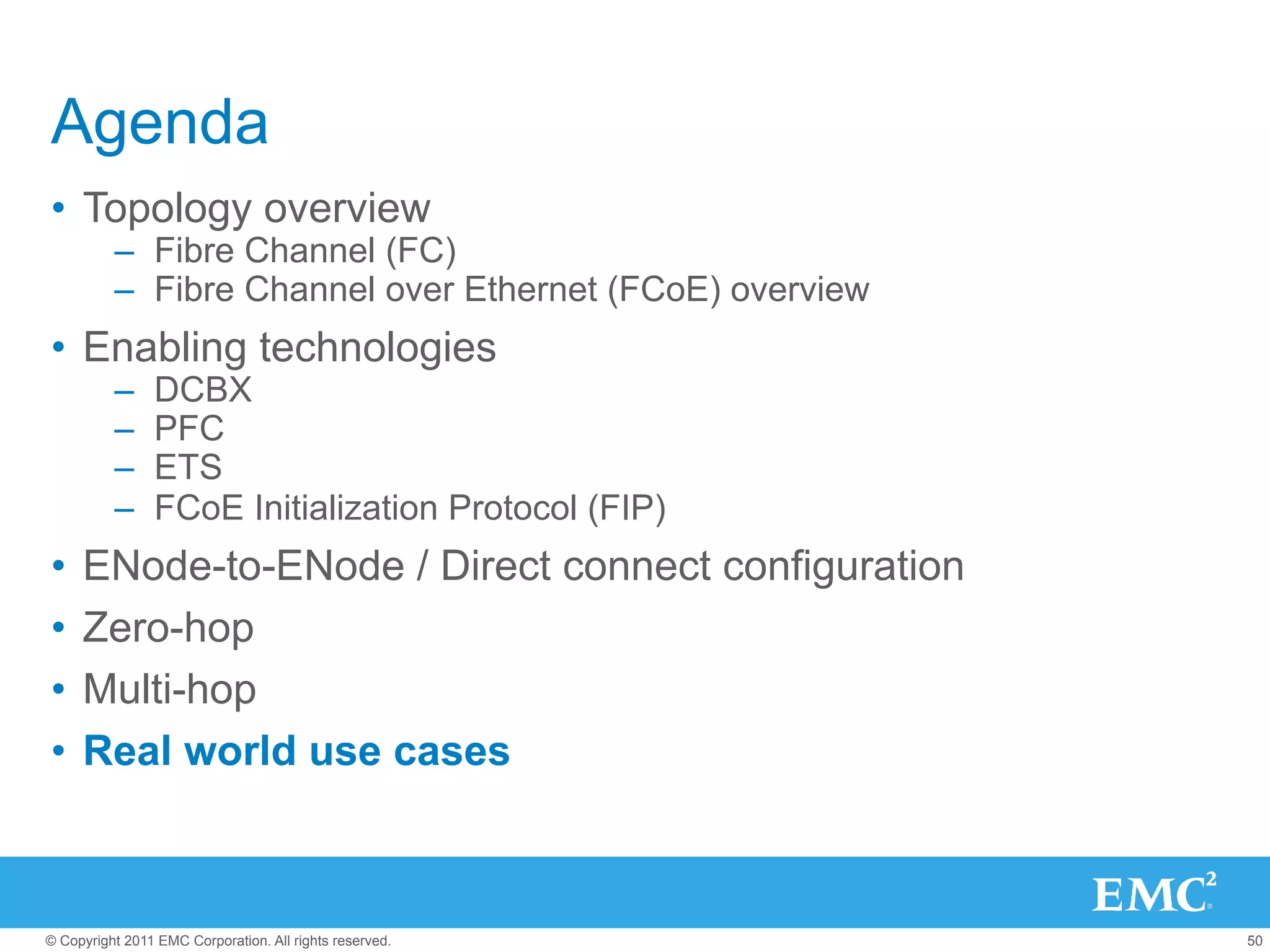

16. Agenda
• Topology overview
– Fibre Channel (FC)
– Fibre Channel over Ethernet (FCoE) overview
• Enabling technologies
– DCBX
– PFC
– ETS
– FCoE Initialization Protocol (FIP)
• ENode-to-ENode / Direct connect configuration
• Zero-hop
• Multi-hop
• Real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 16

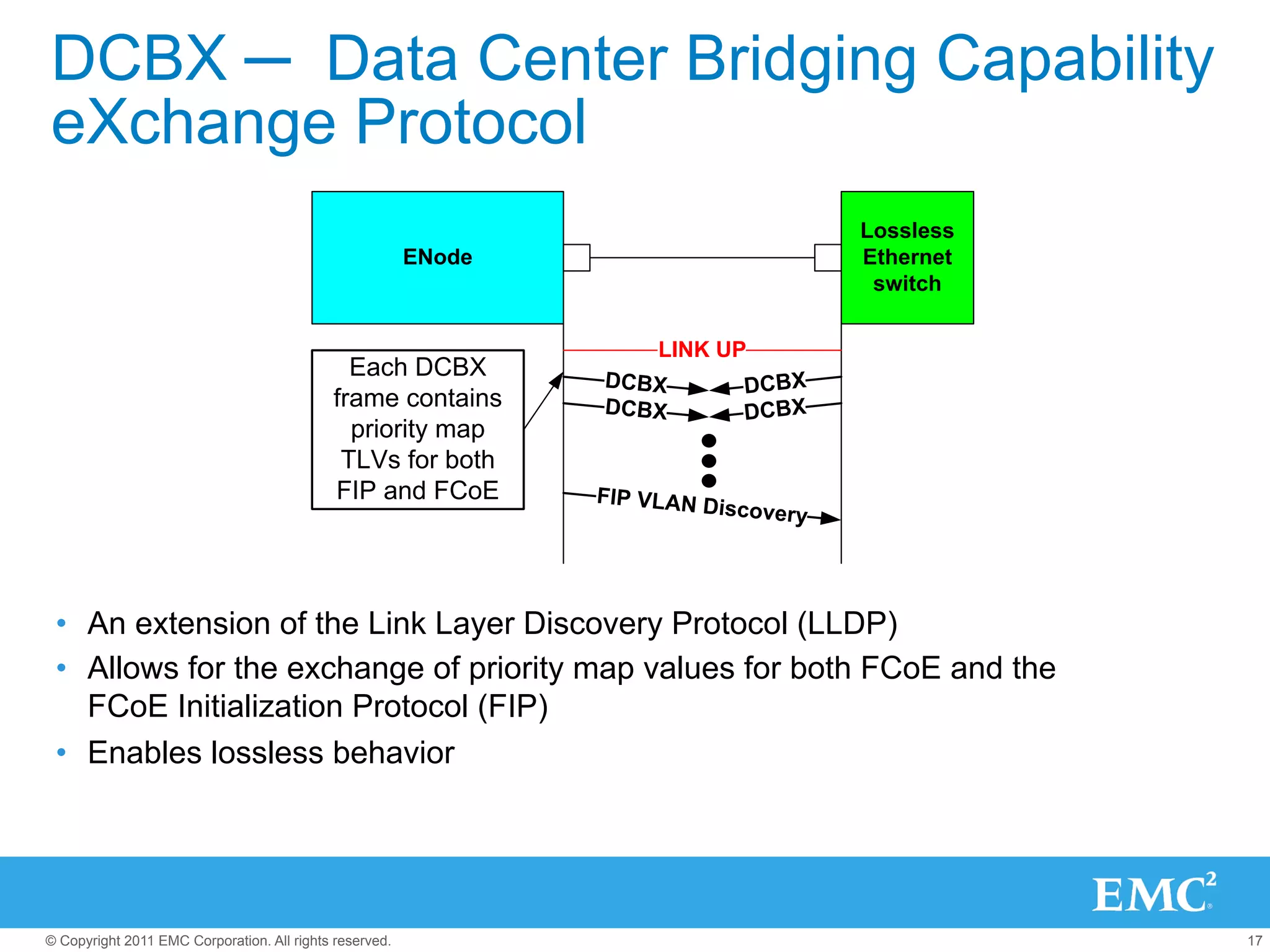

17. DCBX ─ Data Center Bridging Capability
eXchange Protocol
Lossless
ENode Ethernet
switch
LINK UP
Each DCBX DCBX DCBX
frame contains DCBX DCBX
priority map
TLVs for both
FIP and FCoE FIP VLAN D
is covery
• An extension of the Link Layer Discovery Protocol (LLDP)
• Allows for the exchange of priority map values for both FCoE and the
FCoE Initialization Protocol (FIP)
• Enables lossless behavior
© Copyright 2011 EMC Corporation. All rights reserved. 17

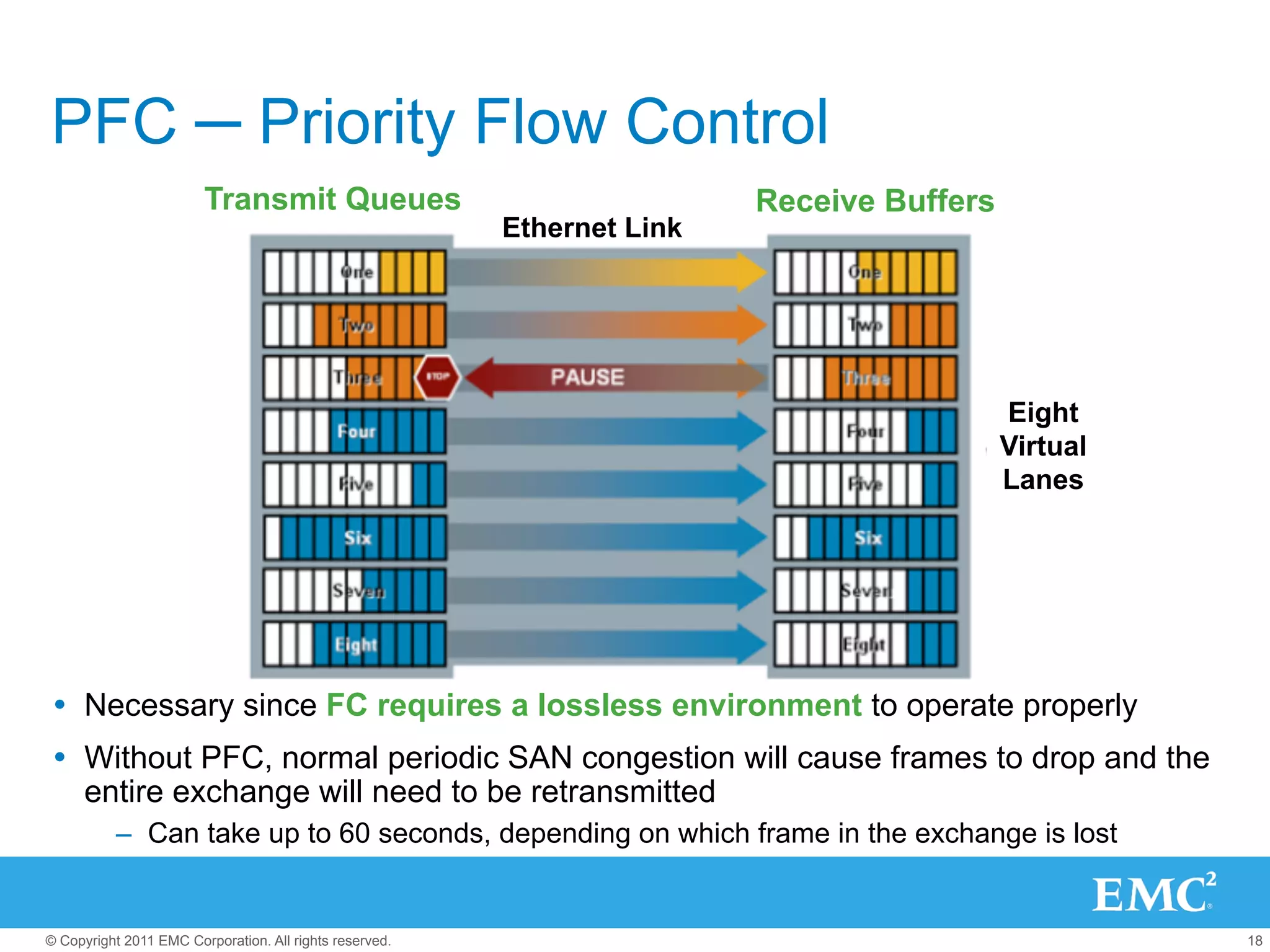

18. PFC ─ Priority Flow Control
Transmit Queues Receive Buffers
Ethernet Link
Eight
Virtual
Lanes
Ÿ Necessary since FC requires a lossless environment to operate properly
Ÿ Without PFC, normal periodic SAN congestion will cause frames to drop and the
entire exchange will need to be retransmitted
– Can take up to 60 seconds, depending on which frame in the exchange is lost
© Copyright 2011 EMC Corporation. All rights reserved. 18

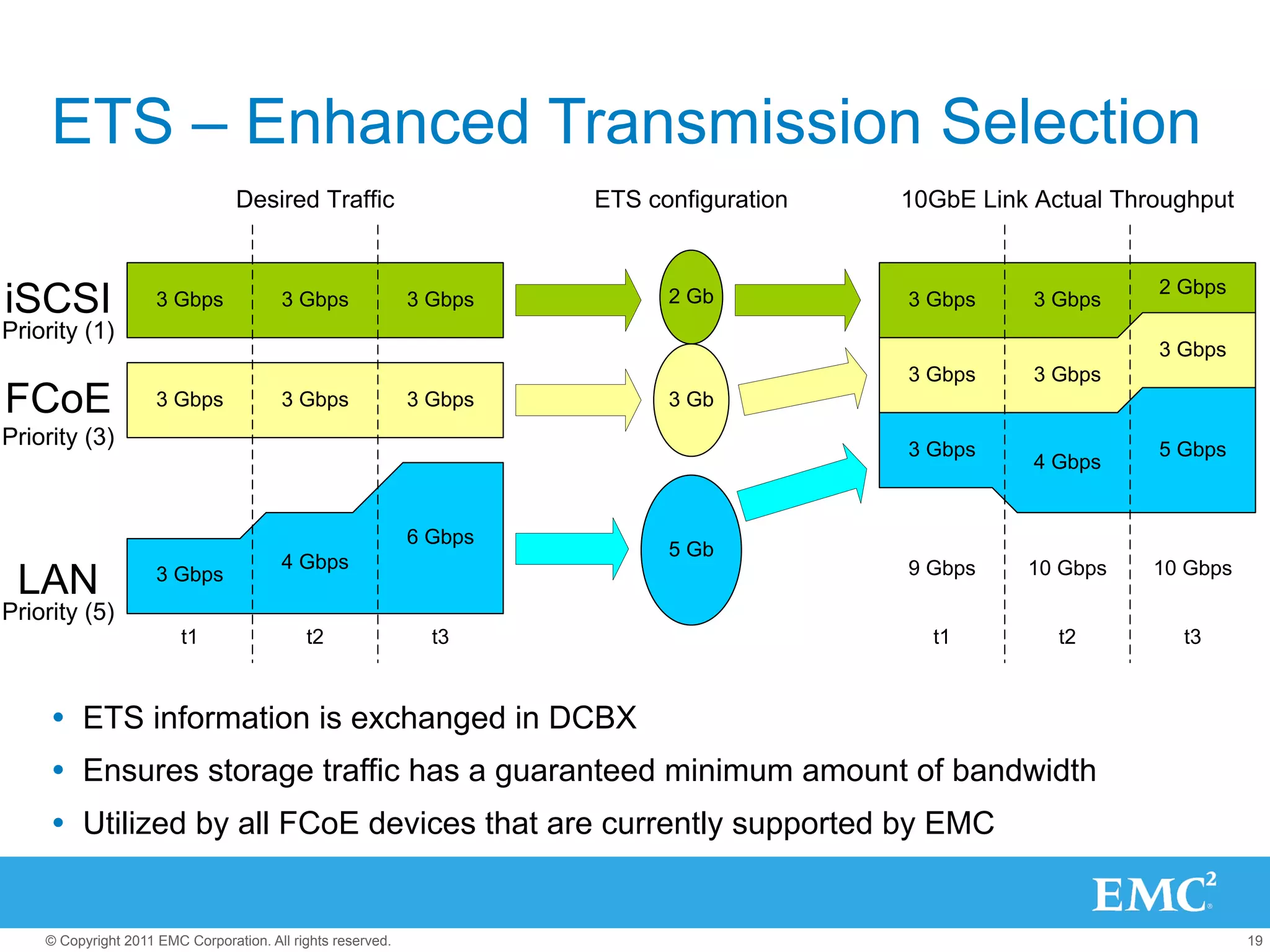

19. ETS – Enhanced Transmission Selection
Desired Traffic ETS configuration 10GbE Link Actual Throughput
iSCSI 3 Gbps 3 Gbps 3 Gbps 2 Gb 3 Gbps 3 Gbps
2 Gbps
Priority (1)
3 Gbps
3 Gbps 3 Gbps
FCoE 3 Gbps 3 Gbps 3 Gbps 3 Gb
Priority (3) 3 Gbps 5 Gbps
4 Gbps
6 Gbps
5 Gb
4 Gbps
LAN 3 Gbps 9 Gbps 10 Gbps 10 Gbps
Priority (5)
t1 t2 t3 t1 t2 t3
Ÿ ETS information is exchanged in DCBX
Ÿ Ensures storage traffic has a guaranteed minimum amount of bandwidth
Ÿ Utilized by all FCoE devices that are currently supported by EMC
© Copyright 2011 EMC Corporation. All rights reserved. 19

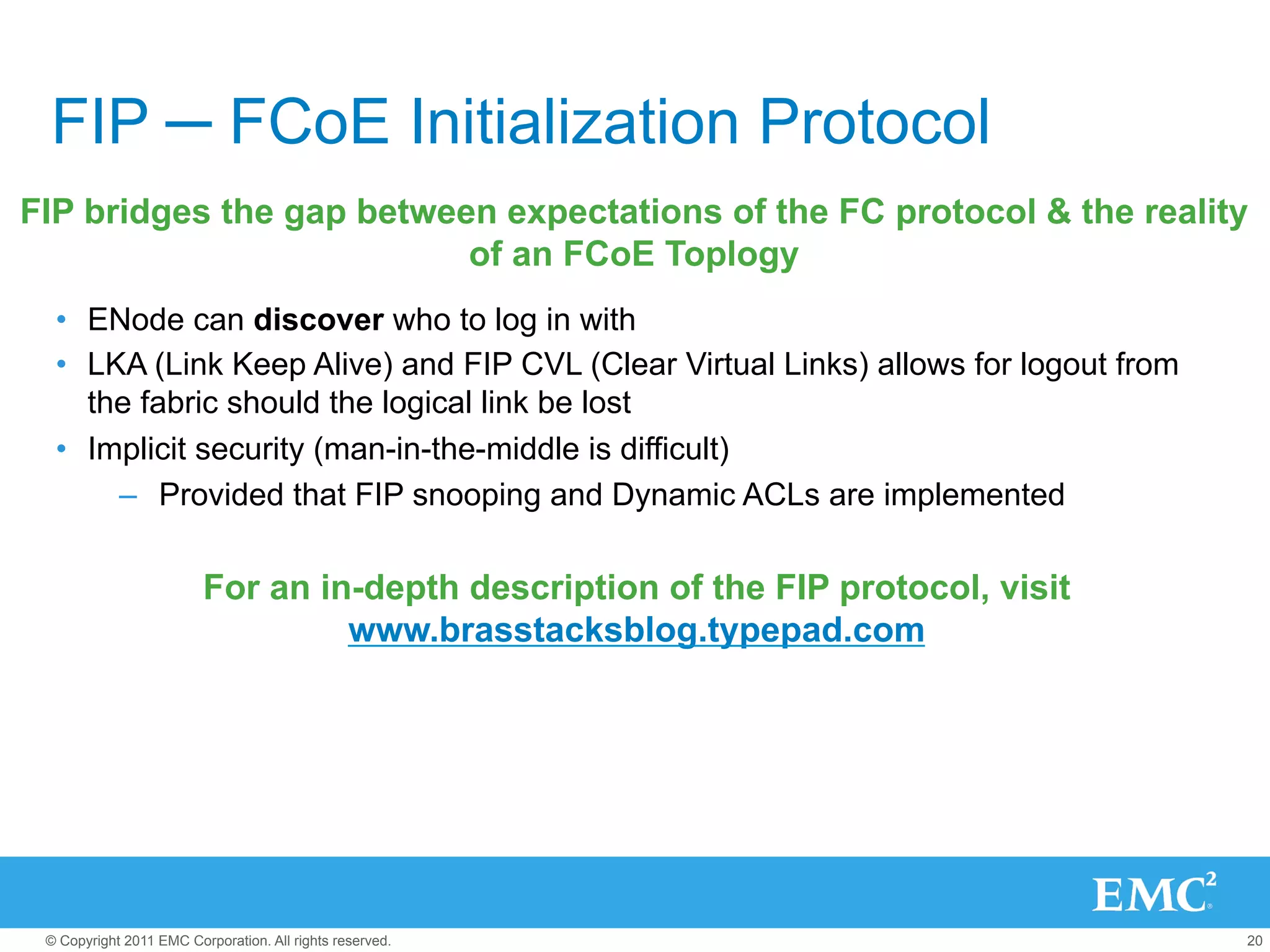

20. FIP ─ FCoE Initialization Protocol
FIP bridges the gap between expectations of the FC protocol & the reality
of an FCoE Toplogy
• ENode can discover who to log in with
• LKA (Link Keep Alive) and FIP CVL (Clear Virtual Links) allows for logout from
the fabric should the logical link be lost
• Implicit security (man-in-the-middle is difficult)
– Provided that FIP snooping and Dynamic ACLs are implemented
For an in-depth description of the FIP protocol, visit
www.brasstacksblog.typepad.com
© Copyright 2011 EMC Corporation. All rights reserved. 20

21. Agenda
• Topology overview
– Fibre Channel (FC)
– Fibre Channel over Ethernet (FCoE) overview
• Enabling technologies
– DCBX
– PFC
– ETS
– FCoE Initialization Protocol (FIP)
• ENode-to-ENode / Direct connect configuration
• Zero-hop
• Multi-hop
• Real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 21

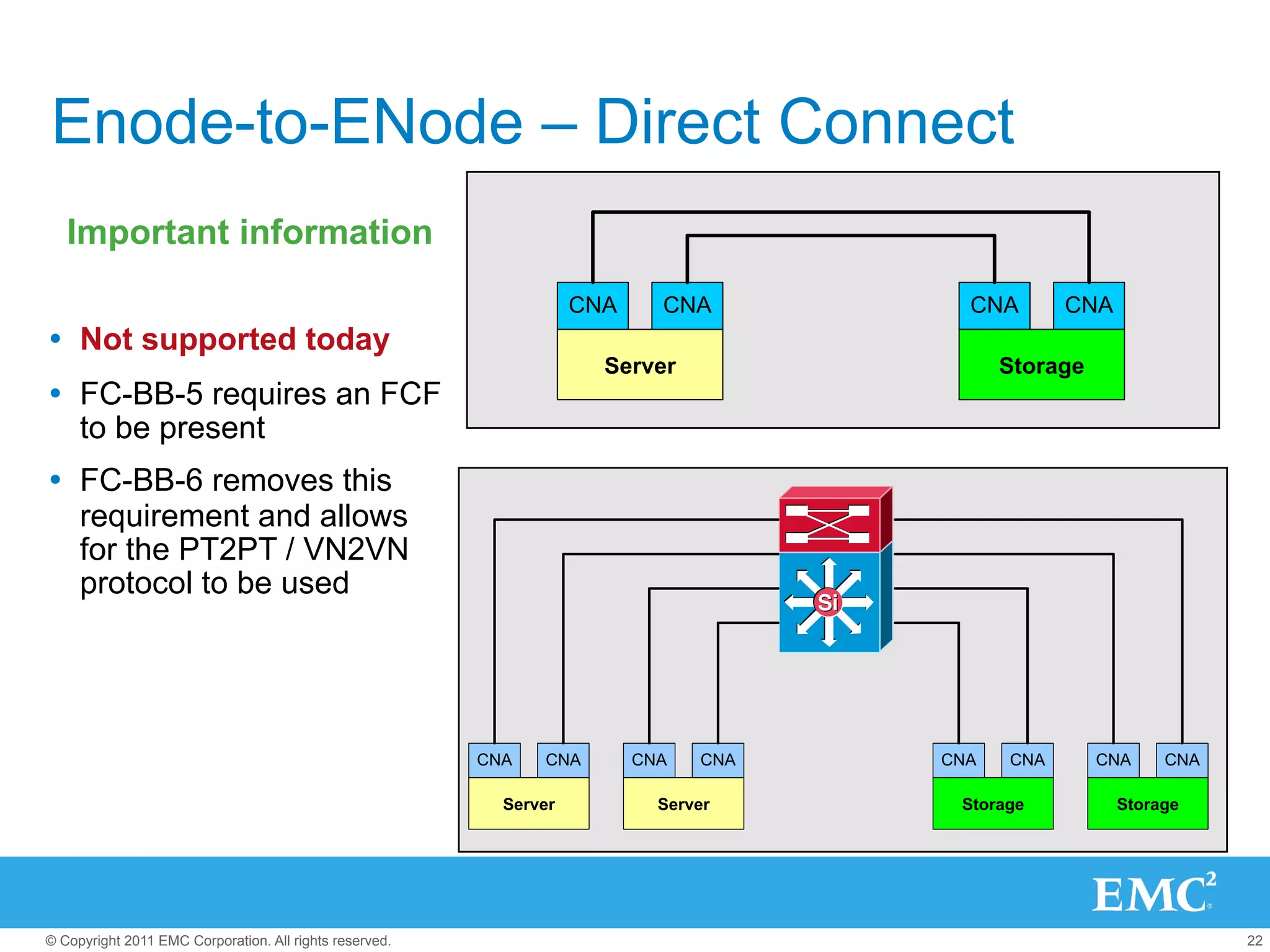

22. Enode-to-ENode – Direct Connect
Important information
CNA CNA CNA CNA
Ÿ Not supported today
Server Storage
Ÿ FC-BB-5 requires an FCF
to be present
Ÿ FC-BB-6 removes this
requirement and allows
for the PT2PT / VN2VN
protocol to be used
Si
CNA CNA CNA CNA CNA CNA CNA CNA
Server Server Storage Storage
© Copyright 2011 EMC Corporation. All rights reserved. 22

23. Agenda
• Topology overview
– Fibre Channel (FC)
– Fibre Channel over Ethernet (FCoE) overview
• Enabling technologies
– DCBX
– PFC
– ETS
– FCoE Initialization Protocol (FIP)
• ENode-to-ENode / Direct connect configuration
• Zero-hop
• Multi-hop
• Real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 23

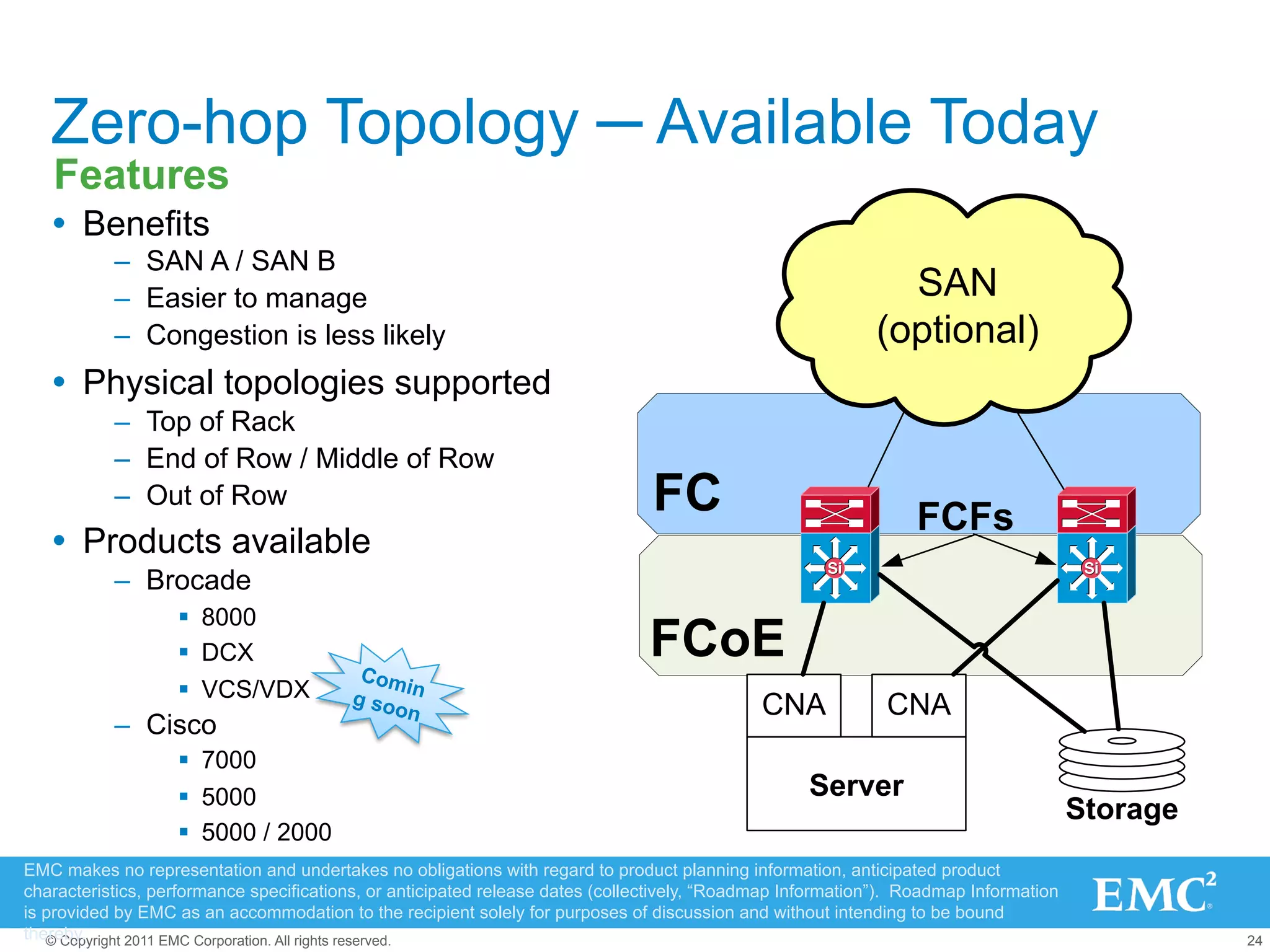

24. Zero-hop Topology ─ Available Today
Features
Ÿ Benefits
– SAN A / SAN B
– Easier to manage SAN
– Congestion is less likely (optional)
Ÿ Physical topologies supported
– Top of Rack
– End of Row / Middle of Row
– Out of Row FC FCFs
Ÿ Products available
Si Si
– Brocade
§ 8000
§ DCX
Com
FCoE
i
§ VCS/VDX g so n CNA CNA
on
– Cisco
§ 7000
§ 5000 Server
Storage
§ 5000 / 2000
EMC makes no representation and undertakes no obligations with regard to product planning information, anticipated product
characteristics, performance specifications, or anticipated release dates (collectively, “Roadmap Information”). Roadmap Information
is provided by EMC as an accommodation to the recipient solely for purposes of discussion and without intending to be bound
thereby.
© Copyright 2011 EMC Corporation. All rights reserved. 24

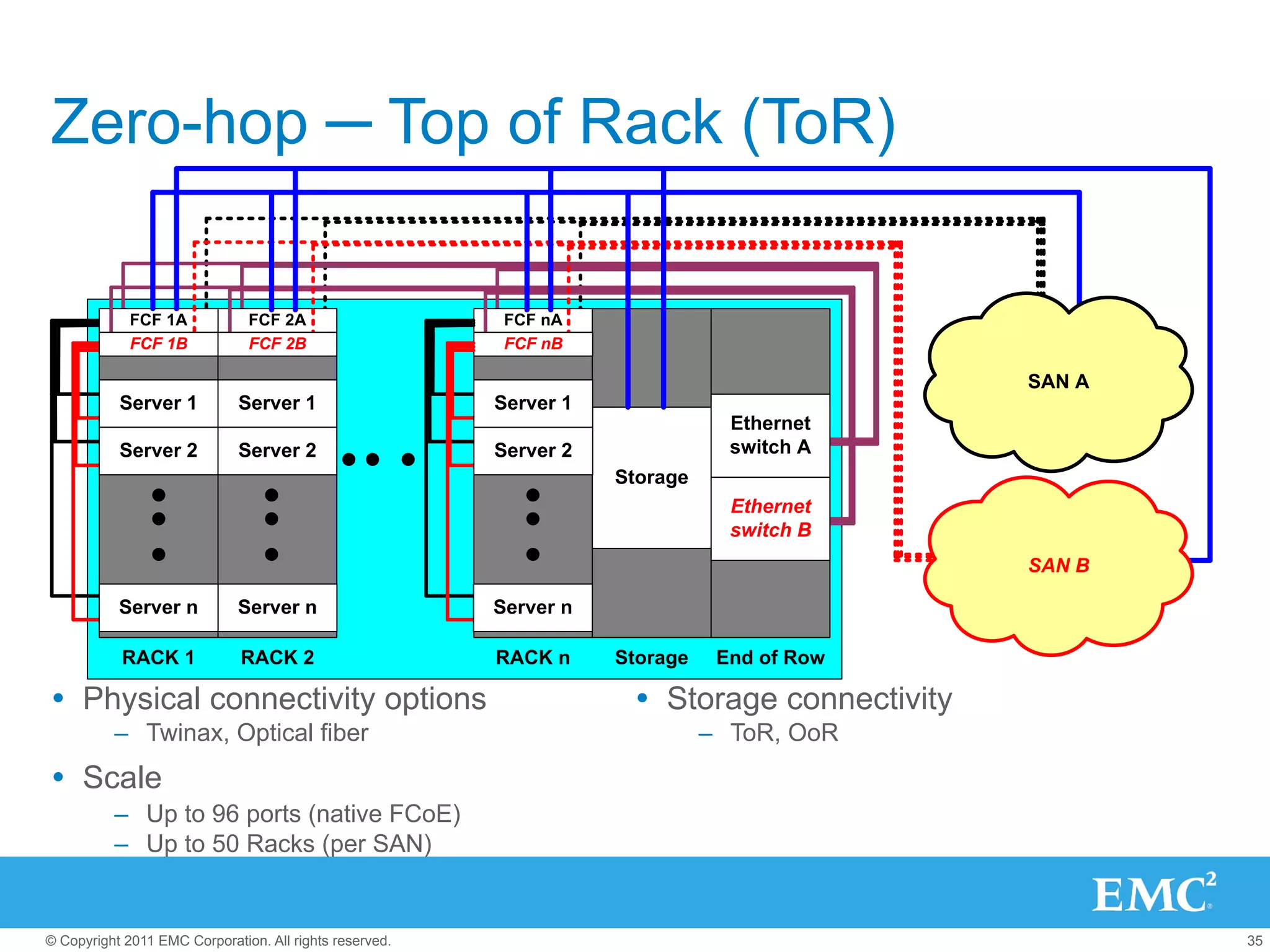

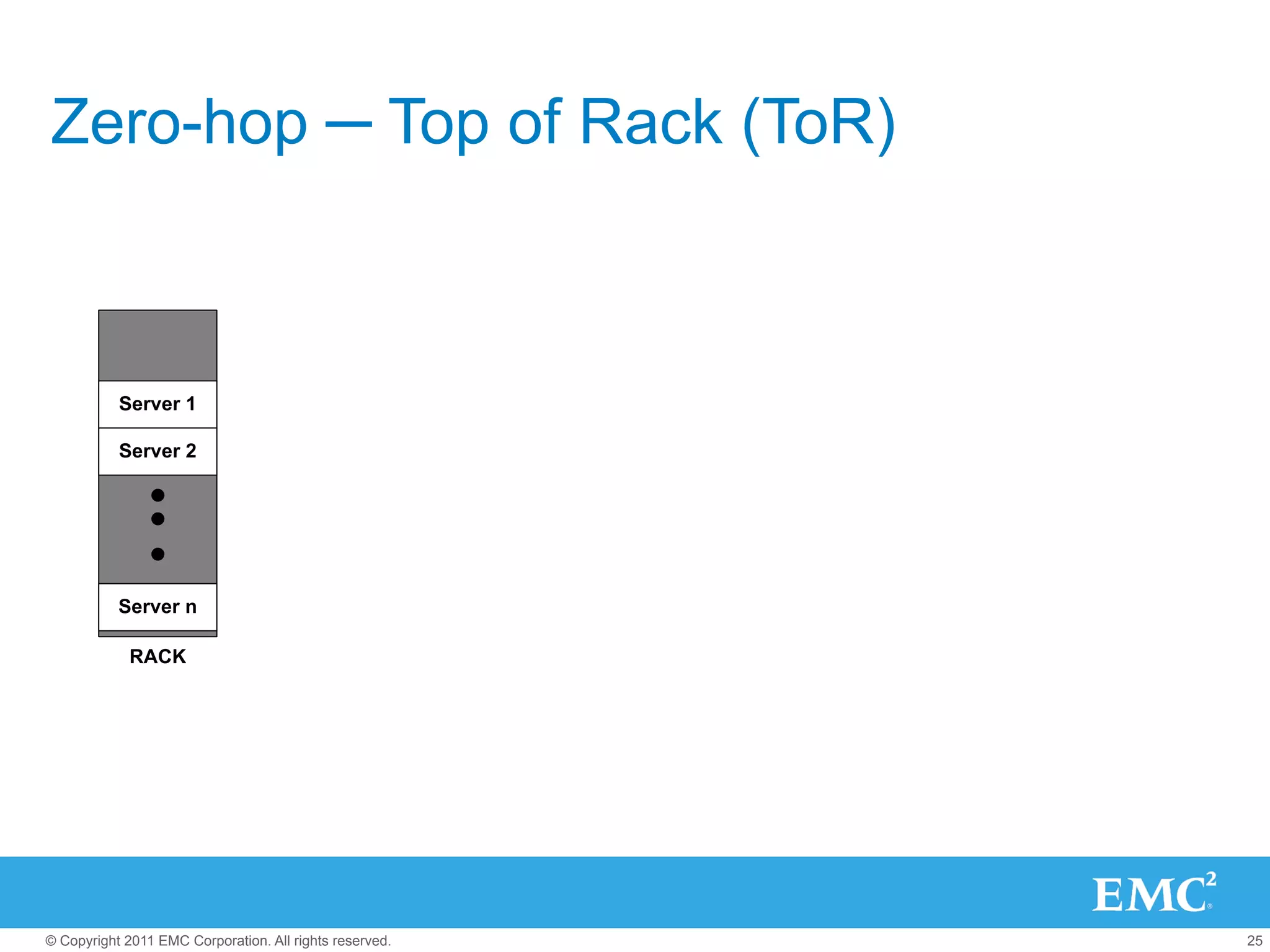

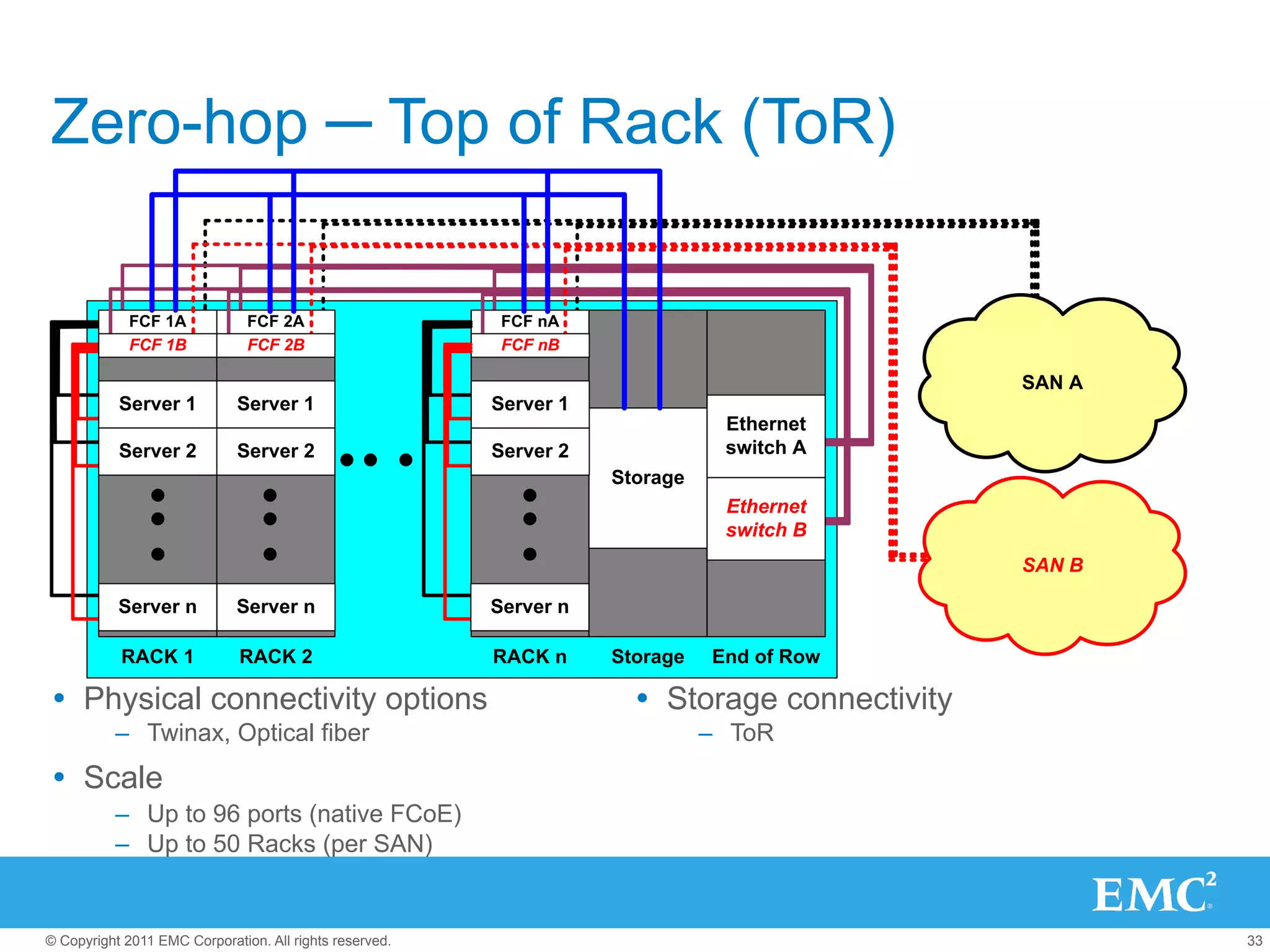

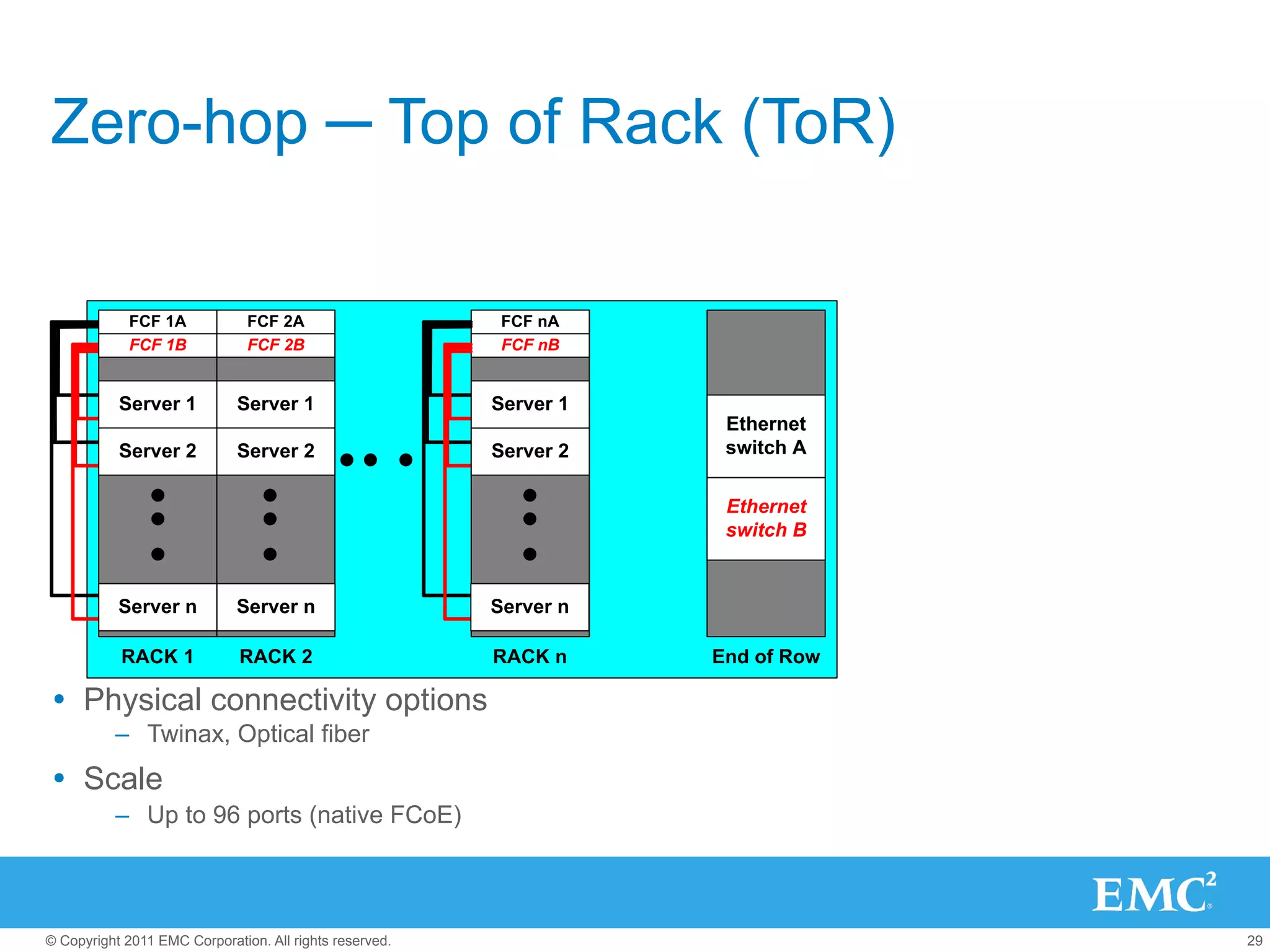

25. Zero-hop ─ Top of Rack (ToR)
Server 1
Server 2
Server n
RACK
© Copyright 2011 EMC Corporation. All rights reserved. 25

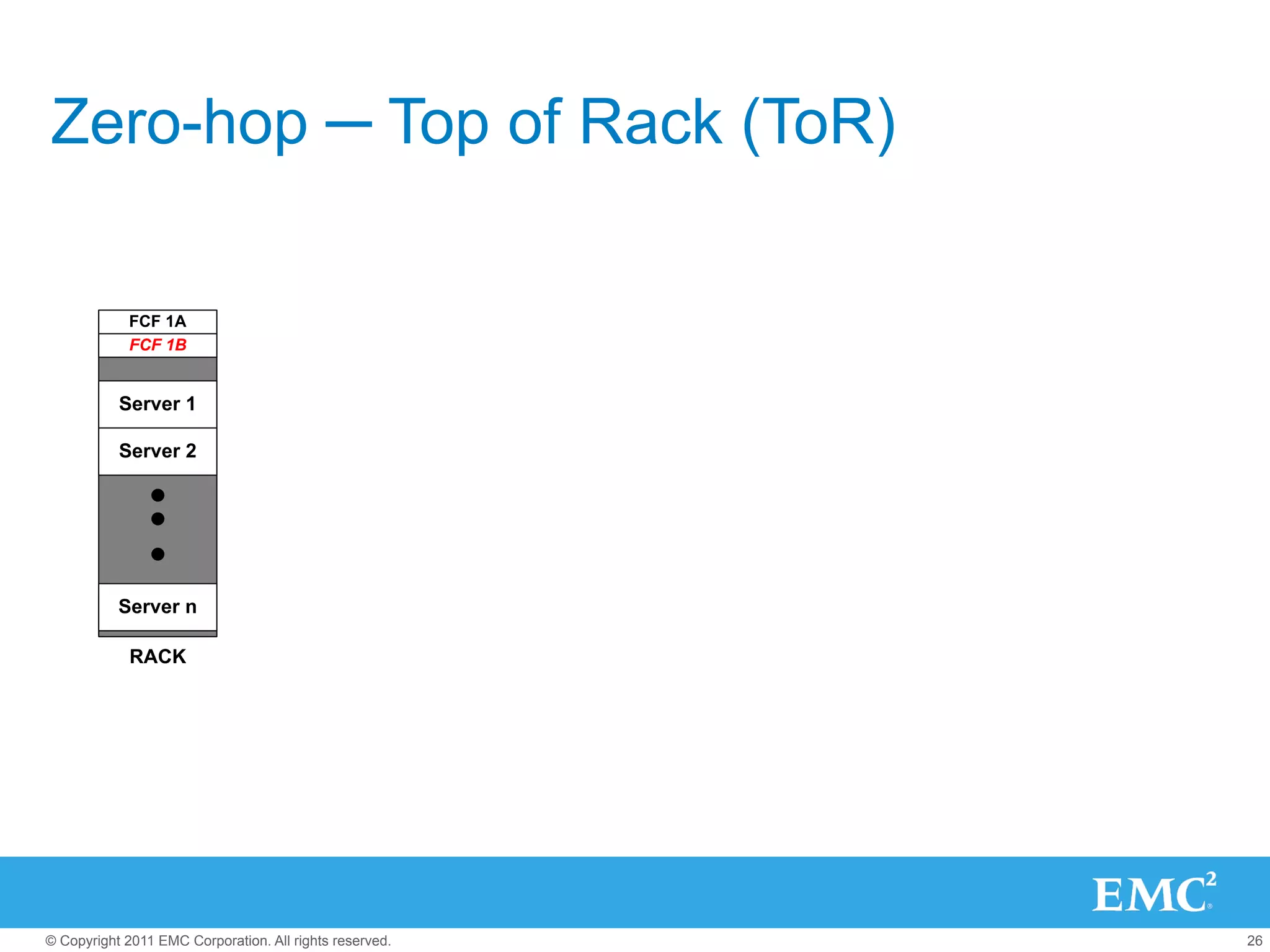

26. Zero-hop ─ Top of Rack (ToR)
FCF 1A
FCF 1B
Server 1
Server 2
Server n
RACK
© Copyright 2011 EMC Corporation. All rights reserved. 26

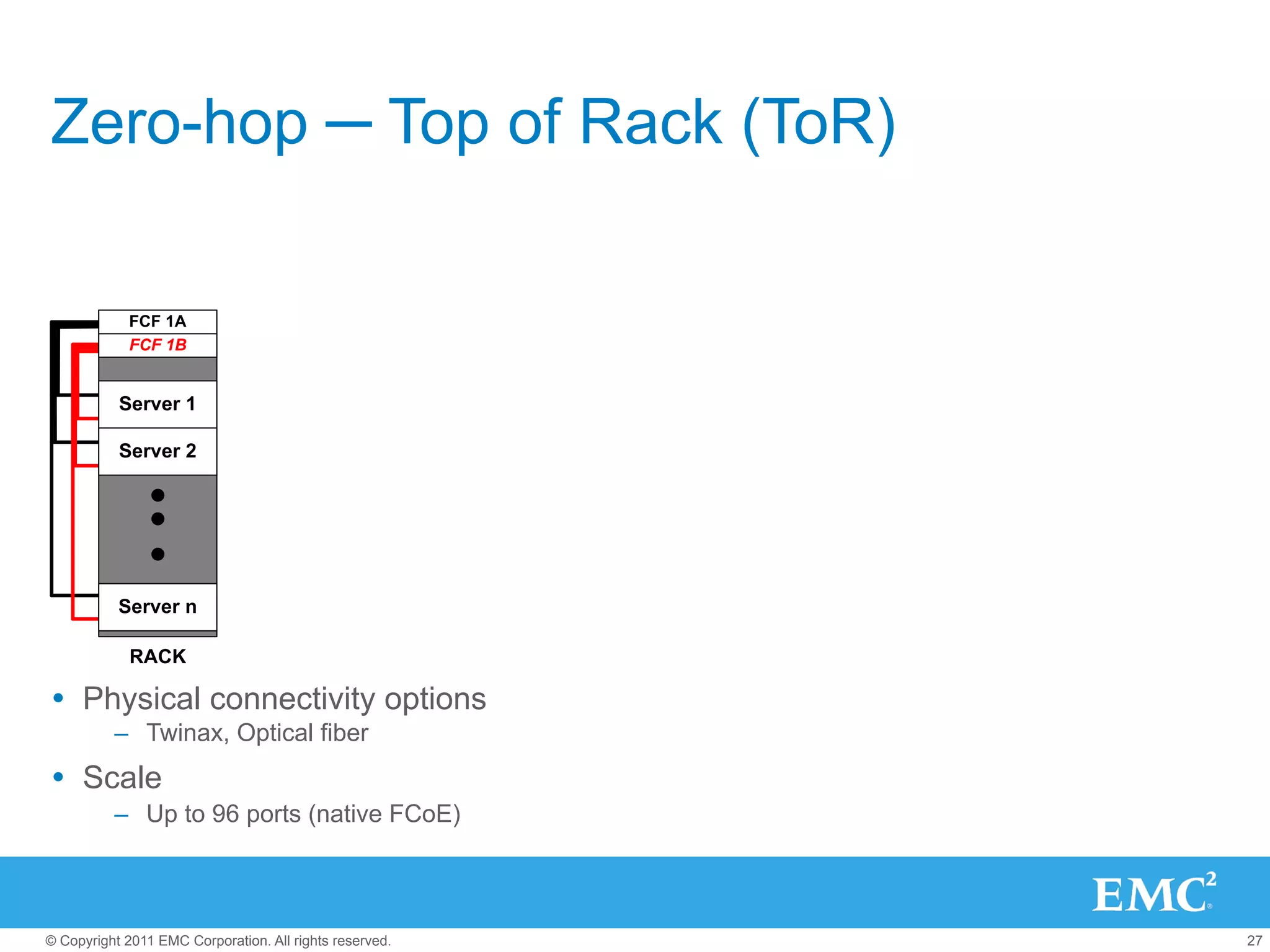

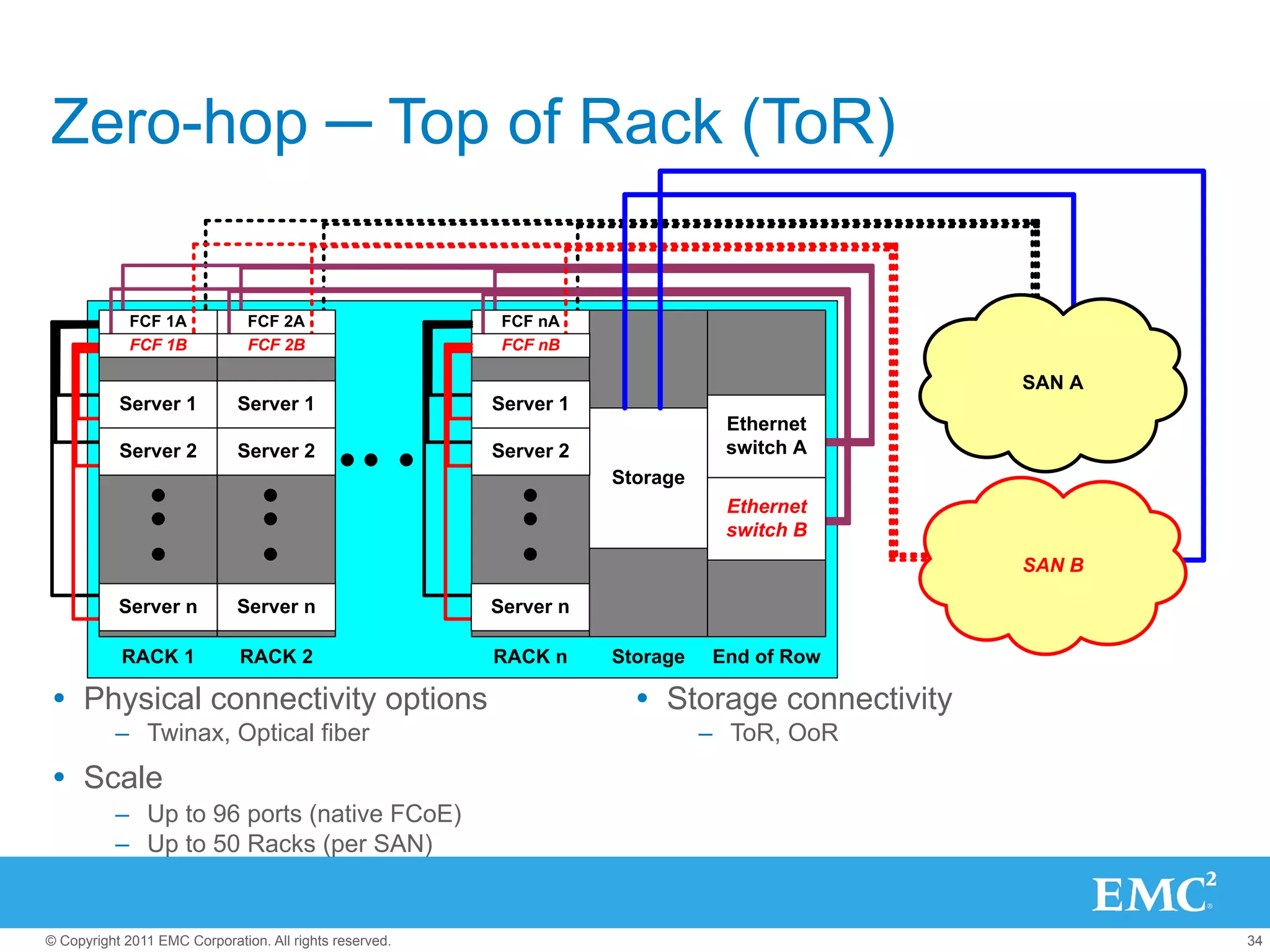

27. Zero-hop ─ Top of Rack (ToR)
FCF 1A
FCF 1B
Server 1
Server 2
Server n
RACK
Ÿ Physical connectivity options
– Twinax, Optical fiber
Ÿ Scale
– Up to 96 ports (native FCoE)
© Copyright 2011 EMC Corporation. All rights reserved. 27

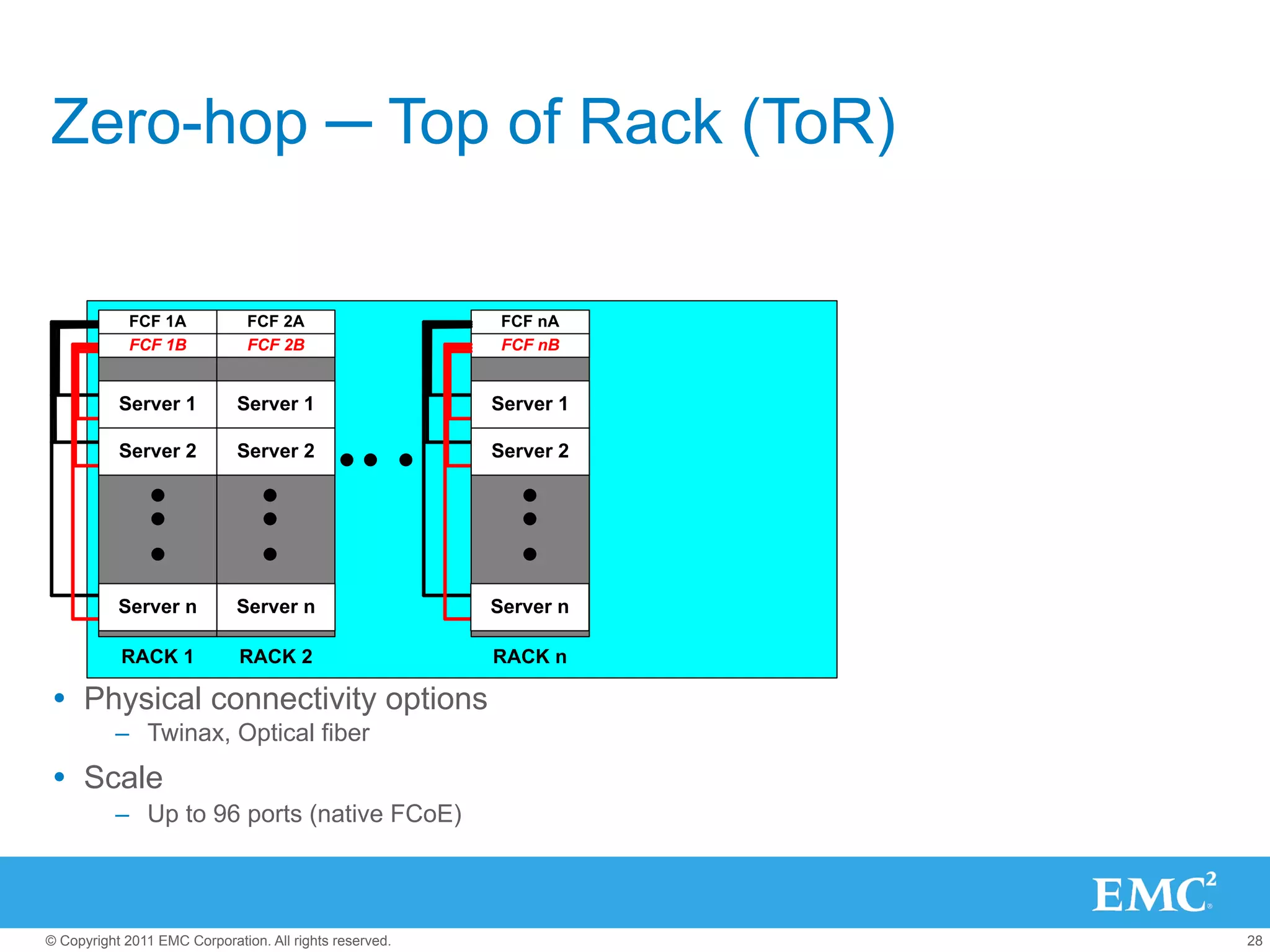

28. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
Server 1 Server 1 Server 1
Server 2 Server 2 Server 2
Server n Server n Server n
RACK 1 RACK 2 RACK n
Ÿ Physical connectivity options
– Twinax, Optical fiber
Ÿ Scale
– Up to 96 ports (native FCoE)
© Copyright 2011 EMC Corporation. All rights reserved. 28

29. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Ethernet
switch B
Server n Server n Server n
RACK 1 RACK 2 RACK n End of Row
Ÿ Physical connectivity options
– Twinax, Optical fiber
Ÿ Scale
– Up to 96 ports (native FCoE)
© Copyright 2011 EMC Corporation. All rights reserved. 29

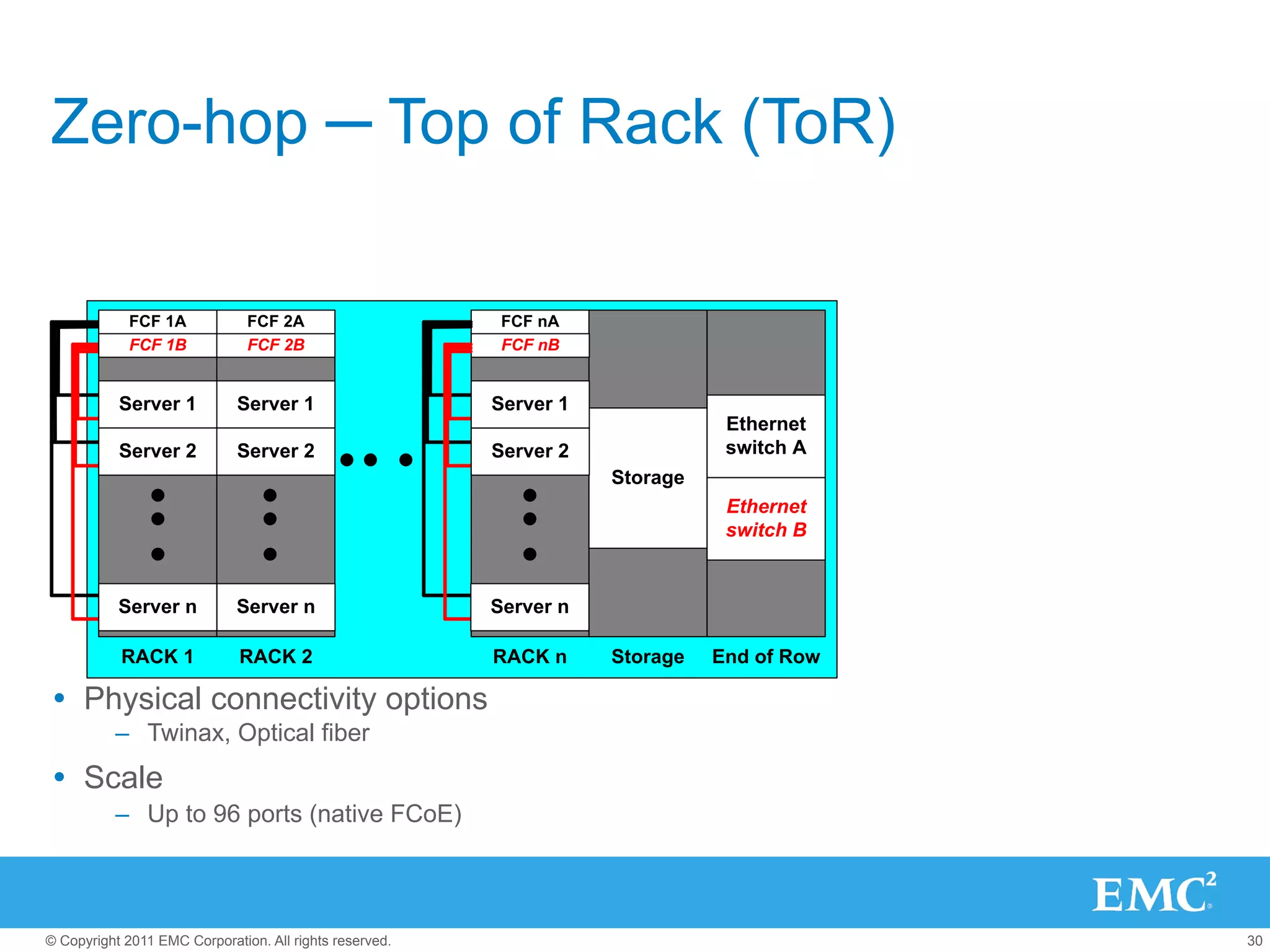

30. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Storage
Ethernet
switch B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Physical connectivity options
– Twinax, Optical fiber
Ÿ Scale
– Up to 96 ports (native FCoE)
© Copyright 2011 EMC Corporation. All rights reserved. 30

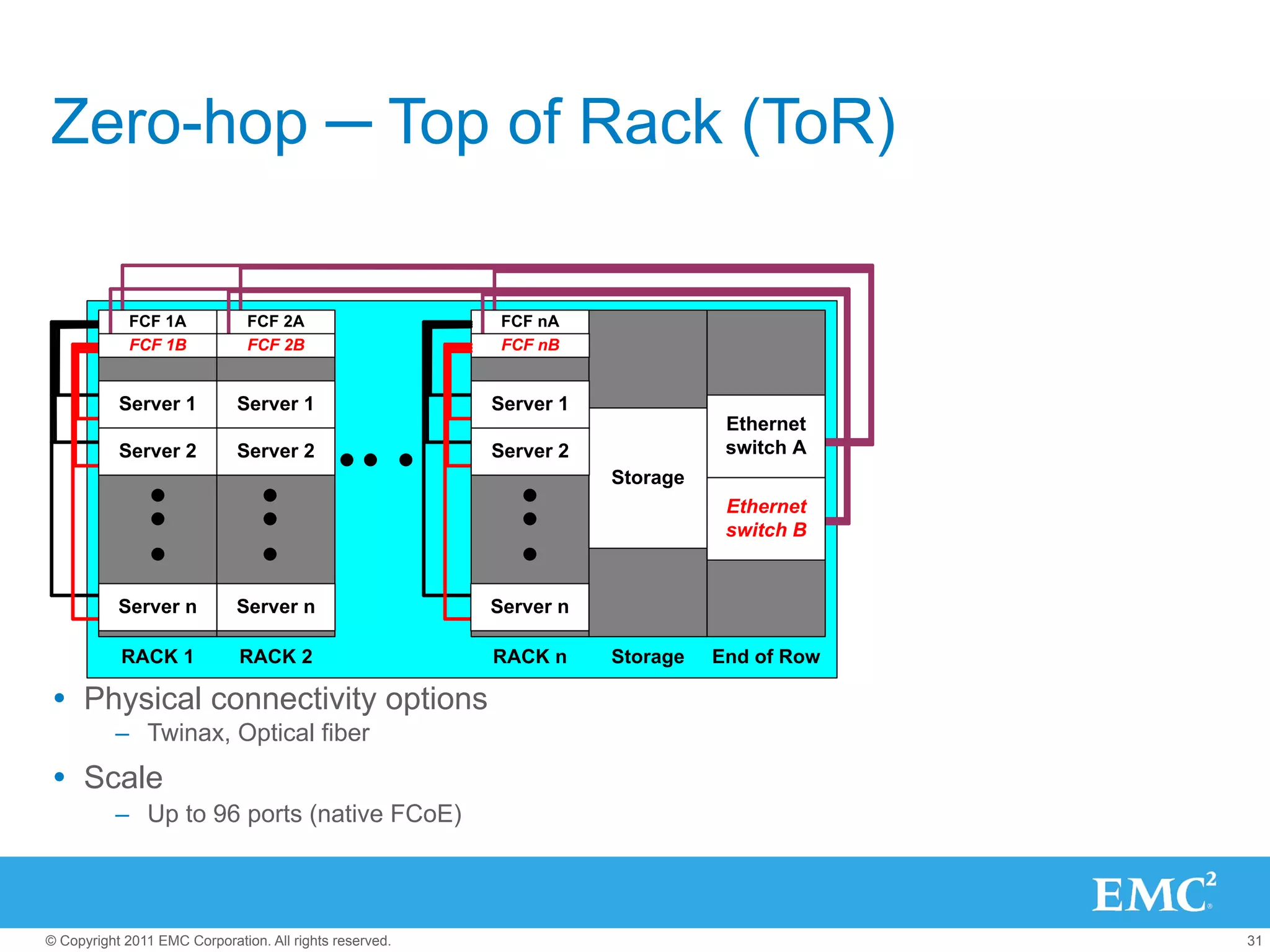

31. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Storage
Ethernet
switch B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Physical connectivity options
– Twinax, Optical fiber
Ÿ Scale
– Up to 96 ports (native FCoE)
© Copyright 2011 EMC Corporation. All rights reserved. 31

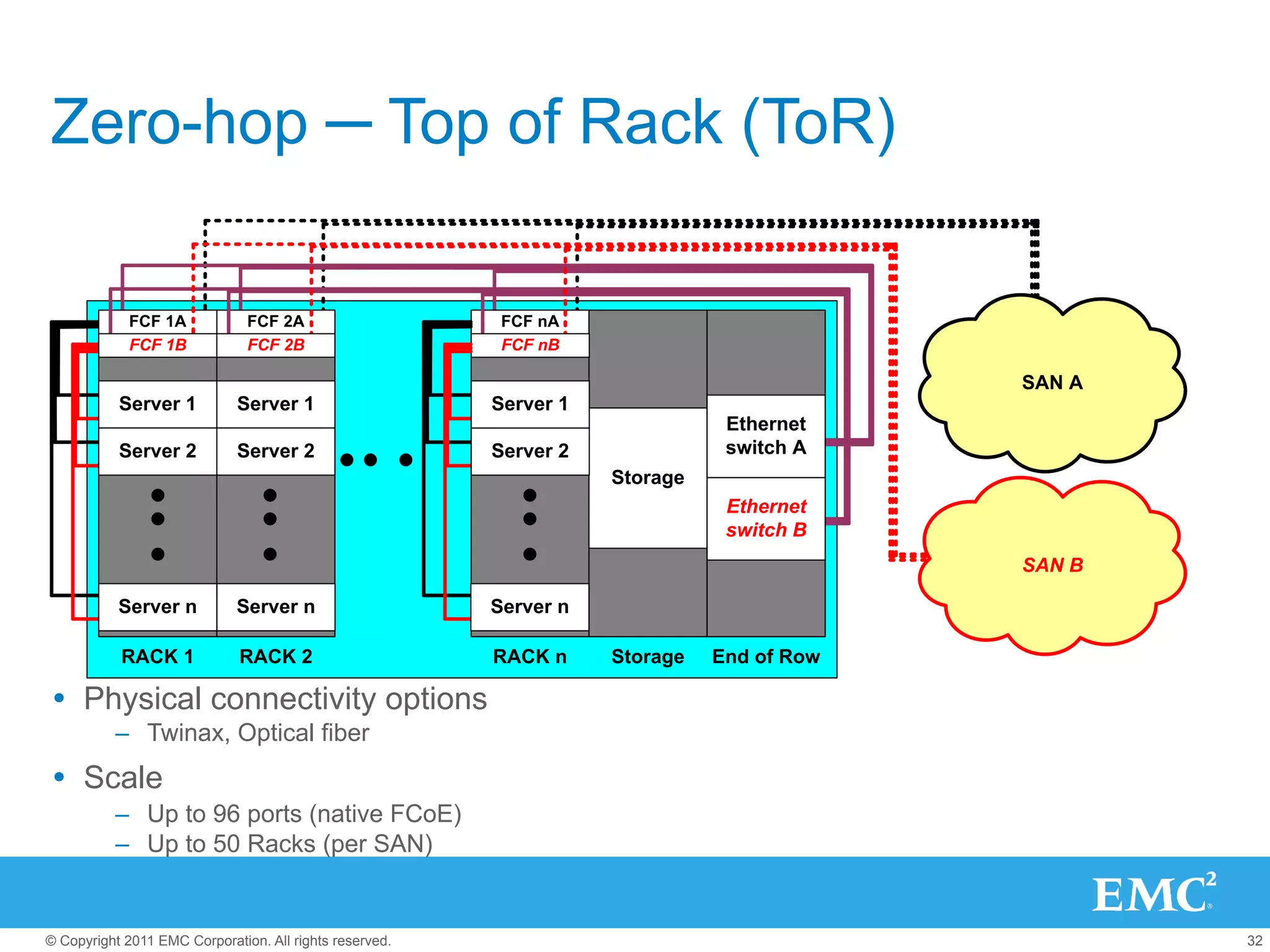

32. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
SAN A
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Storage
Ethernet
switch B
SAN B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Physical connectivity options
– Twinax, Optical fiber
Ÿ Scale
– Up to 96 ports (native FCoE)
– Up to 50 Racks (per SAN)
© Copyright 2011 EMC Corporation. All rights reserved. 32

33. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
SAN A
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Storage
Ethernet
switch B
SAN B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Physical connectivity options Ÿ Storage connectivity
– Twinax, Optical fiber – ToR
Ÿ Scale
– Up to 96 ports (native FCoE)
– Up to 50 Racks (per SAN)
© Copyright 2011 EMC Corporation. All rights reserved. 33

34. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
SAN A
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Storage
Ethernet
switch B
SAN B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Physical connectivity options Ÿ Storage connectivity
– Twinax, Optical fiber – ToR, OoR
Ÿ Scale
– Up to 96 ports (native FCoE)
– Up to 50 Racks (per SAN)
© Copyright 2011 EMC Corporation. All rights reserved. 34

35. Zero-hop ─ Top of Rack (ToR)
FCF 1A FCF 2A FCF nA
FCF 1B FCF 2B FCF nB
SAN A
Server 1 Server 1 Server 1
Ethernet
Server 2 Server 2 Server 2 switch A
Storage
Ethernet
switch B
SAN B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Physical connectivity options Ÿ Storage connectivity
– Twinax, Optical fiber – ToR, OoR
Ÿ Scale
– Up to 96 ports (native FCoE)
– Up to 50 Racks (per SAN)
© Copyright 2011 EMC Corporation. All rights reserved. 35

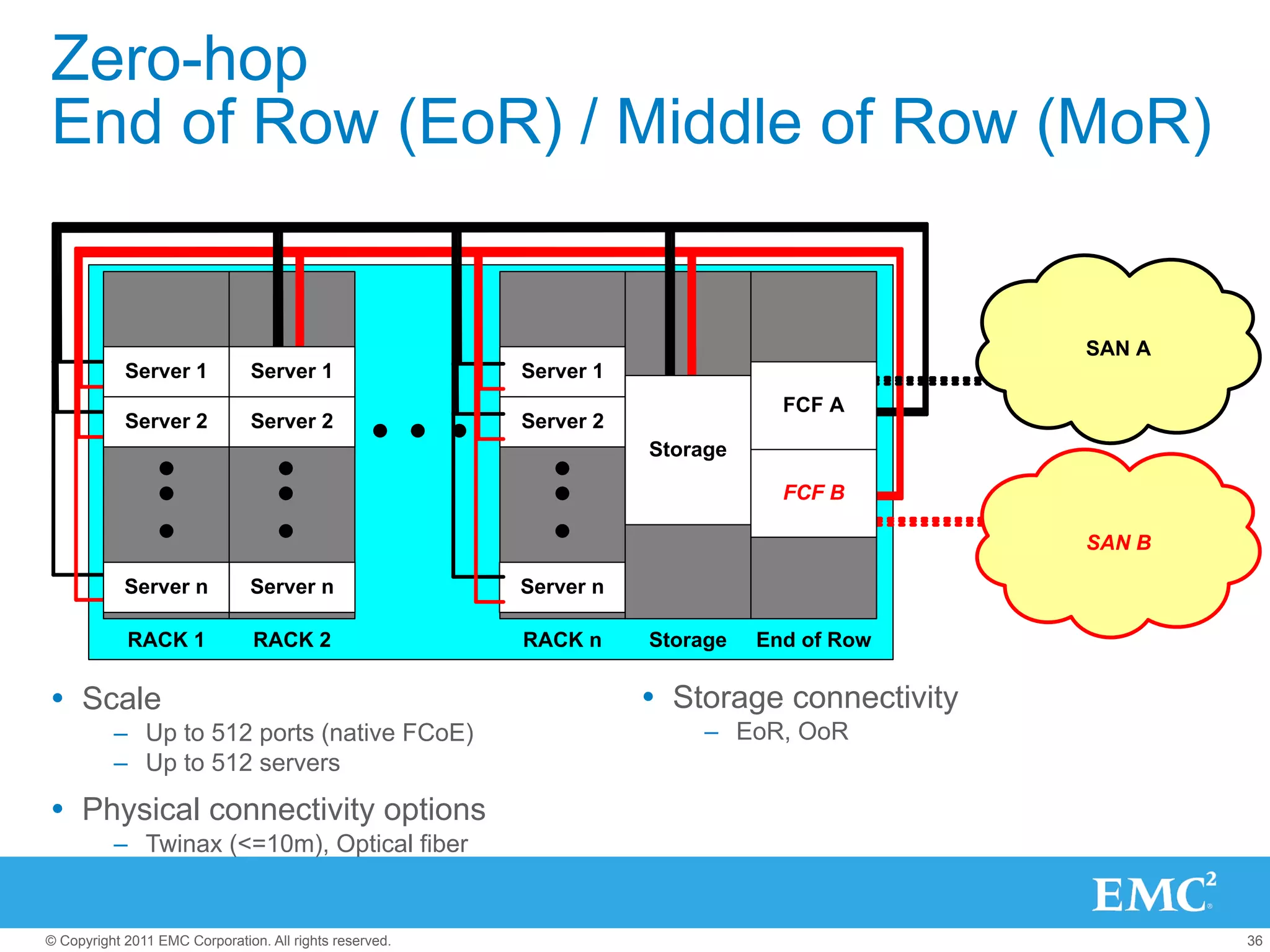

36. Zero-hop
End of Row (EoR) / Middle of Row (MoR)
SAN A
Server 1 Server 1 Server 1
FCF A
Server 2 Server 2 Server 2
Storage
FCF B
SAN B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage End of Row
Ÿ Scale Ÿ Storage connectivity
– Up to 512 ports (native FCoE) – EoR, OoR
– Up to 512 servers
Ÿ Physical connectivity options
– Twinax (<=10m), Optical fiber
© Copyright 2011 EMC Corporation. All rights reserved. 36

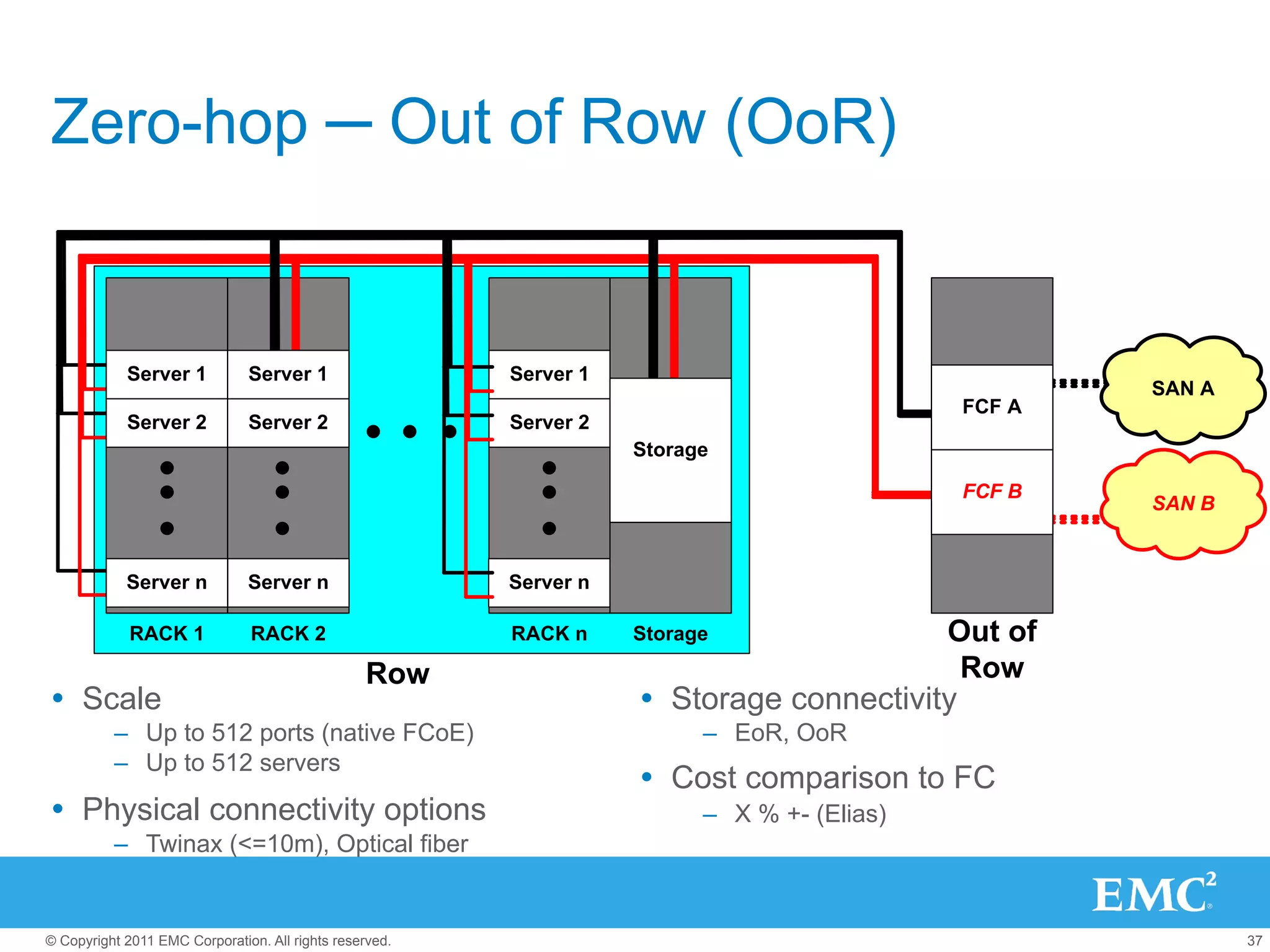

37. Zero-hop ─ Out of Row (OoR)
Server 1 Server 1 Server 1
SAN A
FCF A
Server 2 Server 2 Server 2
Storage
FCF B
SAN B
Server n Server n Server n
RACK 1 RACK 2 RACK n Storage Out of
Row Row
Ÿ Scale Ÿ Storage connectivity
– Up to 512 ports (native FCoE) – EoR, OoR
– Up to 512 servers
Ÿ Cost comparison to FC
Ÿ Physical connectivity options – X % +- (Elias)
– Twinax (<=10m), Optical fiber
© Copyright 2011 EMC Corporation. All rights reserved. 37

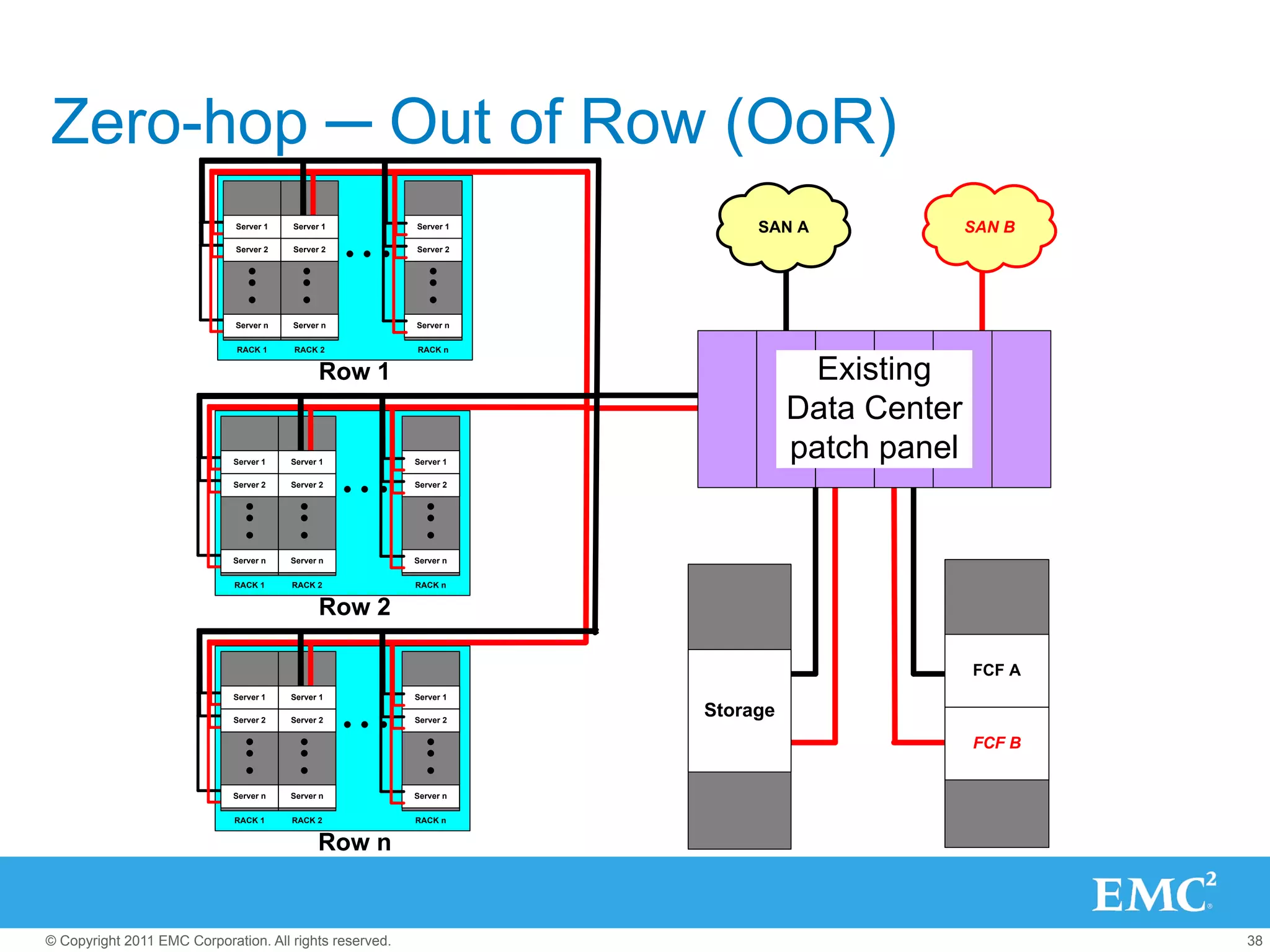

38. Zero-hop ─ Out of Row (OoR)
Server 1 Server 1 Server 1 SAN A SAN B
Server 2 Server 2 Server 2
Server n Server n Server n
RACK 1 RACK 2 RACK n
Row 1 Existing
Data Center
Server 1 Server 1 Server 1
patch panel
Server 2 Server 2 Server 2
Server n Server n Server n
RACK 1 RACK 2 RACK n
Row 2
FCF A
Server 1 Server 1 Server 1
Server 2 Server 2 Server 2
Storage
FCF B
Server n Server n Server n
RACK 1 RACK 2 RACK n
Row n
© Copyright 2011 EMC Corporation. All rights reserved. 38

39. Agenda
• Topology overview
– Fibre Channel (FC)
– Fibre Channel over Ethernet (FCoE) overview
• Enabling technologies
– DCBX
– PFC
– ETS
– FCoE Initialization Protocol (FIP)
• ENode-to-ENode / Direct connect configuration
• Zero-hop
• Multi-hop
• Real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 39

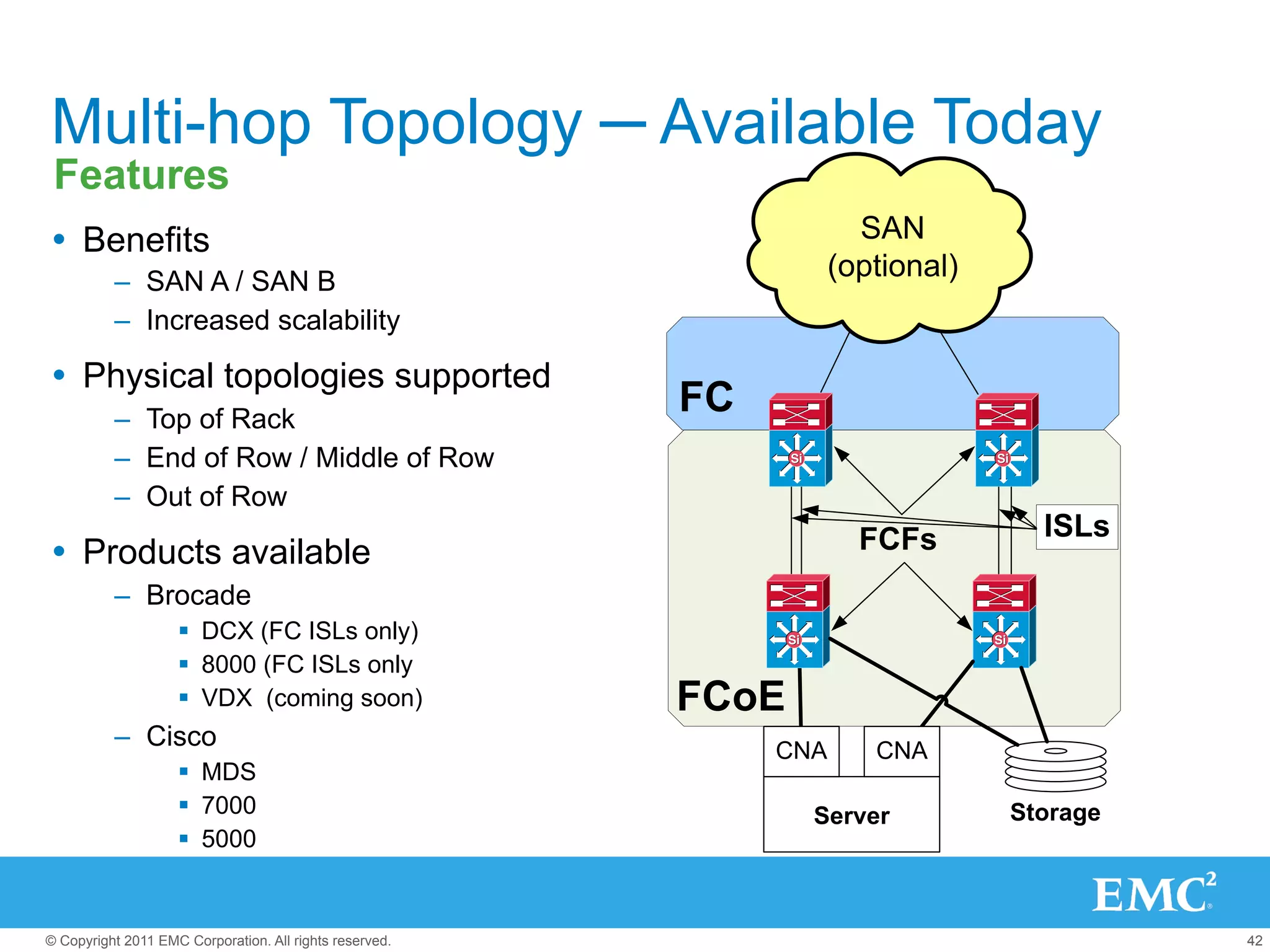

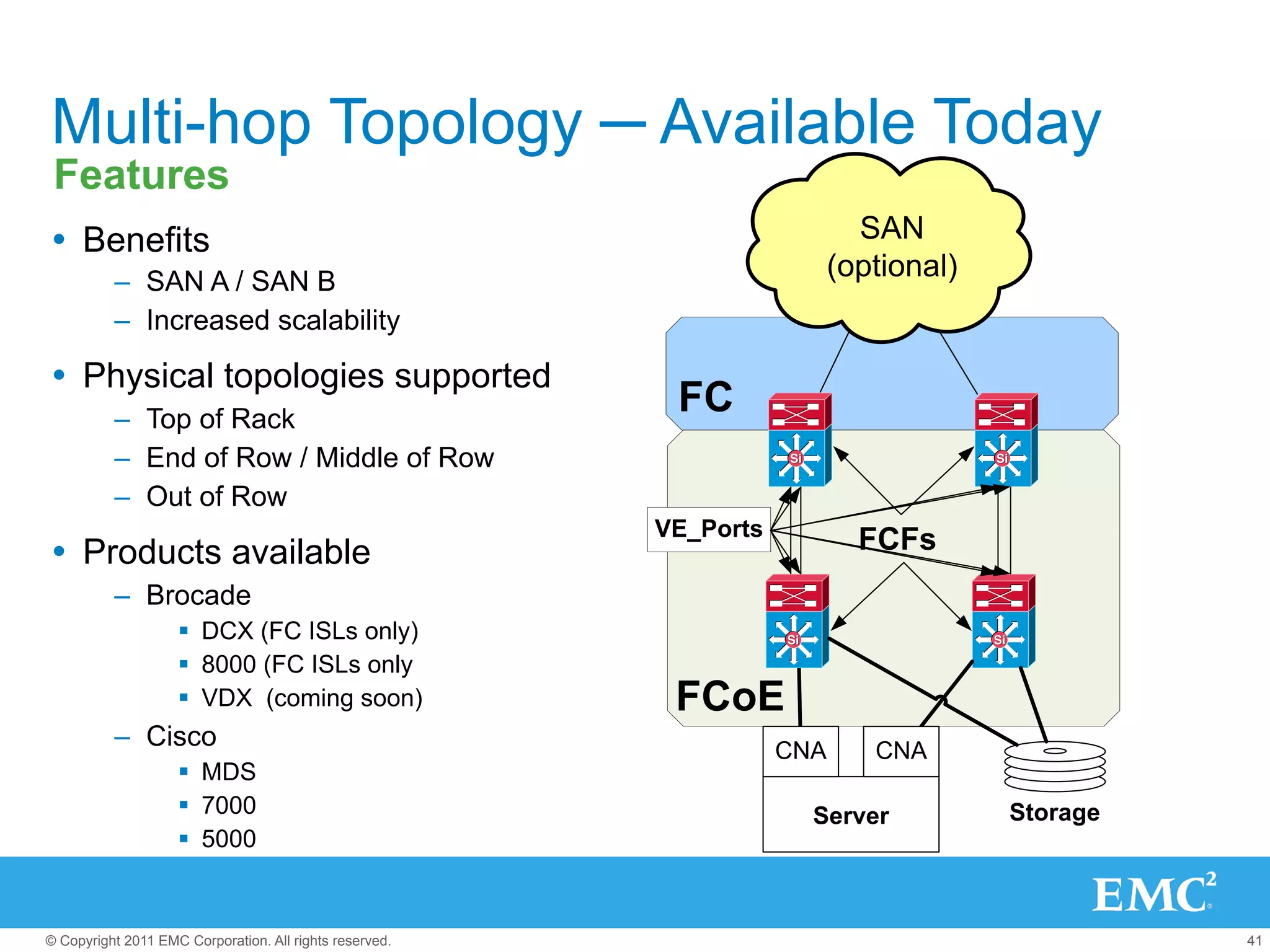

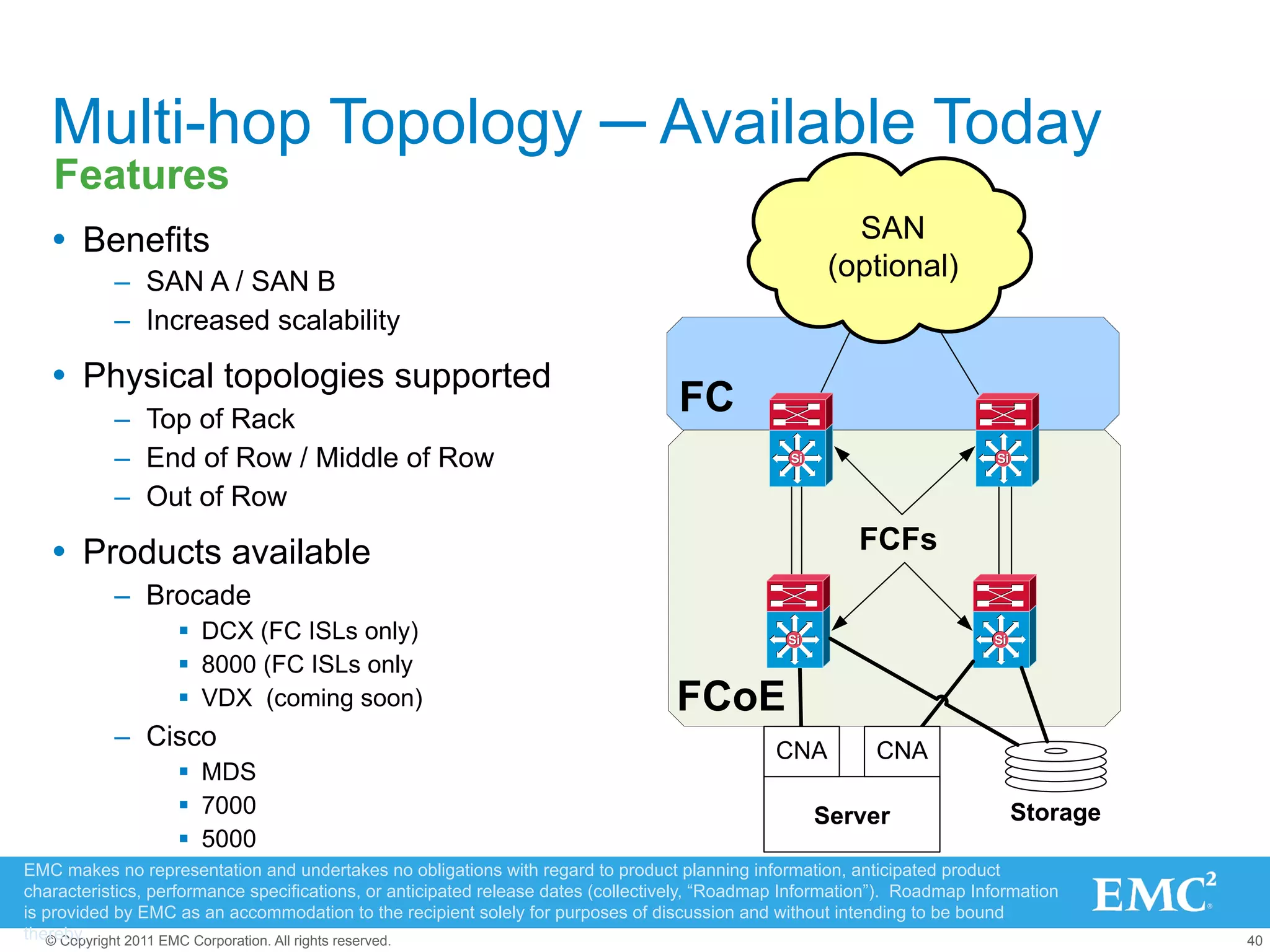

40. Multi-hop Topology ─ Available Today
Features
Ÿ Benefits SAN
– SAN A / SAN B
(optional)
– Increased scalability
Ÿ Physical topologies supported
– Top of Rack
FC
– End of Row / Middle of Row Si Si
– Out of Row
Ÿ Products available FCFs
– Brocade
§ DCX (FC ISLs only) Si Si
§ 8000 (FC ISLs only
§ VDX (coming soon) FCoE
– Cisco CNA CNA
§ MDS
§ 7000 Server Storage
§ 5000
EMC makes no representation and undertakes no obligations with regard to product planning information, anticipated product
characteristics, performance specifications, or anticipated release dates (collectively, “Roadmap Information”). Roadmap Information
is provided by EMC as an accommodation to the recipient solely for purposes of discussion and without intending to be bound
thereby.
© Copyright 2011 EMC Corporation. All rights reserved. 40

41. Multi-hop Topology ─ Available Today
Features
Ÿ Benefits SAN
– SAN A / SAN B
(optional)
– Increased scalability
Ÿ Physical topologies supported
– Top of Rack
FC
– End of Row / Middle of Row Si Si
– Out of Row
VE_Ports
Ÿ Products available FCFs
– Brocade
§ DCX (FC ISLs only) Si Si
§ 8000 (FC ISLs only
§ VDX (coming soon) FCoE
– Cisco CNA CNA
§ MDS
§ 7000 Server Storage
§ 5000
© Copyright 2011 EMC Corporation. All rights reserved. 41

42. Multi-hop Topology ─ Available Today
Features
Ÿ Benefits SAN
– SAN A / SAN B
(optional)
– Increased scalability
Ÿ Physical topologies supported
– Top of Rack
FC
– End of Row / Middle of Row Si Si
– Out of Row
FCFs ISLs
Ÿ Products available
– Brocade
§ DCX (FC ISLs only) Si Si
§ 8000 (FC ISLs only
§ VDX (coming soon) FCoE
– Cisco CNA CNA
§ MDS
§ 7000 Server Storage
§ 5000
© Copyright 2011 EMC Corporation. All rights reserved. 42

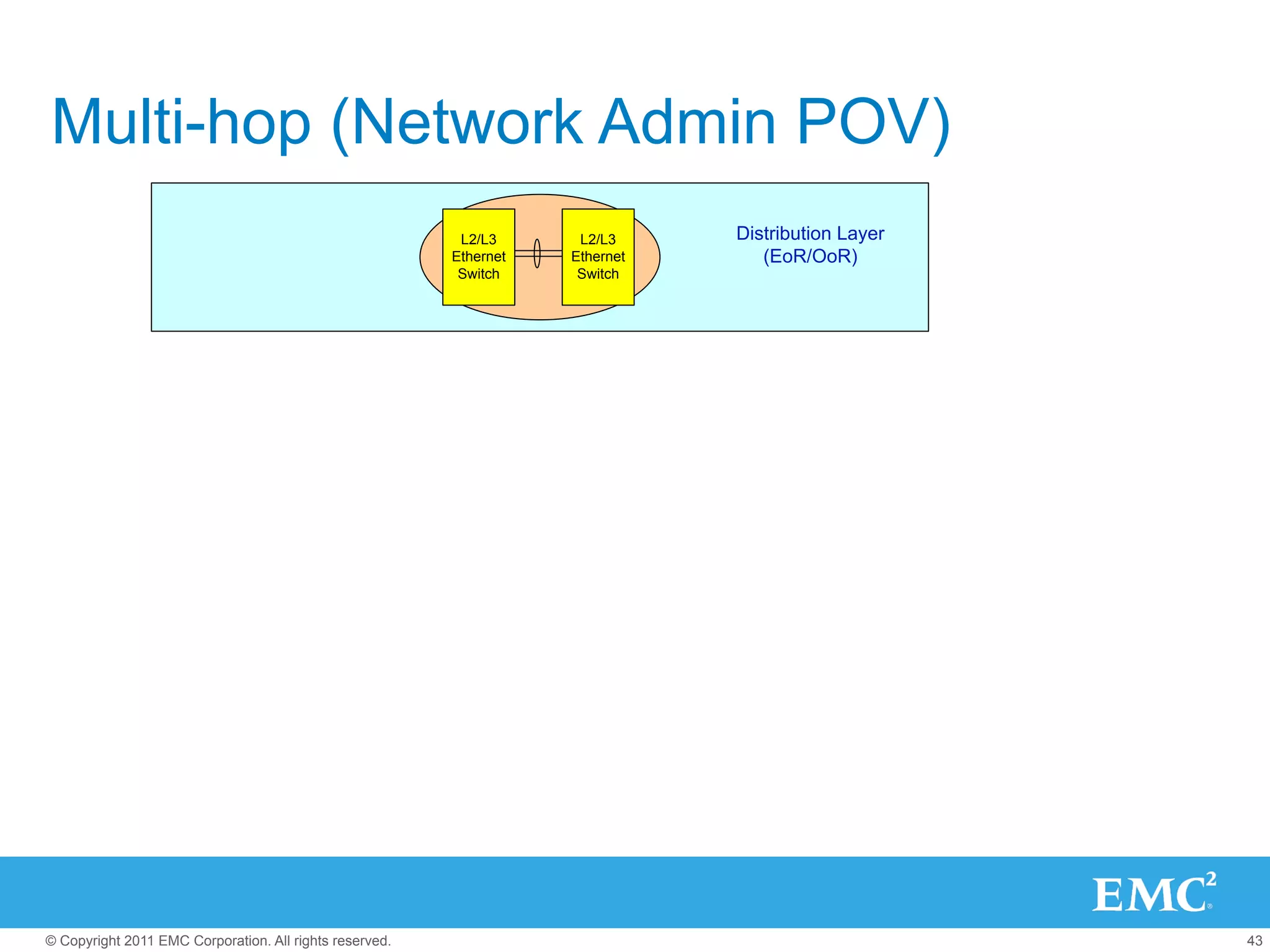

43. Multi-hop (Network Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
© Copyright 2011 EMC Corporation. All rights reserved. 43

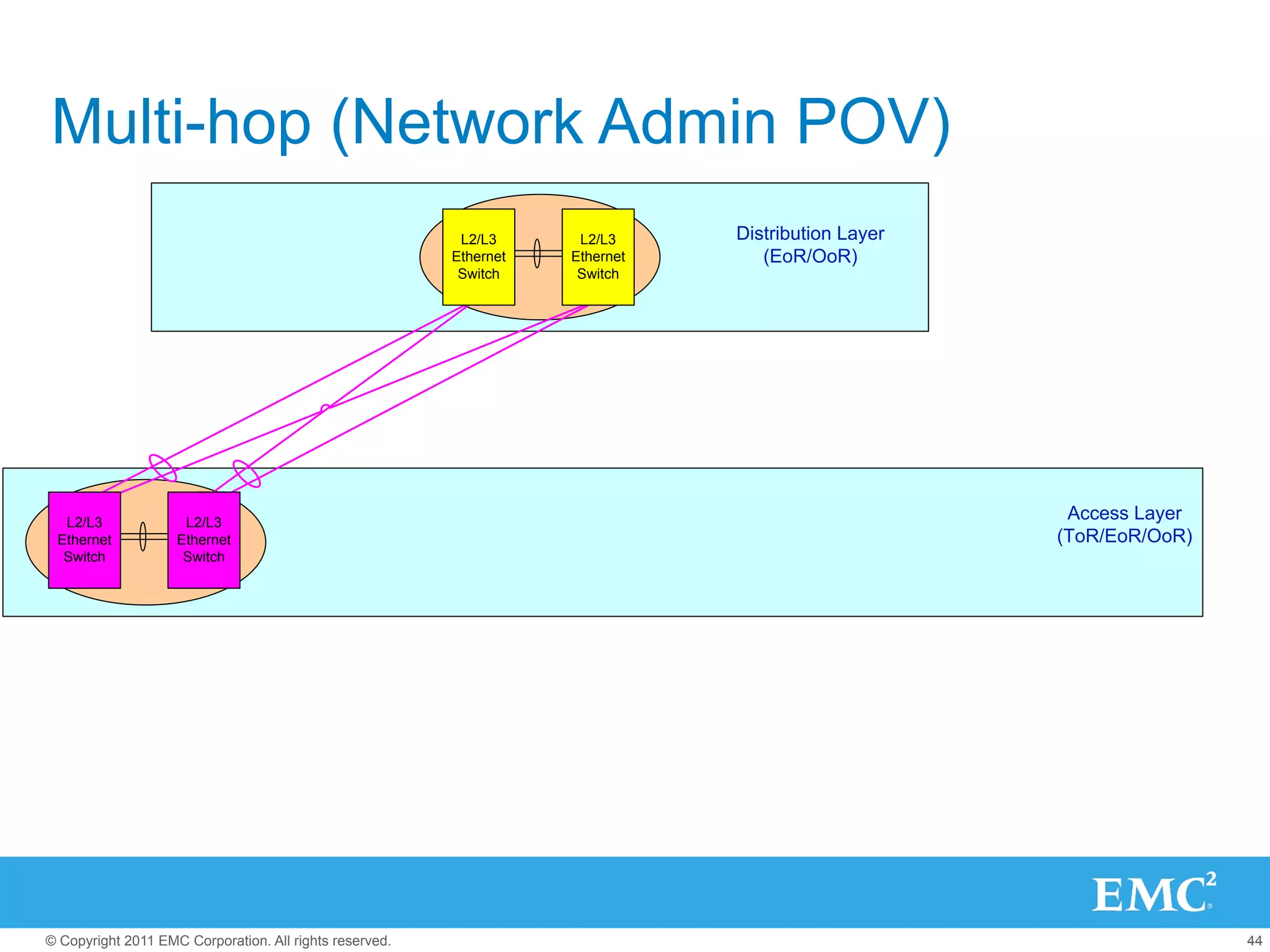

44. Multi-hop (Network Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
L2/L3 L2/L3
Access Layer
Ethernet Ethernet (ToR/EoR/OoR)
Switch Switch
© Copyright 2011 EMC Corporation. All rights reserved. 44

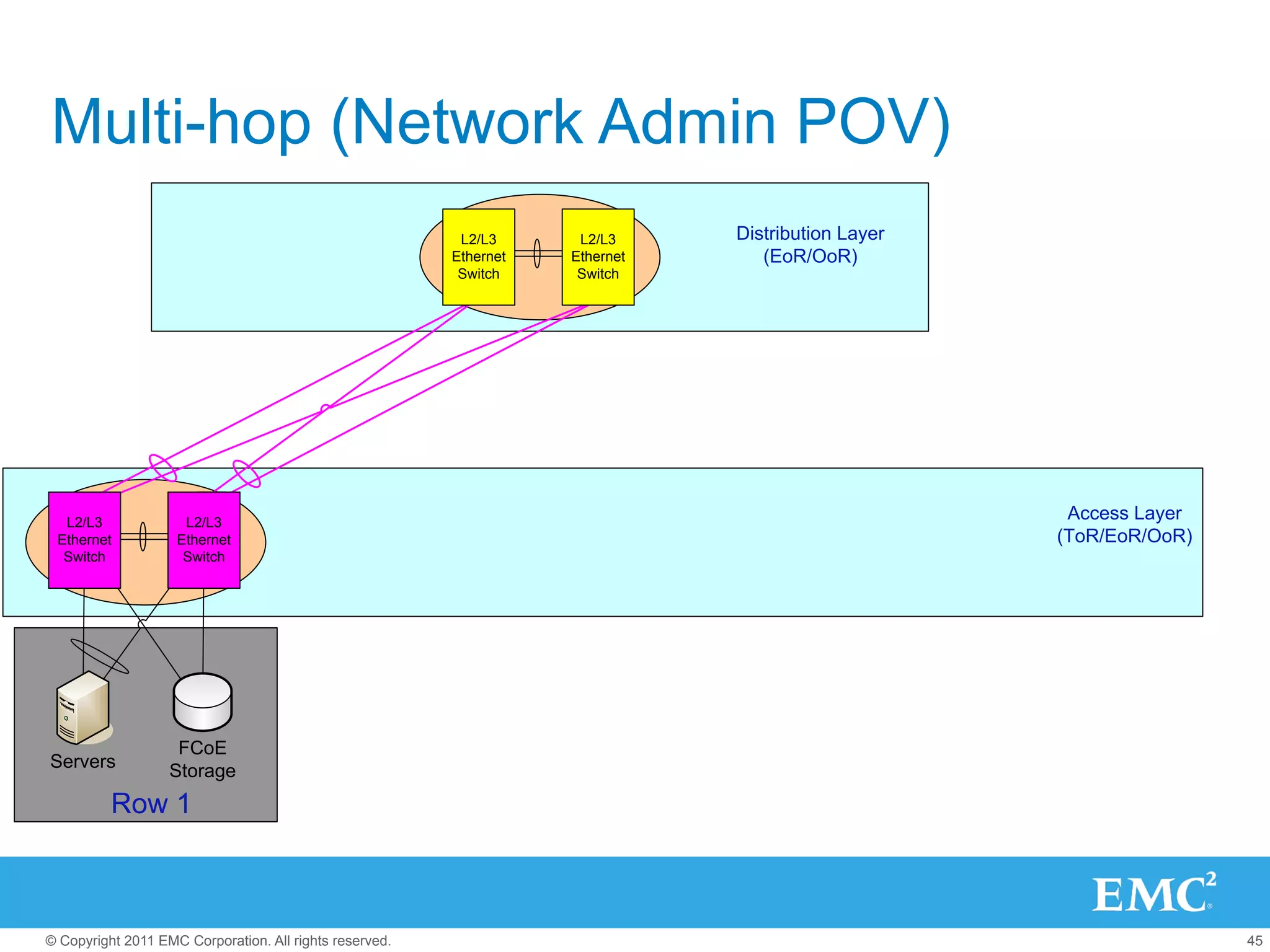

45. Multi-hop (Network Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
L2/L3 L2/L3
Access Layer
Ethernet Ethernet (ToR/EoR/OoR)
Switch Switch
FCoE
Servers Storage
Row 1
© Copyright 2011 EMC Corporation. All rights reserved. 45

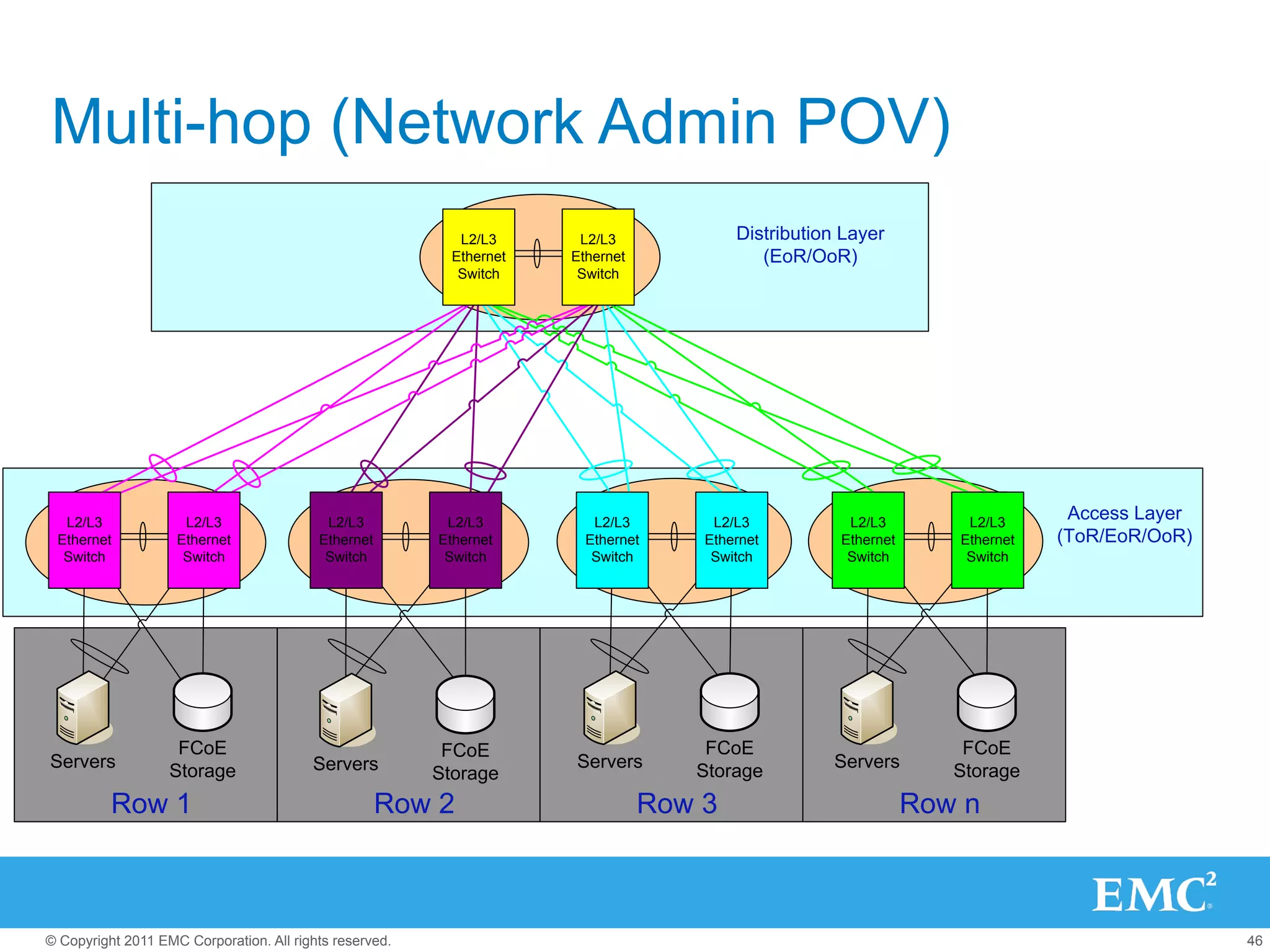

46. Multi-hop (Network Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
L2/L3 L2/L3 L2/L3 L2/L3 8
x
N7K-­‐F132XP-­‐
L2/L3 L2/L3 L2/L3 L2/L3
Access Layer
Ethernet Ethernet Ethernet Ethernet
15
Ethernet
2
x
N7K-­‐SUP1 Ethernet Ethernet Ethernet (ToR/EoR/OoR)
Switch Switch Switch Switch Switch Switch Switch Switch
FCoE FCoE FCoE FCoE
Servers Storage Servers Servers Storage Servers Storage
Storage
Row 1 Row 2 Row 3 Row n
© Copyright 2011 EMC Corporation. All rights reserved. 46

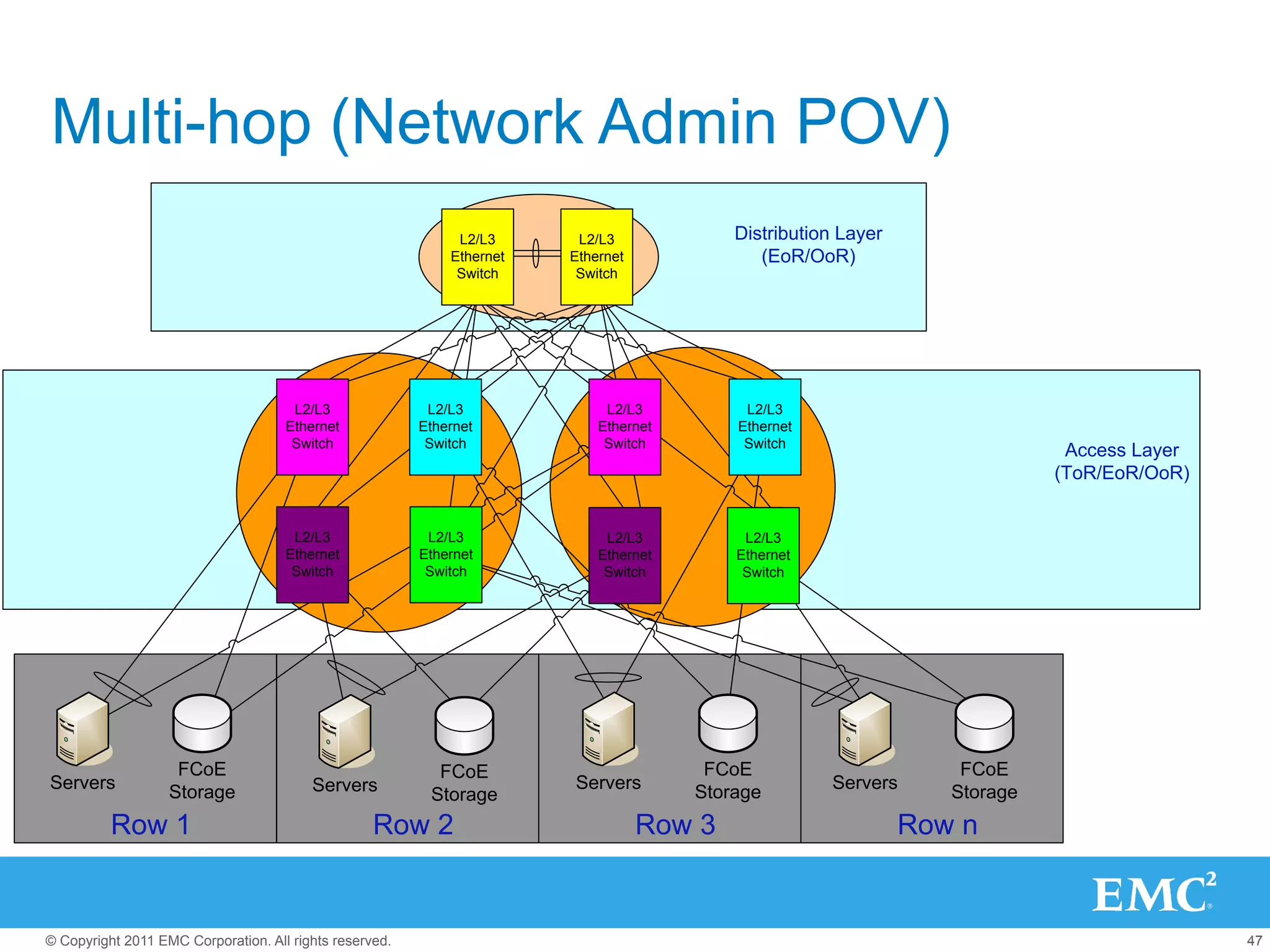

47. Multi-hop (Network Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
L2/L3 8
x
N7K-­‐F132XP-­‐
L2/L3 L2/L3 L2/L3
15
Ethernet Ethernet
2
x
N7K-­‐SUP1 Ethernet Ethernet
Switch Switch Switch Switch
Access Layer
(ToR/EoR/OoR)
L2/L3 L2/L3 L2/L3 L2/L3
Ethernet Ethernet Ethernet Ethernet
Switch Switch Switch Switch
FCoE FCoE FCoE FCoE
Servers Storage Servers Servers Storage Servers Storage
Storage
Row 1 Row 2 Row 3 Row n
© Copyright 2011 EMC Corporation. All rights reserved. 47

48. Multi-hop (Network Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
L2/L3 8
x
N7K-­‐F132XP-­‐
L2/L3 L2/L3 L2/L3
15
Ethernet Ethernet
2
x
N7K-­‐SUP1 Ethernet Ethernet
Switch Switch Switch Switch
Access Layer
(ToR/EoR/OoR)
L2/L3 L2/L3 L2/L3 L2/L3
Ethernet Ethernet Ethernet Ethernet
Switch Switch Switch Switch
FCoE FCoE FCoE FCoE
Servers Storage Servers Servers Storage Servers Storage
Storage
Row 1 Row 2 Row 3 Row n
© Copyright 2011 EMC Corporation. All rights reserved. 48

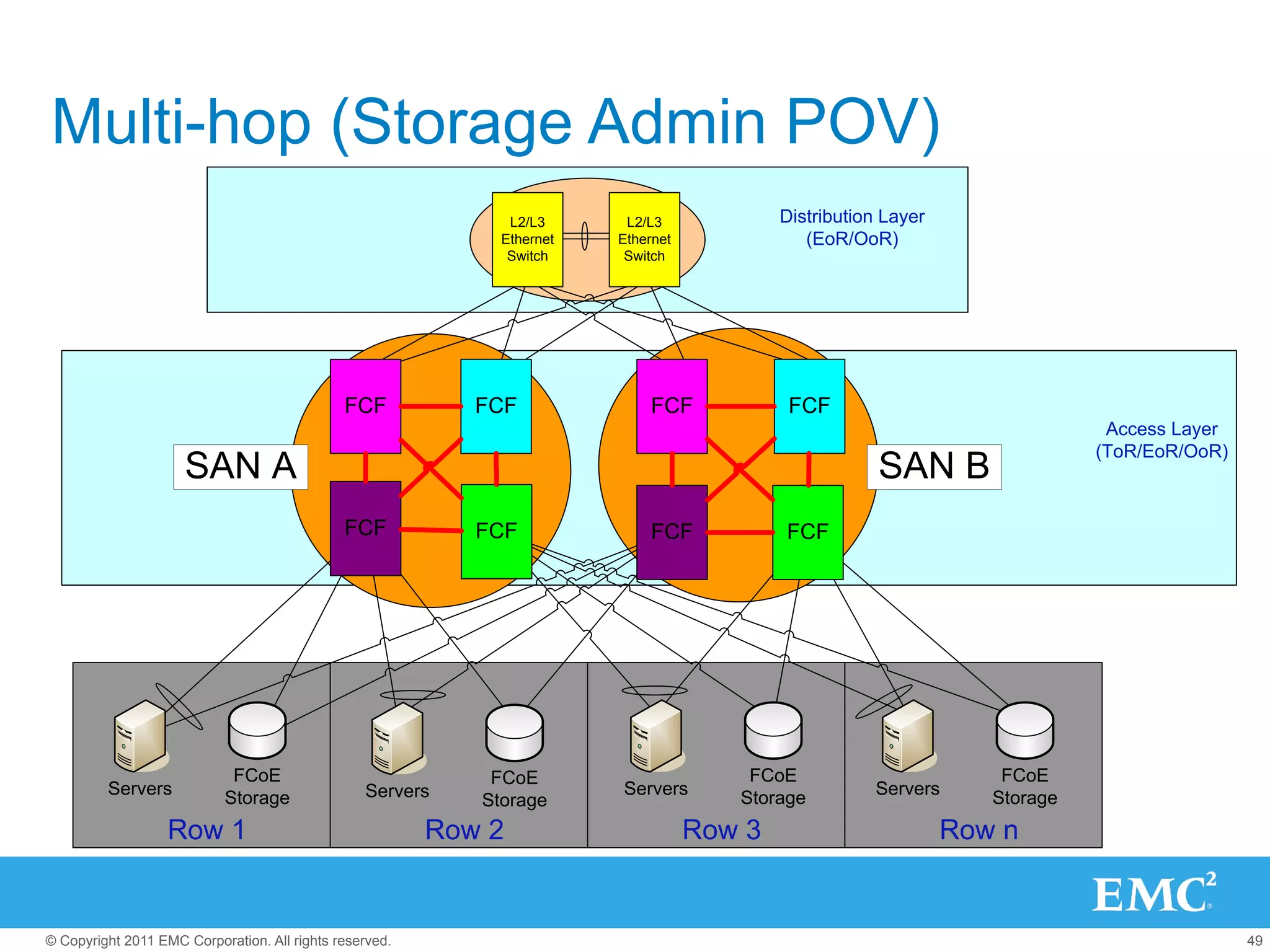

49. Multi-hop (Storage Admin POV)
L2/L3 L2/L3 Distribution Layer
Ethernet Ethernet (EoR/OoR)
Switch Switch
FCF FCF
FCF FCF FCF
Access Layer
(ToR/EoR/OoR)
SAN A SAN B
FCF FCF FCF FCF
FCoE FCoE FCoE FCoE
Servers Storage Servers Servers Storage Servers Storage
Storage
Row 1 Row 2 Row 3 Row n
© Copyright 2011 EMC Corporation. All rights reserved. 49

50. Agenda
• Topology overview
– Fibre Channel (FC)
– Fibre Channel over Ethernet (FCoE) overview
• Enabling technologies
– DCBX
– PFC
– ETS
– FCoE Initialization Protocol (FIP)
• ENode-to-ENode / Direct connect configuration
• Zero-hop
• Multi-hop
• Real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 50

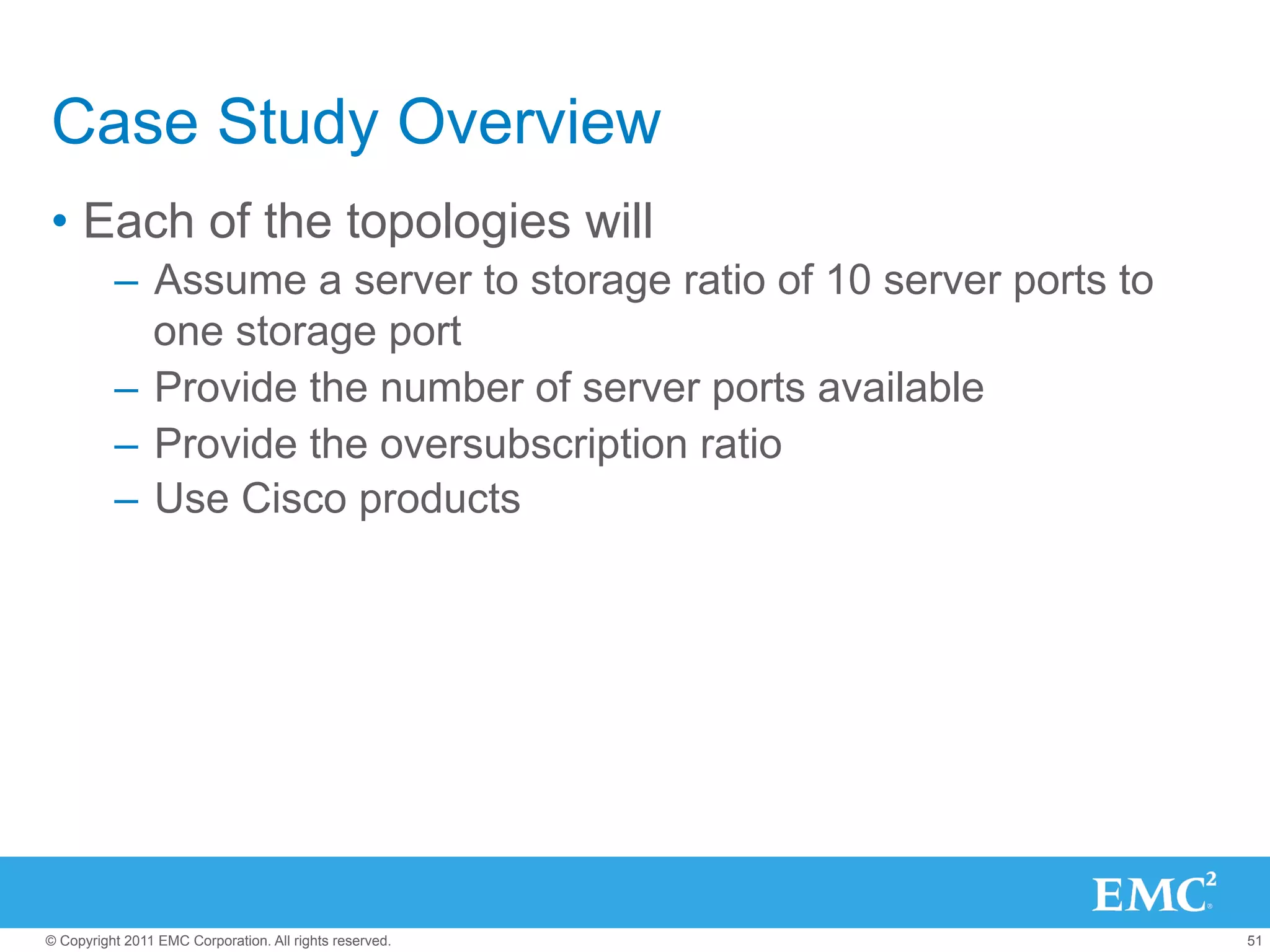

51. Case Study Overview
• Each of the topologies will
– Assume a server to storage ratio of 10 server ports to
one storage port
– Provide the number of server ports available
– Provide the oversubscription ratio
– Use Cisco products
© Copyright 2011 EMC Corporation. All rights reserved. 51

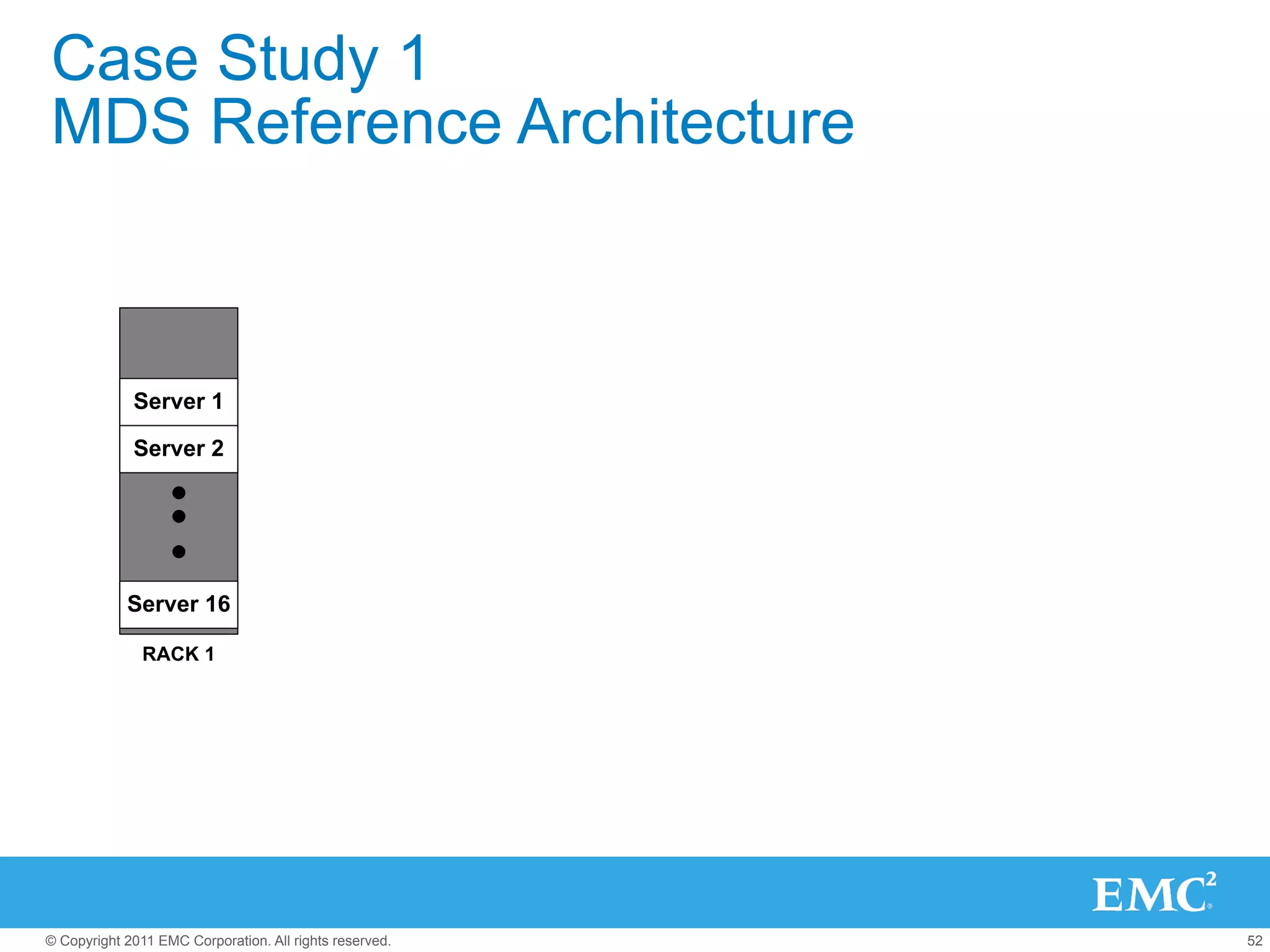

52. Case Study 1
MDS Reference Architecture
Server 1
Server 2
Server 16
RACK 1
© Copyright 2011 EMC Corporation. All rights reserved. 52

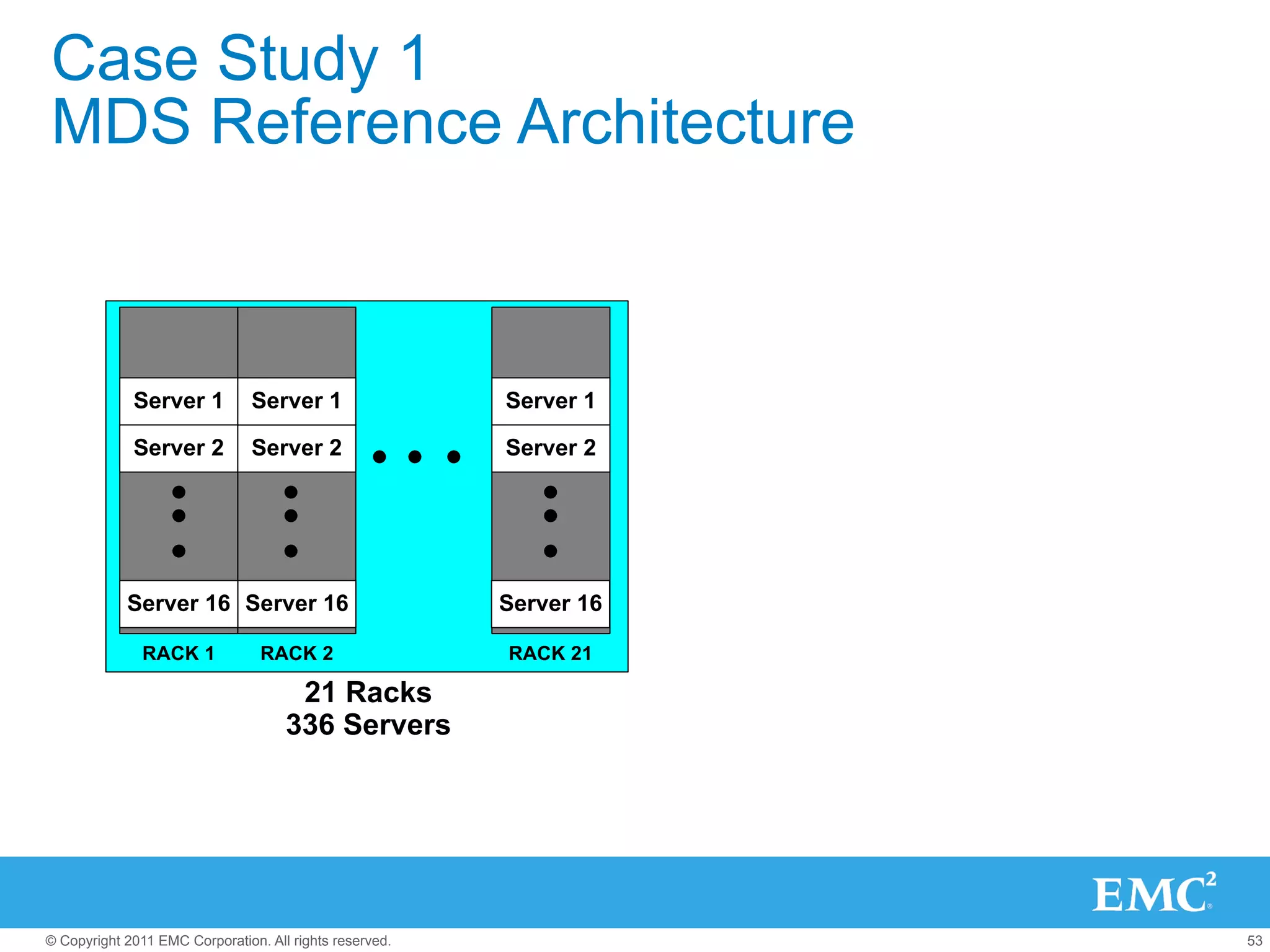

53. Case Study 1
MDS Reference Architecture
Server 1 Server 1 Server 1
Server 2 Server 2 Server 2
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 21
21 Racks
336 Servers
© Copyright 2011 EMC Corporation. All rights reserved. 53

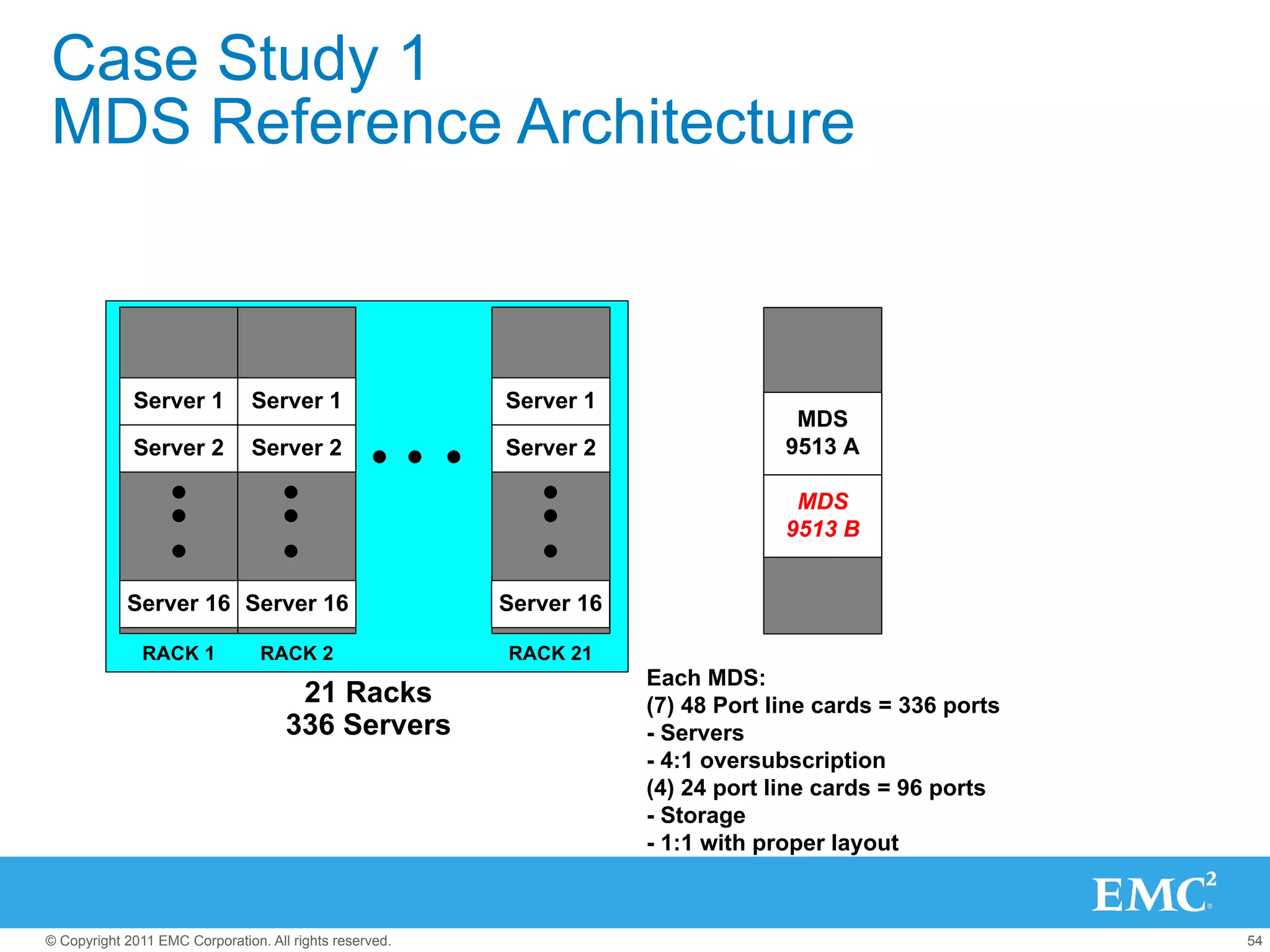

54. Case Study 1
MDS Reference Architecture
Server 1 Server 1 Server 1
MDS
Server 2 Server 2 Server 2 9513 A
MDS
9513 B
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 21
Each MDS:
21 Racks (7) 48 Port line cards = 336 ports
336 Servers - Servers
- 4:1 oversubscription
(4) 24 port line cards = 96 ports
- Storage
- 1:1 with proper layout
© Copyright 2011 EMC Corporation. All rights reserved. 54

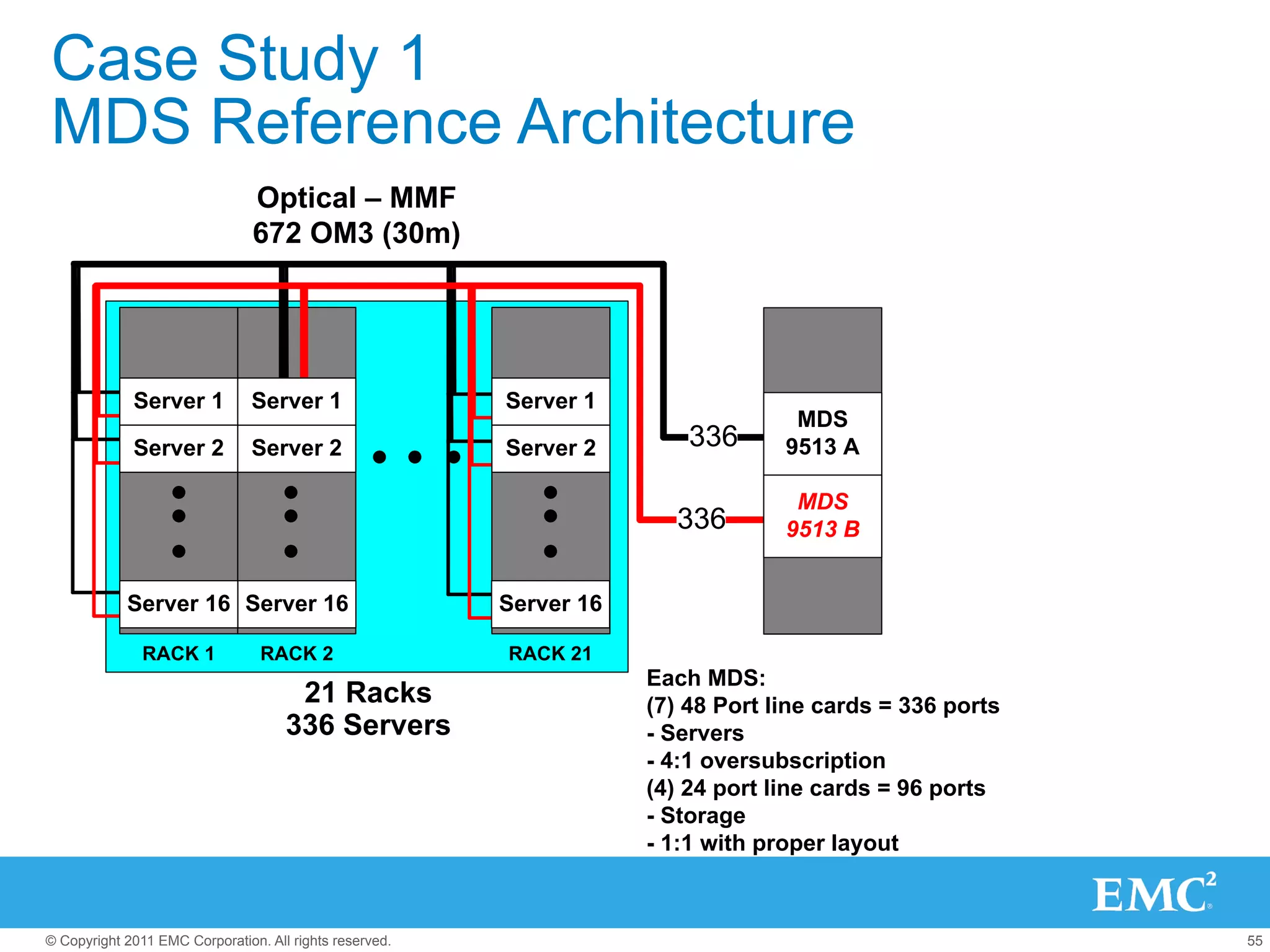

55. Case Study 1
MDS Reference Architecture
Optical – MMF
672 OM3 (30m)
Server 1 Server 1 Server 1
MDS
Server 2 Server 2 Server 2 336 9513 A
MDS
336 9513 B
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 21
Each MDS:
21 Racks (7) 48 Port line cards = 336 ports
336 Servers - Servers
- 4:1 oversubscription
(4) 24 port line cards = 96 ports
- Storage
- 1:1 with proper layout
© Copyright 2011 EMC Corporation. All rights reserved. 55

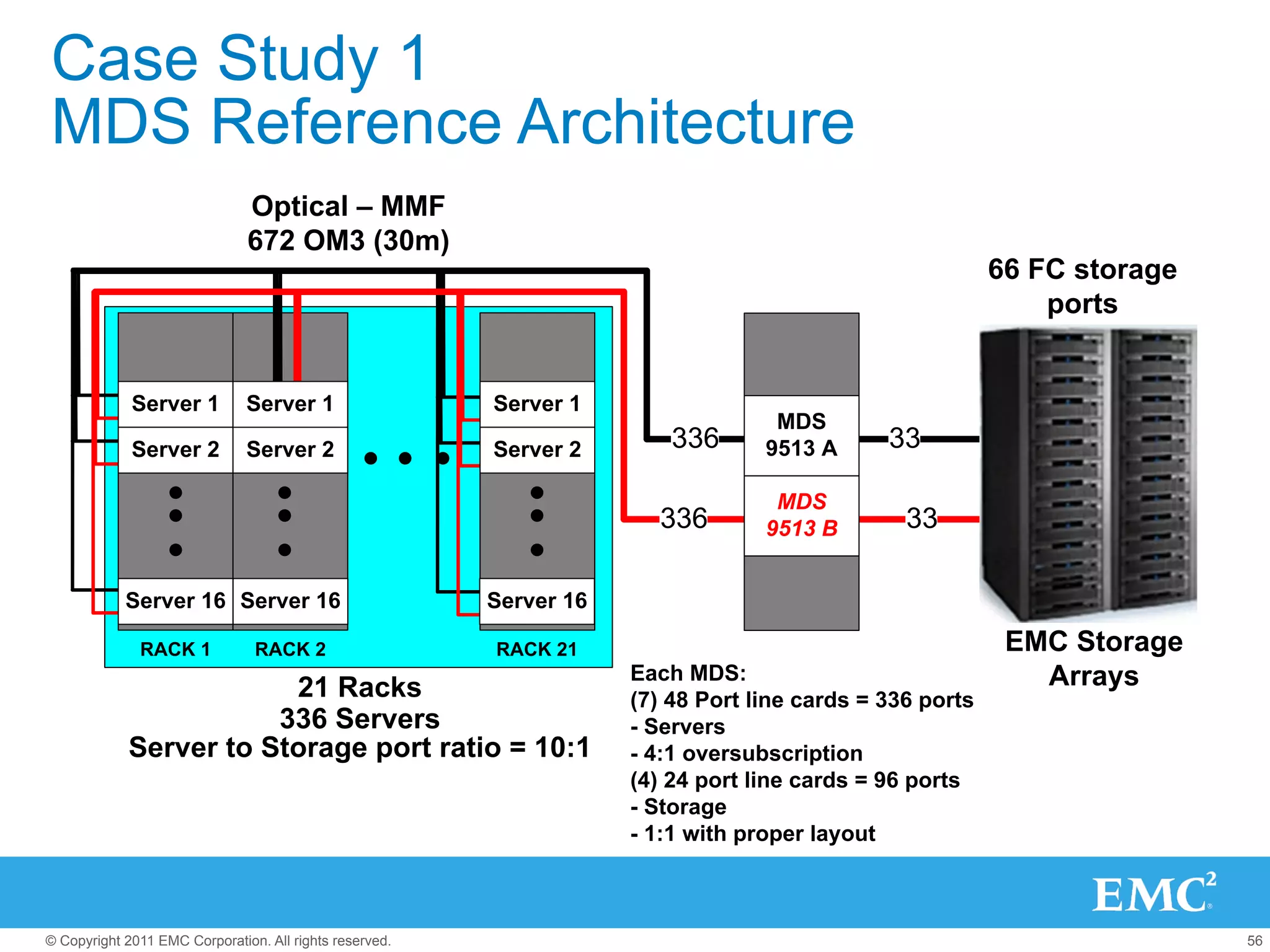

56. Case Study 1
MDS Reference Architecture
Optical – MMF
672 OM3 (30m)
66 FC storage
ports
Server 1 Server 1 Server 1
MDS
Server 2 Server 2 Server 2 336 9513 A 33
MDS
336 9513 B 33
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 21 EMC Storage
21 Racks
Each MDS: Arrays
(7) 48 Port line cards = 336 ports
336 Servers - Servers
Server to Storage port ratio = 10:1 - 4:1 oversubscription
(4) 24 port line cards = 96 ports
- Storage
- 1:1 with proper layout
© Copyright 2011 EMC Corporation. All rights reserved. 56

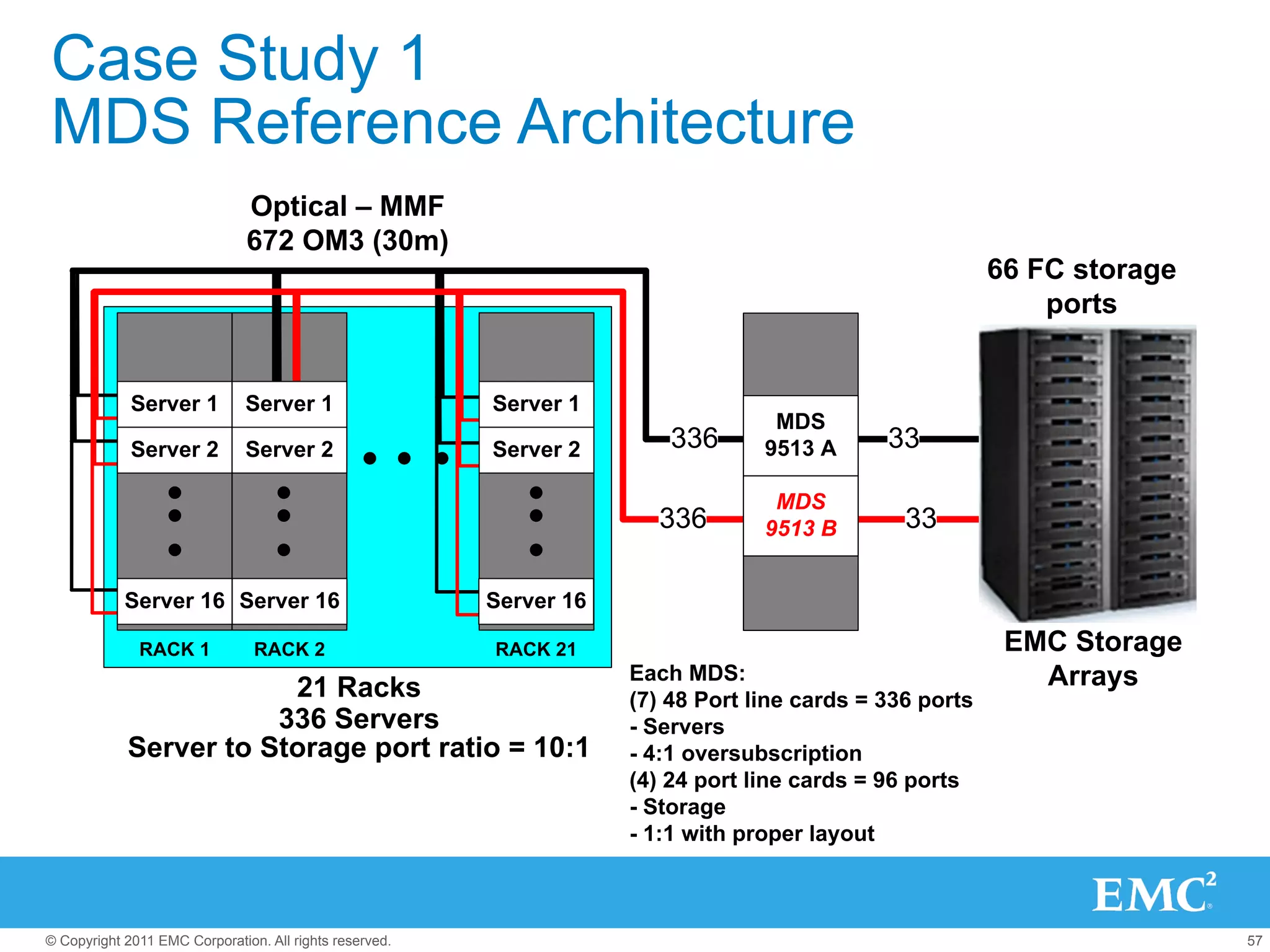

57. Case Study 1
MDS Reference Architecture
Optical – MMF
672 OM3 (30m)
66 FC storage
ports
Server 1 Server 1 Server 1
MDS
Server 2 Server 2 Server 2 336 9513 A 33
MDS
336 9513 B 33
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 21 EMC Storage
21 Racks
Each MDS: Arrays
(7) 48 Port line cards = 336 ports
336 Servers - Servers
Server to Storage port ratio = 10:1 - 4:1 oversubscription
(4) 24 port line cards = 96 ports
- Storage
- 1:1 with proper layout
© Copyright 2011 EMC Corporation. All rights reserved. 57

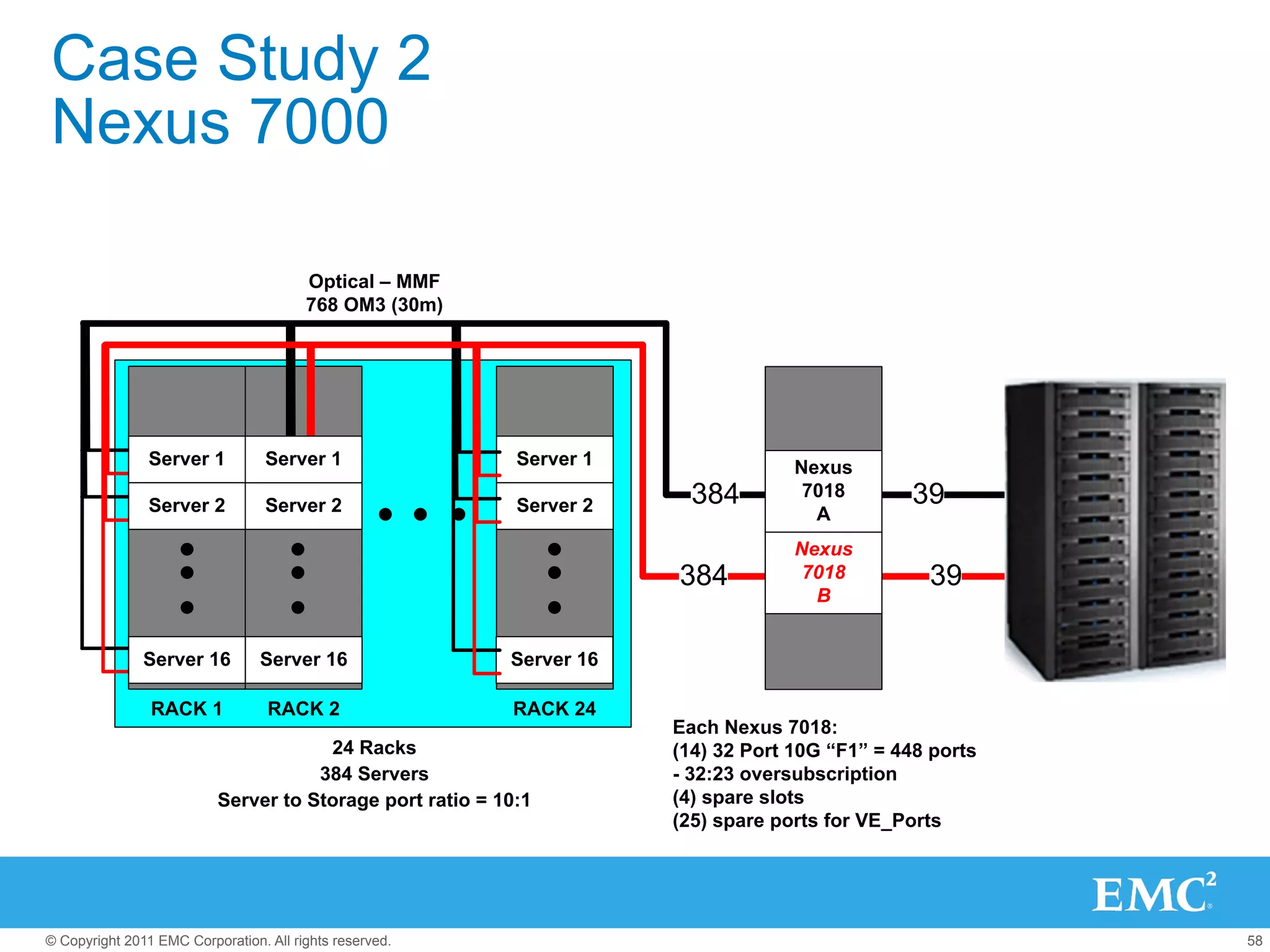

58. Case Study 2
Nexus 7000
Optical – MMF
768 OM3 (30m)
Server 1 Server 1 Server 1 Nexus
Server 2 Server 2 Server 2 384 7018 39
A
Nexus
384 7018 39
B
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 24
Each Nexus 7018:
24 Racks (14) 32 Port 10G “F1” = 448 ports
384 Servers - 32:23 oversubscription
Server to Storage port ratio = 10:1 (4) spare slots
(25) spare ports for VE_Ports
© Copyright 2011 EMC Corporation. All rights reserved. 58

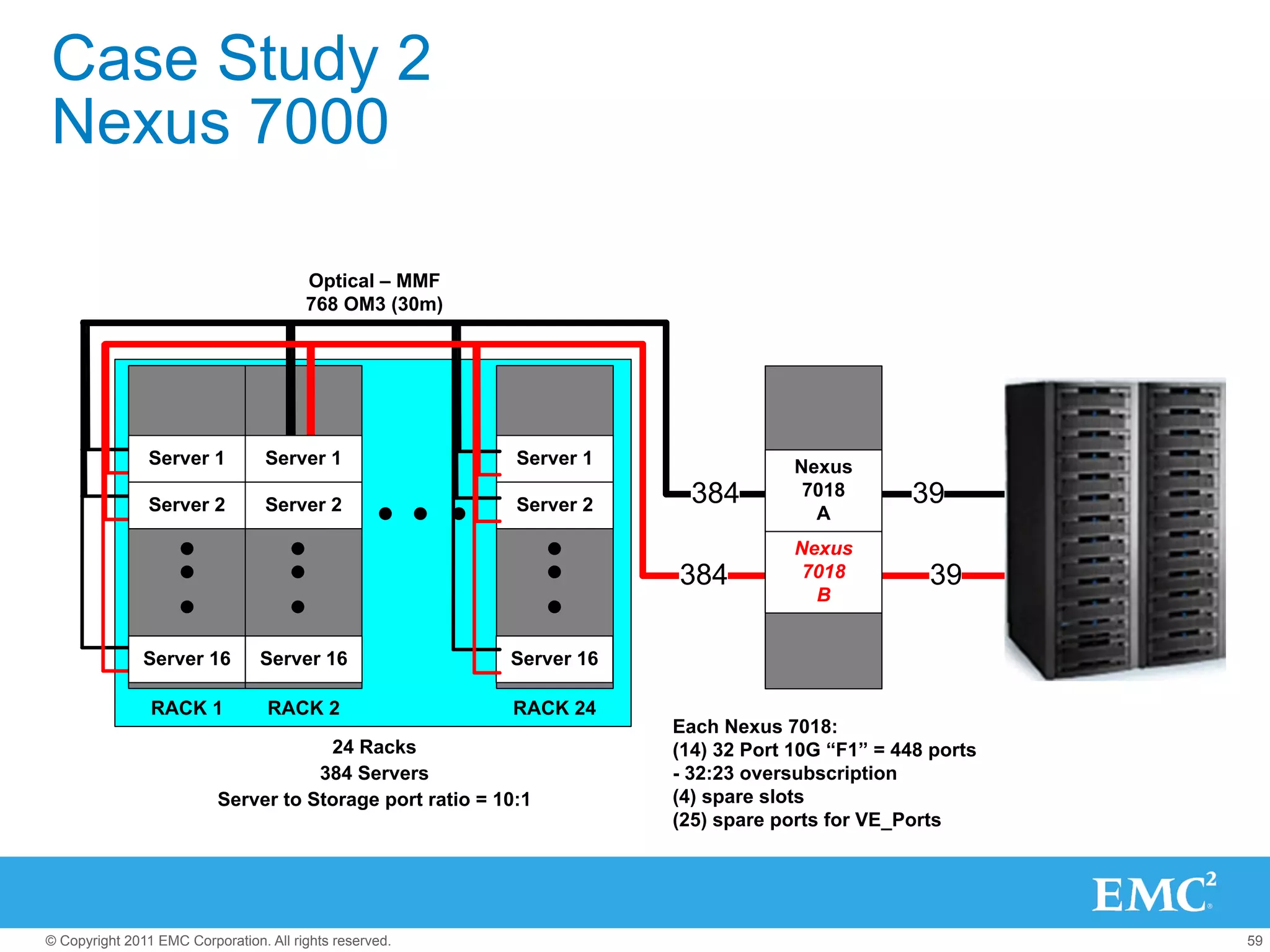

59. Case Study 2
Nexus 7000
Optical – MMF
768 OM3 (30m)
Server 1 Server 1 Server 1 Nexus
Server 2 Server 2 Server 2 384 7018 39
A
Nexus
384 7018 39
B
Server 16 Server 16 Server 16
RACK 1 RACK 2 RACK 24
Each Nexus 7018:
24 Racks (14) 32 Port 10G “F1” = 448 ports
384 Servers - 32:23 oversubscription
Server to Storage port ratio = 10:1 (4) spare slots
(25) spare ports for VE_Ports
© Copyright 2011 EMC Corporation. All rights reserved. 59

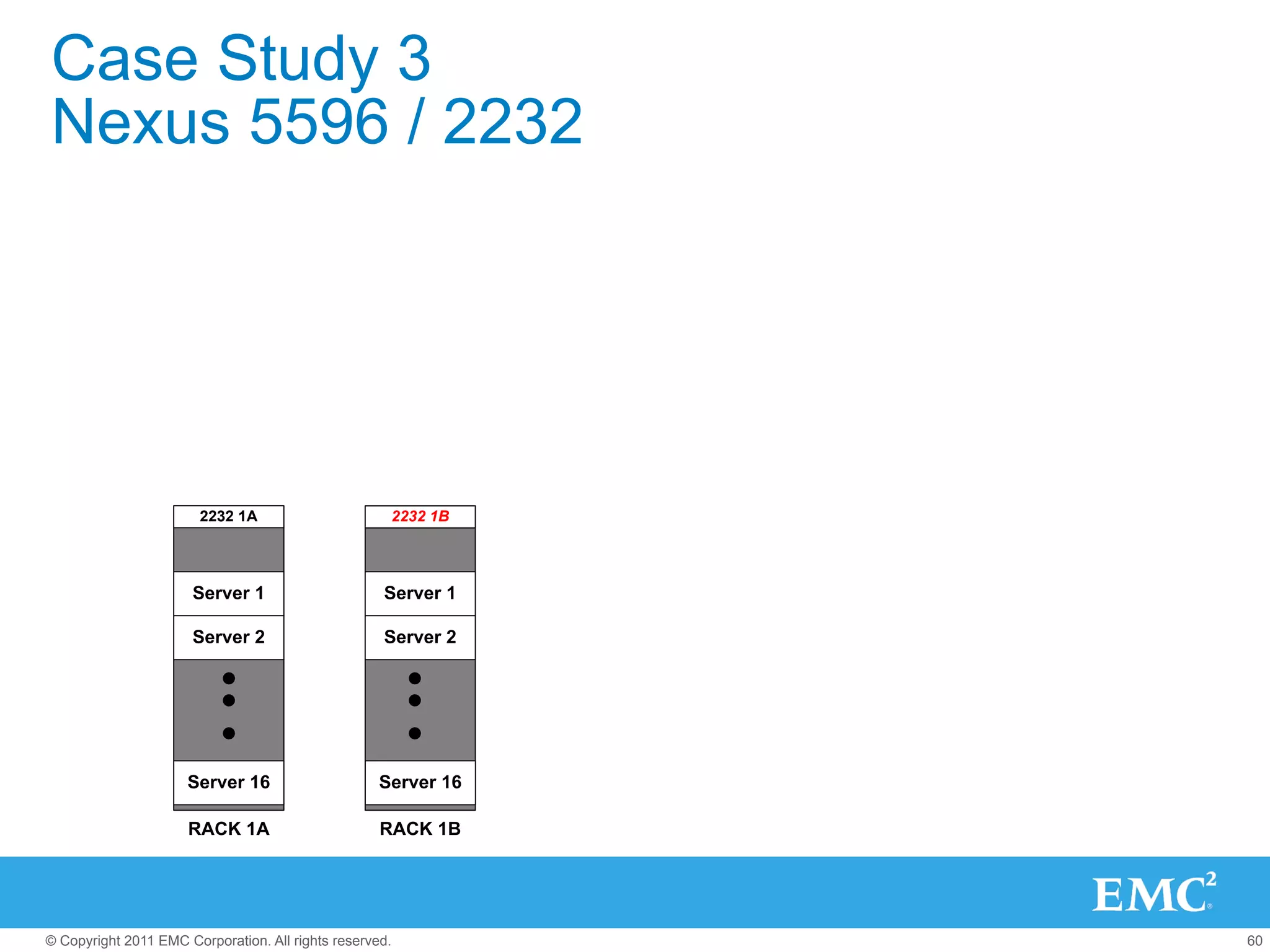

60. Case Study 3
Nexus 5596 / 2232
2232 1A 2232 1B
Server 1 Server 1
Server 2 Server 2
Server 16 Server 16
RACK 1A RACK 1B
© Copyright 2011 EMC Corporation. All rights reserved. 60

61. Case Study 3
Nexus 5596 / 2232
2232 1A 2232 1B
FCoE Twinax
Server 1 Server 1
Server 2 Server 2
Server 16 Server 16
RACK 1A RACK 1B
© Copyright 2011 EMC Corporation. All rights reserved. 61

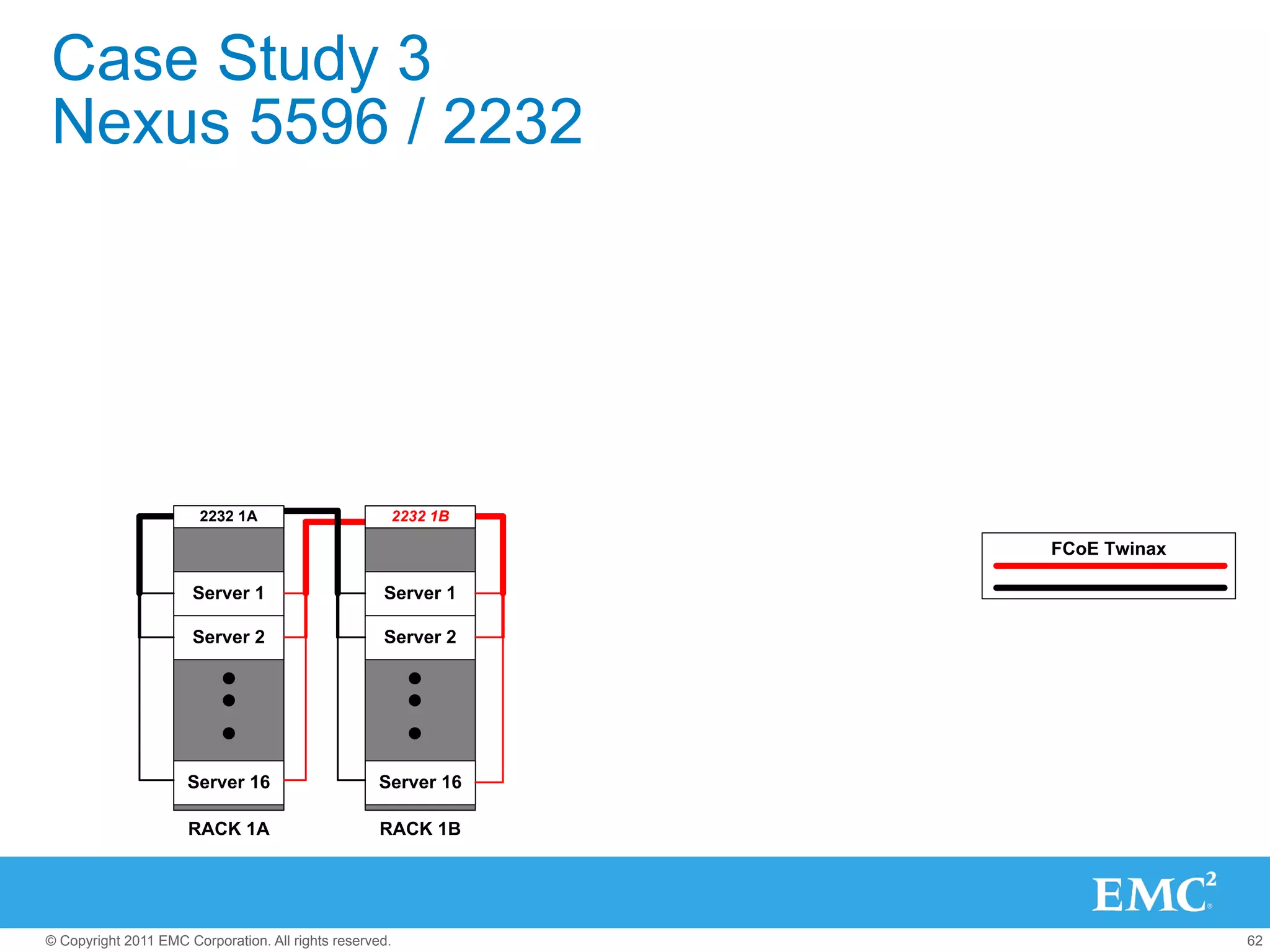

62. Case Study 3
Nexus 5596 / 2232
2232 1A 2232 1B
FCoE Twinax
Server 1 Server 1
Server 2 Server 2
Server 16 Server 16
RACK 1A RACK 1B
© Copyright 2011 EMC Corporation. All rights reserved. 62

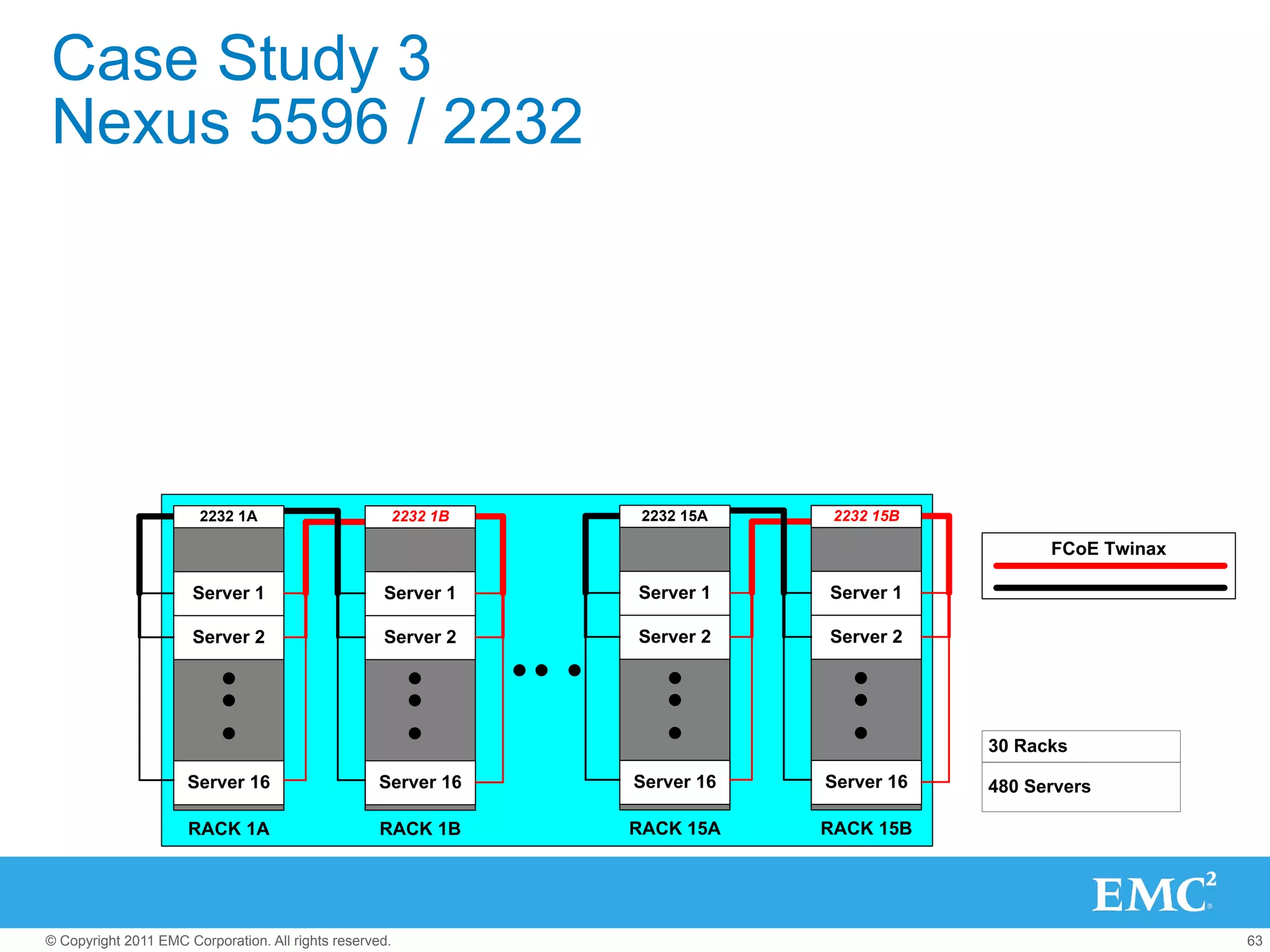

63. Case Study 3
Nexus 5596 / 2232
2232 1A 2232 1B 2232 15A 2232 15B
FCoE Twinax
Server 1 Server 1 Server 1 Server 1
Server 2 Server 2 Server 2 Server 2
30 Racks
Server 16 Server 16 Server 16 Server 16 480 Servers
RACK 1A RACK 1B RACK 15A RACK 15B
© Copyright 2011 EMC Corporation. All rights reserved. 63

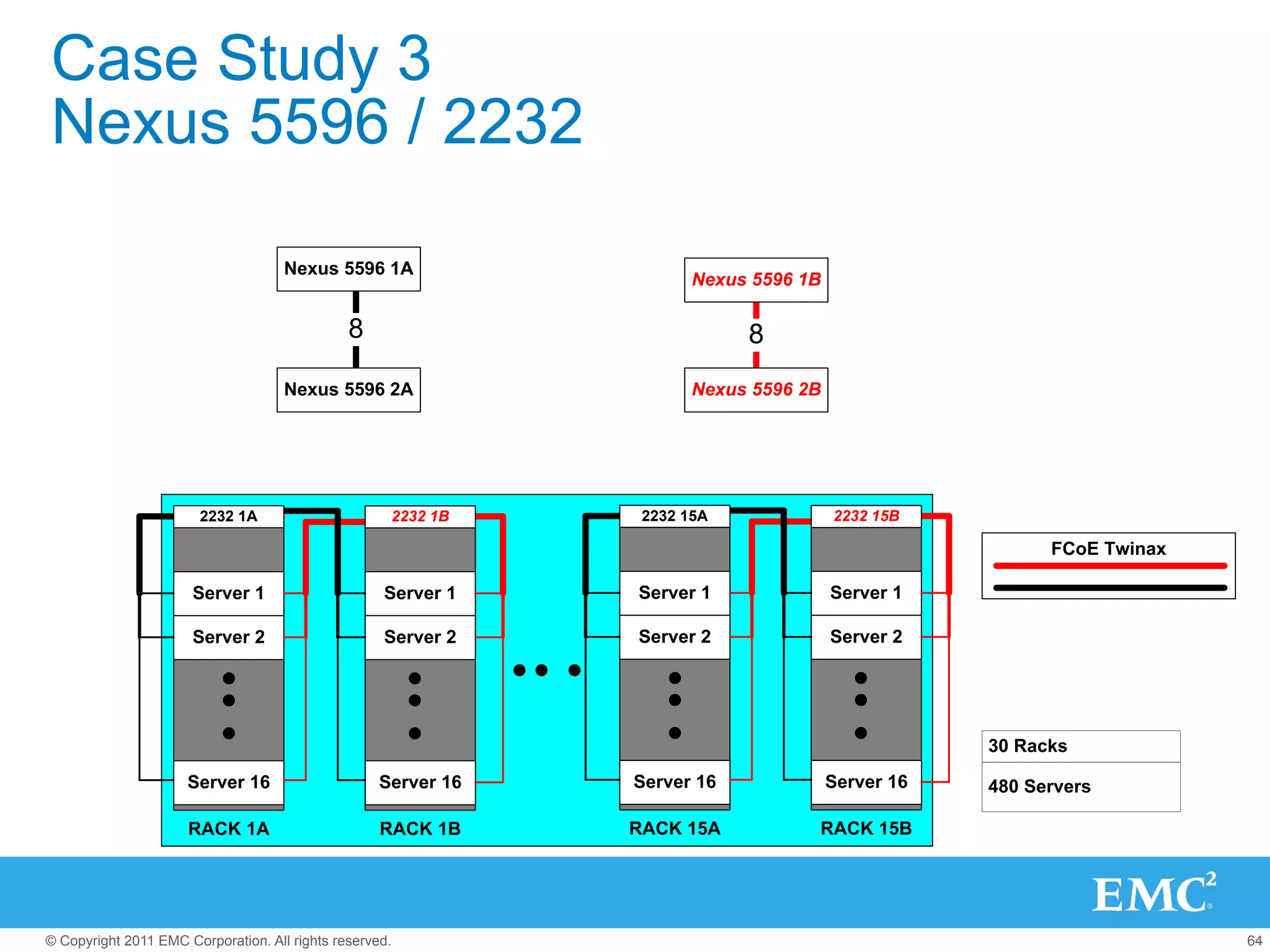

64. Case Study 3
Nexus 5596 / 2232
Nexus 5596 1A
Nexus 5596 1B
8 8
Nexus 5596 2A Nexus 5596 2B
2232 1A 2232 1B 2232 15A 2232 15B
FCoE Twinax
Server 1 Server 1 Server 1 Server 1
Server 2 Server 2 Server 2 Server 2
30 Racks
Server 16 Server 16 Server 16 Server 16 480 Servers
RACK 1A RACK 1B RACK 15A RACK 15B
© Copyright 2011 EMC Corporation. All rights reserved. 64

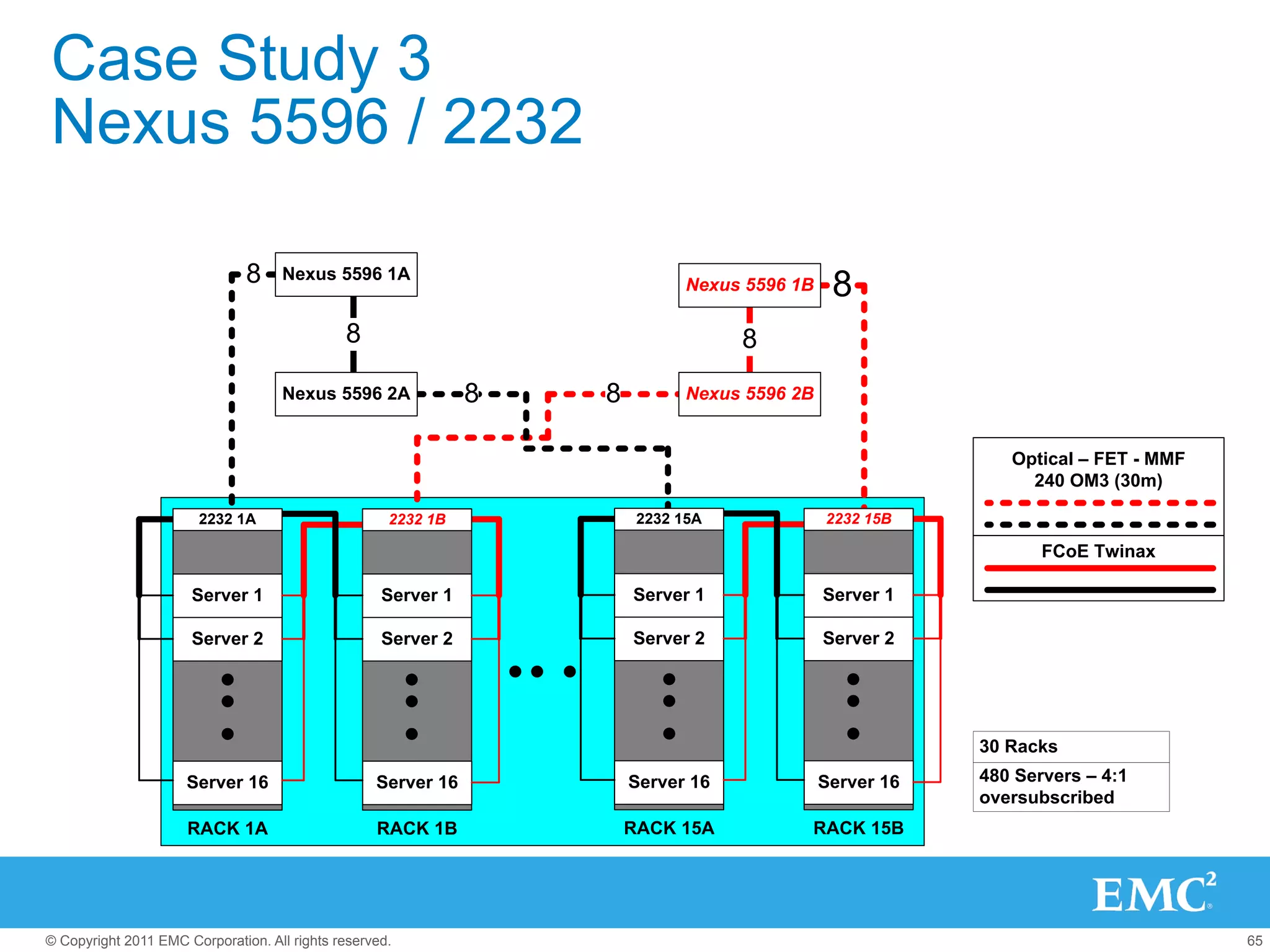

65. Case Study 3
Nexus 5596 / 2232
8 Nexus 5596 1A
Nexus 5596 1B 8
8 8
Nexus 5596 2A 8 8 Nexus 5596 2B
Optical – FET - MMF
240 OM3 (30m)
2232 1A 2232 1B 2232 15A 2232 15B
FCoE Twinax
Server 1 Server 1 Server 1 Server 1
Server 2 Server 2 Server 2 Server 2
30 Racks
Server 16 Server 16 Server 16 Server 16 480 Servers – 4:1
oversubscribed
RACK 1A RACK 1B RACK 15A RACK 15B
© Copyright 2011 EMC Corporation. All rights reserved. 65

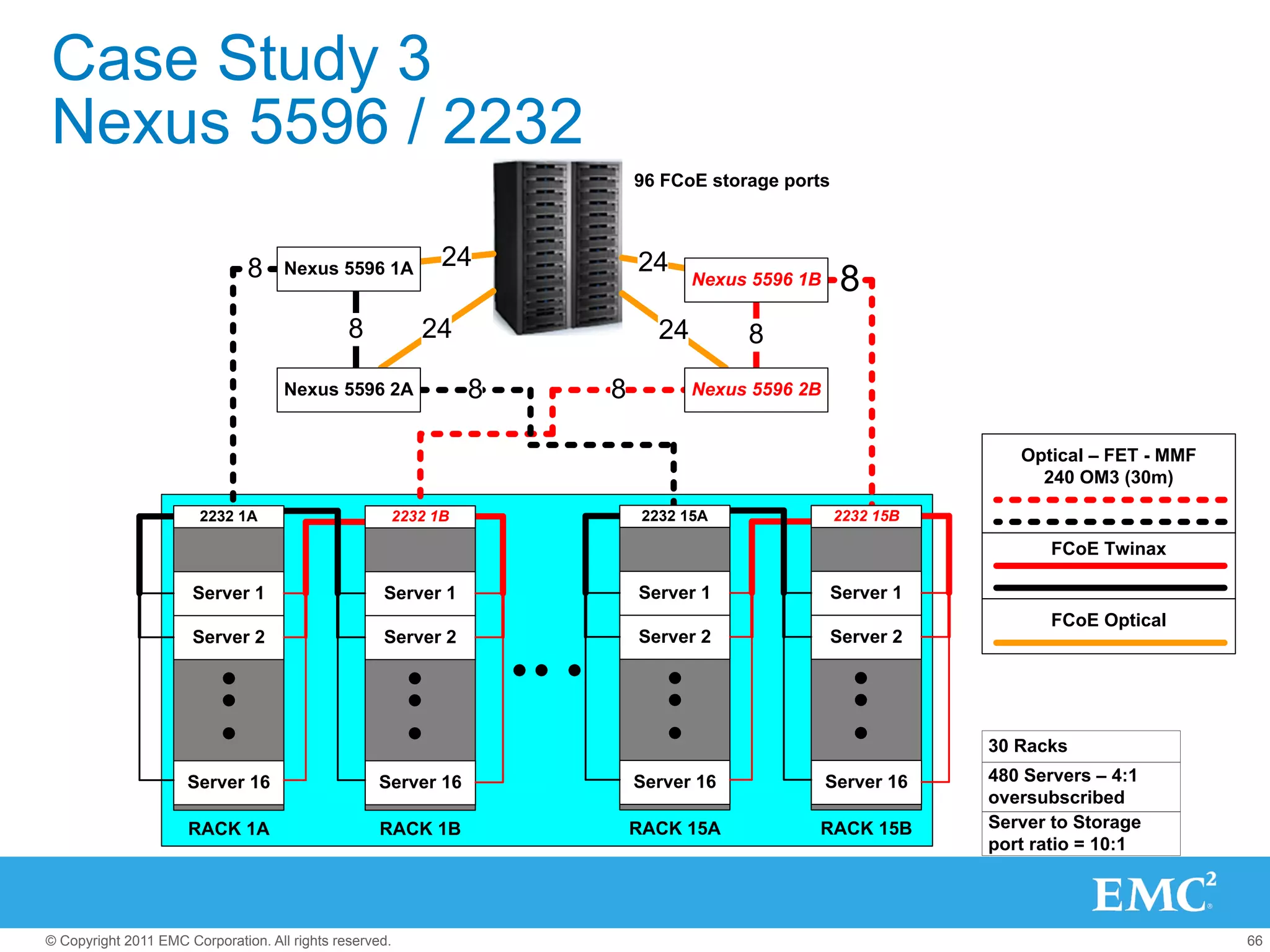

66. Case Study 3
Nexus 5596 / 2232
96 FCoE storage ports
8 24 24
Nexus 5596 1A
Nexus 5596 1B 8
8 24 24 8
Nexus 5596 2A 8 8 Nexus 5596 2B
Optical – FET - MMF
240 OM3 (30m)
2232 1A 2232 1B 2232 15A 2232 15B
FCoE Twinax
Server 1 Server 1 Server 1 Server 1
FCoE Optical
Server 2 Server 2 Server 2 Server 2
30 Racks
Server 16 Server 16 Server 16 Server 16 480 Servers – 4:1
oversubscribed
RACK 1A RACK 1B RACK 15A RACK 15B Server to Storage
port ratio = 10:1
© Copyright 2011 EMC Corporation. All rights reserved. 66

67. Case Study 3
Nexus 5596 / 2232
96 FCoE storage ports
8 24 24
Nexus 5596 1A
Nexus 5596 1B 8
4 4
LAN 8 24 24 8 LAN
4 4
Nexus 5596 2A 8 8 Nexus 5596 2B
Optical – FET - MMF
240 OM3 (30m)
2232 1A 2232 1B 2232 15A 2232 15B
FCoE Twinax
Server 1 Server 1 Server 1 Server 1
FCoE Optical
Server 2 Server 2 Server 2 Server 2
10GbE Optical
30 Racks
Server 16 Server 16 Server 16 Server 16 480 Servers – 4:1
oversubscribed
RACK 1A RACK 1B RACK 15A RACK 15B Server to Storage
port ratio = 10:1
© Copyright 2011 EMC Corporation. All rights reserved. 67

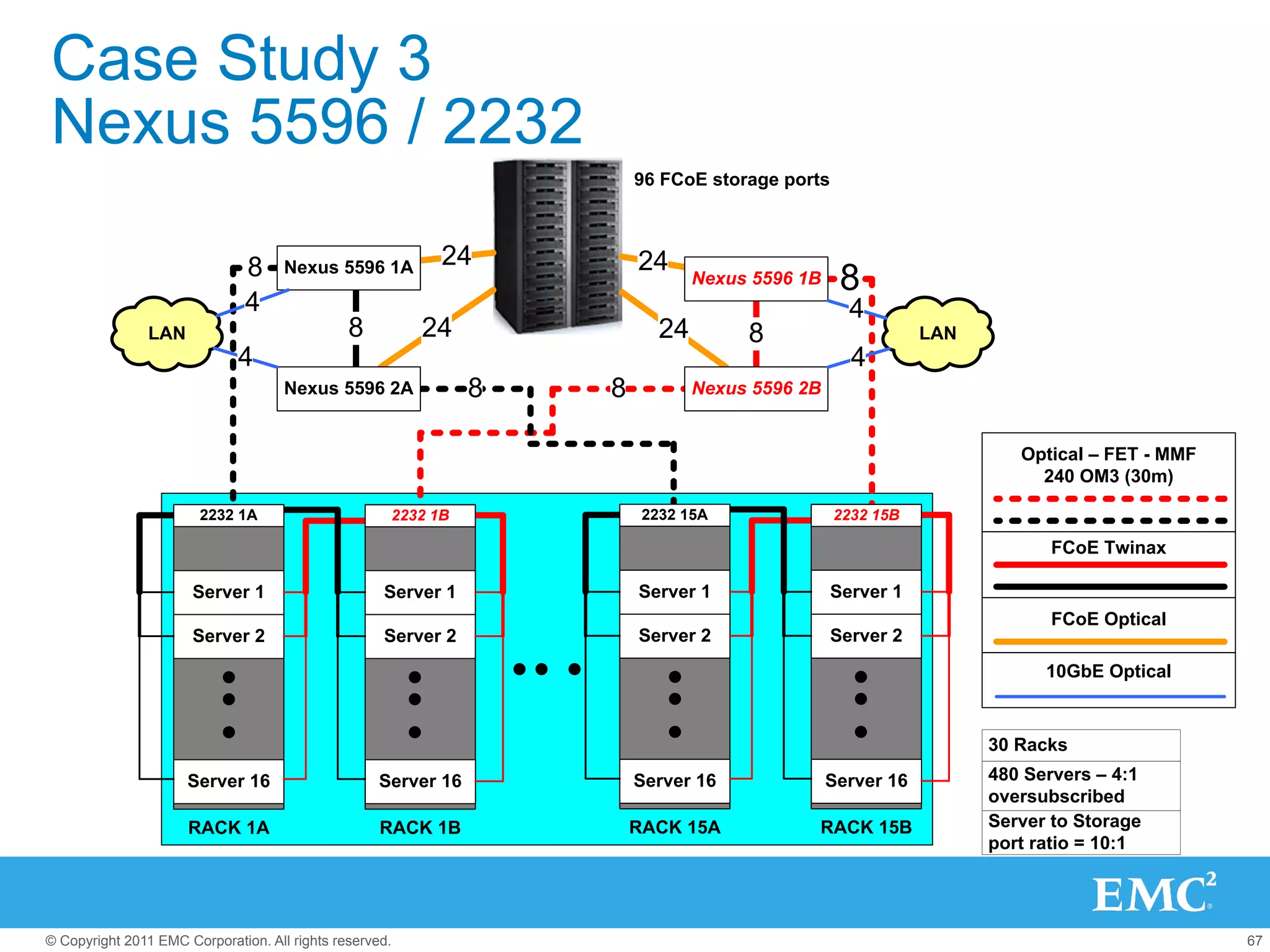

68. Case Study 3
Nexus 5596 / 2232
96 FCoE storage ports
8 24 24
Nexus 5596 1A
Nexus 5596 1B 8
4 4
LAN 8 24 24 8 LAN
4 4
Nexus 5596 2A 8 8 Nexus 5596 2B
Optical – FET - MMF
240 OM3 (30m)
2232 1A 2232 1B 2232 15A 2232 15B
FCoE Twinax
Server 1 Server 1 Server 1 Server 1
FCoE Optical
Server 2 Server 2 Server 2 Server 2
10GbE Optical
30 Racks
Server 16 Server 16 Server 16 Server 16 480 Servers – 4:1
oversubscribed
RACK 1A RACK 1B RACK 15A RACK 15B Server to Storage
port ratio = 10:1
© Copyright 2011 EMC Corporation. All rights reserved. 68

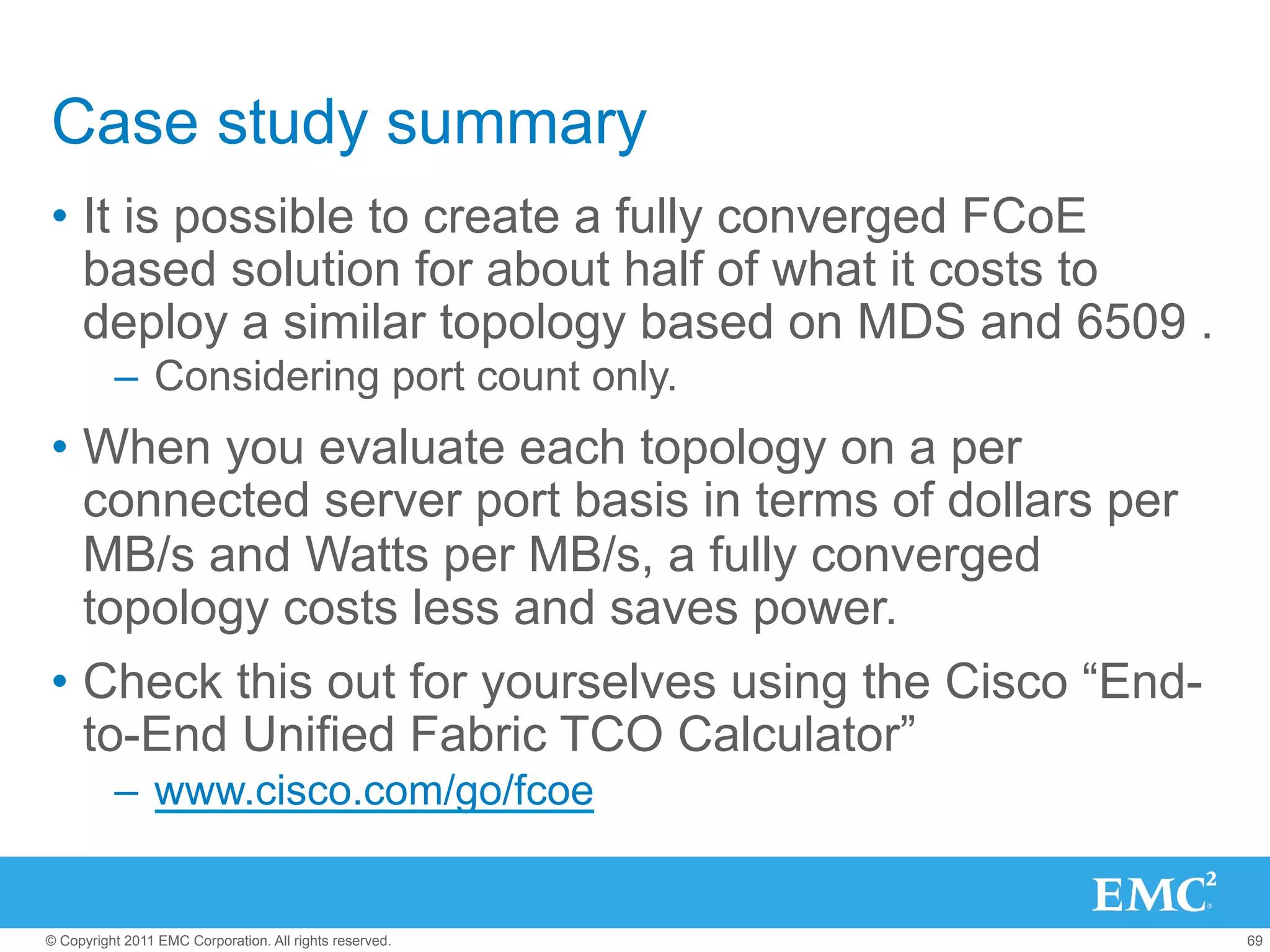

69. Case study summary
• It is possible to create a fully converged FCoE
based solution for about half of what it costs to
deploy a similar topology based on MDS and 6509 .
– Considering port count only.
• When you evaluate each topology on a per
connected server port basis in terms of dollars per
MB/s and Watts per MB/s, a fully converged
topology costs less and saves power.
• Check this out for yourselves using the Cisco “End-
to-End Unified Fabric TCO Calculator”
– www.cisco.com/go/fcoe
© Copyright 2011 EMC Corporation. All rights reserved. 69

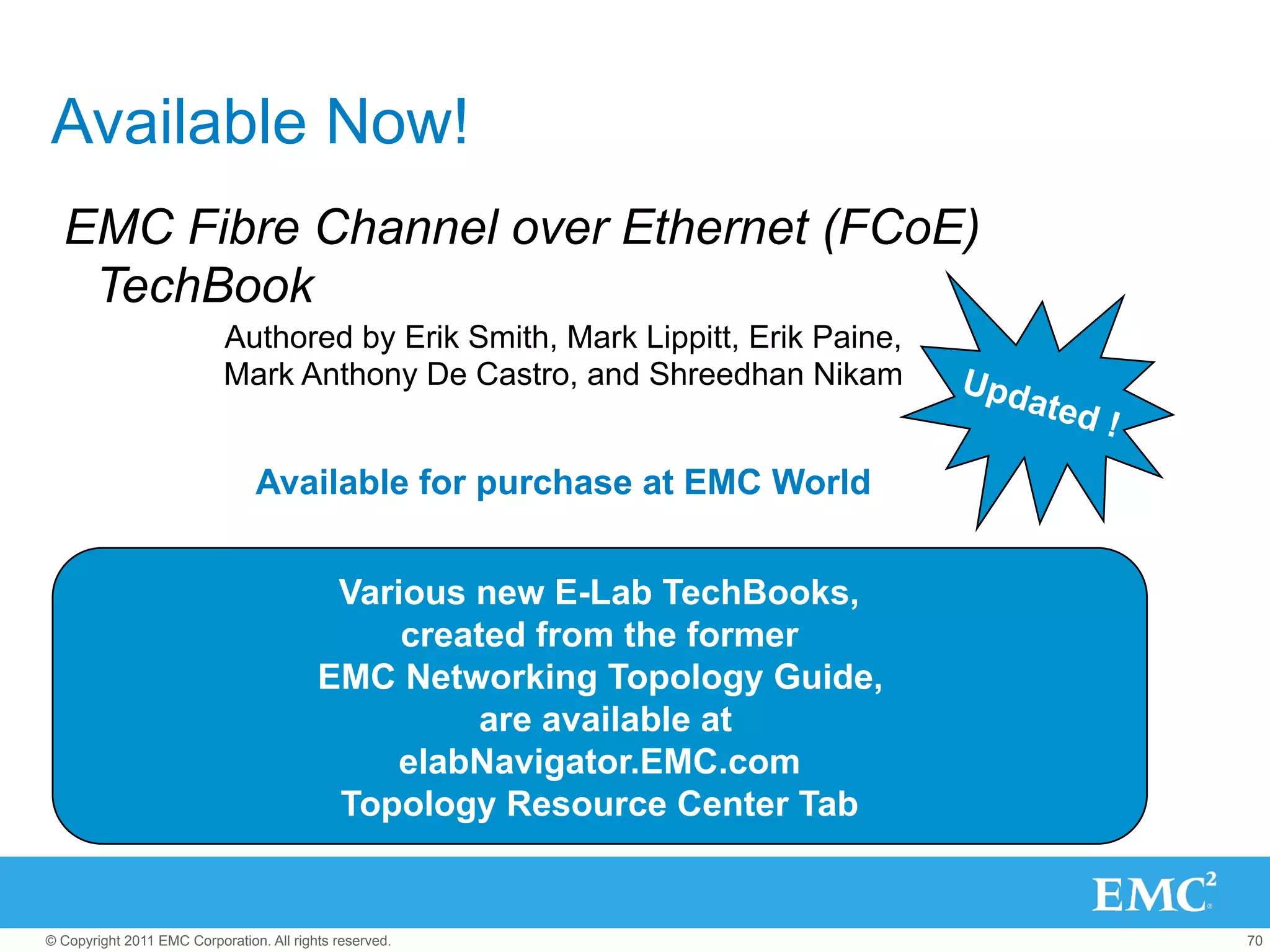

70. Available Now!
EMC Fibre Channel over Ethernet (FCoE)
TechBook
Authored by Erik Smith, Mark Lippitt, Erik Paine,
Mark Anthony De Castro, and Shreedhan Nikam Upd
ated
!
Available for purchase at EMC World
Various new E-Lab TechBooks,
created from the former
EMC Networking Topology Guide,
are available at
elabNavigator.EMC.com
Topology Resource Center Tab
© Copyright 2011 EMC Corporation. All rights reserved. 70

71. Want More?
Visit my blog!
www.brasstacksblog.typepad.com
Contact me via email!
erik.smith@emc.com
Drop by the EMC Select booth!
© Copyright 2011 EMC Corporation. All rights reserved. 71

72. Summary and Questions
• Discussed topologies currently supported and what
is being developed
• Explained essential components of FCoE, including
– DCBX
– PFC
– FIP
– DCB Clouds
• Highlighted known limitations when using FCoE
• Explained three real world use cases
© Copyright 2011 EMC Corporation. All rights reserved. 72

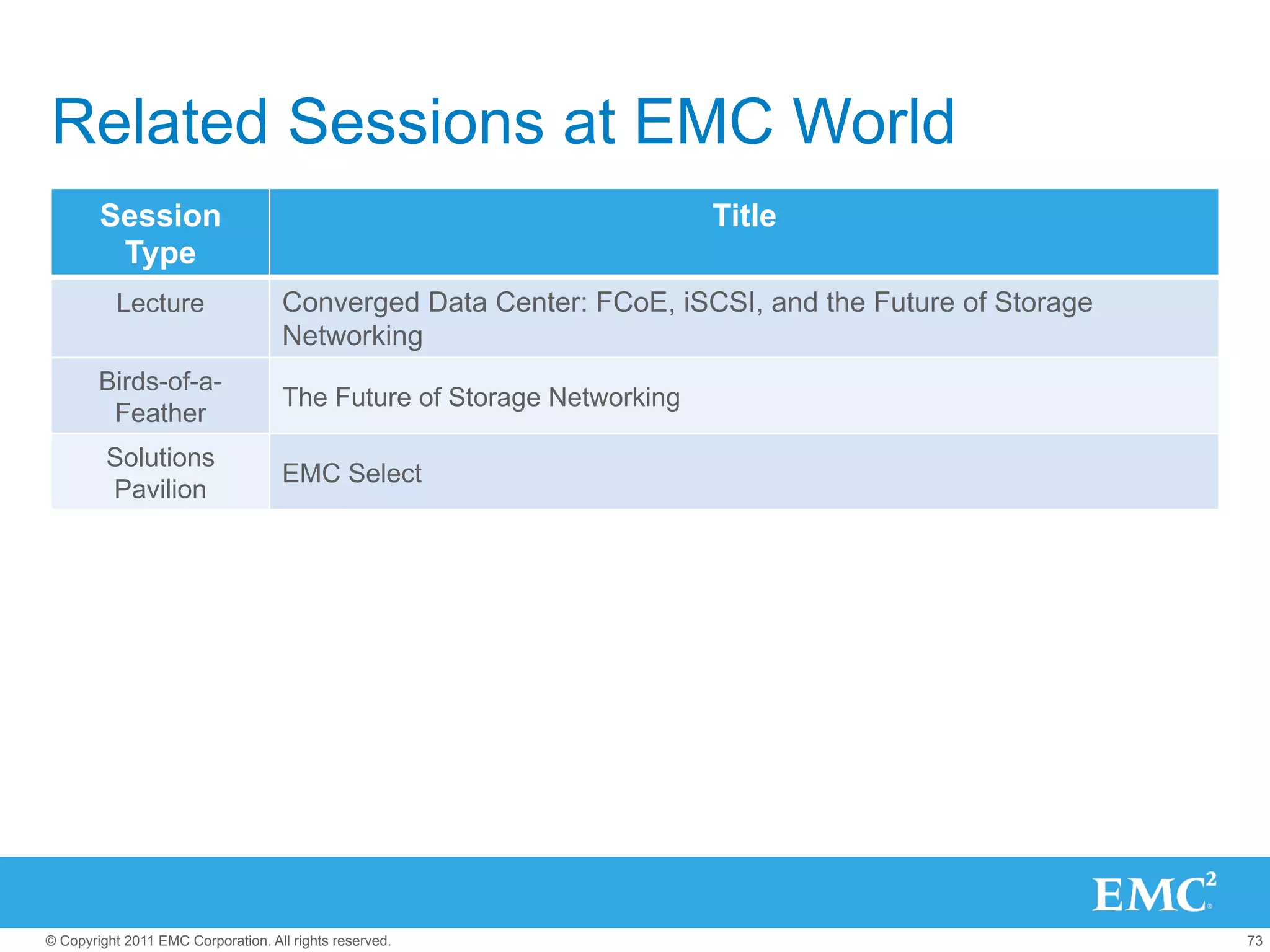

73. Related Sessions at EMC World
Session Title
Type
Lecture Converged Data Center: FCoE, iSCSI, and the Future of Storage
Networking
Birds-of-a-
The Future of Storage Networking
Feather
Solutions
EMC Select
Pavilion
© Copyright 2011 EMC Corporation. All rights reserved. 73

74. Related Technical Documentation
TechBooks
Fibre Channel over Ethernet (FCoE) - Data Center Bridging (DCB) Concepts and
Protocols
Fibre Channel SAN Topologies
Networked Storage Concepts and Protocols
© Copyright 2011 EMC Corporation. All rights reserved. 74

75. © Copyright 2011 EMC Corporation. All rights reserved. 75

76. THANK YOU
© Copyright 2011 EMC Corporation. All rights reserved. 76

77. Backup Slides
© Copyright 2011 EMC Corporation. All rights reserved. 77

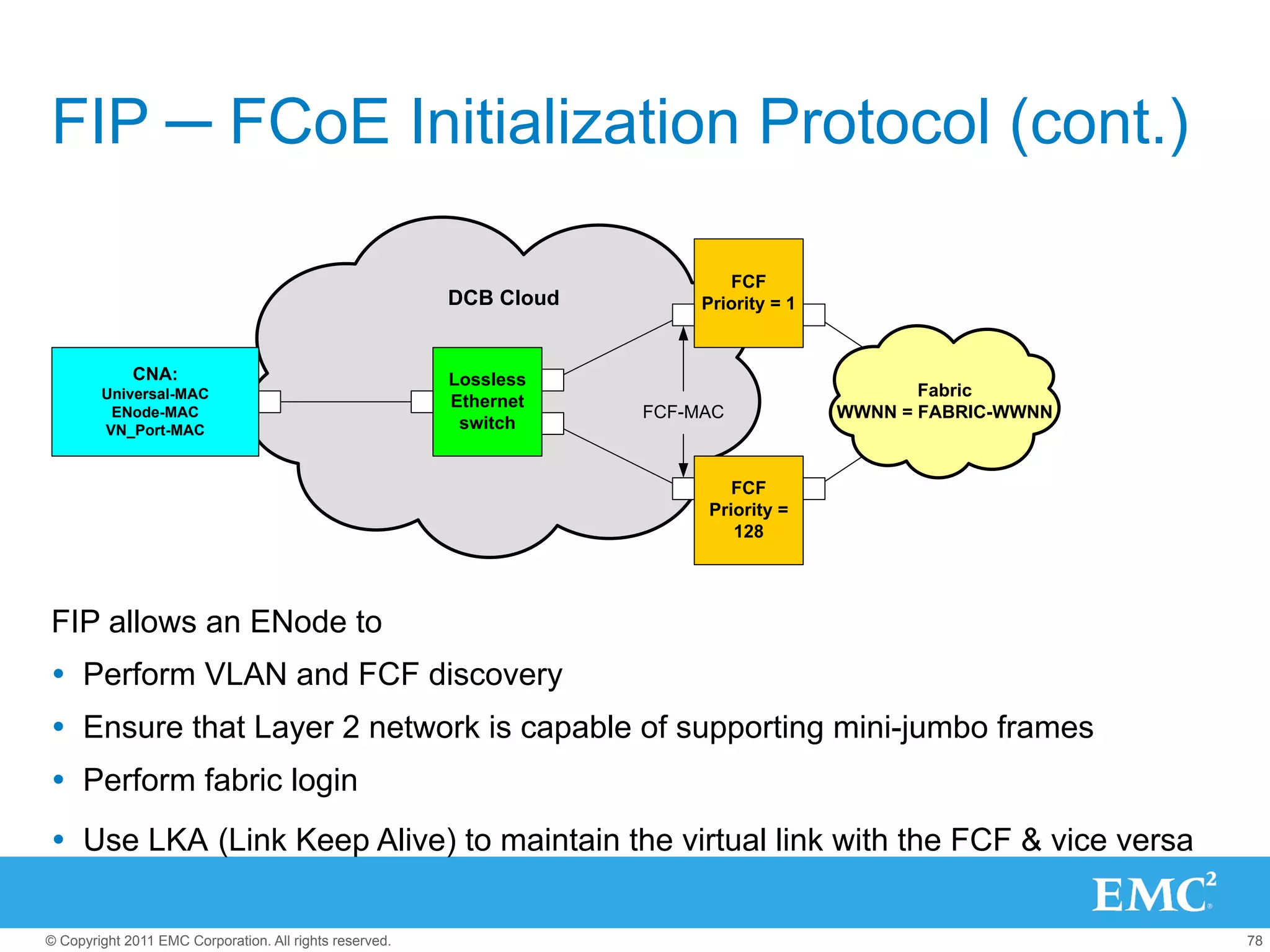

78. FIP ─ FCoE Initialization Protocol (cont.)
FCF
DCB Cloud Priority = 1
CNA: Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
FCF
Priority =
128
FIP allows an ENode to
Ÿ Perform VLAN and FCF discovery
Ÿ Ensure that Layer 2 network is capable of supporting mini-jumbo frames
Ÿ Perform fabric login
Ÿ Use LKA (Link Keep Alive) to maintain the virtual link with the FCF & vice versa
© Copyright 2011 EMC Corporation. All rights reserved. 78

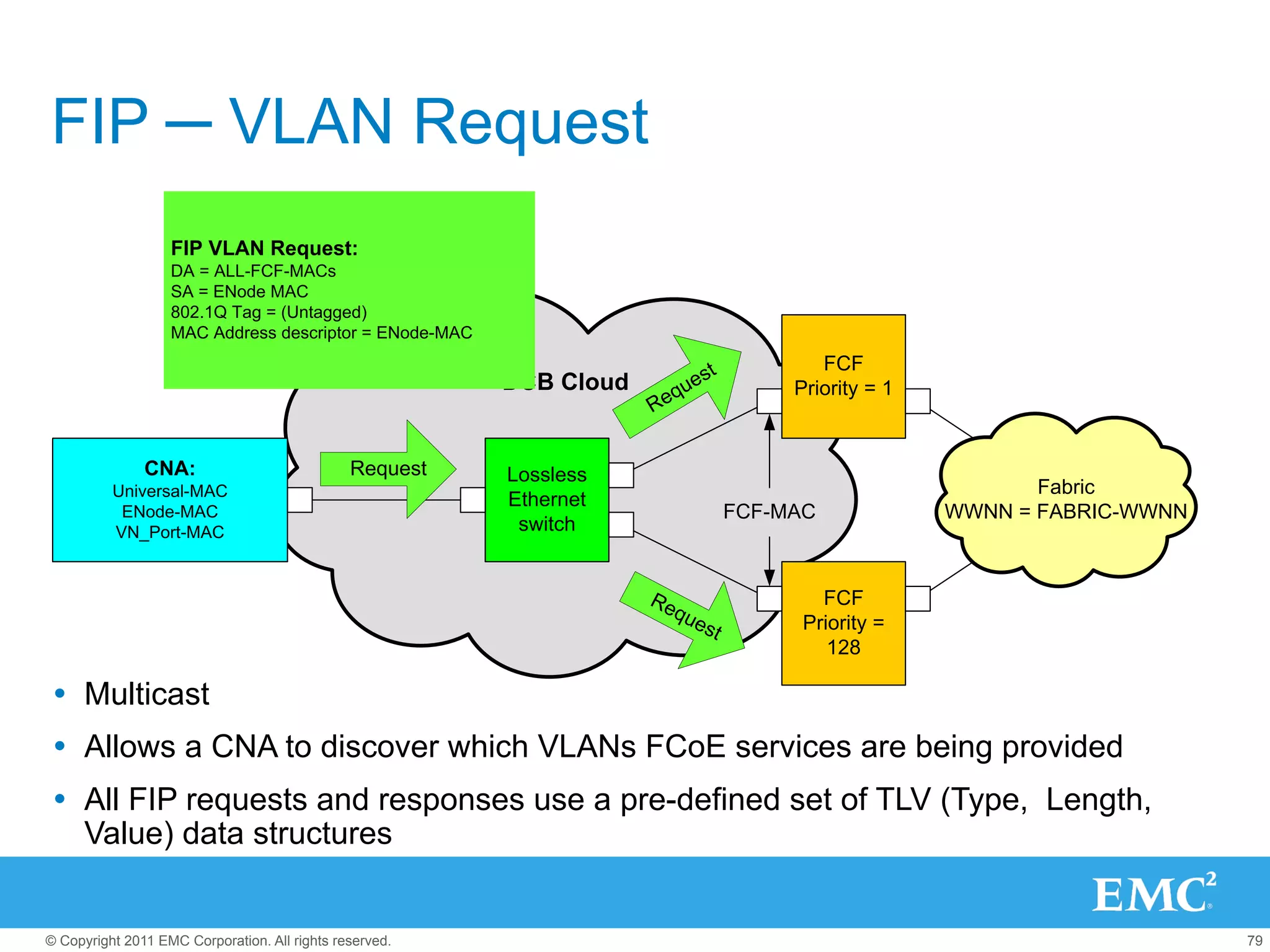

79. FIP ─ VLAN Request
FIP VLAN Request:
DA = ALL-FCF-MACs
SA = ENode MAC
802.1Q Tag = (Untagged)
MAC Address descriptor = ENode-MAC
FCF
DCB Cloud e st
qu Priority = 1
Re
CNA: Request Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
Re FCF
qu
e st Priority =
128
Ÿ Multicast
Ÿ Allows a CNA to discover which VLANs FCoE services are being provided
Ÿ All FIP requests and responses use a pre-defined set of TLV (Type, Length,
Value) data structures
© Copyright 2011 EMC Corporation. All rights reserved. 79

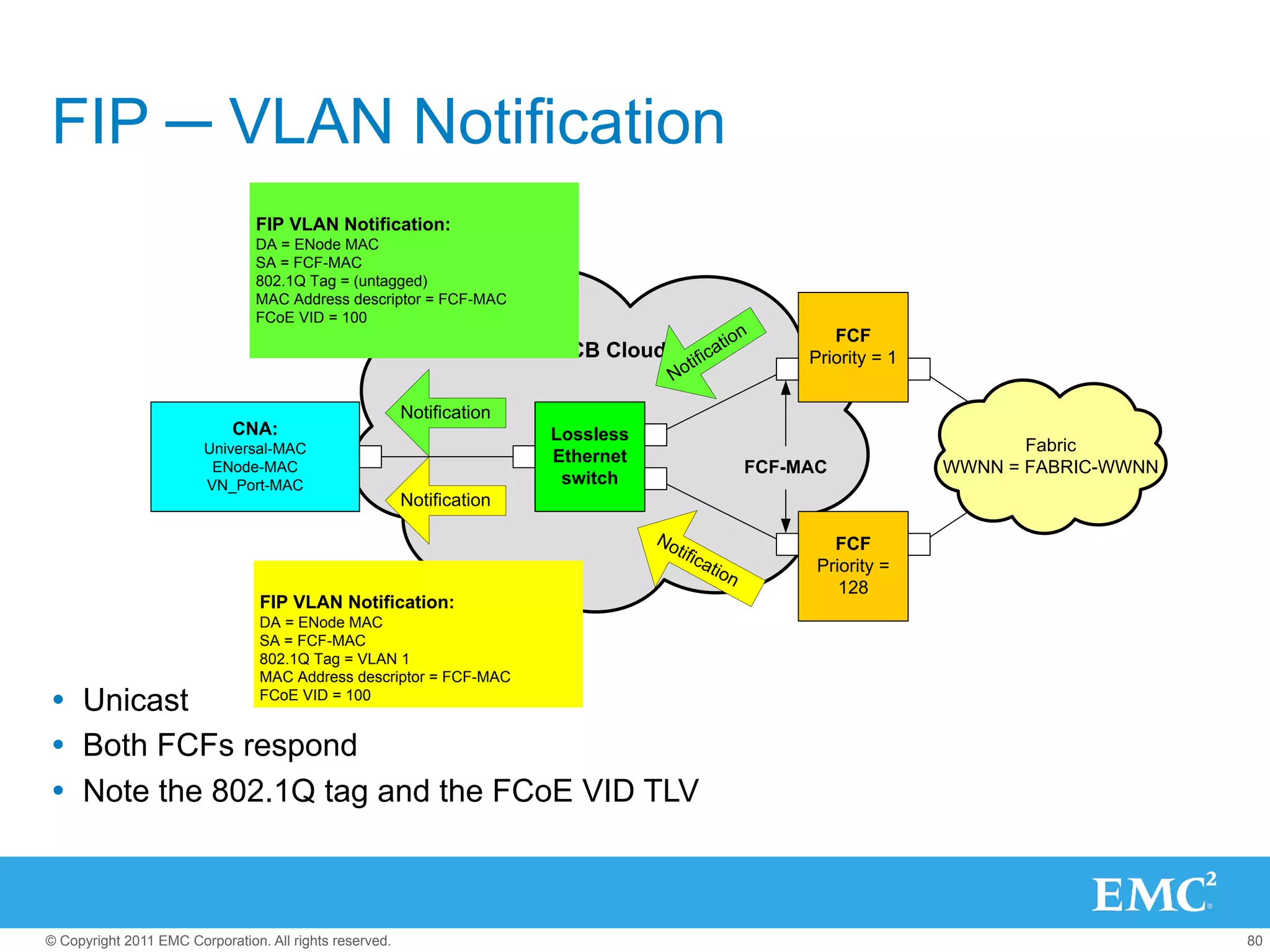

80. FIP ─ VLAN Notification
FIP VLAN Notification:
DA = ENode MAC
SA = FCF-MAC
802.1Q Tag = (untagged)
MAC Address descriptor = FCF-MAC
FCoE VID = 100
n FCF
DCB Cloud a tio
fic Priority = 1
N oti
Notification
CNA: Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
Notification
No FCF
tific
ati Priority =
on
128
FIP VLAN Notification:
DA = ENode MAC
SA = FCF-MAC
802.1Q Tag = VLAN 1
MAC Address descriptor = FCF-MAC
Ÿ Unicast FCoE VID = 100
Ÿ Both FCFs respond
Ÿ Note the 802.1Q tag and the FCoE VID TLV
© Copyright 2011 EMC Corporation. All rights reserved. 80

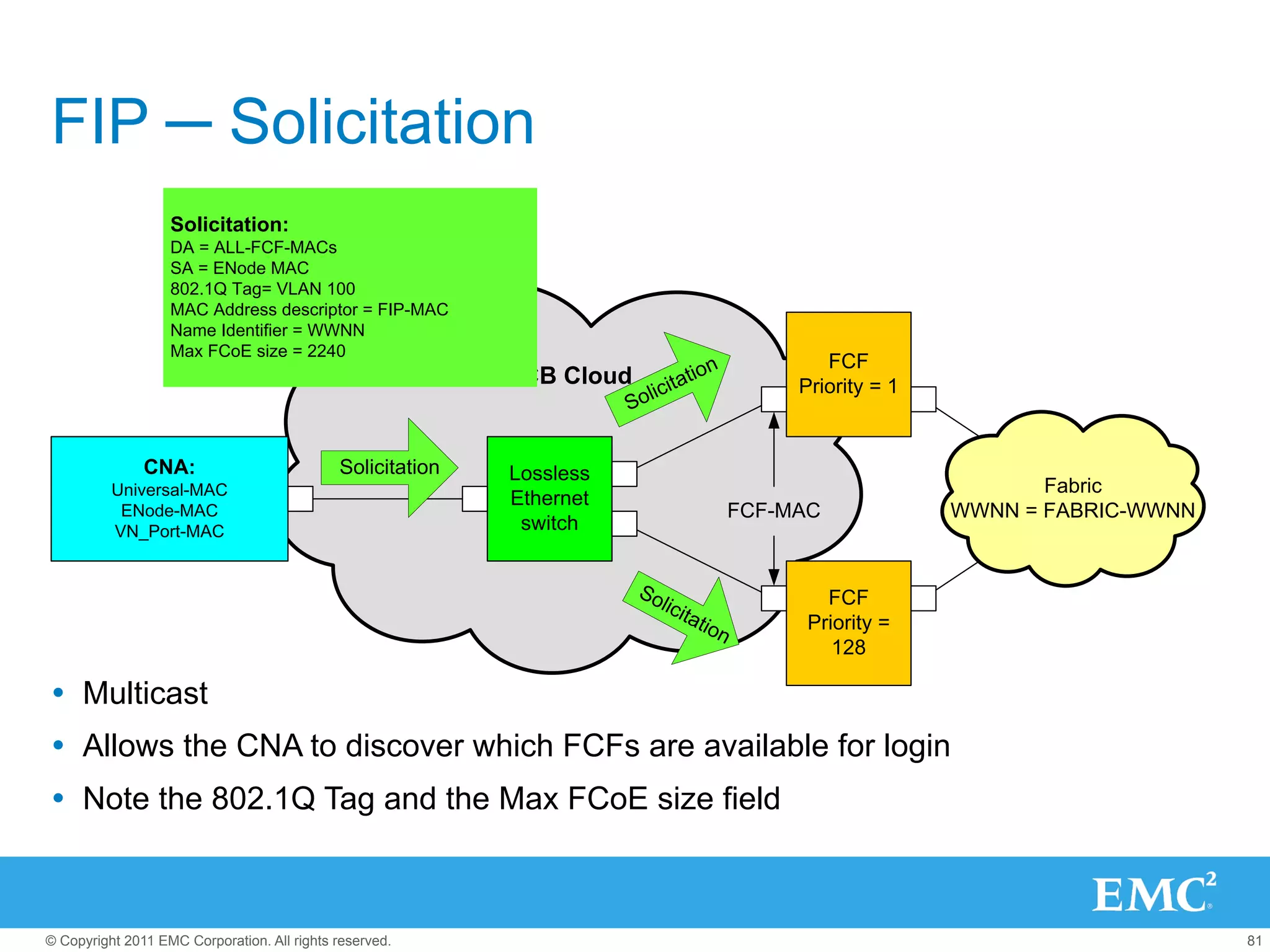

81. FIP ─ Solicitation
Solicitation:
DA = ALL-FCF-MACs
SA = ENode MAC
802.1Q Tag= VLAN 100
MAC Address descriptor = FIP-MAC
Name Identifier = WWNN
Max FCoE size = 2240
FCF
DCB Cloud ion
itat Priority = 1
S olic
CNA: Solicitation Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
So FCF
l i ci
tat Priority =
i on
128
Ÿ Multicast
Ÿ Allows the CNA to discover which FCFs are available for login
Ÿ Note the 802.1Q Tag and the Max FCoE size field
© Copyright 2011 EMC Corporation. All rights reserved. 81

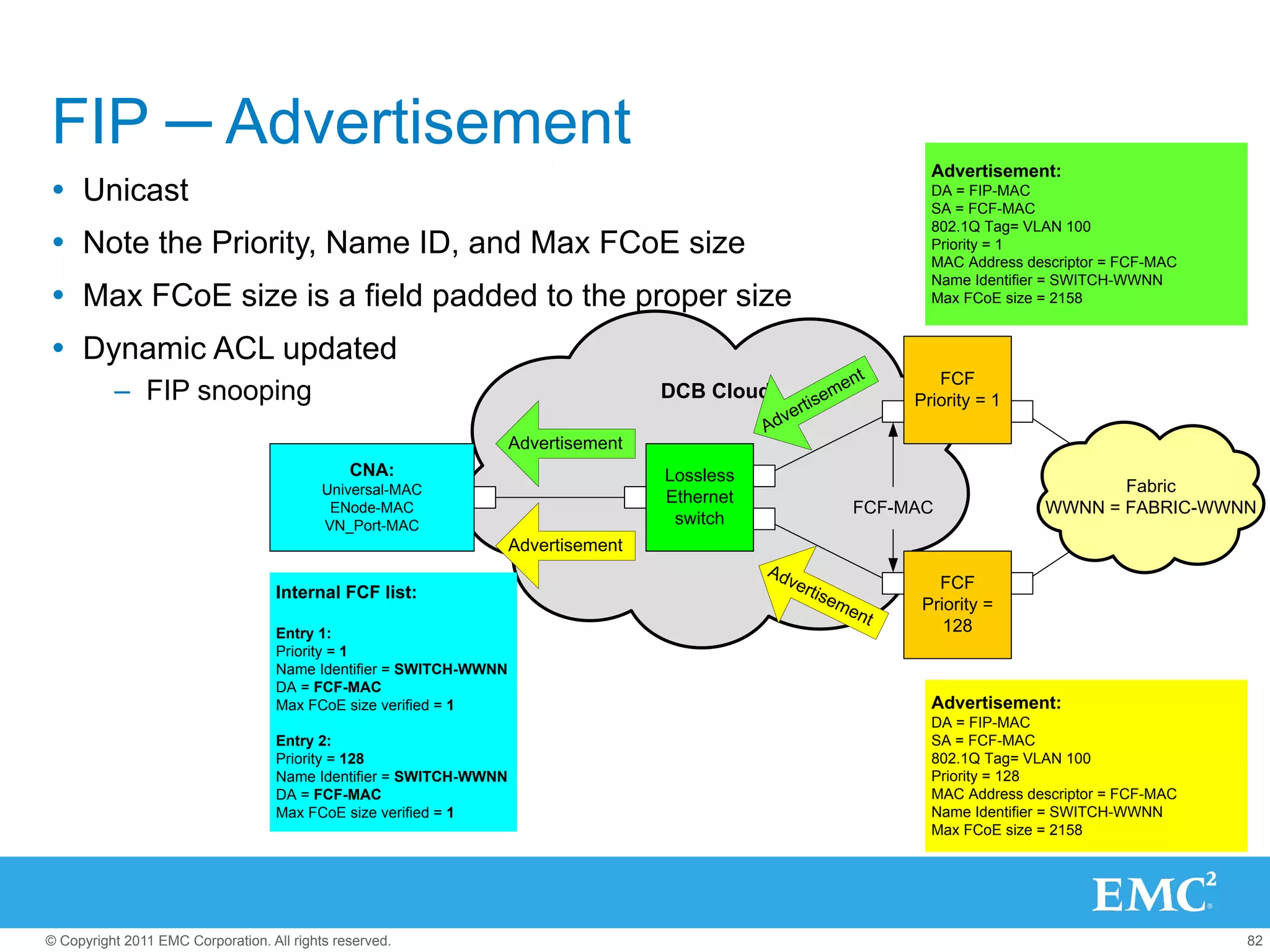

82. FIP ─ Advertisement
Advertisement:
Ÿ Unicast DA = FIP-MAC
SA = FCF-MAC
802.1Q Tag= VLAN 100
Ÿ Note the Priority, Name ID, and Max FCoE size Priority = 1
MAC Address descriptor = FCF-MAC
Name Identifier = SWITCH-WWNN
Ÿ Max FCoE size is a field padded to the proper size Max FCoE size = 2158
Ÿ Dynamic ACL updated
t FCF
en
– FIP snooping DCB Cloud i se
m
Priority = 1
v ert
Ad
Advertisement
CNA: Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
Advertisement
Ad
ve r FCF
Internal FCF list: tise
me Priority =
nt
Entry 1: 128
Priority = 1
Name Identifier = SWITCH-WWNN
DA = FCF-MAC
Max FCoE size verified = 1 Advertisement:
DA = FIP-MAC
Entry 2: SA = FCF-MAC
Priority = 128 802.1Q Tag= VLAN 100
Name Identifier = SWITCH-WWNN Priority = 128
DA = FCF-MAC MAC Address descriptor = FCF-MAC
Max FCoE size verified = 1 Name Identifier = SWITCH-WWNN
Max FCoE size = 2158
© Copyright 2011 EMC Corporation. All rights reserved. 82

83. FIP ─ FLOGI
FIP FLOGI:
DA = FCF-MAC (priority 1)
SA = ENode MAC
802.1Q Tag= VLAN 100
FIP FLOGI descriptor = FLOGI frame
FCF
GI
FLO Priority = 1
CNA: FLOGI Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
FCF
Priority =
128
Internal FCF list:
Entry 1:
Priority = 1
Name Identifier = SWITCH-WWNN
DA = FCF-MAC
Max FCoE size verified = 1
Entry 2:
Priority = 128 Ÿ Unicast
Name Identifier = SWITCH-WWNN
DA = FCF-MAC
Max FCoE size verified = 1 Ÿ Since both are connected to the same Fabric (as determined
by the Name ID field), the FCF with the lower priority is sent
the FLOGI
© Copyright 2011 EMC Corporation. All rights reserved. 83

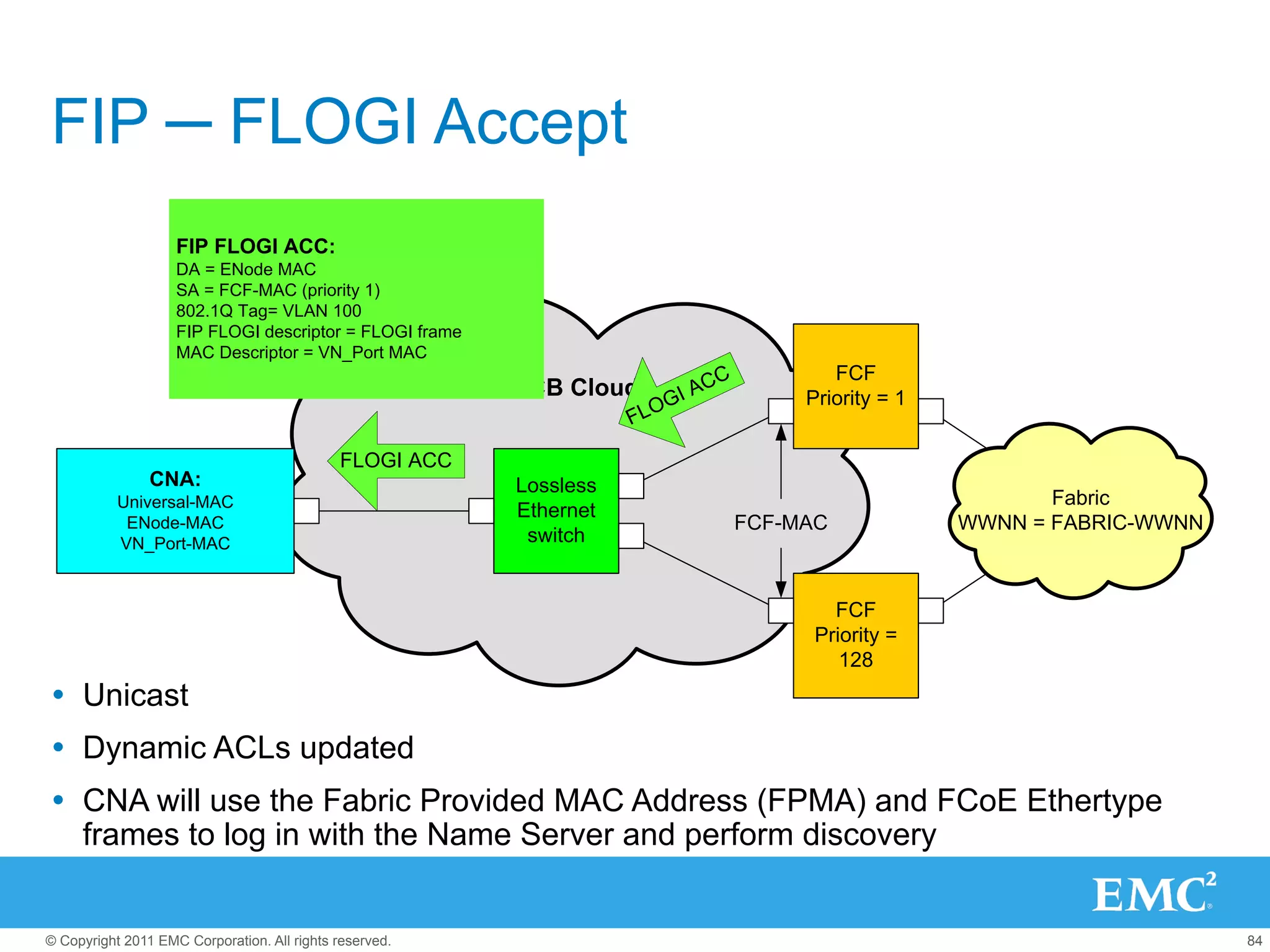

84. FIP ─ FLOGI Accept
FIP FLOGI ACC:
DA = ENode MAC
SA = FCF-MAC (priority 1)
802.1Q Tag= VLAN 100
FIP FLOGI descriptor = FLOGI frame
MAC Descriptor = VN_Port MAC
CC FCF
DCB Cloud A
GI Priority = 1
FLO
FLOGI ACC
CNA: Lossless
Universal-MAC Fabric
Ethernet
ENode-MAC FCF-MAC WWNN = FABRIC-WWNN
VN_Port-MAC switch
FCF
Priority =
128
Ÿ Unicast
Ÿ Dynamic ACLs updated
Ÿ CNA will use the Fabric Provided MAC Address (FPMA) and FCoE Ethertype
frames to log in with the Name Server and perform discovery
© Copyright 2011 EMC Corporation. All rights reserved. 84
