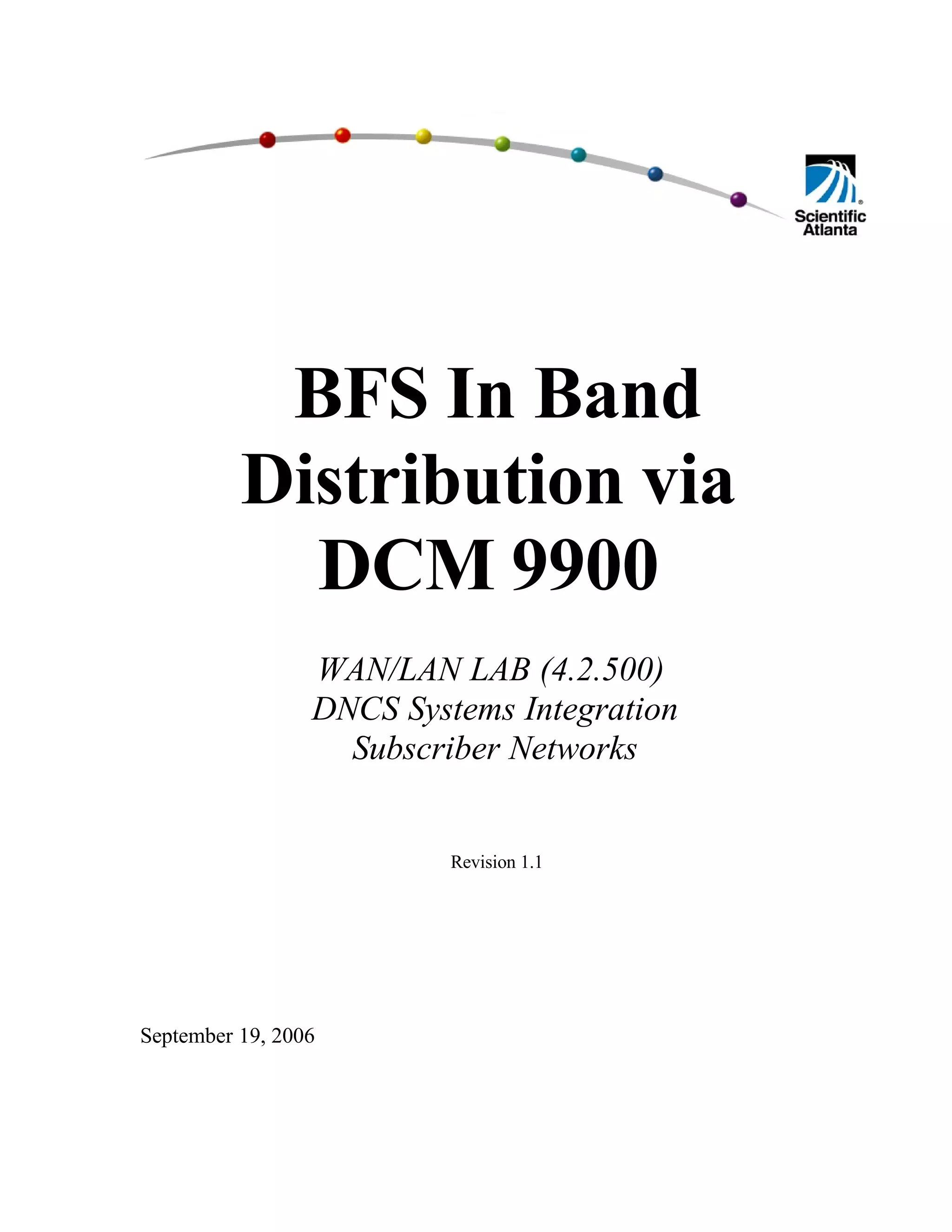

BFS Distribution Via DCM
1. BFS In Band
Distribution via
DCM 9900
WAN/LAN LAB (4.2.500)
DNCS Systems Integration
Subscriber Networks
Revision 1.1
September 19, 2006
2. Revision History
Revision Date Description Author
1.0 8/11/2006 First Revision David Turrie
1.1 9/19/2006 Updated DCM configuration (No Transrate group) David Turrie
3. Table of Contents

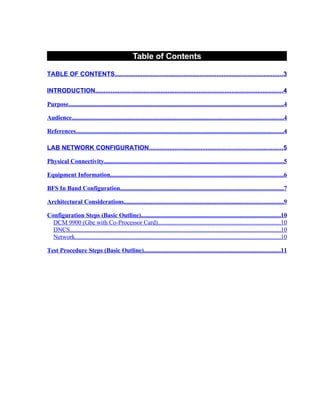

TABLE OF CONTENTS.................................................................................................3
INTRODUCTION.............................................................................................................4
Purpose.............................................................................................................................................4
Audience...........................................................................................................................................4
References.........................................................................................................................................4
LAB NETWORK CONFIGURATION.............................................................................5
Physical Connectivity......................................................................................................................5
Equipment Information..................................................................................................................6
BFS In Band Configuration............................................................................................................7

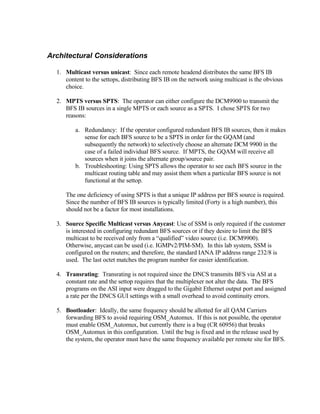

Architectural Considerations.........................................................................................................9

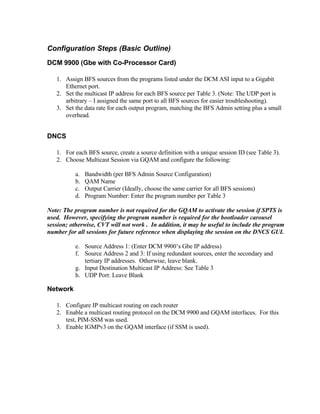

Configuration Steps (Basic Outline)............................................................................................10
DCM 9900 (Gbe with Co-Processor Card).................................................................................10
DNCS...........................................................................................................................................10
Network.......................................................................................................................................10
Test Procedure Steps (Basic Outline)..........................................................................................11
4. Introduction
Purpose
This document provides detailed configuration information for distributing BFS In Band (IB)
data via the Scientific-Atlanta (S-A) digital content manager (DCM 9900). The DCM9900 is a
new product that is gaining traction due to its support for Switched Digital Video (SDV) and Ad
Insertion. Operators may also want to take advantage of this device to distribute BFS IB via
their Gigabit Ethernet networks allowing them to remove all remnants of their ASI distribution
networks.
Audience
This document is intended for Scientific-Atlanta personnel who are experienced with the Digital
Video System and basic networking principles.
References
[1] Install Direct ASI.doc, dtd 1/21/2005 (K. Perry)
[2] DCM Configuration Guide.pdf
5. Lab Network Configuration
Physical Connectivity

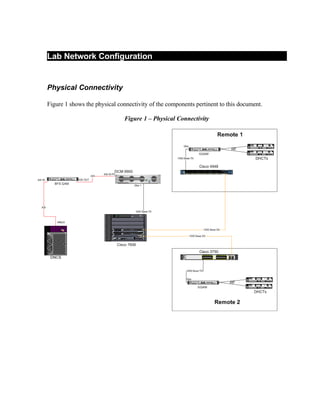

Figure 1 shows the physical connectivity of the components pertinent to this document.
Figure 1 – Physical Connectivity
6. Equipment Information

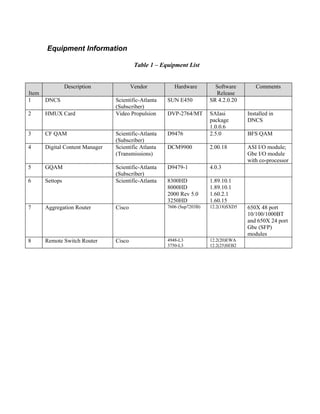

Table 1 – Equipment List
Description Vendor Hardware Software Comments
Item Release
1 DNCS Scientific-Atlanta SUN E450 SR 4.2.0.20
(Subscriber)
2 HMUX Card Video Propulsion DVP-2764/MT SAIasi Installed in
package DNCS
1.0.0.6
3 CF QAM Scientific-Atlanta D9476 2.5.0 BFS QAM
(Subscriber)
4 Digital Content Manager Scientific Atlanta DCM9900 2.00.18 ASI I/O module;
(Transmissions) Gbe I/O module
with co-processor
5 GQAM Scientific-Atlanta D9479-1 4.0.3
(Subscriber)
6 Settops Scientific-Atlanta 8300HD 1.89.10.1
8000HD 1.89.10.1
2000 Rev 5.0 1.60.2.1
3250HD 1.60.15
7606 (Sup7203B) 12.2(18)SXD5
7 Aggregation Router Cisco 650X 48 port
10/100/1000BT
and 650X 24 port
Gbe (SFP)
modules
4948-L3 12.2(20)EWA
8 Remote Switch Router Cisco
3750-L3 12.2(25)SEB2
7. BFS In Band Configuration
Table 2 lists the BFS In band sessions used for the test that are automatically setup by the DNCS
on the BFS QAM.
Table 2 – Default BFS sessions
# In Band Data Rate Elementary
Session ID Program # PMT PID
Service (Mbps) Stream PID
1 In-Band 00:00:00:00:00:00 02 (0x 02) 1.0 128 (0x80) 112 (0x70) 113 (0x71)
2 CAM IB 00:00:00:00:00:00 04 (0x 04) 1.0 129 (0x81) 128 (0x80) 129 (0x81)
3 IPG IB 00:00:00:00:00:00 06 (0x 06) 1.0 130 (0x82) 144 (0x90) 145 (0x91)
4 PPV IB 00:00:00:00:00:00 08 (0x 08) 1.0 131 (0x83) 160 (0xA0) 161 (0xA1)
5 IPG2 IB 00:00:00:00:00:00 10 (0x 0A) 1.0 132 (0x84) 176 (0xB0) 177 (0xB1)
6 IPG3 IB 00:00:00:00:00:00 12 (0x 0C) 1.0 133 (0x85) 192 (0xC0) 193 (0xC1)
7 IPG4 IB 00:00:00:00:00:00 14 (0x 0E) 1.0 134 (0x86) 208 (0xD0) 209 (0xD1)
8 IPG5 IB 00:00:00:00:00:00 16 (0x 10) 1.0 135 (0x87) 224 (0xE0) 225 (0xE1)
9 IPG6 IB 00:00:00:00:00:00 18 (0x 12) 1.0 136 (0x88) 240 (0xF0) 241 (0xF1)
10 IPG7 IB 00:00:00:00:00:00 20 (0x 14) 1.0 137 (0x89) 256 (0x100) 257 (0x101)
11 PPV IB2 00:00:00:00:00:00 22 (0x 16) 0.8 138 (0x8a) 272 (0x110) 273 (0x111)
12 SDV IB 00:00:00:00:00:00 24 (0x 18) 1.0 139 (0x8b) 288 (0x120) 289 (0x121)
13 OSM 00:00:00:00:00:00 199 (0x C7) 3.0 167 (0xa7) 736 (0x2E0) 737 (0x2E1)
14 SAIXOD 00:00:00:00:00:00 7000 (0x1B58) 2.0 168 (0xa8) 752 (0x2F0) 753 (0x2F1)
Total
As is the case with all remote headend installations, a QAM must be directly connected to the
DNCS regardless if this QAM is connected to the HFC plan (aka “dummy QAM”) and the
operator must configure a separate source definition and session per remote headend for each
source. In this case, the session type is a GQAM multicast session. Table 3 shows these sessions
for remote 1 GQAM. The multicast sessions for the remote 2 GQAM are identical except for the
session MAC ending with 0x11.
9. Architectural Considerations
1. Multicast versus unicast: Since each remote headend distributes the same BFS IB
content to the settops, distributing BFS IB on the network using multicast is the obvious
choice.
2. MPTS versus SPTS: The operator can either configure the DCM9900 to transmit the
BFS IB sources in a single MPTS or each source as a SPTS. I chose SPTS for two
reasons:
a. Redundancy: If the operator configured redundant BFS IB sources, then it makes
sense for each BFS source to be a SPTS in order for the GQAM (and
subsequently the network) to selectively choose an alternate DCM 9900 in the
case of a failed individual BFS source. If MPTS, the GQAM will receive all
sources when it joins the alternate group/source pair.
b. Troubleshooting: Using SPTS allows the operator to see each BFS source in the
multicast routing table and may assist them when a particular BFS source is not
functional at the settop.
The one deficiency of using SPTS is that a unique IP address per BFS source is required.
Since the number of BFS IB sources is typically limited (Forty is a high number), this
should not be a factor for most installations.
3. Source Specific Multicast versus Anycast: Use of SSM is only required if the customer
is interested in configuring redundant BFS sources or if they desire to limit the BFS
multicast to be received only from a “qualified” video source (i.e. DCM9900).
Otherwise, anycast can be used (i.e. IGMPv2/PIM-SM). In this lab system, SSM is
configured on the routers; and therefore, the standard IANA IP address range 232/8 is
used. The last octet matches the program number for easier identification.
4. Transrating: Transrating is not required since the DNCS transmits BFS via ASI at a
constant rate and the settop requires that the multiplexer not alter the data. The BFS
programs on the ASI input were dragged to the Gigabit Ethernet output port and assigned
a rate per the DNCS GUI settings with a small overhead to avoid continuity errors.
5. Bootloader: Ideally, the same frequency should be allotted for all QAM Carriers
forwarding BFS to avoid requiring OSM_Automux. If this is not possible, the operator
must enable OSM_Automux, but currently there is a bug (CR 60956) that breaks
OSM_Automux in this configuration. Until the bug is fixed and in the release used by
the system, the operator must have the same frequency available per remote site for BFS.
10. Configuration Steps (Basic Outline)
DCM 9900 (Gbe with Co-Processor Card)
1. Assign BFS sources from the programs listed under the DCM ASI input to a Gigabit
Ethernet port.
2. Set the multicast IP address for each BFS source per Table 3. (Note: The UDP port is
arbitrary – I assigned the same port to all BFS sources for easier troubleshooting).
3. Set the data rate for each output program, matching the BFS Admin setting plus a small
overhead.
DNCS
1. For each BFS source, create a source definition with a unique session ID (see Table 3).
2. Choose Multicast Session via GQAM and configure the following:
a. Bandwidth (per BFS Admin Source Configuration)
b. QAM Name
c. Output Carrier (Ideally, choose the same carrier for all BFS sessions)
d. Program Number: Enter the program number per Table 3
Note: The program number is not required for the GQAM to activate the session if SPTS is
used. However, specifying the program number is required for the bootloader carousel
session; otherwise, CVT will not work . In addition, it may be useful to include the program
number for all sessions for future reference when displaying the session on the DNCS GUI.
e. Source Address 1: (Enter DCM 9900’s Gbe IP address)
f. Source Address 2 and 3: If using redundant sources, enter the secondary and
tertiary IP addresses. Otherwise, leave blank.
g. Input Destination Multicast IP Address: See Table 3
h. UDP Port: Leave Blank
Network
1. Configure IP multicast routing on each router
2. Enable a multicast routing protocol on the DCM 9900 and GQAM interfaces. For this
test, PIM-SSM was used.
3. Enable IGMPv3 on the GQAM interface (if SSM is used).
11. Test Procedure Steps (Basic Outline)
For all steps, compare performance with local settops (same models) that receive BFS IB directly
from the BFS QAM.
1. IPG Verification
a. Reboot settop.
b. Verify the settop boots “Ready QAM” for IPG
c. Check the guide for seven days of IPG
d. Verify that the mini-carousel discovery file is successfully downloaded.
Results: SUCCESS
2. PPV Verification
a. Tune to a PPV channel
b. Ensure the PPV barker shows the latest event
c. Buy a PPV event.
Results: SUCCESS
3. Other In Band Application Verification
a. Tune to a xOD channel
b. Verify the client successfully loads.
c. Purchase a movie.
Results: SUCCESS
4. Image Download Verification
a. Download an image to a settop via CVT.
Results:
OK if not using OSM Automux.
Failed if using OSMAutomux configuration due to a defect on how OSM Kludge Manager
obtains the TSID for the remote GQAMs. CR 60956
Note: OSM Automux is required if each GQAM carrier forwarding BFS IB does not
match the BFS QAM frequency.
