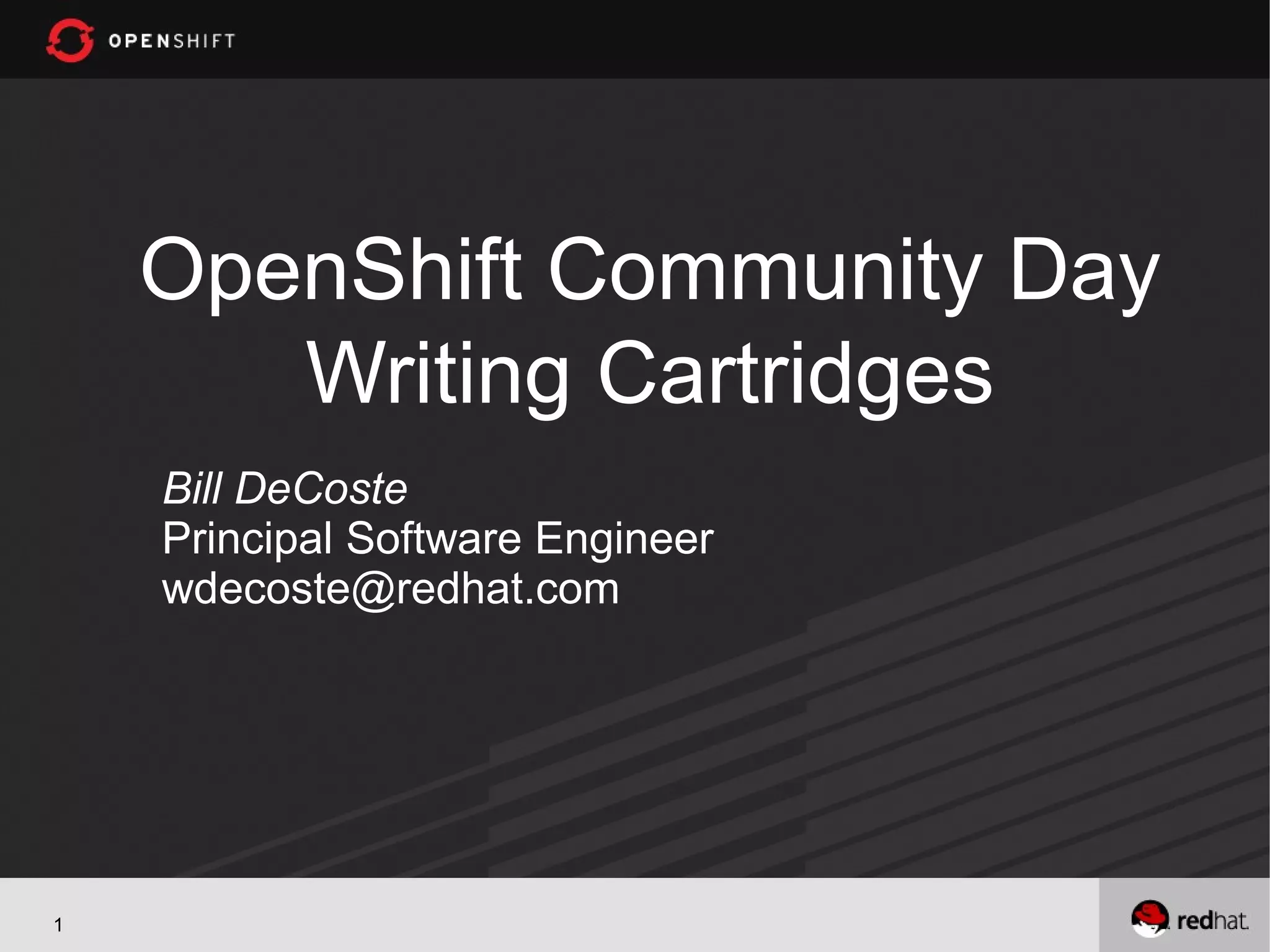

1. OpenShift Community Day
Writing Cartridges
Bill DeCoste
Principal Software Engineer
wdecoste@redhat.com
1

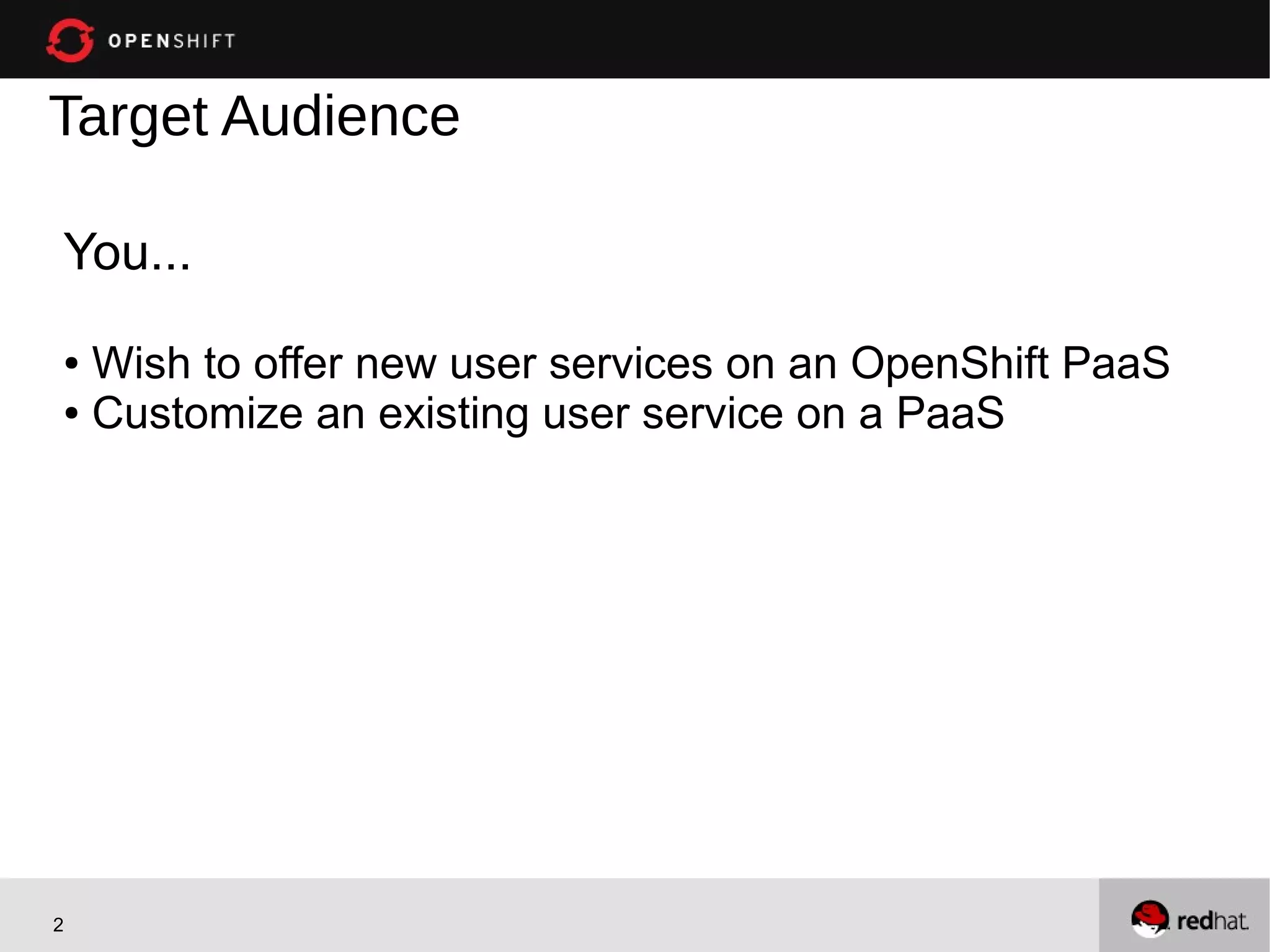

2. Target Audience
You...
● Wish to offer new user services on an OpenShift PaaS
● Customize an existing user service on a PaaS
2

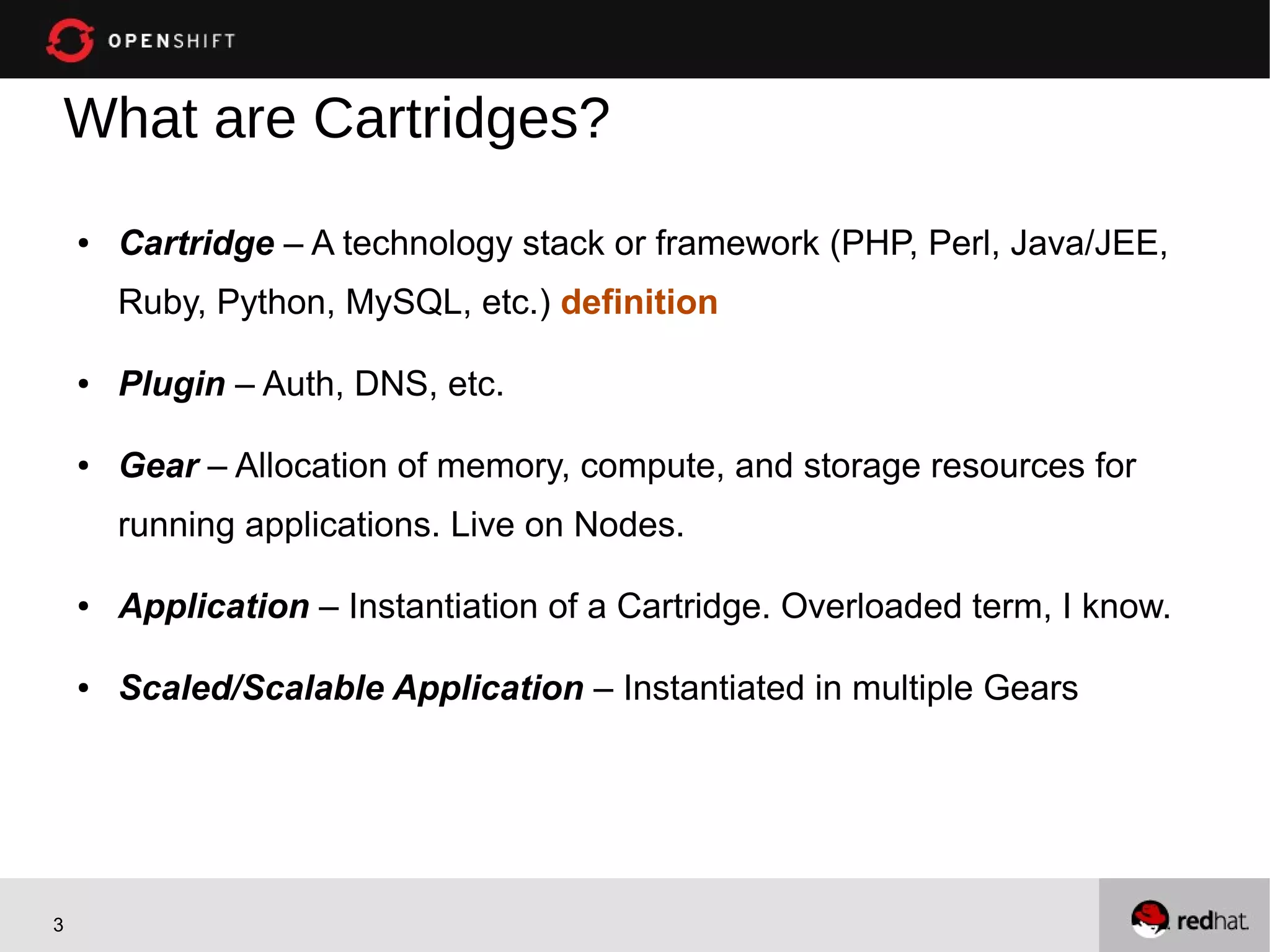

3. What are Cartridges?
● Cartridge – A technology stack or framework (PHP, Perl, Java/JEE,
Ruby, Python, MySQL, etc.) definition
● Plugin – Auth, DNS, etc.
● Gear – Allocation of memory, compute, and storage resources for
running applications. Live on Nodes.
● Application – Instantiation of a Cartridge. Overloaded term, I know.
● Scaled/Scalable Application – Instantiated in multiple Gears
3

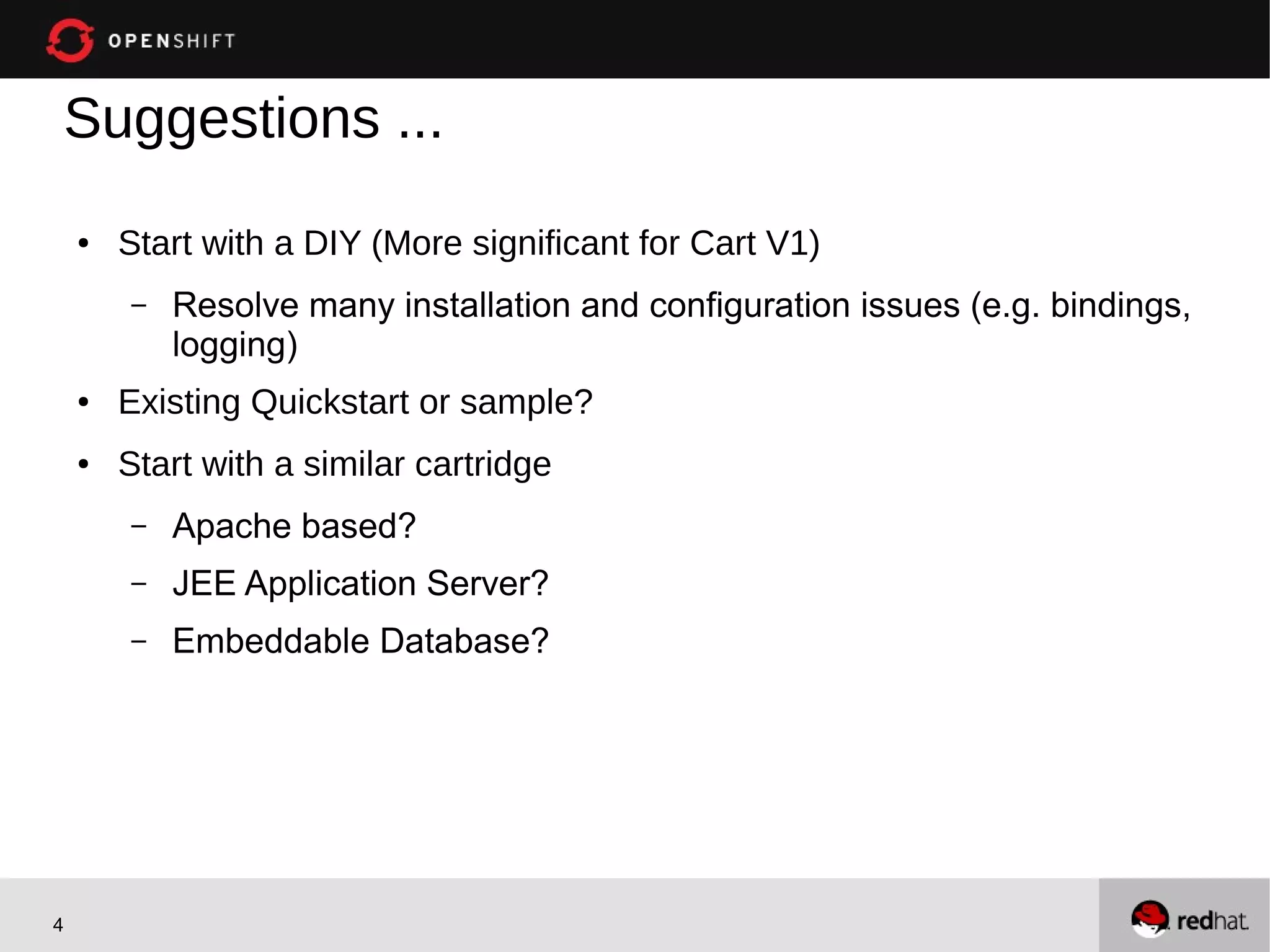

4. Suggestions ...
● Start with a DIY (More significant for Cart V1)
– Resolve many installation and configuration issues (e.g. bindings,
logging)
● Existing Quickstart or sample?
● Start with a similar cartridge
– Apache based?
– JEE Application Server?
– Embeddable Database?
4

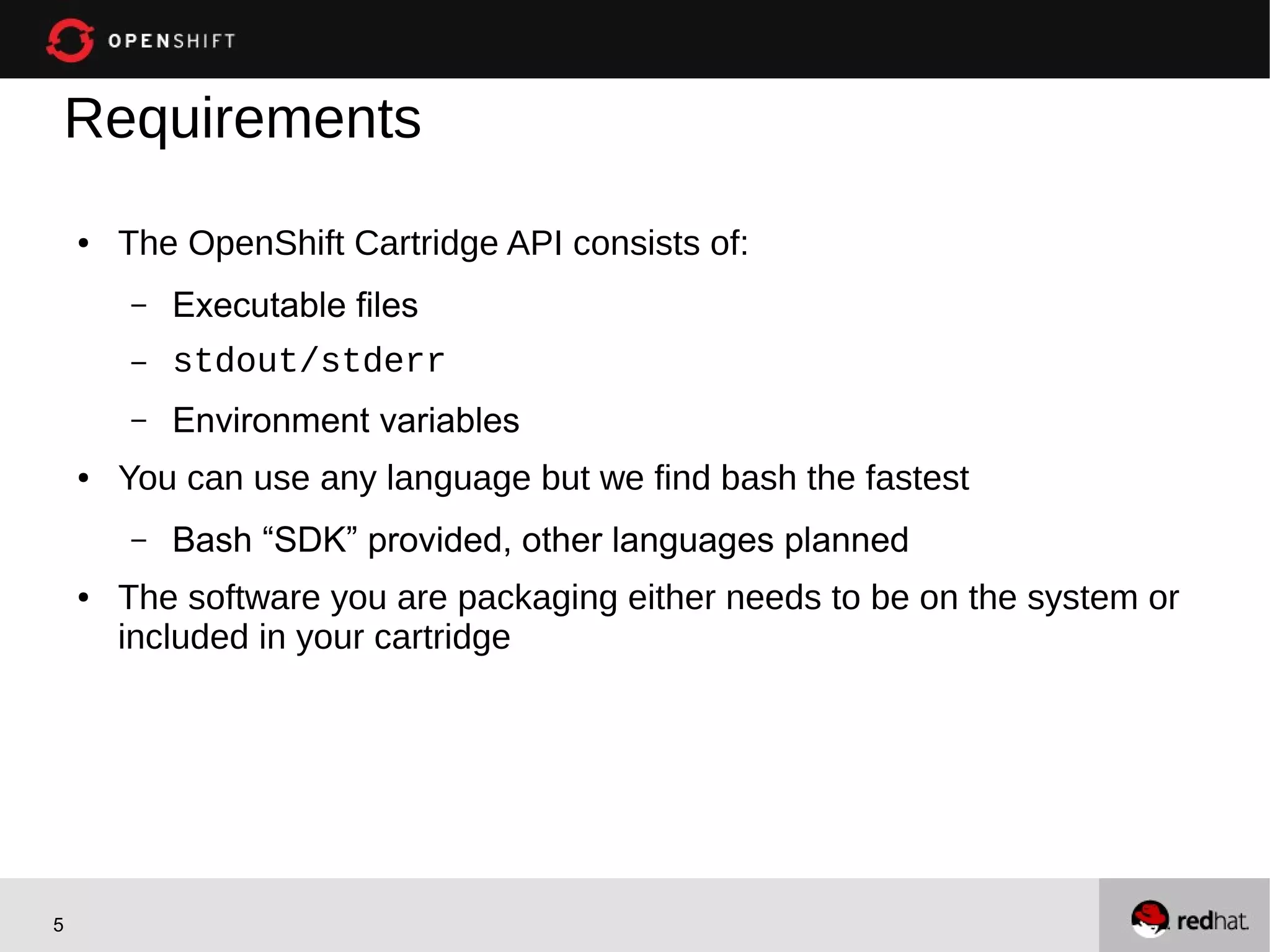

5. Requirements
● The OpenShift Cartridge API consists of:
– Executable files
– stdout/stderr
– Environment variables
● You can use any language but we find bash the fastest
– Bash “SDK” provided, other languages planned
● The software you are packaging either needs to be on the system or
included in your cartridge
5

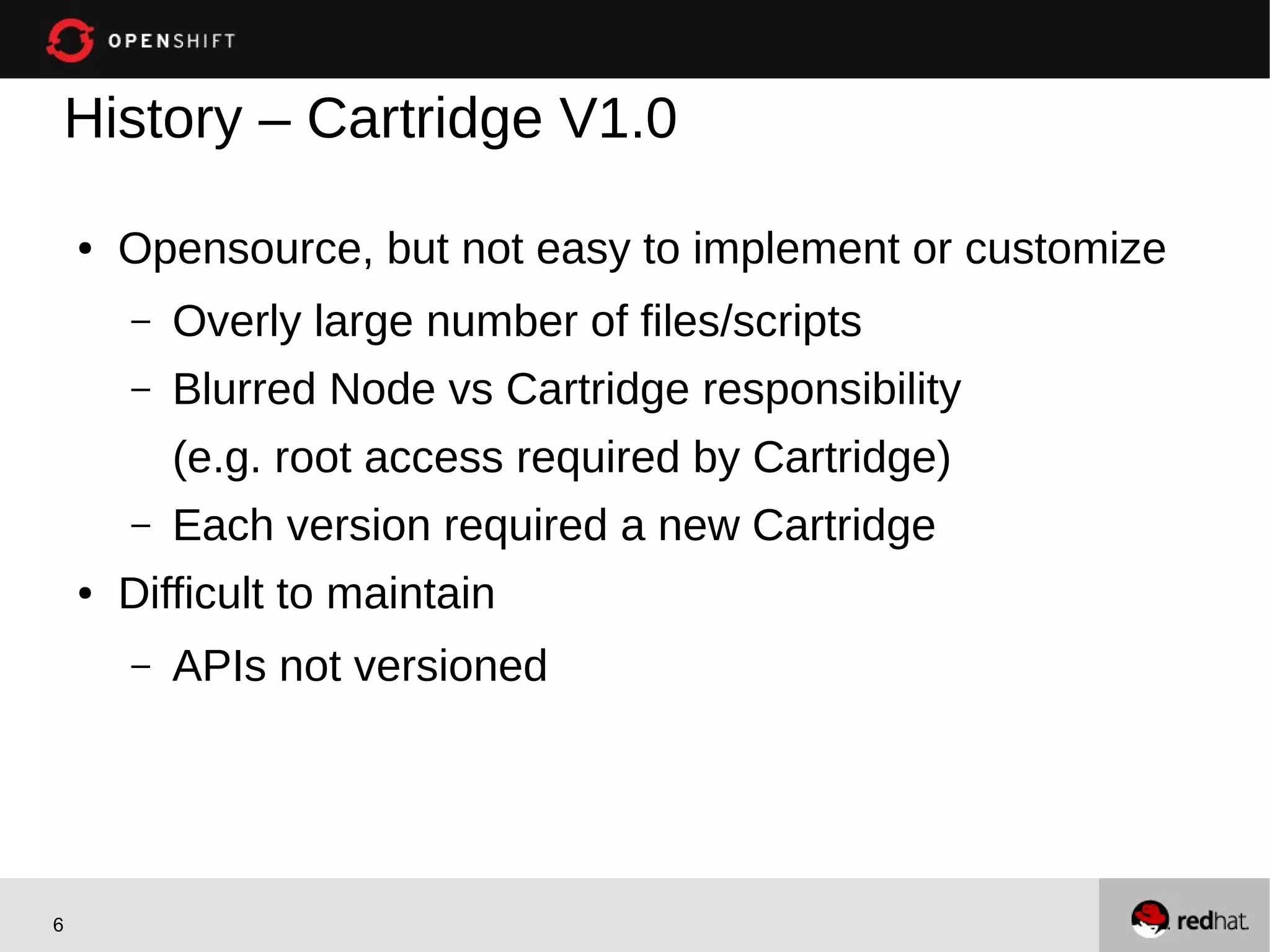

6. History – Cartridge V1.0
● Opensource, but not easy to implement or customize
– Overly large number of files/scripts
– Blurred Node vs Cartridge responsibility
(e.g. root access required by Cartridge)
– Each version required a new Cartridge
● Difficult to maintain
– APIs not versioned
6

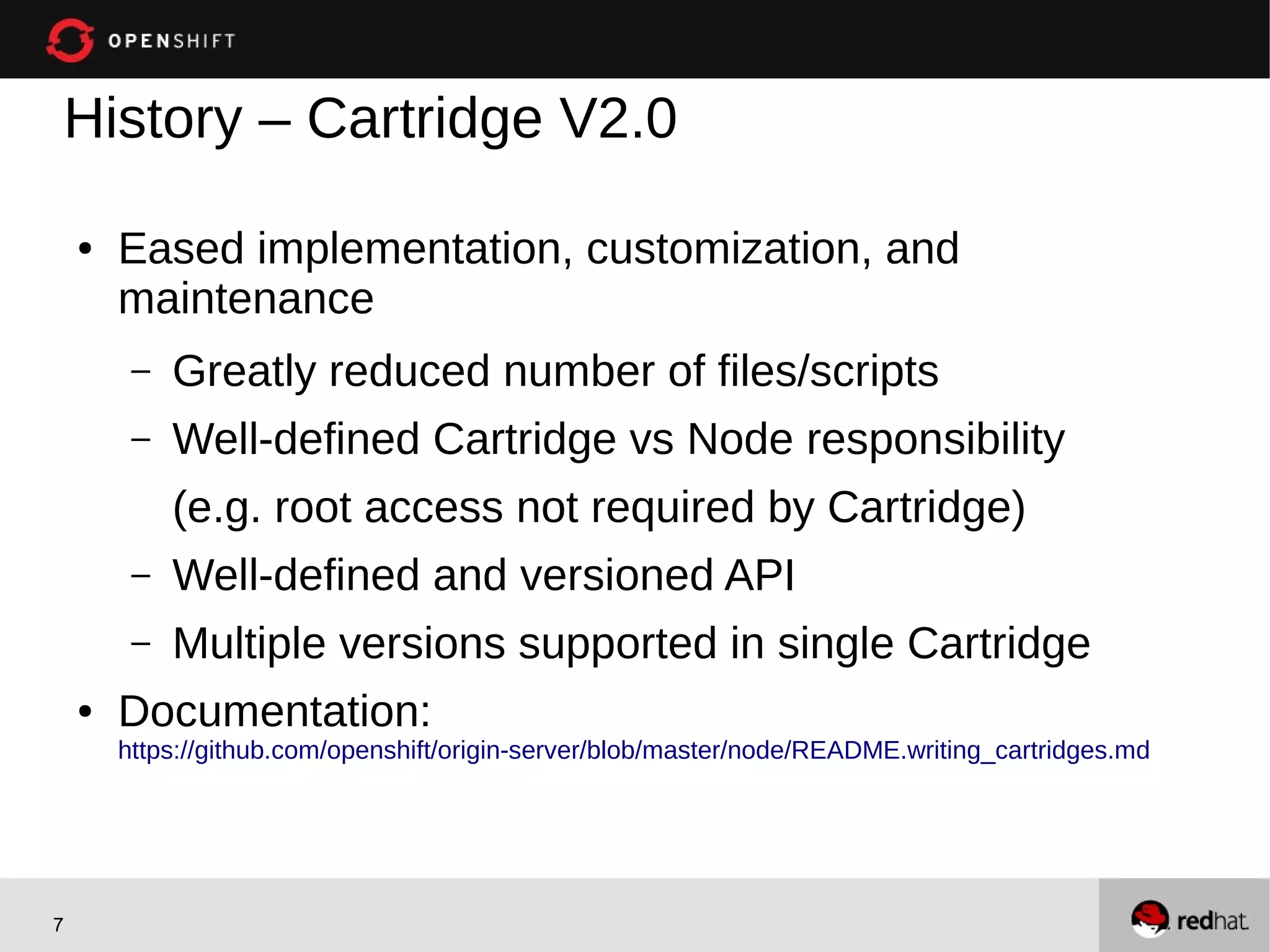

7. History – Cartridge V2.0
● Eased implementation, customization, and
maintenance
– Greatly reduced number of files/scripts
– Well-defined Cartridge vs Node responsibility
(e.g. root access not required by Cartridge)
– Well-defined and versioned API
– Multiple versions supported in single Cartridge
● Documentation:
https://github.com/openshift/origin-server/blob/master/node/README.writing_cartridges.md
7

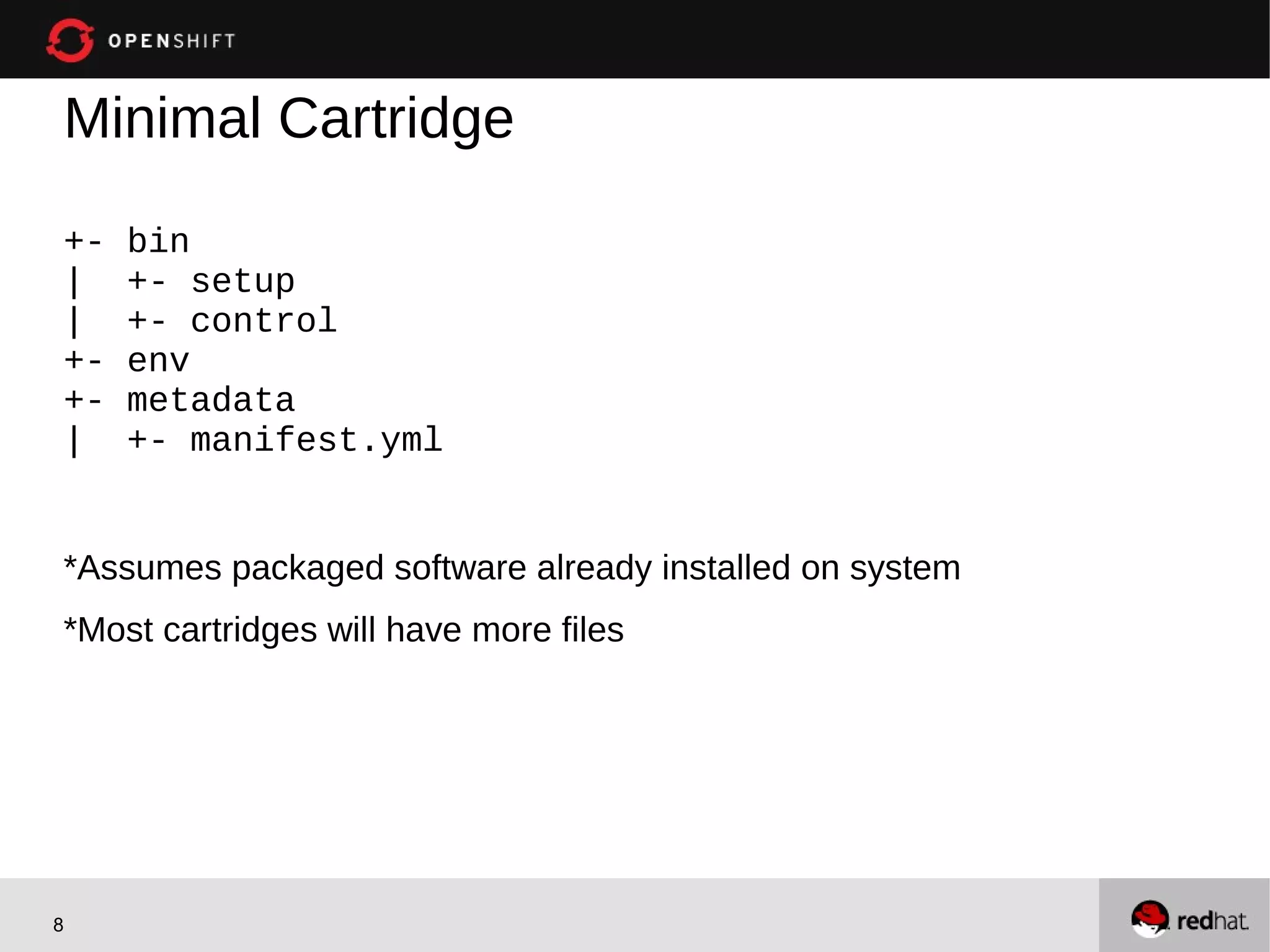

8. Minimal Cartridge
+- bin
| +- setup
| +- control
+- env
+- metadata
| +- manifest.yml
*Assumes packaged software already installed on system
*Most cartridges will have more files
8

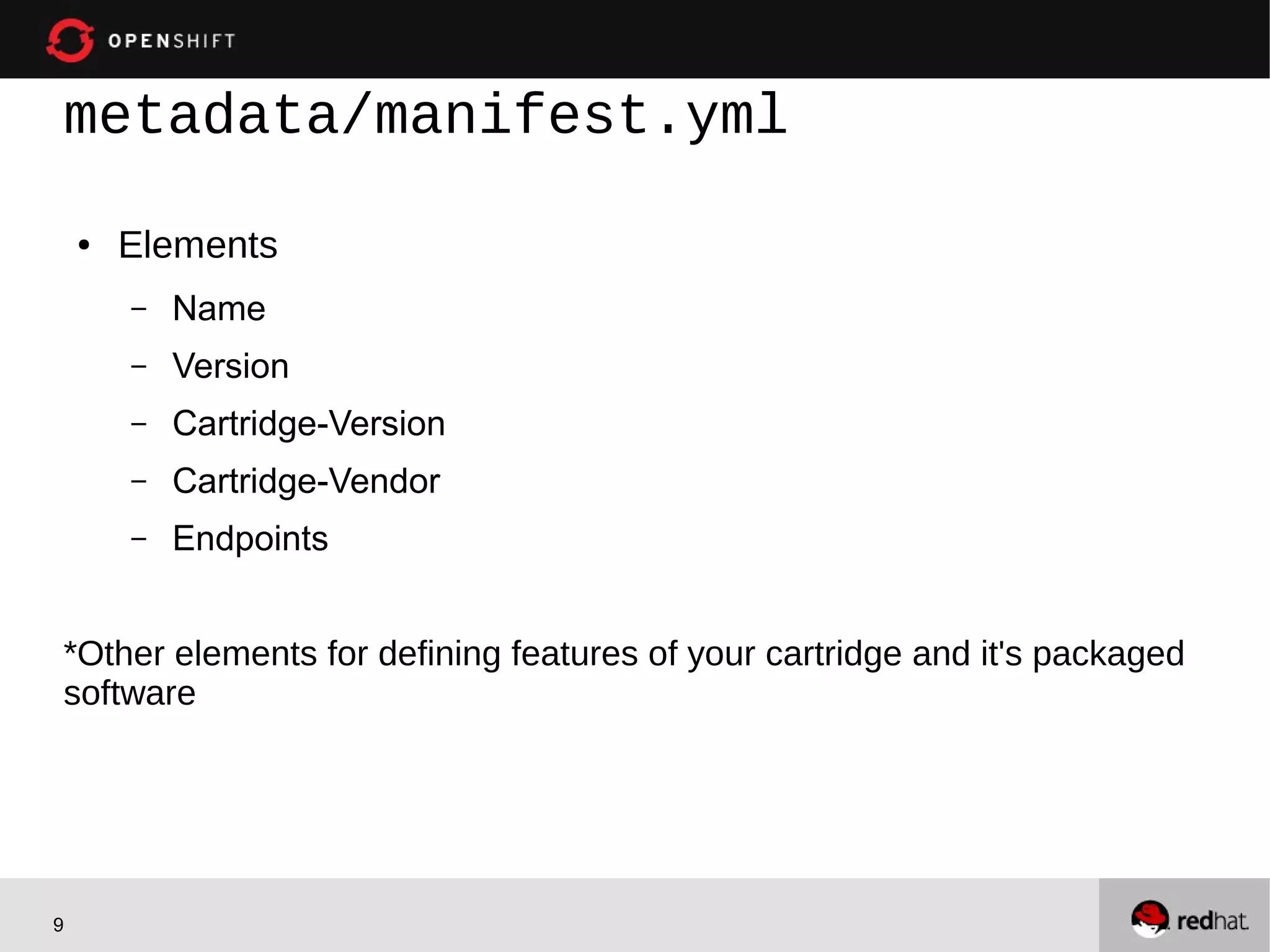

9. metadata/manifest.yml
● Elements
– Name
– Version
– Cartridge-Version
– Cartridge-Vendor
– Endpoints
*Other elements for defining features of your cartridge and it's packaged
software
9

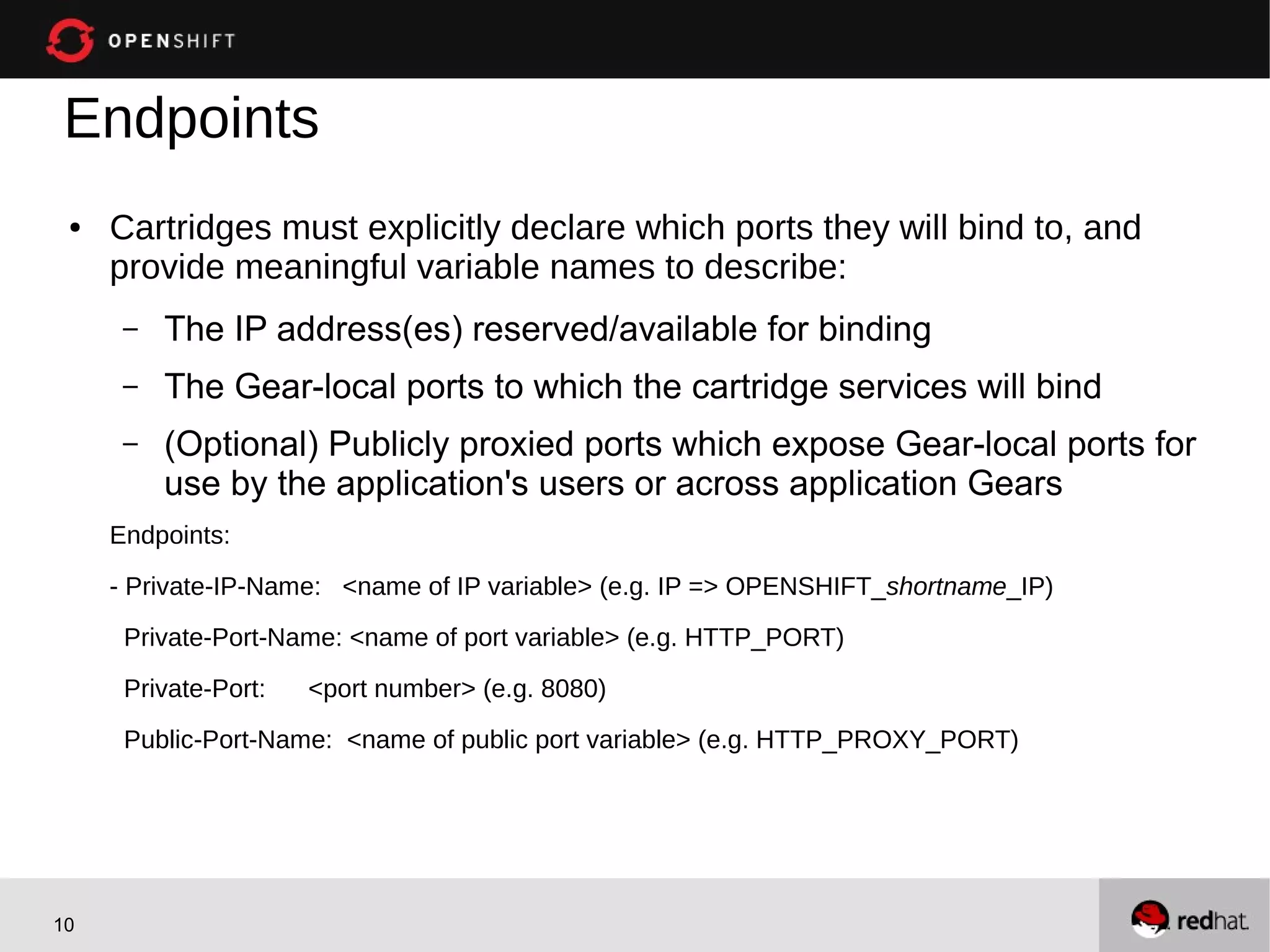

10. Endpoints
● Cartridges must explicitly declare which ports they will bind to, and
provide meaningful variable names to describe:
– The IP address(es) reserved/available for binding
– The Gear-local ports to which the cartridge services will bind
– (Optional) Publicly proxied ports which expose Gear-local ports for
use by the application's users or across application Gears
Endpoints:
- Private-IP-Name: <name of IP variable> (e.g. IP => OPENSHIFT_shortname_IP)
Private-Port-Name: <name of port variable> (e.g. HTTP_PORT)
Private-Port: <port number> (e.g. 8080)
Public-Port-Name: <name of public port variable> (e.g. HTTP_PROXY_PORT)
10

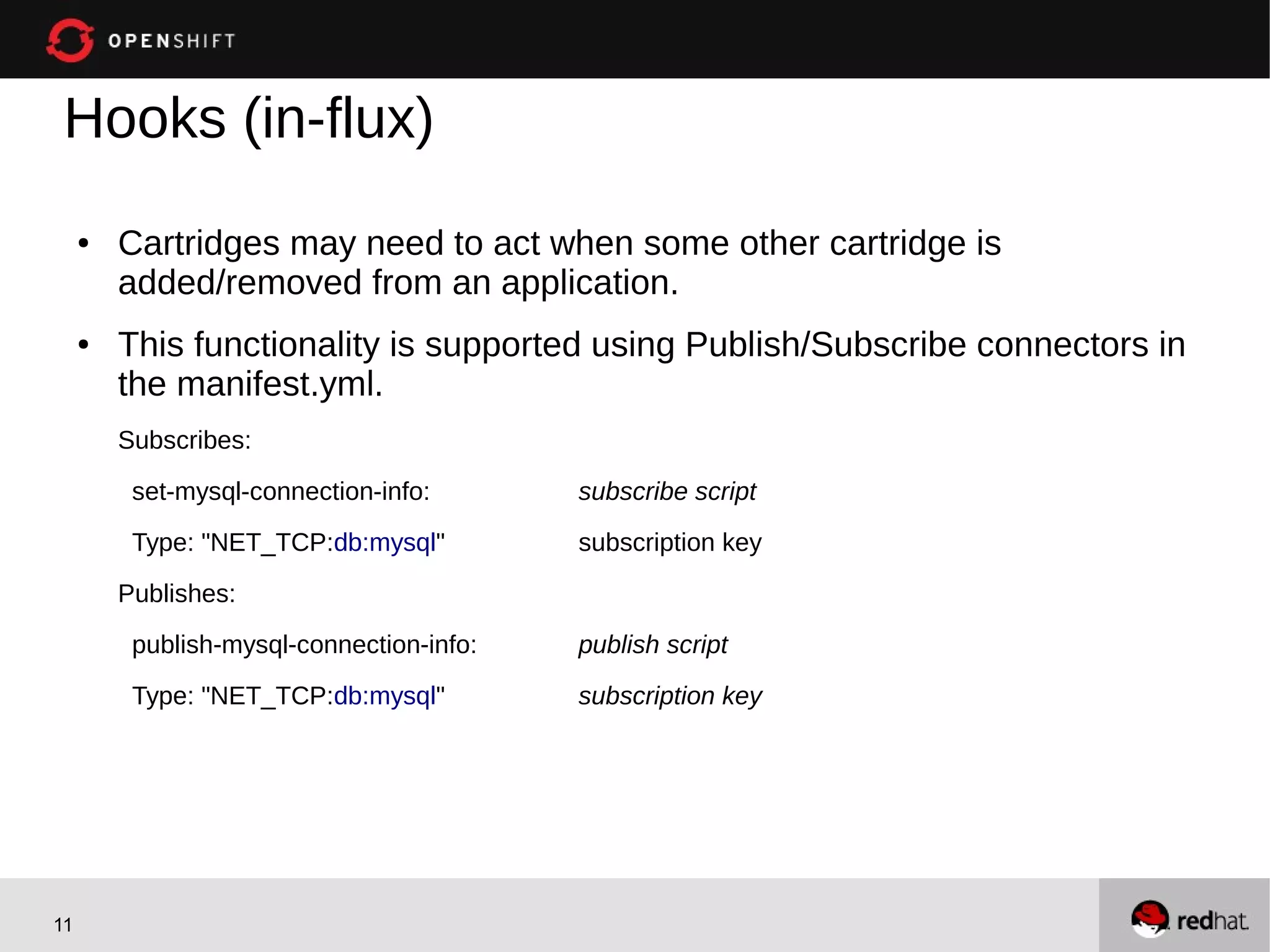

11. Hooks (in-flux)
● Cartridges may need to act when some other cartridge is
added/removed from an application.
● This functionality is supported using Publish/Subscribe connectors in
the manifest.yml.
Subscribes:
set-mysql-connection-info: subscribe script
Type: "NET_TCP:db:mysql" subscription key
Publishes:
publish-mysql-connection-info: publish script
Type: "NET_TCP:db:mysql" subscription key
11

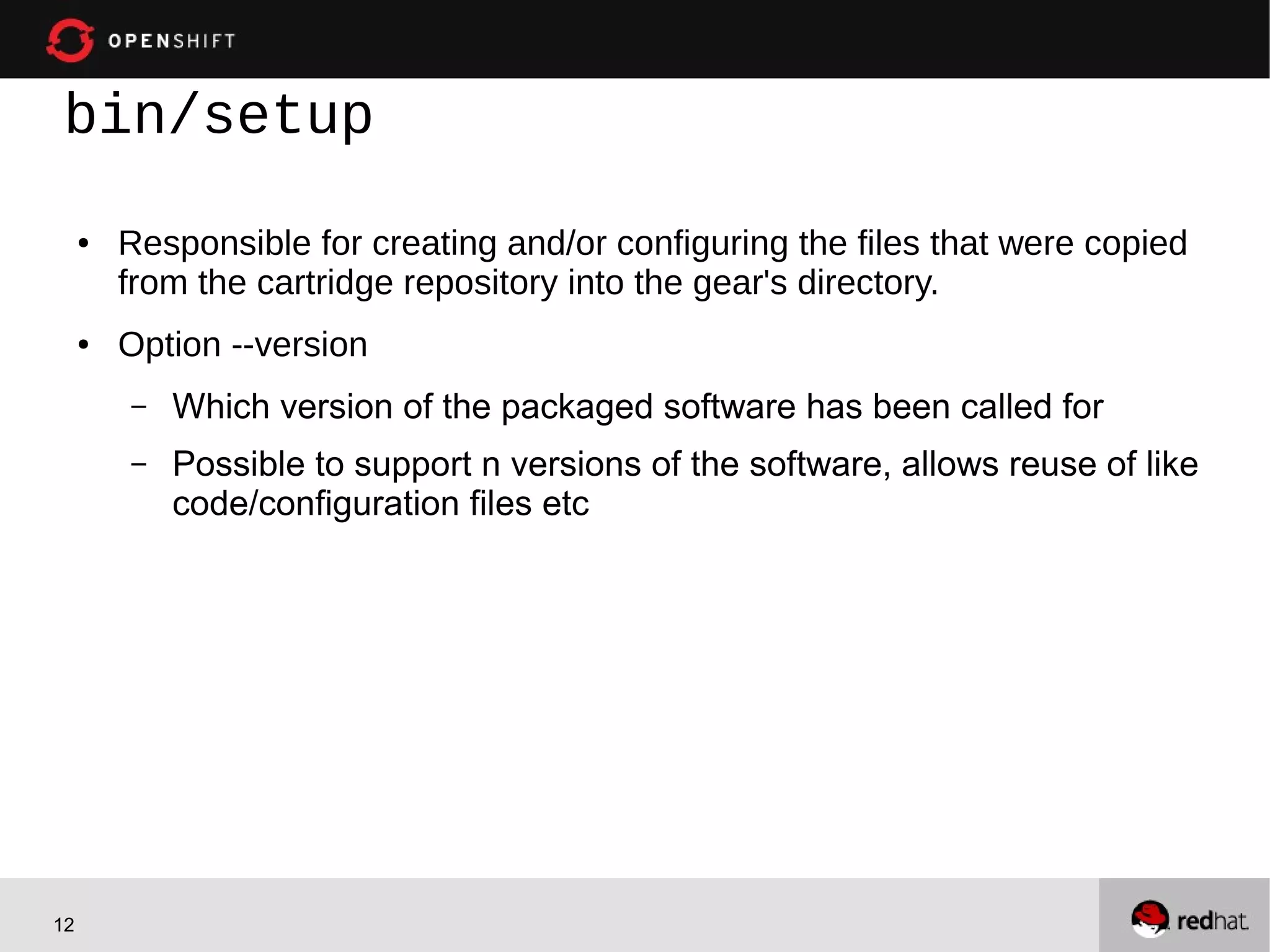

12. bin/setup
● Responsible for creating and/or configuring the files that were copied
from the cartridge repository into the gear's directory.
● Option --version
– Which version of the packaged software has been called for
– Possible to support n versions of the software, allows reuse of like
code/configuration files etc
12

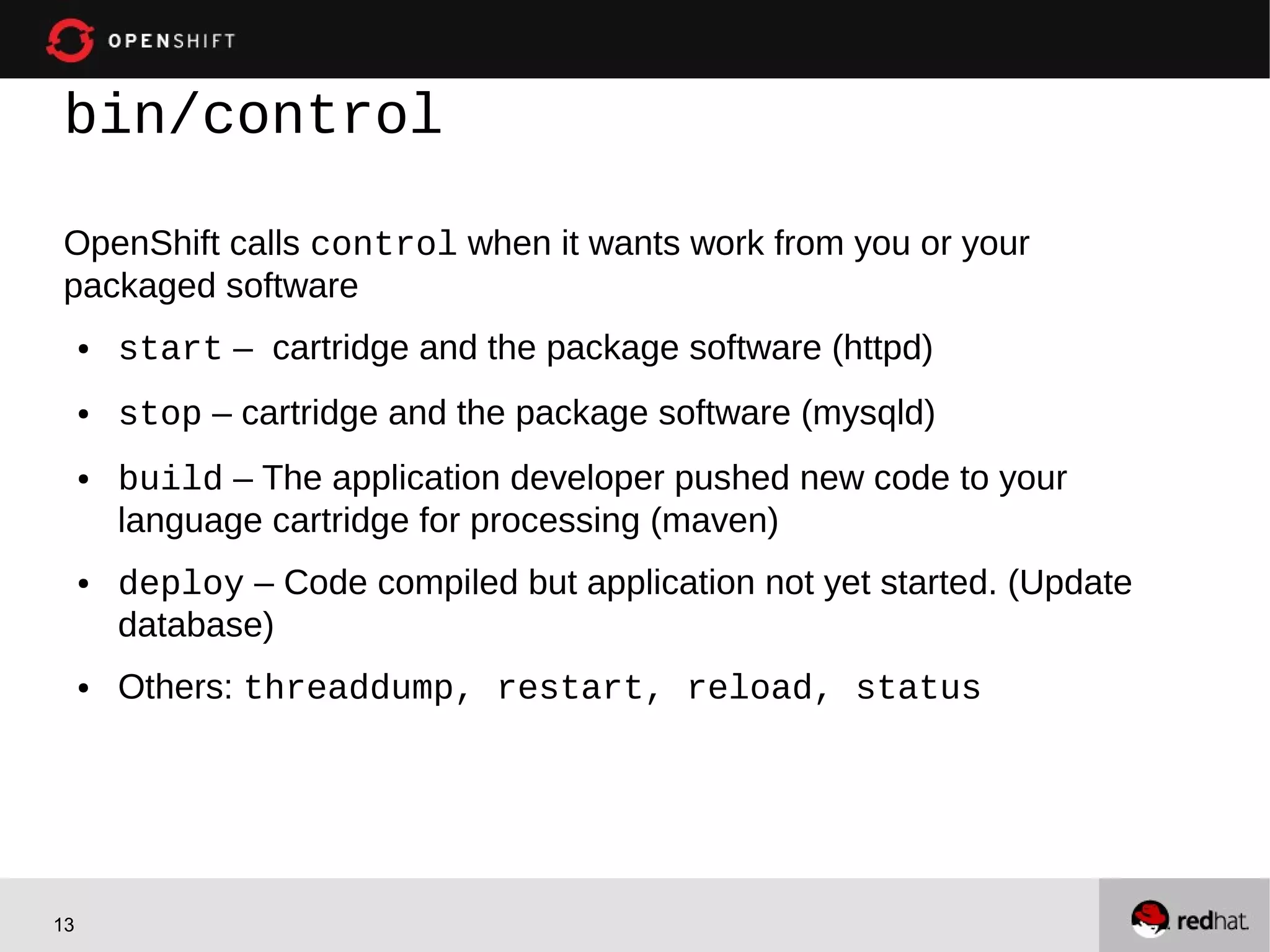

13. bin/control
OpenShift calls control when it wants work from you or your
packaged software
● start – cartridge and the package software (httpd)
● stop – cartridge and the package software (mysqld)
● build – The application developer pushed new code to your
language cartridge for processing (maven)
● deploy – Code compiled but application not yet started. (Update
database)
● Others: threaddump, restart, reload, status
13

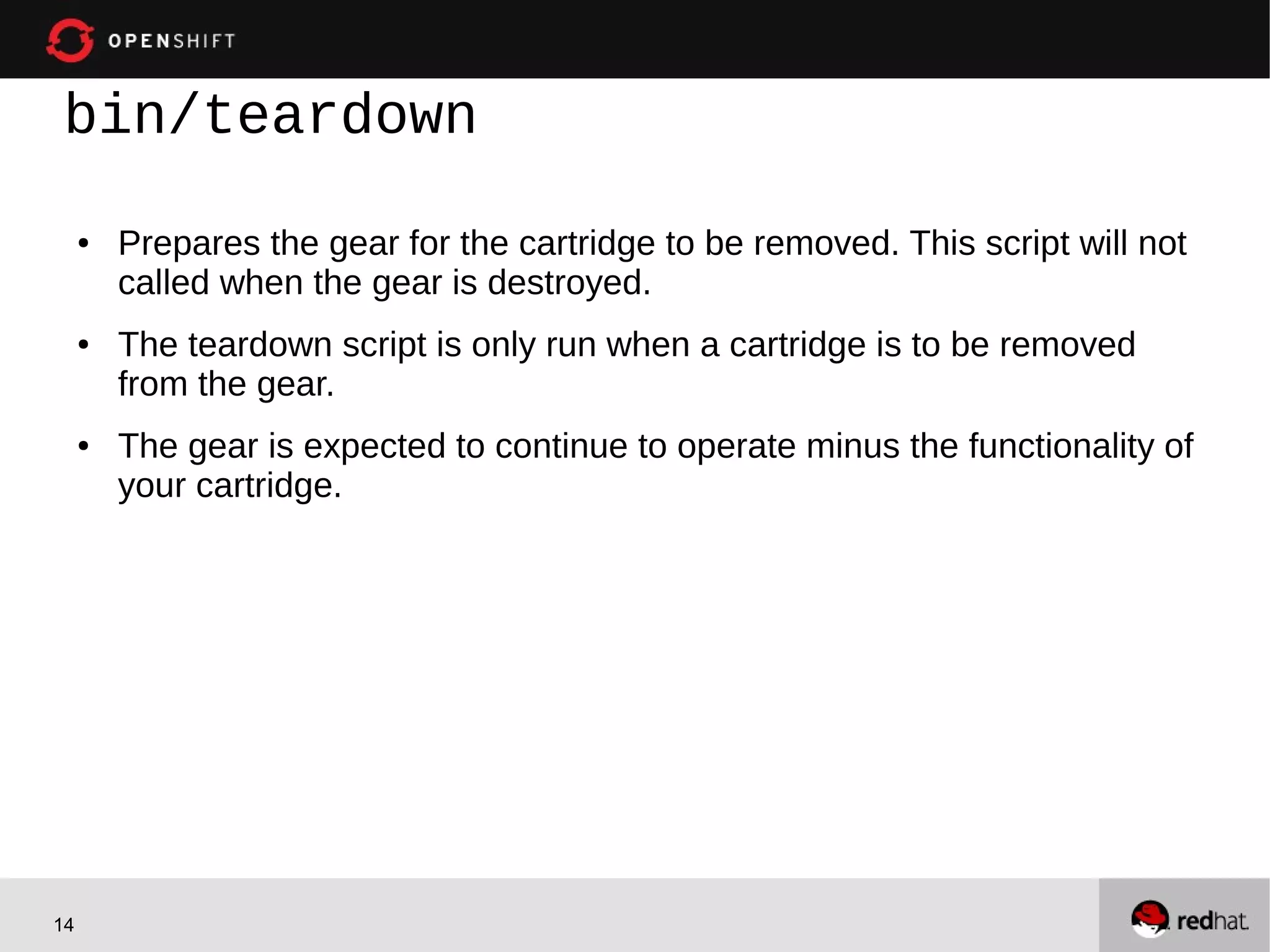

14. bin/teardown
● Prepares the gear for the cartridge to be removed. This script will not
called when the gear is destroyed.
● The teardown script is only run when a cartridge is to be removed
from the gear.
● The gear is expected to continue to operate minus the functionality of
your cartridge.
14

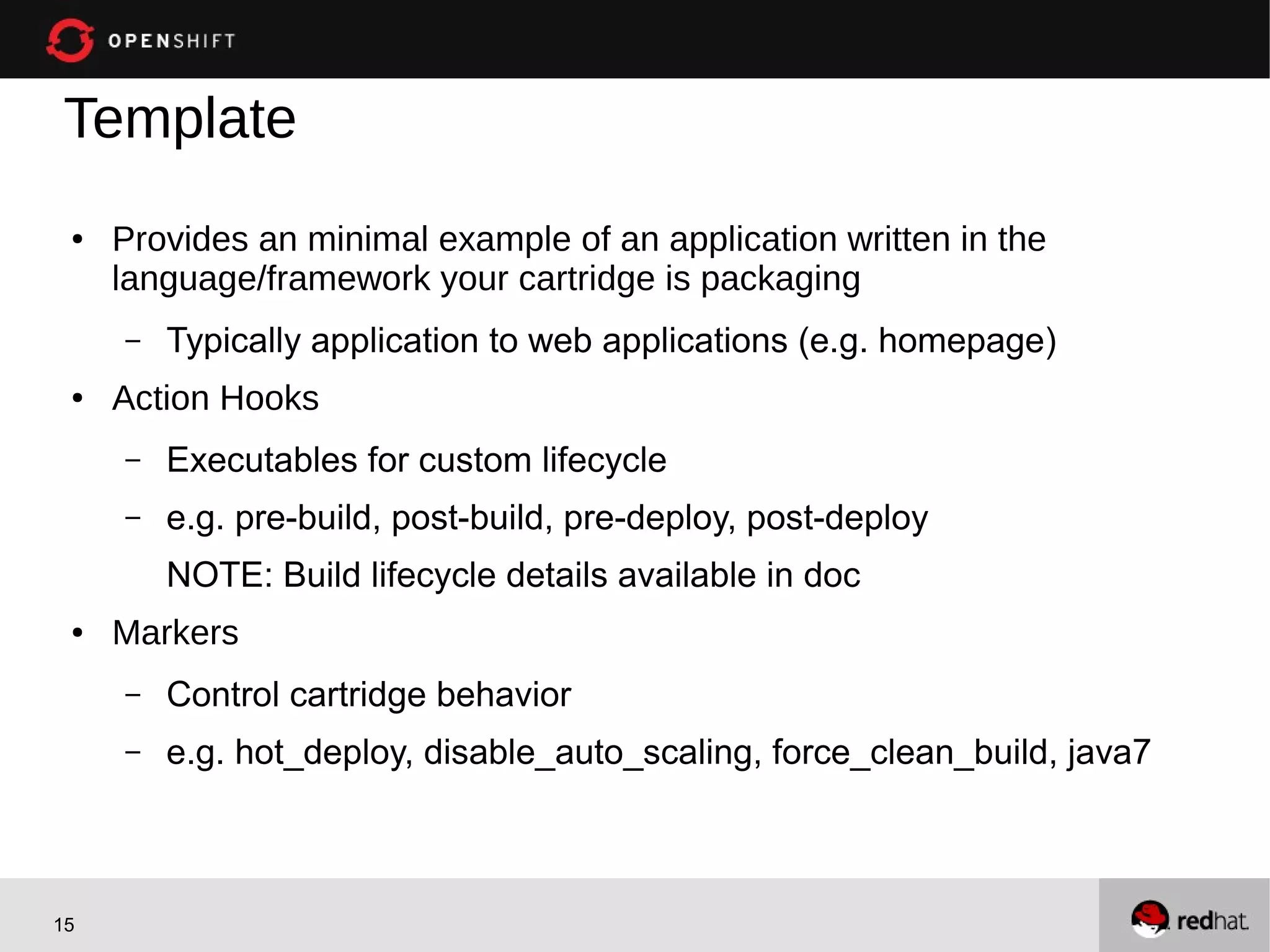

15. Template
● Provides an minimal example of an application written in the
language/framework your cartridge is packaging
– Typically application to web applications (e.g. homepage)
● Action Hooks
– Executables for custom lifecycle
– e.g. pre-build, post-build, pre-deploy, post-deploy
NOTE: Build lifecycle details available in doc
● Markers
– Control cartridge behavior
– e.g. hot_deploy, disable_auto_scaling, force_clean_build, java7
15

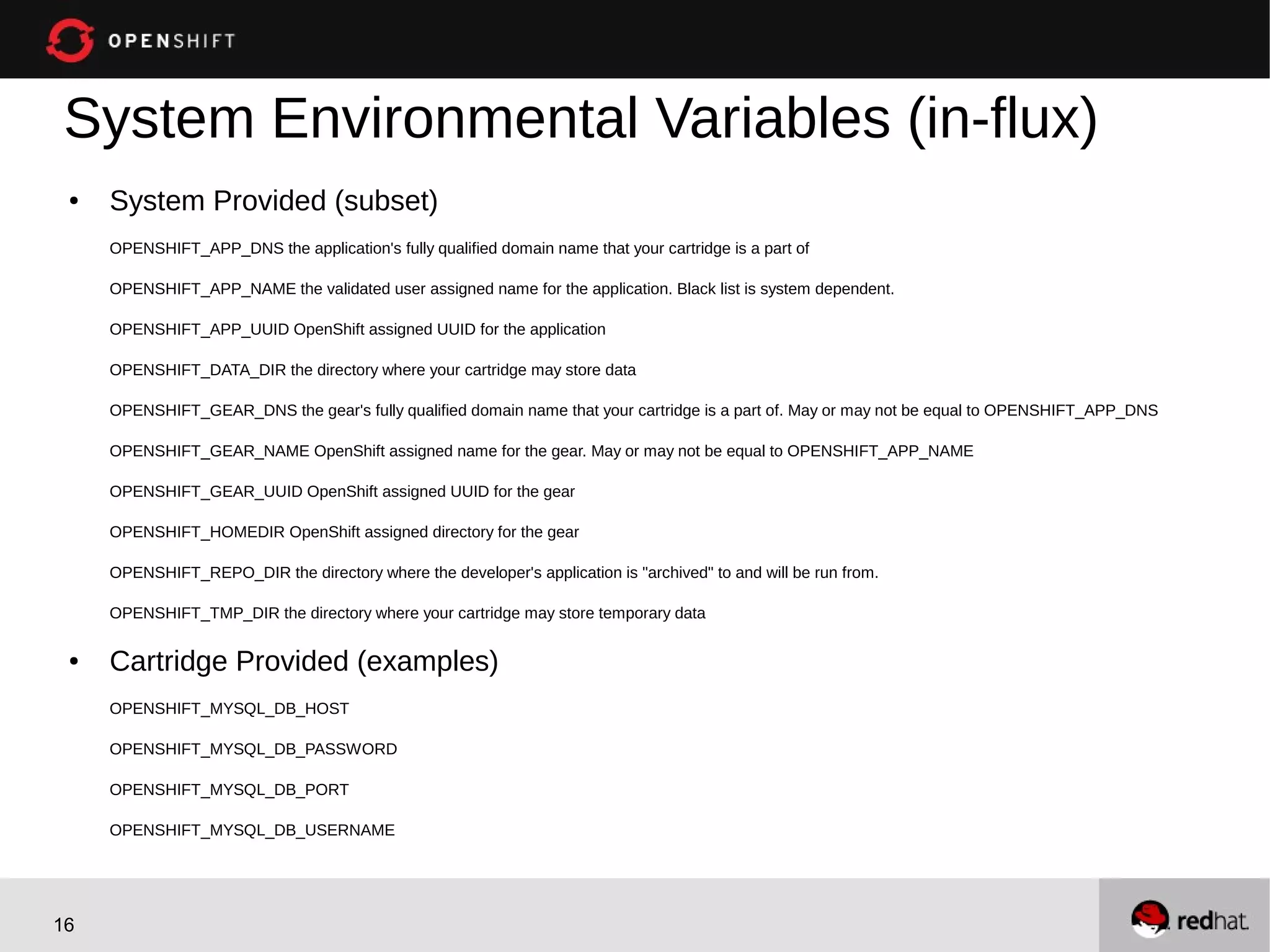

16. System Environmental Variables (in-flux)
● System Provided (subset)
OPENSHIFT_APP_DNS the application's fully qualified domain name that your cartridge is a part of
OPENSHIFT_APP_NAME the validated user assigned name for the application. Black list is system dependent.
OPENSHIFT_APP_UUID OpenShift assigned UUID for the application
OPENSHIFT_DATA_DIR the directory where your cartridge may store data
OPENSHIFT_GEAR_DNS the gear's fully qualified domain name that your cartridge is a part of. May or may not be equal to OPENSHIFT_APP_DNS
OPENSHIFT_GEAR_NAME OpenShift assigned name for the gear. May or may not be equal to OPENSHIFT_APP_NAME
OPENSHIFT_GEAR_UUID OpenShift assigned UUID for the gear
OPENSHIFT_HOMEDIR OpenShift assigned directory for the gear
OPENSHIFT_REPO_DIR the directory where the developer's application is "archived" to and will be run from.
OPENSHIFT_TMP_DIR the directory where your cartridge may store temporary data
● Cartridge Provided (examples)
OPENSHIFT_MYSQL_DB_HOST
OPENSHIFT_MYSQL_DB_PASSWORD
OPENSHIFT_MYSQL_DB_PORT
OPENSHIFT_MYSQL_DB_USERNAME
16

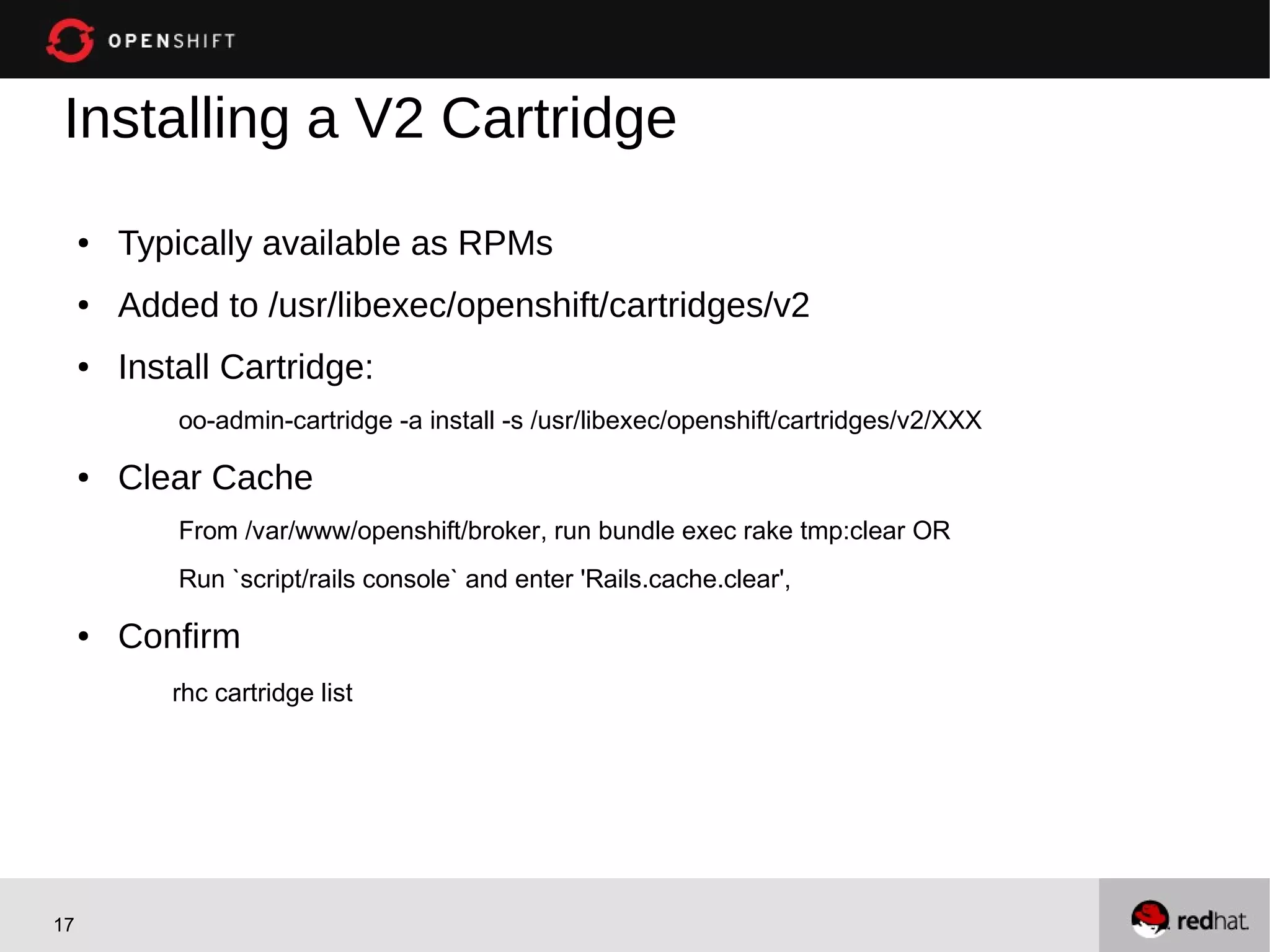

17. Installing a V2 Cartridge
● Typically available as RPMs
● Added to /usr/libexec/openshift/cartridges/v2
● Install Cartridge:
oo-admin-cartridge -a install -s /usr/libexec/openshift/cartridges/v2/XXX
● Clear Cache
From /var/www/openshift/broker, run bundle exec rake tmp:clear OR
Run `script/rails console` and enter 'Rails.cache.clear',
● Confirm
rhc cartridge list
17

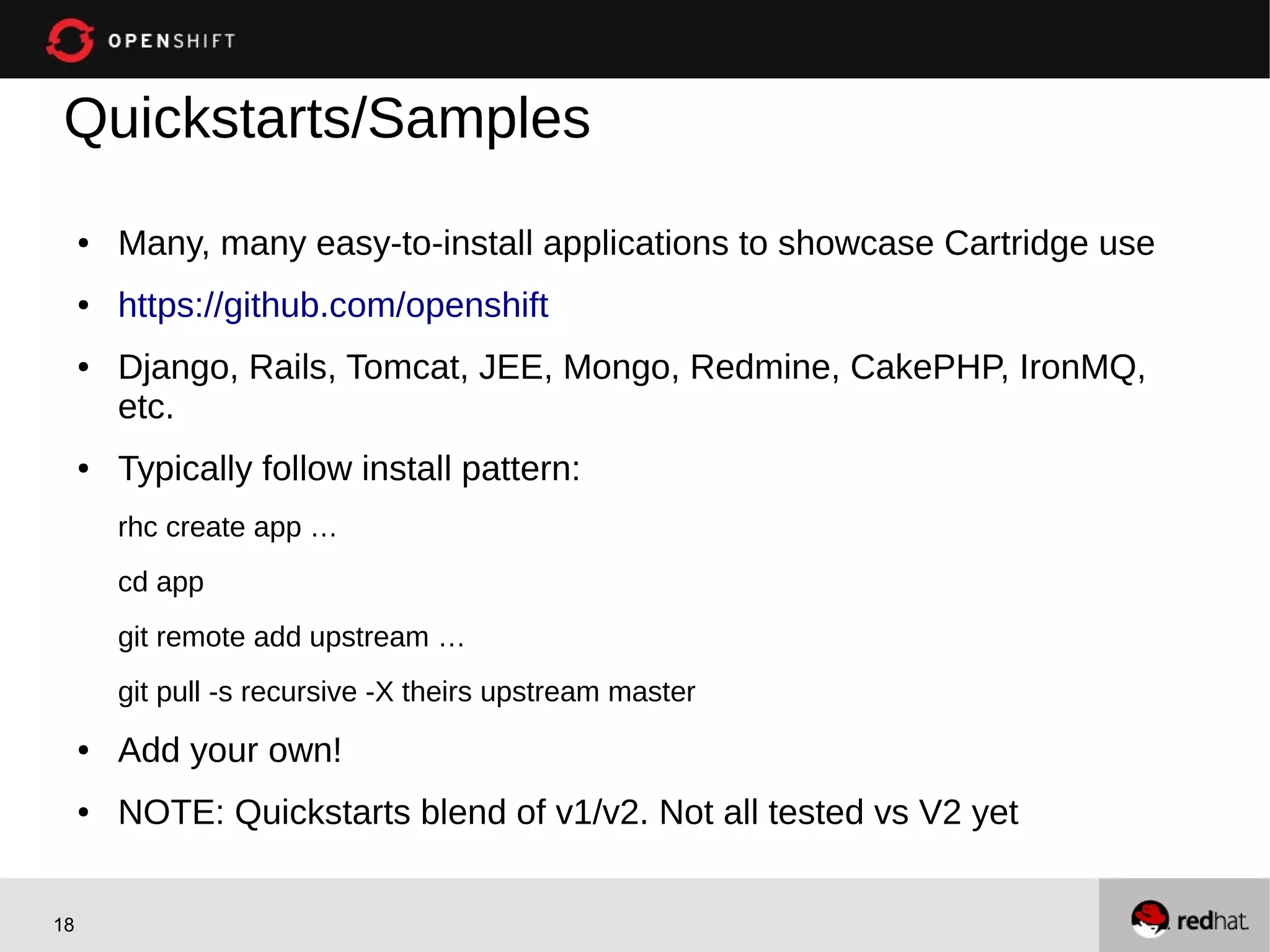

18. Quickstarts/Samples
● Many, many easy-to-install applications to showcase Cartridge use
● https://github.com/openshift
● Django, Rails, Tomcat, JEE, Mongo, Redmine, CakePHP, IronMQ,
etc.
● Typically follow install pattern:
rhc create app …
cd app
git remote add upstream …
git pull -s recursive -X theirs upstream master
● Add your own!
● NOTE: Quickstarts blend of v1/v2. Not all tested vs V2 yet
18

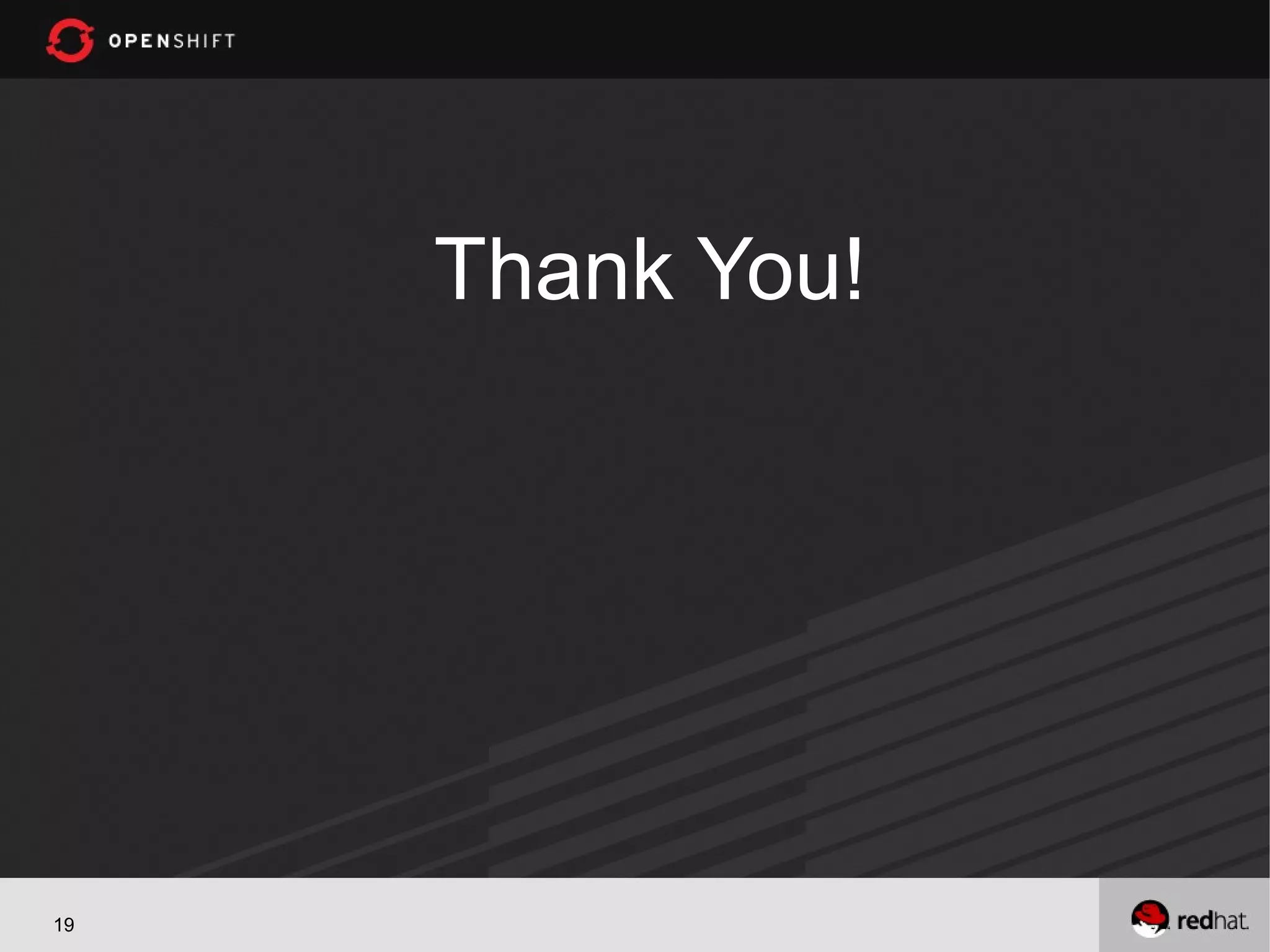

19. Thank You!
19

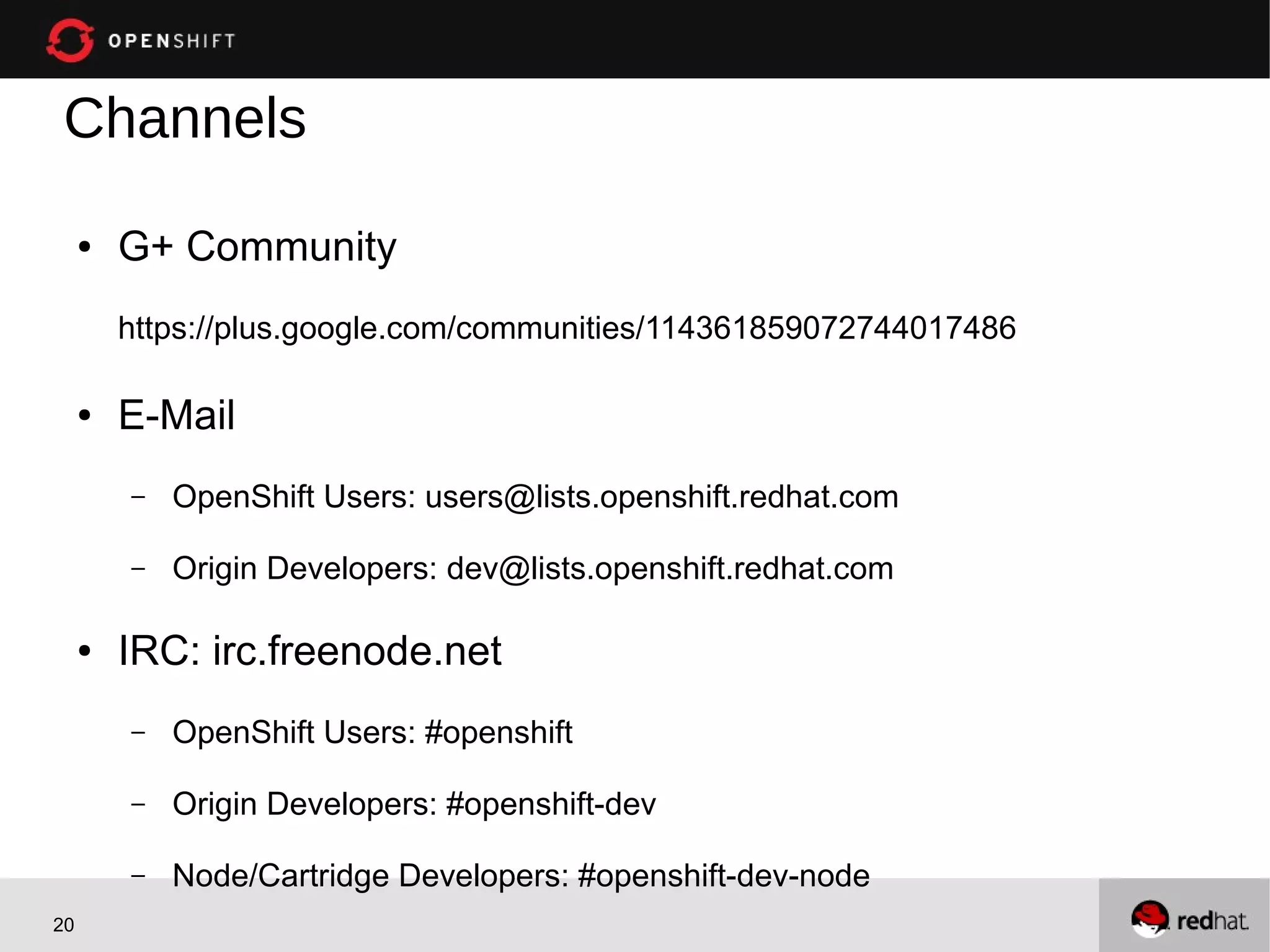

20. Channels
● G+ Community
https://plus.google.com/communities/114361859072744017486
● E-Mail
– OpenShift Users: users@lists.openshift.redhat.com
– Origin Developers: dev@lists.openshift.redhat.com
● IRC: irc.freenode.net
– OpenShift Users: #openshift
– Origin Developers: #openshift-dev
– Node/Cartridge Developers: #openshift-dev-node
20

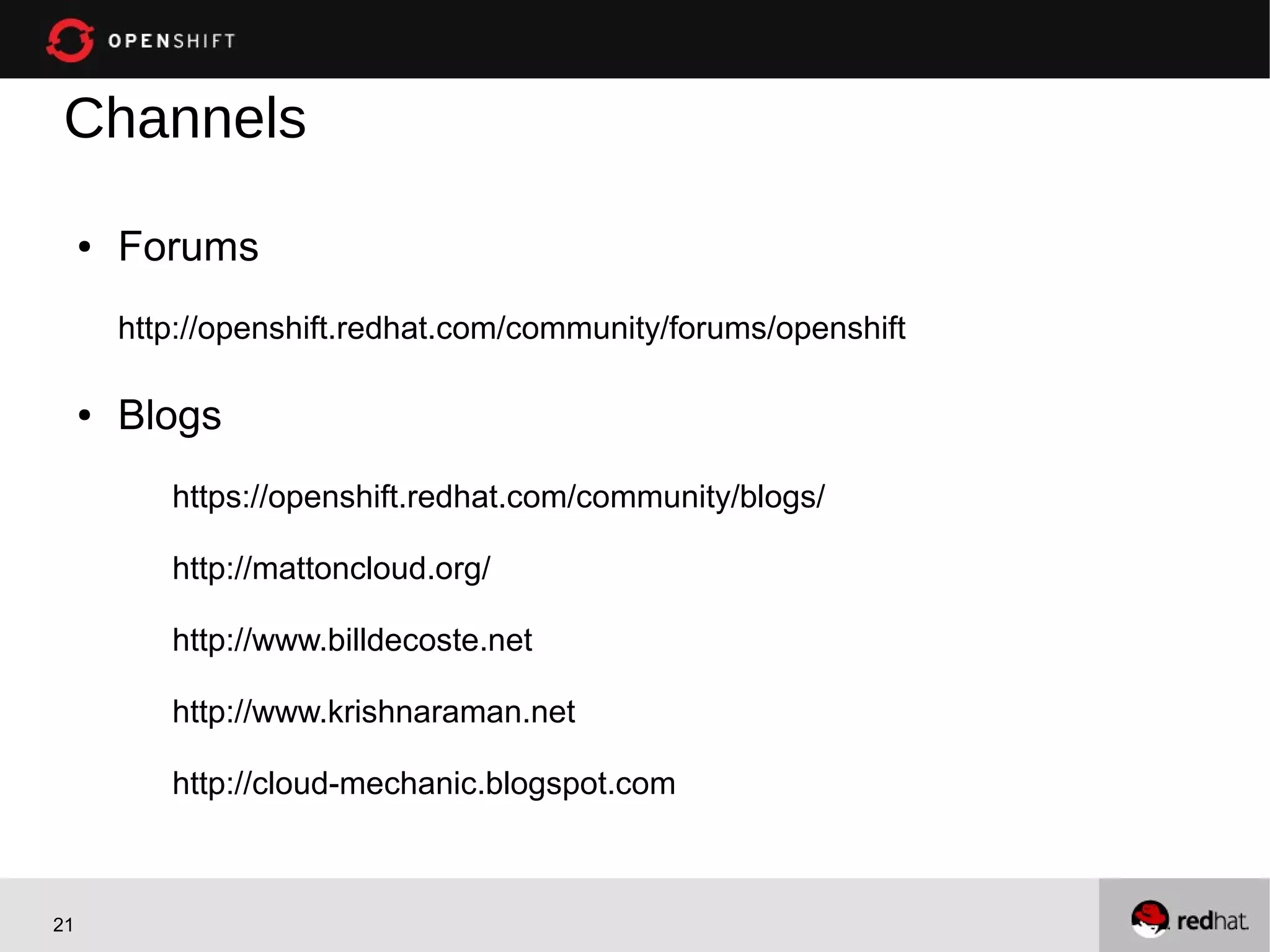

21. Channels
● Forums
http://openshift.redhat.com/community/forums/openshift
● Blogs
https://openshift.redhat.com/community/blogs/
http://mattoncloud.org/
http://www.billdecoste.net
http://www.krishnaraman.net
http://cloud-mechanic.blogspot.com
21

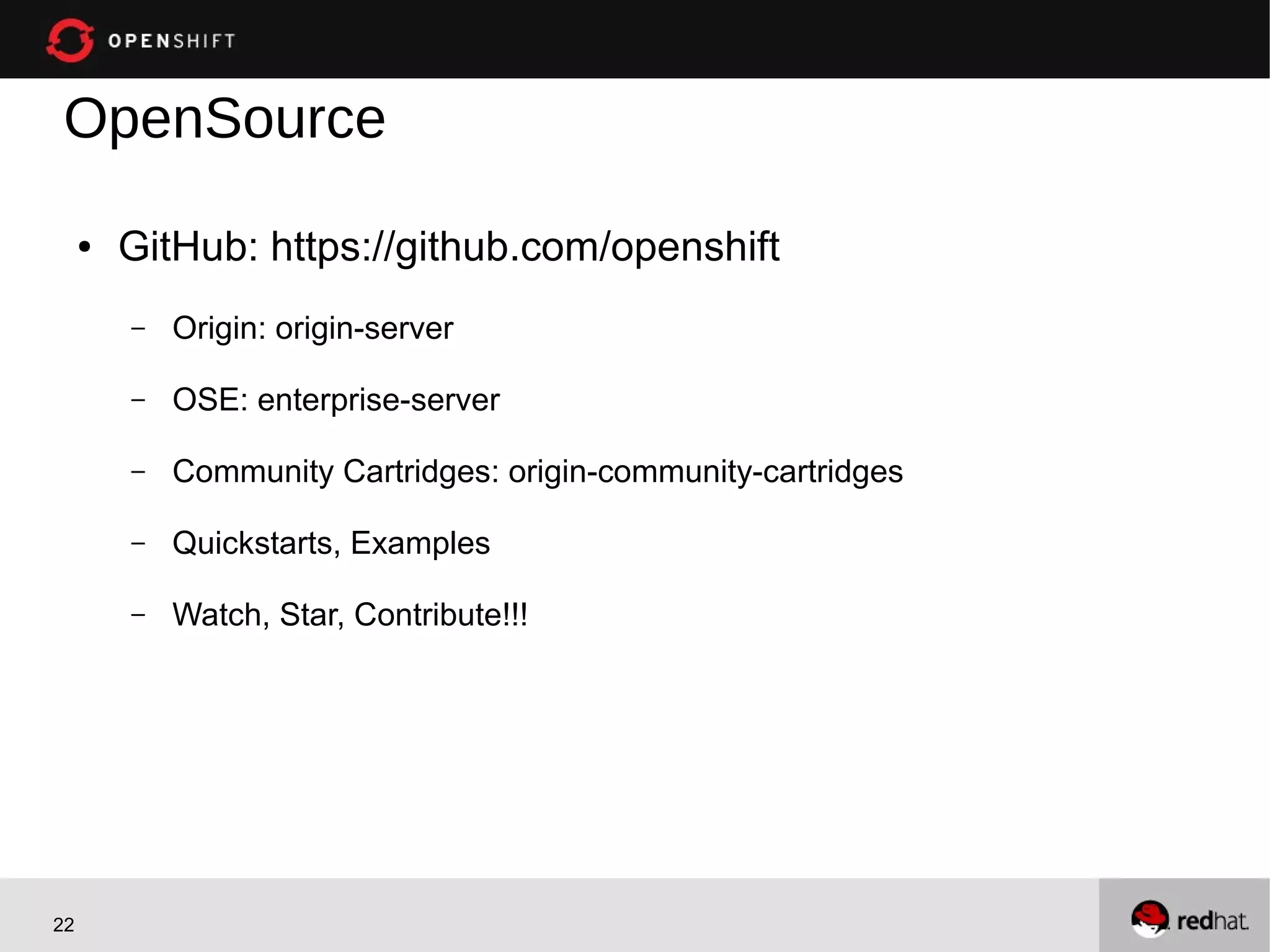

22. OpenSource
