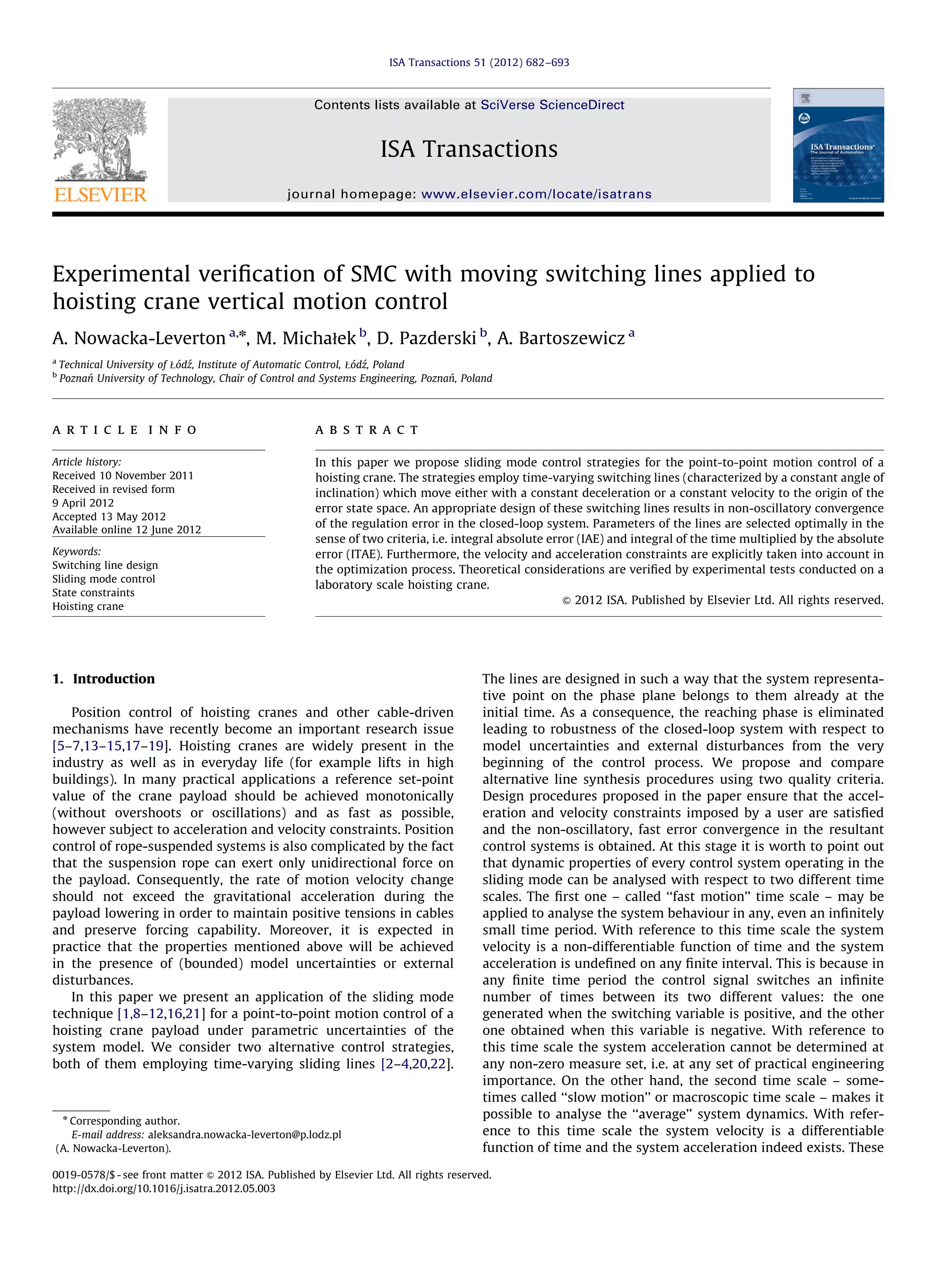

Experimental verification of SMC with moving switching lines applied to hoisting crane vertical motion control
1. Experimental verification of SMC with moving switching lines applied to
hoisting crane vertical motion control
A. Nowacka-Leverton a,n
, M. Micha"ek b
, D. Pazderski b
, A. Bartoszewicz a
a
Technical University of Ło´dz´, Institute of Automatic Control, Ło´dz´, Poland
b
Poznan´ University of Technology, Chair of Control and Systems Engineering, Poznan´, Poland
a r t i c l e i n f o
Article history:
Received 10 November 2011
Received in revised form
9 April 2012
Accepted 13 May 2012
Available online 12 June 2012
Keywords:
Switching line design
Sliding mode control
State constraints
Hoisting crane
a b s t r a c t
In this paper we propose sliding mode control strategies for the point-to-point motion control of a
hoisting crane. The strategies employ time-varying switching lines (characterized by a constant angle of
inclination) which move either with a constant deceleration or a constant velocity to the origin of the
error state space. An appropriate design of these switching lines results in non-oscillatory convergence
of the regulation error in the closed-loop system. Parameters of the lines are selected optimally in the
sense of two criteria, i.e. integral absolute error (IAE) and integral of the time multiplied by the absolute
error (ITAE). Furthermore, the velocity and acceleration constraints are explicitly taken into account in
the optimization process. Theoretical considerations are verified by experimental tests conducted on a
laboratory scale hoisting crane.
& 2012 ISA. Published by Elsevier Ltd. All rights reserved.
1. Introduction
Position control of hoisting cranes and other cable-driven
mechanisms have recently become an important research issue
[5–7,13–15,17–19]. Hoisting cranes are widely present in the
industry as well as in everyday life (for example lifts in high
buildings). In many practical applications a reference set-point
value of the crane payload should be achieved monotonically
(without overshoots or oscillations) and as fast as possible,
however subject to acceleration and velocity constraints. Position
control of rope-suspended systems is also complicated by the fact
that the suspension rope can exert only unidirectional force on
the payload. Consequently, the rate of motion velocity change
should not exceed the gravitational acceleration during the
payload lowering in order to maintain positive tensions in cables
and preserve forcing capability. Moreover, it is expected in
practice that the properties mentioned above will be achieved
in the presence of (bounded) model uncertainties or external
disturbances.
In this paper we present an application of the sliding mode
technique [1,8–12,16,21] for a point-to-point motion control of a
hoisting crane payload under parametric uncertainties of the
system model. We consider two alternative control strategies,
both of them employing time-varying sliding lines [2–4,20,22].
The lines are designed in such a way that the system representa-
tive point on the phase plane belongs to them already at the
initial time. As a consequence, the reaching phase is eliminated
leading to robustness of the closed-loop system with respect to
model uncertainties and external disturbances from the very
beginning of the control process. We propose and compare
alternative line synthesis procedures using two quality criteria.
Design procedures proposed in the paper ensure that the accel-
eration and velocity constraints imposed by a user are satisfied
and the non-oscillatory, fast error convergence in the resultant
control systems is obtained. At this stage it is worth to point out
that dynamic properties of every control system operating in the
sliding mode can be analysed with respect to two different time
scales. The first one – called ‘‘fast motion’’ time scale – may be
applied to analyse the system behaviour in any, even an infinitely
small time period. With reference to this time scale the system
velocity is a non-differentiable function of time and the system
acceleration is undefined on any finite interval. This is because in
any finite time period the control signal switches an infinite
number of times between its two different values: the one
generated when the switching variable is positive, and the other
one obtained when this variable is negative. With reference to
this time scale the system acceleration cannot be determined at
any non-zero measure set, i.e. at any set of practical engineering
importance. On the other hand, the second time scale – some-
times called ‘‘slow motion’’ or macroscopic time scale – makes it
possible to analyse the ‘‘average’’ system dynamics. With refer-
ence to this time scale the system velocity is a differentiable
function of time and the system acceleration indeed exists. These
Contents lists available at SciVerse ScienceDirect
journal homepage: www.elsevier.com/locate/isatrans
ISA Transactions
0019-0578/$ - see front matter & 2012 ISA. Published by Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.isatra.2012.05.003
n
Corresponding author.
E-mail address: aleksandra.nowacka-leverton@p.lodz.pl
(A. Nowacka-Leverton).
ISA Transactions 51 (2012) 682–693

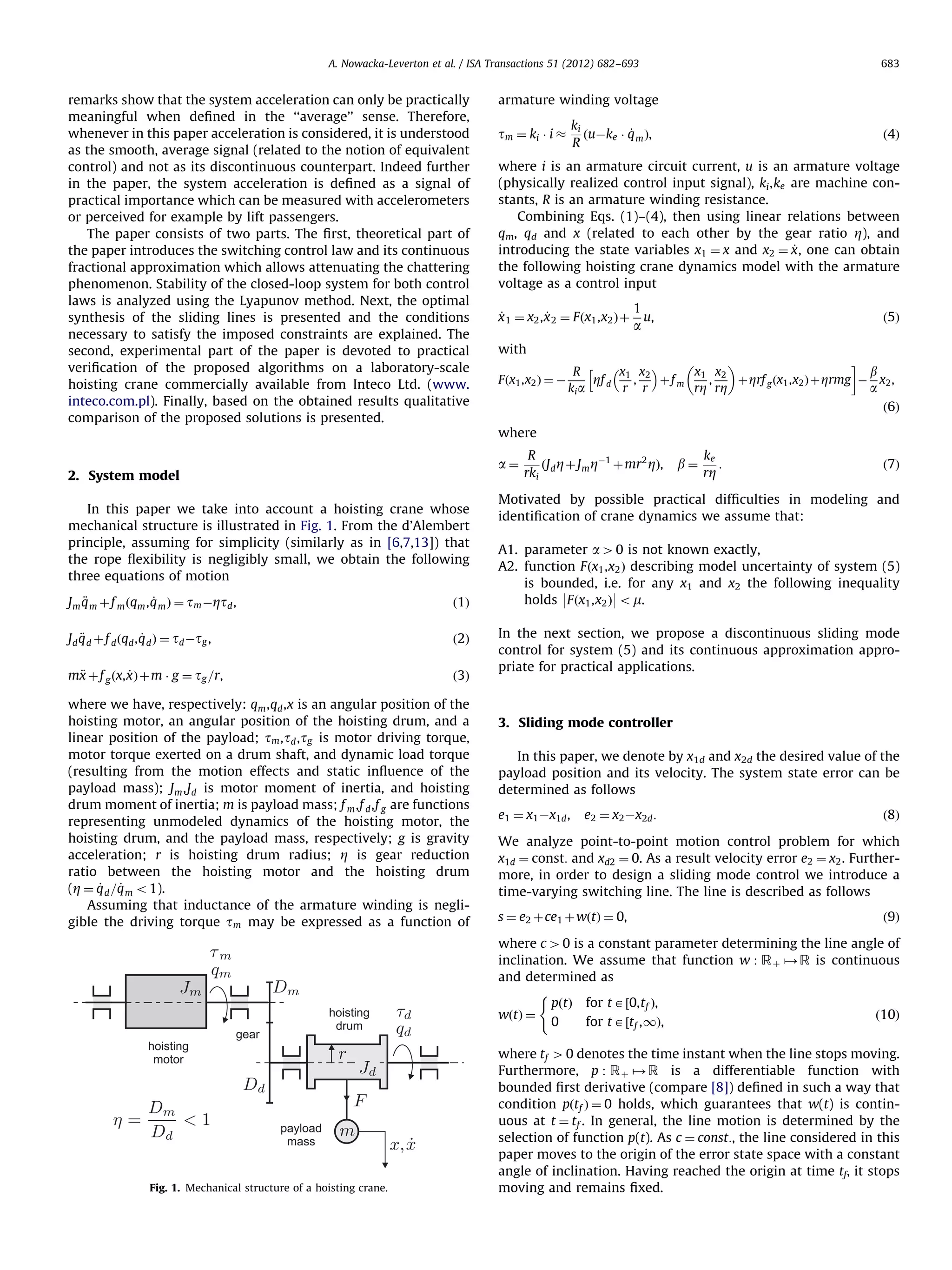

2. remarks show that the system acceleration can only be practically
meaningful when defined in the ‘‘average’’ sense. Therefore,
whenever in this paper acceleration is considered, it is understood
as the smooth, average signal (related to the notion of equivalent
control) and not as its discontinuous counterpart. Indeed further
in the paper, the system acceleration is defined as a signal of
practical importance which can be measured with accelerometers
or perceived for example by lift passengers.
The paper consists of two parts. The first, theoretical part of
the paper introduces the switching control law and its continuous
fractional approximation which allows attenuating the chattering
phenomenon. Stability of the closed-loop system for both control
laws is analyzed using the Lyapunov method. Next, the optimal
synthesis of the sliding lines is presented and the conditions
necessary to satisfy the imposed constraints are explained. The
second, experimental part of the paper is devoted to practical
verification of the proposed algorithms on a laboratory-scale
hoisting crane commercially available from Inteco Ltd. (www.
inteco.com.pl). Finally, based on the obtained results qualitative
comparison of the proposed solutions is presented.
2. System model
In this paper we take into account a hoisting crane whose
mechanical structure is illustrated in Fig. 1. From the d’Alembert
principle, assuming for simplicity (similarly as in [6,7,13]) that
the rope flexibility is negligibly small, we obtain the following
three equations of motion
Jm
€qm þfmðqm, _qmÞ ¼ tmÀZtd, ð1Þ
Jd
€qd þf dðqd, _qdÞ ¼ tdÀtg, ð2Þ
m€x þfgðx, _xÞþm Á g ¼ tg=r, ð3Þ
where we have, respectively: qm,qd,x is an angular position of the
hoisting motor, an angular position of the hoisting drum, and a
linear position of the payload; tm,td,tg is motor driving torque,
motor torque exerted on a drum shaft, and dynamic load torque
(resulting from the motion effects and static influence of the
payload mass); Jm,Jd is motor moment of inertia, and hoisting
drum moment of inertia; m is payload mass; f m,f d,f g are functions
representing unmodeled dynamics of the hoisting motor, the
hoisting drum, and the payload mass, respectively; g is gravity
acceleration; r is hoisting drum radius; Z is gear reduction
ratio between the hoisting motor and the hoisting drum
(Z ¼ _qd=_qm o1).
Assuming that inductance of the armature winding is negli-
gible the driving torque tm may be expressed as a function of
armature winding voltage
tm ¼ ki Á i %
ki
R
ðuÀke Á _qmÞ, ð4Þ
where i is an armature circuit current, u is an armature voltage
(physically realized control input signal), ki,ke are machine con-
stants, R is an armature winding resistance.
Combining Eqs. (1)–(4), then using linear relations between
qm, qd and x (related to each other by the gear ratio Z), and
introducing the state variables x1 ¼ x and x2 ¼ _x, one can obtain
the following hoisting crane dynamics model with the armature
voltage as a control input
_x1 ¼ x2, _x2 ¼ Fðx1,x2Þþ
1
a
u, ð5Þ
with
Fðx1,x2Þ ¼ À
R
kia
Zf d
x1
r
,
x2
r
h
þf m
x1
rZ
,
x2
rZ
þZrf gðx1,x2ÞþZrmg
À
b
a
x2,
ð6Þ
where
a ¼
R
rki
ðJdZþJmZÀ1
þmr2
ZÞ, b ¼
ke
rZ
: ð7Þ
Motivated by possible practical difficulties in modeling and
identification of crane dynamics we assume that:
A1. parameter a40 is not known exactly,
A2. function Fðx1,x2Þ describing model uncertainty of system (5)
is bounded, i.e. for any x1 and x2 the following inequality
holds 9Fðx1,x2Þ9om.
In the next section, we propose a discontinuous sliding mode
control for system (5) and its continuous approximation appro-
priate for practical applications.
3. Sliding mode controller
In this paper, we denote by x1d and x2d the desired value of the
payload position and its velocity. The system state error can be
determined as follows
e1 ¼ x1Àx1d, e2 ¼ x2Àx2d: ð8Þ
We analyze point-to-point motion control problem for which
x1d ¼ const: and xd2 ¼ 0. As a result velocity error e2 ¼ x2. Further-
more, in order to design a sliding mode control we introduce a
time-varying switching line. The line is described as follows
s ¼ e2 þce1 þwðtÞ ¼ 0, ð9Þ
where c40 is a constant parameter determining the line angle of
inclination. We assume that function w : Rþ /R is continuous
and determined as
wðtÞ ¼
pðtÞ for tA½0,tf Þ,
0 for tA½tf ,1Þ,
(
ð10Þ
where tf 40 denotes the time instant when the line stops moving.
Furthermore, p : Rþ /R is a differentiable function with
bounded first derivative (compare [8]) defined in such a way that
condition pðtf Þ ¼ 0 holds, which guarantees that w(t) is contin-
uous at t ¼ tf . In general, the line motion is determined by the
selection of function p(t). As c ¼ const:, the line considered in this
paper moves to the origin of the error state space with a constant
angle of inclination. Having reached the origin at time tf, it stops
moving and remains fixed.Fig. 1. Mechanical structure of a hoisting crane.
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693 683
3. In the paper we consider the robust control problem in the
presence of state constraints. The problem may be defined as
follows
Problem 1. Find bounded control u ¼ uðe1,e2,tÞ for system (5)
which guarantees that:
R1. position and velocity errors, e1 and e2, converge to zero
asymptotically, i.e.
lim
t-1
½e1ðtÞ e2ðtÞŠT
¼ 0, ð11Þ
R2. the payload does not exhibit oscillations during transient
stage, i.e.
8tZ0 signðe1ðtÞÞ ¼ signðe1ð0ÞÞ and 8t40 signðe2ðtÞÞ ¼ const .,
ð12Þ
R3. payload velocity and acceleration are constrained during
regulation process, i.e.
8tZ0 9x2ðtÞ9rVm ð13Þ
and
8tZ0 9_x2ðtÞ9rAm, ð14Þ
where Vm 40 and Am 40 determine the maximum admissi-
ble values of the velocity and the acceleration, respectively,
R4. requirements R1, R2 and R3 are satisfied under assumptions
A1 and A2.
Note that the upper bounds Am and Vm can result directly from
drive limits or can be chosen arbitrarily by a user treating them as
additional design parameters.
First we formulate the following proposition for the control
law which ensures sliding motion on the time-varying line
defined by (9).
Proposition 1. The following sliding mode control law
u ¼ À ^a½g sgnðsÞþce2 þ _wðtÞŠ, g40, ð15Þ
with the sufficiently large coefficient g and ^a40 being an estimate of
parameter a, applied to system (5) with uncertainty (6), ensures
sliding motion on switching line (9).
Proof. Calculating the time derivative of function V ¼ 1
2 s2
one
obtains
_V ¼ s½_e2 þc_e1 þ _wðtÞŠ ¼ sF þs
1
a
uþsce2 þs _wðtÞ
¼ sFÀ
^a
a
g9s9þs 1À
^a
a
½ce2 þ _wðtÞŠ
¼ sFÀ
^a
a
g9s9þsf a½cx2 þ _wðtÞŠ
r9s9 9F9À
^a
a
g
þ9s99f a99cx2 þ _wðtÞ9
r9s9 mÀ
^a
a
gþ9fa99cx2 þ _wðtÞ9
, ð16Þ
where f a ¼ 1À ^a=a. Furthermore, if
gZsup
x2
½Dðx2ÞŠ, ð17Þ
where
Dðx2Þ ¼
a
^a
½mþkþ9fa99cx2 þ _wðtÞ9Š, ð18Þ
then
_V rÀk9s9, ð19Þ
where k40 is an arbitrarily small constant.
Remark 1. Notice that in practical application for any positive
value of ^a one can find big enough value of parameter g.
Furthermore, as a result of (15), in the design procedure one
should rather consider proper selection of product ^a Á g than
selection of ^a and g separately.
In practical applications, in order to attenuate chattering,
function sgnðsÞ in Eq. (15) can be replaced with its continuous
approximation given by s=ð9s9þnÞ, where n40 is a small positive
design coefficient. Then, the following proposition can be proved.
Proposition 2. The following approximation
^u ¼ À ^a g
s
9s9þn
þce2 þ _wðtÞ
#
ð20Þ
of control signal (15) with ^a40 being an estimate of parameter a,
applied to system (5) with uncertainty (6) ensures that variable s
remains in the neighborhood of zero with the radius
E ¼
n ^Dðx2Þ
k
40, ð21Þ
where
^Dðx2Þ ¼ mþ9fa99cx2 þ _wðtÞ9, ð22Þ
and n40, k40 are design coefficients.
Proof. Using, in relation (16), modified control signal (20) instead
of (15) one gets
_V ¼ s F þ
1
a
^u þcx2 þ _wðtÞ
rfaðcx2 þ _wðtÞÞ9s9þ9s99F9À
^a
a
g
s2
9s9þn
r mÀ
^a
a
g
9s9
9s9þn
!
9s9þ9fa99cx2 þ _wðtÞ99s9: ð23Þ
Assuming now that g satisfies (17) with Dðx2Þ given by (18) one
obtains the following upper bound
_V r
n ^Dðx2Þ9s9
9s9þn
À
ks2
9s9þn
¼
n ^Dðx2ÞÀk9s9
9s9þn
9s9, ð24Þ
where ^Dðx2Þ is given by (22). Then one can conclude that
9s941=k9n ^Dðx2Þ9 ) _V o0.
The above considerations lead to the conclusion that modified
control (20) does not bring the representative point of the system
exactly onto the switching line but it forces the representative
point to the neighborhood of the line, with radius (21).
Note that E can be made arbitrarily small by the appropriate
choice of coefficient n and parameter g ¼ gðk,ÁÞ. However, practical
selection of n and g should be a result of a compromise between
motion precision and chattering attenuation.
4. Switching line synthesis
In this section we select a time-varying switching line which
will lead to an optimal (in the sense of introduced criteria)
solution of Problem 1, stated in the previous section. In order to
design switching line (9), we assume, similarly as in [2], that
function p is selected in the following form
pðtÞ ¼ Ct2
þBtþA, ð25Þ
where A, B and C are constant parameters. Note that for C a0 the
line moves to the origin of the error state space with a constant
deceleration and when C¼0, the line moves with a constant
velocity. Having reached the origin, line (9) stops moving at the
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693684
4. time instant tf and remains fixed. First of all, parameters of the
line should be chosen in such a way that the system representa-
tive point belongs to the line at the initial time t¼0. In this way
the insensitivity of the closed-loop system with respect to model
uncertainty from the very beginning of the control action is
guaranteed. In this paper it is assumed that at the initial time
t¼0, e1ð0Þ ¼ e10 a0 and e2ð0Þ ¼ 0. Therefore, the following condi-
tion should be satisfied e2ð0Þþce1ð0ÞþA ¼ 0, which implies
A ¼ Àce10: ð26Þ
Moreover, the selected parameters of the switching line are
supposed to ensure the minimum value of the following control
quality criteria, either IAE criterion
JIAE ¼
Z 1
0
9e1ðtÞ9 dt, ð27Þ
or ITAE criterion
JITAE ¼
Z 1
0
t9e1ðtÞ9 dt, ð28Þ
subject to constraints of the payload velocity and the payload
acceleration given by inequalities (13) and (14), respectively.
Further in the paper we show how to choose the optimal, in the
sense of both criteria, switching lines moving with a constant
deceleration and a constant velocity.
The procedure for finding the optimal switching line para-
meters begins with calculation of the regulation error and its
derivative. For that purpose first we solve Eq. (9) with function
w(t) determined by (25) for tA½0,tf Þ. This reflects the situation
when the line moves. Taking into account initial conditions
e10 a0 and e20 ¼ 0 and relation (26), we obtain
e1ðtÞ ¼ À
ðBcÀ2CÞt
c2
À
Ct2
c
þ
ÀBcþ2C
c3
ðeÀct
À1Þþe10, ð29Þ
e2ðtÞ ¼
ÀBcþ2C
c2
ðÀeÀct
þ1ÞÀ
2Ct
c
: ð30Þ
Now we calculate values of system error (29) and its derivative
(30) for t ¼ tf
e1ðtf Þ ¼ À
ðBcÀ2CÞtf
c2
À
Ct2
f
c
þ
ÀBcþ2C
c3
ðeÀctf
À1Þþe10, ð31Þ
e2ðtf Þ ¼
ÀBcþ2C
c2
ðÀeÀctf
þ1ÞÀ
2Ctf
c
, ð32Þ
which are initial conditions necessary to solve Eq. (9) for
tA½tf ,1Þ, which represents the system dynamics when the line
does not move. Then, after some calculations, we obtain the
evolution of the error for tZtf
e1ðtÞ ¼
ÀðBcÀ2CÞtf
c2
þ
ðÀBcþ2CÞ
c3
ðeÀctf
À1ÞÀ
Ct2
f
c
þe10
#
eÀct þctf
,
ð33Þ
e2ðtÞ ¼
ðBcÀ2CÞtf
c
À
ðÀBcþ2CÞ
c2
ðeÀctf
À1ÞþCt2
f Àce10
eÀct þctf
: ð34Þ
Notice that the regulation error described by (29) and (33)
converges to zero monotonically. Then, criterion (27) can be
expressed as
JIAE ¼
Z 1
0
e1 dt
5.
6.
7.
8.
9.
10.
11.
12. : ð35Þ
Substituting (29) and (33) into (35) and calculating appropriate
integrals, we obtain
JIAE ¼ e10tf þ
e10
c
À
Bt2
f
2c
À
Ct3
f
3c
13.
14.
15.
16.
17.
18.
19.
20.
21.
22. : ð36Þ
On the other hand, the ITAE criterion can be rewritten as
JITAE ¼
Z 1
0
te1 dt
23.
24.
25.
26.
27.
28.
29.
30. : ð37Þ
Now, substituting (29) and (33) into (37) and calculating appro-
priate integrals, we obtain
JITAE ¼
e10
c2
þ
e10tf
c
À
Bt2
f
2c2
þ
e10t2
f
2
À
Bt3
f
3c
À
Ct3
f
3c2
À
Ct4
f
4c
31.
32.
33.
34.
35.
36.
37.
38.
39.
40. : ð38Þ
Since the switching line selection fully determines the system
motion and its performance, switching line parameters A, B, C and
c should be carefully chosen in accordance with the specified
requirements. In order to select these parameters, further in the
paper, we minimize (36) and (38) with constraints (13) and (14).
4.1. Constant deceleration switching line
Now we carefully analyze the case when C a0, i.e. when for
trtf the line moves with a constant deceleration to the origin of
the error state space. Notice that for the time tZtf , switching line
(9) is fixed and passes through the origin of the error state space.
Taking into account relation (25), we conclude that
Ct2
f þBtf þA ¼ 0: ð39Þ
Furthermore, in order to avoid rapid input changes, the velocity of
the introduced line should change smoothly. Thus, the following
condition should also hold
2Ctf þB ¼ 0: ð40Þ
Using (26), (39) and (40), we obtain
tf ¼ 2
e10c
B
: ð41Þ
In order to facilitate further minimization procedure, we define
the following positive constant
k ¼
e10c2
B
: ð42Þ
From (42) we obtain
c ¼
ffiffiffiffiffiffiffi
Bk
e10
s
: ð43Þ
As it was stated above both criteria (36) and (38) will be
minimized with two constraints, i.e. with system velocity con-
straint (13) and acceleration constraint (14). Calculating the
maximum value of 9x2ðtÞ9, we get
max
t
9x2ðtÞ9 ¼
B
c
lnð1þ2kÞ
2k
À1
41.
42.
43.
44.
45.
46.
47.
48. : ð44Þ
Then using relation (43) and taking into account condition
9x2ðtÞ9rVm, we obtain the following inequality
9B9r
V2
mk
9e109
lnð1þ2kÞ
2k
À1
2
: ð45Þ
Now we consider the acceleration constraint given by inequality
9_x2ðtÞ9rAm. Similarly as in [2], it can be calculated that the
maximum value of 9_x2ðtÞ9 is achieved for t¼0, and it is equal
9B9. Consequently, condition 9_x2ðtÞ9rAm is satisfied when the
following relation holds
9B9rAm: ð46Þ
Further in the paper we show the minimization procedure for
both criteria introduced in this section (IAE and ITAE) with the
velocity and acceleration constraints.
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693 685
49. 4.1.1. Minimization of IAE
Taking into account relations (40), (41) and (43) from (36), we
get the following form of control quality criterion
JIAE ¼
9e109
3=2
ffiffiffiffiffiffiffi
9B9
q
1
ffiffiffi
k
p þ
2
3
ffiffiffi
k
p
: ð47Þ
Fig. 2 illustrates criterion (47) as a function of two variables k and
9B9. It can be seen from the figure that for any value of argument
k, the criterion decreases with increasing value of 9B9.
As mentioned before, criterion (47) will be minimized with
two constraints, i.e. with the system velocity constraint and the
system acceleration constraint which are satisfied when relations
(45) and (46) hold. Because criterion (47) decreases with increas-
ing value of 9B9, the minimization of criterion JIAE as a function of
two variables ðk,9B9Þ with constraint (45) may be replaced by the
minimization of the following single variable function
JV
IAEðkÞ ¼
e2
10
Vm
lnð1þ2kÞ
2k
À1
50.
51.
52.
53.
54.
55.
56.
57. 2
3
þ
1
k
: ð48Þ
Closer analysis of this function shows that it reaches its minimum
for numerically found argument k
IAE
vopt % 13:467. On the other
hand, considering constraint (46), we get the following single
variable function
JA
IAEðkÞ ¼
9e109
3=2
ffiffiffiffiffiffiffi
Am
p
1
ffiffiffi
k
p þ
2
3
ffiffiffi
k
p
: ð49Þ
Criterion (49) achieves the minimum value for k
IAE
aopt ¼ 3
2. In order
to find the minimum of the IAE criterion with both constraints
satisfied at the same time, we consider three cases: JV
IAEð3
2 ÞrJA
IAEð3
2Þ,
JV
IAEðk
IAE
voptÞZJA
IAEðk
IAE
voptÞ and JV
IAEð3
2 Þ4JA
IAEð3
2Þ4JV
IAEðk
IAE
voptÞoJA
IAEðk
IAE
voptÞ.
This approach is justified by the fact that criterion (47) reaches
its minimum for such value kopt that
JIAEðkoptÞ ¼ min max
k 40
fJV
IAEðkÞ,JA
IAEðkÞg
: ð50Þ
Thus, in the first considered case (when the acceleration con-
straint is dominant), we obtain that the optimal parameter
kopt ¼ k
IAE
aopt ¼ 3
2. Then, parameter B can be obtained from
B ¼ Am sgnðe0Þ: ð51Þ
For the second case, the optimal value of k is equal to
k
IAE
vopt % 13:467. Then, the optimal value of parameter B may be
calculated from
B ¼
V2
mk
9e109 lnð1þ2kÞ
2k
À1
h i2
sgnðe0Þ, ð52Þ
for k ¼ k
IAE
vopt. Finally, in the third case, i.e. when JIAE
V ð3
2 Þ4
JIAE
A ð3
2Þ4JIAE
V ðk
IAE
voptÞoJIAE
A ðk
IAE
voptÞ in order to find kopt, we solve equa-
tion f1ðkÞ ¼ 0 in the interval ð3
2,k
IAE
voptÞ where
f1ðkÞ ¼ 9e109
3
2
1
ffiffiffi
k
p þ
2
3
ffiffiffi
k
p
ffiffiffiffiffiffiffiffiffiffiffi
9e109
q
Vm
ffiffiffi
k
p
lnð1þ2kÞ
2k
À1
58.
59.
60.
61.
62.
63.
64.
65. À
ffiffiffiffiffiffiffi
1
Am
s0
@
1
A: ð53Þ
Having calculated the optimal value of k, we can derive parameter
B using either (51) or (52). Then, other switching line parameters
A, C and c can be found from (26), (40) and (43), respectively. The
line designed in this way moves with a constant deceleration and
it stops moving at the time instant tf given by (41). That ends the
first procedure of the switching line design based on the IAE
minimization. In the next subsection we take into account the
ITAE criterion.
Fig. 2. Criterion JIAEðk,9B9Þ.
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693686
66. 4.1.2. Minimization of ITAE
Now we present the ITAE criterion as a function of ðk,BÞ.
Substituting (39), (41) and (43) into (38), we get the following
form of ITAE
JITAE ¼
e2
10
39B9
3
k
þ2þk
: ð54Þ
Notice that, similarly as before, considered criterion (54) reaches
its smaller values as argument 9B9 increases which is shown in
Fig. 3. Therefore, repeating the considerations presented above, in
order to find minimum value of criterion (54) with constraints
(45) and (46), we minimize the following single variable function
JITAEðkÞ ¼ max
k 40
fJV
ITAEðkÞ,JA
ITAEðkÞg, ð55Þ
where
JV
ITAEðkÞ ¼
9e109
3
3V2
m
lnð1þ2kÞ
2k
À1
2
3
k
2
þ
2
k
þ1
, ð56Þ
and
JA
ITAEðkÞ ¼
e2
10
39Am9
3
k
þ2þk
: ð57Þ
Notice, that minimization of function (56) results in such a value
of k which minimizes the ITAE criterion subject to velocity
constraint (13). Analysis of this function leads to the conclusion
that criterion (56) reaches its minimum for the numerically found
value of k which equals k
ITAE
vopt % 6:263. On the other hand, when
minimization of ITAE with acceleration constraint (14) is
required, we minimize function (57) and we obtain that its
minimum value is achieved for k
ITAE
aopt ¼
ffiffiffi
3
p
.
Since in this paper we consider both constraints (45) and (46)
satisfied by the system at the same time, then in order to find
optimal parameters of the switching line, we consider three
cases: JV
ITAEð
ffiffiffi
3
p
ÞrJA
ITAEð
ffiffiffi
3
p
Þ, JV
ITAEðk
ITAE
voptÞZJA
ITAEðk
ITAE
voptÞ and JV
ITAEð
ffiffiffi
3
p
Þ4
JA
ITAEð
ffiffiffi
3
p
Þ4 JV
ITAEðk
ITAE
voptÞoJA
ITAEðk
ITAE
voptÞ. In the first one, we obtain that
the optimal parameter kopt ¼
ffiffiffi
3
p
. Then, the optimal parameter B
can be calculated using (51). For the second case, optimal value
kopt is equal to k
ITAE
vopt % 6:263, and as a consequence, parameter B is
given by (52). In the last case the optimal value of k is the root of
function f 2ðkÞ in the interval ð
ffiffiffi
3
p
,k
ITAE
voptÞ where
f2ðkÞ ¼
e2
10
3
3
k
þ2þk
9e109
lnð1þ2kÞ
2k
À1
2
V2
mk
À
1
Am
8
:
9
=
;
: ð58Þ
Having calculated the optimal value of k, we can determine the
optimal value of B, using one of expressions (51) or (52). The other
switching line parameters A, C, c and tf may be found using
formulas (26), (40), (43) and (41), respectively.
It is worth pointing out that condition JV
ITAEð
ffiffiffi
3
p
Þ4 JA
ITAEð
ffiffiffi
3
p
Þ
4JV
ITAEðk
ITAE
voptÞoJA
ITAEðk
ITAE
voptÞ ensures that IAE and ITAE solutions are
identical. This is a direct consequence of the fact that roots of
functions f1ðkÞ and f2ðkÞ are the same for any fixed values of Am,
Vm and e10 which can be seen from the following relation
9e109
lnð1þ2kÞ
2k
À1
2
V2
mk
À
1
Am
¼
ffiffiffiffiffiffiffiffiffiffiffi
9e109
q lnð1þ2kÞ
2k
À1
82. Vm
ffiffiffi
k
p þ
ffiffiffiffiffiffiffi
1
Am
s
2
6
6
4
3
7
7
5: ð59Þ
In order to illustrate cases which appear during the minimization
procedure, Figs. 4–6 are presented. Since the general concept with
Fig. 3. Criterion JITAEðk,9B9Þ.
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693 687
83. the IAE minimization is similar to the method with the ITAE
minimization, then in these figures subscript i might represent
either IAE or ITAE.
The next part of this section is dedicated to the design of the
switching line which moves with a constant velocity to the origin
of the error state space. Similarly to the previous considerations
we will consider two ways of obtaining the line parameters, i.e.
the IAE and ITAE minimization with the velocity and acceleration
constraints.
4.2. Constant velocity switching line
In this subsection we introduce the switching line which moves
to the origin of the error state space with a constant velocity. It
means that in definition (25) we assume C¼0. That leads to the
following conclusions. Because at the time t ¼ tf the line passes
through the origin of the space, then the following condition
Btf þA ¼ 0 ð60Þ
is satisfied. Using relation (26) which is also true now since the
system representative point belongs to the line at the initial time
t¼0, we obtain
tf ¼
e10c
B
: ð61Þ
Using Eqs. (29) and (33) for C¼0, after some calculations one
concludes that velocity constraint (13) is satisfied if
9B9r
V2
mk
9e109½1ÀexpðÀkÞŠ2
, ð62Þ
and furthermore, acceleration constraint (14) holds when inequality
(46) is true. Now we move on to the precise analysis of the
minimization procedure. It means that we present two algorithms
for finding optimal parameter k when criteria IAE and ITAE are
minimized subject to constraints (46) and (62).
4.2.1. Minimization of IAE
Under the considered assumption C¼0, criterion (36) can be
expressed as follows
JIAE ¼ e10tf þ
e10
c
À
Bt2
f
2c
84.
85.
86.
87.
88.
89.
90.
91.
92.
93. : ð63Þ
Substituting (61) and (43) into (63), we obtain the following form
of this criterion
JIAE ¼
9e109
3=2
ffiffiffiffiffiffiffi
9B9
q
ffiffiffi
k
p
2
þ
1
ffiffiffi
k
p
!
, ð64Þ
as a function of ðk,BÞ. Notice that also this time, the criterion
decreases with increasing value of 9B9, and the plot of criterion
(64) is very similar to the one shown in Fig. 2. Minimization of
(64) subject to constraints (62) and (46) might be replaced by
minimization of an appropriate single variable function without
any constraints. Thus, taking into account the velocity constraint
expressed by (62), the criterion can be presented as
JV
IAEðkÞ ¼
e2
10ð1ÀexpðÀkÞÞ
Vm
1
k
þ
1
2
, ð65Þ
and for acceleration constraint (46) we obtain
JA
IAEðkÞ ¼
9e109
3=2
ffiffiffiffiffiffiffi
Am
p
ffiffiffi
k
p
2
þ
1
ffiffiffi
k
p
!
: ð66Þ
Minimizing these functions separately, we conclude that JV
IAEðkÞ
reaches its minimum value when k tends to infinity, and that
JA
IAEðkÞ achieves its minimum value for k
IAE
opt ¼ 2. Finding minimum
of function (64) with constraints (62) and (46), we consider two
cases: JV
IAEð2ÞrJA
IAEð2Þ and JV
IAEð2Þ4JA
IAEð2Þ. In the first one, we
obtain that parameter kopt ¼ 2 and consequently, B can be derived
from (51). This is the case when the acceleration constraint is
dominant. In the second case in order to find minimum value of k,
we calculate numerically in the interval ð2,kzÞ the root of the
following function
f3ðkÞ ¼ 9e109
3=2 1
ffiffiffi
k
p þ
ffiffiffi
k
p
2
! ffiffiffiffiffiffiffiffiffiffiffi
9e109
q
½1ÀexpðÀkÞŠ
Vm
ffiffiffi
k
p À
ffiffiffiffiffiffiffi
1
Am
s2
4
3
5, ð67Þ
where kz is given by the following formula [3]
kz ¼
9e109Am
V2
m
: ð68Þ
Then, having calculated the optimal value of k, we can determine
the optimal value of parameter B either from (51) or from the
following relation
B ¼
V2
mk
9e109½1ÀexpðÀkÞŠ2
sgnðe0Þ: ð69Þ
Fig. 5. Minimization procedure — case 2: JV
i ðkvoptÞZJA
i ðkvoptÞ.
Fig. 6. Minimization procedure — case 3: JV
i ðkaopt Þ4JA
i ðkaoptÞ4JV
i ðkvoptÞoJA
i ðkvoptÞ.
Fig. 4. Minimization procedure — case 1: JV
i ðkaopt ÞrJA
i ðkaoptÞ.
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693688
94. Next, we can calculate A and c using formulas (26) and (43),
respectively. The line designed in this way stops moving at the
time instant tf given by (61).
4.2.2. Minimization of ITAE
Substituting C¼0, (43) and (61) into (38), we obtain the
following two variable function
JITAE ¼
e2
10
69B9
6
k
þ3þk
: ð70Þ
The 3D plot of criterion (70) is similar to the one shown in Fig. 3.
Notice that in this case we also can replace the minimization of
this function with constraints (62) and (46) by the minimization
of the following single variable functions without any constraints
JV
ITAEðkÞ ¼
9e109
3
6V2
m
6
k
2
þ
3
k
þ1
½1ÀexpðÀkÞŠ2
, ð71Þ
and
JA
ITAEðkÞ ¼
e2
10
6Am
6
k
þ3þk
: ð72Þ
Repeating our earlier considerations, first we minimize these
functions separately. Then, we get that JV
ITAEðkÞ reaches its mini-
mum value for k-1. On the other hand, criterion JA
ITAEðkÞ achieves
its minimum value for k
ITAE
opt ¼
ffiffiffi
6
p
. Therefore, in order to solve the
minimization task for criterion (55) where JV
ITAEðkÞ and JA
ITAEðkÞ are
defined by (71) and (72), respectively, we consider two cases:
JV
ITAEð
ffiffiffi
6
p
ÞrJA
ITAEð
ffiffiffi
6
p
Þ and JV
ITAEð
ffiffiffi
6
p
Þ4JA
ITAEð
ffiffiffi
6
p
Þ. In the first one, we
obtain that parameter kopt ¼
ffiffiffi
6
p
which leads to the conclusion
that B is given by (51). In the second case the optimal value of k is
a numerically found solution of equation f4ðkÞ ¼ 0 in the interval
ð
ffiffiffi
6
p
,kzÞ where kz is given by (68) and f4 is expressed as
f4ðkÞ ¼
e2
10
6
6
k
þ3þk
9e109½1ÀexpðÀkÞŠ2
V2
mk
À
1
Am
( )
: ð73Þ
Next, the optimal value of parameter B can be found from either
(51) or (69). Having calculated the optimal values of k and B we
determine other switching line parameters A, c and tf using
formulas (26), (43) and (61), respectively.
Notice that when condition JV
ITAEð
ffiffiffi
6
p
Þ4JV
ITAEð
ffiffiffi
6
p
Þ is satisfied, the
optimal value of k is the same when either ITAE or IAE is
minimized, which can be justified by the fact that for any fixed
values of Vm, Am and e10 we obtain
9e109½1ÀexpðÀkÞŠ2
V2
mk
À
1
Am
¼
ffiffiffiffiffiffiffiffiffiffiffi
9e109
q
½1ÀexpðÀkÞŠ
Vm
ffiffiffi
k
p À
ffiffiffiffiffiffiffi
1
Am
s2
4
3
5
Â
ffiffiffiffiffiffiffiffiffiffiffi
9e109
q
½1ÀexpðÀkÞŠ
Vm
ffiffiffi
k
p þ
ffiffiffiffiffiffiffi
1
Am
s2
4
3
5: ð74Þ
Considering the similarity between the presented minimization
procedures for IAE and ITAE, we show the general idea of finding
minimum value of the criteria in Figs. 7 and 8. In these figures i
might stand either for IAE or for ITAE.
In this way we proposed the sliding mode control algorithms
which employ switching lines moving with a constant velocity
ðC ¼ 0Þ and a constant deceleration ðC a0Þ. In the next section, the
methods specified above will be applied to the position control of
system (5).
5. Experimental results
The sliding mode control strategy proposed above has been
applied to a laboratory model of an industrial hoisting crane
commercially available from Inteco Ltd. (www.inteco.pl. The
mechanical structure of the hoisting subsystem is compatible
with the model illustrated in Fig. 1. The maximum control voltage
is limited to 24 V, i.e. 9u9rUm ¼ 24 V. For each experiment
approximate control (20) has been used with ^a ¼ 3:0 V s2
=m,
g ¼ 50=3 m=s2
and n ¼ 0:05 m=s. The algorithm has been imple-
mented in discrete time with sampling frequency fs ¼ 100 Hz. The
payload velocity and acceleration have been estimated by linear
observer with dominant pole À15. Velocity and acceleration
limits have been selected as follows Vm ¼ 0:1 m=s and
Am ¼ 0:3 m=s2
. The desired position has been changed as
xd1 ¼
0:5 m for 0rto10 s,
0:1 m for tZ10 s,
(
ð75Þ
while initial payload position x1ð0Þ ¼ 0:1 m.
Considering the initial position error and the constraints of the
velocity and the acceleration, we calculate parameters of the
switching line using the proposed methods. For the line moving
with a constant velocity we obtain the same optimal value of k no
matter which criterion (IAE or ITAE) is minimized. On the other
hand, for the constant deceleration case, two different optimal
values of k have been obtained. Consequently, three experiments
(E1, E2 and E3) have been conducted. Experiment E1 concerns the
line moving with a constant velocity. Then, the optimal value of k,
calculated using the method presented in Section 4.2, is equal to
11.999 and minimization procedure is similar to the one, illu-
strated by Fig. 8. When we take into account the line with a
constant deceleration, we get two different sets of optimal
parameters (one for the IAE minimization — E2 and another
one for the ITAE minimization — E3). From the IAE minimization,
described in subsection 4.1.1, we obtain kopt % 8:177. This case
corresponds to the one presented in Fig. 5 and parameter B can be
calculated from (51). However, for the ITAE minimization the
optimal value of parameter k is given as k
ITAE
vopt % 6:263, which
means that parameter B should be calculated from (52). To
Fig. 7. Minimization procedure — case 1: JV
i ðkaopt ÞrJA
i ðkaopt Þ.
Fig. 8. Minimization procedure — case 2: JV
i ðkaoptÞ4JA
i ðkaoptÞ.
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693 689
95. illustrate better the optimization procedure, we present two
additional figures for experiment E3 (for the other experiments
the illustrations would be quite similar). First in Fig. 9, two
criteria JITAE
A
and JITAE
V
are presented, both as functions of single
variable k. Then, from Fig. 10, the evolution of the ITAE criterion
as a function of 9B9 for the optimal value of k may be seen. The
figures show that for the obtained value kopt, the ITAE criterion
reaches its minimum value for the greatest admissible 9B9.
The optimal parameters required to conduct the experiments,
calculated using relations given in Section 4, are collected in
Table 1. Notice that signs of parameters C, B and A depend on the
sign of the initial error e10. Results of the experiments are
illustrated in Figs. 11–28. From Figs. 11–16 one can observe that
regulation error converges to some neighborhood of zero. For the
worst case recorded (Fig. 16) position error in the steady state
does not exceed 1 mm. The payload velocity is presented in
Figs. 17–19 from which it can be seen how the behavior of the
closed-loop control system depends on the switching line design
method. For the switching line moving with a constant accelera-
tion, the payload velocity is smooth, however for the line moving
with constant velocity, it reaches assumed maximum bound for
longer time period.
Fig. 9. Criterion JITAE as a function of k.
Fig. 10. Criterion JITAE as a function of 9B9 for optimal value of k.
Fig. 11. Position error (E1).
Table 1
Optimal parameters for experiments E1–E3.
Experiment 9C9 (m/s3
) 9B9 (m/s2
) 9A9 (m/s) c (1/s) tf (s)
E1 0.0 0.30 1.20 3.00 4.00
E2 0.023 0.30 0.99 2.477 6.60
E3 0.020 0.25 0.87 2.167 6.93
Fig. 12. Position error (E2).
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693690
96. The experimental results confirm that both the velocity and
acceleration constraints are always satisfied (see Figs. 17–22). The
acceleration estimate shows significant amount of high frequency
signal (noise) which results from inaccuracy of measurement
method. In practice ideal sliding is not achieved — variable s
remains in the neighborhood of zero with non-zero radius
Fig. 13. Position error (E3).
Fig. 14. Logarithmic position error (E1).
Fig. 15. Logarithmic position error (E2).
Fig. 16. Logarithmic position error (E3).
Fig. 17. Velocity error (E1).
Fig. 18. Velocity error (E2).
Fig. 19. Velocity error (E3).
Fig. 20. Filtered acceleration (E1).
Fig. 21. Filtered acceleration (E2).
Fig. 22. Filtered acceleration (E3).
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693 691
97. (Figs. 23–25) as a result of continuous approximation of switching
function. It can be observed that for higher velocity, the radius of
the neighborhood increases. It implies that in the considered case
dominant part of uncertain dynamics depends on payload velo-
city. Moreover, it can be seen that due to gravity effects in the
steady state after the lowering stage, variable s becomes smaller
than after the lift stage. The control voltage presented in Figs.
26–28 is not saturated. The chattering phenomenon is not
completely avoided and in particular it can appear for lower
values of the payload velocity (at the end stage of deceleration) as
a result of worse quality of the velocity estimation and also the
increasing importance of Coulomb friction. Phase portraits
depicted in Figs. 29–31 refer to the lift and lowering stage (the
initial conditions are denoted by ‘Å’ and ‘’, respectively) and
show that experimental results correspond quite well to the
theoretical ones.
Additionally, in order to make comparison of experimental
results with the theoretical ones (assuming perfect sliding) more
detailed and objective, settling time and respective values of
Fig. 23. Sliding variable (E1).
Fig. 24. Sliding variable (E2).
Fig. 25. Sliding variable (E3).
Fig. 26. Control voltage input (E1).
Fig. 27. Control voltage input (E2).
Fig. 28. Control voltage input (E3).
Fig. 29. Phase portrait (grey—simulated, black—experimental results) (E1).
Fig. 30. Phase portrait (grey—simulated, black—experimental results) (E2).
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693692
98. integral criteria have been determined. For each experiment
average values of considered criteria have been obtained taking
into account lift and lowering stage. Settling time has been
determined assuming 1% and 5% tolerance. The data is collected
in Table 2 — in parenthesis theoretical values are given.
6. Conclusions
In this paper experimental results on a point-to-point sliding
mode control of a hoisting crane with time-varying switching
lines are presented. The proposed SMC algorithm seems to be an
effective method in practical applications. The optimal synthesis
of the switching lines results in good dynamic performance (in
the sense of IAE and ITAE criteria) and guarantees meeting
velocity and acceleration constraints during the whole control
process. The robustness of the system is ensured from the very
beginning of the control action. Furthermore, monotonic error
convergence to zero is guaranteed. The application of the pro-
posed control scheme reveals its main benefits in the case when a
crane model cannot be easily identified.
Acknowledgments
This work has been performed in the framework of a project
‘‘Optimal sliding mode control of time delay systems’’ financed by
the National Science Centre of Poland – decision number DEC
2011/01/B/ST7/02582.
References
[1] Bartolini G, Fridman L, Pisano A, Usai E, editors. Modern sliding mode control
theory. New perspectives and applications. Series LNCIS, vol. 375. Springer-
Verlag; 2008.
[2] Bartoszewicz A. Time-varying sliding modes for second-order systems. IEE
Proceedings on Control Theory and Applications 1996;143:455–62.
[3] Bartoszewicz A, Nowacka-Leverton A. Time-varying sliding modes for second
and third order systems. Series LNCIS, vol. 382. Springer-Verlag; 2009.
[4] Betin F, Pinchon D, Capolino G. A time-varying sliding surface for robust
position control of a DC motor drive. IEEE Transactions on Industrial
Electronics 2002;49:462–73.
[5] Borgstrom PH, Jordan BL, Borgstrom BJ, Stealey MJ, Sukhatme GS, Batalin MA,
Kaiser WJ. A cable-driven robot with self-calibration capabilities. IEEE
Transactions on Robotics 2009;25:1005–15.
[6] Chang C. Adaptive fuzzy controller of the overhead cranes with nonlinear
disturbance. IEEE Transactions on Industrial Informatics 2007;3:164–72.
[7] Chang C, Hsu K, Chiang K, Huang G. An enhanced adaptive sliding mode fuzzy
control for positioning and anti-swing control of the overhead crane system.
In: Proceedings of IEEE international conference on systems, man, and
cybernetics; 2006. p. 992–7.
[8] Choi HS, Park YH, Cho Y, Lee M. Global sliding-mode control: improved
design for a brushless DC Motor. IEEE Control Systems Magazine
2001;21:27–35.
[9] DeCarlo RS, Zak S, Mathews G. Variable structure control of nonlinear
multivariable systems: a tutorial. Proceedings of the IEEE 1988;76:212–32.
[10] Edwards C, Fossas Colet E, Fridman L, editors. Advances in variable structure
and sliding mode control, Series LNCIS, vol. 334. Springer-Verlag; 2006.
[11] Edwards C, Spurgeon SK. Sliding mode control: theory and applications.
Taylor and Francis; 1998.
[12] Hung JY, Gao W, Hung JC. Variable structure control: a survey. IEEE
Transactions on Industrial Electronics 1993;40:2–22.
[13] Neupert J, Arnold E, Schneider K, Sawodny O. Tracking and anti-sway control
for boom cranes. Control Engineering Practice 2010;18:31–44.
[14] Oh S, Agrawal SK. A control Lyapunov approach for feedback control of cable-
suspended robots. In: IEEE international conference on robotics and auto-
mation; 2007. p. 4544–9.
[15] Oh S, Ryu J, Agrawal SK. Dynamics and control of a helicopter carrying a
payload using a cable-suspended robot. Journal of Mechanical Design
2006;128:1113–21.
[16] Orowska-Kowalska T, Dybkowski M, Szabat K. Adaptive sliding-mode neuro-
fuzzy control of the two-mass induction motor drive without mechanical
sensors. IEEE Transactions on Industrial Electronics 2010;57:553–64.
[17] Park M, Chwa D, Hong S. Adaptive fuzzy nonlinear anti-sway trajectory
tracking control of uncertain overhead cranes with high-speed load hoisting
motion. In: Proceedings of international conference on control, automation
and systems; 2007. p. 2886-91.
[18] Prommaneewat K, Roengruen P, Kongratana V. Anti-sway control for over-
head crane, In: Proceedings of international conference on control, automa-
tion and systems; 2007. p. 1954–7.
[19] Stergiopoulos J, Konstantopoulos G, Tzes A. Experimental verification of an
adaptive input shaping scheme for hoisting cranes. In: 17th mediterranean
conference on control and automation, MED ’09; 2009. p. 730–5.
[20] Tokat S, Eksin I, Guzelkaya M. A new design method for sliding mode
controllers using a linear time-varying sliding surface. IMechE 2002;216:
455–66.
[21] Utkin V. Variable structure systems with sliding modes. IEEE Transactions on
Automatic Control 1977;22:212–22.
[22] Yagiz N, Hacioglu Y, Taskin Y. Fuzzy sliding-mode control of active suspen-
sions. IEEE Transactions on Industrial Electronics 2008;55(11):3883–90.
Table 2
Comparison of settling time for experiments E1–E3.
Experiment Settling time (s)
D ¼ 1% D ¼ 5%
E1 5.16 (4.71) 4.36 (4.17)
E2 6.79 (6.48) 5.74 (5.59)
E3 6.95 (6.46) 5.73 (5.52)
Fig. 31. Phase portrait (grey—simulated, black—experimental results) (E3).
A. Nowacka-Leverton et al. / ISA Transactions 51 (2012) 682–693 693
