1. #evolve19
RUNNING AEM
WORKLOADS ON
MICROSOFT AZURE
Jayan Kandathil (Adobe Inc.)
August 5, 2019

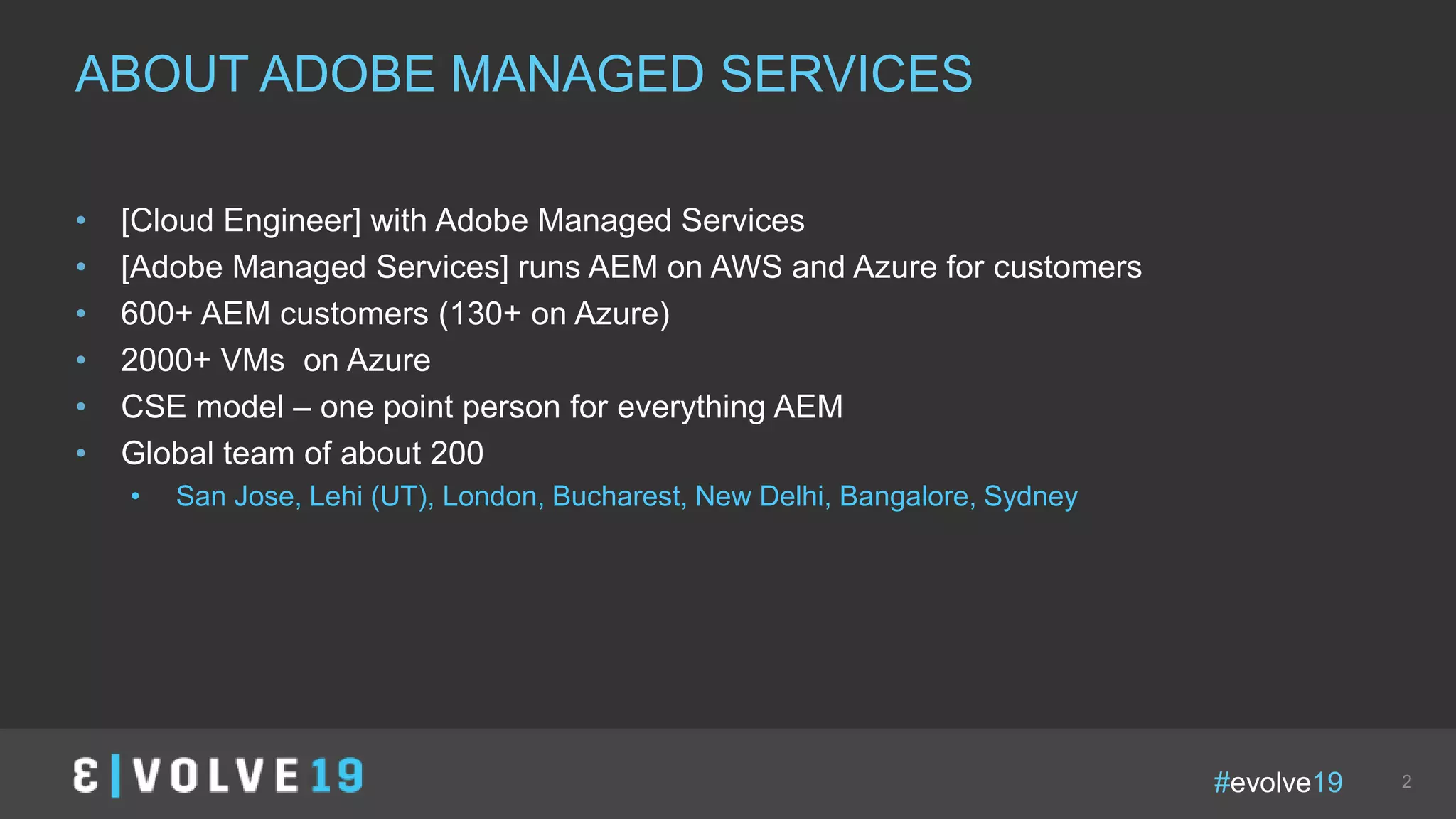

2. #evolve19 2
• [Cloud Engineer] with Adobe Managed Services
• [Adobe Managed Services] runs AEM on AWS and Azure for customers
• 600+ AEM customers (130+ on Azure)
• 2000+ VMs on Azure
• CSE model – one point person for everything AEM
• Global team of about 200
• San Jose, Lehi (UT), London, Bucharest, New Delhi, Bangalore, Sydney
ABOUT ADOBE MANAGED SERVICES

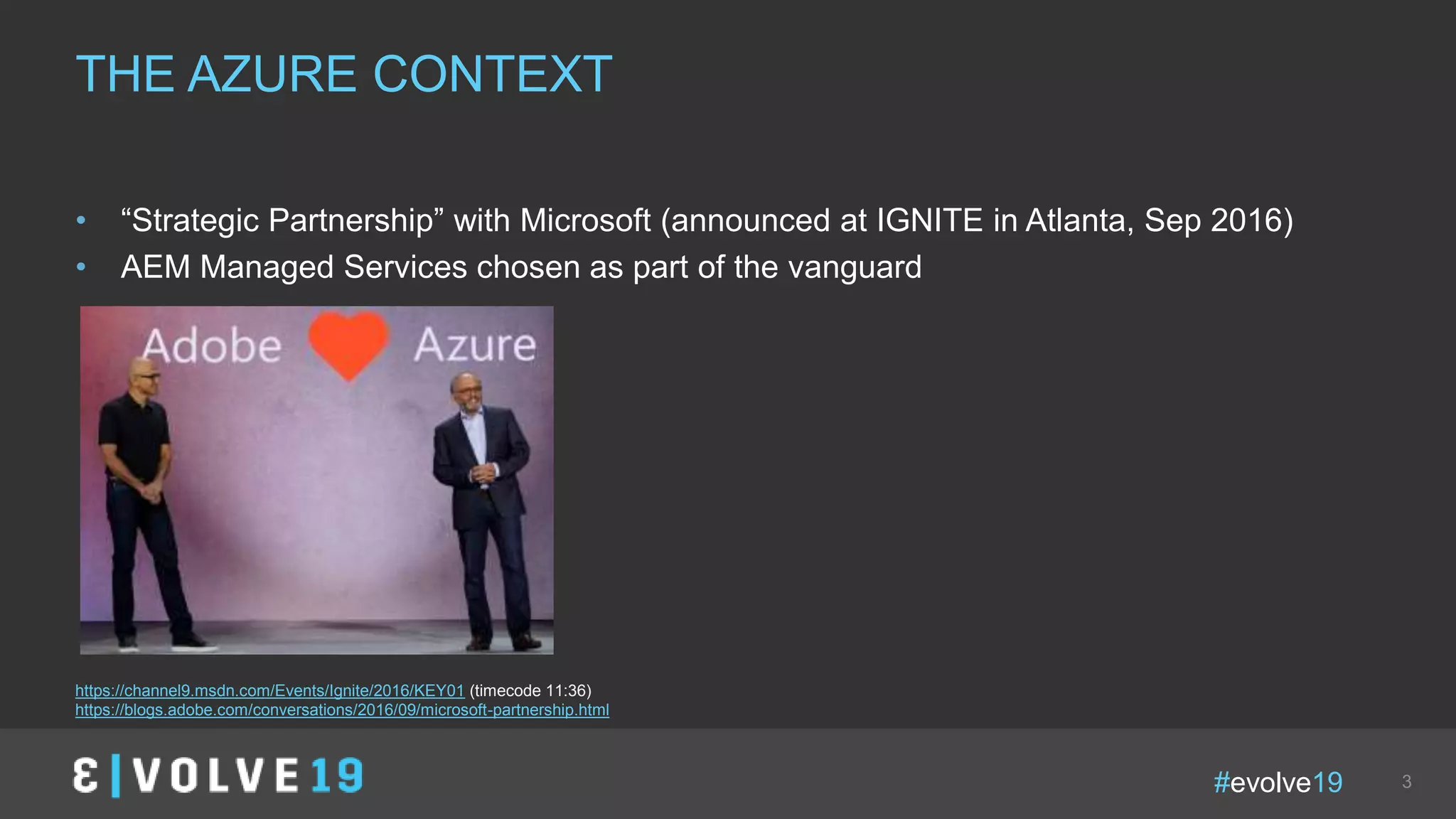

3. #evolve19 3
• “Strategic Partnership” with Microsoft (announced at IGNITE in Atlanta, Sep 2016)
• AEM Managed Services chosen as part of the vanguard
THE AZURE CONTEXT
https://channel9.msdn.com/Events/Ignite/2016/KEY01 (timecode 11:36)
https://blogs.adobe.com/conversations/2016/09/microsoft-partnership.html

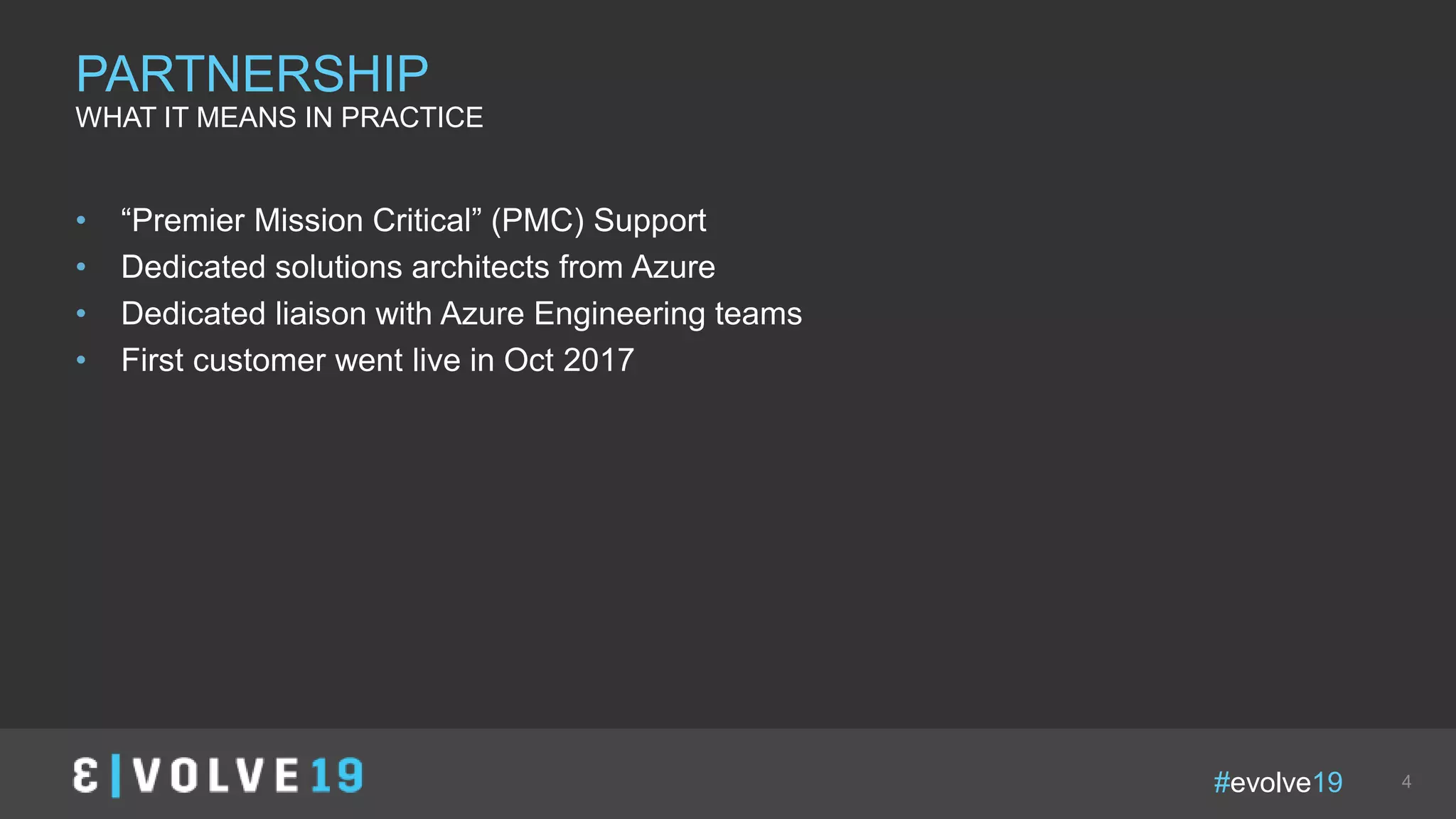

4. #evolve19 4
• “Premier Mission Critical” (PMC) Support
• Dedicated solutions architects from Azure
• Dedicated liaison with Azure Engineering teams
• First customer went live in Oct 2017
PARTNERSHIP
WHAT IT MEANS IN PRACTICE

5. #evolve19 5

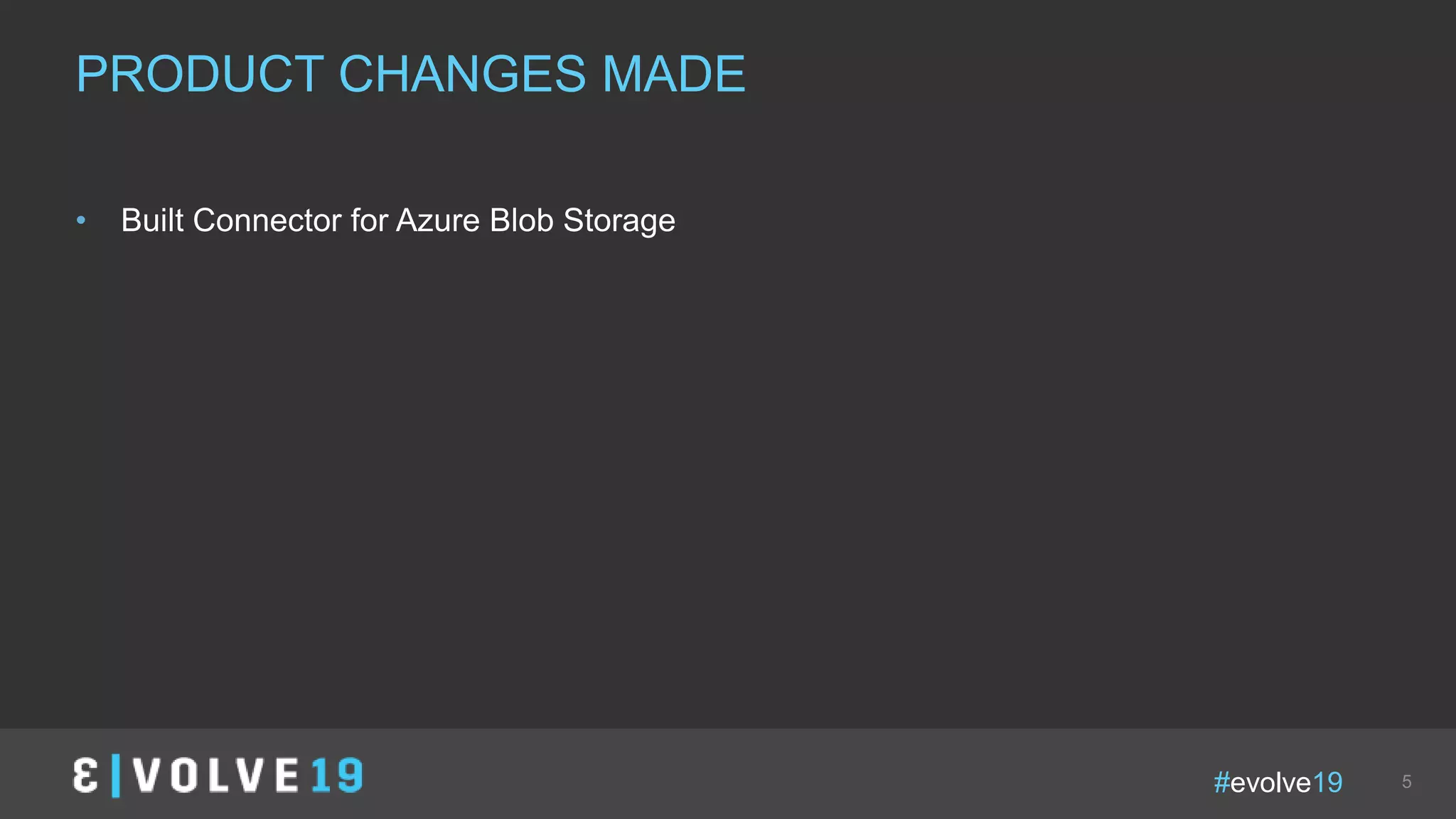

• Built Connector for Azure Blob Storage
PRODUCT CHANGES MADE

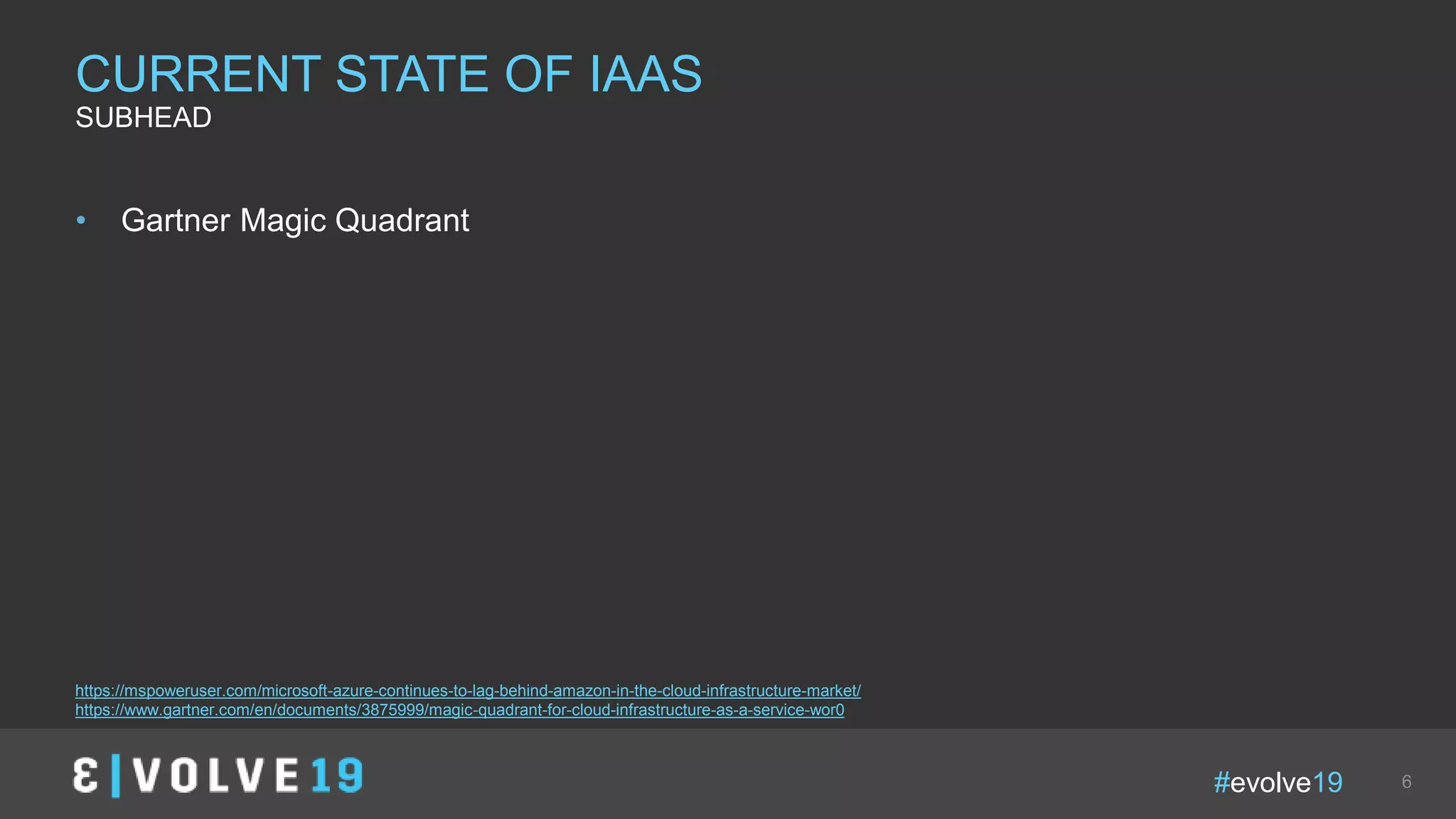

6. #evolve19 6
• Gartner Magic Quadrant
CURRENT STATE OF IAAS
SUBHEAD
https://mspoweruser.com/microsoft-azure-continues-to-lag-behind-amazon-in-the-cloud-infrastructure-market/
https://www.gartner.com/en/documents/3875999/magic-quadrant-for-cloud-infrastructure-as-a-service-wor0

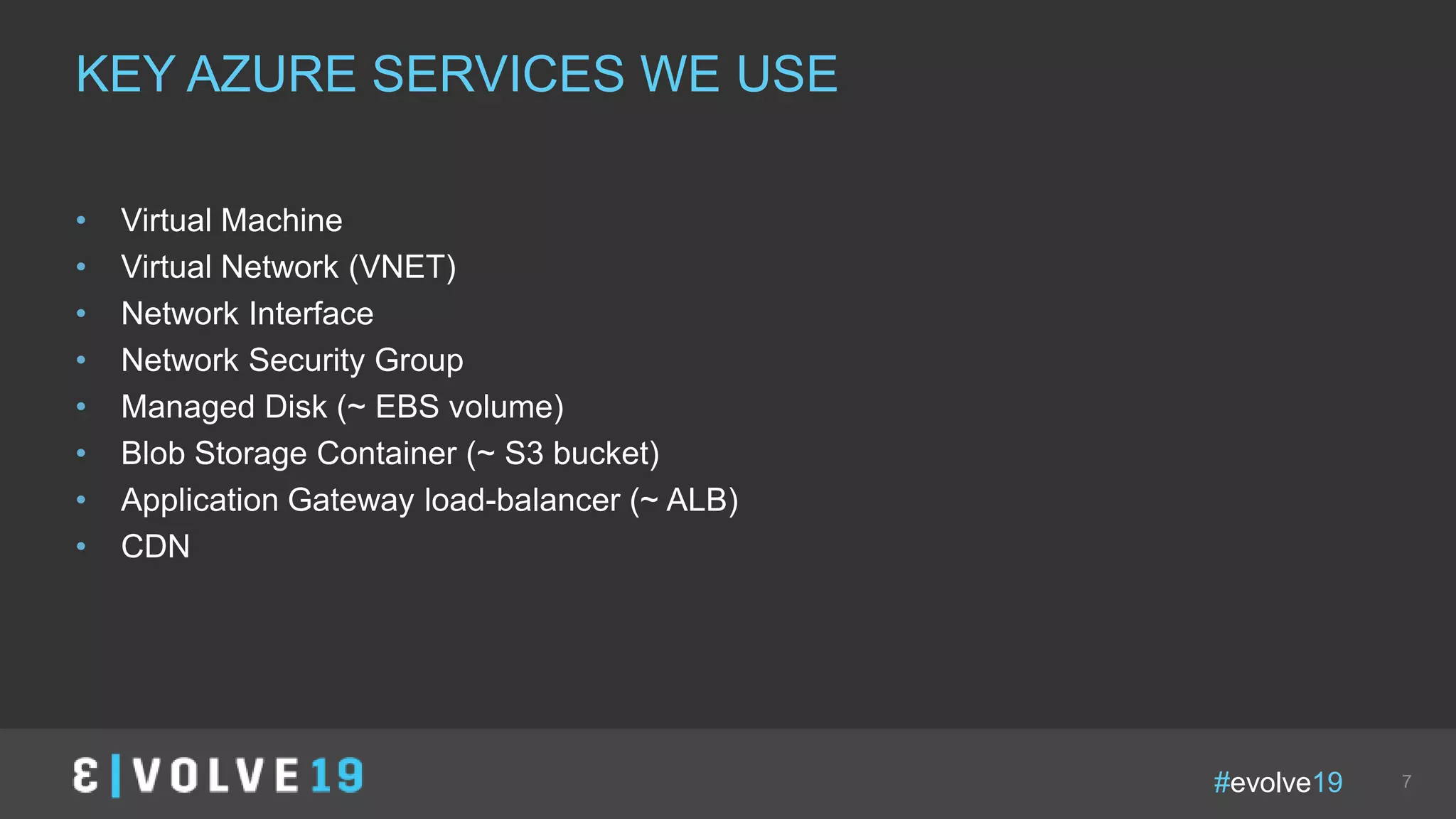

7. #evolve19 7
• Virtual Machine
• Virtual Network (VNET)
• Network Interface
• Network Security Group
• Managed Disk (~ EBS volume)
• Blob Storage Container (~ S3 bucket)
• Application Gateway load-balancer (~ ALB)
• CDN
KEY AZURE SERVICES WE USE

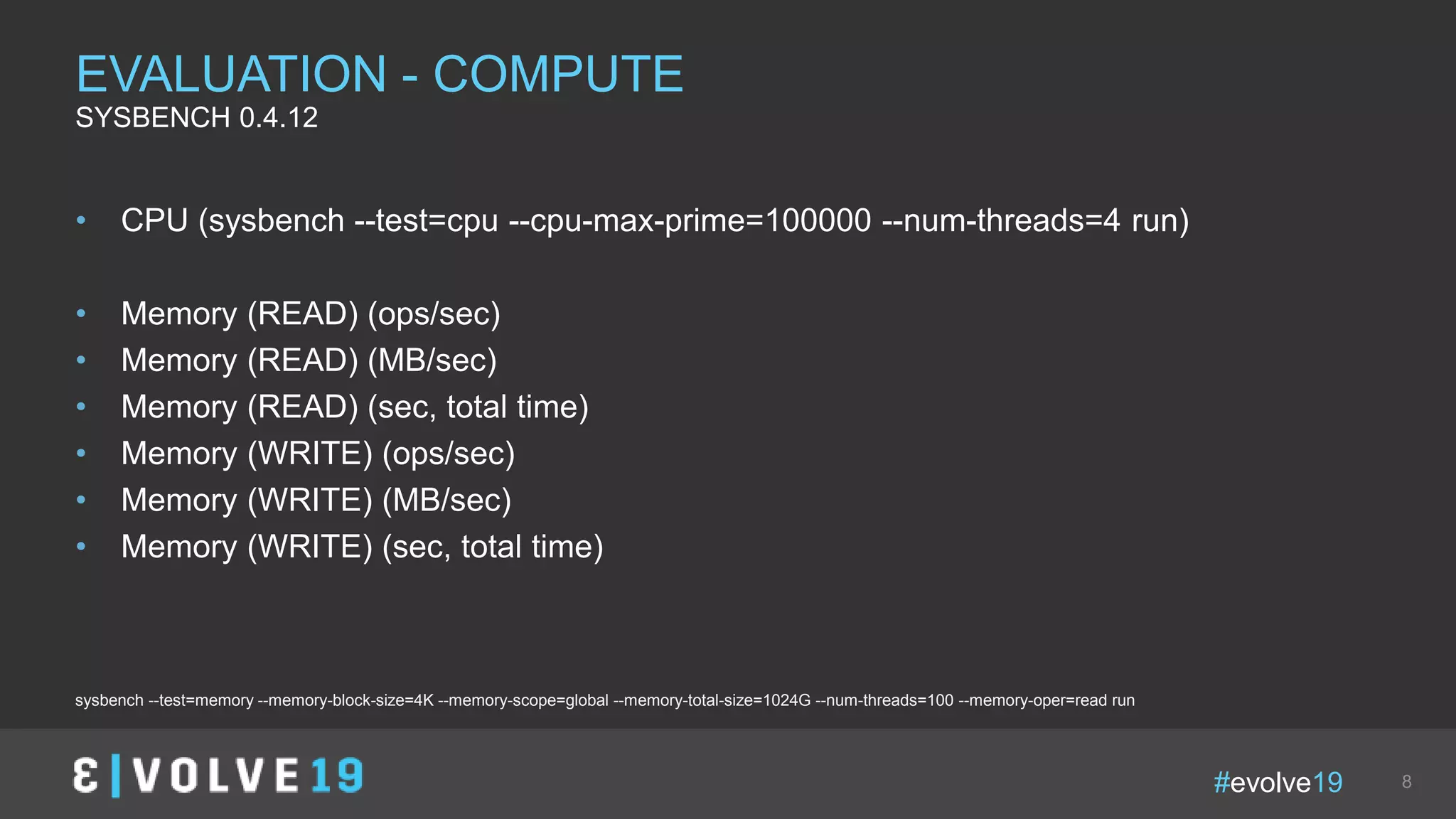

8. #evolve19 8
• CPU (sysbench --test=cpu --cpu-max-prime=100000 --num-threads=4 run)
• Memory (READ) (ops/sec)
• Memory (READ) (MB/sec)
• Memory (READ) (sec, total time)
• Memory (WRITE) (ops/sec)
• Memory (WRITE) (MB/sec)
• Memory (WRITE) (sec, total time)
EVALUATION - COMPUTE
SYSBENCH 0.4.12
sysbench --test=memory --memory-block-size=4K --memory-scope=global --memory-total-size=1024G --num-threads=100 --memory-oper=read run

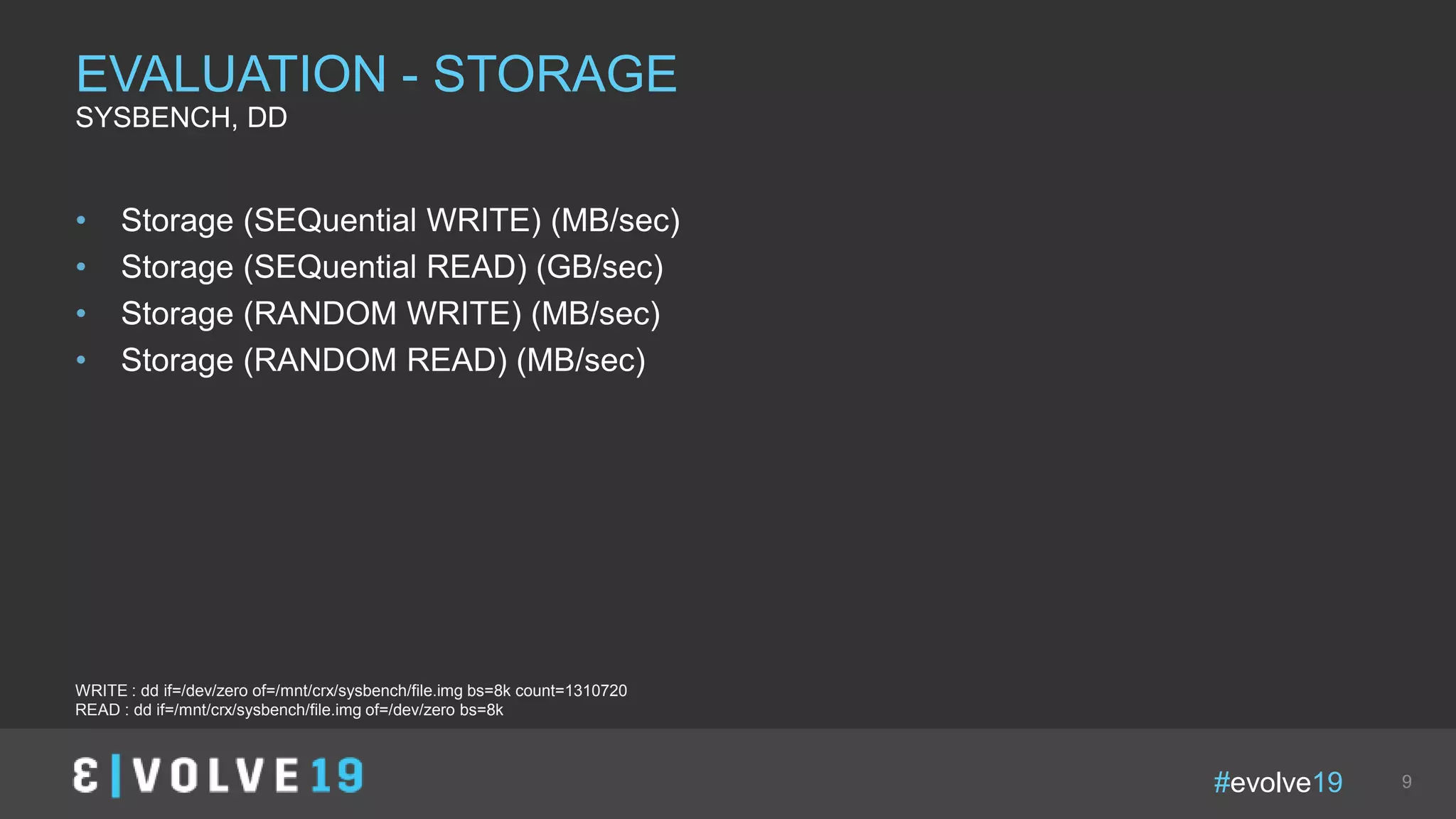

9. #evolve19 9
• Storage (SEQuential WRITE) (MB/sec)
• Storage (SEQuential READ) (GB/sec)
• Storage (RANDOM WRITE) (MB/sec)
• Storage (RANDOM READ) (MB/sec)
EVALUATION - STORAGE
SYSBENCH, DD
WRITE : dd if=/dev/zero of=/mnt/crx/sysbench/file.img bs=8k count=1310720
READ : dd if=/mnt/crx/sysbench/file.img of=/dev/zero bs=8k

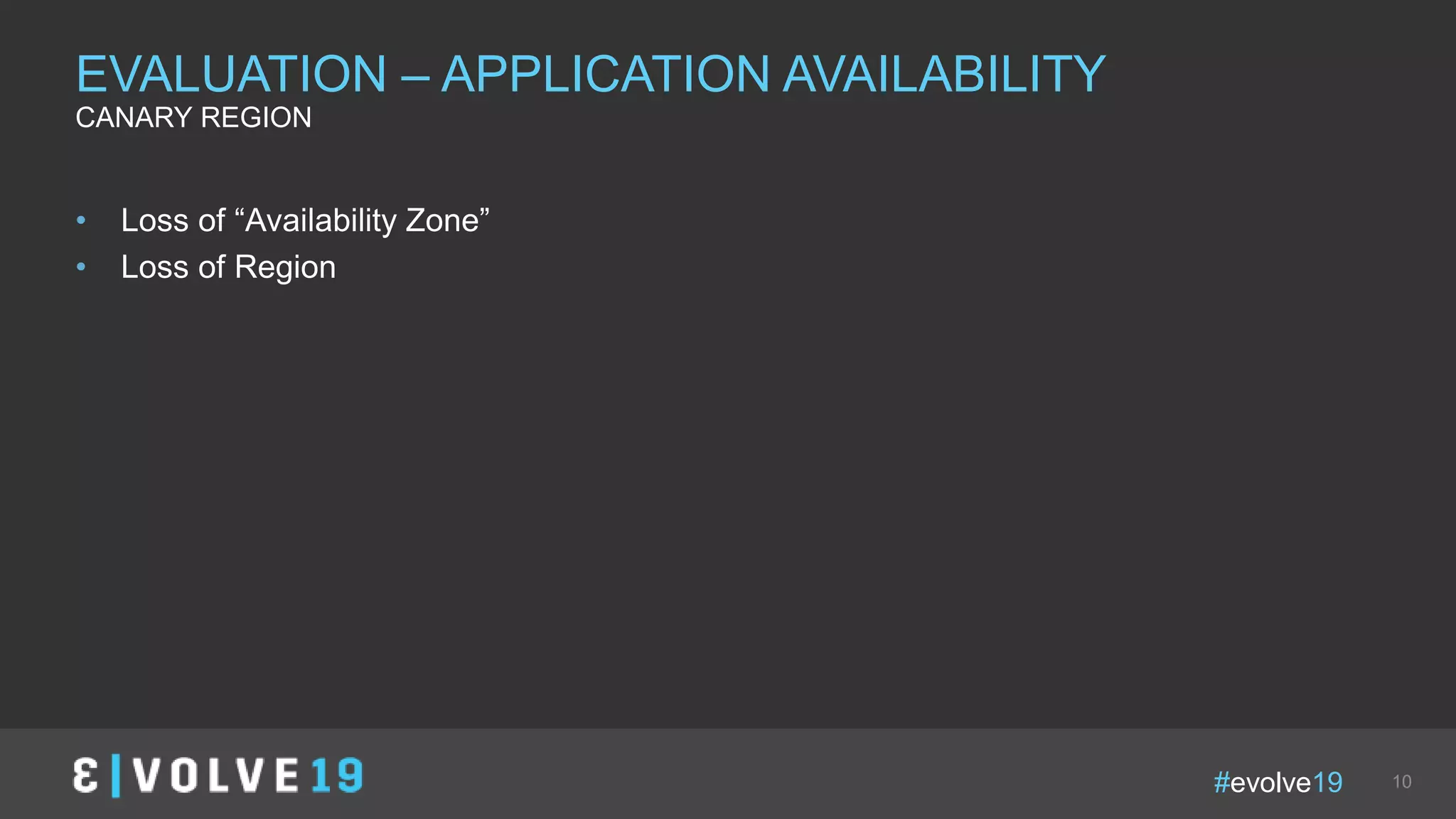

10. #evolve19 10
• Loss of “Availability Zone”
• Loss of Region
EVALUATION – APPLICATION AVAILABILITY
CANARY REGION

11. #evolve19 11

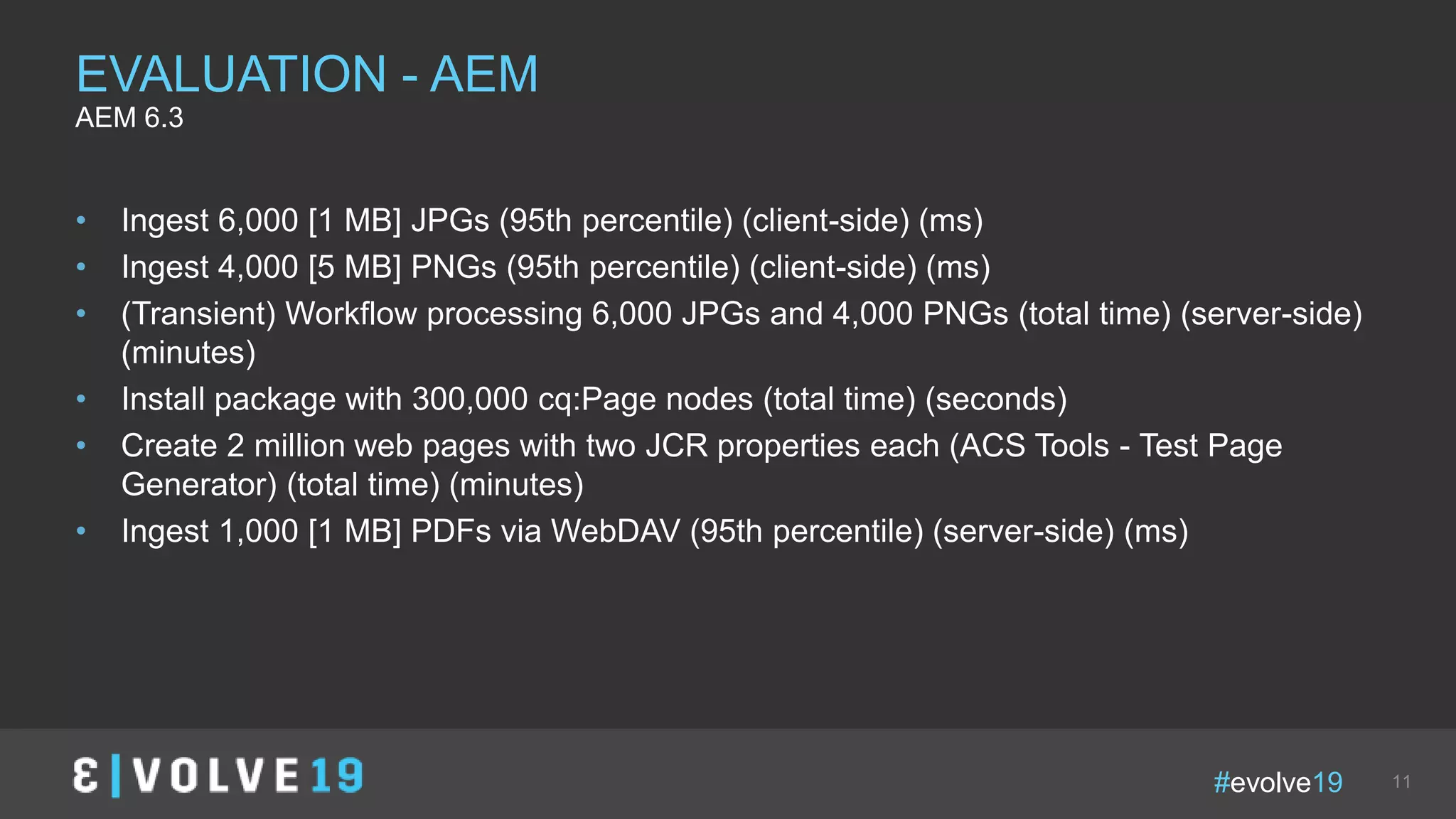

• Ingest 6,000 [1 MB] JPGs (95th percentile) (client-side) (ms)
• Ingest 4,000 [5 MB] PNGs (95th percentile) (client-side) (ms)
• (Transient) Workflow processing 6,000 JPGs and 4,000 PNGs (total time) (server-side)
(minutes)
• Install package with 300,000 cq:Page nodes (total time) (seconds)
• Create 2 million web pages with two JCR properties each (ACS Tools - Test Page
Generator) (total time) (minutes)
• Ingest 1,000 [1 MB] PDFs via WebDAV (95th percentile) (server-side) (ms)
EVALUATION - AEM
AEM 6.3

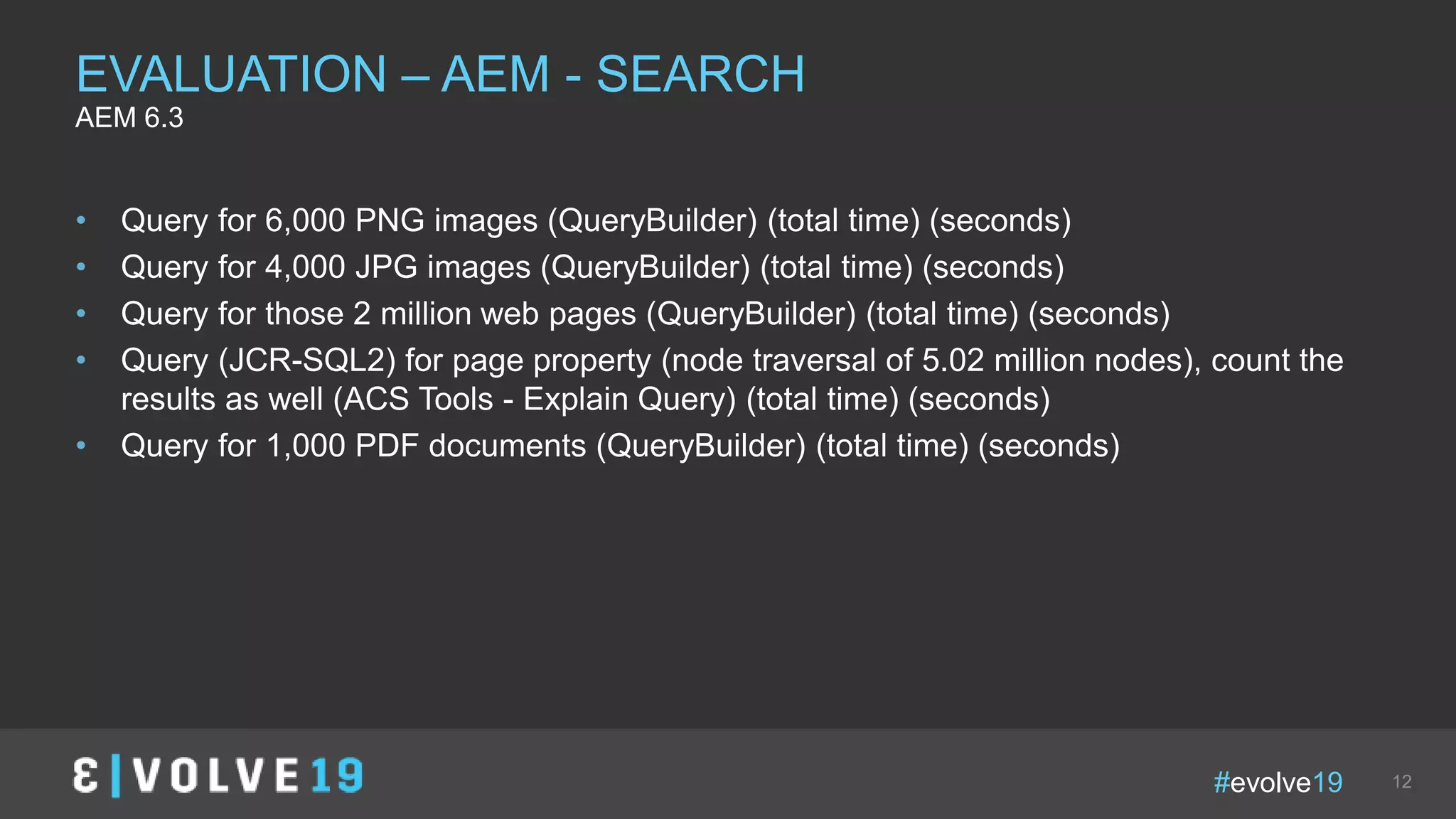

12. #evolve19 12
• Query for 6,000 PNG images (QueryBuilder) (total time) (seconds)
• Query for 4,000 JPG images (QueryBuilder) (total time) (seconds)
• Query for those 2 million web pages (QueryBuilder) (total time) (seconds)
• Query (JCR-SQL2) for page property (node traversal of 5.02 million nodes), count the
results as well (ACS Tools - Explain Query) (total time) (seconds)
• Query for 1,000 PDF documents (QueryBuilder) (total time) (seconds)
EVALUATION – AEM - SEARCH
AEM 6.3

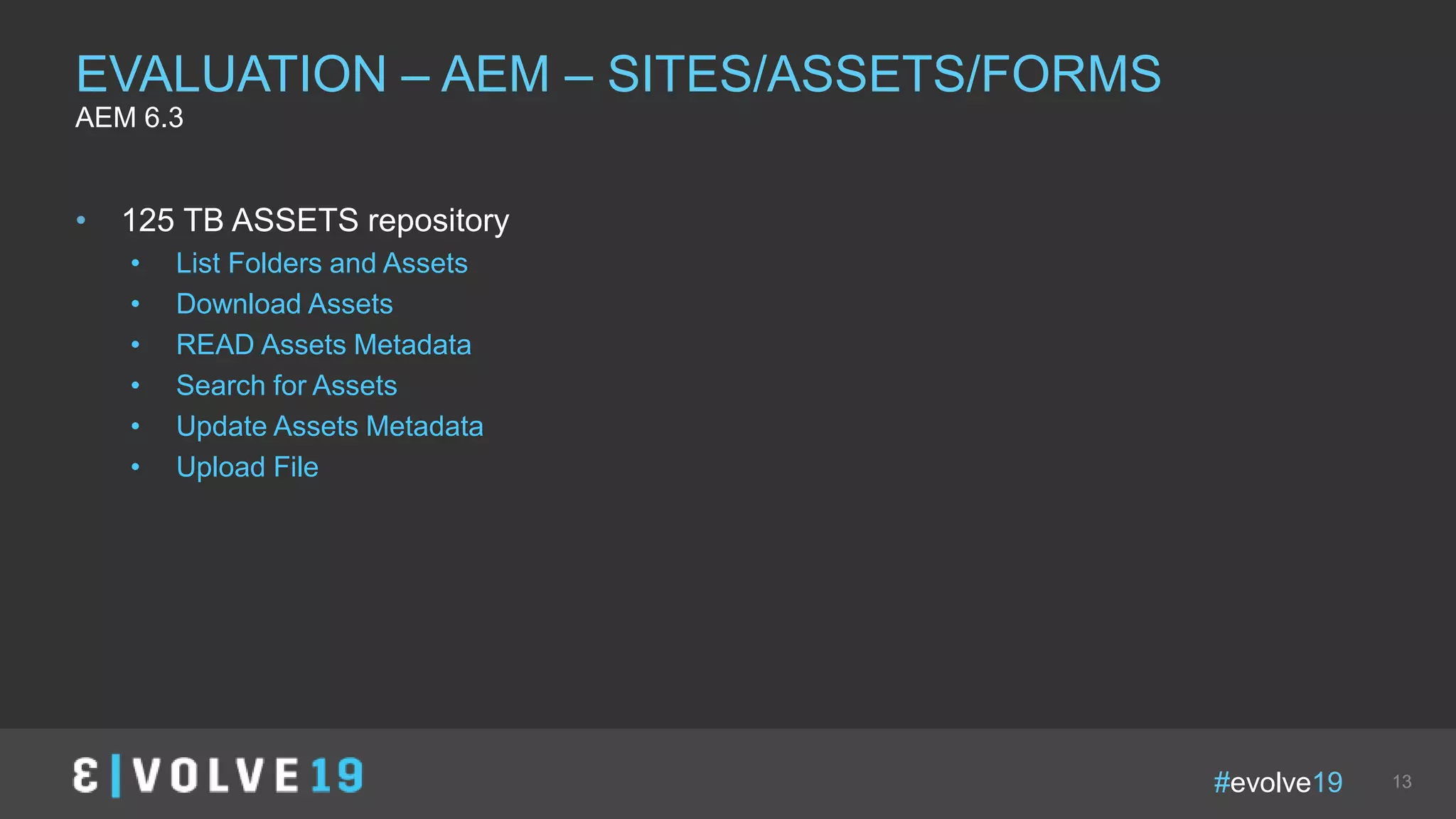

13. #evolve19 13
• 125 TB ASSETS repository
• List Folders and Assets
• Download Assets
• READ Assets Metadata
• Search for Assets
• Update Assets Metadata
• Upload File
EVALUATION – AEM – SITES/ASSETS/FORMS
AEM 6.3

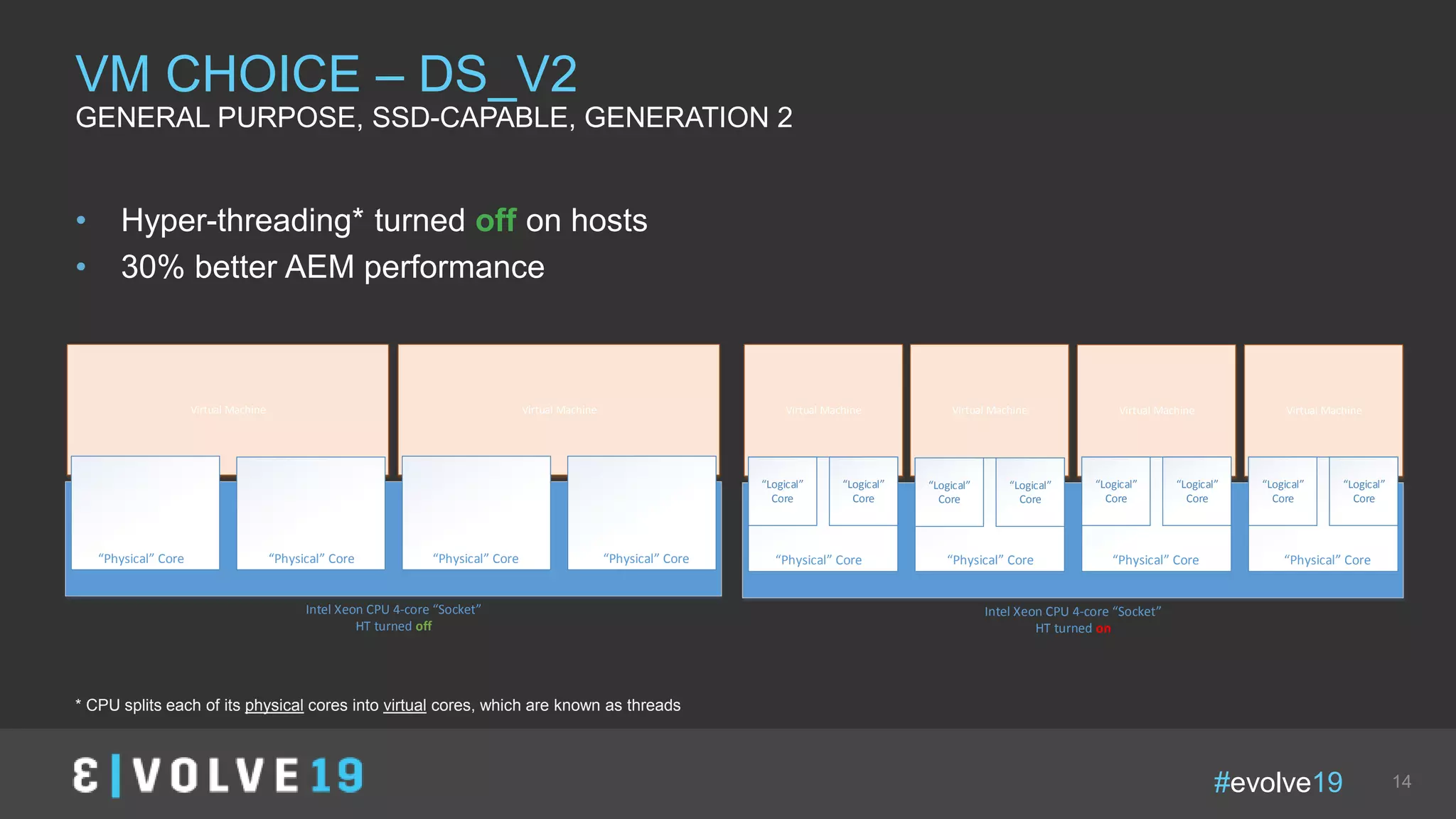

14. #evolve19 14
• Hyper-threading* turned off on hosts
• 30% better AEM performance
VM CHOICE – DS_V2
GENERAL PURPOSE, SSD-CAPABLE, GENERATION 2
* CPU splits each of its physical cores into virtual cores, which are known as threads
Virtual Machine
Intel Xeon CPU 4-core Socket
HT turned off
Virtual Machine
Physical Core Physical Core Physical Core Physical Core
Virtual MachineVirtual MachineVirtual MachineVirtual Machine
Intel Xeon CPU 4-core Socket
HT turned on
Physical Core Physical Core Physical Core Physical Core
Logical
Core
Logical
Core
Logical
Core
Logical
Core
Logical
Core
Logical
Core
Logical
Core
Logical
Core

15. #evolve19 15

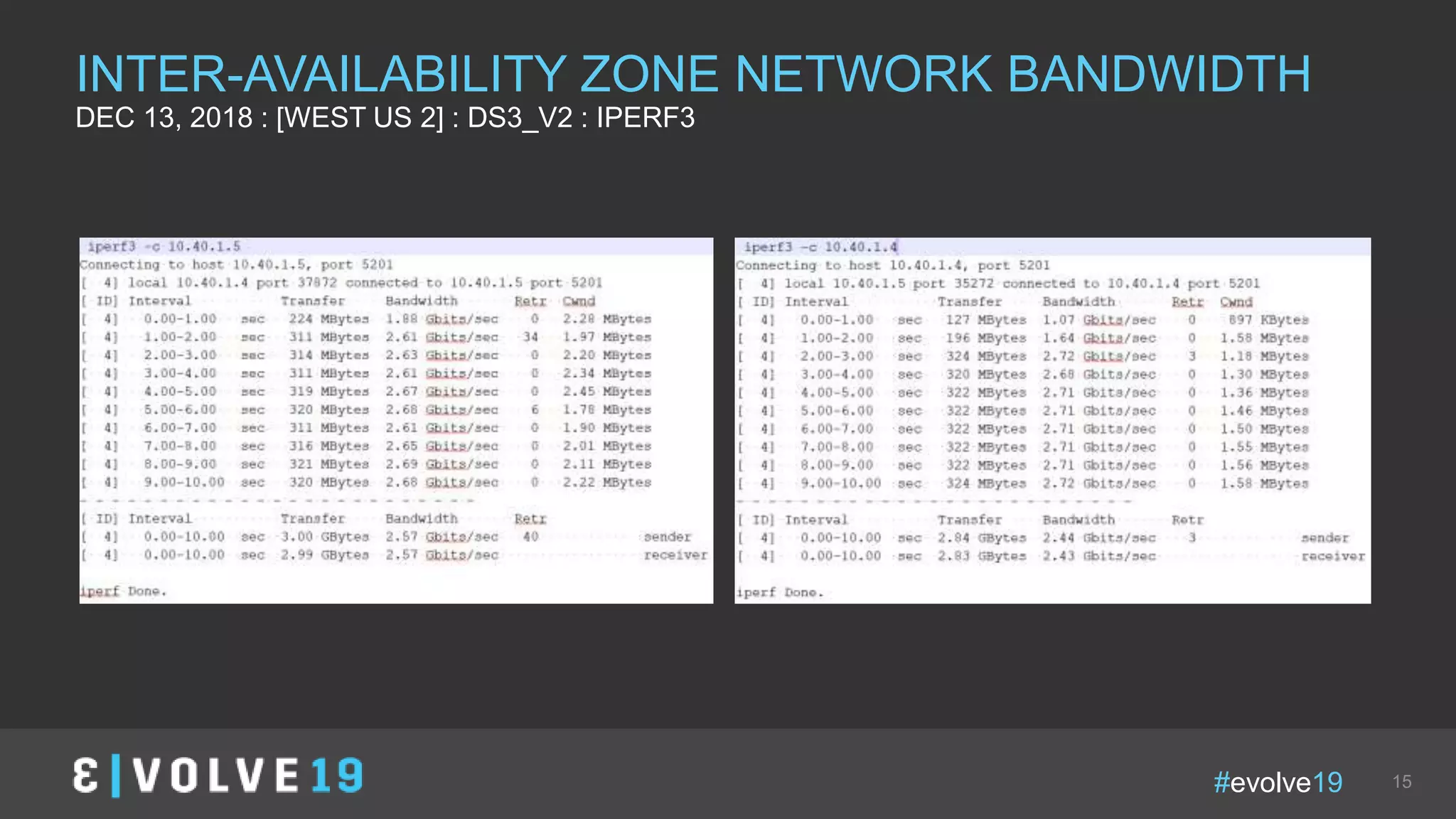

INTER-AVAILABILITY ZONE NETWORK BANDWIDTH
DEC 13, 2018 : [WEST US 2] : DS3_V2 : IPERF3

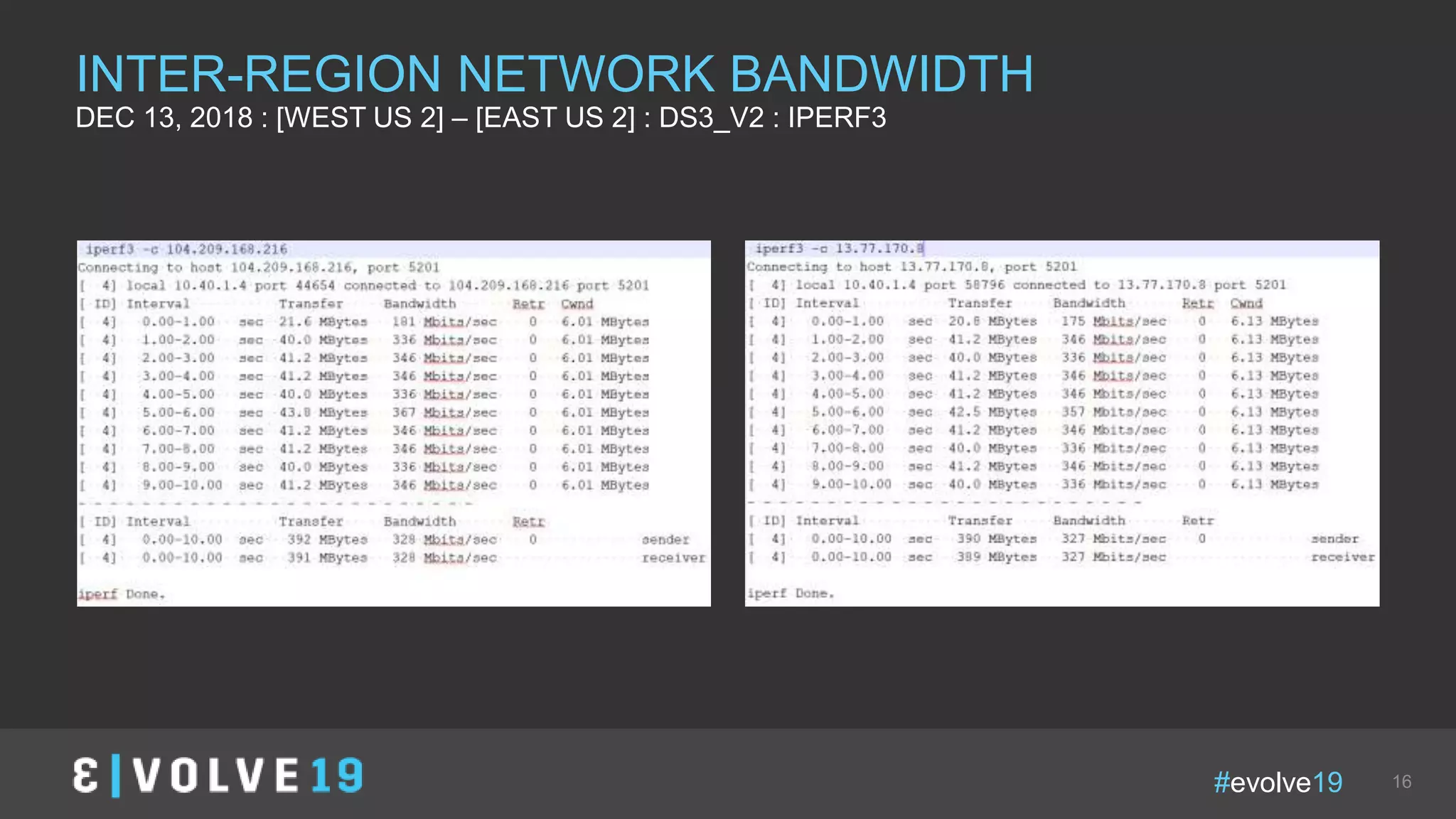

16. #evolve19 16
INTER-REGION NETWORK BANDWIDTH
DEC 13, 2018 : [WEST US 2] – [EAST US 2] : DS3_V2 : IPERF3

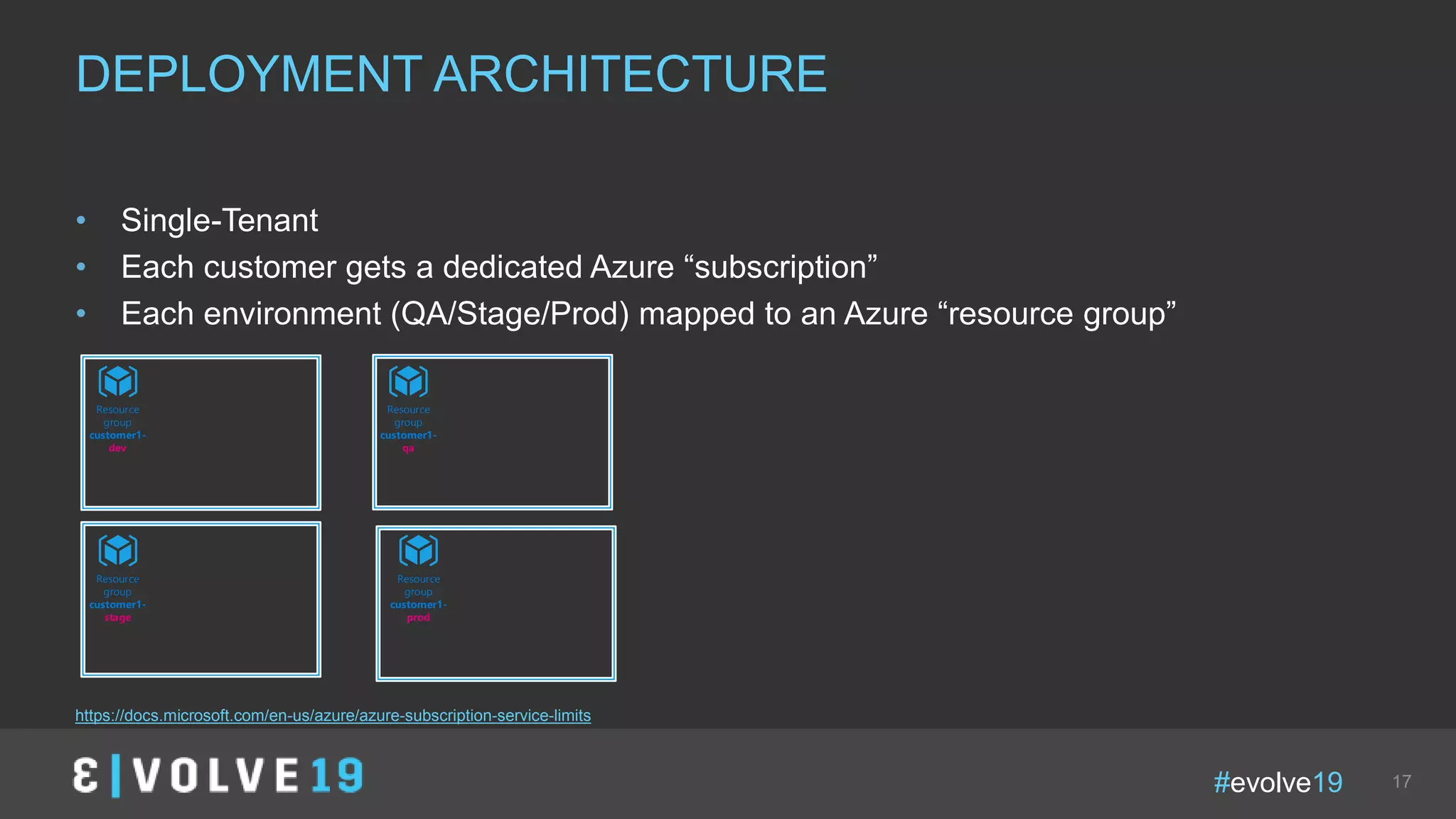

17. #evolve19 17
• Single-Tenant
• Each customer gets a dedicated Azure “subscription”
• Each environment (QA/Stage/Prod) mapped to an Azure “resource group”
DEPLOYMENT ARCHITECTURE
https://docs.microsoft.com/en-us/azure/azure-subscription-service-limits
Resource
group
customer1-
dev
Resource
group
customer1-
stage
Resource
group
customer1-
qa
Resource
group
customer1-
prod

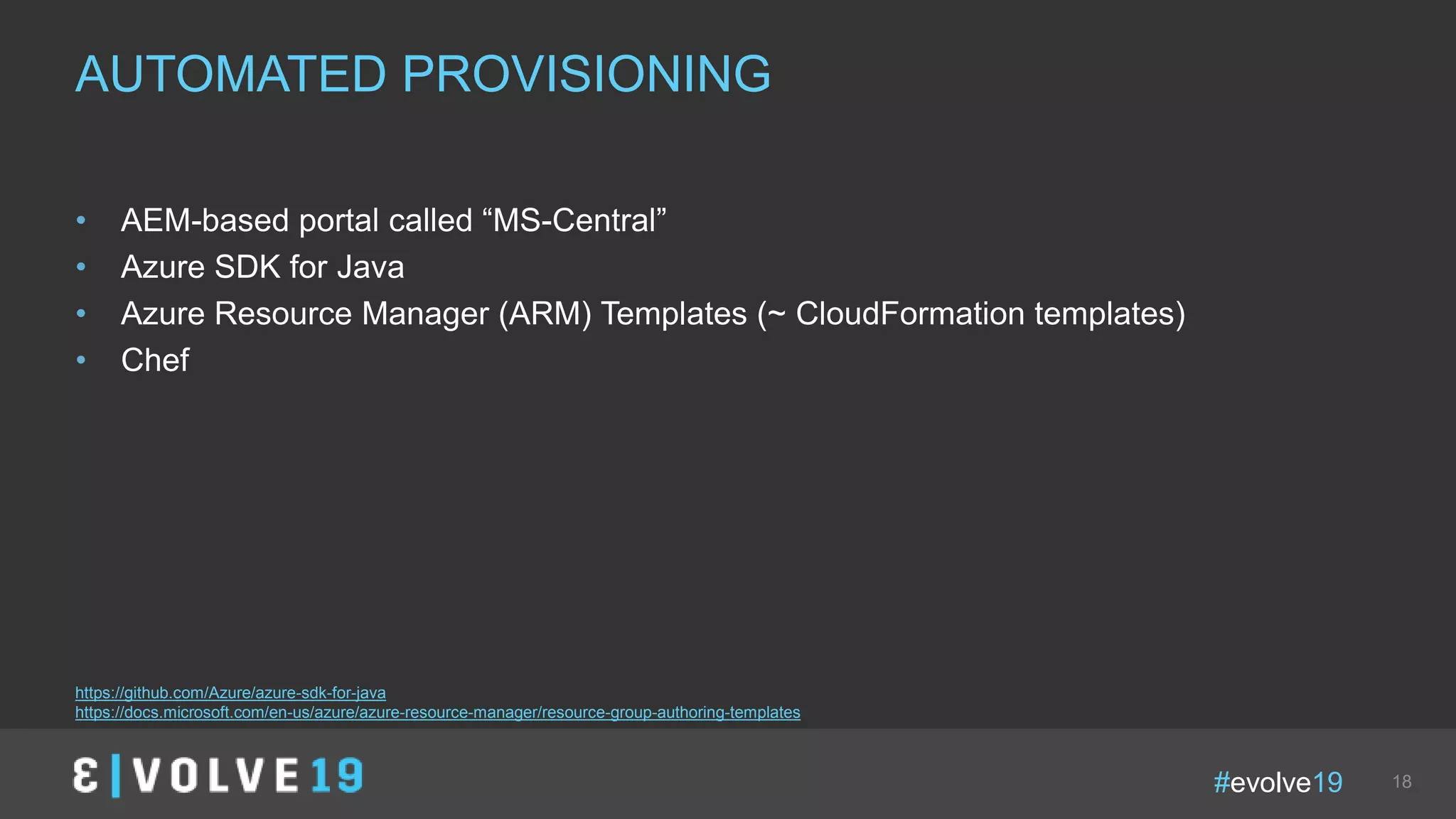

18. #evolve19 18
• AEM-based portal called “MS-Central”
• Azure SDK for Java
• Azure Resource Manager (ARM) Templates (~ CloudFormation templates)
• Chef
AUTOMATED PROVISIONING
https://github.com/Azure/azure-sdk-for-java
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-group-authoring-templates

19. #evolve19 19

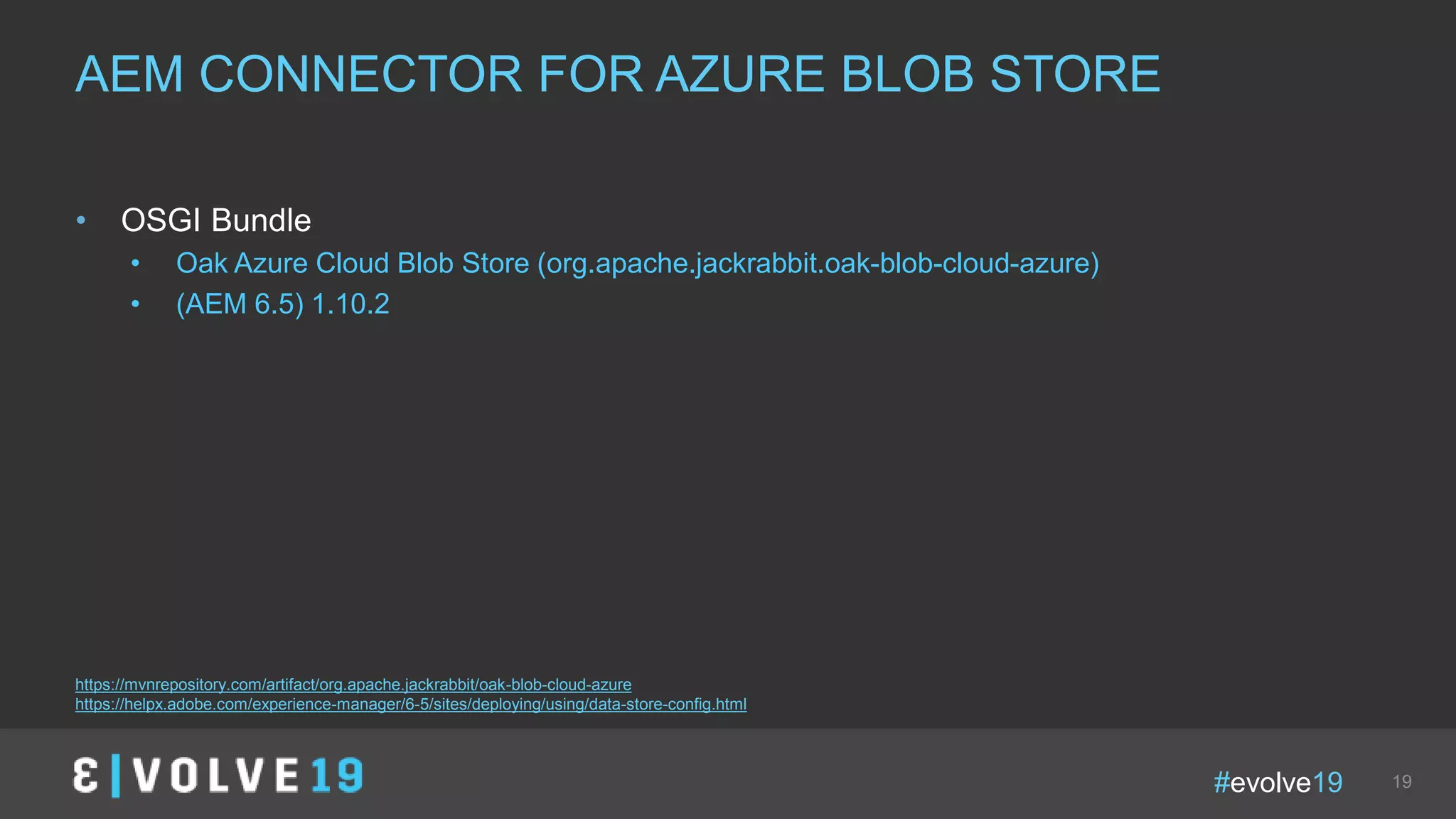

• OSGI Bundle
• Oak Azure Cloud Blob Store (org.apache.jackrabbit.oak-blob-cloud-azure)
• (AEM 6.5) 1.10.2
AEM CONNECTOR FOR AZURE BLOB STORE
https://mvnrepository.com/artifact/org.apache.jackrabbit/oak-blob-cloud-azure
https://helpx.adobe.com/experience-manager/6-5/sites/deploying/using/data-store-config.html

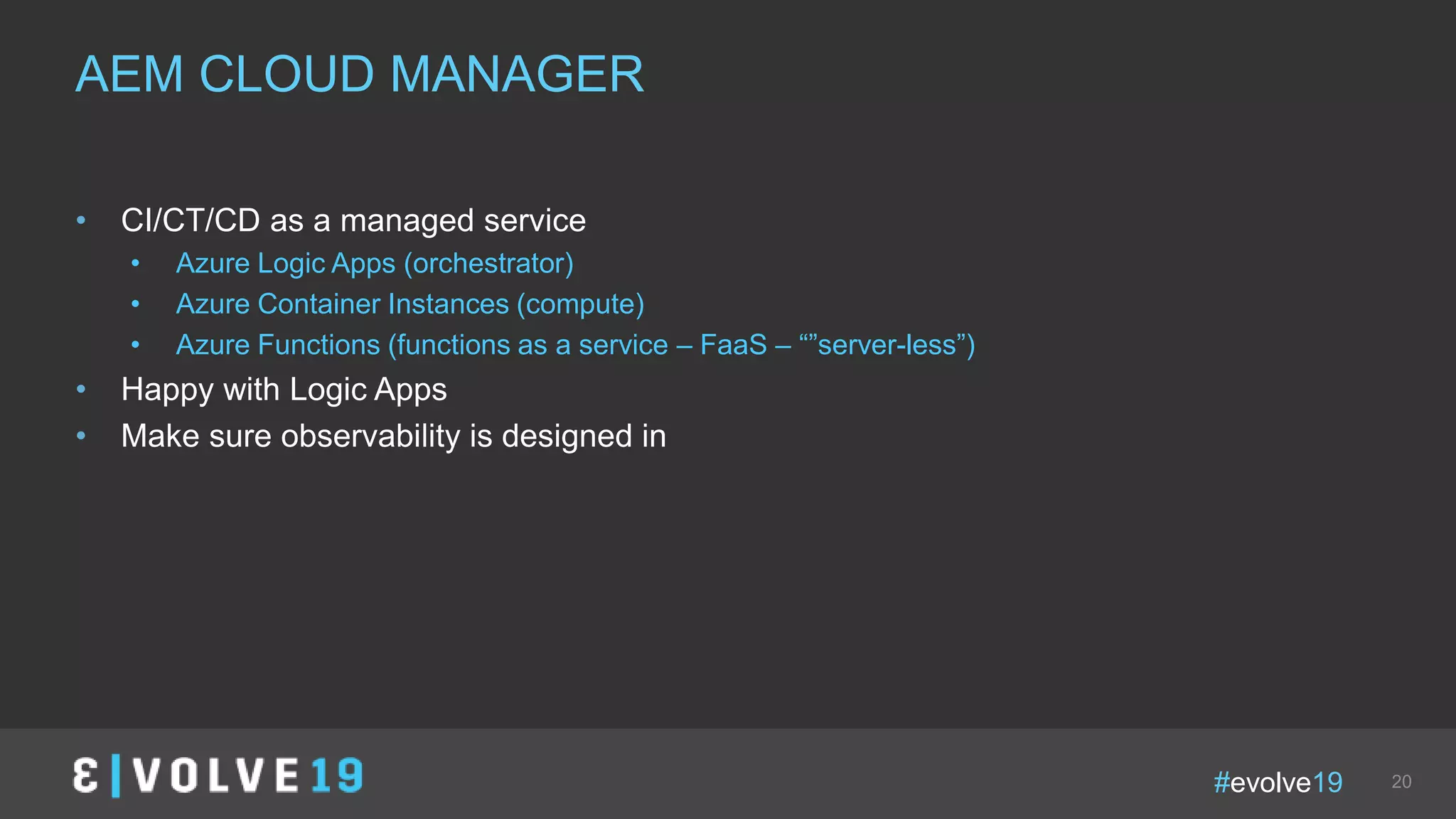

20. #evolve19 20
• CI/CT/CD as a managed service
• Azure Logic Apps (orchestrator)
• Azure Container Instances (compute)
• Azure Functions (functions as a service – FaaS – “”server-less”)
• Happy with Logic Apps
• Make sure observability is designed in
AEM CLOUD MANAGER

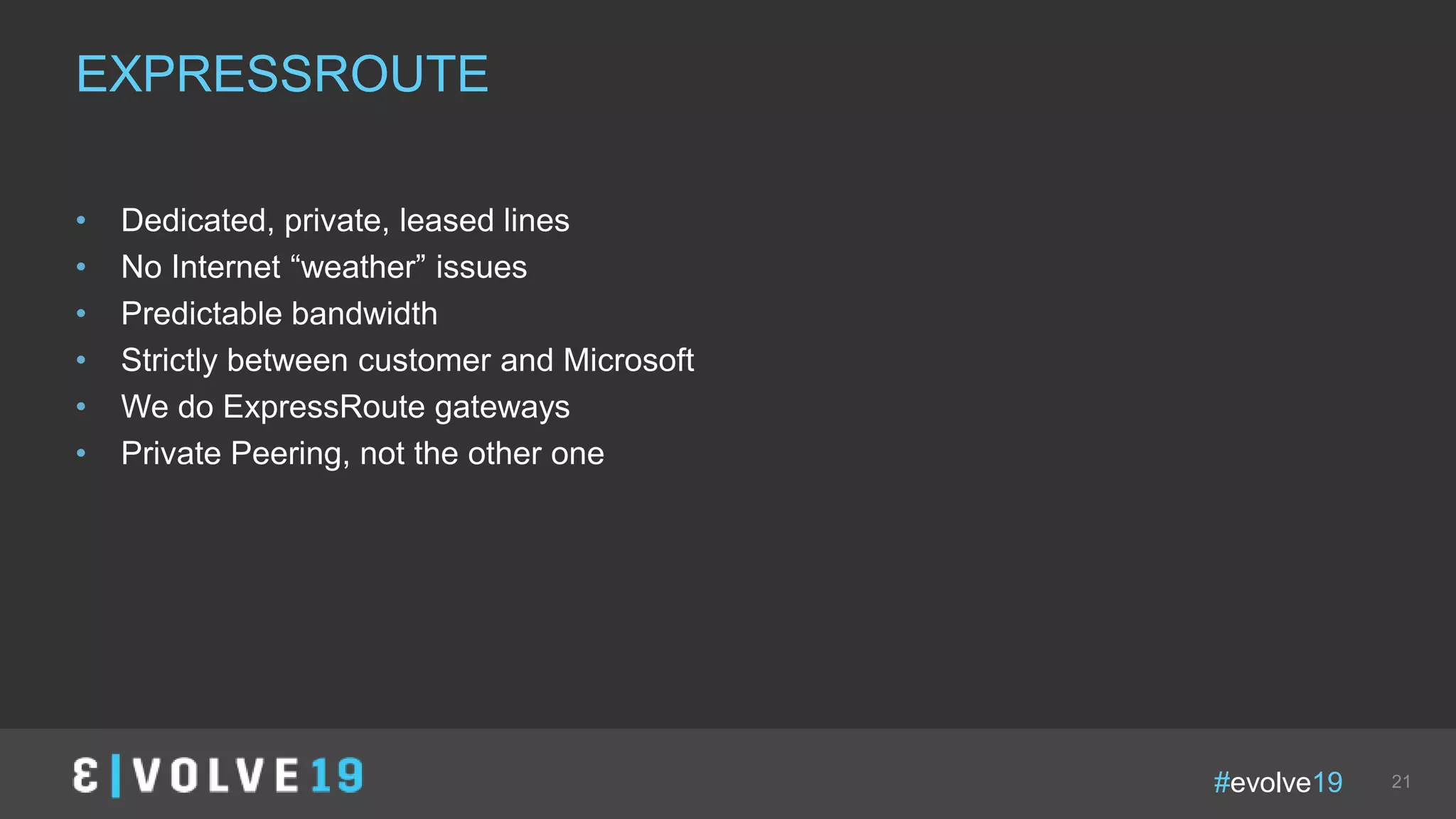

21. #evolve19 21
• Dedicated, private, leased lines
• No Internet “weather” issues
• Predictable bandwidth
• Strictly between customer and Microsoft
• We do ExpressRoute gateways
• Private Peering, not the other one
EXPRESSROUTE

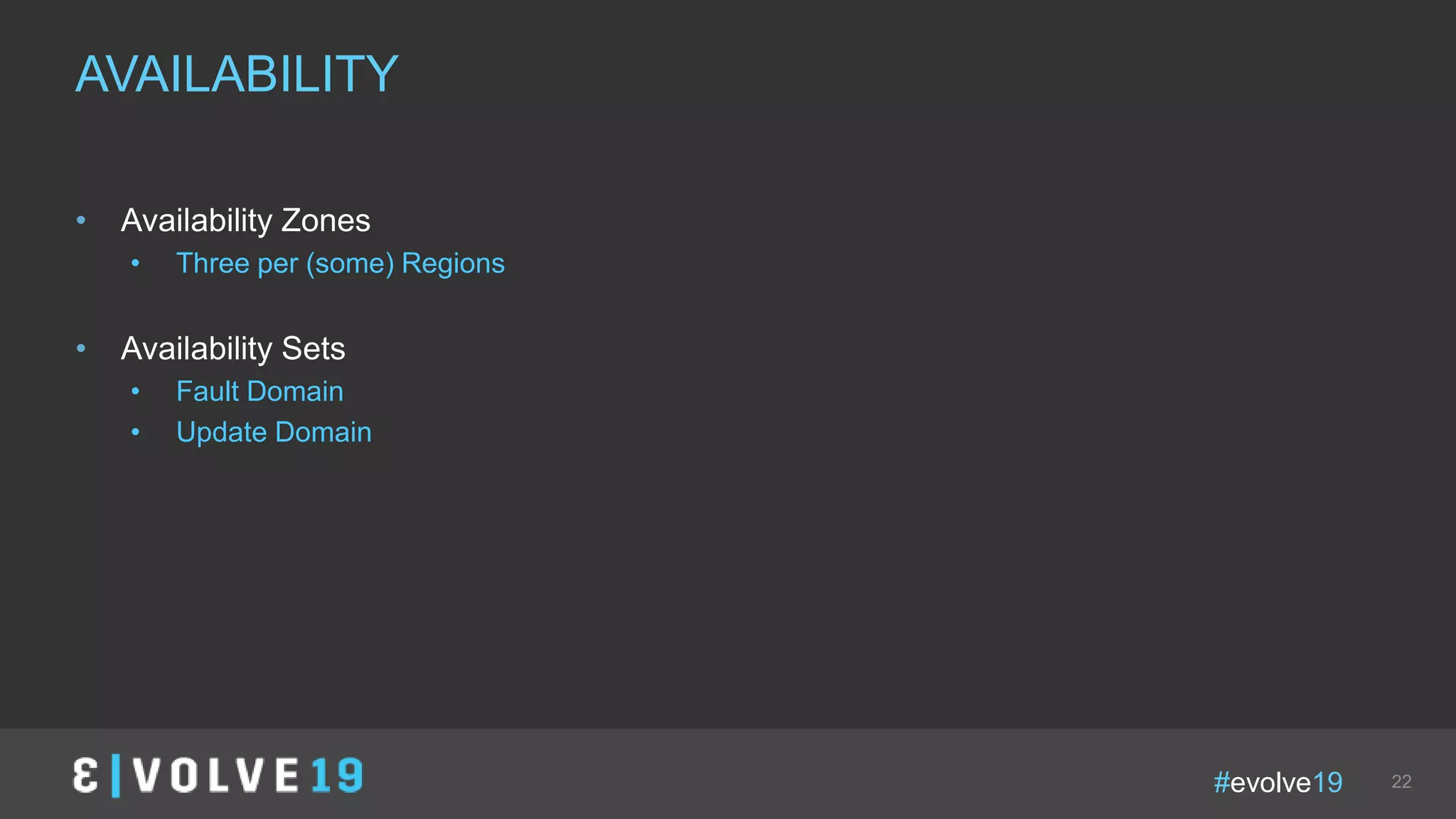

22. #evolve19 22
• Availability Zones
• Three per (some) Regions
• Availability Sets
• Fault Domain
• Update Domain
AVAILABILITY

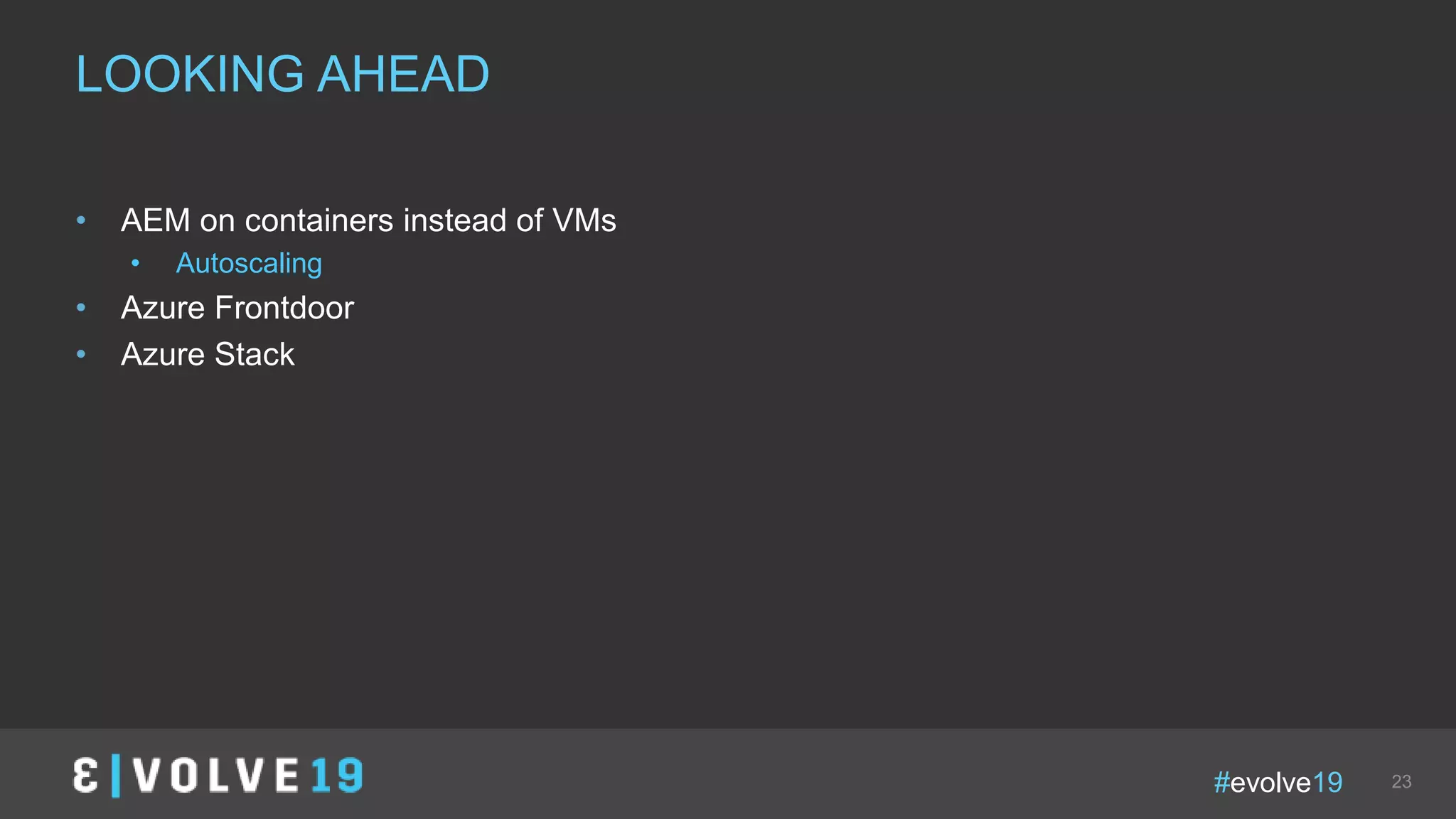

23. #evolve19 23
• AEM on containers instead of VMs
• Autoscaling
• Azure Frontdoor
• Azure Stack
LOOKING AHEAD

24. #evolve19 24
TAKEAWAYS
ADVICE FOR YOU

25. #evolve19 25

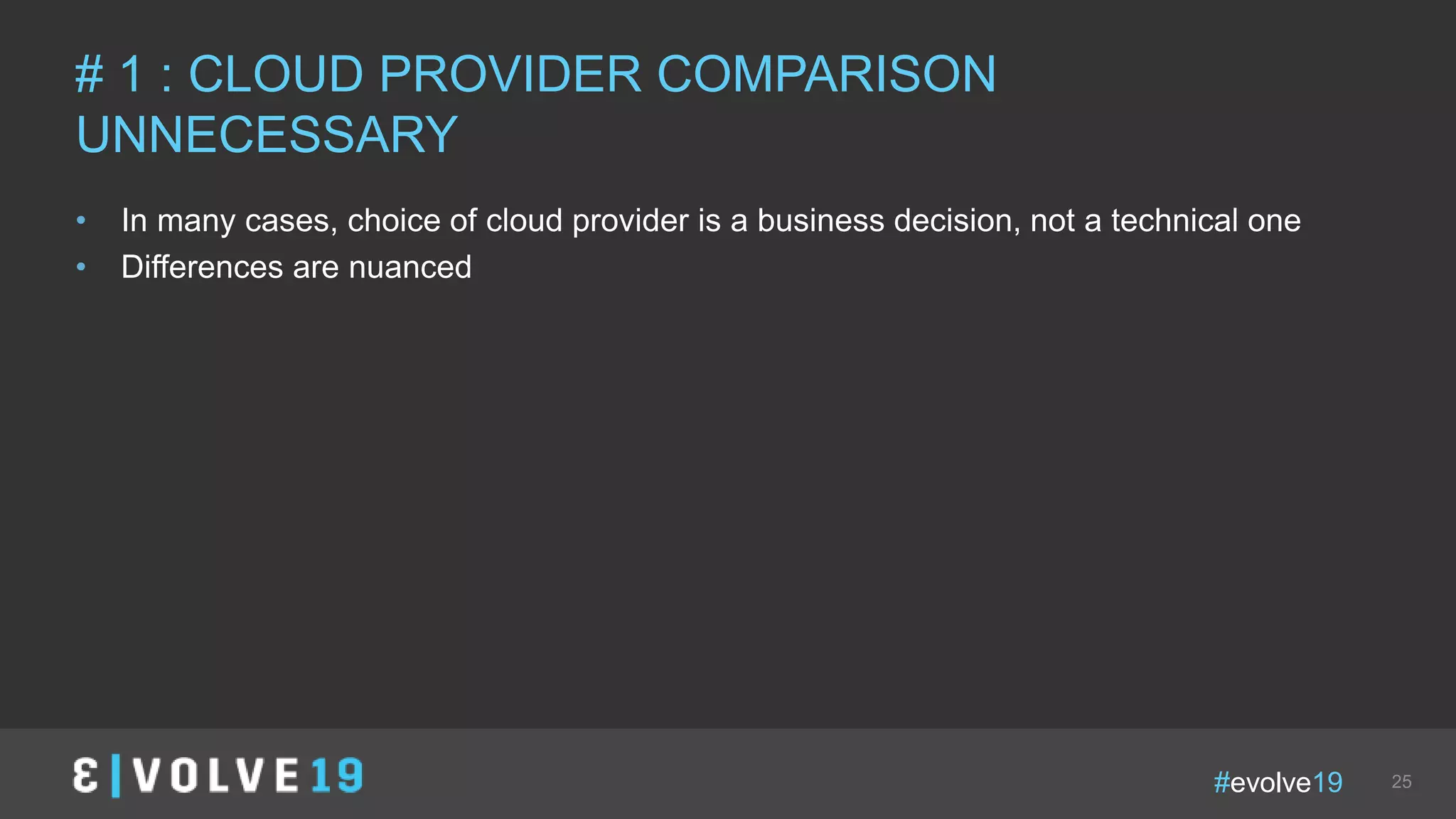

• In many cases, choice of cloud provider is a business decision, not a technical one
• Differences are nuanced
# 1 : CLOUD PROVIDER COMPARISON
UNNECESSARY

26. #evolve19 26

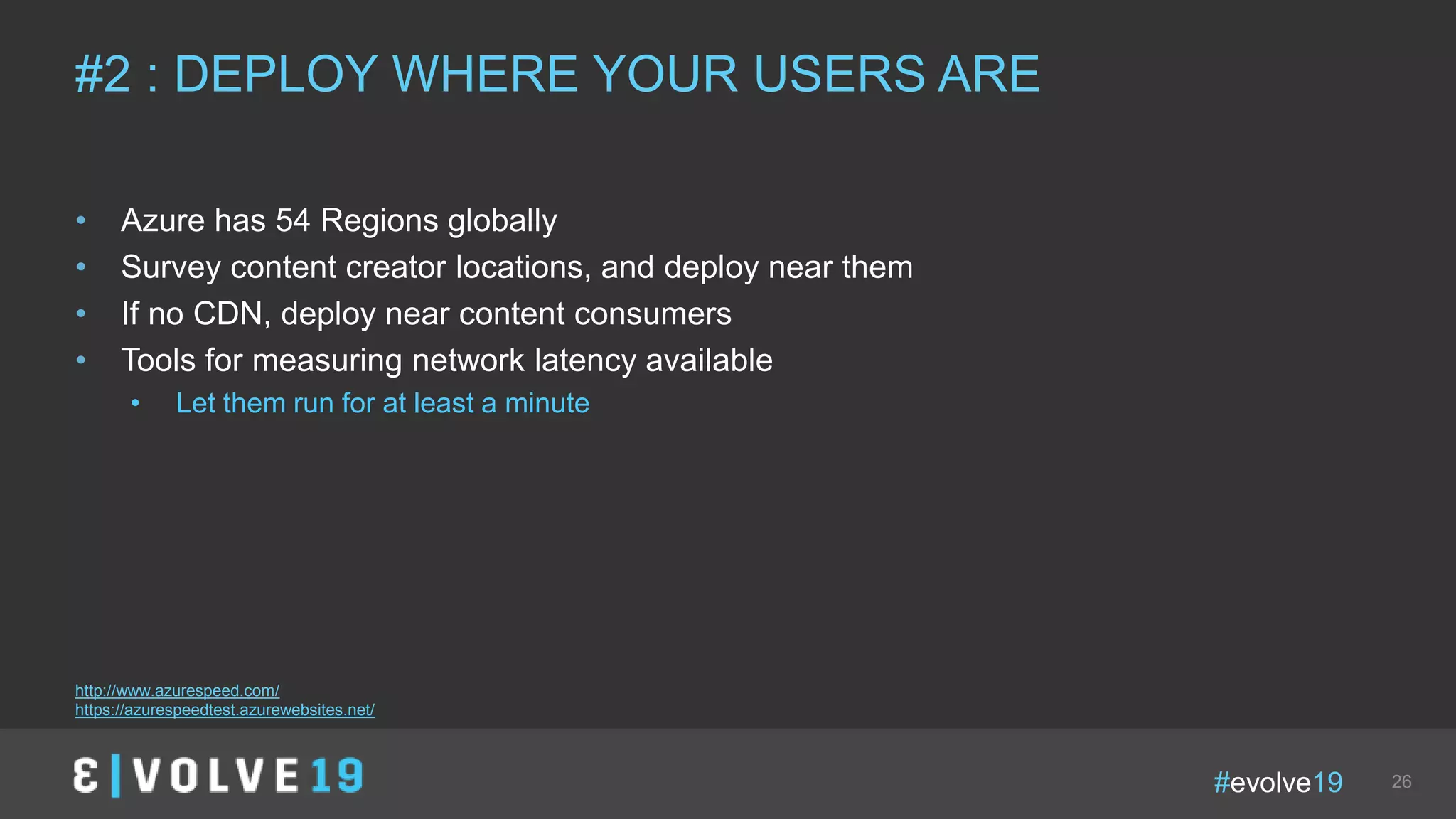

• Azure has 54 Regions globally
• Survey content creator locations, and deploy near them
• If no CDN, deploy near content consumers
• Tools for measuring network latency available
• Let them run for at least a minute
#2 : DEPLOY WHERE YOUR USERS ARE
http://www.azurespeed.com/
https://azurespeedtest.azurewebsites.net/

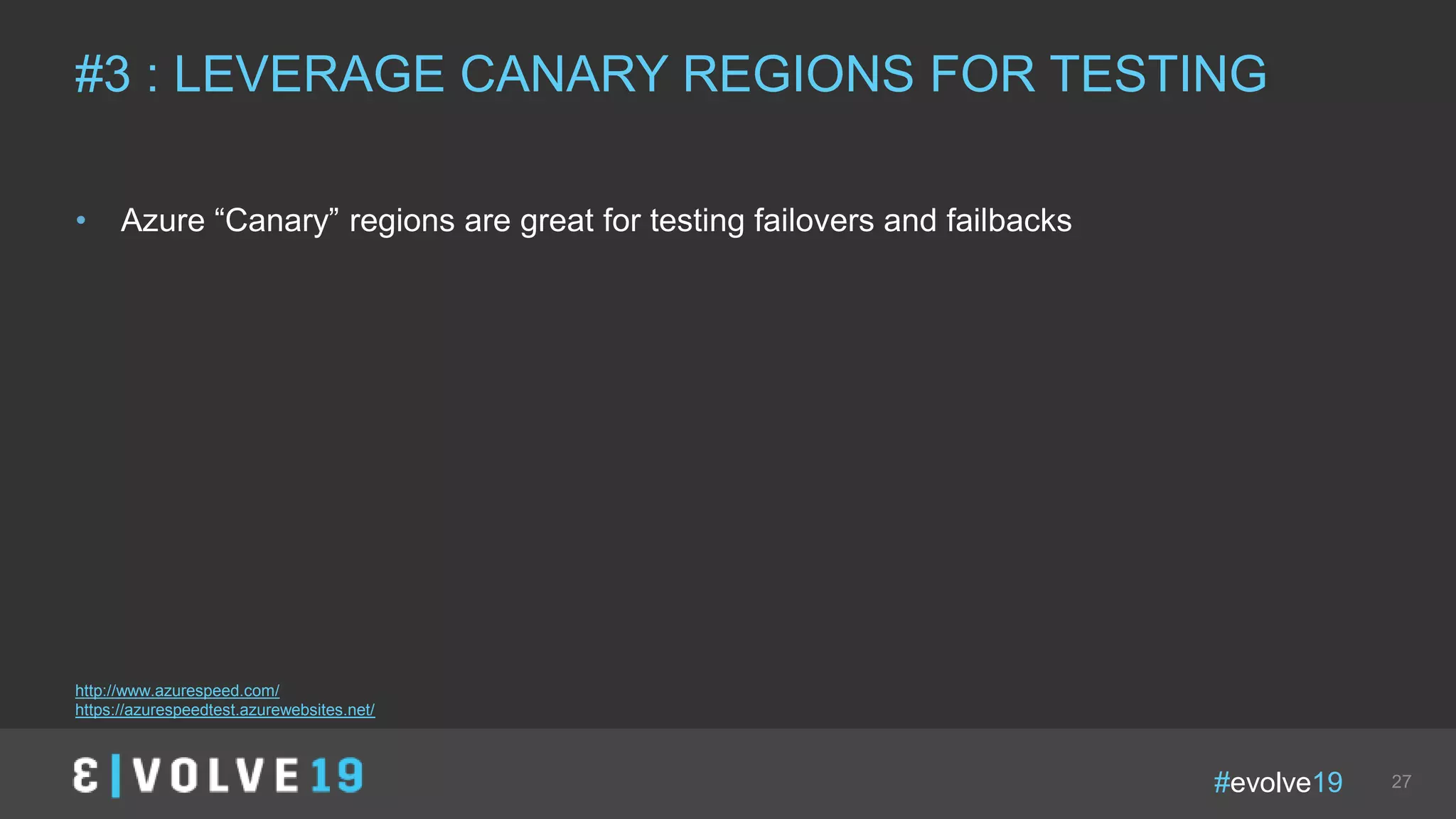

27. #evolve19 27
• Azure “Canary” regions are great for testing failovers and failbacks
#3 : LEVERAGE CANARY REGIONS FOR TESTING
http://www.azurespeed.com/
https://azurespeedtest.azurewebsites.net/

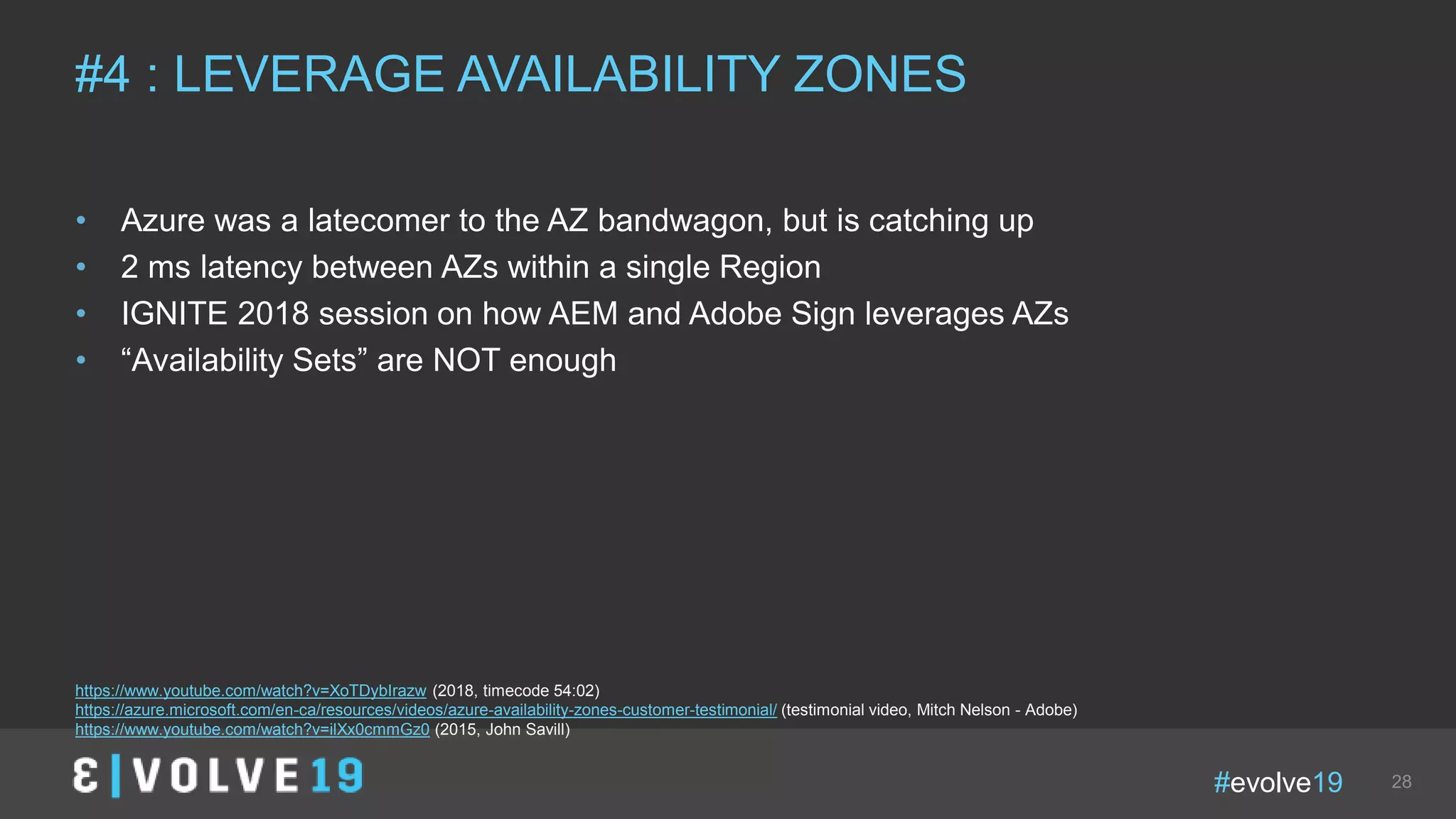

28. #evolve19 28
• Azure was a latecomer to the AZ bandwagon, but is catching up
• 2 ms latency between AZs within a single Region
• IGNITE 2018 session on how AEM and Adobe Sign leverages AZs
• “Availability Sets” are NOT enough
#4 : LEVERAGE AVAILABILITY ZONES
https://www.youtube.com/watch?v=XoTDybIrazw (2018, timecode 54:02)
https://azure.microsoft.com/en-ca/resources/videos/azure-availability-zones-customer-testimonial/ (testimonial video, Mitch Nelson - Adobe)
https://www.youtube.com/watch?v=ilXx0cmmGz0 (2015, John Savill)

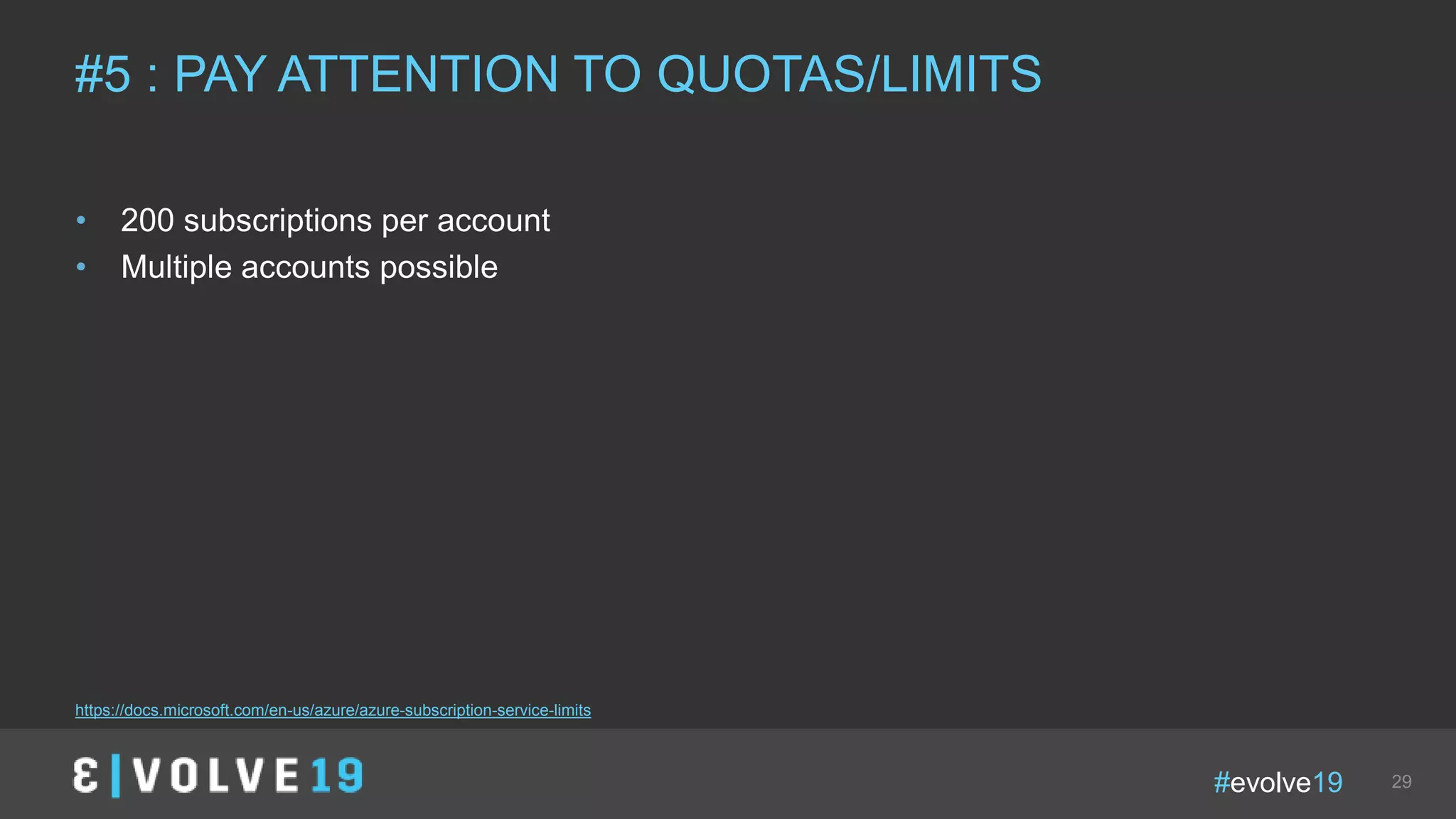

29. #evolve19 29
• 200 subscriptions per account
• Multiple accounts possible
#5 : PAY ATTENTION TO QUOTAS/LIMITS
https://docs.microsoft.com/en-us/azure/azure-subscription-service-limits

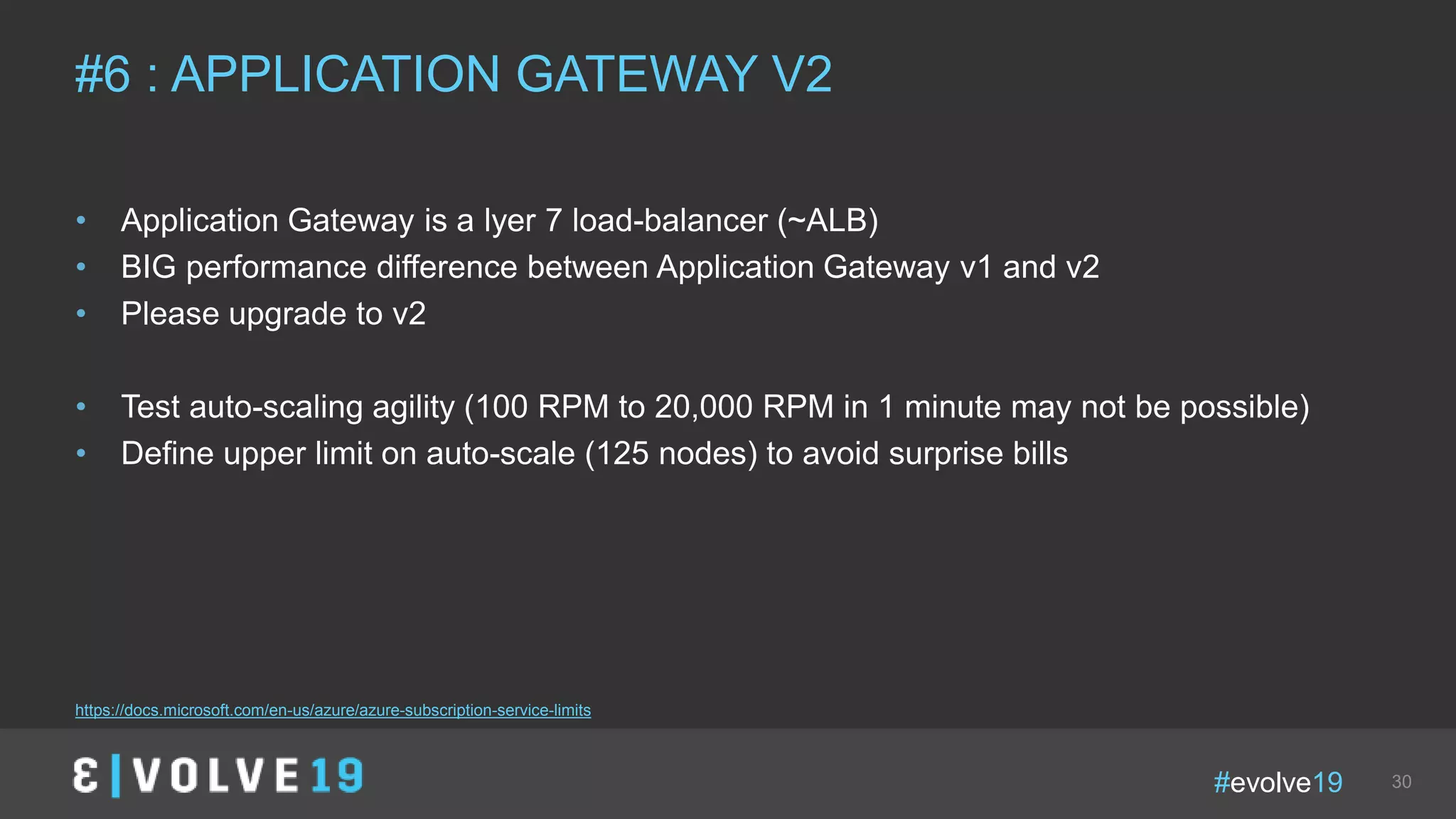

30. #evolve19 30
• Application Gateway is a lyer 7 load-balancer (~ALB)
• BIG performance difference between Application Gateway v1 and v2
• Please upgrade to v2
• Test auto-scaling agility (100 RPM to 20,000 RPM in 1 minute may not be possible)
• Define upper limit on auto-scale (125 nodes) to avoid surprise bills
#6 : APPLICATION GATEWAY V2
https://docs.microsoft.com/en-us/azure/azure-subscription-service-limits

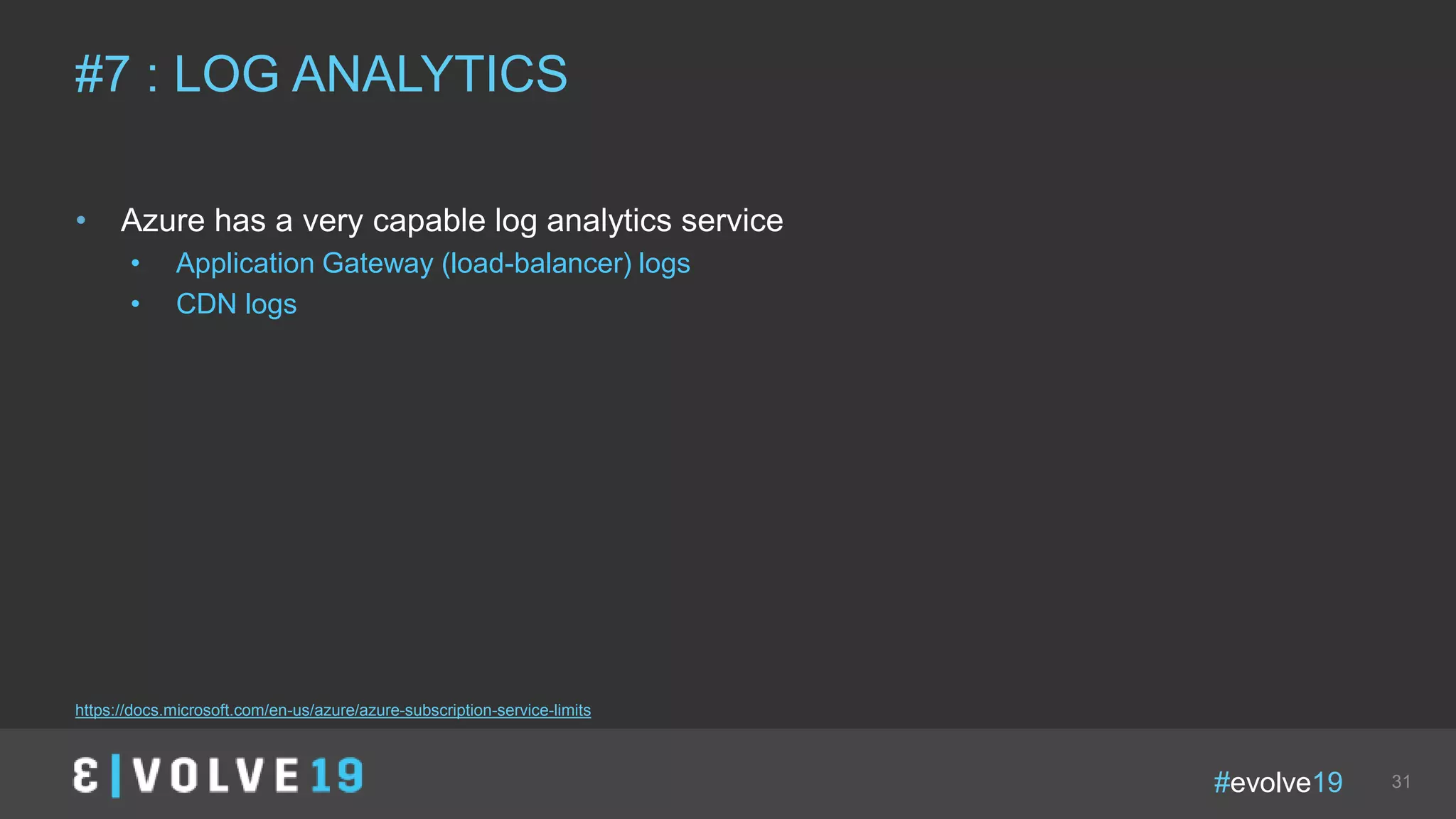

31. #evolve19 31
• Azure has a very capable log analytics service
• Application Gateway (load-balancer) logs
• CDN logs
#7 : LOG ANALYTICS
https://docs.microsoft.com/en-us/azure/azure-subscription-service-limits

32. #evolve19 32

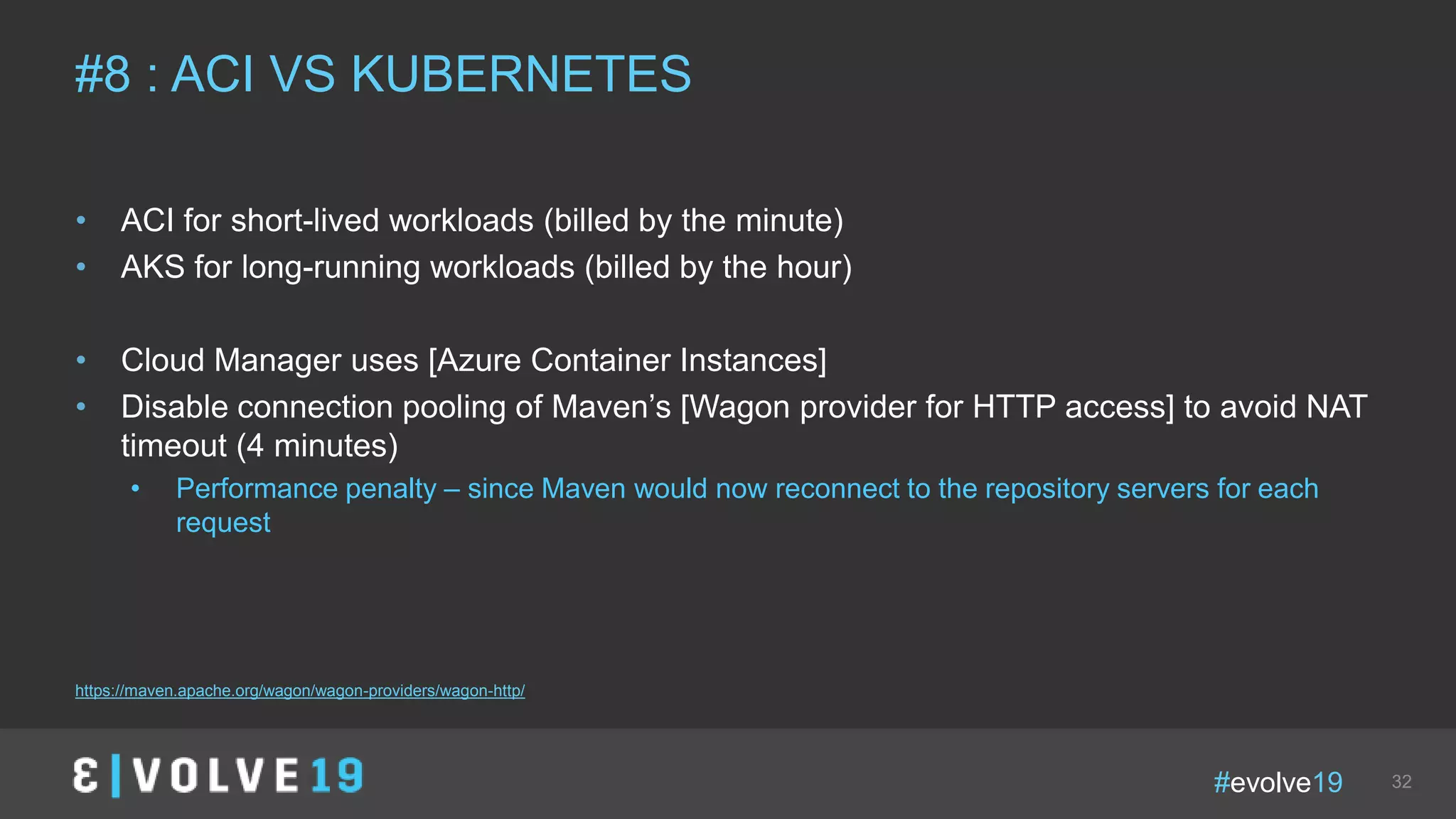

• ACI for short-lived workloads (billed by the minute)
• AKS for long-running workloads (billed by the hour)
• Cloud Manager uses [Azure Container Instances]
• Disable connection pooling of Maven’s [Wagon provider for HTTP access] to avoid NAT
timeout (4 minutes)
• Performance penalty – since Maven would now reconnect to the repository servers for each
request
#8 : ACI VS KUBERNETES
https://maven.apache.org/wagon/wagon-providers/wagon-http/

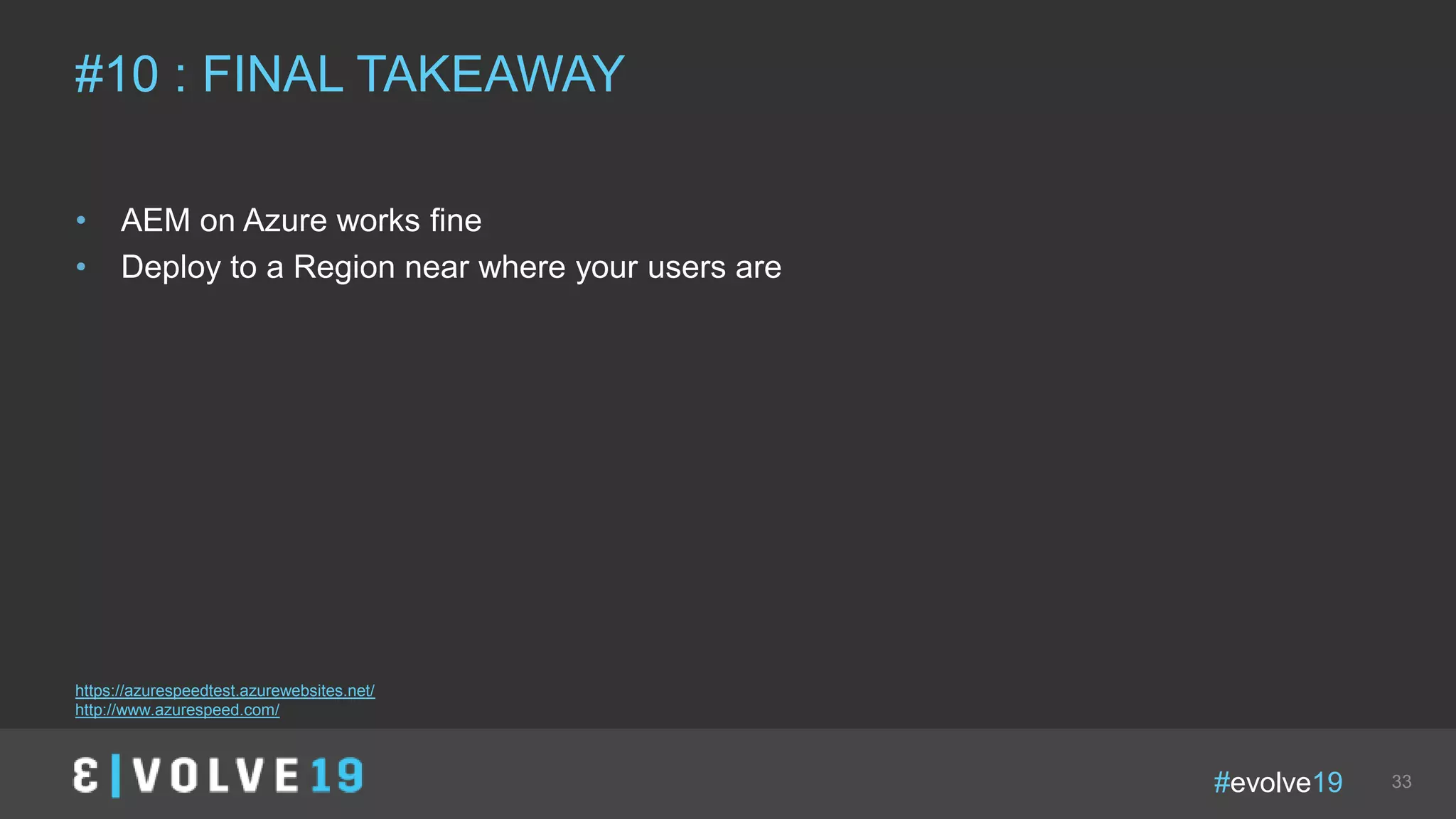

33. #evolve19 33
• AEM on Azure works fine
• Deploy to a Region near where your users are
#10 : FINAL TAKEAWAY
https://azurespeedtest.azurewebsites.net/
http://www.azurespeed.com/

34. #evolve19
THANK YOU!
