Command Central 9.7 includes new features such as deeper product support for Integration Server, My webMethods Server, Universal Messaging, and Command Central, simplified credentials management, SPM bootstrapping to install management agents remotely, template-based provisioning using default templates, fix management for browsing, installing and uninstalling fixes, component search attributes for querying the landscape, and a jobs view for monitoring long running operations.

1. Command Central 9.7
New Features Overview
September 2014
Sergei Pogrebnyak
Director, Research and Development
©2013 Software AG. All rights reserved.

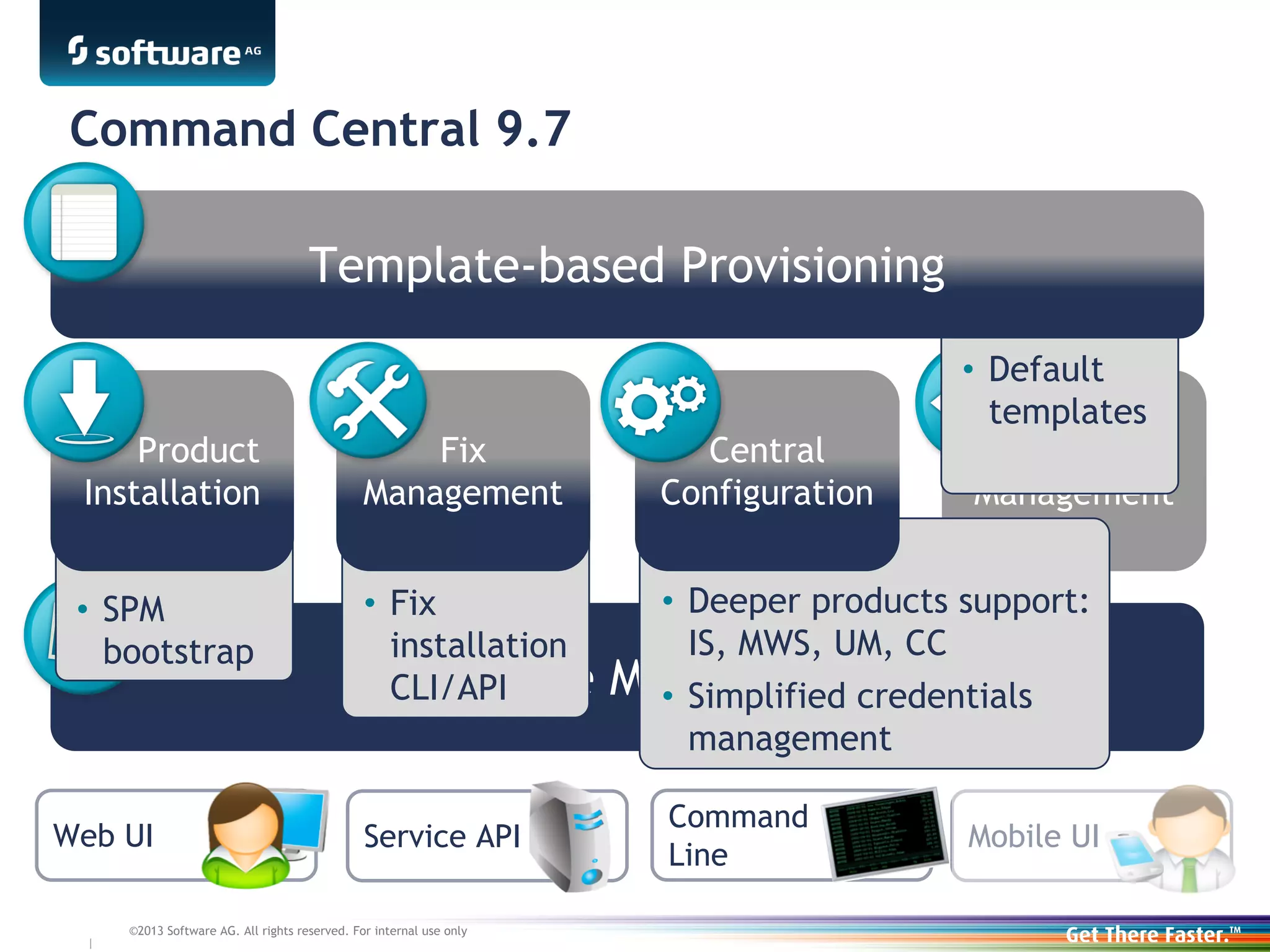

2. Fix
Management
©2013 Software AG. All rights reserved. For internal use only |
Mobile UI
Command Central 9.7
Landscape Management
Service API
Command
Web UI Line
Solution
Management
• Deeper products support:
IS, MWS, UM, CC
• Simplified credentials
management
• SPM
bootstrap
• Fix
installation
CLI/API
Central
Configuration
Product
Installation
• Default
templates
Template-based Provisioning

3. Deeper Product Support
©2013 Software AG. All rights reserved. For internal use only
©2013 Software AG. All rights reserved. For internal use only |

4. New Common Configurations Across Products
• Internal Users
• Unified internal user management and default passwords change
• Automatic update for configured outbound passwords
• Memory
• JVM min, max and extended JVM settings
• Proxy
• HTTP, HTTPS, SOCKS, FTP proxy settings
• Can configure use of host operating system proxy configuration
• Cluster Settings
• Configure product specific clusters in a common way
• Supported by IS, MWS, UM, CCE, SPM, CTP/CS where applicable
©2013 Software AG. All rights reserved. For internal use only |

5. Integration Server Configuration
• Ports
• License keys
©2013 Software AG. All rights reserved. For internal use only |
• Resources
• Loggers
• webMethods Messaging
• Global variables
9.0
• JDBC pools
• JDBC functional aliases
• Keystores
• Truststores
• JNDI aliases
• JMS aliases
• SMTP settings
• Extended server settings
9.6 – with UI for all configs
9.7 - NEW
• Users
• Cluster
• Proxy
• Memory
• WS Endpoints
• File Permissions
9.5 – without UI

6. Integration Server Configuration
©2013 Software AG. All rights reserved. For internal use only |

7. Integration Server Layered Products
New managed components under IS instance
• WmBusinessRules package
• Inventory, lifecycle operations and status - since 9.5
• Template based provisioning support – new in 9.7
• License management – new in 9.7
• WmMonitor package – new in 9.7
• Inventory, lifecycle operations and status
• Endpoint configuration (MWS URL, credentials)
©2013 Software AG. All rights reserved. For internal use only |

8. Integration Server Layered Products
©2013 Software AG. All rights reserved. For internal use only |

9. My webMethods Server Configuration
• Inventory
• Lifecycle
• Monitoring
• Ports
• JDBC pools*
9.5 – without UI 9.7 - NEW
©2013 Software AG. All rights reserved. For internal use only |
• Web UI for all supported
configurations
9.0
• Keystore
• Truststore
• SMTP
9.6
• Users
• Cluster
• Proxy
• Memory
• Environment variables

10. My webMethods Server Configuration
©2013 Software AG. All rights reserved. For internal use only |

11. Universal Messaging
9.0
• Not supported • Nothing new
• Inventory
• Lifecycle
• Monitoring
• License
• Ports
9.5 9.7 - NEW
©2013 Software AG. All rights reserved. For internal use only |
9.6
• Users
• Cluster
• Memory
• Instance Management
• Log Access

12. Universal Messaging Configuration
©2013 Software AG. All rights reserved. For internal use only |

13. SPM Bootstrapping
©2013 Software AG. All rights reserved. For internal use only
©2013 Software AG. All rights reserved. For internal use only |

14. Bootstrapping Managed Installations
• Bootstrapping is installing management agent (SPM) from CC on a
remote machine to manage future installation
• Leverages SAG installer but makes it easy to use and does not require
connection to the internet from the remote machine
• Supports push and pull modes:
• Push over SSH
— Need SSHD on the remote machine. Mostly for UNIX but can be setup on Windows
— Need remote machine credentials: username/password or keyfile location
— Fully automated, can run in parallel for multiple remote hosts
• Pull over HTTP/S
— Need connectivity from the remote machine to the CC
— Download the installer archive from CC using browser or curl/wget, unzip and
execute install.bat/.sh script. Customized instructions are provided
• Supports 9.5+ managed installations
• Enabled from Web UI and CLI
©2013 Software AG. All rights reserved. For internal use only |

15. Bootstrapping SPM via SSH push
©2013 Software AG. All rights reserved. For internal use only |

16. Bootstrapping SPM via HTTP pull
©2013 Software AG. All rights reserved. For internal use only |

17. Bootstrapping SPM on the CCE machine
©2013 Software AG. All rights reserved. For internal use only |

18. Fix Management
©2013 Software AG. All rights reserved. For internal use only
©2013 Software AG. All rights reserved. For internal use only |

19. Fix Management
• CLI/API, no UI yet
• Browse and search Empower repository for fixes
• By products
• By versions
• See dependencies
• Get readmes
• Export selected fixes into an image repo
• Install fixes from Empower or an image
• Uninstall/rollback fixes
• Check for new fixes applicable for a given installation
©2013 Software AG. All rights reserved. For internal use only |

20. Fix Repository listing, filtering, deps and readme
©2013 Software AG. All rights reserved. For internal use only |

21. Export to image and fix installation
©2013 Software AG. All rights reserved. For internal use only |

22. Fix uninstallation
©2013 Software AG. All rights reserved. For internal use only |

23. Default Templates
©2013 Software AG. All rights reserved. For internal use only
©2013 Software AG. All rights reserved. For internal use only |

24. Provisioning using default Templates
• Start by creating a new Environment in CC Web UI
• Bootstrap one or more local or remote Installations for your target
release: 9.5, 9.6 or 9.7
• Pick one or more of the out of the box templates for IS, MWS, UM,
Broker, TC and apply them to your new Installations – mix and match!
• Upload your license files for IS, UM, Rules
• Apply all available latest fixes using out of the box template
• Alternatively use new Fix Management CLI to install specific fixes
• Customize installed products configuration
• Develop, build and deploy your assets/apps using Deployer
• Start using the Environment
©2013 Software AG. All rights reserved. For internal use only |

25. Default Templates
©2013 Software AG. All rights reserved. For internal use only |

26. Default Templates usage notes
©2013 Software AG. All rights reserved. For internal use only |

27. Component Search Attributes
©2013 Software AG. All rights reserved. For internal use only
©2013 Software AG. All rights reserved. For internal use only |

28. Component Search Attributes
• Add custom attributes (name/value pairs) for components in your
landscape using Web UI or CLI
• Attributes can be used to associate components with a project,
customer, promotion stage, etc
• Use CLI to query landscape based on combinations of custom search
attributes and predefined properties, e.g.
• Find all integration servers handling project=XXX
• Find all servers for tenant=YYY and environmentAlias=PROD
• Perform lifecycle operations against multiple components using search
queries with custom search attributes, e.g.
• Restart all servers where tenant=YYY
• Supported for all 9.0+ components, top level instances or engines
• No Web UI for searches or lifecycle operations yet
©2013 Software AG. All rights reserved. For internal use only |

29. Search Attributes
©2013 Software AG. All rights reserved. For internal use only |

30. Jobs View
©2013 Software AG. All rights reserved. For internal use only
©2013 Software AG. All rights reserved. For internal use only |

31. Jobs View
• Monitor long running operations on CC
• List of jobs with statuses
• Job descriptions and progress information
• Failed jobs error information
• Filterable and sortable
• Keeps execution history for 1 hour
• No support (yet)
• Some jobs do not provide description/progress information
• Job cancellation
• No option to see running jobs on SPMs
©2013 Software AG. All rights reserved. For internal use only |

32. Jobs View
