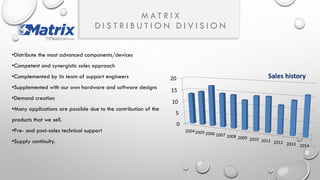

•Distribute the most advanced components/devices
•Competent and synergistic sales approach
•Complemented by its team of engineers support.
•Supplemented with our own hardware and software designs
•Demand creation
•Many applications are possible due to the contribution of the
products that we sell.
•Pre- and post-sales technical support
•Supply continuity.
•Offers a complete & real solution to our customers’ requirements
•Gemalto is a key partner

4. M A T R I X
D I S T R I B U T I O N D I V I S I O N
20
14
4
11
3
Sales Engineers
Technical support & Design
Administration & Finance
Logistics & Customer Service
Management & selected staff

5. M A T R I X
M 2 M D I V I S I O N
Concept: Design and manufacturing of M2M & IoT devices, based on Cinterion modules
MODEMS MTXM2M MTX TUNNEL
SOFTWARE
MTX GATEWAYS 3G, 4G ROUTERS

6. M T X M 2 M
M O D E M S M T X M 2 M
MTX-3G-JAVA based on EHS6
2G and 3G JAVA programmable terminals
USB, Input & Outputs
2 RS232 Ports. RS485 Option
Ultra Low Power * version
Internal Battery Option
GPS Receiver
Bluetooth
Radio Frequency ISM card
Industrial DIN RAIL and IP65 terminals
RS232/485/422
AC-DC power, Battery inside
Relays, Optoisolated GPIOs
RF card for concentrator
Based on TC65i and EHS6
MTX-65i Based on TC65i
USB, audio, GPS, RS232. Based on PH8
MTX-65i
MTX-3G-JAVA
MTX-DIN-RIL MTX-IND
MTX-HSPA-PH8
Other models:
MTX-LTE USB, RS232. Based on PLS8

7. • QUADBAND 2G/GSM-GPRS CLASS 12 MODEM TERMINAL JAVA PROGRAMMABLE
 MTX-65I:
2 RS232 PORTS, USB, I2C/SPI, 4 GPIO + 2 ADC
 MTX-65IULP (ULTRA LOW POWER):
2 RS232 PORTS, USB, I2C/SPI, 4 GPIO + 2 ADC
• ULP: ULTRA LOW POWER MEANS THAT THE ENTIRE MODEM IS SWITCHED OFF. ONLY THE
INTERNAL RTC IS POWERED FROM THE BATTERY/POWER SUPPLY (A SMALL INTERNAL BATTERY
GUARANTEES 10 YEARS DATE RETENTION).
• ULTRA LOW POWER MODE CONSUMPTION IS ONLY 2.5UA (TYPICAL)
• CAN BE SWITCHED ON BY RTC PROGRAMMED ALARM OR BY ANY OF THE 4 EXTERNAL INPUTS.
 MTX-65I+RS485
• 1 RS485 SERIAL
• 1 RS232 SERIAL
• OPTOISOLATED INPUTS/OUTPUTS
• BASED ON CINTERION TC65I GSM/GPRS JAVA MODULE
• CE & PTCRB APPROVED
MTX-65I FAMILY

8.  Enhanced old version Cinterion’s XT65 module
GMS/GPRS+GPS
 NEW version with MTX’s combo module TC65i+GPS
o TC65i (TC65i-x) and GPS Trimble’s C1216 (Mediatek chipset)
o JAVA embedded applications
o Interfaces:
 1 RS232 serial port (4 wires)
 Optoisolated: 3 Inputs + 3 Outputs
 2 Analogue Inputs + 1 3v GPIO
 I2C (optional SPI) port
o Automatic Restart after shutdown.
o 3 AXIS Accelerometer that can be set to switch-on from sleep
mode after a movement.
o Watchdog hardware.
o Li-Po 1600mA/h Battery.
MTX-65+G V6 / +B V7

9. MTX-DIN TERMINAL
MTX-IND V1 IS AN INDUSTRIAL GSM/GPRS MODEM IN A DIN-RAIL BASE
WITH TERMINAL BLOCK SYSTEM CONNECTORS, FOR INDUSTRIAL
ENVIRONMENTS.
• 2 SERIAL RS232/RS485/RS422 INTERNAL JUMPER SELECTION.
• 4 RELAYS 1P1C 250VAC-6A
• USB (MINI B TYPE)
• SPI/I2C EXPANSION BUS
• 4 OPTOISOLATED DIGITAL INPUTS
• 2 OPTOISOLATED CONFIGURABLE DIGITAL INPUTS/OUTPUTS
• 2 ANALOG 0-2.4V OR 0-20MA CONFIGURABLE INPUTS
• INPUT POWER 9-24 VAC OR 12-30 VDC
• INTERNAL EXPANSION CONNECTOR FOR INTERNAL
COMMUNICATION THAT CAN ACCOMMODATE CORONIS WAVECARD, FOR
METERING
APPLICATIONS OR RF COMMUNICATIONS.

10. MTX-IND TERMINAL
MTX-IND V2 IS AN INDUSTRIAL GSM/GPRS MODEM IN A IP65 HOUSING
WITH TERMINAL BLOCK SYSTEM CONNECTORS, FOR INDUSTRIAL
ENVIRONMENTS.
• 2 SERIAL RS232/RS485/RS422 INTERNAL JUMPER SELECTION
• 4 RELAYS 1P1C 250VAC-6A
• USB (MINI B TYPE)
• SPI/I2C EXPANSION BUS
• 4 OPTOISOLATED DIGITAL INPUTS
• 2 OPTOISOLATED CONFIGURABLE DIGITAL INPUTS/OUTPUTS
• 2 ANALOG 0-2.4V OR 0-20MA CONFIGURABLE INPUTS
• INPUT POWER: 90-264VAC/120-370VDC OR 9-30 VDC
• 1600MA LI-PO BATTERY
• INTERNAL OR EXTERNAL ANTENNAS
• INTERNAL EXPANSION CONNECTOR FOR RF CARDS SUCH AS: CORONIS
WAVECARD, BLUETOOTH, ZIGBEE, XBEE, GPS AND OTHERS.

11. MTX-HSPA-PH8 3G-UMTS
HSPA+ 14.4MBPS DL / 5.76MBPS UL
FIVE BAND UMTS (WCDMA/FDD):
• PH8: 800/850, AWS1700, 1900, 2100 MHZ
• PH8-P: 800/850, 900, 1900, 2100 MHZ
• 1 SERIAL PORT RS232 920KBPS HIGH-SPEED UART
• 1 USB PORT
• GPS ANTENNA (SMA CONNECTOR)
MTX-LTE 4G TERMINAL
• Five LTE CAT3 Bands 100Mbps DL / 50Mbps UL
• Five/Triple UMTS Bands
• Dual CDMA Bands Quad/Dual GSM Bands
• USB - UART T.B.D.
• GPS

12. M T X M 2 M S O F T WA R E
M T X - T U N N E L
Core TC65i & EHS6
EASY. PLUG & PLAY. Fast time to market. Extremely Low cost.
 Advanced serial to GPRS/3G
transparent Gateways
 Internal Webserver & Telnet
 SMS/IP alarms
 GPIO telemetry & control
 DynDNS
 Cable replacer
 GPRS/3G – I2C/SPI tunnel
 SMS to serial tunnel
 Metering GSM-GPRS
 Modbus concentrator
 RF Mesh concentrator
 Bluetooth bridge
 Intelligent relays
 Automatic time synchronization
 GPS management fleet control
 Routing, NAT, iCloud services

13. M T X M 2 M
G A T E W A Y N E W
2G-3G-4G Open platform Linux GatewayMTX-GATEWAY-OEM MTX-GTWMTX-GATEWAY-IND
• Linux kernel 3.5. JAVA VM.
• i.MX28: ARM9 @ 454MHz
• RAM: 128MB Flash: 4GB
• Ethernet + USB OTG
• 1x RS232/485/422 2x RS232
• CAN, GPIOs, Relays, VGA
• MiniPCIe GPRS/HSPA/LTE
• WiFi Client / Acces point
RF card:
• Wavenis
• WMBus
• Bluetooth 2.1
• Zigbee
• Bluetooth Smart
• GPS
Versions
• OEM
• Industrial IP65
• Compact size

14. M T X M 2 M
R O U T E R S
• 3G connectivity supervisor
• DHCP server (Ethernet and
WiFi) NAT
• Up to 4 tunnels (3G to
RS232/USB)
• CSD call manager for
metering applications
• External device manager
• SMS alarms, relay control
• 1 Ethernet Port
• 1 RS232-RS485
• 4G/3G/2G
• DynDNS, VPN, NTP,
• Versions
Wifi
GPS
4 Ethernet ports
MTX-TITAN MTX-ROUTER
• Industrial temperature
• Up to 4 Ethernet ports
• Serial interface
• Digital I/Os
• Wifi
• VPN supported
NEW
• Modbus RTU. Datalogger.
• Data in JSON format
• Modem control via AT
commands
• DynDNS, NoIP & Private
DNS
• Webserver.
• NTP time/date sync.
• Compact and IP65 versions
NEW

15. R O A D M A P
• Supports both ARM Cortex-A9 and Intel Atom
configurations.
• 1, 2 or 4 cores + multimedia HW
• Power consumption less than 10W
• Up to 4GB RAM and 8GB Flash
• 3xUART, SPI, 3xI2C, 4xUSB Host, 1xUSB OTG, SDIO,
CAN, 8xGPIOs, SATA, PCIe, 2xLVDS, HDMI...
MTX-IoT
MTX-TURBO
• VERY FLEXIBLE BGS2, BGS5, EHS5, EHS6
or EHS8 based terminal.
• Battery, RS485, Opto i/o, RF card (BT,
GPS, WMBUS…), Ultra Low Power…
• Basic Very LOW COST Version

16. M T X M 2 M K E Y S U C C E S S
Quality
Technical
Support
OWN R+D
Know How
Flexibility +
Integration
MTXM2M success = Gemalto success

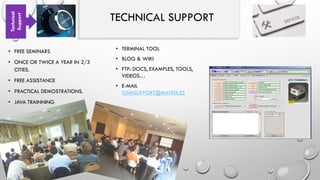

17. • FREE SEMINARS
• ONCE OR TWICE A YEAR IN 2/3
CITIES.
• FREE ASSISTANCE
• PRACTICAL DEMOSTRATIONS.
• JAVA TRAINNING
• TERMINAL TOOL
• BLOG & WIKI
• FTP: DOCS, EXAMPLES, TOOLS,
VIDEOS…
• E-MAIL
GSMSUPPORT@MATRIX.ES
TECHNICAL SUPPORT
Technical
Support

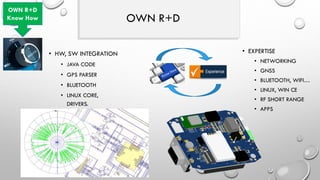

18. • HW, SW INTEGRATION
• JAVA CODE
• GPS PARSER
• BLUETOOTH
• LINUX CORE,
DRIVERS.
• EXPERTISE
• NETWORKING
• GNSS
• BLUETOOTH, WIFI…
• LINUX, WIN CE
• RF SHORT RANGE
• APPS
OWN R+D
OWN R+D
Know How

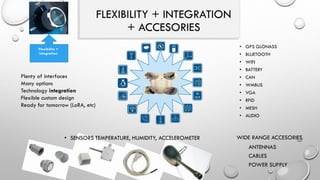

19. • GPS GLONASS
• BLUETOOTH
• WIFI
• BATTERY
• CAN
• WMBUS
• VGA
• RFID
• MESH
• AUDIO
• SENSORS TEMPERATURE, HUMIDITY, ACCELEROMETER WIDE RANGE ACCESORIES
ANTENNAS
CABLES
POWER SUPPLY
FLEXIBILITY + INTEGRATION
+ ACCESORIES
Plenty of interfaces
Many options
Technology integration
Flexible custom design
Ready for tomorrow (LoRA, etc)

20. A P P R O VA L S
Design and manufactured in Spain under ISO9001

21. …upcoming events
I N T E R N A T I O N A L S H O W S

22. WORLD WIDE SOLD
Distribution Network in process
Want to be distributor?

23. MTXM2M
WWW.MTXM2M.COM
• ADVANCED M2M-IOT INNOVATIVE PRODUCTS
• SOLUTIONS FOR YOUR M2M-IOT DAILY APPLICATIONS.
