Enhanced Intrusion Detection System using Feature Selection Method and Ensemble Learning Algorithms

Enhanced Intrusion Detection System using Feature
Selection Method and Ensemble Learning Algorithms
Manal Abdullah
Faculty of Computing and Information Technology
King Abdul-Aziz University
Jeddah, Saudi Arabia
maaabdullah@kau.edu.sa
Asmaa Balamash
Abalamash0003@stu.kau.edu.sa
Arwa Alshannaq
aalshannaq@stu.kau.edu.sa
Soad Almabdy
salmabdy@kau.edu.sa
Abstract— The main goal of Intrusion Detection Systems (IDSs) is
to detect intrusions. This kind of detection system represents a
significant tool in traditional computer based systems for ensuring
cyber security. IDS model can be faster and reach more accurate
detection rates, by selecting the most related features from the
input dataset. Feature selection is an important stage of any IDs to
select the optimal subset of features that enhance the process of the
training model to become faster and reduce the complexity while
preserving or enhancing the performance of the system. In this
paper, we proposed a method that based on dividing the input
dataset into different subsets according to each attack. Then we
performed a feature selection technique using information gain
filter for each subset. Then the optimal features set is generated by
combining the list of features sets that obtained for each attack.
Experimental results that conducted on NSL-KDD dataset shows
that the proposed method for feature selection with fewer features,
make an improvement to the system accuracy while decreasing the
complexity. Moreover, a comparative study is performed to the
efficiency of technique for feature selection using different
classification methods. To enhance the overall performance,
another stage is conducted using Random Forest and PART on
voting learning algorithm. The results indicate that the best
accuracy is achieved when using the product probability rule.
Keywords-Intrusion Detection Systems, NSL-KDD, Feature
Selection, Supervised Learning, Classification.
I. INTRODUCTION
Wireless sensor networks (WSNs) comprise of tiny sensor
nodes or devices that have radio, processor, memory; battery as
well as sensor hardware. The widespread deployment of these
sensor nodes makes it possible for environmental monitoring.
These small devices are resource inhibited in terms of the speed
of the processor, the range of the radio, memory as well as
power. This nature of resource inhibition makes designers
design systems that are application specific. While the Wireless
Sensor Networks are not protected, and the transmitted medium
is wireless, this raises the vulnerability to attacks. WSNs are
being gradually embraced also in applications which are very
sensitive for instance in detection of forest fires [1], power
transmission as well as distribution [2], localization [3],
applications of the military [4], Critical-infrastructures (CIs) [5]
and Underwater Wireless Sensor Networks (Underwater WSNs)
[6].
Lack of proper security measures can lead to launching of
different types of attacks in environments that are hostile. These
kinds of attacks can interrupt the WSNs from working normally
and can defeat the deployment’s purpose. Consequently,
security is a significant networks feature. The shortage of means
makes the creators use primitives of security which are
traditional such as encryption and one-way functions cautiously.
Detection of intrusion is seen as the defense’s second line which
matches the security primitives. For practicality in implementing
WSNs, intrusions detection ideas need to be lightweight,
scalable as well as distributed. This paper proposes such
approaches in the detection of anomaly intrusion in WSNs. In
this kind of context, it is very important to make sure that there
is the protection of the sensor network from threats emanating
from cyber−security. Regrettably, the achievement of this
objective is a bit of a challenge due to features number of WSNs,
highest important one being: inadequate computational
resources, inhibiting the execution of robust mechanisms that are
cryptographic; and their distribution in environments that are
wild and unattended, where it is possible for the enemy to access
the sensor nodes physically, for instance, reading cryptographic
keys straight from the memory. The fast technology
development over the Internet makes the security of a computer
serious issue. Currently, Intelligence which is artificial, data
mining as well as machine learning algorithms are exposed to a
broad investigation in ID with stress on enhancing the detection
accuracy as well as create a model that is immune for IDS. In
addition to detection abilities, IDSs also offers extra
mechanisms, for instance, diagnosis as well as prevention.
Wireless sensor networks’ IDSs architectures are presently
being examined and various solutions have been recommended
in the research.
International Journal of Computer Science and Information Security (IJCSIS),
Vol. 16, No. 2, February 2018
48 https://sites.google.com/site/ijcsis/
ISSN 1947-5500

This paper concentrates on building IDs for WSN. To
construct an Intrusion Detection System model quicker with
more correct rates of detection, choice of features that are vital
from the input dataset is extremely important. Learning
process’s feature selection while designing the model indicates
a decrease in computational rate and improves precision. The
main objective of this paper is determining the greatest suitable
features to use in the identification of attack in a dataset of NSL
KDD as well as WEKA [7] tool is used for analysis. Different
performance metrics are used to assess the performance of each
classifier such as: precision, recall, F-measure, false positive
rate, overall accuracy (ACC) and ROC curve. NSL KDD dataset
[8] is a common dataset for revealing of the anomaly,
particularly for identifying the intrusion. This dataset comprises
of forty-one features that resemble different types of the network
traffic. The network traffic is divided into dual classes, one being
the normal class while the other is referred to as the anomaly
class. The anomaly class usually depicts intrusions or attacks
that originate from the network at the time of taking records for
the network traffic. In relation to these attacks, the NSL KDD
dataset is additionally categorized into four main attack
classifications such as the DoS, in addition to probing. Further
classifications comprise of users to root (U2R), as well as remote
to local (R2L). The DoS attack renders the unavailability of
crucial services to genuine users through the bombardment of
the attack packets that are found on the computing and also on
network resources. Instances of DoS attacks contain backland,
and smurf. Moreover, teardrop, plus neptune attacks are also
examples of such attacks. Due to the high levels of the risks that
are found in other types of the DoS attacks that relate to
computer expenses, the paper primarily dealt on the DoS attacks,
as stated in the 2014 document [9]. A DoS attack is viewed as a
major concern for authentic operators retrieving services
through the Internet. DoS attacks render the unattainability of
services to users through limiting network and also the system
resources. While a lot of investigation has been performed by
dint of network security professionals to defeat the DoS attack
concerns, DoS attacks are still on the rise and have a more
significant detrimental influence as time passes.
The organization of the paper as following. Section 2
presents an intrusion detection overview, reviews related work.
Section 3 describes IDS proposed model, and Sect. 4 is analysis
the experimental results obtained. Finally, Section 5 states the
conclusions.
II. LITERATURE REVIEW
Intrusion detection system uses machine learning algorithms
or classifiers to learn system normal or abnormal behavior and
build models that help to classify new traffic. Developing an
optimal machine learning based detection systems directs
research to examine the performance of a single machine
learning algorithm or multiple algorithms to all four major attack
categories rather than to a single attack category. Some of the
algorithms and methods used by the researchers in this filed will
be mentioned. Also, we will try to focus on the researches that
used NSL-KDD for analyzing their experimental results.
Hota and Shrivas, 2014 [10], proposed a model that used
different feature selection techniques to remove the irrelevant
features in the dataset and developed a classifier that is more
robust and effective. The methods that were used combined with
classifier are Info Gain, Correlation, Relief and Symmetrical
Uncertainty. Their experimental work was divided into two
parts: The first one is building multiclass classifier based on
various decision tree techniques such as ID3, CART, REP Tree,
REP Tree and C4.5. The second one is applying feature selection
technique on the best model obtained which was here C4.5.
Their experimental analysis was conducted using WEKA tool.
The results showed that C4.5 with Info Gain had better results
and achieved highest accuracy of 99.68% with only 17 features.
However, in case of using11 features, Symmetrical Uncertainty
achieved 99.64% accuracy.
Deshmukh, 2014 [11], developed IDS using Naive Bayes
classifier with different pre-processing methods. Authors used
NSL-KDD dataset and WEKA for their experimental analysis.
They compared their results with other classification algorithms
such as NB TREE and AD Tree. The results showed that with
respect to the TP rate of all algorithms, the execution time of
Naïve Bayes is less.
Noureldien Yousif, 2016 [12], examined the performance of
seven supervised machine learning algorithms in detecting the
DoS attacks using NSL-KDD dataset. The experiments were
conducted by using for training step the Train+20 percent file
and for testing using Test-21 file. they used 10-fold cross
validation in test and evaluate the methods to confirm that
techniques will achieve on undetected data. Their results showed
that Random Committee was the best algorithm for detecting
smurf attack with accuracy of 98.6161%. At the average rate, the
PART algorithm was the best for detecting the Dos Attacks,
however, Input Mapped algorithm was the worst.
Jabbar and Samreen, 2016 [13], have presented a novel
approach for ID using alternating decision trees (ADT) to
classify the various types of attacks while it is usually used for
binary classification problems. The results showed that their
proposed model produced higher detection rate and reduces the
false alarm rate in classification of IDS attacks.
Paulauskas and Auskalnis, 2017 [14], analyses the initial
data pre-processing influence on attack detection accuracy by
using of ensemble, that are depend on the idea of combining
multiple weaker learners to create a stronger learner, model of
four different classifiers: J48, C5.0, Naïve Bayes and PART.
Min-Max normalization as well as Z-Score standardization was
applied in pre-processing stage. They compared their proposed
model with and without pre-processing techniques using more
than one classifier. Their results showed that their proposed
classifier ensemble model produces more accurate results. After
they presented their results, they were warned not to use only the
NSL-KDDTrain+ dataset for both training and testing because
even without pre-processing methods, it leads to get 99% of
accuracy. Therefore, NSL-KDDTest+ dataset must be used for
model assessment. In this case the performance of the real model
can be tested to detect a new type of attack.
Wang, 2017 [15], suggested an SVM based intrusion
detection technique that considers pre-processing data utilizing
converting the usual attributes by the logarithms of the marginal
density ratios that exploits the classification information that is
included in each feature. This resulting in data that has high
quality and concise which in turn achieved a better detection
ISSN 1947-5500

performance in addition to reducing the training time required
for the SVM detection model.
Yin, et al., 2017 [16], have explored how to model an IDS
based on deep learning approach using recurrent neural
networks (RNN-IDS) because of its potential of extracting better
representations for the data and create better models. They pre-
processed the dataset using Numericalization technique because
the input value of RNN-IDS should be a numeric matrix. The
results showed that RNN-IDS has great accuracy rate and
detection rate with a low false positive rate compared with
traditional classification methods.
Feature selection as a vital part of any IDS can assist make
the procedure of training the model less multifaceted and faster
while preserving or even enhancing the total performance of the
system. Shahbaz et al. [17] suggested an efficient algorithm for
feature selection by considered the correlation between the
behavior class label and a subset of attribute to resolve the
problem of dimensionality lessening and to defining good
features. The outcomes revealed that the proposed model has
considerably minimal training time while preserving accuracy
with precision. Additionally, several feature selection methods
are tested with varying classifiers regarding the detection rate.
The comparison outcomes reveal that J48 classifier
accomplishes well with the proposed feature selection method.
Similarly, the study in [18] proposed a new intelligent IDS
that works on reduced number of features. First, authors perform
feature ranking on the basis of information-gain and correlation.
Feature reduction is then done by combining ranks obtained
from both information gain and correlation using a novel
approach to identify useful and useless features. These reduced
features are then fed to a feed forward neural network for
training and testing on KDD99 dataset. The method uses pre-
processing to eliminate redundant and irrelevant data from the
dataset in order to improve resource utilization and reduce time
complexity. The performance of the feature reduced system is
actually better than system without feature reduction. According
to the feature optimization selection problems of the rare attack
categories detection the researchers in [19] used the cascaded
SVM classifiers to classify the non-rare attack categories and
using BN classifiers to classify rare attack categories, combining
with cascaded GFR feature selection method (CGFR) The
experimental results showed that the CGFR feature selection is
effective and accurate in IDS.
Redundant as well as irrelevant characteristics in data have
resulted in a constant problem in network traffic classification.
To combat this concern, Ambusaidi et al. [20] offered a
supervised filter-based feature selection algorithm that
methodically picks the ideal feature for categorization. The
Flexible Mutual Information Feature Selection (FMIFS) that has
been proposed to lessen the redundancy among features. FMIFS
is then combined with the Least Square Support Vector Machine
based IDS(LSSVM) technique to develop an IDS. The role of
the model is appraised by means of three intrusion identification
datasets, that is to say, KDD Cup 99, NSL-KDD plus Kyoto
2006+ datasets. The appraisal outcomes revealed that
characteristic selection algorithm gives other essential
characteristics for LSSVM-IDS to accomplish enhanced
accurateness and lessen computational expenses in contrary to
the state-of-the-art techniques.
Ikram and Cherukuri,2017 [21], proposed an ID model using
Chi-Square attribute selection and multi-class support vector
machine (SVM). The main idea behind this model is to construct
a multi class SVM which has not been adopted for IDS so far to
decrease the training and testing time and increase the individual
classification accuracy of the network attacks.
In [22], Khammassi and Krichen have applied a wrapper
methods based on a genetic algorithm as a search strategy and
logistic regression as a learning algorithm for network IDSs to
choice the best subset of features. The proposed approach is
based on three stages: a pre-processing phase, a feature selection
phase, and a classification stage the experiment will be
conducted on the KDD99 dataset and the UNSW-NB15 dataset.
The results showed that accuracy of classification equal to 99.90
%, 0.105 % FAR and 99.81% DR with a subset of only 18
features for the KDD99 dataset. Furthermore, the selected subset
provides a good DR for DoS category with 99.98%. The
obtained results for the UNSW-NB15 provided the lowest FAR
with 6.39% and a good classification accuracy compared to the
other mentioned approaches with a subset composed of 20
features.
From this inspiration, we are trying to find out which of
classification algorithms that we select will give better results
after selecting the features that have a strong correlation in the
training dataset. In this work, researchers will try to conduct
some experiments to differentiate and discover the normal and
abnormal behavior.
III. PROPOSED IDS METHODOLOGY
The main goal of the research, is to build a framework of
intrusion detection with minimum number of features in the
dataset. The previous researches showed that only a subset of
these features is related to ID. So, the aim is to reduce the data
set dimensionality to build a better classifier in a reasonable
time. The proposed approach consists of four main phases: The
first phase is to select the related features for each attack using
feature selection method. Then combining the different features
to obtain the optimal set of features for all attacks. The final set
of features is fed to the classification stage. Finally, the model is
tested using a test dataset. The framework of the proposed
methodology is shown in Fig. 1.
A. Selecting the Related Features for Each Attack
While the network intrusion system deals with a large
amount of raw data, the feature selection is becoming a basic
step in building such system. Feature selection is related to a
number of methods and techniques that are used to eliminate the
irrelevant and redundant features. The dimensionality of the data
set has a big effect in the model complexity that leads to low
classification accuracy, and high computational cost and time.
The aim of these methods also is to select the optimal features
which will enhance the model’s performance. There are two
general categories of methods for feature selection, filter
methods and wrapper methods [23]. In the Filter algorithms an
ISSN 1947-5500

independent measure is utilized (such as, information, distance,
or consistency) which are used to estimate the relation of a set of
features, while wrapper algorithms use of one of learning
algorithms to make the evaluation of the feature’s value. In this
study, Information Gain (IG) will be used to select the subset of
related features. IG is often cost less and faster than the wrapper
methods.
Information gain is computed for each individual attribute in
the training dataset related to one class. If the ranked value is
high that means a feature is highly distinctive this class.
Otherwise if the value is less than the predetermined threshold,
it will be removed from the feature space. To obtain a better
threshold value, the distribution of the IG values is examined and
tested with different threshold values on the training dataset.
The IG of a feature t, overall classes is known by equation
(1).
= log
+ log
+ ̅ ̅ log ̅ 1
Where:
• represents (i) category.
• P( ): probability that a random instance document
belongs to class .
• P(t) and P( ̅ probability of the occurrence of the
feature w in a randomly selected document.
• P( |t): probability that a randomly selected document
belongs to class if document has the feature w.
• m is the number of classes.
The selection features stage for each attack is divided into
three main steps as follows:
Step1: The training dataset is divided into 22 datasets.
Each dataset file contains the records of one attack records
merged with the normal records. If the whole dataset is used
without splitting, then the selection features method will be
biased to the most frequent attacks. So, this step is essential
to obtain more accurate results.
Step2: Each file then is used as an input to IG method to
select the most relevant features of that attack. For example,
the spy attack has the related features ranked as shown in
Table 1.
Step3: A ranked feature list is generated, and according
to some thresholds, a number of features are eliminated.
From the list in Table I, it can be noticed that the most
relevant features for spy attack are features 38 and 39, if we
take the threshold equal to 0.003. So, we can take the best
two features and eliminate the others.
TABLE I. SPY RANKED RELATED FEATURES
B. Combining the Different Set of Features for All Attacks
In this step, a combined list of features for all attacks is
generated from the obtained subsets. For some attacks the
highest rank of the first three features are selected. But for
another set of attacks, like land attack, one feature has been
Ranked Value
Feature
Number
Feature Name
0.004029 38 dst_host_serror_rate
0.0036057 39 dst_host_srv_serror_rate
0.0018171 3 Service
0.0012618 18 num_shells
0.0011184 15 su_attempted
0.0008256 19 num_access_files
0.0001008 2 protocol_type
Figure 1. Framework of The Proposed Model of IDS
ISSN 1947-5500

taken, since it’s rank is equal to 1, while the ranks for other
features were very low. That means this feature can fully
discriminate this attack.
C. Classification of the Training Dataset
The final combined subset is used as an input to the
classification stage. The results of three different classifiers have
been considered to make the comparative study. These
classifiers are J48, Random-Forest (RF) and Partial Decision
List (PART). After conducting the experiments, the best two
classifiers results are chosen. The next step, is to use the vote
ensemble method to enhance the performance of the model.
• J48 classifier: C4.5 (J48) is an algorithm developed by
Ross Quinlan that used to generate a decision tree. This
algorithm becomes a popular in classification and Data
Mining. The gain ratio method is used in this algorithm
as a criterion for splitting the data set. Some
normalization techniques are applied to the information
gain using a “split information” value.
• Random Forest: is related to a machine learning
method which makes a combination between decision
tree and ensemble methods. The input of the forest that
represent the features are picked randomly to build the
composed trees. The generation process of the forest
constructs a collection of trees with controlled variance.
majority voting or weighted voting can be used to decide
the resulting prediction.
• Partial Decision List (PART): PART is an algorithm
of decision–list based on partial decision tree, joining
the advantages of both classifier C4.5 and PIPPER. A
pruned decision tree is created for all existing instances,
for the leaf node building a rule corresponding with the
largest coverage, after that discarding the tree and
continuing.
• Ensemble classifier: An ensemble classifier consists of
the combination of multiple weak machine learning
algorithms (known as weak learners) to improve the
classification performance. The combination of weak

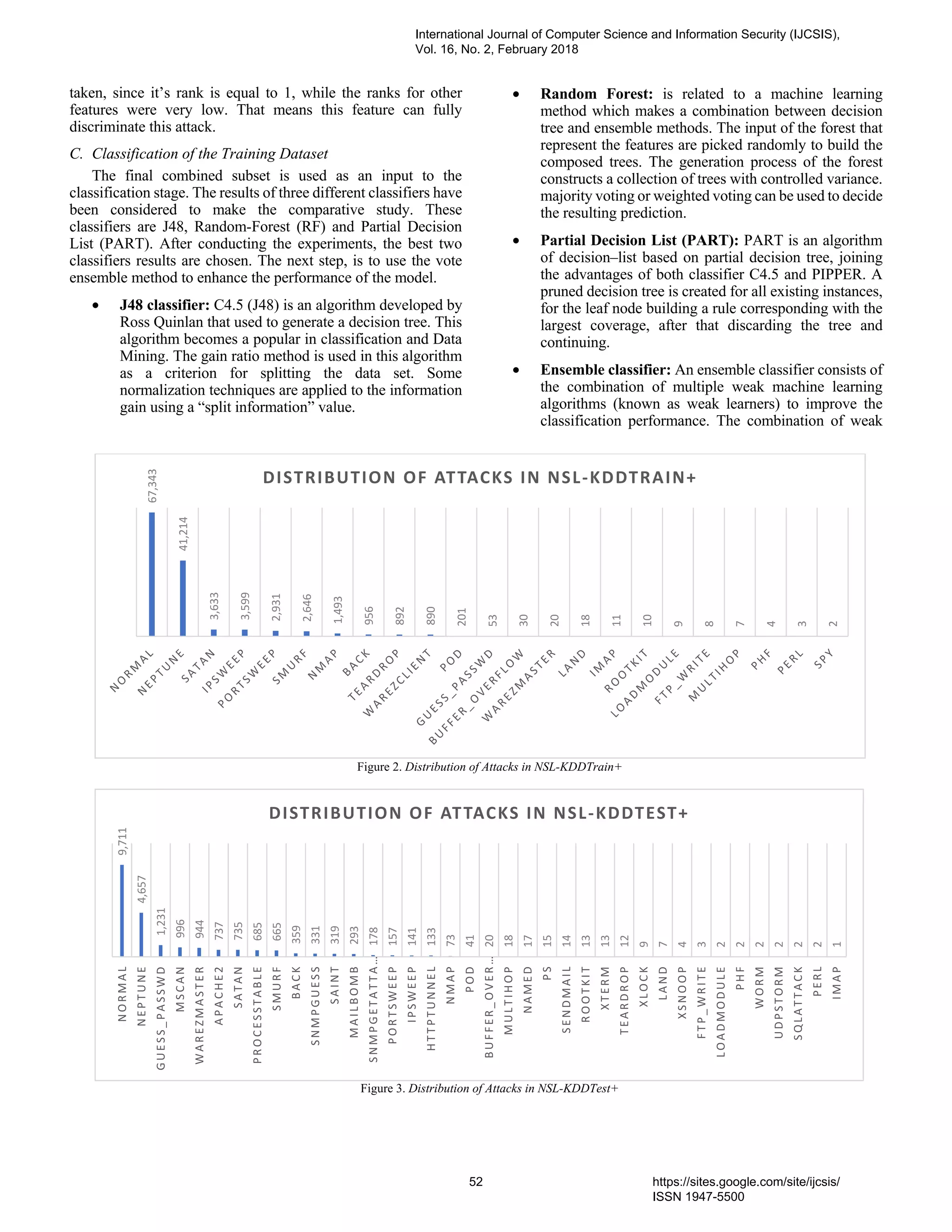

Figure 2. Distribution of Attacks in NSL-KDDTrain+
Figure 3. Distribution of Attacks in NSL-KDDTest+
67,343
41,214
3,633
3,599
2,931
2,646
1,493
956
892
890
201
53
30
20
18
11
10
9
8
7
4
3
2
DISTRIBUTION OF ATTACKS IN NSL-KDDTRAIN+
9,711
4,657
1,231
996
944
737
735
685
665
359
331
319
293
178
157
141
133
73
41
20
18
17
15
14
13
13
12
9
7
4
3
2
2
2
2
2
2
1
NORMAL
NEPTUNE
GUESS_PASSWD
MSCAN
WAREZMASTER
APACHE2
SATAN
PROCESSTABLE
SMURF
BACK
SNMPGUESS
SAINT
MAILBOMB
SNMPGETATTA…
PORTSWEEP
IPSWEEP
HTTPTUNNEL
NMAP
POD
BUFFER_OVER…
MULTIHOP
NAMED
PS
SENDMAIL
ROOTKIT
XTERM
TEARDROP
XLOCK
LAND
XSNOOP
FTP_WRITE
LOADMODULE
PHF
WORM
UDPSTORM
SQLATTACK
PERL
IMAP
DISTRIBUTION OF ATTACKS IN NSL-KDDTEST+
ISSN 1947-5500

learners can be based on different strategies such as
majority vote, boosting, or bagging.
D. Testing the Model
In this stage, a test dataset KDD-Test is used to evaluate the
model which has been generated by the vote ensemble method.
The test dataset file is different from the training dataset and has
an extra number of attacks. After that the performance
evaluation of the model is conducting using some measures such
as accuracy, and area under the ROC.
IV. RESULTS AND ANALYSIS
In this section, experiments results analysis is discussed. All
experiments were conducted using platform of Windows with
configuration of Intel® core™ i7 CPU 2.70 GHZ, 8 GB RAM.
WEKA tool was used to evaluate the method and perform
feature selection. In order to select the optimal training
parameters, a 10-fold cross validation (CV) is performed on the
training dataset.
A. Dataset Description
All experiments are carried out on NSL-KDD datasets [8].
NSL-KDD is a refined version of the KDD’99 dataset. It
overcomes some inherent problems in the original KDD dataset.
Redundant records in the training set have been removed so that
the classifiers produce unbiased results. There is no duplicate
data in the improved testing set. Therefore, the biased influence
on the performance of the learners has been significantly
reduced. Each connection in this dataset contains 41 features.
Researchers in this work carry out the experiments using the
KDDTrain and KDDTest data. The different attacks are listed in
Table II. The Distribution of Attacks in NSL-KDDTrain+ and
NSL-KDDTest+ files are shown in Fig 2 and Fig 3.
TABLE II. ATTACKS IN NSL_KDD TRAINING DATASET
B. Evaluation Metrics
The performance evaluation of the proposed model, used
different performance metrics such as: precision (equation 2),
recall (equation 3), F-measure (equation 4), true negative rate,
false positive rate and overall accuracy (ACC) (equation 5) that
known as correctly classified instances (CC). In addition,
presented Received Operating Characteristics (ROC) of the
system. The ROC curve is computed by drawing the relation
between true positive rate and false positive rate in y-axis and x-
axis, respectively.
=
+

=
+

=
2 × ×
+

=

× 100%
Where:
• TP: related to the true positive.
• FP: related to the false positive.
• FN: related to the false negative.
C. Results Analysis
After making many experiments on the combined list. The
optimal number of combined features is equal to 28 features.
These features as well as its number in the DS are listed in Table
III.
TABLE III. THE FINAL SELECTED FEATURES
In Table IV, comparing the accuracy and different evaluation
metrics with two sets of attributes against using the all dataset
with 41 attributes according to PART classifier with two test
option cross validation and NSL-KDD Test +. As observed, for
the accuracy is shown. The performance of proposed technique
compared in terms of using cross validation test and testing
dataset. The result shows that high accuracy with (99.7984%) is
obtained when using set of 19 feature with cross validation test,
Attack Type Attack Name
DOS Neptune, Smurf, Pod, Teardrop, Land, Back
Probe Port-sweep, IP-sweep, Nmap, Satan
R2L Guess-password, Ftp-write, Imap, Phf,
Multihop, spy, warezclient, Warezmaster
U2R Buffer-overflow, Load-module, Perl, Rootkit
Feature Number Feature Name
1 duration
2 protocol_type
3 services
4 flag
5 src_bytes
6 dst_bytes
7 land
8 wrong_fragment
9 urgent
10 hot
11 num_failed_logins
13 Num_compromised
14 Root_shell
17 num_file_creations
18 num_shells
19 num_access_files
26 srv_serror_rate
29 same_srv_rate
30 diff_srv_rate
31 srv_diff_host_rate
32 dst_host_count
33 dst_host_srv_count
34 dst_host_same_srv_rate
36 dst_host_same_src_port_ra
37 dst_host_srv_diff_host_rat
38 dst_host_serror_rate
39 dst_host_srv_serror_rate
41 dst_host_srv_rerror_rate
ISSN 1947-5500

while using 28 features, the accuracy is (86.66%) when using
NSL-KDD Test + dataset.
On the other hand, the results of the comparison between the
performance of three classification algorithms with the proposed
method, and both CV and testing are presented in Table V.
As a comparison, we used various popular classifiers
algorithms. These classifiers are J48, Random-Forest (RF) and
Partial Decision List (PART). The highest testing accuracy with
(86.66%) is achieved by PART algorithm, whereas the highest
obtained accuracy from CV with (99.78%) by using RF. Fig. 4
shows a comparison of classification algorithms in term of
accuracy with test option cross validation and NSL-KDD Test
+. According to these results, the best two classifiers (PART and
RF) have been chosen to manipulate the voting ensemble
algorithm. Table VI demonstrates the performance of using
voting learning algorithm for Random Forest and PART to
improve the obtained accuracy for the system of intrusion
detection. It was noticed that, when Random Forest and PART
classifiers are used under different combination methods, the
accuracy of the model is enhanced. Table VI shows also that the
accuracy in CV is the same while using the three rules. But when
the supplied test dataset is being used, a different behavior is
noticed for the three rules. The best accuracy is achieved when
using the product probability rule. Finally, the area under the
ROC curves as shown in Fig. 5 is calculated for each attack
classes in the dataset based on cross validation and NSL-KDD
Test. The results also show that, the ROC values for DoS and
probe attacks are almost the same in the two test options, but the
values fluctuate with R2L and U2R attacks.

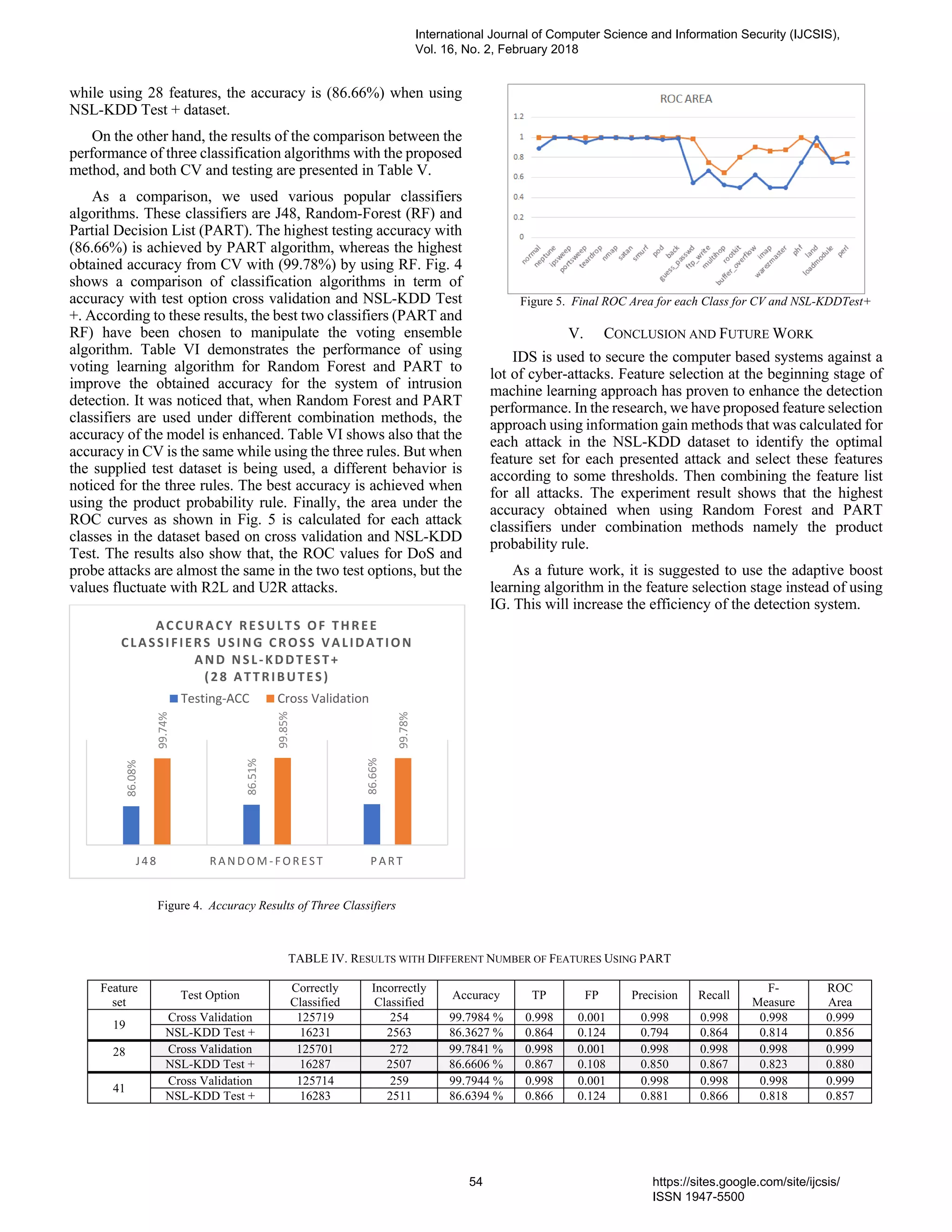

Figure 4. Accuracy Results of Three Classifiers
Figure 5. Final ROC Area for each Class for CV and NSL-KDDTest+
V. CONCLUSION AND FUTURE WORK
IDS is used to secure the computer based systems against a
lot of cyber-attacks. Feature selection at the beginning stage of
machine learning approach has proven to enhance the detection
performance. In the research, we have proposed feature selection
approach using information gain methods that was calculated for
each attack in the NSL-KDD dataset to identify the optimal
feature set for each presented attack and select these features
according to some thresholds. Then combining the feature list
for all attacks. The experiment result shows that the highest
accuracy obtained when using Random Forest and PART
classifiers under combination methods namely the product
probability rule.
As a future work, it is suggested to use the adaptive boost
learning algorithm in the feature selection stage instead of using
IG. This will increase the efficiency of the detection system.
86.08%
86.51%
86.66%
99.74%
99.85%
99.78%
J48 RANDOM - FOREST P ART
ACCURACY RESULTS OF THREE
CLASSIFIERS USING CROSS VALIDATION
AND NSL-KDDTEST+
(28 ATTRIBUTES)
Testing-ACC Cross Validation
TABLE IV. RESULTS WITH DIFFERENT NUMBER OF FEATURES USING PART
Feature
set
Test Option
Correctly
Classified
Incorrectly
Classified
Accuracy TP FP Precision Recall
F-
Measure
ROC
Area
19
Cross Validation 125719 254 99.7984 % 0.998 0.001 0.998 0.998 0.998 0.999
NSL-KDD Test + 16231 2563 86.3627 % 0.864 0.124 0.794 0.864 0.814 0.856
28 Cross Validation 125701 272 99.7841 % 0.998 0.001 0.998 0.998 0.998 0.999
NSL-KDD Test + 16287 2507 86.6606 % 0.867 0.108 0.850 0.867 0.823 0.880
41
NSL-KDD Test + 16283 2511 86.6394 % 0.866 0.124 0.881 0.866 0.818 0.857
ISSN 1947-5500

REFERENCES
[1] P. D ́ıaz-Ram ́ırez, A., Tafoya, L.A., Atempa, J.A., Mej ́ıa-Alvarez,
“Wireless sensor networks and fusion information methods for
forest fire detection,” Procedia Technol. 3, pp. 69–79, 2012.
[2] A. Isaac, S., Hancke, G., Madhoo, H., Khatri, “A survey of wireless
sensor network applications from a power utility’s distribution
perspective,” AFRICON 2001, pp. 1–5, 2011.
[3] B. . Mao, G., Fidan, B., Anderson, “Wireless sensor network
localization techniques. Computer Networks,” vol. 10, no. 51, pp.
2529–2553, 2007.
[4] V. Durisic, M., Tafa, Z., Dimic, G., Milutinovic, “A survey of military
applications of wireless sensor networks,” in 2012 Mediterranean
Conference on Embedded Com- puting, MECO, 2012, pp. 196–199.
[5] L. Afzaal, M., Di Sarno, C., Coppolino, L., D’Antonio, S., Romano, “A
resilient architecture for forensic storage of events in critical
infrastructures.,” in 2012 IEEE 14th International Symposium on
High-Assurance Systems Engineering, HASE, 2012, pp. 48–55.
[6] D. Wahid, A., Kim, “Connectivity-based routing protocol for
underwater wireless sensor networks,” in 2012 International
Conference on ICT Convergence, ICTC, 2012, pp. 589–590.
[7] I. H. Witten, E. Frank, M. A. Hall, and C. J. Pal, Data Mining: Practical
machine learning tools and techniques. Morgan Kaufmann, 2016.
[8] M. Tavallaee, E. Bagheri, W. Lu, and A. A. Ghorbani, “A detailed
analysis of the KDD CUP 99 data set,” in IEEE Symposium on
Computational Intelligence for Security and Defense Applications,
CISDA 2009., 2009, pp. 1–6.
[9] P. Institute, “2014 Global report on the cost of cyber crime,” 2014.
[10] H. S. Hota and A. K. Shrivas, “Decision Tree Techniques Applied on
NSL-KDD Data and Its Comparison with Various Feature Selection
Techniques,” in Advanced Computing, Networking and Informatics-
Volume 1: Advanced Computing and Informatics Proceedings of the
Second International Conference on Advanced Computing,
Networking and Informatics (ICACNI-2014), 2014, pp. 205–211.
[11] D. H. Deshmukh, T. Ghorpade, and P. Padiya, “Intrusion detection
system by improved preprocessing methods and Na #x00EF;ve
Bayes classifier using NSL-KDD 99 Dataset,” in 2014 International
Conference on Electronics and Communication Systems (ICECS),
2014, pp. 1–7.
[12] I. M. Y. Noureldien A. Noureldien, “Accuracy of Machine Learning
Algorithms in Detecting DoS Attacks Types,” Sci. Technol., vol. 6,
no. 4, pp. 89–92, 2016.
[13] M. A. Jabbar and S. Samreen, “Intelligent network intrusion detection
using alternating decision trees,” in 2016 International Conference
on Circuits, Controls, Communications and Computing (I4C), 2016,
pp. 1–6.
[14] N. Paulauskas and J. Auskalnis, “Analysis of data pre-processing
influence on intrusion detection using NSL-KDD dataset,” in 2017
Open Conference of Electrical, Electronic and Information Sciences
(eStream), 2017, pp. 1–5.
[15] H. Wang, J. Gu, and S. Wang, “An effective intrusion detection
framework based on SVM with feature augmentation,” Knowledge-
Based Syst., vol. 136, no. Supplement C, pp. 130–139, 2017.
[16] C. Yin, Y. Zhu, J. Fei, and X. He, “A Deep Learning Approach for
Intrusion Detection Using Recurrent Neural Networks,” IEEE
Access, vol. 5, pp. 21954–21961, 2017.
[17] M. B. Shahbaz, Xianbin Wang, A. Behnad, and J. Samarabandu, “On
efficiency enhancement of the correlation-based feature selection for
intrusion detection systems,” 2016 IEEE 7th Annu. Inf. Technol.
Electron. Mob. Commun. Conf., pp. 1–7, 2016.
[18] Akashdeep, I. Manzoor, and N. Kumar, “A feature reduced intrusion
detection system using ANN classifier,” Expert Syst. Appl., vol. 88,
pp. 249–257, 2017.
[19] Y. Sun and F. Liu, “A & ascaded ) eature 6 election $ pproach in 1
etwork , ntrusion â€TM
etection,” pp. 119–124, 2015.
[20] M. Ambusaidi, X. He, P. Nanda, and Z. Tan, “Building an intrusion
detection system using a filter-based feature selection algorithm,”
IEEE Trans. Comput., vol. PP, no. 99, p. 1, 2016.
[21] I. Sumaiya Thaseen and C. Aswani Kumar, “Intrusion detection model
using fusion of chi-square feature selection and multi class SVM,”
J. King Saud Univ. - Comput. Inf. Sci., vol. 29, no. 4, pp. 462–472,
2017.
[22] C. Khammassi and S. Krichen, “A GA-LR wrapper approach for feature
selection in network intrusion detection,” Comput. Secur., vol. 70,
pp. 255–277, 2017.
[23] F. Amiri, M. R. Yousefi, C. Lucas, A. Shakery, and N. Yazdani,
“Mutual information-based feature selection for intrusion detection
systems,” J. Netw. Comput. Appl., vol. 34, no. 4, pp. 1184–1199,
2011.
AUTHORS PROFILE
Authors Profile …
TABLE VI. CROSS-VALIDATION AND TEST RESULTS USING VOTE METHOD WITH (RF+PART)
Combination
Rule
Test Option
Correctly
Classified
Incorrectly
Classified
F-
Measure
ROC
Area
Majority
Voting
NSL-KDD Test + 16292 2502 86.6872 % 0.867 0.108 0.850 0.867 0.823 0.847
Product
probability
NSL-KDD Test + 16294 2496 86.6979 % 0.867 0.108 0.851 0.867 0.823 0.884
Average
probability
NSL-KDD Test + 16292 2502 86.6872 % 0.867 0.108 0.850 0.867 0.823 0.947
TABLE V. CROSS-VALIDATION AND TEST RESULTS OF THREE CLASSIFIERS
Classifier
Name
Test Option
Correctly
Classified
Incorrectly
Classified
F-
Measure
ROC
Area
J48
NSL-KDD Test + 16178 2616 86.0807 % 0.861 0.119 0.774 0.861 0.814 0.840
Random-
Forest
NSL-KDD Test + 16259 2535 86.5117% 0.865 0.112 0.831 0.865 0.819 0.943
PART
NSL-KDD Test + 16287 2507 86.6606 % 0.867 0.108 0.850 0.867 0.823 0.880
ISSN 1947-5500

Enhanced Intrusion Detection System using Feature Selection Method and Ensemble Learning Algorithms

Recommended

Recommended

More Related Content

What's hot

What's hot (13)

Similar to Enhanced Intrusion Detection System using Feature Selection Method and Ensemble Learning Algorithms

Similar to Enhanced Intrusion Detection System using Feature Selection Method and Ensemble Learning Algorithms (20)

Recently uploaded

Recently uploaded (20)

Enhanced Intrusion Detection System using Feature Selection Method and Ensemble Learning Algorithms
