The document discusses advanced vehicle telematics for diesel generators, highlighting benefits such as reduced fuel and maintenance costs, and improved performance monitoring. Key features include engine health checks, fuel monitoring, event detection, and reporting capabilities for operational efficiency. The system integrates standard interfaces and sensors to provide comprehensive data for informed decision-making and ensure uninterrupted operation.

1. ADVANCED VEHICLE TELEMATICS
www.jv-technoton.com
Diesel generator telematics
eng/diesel_generator_solution/presentation/v.1.0

2. 2
ADVANCED VEHICLE TELEMATICS
Benefits from implementing telematics system
ь Fuel and maintenance costs reduction
ь Fuel feed control and extended lifetime of components
ь Real and accurate operation data for managerial accounting

3. 3
Telematics system features
Engine performance and health check
Power output monitoring
Fuel monitoring and control
Machine performance reporting
Event detection and notification
ADVANCED VEHICLE TELEMATICS

4. 4
Features/ Engine performance and health check ADVANCED VEHICLE TELEMATICS
RPM of diesel engine
Oil temperature
Oil pressure
Coolant temperature
Other parameters
130.9
Fuel volume, l
DUT-E 1
23.9
Battery, V
ECU
221.8
Fuel volume, l
DUT-E 2
2.5
Oil pressure, bar
ECU
13.3
Fuel rate, l/h
DFM
92.3
Coolant, °C
ECU
11.6
Average fuel rate, l/h
DFM
45.6
Fuel, °C
DFM
1320
RPM
ECU
1320
Runtime, h
ECU

5. 5
Features/ Power output monitoring ADVANCED VEHICLE TELEMATICS
Total Power
Current
Real Power
Reactive Power
Power Factor
80
60
40
20
Power output, kW
Total, kWh 2314.5
Relative power output 67.5
Power factor 0.91
Total fuel consumption, l 1245.9
01/06/2021 00:00 30/06/2021 23:59
Active power, kW 546.5
Total runtime, h 67.7
RPM 1450
Fuel rate, l/h 12.3

6. 6
Features/ Fuel monitoring ADVANCED VEHICLE TELEMATICS
Fuel consumption: total
and by operating modes
Engine hours by modes
(idling, loading)
Protection against cheating
600
800
1000
Monday 05/07/21 12:38
1156
Fuel consumption, l
Average
Daily
79
Engine load. %
Fuel alarm
11

7. 7

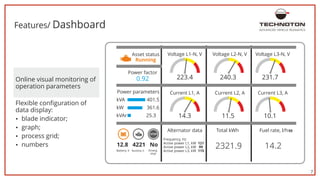

Features/ Dashboard ADVANCED VEHICLE TELEMATICS
Online visual monitoring of
operation parameters
џ graph;
Flexible configuration of
data display:
џ blade indicator;
џ numbers
џ process grid;
223.4 240.3
11.5
2321.9 14.2
231.7
10.1
Asset status
14.3
12.8 4221 No
Running
Power factor
Power parameters
0.92
Alternator data Total kWh Fuel rate, l/h50
Frequency, Hz
Active power L1, kW 121
Active power L2, kW 99
Active power L3, kW 115
Battery, V Runtime, h Emerg.
kVA 401.5
stop
kW 361.6
kVAr 25.3
Voltage L1-N, V
Current L1, A
Voltage L2-N, V
Current L2, A
Voltage L3-N, V
Current L3, A

8. 8
Features/ Machine performance reporting
Creating reports for any monitored parameter for selected period.
Retrospective analysis for a single generator, a group of generators, the entire generator fleet
Exporting reports to .xls and .pdf
ADVANCED VEHICLE TELEMATICS
Object name DGU 35/88
From 01/03/2021 00:00
To 31/03/2021 23:59
Time Initial volume, l Final volume, l Fueling, l
03/03 2021 14:44 17.1 159.1 142
06/03/2021 06:11 7.5 146.5 138
07/03/2021 11:52 11.5 159.5 148
10/03/2021 10:26 6.3 157.3 151
12/03/2021 06:25 44.2 157.2 113
13/03/2021 07:50 25.9 162.9 137
16/03/2021 10:52 37.5 177.5 140
20/03/2021 12:05 39.6 169.6 130
25/03/2021 12:21 48.8 128.8 80

9. 9

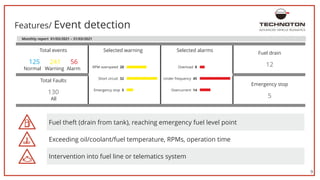

Features/ Event detection
Fuel theft (drain from tank), reaching emergency fuel level point
Exceeding oil/coolant/fuel temperature, RPMs, operation time
Intervention into fuel line or telematics system
ADVANCED VEHICLE TELEMATICS
Monthly report 01/03/2021 – 31/03/2021
Total events
125 241 56
Selected warning
RPM overspeed 20
Short circuit 32
Emergency stop 5
Overload 8
Under frequency 45
Selected alarms
Overcurrent 14
Fuel drain
Normal Warning Alarm
Total Faults
Emergency stop
12
130
5
All

10. 10
Features/ Notifications
Fuelling
18.06.2019 07:57:40 (+03:00)
Link on map: **********
101_521301
Filled Fuel Volume, L: 48.80
101_521024_17.0
Fuel Tank Volume/
At the event start, L: 186.40
101_521024_17.1
Fuel Tank Volume/
At the event end, L: 235.20
Fuel fill-up and draining from tank
Fuel rate over the limit
Too high temperature/pressure of liquids
Engine start/stop
RPM out of bounds
Attempts to cheat telematics system
ADVANCED VEHICLE TELEMATICS

11. 11
CANUp
telematics
gateway GSM 2G/3G
Wi-Fi
DUT-E fuel level
sensor in main tank
DUT-E fuel level sensors
in supply tanks
j1939/S6
CAN j1939 CAN j1939
ADVANCED VEHICLE TELEMATICS
Equipment/ Overview
DFM fuel
flow meters
FMSCrocodile
contactless
gateway
MasterCAN
Display 35

12. 12

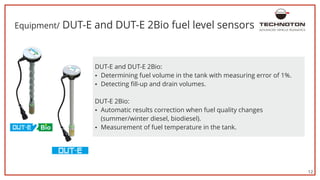

Equipment/ DUT-E and DUT-E 2Bio fuel level sensors
56 %
џ Detecting fill-up and drain volumes.
DUT-E 2Bio:
DUT-E and DUT-E 2Bio:
џ Determining fuel volume in the tank with measuring error of 1%.
џ Automatic results correction when fuel quality changes
(summer/winter diesel, biodiesel).
џ Measurement of fuel temperature in the tank.
ADVANCED VEHICLE TELEMATICS

13. 13
Equipment/ DFM and DFM Marine fuel flow meters
Engine operation time monitoring.
For direct measurement of fuel consumption by engine and measurement
offuelrateinsupplylinefromstoragetanktogenset'stank.
Flow rate 1 – 25 000 l/h.
ADVANCED VEHICLE TELEMATICS

14. 14
Equipment/ CANCrocodile contactless reader
Data transmission to telematics unit.
Safe data reading from genset CAN bus (parameters of engine, RPM, oil
pressure & temperature, coolant temperature etc.)
ADVANCED VEHICLE TELEMATICS

15. 15
Equipment/ CAN display MasterCAN Display
Displayisdesignedforvisualmonitoringofoperatingparametersofgenset.
Display receives data from genset information buses (e.g. CAN bus) and
from standard and additional genset sensors.
ADVANCED VEHICLE TELEMATICS

16. 16
Equipment/ Digital-to-analog converter
MasterCAN DAC
Integrates standard sensors signals into telematics system.
Controls the pump that supplies fuel from the main tank to the supply tank.
Converts analog signals from sensors to digital signals and vice versa.
ADVANCED VEHICLE TELEMATICS

17. 17
Equipment/ Data converters MasterCAN
CAN2RS и RS2CAN
ADVANCED VEHICLE TELEMATICS
CAN j1939 data to interface RS-485 (Modbus) data converting and vice
versa – RS-232/485 (Modbus) in CAN j1939.
Automatic CAN j1939/71 scanning and parsing.
Selection of the required messages (from 10,000+) for converting,
configuration of interfaces' baud rate.
Configuring Modbus register table for data recording.

18. 18
Equipment/ Telematics gateway CANUp
Receives data from information buses and from standard or
additional sensors.
Flexible customization of 20 Reports, up to 10 Parameters in each.
Reportes over 2G, 3G, SMS, e-mail, Wi-Fi, Watson, MQTT, Amazon.
Transformes data of genset operation “on board” and sending reports
to the telematic server.
ADVANCED VEHICLE TELEMATICS

19. 19
Case/ Emergency power supply of the bank (Nigeria)
The monitoring system was installed on a diesel generator set for emergency power supply of a large
bank - several CAT generators with a power rating 810 kVA each. Exact fuel monitoring totally
eliminated fuel theft from tanks and fuel lines of the genset. Fuel costs reduced by 30%.
ADVANCED VEHICLE TELEMATICS
Feed chamber
Reverse chamber
Fuel mass flow rate
0 l/h
01:00:00 03:00:00 Time
40 l/h
80 l/h
120 l/h
160 l/h
30:40:44
Instant fuel
consumption
150
200
250
100
50
0
Fuel rate
97 l/h
33 °C
24.7 V
172261 lt
Engine hours
Total fuel consumption
Fuel temperature
Voltage

20. 20
Case/ National park power supply (Chile)
Genset’s fuel tank indicator
red - full tank
Genset’s fuel tank indicator
yellow - tank is nearly empty,
fuel pump will turn on soon
Info from DFM fuel
flow meters
Info from DUT-E 2Bio fuel
level sensor
48.23 l
3657.22 l
37 °C
357.2 l
2h 22'46"
51.44 l
55.23 l
5736.22 l
34 °C
423.8 l
2h 48'40"
43.44 l
57.23 l
6836.22 l
35°C
445.8 l
2h 11'40"
45.44 l
28 633 l
3654 l
37 °C
2h 45'46"
7214 l
The monitoring system includes Technoton equipment, which is sends data to SCADA using
RS-485 Modbus.
The system provides automatic filling of fuel tanks of each generator.
This ensures uninterrupted power supply to all remote objects of the national park.
There is no “human factor” – errors are excluded, labor costs are minimal.
ADVANCED VEHICLE TELEMATICS

21. 21
Summary
Monitoring system integrates standard digital interfaces, analog sensors and diesel generator devices.
Technoton offers full set of hardware and cloud software for diesel generator monitroing.
Diesel generator telematics system allows to:
ь ensure uninterrupted operation of a genset and extend its lifecycle;
ь get real data on genset performance for decision-making process.
ь reduce fuel costs , maintenance and repair costs;
ADVANCED VEHICLE TELEMATICS
