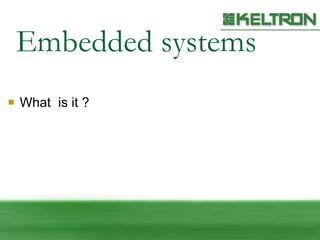

3. Embedded systems What is it ?

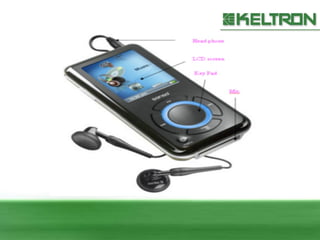

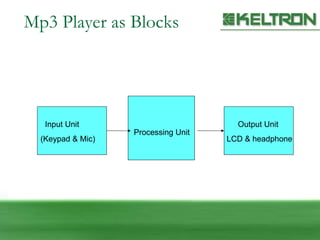

5. Mp3 Player as Blocks Input Unit (Keypad & Mic) Processing Unit Output Unit LCD & headphone

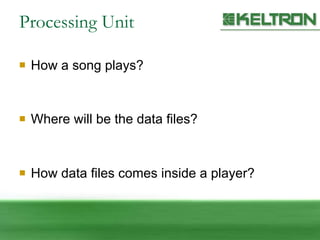

6. Processing Unit How a song plays? Where will be the data files? How data files comes inside a player?

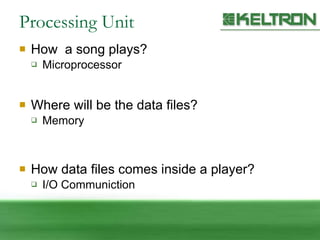

7. Processing Unit How a song plays? Microprocessor Where will be the data files? Memory How data files comes inside a player? I/O Communiction

8. Cont… Peripheral devices Any device attached to a processor, to increase its functionality Discrete IO : GPIO ADC / DAC Serial Communication : RS232, RS484, Synchronous Serial Communication : I2C, SPI USB Network : LAN, CAN, LIN

9. cond... Timers: Capture/Compare PWM Watchdog Timer Programming / Debugging : JTAG, ISP, ICSP

10. All in One Entire computer on a single chip . --- MICROCONTROLLER

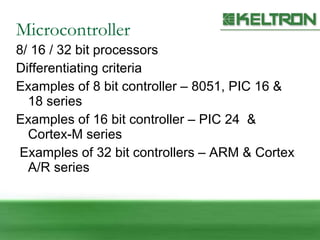

11. Microcontroller 8/ 16 / 32 bit processors Differentiating criteria Examples of 8 bit controller – 8051, PIC 16 & 18 series Examples of 16 bit controller – PIC 24 & Cortex-M series Examples of 32 bit controllers – ARM & Cortex A/R series

12. How a Microcontroller can be Programmed? Design Logic Create Algorithm Create Flow chart Select a Programming language

13. Block representation Embedded System Input Unit Microcontroller Output Unit

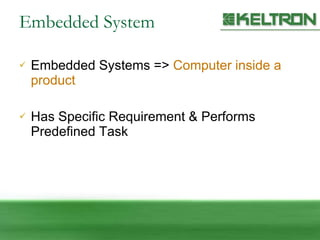

14. Embedded System Embedded Systems => Computer inside a product Has Specific Requirement & Performs Predefined Task

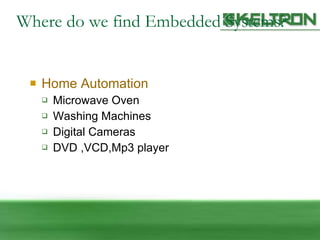

15. Where do we find Embedded Systems? Home Automation Microwave Oven Washing Machines Digital Cameras DVD ,VCD,Mp3 player

16. Office Automation Printers Fax Modem Xerox Scanner

17. Wireless Technology Mobile phones ( Base stations ,Mobile switching centers ) PDA Palm tops

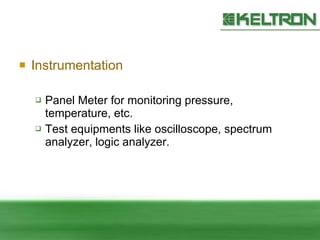

18. Instrumentation Panel Meter for m onitoring p ressure , temperature, etc. Test equipments like oscilloscope, spectrum analyzer, logic analyzer.

19. Security Security devices at home, office, airports etc. for authentication & verification. Biometric systems using fingerprint & face recognition

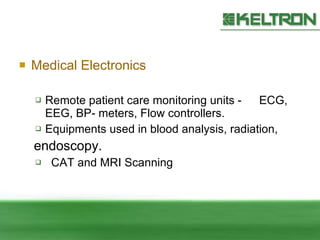

20. Medical Electronics Remote patient care monitoring units - ECG , EEG, BP- meters, Flow controllers. Equipments used in blood analysis, radiation, endoscopy. CAT and MRI Scanning

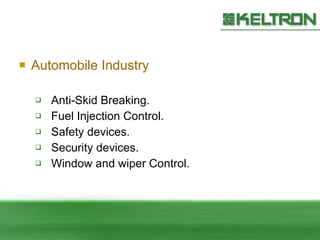

21. Automobile Industry Anti-Skid Breaking. Fuel Injection Control. Safety devices. Security devices. Window and wiper Control.

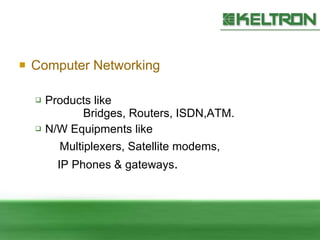

22. Computer Networking Products like Bridges, Routers, ISDN,ATM. N/W Equipments like Multiplexers, Satellite modems, IP Phones & gateways .

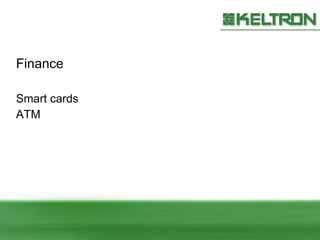

23. Finance Smart cards ATM

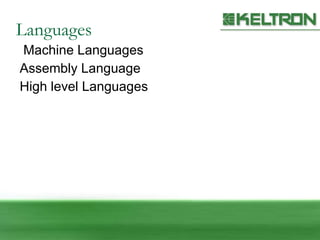

24. Languages Machine Languages Assembly Language High level Languages

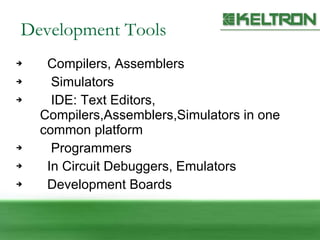

25. Development Tools Compilers, Assemblers Simulators IDE: Text Editors, Compilers,Assemblers,Simulators in one common platform Programmers In Circuit Debuggers, Emulators Development Boards

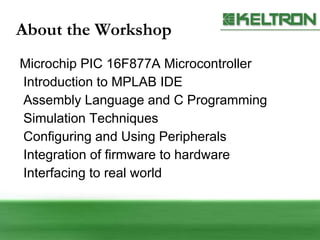

26. About the Workshop Microchip PIC 16F877A Microcontroller Introduction to MPLAB IDE Assembly Language and C Programming Simulation Techniques Configuring and Using Peripherals Integration of firmware to hardware Interfacing to real world

27. Cond... NXP LPC 2129 ARM7 Controllability Introduction to Keil IDE C Programming Simulation Techniques Configuring and Using Peripherals

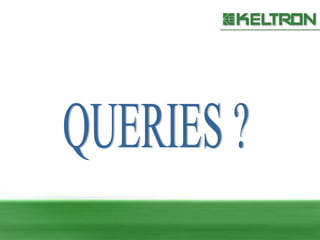

28. QUERIES ?
