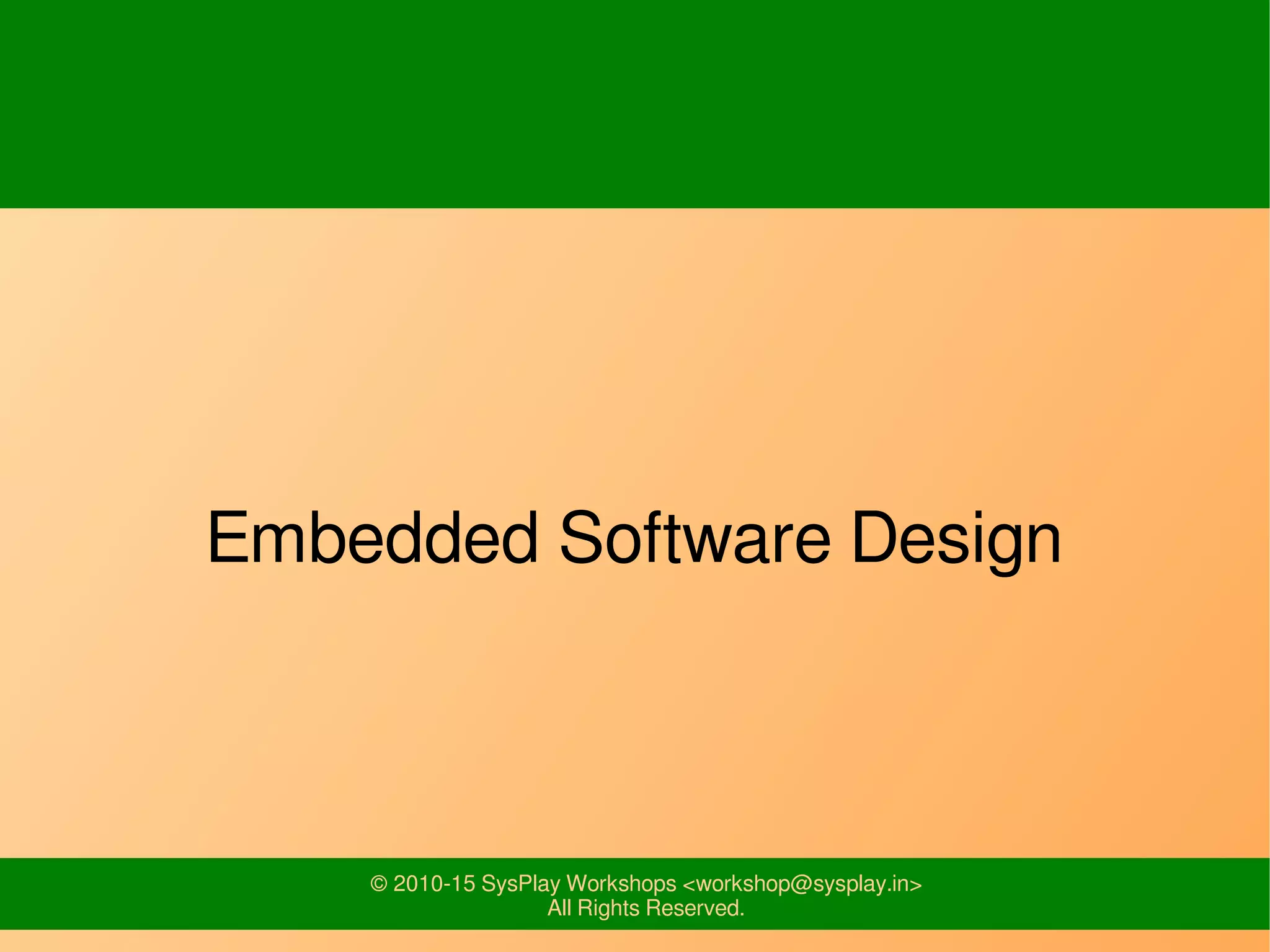

Embedded Software Design

© 2010-15 SysPlay Workshops <workshop@sysplay.in>
All Rights Reserved.
Embedded Software Design

2© 2010-15 SysPlay Workshops <workshop@sysplay.in>

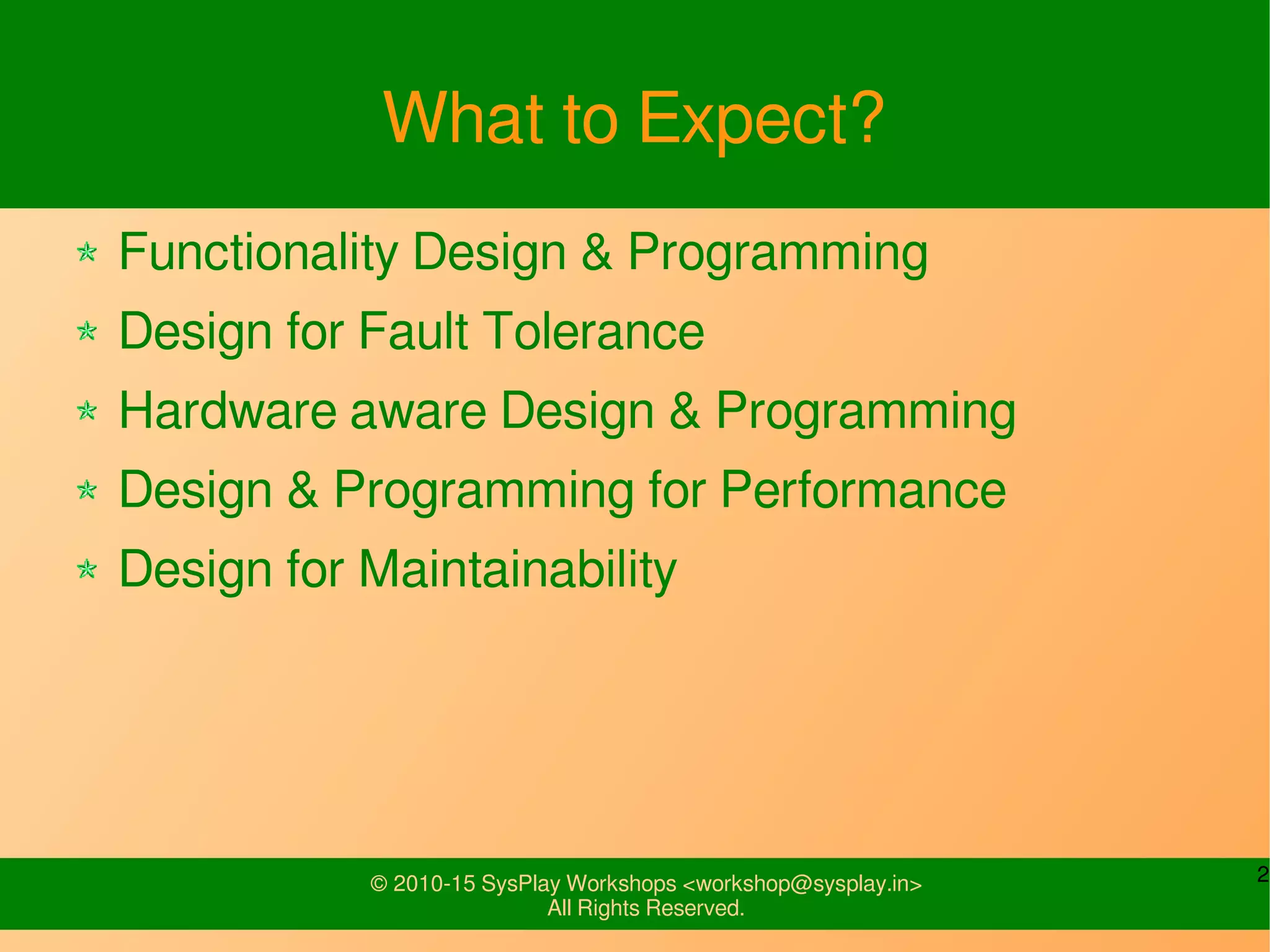

What to Expect?
Functionality Design & Programming
Design for Fault Tolerance
Hardware aware Design & Programming
Design & Programming for Performance
Design for Maintainability

Special about Embedded Software
Full Featured
with Smaller Binary Size
Seamless Hardware Interaction
with High Fault Tolerance
Time Tolerant (Running forever)
Good Performance
with Limited Processor Power
Capable of Remote Testing, Debugging, Fixing
In short, it is
Optimized, Robust, Continuously Performing, Maintainable

W's of Embedded Software Design
Do NOT start coding, Design First
Design means “Data Structures, Interfaces & Algorithms”
If comfortable, put down “C” structs and “C” function prototypes, And
Design “C” pseudo code using them
How to Proceed?
Understand the overall requirements
Break them into smaller manageable/thinkable chunks
Think & Propose designs for each one of them
To meet all the requirements
If some requirement(s) are not met
Tweak / Modify the designs to meet all of them
Because trying to meet them later may turn out to be costly
In terms of both time & effort

Functional Design & Programming

Functional Design Approach
Preferred Design Approach → Top-down
Design interfaces to meet the customer requirement
Implement interfaces compatible with the OS i/fs, Or
So-called system calls in Linux
If any interface changes, review the complete path
Advantages
Reduce trial and error coding
Reduce bugs & hence reduce debugging efforts
More productive time for better designs

Functional Programming Tidbits
Processes vs Threads
Limited Memory vs Synchronization Extras
Independent Units vs Event Driven Programs
Security vs Inherent Communication
Process Usages
Multi-processors and Multi-tasking
Minimal Process Inter-communication
Communication using IPCs
Native Implementation

Threads Usages
Multi-processors and Parallel Programming
Hand-in-hand Blocking & Execution
Code & Libraries need to be re-entrant & thread-safe
Implementation using pthreads library
Model Cases
Delegation or Manager-Worker (e.g. Web Server)
Pipeline (e.g. Events in a GUI)
Peer (e.g. Multiple I/O Processing)
Producer-Consumer (e.g. Manufacturing Unit)

Schedulers & Priorities
Normal vs Real Time
Nice vs Priority
Time Slicing vs Starvation
Synchronization in Priority based Scheduling
Deadlock Avoidance (Banker's Algorithm)
Deadlock Prevention (Conditional Variables))
Priority Inversion Resolution Techniques
Priority Inheritance, Priority Ceiling, Priority Protect

Signals vs Polling
Asynchronous vs Synchronous
Racing vs Blocking
Timers vs Loops
Interrupts vs Signals
Kernel Space vs User Space
Hardware vs Software

Sockets
Inter-system communication
Control, Data
Interface to Multiple Devices
Interface to Multiple Channels / Functionalities
On a Device
Model case
Client-Server (e.g. for debugging, logging, ...)

Extra Miles for Embedded Software
Even after a good functional design, including
the functional programming tidbits, there are
many other design & programming aspects,
which need to be taken care for Embedded
Software
Can be learnt in two ways
The hard way by experiencing yourself, Or
By applying from others learnings
So, here goes some from my learnings

Design for Uninterrupted Execution
Avoid race conditions w/ proper synchronization
Avoid memory leaks w/ memory usage balancing
Verify with memory profilers
Handle all error cases, extreme conditions
default for a switch, else for an if, ...
Avoid infinite loops. Rather put timeouts
Re-organize code to avoid / prevent deadlocks

Design for Crash Recovery
By restarting the crucial flows
Example: The Main Task
Design for Hang Recovery
With watchdogs
Design for Power Failures
With brown-out detections
With power-down saves

Design for Hardware
Speed Mismatch Hardware (Faster / Slower)
Interact using interrupt-mechanism
Time-sensitive Hardware Interaction
Specific hardware protocols like I2S, SPI, ...
Use precise (busy-wait) delays
Non-responsive Hardware
Use timeouts rather than unconditional accesses
Hardware with Irregular/Incorrect Responses
Do proper error handling for the extreme / abnormal / invalid cases
Hardware Delays (like Debouncing, Rise Time, ...)
Use appropriate Timers &/or Delays to offset them

Programming for Hardware
Passive vs Active Devices (Memory vs Device)
Code Optimization vs Change outside Program
Use programming specific keywords, like volatile
Memory Caching at various levels
May need to bypass/disable/flush for addr-mapped devices
Using architecture specific instructions / APIs
CPU Optimizations (Re-ordering of CPU instructions)
May need to be locally disabled for correct device operations
Using architecture specific barriers

Programming for Hardware
Virtual Memory Accesses for DMA
May need to be translated to Physical Addresses
Cache consistency needs to be taken care of
Using OS specific lookup APIs
Register Specific Programming
May need specific programming sequences
As per the device datasheet
Examples
Clear-on-write, Multiple writes
Indirect Access, Protected Access

Design for Performance
IPC vs Synchronization
Multi-process (Context Switching) vs Multi-threaded (Same Context)
Communication vs Synchronization Overheads
Schedulers & Priorities
Normal vs Real Time
Nice vs Priority
Yielding vs Busy Wait
Latency vs Precision
Interrupt / Signal Usage
Higher Priority and Asynchronous Attention
But too many / missing them may invalidate assumptions

Design for Performance
Swap Space
May reduce individual task performance
Though, may improve overall performance
By letting many more tasks run
Provided by swap partition or file
Usage could be controlled by adjusting swappiness
Physical Memory
Minimizing memory allocation / deallocation
(Secondary) Storage Usage & Accesses
Minimize / Eliminate for best consistent performance
Possibly by pre-loading into memory or using mmap

Design for Real Time Performance
Have very few Real Time Processes
Keep the RT Applications Short & Efficient
Do not do heavy duty operations
Like Memory Allocation, ...
If essential, move to Initialization Sections
Testability for the RT working of the other RT Apps
Testability of the performance of the needed OS service
If any RT App has priority higher than the OS Service
Testability for other needed non-RT Apps' performance

Programming for Performance
System Calls vs Library Functions
Direct vs Indirect w/ Internal Overheads
Single Buffered vs Multi-buffered
Example: File Operations (read / write / ... vs fread / fwrite / ...)
Buffer Caching vs Direct Access
Repeated Accesses vs One Time Access
Possible Thrashing vs Uniform Slow Performance
Controlled using O_DIRECT
Code Optimization Techniques
Compiler Optimizations for Performance, esp by removing redundant code
Reduce/Remove Code Bottlenecks detected using Profilers
Placing often used variables into registers, but may affect other computations
Making functions inline, but may increase code size
Using likely / unlikely constructs for code placement to minimize cache misses

Design for Maintenance
Embedded Systems are
Highly Constrained
Critically Operating
In case of issues, need to be resolved urgently
And, most of the times remotely at customer site
Demands for an excellent debugging framework
For the overall embedded system
Be it Kernel Space or User Space
And, ways to fix problems remotely

Debugability & Fixability
Provide enough debugging support through logging hooks
May keep the minimal light weight support enabled, by default
(Remote) Support for further enabling / disabling the logs
Multiple log levels depending on the criticality of the situation
(Remote) Access to the Log from the Embedded System
Logs & Dumps should be from the various parts of the System
Kernel, Startup, Applications, …
Could be centralized &/or de-centralized depending on the ES
At the least, the following Activity Logs should be designed & coded
Login, Network, Reboots, Device Access, ...
And last but not least,
Automatic / Remote mechanisms for Update / Patch should be implemented

What all have we learnt?
Functionality Design & Programming

Any Queries?
