Character drivers

@ 2021-21 Embitude Trainings <info@embitude.in>
All Rights Reserved
Character Driver

All Rights Reserved

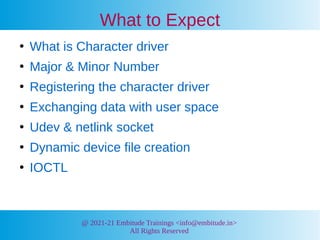

What to Expect
●
What is Character driver
●
Major & Minor Number
●
Registering the character driver
●
Exchanging data with user space
●
Udev & netlink socket
●
Dynamic device file creation
●
IOCTL

All Rights Reserved
What is character driver?
●
The drivers which allow byte oriented
transaction.
●
Character device special files
– ls -l /dev | grep ^c
●
Two attributes for files
– Name (For application space)
– Number (For Kernel specific)

All Rights Reserved

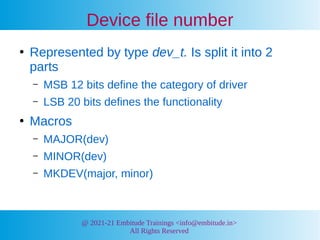

Device file number
●
Represented by type dev_t. Is split it into 2
parts
– MSB 12 bits define the category of driver
– LSB 20 bits defines the functionality
●
Macros
– MAJOR(dev)
– MINOR(dev)
– MKDEV(major, minor)

All Rights Reserved
Character Driver Flow
VFS
/dev/abc
Applicaton
Driver
HW
Kernel
Space
User
Space
Hardware
Space
open()
open()

All Rights Reserved

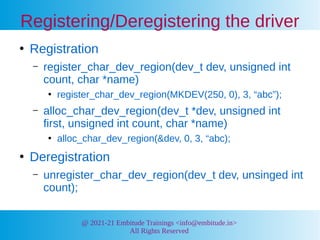

Registering/Deregistering the driver
●
Registration
– register_char_dev_region(dev_t dev, unsigned int
count, char *name)
●
register_char_dev_region(MKDEV(250, 0), 3, “abc”);
– alloc_char_dev_region(dev_t *dev, unsigned int
first, unsigned int count, char *name)
●
alloc_char_dev_region(&dev, 0, 3, “abc);
●
Deregistration
– unregister_char_dev_region(dev_t dev, unsinged int
count);

All Rights Reserved
File operations
●
Callback handlers to be invoked by VFS
●
struct file_operations
– struct module_owner
– int (*open)(struct inode *, struct file *)
– int (*release)(struct inode , struct file *)
– int ssize_t (*read)(struct file *, char __user *, size_t, loff_t *);
– ssize_t (*write)(struct file *, const char __user *, size_t, loff_t
*);
– loff_t (*llseek)(struct file *, loff_t, int);
– int (*unlocked_ioctl)(struct file *, unsigned int, unsigned
long);

All Rights Reserved
●

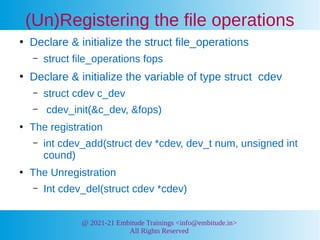

Declare & initialize the struct file_operations
– struct file_operations fops
●
Declare & initialize the variable of type struct cdev
– struct cdev c_dev
– cdev_init(&c_dev, &fops)
●
The registration
– int cdev_add(struct dev *cdev, dev_t num, unsigned int
cound)
●
The Unregistration
– Int cdev_del(struct cdev *cdev)
(Un)Registering the file operations

All Rights Reserved

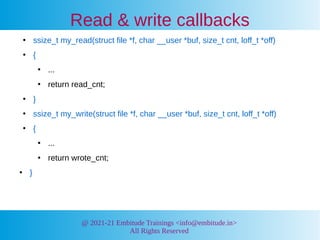

Read & write callbacks
●
ssize_t my_read(struct file *f, char __user *buf, size_t cnt, loff_t *off)
●
{
●
...
●
return read_cnt;
●
}
●
ssize_t my_write(struct file *f, char __user *buf, size_t cnt, loff_t *off)
●
{
●
...
●
return wrote_cnt;
●
}

All Rights Reserved

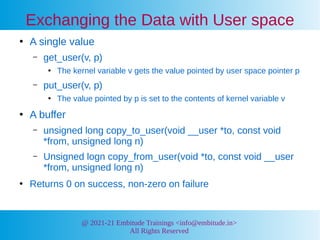

Exchanging the Data with User space
●
A single value
– get_user(v, p)
●
The kernel variable v gets the value pointed by user space pointer p
– put_user(v, p)
●
The value pointed by p is set to the contents of kernel variable v
●
A buffer
– unsigned long copy_to_user(void __user *to, const void
*from, unsigned long n)
– Unsigned logn copy_from_user(void *to, const void __user
*from, unsigned long n)
●
Returns 0 on success, non-zero on failure

All Rights Reserved
udev
●
Udev (user space dev) – a device manager
●
Runs in user space
●
Automatically creates/removes device enteries
in dev according to inserted/removed drivers
●
Listens on the netlink socket for uvents
●
Kernel shares the Major/Minor numbers through
/sys interface

All Rights Reserved
udev files
●
Udev configuration file
– /etc/udev/udev.conf
●
Standard udev event matching rules
– /lib/udev/rules.d
●
Custom udev event matching rules
– /etc/udev/rules.d/*.rules
●
dev/*
– Device files creation

All Rights Reserved
●

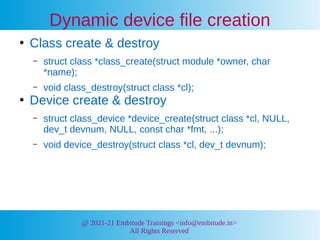

Class create & destroy
– struct class *class_create(struct module *owner, char
*name);
– void class_destroy(struct class *cl);
●
Device create & destroy
– struct class_device *device_create(struct class *cl, NULL,
dev_t devnum, NULL, const char *fmt, ...);
– void device_destroy(struct class *cl, dev_t devnum);

All Rights Reserved

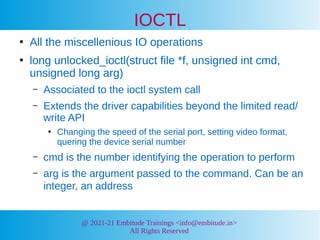

IOCTL
●
All the miscellenious IO operations
●
long unlocked_ioctl(struct file *f, unsigned int cmd,
unsigned long arg)
– Associated to the ioctl system call
– Extends the driver capabilities beyond the limited read/
write API
●
Changing the speed of the serial port, setting video format,
quering the device serial number
– cmd is the number identifying the operation to perform
– arg is the argument passed to the command. Can be an
integer, an address

All Rights Reserved
IOCTL ...
●
Command is split as follows
●
Macros
●
_IO, _IOW, _IOR, _IOWR
●
Parameters
●
type (character) [15:8]
●
number (index) [7:0]
●
size (param type) [29:16]
size[29:16] type[15:8] num[7:0]
dir[31:30]
