Outdoor Lighting Ronald van Triest CEO
Traditional methods of producing light The conventional way of producing light is by burning From candle light to light bulb to HID. Candle Light Burning Wax Incandescent/CFL Burning Metal/Gas HID/HPS Burning Gas • Burning process is not efficient • Consumes high amount of energy to produce light • Efficiency ~1%
What is light? • Light is measured and expressed in lumen (light intensity) and lux (light per square meter • Quality of light is measured and expressed in Color Rendering Index (CRI)
How it started? • Focus on better vision • Understand how the eye works • Understand how light works
The current standard (1931)- Lighting defined The eye sensitivity curve V(λ) is based on measurement at photopic light levels measured with a 2° view angle (foveal). CIE standard 1931. The cones in the eye can see light from blue to deep red with the highest sensitivity in green/yellow area. One Watt of energy converted to light at 100% efficiency results in 683 lumen.
Our eyes behave differently at night than during the day -- During the day (at Photopic light levels) our vision is the best at 555 nanometres -- in the night (at scotopic light levels) our visibility is best at 505 nanometres
Light intensity shifts from fotopic to scotopic (very low) click on start
Functioning of the eye is different for Outdoor vs Indoor
Eye dynamics • The human eye perceives light different under varying intensities or color • A lux meter does not show that • Vision and sight is not the same under composed colors • Leds allow spectral combinations for optimal vision • Science is questioning the lumen standard Source: http://adsabs.harvard.edu/abs/2009OptEL...5..265J
The Anatomy • All eyes work the same around the world • Cones are for color and day light = 5,000,000 • Rods are for motion and night vision = 120,000,000 11 The retina
Better Sight With Less Light! • Best day sight at yellow-green (cones - 555 nm), night vision at blue-green (rods - 505 nm) • With LEDs, light composition can be chosen more accurate than with conventional light sources, for instance: green at 509 nm (with 2 nm deviation) • Light with a green component gives best sight in street lighting at minimum illumination levels: our visual perception mainly relies on our sensitive rods Standard street lamp Photopic / Daylight Vision Scotopic / Night Vision
Match the light spectrum with the eye – Ellipz Lighting • Light spectrum of Ellipz LED light follows the eye cuve which is shifting left from daylight vision to night light vision. • Standard Sodium lamps are peaking at 555nm which is good for the lux meter but gives poor visibility. • Other Cool-White LED lamps (4000K and above) recreat photopic light with a peak at 555nm (good for lux meter), but again give poor light due to a peak in the blue area due to the usage of 3p and 4p phospors.
Color sensation through RED is intenisty and spectrum depending Low light levels no color vision Ellipz SPD shows colors at 1 lux
Some Results - Tunnel lighting *) picture from former group company Lemnis Lighting BV
Genting Highlands - Malaysia Ellipz 56w WhiteMoonlight HPS 250w
Philippines Manila – Roxas boulevard Ellipz 120w HPS 400w A simple comparison…… pole height 10mtrs, distance 25 mtrs For 200mtrs of road this means the following energy consumption and savings: HPS: 8 poles x 400w x 12hrs x 365 days = 14.016kWh Ellipz: 8 x 120w x 12 x 365 = 4.204 kWh => 70% savings
Secondary roads in Holland – safety & reaction speed Ellipz 36 W lamps 150 W sodium lamps *) pictures from former group company Lemnis Lighting BV
Morocco – Sale – safety 150w HPS Ellipz 56w WhiteMoonlight HPS 150w *) pictures from former group company Lemnis Lighting BV
Amsterdam Airport - Front 24W Ellipz Moonlight – background 88W HPS *) picture from former group company Lemnis Lighting BV
24W Ellipz Moonlight Dutch national airport *) picture from former group company Lemnis Lighting BV
Ellipz - Led and camera vision Schiphol Airport Amsterdam  Surveillance cameras respond very good on Ellipz Led High Pressure Sodium Ellipz Moonlight *) pictures from former group company Lemnis Lighting BV
Ellipz - Led and camera vision Schiphol Airport Amsterdam  Surveillance cameras respond very good on Ellipz Led *) pictures from former group company Lemnis Lighting BV
Ellipz - Led and camera vision Schiphol Airport Amsterdam  Very good camera recognition of men and objects  Pictures taken from actual monitors HPS 70 Watt Ellipz Moonlight 24 Watt *) pictures from former group company Lemnis Lighting BV
Ellipz Mesopic LED-light is adapting to the eye •Human eye is more sensitive to green towards blue at night (Purkinje shift); • Using yellow or white light requires higher wattages to provide good vision; • For OUTDOOR: Ellipz produces a green/blue light to highten visibility at night at low energy levels;
Something fundamentally wrong ! 26 Light directives and standards are based on Photopic lumen This is a serious problem because our eyes behave totally different at night than during daytime. To benefit of the high sensitivity of the rods, light should have the right spectral composition at different intensities. The goal is more sight with less light. Studies show that the ratio between Scotopic (night) en Photopic (day) vision, the so called S/P ratio, is a base which can be used to multiply the lumen with to express the real light perception. COMPETITORs White leds are based on blue chips with 3P or 4P phosphors to convert the blue light into white light with a peak at 555 nm. In outdoor and most interior lighting the maximal eye sensitivity is shifted towards 505 nm. Industrial leds produce the lowest output at that wavelength. Industry spectrum provides lowest light levels at 505 where the eye is most sensitive at night

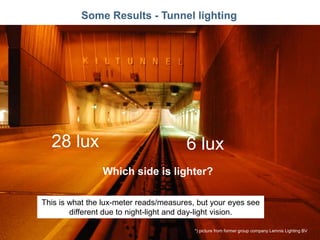

Some Results - Tunnel lighting 28 lux 6 lux Which side is lighter? This is what the lux-meter reads/measures, but your eyes see different due to night-light and day-light vision. *) picture from former group company Lemnis Lighting BV
New Internationally acclaimed measurement – S/P-ratio 28 lux x S/P 0.63 = 17 6 lux x S/P 3.5 = 21 This is what your eyes sees and then it is correct. Your eyes are not wrong, but measure with the wrong and outdated standards. New measurements are using S/P ratio to express the real light intensity! *) picture from former group company Lemnis Lighting BV
Genting Highlands - Malaysia Ellipz 56w WhiteMoonlight HPS 250w 7 lux 20 lux
Genting Highlands – Malaysia using S/P-ratio Ellipz 56w WhiteMoonlight HPS 250w 7 lux x 3.2 = 22.4 20 lux x 0.63 = 12.6
Philippines Manila – Roxas boulevard Ellipz 120w HPS 400w 8 lux 18 lux A simple comparison…… pole height 10mtrs, distance 25 mtrs For 200mtrs of road this means the following energy consumption and savings: HPS: 8 poles x 400w x 12hrs x 365 days = 14.016kWh Ellipz: 8 x 120w x 12 x 365 = 4.204 kWh => 70% savings
Philippines Manila – Roxas boulevard using S/P-ratio Ellipz 120w HPS 400w 8 lux x 3.2 = 25.6 18 lux x 0.63 = 11.3 A simple comparison…… pole height 10mtrs, distance 25 mtrs For 200mtrs of road this means the following energy consumption and savings: HPS: 8 poles x 400w x 12hrs x 365 days = 14.016kWh Ellipz: 8 x 120w x 12 x 365 = 4.204 kWh => 70% savings
Global Standards in movement (1/2) Industry focus is on More… More…. More Lm/W Lm/$ Eyes are asking for Better… Better… Better See better with less energy (=energy saving) How do we get better light? By making the right spectral composition: high S/P ratio, best vision, lowest energy consumption What is happening to the standards? IES TM 24-13: adjusting illumination measurement using S/P-ratio CIE: working on the Mesopic Task-Force Lites-Asia: twice annual forums discussing S/P-ratio for Asian implementation SEMIcon SEA: making steps to advice and consult governments The movement is there to accept the S/P-ratio as a valid criteria for lighting design and master planning.
Global Standards in movement (2/2) Industry and Countries are slowly accepting and adapting. Panasonic Mesopic Light for Enhanced Security *) copy of Panasonic brochure Philippines has embraced S/P ratio in their program for National Road Lighting
2 versions to answer to diverse global standards Ellipz Mesopic light with S/P ratio of 2.7 (4000CCT) - 3.4 (6000CCT) is ideal at night, but may raise question on absolute requirement of Photopic Lumen. That is why Ellipz has developed a new Streetlighting product that meets the criteria of 90lm/w, but with an S/P ratio of 2.0. type Ellipz SL1 and SL2 Ellipz SL3 Power (w) 25w/40w/60w/80w/120w 60w/75w/120w/150w Photopic Lumen Typcial 36 - 40lm/w Typical 90 lm/w Scotopic Lumen Typical 108 – 120lm/w Typical 180 lm/w Chip composition Red+Green+Cyan+Blue (NO phosphors) Red+Green+Nitrates Lifetime LM 90 @ 50,000hrs LM 90 @ 50,000hrs

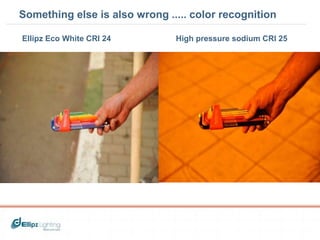

Something else is also wrong ..... color recognition Ellipz Eco White CRI 24 High pressure sodium CRI 25
Color recognition using Mesopic Light indoor 10,000Watts <1,000Watts CRI 25 CRI 24 *) pictures from former group company Lemnis Lighting BV
Ellipz Moonlight with calculated CRI 24 *) pictures from former group company Lemnis Lighting BV
The tone control of light and CRI impact –Ellipz OUTDOOR Lighting Cones composition to see colors: 60% Red, 36% Green, 4% Blue Ellipz spectral power distribution streetlight peaking at 505Nm where the eye is most sensitive at night, low at 555Nm (daylight) and then green and red to provide color recognition. CRI 24
The eye needs colors, but the right colors at different light intensities: Ellipz uses RED+GREEN+CYAN to create white (MOON) light The retina In the center part of the retina the ‘sensors’ are the Cones and in the peripherie one uses the Rods. Cones are 96% RED+GREEN.
Ellipz key differences in light-sources Ellipz LED OUTDOOR Other LED Higher Power/Less Vision, Shorter life, Less vision Most efficient LIGHT, LM maintenance, Distribution, Vision (depth, contrast) Red chip Green chip Cyan chip HPS (sodium) High power, Low vision, Maintenance, Color, Safety Blue chip + phosphor
Hazards of blue light – out of the visual sphere => light dust Blue cones in the eye are not in the central focus of the eye. Therefore blue light is not giving a sharp and detailed vision. An artistic project in Amsterdam had to be stopped creating dangerous situations. In addition the energy level of blue light is affecting the retina and may cause damage to the eye.
SENSITIVITY TO BLUE LIGHT & AGE Human develop natural protection against excess blue light! The older you get, the more blue are filtered! Elderly people see less, specially of the blue light. Glare is therefore more applicable to elderly people and hence impacting road lighting.
Key issue with standard/conventional LED streetlights Conventional LED streetlights are driven by many individual White LEDs with 3p+4p phosphors, each is approx 1+w Limited energy savings: ie. 250HPS replaced by 180w or 150w. Limited lifetime: higher heat output leading to single LEDs malfunction. Faster degradation: due to higher heat output often a black line or fading in the center of the lamp.
Philips LED Streetlight Essential-line – designs (2012) 100w 140w 180w
Philips LED Streetlight Essential-line – specs (2012) CRI 70 Weight: 100w = 13.2kg 140w = 14kg 180w = 15.8kg Lumen maintenance @ 50,000hrs = 70% IP65 Class I
Philips NEW low-cost LED streetlights 140w (Korean OEM supplier) Individual White LEDs with Big piece of 3p+4p phosphors aluminum for cooling 9 kgs
Philips NEW LED streetlights 60-140w (Korean OEM supplier) BRP 310 / 110W; 6000K CCT; Lumen 10200Lu; Average 92 Lu/W SP : 4000K - 1.5~1.6 ; 6000K/1.9~2.0
Malaysia – Ayer Keroh exit road to Malacca Location and view points Both ends of the pilot track are illuminated by 15 mtr high mast with 8 kW Sodium lamps. The side of the road is illuminated by strong spotlights from the Zoo. There is no dark zone were high power lights are invisible to support best mesopic vision

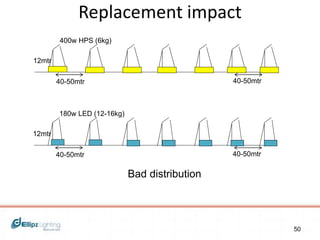

Replacement impact 50 12mtr 400w HPS (6kg) 40-50mtr 40-50mtr 12mtr 180w LED (12-16kg) 40-50mtr 40-50mtr Bad distribution
Solution = add more poles 51 12mtr 180w LED (12-16kg) 25 mtr 40-50mtr Risk of weight, failure and cost of pole = 3 x cost of lamp
Ellipz Solution 52 12mtr 120w LED (6kg) 40-50mtr 40-50mtr Best vision, maximum savings, lowest cost
Nice look through A bright vision on light and the future
Good distribution due to unique reflector technology
Ellipz LED Technology Insight - lifetime Advantage of colored LEDs LONGER LIFETIME Typical behaviour of LED material under equal conditions Lumen depreciation 5mm epoxy LEDs at 20 mA Ellipz uses predominantly R & G Greatest reliability (lumen maintenance) over long time >> >> >> No IP issues Matches eye photoreceptors: mostly red & green cones (98% in total) for color vision
Ellipz Typical Replacement Table Traditional SON/HPS Conventional LED Ellipz Lighting Mesopic LED Ellipz Lighting Photopic LED 70w 40w 25w n.a. 150w 80-100w 40w 60w 250w 100-120w 60w 75w 400w 160-180w 120w 150w Pole distance 4-5 x pole height Pole distance 2-3 pole height Pole distance 4-5 x pole height Pole distance 4-5 x pole height
Ellipz Lighting – Following the HUMAN EYE In view of providing the most optimal light for the human eye, Ellipz Lighting has developed a 2nd generation of LED ighting technology (SL1, SL2). This is called Mesopic Light, which is combination of Scotopic (=Moon) and Photopic (=Sun) light. The so-called S/P ratio plays an important factor. For strict roadlighting guidelines, Ellipz Lighting has also developed a hybrid version/photopic (SL3) with a lower S/P ratio, but still 25% better than average competition.
Ellipz Flood Lights 58
59 Ellipz Flood Lights 1
Ellipz Street Lights – Design versions (all IP66) Ellipz SL1 24-120w Ellipz SL2 40-150w
Ellipz Street Light – detailed specification overview (Mesopic) SL1 / SL2 Ellipz Streetlight 40w Ellipz Streetlight 60w Ellipz Streetlight 80w Ellipz Streetlight 120w Specifications Lemnis Streetlight 40W Lemnis Streetlight 60W Lemnis Streetlight 80W Lemnis Streetlight 120W LED power in wattage (Lamp rated power) 40 60 80 120 Total system power in wattage* 45 66 88 132 Lumen output system 1,200 1,600 2,100 5,000 Nominal Lumen output (photopic) 1,700 2,000 3,000 4,100 S/P ratio 3.4 3.4 3.4 3.4 Nominal Perceived Lumen output (Mesopic)** 4,800 6,300 8,400 12,500 Efficacy lm/W (Photopic) 37.8 30.3 34.1 31.1 Efficacy lm/W (Mesopic) 106.7 95.5 95.5 94.7 Weight Kg 5.2 5.2 7.2 7.2 Dimensions (L x H x W) mm 539 x 260 x 145 539 x 260 x 145 734 x 260 x 145 734 x 260 x 145 Burning Hours life time Lumen output minimum at 90% System voltage Voltage fluctuation tolerance Power factor Dimmable Operating ambient temperatures Ventilation / cooling mechanism Color temperature in CCT Vertical light distribution Lateral light distribution IP Rating IK Rating Direct or Indirect lighting Usage of indirect lighting technology >70% lumen output at 80,000hrs L90 50,000 100/240v 50/60Hz 90 -305V 0.95 OPTIONAL 1-10VDC -40C⁰ - +70C⁰ Channelled convection and/or Alu 47 gr/W 6000K and 4000K yes, 4.5h-6h Type I, width=1.5h IP 66 IK 08 Indirect, usage of patented reflectors Satinized mirror reflector for max lifetime Cover type to protect LEDs Yes, tempered glass Housing die-casted aluminimum Color All colors possible, standard RAL 7035
Ellipz SL1 Street Lights LOW power range (Mesopic) *Mesopic is combination of scotopic and photopic light. S/P raio of 2.5 means 2.5 more scotopic light than photopic. Impact on actual measured Lm. SL1 Series SL1 40W SL1 25W CCT 4000K / 6000K 4000K / 6000K Input Voltage (V) 100/230/277 100/230/277 System Power (W) 45W typical 29W typical PF 0.95 0.95 Photopic Lumen (lm) *1700 *1150 Efficacy (lm/W) *38 *39 SP Ratio 2.5 / 3.4 2.5 / 3.4 Lifetime L85B15 / L70B50 50,000 / 80,000 hrs 50,000 / 80,000 hrs LS Ellipz LS-15W Ellipz LS-8W Size (mm) 539 x 260 x 145 mm 539 x 260 x 145 mm IP IP66 IP66 Certification TUV+CB, LM79 TUV+CB, LM79
Ellipz SL3 Street Lights (Spectral Enhanced versions) Photopic versions S/P ratio 2.0 SL3 Series SL3 60w - 75W SL3 120 - 150W CCT 4000K / 6000K 4000K / 6000K Input Voltage (V) 100/230/277 100/230/277 System Power (W) 75W typical 150W typical PF 0.95 0.95 Photopic Lumen (lm) 6,375 (75w) 12,780 (150w) Efficacy (lm/W) 85 85 SP Ratio 2.0 / 2.2 *2.0 / 2.2 CRI >90 >90 Lifetime L85B15 / L70B50 50,000 / 80,000 hrs 50,000 / 80,000 hrs LS Ellipz S5-15W Ellipz S5-15W Size (mm) 539 x 260 x 145 mm 539 x 260 x 145 mm IP IP66 IP66 Certification TUV+CB, LM79, LM80 TUV+CB, LM79, LM80
Ellipz Pole-top fixture
Key Product Information 65
Patented light distribution technology Through the asymmetric optics, different illuminated zones on the street are realized. The zones overlap each other resulting in an even light distribution. The fixture illuminates the sidewalk and facade in such a way causing no disturbance in the surrounding houses 66
Ellipz key USPs - OUTDOOR USP Ellipz Other standard LED Power (w) Most efficient due to S/P ratio 2.5-3.2 efficiency (120w) Higher Power due to lower S/P ratio (180w, 30% less efficient) Vision Better, transparent, due higher scotopic light spectrum Blue LEDs, blur vision Distribution Higher due to reflector Direct light, intense, need more poles Glare Lowest in the industry (G-06) High, specially in rain & fog Lifetime Long as NO phosphors (LM 90 @ 50,000hrs) Questionable due to Blue LEDs with phosphors
Ellipz Outdoor vs competition Where does Ellipz excels vs market: 1. Optics/Reflector vs directional light • better distribution • lowest glare factor 2. No usage of phosphors • longer lifetime • less degradation 3. Absolute weight of product (>50% less than Philips) • lower cost • lower demand on pole • easy retrofit, safer for risk of falling down! 4. Better heat management • lower degradation : 90% at 50,000hrs 5. Overall more efficient through unique spectral distribution of mixing red/green LEDs leading to S/P ratio providing best vision at night Ellipz 120w
ABOUT Ellipz Lighting Founded by the 2 great grandsons of late PHILIPS Founder. - Frans Otten (Chairman / Ellipz Lighting) - Warner Philips And inventor of Ellipz Lighting - John Rooijmans (CTO / Ellipz Lighting) Originated in Holland / Europe Headquartered in Singapore / Asia Accredited Ellipz Technology is accredited by world organizations and has received endorsement from eg Mr. Bill Clinton, Sir Tony Blair, Sir Richard Brenson, and many more. Ellipz Lighting Customers
We hope we have Opened Your Eyes! Thank you.
