1. Learn in 20 Min
Build a Useless Web Server

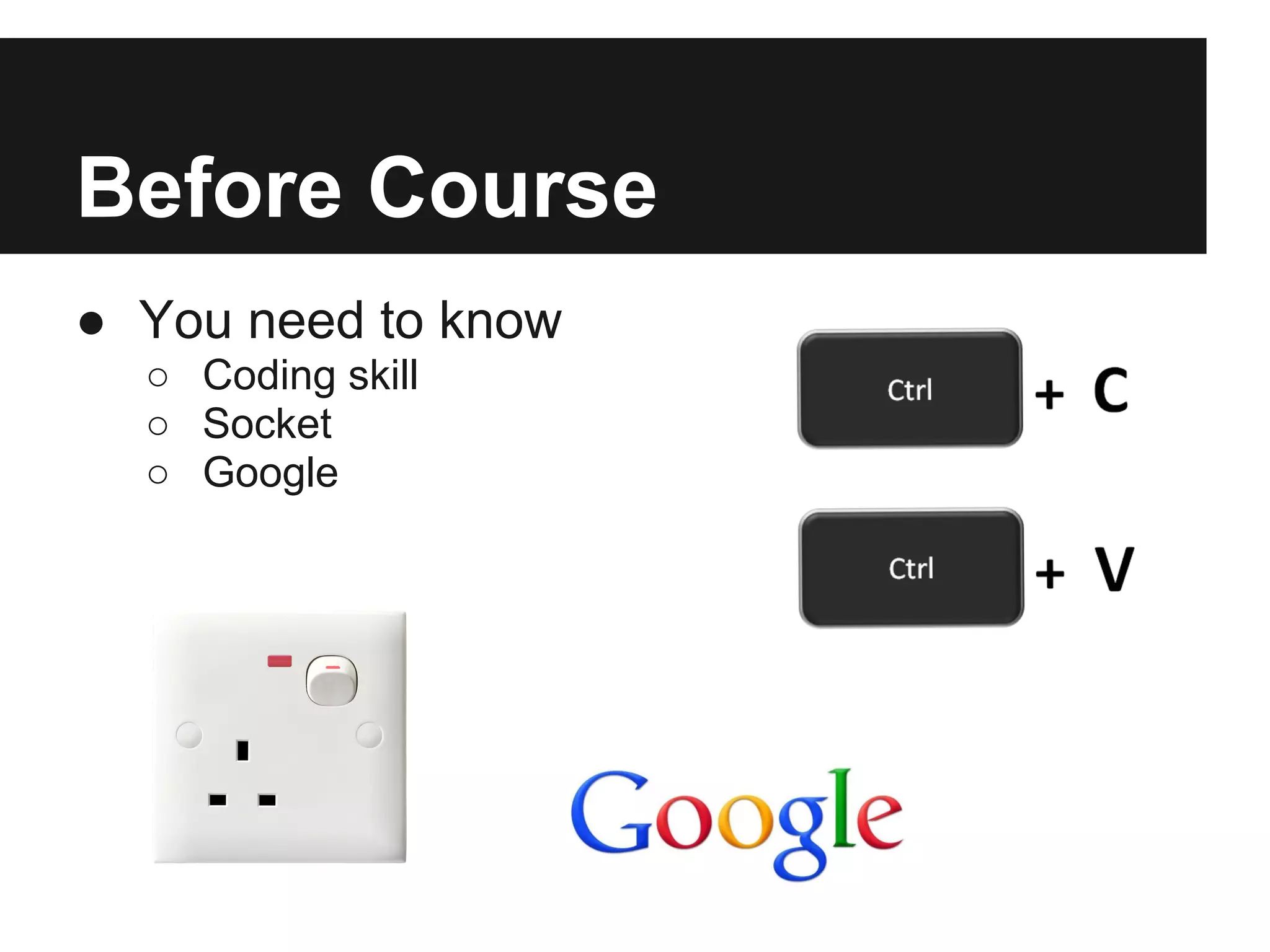

2. Before Course
● You need to know
○ Coding skill
○ Socket
○ Google

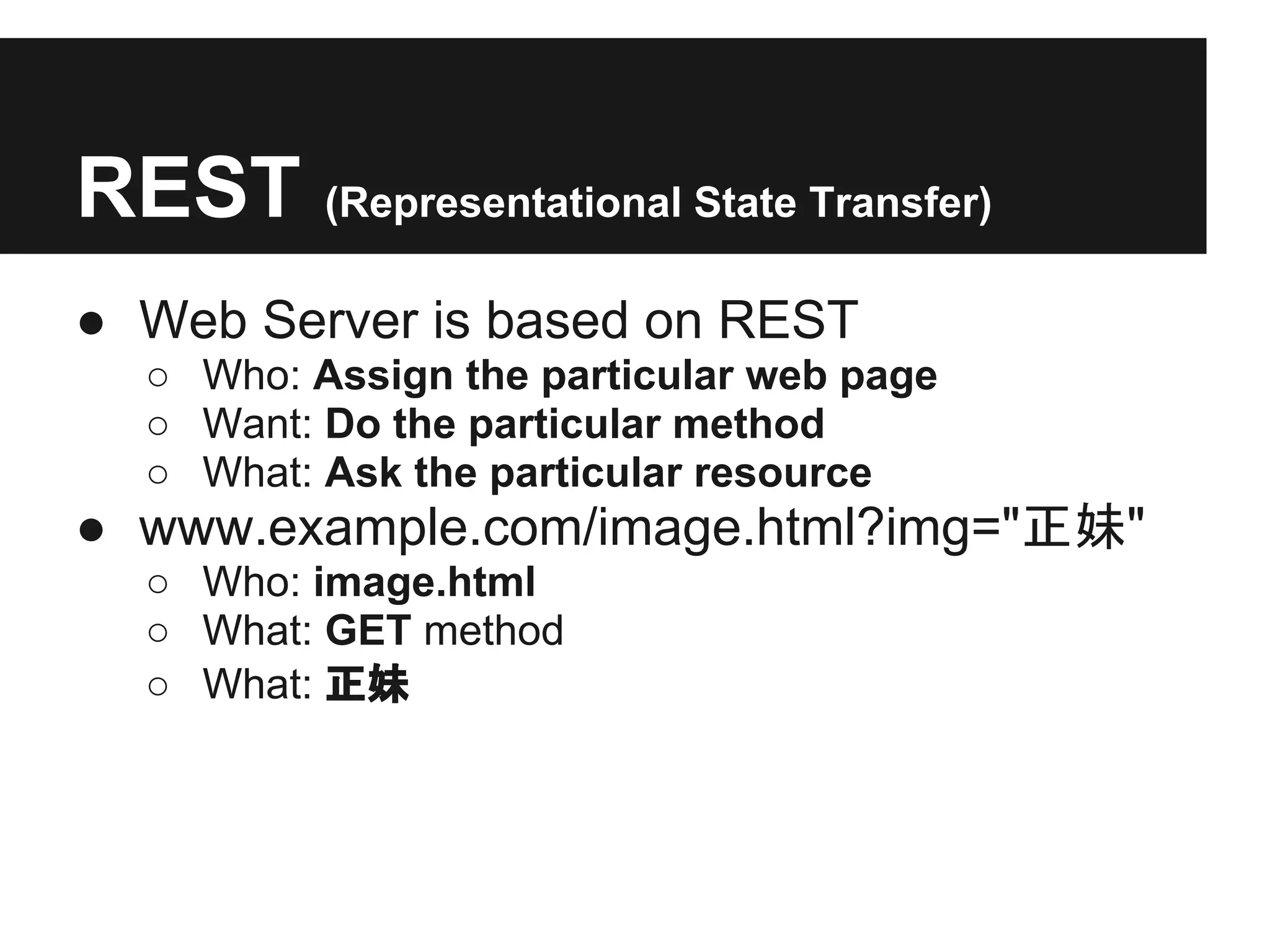

3. REST (Representational State Transfer)
● Web Server is based on REST
○ Who: Assign the particular web page
○ Want: Do the particular method
○ What: Ask the particular resource
● www.example.com/image.html?img="正妹"
○ Who: image.html
○ What: GET method
○ What: 正妹

4. Request
● Request from browser or something else
○ Method: GET/POST/ ...
○ Target: /favicon.ico or what you want
○ Options:
■ config, cookie, session, ...

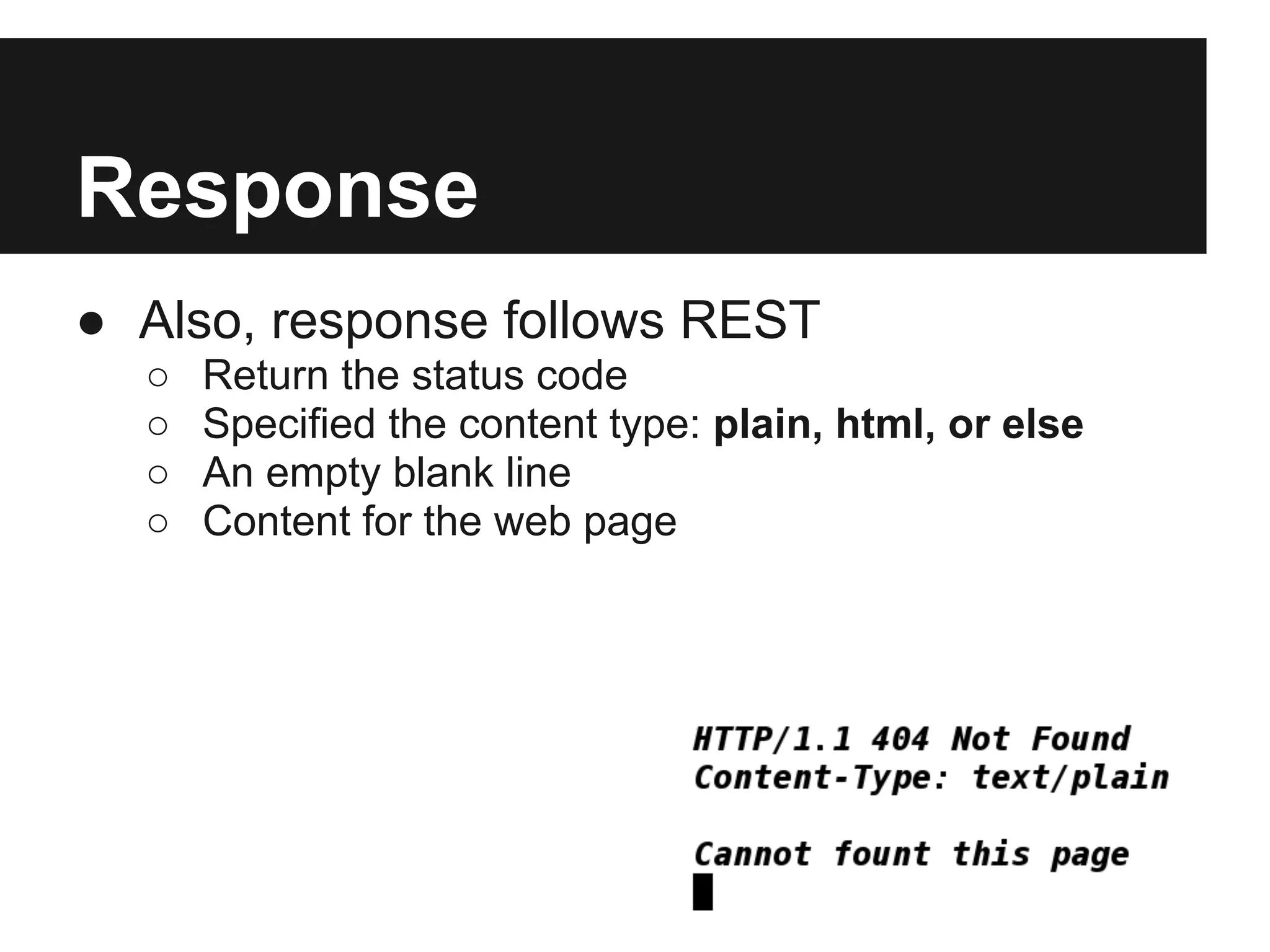

5. Response
● Also, response follows REST
○ Return the status code
○ Specified the content type: plain, html, or else
○ An empty blank line
○ Content for the web page

6. Basically
● Create a socket and listen request, parse
○ Find out the user's target resource.
○ Find out the method user's want.
○ Capture the content if need.
● Based on above information, return
○ Static file: CSS, js or image
○ CGI result: .cgi .php or some else I unknow
○ Else: 403, 404, 500, ...

7. Example
● Sample code...

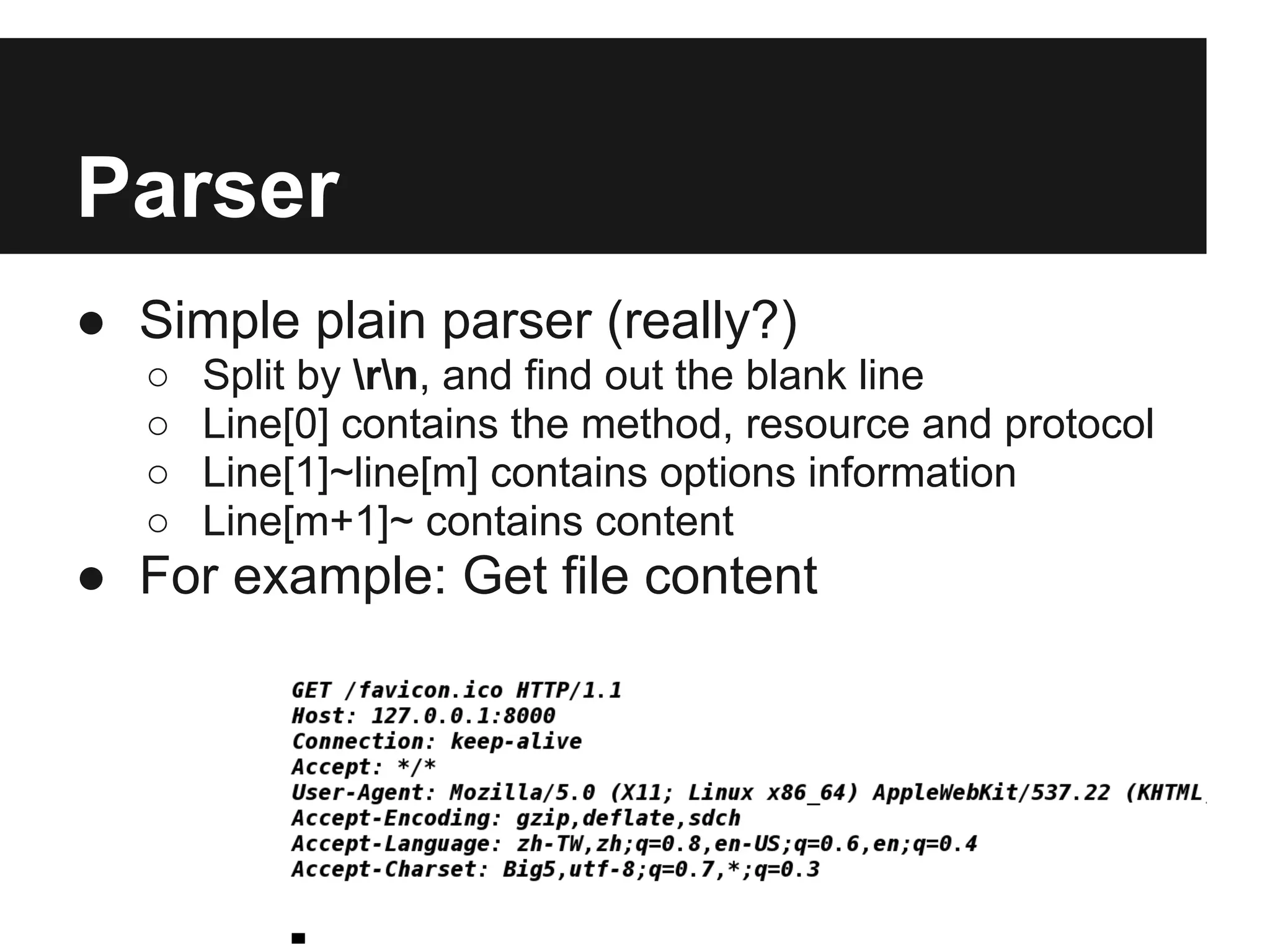

8. Parser
● Simple plain parser (really?)
○ Split by rn, and find out the blank line
○ Line[0] contains the method, resource and protocol
○ Line[1]~line[m] contains options information
○ Line[m+1]~ contains content
● For example: Get file content

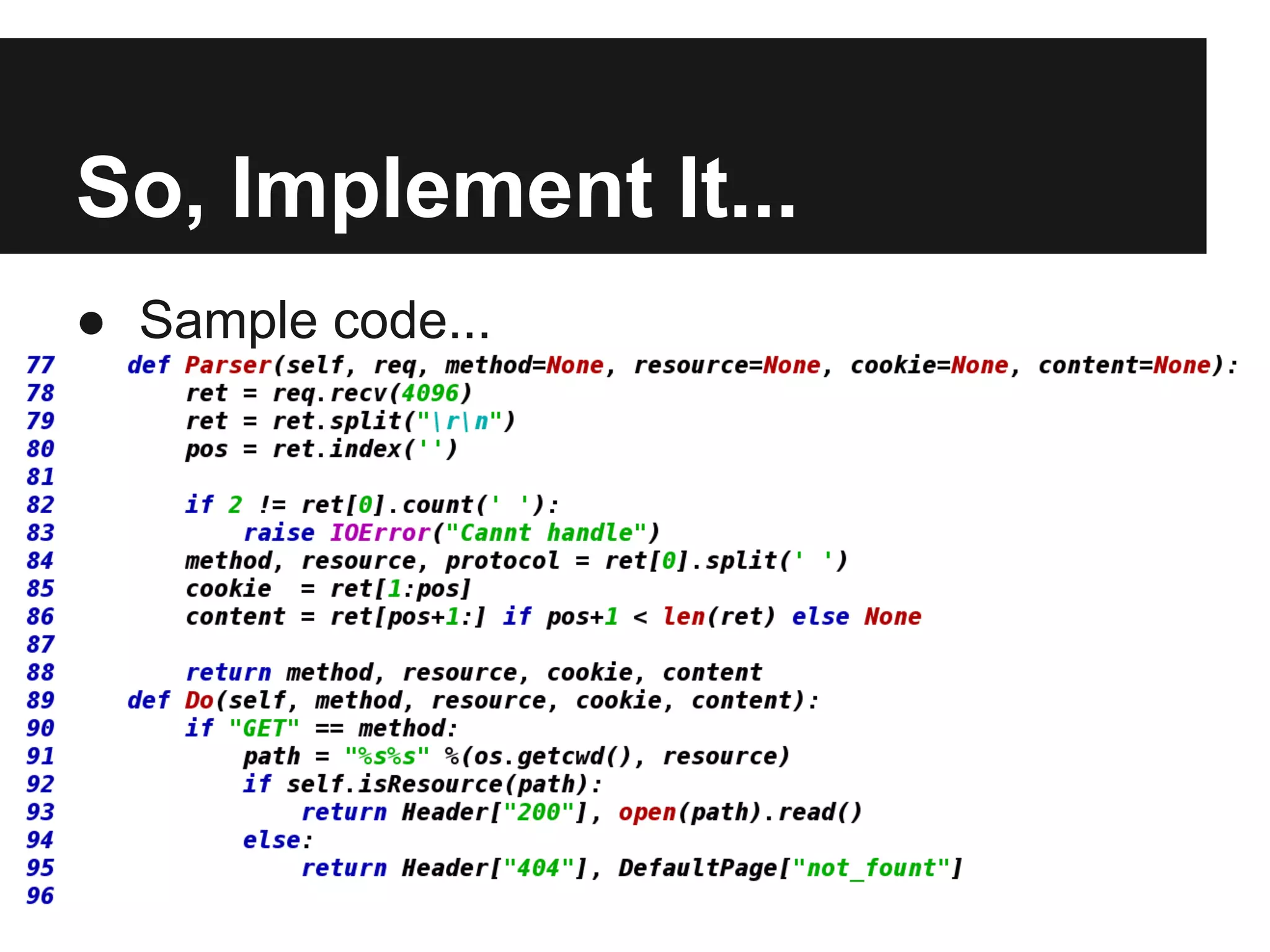

9. So, Implement It...
● Sample code...

10. But Something Bad...
● In this case
○ We return anything from request...
● But we have a smart and kind client agent
○ Request 127.0.0.1/../../../index.html will transfer to
127.0.0.1/index.html
○ We must believe the people as good as VXXXX.

11. Web 2.0
● Only get the static web page is so boring
○ We must interactive with other
○ Calling HCG CGI is the simple way
● CGI is Common Gateway Interface
○ In the easiest way to explain: executable binary
○ Execute and return the web page
○ Usually store in cgi-bin/ folder
○ Call as 127.0.0.1/cgi-bin/index.cgi

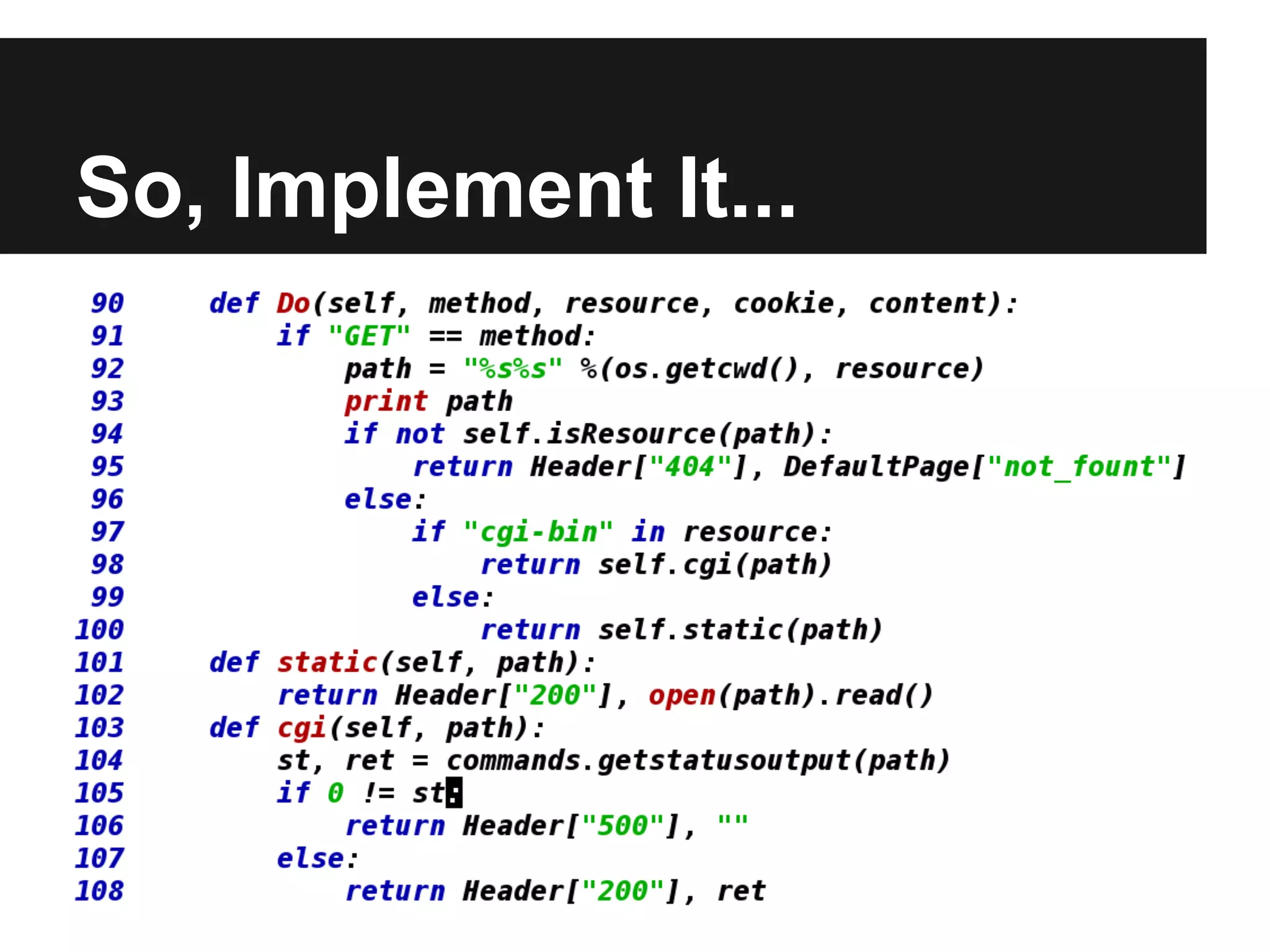

12. So, Implement It...

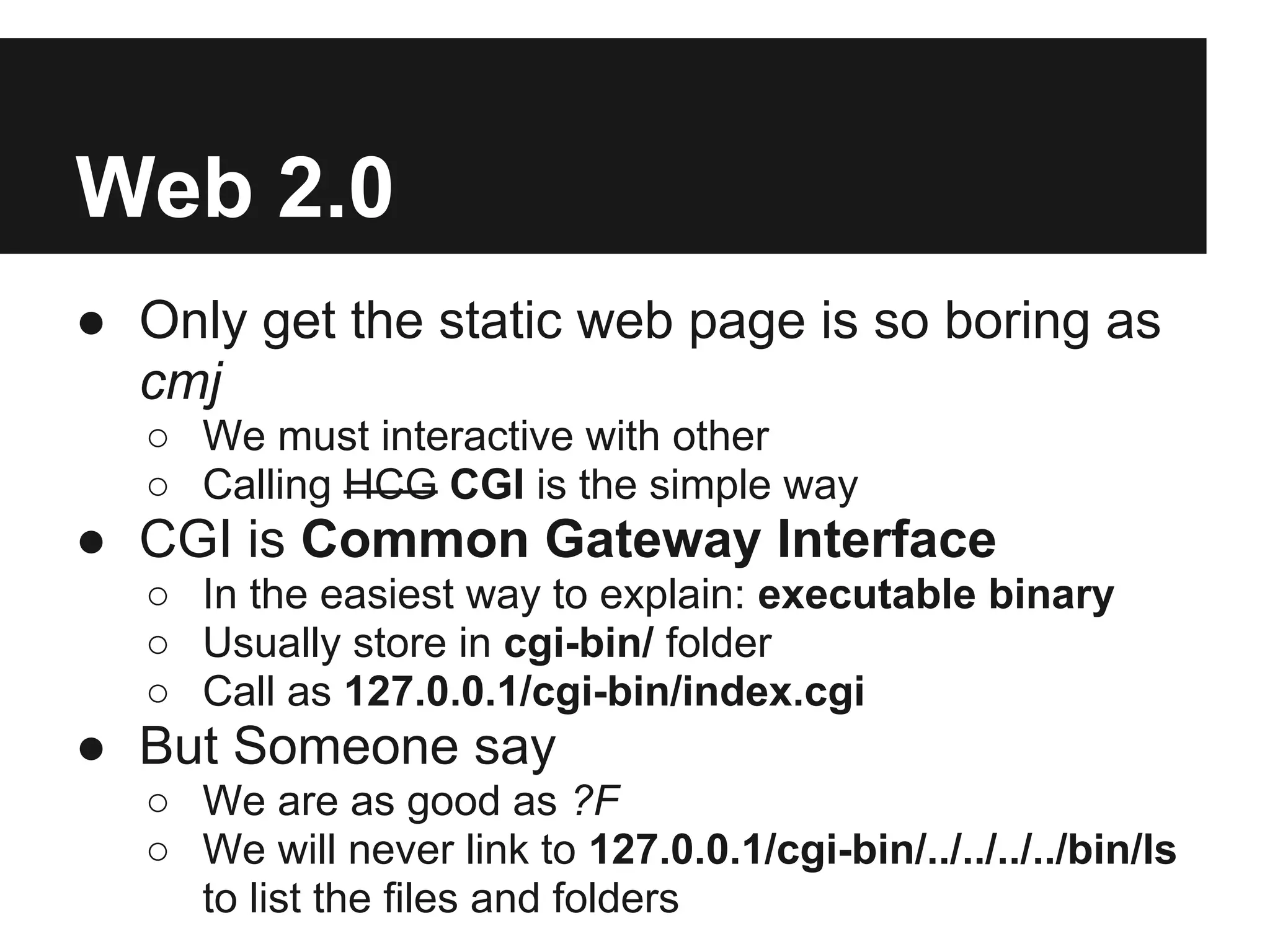

13. Web 2.0
● Only get the static web page is so boring as
cmj
○ We must interactive with other
○ Calling HCG CGI is the simple way
● CGI is Common Gateway Interface
○ In the easiest way to explain: executable binary
○ Usually store in cgi-bin/ folder
○ Call as 127.0.0.1/cgi-bin/index.cgi
● But Someone say
○ We are as good as ?F
○ We will never link to 127.0.0.1/cgi-bin/../../../../bin/ls
to list the files and folders

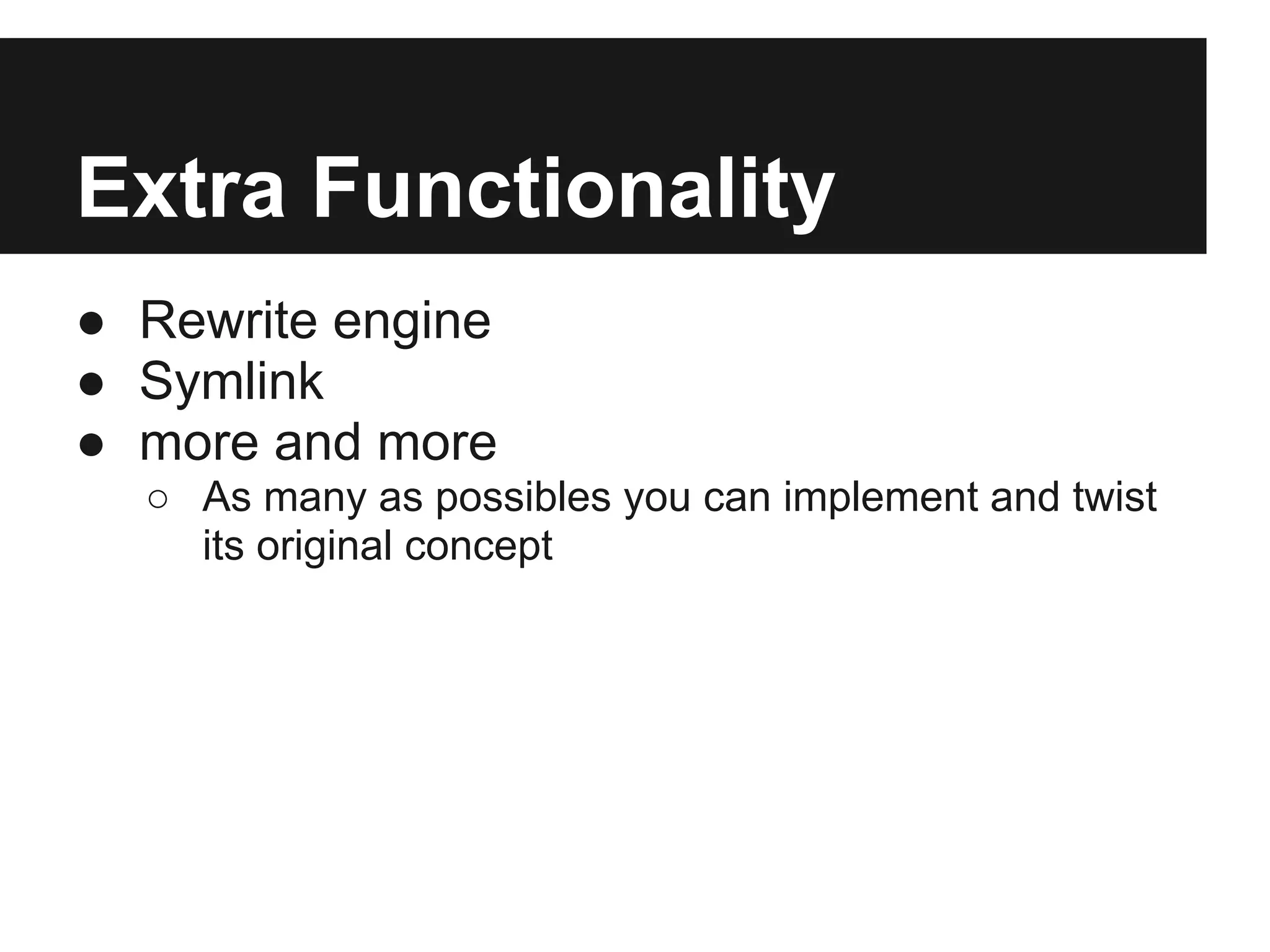

14. Extra Functionality
● Rewrite engine
● Symlink
● more and more
○ As many as possibles you can implement and twist
its original concept

15. Reference
○ http://www.ics.uci.
edu/~fielding/pubs/dissertation/top.htm
○ http://en.wikipedia.
org/wiki/Common_Gateway_Interface
○ http://en.wikipedia.org/wiki/Rewrite_engine
