This document provides specifications for an electronic top loading balance. It has a capacity of 605 grams and can measure down to 0.001 carats. It has features like an LCD display, rechargeable battery, stainless steel weighing pans, draft shield, and compatibility with various weighing units and application programs. The balance connects to other devices via an optional RS-232 cable and has dimensions of 200 x 270 x 233 mm. It is produced by Technocracy Pvt. Ltd. and has facilities for sales and service in India, Hong Kong, Russia, and other locations.

1. R
ELECTRONIC TOP LOADING
BALANCE
MODEL NO. - ACM- 78094- L
TECHNOCRACY PVT. LTD.

2. Capacity x Readability (carats)
Capacity(g) x Readability (mg)
Reproducibility (std deviation)
carats (ct)
milligrams (mg)
605 x 0.001 ct
121 g x 0.2 mg
-
± 0.001 ct
± 0.2 mg

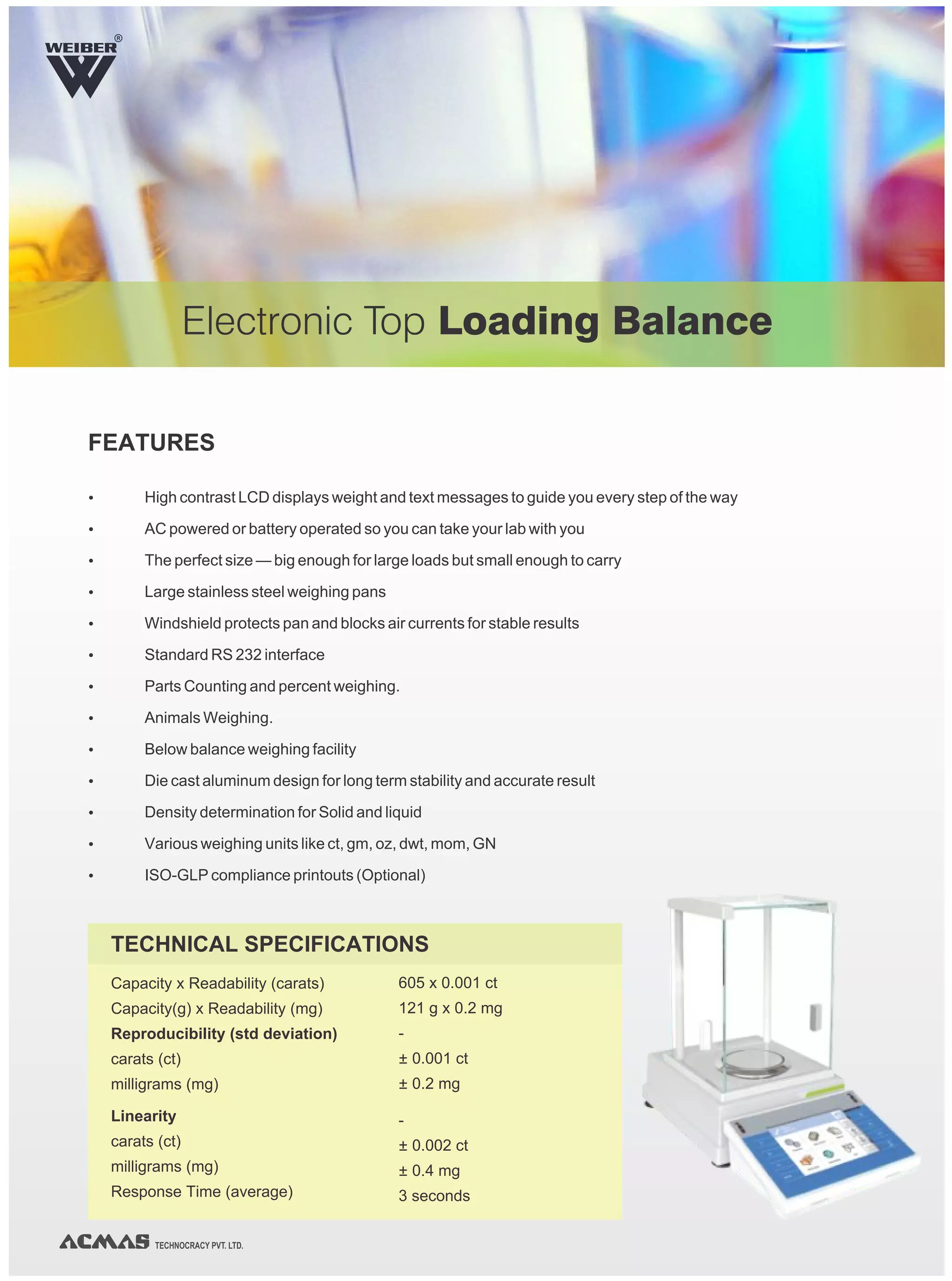

Ÿ High contrast LCD displays weight and text messages to guide you every step of the way
Ÿ AC powered or battery operated so you can take your lab with you
Ÿ The perfect size — big enough for large loads but small enough to carry
Ÿ Large stainless steel weighing pans
Ÿ Windshield protects pan and blocks air currents for stable results
Ÿ Standard RS 232 interface
Ÿ Parts Counting and percent weighing.
Ÿ Animals Weighing.
Ÿ Below balance weighing facility
Ÿ Die cast aluminum design for long term stability and accurate result
Ÿ Density determination for Solid and liquid
Ÿ Various weighing units like ct, gm, oz, dwt, mom, GN
Ÿ ISO-GLP compliance printouts (Optional)
FEATURES
TECHNOCRACY PVT. LTD.
TECHNICAL SPECIFICATIONS
Electronic Top Loading Balance
R
Linearity
carats (ct)
milligrams (mg)
Response Time (average)
-
± 0.002 ct
± 0.4 mg
3 seconds

3. TECHNOCRACY PVT. LTD.

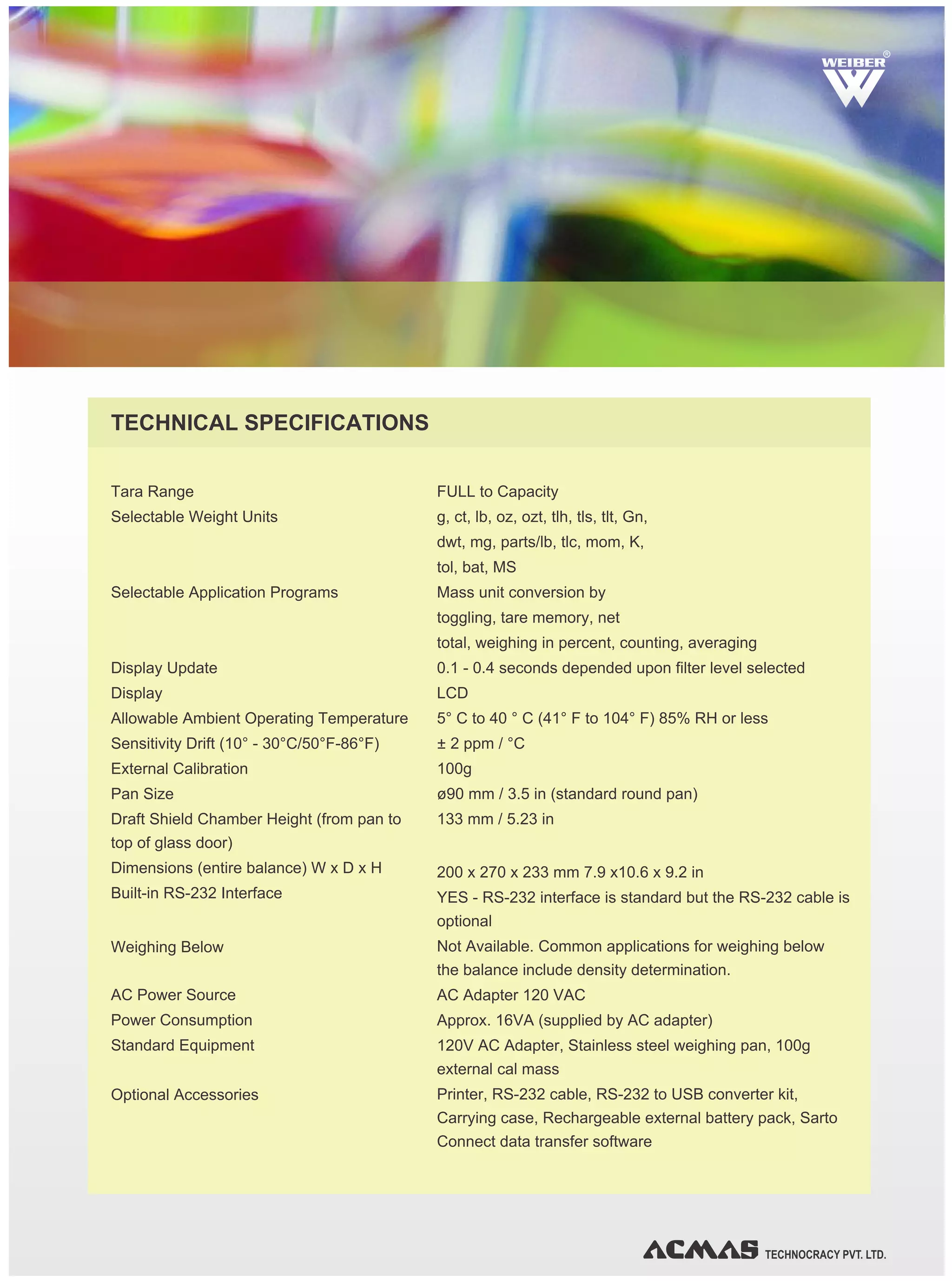

Tara Range
Selectable Weight Units
Selectable Application Programs
Display Update
Display
Allowable Ambient Operating Temperature
Sensitivity Drift (10° - 30°C/50°F-86°F)
External Calibration
Pan Size
Draft Shield Chamber Height (from pan to
top of glass door)
Dimensions (entire balance) W x D x H
Built-in RS-232 Interface
Weighing Below
AC Power Source
Power Consumption
Standard Equipment
Optional Accessories
FULL to Capacity
g, ct, lb, oz, ozt, tlh, tls, tlt, Gn,
dwt, mg, parts/lb, tlc, mom, K,
tol, bat, MS
Mass unit conversion by
toggling, tare memory, net
total, weighing in percent, counting, averaging
0.1 - 0.4 seconds depended upon filter level selected
LCD
5° C to 40 ° C (41° F to 104° F) 85% RH or less
± 2 ppm / °C
100g
ø90 mm / 3.5 in (standard round pan)
133 mm / 5.23 in
200 x 270 x 233 mm 7.9 x10.6 x 9.2 in
YES - RS-232 interface is standard but the RS-232 cable is
optional
Not Available. Common applications for weighing below
the balance include density determination.
AC Adapter 120 VAC
Approx. 16VA (supplied by AC adapter)
120V AC Adapter, Stainless steel weighing pan, 100g
external cal mass
Printer, RS-232 cable, RS-232 to USB converter kit,
Carrying case, Rechargeable external battery pack, Sarto
Connect data transfer software
TECHNICAL SPECIFICATIONS
RR

4. TECHNOCRACY PVT. LTD.

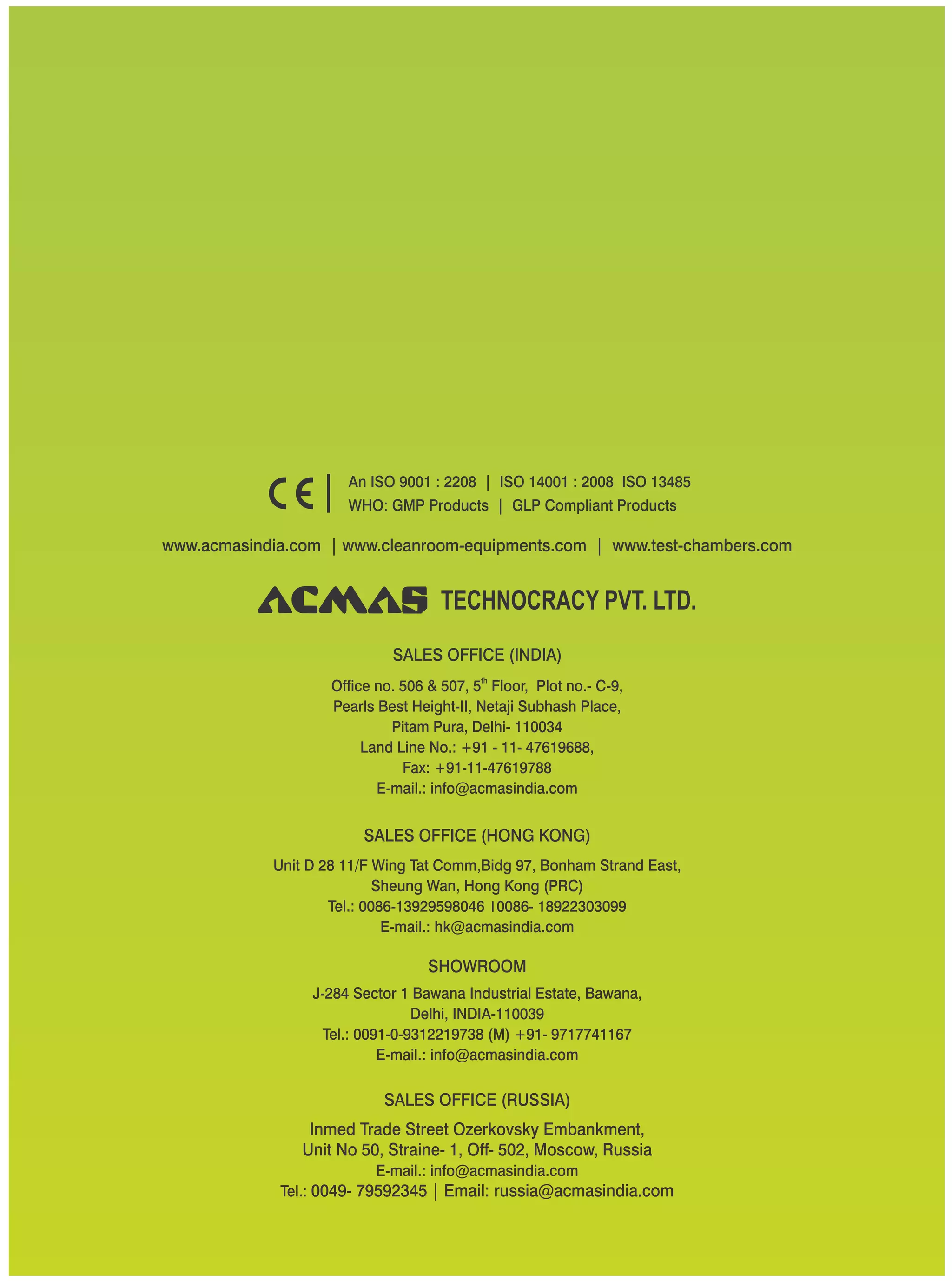

www.acmasindia.com | www.cleanroom-equipments.com | www.test-chambers.com
