The economical manganese detection meter model ACM-106-SC is designed for quantitative analysis of manganese concentration in various liquid samples, utilizing colorimetric assays with a silicon light source and direct LCD display. It features high sensitivity, low power consumption, and a rapid analysis speed of just 3 minutes, making it suitable for applications in water quality testing. The device operates within a measurement range of 0.00-4.00 mg/l with an accuracy of ±5%.

1. R
ECONOMICAL MANGANESE
DETECTION METER
MODEL NO.- ACM-106-SC

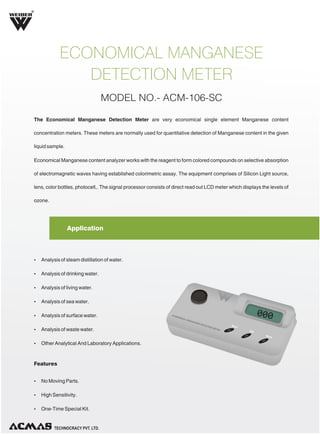

2. R
ECONOMICAL MANGANESE
DETECTION METER
MODEL NO.- ACM-106-SC
The Economical Manganese Detection Meter are very economical single element Manganese content
concentration meters. These meters are normally used for quantitative detection of Manganese content in the given
liquid sample.
Economical Manganese content analyzer works with the reagent to form colored compounds on selective absorption
of electromagnetic waves having established colorimetric assay. The equipment comprises of Silicon Light source,
lens, color bottles, photocell,. The signal processor consists of direct read out LCD meter which displays the levels of
ozone.
Application
Ÿ Analysis of steam distillation of water.
Ÿ Analysis of drinking water.
Ÿ Analysis of living water.
Ÿ Analysis of sea water.
Ÿ Analysis of surface water.
Ÿ Analysis of waste water.
Ÿ Other Analytical And Laboratory Applications.
Features
Ÿ No Moving Parts.
Ÿ High Sensitivity.
Ÿ One-Time Special Kit.
TECHNOLOGIES PVT. LTD.

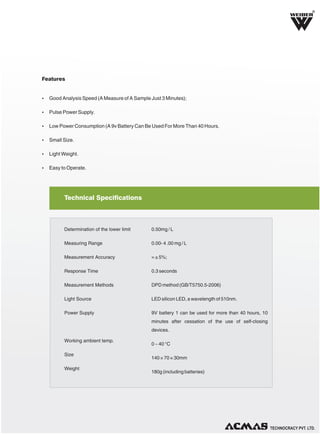

3. R
Features
Ÿ Good Analysis Speed (A Measure of A Sample Just 3 Minutes);
Ÿ Pulse Power Supply.
Ÿ Low Power Consumption (A 9v Battery Can Be Used For More Than 40 Hours.
Ÿ Small Size.
Ÿ Light Weight.
Ÿ Easy to Operate.
Technical Specifications
Determination of the lower limit
0.50mg / L
Measuring Range
0.00- 4 .00 mg / L
Measurement Accuracy
= ± 5%;
Response Time
0.3 seconds
Measurement Methods
DPD method (GB/T5750.5-2006)
Light Source
LED silicon LED, a wavelength of 510nm.
Power Supply
9V battery 1 can be used for more than 40 hours, 10
minutes after cessation of the use of self-closing
devices.
Working ambient temp.
Size
Weight
0 ~ 40 °C
140 × 70 × 30mm
180g (including batteries)
TECHNOLOGIES PVT. LTD.
