Kubernetes has been a key component for many companies to reduce technical debt in infrastructure by: • Fostering the Adoption of Docker • Simplifying Container Management • Onboarding Developers On Infrastructure • Unlocking Continuous Integration and Delivery During this meetup we are going to discuss the following topics and share some best practices • What's new with Kubernetes 1.3 • Generate Cluster Configuration using CloudFormation • Deploy Kubernetes Clusters on AWS • Scaling the Cluster • Integrating Ingress with Elastic Load Balancer • Using Internal ELB's as Kubernetes' Service • Using EBS for persistent volumes • Integrating Route53

1. 1
Running Production-Grade
Kubernetes on AWS

2. 2
<vadim@doit-intl.com>

3. 3
Let’s Play
Join at kahoot.it with Game PIN:
728274

4. 4
Agenda
● What’s new in Kubernetes v1.3
● Bootstrapping K8s cluster on AWS
● Watchouts & Limitations!

5. Copyright 2015 Google Inc
Kubernetes 101
Replication controllers create
new pod "replicas" from a
template and ensures that a
configurable number of
those pods are running.
Services provide a bridge
based on an IP and port
pair for client applications to
access backends without
needing to write code that is
Kubernetes-specific.
Replication
Controllers
ServicesLabels
Labels are metadata that
are attached to objects,
such as pods.
They enable organization
and selection of subsets of
objects with a cluster.
Pods
Pods are ephemeral units
that are used to manage
one or more tightly
coupled containers.
They enable data sharing
and communication
among their constituent
components.

6. 6
What's new in Kubernetes 1.3

7. 7

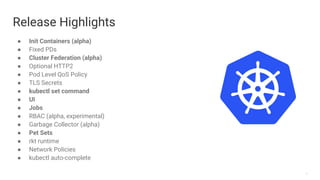

Release Highlights
● Init Containers (alpha)
● Fixed PDs
● Cluster Federation (alpha)
● Optional HTTP2
● Pod Level QoS Policy
● TLS Secrets
● kubectl set command
● UI
● Jobs
● RBAC (alpha, experimental)
● Garbage Collector (alpha)
● Pet Sets
● rkt runtime
● Network Policies
● kubectl auto-complete

8. 8

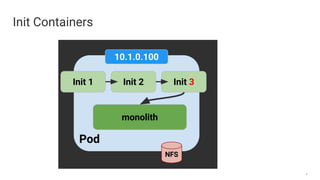

Init Containers

9. 9

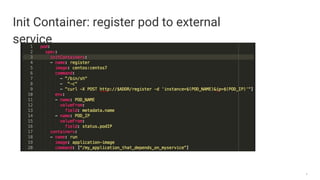

Init Container: register pod to external
service

10. 10

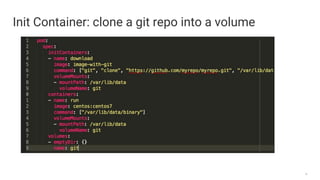

Init Container: clone a git repo into a volume

11. 11
Jobs (pods are *expected* to terminate)
Creates 1...n pods and ensures that a certain number of them run to completion.
3 job types:
● Non-Parallel (normally only one pod is started, unless the pod fails)
● Parallel with fixed count (complete when there is one successful pod for each
value in range 1 to .spec.completions)
● Parallel with a work queue

12. 12

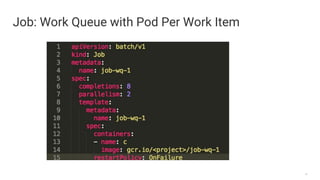

Job: Work Queue with Pod Per Work Item

13. 13
Increased Scale
● Up w/ up to 2k nodes per cluster
● Up to 60k pods per cluster
Under the bonnet, the biggest change that has resulted in the improvements in
scalability is to use Protocol Buffer-based serialization in the API instead of
JSON.

14. 14

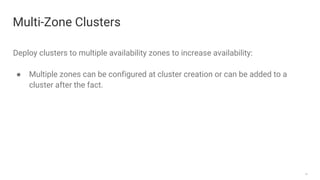

Multi-Zone Clusters
Deploy clusters to multiple availability zones to increase availability:
● Multiple zones can be configured at cluster creation or can be added to a
cluster after the fact.

15. 15
Heterogeneous Clusters
Customers can now add different types of nodes to the same cluster.
● NodePools allow for different types of nodes to be joined to a single master,
minimizing administrative overhead
● Built-in scheduler changes to allow scheduling to node types with only a
configuration change

16. 16
Cluster Federation
Deploy a service to multiple clusters simultaneously (including external load balancer configuration) via a
single Federated API.
● Federated Services span multiple clusters (possibly running on
different cloud providers, or on premise), and are created with a
single API call.
● The federation service automatically:
○ deploys the service across multiple clusters in the federation
○ monitors the health of these services
○ manages DNS records to ensure that clients are always
directed to the closest healthy instance of the federated
service.
More info:
● Sneak peek video

17. 17
New kubectl commands
A new command kubectl set now allows the container image to be set in a single one-line command.
$ kubectl set image deployment/web nginx=nginx:1.9.1
To watch the update rollout and verify it succeeds, there is now a new convenient command: rollout status. So,
for example, to see the rollout of nginx/nginx:1.9.1 from nginx/nginx:1.7.9:
$ kubectl rollout status deployment/web
Waiting for rollout to finish: 2 out of 4 new replicas has been updated...
Waiting for rollout to finish: 2 out of 4 new replicas has been updated...
Waiting for rollout to finish: 2 out of 4 new replicas has been updated...
Waiting for rollout to finish: 3 out of 4 new replicas has been updated...
Waiting for rollout to finish: 3 out of 4 new replicas has been updated...
Waiting for rollout to finish: 3 out of 4 new replicas has been updated...
deployment nginx successfully rolled out

18. 18

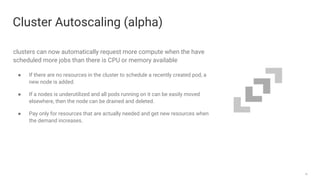

clusters can now automatically request more compute when the have
scheduled more jobs than there is CPU or memory available
● If there are no resources in the cluster to schedule a recently created pod, a
new node is added.
● If a nodes is underutilized and all pods running on it can be easily moved
elsewhere, then the node can be drained and deleted.
● Pay only for resources that are actually needed and get new resources when
the demand increases.
Cluster Autoscaling (alpha)

19. 19

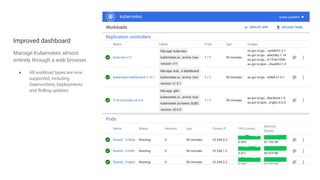

Improved dashboard
Manage Kubernetes almost
entirely through a web browser.
● All workload types are now
supported, including
DaemonSets, Deployments
and Rolling updates

20. 20

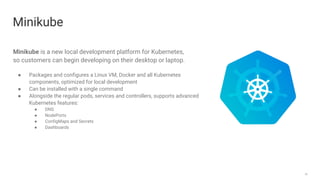

Minikube
Minikube is a new local development platform for Kubernetes,
so customers can begin developing on their desktop or laptop.
● Packages and configures a Linux VM, Docker and all Kubernetes
components, optimized for local development
● Can be installed with a single command
● Alongside the regular pods, services and controllers, supports advanced
Kubernetes features:
● DNS
● NodePorts
● ConfigMaps and Secrets
● Dashboards

21. 21
The new "PetSet" object provides a raft of features for supporting containers that
run stateful workloads (such as databases or key value stores), including:
● Permanent hostnames, that persist across restarts
● Automatically provisioned Persistent Disks per-container, that live beyond
the life of a container
● Unique identities in a group, to allow for clustering and leader election
● Initialization containers, which are critical for starting up clustered
applications
Stateful workload support (Pet Sets)
In Alpha in Kubernetes 1.3

22. 22
What's coming next

23. 23
New features for Kubernetes in 1.4
● Full cross-cluster federation, including
○ Single universal API
○ Global load balancer
○ Replica sets that span multiple clusters
● Granular permissions for clusters
● Simplified installation for common applications
One line install for simple applications in fully tested configurations
● Universal setup
Greatly simplified on-prem and complex cloud deployments
● Integrated external DNS (including Route53)
Simplified integration with external DNS providers
Expected release date for 1.4 is 16 September

24. 24
Deploying K8s to Amazon AWS

25. 25

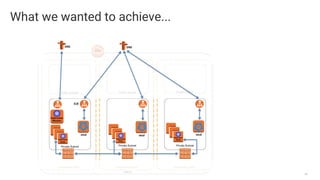

What we wanted to achieve...

26. 26
4.5 Step Deployment into existing VPC
Based on CoreOS K8s project:
$ kube-aws init & adjust your cluster.yaml
$ kube-aws render (generates CF stack)
$ kube-aws validate
$ kube-aws up (deploys the CF stack)

27. 27
What you get...
CloudFormation Stack w/:
● Controller (master) node with EIP
● Autoscaling Group/Launch Config for Worker Nodes (fixed scaling)
● A Record in Route53 for Controller
● Security Groups to allow traffic between controller and works
● IAM Roles for both Controller and Workers
● AWS Addons (ELB, EBS integration)

28. 28

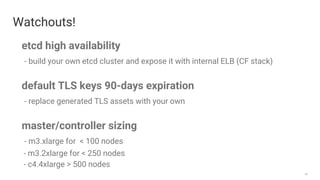

Watchouts!
etcd high availability
- build your own etcd cluster and expose it with internal ELB (CF stack)
default TLS keys 90-days expiration
- replace generated TLS assets with your own
master/controller sizing
- m3.xlarge for < 100 nodes
- m3.2xlarge for < 250 nodes
- c4.4xlarge > 500 nodes

29. 29

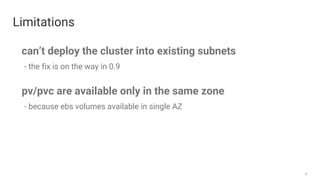

Limitations
can’t deploy the cluster into existing subnets
- the fix is on the way in 0.9
pv/pvc are available only in the same zone
- because ebs volumes available in single AZ

30. 30

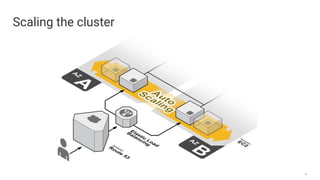

Scaling the cluster

31. 31

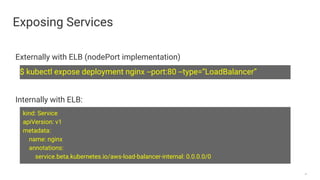

Exposing Services
$ kubectl expose deployment nginx --port:80 --type=”LoadBalancer”
kind: Service
apiVersion: v1
metadata:
name: nginx
annotations:
service.beta.kubernetes.io/aws-load-balancer-internal: 0.0.0.0/0
Externally with ELB (nodePort implementation)
Internally with ELB:

32. 32

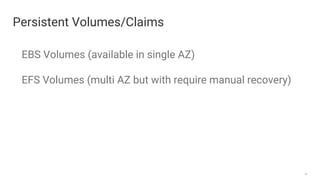

Persistent Volumes/Claims
EBS Volumes (available in single AZ)
EFS Volumes (multi AZ but with require manual recovery)

33. 33
Spot Instances
Import ASG to Spotinst’s Elastigroup

34. 34
meetup.com/multicloud
meetup.com/Kubernetes-Tel-Aviv
Next meetups:
