1. Tobias Johansson
@ntjohansson
27/10/2016
Big data analytics
Einstürzenden Neudaten: Building an analytics engine from scratch

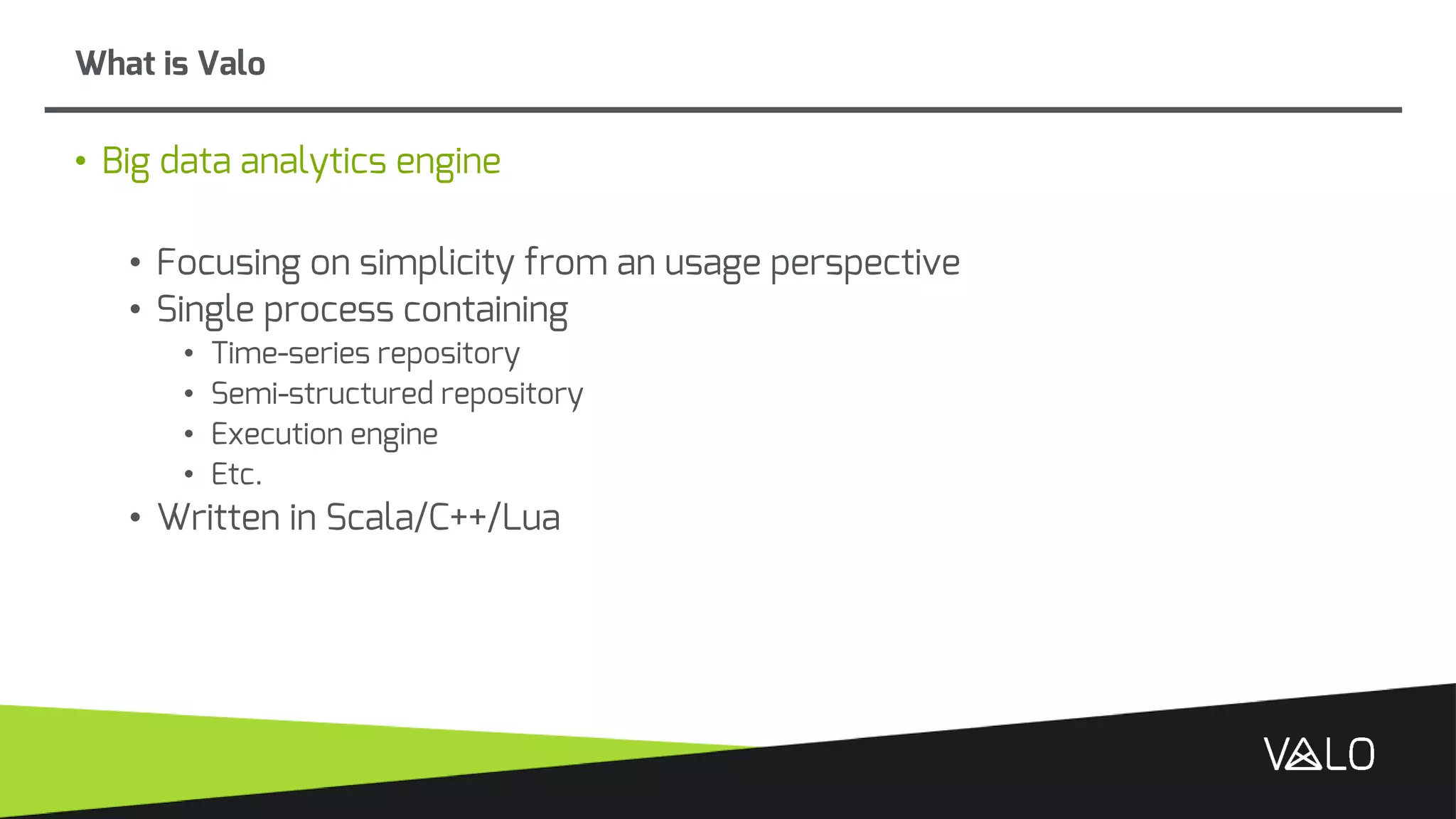

2. • Big data analytics engine
• Focusing on simplicity from an usage perspective
• Single process containing
• Time-series repository
• Semi-structured repository
• Execution engine
• Etc.
• Written in Scala/C++/Lua
What is Valo

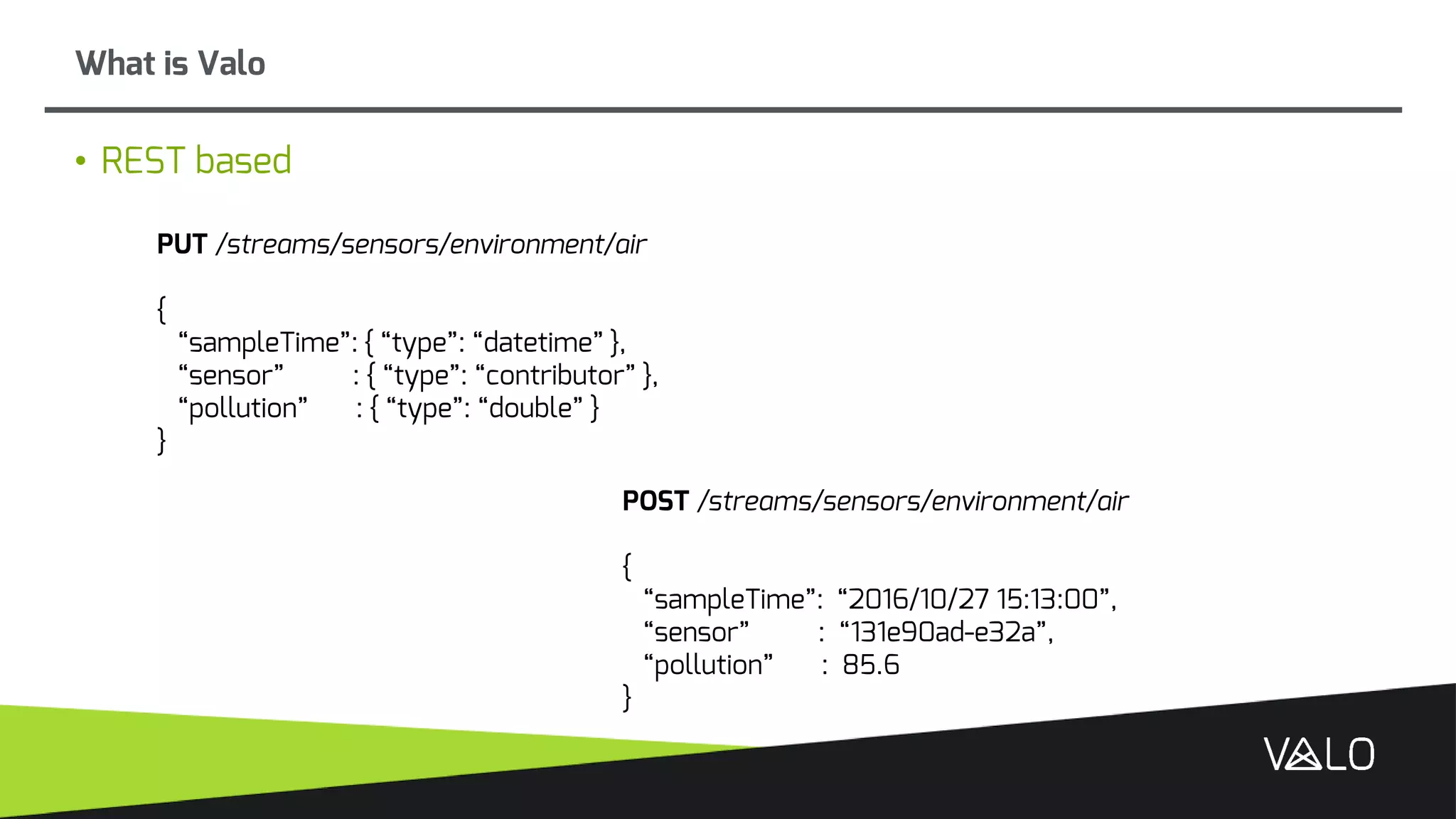

3. • REST based
What is Valo
PUT /streams/sensors/environment/air
{
“sampleTime”: { “type”: “datetime” },
“sensor” : { “type”: “contributor” },
“pollution” : { “type”: “double” }
}
POST /streams/sensors/environment/air
{
“sampleTime”: “2016/10/27 15:13:00”,
“sensor” : “131e90ad-e32a”,
“pollution” : 85.6
}

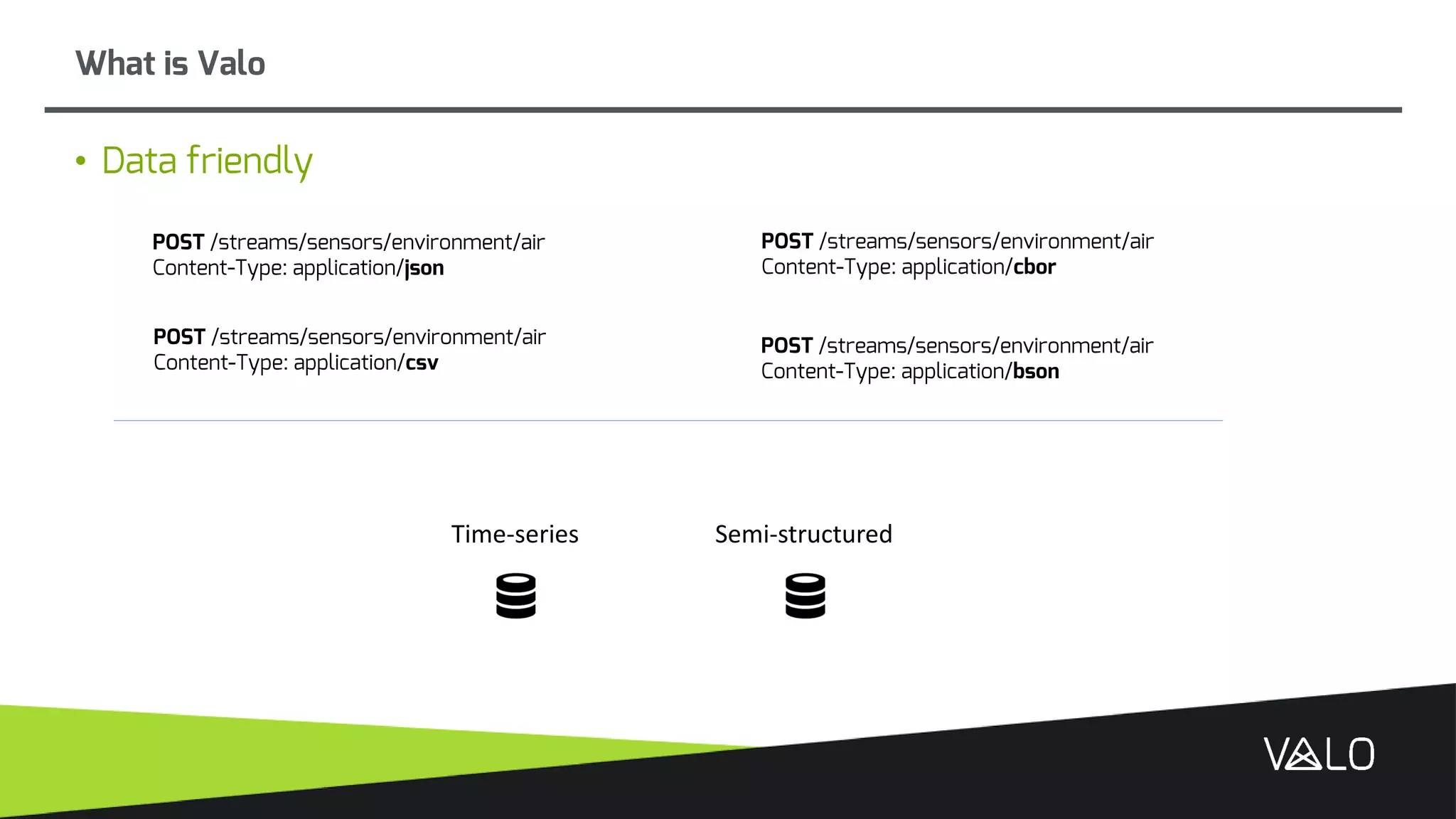

4. • Data friendly
What is Valo
POST /streams/sensors/environment/air
Content-Type: application/json
POST /streams/sensors/environment/air
Content-Type: application/cbor
POST /streams/sensors/environment/air
Content-Type: application/csv
POST /streams/sensors/environment/air
Content-Type: application/bson
Time-series Semi-structured

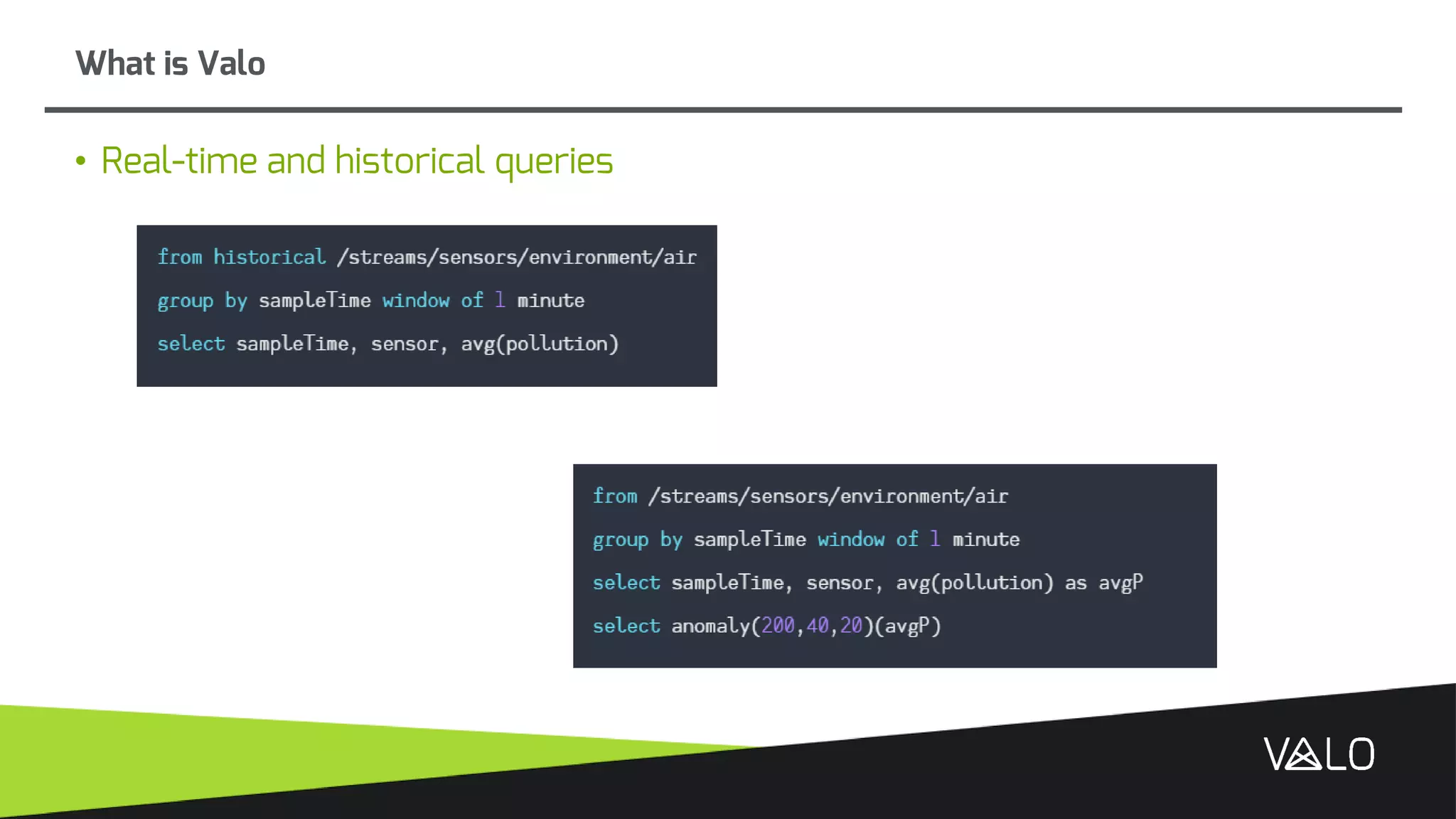

5. • Real-time and historical queries
What is Valo

6. Looks simple?
Trust me, it is not.

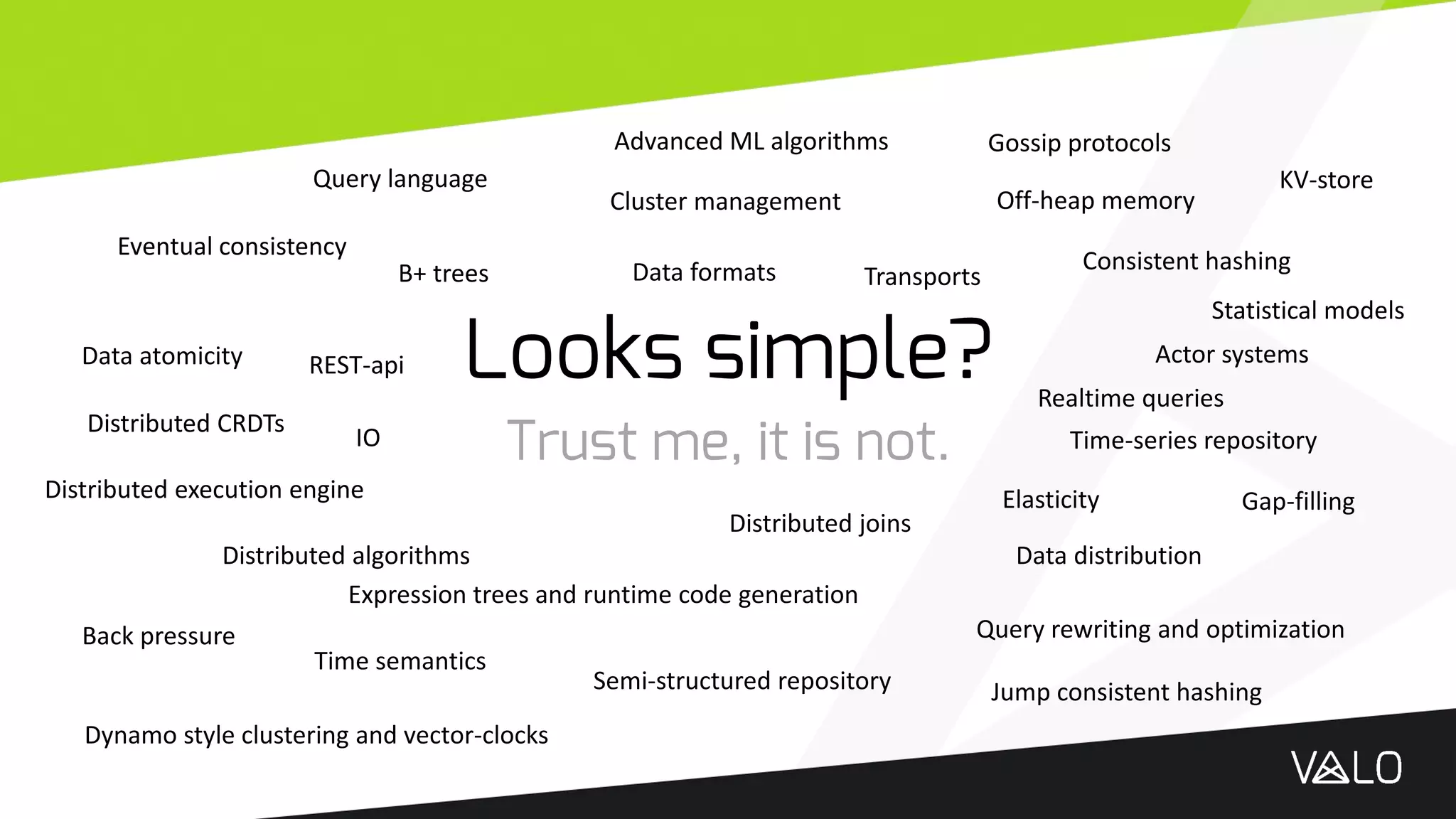

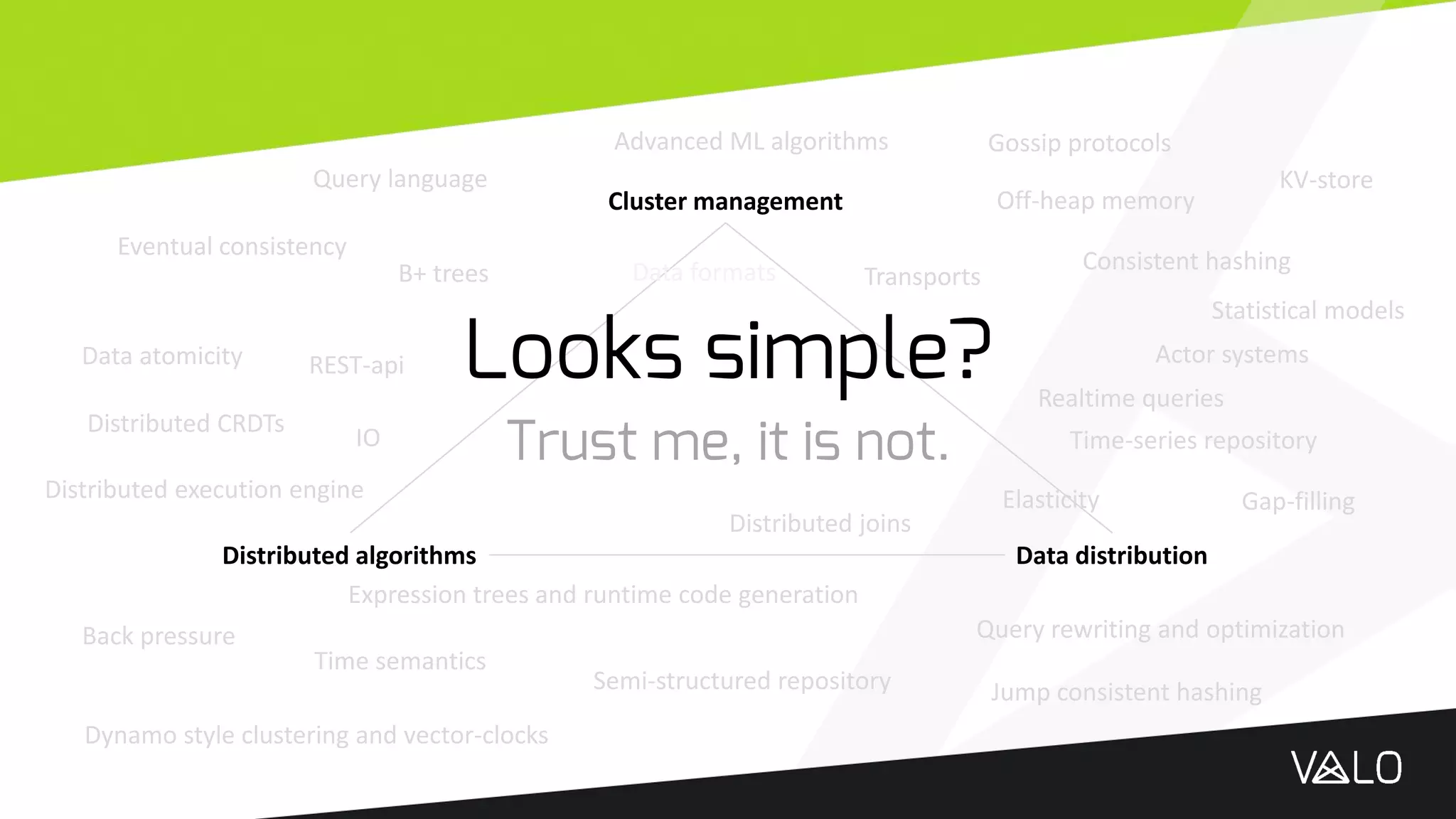

7. Looks simple?
Trust me, it is not.
Dynamo style clustering and vector-clocks
Eventual consistency
Gossip protocols
Distributed algorithms
Distributed execution engine
Expression trees and runtime code generation
Query rewriting and optimization
Consistent hashing
Time-series repository
Semi-structured repository
Data atomicity
Back pressure
Elasticity
Advanced ML algorithms
IO
Actor systems
Data distribution
Cluster management
B+ trees
Query language KV-store
REST-api
Jump consistent hashing
Off-heap memory
Data formats
Distributed joins
Time semantics
Gap-filling
Statistical models
Distributed CRDTs
Transports
Realtime queries

8. Looks simple?
Trust me, it is not.
Dynamo style clustering and vector-clocks
Eventual consistency
Gossip protocols
Distributed algorithms
Distributed execution engine
Expression trees and runtime code generation
Query rewriting and optimization
Consistent hashing
Time-series repository
Semi-structured repository
Data atomicity
Back pressure
Elasticity
Advanced ML algorithms
IO
Actor systems
Data distribution
Cluster management
B+ trees
Query language KV-store
REST-api
Jump consistent hashing
Off-heap memory
Data formats
Distributed joins
Time semantics
Gap-filling
Statistical models
Distributed CRDTs
Transports
Realtime queries

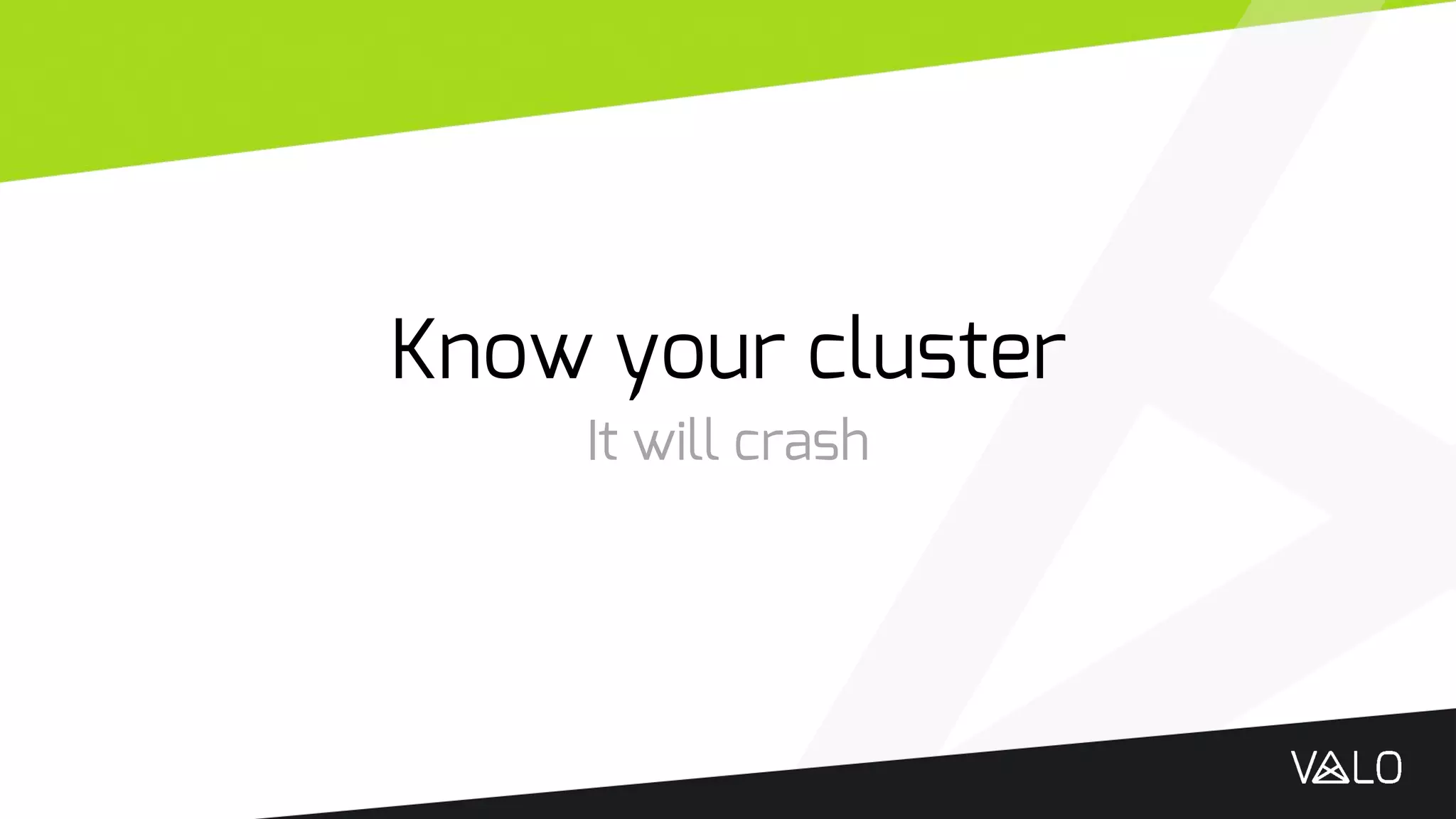

9. Know your cluster
It will crash

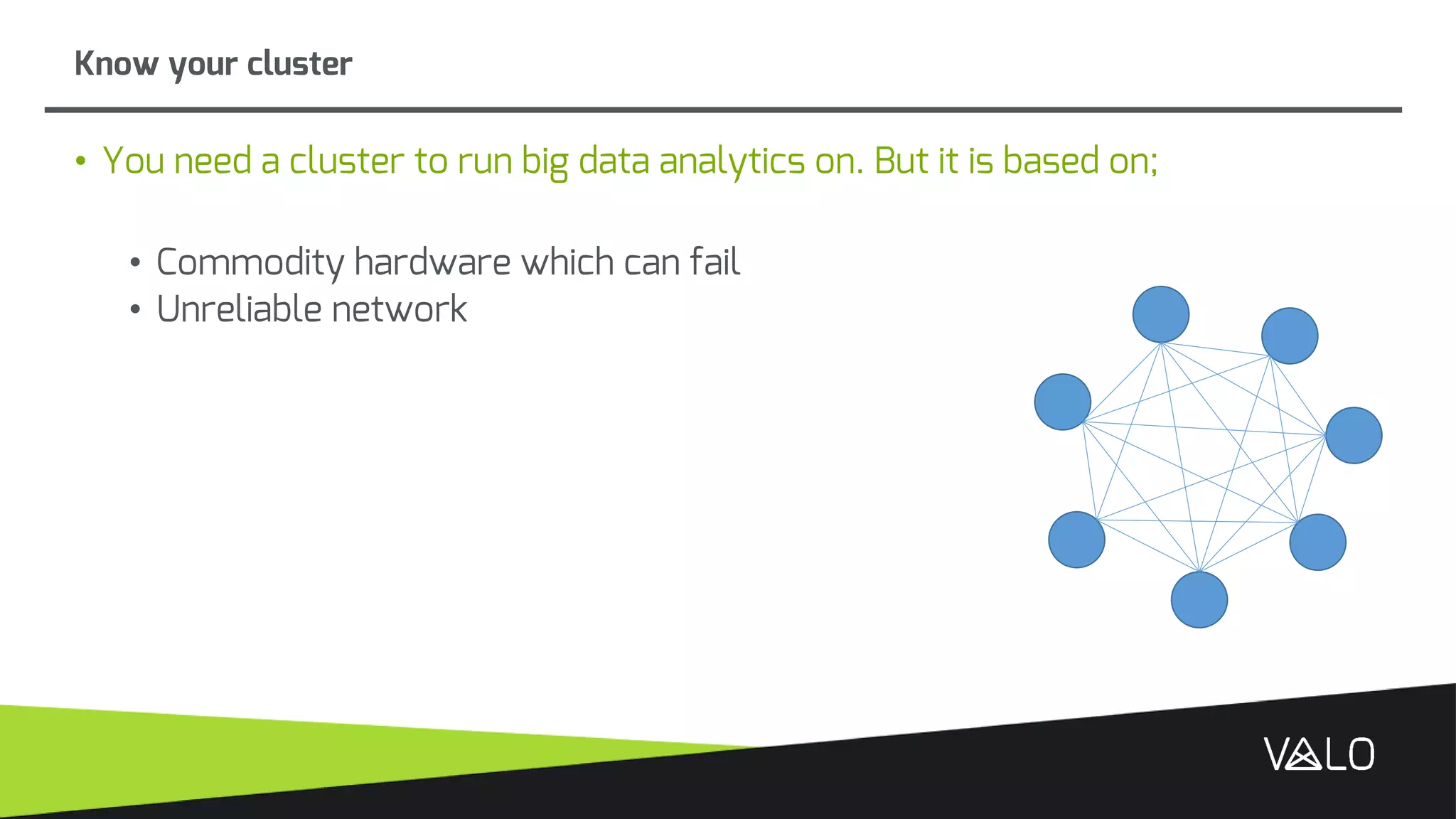

10. Know your cluster
• You need a cluster to run big data analytics on. But it is based on;
• Commodity hardware which can fail
• Unreliable network

11. Know your cluster
• Issues;
• Unreachable nodes
• Dropped messages
• Delayed messages
• No response

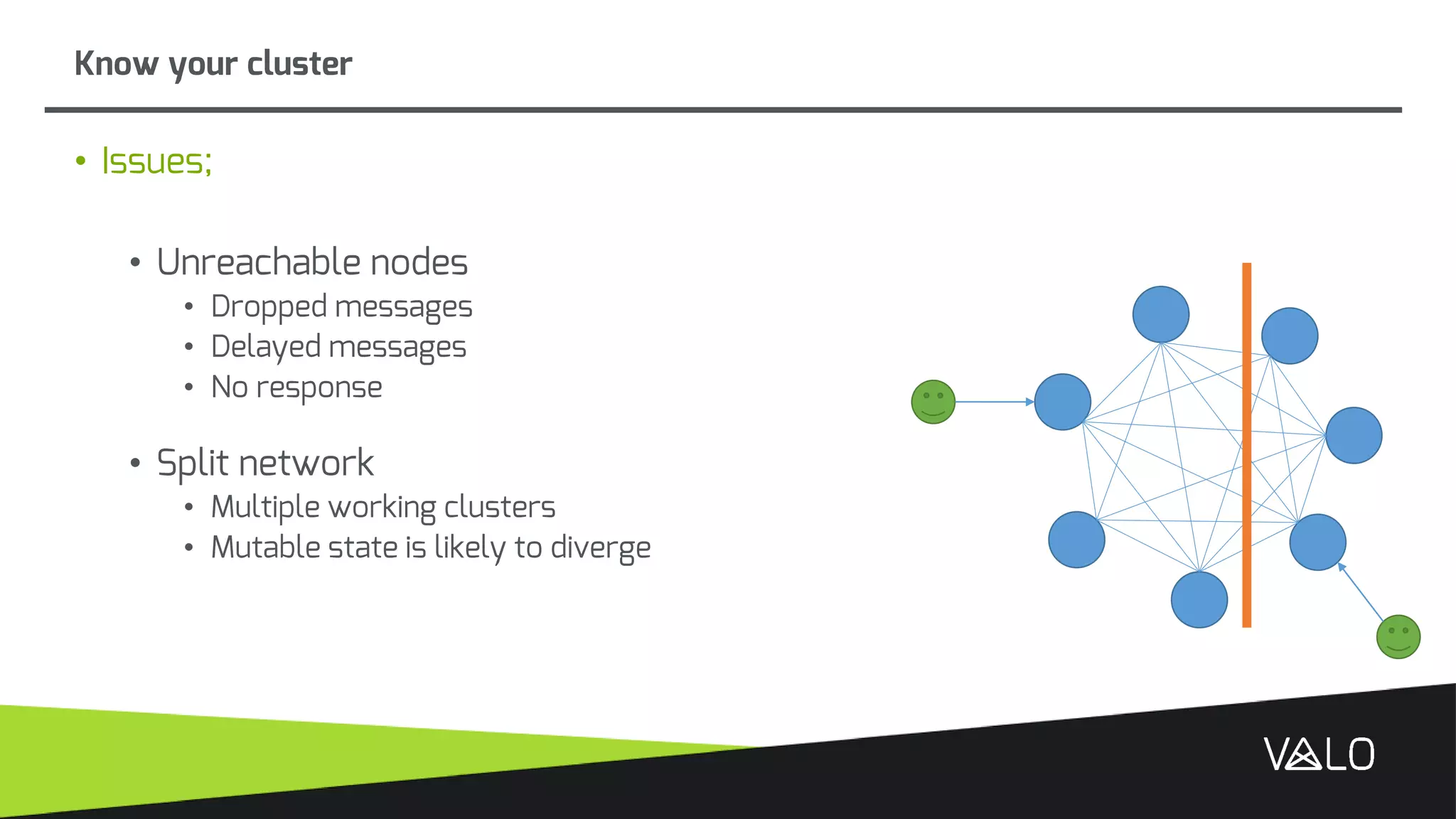

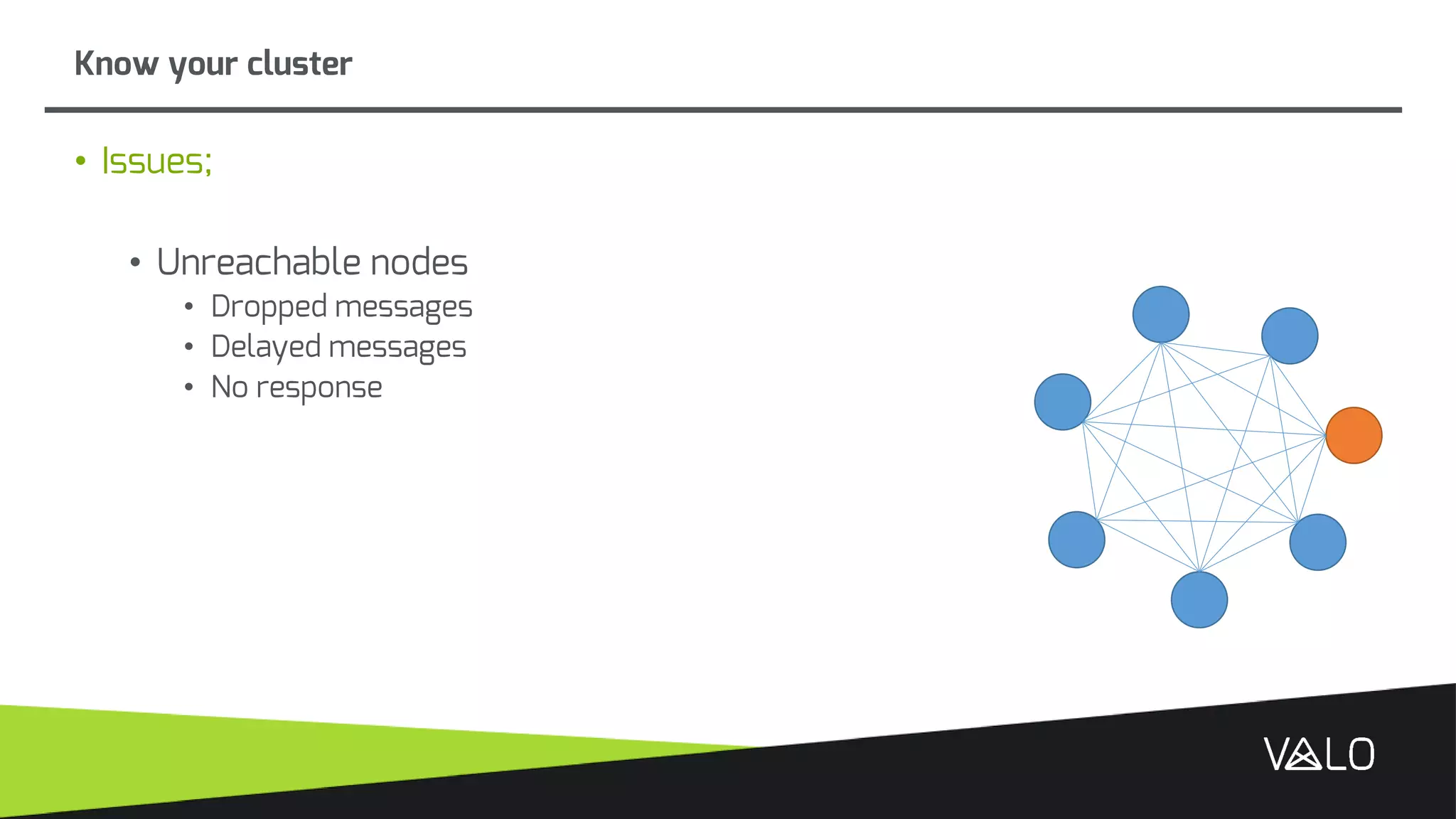

12. Know your cluster
• Issues;
• Unreachable nodes
• Dropped messages
• Delayed messages
• No response
• Split network
• Multiple working clusters
• Mutable state is likely to diverge

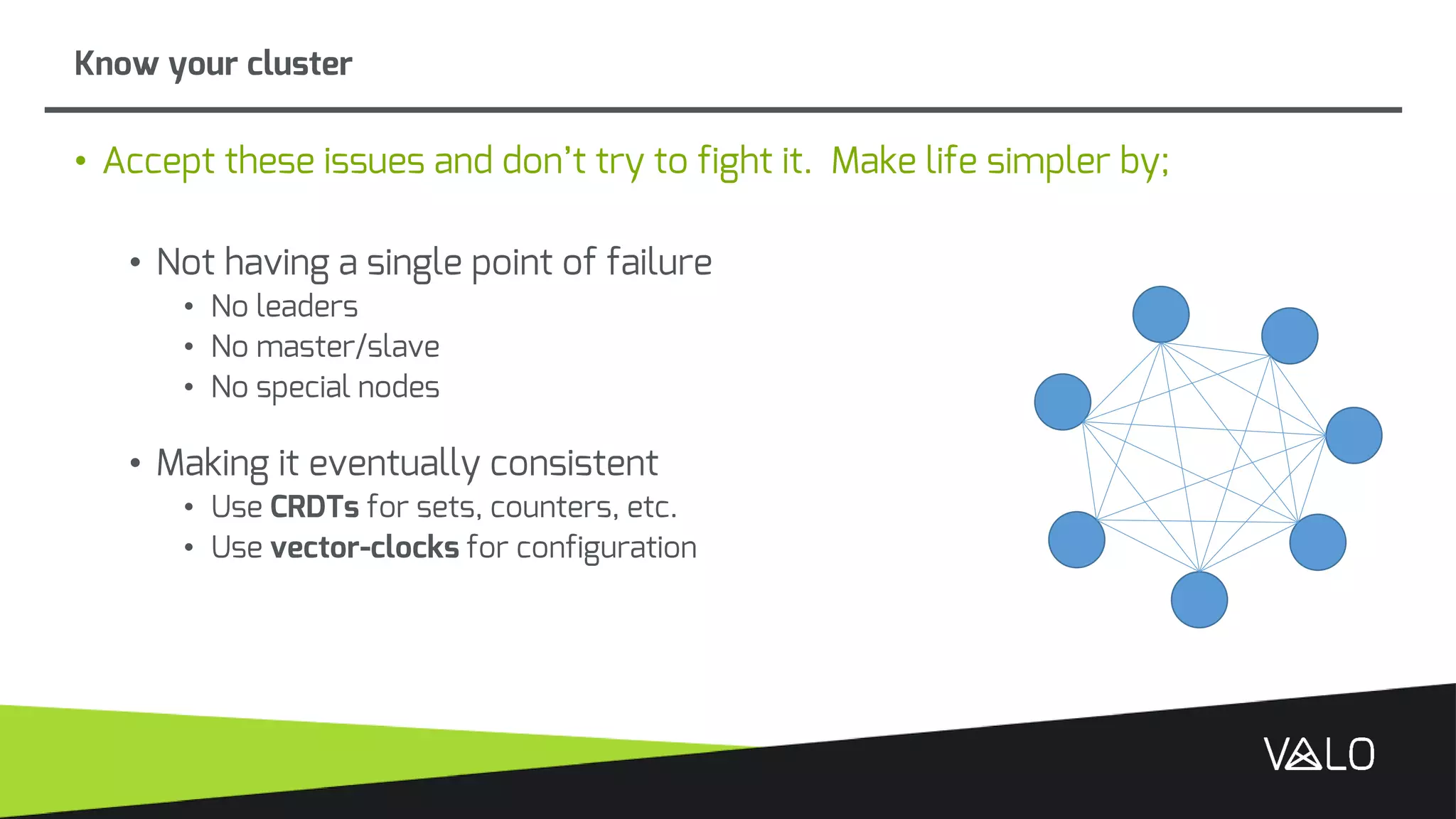

13. Know your cluster
• Accept these issues and don’t try to fight it. Make life simpler by;
• Not having a single point of failure
• No leaders
• No master/slave
• No special nodes
• Making it eventually consistent
• Use CRDTs for sets, counters, etc.
• Use vector-clocks for configuration

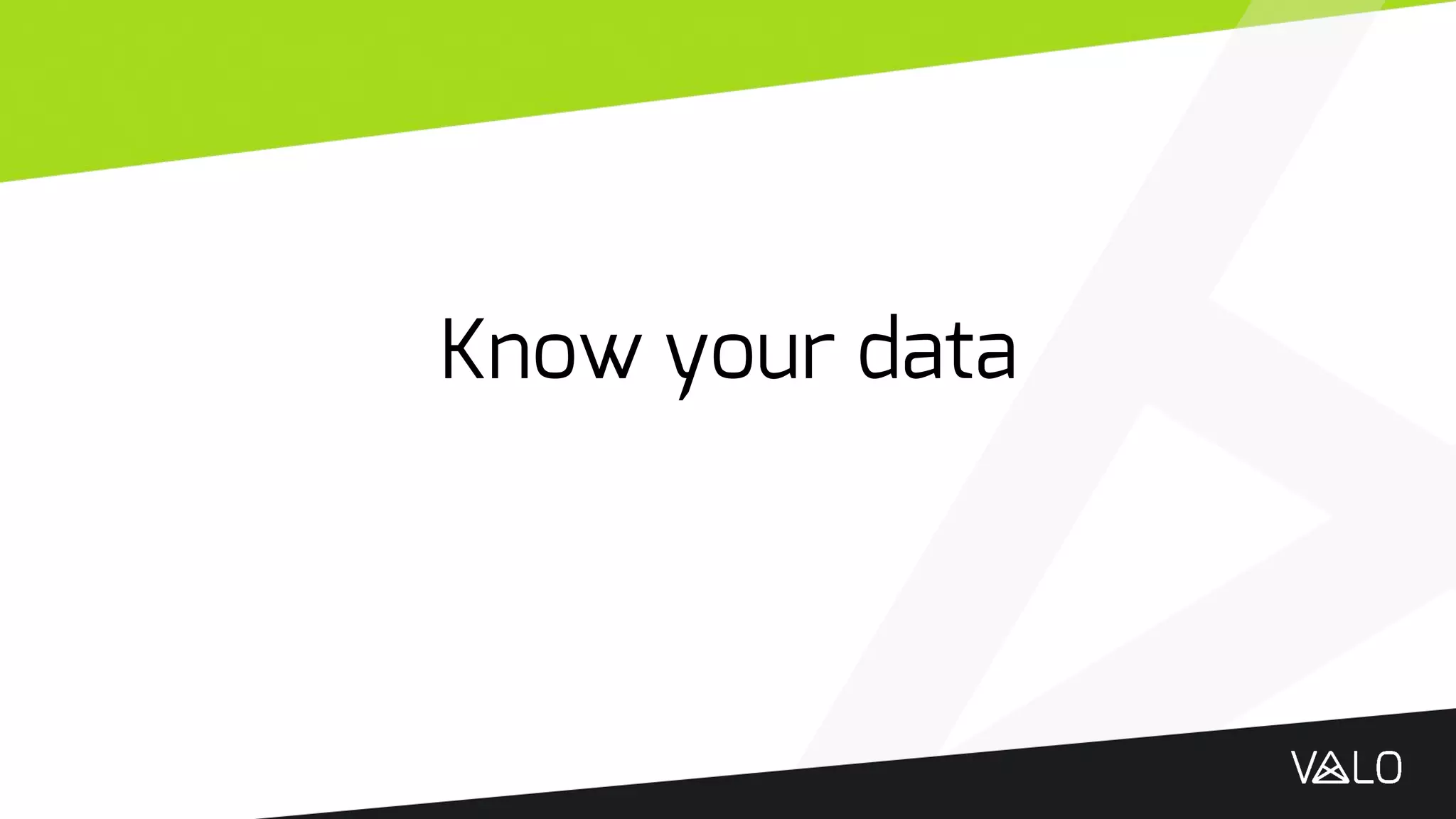

14. Know your data

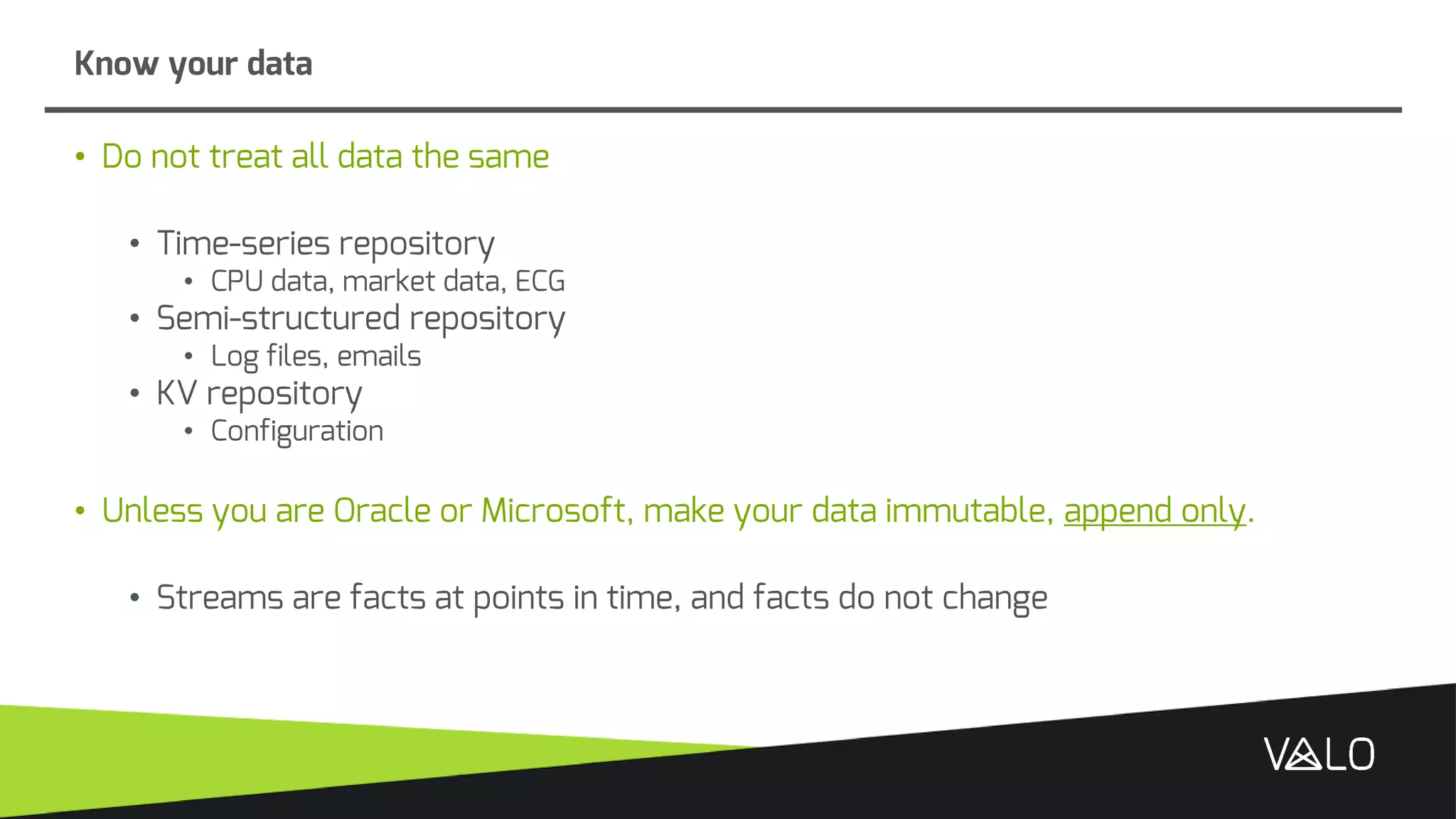

15. • Do not treat all data the same
• Time-series repository
• CPU data, market data, ECG
• Semi-structured repository
• Log files, emails
• KV repository
• Configuration
• Unless you are Oracle or Microsoft, make your data immutable, append only.
• Streams are facts at points in time, and facts do not change
Know your data

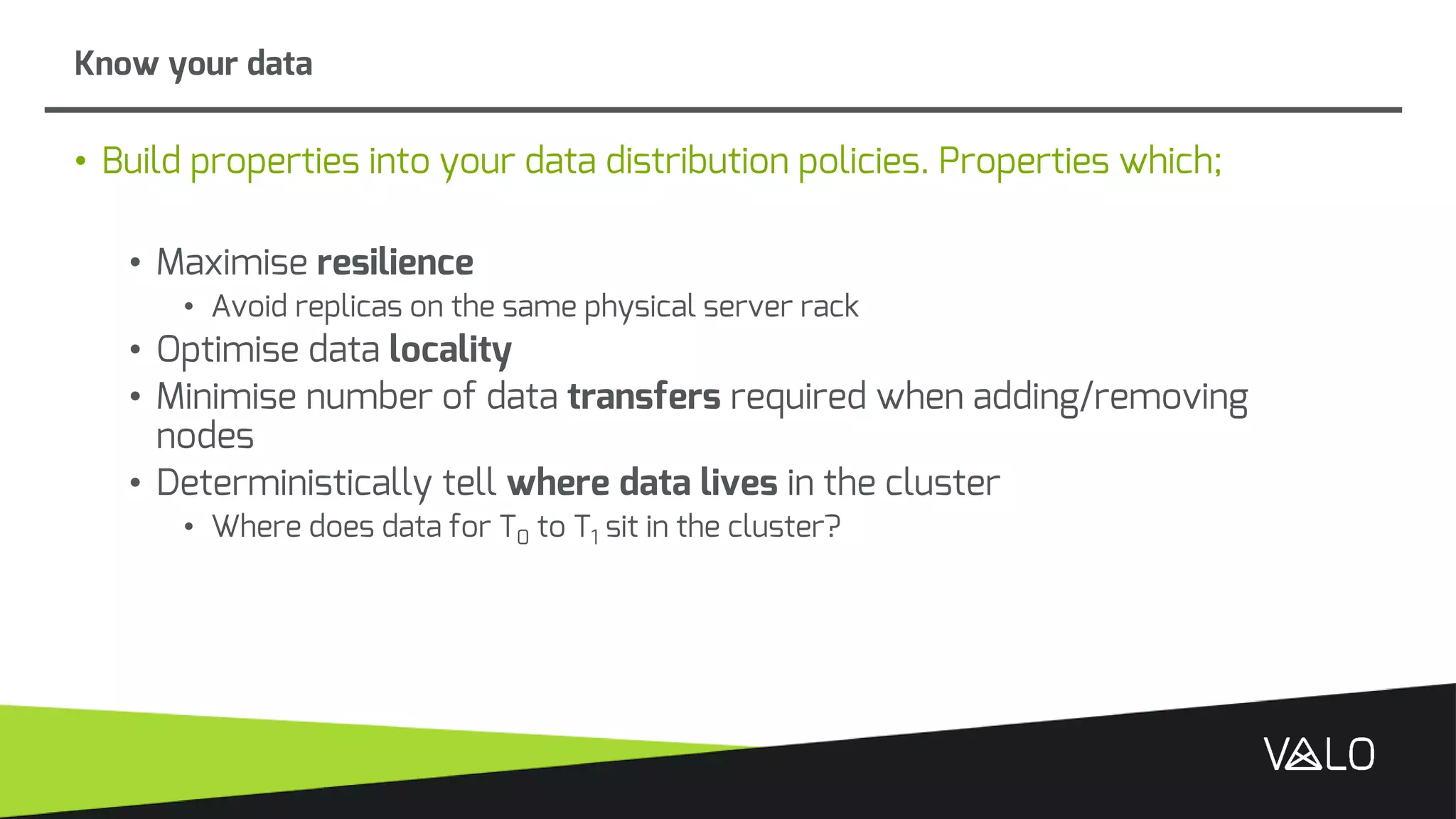

16. • Build properties into your data distribution policies. Properties which;
• Maximise resilience
• Avoid replicas on the same physical server rack
• Optimise data locality
• Minimise number of data transfers required when adding/removing
nodes
• Deterministically tell where data lives in the cluster
• Where does data for T0 to T1 sit in the cluster?
Know your data

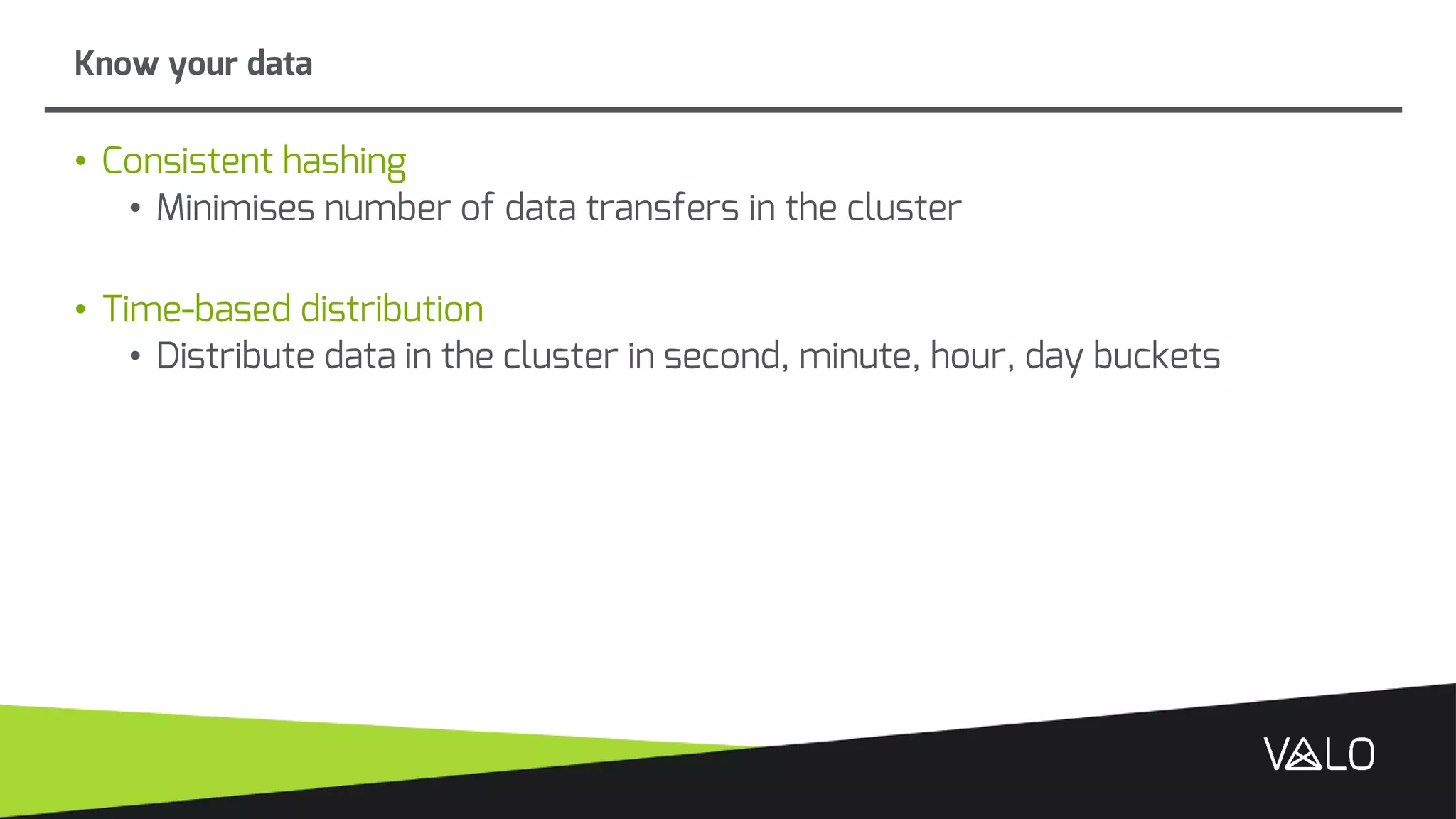

17. • Consistent hashing
• Minimises number of data transfers in the cluster
• Time-based distribution
• Distribute data in the cluster in second, minute, hour, day buckets
Know your data

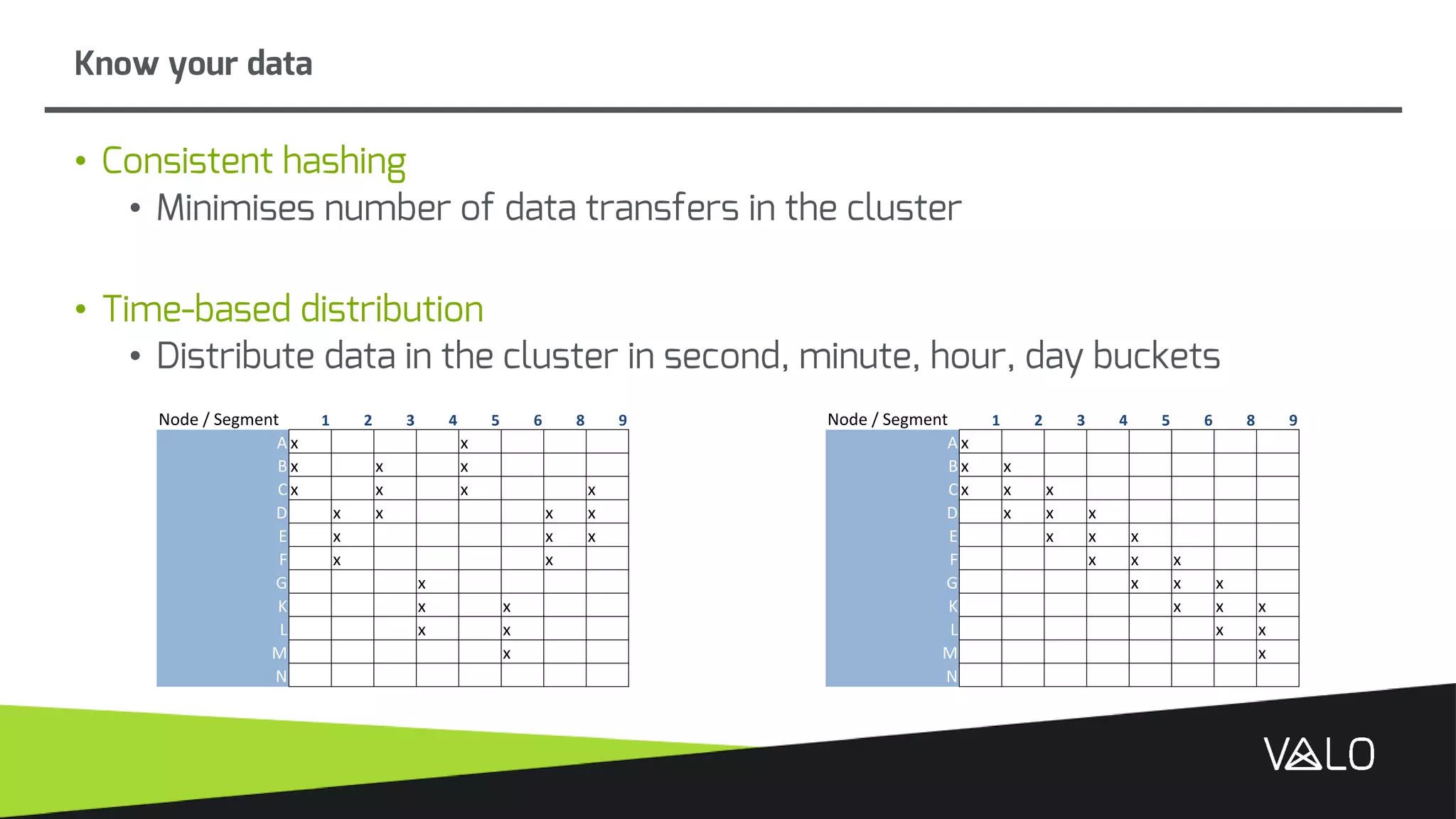

18. • Consistent hashing
• Minimises number of data transfers in the cluster
• Time-based distribution
• Distribute data in the cluster in second, minute, hour, day buckets
Know your data
Node / Segment 1 2 3 4 5 6 8 9 Node / Segment 1 2 3 4 5 6 8 9
A x x A x
B x x x B x x
C x x x x C x x x
D x x x x D x x x
E x x x E x x x
F x x F x x x
G x G x x x
K x x K x x x
L x x L x x
M x M x
N N

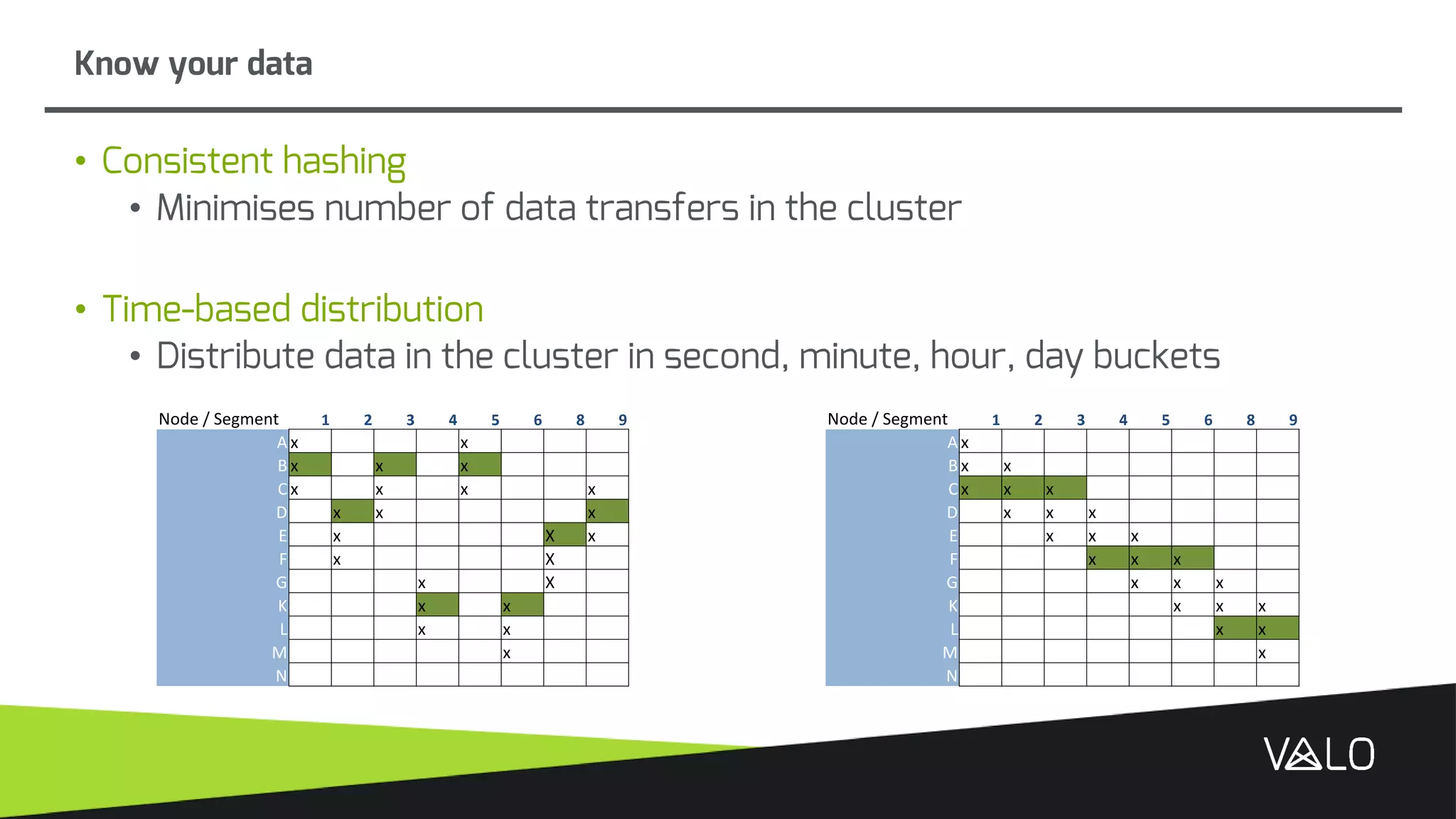

19. • Consistent hashing
• Minimises number of data transfers in the cluster
• Time-based distribution
• Distribute data in the cluster in second, minute, hour, day buckets
Know your data
Node / Segment 1 2 3 4 5 6 8 9 Node / Segment 1 2 3 4 5 6 8 9
A x x A x
B x x x B x x
C x x x x C x x x
D x x x D x x x
E x X x E x x x
F x X F x x x
G x X G x x x
K x x K x x x
L x x L x x
M x M x
N N

20. Know your algos

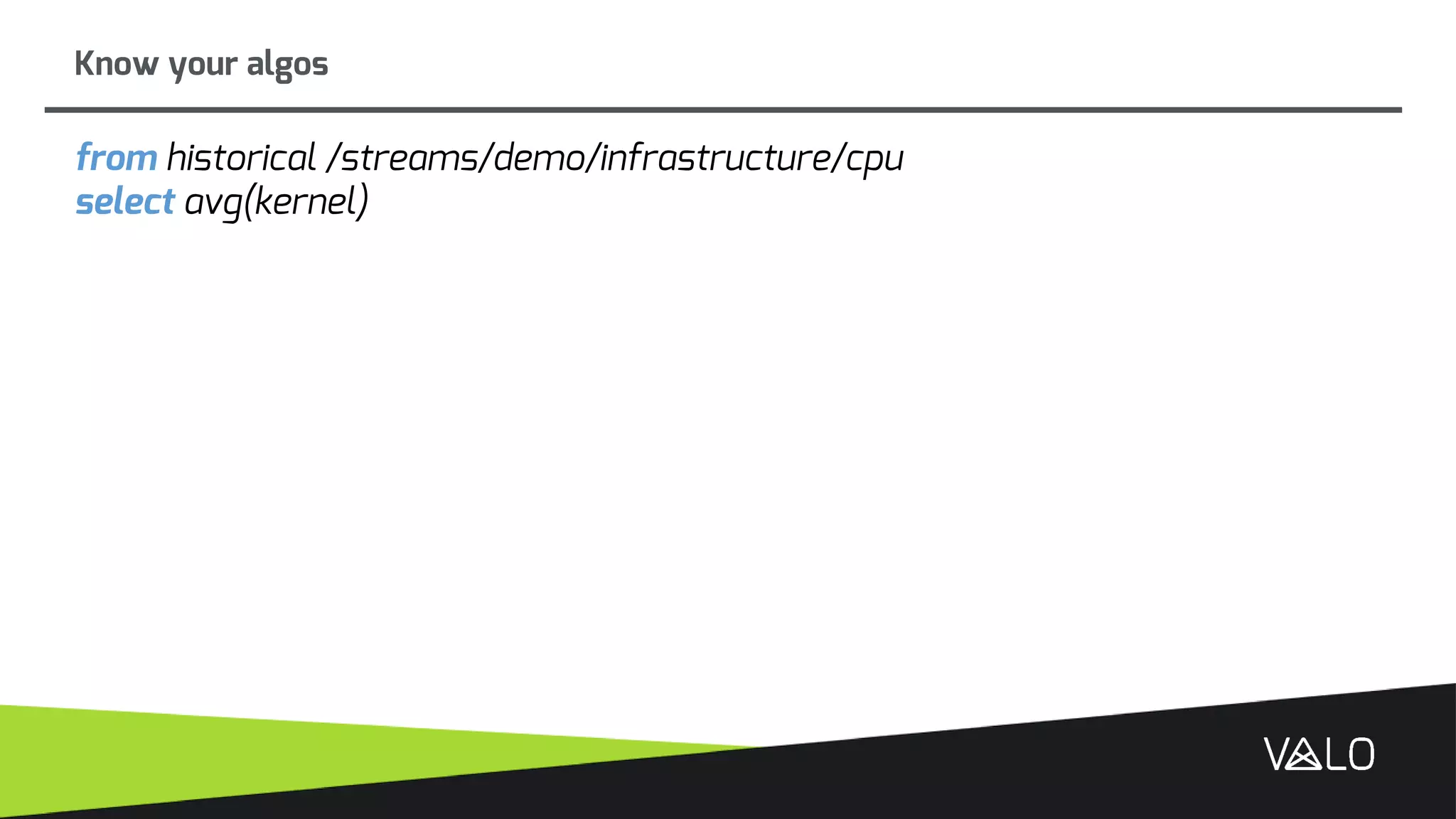

21. Know your algos
from historical /streams/demo/infrastructure/cpu
select avg(kernel)

22. Know your algos
from historical /streams/demo/infrastructure/cpu
select avg(kernel)
Avg
Avg
Avg Avg

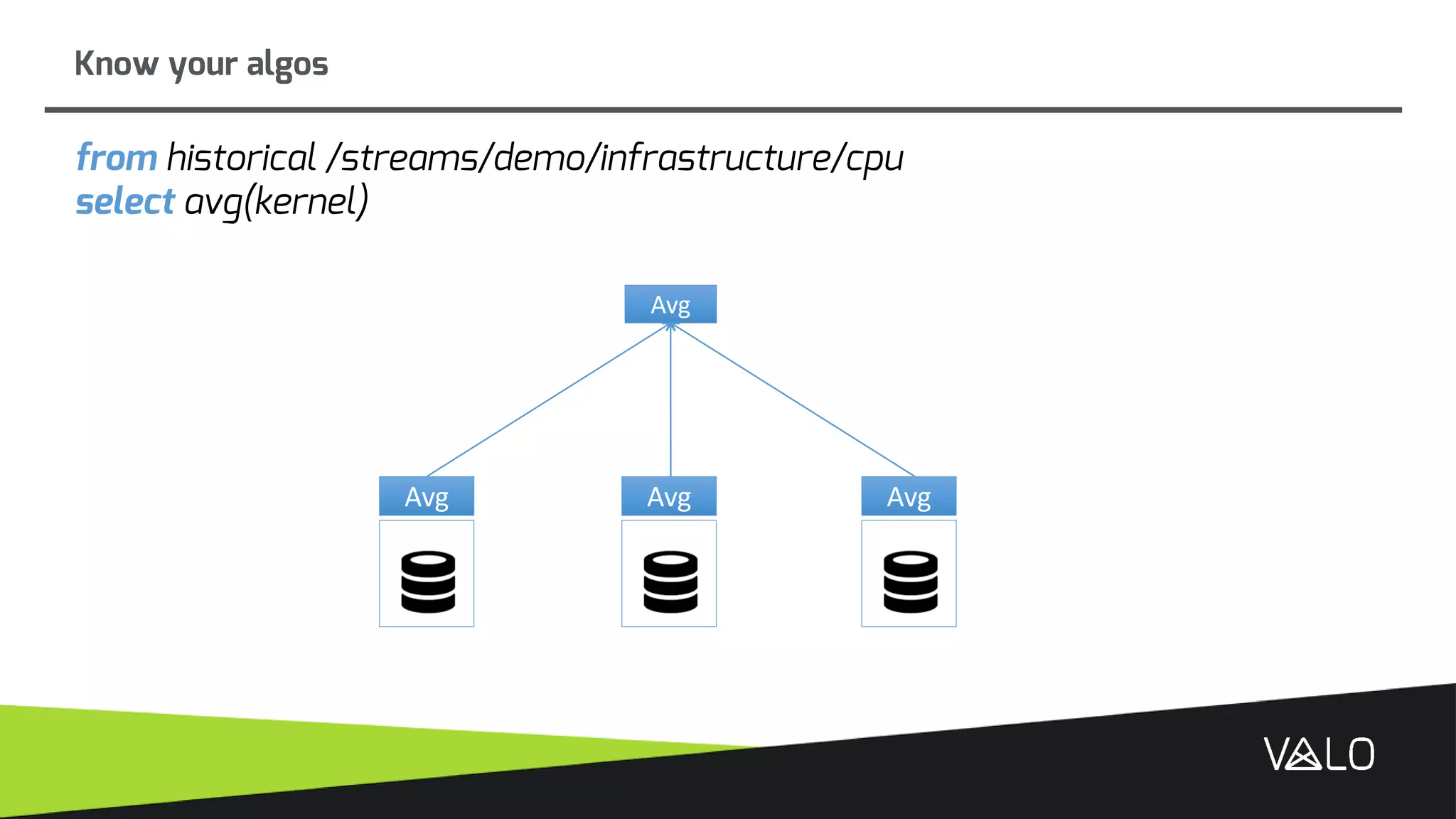

23. Know your algos
from historical /streams/demo/infrastructure/cpu
select avg(kernel)
Avg
Avg
Avg
Avg
Avg
Avg
Avg

24. Know your algos
from historical /streams/demo/infrastructure/cpu
select avg(kernel)
Avg
Avg
Avg Avg
Avg Avg Avg

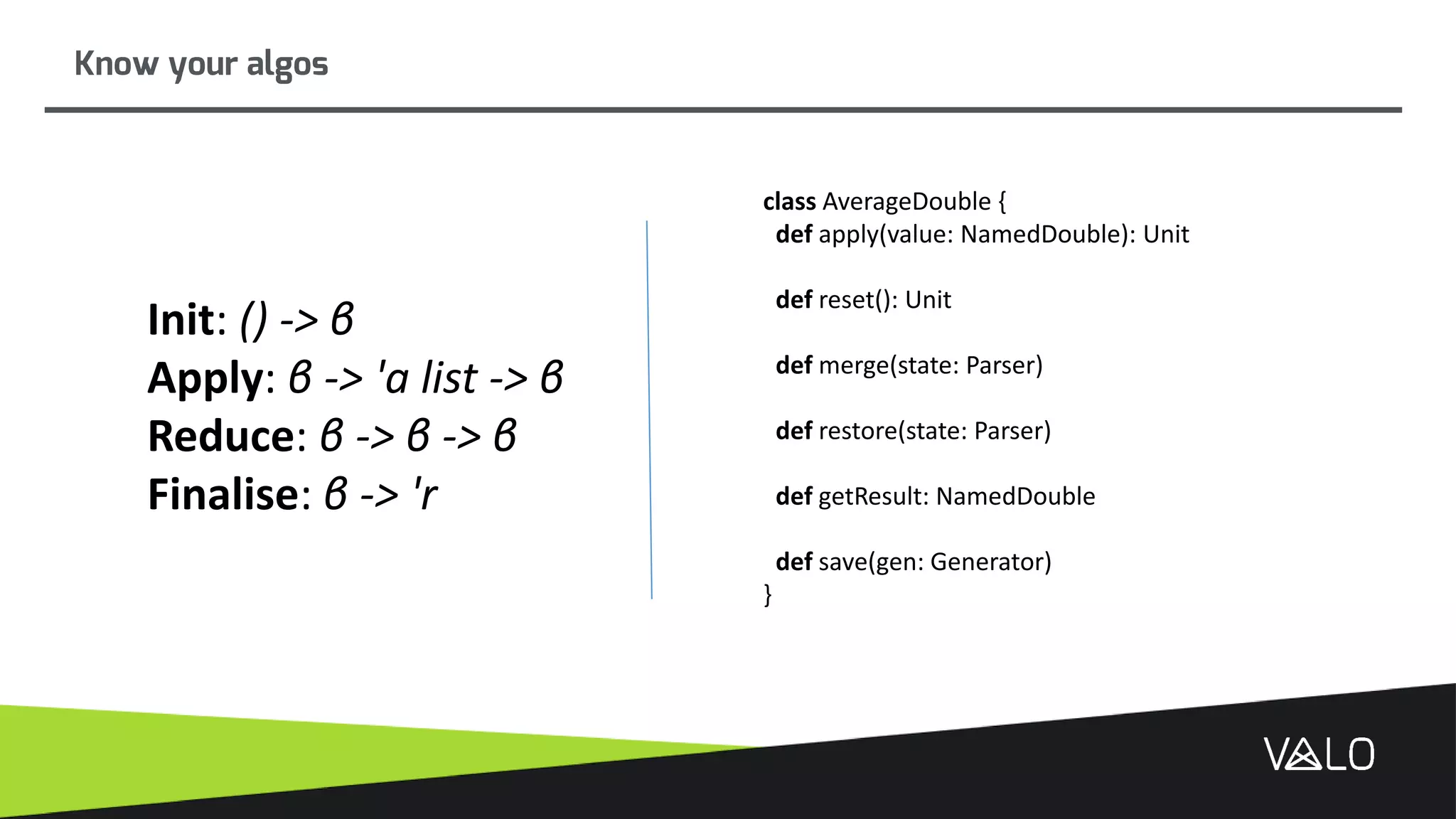

25. Know your algos
Init: () -> β
Apply: β -> 'a list -> β
Reduce: β -> β -> β
Finalise: β -> 'r
class AverageDouble {
def apply(value: NamedDouble): Unit
def reset(): Unit
def merge(state: Parser)
def restore(state: Parser)
def getResult: NamedDouble
def save(gen: Generator)
}

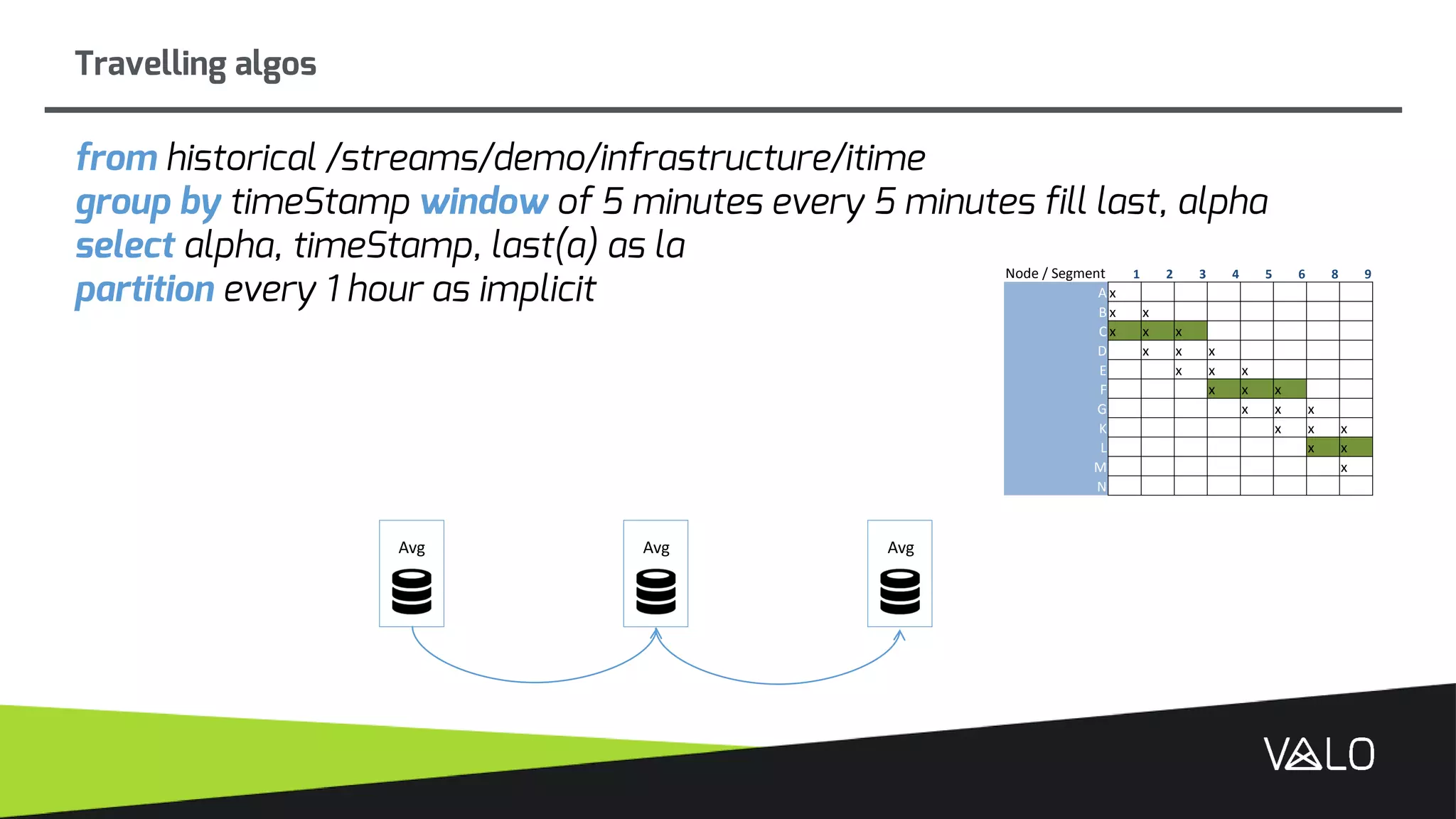

26. Travelling algos
Avg AvgAvg
Avg Avg Avg
Node / Segment 1 2 3 4 5 6 8 9
A x
B x x
C x x x
D x x x
E x x x
F x x x
G x x x
K x x x
L x x
M x
N
from historical /streams/demo/infrastructure/itime
group by timeStamp window of 5 minutes every 5 minutes fill last, alpha
select alpha, timeStamp, last(a) as la
partition every 1 hour as implicit

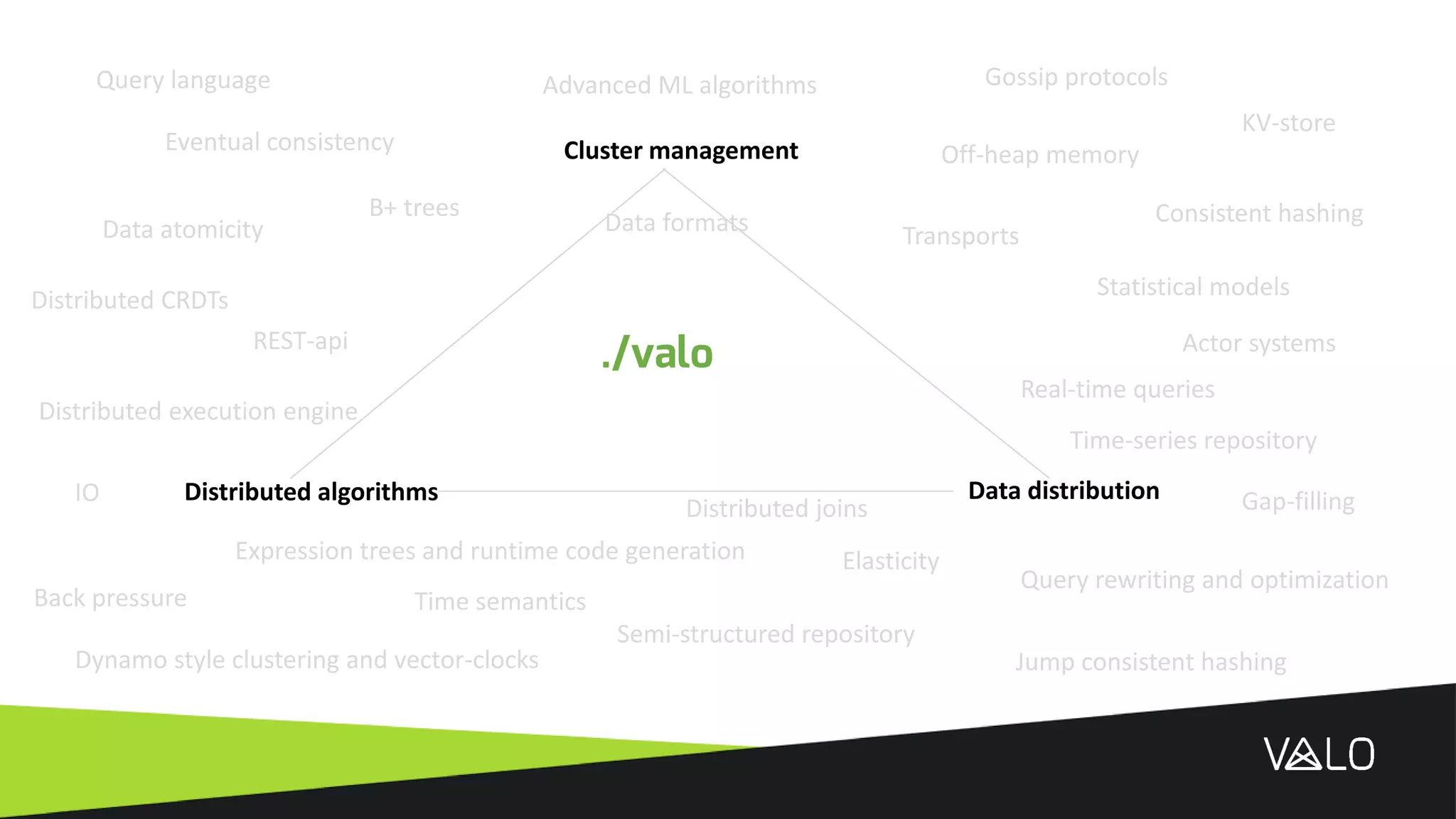

27. Dynamo style clustering and vector-clocks
Eventual consistency
Gossip protocols
Distributed algorithms
Distributed execution engine
Expression trees and runtime code generation
Query rewriting and optimization
Consistent hashing
Time-series repository
Semi-structured repository
Data atomicity
Back pressure
Elasticity
Advanced ML algorithms
IO
Actor systems
Data distribution
Cluster management
B+ trees
Query language
KV-store
REST-api
Jump consistent hashing
Off-heap memory
Data formats
Distributed joins
Time semantics
Gap-filling
Statistical modelsDistributed CRDTs
Transports
Real-time queries
./valo

28. www.valo.io
Thank you
Meet us at the Startup Area
tobias@valo.io
@ntjohansson

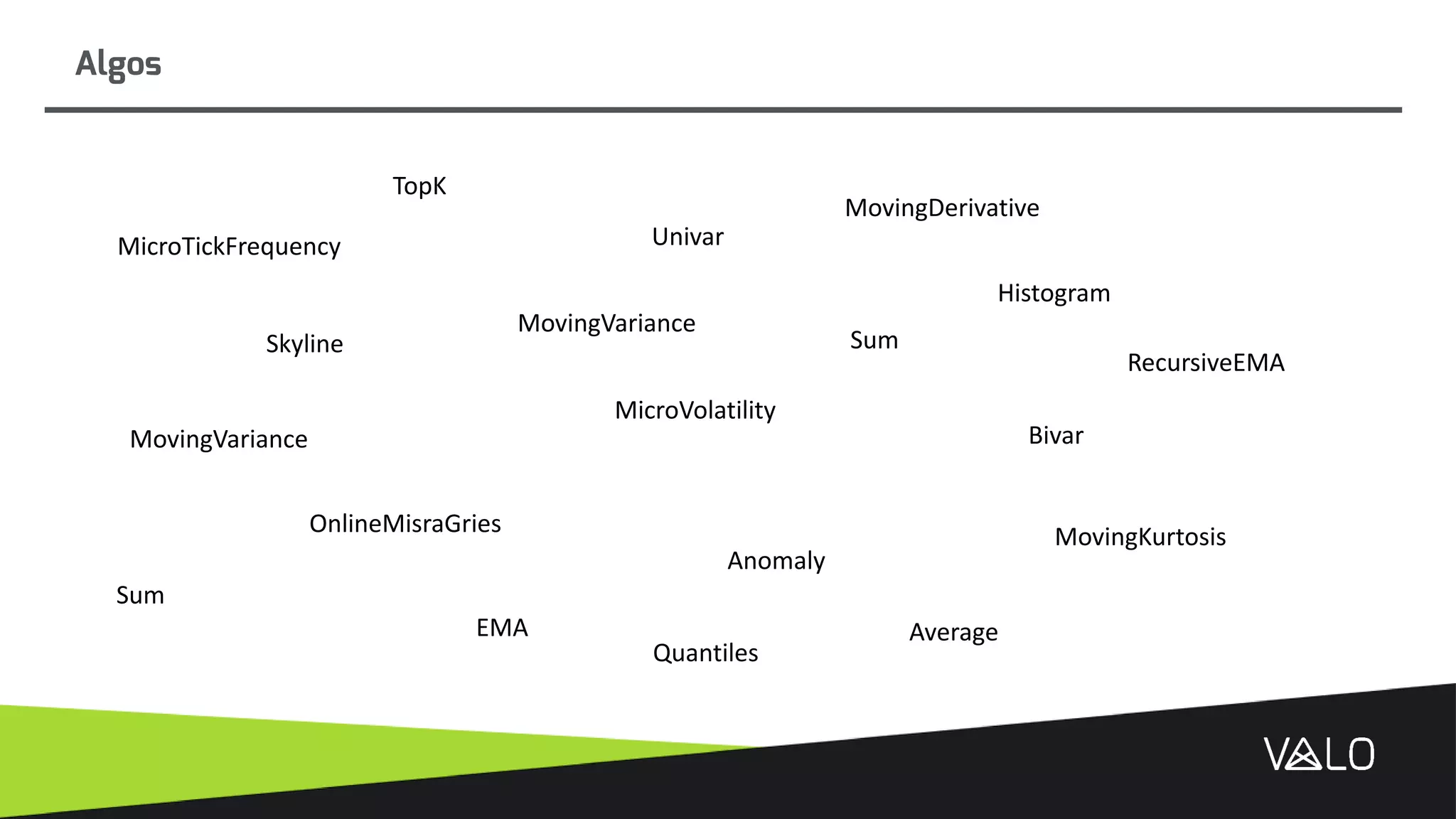

29. Algos
MicroTickFrequency
MicroVolatility
OnlineMisraGries
Anomaly
Histogram
Bivar
Univar
Skyline
EMA
MovingKurtosis
MovingDerivative
RecursiveEMA
MovingVariance
MovingVariance
Average
Sum
Sum
TopK
Quantiles

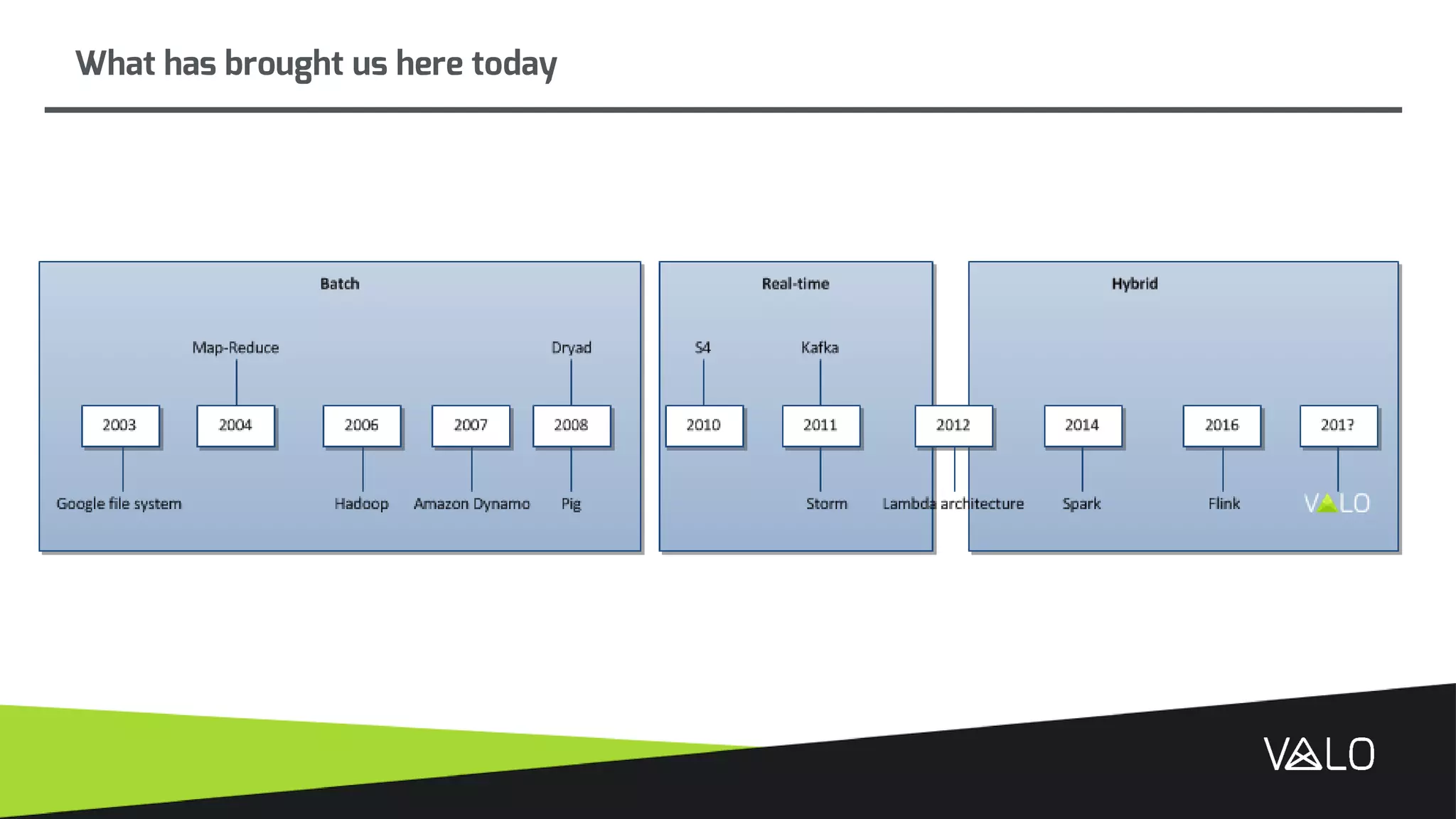

30. What has brought us here today
