1. Eclipse workshop
Jan. 2014

2. • Miguel Pardal
– LEIC 2000
– Lecturer at Técnico Lisboa
– PhD Student
– http://web.tecnico.ulisboa.pt/miguel.pardal
– Eclipse user since 2005
– Conditional fan 

3. Goal
•
•
•
•
Learn the good
Avoid the bad
Become a better developer
Enjoy life!

4. Outline
• Introduction
– Concepts
– Techniques
• Hands-on

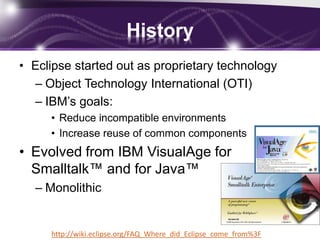

5. History
• Eclipse started out as proprietary technology
– Object Technology International (OTI)
– IBM’s goals:
• Reduce incompatible environments
• Increase reuse of common components
• Evolved from IBM VisualAge for
Smalltalk™ and for Java™
– Monolithic
http://wiki.eclipse.org/FAQ_Where_did_Eclipse_come_from%3F

6. History
• The Eclipse open source project was announced in November
2001 by a group of companies that formed the initial Eclipse
Consortium
– Eclipse Foundation since 2004
• Commercial-friendly open source license
– Wider audience and ecosystem
• Eclipse was designed from the ground up as an integration
platform for development tools
–
–
–
–
Everything in Eclipse is a plug-in
Uses SWT to bind to local platform GUI
OSGi component model since 3.0
Annual Simultaneous Release (…, Indigo, Juno, Kepler, …)

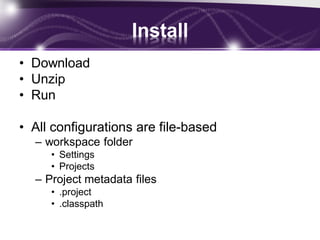

7. Install
• Download
• Unzip
• Run
• All configurations are file-based
– workspace folder
• Settings
• Projects
– Project metadata files
• .project
• .classpath

8. CONCEPTS

9. Workbench
• Eclipse’s main window
– Menus and toolbars
– Views, editors, perspectives

10. View
• A view is a window that lets you examine
something
– Navigate a list or hierarchy of information
– Display properties for the active editor
• Modifications made in a view are saved
immediately.

11. Editor
• Editors are used to edit or browse a
resource
– Rectangular area in the Workbench window
– Visual presentation might be text or a
diagram.
– Editors are launched by clicking on a resource
in a view
– Modifications made in an editor follow an
open-save-close lifecycle model
• * indicates unsaved data

13. Perspective
• A perspective is a set of views, editors, and
toolbars, along with their arrangement within the
Workbench window.
• As you perform a task, you may rearrange windows,
new views, and so on.
– Saved under the current perspective.
– Next time, switch to perspective
– Within a window, each perspective may have a
different set of views but all perspectives share
the same set of editors.
• Built-in Java or Debug perspectives

16. Java Project

17. Project properties

18. Project properties

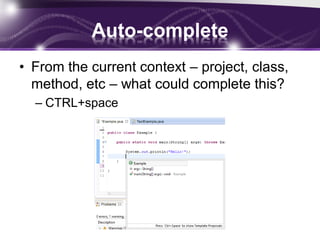

19. Auto-complete
• From the current context – project, class,
method, etc – what could complete this?
– CTRL+space

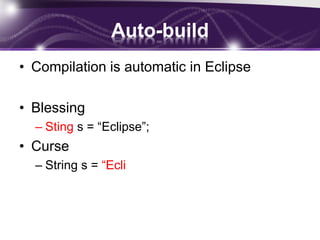

20. Auto-build
• Compilation is automatic in Eclipse
• Blessing
– Sting s = “Eclipse”;
• Curse
– String s = “Ecli

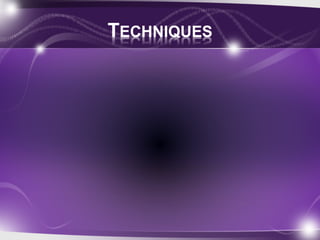

21. TECHNIQUES

22. Factoring
• Create the application domain
• Create class
– Members
– Methods
• Generate methods
– Getters Setters
– toString

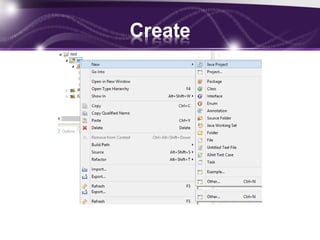

23. Create

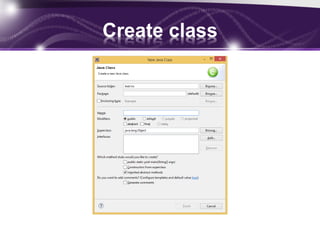

24. Create class

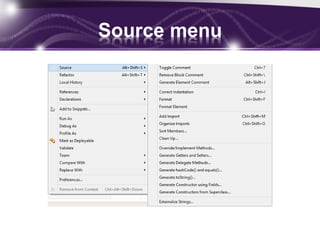

25. Source menu

26. Testing
• JUnit Class
• JUnit View

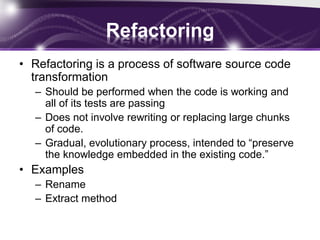

27. Refactoring
• Refactoring is a process of software source code
transformation
– Should be performed when the code is working and
all of its tests are passing
– Does not involve rewriting or replacing large chunks
of code.
– Gradual, evolutionary process, intended to “preserve
the knowledge embedded in the existing code.”
• Examples
– Rename
– Extract method

28. Refactor menu

29. Quick fix errors

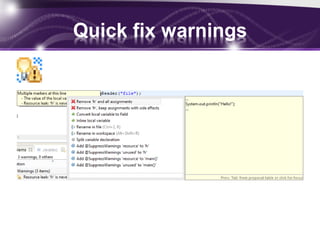

30. Quick fix warnings

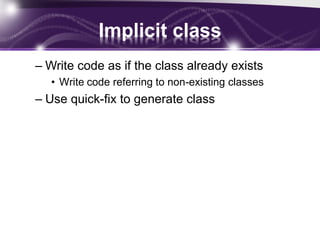

31. Implicit class
– Write code as if the class already exists
• Write code referring to non-existing classes
– Use quick-fix to generate class

32. But beware…
• Quick-fix can become “quick-bug”
• Example
– Try-catch and ignore
• Worst solution
– Try-catch, print and continue
• As if nothing has happened… but it did!
– Think it through:
• Handle exception (try-catch)
• Or let someone else do it (throws)

33. Conclusions
• Very useful tool
• Can increase productivity
– Code formatting
– Especially in refactoring
• But…
– Does NOT replace critical thought and design
– Can increase the production… of bugs!

34. Looking ahead…
• Questions?
– Concepts
– Techniques
Miguel.Pardal@tecnico.ulisboa.pt
Thank you
Obrigado

35. Shortcuts
Top 10

36. 10. Shortcut to shortcuts
• Ctrl+Shift+L to see a full list of the
currently available key bindings

37. 9. Open file / type
• Open file quickly without browsing:
Ctrl + Shift + R
• Open a type (class / interface):
Ctrl + Shift + T

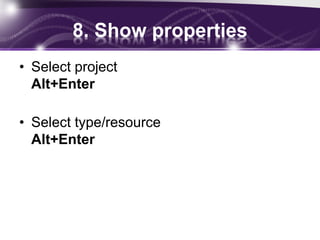

38. 8. Show properties
• Select project
Alt+Enter
• Select type/resource
Alt+Enter

39. 7. Maximize editor
• Maximizes current editor
Ctrl + M
• You can also double-click editor tab

40. 6. Editor navigation
•
Jump to beginning / end of indention. Twice to jump to beginning of line
– Home/End
•
Jump to beginning / jump to end of source
– Ctrl+Home/End
•
Jump one word to the left / one word to the right
– Ctrl+Arrow Right/Arrow Left
•
Jump to previous / jump to next method
– Ctrl+Shift+Arrow Down/Arrow Up
•
Jump to next / jump to previous compiler syntax warning or error
– Ctrl+./Ctrl+,
•
Jump to last location edited
– Ctrl+q
•
Jump to Line Number
– Ctrl+l
•
Hide/show line numbers
– Ctrl+F10 and select 'Show Line Numbers'

41. 5. Outline view
• Quickly go to class member
Ctrl + O

42. 4. Code formatting
• Ctrl + Shift + F for code formatting
• Ctrl + / for commenting, un commenting
lines and blocks

43. 3. Organize imports
• Organize imports
Ctrl+Shift+O
• Go from:
– import java.util.*
• To:
– import java.util.Map;
– import java.util.Iterator;

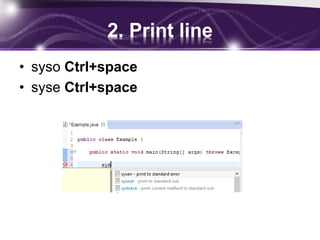

44. 2. Print line
• syso Ctrl+space
• syse Ctrl+space

45. 1. Guess Exception
• throw new NPE Ctrl+space
– NullPointerException
• throw new IAE Ctrl+space
– IllegalArgumentException
