The document discusses Eclipse RCP applications and provides an overview of the Eclipse architecture. It outlines the agenda which includes discussing the Eclipse architecture, Eclipse plugins and RCP applications, dependency injection, and taking advantage of other Eclipse building blocks like GEF and EMF. The presentation then dives into more details on the architecture of Eclipse, the Eclipse platform, commands and handlers, and reusing Eclipse frameworks. It demonstrates an RCP demo application and a GEF4 MVC example. Links are also provided for additional resources.

1. Eclipse RCP
Applications
Central California Java User Group
02/12/2016, Bitwise South Stadium, Fresno, CA
Csaba Toth

2. About me
 Csaba Toth csaba.toth.us@gmail.com,@tocsa2
 LinkedIn: http://www.linkedin.com/in/csabatothdev
 Polyglot full-stack developer (C++, Java, C#, Python)
 Full time remote developer of SportsBoard (WestShore Tech is
located in Sausalito, CA), living in Fresno, CA
 Plus has a consulting company
 Co-founder of Nashville JUG
 Founder of Central California JUG

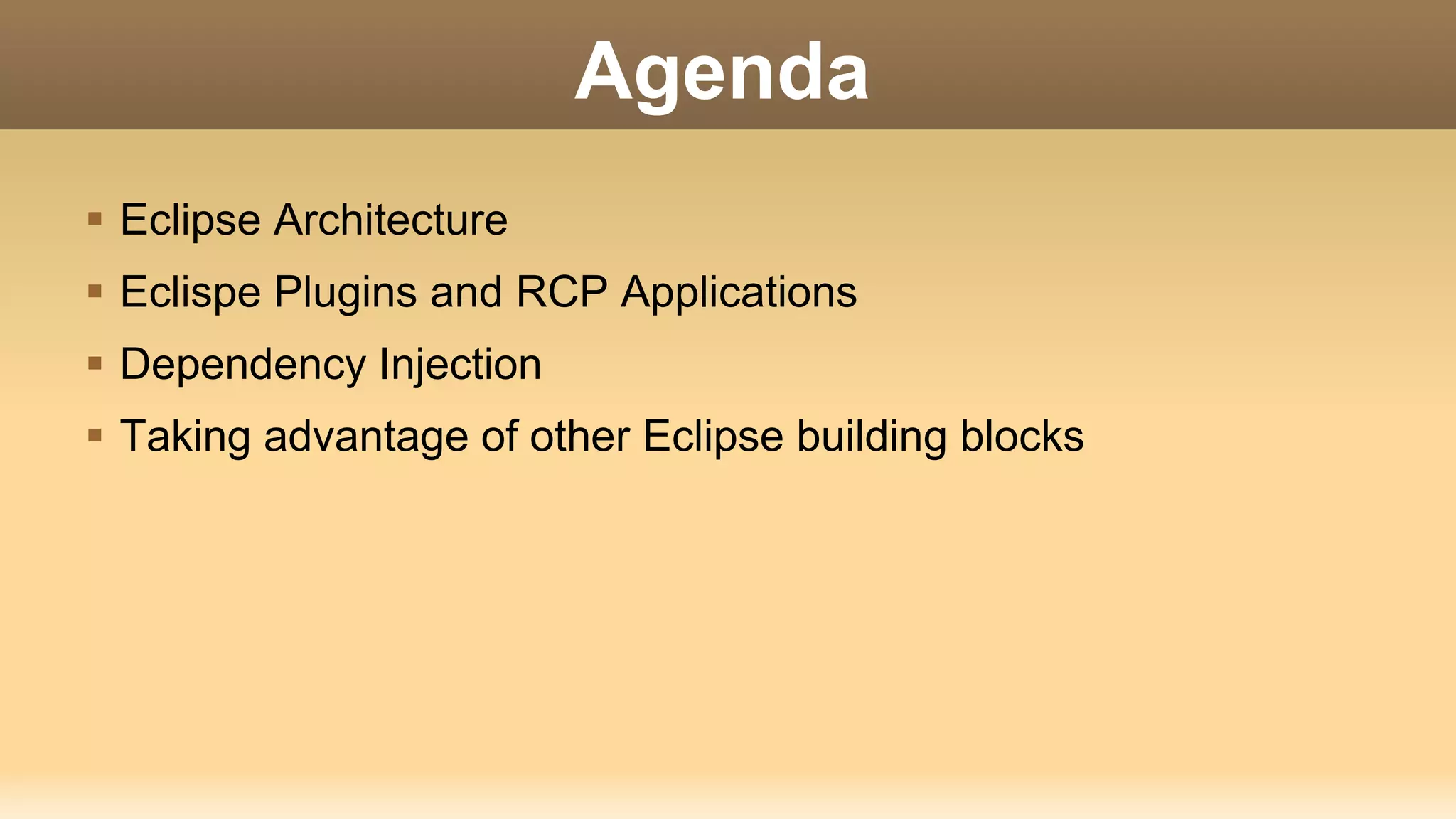

3. Agenda
 Eclipse Architecture
 Eclispe Plugins and RCP Applications
 Dependency Injection
 Taking advantage of other Eclipse building blocks

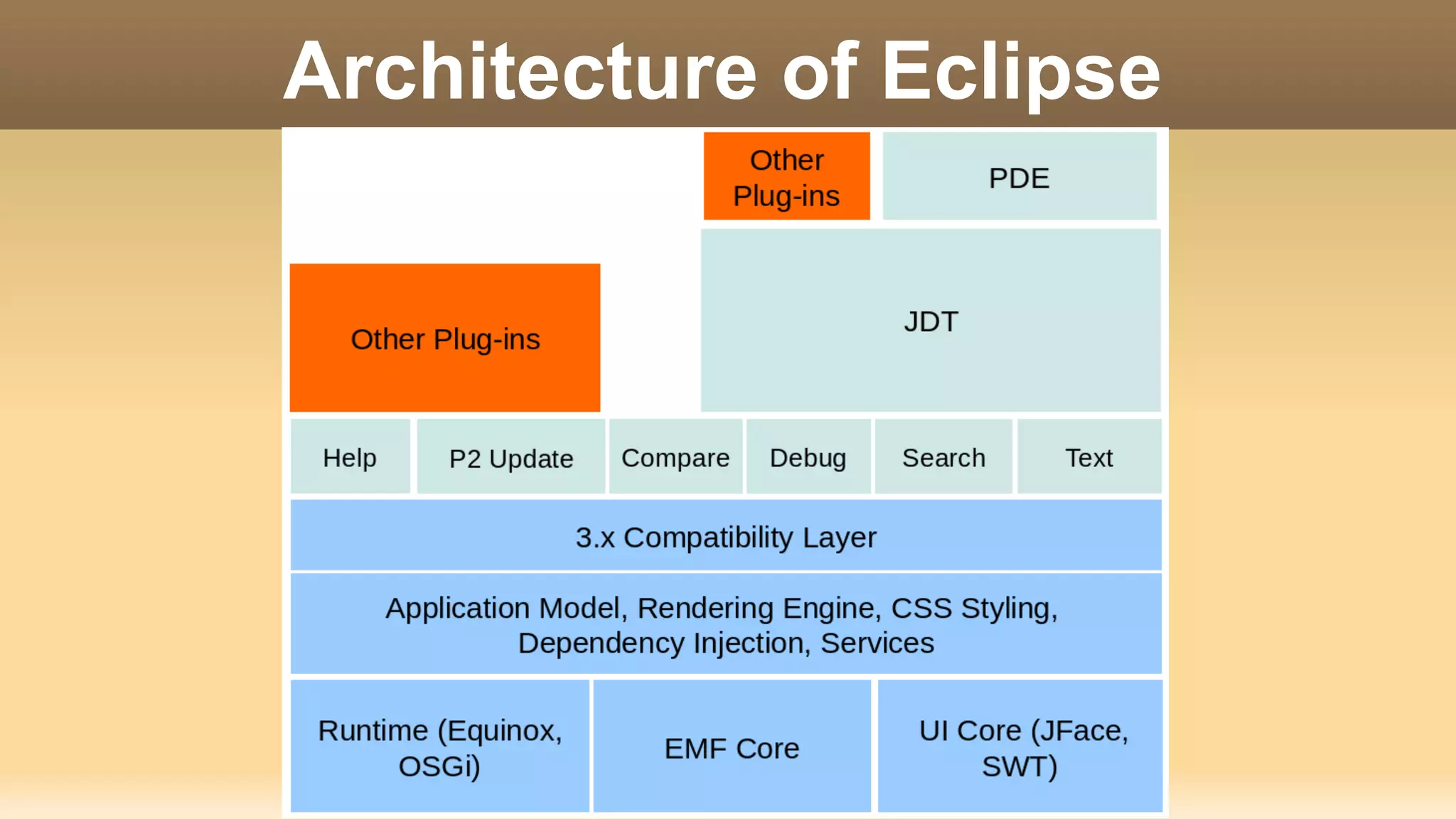

4. Architecture of Eclipse

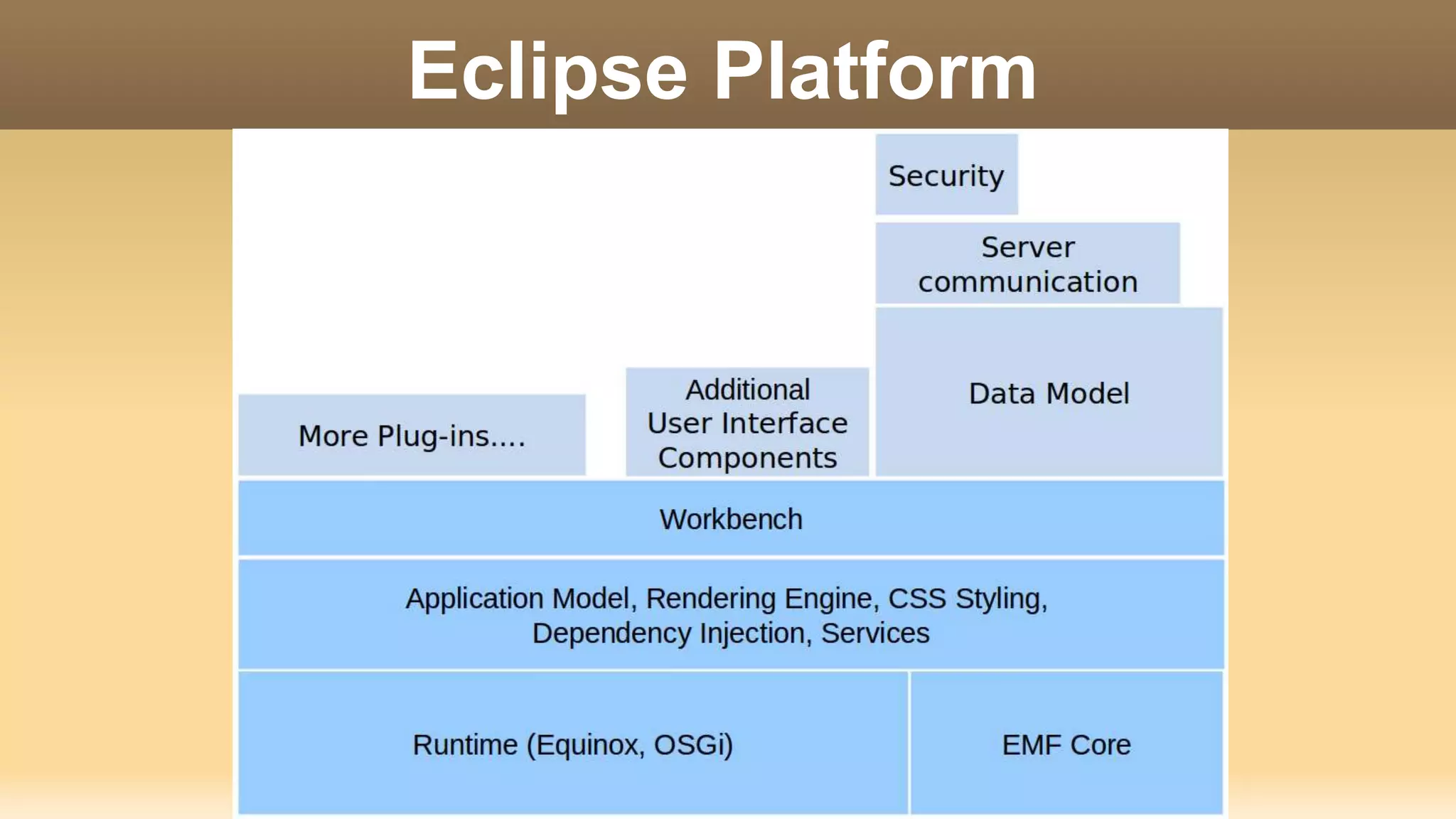

5. Eclipse Platform

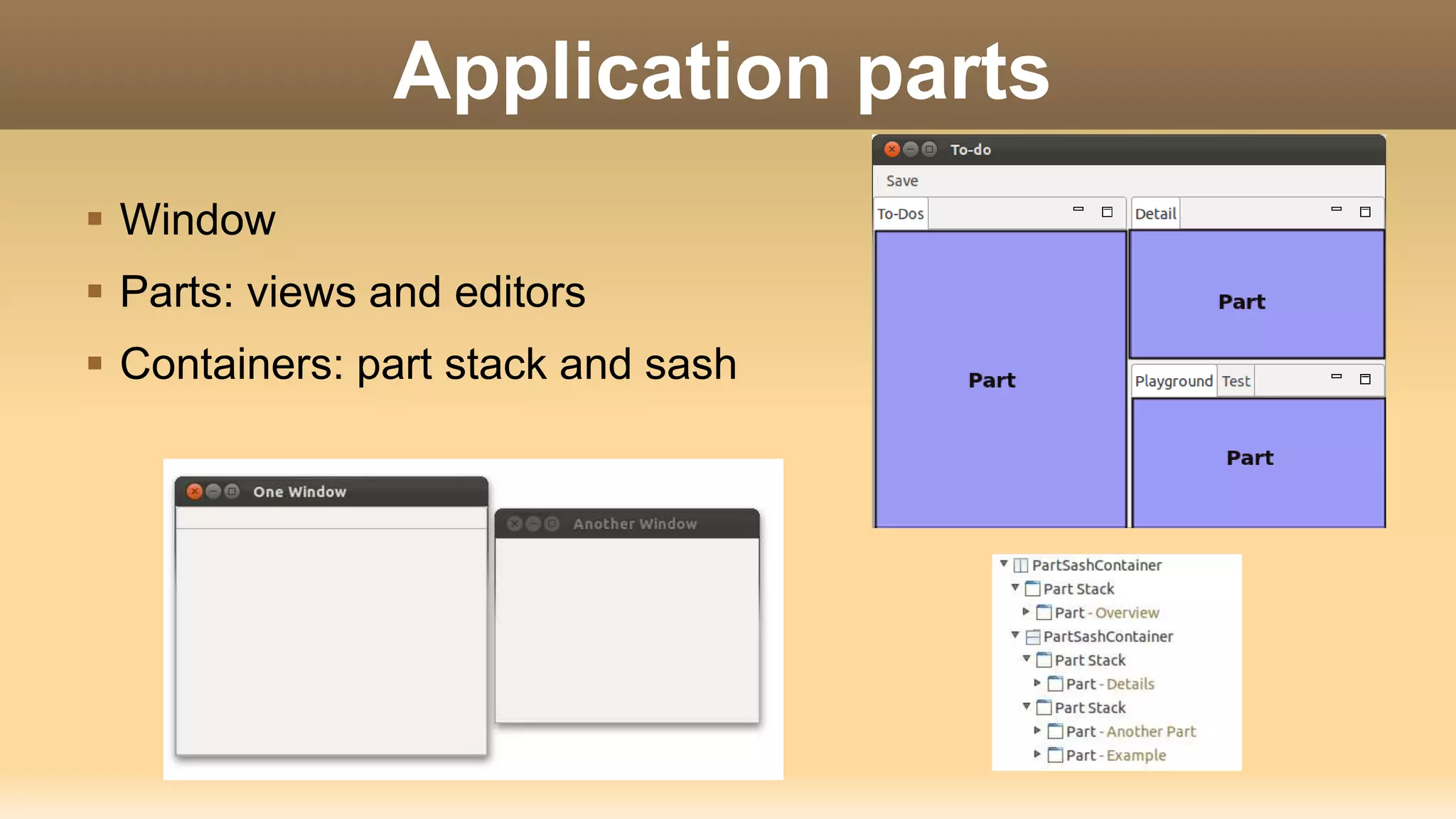

6.  Window
 Parts: views and editors
 Containers: part stack and sash
Application parts

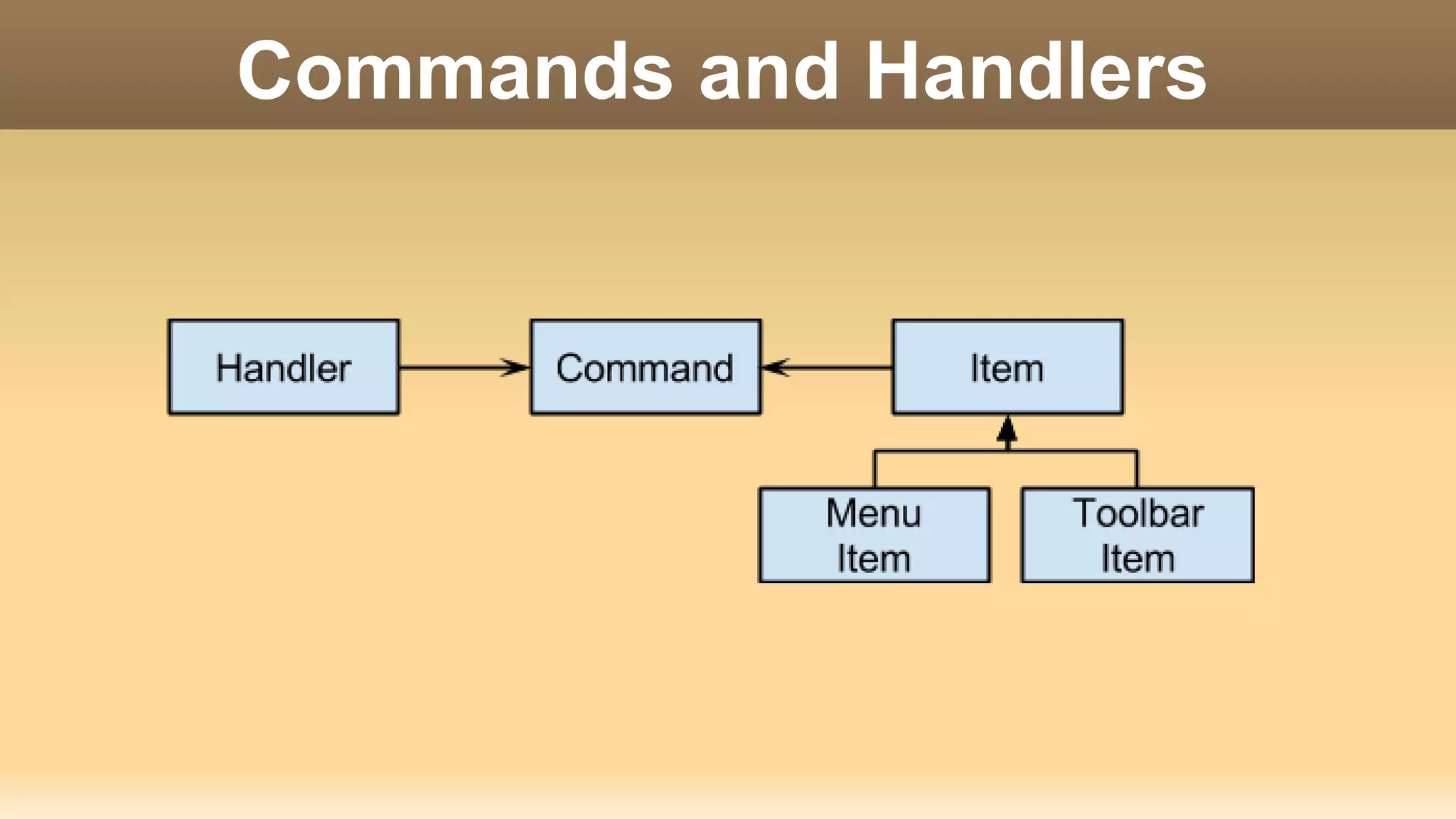

7. Commands and Handlers

8. Reusing Eclipse Frameworks
 GEF (Graphical Editing Framework) / GEF4
 EMF (Eclipse Modeling Framework)
 Demo: GEF4 MVC Example, JavaFX UI

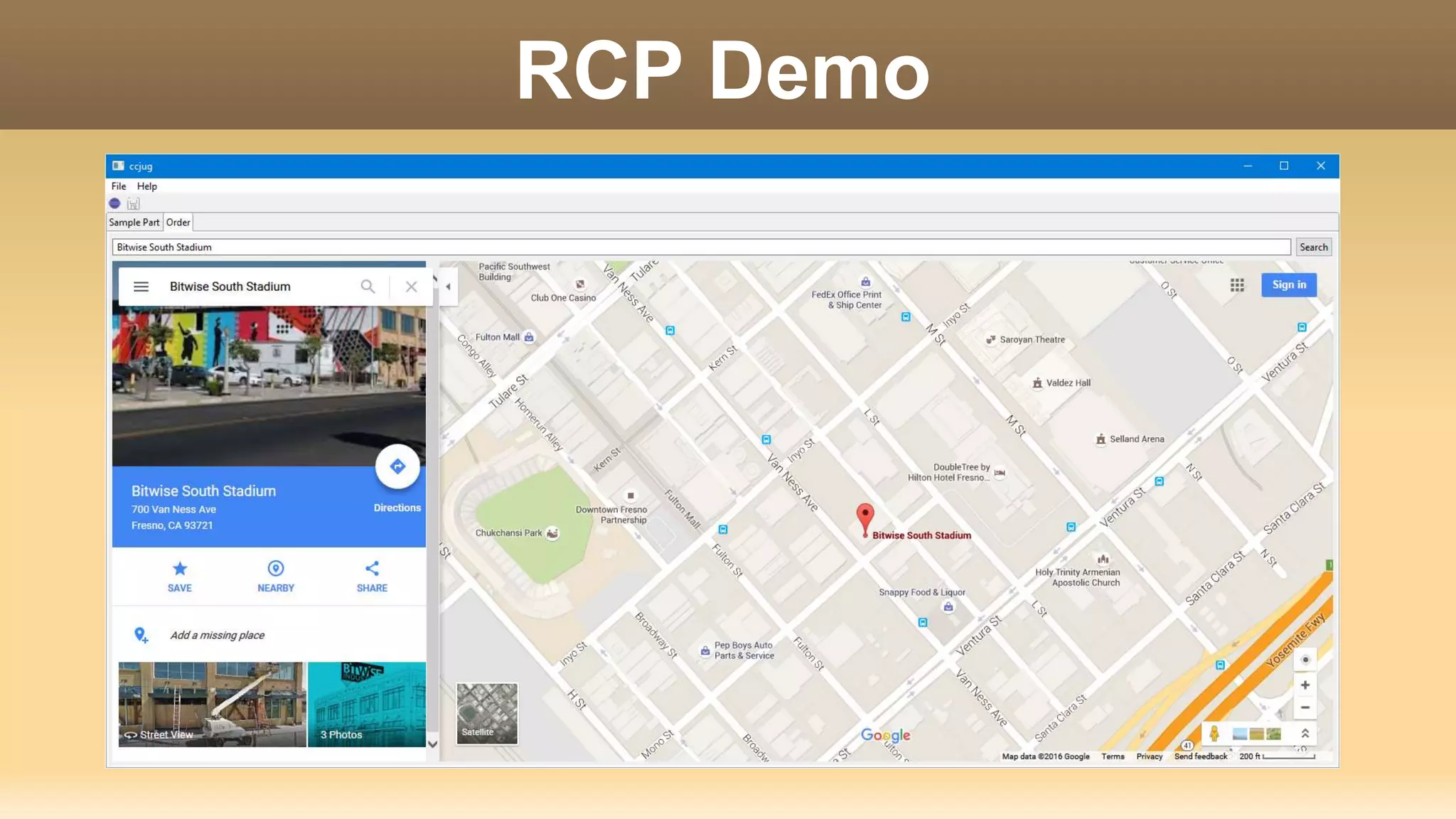

9. RCP Demo

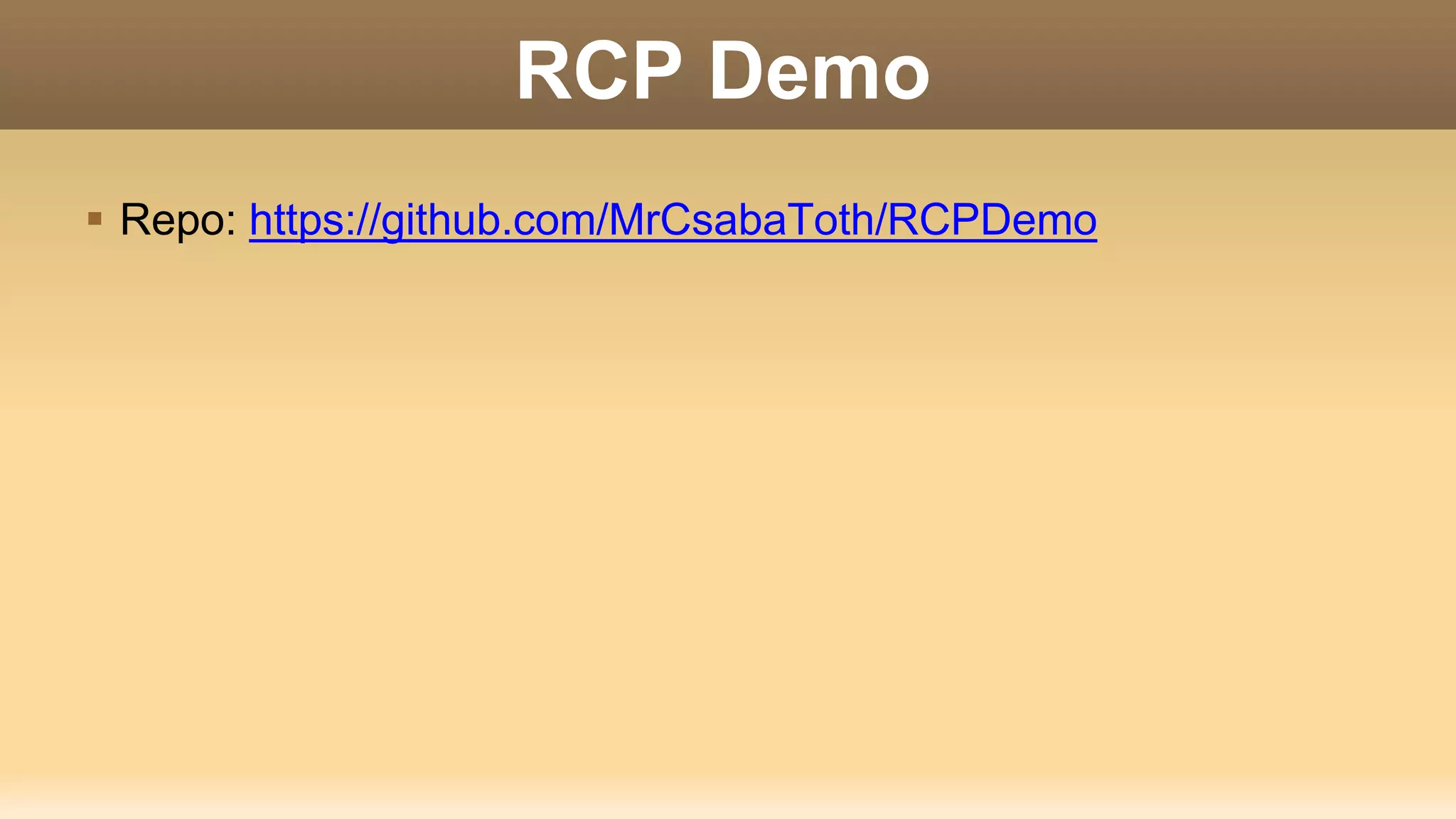

10. RCP Demo
 Repo: https://github.com/MrCsabaToth/RCPDemo

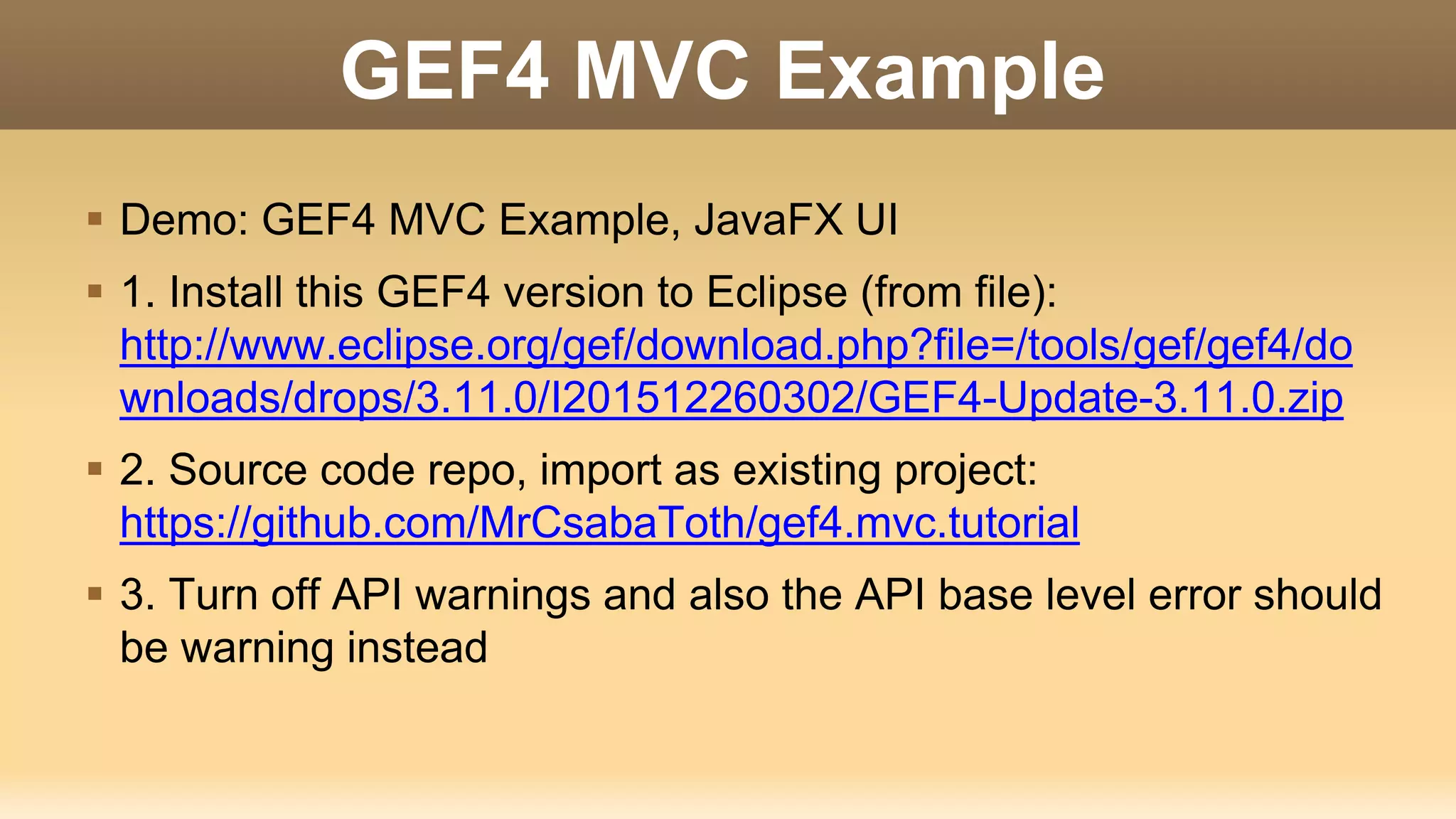

11. GEF4 MVC Example
 Demo: GEF4 MVC Example, JavaFX UI
 1. Install this GEF4 version to Eclipse (from file):
http://www.eclipse.org/gef/download.php?file=/tools/gef/gef4/do
wnloads/drops/3.11.0/I201512260302/GEF4-Update-3.11.0.zip
 2. Source code repo, import as existing project:
https://github.com/MrCsabaToth/gef4.mvc.tutorial
 3. Turn off API warnings and also the API base level error should
be warning instead

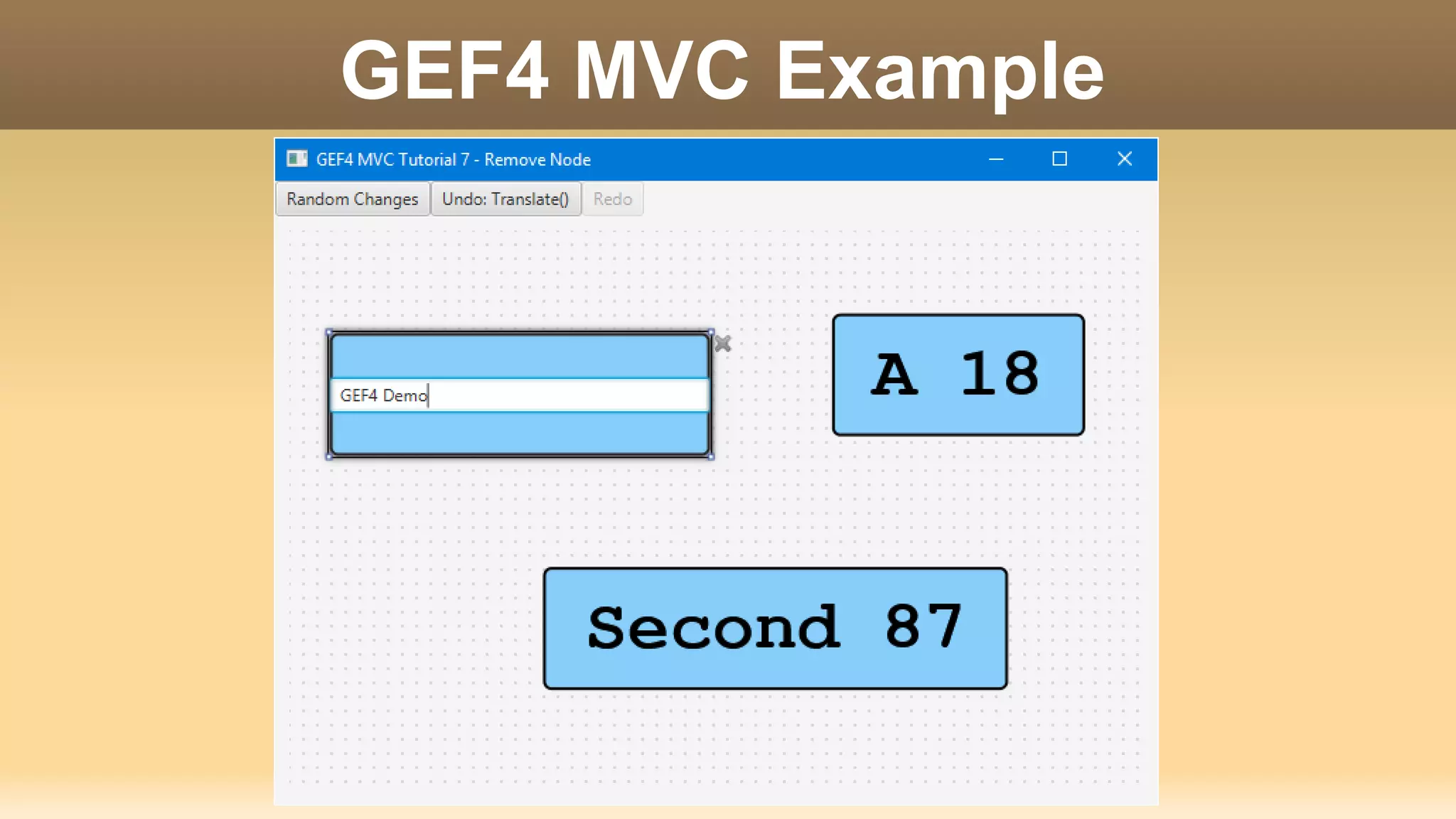

12. GEF4 MVC Example

13. Thanks for listening
 Questions?
 Csaba Toth
 Download: http://www.slideshare.net/tothc
 http://www.linkedin.com/in/csabatothdev

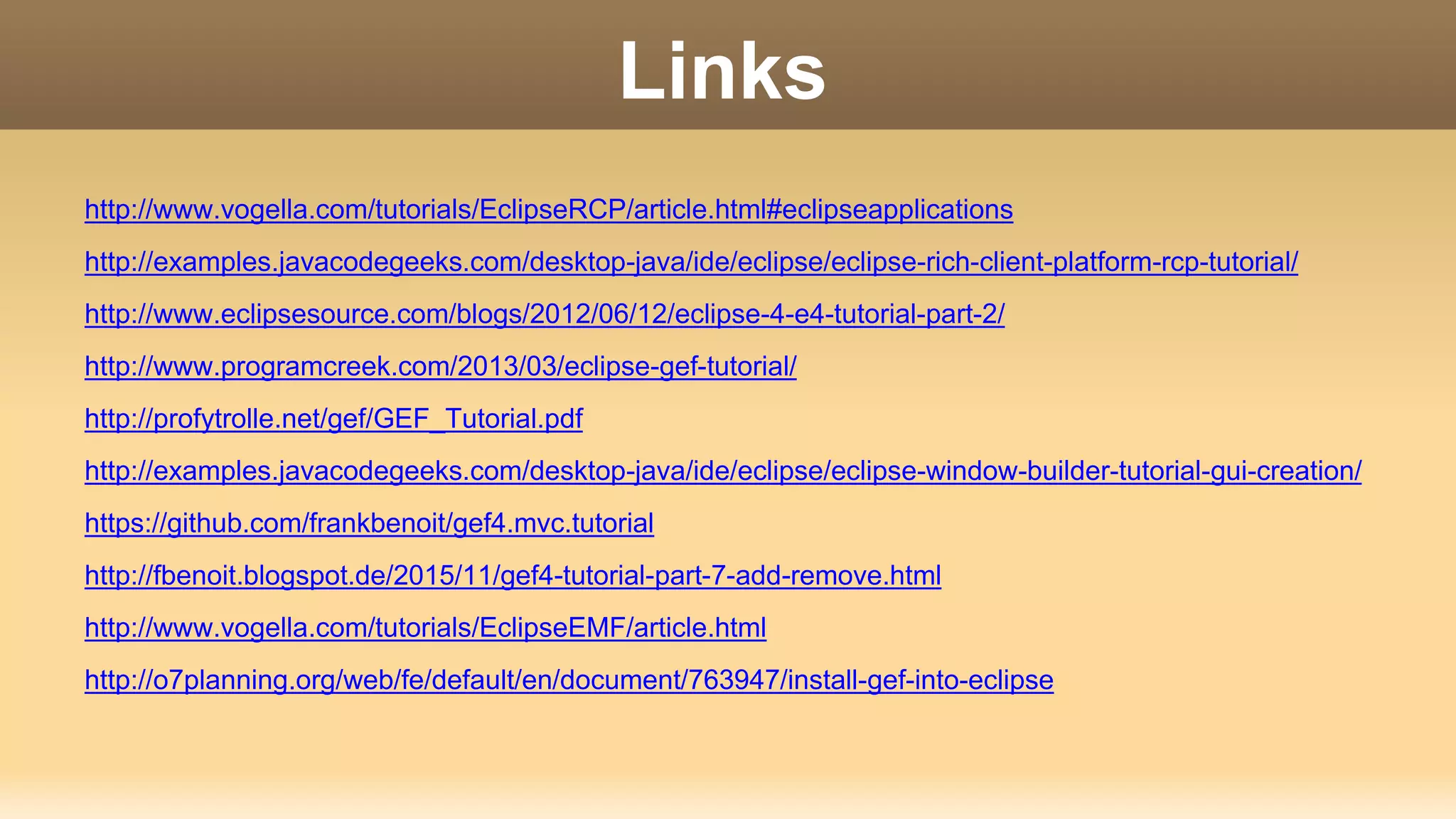

14. Links
http://www.vogella.com/tutorials/EclipseRCP/article.html#eclipseapplications
http://examples.javacodegeeks.com/desktop-java/ide/eclipse/eclipse-rich-client-platform-rcp-tutorial/
http://www.eclipsesource.com/blogs/2012/06/12/eclipse-4-e4-tutorial-part-2/
http://www.programcreek.com/2013/03/eclipse-gef-tutorial/
http://profytrolle.net/gef/GEF_Tutorial.pdf
http://examples.javacodegeeks.com/desktop-java/ide/eclipse/eclipse-window-builder-tutorial-gui-creation/
https://github.com/frankbenoit/gef4.mvc.tutorial
http://fbenoit.blogspot.de/2015/11/gef4-tutorial-part-7-add-remove.html
http://www.vogella.com/tutorials/EclipseEMF/article.html
http://o7planning.org/web/fe/default/en/document/763947/install-gef-into-eclipse
