Wuff is a set of Gradle plugins for building Eclipse applications and plugins. It supports building OSGi bundles, Equinox applications, RCP applications, IDE applications, features, and repositories. Wuff handles OSGi configuration, dependencies, launching applications, and building platform-specific products. Upcoming versions will improve control over manifest and plugin.xml generation and add IDE integration. Wuff aims to simplify building Eclipse plugins and applications with Gradle.

1. WUFF
Building Eclipse Applications and Plugins
with Gradle
Gradle Summit 2015
Andrey Hihlovskiy

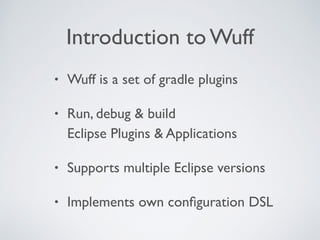

2. Introduction to Wuff
• Wuff is a set of gradle plugins
• Run, debug & build
Eclipse Plugins & Applications
• Supports multiple Eclipse versions
• Implements own configuration DSL

3. History: 2009
Bunch of non-automated Eclipse Plugins

4. History: 2011
Move to Eclipse Tycho

5. History: 2014
Started development of Wuff

6. OSGi challenges
• Duplicate dependencies: OSGi and Maven?
• From where to get these OSGi dependencies?
• No transitive dependencies?
• How to include non-OSGi libraries?

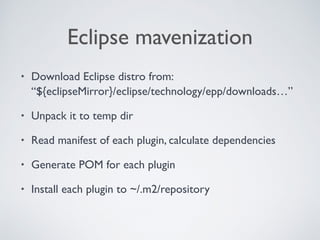

7. Eclipse mavenization
• Download Eclipse distro from:
“${eclipseMirror}/eclipse/technology/epp/downloads…”
• Unpack it to temp dir
• Read manifest of each plugin, calculate dependencies
• Generate POM for each plugin
• Install each plugin to ~/.m2/repository

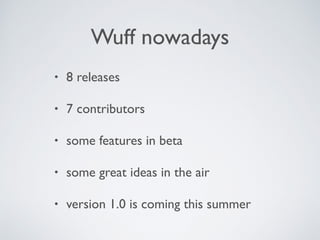

8. Wuff nowadays
• 8 releases
• 7 contributors
• some features in beta
• some great ideas in the air
• version 1.0 is coming this summer

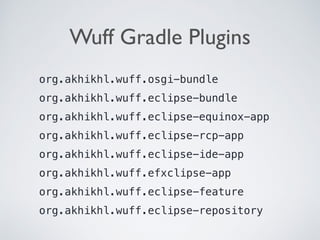

9. Wuff Gradle Plugins
org.akhikhl.wuff.osgi-bundle
org.akhikhl.wuff.eclipse-bundle
org.akhikhl.wuff.eclipse-equinox-app
org.akhikhl.wuff.eclipse-rcp-app
org.akhikhl.wuff.eclipse-ide-app
org.akhikhl.wuff.efxclipse-app
org.akhikhl.wuff.eclipse-feature
org.akhikhl.wuff.eclipse-repository

10. Wuff tasks
# equinox-app, rcp-app, efxclipse-app
gradle scaffold
# rcp-app, ide-app, efxclipse-app
gradle run
# rcp-app, ide-app, efxclipse-app
gradle debug
# bundle, p2-repo, equinox-app,
# rcp-app, ide-app, efxclipse-app
gradle build

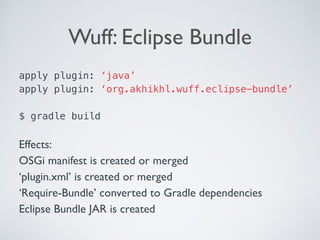

11. Wuff: Eclipse Bundle
apply plugin: ‘java’
apply plugin: ‘org.akhikhl.wuff.eclipse-bundle’
$ gradle build
Effects:
OSGi manifest is created or merged
‘plugin.xml’ is created or merged
‘Require-Bundle’ converted to Gradle dependencies
Eclipse Bundle JAR is created

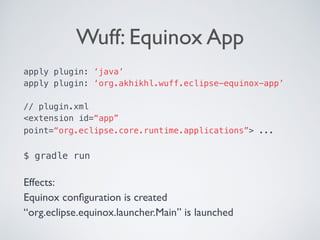

12. Wuff: Equinox App
apply plugin: ‘java’
apply plugin: ‘org.akhikhl.wuff.eclipse-equinox-app’
// plugin.xml
<extension id=“app”
point=“org.eclipse.core.runtime.applications”> ...
$ gradle run
Effects:
Equinox configuration is created
“org.eclipse.equinox.launcher.Main” is launched

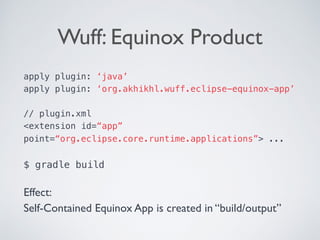

13. Wuff: Equinox Product
apply plugin: ‘java’
apply plugin: ‘org.akhikhl.wuff.eclipse-equinox-app’
// plugin.xml
<extension id=“app”
point=“org.eclipse.core.runtime.applications”> ...
$ gradle build
Effect:
Self-Contained Equinox App is created in “build/output”

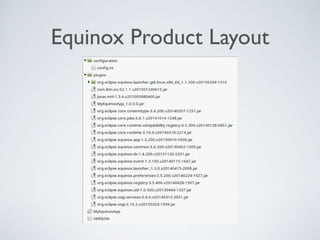

14. Equinox Product Layout

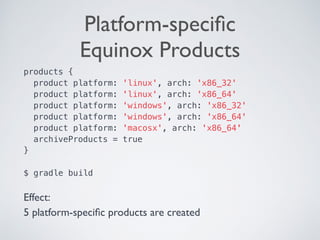

15. Platform-specific
Equinox Products
products {
product platform: 'linux', arch: 'x86_32'
product platform: 'linux', arch: 'x86_64'
product platform: 'windows', arch: 'x86_32'
product platform: 'windows', arch: 'x86_64'
product platform: 'macosx', arch: 'x86_64'
archiveProducts = true
}
$ gradle build
Effect:
5 platform-specific products are created

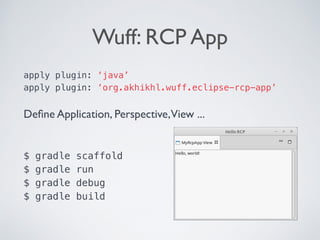

16. Wuff: RCP App
apply plugin: ‘java’
apply plugin: ‘org.akhikhl.wuff.eclipse-rcp-app’
Define Application, Perspective,View ...
$ gradle scaffold
$ gradle run
$ gradle debug
$ gradle build

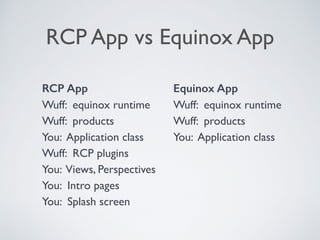

17. RCP App vs Equinox App
Equinox App
Wuff: equinox runtime
Wuff: products
You: Application class
RCP App
Wuff: equinox runtime
Wuff: products
You: Application class
Wuff: RCP plugins
You: Views, Perspectives
You: Intro pages
You: Splash screen

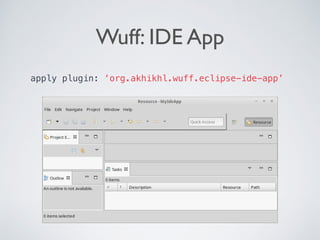

18. Wuff: IDE App
apply plugin: ‘org.akhikhl.wuff.eclipse-ide-app’

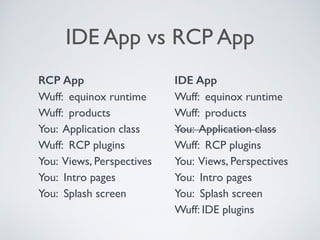

19. IDE App vs RCP App
RCP App
Wuff: equinox runtime
Wuff: products
You: Application class
Wuff: RCP plugins
You: Views, Perspectives
You: Intro pages
You: Splash screen
IDE App
Wuff: equinox runtime
Wuff: products
You: Application class
Wuff: RCP plugins
You: Views, Perspectives
You: Intro pages
You: Splash screen
Wuff: IDE plugins

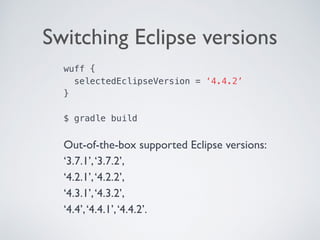

20. Switching Eclipse versions
wuff {
selectedEclipseVersion = ‘4.4.2’
}
$ gradle build
Out-of-the-box supported Eclipse versions:
‘3.7.1’,‘3.7.2’,
‘4.2.1’,‘4.2.2’,
‘4.3.1’,‘4.3.2’,
‘4.4’,‘4.4.1’,‘4.4.2’.

21. Defining Eclipse version
wuff {
eclipseVersion(‘myVersion’) {
eclipseMavenGroup = ‘myGroup’
sources {
source ‘http://...’
}
}
selectedEclipseVersion = ‘myVersion’
}

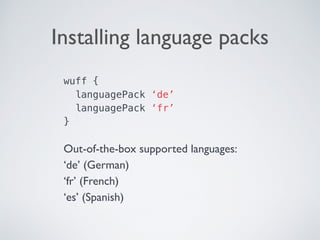

22. Installing language packs
wuff {
languagePack ‘de’
languagePack ‘fr’
}
Out-of-the-box supported languages:
‘de’ (German)
‘fr’ (French)
‘es’ (Spanish)

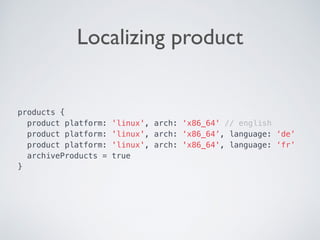

23. Localizing product
products {
product platform: 'linux', arch: ‘x86_64' // english
product platform: 'linux', arch: ‘x86_64’, language: ‘de’
product platform: 'linux', arch: 'x86_64', language: ‘fr’
archiveProducts = true
}

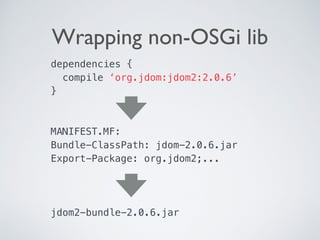

24. Wrapping non-OSGi lib
dependencies {
compile ‘org.jdom:jdom2:2.0.6’
}
MANIFEST.MF:
Bundle-ClassPath: jdom-2.0.6.jar
Export-Package: org.jdom2;...
jdom2-bundle-2.0.6.jar

25. Including non-OSGi lib
dependencies {
privateLib ‘org.jdom:jdom2:2.0.6’
}
MANIFEST.MF:
Bundle-ClassPath: jdom-2.0.6.jar
including bundle

26. Generating Eclipse Features
apply plugin: ‘org.akhikhl.wuff.eclipse-feature’
dependencies {
feature ‘:MyBundle’
feature “$eclipseMavenGroup:org.eclipse.jface:+”
}
feature.xml, MANIFEST.MF
myFeature_1.0.0.jar

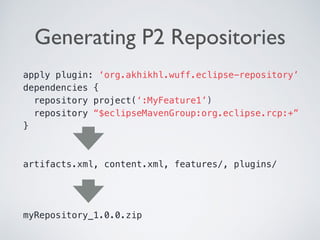

27. Generating P2 Repositories
apply plugin: ‘org.akhikhl.wuff.eclipse-repository’
dependencies {
repository project(‘:MyFeature1’)
repository “$eclipseMavenGroup:org.eclipse.rcp:+”
}
artifacts.xml, content.xml, features/, plugins/
myRepository_1.0.0.zip

28. Wuff: version 1.0 and beyond
• Resolve OSGi bundles
directly from p2 repos
• More control over
manifest and plugin.xml
generation
• IDE integration

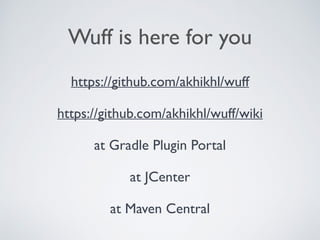

29. Wuff is here for you
https://github.com/akhikhl/wuff
https://github.com/akhikhl/wuff/wiki
at Gradle Plugin Portal
at JCenter
at Maven Central

30. Thanks for listening!
Andrey Hihlovskiy
akhikhl at GitHub
akhikhl@gmail.com
@AndreyHihlovskiy
