The document discusses Eclipse 4.0 and its new application platform. It introduces key building blocks of Eclipse 4.0 like the modeled workbench, rendering engine, declarative styling, and dependency injection. The modeled workbench uses EMF to define the application UI in an XML file rather than code. Renderers then translate the model into actual UI components. Dependency injection simplifies programming by auto-wiring classes with their dependencies. Overall, Eclipse 4.0 aims to make RCP development easier and more visually appealing compared to prior Eclipse platforms.

1. Eclipse 4.0 Application Platform The unexpected simplicity of Eclipse RCP and Eclipse plugin development26. August for JUG SaxonyLars Vogelhttp://www.vogella.de Twitter: @vogella

2. Eclipse 4.0 Application Platform -Agenda What is Eclipse 4.0?Whom does try to help?Building blocks of Eclipse 4.0Q&A

3. What is an Eclipse RCP application?Local running application using the native widget toolkitBased on the Eclipse runtime and technology

4. Your first RCP app in < 10 secs

5. Eclipse e4 ScopeMake developmentfor Eclipseeasier

6. Eclipse e4Eclipse e4 is the incubator project which did produce the Eclipse 4.0 SDK

7. How does Eclipse e4 help me?

8. from Eclipse DeveloperEclipse E4to Eclipse Developer

9. So, what’s wrong with plugin and RCP development in Eclipse 3.X?

10. Eclipse 3.x programming modelComplexLots of APIPlatform functionality via singletons / static methodsNot easy to testNot a consistent way to define the UI

11. Inheritance in Eclipse 3.XObjectEventManagerWorkbenchPartViewPartView

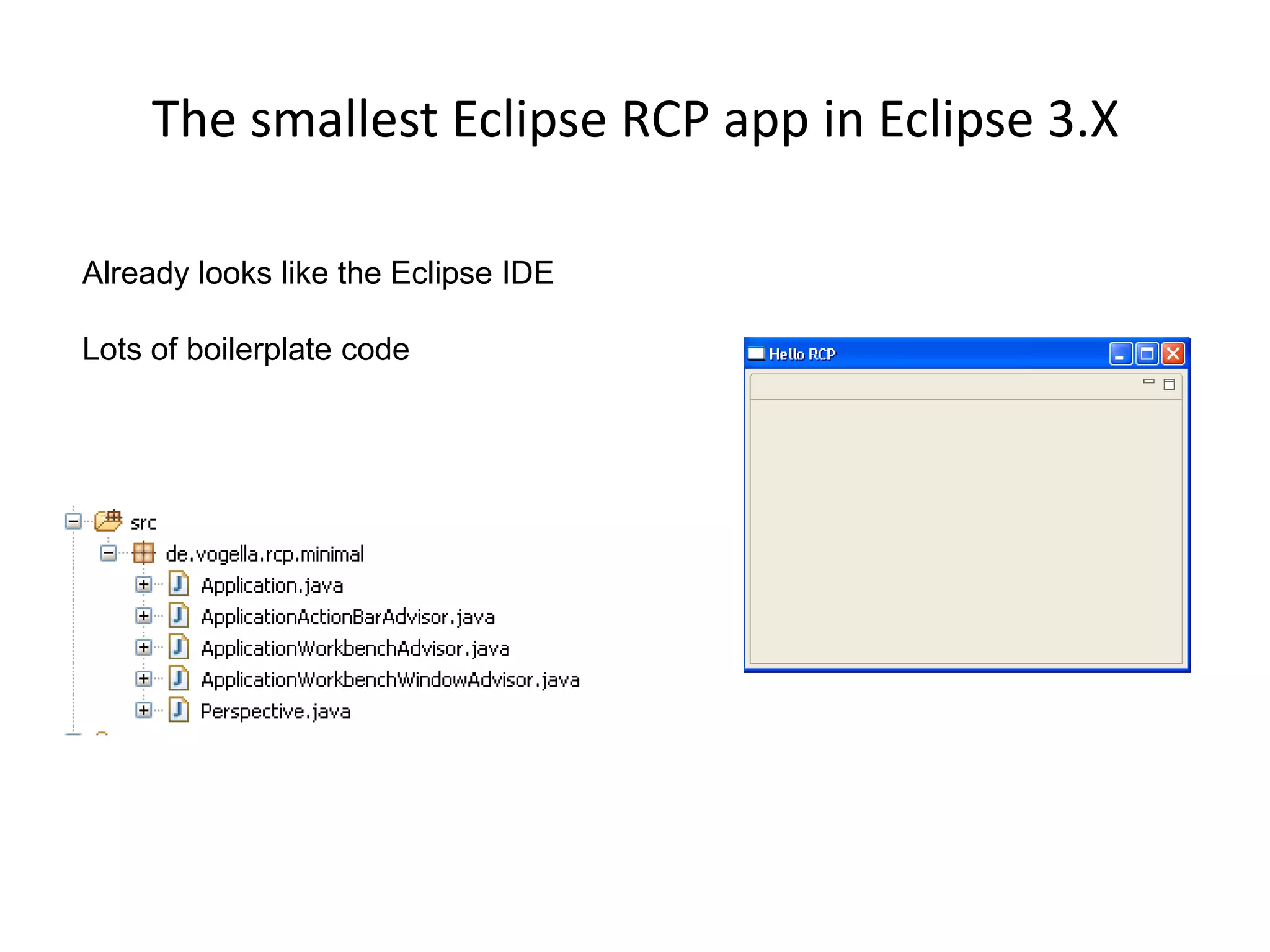

12. The smallest Eclipse RCP app in Eclipse 3.XAlready looks like the Eclipse IDELots of boilerplate code

13. If only Eclipse development would be easier, more visual appealing and easier to test.13

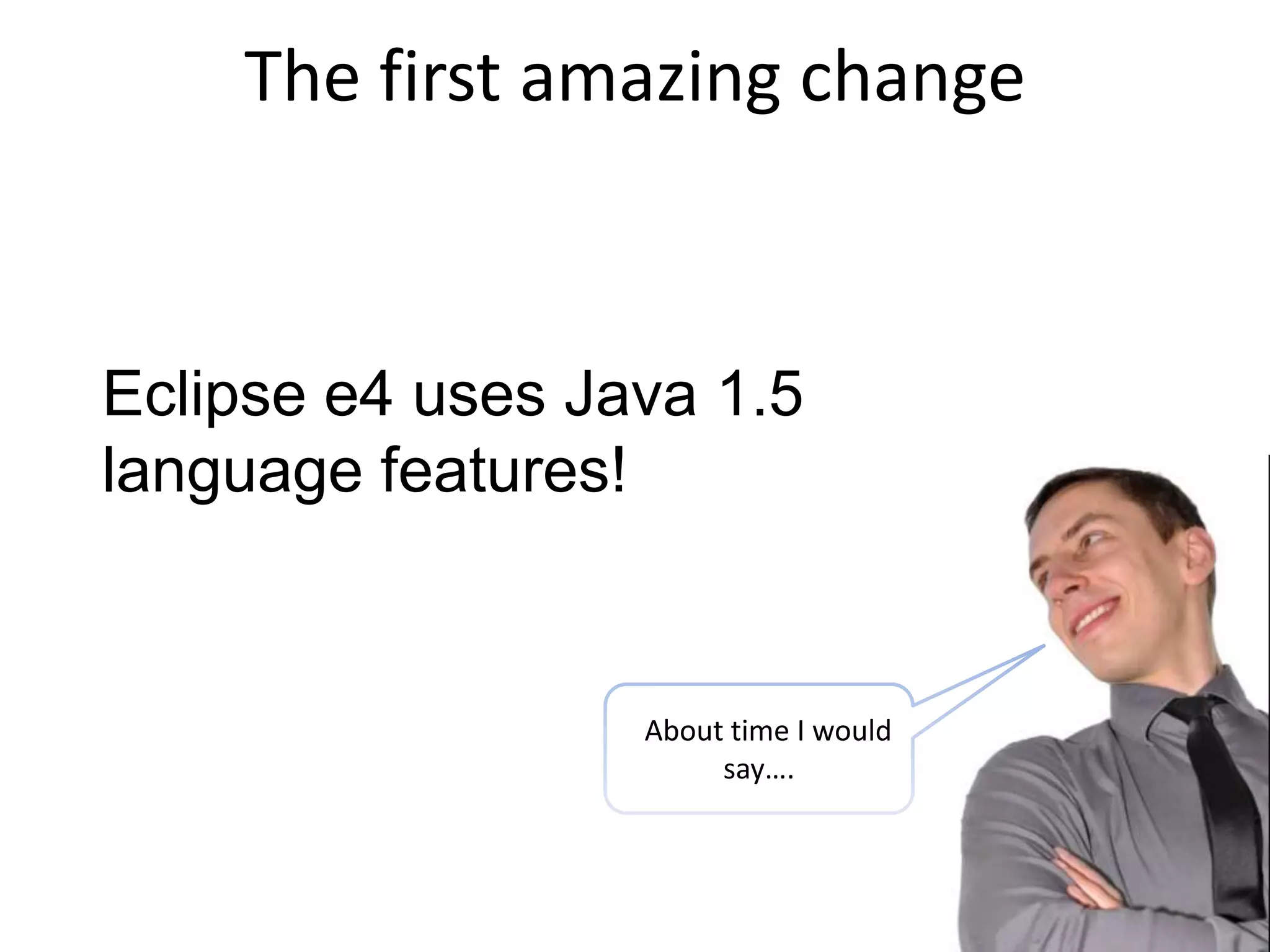

14. The first amazing change Eclipse e4 uses Java 1.5 language features!AAbout time I would say….

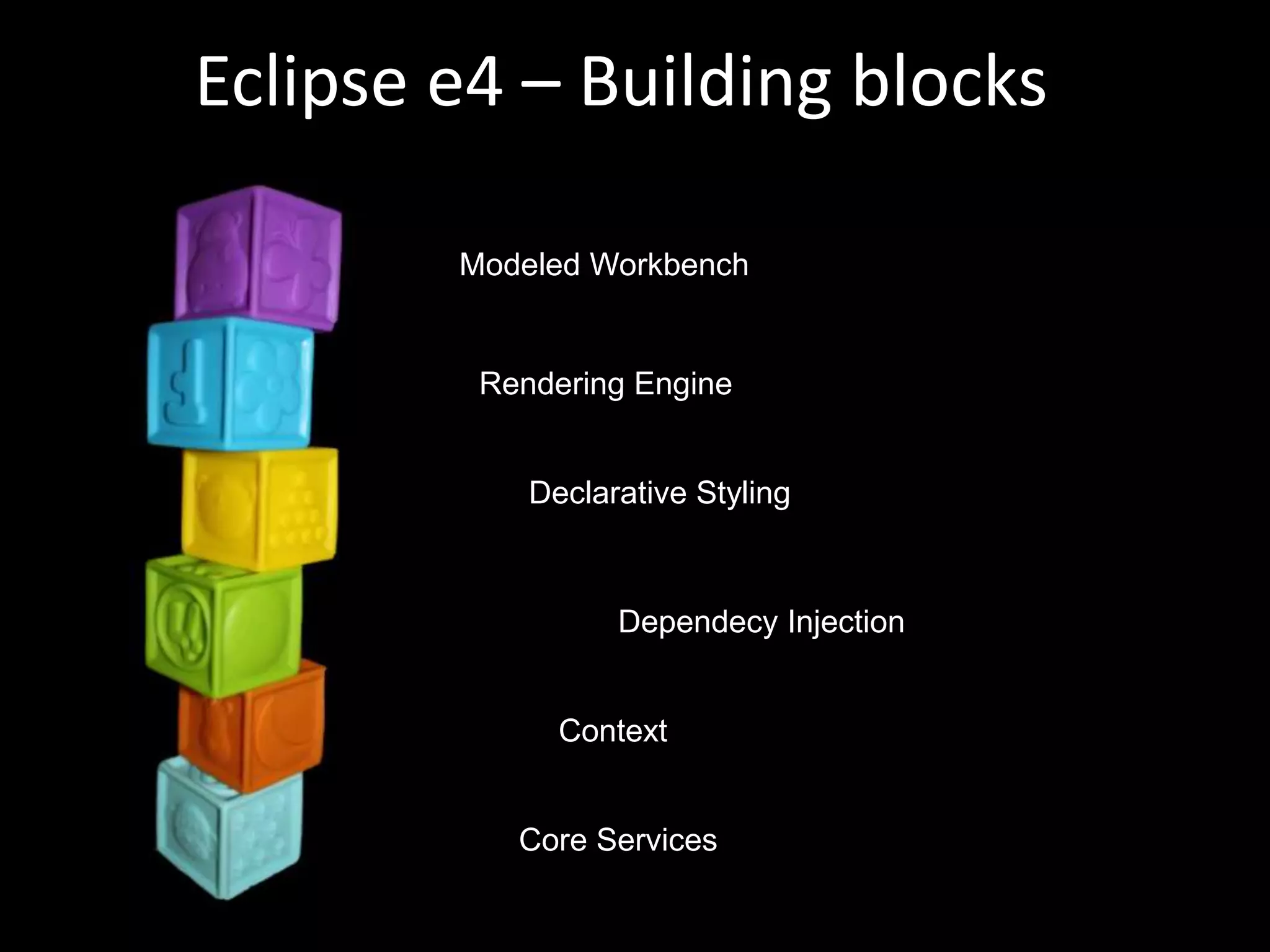

15. Eclipse e4 – Building blocksModeled WorkbenchRendering EngineDeclarative StylingDependecy InjectionContextCore Services

16. The Modeled Workbench

17. The e4 Workbench Modele4 Workbench ModelEMF inside

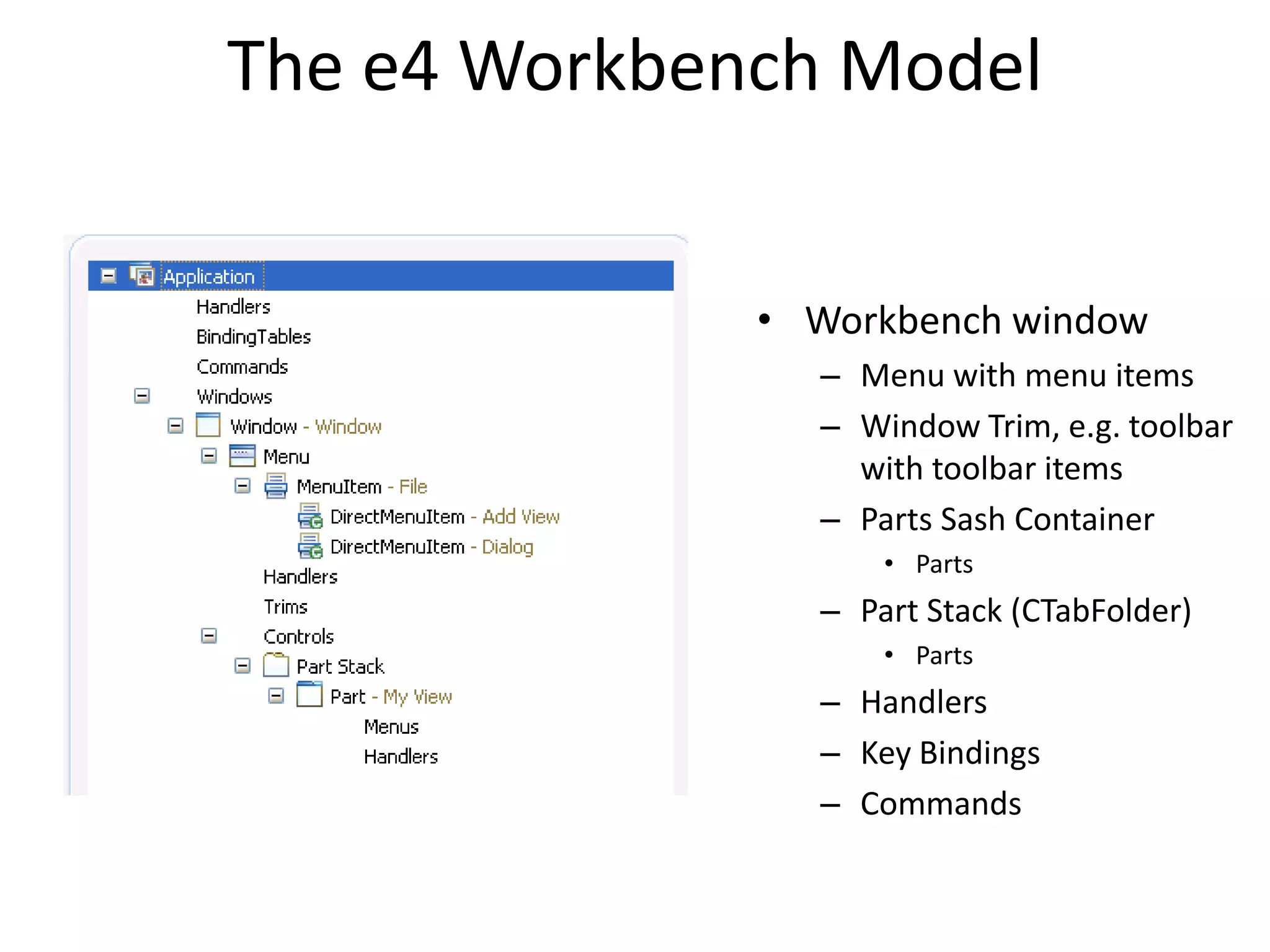

18. The e4 Workbench ModelWorkbench window Menu with menu items Window Trim, e.g. toolbar with toolbar items Parts Sash ContainerPartsPart Stack (CTabFolder)PartsHandlersKey BindingsCommands

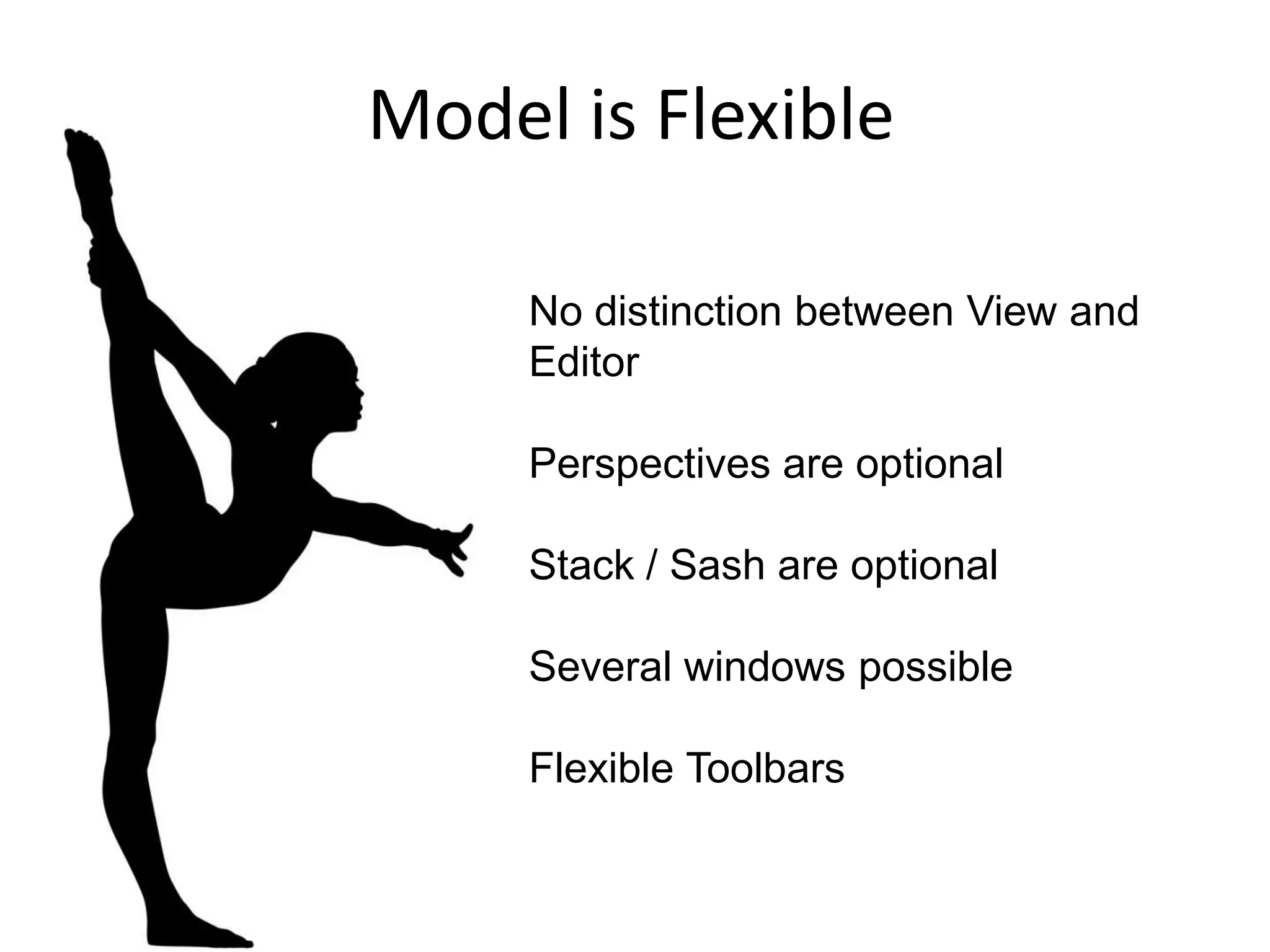

19. Model is FlexibleNo distinction between View and EditorPerspectives are optionalStack / Sash are optionalSeveral windows possibleFlexible Toolbars

20. Model removes the need for boilerplate codeMinimal Eclipse e4 app: zero classes

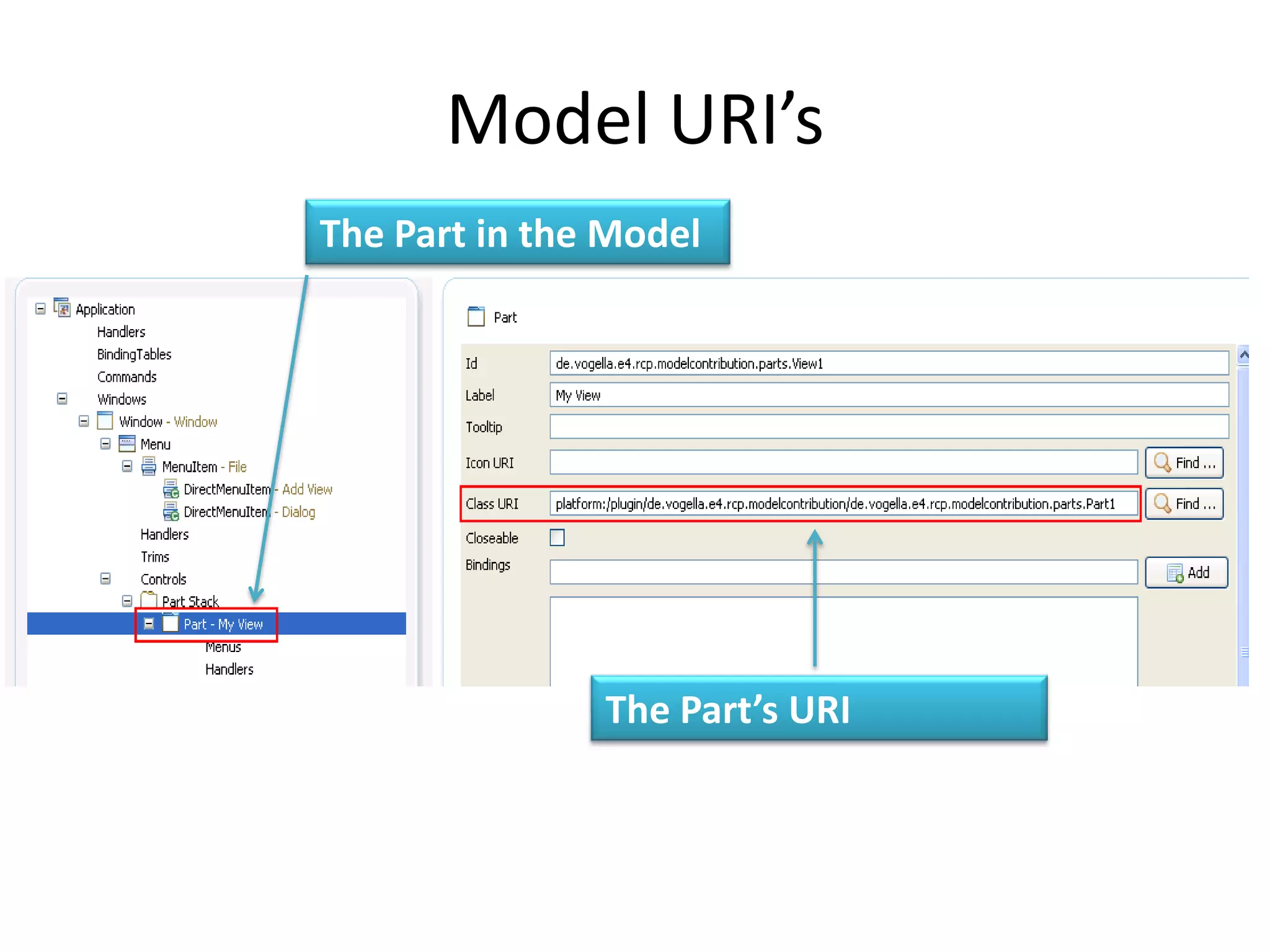

21. Model URI’sThe Part in the ModelThe Part’s URI

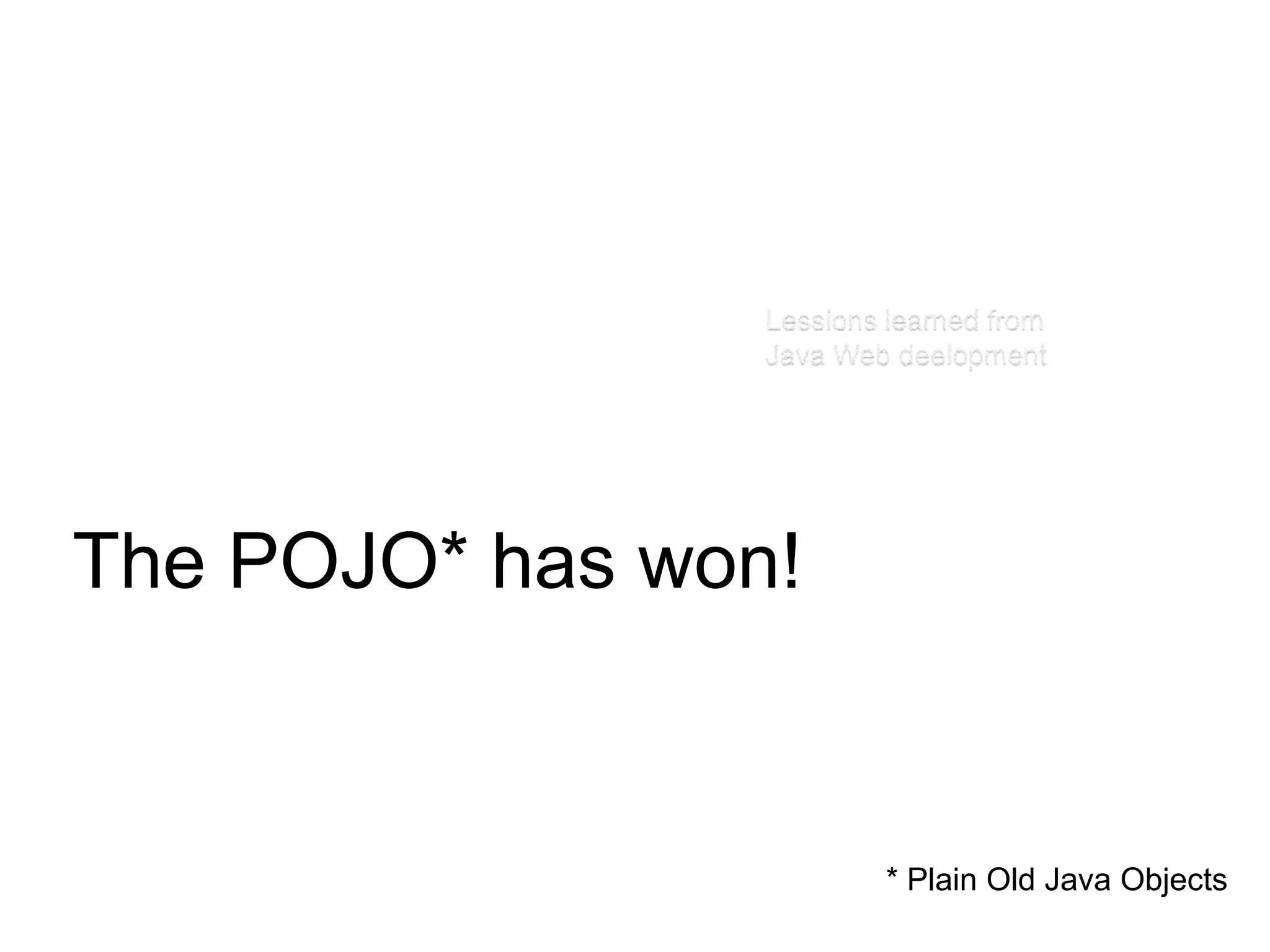

22. Lessions learned from Java Web deelopmentThe POJO* has won!* Plain Old Java Objects

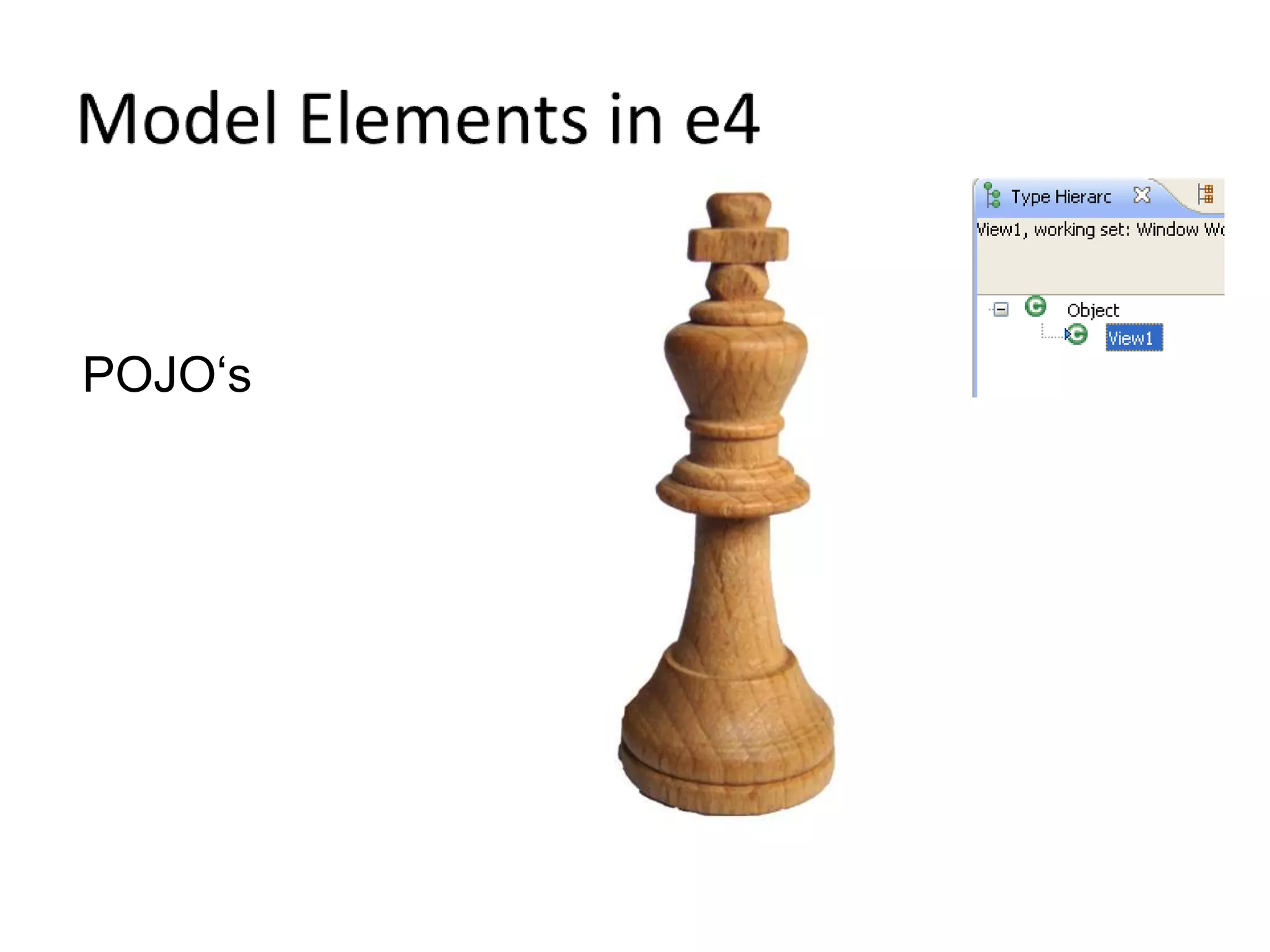

23. Model Elements in e4POJO‘s

24. Usage of annotationsAnnotations are usedTo indicate which methods are called

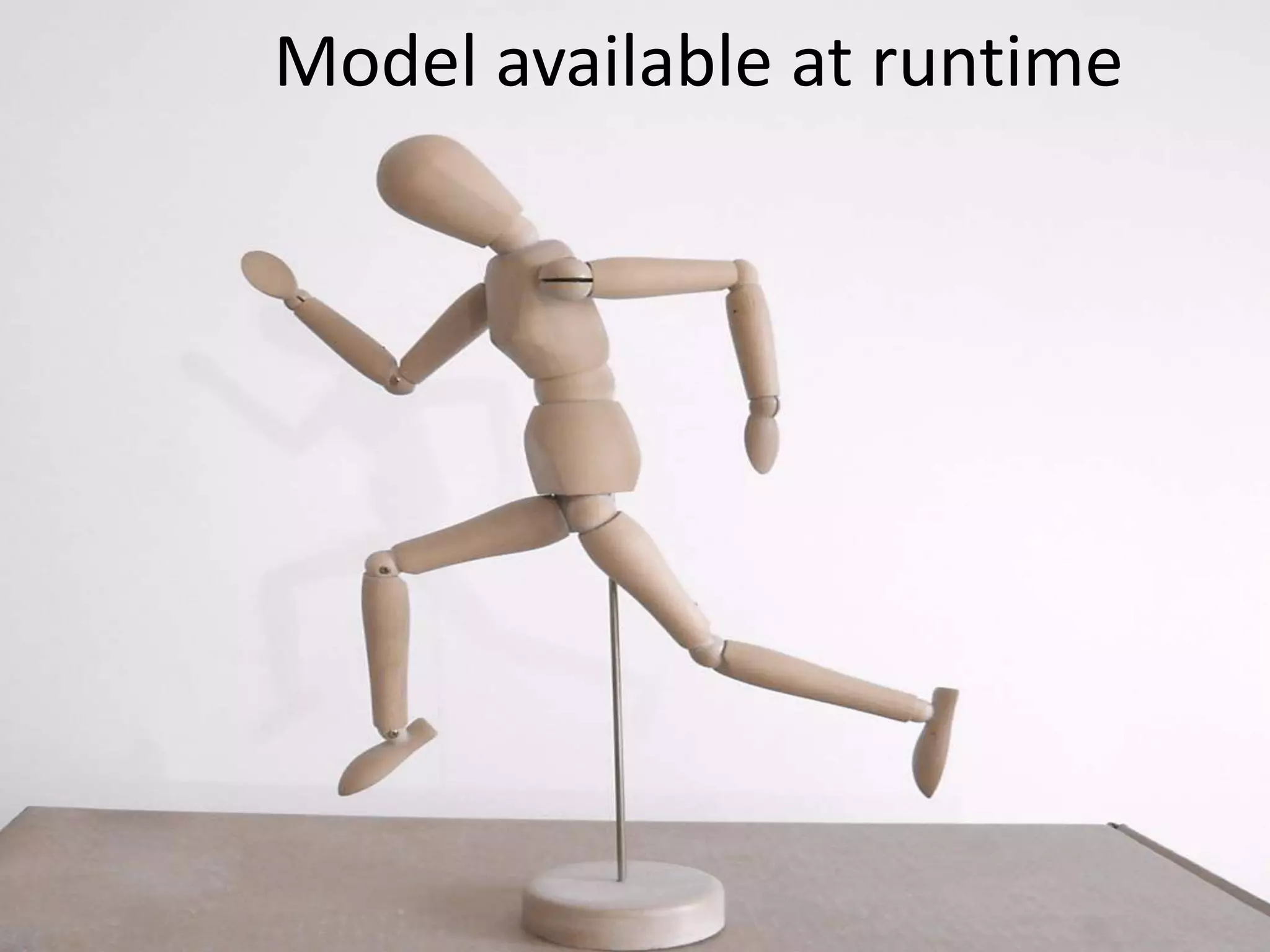

25. Model available at runtime

26. Change the model at runtime

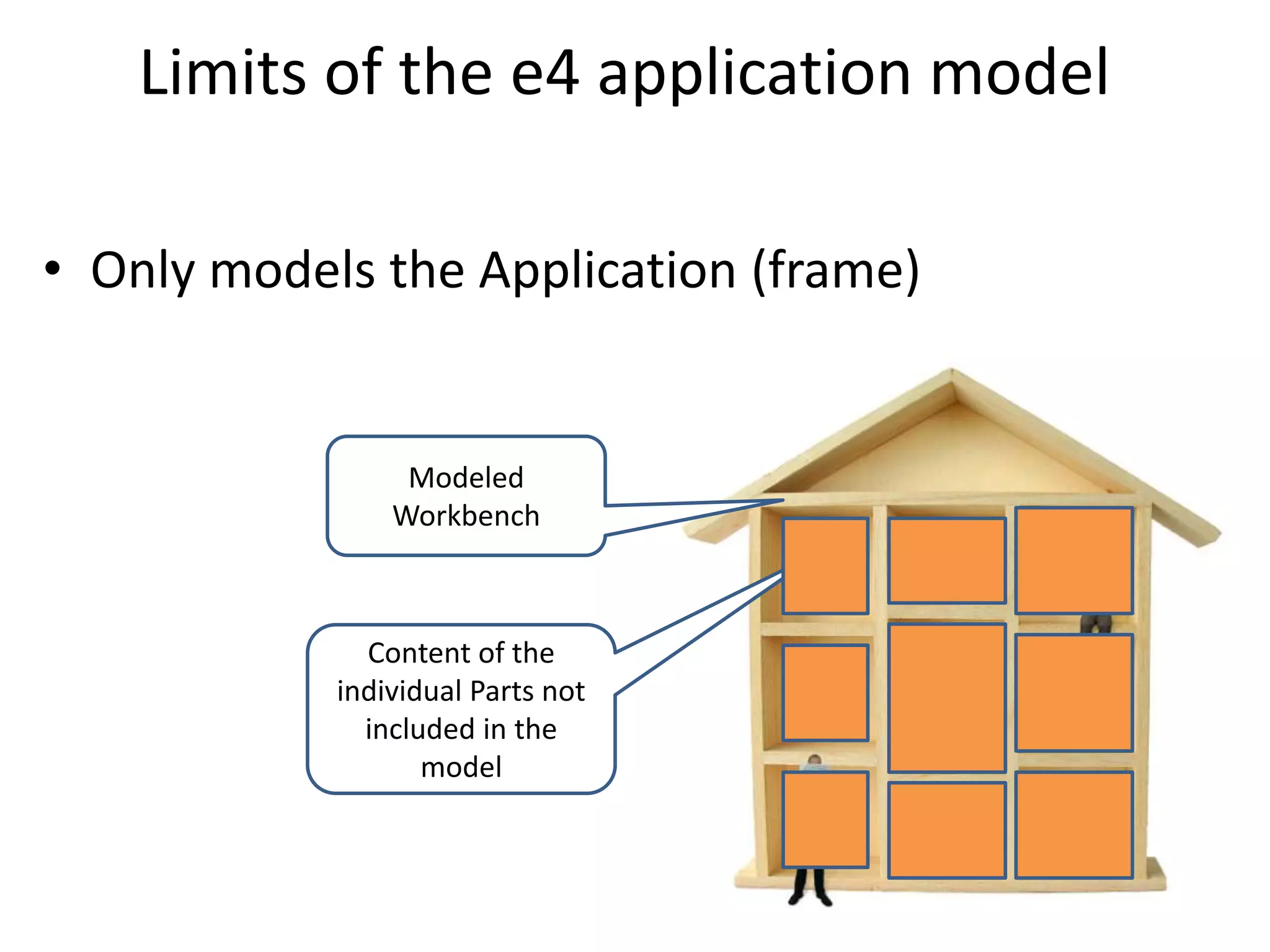

27. Limits of the e4 application modelOnly models the Application (frame)Modeled WorkbenchContent of the individual Parts not included in the model

28. How is this model translated into UI components?© Lars Vogel and others, Licensed under Creative Commons by-nc-nd-3.0 (de)

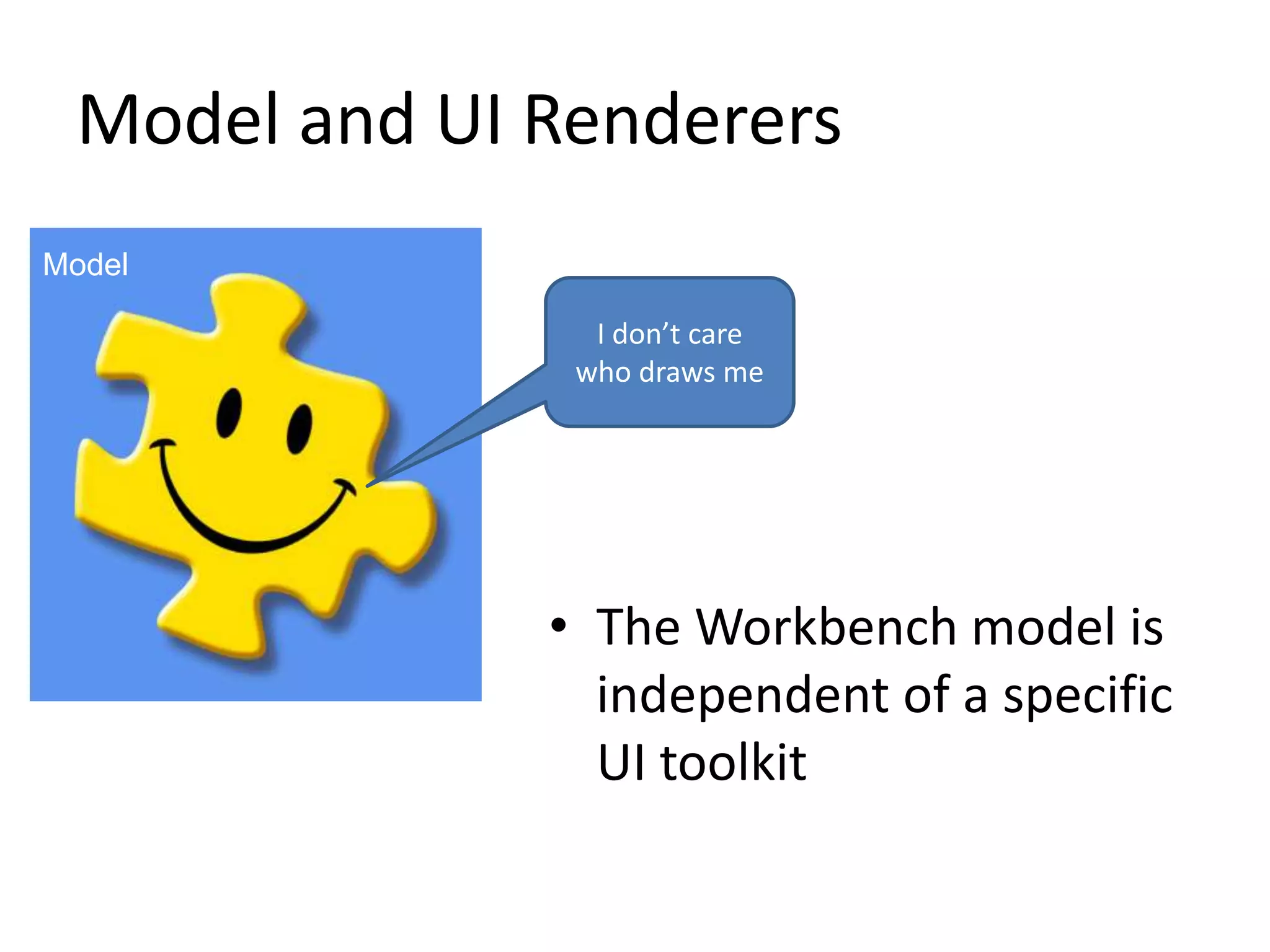

29. Model and UI RenderersModelI don’t care who draws meThe Workbench model is independent of a specific UI toolkit

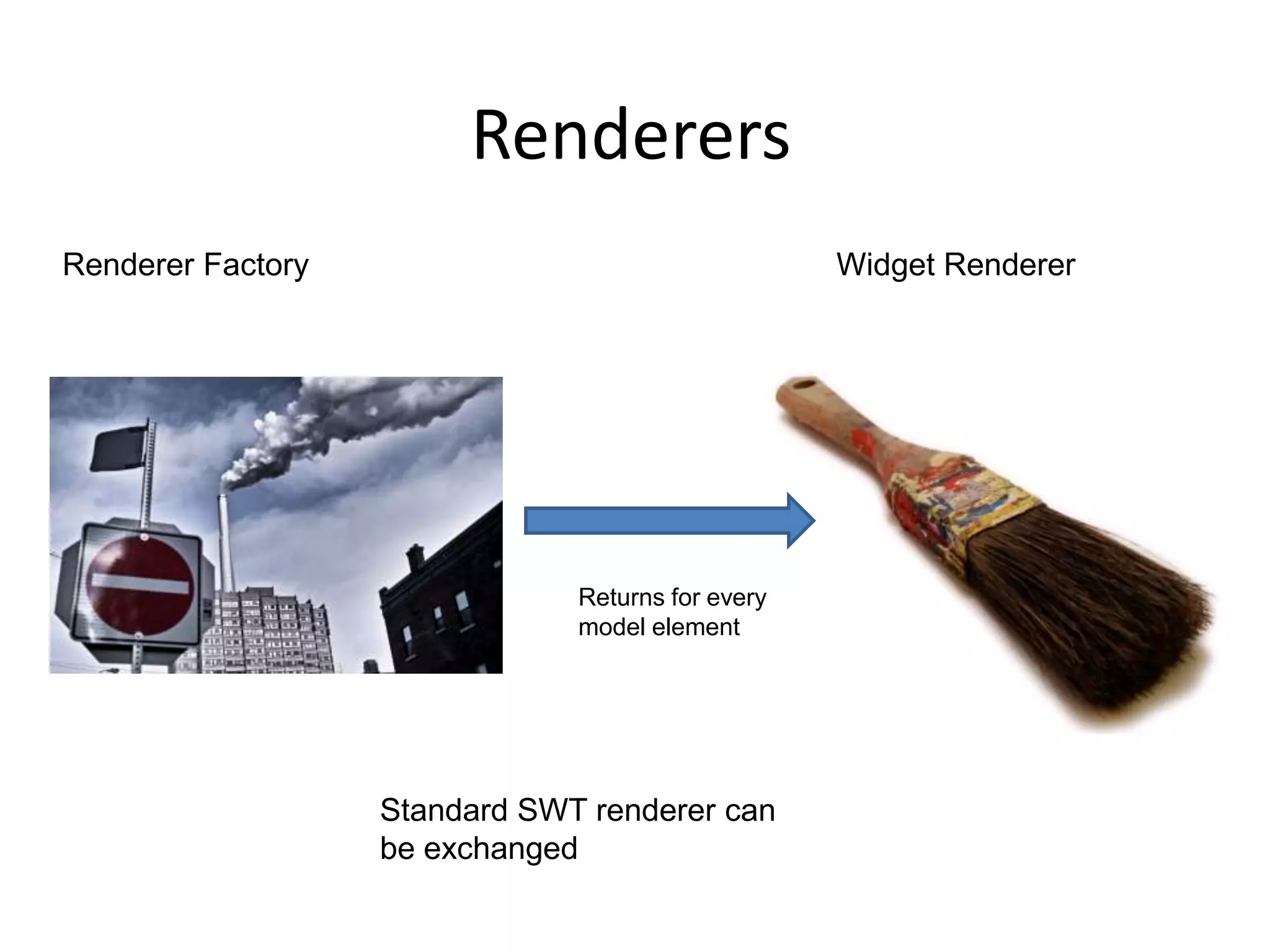

30. RenderersWidget RendererRenderer FactoryReturns for every model element Standard SWT renderer can be exchanged

31. Renderer: flexible but complex

32. e4 CSS Styling

33. In reality all RCP apps look like the an IDE

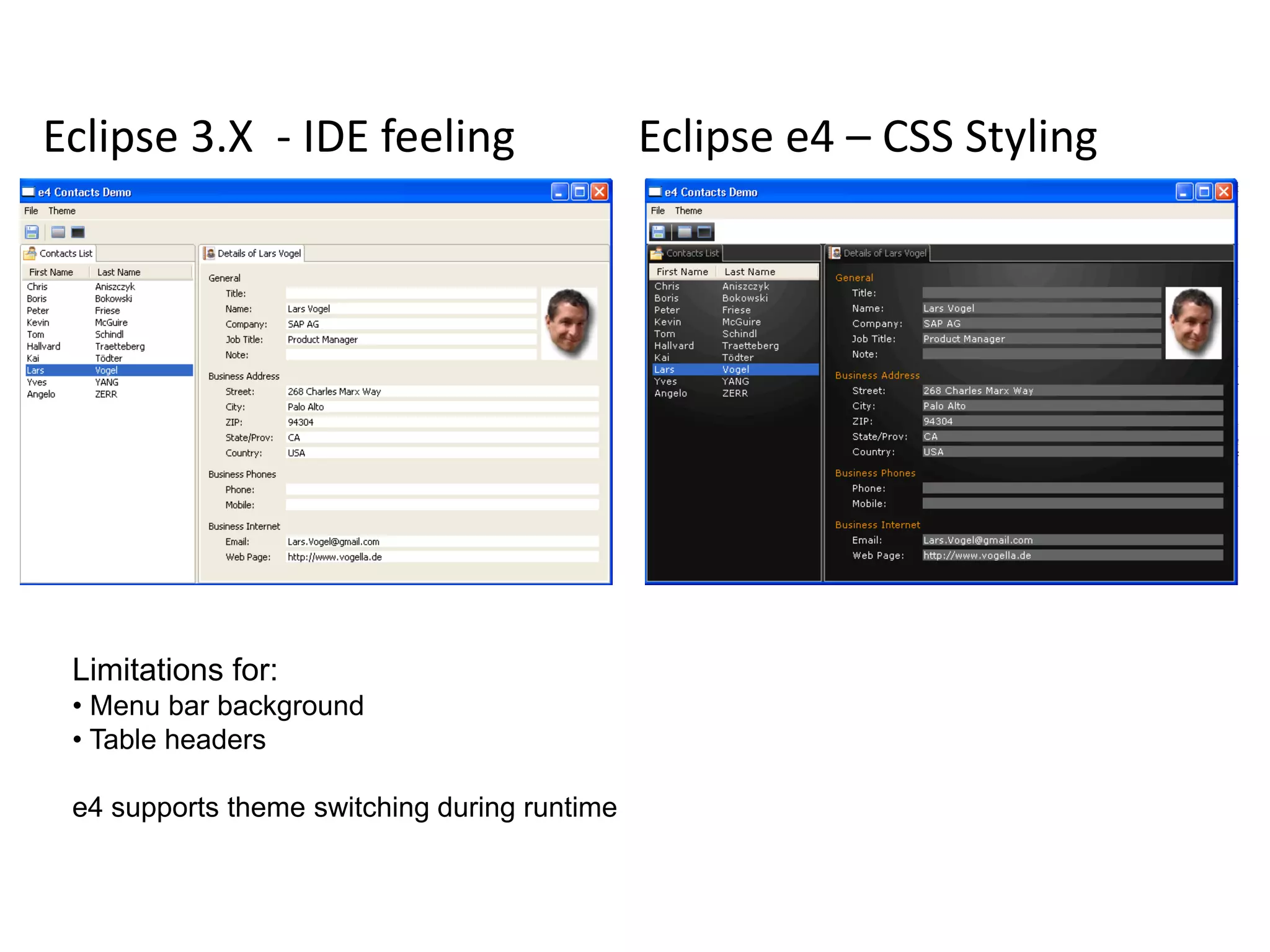

34. Eclipse3.X - IDE feelingEclipse e4 – CSS StylingLimitations for: Menu bar background

35. Table headers e4 supports theme switching during runtime

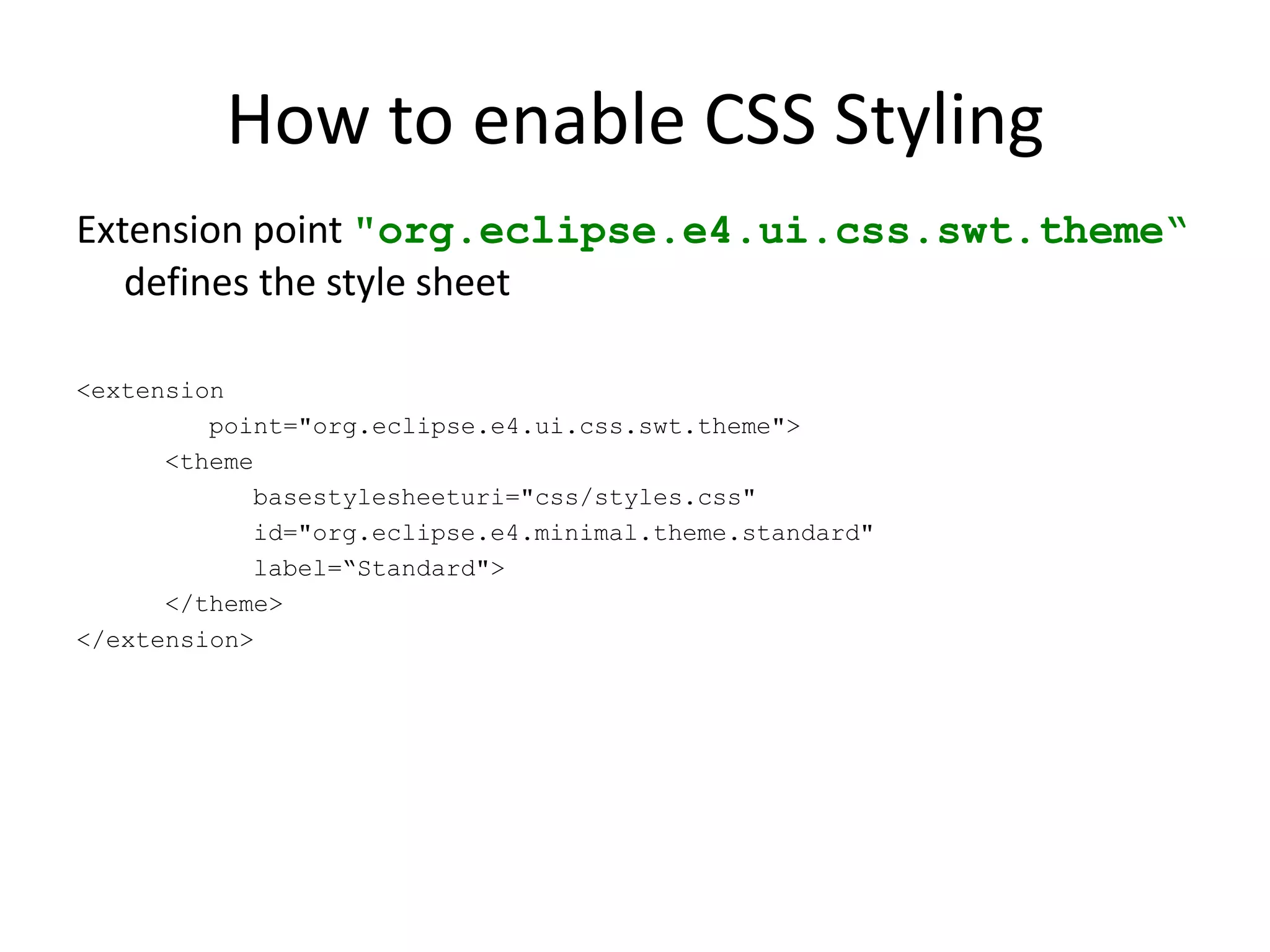

36. How to enable CSS StylingExtension point "org.eclipse.e4.ui.css.swt.theme“ defines the style sheet<extension point="org.eclipse.e4.ui.css.swt.theme"> <themebasestylesheeturi="css/styles.css" id="org.eclipse.e4.minimal.theme.standard" label=“Standard"> </theme></extension>

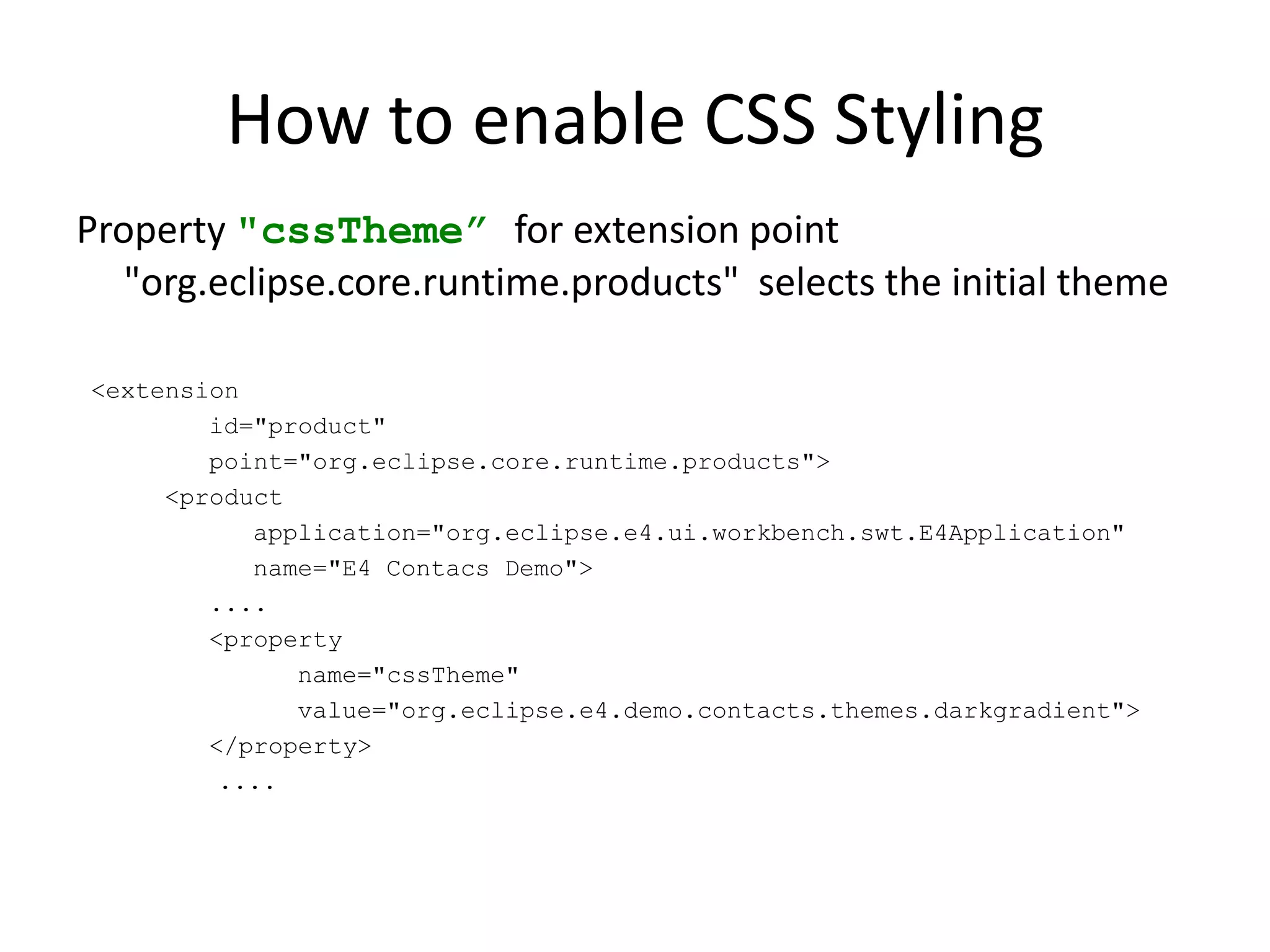

37. How to enable CSS StylingProperty "cssTheme” for extension point "org.eclipse.core.runtime.products" selects the initial theme <extension id="product" point="org.eclipse.core.runtime.products"> <product application="org.eclipse.e4.ui.workbench.swt.E4Application" name="E4 Contacs Demo"> .... <property name="cssTheme" value="org.eclipse.e4.demo.contacts.themes.darkgradient"> </property> ....

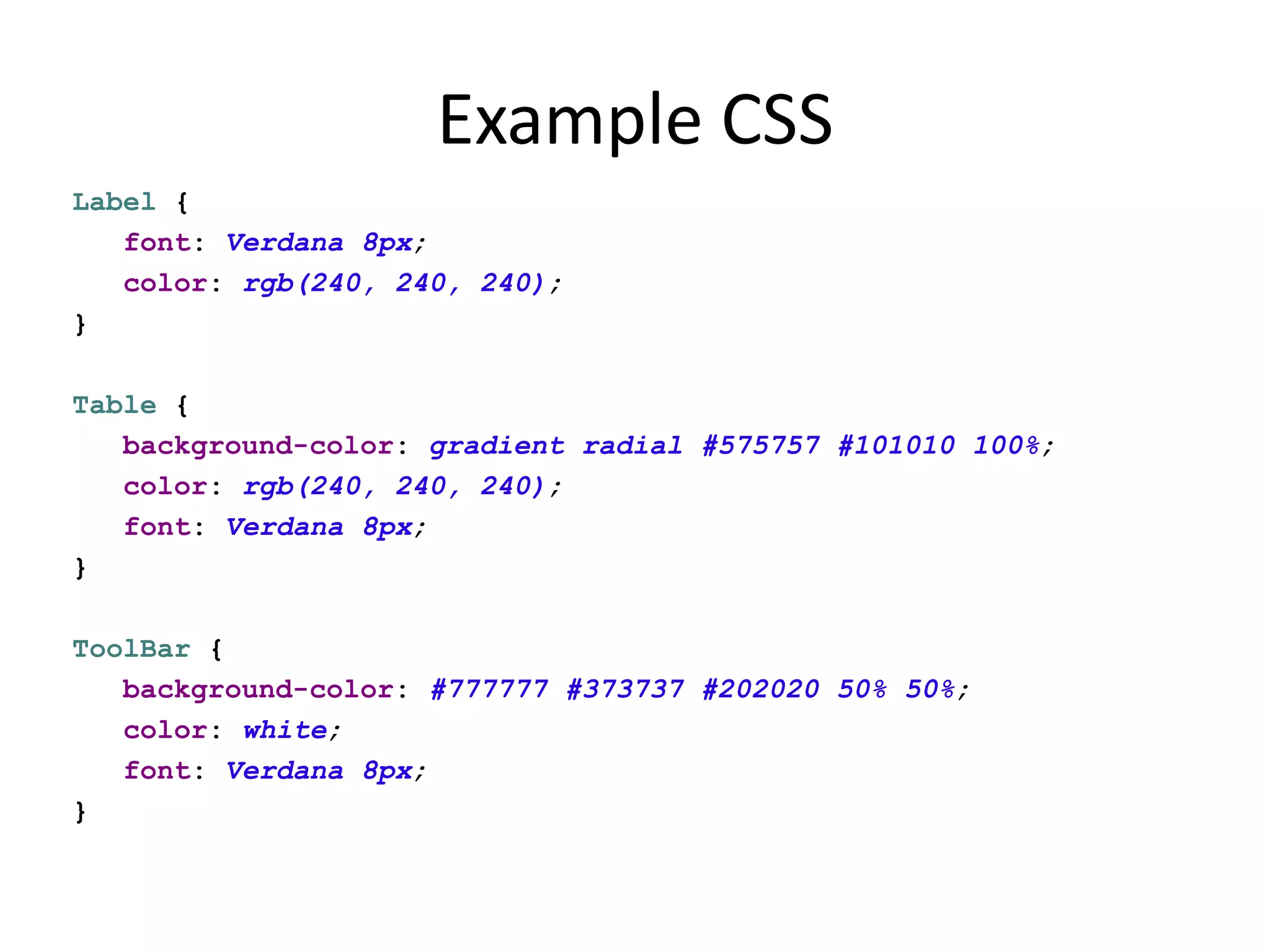

38. Example CSSLabel { font: Verdana 8px; color: rgb(240, 240, 240);}Table { background-color: gradient radial #575757 #101010 100%; color: rgb(240, 240, 240); font: Verdana 8px;}ToolBar { background-color: #777777 #373737 #202020 50% 50%; color: white; font: Verdana 8px;}

39. JavaLabel label = new Label(parent, SWT.NONE);label.setData("org.eclipse.e4.ui.css.id", "SeparatorLabel");CSS#SeparatorLabel { color: #f08d00;}Assign custom attributes

40. The e4 Programming Model

41. Dependency InjectionInversion of control: The necessary functionality is injected into the classJava Class

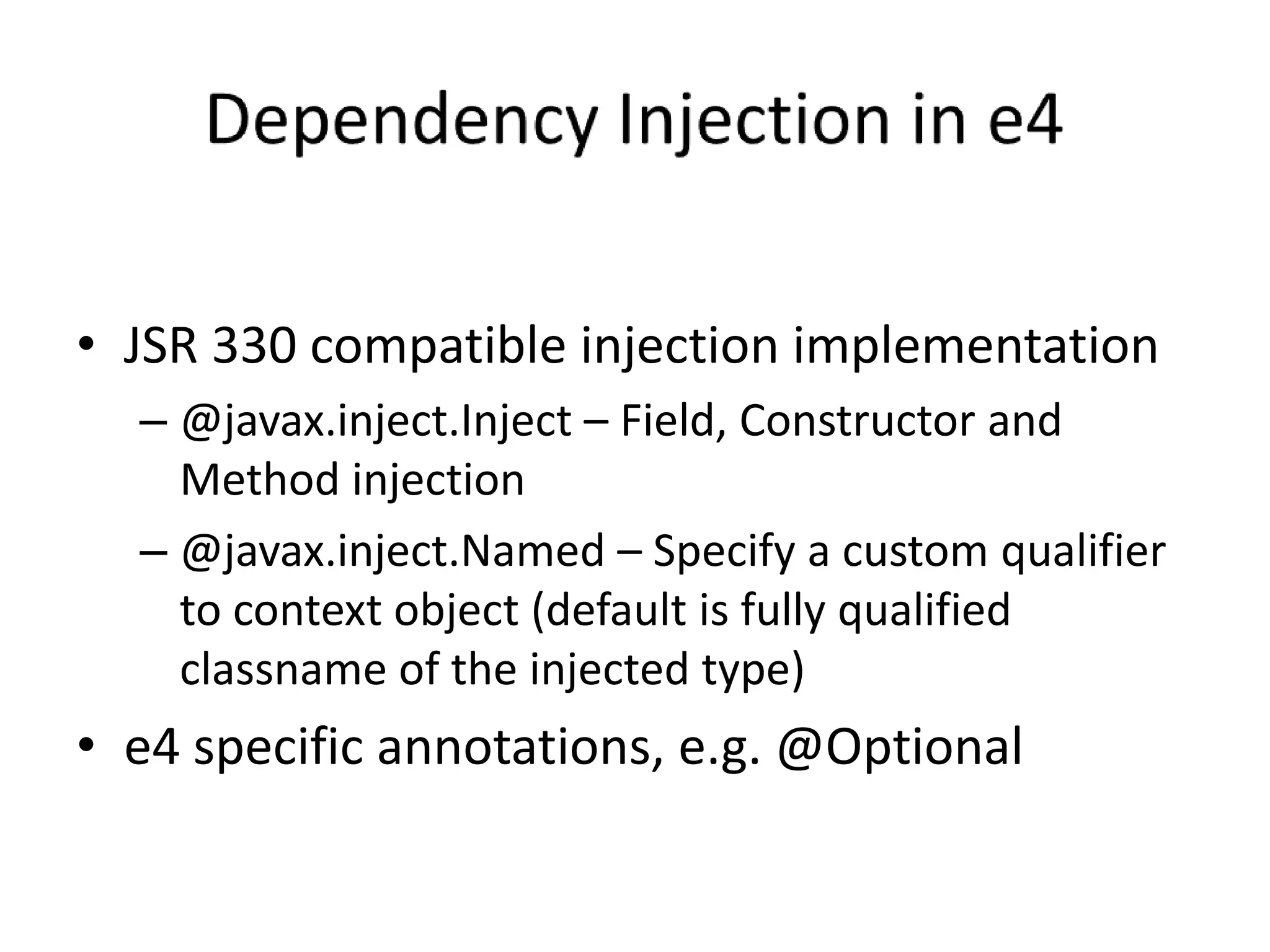

42. Dependency Injection in e4JSR 330 compatible injection implementation@javax.inject.Inject – Field, Constructor and Method injection@javax.inject.Named – Specify a custom qualifier to context object (default is fully qualified classname of the injected type)e4 specific annotations, e.g. @Optional

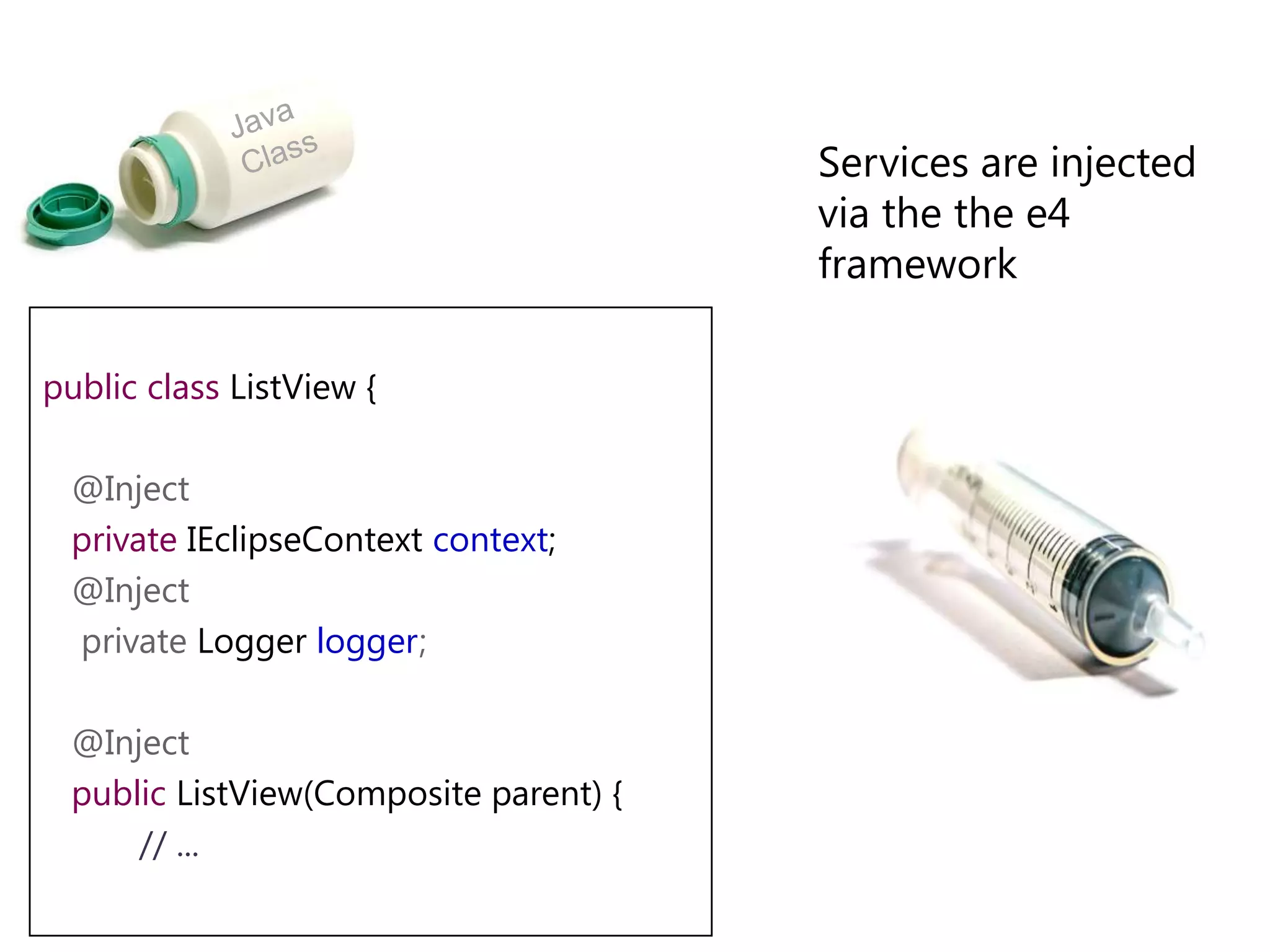

43. Java Class Services are injected via the the e4 frameworkpublicclassListView { @Inject privateIEclipseContextcontext;@Inject private Loggerlogger; @Inject publicListView(Composite parent) {// ...

44. Java ClassModel elements participate automatically in DIAddOn as non visual model elementsInject your own object is as simple asContextInjectionFactory.make(YourObject.class, context);

45. Lifecycle for Parts@PostConstruct: Called after Object created and Fields- and Methods-Injection finished

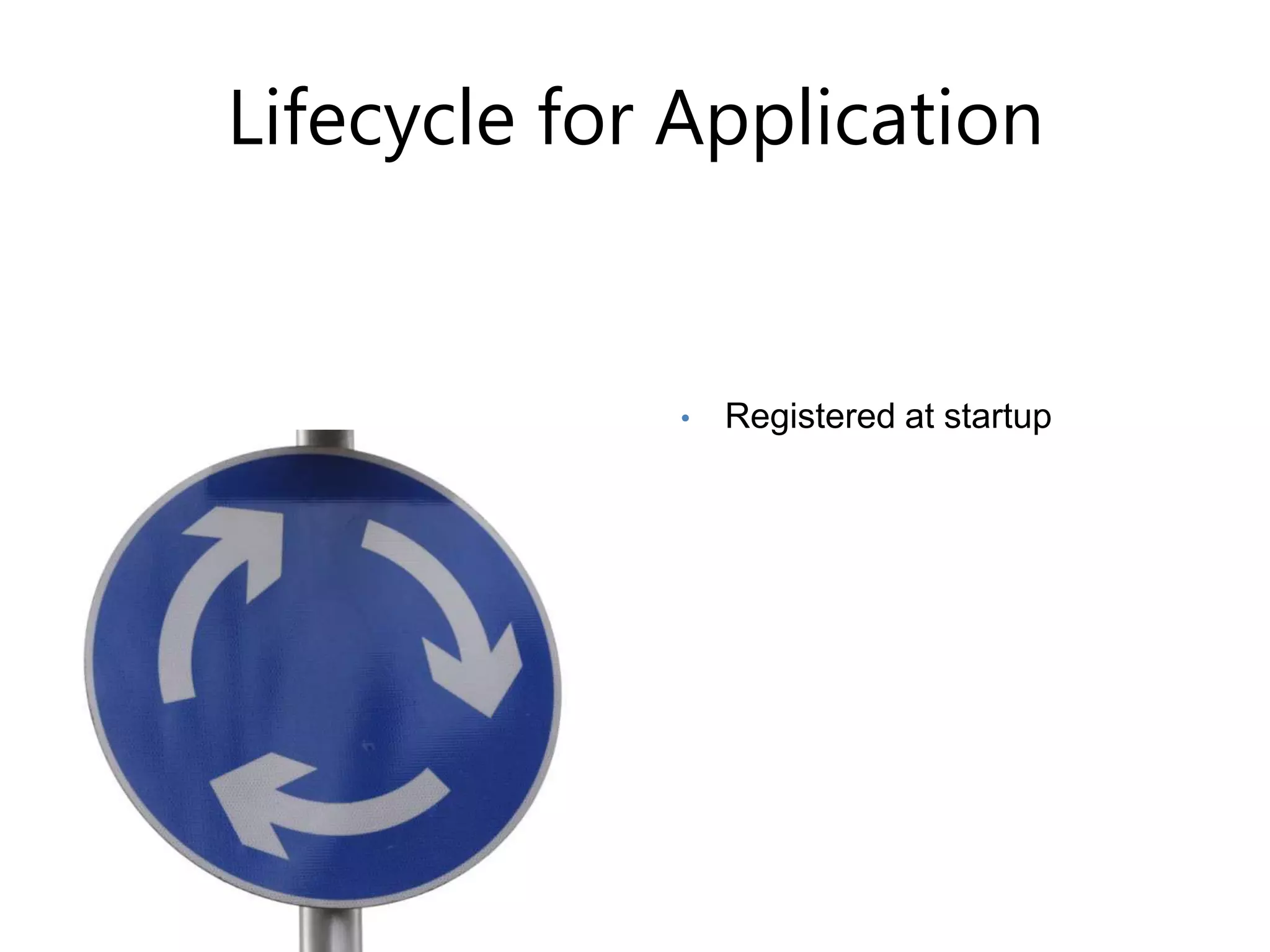

46. @PreDestroy: Called before the object is destroyed (e.g. the Part shown in the UI is removed)Lifecycle for ApplicationRegistered at startupWhat can be injected?

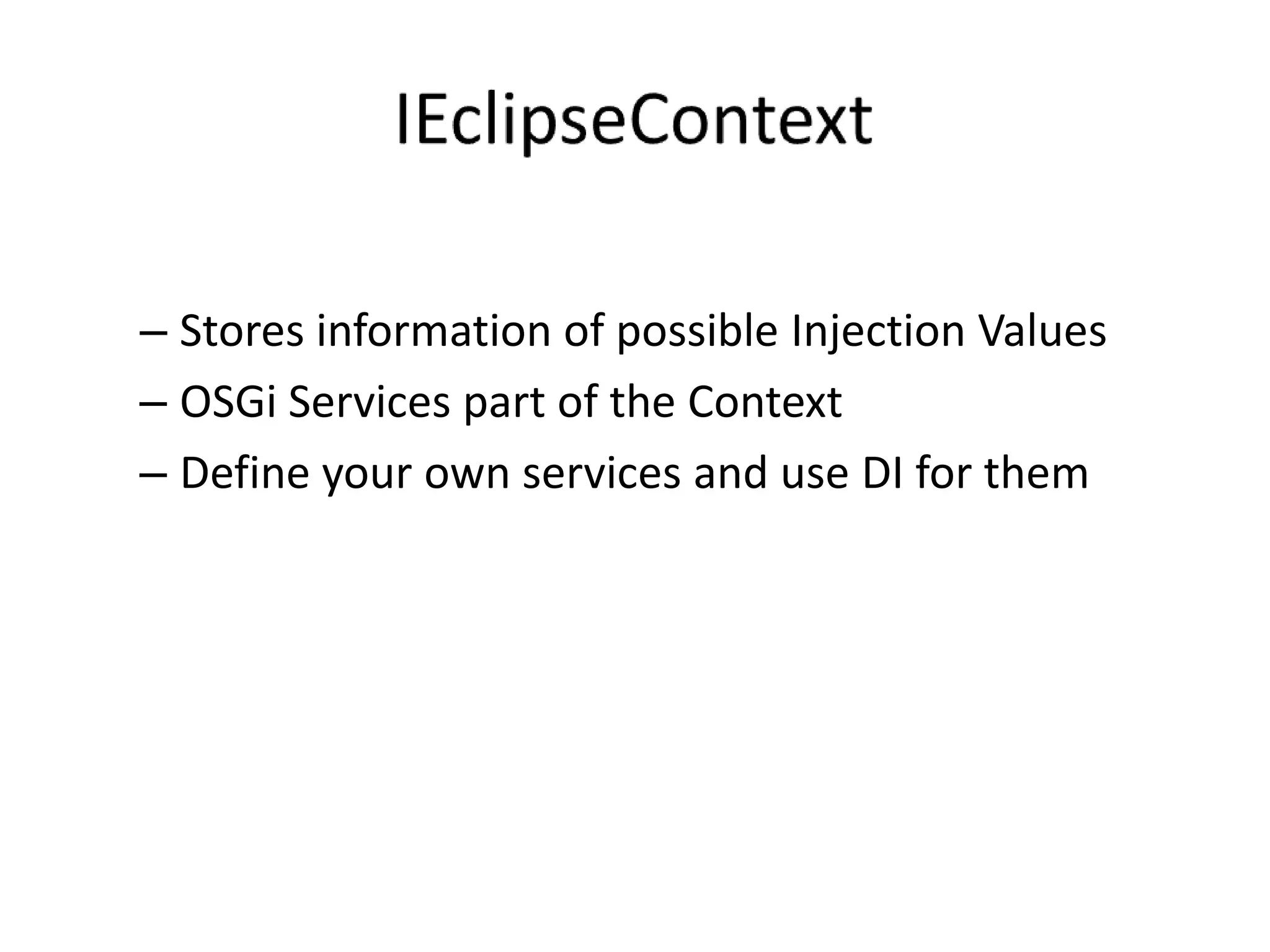

47. IEclipseContextStores information of possible Injection ValuesOSGi Services part of the ContextDefine your own services and use DI for them

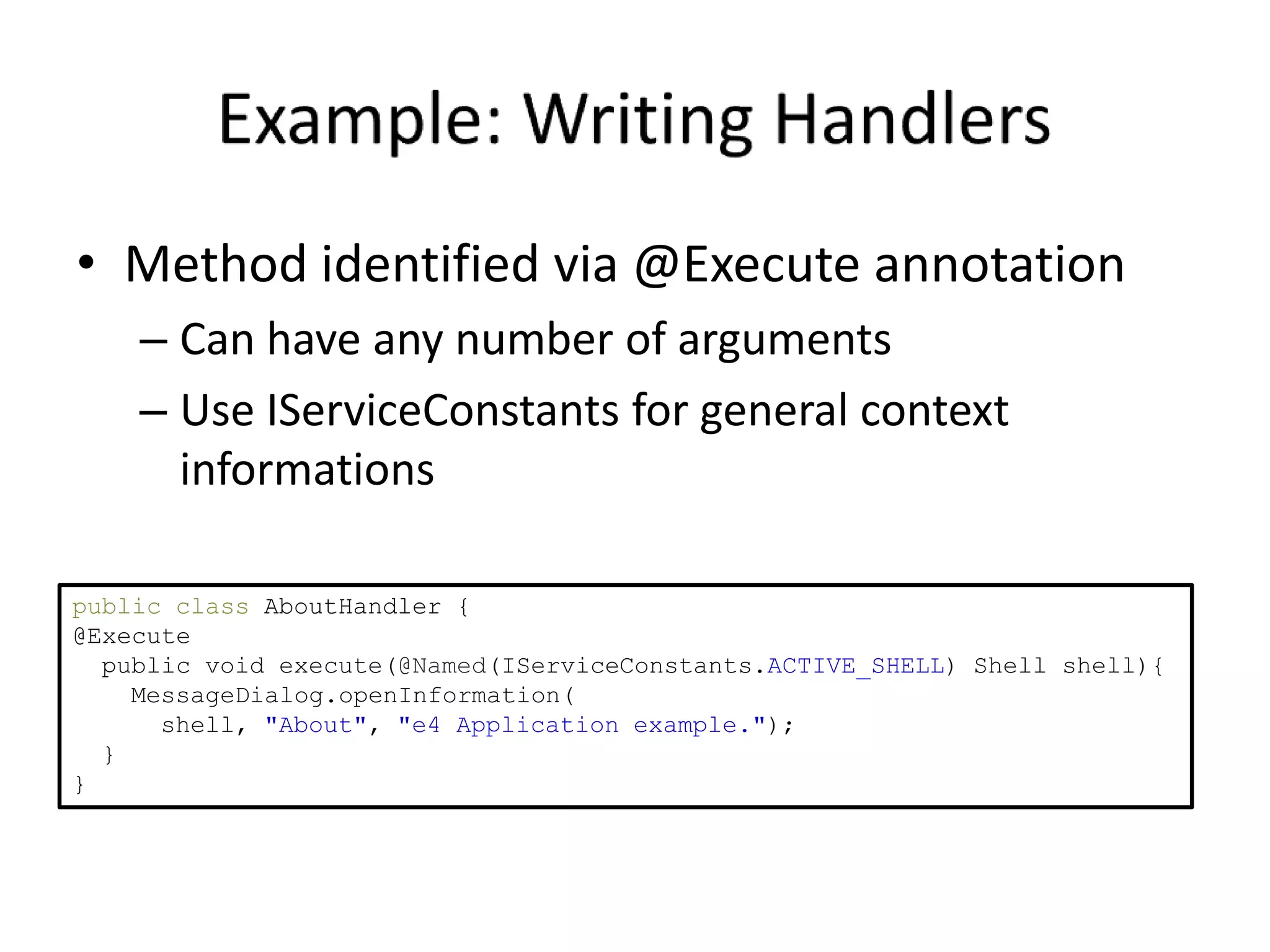

48. Example: Writing HandlersMethod identified via @Execute annotationCan have any number of argumentsUse IServiceConstants for general context informationspublic class AboutHandler {@Execute public void execute(@Named(IServiceConstants.ACTIVE_SHELL) Shell shell){MessageDialog.openInformation( shell, "About", "e4 Application example."); }}

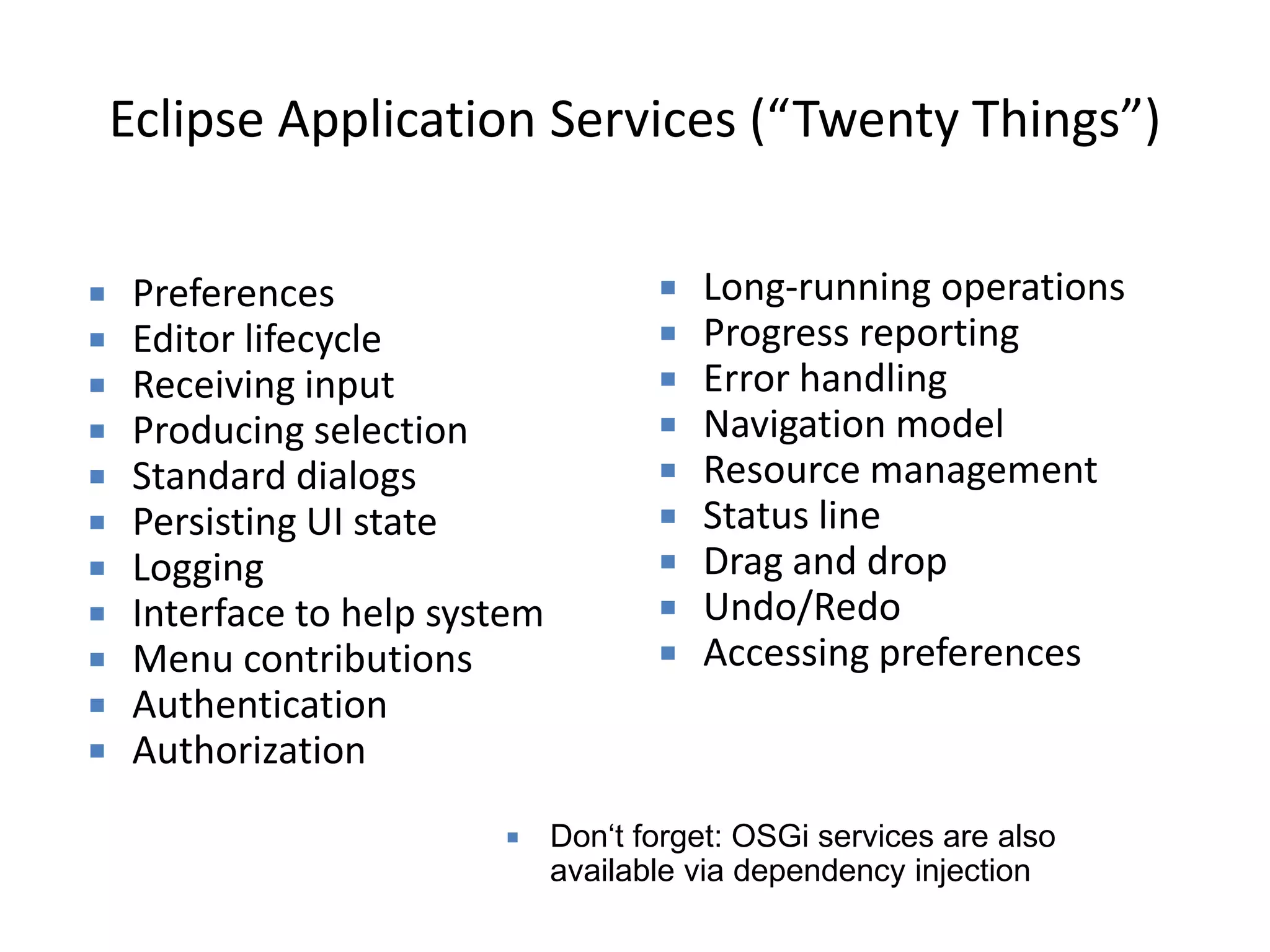

49. Eclipse Application Services (“Twenty Things”)Long-running operations

50. Progress reporting

51. Error handling

52. Navigation model

53. Resource management

54. Status line

55. Drag and drop

56. Undo/Redo

57. Accessing preferences

58. Preferences

59. Editor lifecycle

60. Receiving input

61. Producing selection

62. Standard dialogs

63. Persisting UI state

64. Logging

65. Interface to help system

66. Menu contributions

67. Authentication

68. Authorization

69. Don‘t forget: OSGi services are also available via dependency injectionContributions

70. ContributionsExtension point “org.eclipse.e4.workbench.model”Fragments – XMI snippetsProcessor - Code

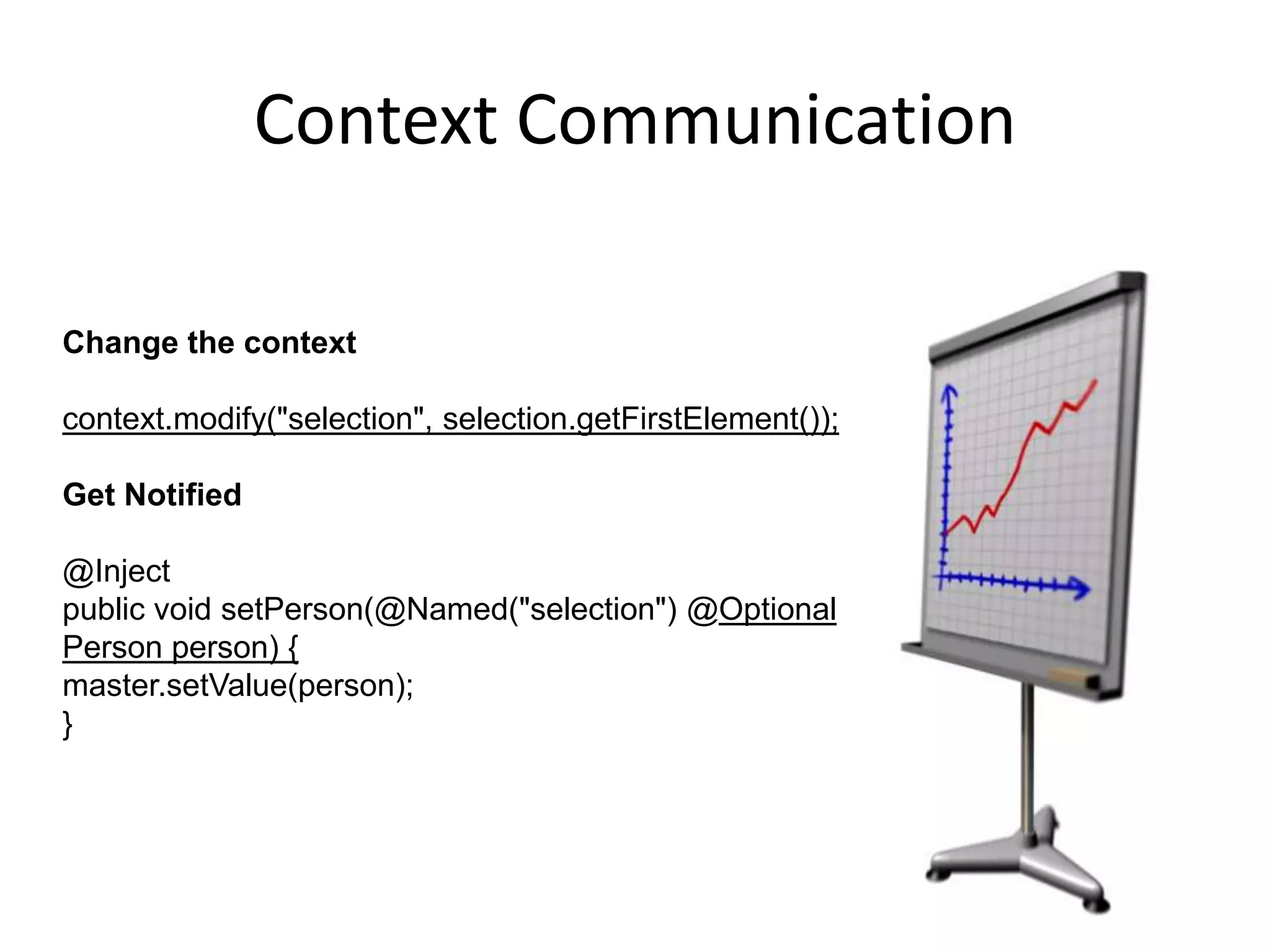

71. Context CommunicationChange the contextcontext.modify("selection", selection.getFirstElement());Get Notified@Injectpublic voidsetPerson(@Named("selection") @Optional Person person) {master.setValue(person);}

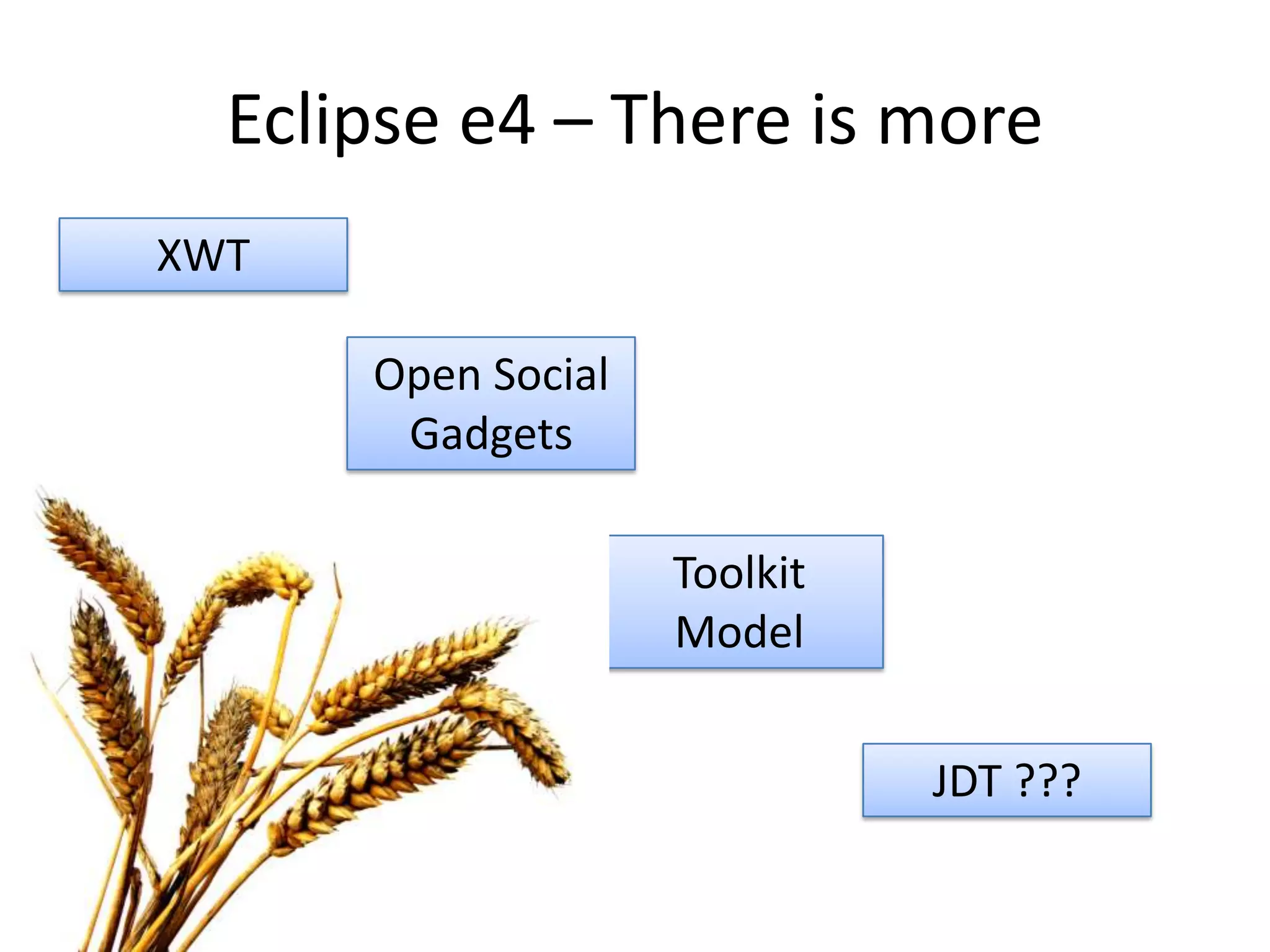

72. Eclipse e4 – There is moreXWTOpen Social GadgetsToolkit Model JDT ???

73. Summary

74. Eclipse: Where to go from here:Eclipse 4.0 SDK Tutorialhttp://www.vogella.de/articles/EclipseE4/article.htmlTom Schindl’s Eclipse 4.0 SDK Tutorialhttp://tomsondev.bestsolution.at/2010/07/28/eclipse-4-0-and-tutorial-on-writing-e4-rcp-application-released/Eclipse Wikihttp://wiki.eclipse.org/Eclipse RCP Tutorialhttp://www.vogella.de/articles/RichClientPlatform/article.html

76. Thank youFor further questions:Lars.Vogel@gmail.comhttp://www.vogella.dehttp://www.twitter.com/vogella

77. Photo creditsAll pictures are from http://www.sxc.hu/ to get them add the number to http://www.sxc.hu/photo/Agenda http://www.sxc.hu/photo/1130028Definition of RCP http://www.sxc.hu/photo/930468 RCP Definition http://www.sxc.hu/photo/930468Stopwatch http://www.sxc.hu/photo/634598Fish in the bowl 839037Guy looking from the right http://www.sxc.hu/photo/423354Next guy 986700Present1140205Thinking guy 324541Programming model / Hurt fingers 906072Chess 958410Praying Girl 646227Funny guy http://www.sxc.hu/photo/1173019Model 33012Box 502457Dancing girl 1187376Excellent 866529Dependencies http://www.sxc.hu/photo/182575Extension http://www.sxc.hu/photo/721092Model available at runtime 765733House 494103

78. Thinking guy II 130484

79. Renderer 1211480

80. Factory 1255482

81. Painter 976984

82. Holding hands 607988

83. Beautiful eyes 933394

84. Funny Puppet 812138

85. Gummibärchen 191472

86. Tools / Programming model 1197009

87. Dependency injection 510413

88. Life cycle 1265027

89. File Drawer 613683

90. Books 1184809

91. Party people 1062451

92. Chart 963825

93. Wheat 939151

94. Summary http://www.sxc.hu/photo/1184807

95. Question http://www.sxc.hu/photo/418215

96. Reading material http://www.sxc.hu/photo/406547

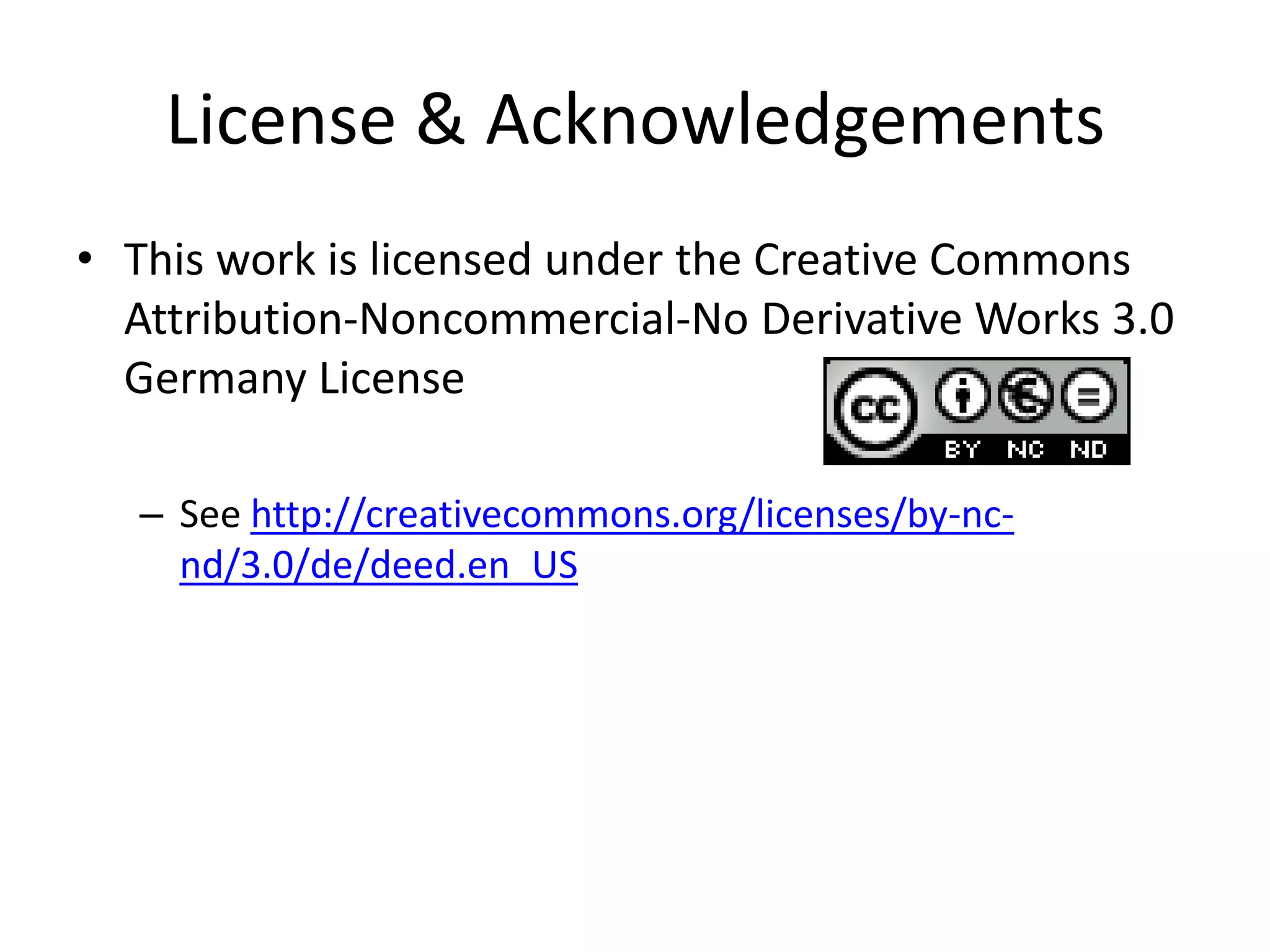

97. Thank you http://www.sxc.hu/photo/986313License & AcknowledgementsThis work is licensed under the Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany LicenseSee http://creativecommons.org/licenses/by-nc-nd/3.0/de/deed.en_US
