The lesson plan summarizes a theory lesson that will teach students about tool and work holding devices used on a drill press. The 100-minute lesson will involve a discussion of different holding methods, an explanation aided by illustrations on a whiteboard and PowerPoint. Students will learn the three methods for holding drill bits - directly in the spindle, using a drill sleeve, or drill chuck. They will also learn the six methods for securing work pieces: via a machine vice, step blocks, clamps, V-blocks, an angle plate, or T-slots with bolts. At the end of the lesson, students will answer oral questions and the teacher will emphasize the main points about selecting the proper holding device for different jobs.

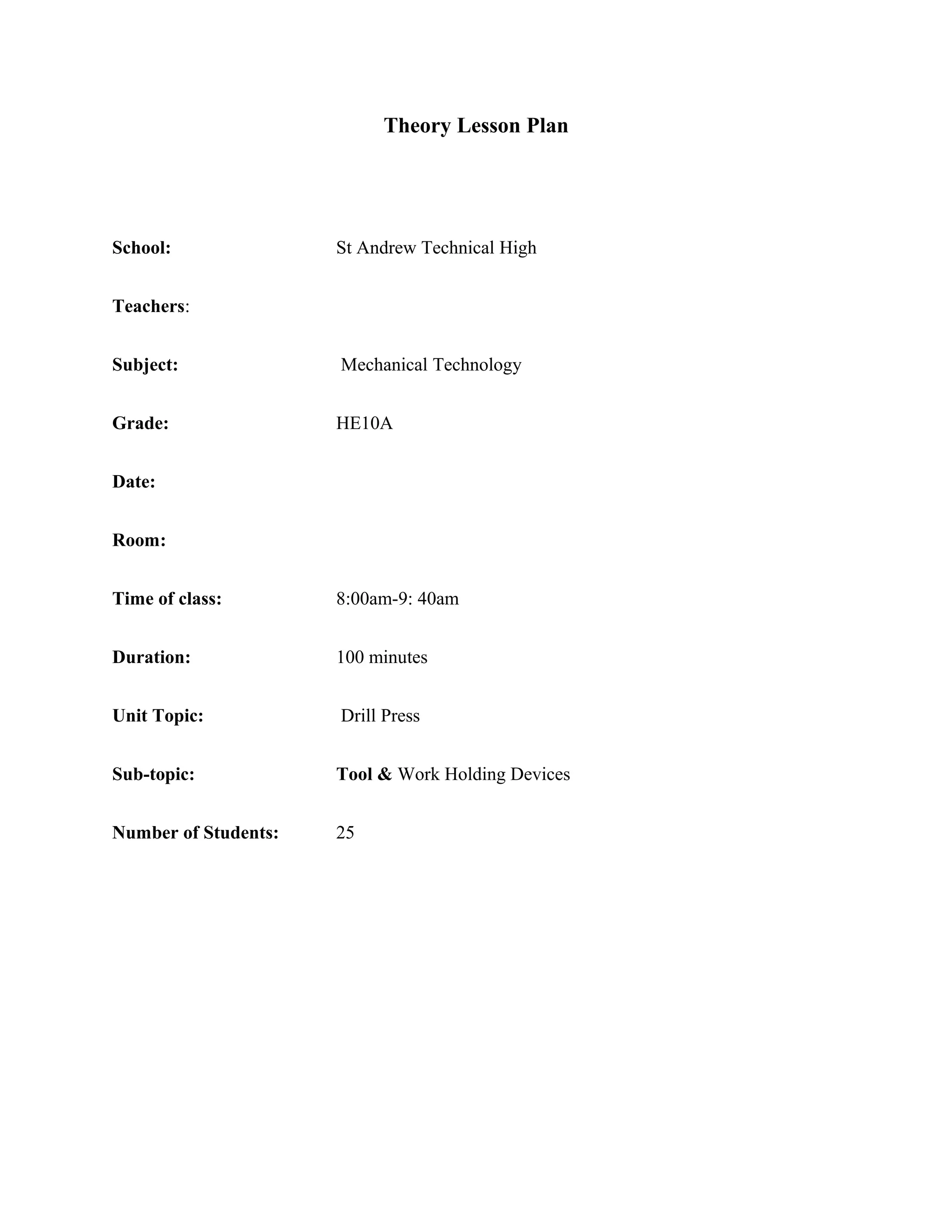

1. Theory Lesson Plan
School: St Andrew Technical High
Teachers:
Subject: Mechanical Technology
Grade: HE10A
Date:
Room:
Time of class: 8:00am-9: 40am
Duration: 100 minutes
Unit Topic: Drill Press
Sub-topic: Tool & Work Holding Devices
Number of Students: 25

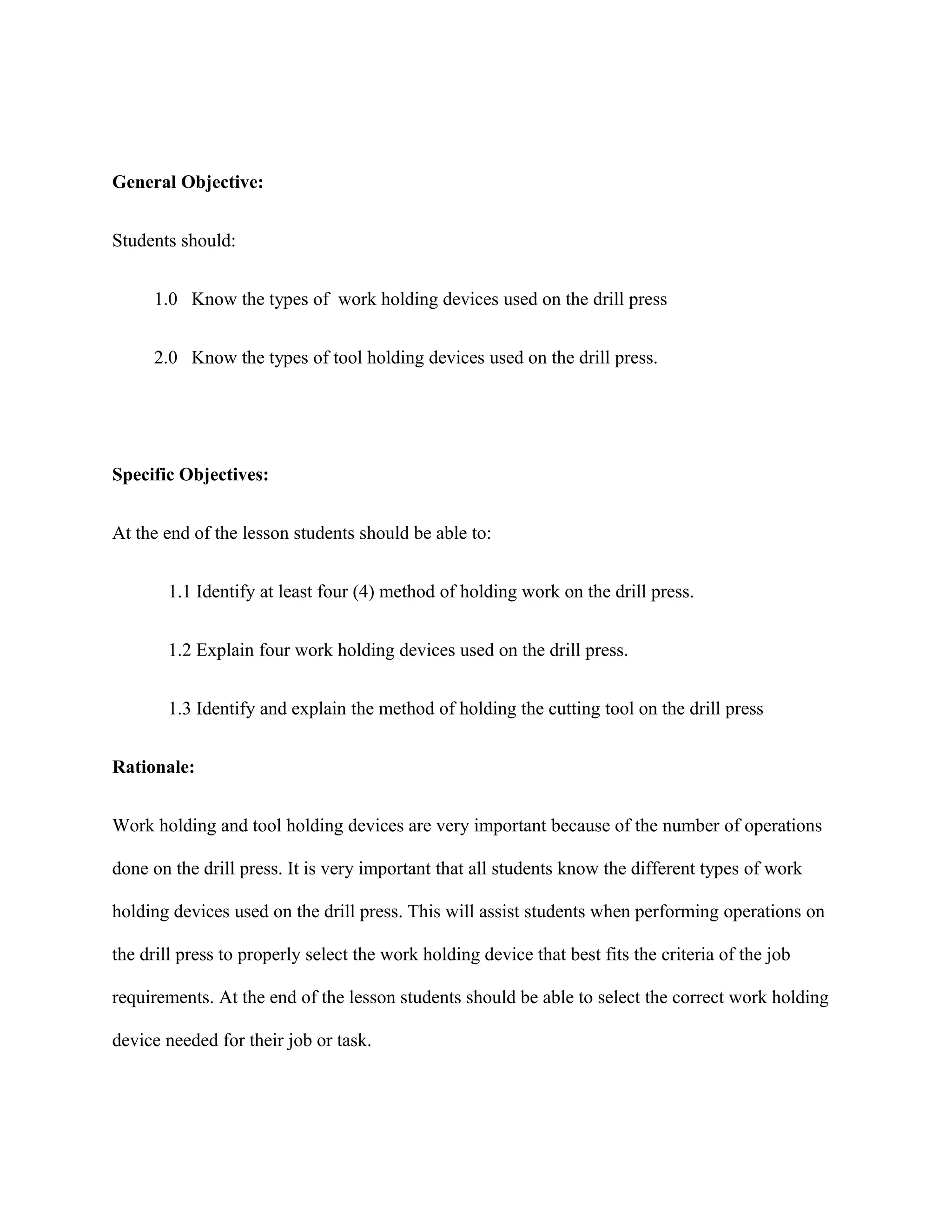

2. General Objective:
Students should:
1.0 Know the types of work holding devices used on the drill press
2.0 Know the types of tool holding devices used on the drill press.
Specific Objectives:
At the end of the lesson students should be able to:
1.1 Identify at least four (4) method of holding work on the drill press.
1.2 Explain four work holding devices used on the drill press.
1.3 Identify and explain the method of holding the cutting tool on the drill press
Rationale:
Work holding and tool holding devices are very important because of the number of operations
done on the drill press. It is very important that all students know the different types of work
holding devices used on the drill press. This will assist students when performing operations on
the drill press to properly select the work holding device that best fits the criteria of the job
requirements. At the end of the lesson students should be able to select the correct work holding
device needed for their job or task.

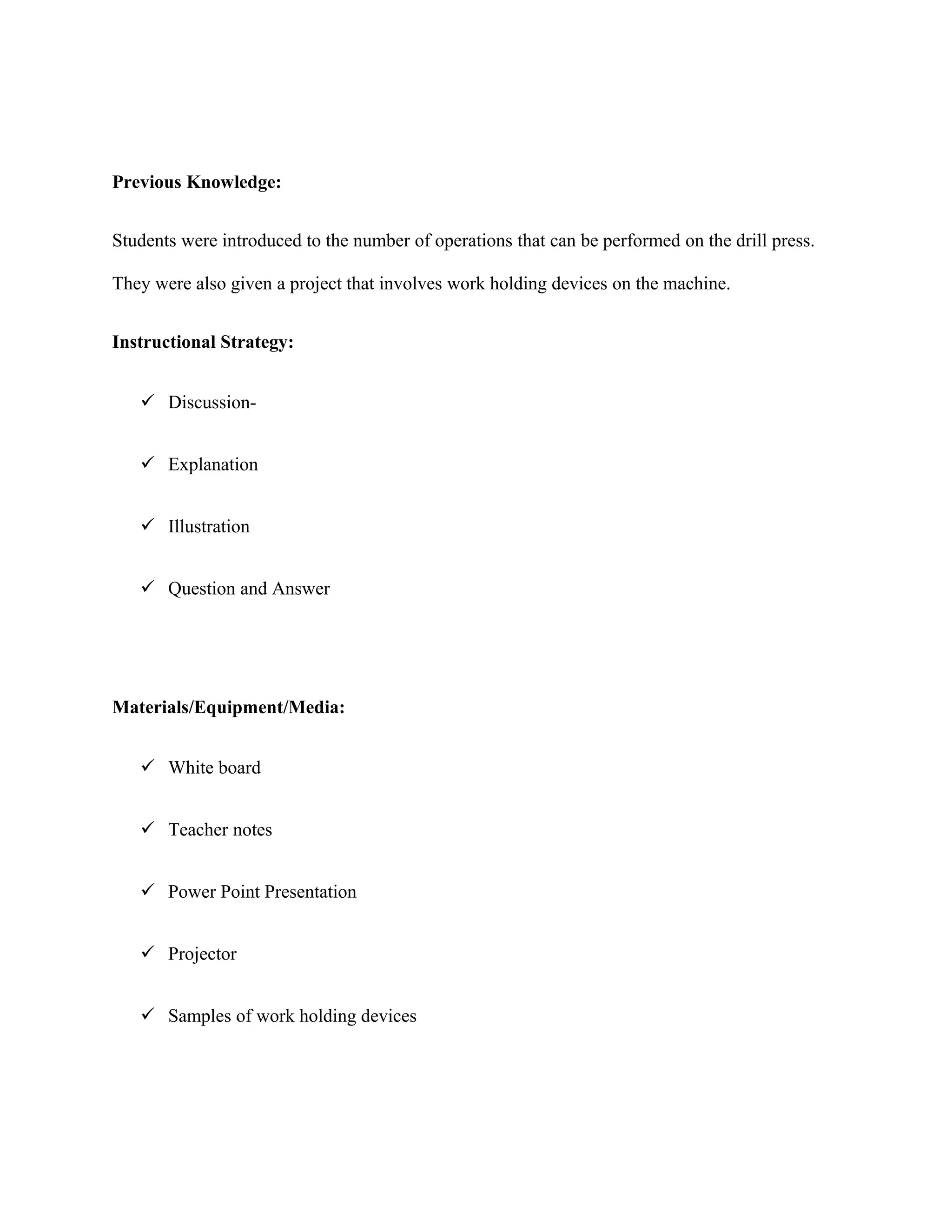

3. Previous Knowledge:
Students were introduced to the number of operations that can be performed on the drill press.
They were also given a project that involves work holding devices on the machine.
Instructional Strategy:
 Discussion-
 Explanation
 Illustration
 Question and Answer
Materials/Equipment/Media:
 White board
 Teacher notes
 Power Point Presentation
 Projector
 Samples of work holding devices

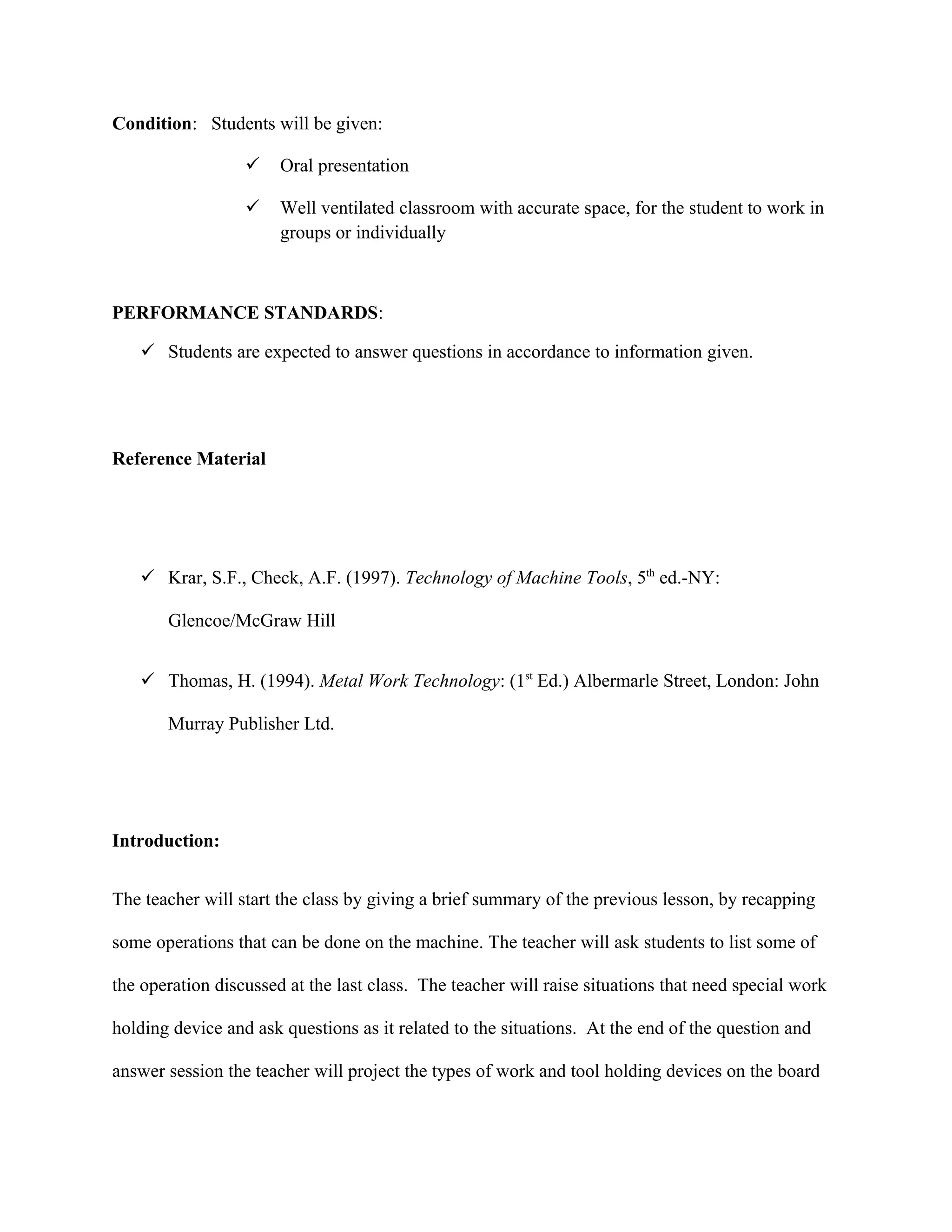

4. Condition: Students will be given:
 Oral presentation
 Well ventilated classroom with accurate space, for the student to work in
groups or individually
PERFORMANCE STANDARDS:
 Students are expected to answer questions in accordance to information given.
Reference Material
 Krar, S.F., Check, A.F. (1997). Technology of Machine Tools, 5th
ed.-NY:
Glencoe/McGraw Hill
 Thomas, H. (1994). Metal Work Technology: (1st
Ed.) Albermarle Street, London: John
Murray Publisher Ltd.
Introduction:
The teacher will start the class by giving a brief summary of the previous lesson, by recapping
some operations that can be done on the machine. The teacher will ask students to list some of
the operation discussed at the last class. The teacher will raise situations that need special work
holding device and ask questions as it related to the situations. At the end of the question and
answer session the teacher will project the types of work and tool holding devices on the board

5. by means of a multimedia projector .The teacher will then ask the student to take notes from the
PowerPoint presentation.

6. Development of Lesson

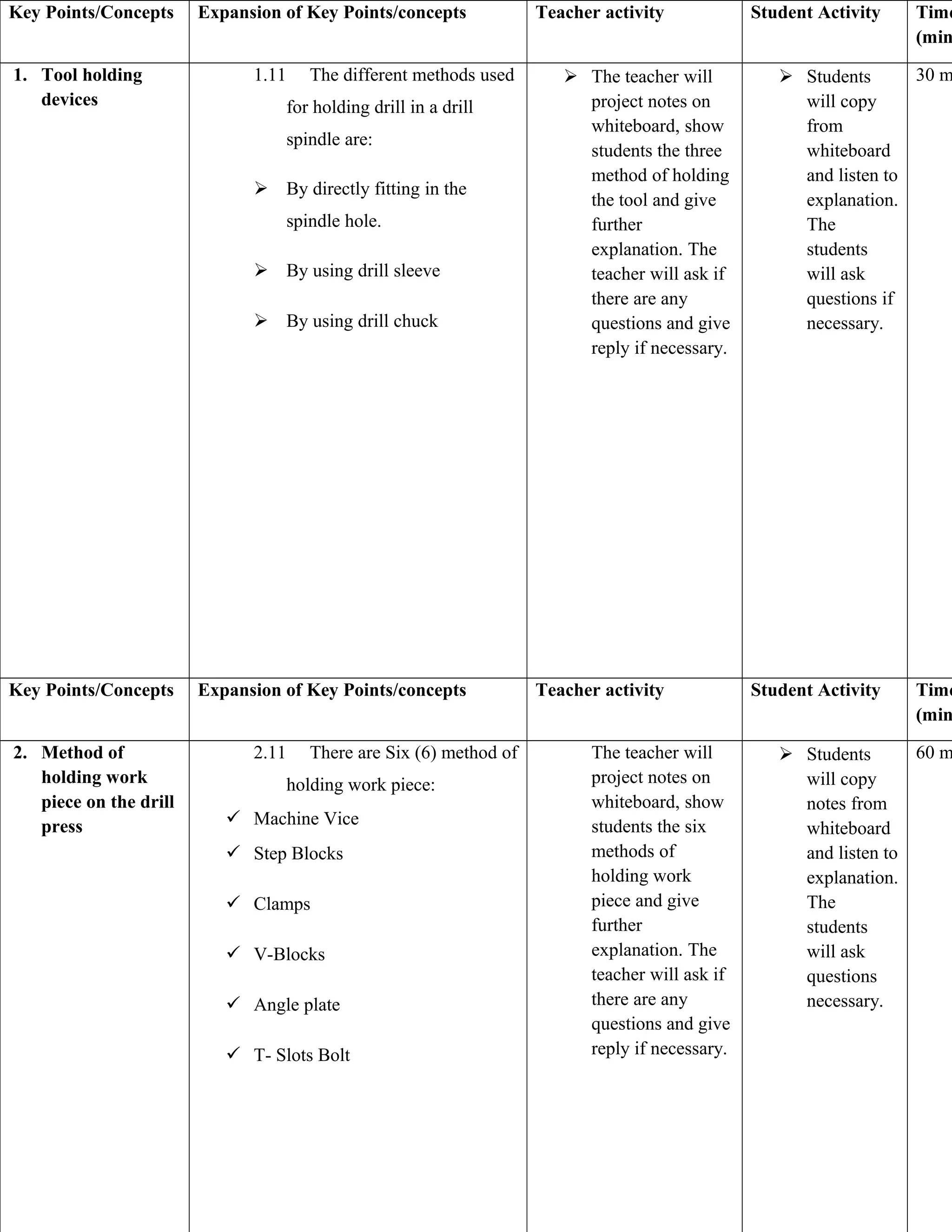

7. Key Points/Concepts Expansion of Key Points/concepts Teacher activity Student Activity Time
(min
1. Tool holding
devices
1.11 The different methods used
for holding drill in a drill
spindle are:
 By directly fitting in the
spindle hole.
 By using drill sleeve
 By using drill chuck
 The teacher will
project notes on
whiteboard, show
students the three
method of holding
the tool and give
further
explanation. The
teacher will ask if
there are any
questions and give
reply if necessary.
 Students
will copy
from
whiteboard
and listen to
explanation.
The
students
will ask
questions if
necessary.
30 m
Key Points/Concepts Expansion of Key Points/concepts Teacher activity Student Activity Time
(min
2. Method of
holding work
piece on the drill
press
2.11 There are Six (6) method of
holding work piece:
 Machine Vice
 Step Blocks
 Clamps
 V-Blocks
 Angle plate
 T- Slots Bolt
The teacher will
project notes on
whiteboard, show
students the six
methods of
holding work
piece and give
further
explanation. The
teacher will ask if
there are any
questions and give
reply if necessary.
 Students
will copy
notes from
whiteboard
and listen to
explanation.
The
students
will ask
questions
necessary.
60 m

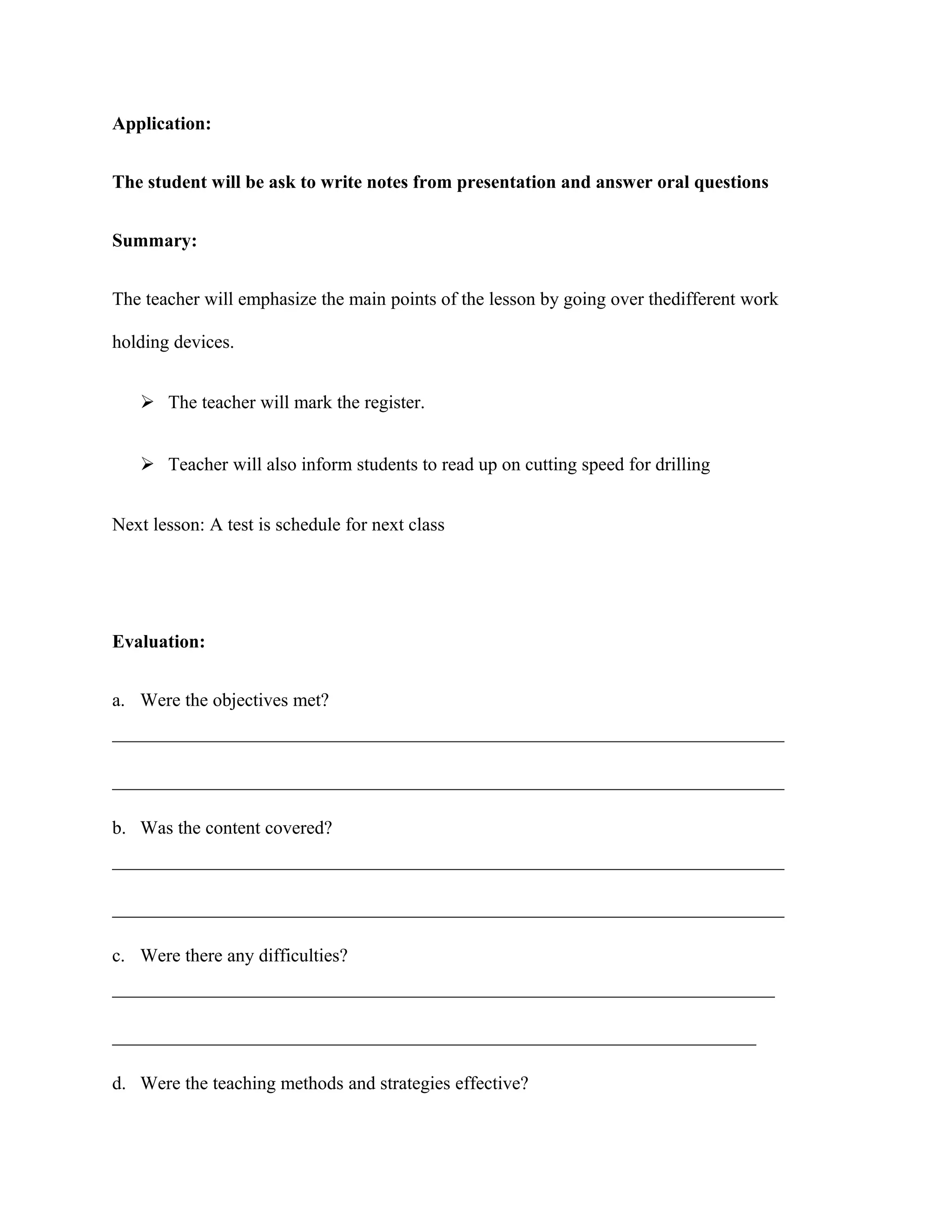

8. Application:
The student will be ask to write notes from presentation and answer oral questions
Summary:
The teacher will emphasize the main points of the lesson by going over thedifferent work
holding devices.
 The teacher will mark the register.
 Teacher will also inform students to read up on cutting speed for drilling
Next lesson: A test is schedule for next class
