This chapter introduces the Document Object Model (DOM) which allows JavaScript to access and manipulate elements of a web page without reloading. It discusses how the DOM represents each element as an object, and how this enables dynamic effects like animations. It also covers how the Image object can be used to dynamically change images and create simple animations by modifying src attributes over time. Caching images in memory rather than redownloading them each time improves performance.

1. JavaScript, Third Edition
Chapter 5
Introduction to the Document
Object Model (DOM)

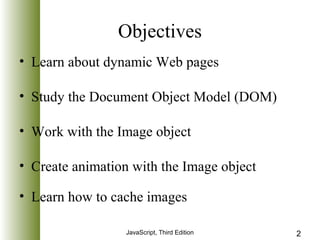

2. Objectives
• Learn about dynamic Web pages
• Study the Document Object Model (DOM)
• Work with the Image object
• Create animation with the Image object
• Learn how to cache images
JavaScript, Third Edition 2

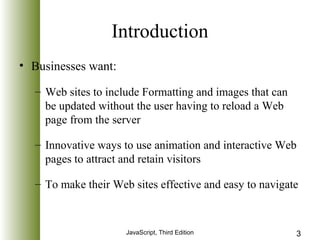

3. Introduction
JavaScript, Third Edition 3
• Businesses want:
– Web sites to include Formatting and images that can
be updated without the user having to reload a Web
page from the server
– Innovative ways to use animation and interactive Web
pages to attract and retain visitors
– To make their Web sites effective and easy to navigate

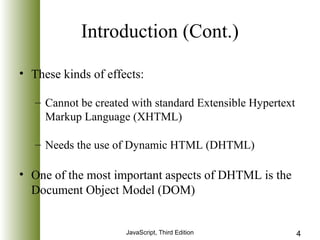

4. Introduction (Cont.)
• These kinds of effects:
– Cannot be created with standard Extensible Hypertext
Markup Language (XHTML)
– Needs the use of Dynamic HTML (DHTML)
• One of the most important aspects of DHTML is the
Document Object Model (DOM)
JavaScript, Third Edition 4

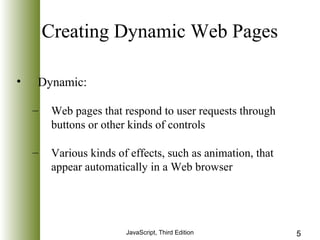

5. Creating Dynamic Web Pages
JavaScript, Third Edition 5
• Dynamic:
– Web pages that respond to user requests through
buttons or other kinds of controls
– Various kinds of effects, such as animation, that
appear automatically in a Web browser

6. Creating Dynamic Web Pages
(Cont.)
• A dynamic Web page can allow a user to:
– Change the document background color
– Submit a form and process a query
– Participate in an online game or quiz
JavaScript, Third Edition 6

7. Creating Dynamic Web Pages
(Cont.)
• To make Web pages truly dynamic, you need more
than just XHTML
– Need Dynamic HTML or (DHTML)
JavaScript, Third Edition 7

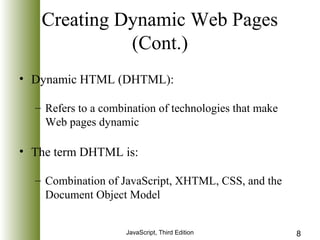

8. Creating Dynamic Web Pages
(Cont.)
• Dynamic HTML (DHTML):
– Refers to a combination of technologies that make
Web pages dynamic
• The term DHTML is:
– Combination of JavaScript, XHTML, CSS, and the
Document Object Model
JavaScript, Third Edition 8

9. The Document Object Model
• Is at the core of DHTML
• Represents the Web page displayed in a window
• Each element on a Web page is represented in the
DOM by its own object
• This makes it possible for a JavaScript program to:
– Access individual elements on a Web page
– Change elements individually, without having to
reload the page from the server
JavaScript, Third Edition 9

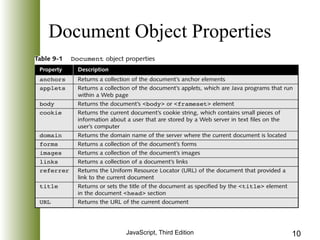

10. Document Object Properties
JavaScript, Third Edition 10

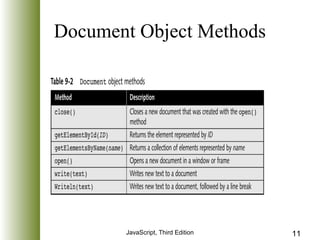

11. Document Object Methods
JavaScript, Third Edition 11

12. Document Object Methods (Cont.)
JavaScript, Third Edition 12
• Open() method:
– Could be used to create a new document in a window
or frame
– Use the write() and writeln() methods to add content to
the new document

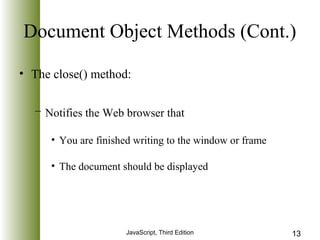

13. Document Object Methods (Cont.)
• The close() method:
– Notifies the Web browser that
• You are finished writing to the window or frame
• The document should be displayed
JavaScript, Third Edition 13

14. The Image Object
• Represents an image created using the <img> element
• Use to dynamically change an image displayed on a
Web page
• Image objects for each <img> element:
– Assigned to elements of images[] array in the order
they appear on the Web page
JavaScript, Third Edition 14

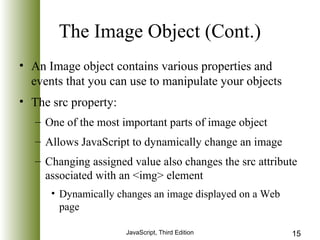

15. The Image Object (Cont.)
• An Image object contains various properties and
events that you can use to manipulate your objects
• The src property:
– One of the most important parts of image object
– Allows JavaScript to dynamically change an image
– Changing assigned value also changes the src attribute
associated with an <img> element
• Dynamically changes an image displayed on a Web
page
JavaScript, Third Edition 15

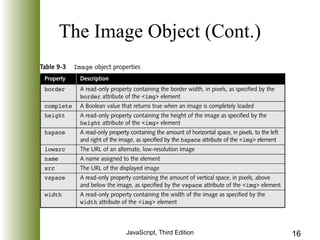

16. The Image Object (Cont.)
JavaScript, Third Edition 16

17. The Image Object (Cont.)
JavaScript, Third Edition 17

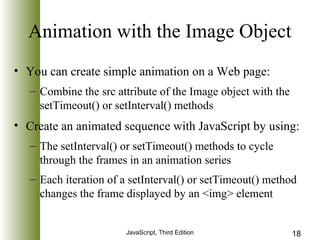

18. Animation with the Image Object
• You can create simple animation on a Web page:
– Combine the src attribute of the Image object with the
setTimeout() or setInterval() methods
• Create an animated sequence with JavaScript by using:
– The setInterval() or setTimeout() methods to cycle
through the frames in an animation series
– Each iteration of a setInterval() or setTimeout() method
changes the frame displayed by an <img> element
JavaScript, Third Edition 18

19. Image Caching
• Technique for eliminating multiple downloads of the
same file
• Temporarily stores image files in memory on a local
computer
• Allows JavaScript to store and retrieve an image from
memory rather than download the image each time it is
needed
JavaScript, Third Edition 19

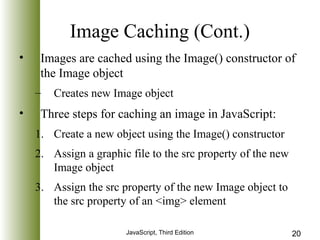

20. Image Caching (Cont.)
• Images are cached using the Image() constructor of
the Image object
– Creates new Image object
• Three steps for caching an image in JavaScript:
1. Create a new object using the Image() constructor
2. Assign a graphic file to the src property of the new
JavaScript, Third Edition 20
Image object
3. Assign the src property of the new Image object to
the src property of an <img> element

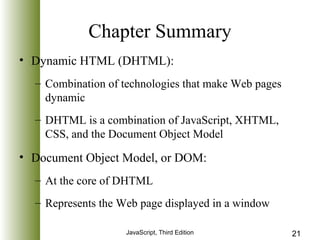

21. Chapter Summary
• Dynamic HTML (DHTML):
– Combination of technologies that make Web pages
dynamic
– DHTML is a combination of JavaScript, XHTML,
CSS, and the Document Object Model
• Document Object Model, or DOM:
– At the core of DHTML
– Represents the Web page displayed in a window
JavaScript, Third Edition 21

22. Chapter Summary (cont.)
• The open() method:
– Creates a new document in a window or frame
• The close() method:
– Notifies Web browser that you are finished writing to
the window or frame and that the document should be
displayed
• An Image object:
– Represents an image created using the <img> element
JavaScript, Third Edition 22

23. Chapter Summary (cont.)
JavaScript, Third Edition 23
• Src property:
– One of the most important properties of the Image
object
– Allows JavaScript to change an image dynamically

24. Chapter Summary (cont.)
JavaScript, Third Edition 24
• Image caching:
– Technique for eliminating multiple downloads of the
same file
– Temporarily stores image files in memory
– Allows JavaScript to store and retrieve an image from
memory rather than downloading the image each time
it is needed

25. Chapter Summary (cont.)
• Onload event handler of the Image:
– Use it to be certain that all images are downloaded into
a cache before commencing an animation sequence
JavaScript, Third Edition 25
