DockerCon SF 2015: Enabling Microservices @Orbitz
- 1. Enabling Microservices @Orbitz SteveHoffman @bacoboy Rick Fast @tortiepoint Senior Principal Engineers

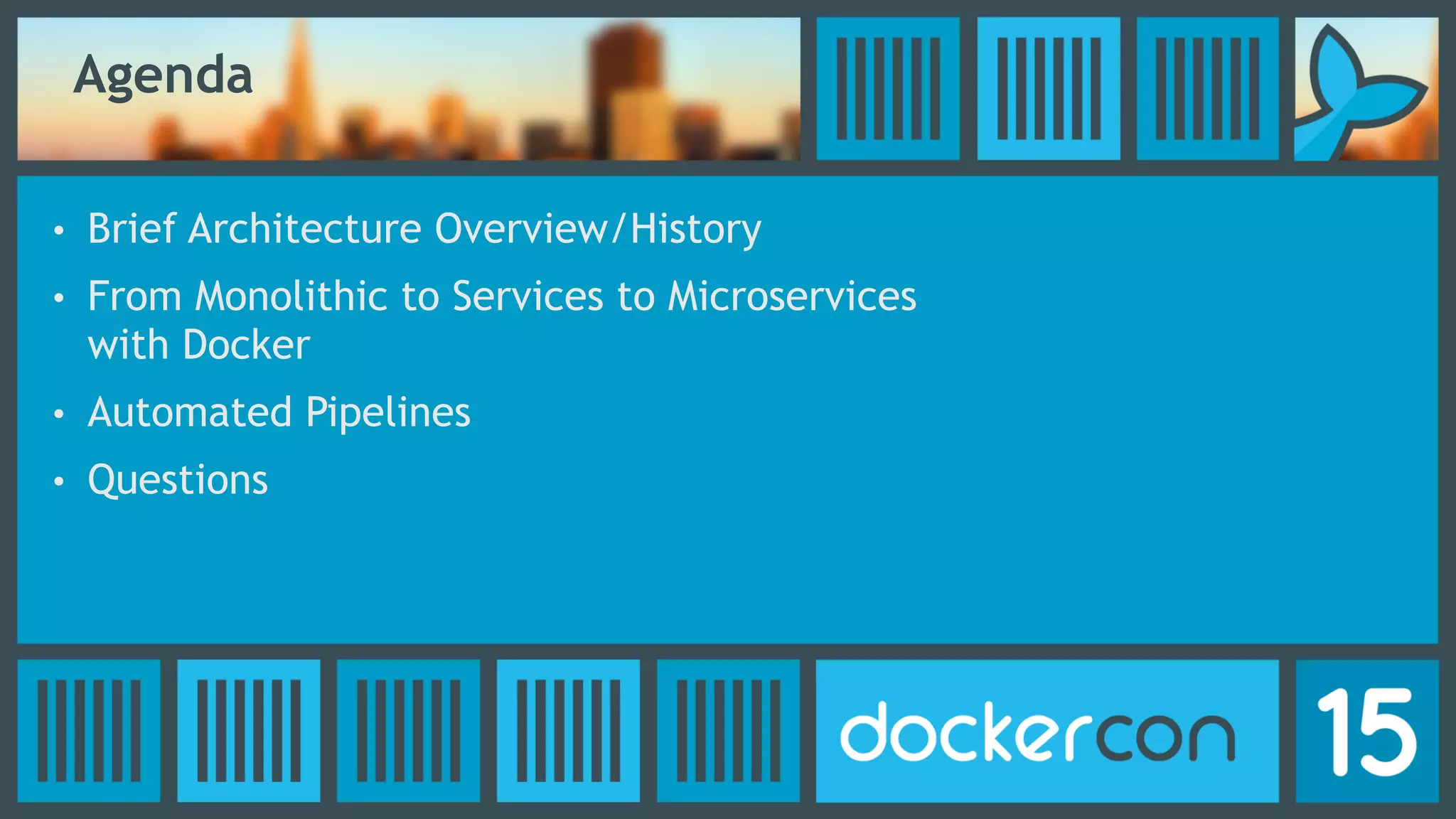

- 5. Agenda • Brief ArchitectureOverview/History • From Monolithic to Services to Microservices with Docker • Automated Pipelines • Questions
- 6.

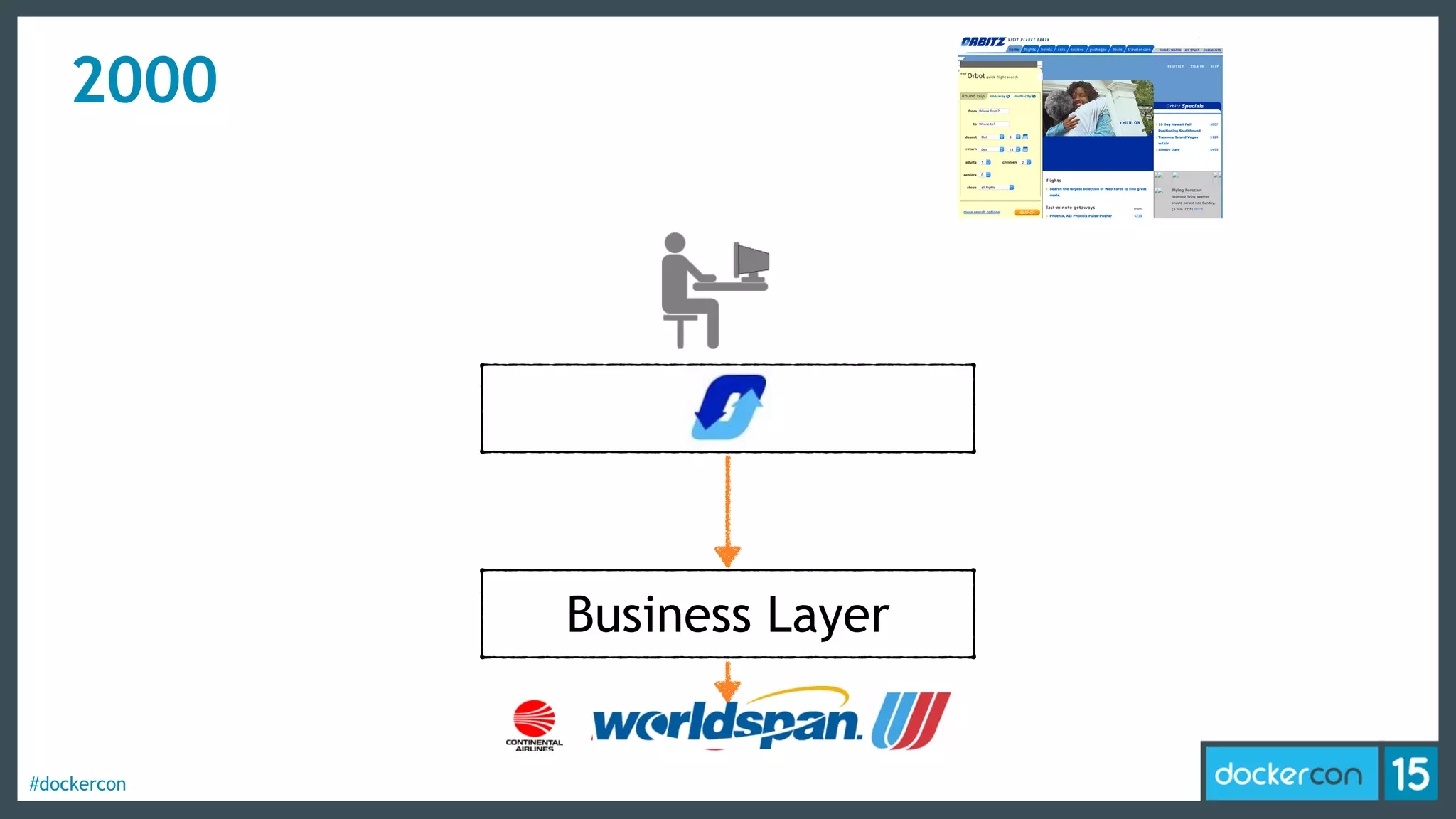

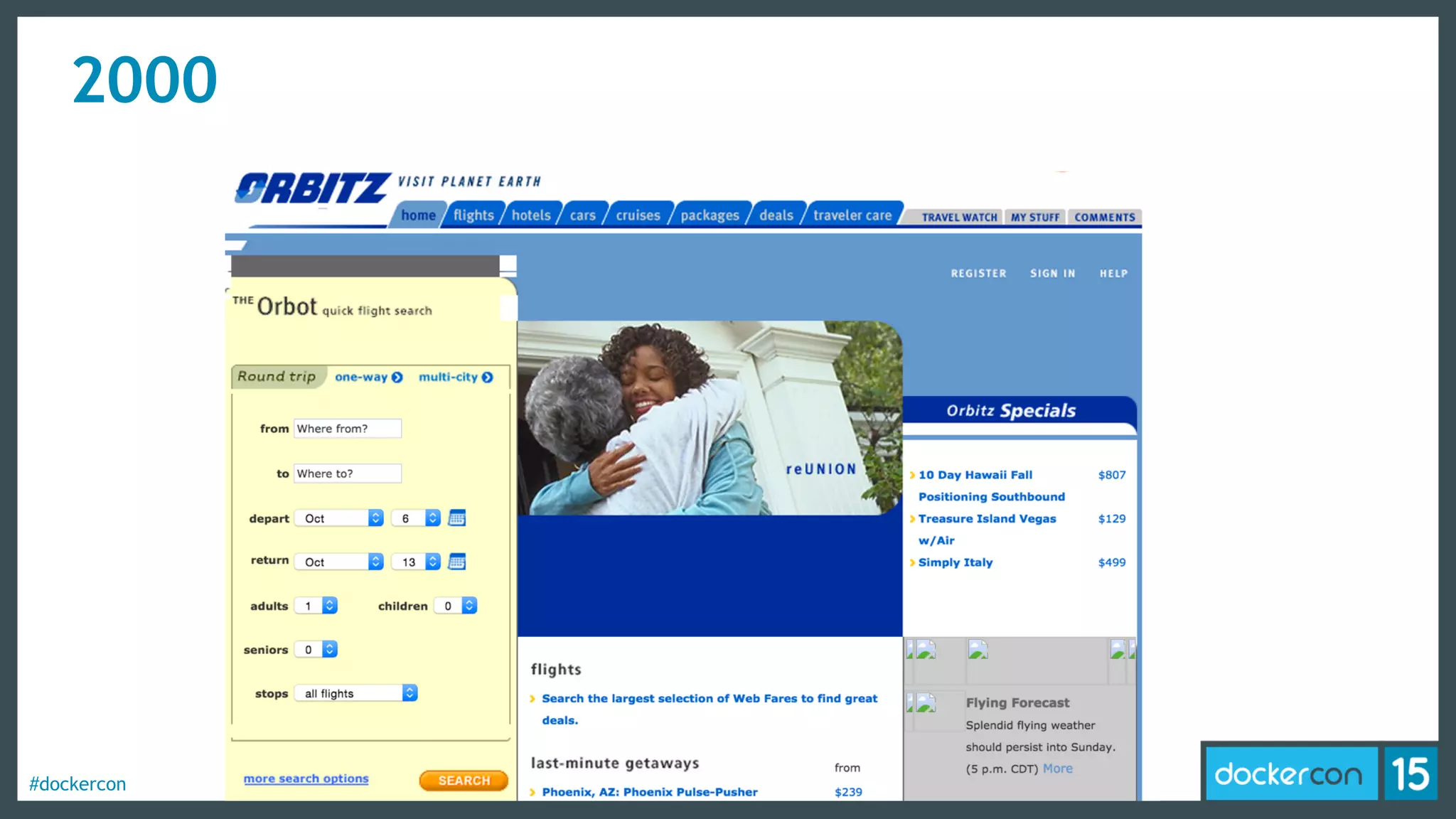

- 7. #dockercon 2000 Yes, we areSTILL hiring! @OrbitzTalent
- 8.
- 9.
- 10.
- 11.
- 12.

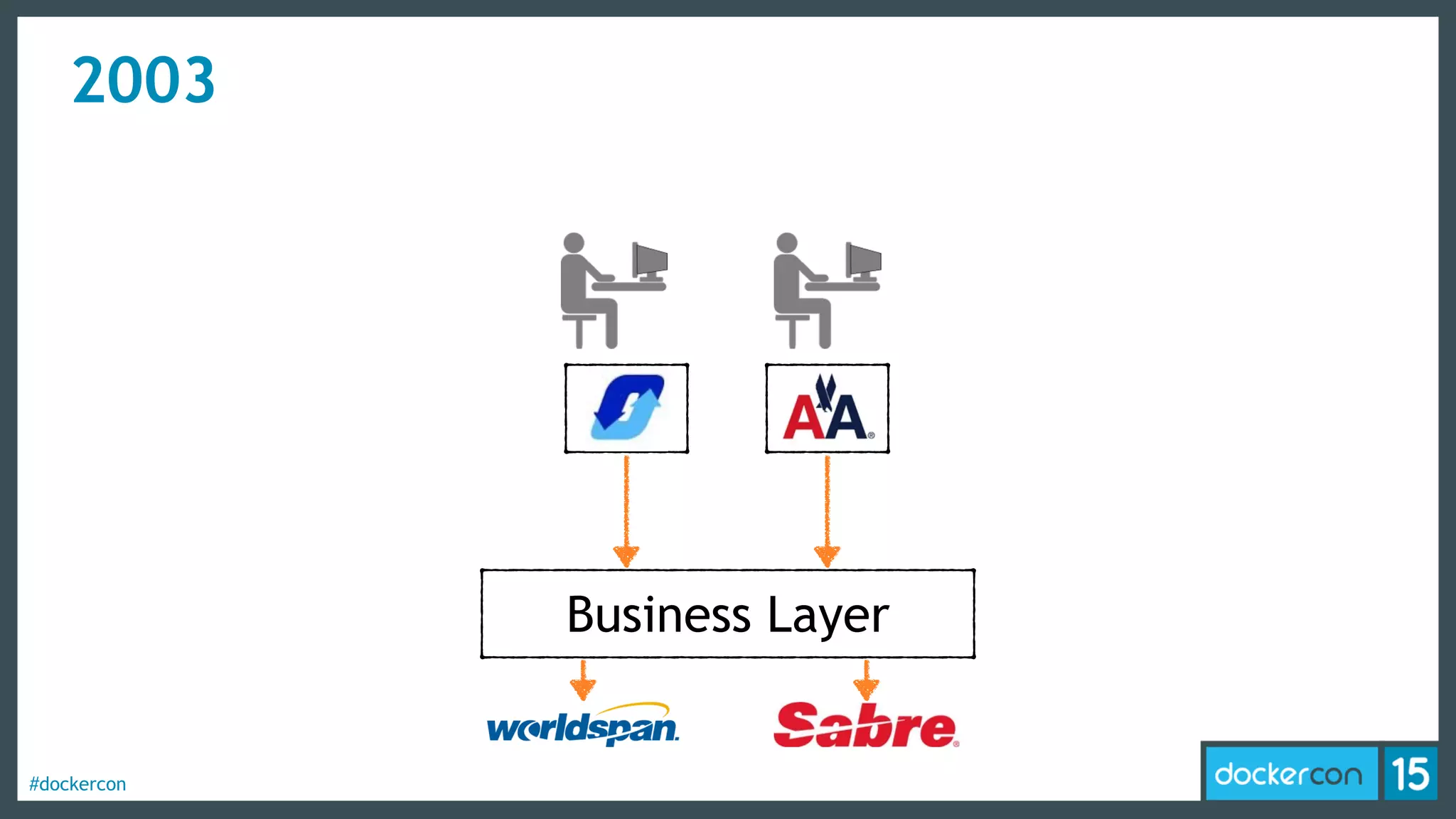

- 13.
- 14.
- 15.
- 16.
- 17.

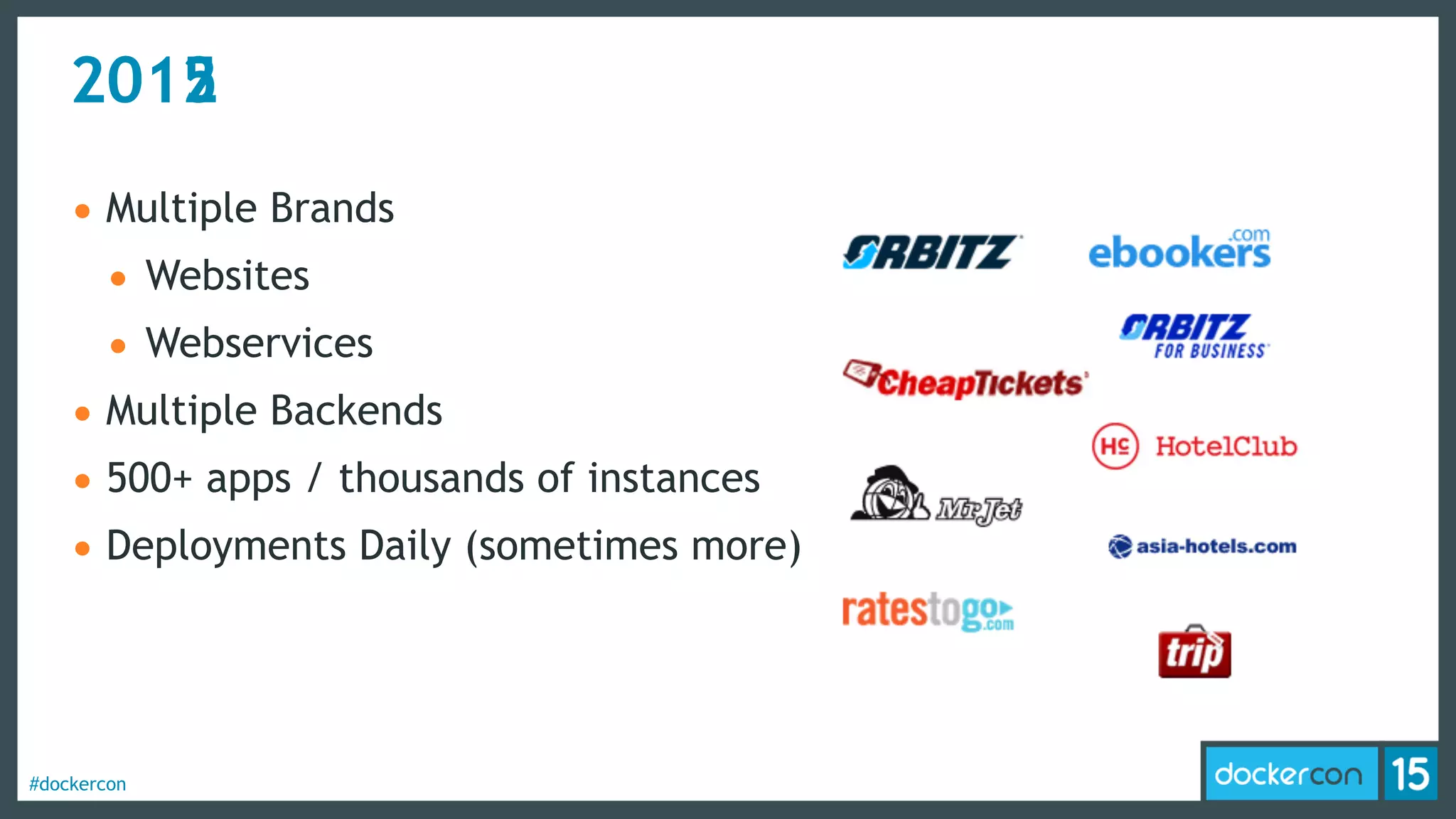

- 18. #dockercon 2012 • Multiple Brands •Websites • Webservices • Multiple Backends • 500+ apps / thousands of instances • Deployments Daily (sometimes more) 2015
- 19.

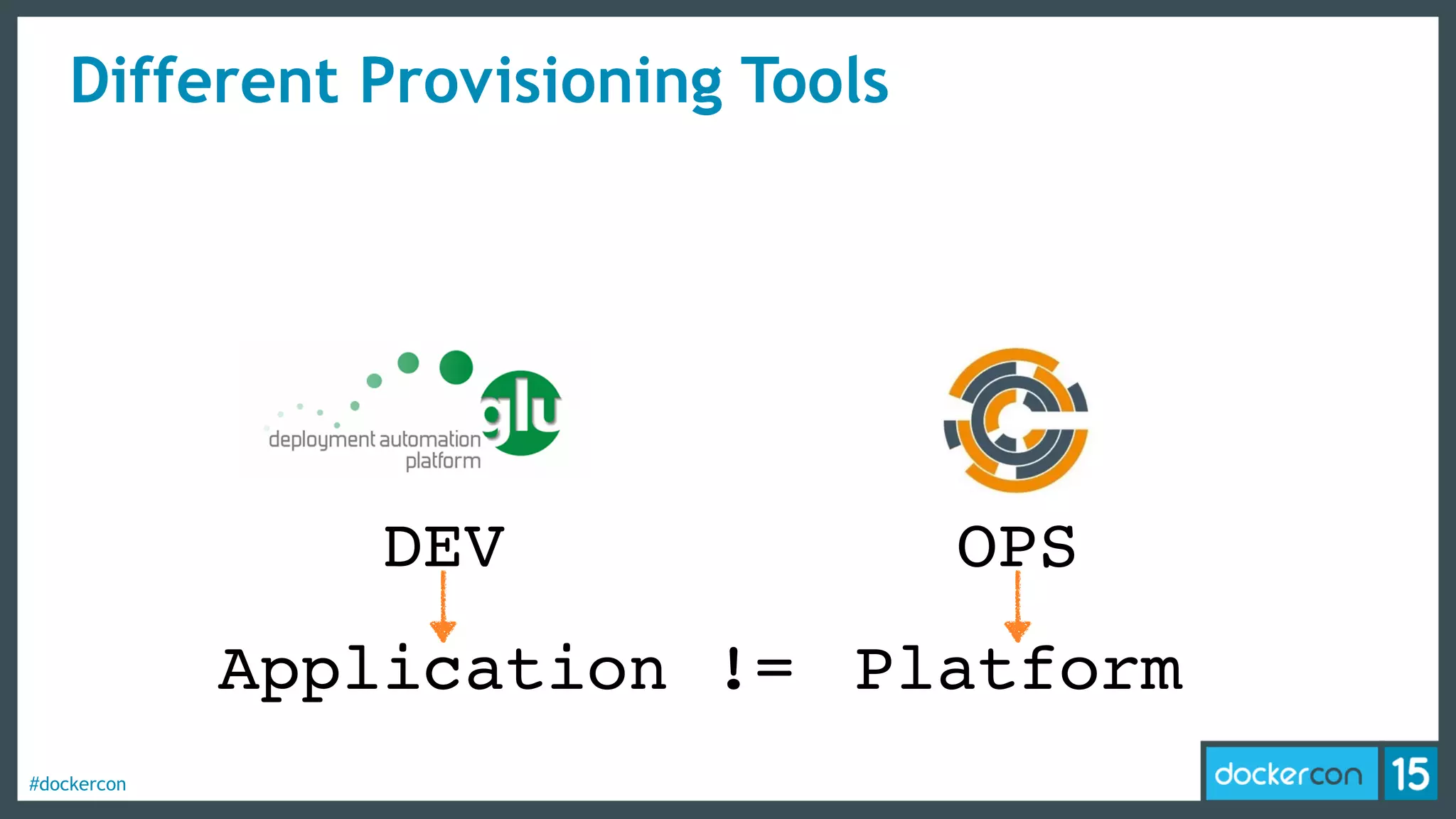

- 20. #dockercon Different Provisioning Tools DEVOPS Application Platform!=

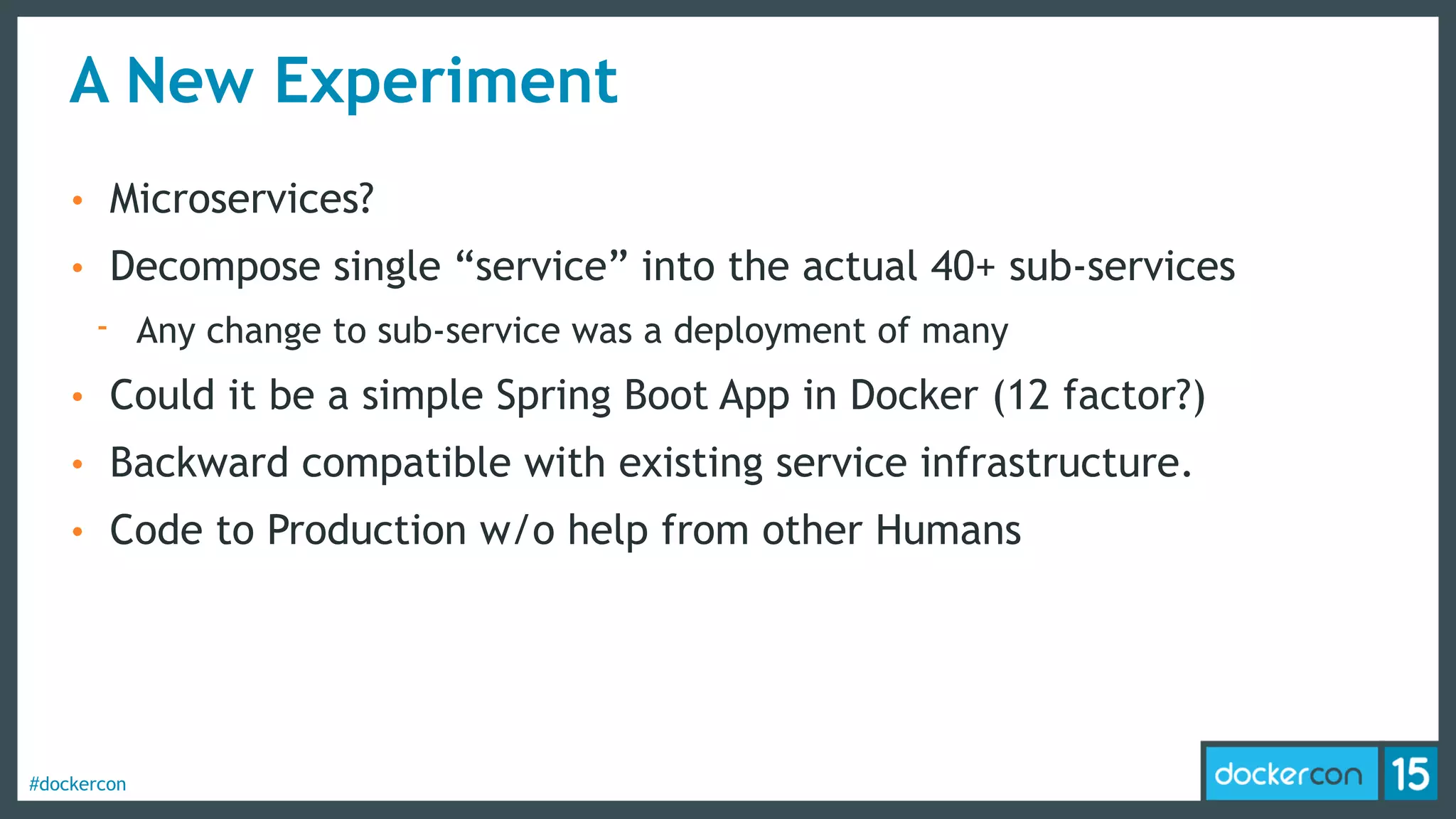

- 21. #dockercon A New Experiment •Microservices? • Decompose single “service” into the actual 40+ sub-services - Any change to sub-service was a deployment of many • Could it be a simple Spring Boot App in Docker (12 factor?) • Backward compatible with existing service infrastructure. • Code to Production w/o help from other Humans

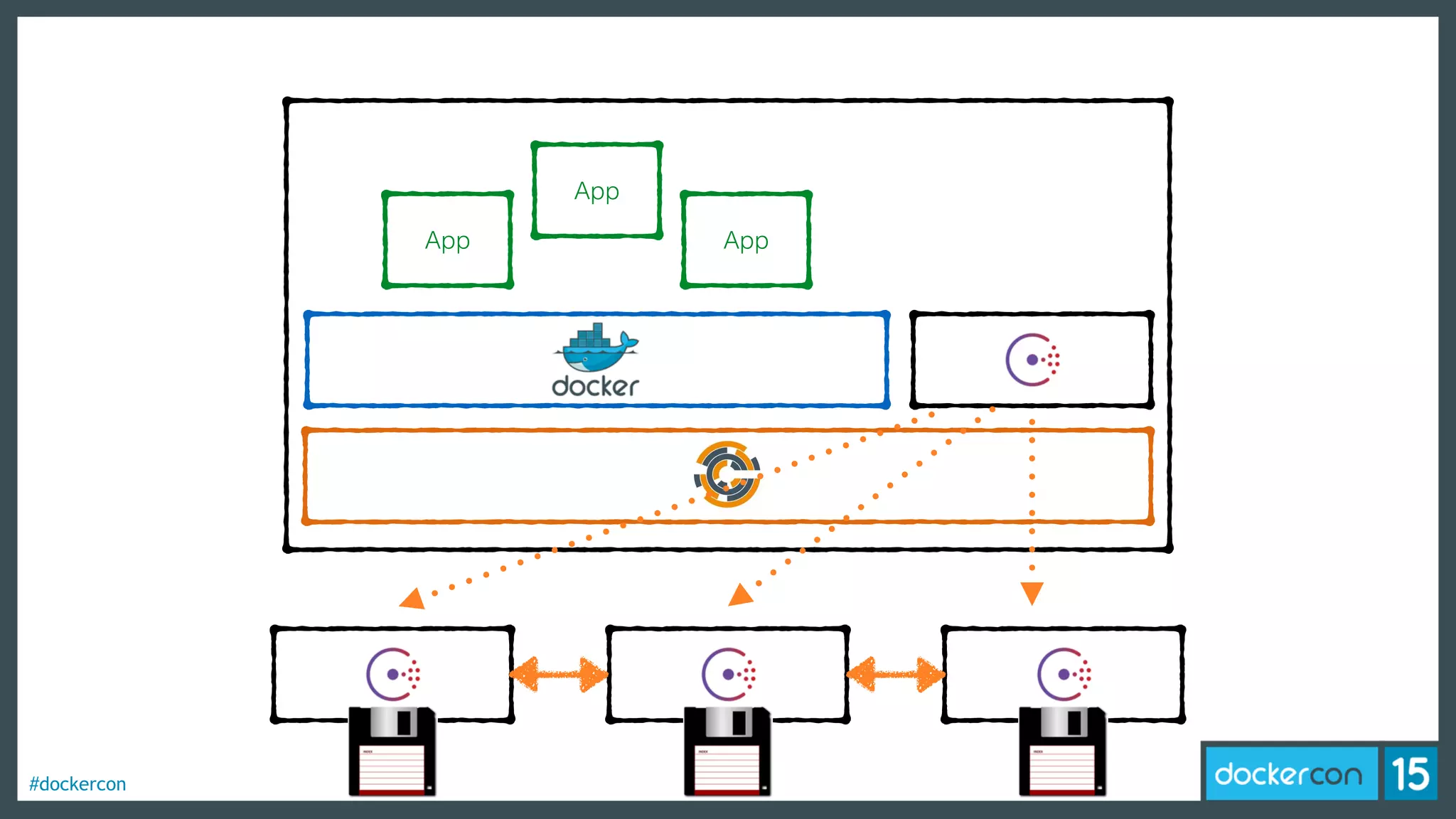

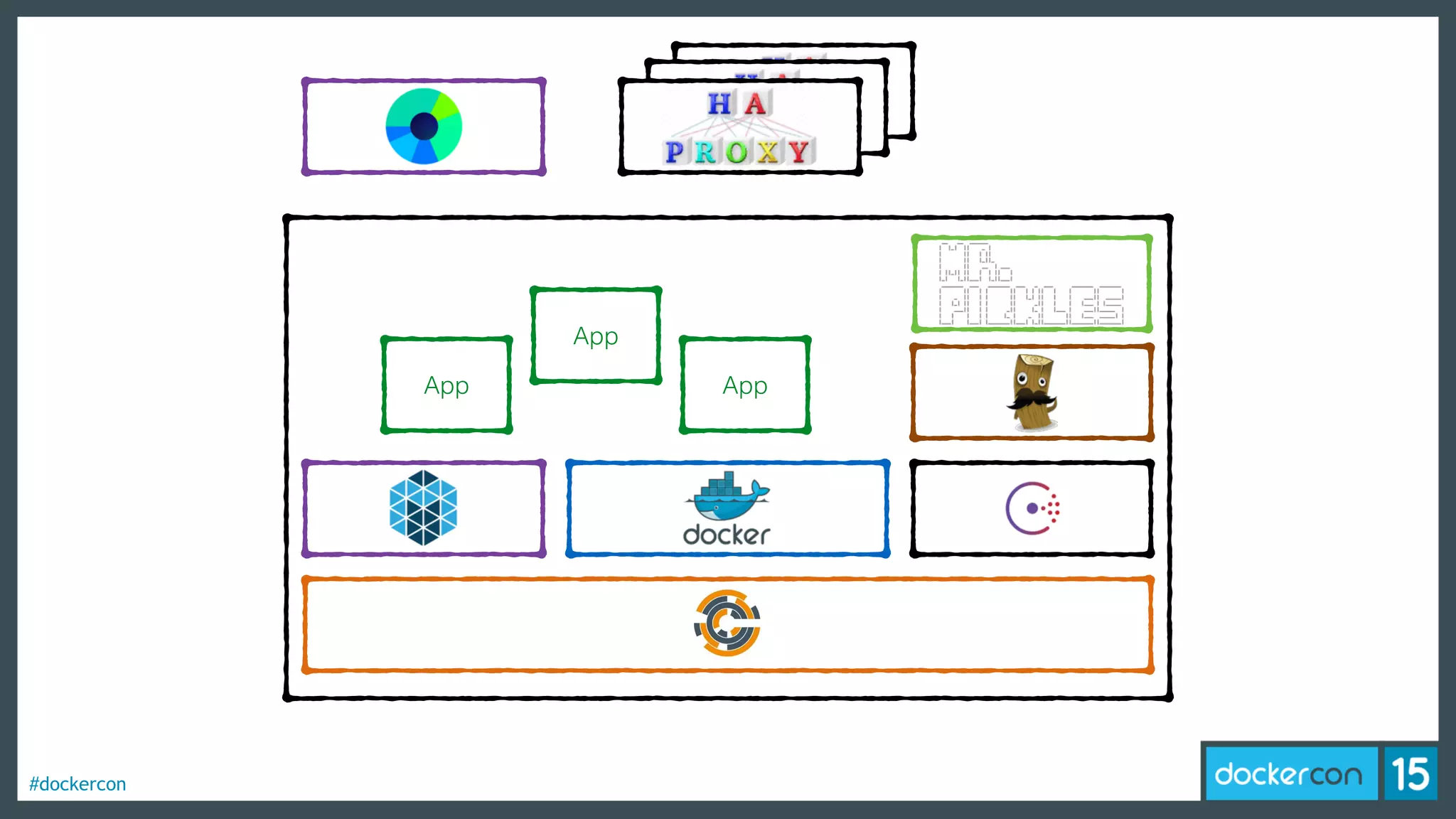

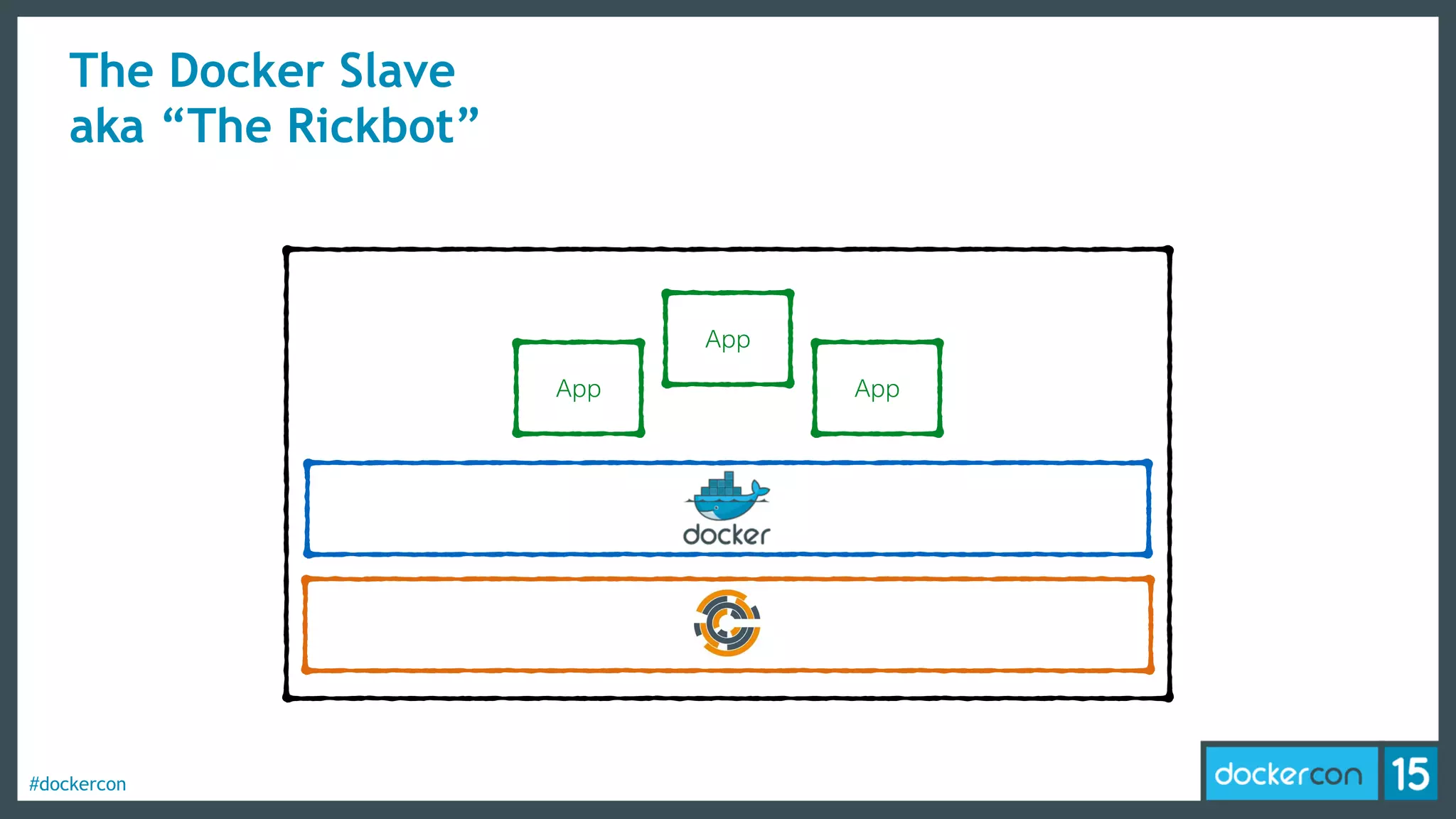

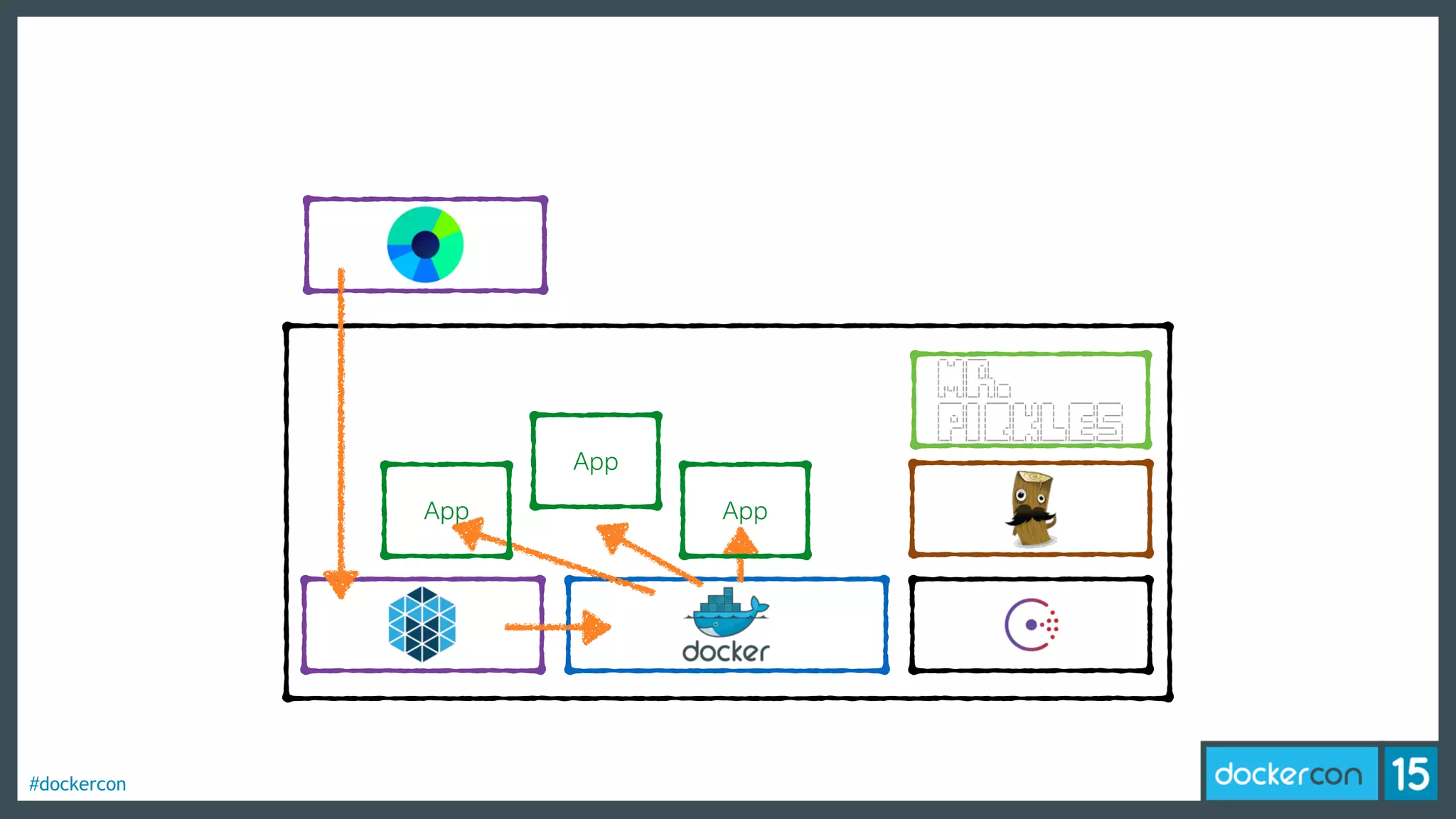

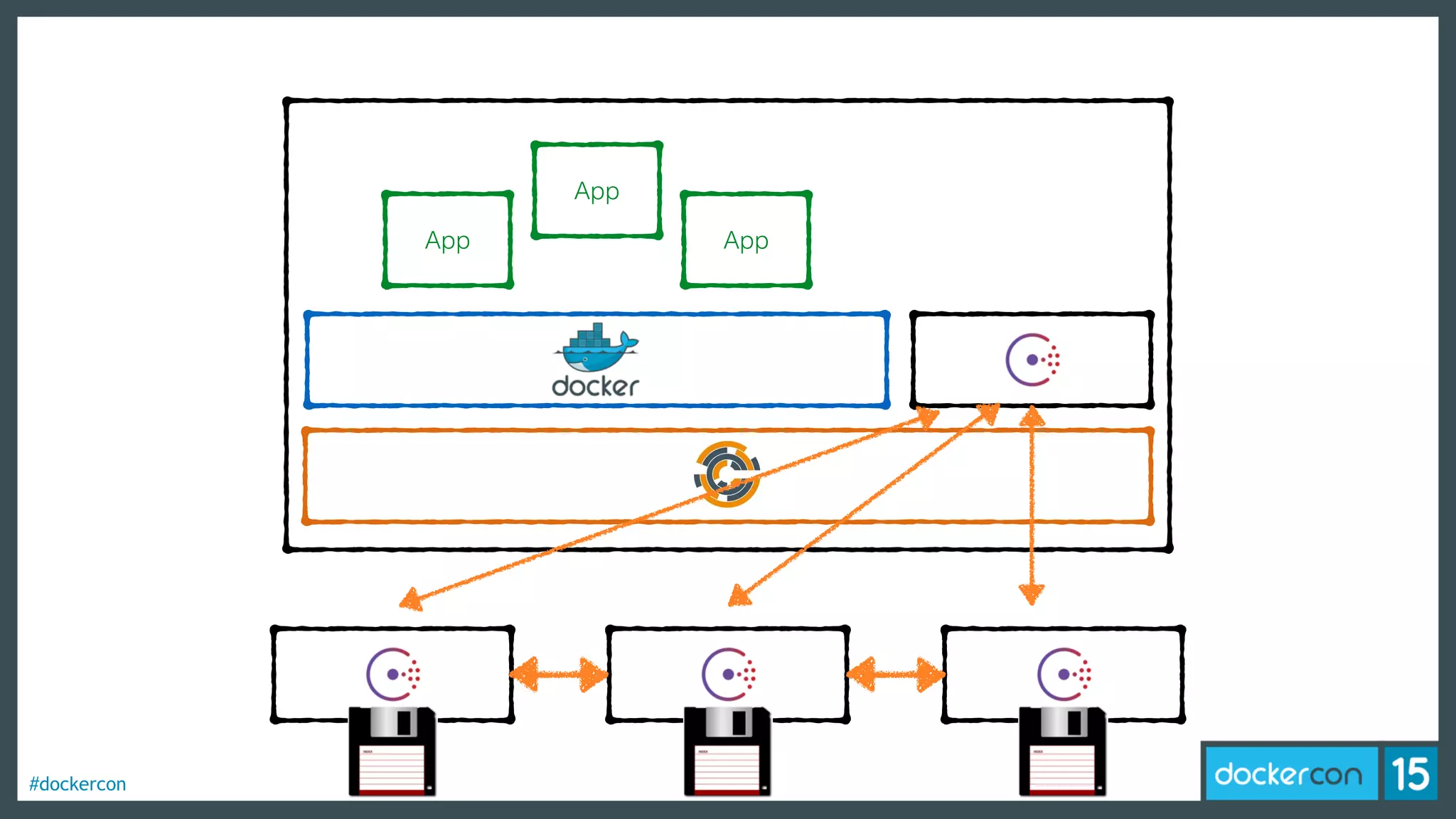

- 22. #dockercon The Docker Slave aka“The Rickbot” App App App
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37. A Little MoreBackground
- 38.
- 39.

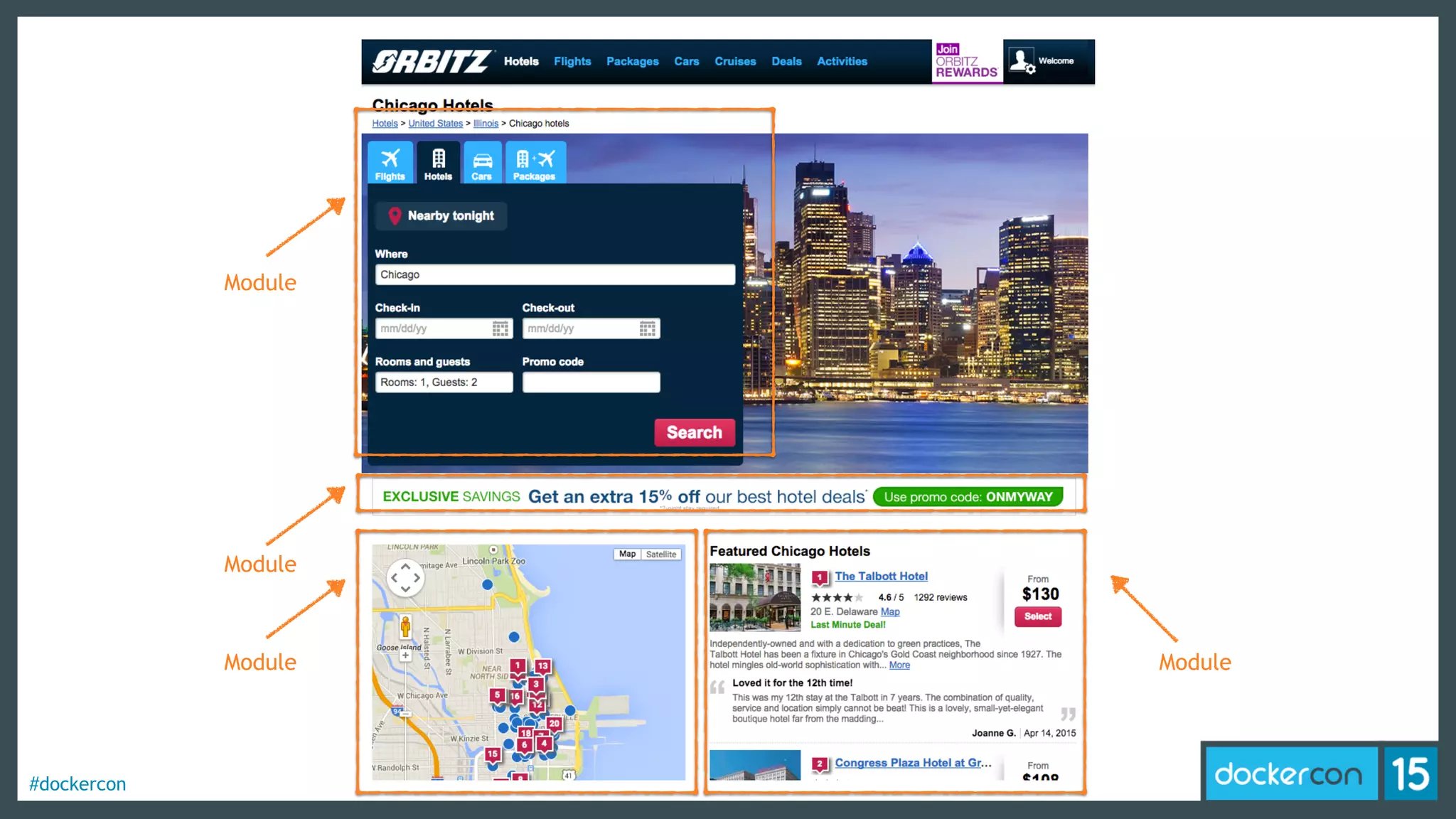

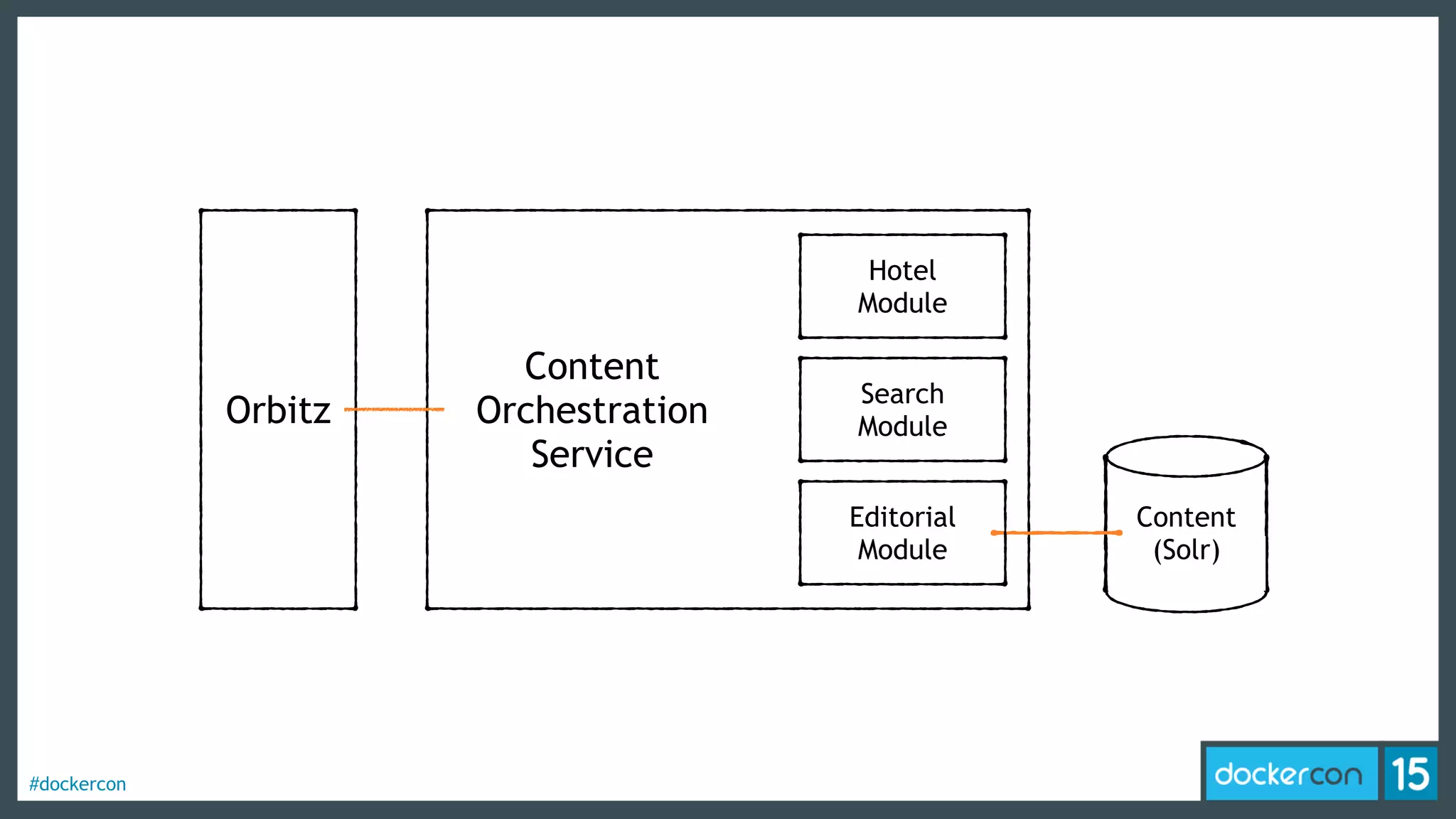

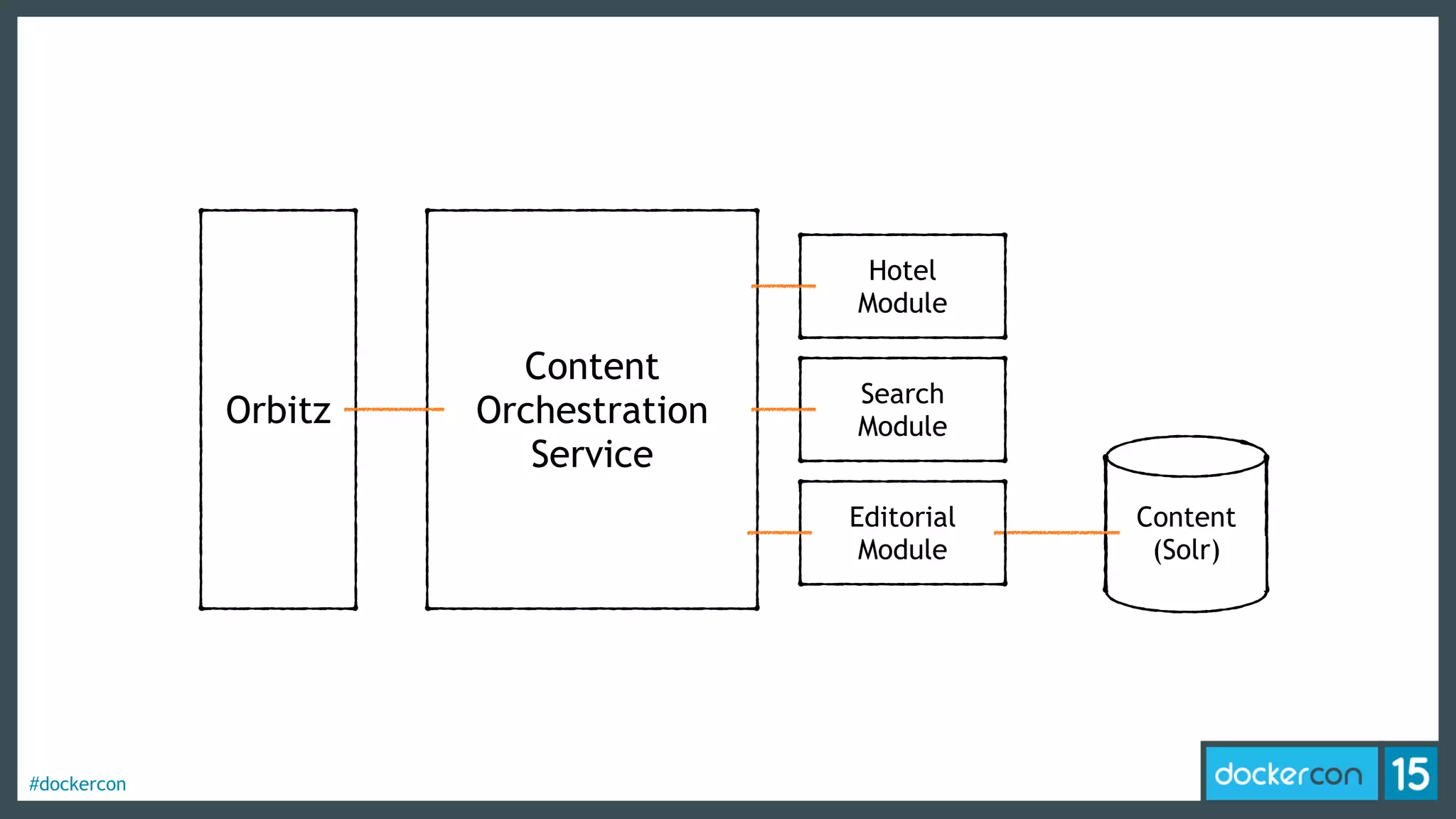

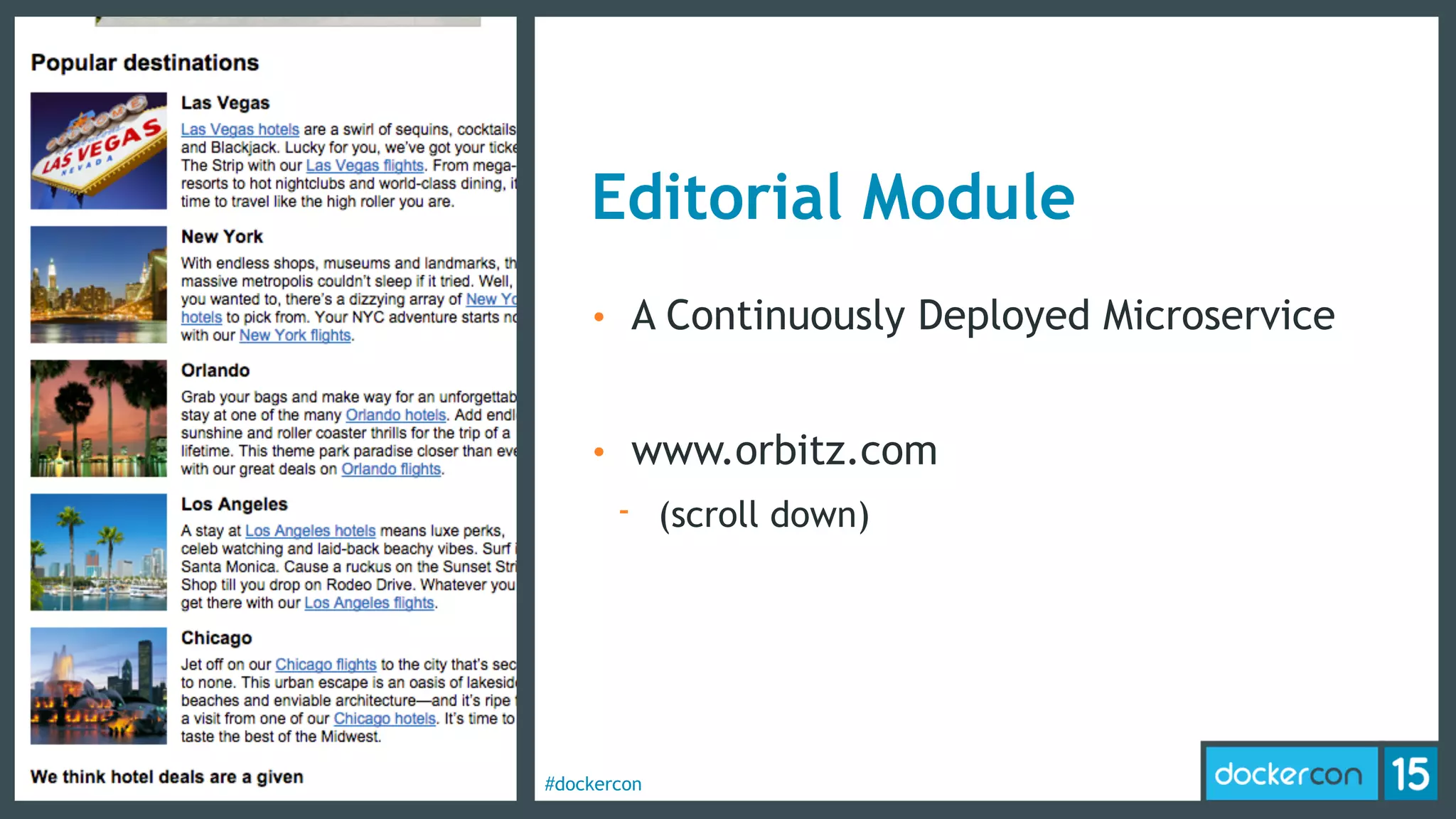

- 40. #dockercon Editorial Module • AContinuously Deployed Microservice • www.orbitz.com - (scroll down)
- 41.
- 42.
- 43.
- 44.

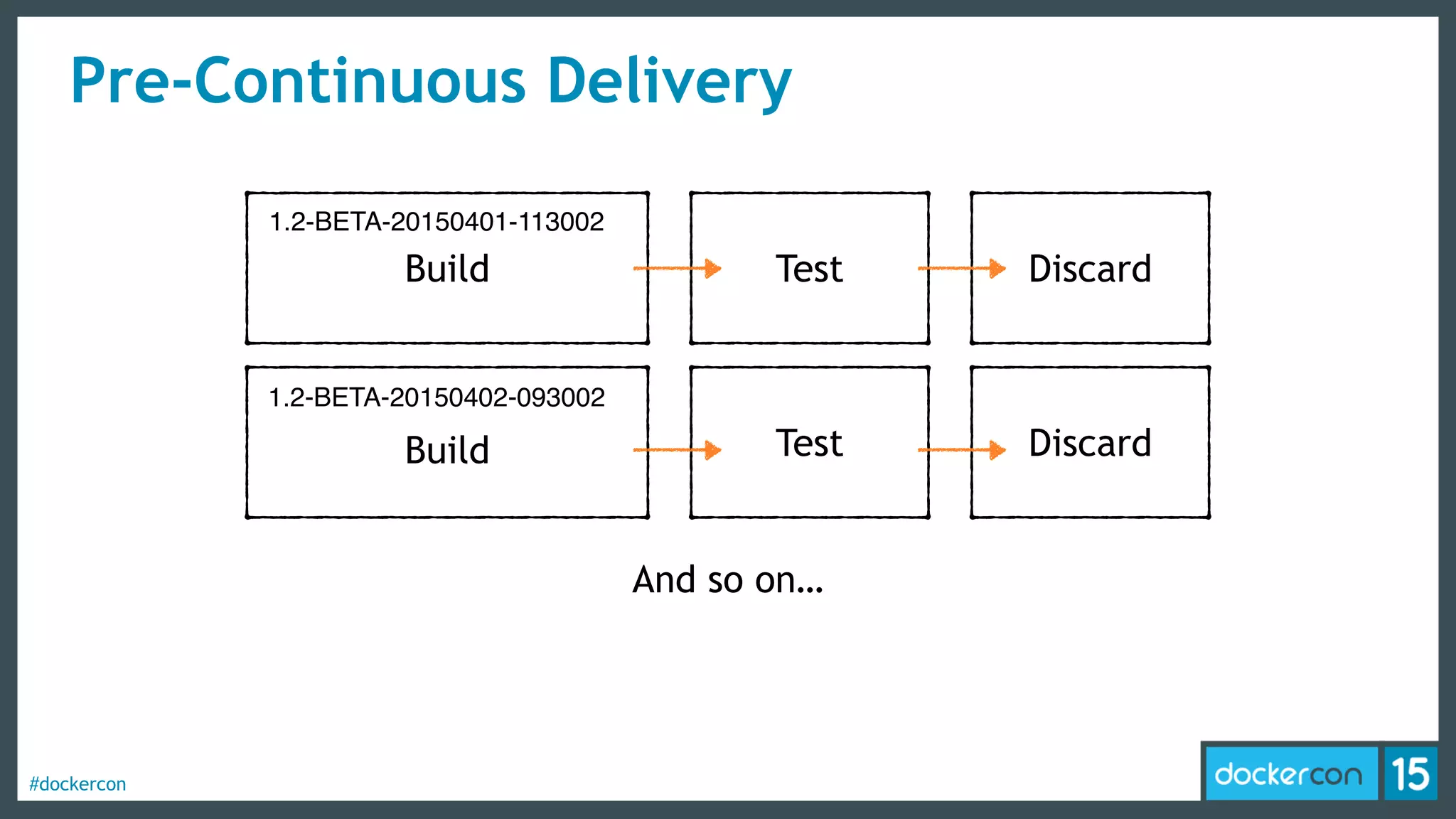

- 45. #dockercon Pre-Continuous Delivery 1.2-BETA-20150401-113002 Test Discard TestDiscard 1.2-BETA-20150402-093002 Build Build And so on…

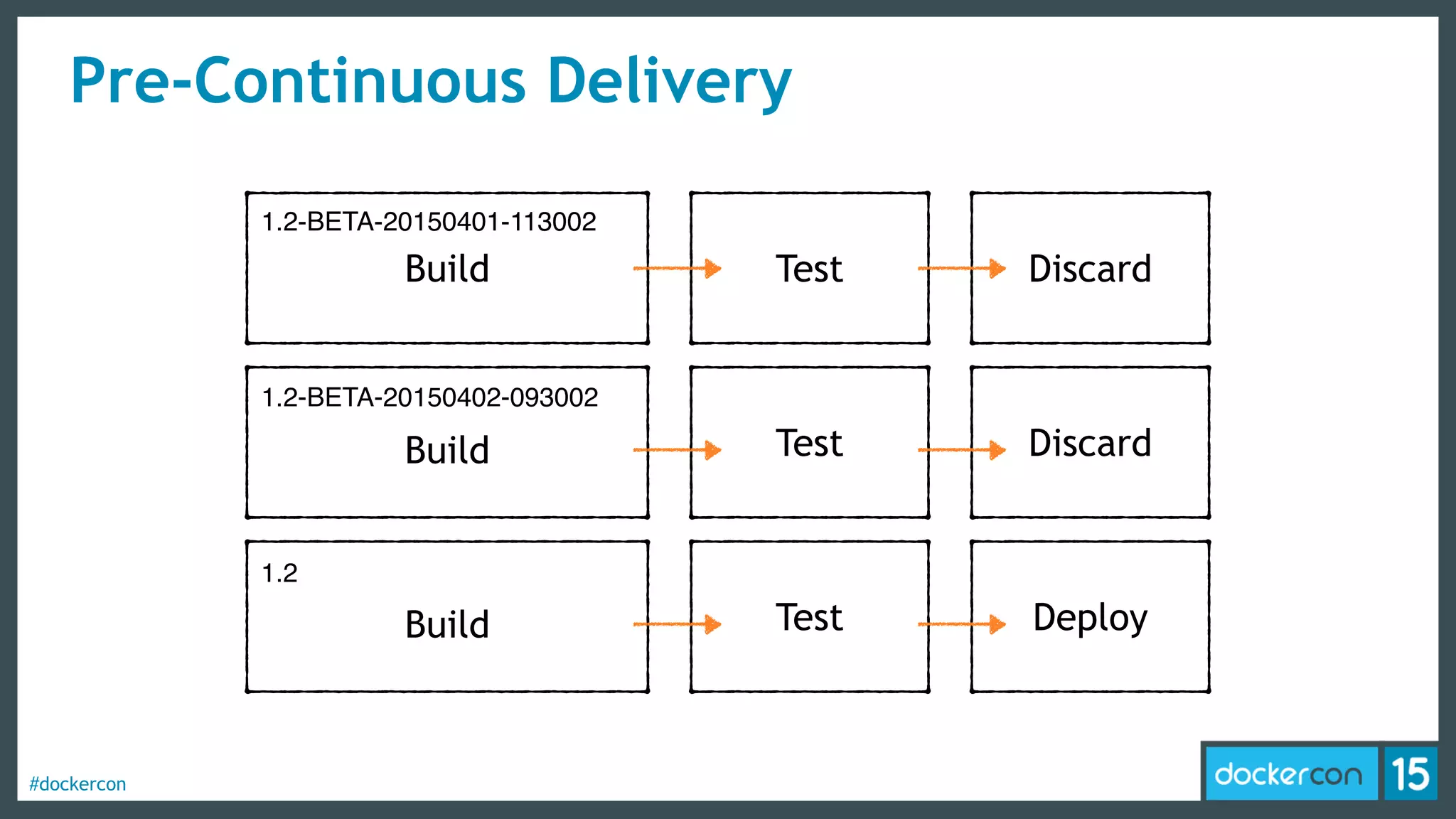

- 46. #dockercon Pre-Continuous Delivery 1.2-BETA-20150401-113002 Test Discard TestDiscard 1.2-BETA-20150402-093002 Build Build Test Deploy 1.2 Build

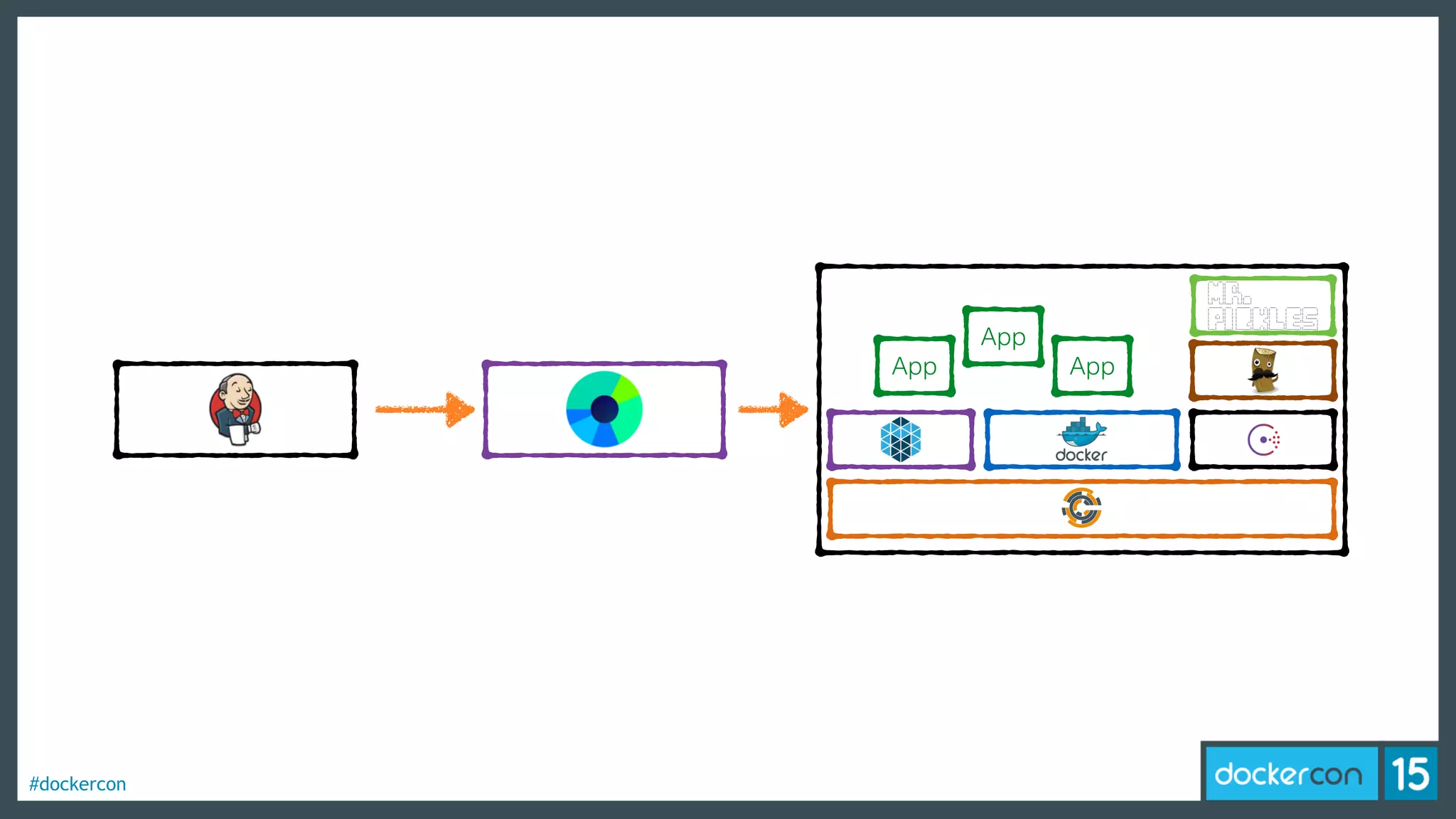

- 47. Continuous Delivery withJenkins, Docker, and Ansible (And then Marathon)

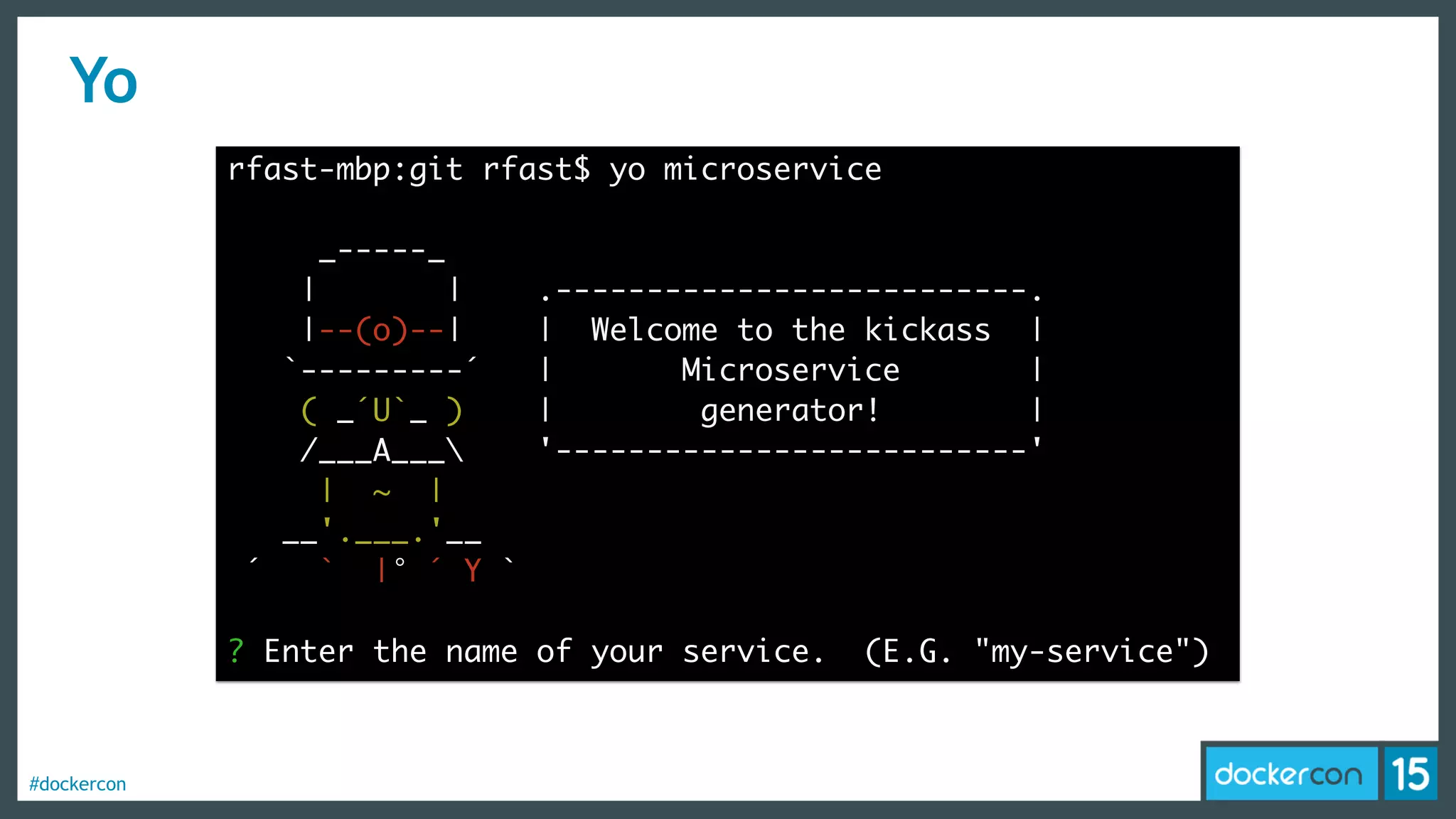

- 48. #dockercon Yo rfast-mbp:git rfast$ yomicroservice _-----_ | | .--------------------------. |--(o)--| | Welcome to the kickass | `---------´ | Microservice | ( _´U`_ ) | generator! | /___A___ '--------------------------' | ~ | __'.___.'__ ´ ` |° ´ Y ` ? Enter the name of your service. (E.G. "my-service")
- 49.
- 50.
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.

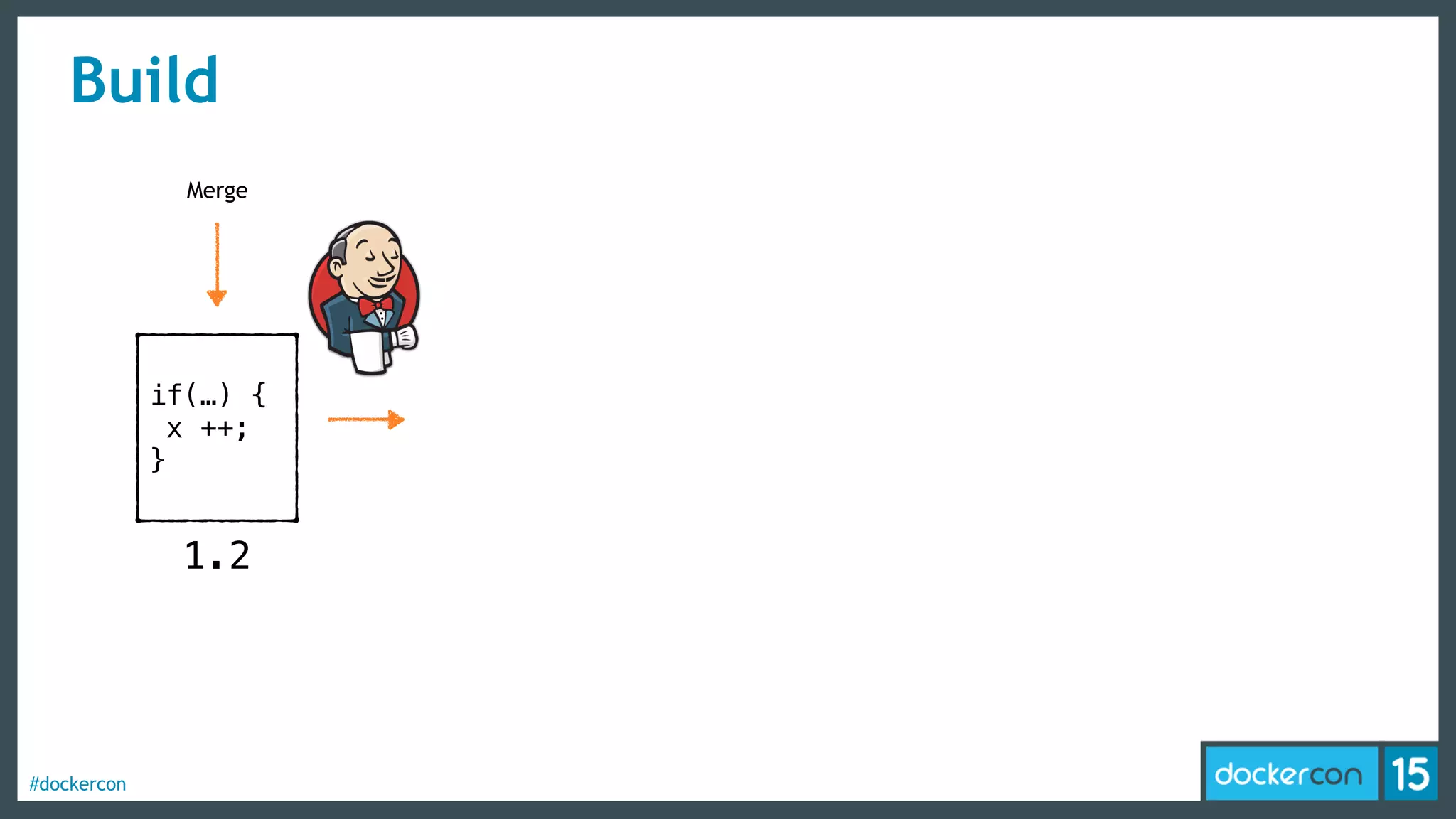

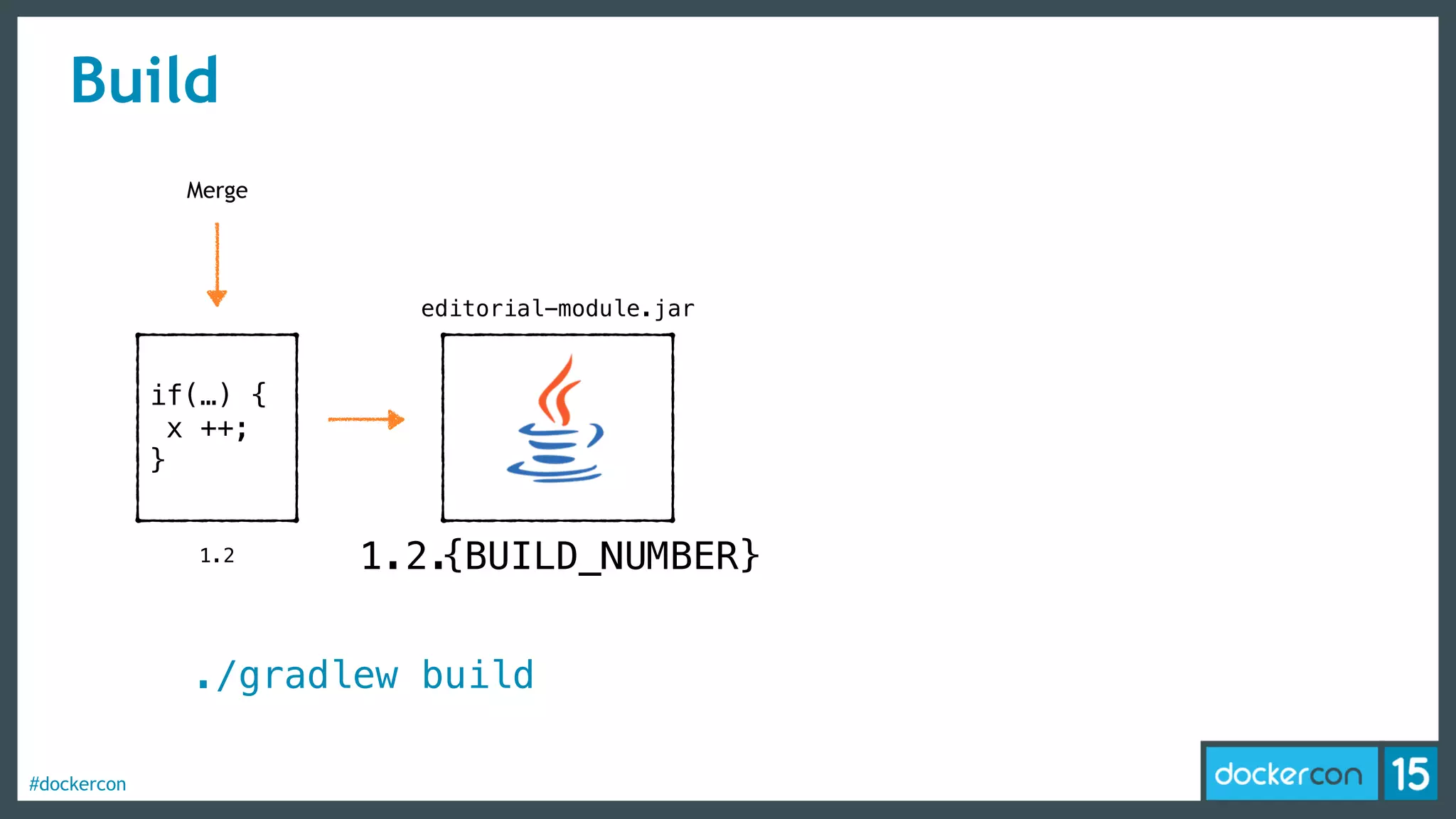

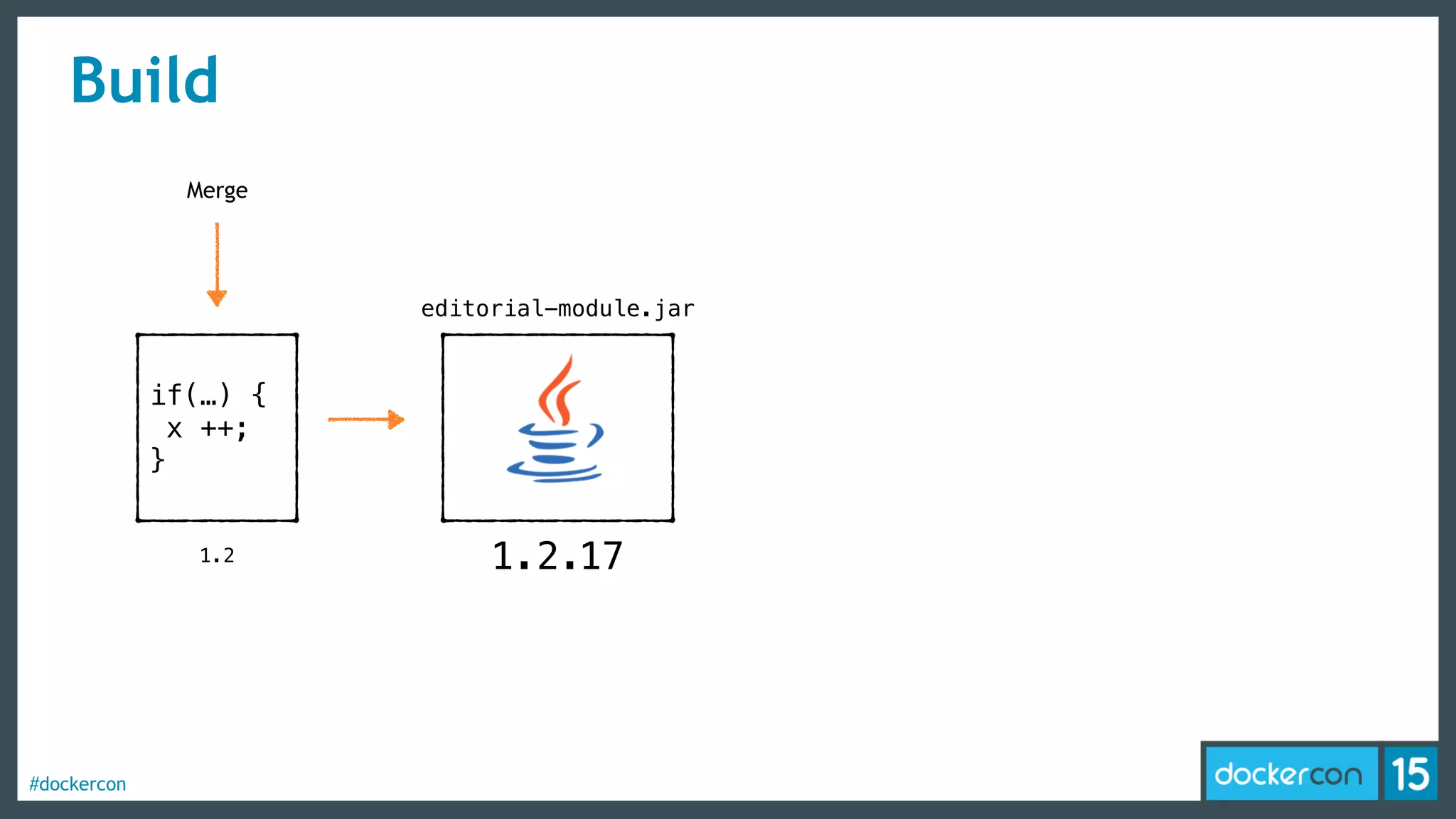

- 57. #dockercon Build if(…) { x ++; } 1.2 Merge 1.2. editorial-module.jar ./gradlewbuild {BUILD_NUMBER}
- 58.

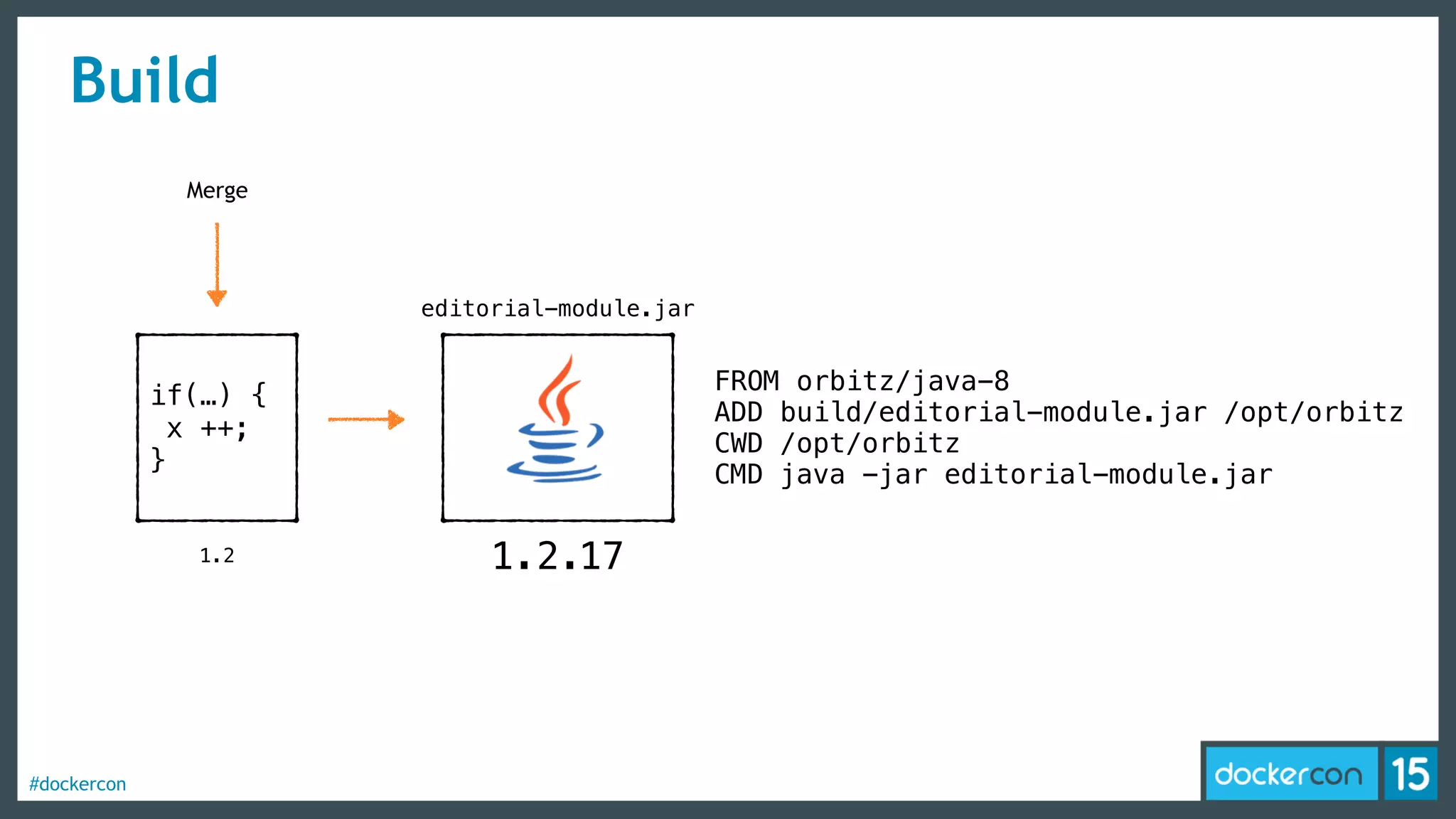

- 59. #dockercon Build 1.2 Merge editorial-module.jar FROM orbitz/java-8 ADD build/editorial-module.jar/opt/orbitz CWD /opt/orbitz CMD java -jar editorial-module.jar if(…) { x ++; } 171.2.
- 60.
- 61.

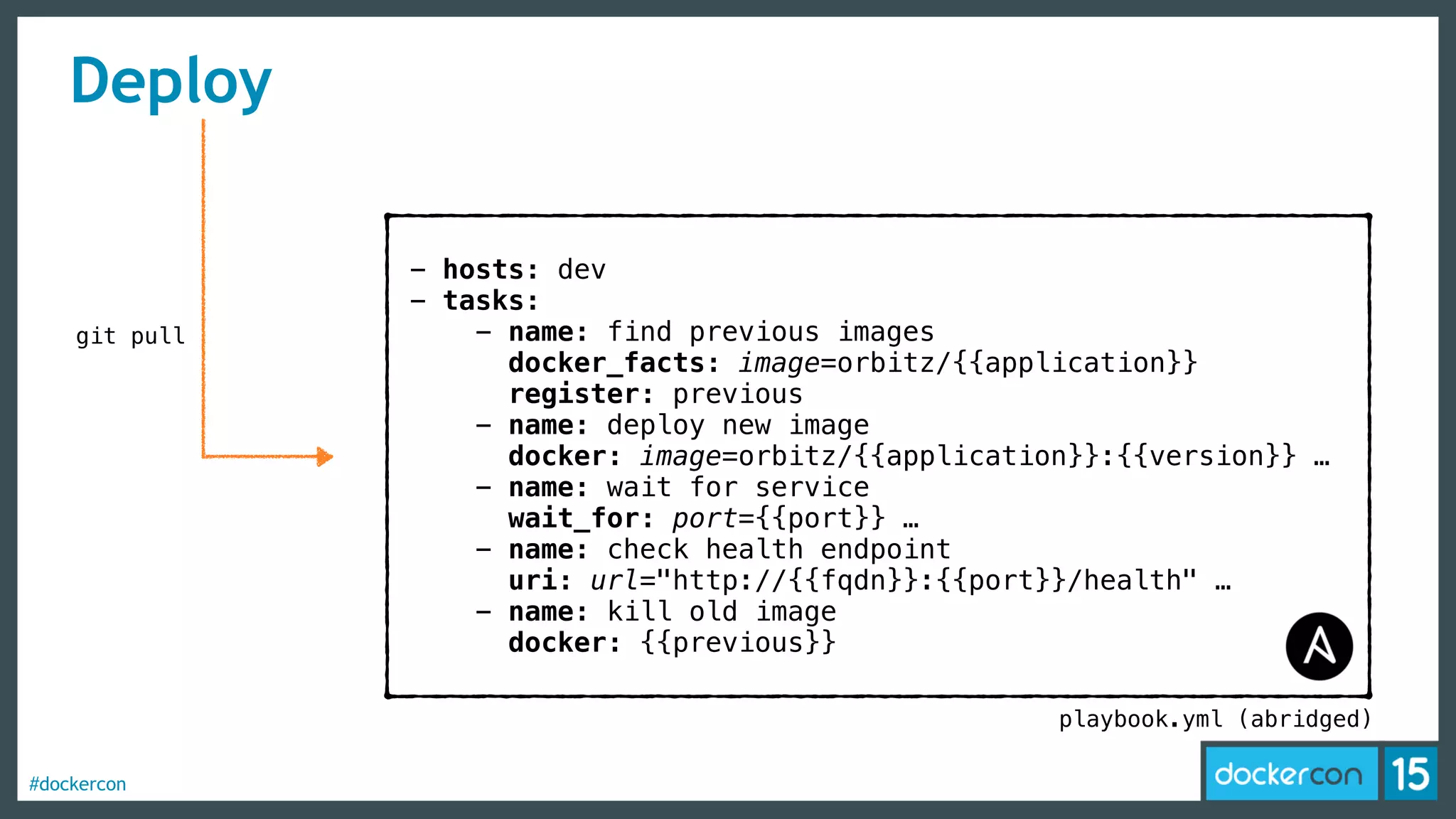

- 62. #dockercon Deploy - hosts: dev -tasks: - name: find previous images docker_facts: image=orbitz/{{application}} register: previous - name: deploy new image docker: image=orbitz/{{application}}:{{version}} … - name: wait for service wait_for: port={{port}} … - name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" … - name: kill old image docker: {{previous}} git pull playbook.yml (abridged)

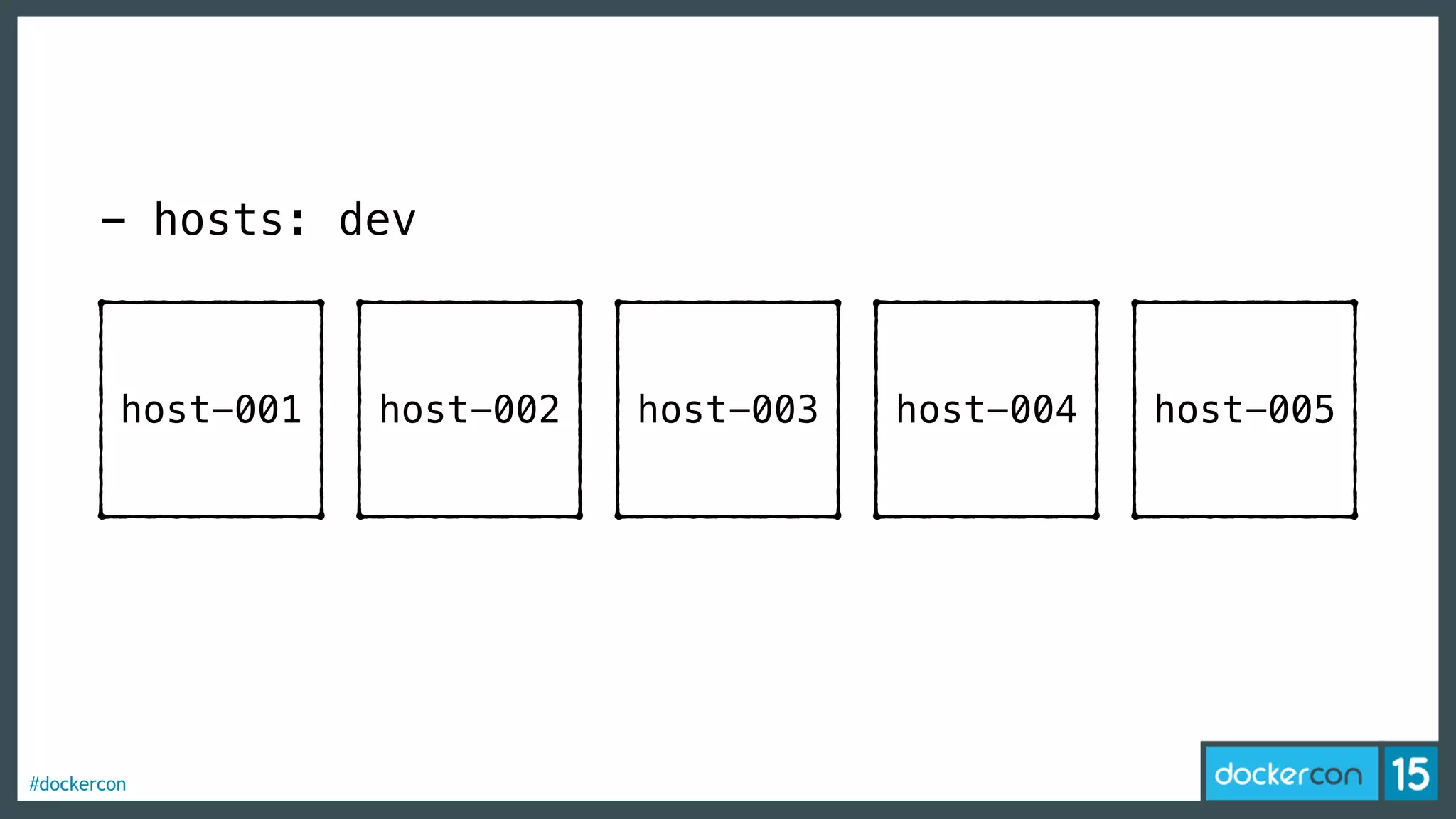

- 63. #dockercon host-001 host-002 host-003host-004 host-005 - hosts: dev
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.
- 70.
- 71.
- 72.

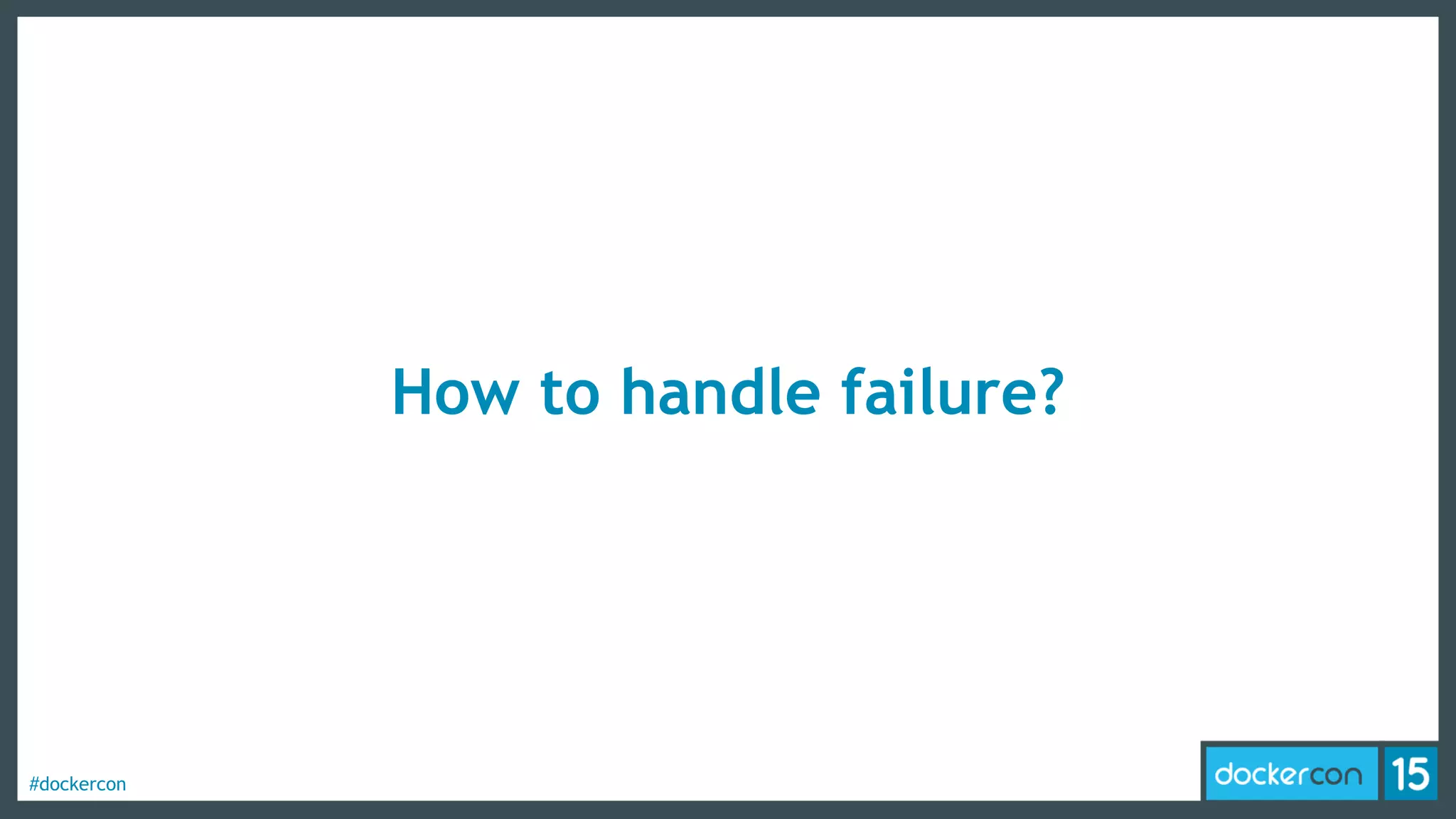

- 73. #dockercon How to handlefailure?
- 74. #dockercon What happens whena VM is moved?

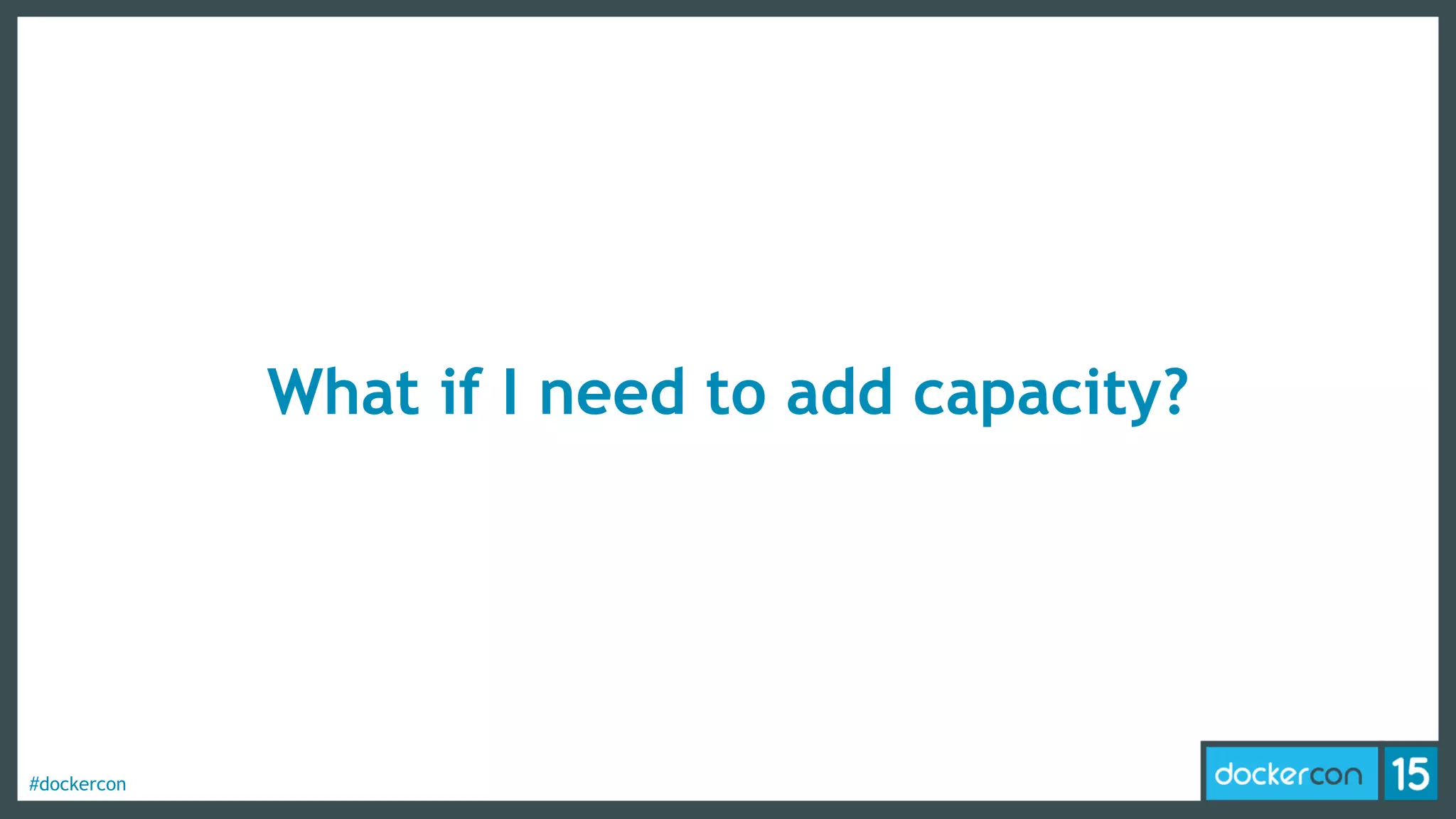

- 75. #dockercon What if Ineed to add capacity?

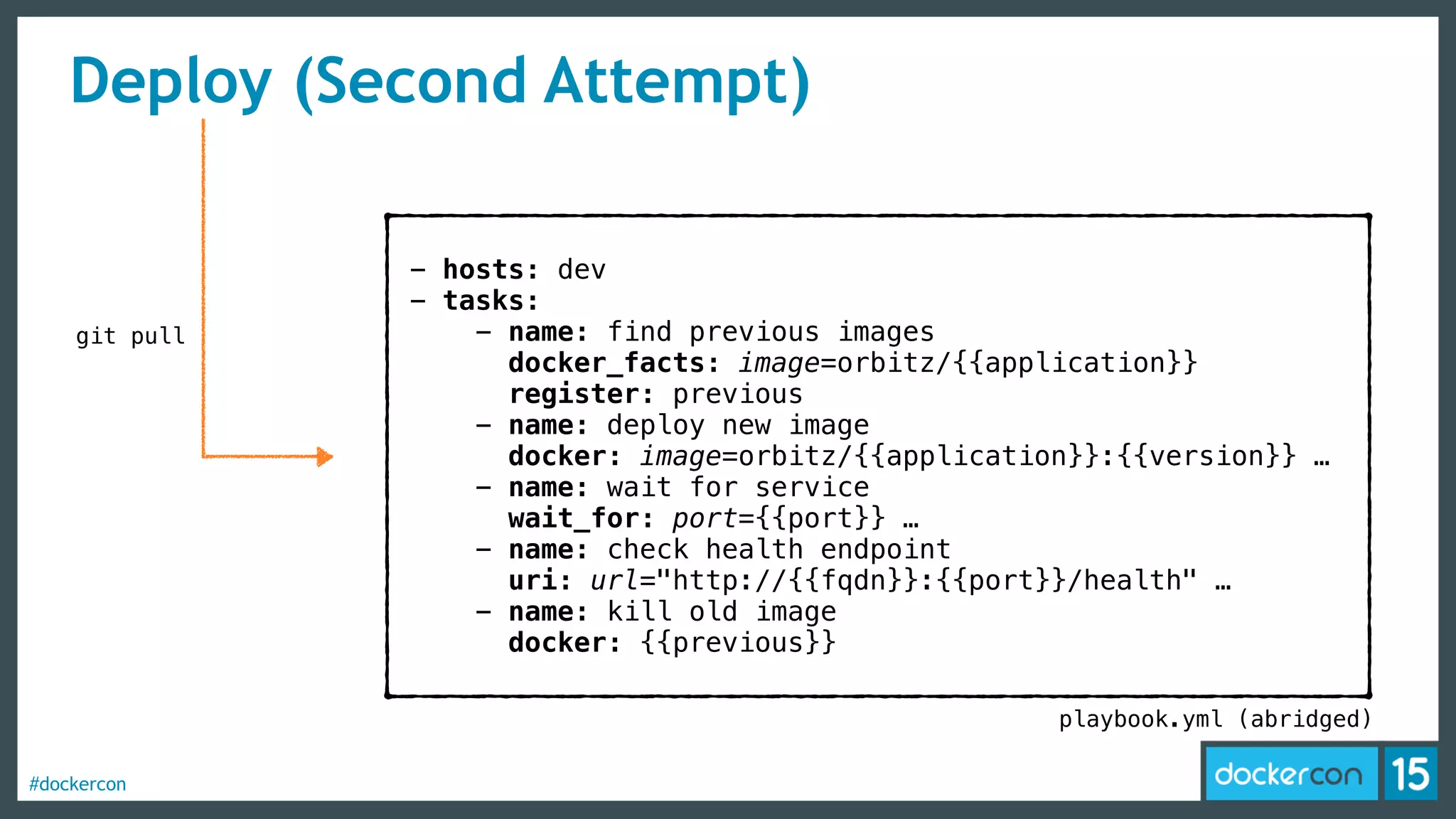

- 76. #dockercon Deploy (Second Attempt) -hosts: dev - tasks: - name: find previous images docker_facts: image=orbitz/{{application}} register: previous - name: deploy new image docker: image=orbitz/{{application}}:{{version}} … - name: wait for service wait_for: port={{port}} … - name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" … - name: kill old image docker: {{previous}} git pull playbook.yml (abridged)

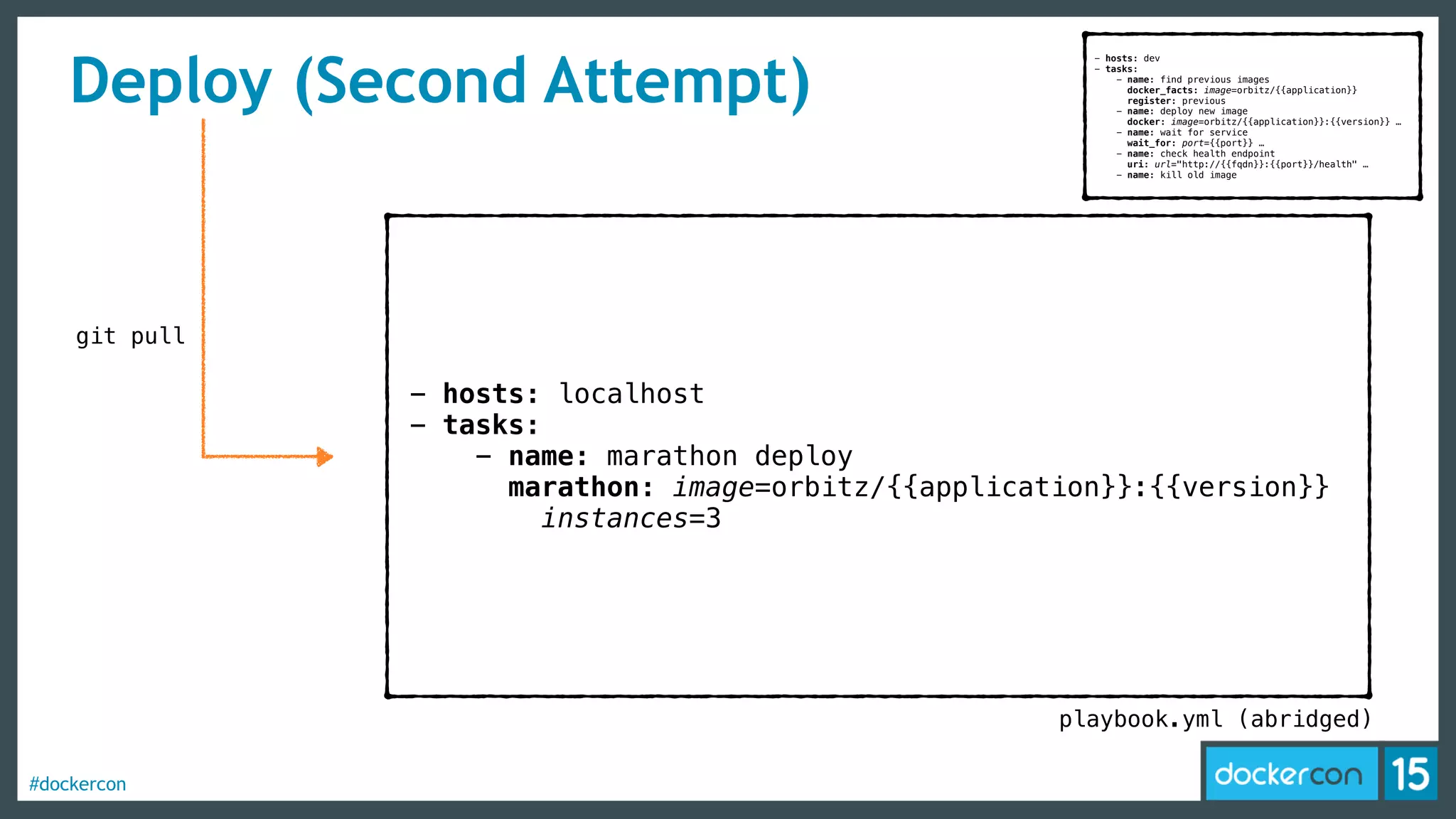

- 77. #dockercon Deploy (Second Attempt) -hosts: dev - tasks: - name: find previous images docker_facts: image=orbitz/{{application}} register: previous - name: deploy new image docker: image=orbitz/{{application}}:{{version}} … - name: wait for service wait_for: port={{port}} … - name: check health endpoint uri: url="http://{{fqdn}}:{{port}}/health" … - name: kill old image git pull playbook.yml (abridged) - hosts: localhost - tasks: - name: marathon deploy marathon: image=orbitz/{{application}}:{{version}} instances=3

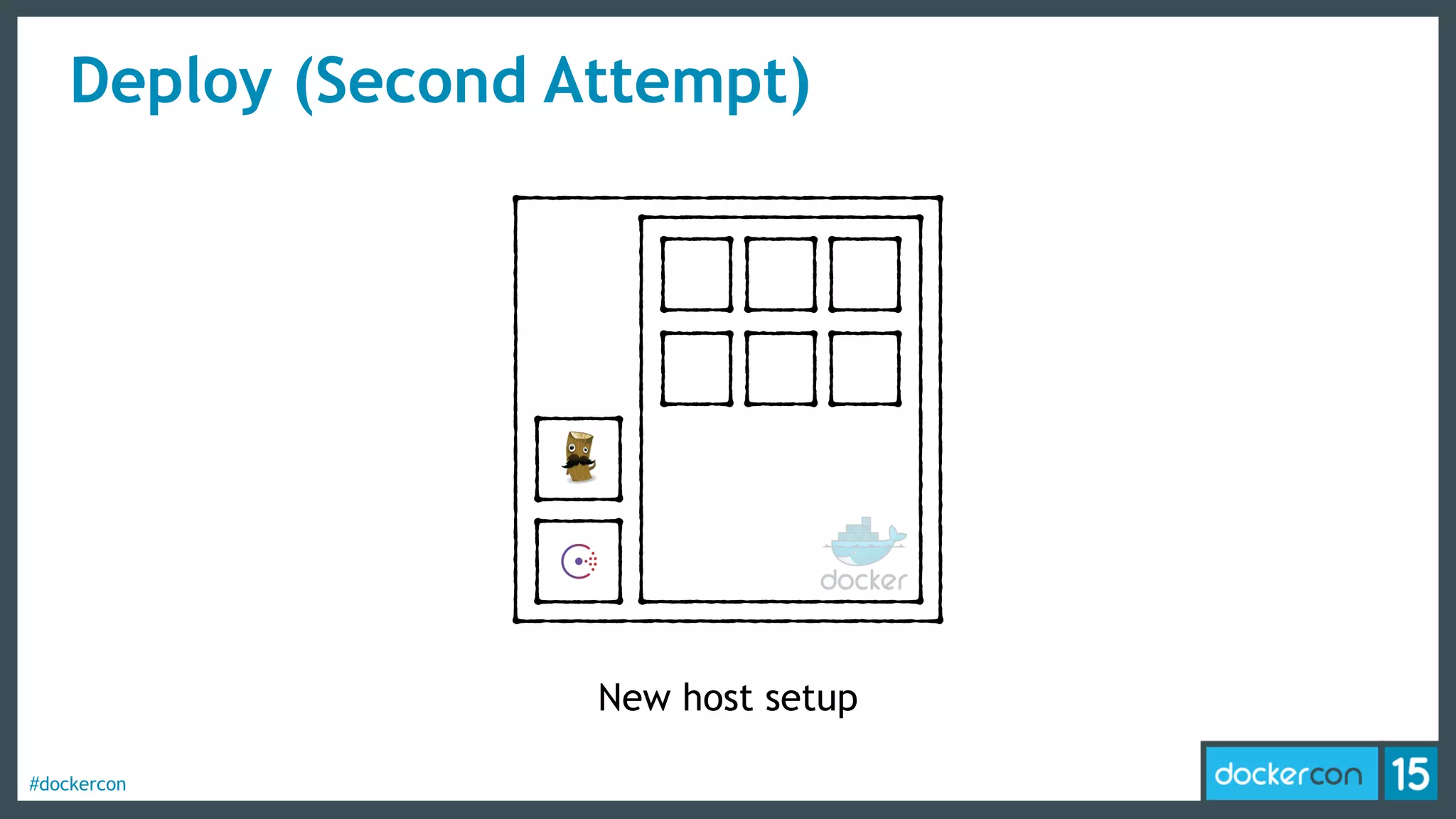

- 78. #dockercon Deploy (Second Attempt) Newhost setup

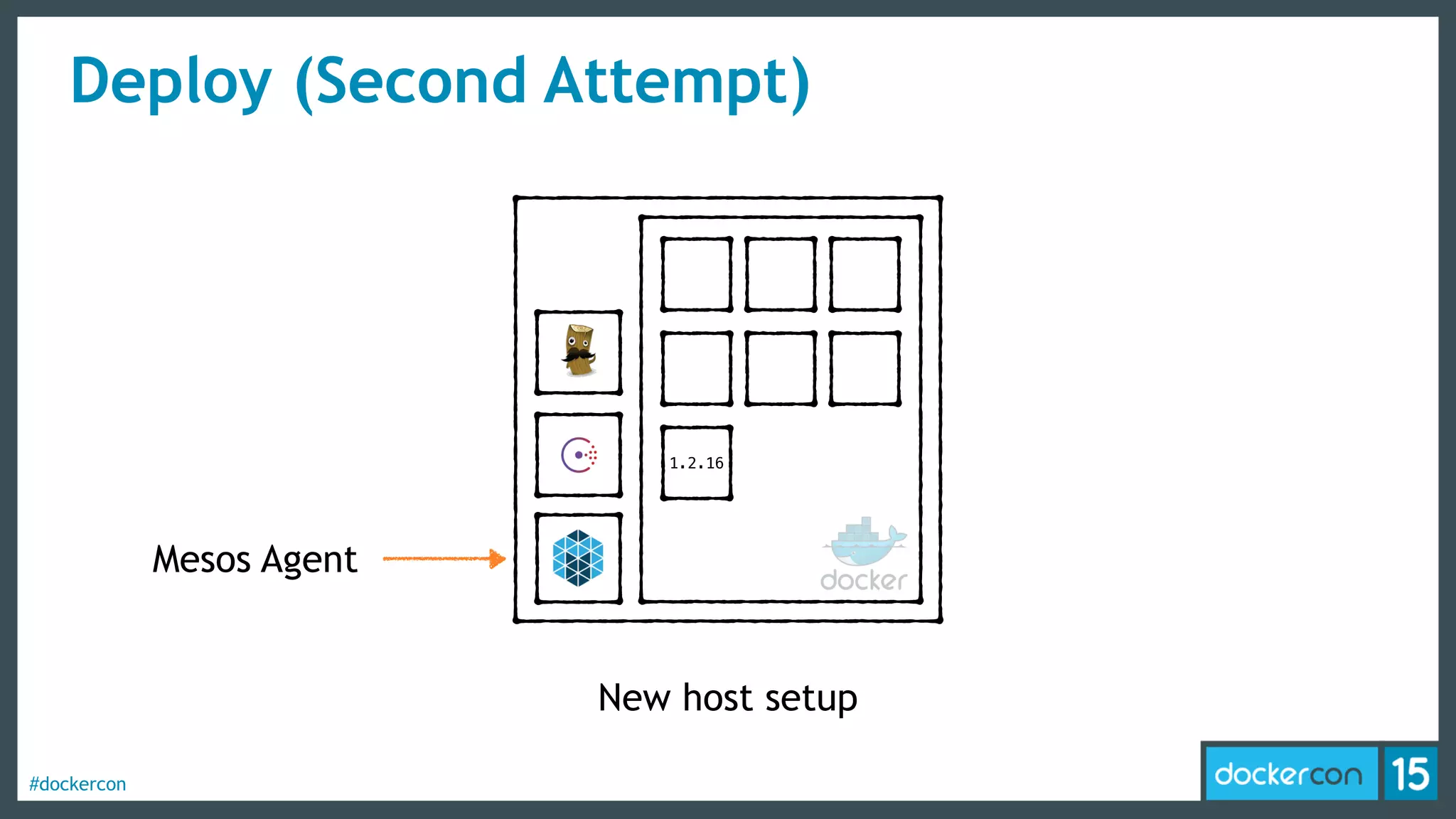

- 79. #dockercon Deploy (Second Attempt) MesosAgent New host setup 1.2.16

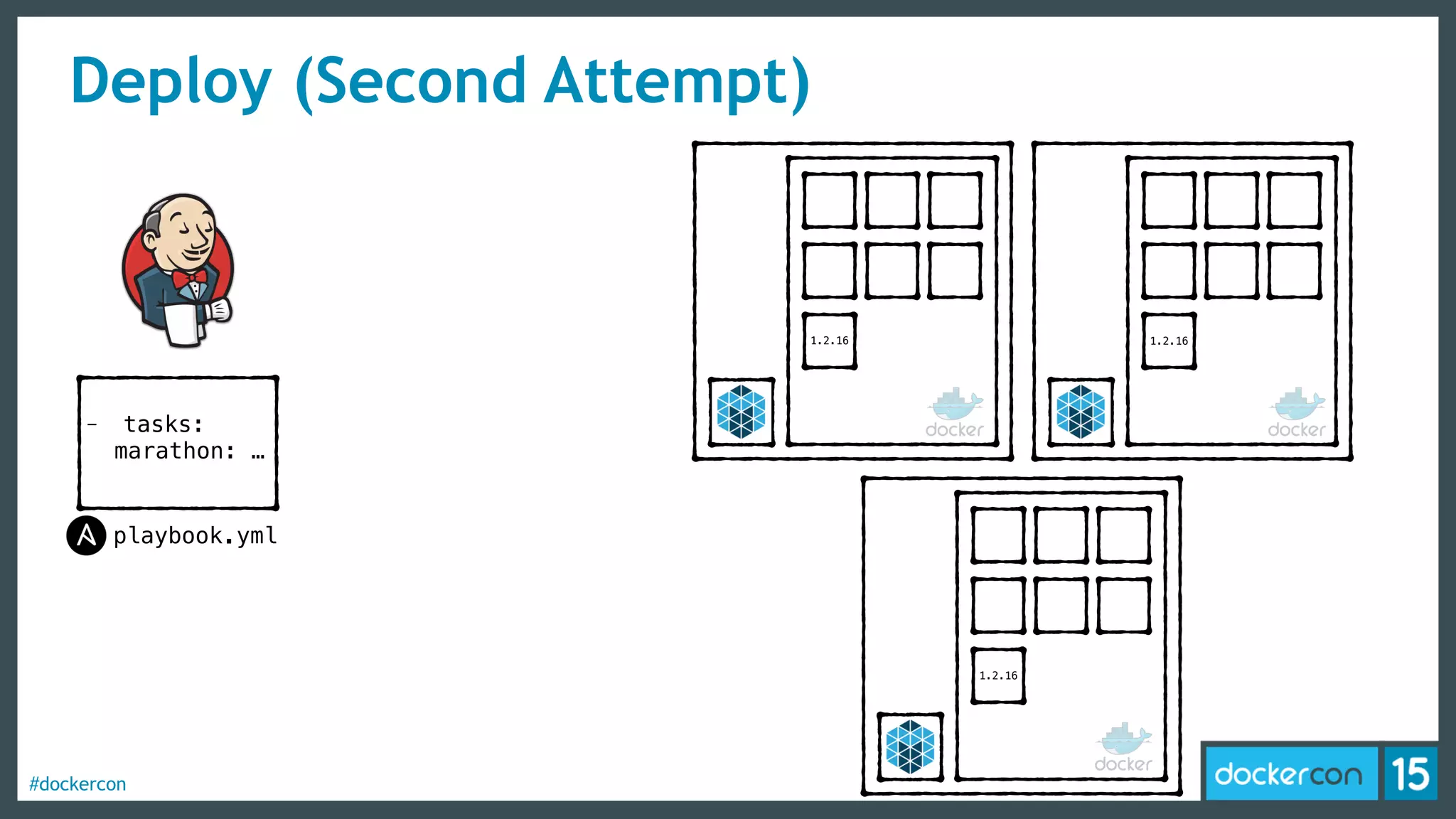

- 80. #dockercon Deploy (Second Attempt) -tasks: marathon: … playbook.yml 1.2.16 1.2.16 1.2.16

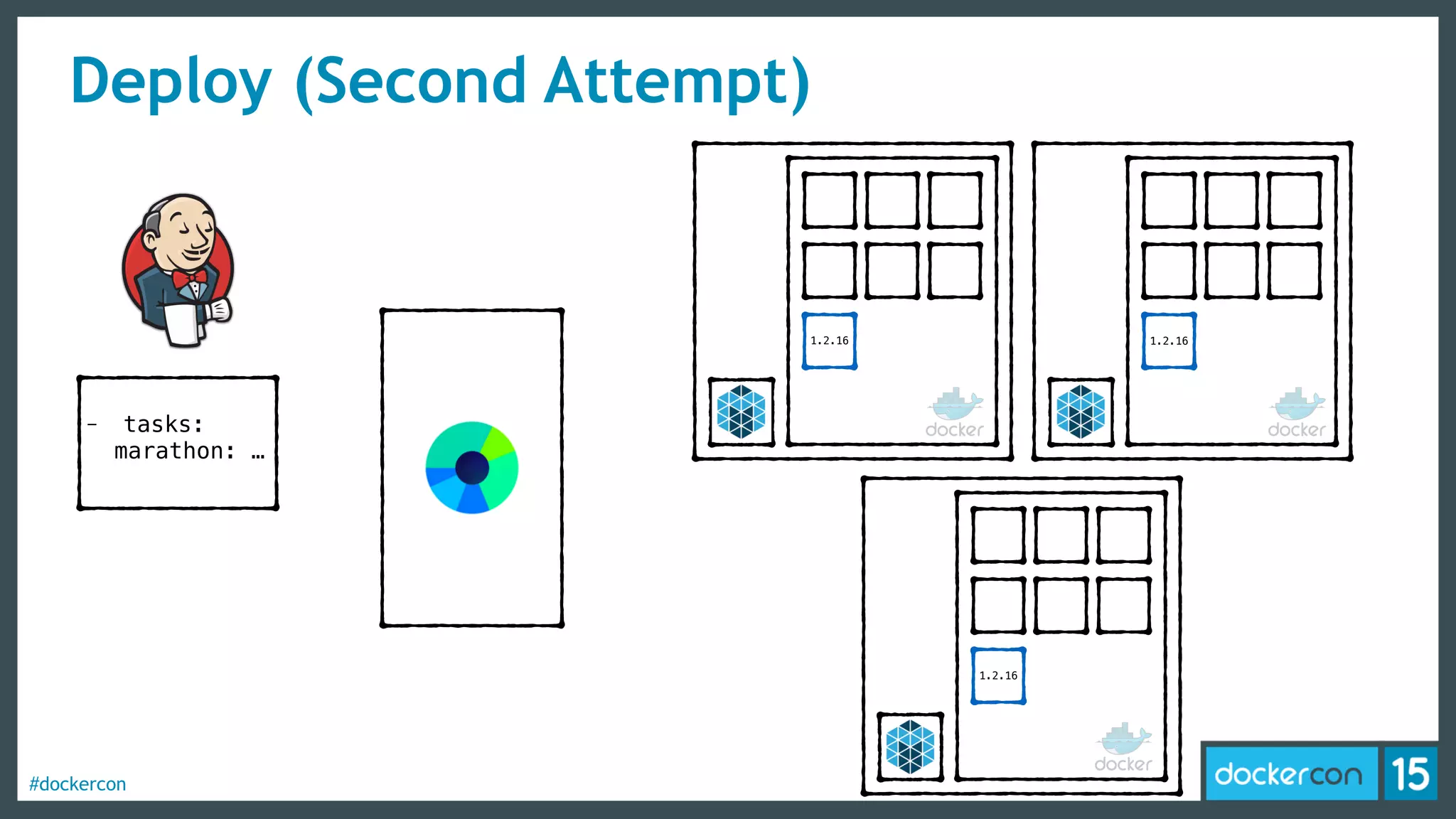

- 81. #dockercon Deploy (Second Attempt) -tasks: marathon: … 1.2.16 1.2.16 1.2.16

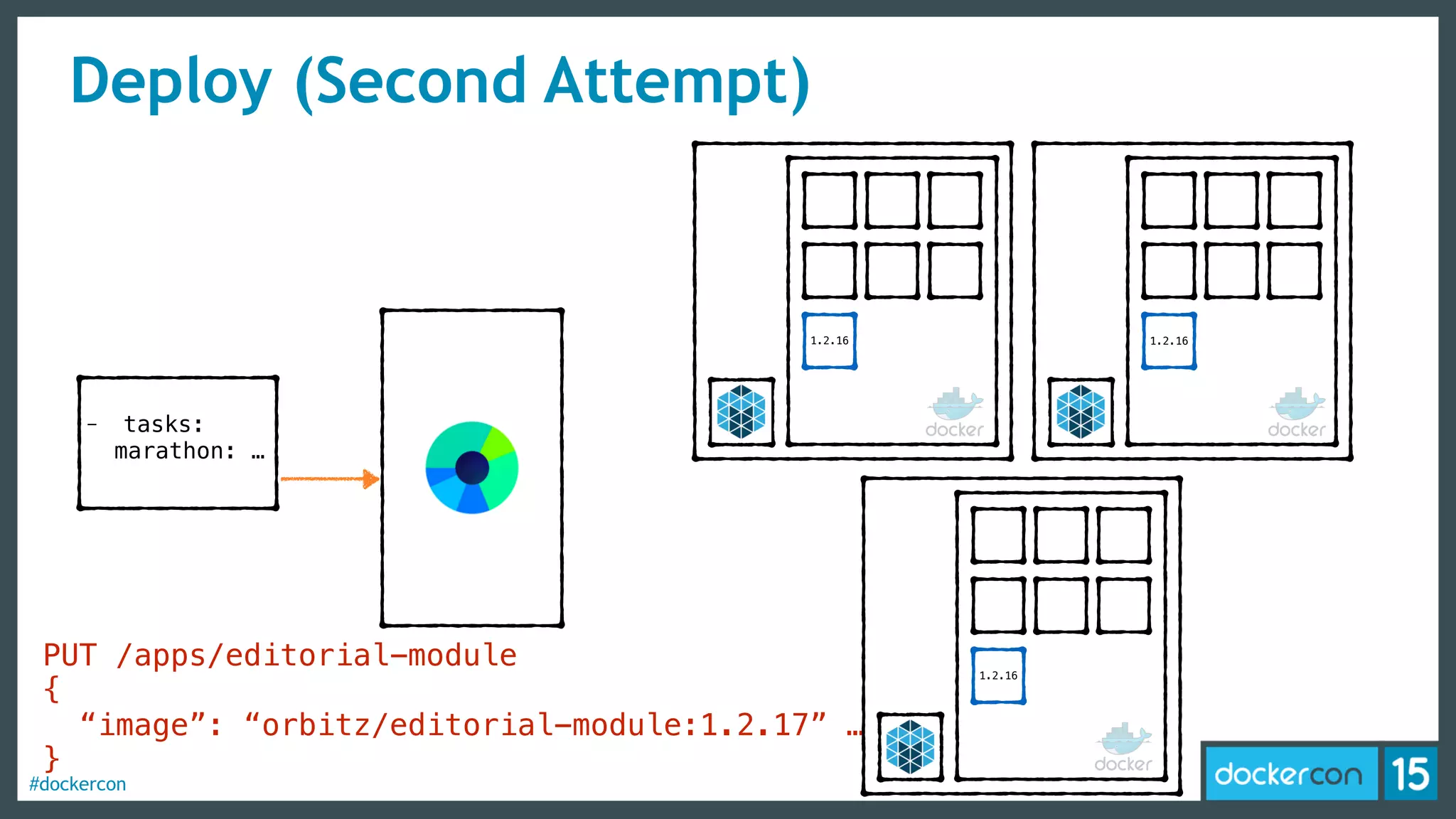

- 82. #dockercon Deploy (Second Attempt) -tasks: marathon: … PUT /apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” … } 1.2.16 1.2.16 1.2.16

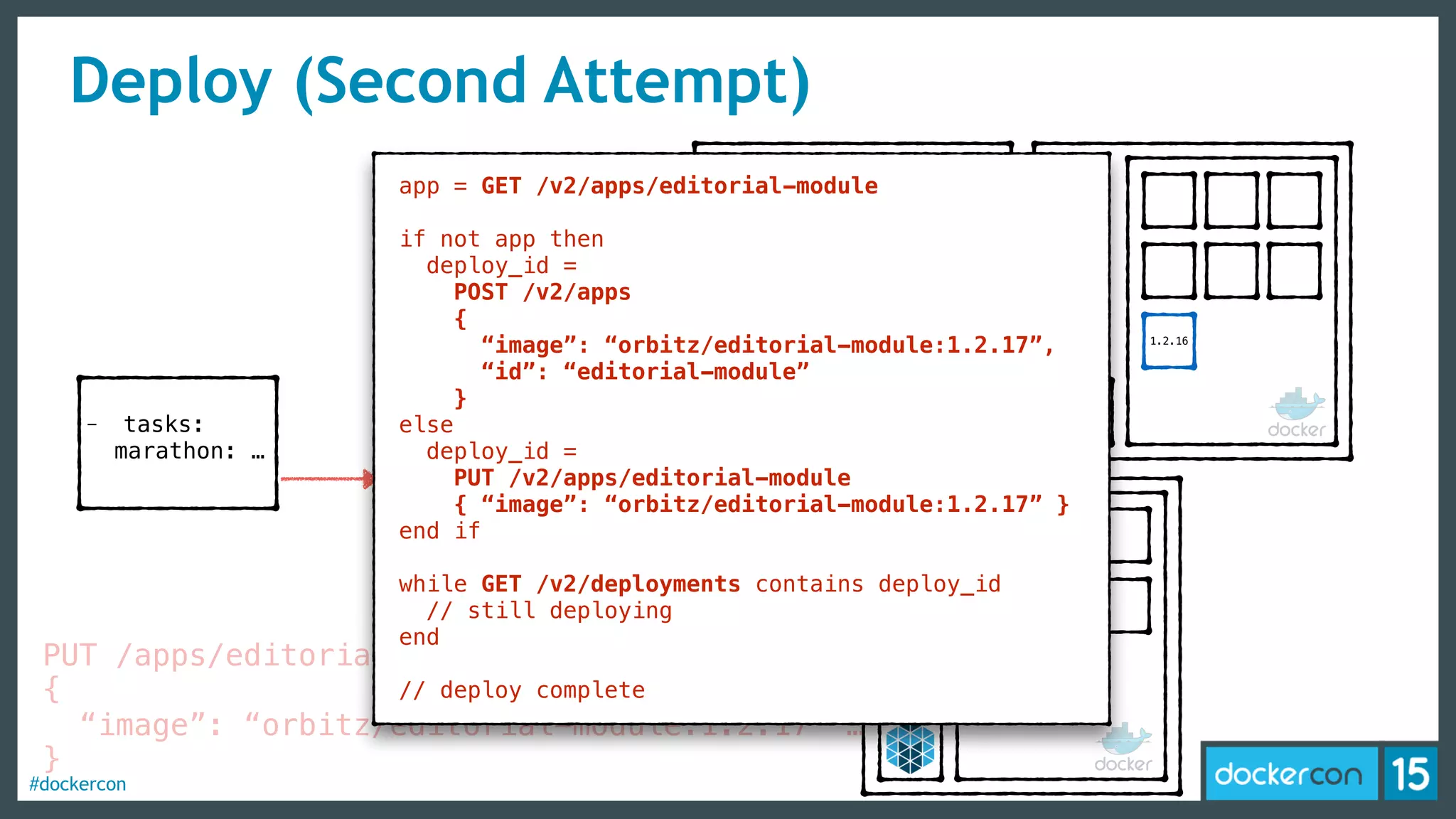

- 83. #dockercon Deploy (Second Attempt) PUT/apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” … } - tasks: marathon: … 1.2.16 1.2.16 1.2.16 app = GET /v2/apps/editorial-module if not app then deploy_id = POST /v2/apps { “image”: “orbitz/editorial-module:1.2.17”, “id”: “editorial-module” } else deploy_id = PUT /v2/apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” } end if while GET /v2/deployments contains deploy_id // still deploying end // deploy complete

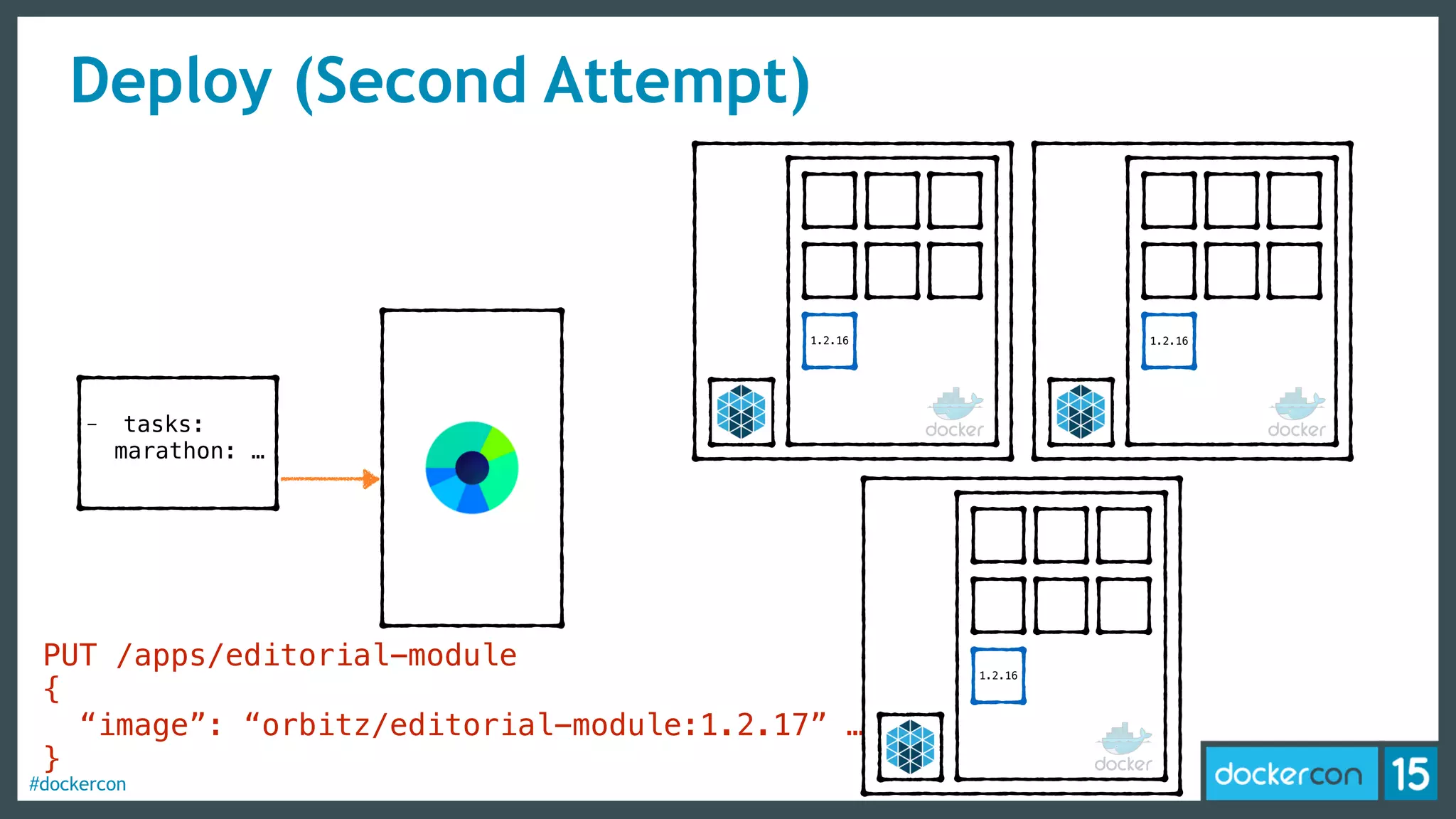

- 84. #dockercon Deploy (Second Attempt) -tasks: marathon: … PUT /apps/editorial-module { “image”: “orbitz/editorial-module:1.2.17” … } 1.2.16 1.2.16 1.2.16

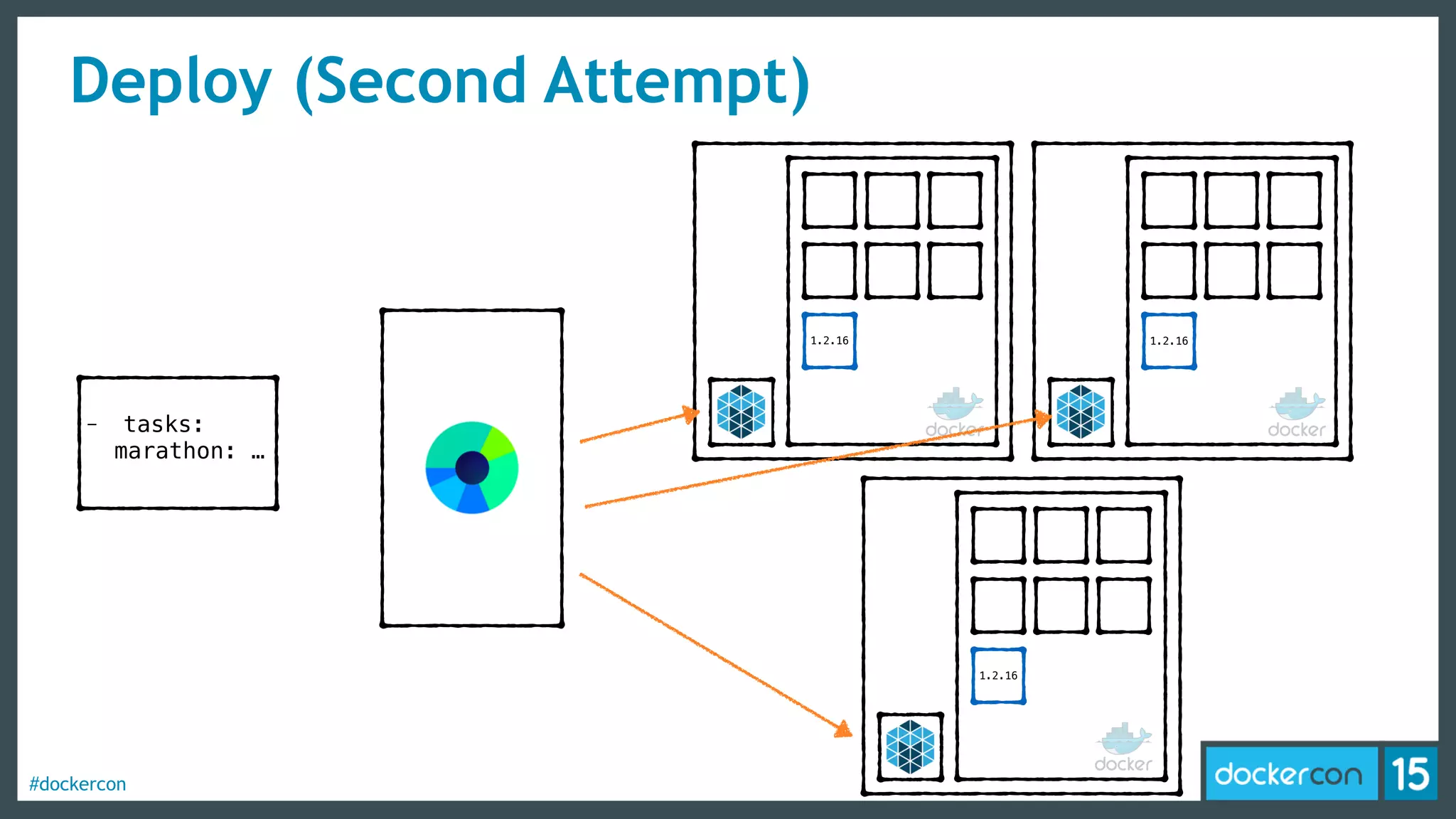

- 85. #dockercon Deploy (Second Attempt) -tasks: marathon: … 1.2.16 1.2.16 1.2.16

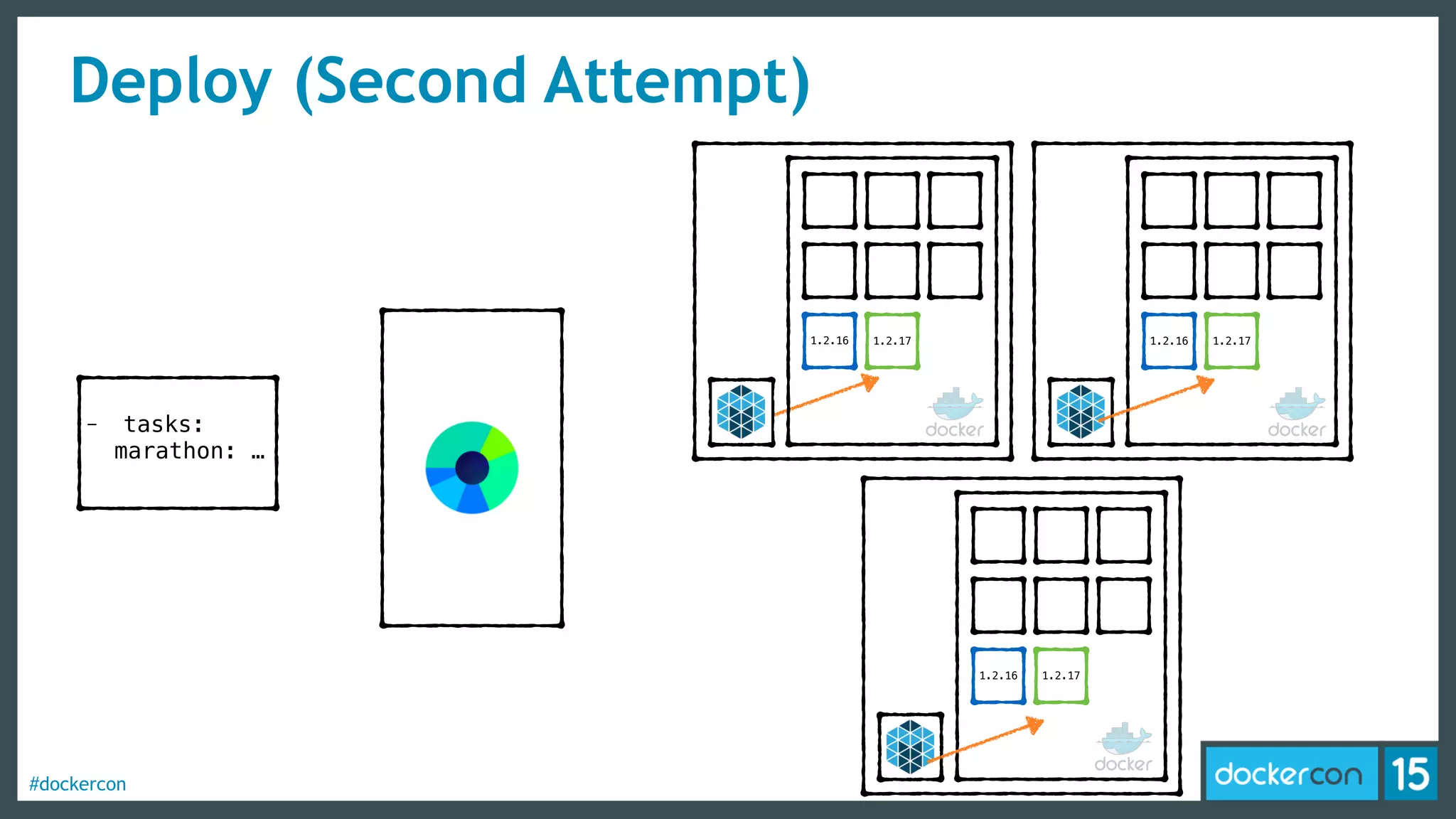

- 86. #dockercon Deploy (Second Attempt) -tasks: marathon: … 1.2.16 1.2.16 1.2.16 1.2.17 1.2.17 1.2.17
- 87. #dockercon Deploy (Second Attempt) -tasks: marathon: … /health 1.2.16 1.2.16 1.2.16 1.2.17 1.2.17 1.2.17

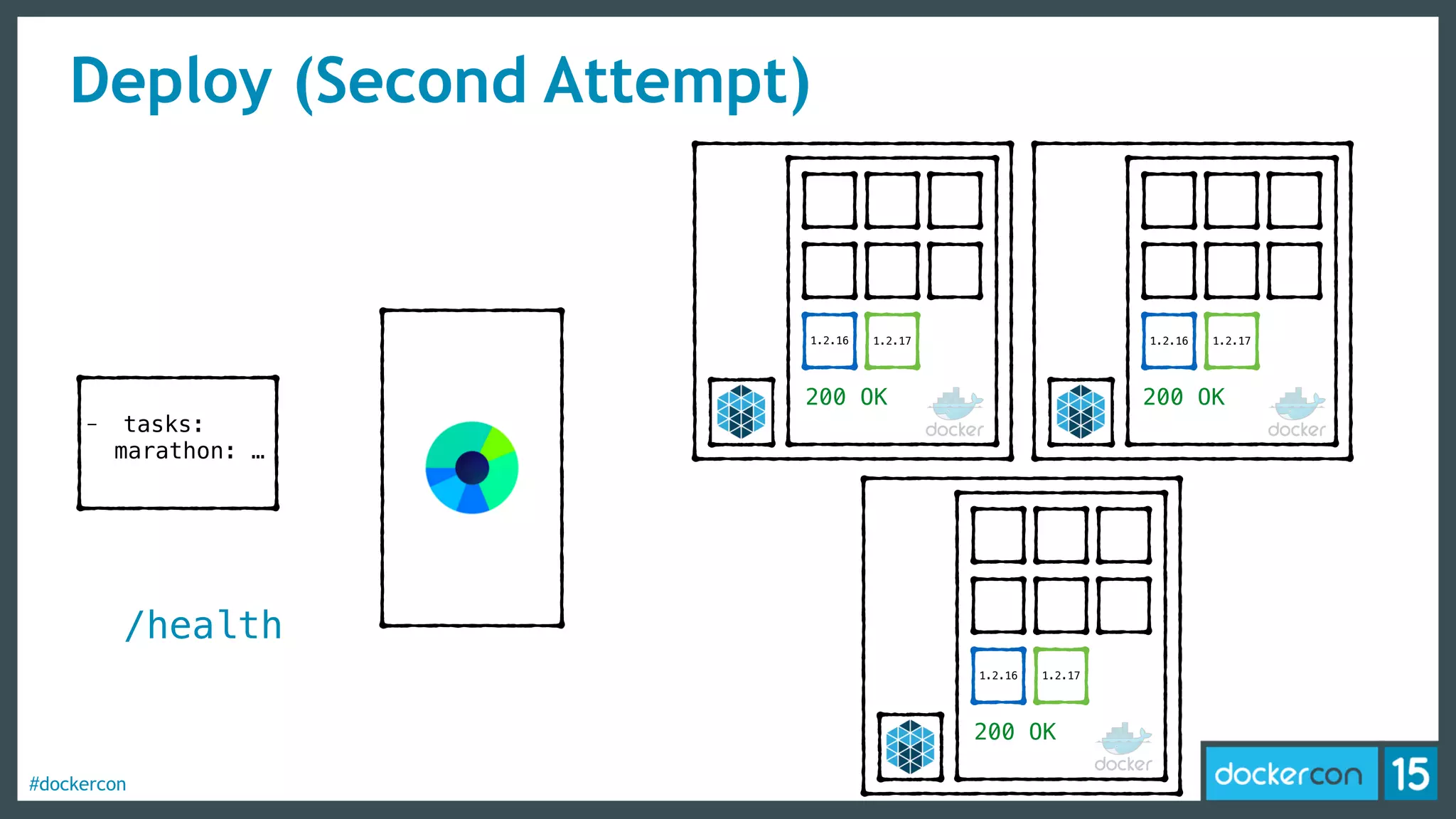

- 88. #dockercon Deploy (Second Attempt) -tasks: marathon: … /health 200 OK 200 OK 200 OK 1.2.16 1.2.16 1.2.16 1.2.17 1.2.17 1.2.17

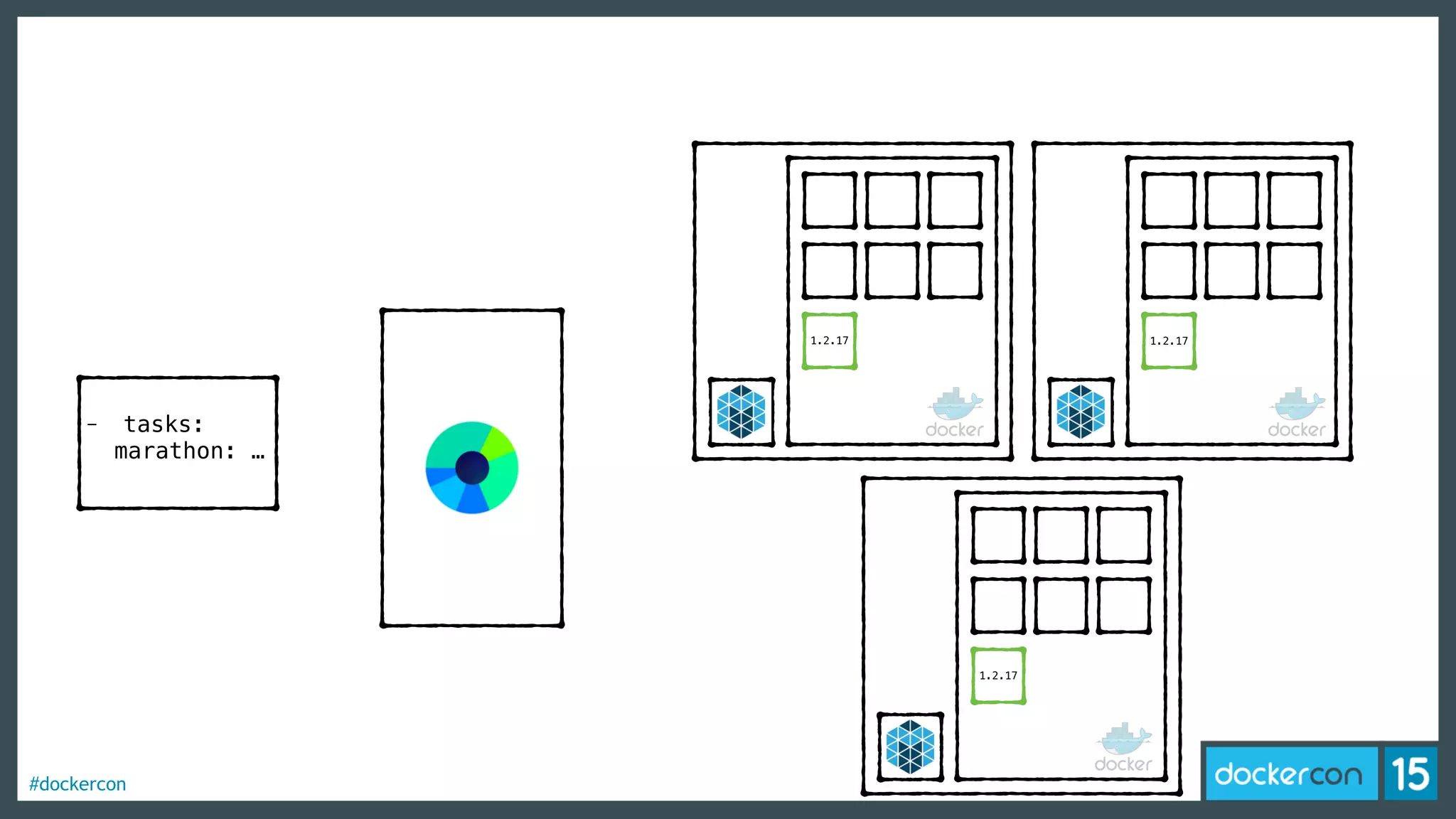

- 89. #dockercon - tasks: marathon: … 1.2.171.2.17 1.2.17

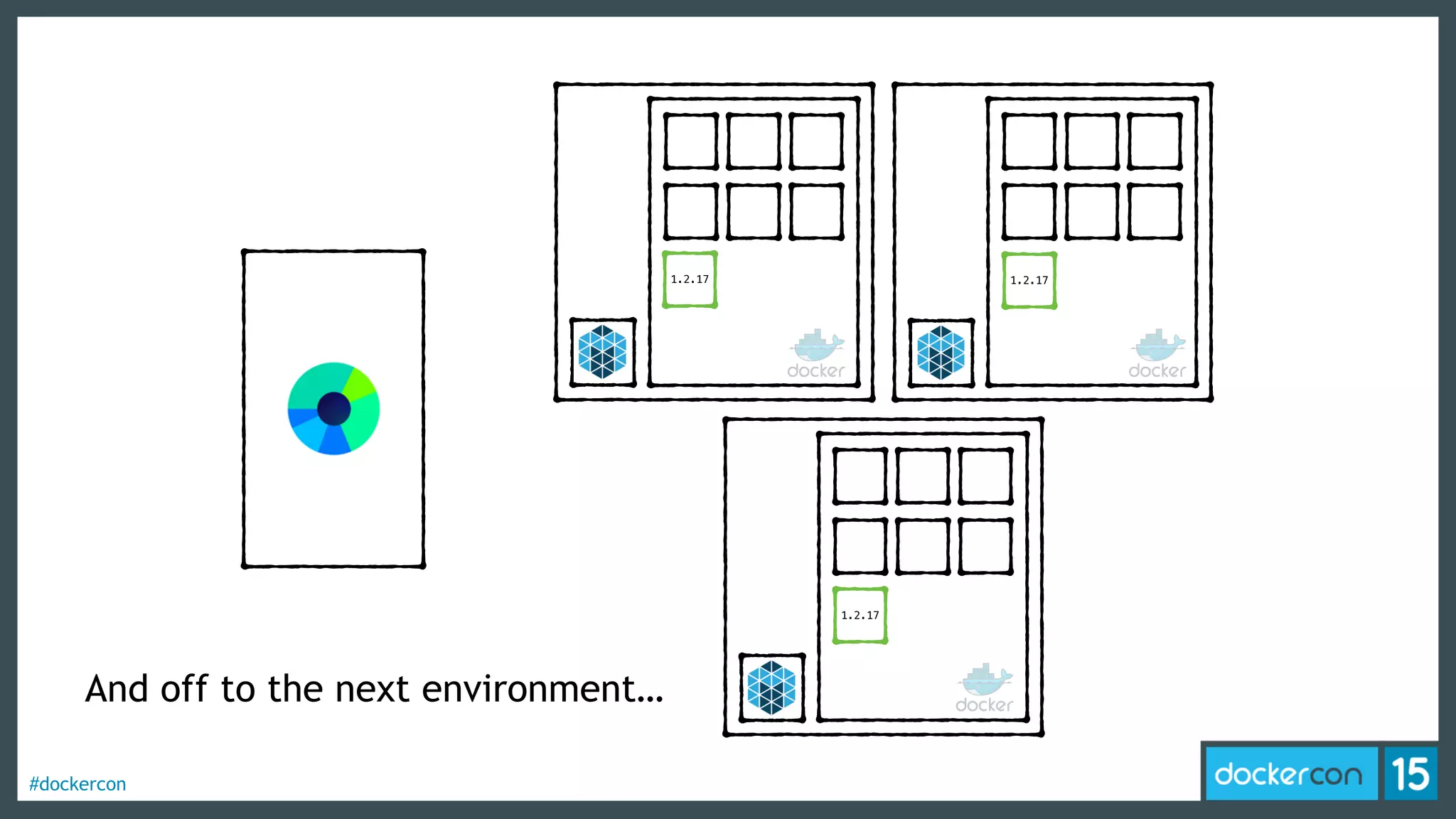

- 90. #dockercon And off tothe next environment… 1.2.17 1.2.17 1.2.17
- 91.
- 92.
- 93.
- 94.
- 95.
- 96.
- 97.
- 98.
- 99.
- 100.
- 101.

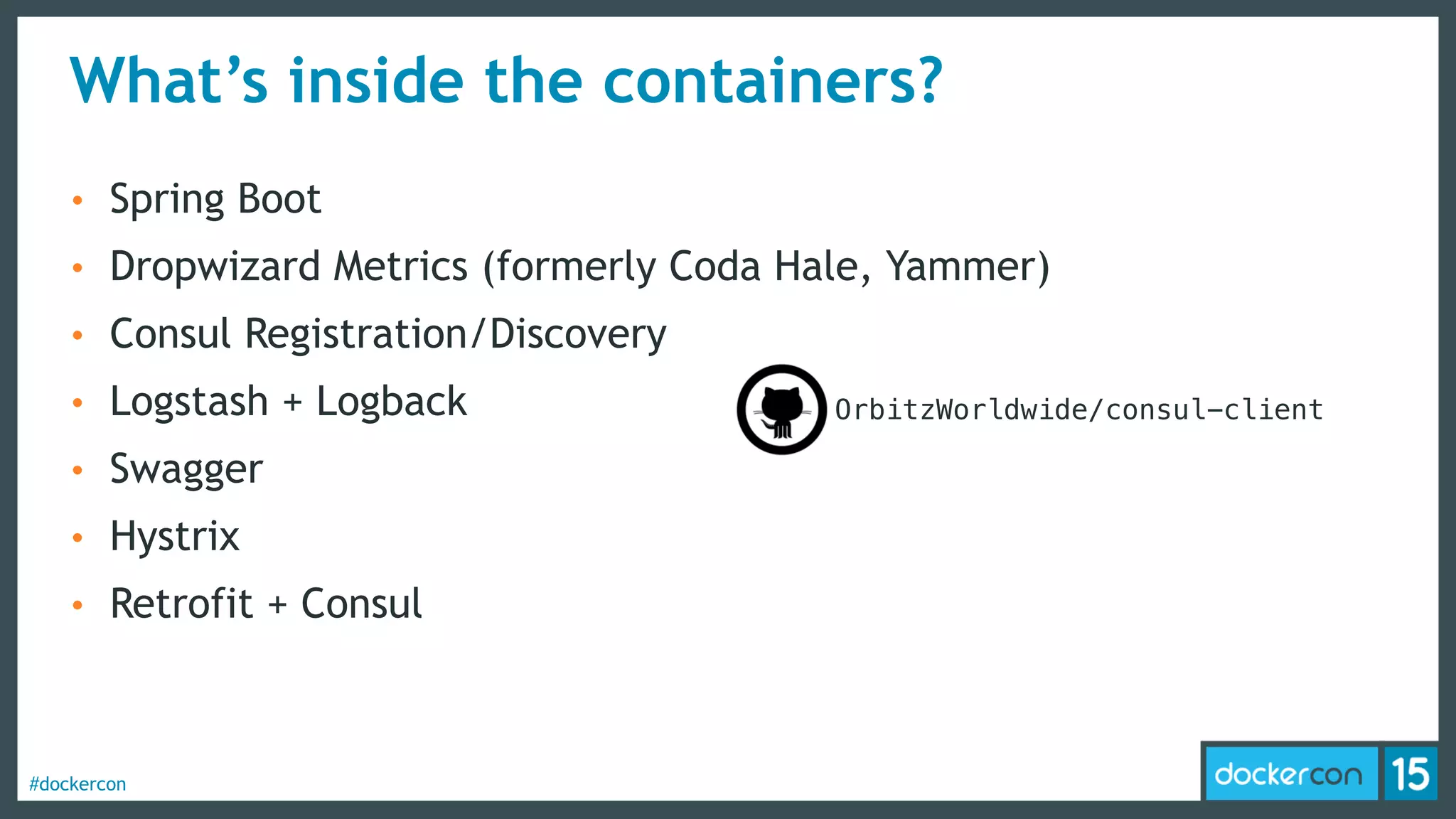

- 102. #dockercon What’s inside thecontainers? • Spring Boot • Dropwizard Metrics (formerly Coda Hale, Yammer) • Consul Registration/Discovery • Logstash + Logback • Swagger • Hystrix • Retrofit + Consul OrbitzWorldwide/consul-client
- 103. #dockercon –You “Why didn’t youuse {{.x}}?”
- 104. #dockercon Keeping an eyeon… Kubernetes Amazon Elastic Container Service Docker Swarm

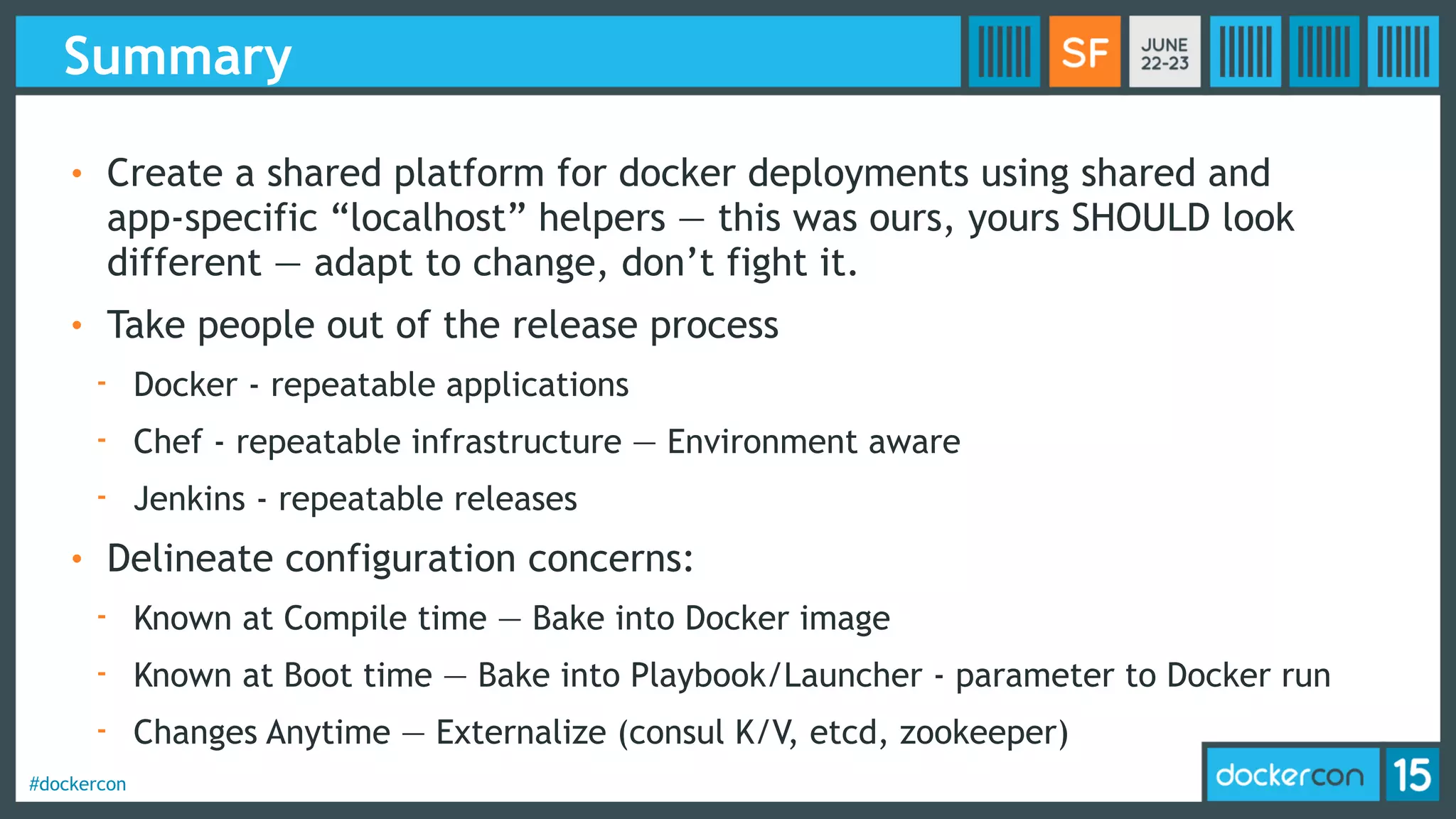

- 105. #dockercon Summary • Create ashared platform for docker deployments using shared and app-specific “localhost” helpers — this was ours, yours SHOULD look different — adapt to change, don’t fight it. • Take people out of the release process - Docker - repeatable applications - Chef - repeatable infrastructure — Environment aware - Jenkins - repeatable releases • Delineate configuration concerns: - Known at Compile time — Bake into Docker image - Known at Boot time — Bake into Playbook/Launcher - parameter to Docker run - Changes Anytime — Externalize (consul K/V, etcd, zookeeper)
