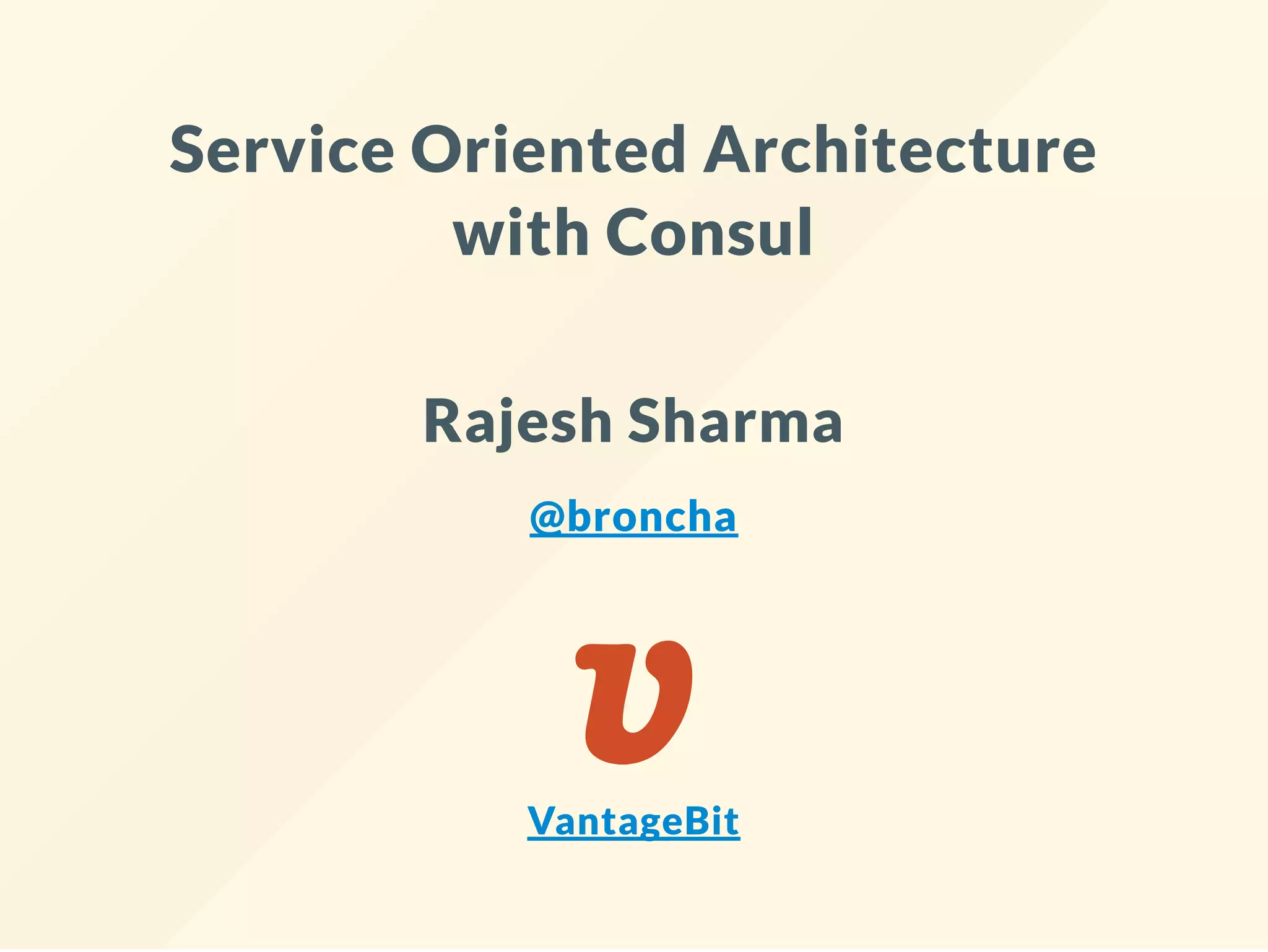

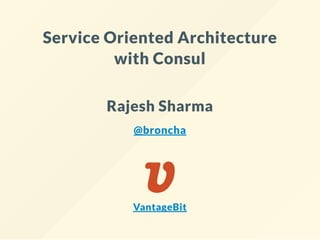

1. Service Oriented Architecture
with Consul
Rajesh Sharma
@broncha
VantageBit

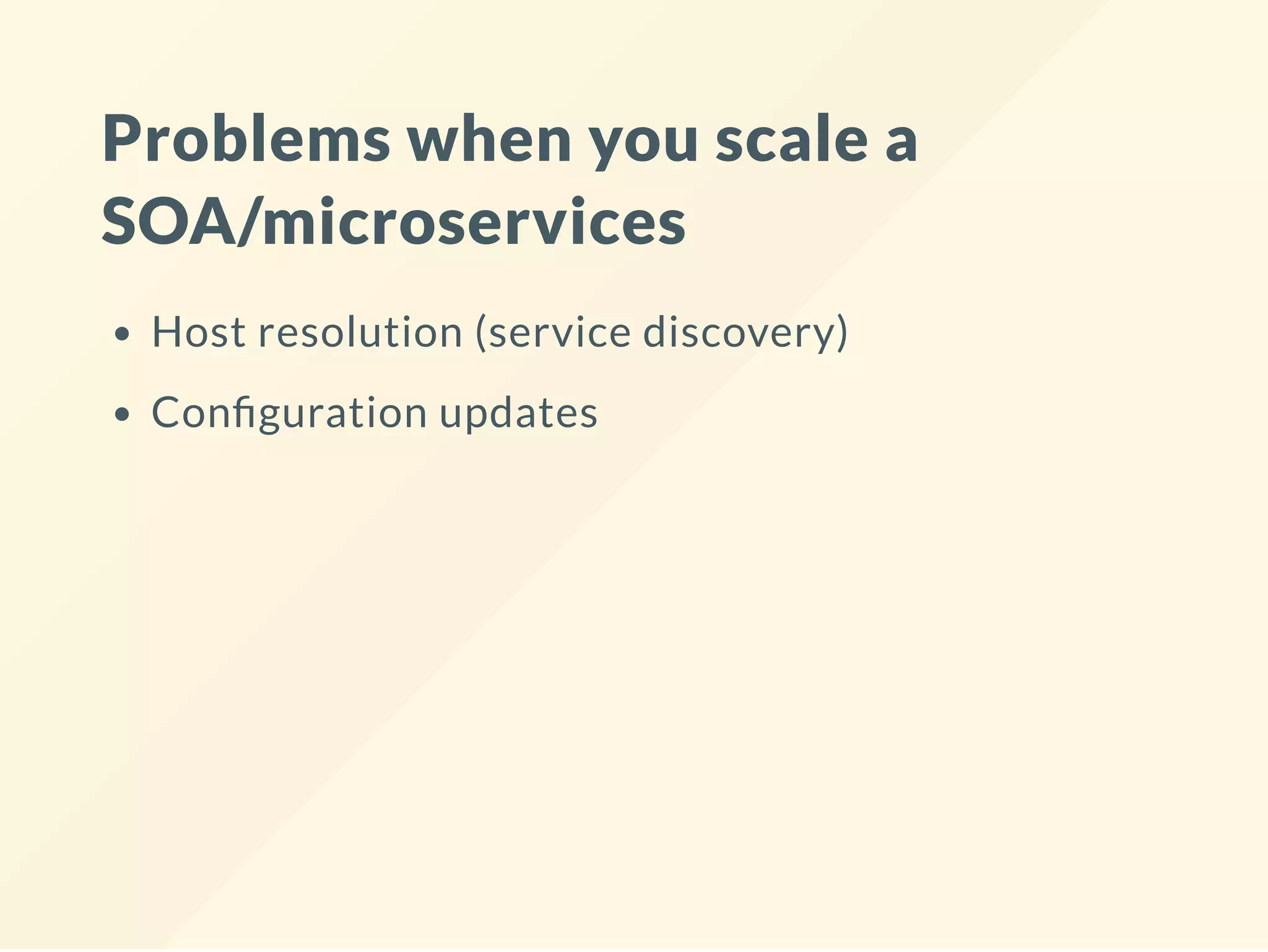

3. Problems when you scale a
SOA/microservices
Host resolution (service discovery)
Con guration updates

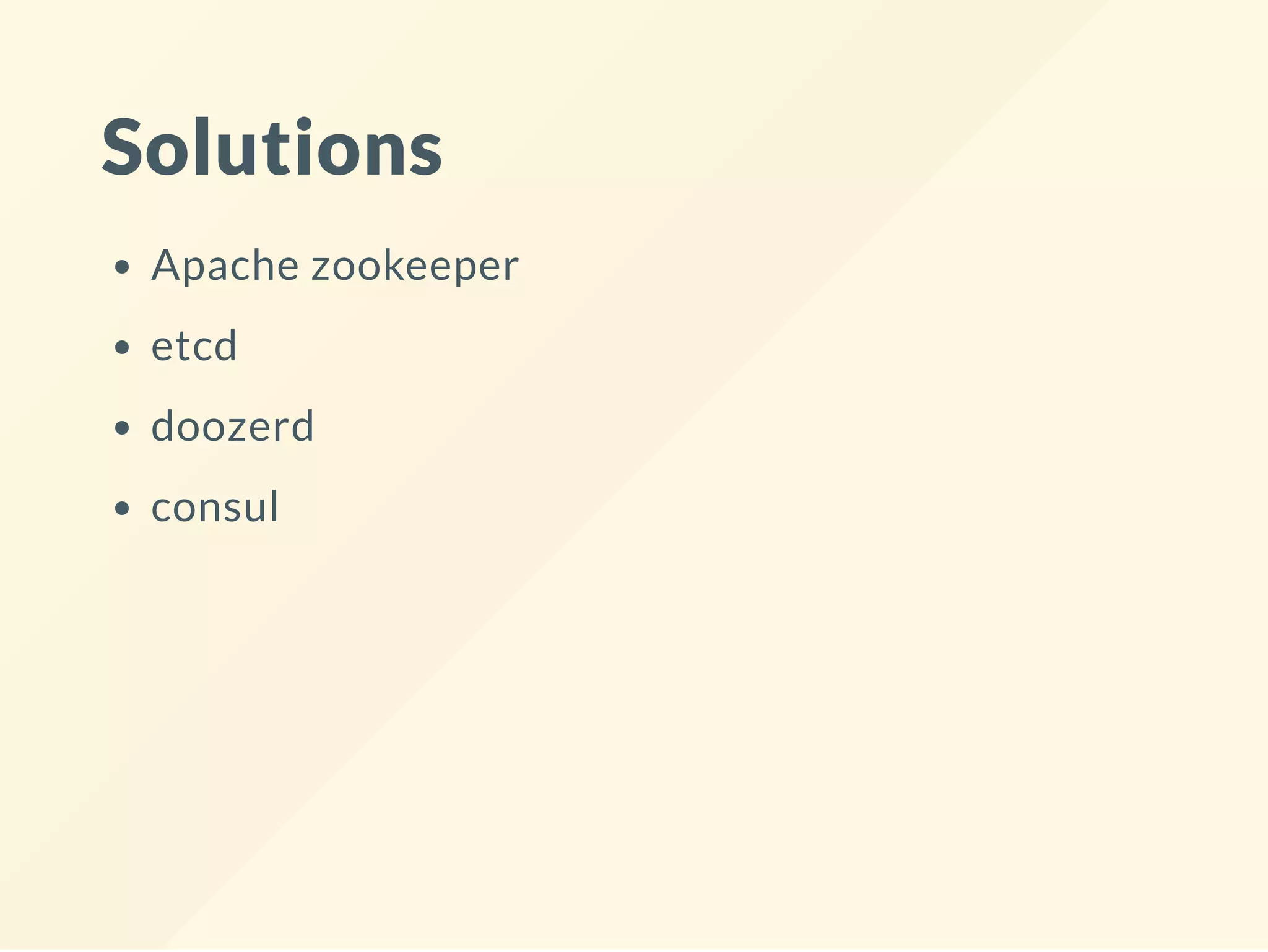

4. Solutions
Apache zookeeper
etcd
doozerd
consul

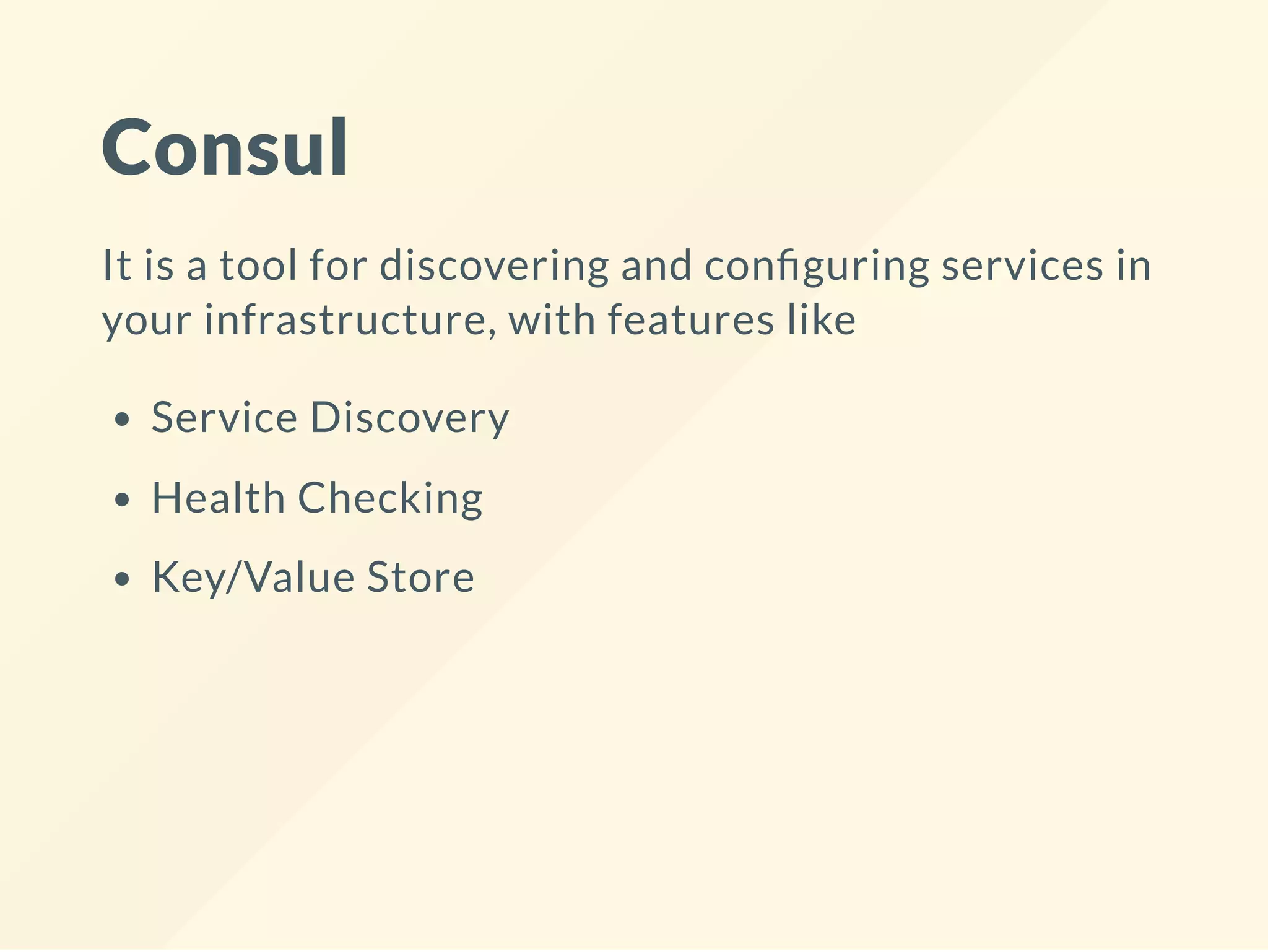

5. Consul
It is a tool for discovering and con guring services in
your infrastructure, with features like
Service Discovery
Health Checking
Key/Value Store

6. Installation
Just download a binary le and you are good to go.

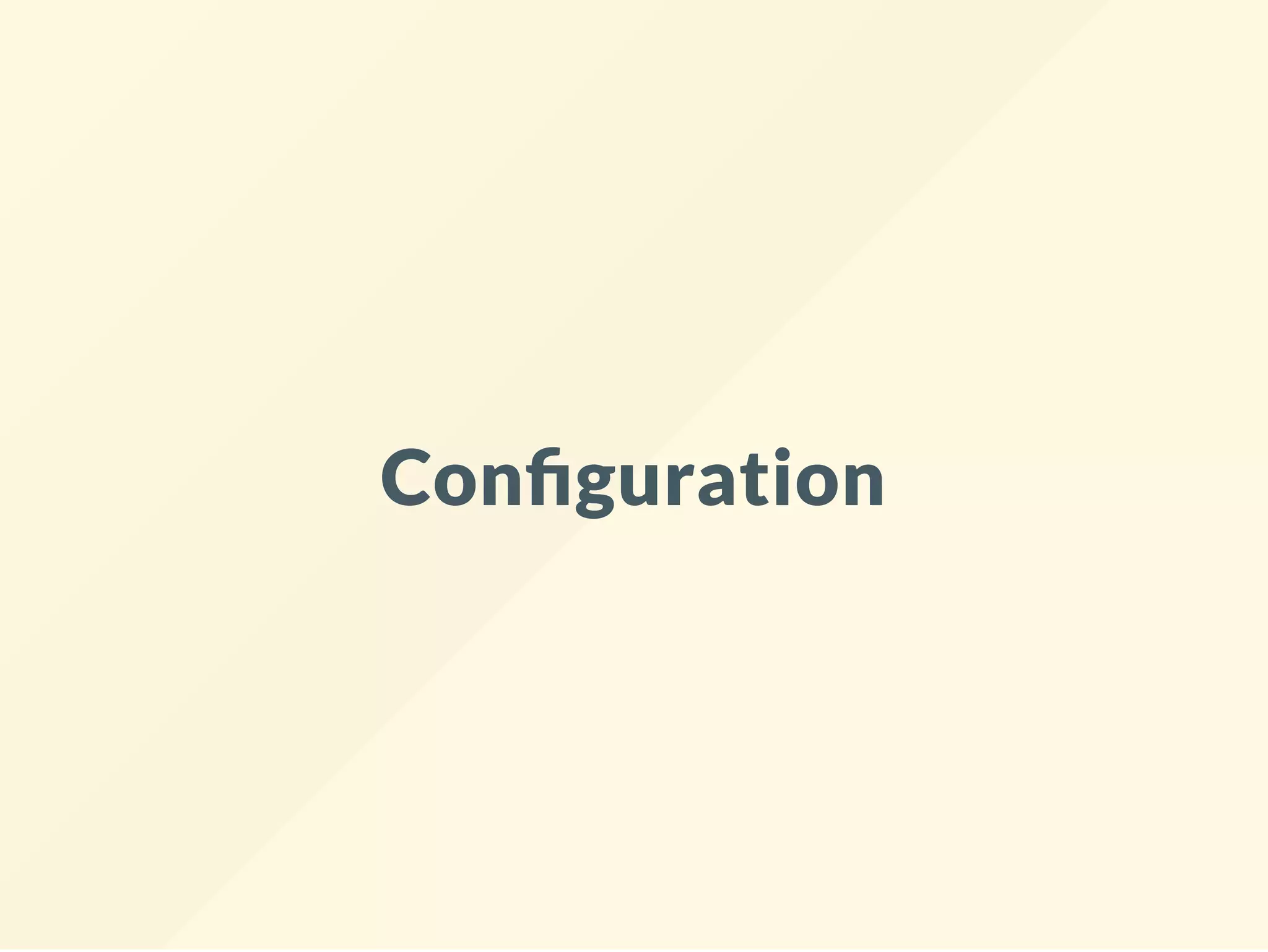

7. Con guration

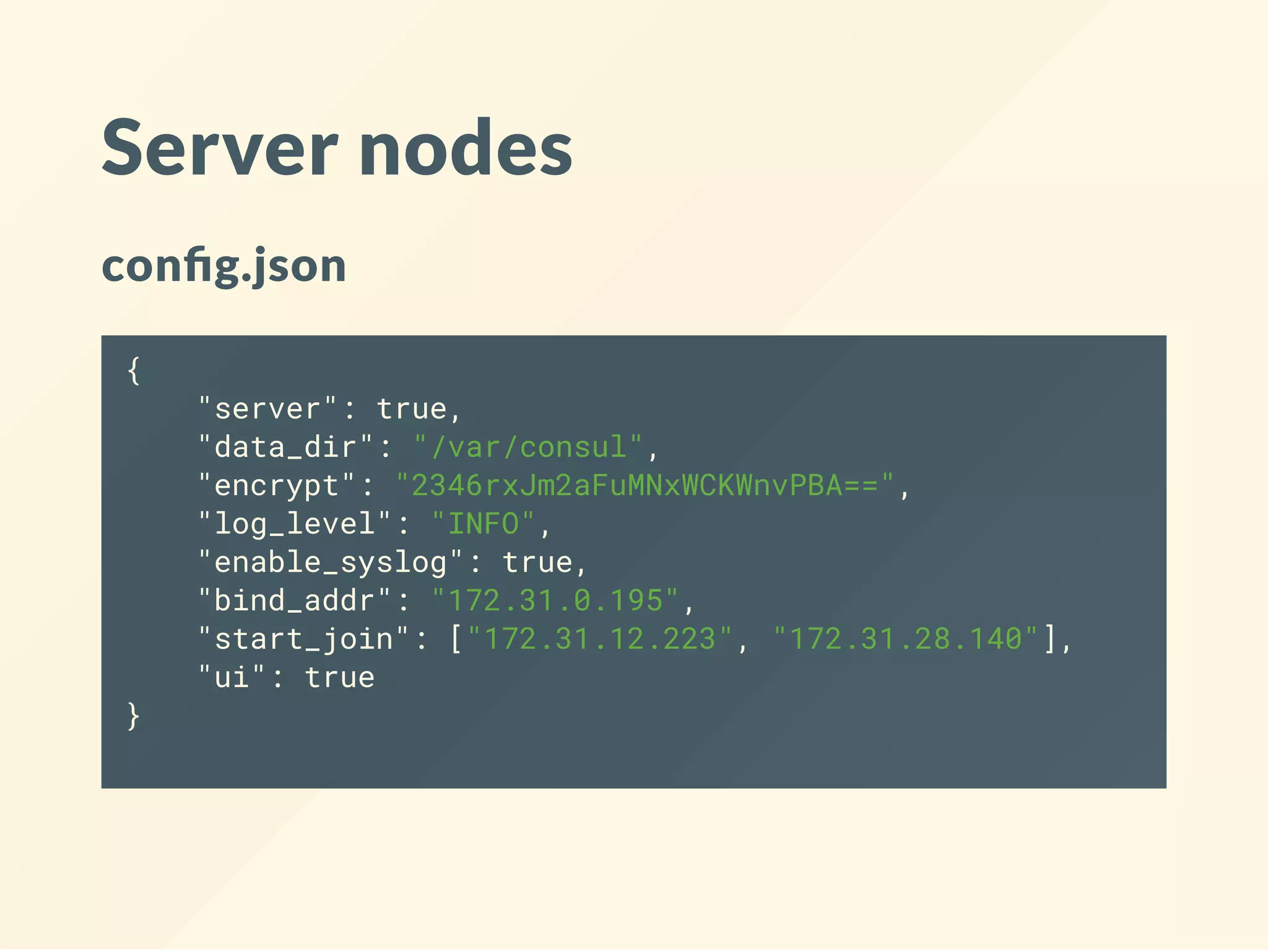

8. Server nodes
con g.json
{
"server": true,
"data_dir": "/var/consul",
"encrypt": "2346rxJm2aFuMNxWCKWnvPBA==",
"log_level": "INFO",
"enable_syslog": true,
"bind_addr": "172.31.0.195",
"start_join": ["172.31.12.223", "172.31.28.140"],
"ui": true
}

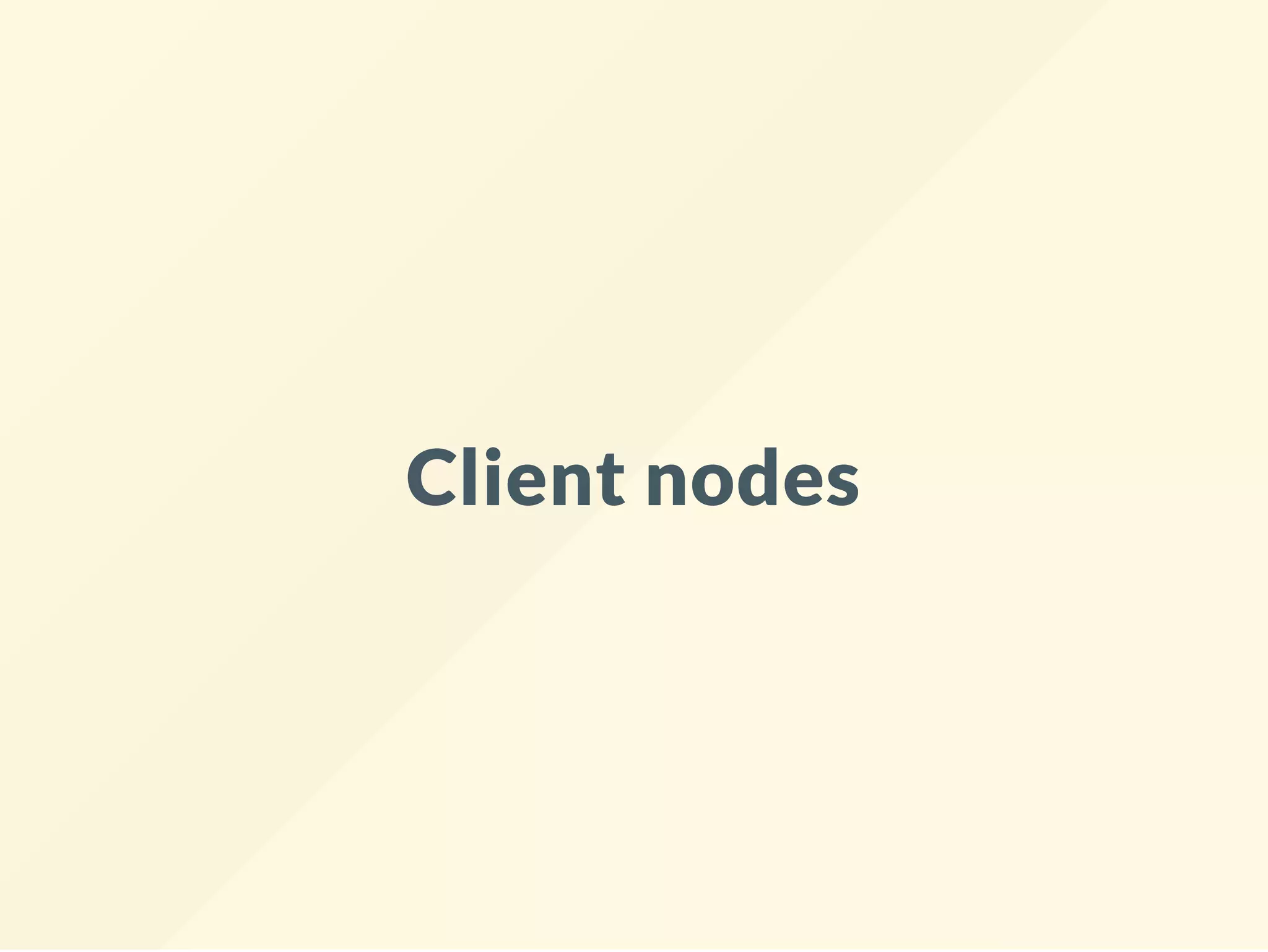

9. Client nodes

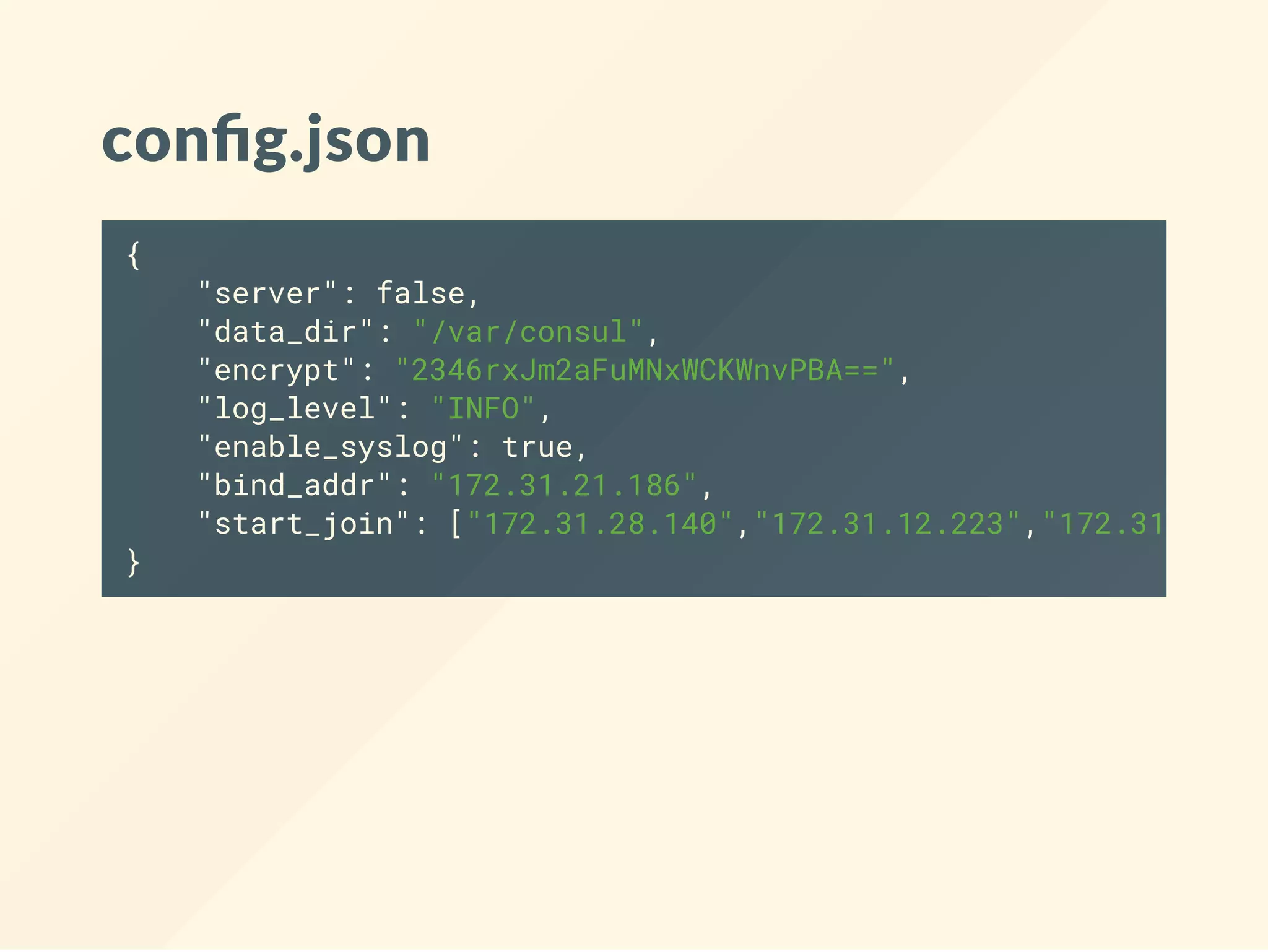

10. con g.json
{
"server": false,
"data_dir": "/var/consul",
"encrypt": "2346rxJm2aFuMNxWCKWnvPBA==",
"log_level": "INFO",
"enable_syslog": true,
"bind_addr": "172.31.21.186",
"start_join": ["172.31.28.140","172.31.12.223","172.31.0.195
}

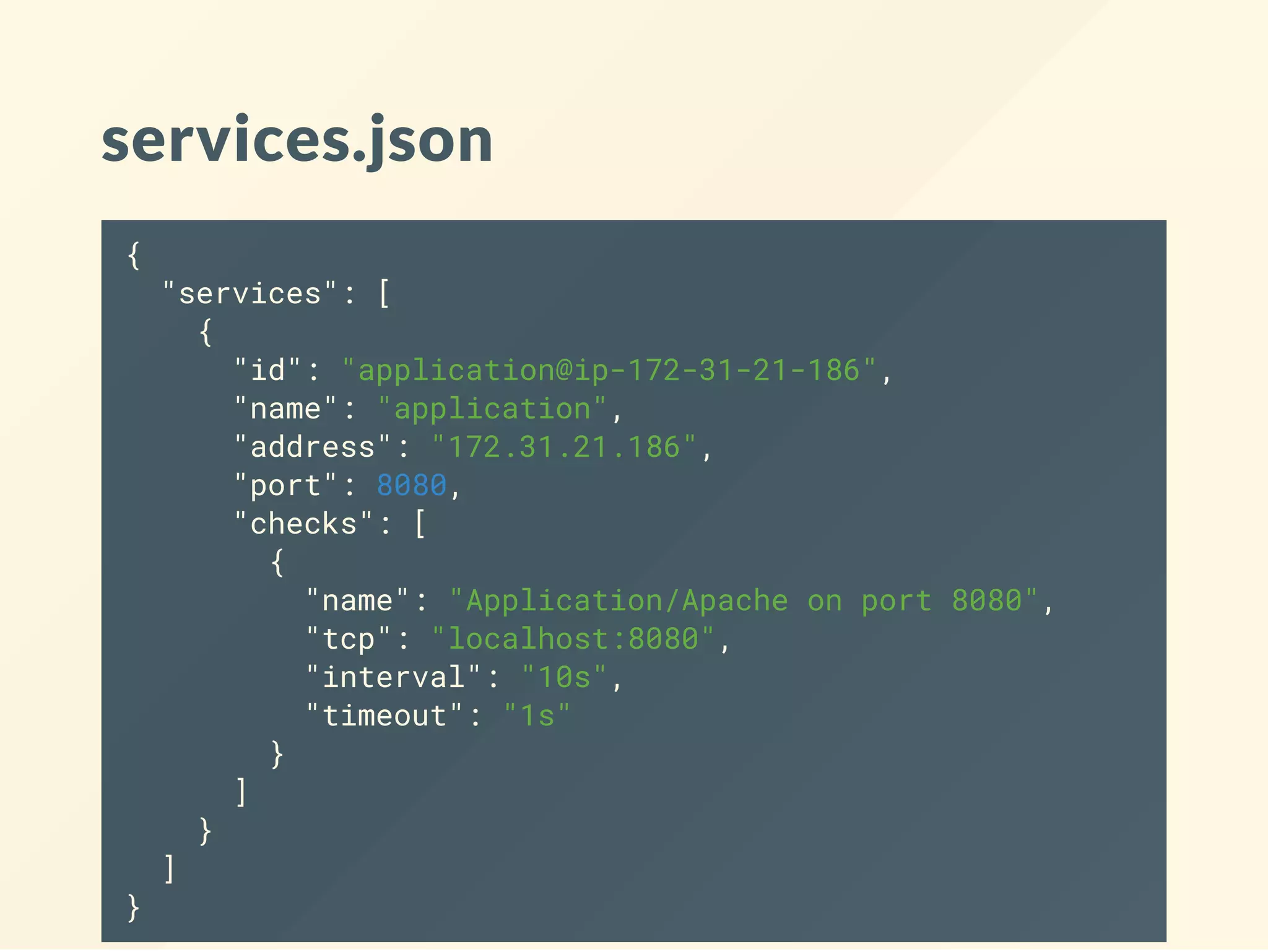

11. services.json
{
"services": [
{
"id": "application@ip-172-31-21-186",
"name": "application",
"address": "172.31.21.186",
"port": 8080,
"checks": [
{
"name": "Application/Apache on port 8080",
"tcp": "localhost:8080",
"interval": "10s",
"timeout": "1s"
}
]
}
]
}

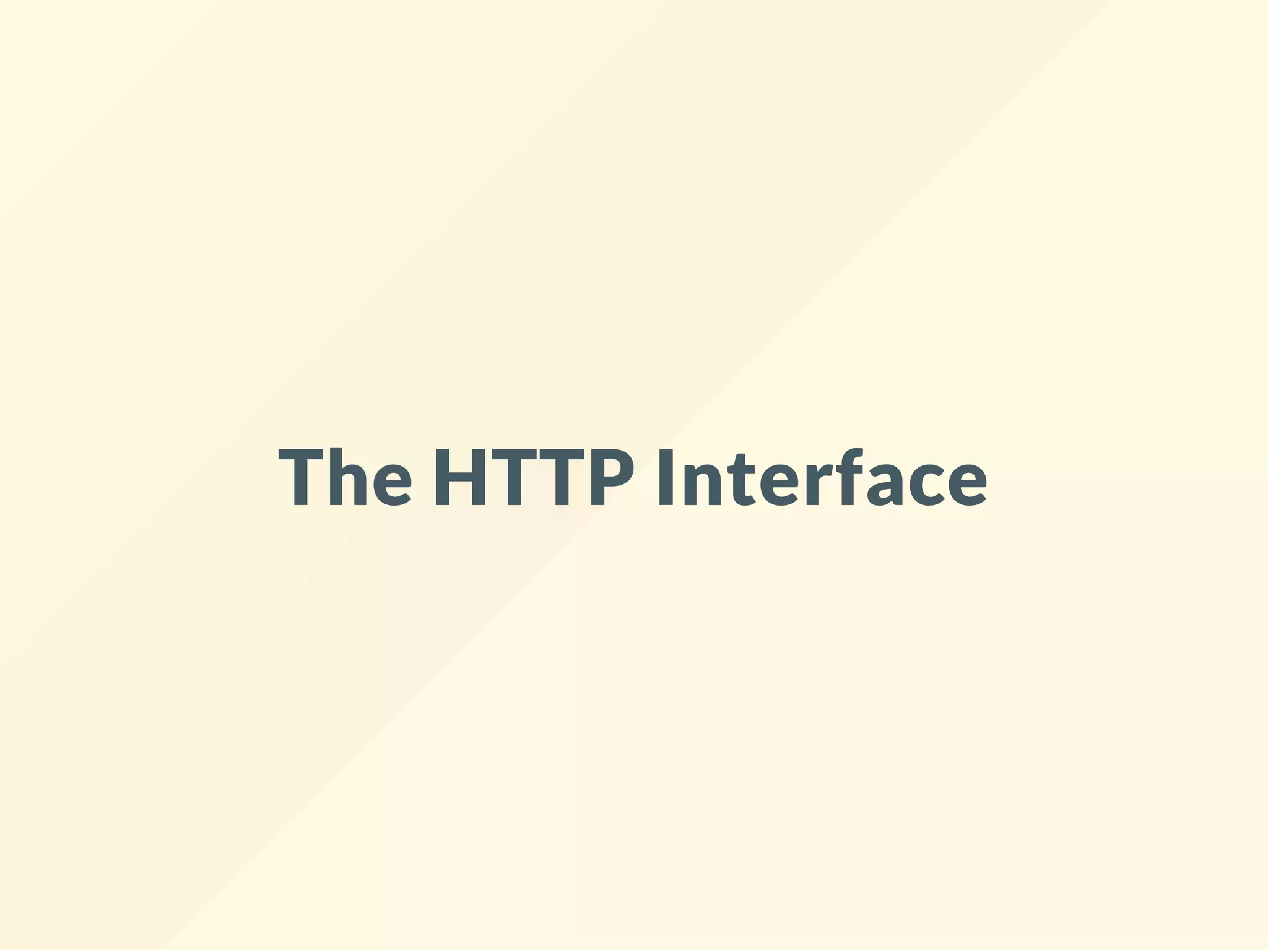

12. The HTTP Interface

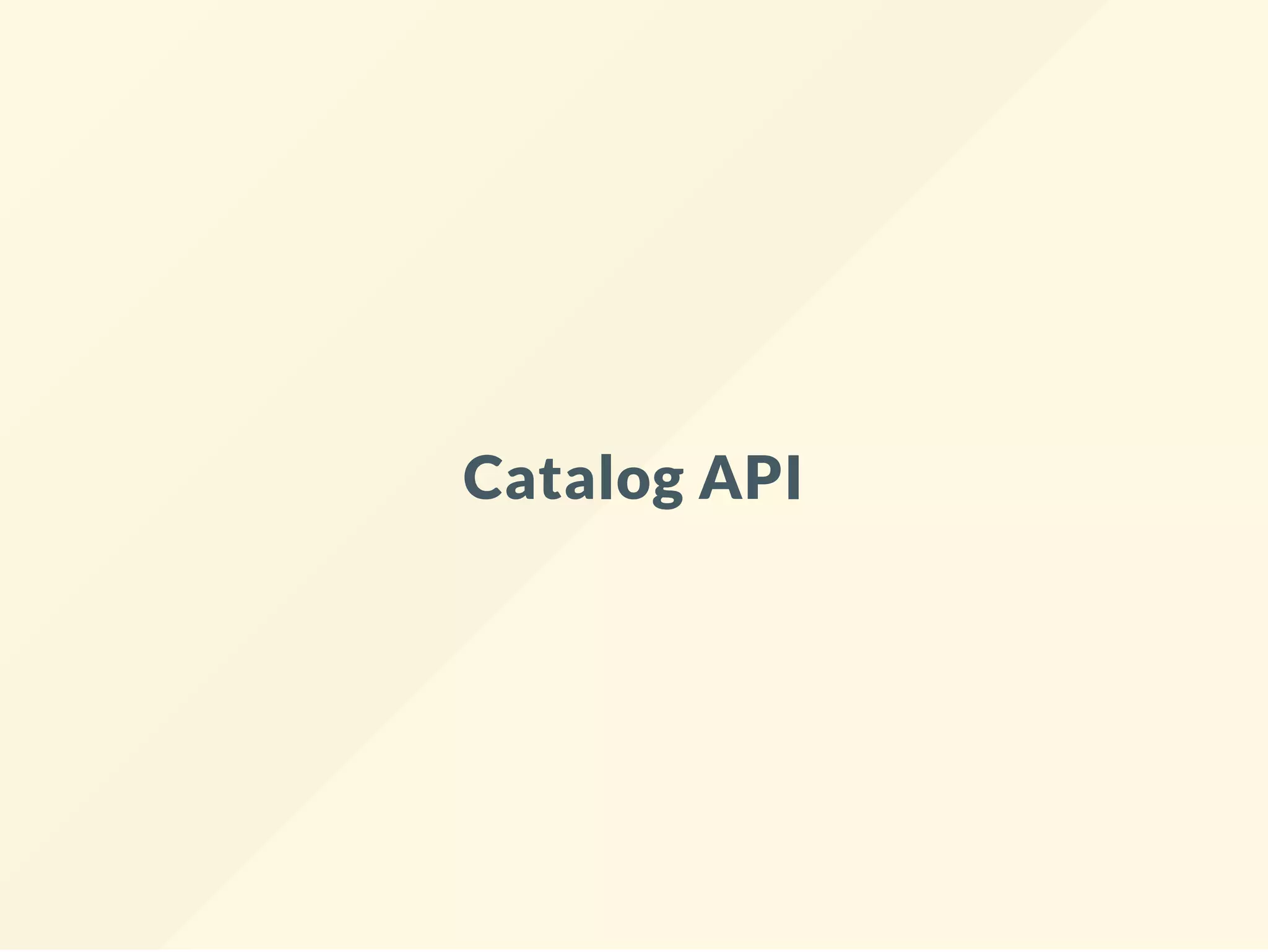

13. Catalog API

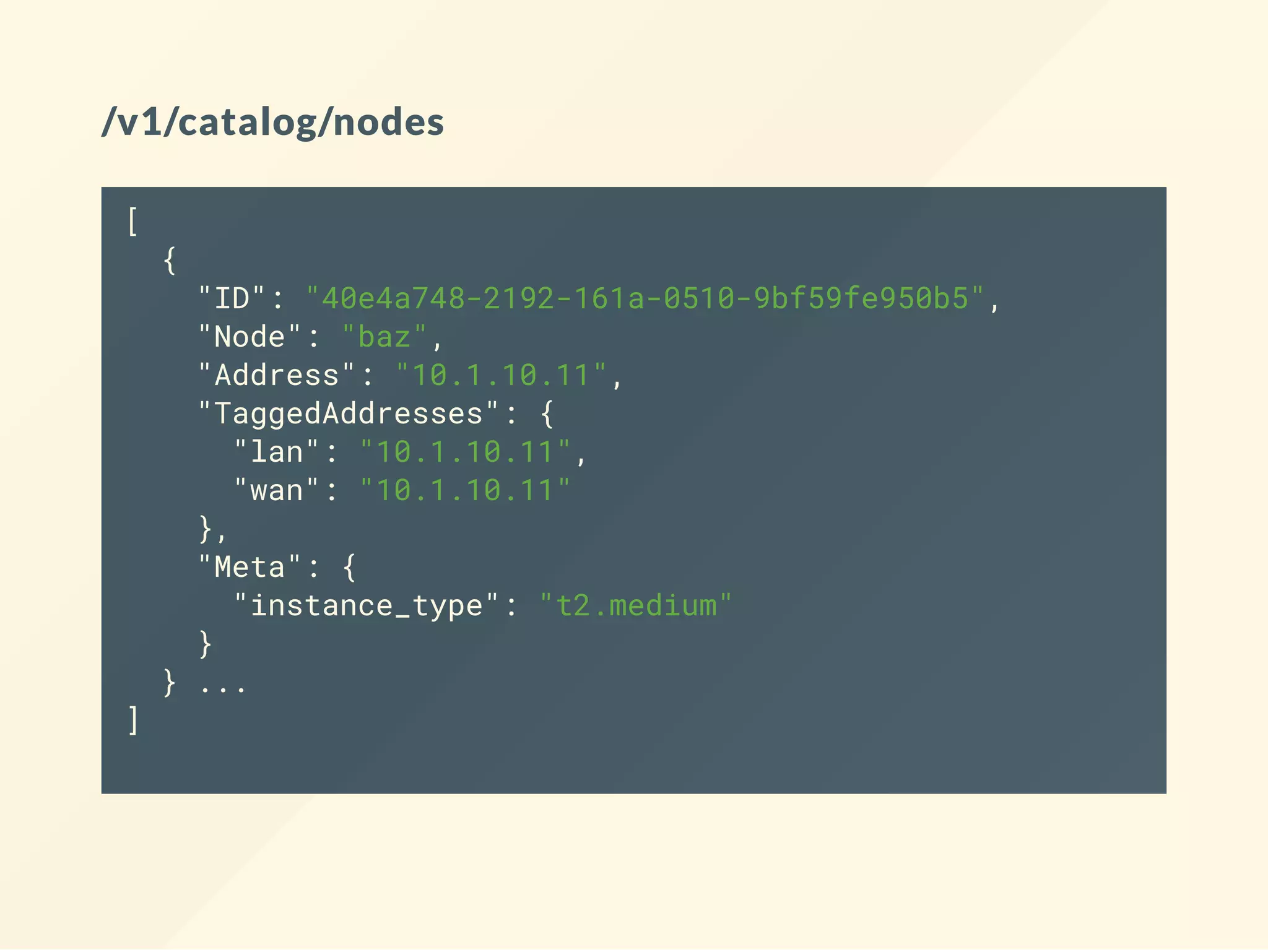

14. /v1/catalog/nodes
[
{
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "baz",
"Address": "10.1.10.11",
"TaggedAddresses": {
"lan": "10.1.10.11",
"wan": "10.1.10.11"
},
"Meta": {
"instance_type": "t2.medium"
}
} ...
]

15. /v1/catalog/services
{
"consul": [],
"redis": [],
"postgresql": [
"primary",
"secondary"
]
}

16. /v1/catalog/service/<service>
[
{
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "foobar",
"Address": "192.168.10.10",
"Meta": {
"instance_type": "t2.medium"
},
"CreateIndex": 51,
"ModifyIndex": 51,
"ServiceAddress": "172.17.0.3",
"ServiceEnableTagOverride": false,
"ServiceID": "32a2a47f7992:nodea:5000",
"ServiceName": "foobar",
"ServicePort": 5000,
"ServiceTags": [
"tacos"
]
}

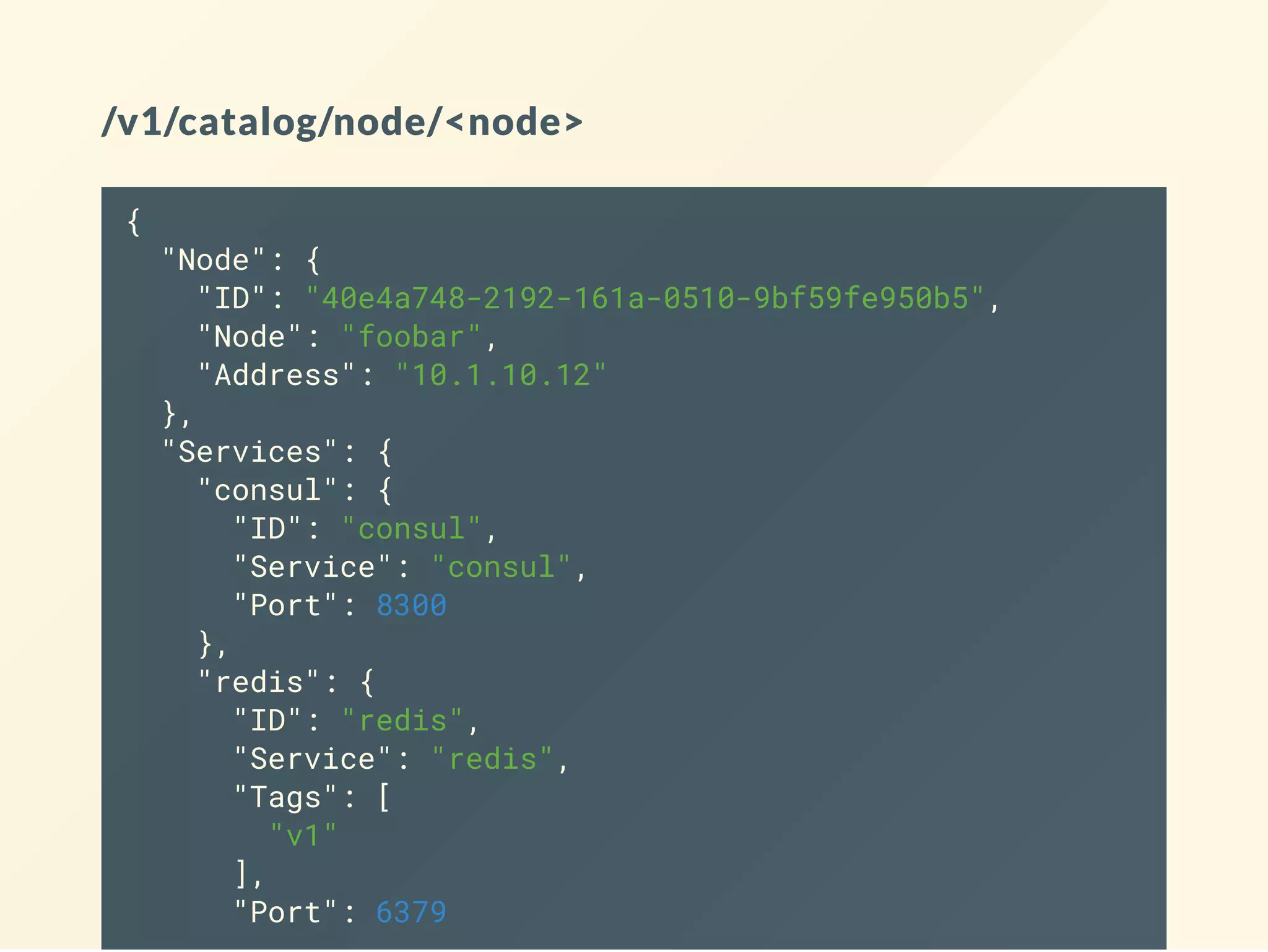

17. /v1/catalog/node/<node>
{
"Node": {
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "foobar",
"Address": "10.1.10.12"
},
"Services": {
"consul": {
"ID": "consul",
"Service": "consul",
"Port": 8300
},
"redis": {
"ID": "redis",
"Service": "redis",
"Tags": [
"v1"
],
"Port": 6379

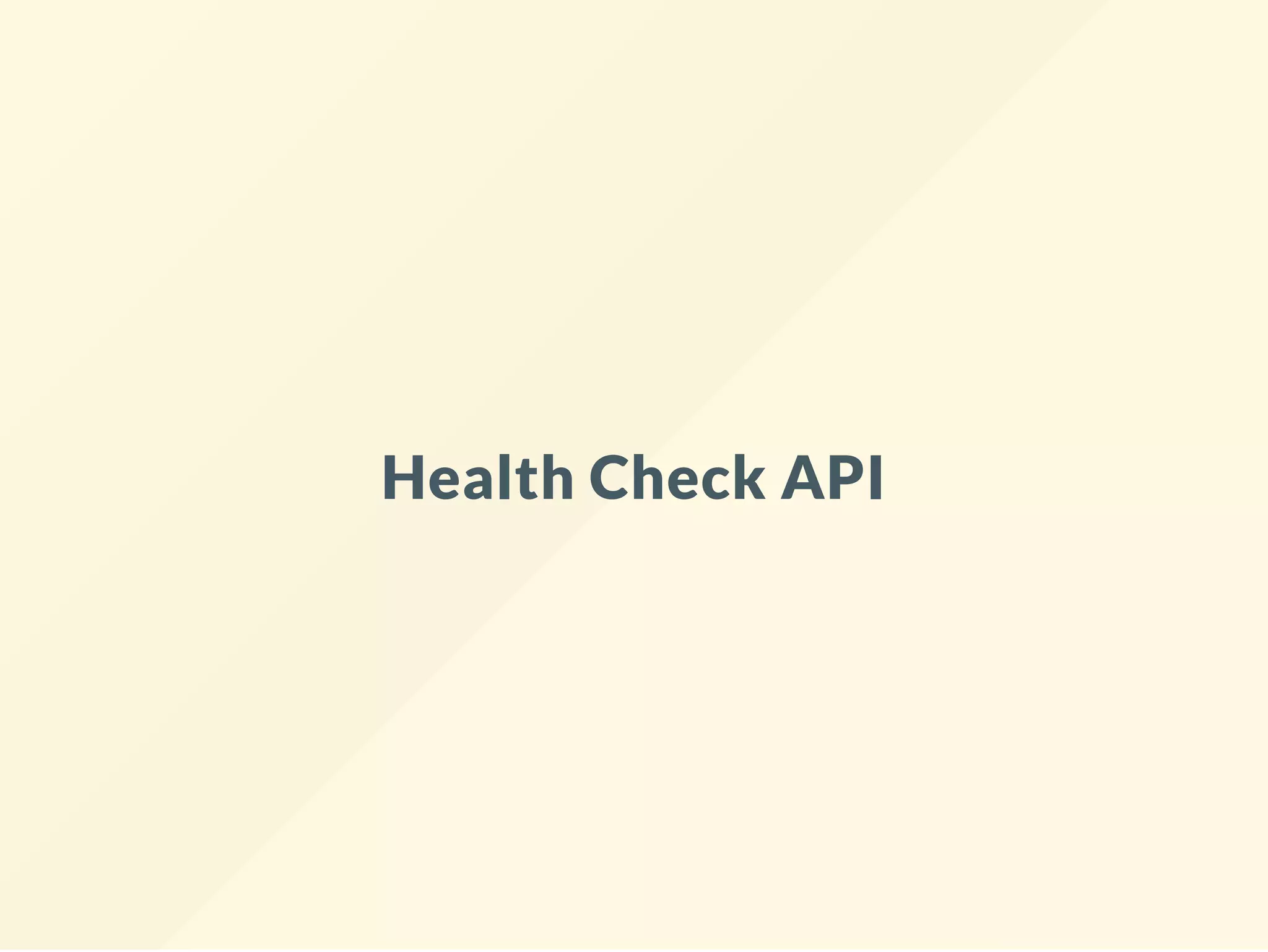

18. Health Check API

19. /v1/health/node/<node>
[
{
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "foobar",
"CheckID": "serfHealth",
"Name": "Serf Health Status",
"Status": "passing",
"Notes": "",
"Output": "",
"ServiceID": "",
"ServiceName": ""
},
{
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "foobar",
"CheckID": "service:redis",
"Name": "Service 'redis' check",
"Status": "passing",
"Notes": "",

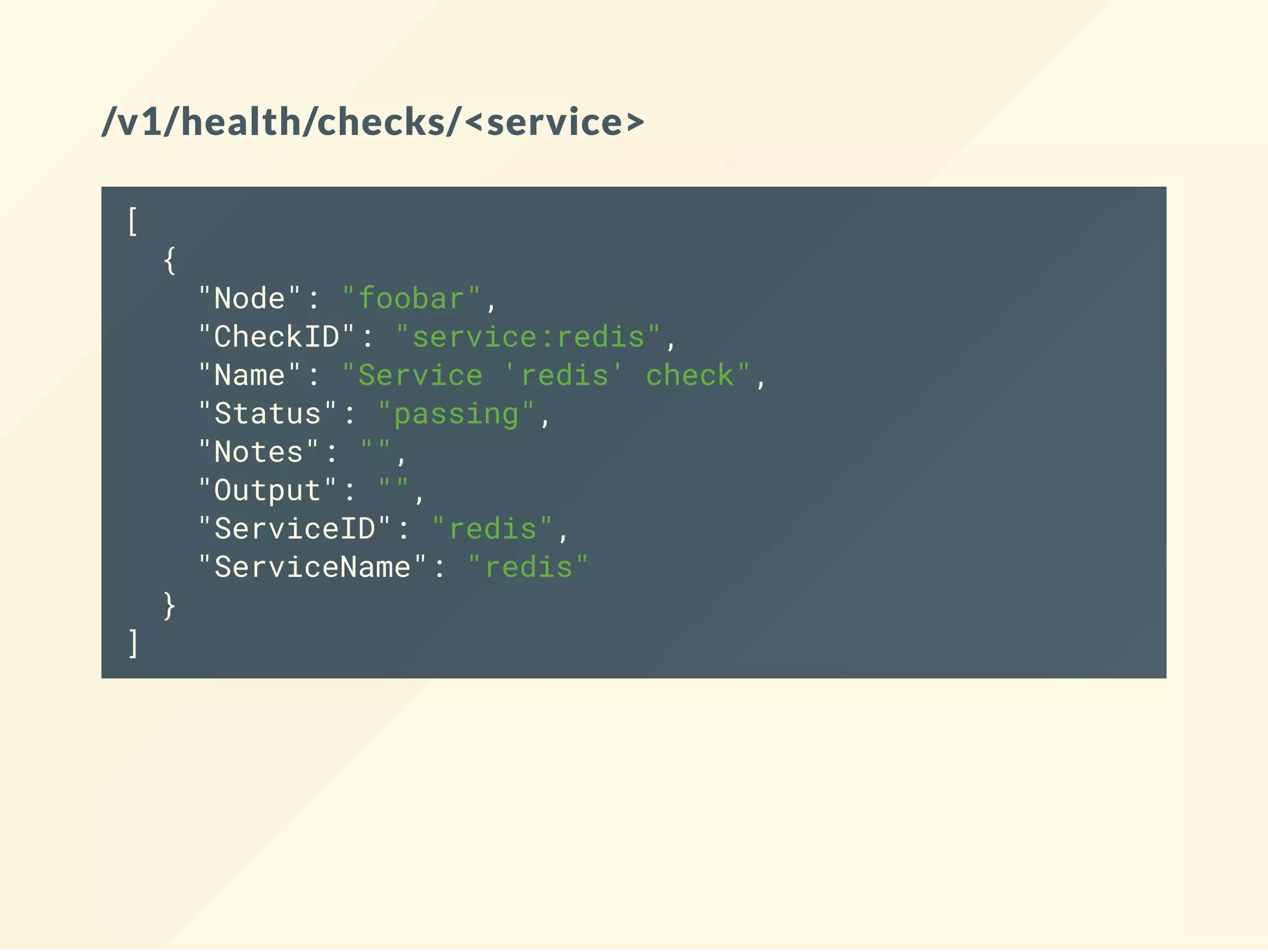

20. /v1/health/checks/<service>
[
{
"Node": "foobar",
"CheckID": "service:redis",
"Name": "Service 'redis' check",
"Status": "passing",
"Notes": "",
"Output": "",
"ServiceID": "redis",
"ServiceName": "redis"
}
]

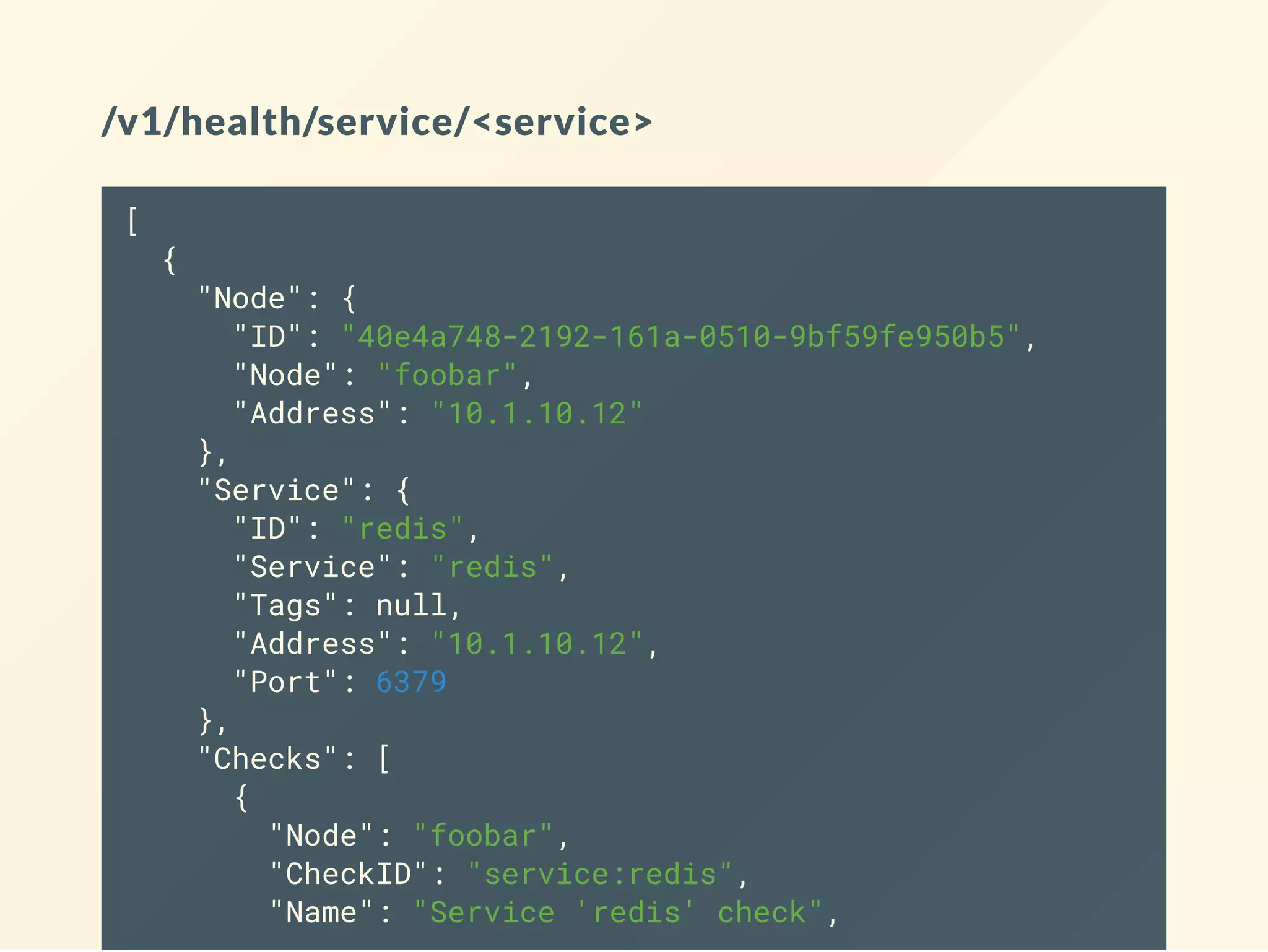

21. /v1/health/service/<service>
[
{
"Node": {
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "foobar",
"Address": "10.1.10.12"
},
"Service": {
"ID": "redis",
"Service": "redis",
"Tags": null,
"Address": "10.1.10.12",
"Port": 6379
},
"Checks": [
{
"Node": "foobar",
"CheckID": "service:redis",
"Name": "Service 'redis' check",

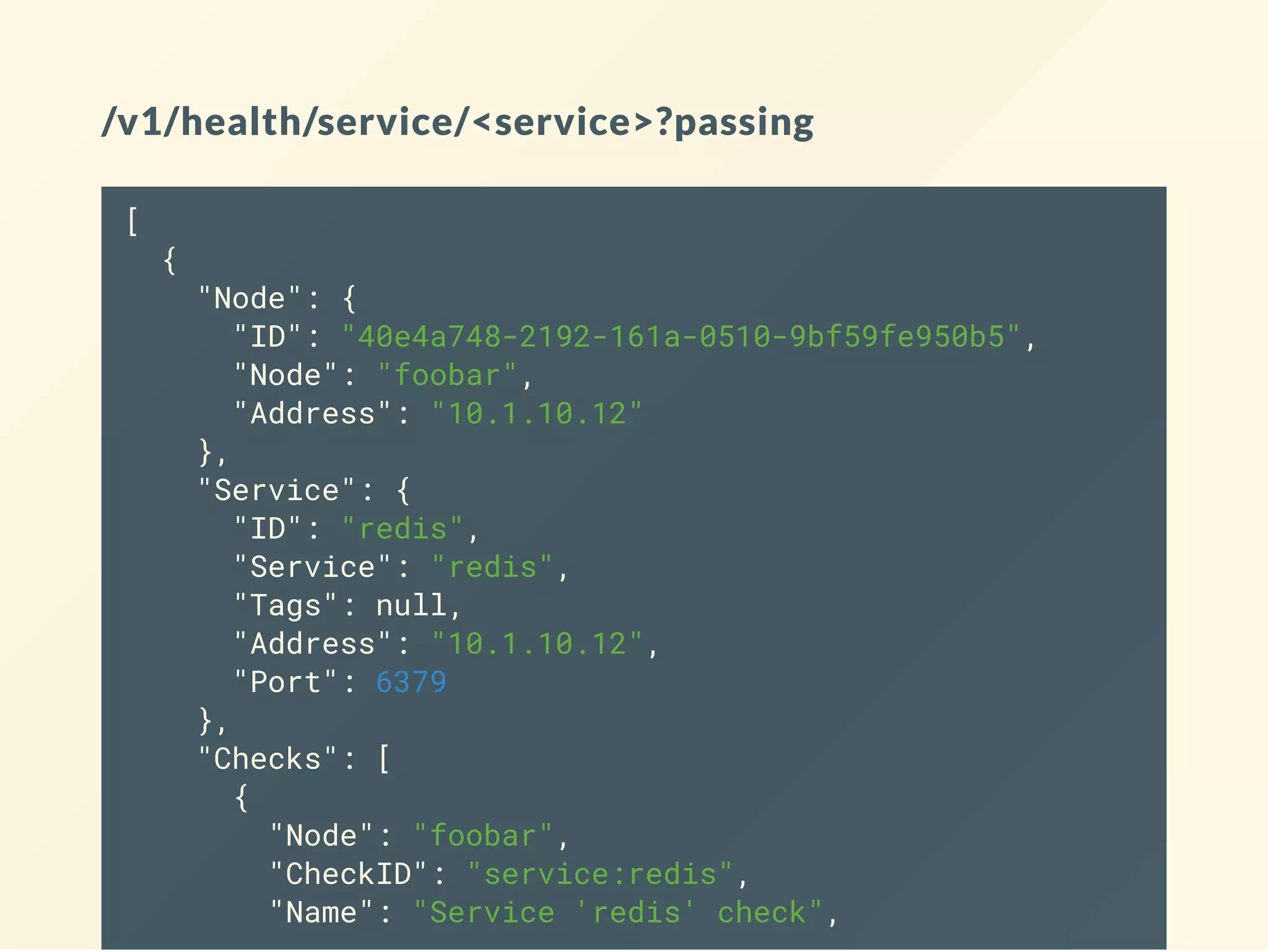

22. /v1/health/service/<service>?passing
[
{
"Node": {
"ID": "40e4a748-2192-161a-0510-9bf59fe950b5",
"Node": "foobar",
"Address": "10.1.10.12"
},
"Service": {
"ID": "redis",
"Service": "redis",
"Tags": null,
"Address": "10.1.10.12",
"Port": 6379
},
"Checks": [
{
"Node": "foobar",
"CheckID": "service:redis",
"Name": "Service 'redis' check",

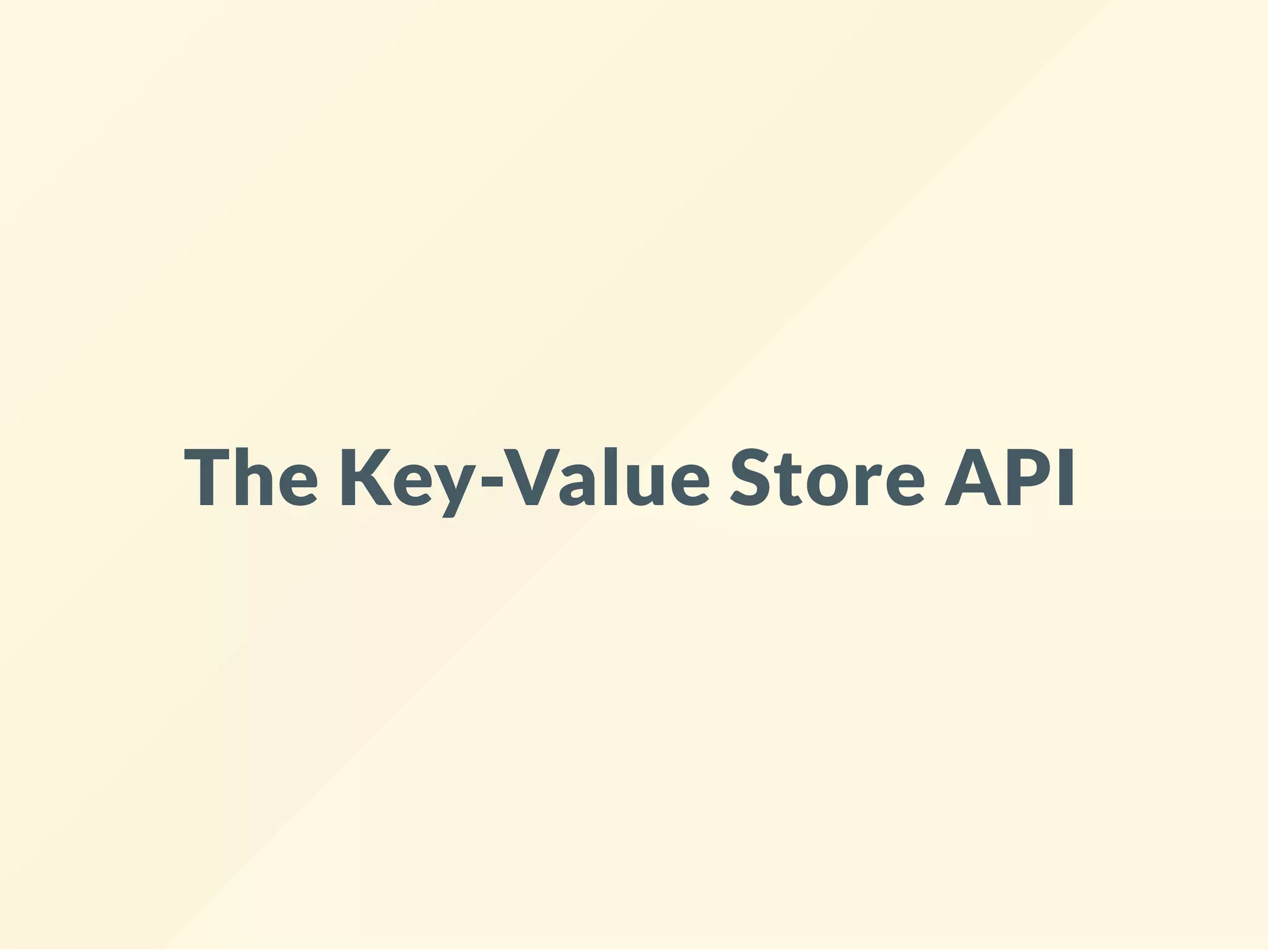

23. The Key-Value Store API

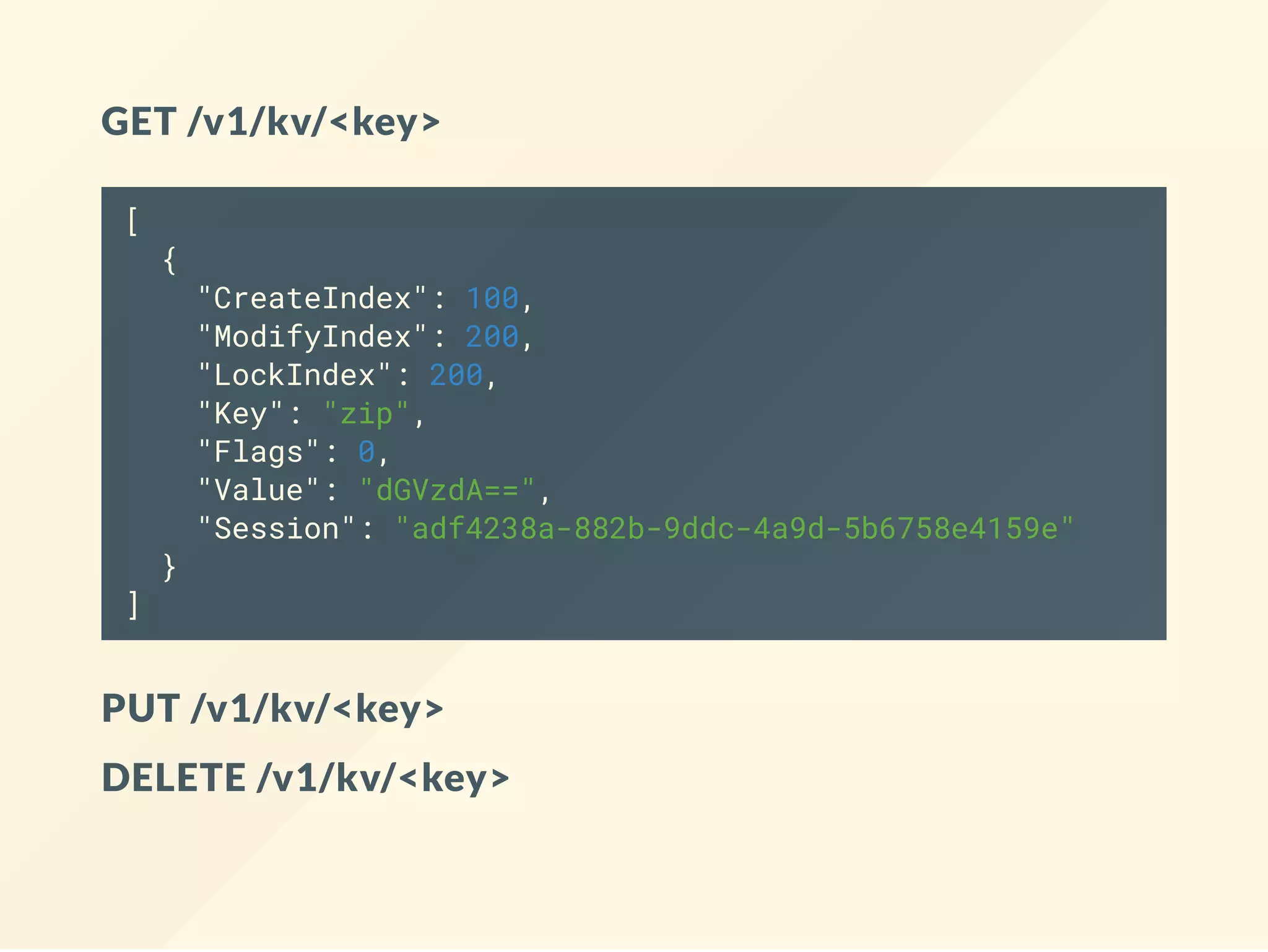

24. GET /v1/kv/<key>
[
{
"CreateIndex": 100,
"ModifyIndex": 200,
"LockIndex": 200,
"Key": "zip",
"Flags": 0,
"Value": "dGVzdA==",
"Session": "adf4238a-882b-9ddc-4a9d-5b6758e4159e"
}
]
PUT /v1/kv/<key>
DELETE /v1/kv/<key>

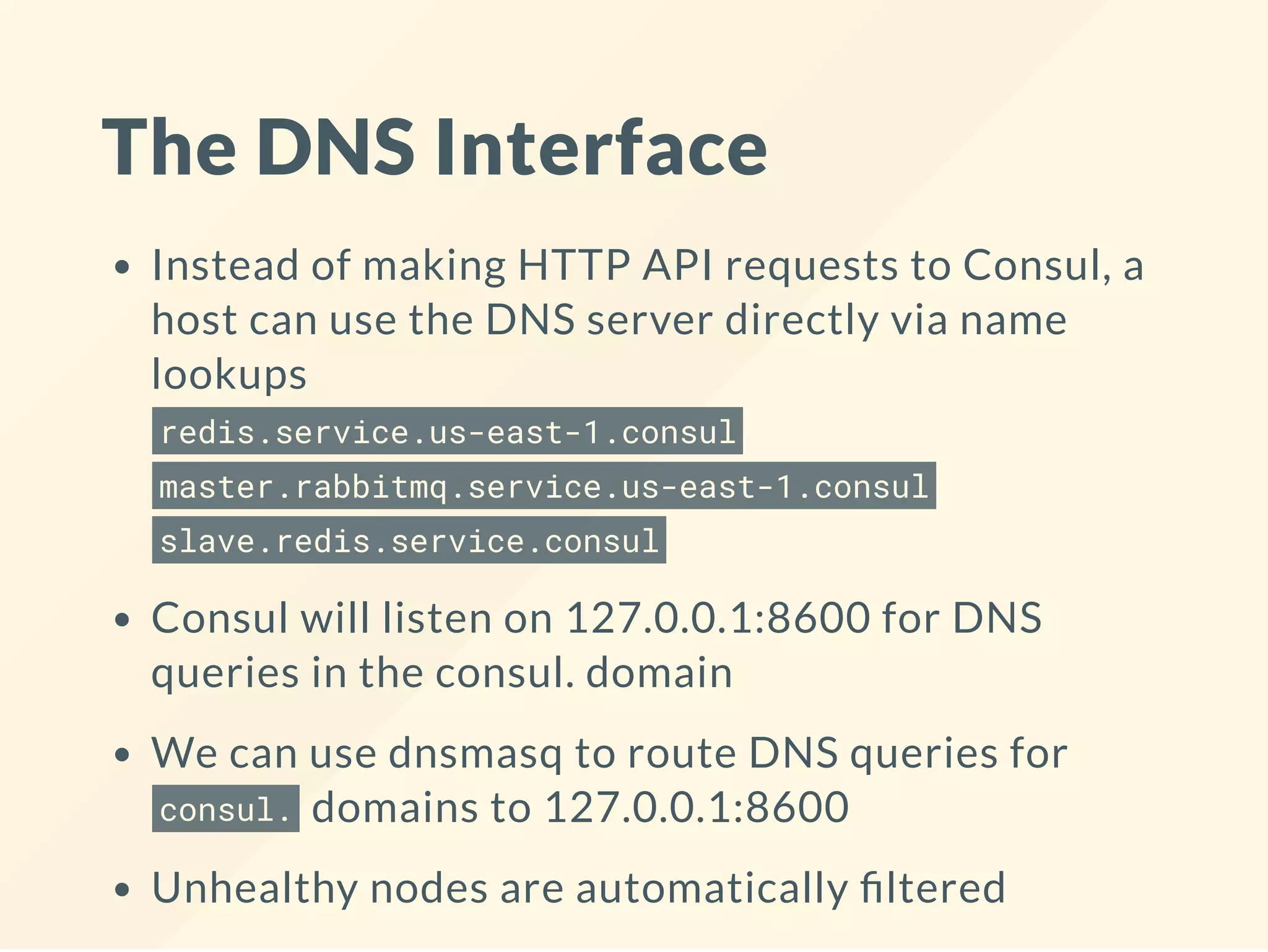

25. The DNS Interface
Instead of making HTTP API requests to Consul, a
host can use the DNS server directly via name
lookups
redis.service.us-east-1.consul
master.rabbitmq.service.us-east-1.consul
slave.redis.service.consul
Consul will listen on 127.0.0.1:8600 for DNS
queries in the consul. domain
We can use dnsmasq to route DNS queries for
consul. domains to 127.0.0.1:8600
Unhealthy nodes are automatically ltered

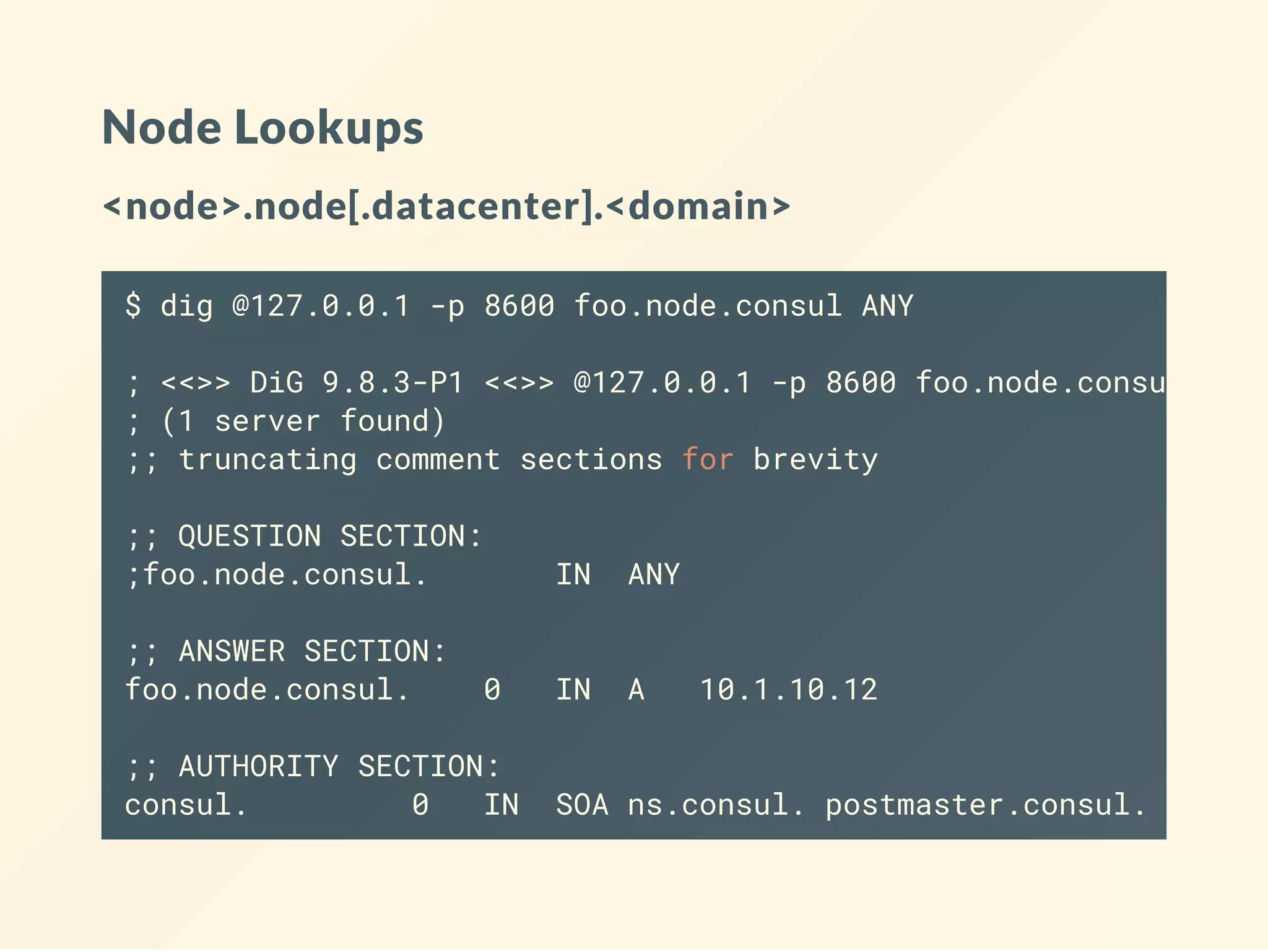

26. Node Lookups
<node>.node[.datacenter].<domain>
$ dig @127.0.0.1 -p 8600 foo.node.consul ANY
; <<>> DiG 9.8.3-P1 <<>> @127.0.0.1 -p 8600 foo.node.consul ANY
; (1 server found)
;; truncating comment sections for brevity
;; QUESTION SECTION:
;foo.node.consul. IN ANY
;; ANSWER SECTION:
foo.node.consul. 0 IN A 10.1.10.12
;; AUTHORITY SECTION:
consul. 0 IN SOA ns.consul. postmaster.consul. 139283

27. Service Lookups
[tag.]<service>.service[.datacenter].<domain>
$ dig master.redis.service.consul
; <<>> DiG 9.10.3-P4-Ubuntu <<>> master.redis.service.consul
;; truncating comment sections for brevity
;; QUESTION SECTION:
;master.redis.service.consul. IN A
;; ANSWER SECTION:
master.redis.service.consul. 0 IN A 172.31.28.140
;; Query time: 2 msec
;; SERVER: 127.0.0.1#53(127.0.0.1)
;; WHEN: Wed Feb 01 10:36:28 UTC 2017
;; MSG SIZE rcvd: 88

28. Distributed lock and Leader
election

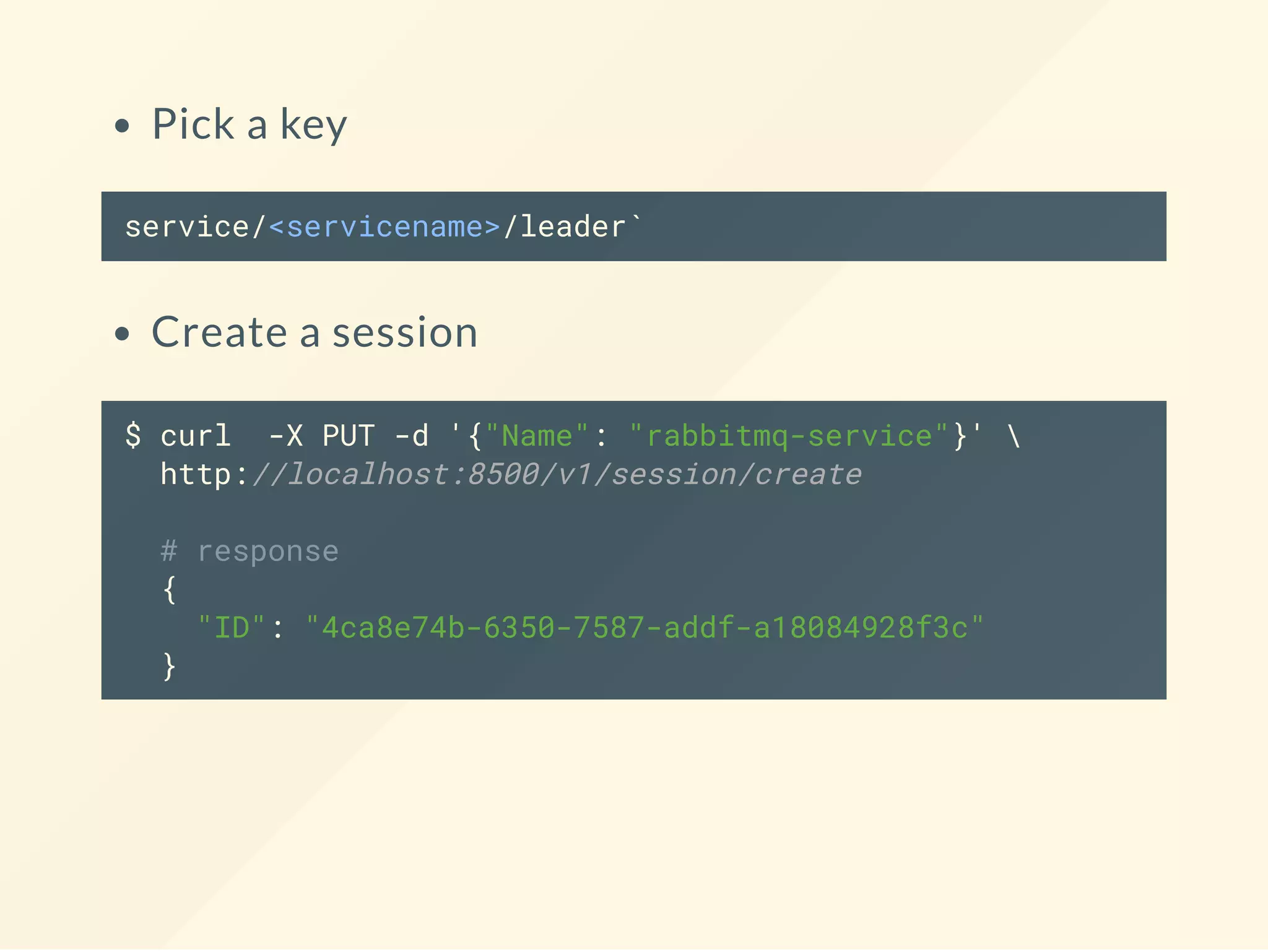

29. Pick a key
service/<servicename>/leader`
Create a session
$ curl -X PUT -d '{"Name": "rabbitmq-service"}'
http://localhost:8500/v1/session/create
# response
{
"ID": "4ca8e74b-6350-7587-addf-a18084928f3c"
}

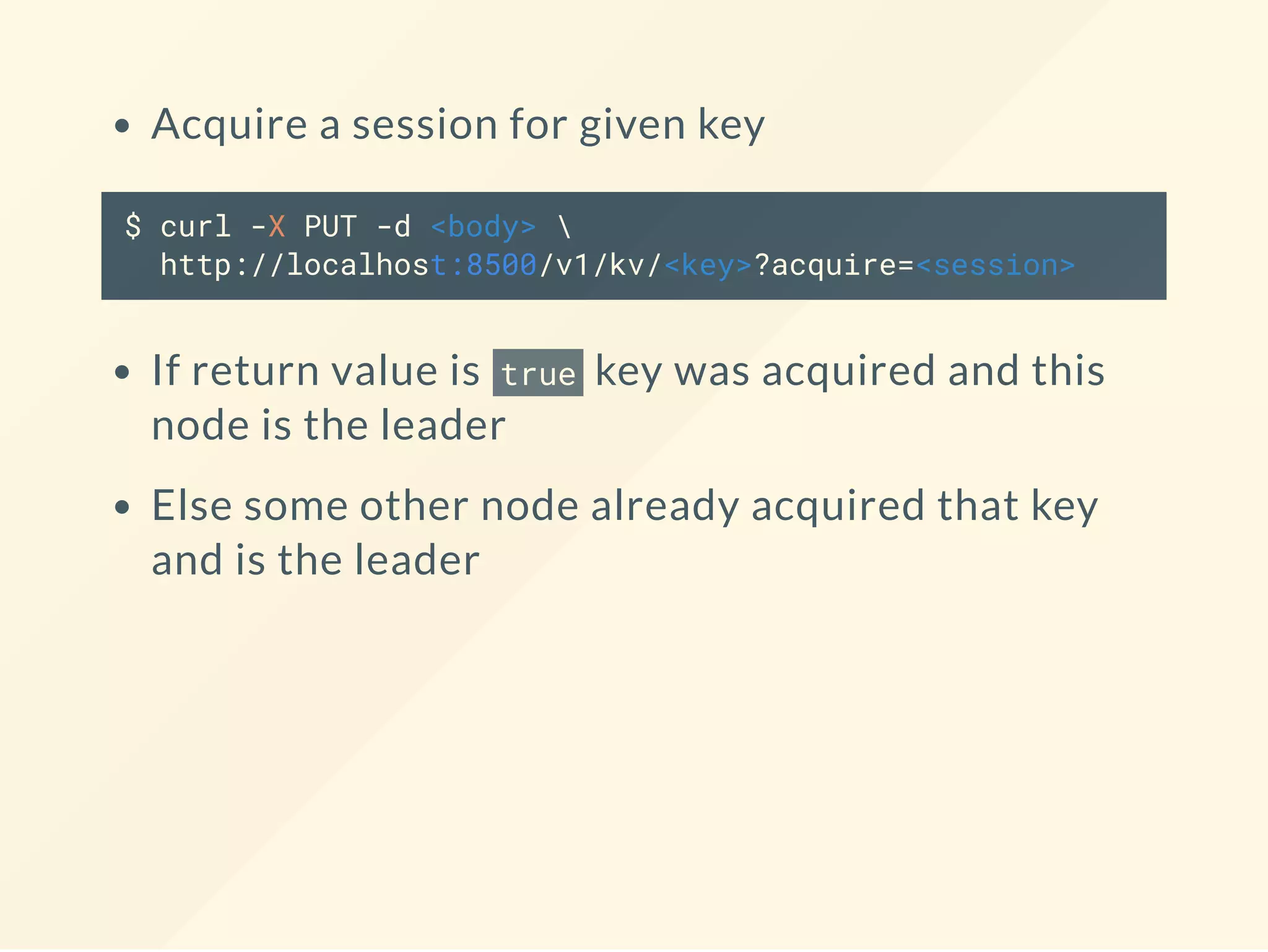

30. Acquire a session for given key
$ curl -X PUT -d <body>
http://localhost:8500/v1/kv/<key>?acquire=<session>
If return value is true key was acquired and this
node is the leader
Else some other node already acquired that key
and is the leader

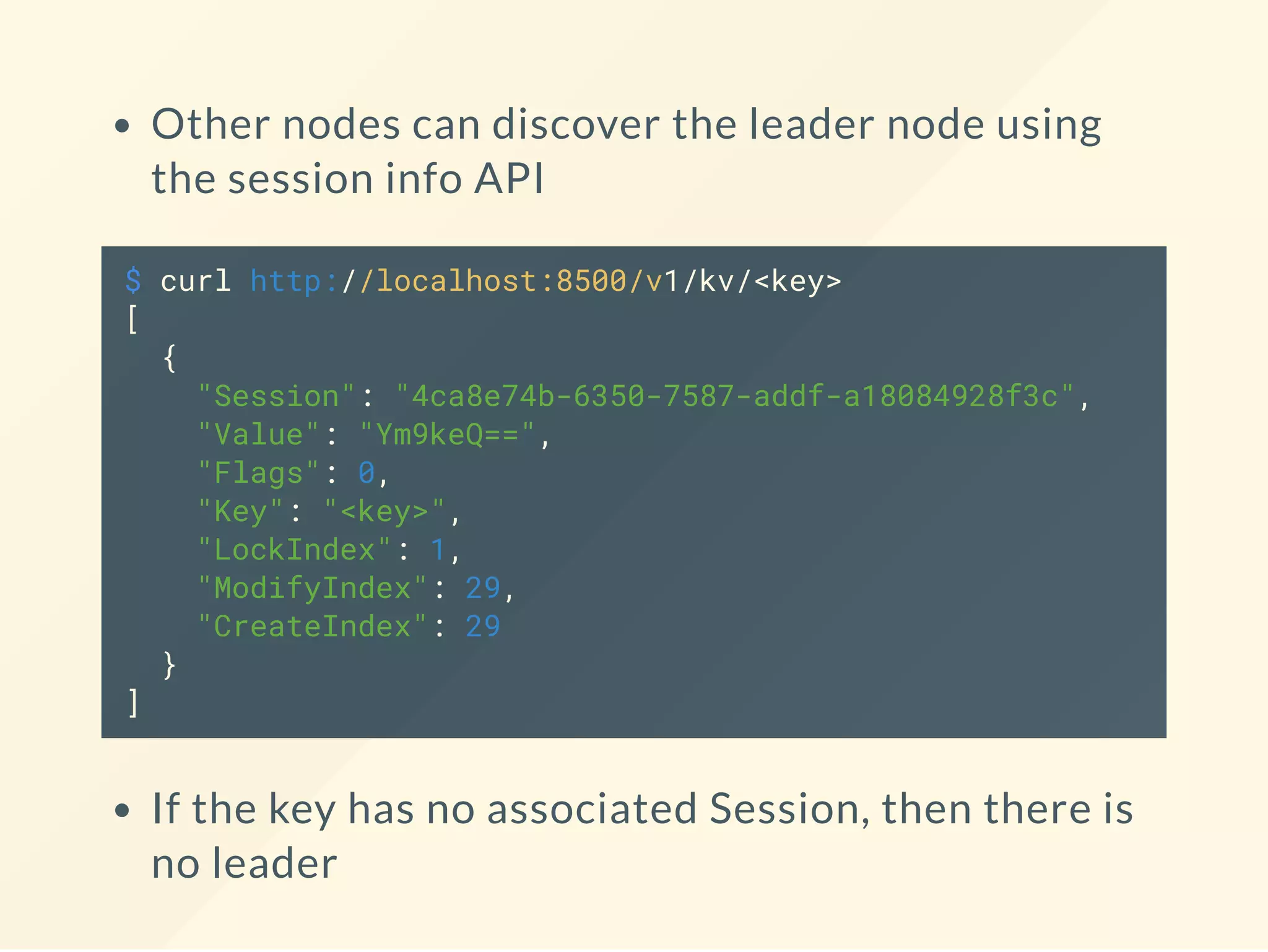

31. Other nodes can discover the leader node using
the session info API
$ curl http://localhost:8500/v1/kv/<key>
[
{
"Session": "4ca8e74b-6350-7587-addf-a18084928f3c",
"Value": "Ym9keQ==",
"Flags": 0,
"Key": "<key>",
"LockIndex": 1,
"ModifyIndex": 29,
"CreateIndex": 29
}
]
If the key has no associated Session, then there is
no leader

32. The nodes would be watching the key to check if it
was released and try to become the leader
$ curl
http://localhost:8500/v1/session/info/4ca8e74b-6350-7587-addf-a1
[
{
"LockDelay": 1.5e+10,
"Checks": [
"serfHealth"
],
"Node": "consul-primary-bjsiobmvdij6-node-lhe5ihreel7y"
"Name": "dbservice",
"ID": "4ca8e74b-6350-7587-addf-a18084928f3c",
"CreateIndex": 28
}
]
