Build Your Own SaaS using Docker

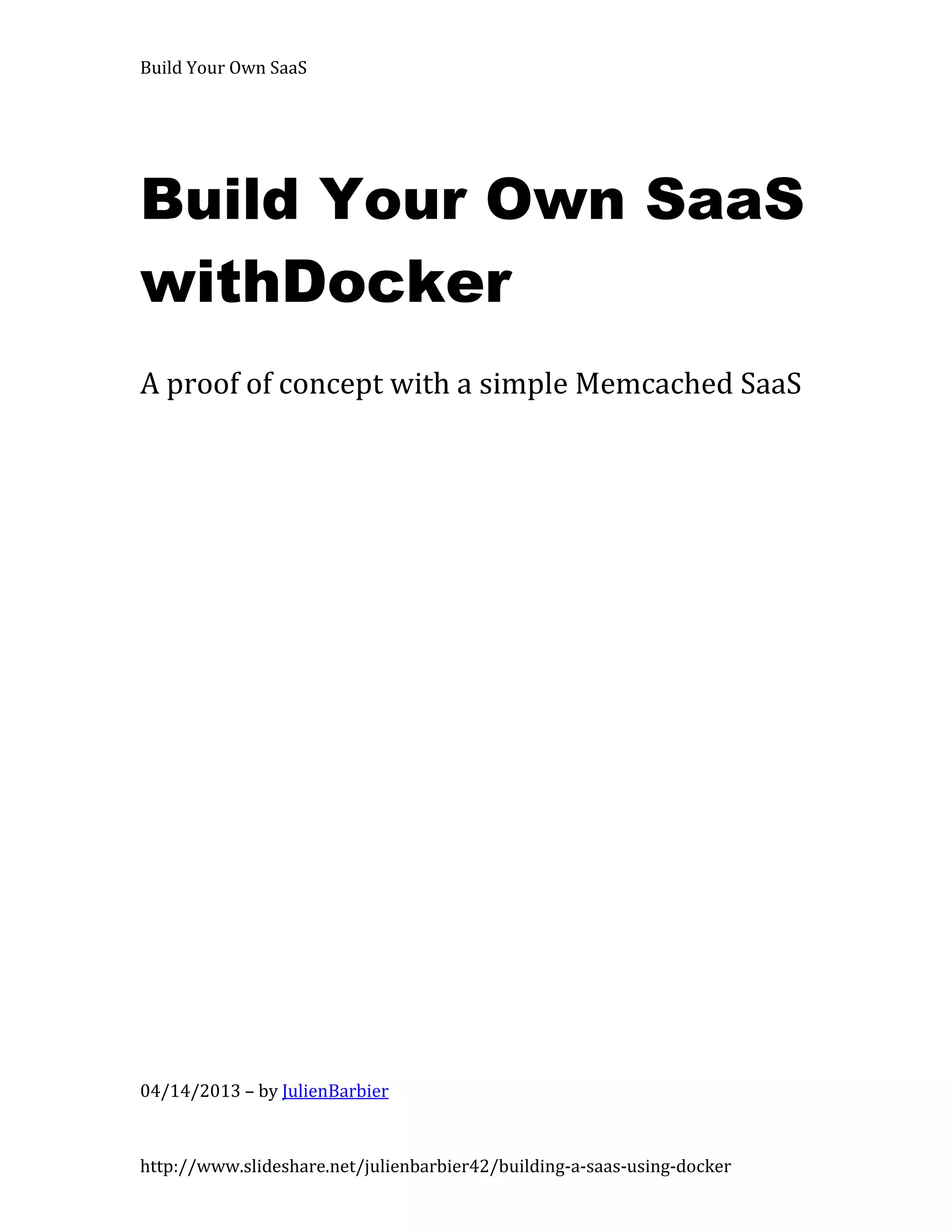

Build Your Own SaaS

Build Your Own SaaS
withDocker
A proof of concept with a simple Memcached SaaS

04/14/2013 – by JulienBarbier

http://www.slideshare.net/julienbarbier42/building-a-saas-using-docker

Build Your Own SaaS

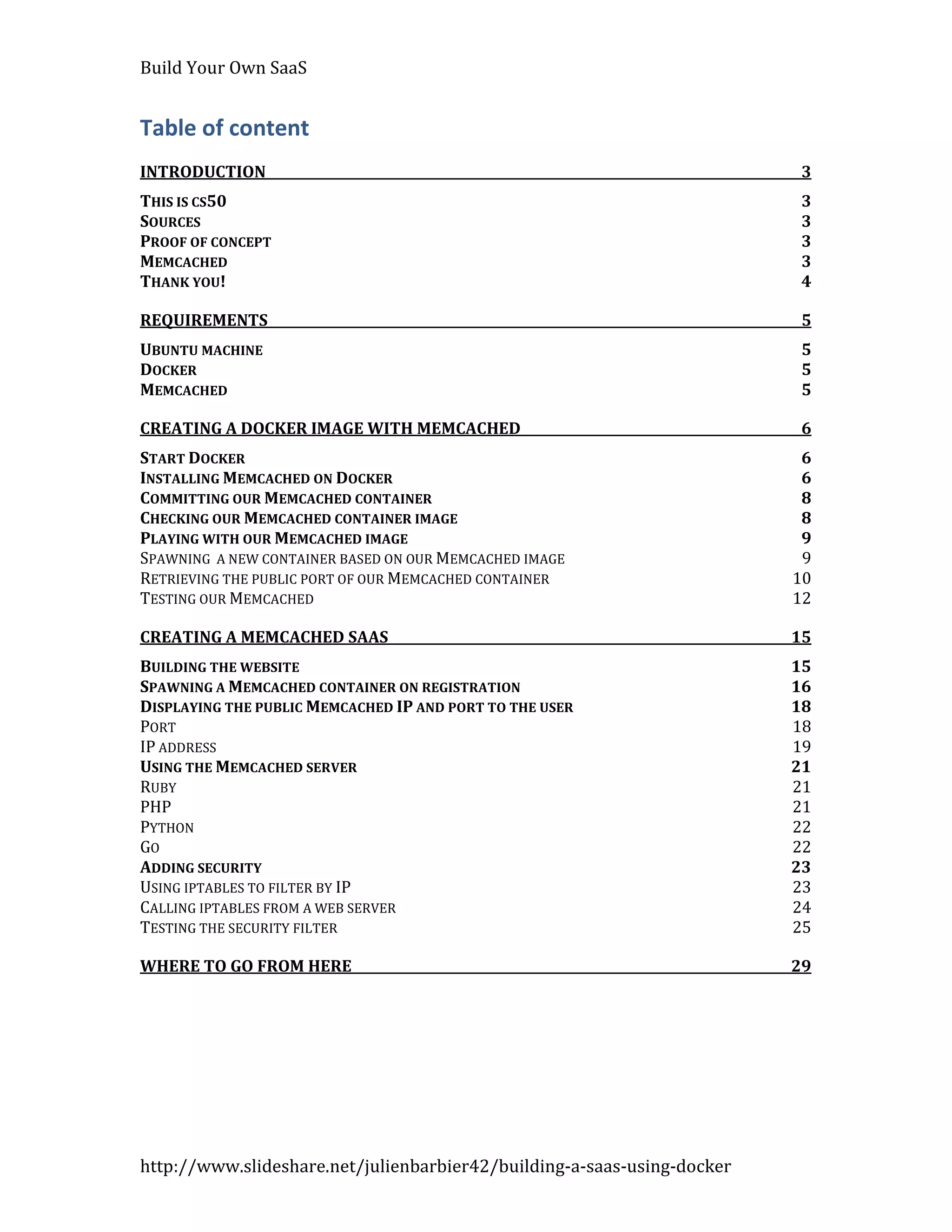

Table of content
INTRODUCTION 3
THIS IS CS50 3
SOURCES 3
PROOF OF CONCEPT 3
MEMCACHED 3
THANK YOU! 4

REQUIREMENTS 5
UBUNTU MACHINE 5
DOCKER 5
MEMCACHED 5

CREATING A DOCKER IMAGE WITH MEMCACHED 6
START DOCKER 6
INSTALLING MEMCACHED ON DOCKER 6
COMMITTING OUR MEMCACHED CONTAINER 8
CHECKING OUR MEMCACHED CONTAINER IMAGE 8
PLAYING WITH OUR MEMCACHED IMAGE 9
SPAWNING A NEW CONTAINER BASED ON OUR MEMCACHED IMAGE 9
RETRIEVING THE PUBLIC PORT OF OUR MEMCACHED CONTAINER 10
TESTING OUR MEMCACHED 12

CREATING A MEMCACHED SAAS 15
BUILDING THE WEBSITE 15
SPAWNING A MEMCACHED CONTAINER ON REGISTRATION 16
DISPLAYING THE PUBLIC MEMCACHED IP AND PORT TO THE USER 18
PORT 18
IP ADDRESS 19
USING THE MEMCACHED SERVER 21
RUBY 21
PHP 21
PYTHON 22
GO 22
ADDING SECURITY 23
USING IPTABLES TO FILTER BY IP 23
CALLING IPTABLES FROM A WEB SERVER 24
TESTING THE SECURITY FILTER 25

WHERE TO GO FROM HERE 29


Build Your Own SaaS

Introduction

This is cs50

This document and source code are part of my final project for cs50x that I started
on edx.org few months ago. For this final project I had several goals:
- learn a new language: I chose to learn Ruby and Rails
- use a new piece of technology. I chose to useDocker
- build a cool product. Building a SaaS a new way and with a new piece of
technology sounds fun!
- make it open source, and learn how to use Git and GitHub

Along the way I wrote several documents that are available on SlideShare. Some of
them have been used by Docker in their documentation.

Sources

You can find, clone, fork, or download the source code of the project on GitHub:
https://github.com/jbarbier/SaaS_Memcached

Proof of concept

By downloading the source code and reading this document you will be able to run a
minimalist SaaS. Your users will be able to get their own Memcached server. Of
course this is only a proof of concept, but it runs quite well.

Memcached

Memcached is afree & open source, high-performance, distributed memory object
caching system, generic in nature, but intended for use in speeding up dynamic web
applications by alleviating database load.

I chose Memcached because it is a widely used service. It is also easy to install and
use, so that the tests are not too complicated to perform.


Build Your Own SaaS

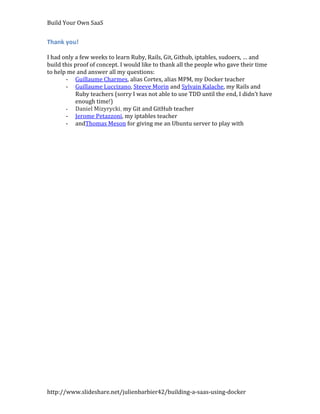

Thank you!

I had only a few weeks to learn Ruby, Rails, Git, Github, iptables, sudoers, … and
build this proof of concept. I would like to thank all the people who gave their time
to help me and answer all my questions:
- Guillaume Charmes, alias Cortex, alias MPM, my Docker teacher
- Guillaume Luccizano, Steeve Morin and Sylvain Kalache, my Rails and
Ruby teachers (sorry I was not able to use TDD until the end, I didn’t have
enough time!)
- Daniel Mizyrycki, my Git and GitHub teacher
- Jerome Petazzoni, my iptables teacher
- andThomas Meson for giving me an Ubuntu server to play with


Build Your Own SaaS

Requirements

Ubuntu machine

In order to follow this tutorial you will need a server with the last version of Ubuntu
(or any other OS, but using Vagrant and VirtualBox to run an Ubuntu image). We
need Ubuntu because our minimalist SaaS will use Docker, which runs on Ubuntu
servers only.

The community behind Dockeris growing fast and is very active. And at the time I
write this document, it is now possible to use Docker on different operating systems.
For instance, FlavioCastelli has written a blog-post on how to use Docker on
openSUSE. And I’ve seen people using it on CentOS during a Docker demo days.

Docker

Docker is a Linux container runtime. It has been released few weeks ago as an open-
source project by dotCloud. Docker complements LXC with a high-level API which
operates at the process level. It runs unix processes with strong guarantees of
isolation and repeatability across servers.

Please visit Docker’s website for a tutorial on how to get Dockerrunning on your
Ubuntu machine or using Vagrant + VirtualBox on any other Operating system.

We will use only few Dockercommands through this tutorial. To learn more about
the Docker command line interface, you can take a look at theirCLI documentation
page.

Memcached

You don’t need to have Memcached installed on your server. Memcached will run
inside our Docker containers.

I will explain in this document how you can build your Memcached container. If you
are not interested in learning how to build your own image, you can skip the first
chapter, jump directly to the next chapter “Creating a Memcached SaaS” and use the
image called jbarbier/memcached. To get this image, use the docker pullcommand:

docker pull jbarbier/memcached


Build Your Own SaaS

Creating a Docker image with Memcached
The first step to build the minimalist Memcached SaaS is to have an image of a
container with Memcached installed.

Start Docker
Let’s check if Docker is already running.

ps aux | grepdocker

sudodocker –d &

If you do not see a line “docker –d”, then start Docker as a daemon:

Installing Memcached on Docker
We will install Memcached on a Docker container with the docker run command.

docker run -d base apt-get -y install memcached

This command will return you the id of the new created container running your
command will need to keep this id in order to use it later. In our example, the id
isf1ab59fbc9d5.

We can check that the installation is complete by using the command docker logs
with the container id given by the previous command.

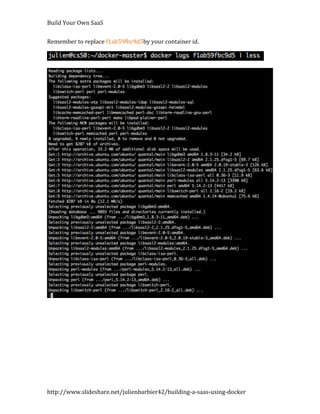

docker logs f1ab59fbc9d5 | less


Build Your Own SaaS

Remember to replace f1ab59fbc9d5by your container id.


Build Your Own SaaS

Committing our Memcached container
We can commit our new container with the docker commit command, using our
container id. With the following command line we will name it jbarbier/memcached,
but you should use your own name.

docker commit f1ab59fbc9d5 jbarbier/memcached
Remember to replace f1ab59fbc9d5by your container id and jbarbier/memcached
by your own name.

This command gives you back a new id, which is the image id of your committed
container. In our example it isc3b6fcb48266.

Checking our Memcached container image
Let’s check that Memcached is installed on this image. To do so we can spawn a new

docker run -i -t jbarbier/memcached /bin/bash
container from this image and run bash inside.

Remember to replacejbarbier/memcached with the name of your image.

We are now inside a new container spawned from our image. Let’s see if
Memcached is installed. Run

memcached

OK!


Build Your Own SaaS

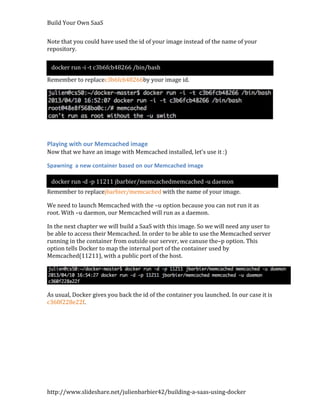

Note that you could have used the id of your image instead of the name of your
repository.

docker run -i -t c3b6fcb48266 /bin/bash
Remember to replacec3b6fcb48266by your image id.

Playing with our Memcached image
Now that we have an image with Memcached installed, let’s use it :)

Spawning a new container based on our Memcached image

docker run -d -p 11211 jbarbier/memcachedmemcached -u daemon
Remember to replacejbarbier/memcached with the name of your image.

We need to launch Memcached with the –u option because you can not run it as
root. With –u daemon, our Memcached will run as a daemon.

In the next chapter we will build a SaaS with this image. So we will need any user to
be able to access their Memcached. In order to be able to use the Memcached server
running in the container from outside our server, we canuse the–p option. This
option tells Docker to map the internal port of the container used by
Memcached(11211), with a public port of the host.

As usual, Docker gives you back the id of the container you launched. In our case it is
c360f228e22f.


Build Your Own SaaS

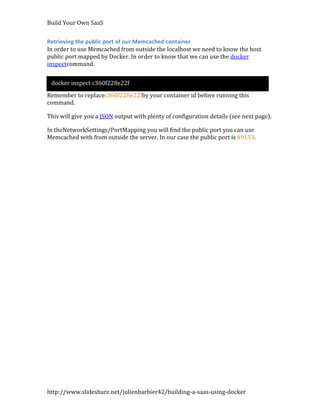

Retrieving the public port of our Memcached container
In order to use Memcached from outside the localhost we need to know the host
public port mapped by Docker. In order to know that we can use the docker
inspectcommand.

docker inspect c360f228e22f
Remember to replacec360f228e22fby your container id before running this
command.

This will give you a JSON output with plenty of configuration details (see next page).

In theNetworkSettings/PortMapping you will find the public port you can use
Memcached with from outside the server. In our case the public port is 49153.


Build Your Own SaaS


Build Your Own SaaS

Testing ourMemcached
Let’s test and use our Memcached service, from an outside machine. In the following
examples I will use 142.242.242.42 as the IP of the server where the container is
running, and 49153 as the public port.

Before running any of these examples be sure to replace the IP with your server IP,
and the port number with the one docker inspect gave you.

Ruby

Guillotine:test_memcachedjbarbier$ cat test.rb
# gem install dalli

require 'dalli'

ip= '142.242.242.42'
port = 49153

dc = Dalli::Client.new("#{ip}:#{port}")
dc.set('abc', "Always Be Closing") value = dc.get('abc')

puts value

Python

Guillotine:test_memcachedjbarbier$ cat test.py
# pip install python-memcached

importmemcache

ip = '142.242.242.42'
port = 49153

mc = memcache.Client(["{0}:{1}".format(ip, port)], debug=0)

mc.set("best_dev", "Guillaume C.")
value = mc.get("best_dev")

print value


Build Your Own SaaS

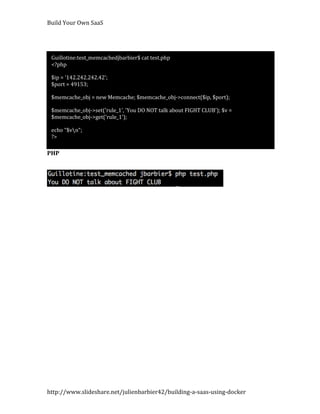

Guillotine:test_memcachedjbarbier$ cat test.php
<?php

$ip = '142.242.242.42';
$port = 49153;

$memcache_obj = new Memcache; $memcache_obj->connect($ip, $port);

$memcache_obj->set('rule_1', 'You DO NOT talk about FIGHT CLUB'); $v =
$memcache_obj->get('rule_1');

echo "$vn";
?>

PHP


Build Your Own SaaS

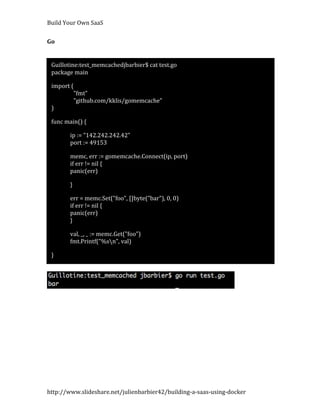

Go

Guillotine:test_memcachedjbarbier$ cat test.go
package main

import (
"fmt"
"github.com/kklis/gomemcache"
)

func main() {

ip := "142.242.242.42"
port := 49153

memc, err := gomemcache.Connect(ip, port)
if err != nil {
panic(err) 

}

err = memc.Set("foo", []byte("bar"), 0, 0)
if err != nil {
panic(err)
}

val, _, _ := memc.Get("foo")
fmt.Printf("%sn", val)

}


Build Your Own SaaS

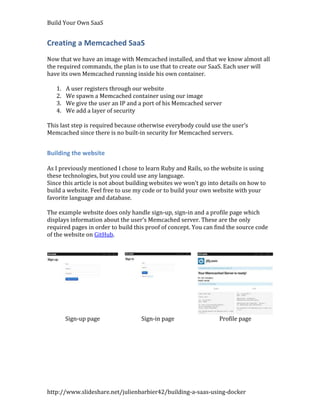

Creating a Memcached SaaS
Now that we have an image with Memcached installed, and that we know almost all
the required commands, the plan is to use that to create our SaaS. Each user will
have its own Memcached running inside his own container.

1. A user registers through our website
2. We spawn a Memcached container using our image
3. We give the user an IP and a port of his Memcached server
4. We add a layer of security

This last step is required because otherwise everybody could use the user’s
Memcached since there is no built-in security for Memcached servers.

Building the website

As I previously mentioned I chose to learn Ruby and Rails, so the website is using
these technologies, but you could use any language.
Since this article is not about building websites we won’t go into details on how to
build a website. Feel free to use my code or to build your own website with your
favorite language and database.

The example website does only handle sign-up, sign-in and a profile page which
displays information about the user’s Memcached server. These are the only
required pages in order to build this proof of concept. You can find the source code
of the website on GitHub.

Sign-up page Sign-in page Profile page


Build Your Own SaaS

Spawning a Memcached container on registration

When the user has signed-up, we need to run the commands to launch a new
container with our Memcached image. The function create_memcached_instance is
doing all the job. You can find this function in the file users_controller.rb

defcreate_memcached_instance
docker_path='/home/julien/docker-master/'
container_id=`#{docker_path}docker run -d -p 11211 jbarbier/memcachedmemcached -u
daemon`

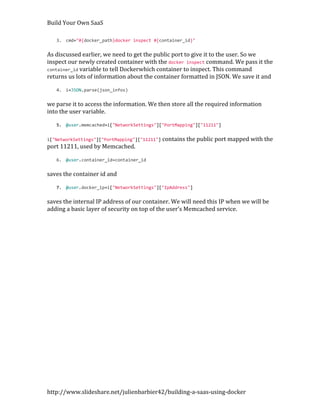

cmd="#{docker_path}docker inspect #{container_id}"
json_infos=`#{cmd}`
i=JSON.parse(json_infos)
@user.memcached=i["NetworkSettings"]["PortMapping"]["11211"]
@user.container_id=container_id
@user.docker_ip=i["NetworkSettings"]["IpAddress"]
end

If you havecloned the repository and are running the website from that, remember
to edit users_controller.rb and set the docker_path variable to your Docker’s path.
Alternatively you can add Docker to your PATH.

Let’s go through all the lines:

1. docker_path='/home/julien/docker-master/'

docker_path should contain the path of your Docker’s executable

2. container_id=`#{docker_path}docker run -d -p 11211 jbarbier/memcachedmemcached -
u daemon`

As discussed in the previous chapter, docker run -druns a command in a new
container. We pass the option -d so that it leaves the container run in the
background.

The option -p 11211 maps the internal port of the container used by Memcached with
a public port of our server.

jbarbier/memcached is the
name of our image with Memcached installed (see previous
chapter to see how we built this image). If you have created your own image, you
should replace jbarbier/memcached by the name of your image.

memcached -u daemon is the command we run inside the new container. We use the
option -u daemon to run Memcached with user daemon. The command dockerrun
returns the id of the new container. We will need it so we save it to the variable
container_id.


Build Your Own SaaS

3. cmd="#{docker_path}docker inspect #{container_id}"

As discussed earlier, we need to get the public port to give it to the user. So we
inspect our newly created container with the docker inspect command. We pass it the
container_id variable to tell Dockerwhich container to inspect. This command
returns us lots of information about the container formatted in JSON. We save it and

4. i=JSON.parse(json_infos)

we parse it to access the information. We then store all the required information
into the user variable.

5. @user.memcached=i["NetworkSettings"]["PortMapping"]["11211"]

i["NetworkSettings"]["PortMapping"]["11211"] contains the public port mapped with the
port 11211, used by Memcached.

6. @user.container_id=container_id

saves the container id and

7. @user.docker_ip=i["NetworkSettings"]["IpAddress"]

saves the internal IP address of our container. We will need this IP when we will be
adding a basic layer of security on top of the user’s Memcached service.


Build Your Own SaaS

Displaying the public Memcached IP and port to the user

We now have to give the user the IP and port with which he can access his
Memcached.The code to show these information is in the file show.html.erb.

<%provide(:title,@user.email)%>
<h1>
<%=gravatar_for@user%>
<%=@user.email%>
</h1>
<divclass="alert alert-info">
Congratulations <%=@user.email%>. Your Memcached server is ready to use.
</div>
<h1>Your Memcached Server is ready!</h1>
<divclass="block-info">
<h3>IP: <%=my_public_ip%></h3>
<h3>PORT: <%=@user.memcached%></h3>
</div>
<divclass="alert alert-info">
Use it with your favorite language.
</div>
<%=render'code'%>
<%=render'ip'%>

Port

We already have the port saved. We just need to display it

PORT: <%=@user.memcached%>


Build Your Own SaaS

IP address

We just need to know our public IP address (the IP of our server). There are plenty
of ways to know it. One of which is to ask an online service. I chose to use
ifconfig.me but you could use any service of this type. The code to discover its own
public IP address is in the file users_helper.rb.

defmy_public_ip
@@ip||=Net::HTTP.get_response(URI.parse("http://ifconfig.me/ip")).body.chomp
end

http://ifconfig.me/ip simply returns the IP. So we just have to store it and then show
it to the user.

IP: <%=my_public_ip%>

Alternatively, if you just want to test, you can hard code your IP address in
my_public_ipor even in show.html.erb.


Build Your Own SaaS

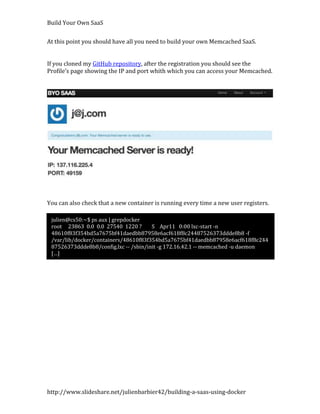

At this point you should have all you need to build your own Memcached SaaS.

If you cloned my GitHub repository, after the registration you should see the
Profile’s page showing the IP and port whith which you can access your Memcached.

You can also check that a new container is running every time a new user registers.

julien@cs50:~$ ps aux | grepdocker
root 23863 0.0 0.0 27540 1220 ? S Apr11 0:00 lxc-start -n
48610f83f354bd5a7675bf41daedbb87958e6acf618f8c24487526373ddde8b8 -f
/var/lib/docker/containers/48610f83f354bd5a7675bf41daedbb87958e6acf618f8c244
87526373ddde8b8/config.lxc -- /sbin/init -g 172.16.42.1 -- memcached -u daemon
[…]


Build Your Own SaaS

Using the Memcached server

Once you register you can test yourMemcached with the IP and port provided by the
profile’s page, with your favorite language.

Ruby

# gem install dalli

require 'dalli'

ip = '137.116.225.4'
port = 49159

dc = Dalli::Client.new("#{ip}:#{port}")
dc.set('1762c2acf87','j@j.com')
value = dc.get('1762c2acf87')
puts "Welcome #{value}! Your Memcached server is ready to use :)"

PHP

$ip = '137.116.225.4'
$port = 49159;

$memcache_obj = new Memcache;
$memcache_obj->connect($ip, $port);

$memcache_obj->set('1762c2acf87', 'j@j.com');
$v = $memcache_obj->get("1762c2acf87");

echo "Welcome $v! Your Memcached server is ready to use :)n";


Build Your Own SaaS

Python

# pip install python-memcached

importmemcache

ip = '137.116.225.4
port = 49159

mc = memcache.Client(["{0}:{1}".format(ip, port)], debug=0)

mc.set("1762c2acf87", "j@j.com")
value = mc.get("1762c2acf87")

print "Welcome {0}! Your Memcached server is ready to use :)".format(va
lue)

Go

package main

import (

"fmt"
"github.com/kklis/gomemcache"
)

func main() {
ip := "137.116.225.4"
port := 49159
memc, err := gomemcache.Connect(ip, port)
if err != nil {
panic(err)
}
err = memc.Set("1762c2acf87", []byte("j@j.com"), 0, 0)
if err != nil {
panic(err)
}
val, _, _ := memc.Get("1762c2acf87")
fmt.Printf("Welcome %s! Your Memcached server is ready to use :)n", va
l)
}


Build Your Own SaaS

Adding security

We have now a minimalist Memcached SaaS. But our users are not happy because
anybody can access their Memcached server. So we need to give the option to our
users to restrict somehow the access to their Memcached. There are plenty of ways
to do so. In this tutorial we will give the user the option to restrict the access to the
Memcached to one IP. And to do so we will use iptables.

Using iptables to filter by IP

Iptables is used to set up, maintain, and inspect the tables of IPv4 packet filter rules
in the Linux kernel. The command lines to restrict the access to the service to one IP
address is in the file add_ip

#!/bin/sh

/sbin/iptables -I FORWARD -d $1 -s $2 -j ACCEPT
/sbin/iptables -A FORWARD -d $1 -j DROP

add_ip is an executable shell script. That is why we have

1. #!/bin/sh

at the beginning of the file. The script will take two arguments in parameters.
$1 is the internal IP of the container that we previously stored in
@user.docker_ipupon user account creation.
$2 is the IP provided by the user which will become the only authorized IP to access
the user’s container, and the user’s Memcached server.

2. /sbin/iptables -I FORWARD -d $1 -s $2 -j ACCEPT

Tells iptables to add a rule to accept IP $2 to access internal IP $1.

3. /sbin/iptables -A FORWARD -d $1 -j DROP

Tells iptables to add a rule to deny all access to IP $1 from any IP.
Since the first rule is “checked” first, only IP $2 will be able to access IP $1.

The file remove_ip does exactly the opposite using the –D option to delete the
previous rules.

#!/bin/sh
/sbin/iptables -D FORWARD -d $1 -s $2 -j ACCEPT
/sbin/iptables -D FORWARD -d $1 -j DROP


Build Your Own SaaS

Calling iptables from a web server

We call the previous scripts from the two following functions in users_controller.rb

defiptables_add_ip(i)
cwd=Dir.pwd
`sudo#{cwd}/iptables/add_ip#{@user.docker_ip}#{i}`
end

defiptables_remove_ip(i)
cwd=Dir.pwd
`sudo#{cwd}/iptables/remove_ip#{@user.docker_ip}#{i}`
end

But in order to use iptables we need to have root privileges. And our web server is
probably not running as root (and it should not). So we will need to use the sudo
command and allow our webserver to run the two scripts.

To do so we will use /etc/sudoers.The /etc/sudoers file controls who can run what
commands as what users on what machines and can also control special things such
as whether you need a password for particular commands.

A simple way to tackle our problem is to create a new file in /etc/sudoers.d. We can
call it saas_memcached for instance.

julien@cs50:~$ cat /etc/sudoers.d/saas_memcached
Cmnd_Alias ADD_REM_IPS_CMDS =
/home/julien/final_proj/SaaS_Memcached/iptables/add_ip,
/home/julien/final_proj/SaaS_Memcached/iptables/remove_ip

www-data ALL=(ALL) NOPASSWD: ADD_REM_IPS_CMDS

There are two lines in the file. The first line creates an alias of all the executable files
and the second allow the user www-data to run these executable files with root
privilege without requiring typing any password.

You should replace /home/julien/final_proj/SaaS_Memcached by the root of your
website. If your server does not run as www-data, simply replace www-data by the
right user in the file.

Now the user should be able to specify the allowed IP from which he can access
Memcached. Every other IP address will be blocked.


Build Your Own SaaS

Testing the security filter

In order to test our security filter, let’s create an account to launch a new
Memcached server.

In the following examples we will run the ruby script from IP 69.42.42.42 and the
PHP script from IP 69.33.33.33

If we run we run these scripts from our two IPs it will work.

Guillotine:test_memcachedjbarbier$ ruby ip_ok.rb
Welcome thisis@cs50.com! Your Memcached server is ready to use :)

Let’s scroll to the bottom of the profile page and add the IP 69.42.42.42 so our
Memcached access can be restricted to this IP.

julien@revolution:/tmp$ phpip_nok.php

Build Your Own SaaS

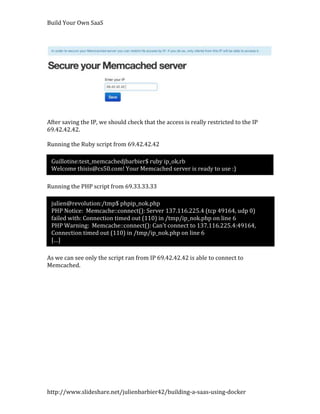

After saving the IP, we should check that the access is really restricted to the IP
69.42.42.42.

Running the Ruby script from 69.42.42.42

Guillotine:test_memcachedjbarbier$ ruby ip_ok.rb

Running the PHP script from 69.33.33.33

julien@revolution:/tmp$ phpip_nok.php
PHP Notice: Memcache::connect(): Server 137.116.225.4 (tcp 49164, udp 0)
failed with: Connection timed out (110) in /tmp/ip_nok.php on line 6
PHP Warning: Memcache::connect(): Can't connect to 137.116.225.4:49164,
Connection timed out (110) in /tmp/ip_nok.php on line 6
[…]

As we can see only the script ran from IP 69.42.42.42 is able to connect to
Memcached.


Build Your Own SaaS

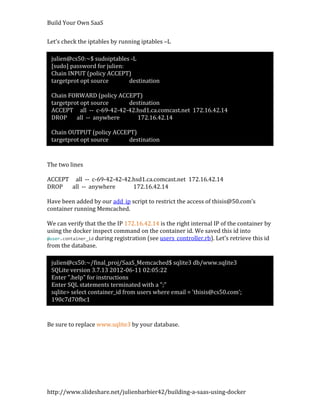

Let’s check the iptables by running iptables –L

julien@cs50:~$ sudoiptables -L
[sudo] password for julien:
Chain INPUT (policy ACCEPT)
targetprot opt source destination

Chain FORWARD (policy ACCEPT)
ACCEPT all -- c-69-42-42-42.hsd1.ca.comcast.net 172.16.42.14
DROP all -- anywhere 172.16.42.14

Chain OUTPUT (policy ACCEPT)

The two lines

ACCEPT all -- c-69-42-42-42.hsd1.ca.comcast.net 172.16.42.14
DROP all -- anywhere 172.16.42.14

Have been added by our add_ip script to restrict the access of thisis@50.com’s
container running Memcached.

We can verify that the the IP 172.16.42.14 is the right internal IP of the container by
using the docker inspect command on the container id. We saved this id into
@user.container_id during registration (see users_controller.rb). Let’s retrieve this id
from the database.

julien@cs50:~/final_proj/SaaS_Memcached$ sqlite3 db/www.sqlite3
SQLite version 3.7.13 2012-06-11 02:05:22
Enter ".help" for instructions
Enter SQL statements terminated with a ";"
sqlite> select container_id from users where email = 'thisis@cs50.com';
190c7d70fbc1

Be sure to replace www.sqlite3 by your database.


Build Your Own SaaS

On our server, the id of thisis@50.com’s container is 190c7d70fbc1. To check the IP
of the container we can use thedocker inspectcommand.

julien@cs50:~/docker-master$ ./docker inspect 190c7d70fbc1 | grepIpAddress
"IpAddress": "172.16.42.14",
Be sure to replace 190c7d70fbc1by the right container id that the SQL request gave
you during the last step.

As expected the IP address is 172.16.42.14. If you do the same on your server be
sure that this IP matches the one shown in the iptables listing.

Congratulations! You are now running a Memcached SaaS, with a simple security
layer. Congratulations!


Build Your Own SaaS

Where to go from here
We’ve seen how to run Memcahed as a service with Docker. But you could create
your own container image, running another service. John Costa did write an article
on how to install Redis on Docker for instance. But you could create an image
running any service (MySQL, MongoDB, PHP, …), and then build a SaaS using this
container image.

Why should we offer only one type of service on ourSaaS? We could offer multiple
services. We could simply add a new table “services” to the database so thatour
users could be able to have multiple services. And we could add an admin page in
order to list, activate and deactivate the available services.

The website shown in this example is very basic. We could easily improve it. We
could for instance:
- add an admin page to list users and delete/suspend them
- let users change recover and change their password
- let users delete their account
- let user restart their Memcached server
- let the user specify the memory limit he needs (using run docker –m)
- let the user know how much memory he uses
- add a payment gateway to make our customer pay for the service
- …

You can also add more security, scalability, etc… but this will be another story :)

I hope you had fun playing with this article. Feel free to contact me if you have any
question.

Happy SaaSing!

To be continued…


Build Your Own SaaS using Docker

More Related Content

Similar to Build Your Own SaaS using Docker

More from Julien Barbier

Recently uploaded

Build Your Own SaaS using Docker
