John will fully explain what Docker is, why it is useful, how it works and most importantly discuss the pros and cons of it from real world production experience. We will then build out (from scratch) a clustered Docker environment using Rancher (machine setup done with Ansible) across multiple virtual machines in the cloud using Terraform learning tips, tricks and what is happening under the covers along the way. Expect to leave the talk feeling confident about if Docker might make sense for your next project (or might not!) and how to get started easily if it looks like it is the right tool for the job for you.

1. john culviner
github: github.com/johnculviner
blog: johnculviner.com
twitter: @johnculviner
email: john@johnculviner.com
intro to
with a side of

2. About Me
 Free range, sometimes organic
Full-stack Independent Consultant
@ Veritas in Roseville
 Backend
 DevOps (Docker, Ansible, Linux etc)
 NoSql (ElasticSearch, MongoDB)
 Distributed systems (RabbitMQ, Kafka etc.)
 Node.js
 Groovy/Spring/Java
 C#
 Front End
 Angular.js, React.js, Knockout.js, Durandal.js, jQuery, CSS/SASS etc.
 SPA development
 Open Source “Street Cred”
 AngularAgility
 jQuery File Download
 FluentKnockoutHelpers

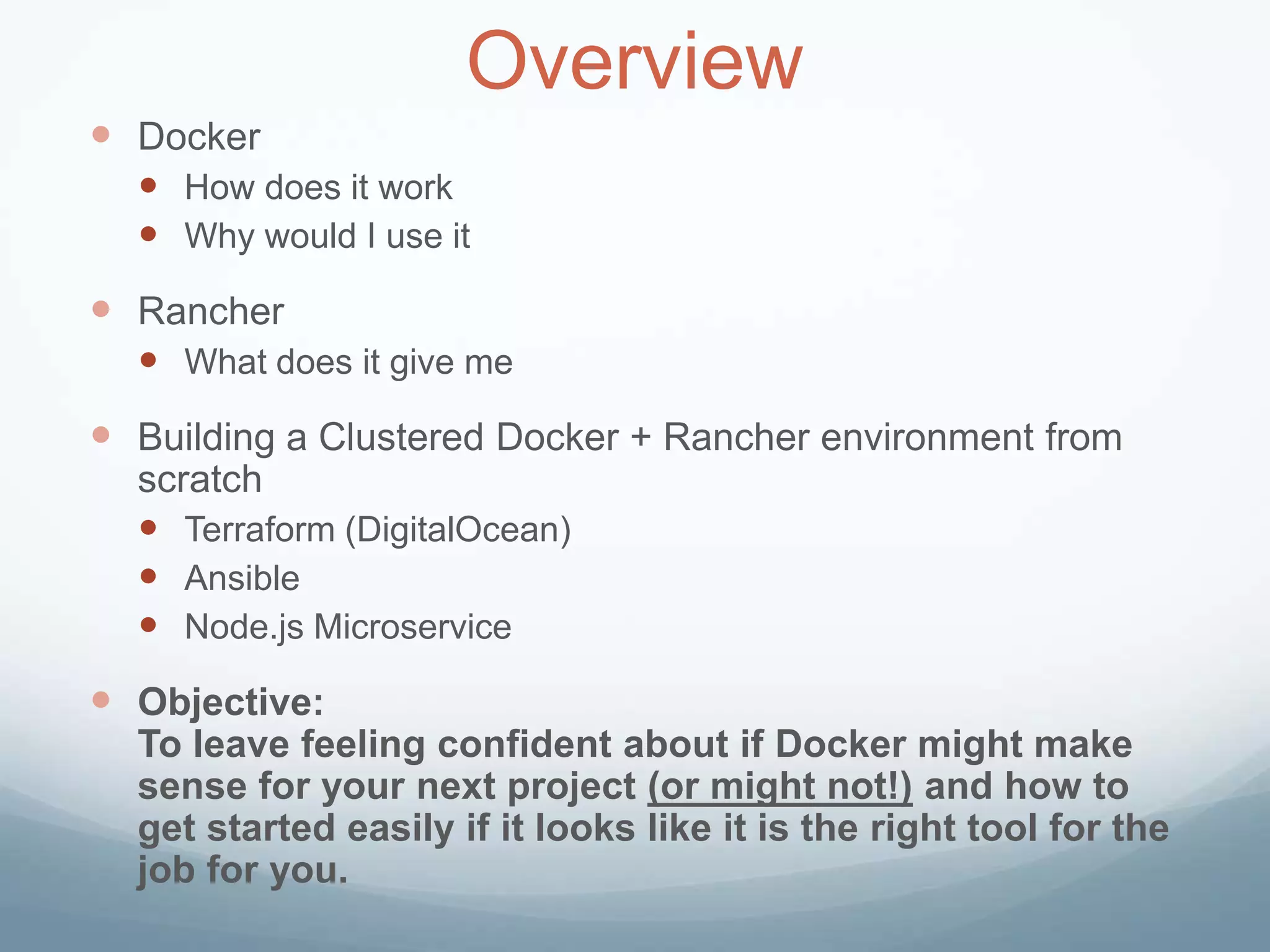

3. Overview
 Docker
 How does it work
 Why would I use it
 Rancher
 What does it give me
 Building a Clustered Docker + Rancher environment from
scratch
 Terraform (DigitalOcean)
 Ansible
 Node.js Microservice
 Objective:
To leave feeling confident about if Docker might make
sense for your next project (or might not!) and how to
get started easily if it looks like it is the right tool for the
job for you.

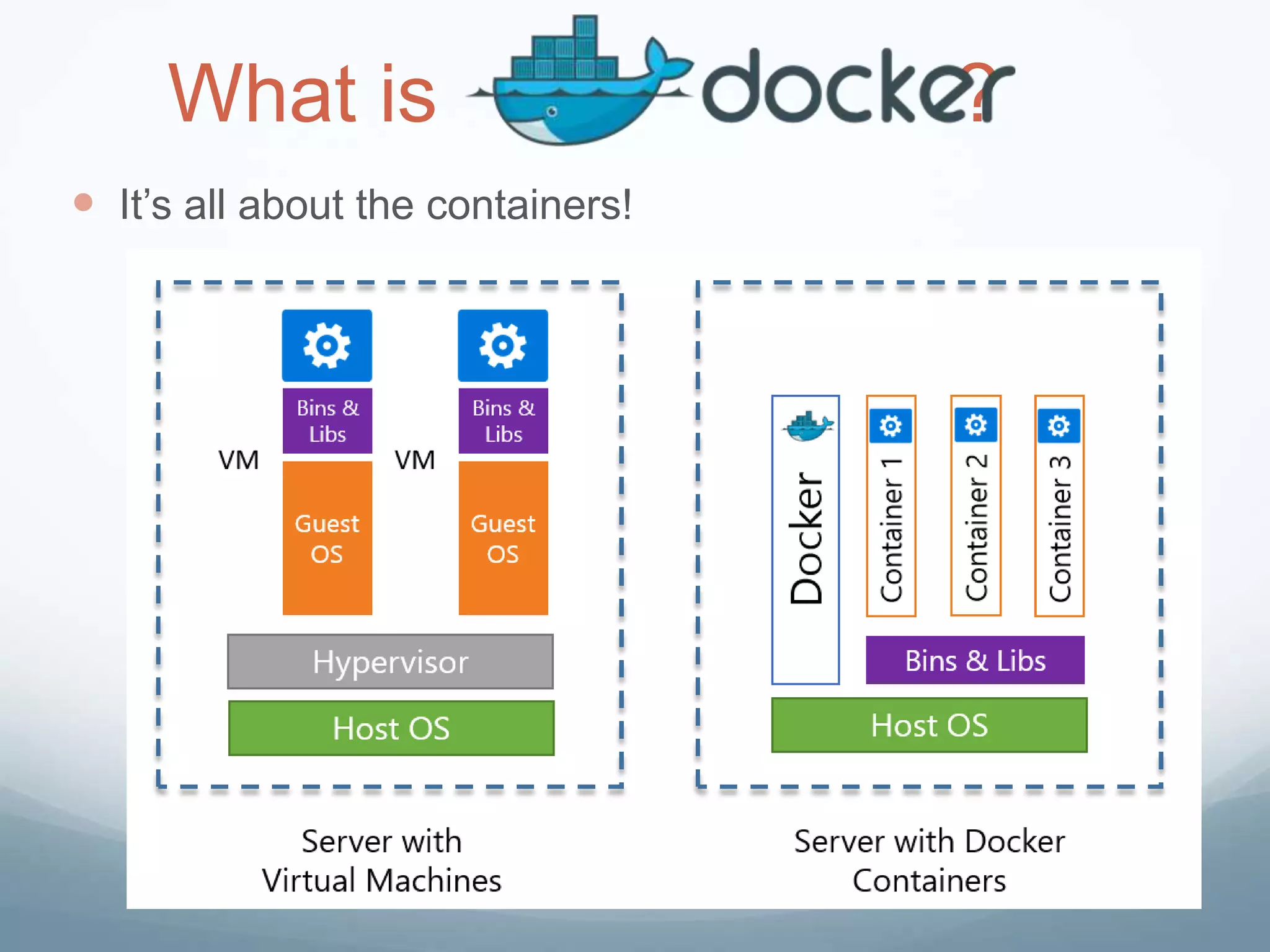

4. What is ?
 It’s all about the containers!

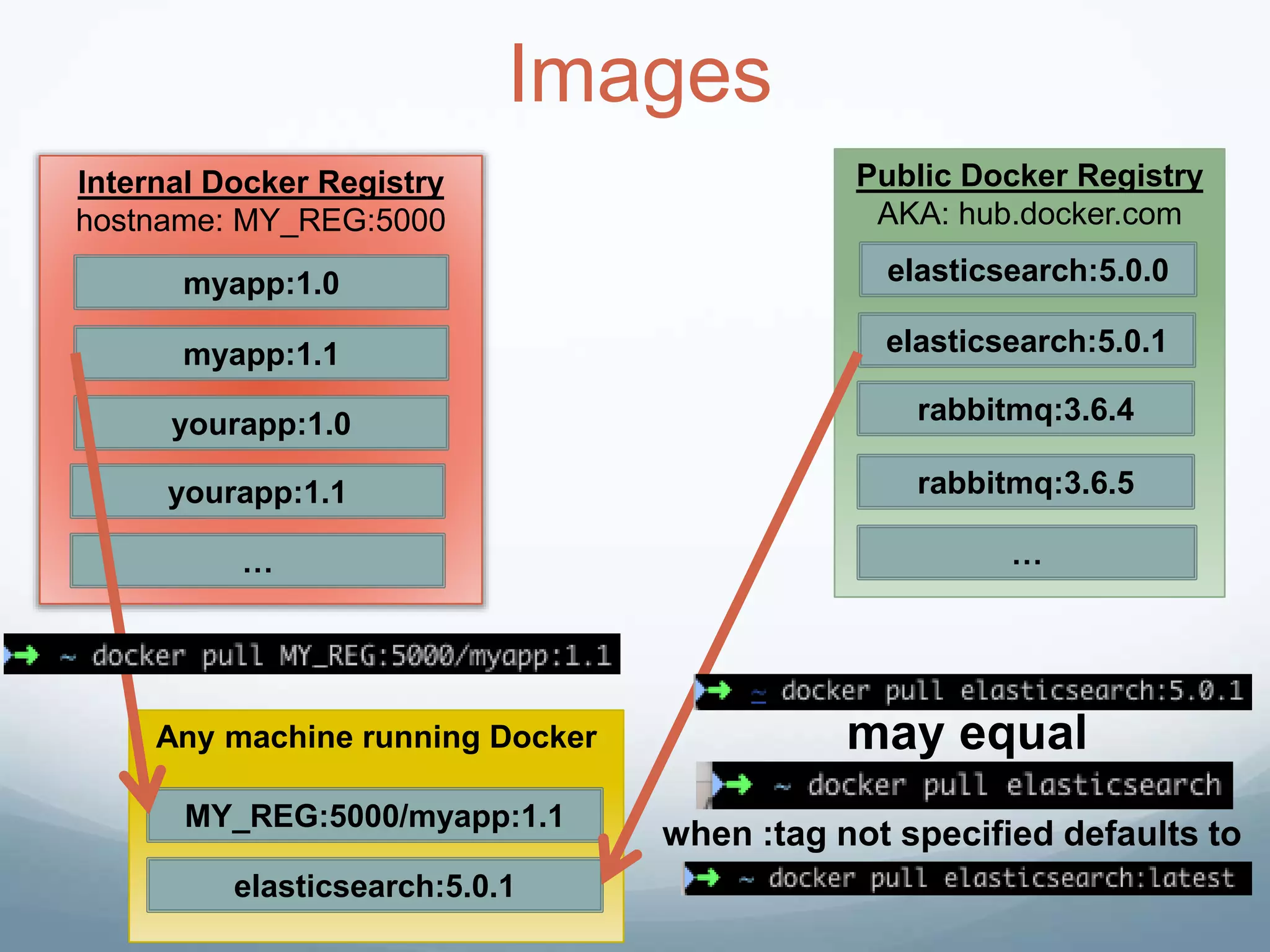

5. Images
Internal Docker Registry
hostname: MY_REG:5000
myapp:1.0
myapp:1.1
yourapp:1.0
yourapp:1.1
…
Public Docker Registry
AKA: hub.docker.com
elasticsearch:5.0.0
elasticsearch:5.0.1
rabbitmq:3.6.4
rabbitmq:3.6.5
…
Any machine running Docker
MY_REG:5000/myapp:1.1
elasticsearch:5.0.1
may equal
when :tag not specified defaults to

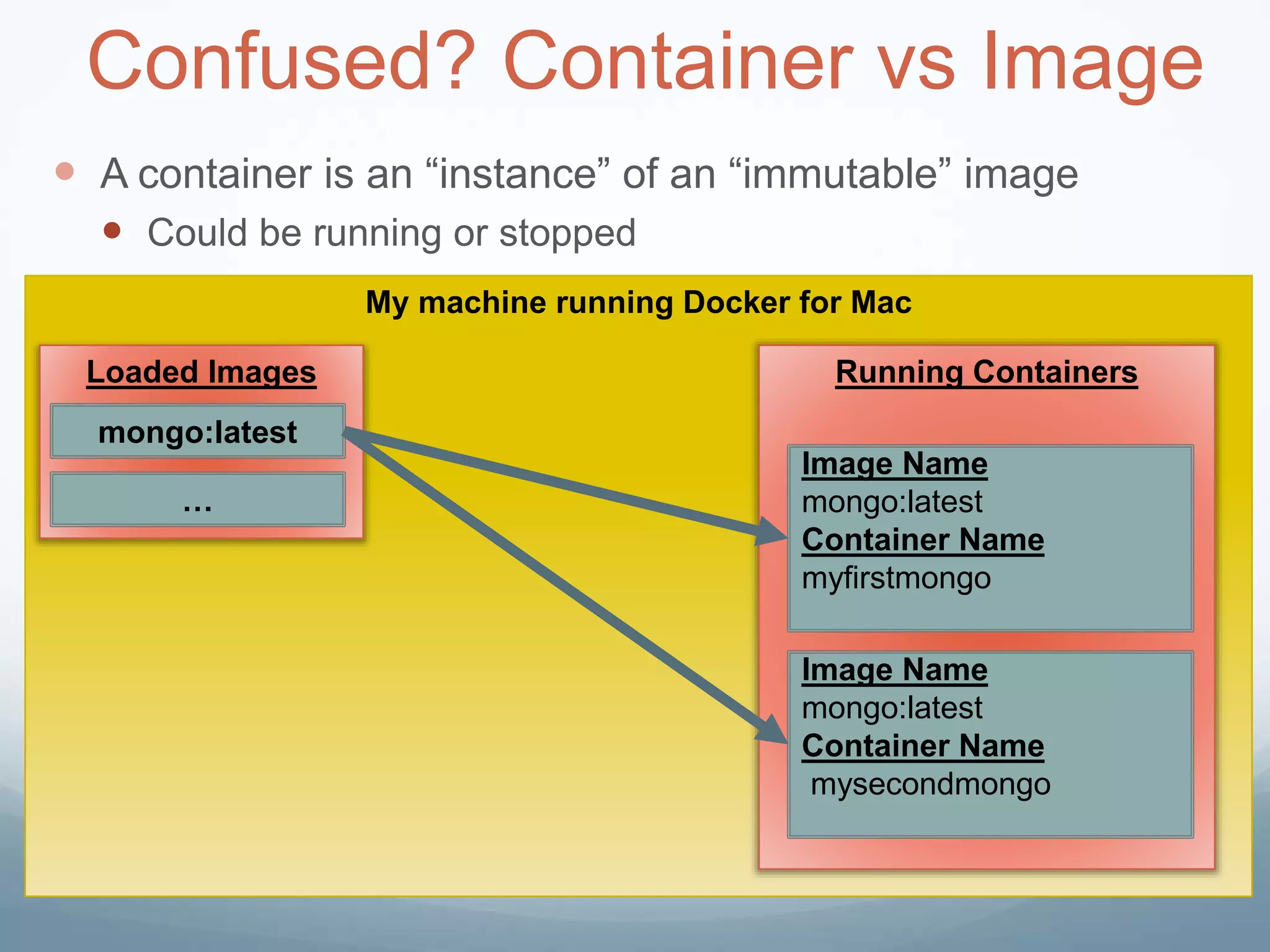

6. Confused? Container vs Image
 A container is an “instance” of an “immutable” image
 Could be running or stopped
My machine running Docker for Mac
Loaded Images
mongo:latest
Running Containers
Image Name
mongo:latest
Container Name
myfirstmongo
Image Name
mongo:latest
Container Name
mysecondmongo
…

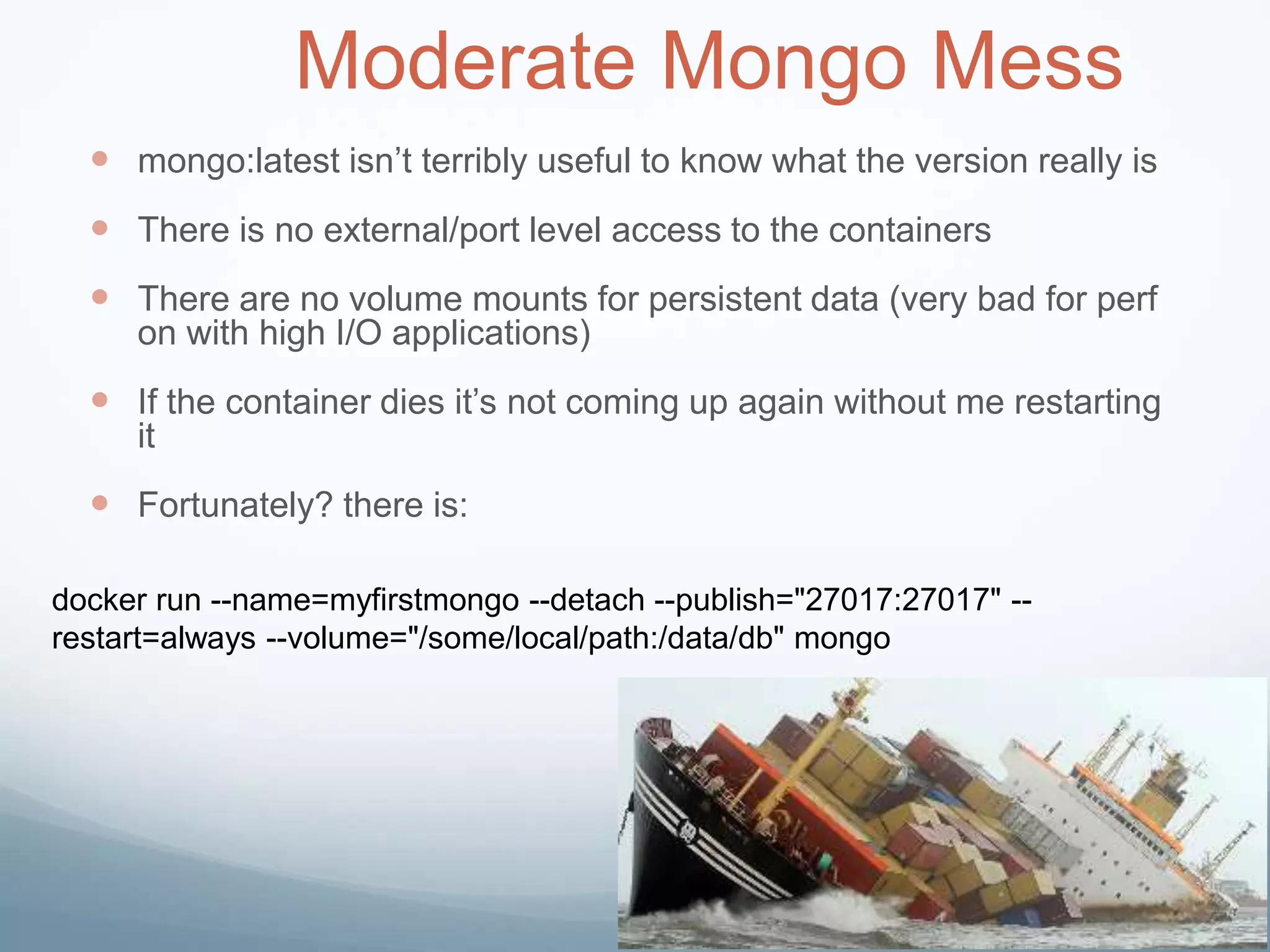

7. Moderate Mongo Mess
 mongo:latest isn’t terribly useful to know what the version really is
 There is no external/port level access to the containers
 There are no volume mounts for persistent data (very bad for perf
on with high I/O applications)
 If the container dies it’s not coming up again without me restarting
it
 Fortunately? there is:
docker run --name=myfirstmongo --detach --publish="27017:27017" --
restart=always --volume="/some/local/path:/data/db" mongo

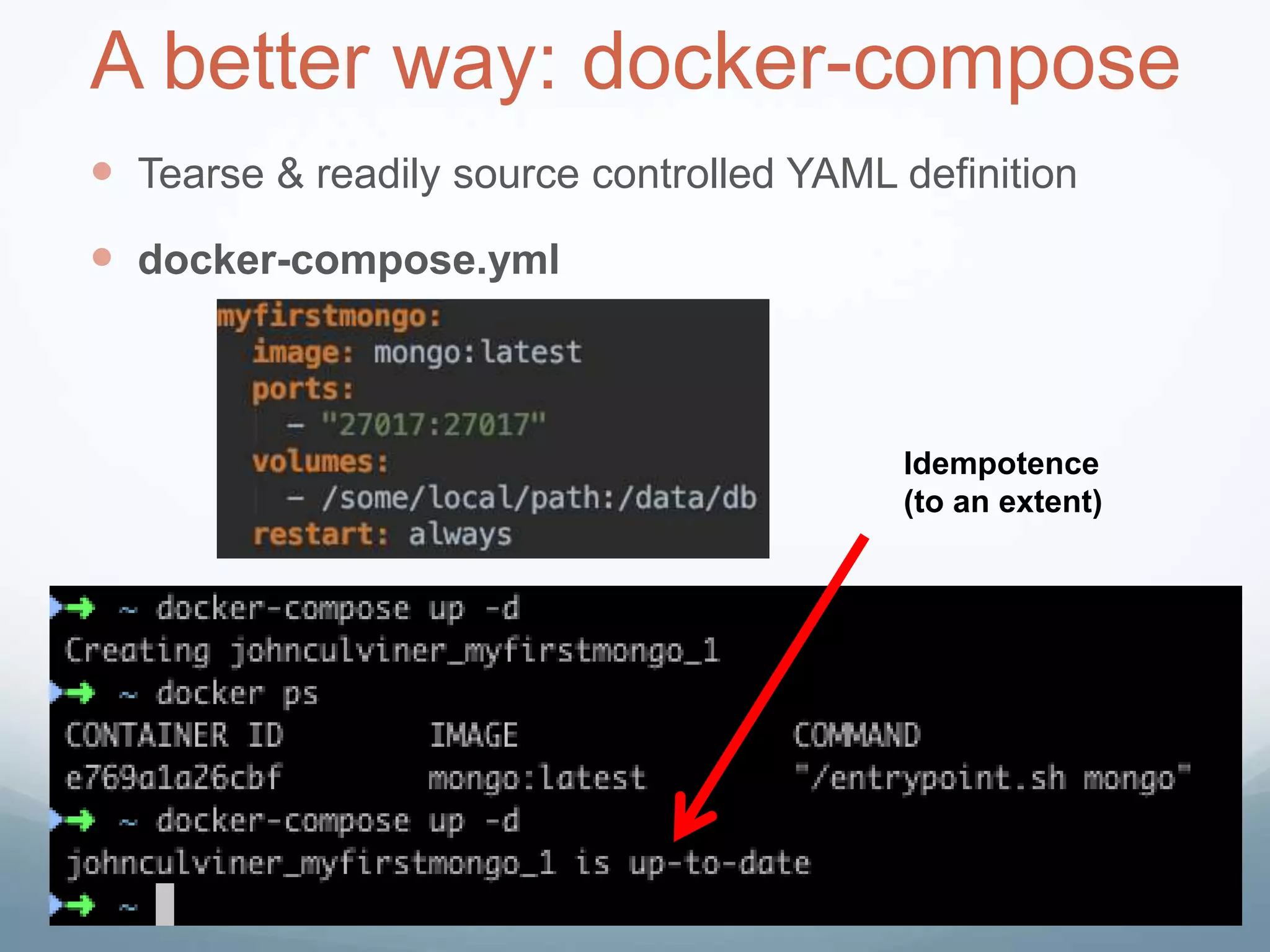

8. A better way: docker-compose
 Tearse & readily source controlled YAML definition
 docker-compose.yml
Idempotence
(to an extent)

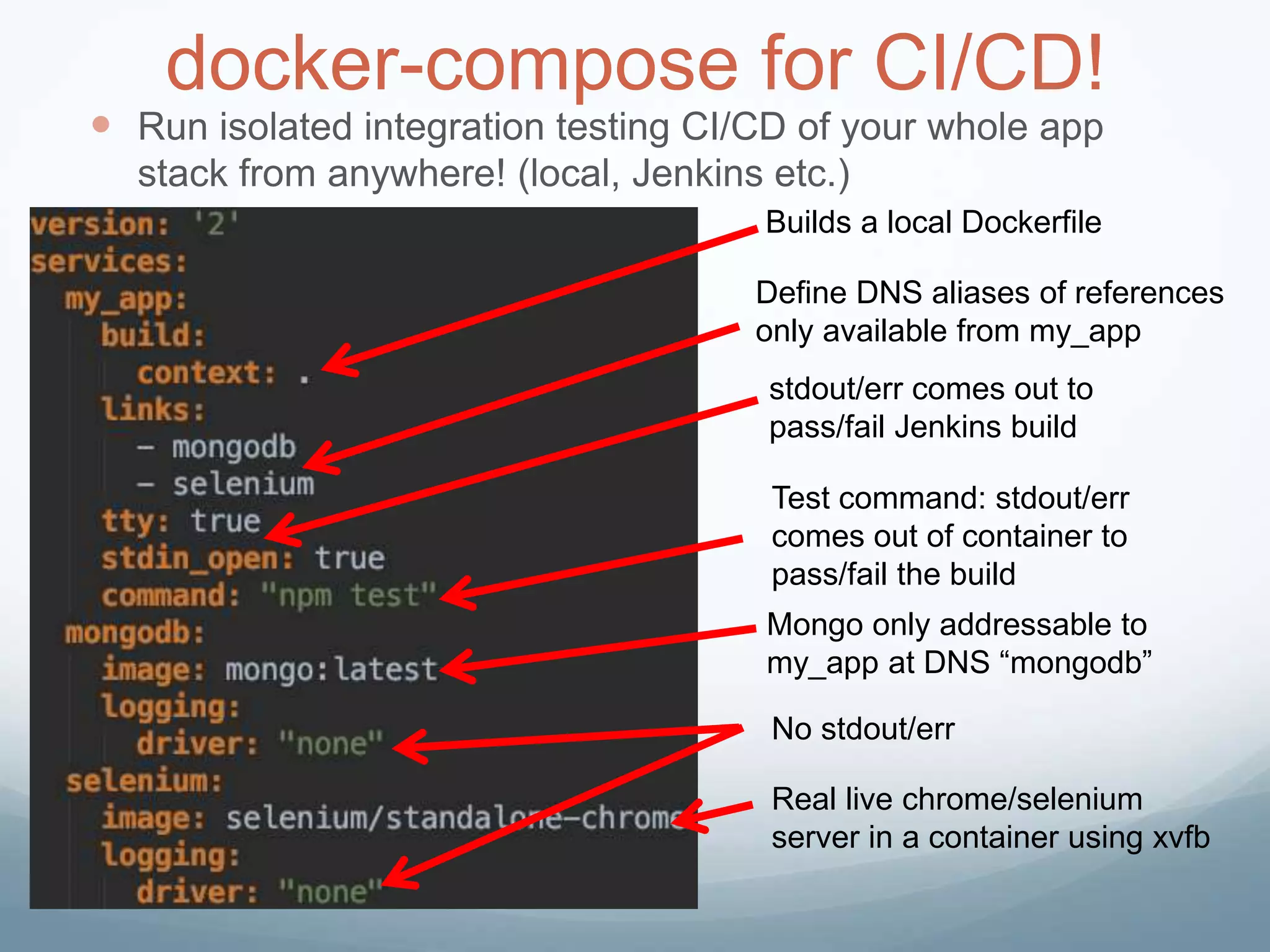

9. docker-compose for CI/CD!
 Run isolated integration testing CI/CD of your whole app
stack from anywhere! (local, Jenkins etc.)
Builds a local Dockerfile
Define DNS aliases of references
only available from my_app
stdout/err comes out to
pass/fail Jenkins build
Test command: stdout/err
comes out of container to
pass/fail the build
Mongo only addressable to
my_app at DNS “mongodb”
No stdout/err
Real live chrome/selenium
server in a container using xvfb

10. Benefits of Images & Containers
 Better Isolation & Consistency with Images
 Docker Repository vs. Artifactory, NPM, Nuget etc.
 Debug a production image on my local machine
 EX: Run 10 different YOUR_FAV_LANG apps using 10
different versions the runtime all on port 8080 on same
box*
 *with a SDN (software defined network)
 Security*
 *When you don’t run as root, use SELinux,
sandbox volumes among other things
+Docker

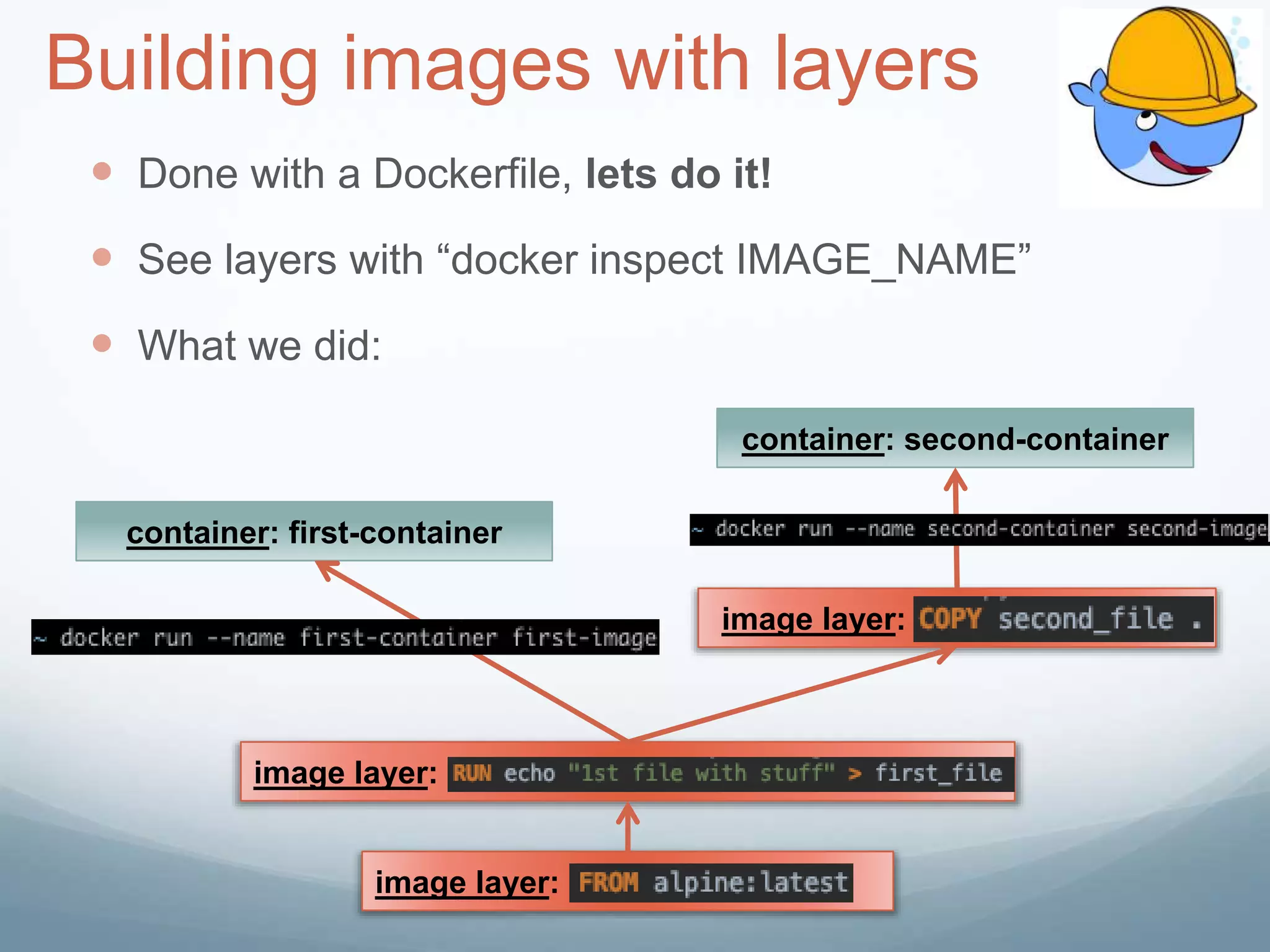

11. Building images with layers
 Done with a Dockerfile, lets do it!
 See layers with “docker inspect IMAGE_NAME”
 What we did:
image layer: alpine:latest
image layer: first_file added
image layer: second_file added
container: second-container
container: first-container

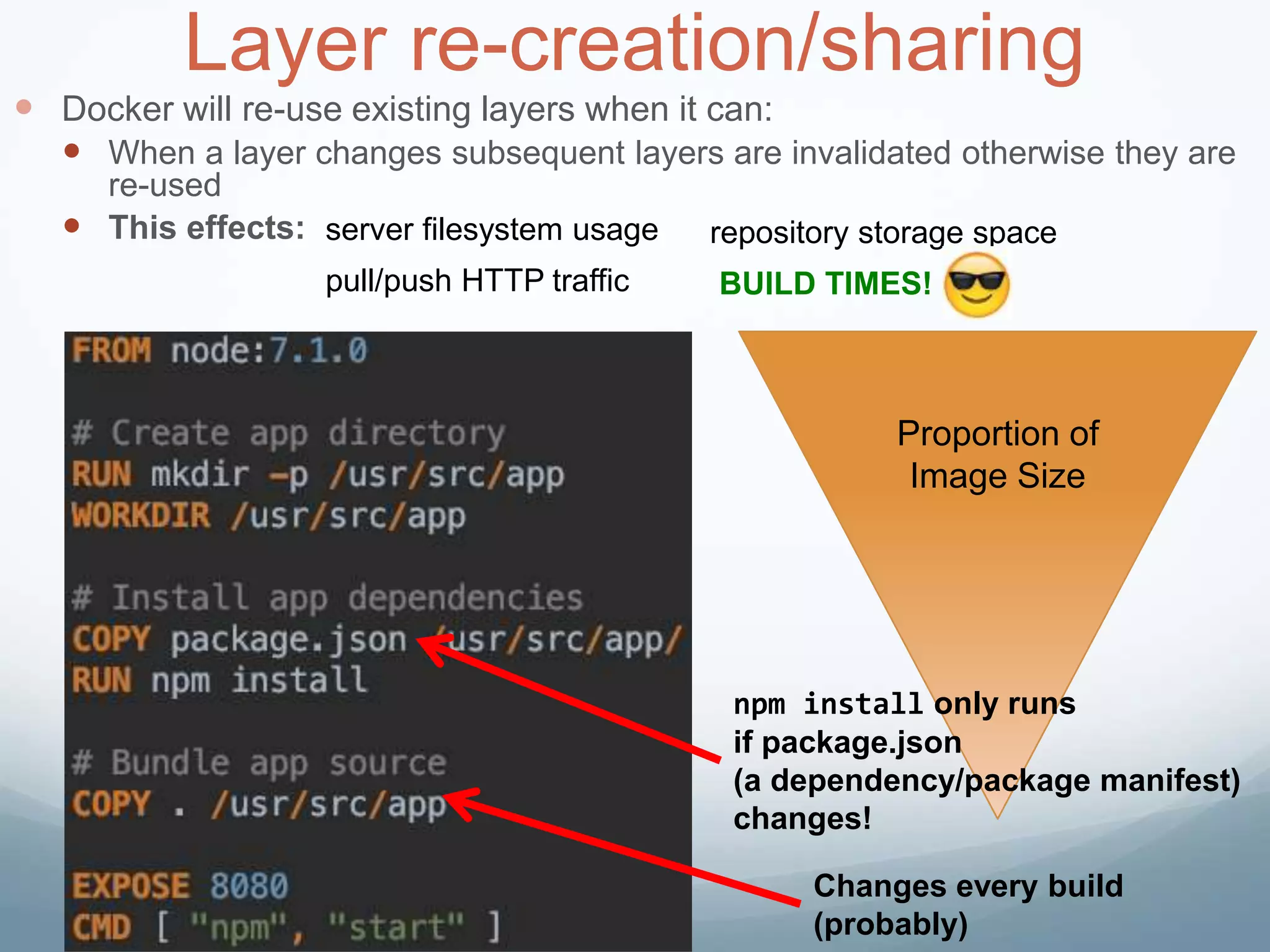

12. Layer re-creation/sharing
 Docker will re-use existing layers when it can:
 When a layer changes subsequent layers are invalidated otherwise they are
re-used
 This effects:
Proportion of
Image Size
Changes every build
(probably)
npm install only runs
if package.json
(a dependency/package manifest)
changes!
pull/push HTTP traffic
server filesystem usage repository storage space
BUILD TIMES!

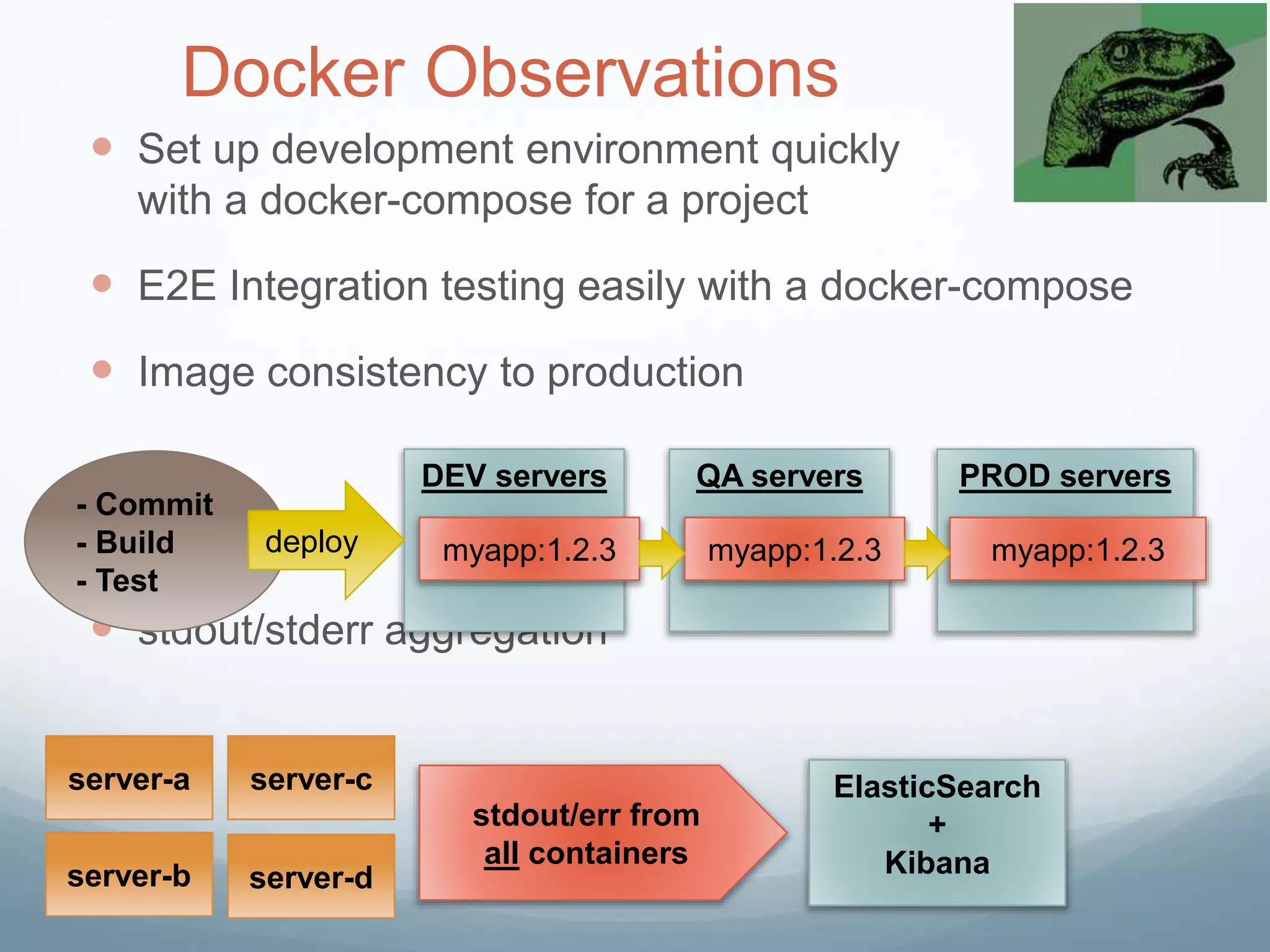

13. Docker Observations
 Set up development environment quickly
with a docker-compose for a project
 E2E Integration testing easily with a docker-compose
 Image consistency to production
 stdout/stderr aggregation
QA servers
myapp:1.2.3
PROD servers
myapp:1.2.3
DEV servers
myapp:1.2.3
- Commit
- Build
- Test
deploy
server-a
server-b
server-c
server-d
ElasticSearch
+
Kibana
stdout/err from
all containers

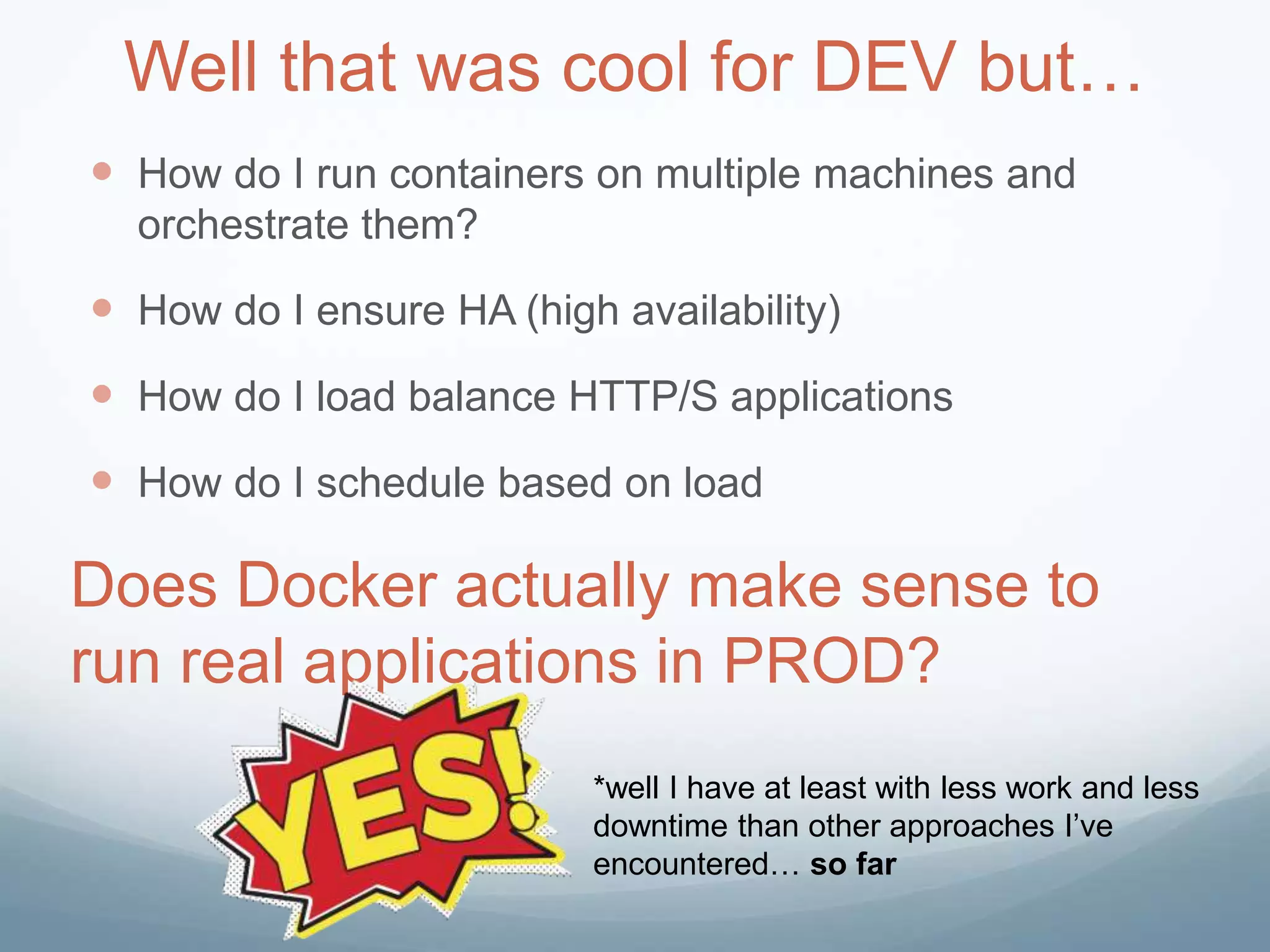

14. Well that was cool for DEV but…
 How do I run containers on multiple machines and
orchestrate them?
 How do I ensure HA (high availability)
 How do I load balance HTTP/S applications
 How do I schedule based on load
Does Docker actually make sense to
run real applications in PROD?
*well I have at least with less work and less
downtime than other approaches I’ve
encountered… so far

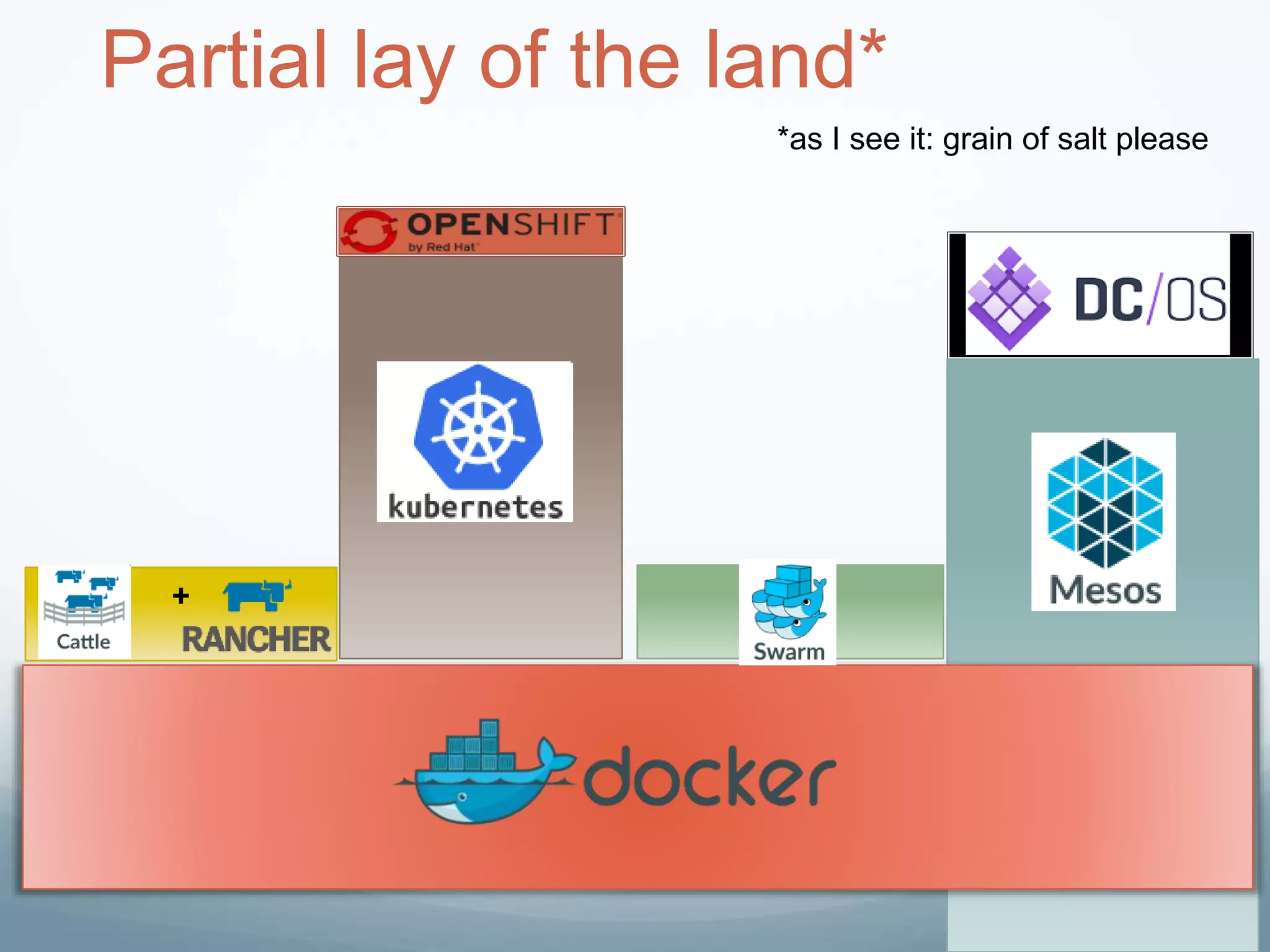

15. Partial lay of the land*
*as I see it: grain of salt please
+

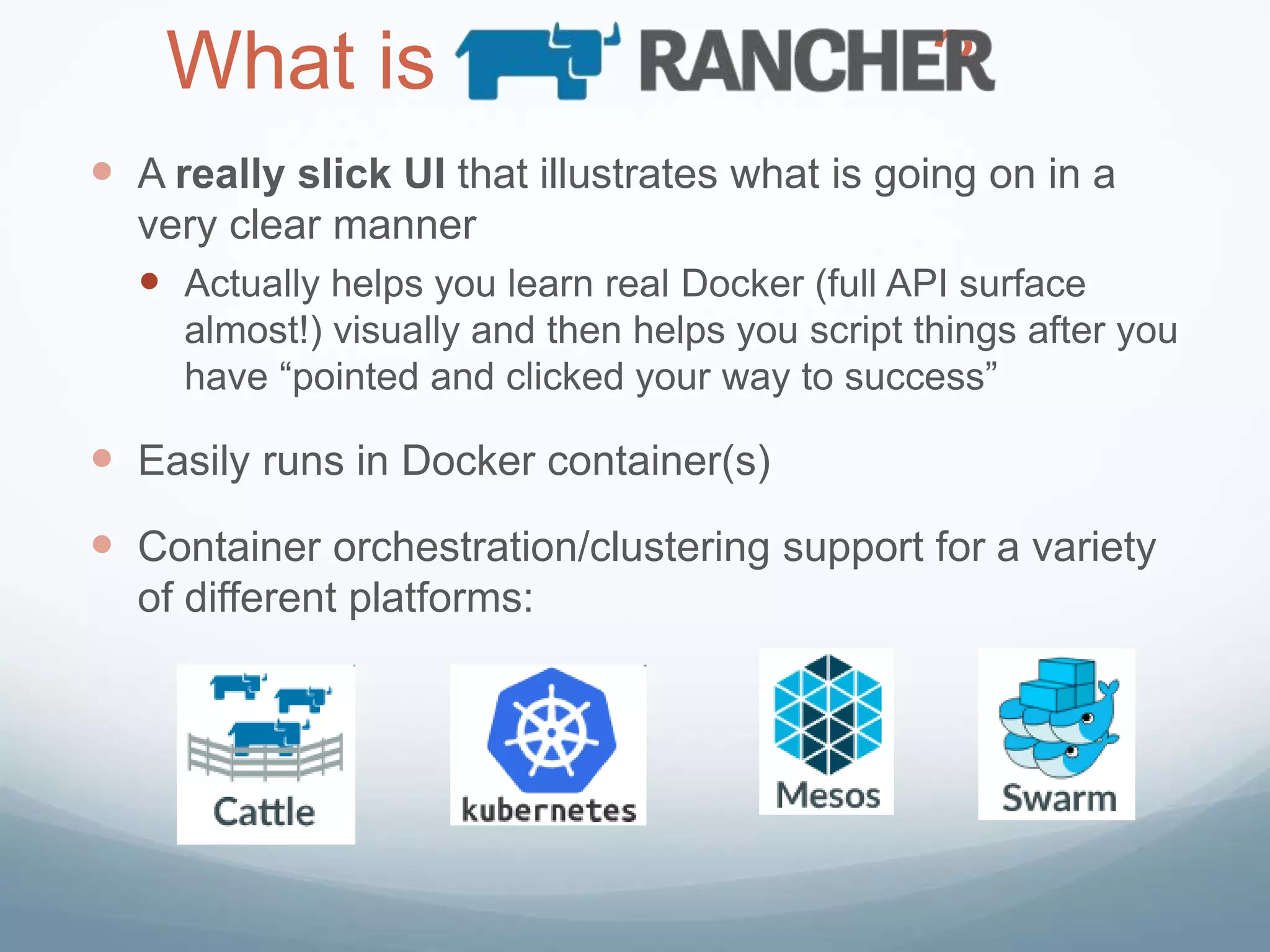

16. What is ?
 A really slick UI that illustrates what is going on in a
very clear manner
 Actually helps you learn real Docker (full API surface
almost!) visually and then helps you script things after you
have “pointed and clicked your way to success”
 Easily runs in Docker container(s)
 Container orchestration/clustering support for a variety
of different platforms:

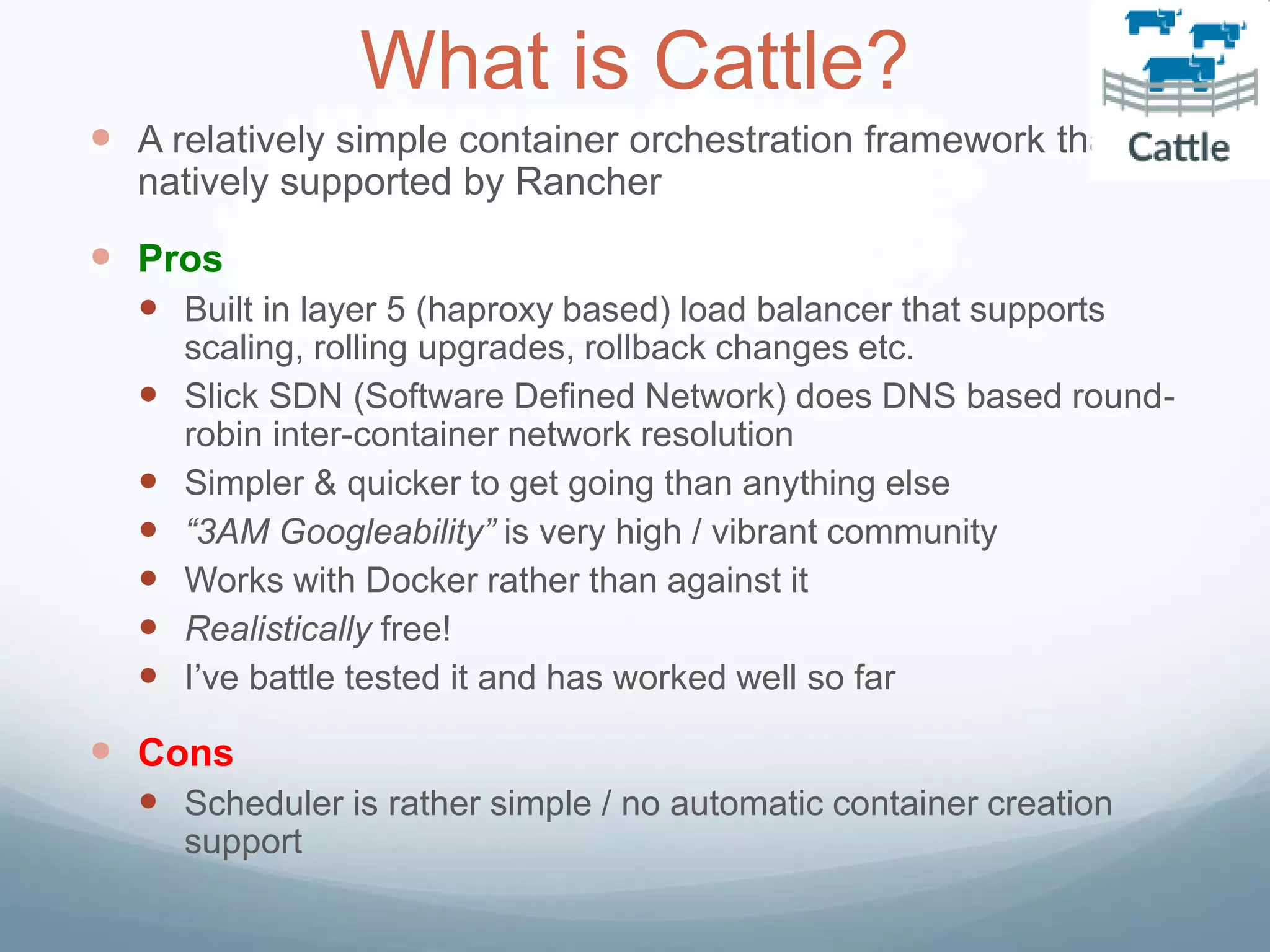

17. What is Cattle?
 A relatively simple container orchestration framework that is
natively supported by Rancher
 Pros
 Built in layer 5 (haproxy based) load balancer that supports
scaling, rolling upgrades, rollback changes etc.
 Slick SDN (Software Defined Network) does DNS based round-
robin inter-container network resolution
 Simpler & quicker to get going than anything else
 “3AM Googleability” is very high / vibrant community
 Works with Docker rather than against it
 Realistically free!
 I’ve battle tested it and has worked well so far
 Cons
 Scheduler is rather simple / no automatic container creation
support

18. + +
 Setup entire stack from scratch in a repeatable
(idempotent), clear & source controllable manner
 *Some of the Rancher stuff we will “point and click our
way to success” for brevity and to show you the UI but
I’ve done it before with 100% Ansible + docker/rancher-
compose files.
 Requirements
 POSIX shell
 DigitalOcean account with API key env variable
 SSH
 ~/.ssh/id_rsa + ~/.ssh/id_rsa.pub setup
 Ansible (get with Python, PIP)
 Terraform
 Web browser

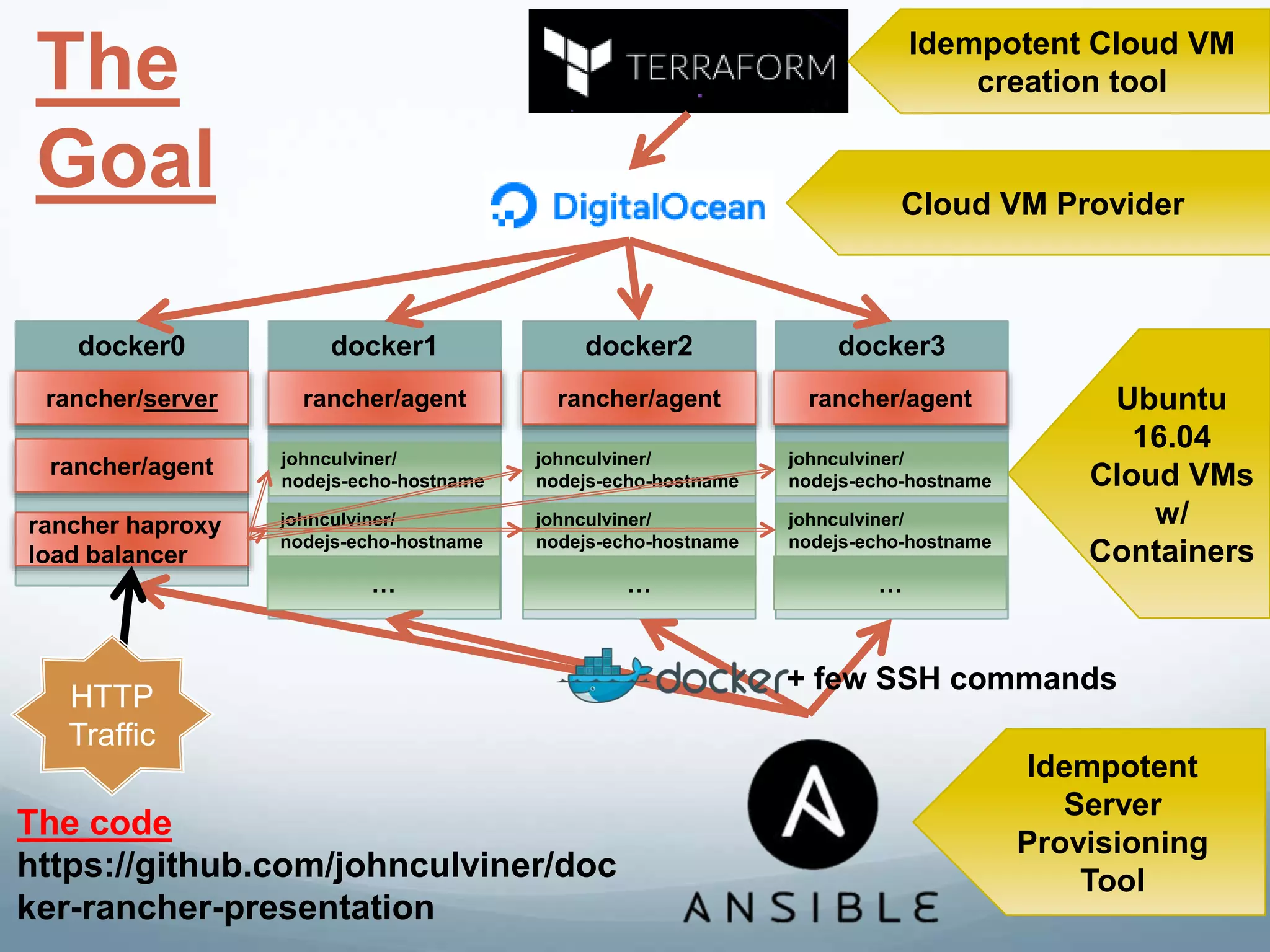

19. The
Goal
docker0 docker2docker1 docker3
rancher/server
rancher/agent
rancher/agent rancher/agent rancher/agent
Idempotent Cloud VM
creation tool
Cloud VM Provider
Ubuntu
16.04
Cloud VMs
w/
Containers
Idempotent
Server
Provisioning
Tool
johnculviner/
nodejs-echo-hostname
johnculviner/
nodejs-echo-hostname
johnculviner/
nodejs-echo-hostname
johnculviner/
nodejs-echo-hostname
johnculviner/
nodejs-echo-hostname
johnculviner/
nodejs-echo-hostname
…… …
rancher haproxy
load balancer
HTTP
Traffic
+ few SSH commands
The code
https://github.com/johnculviner/doc
ker-rancher-presentation

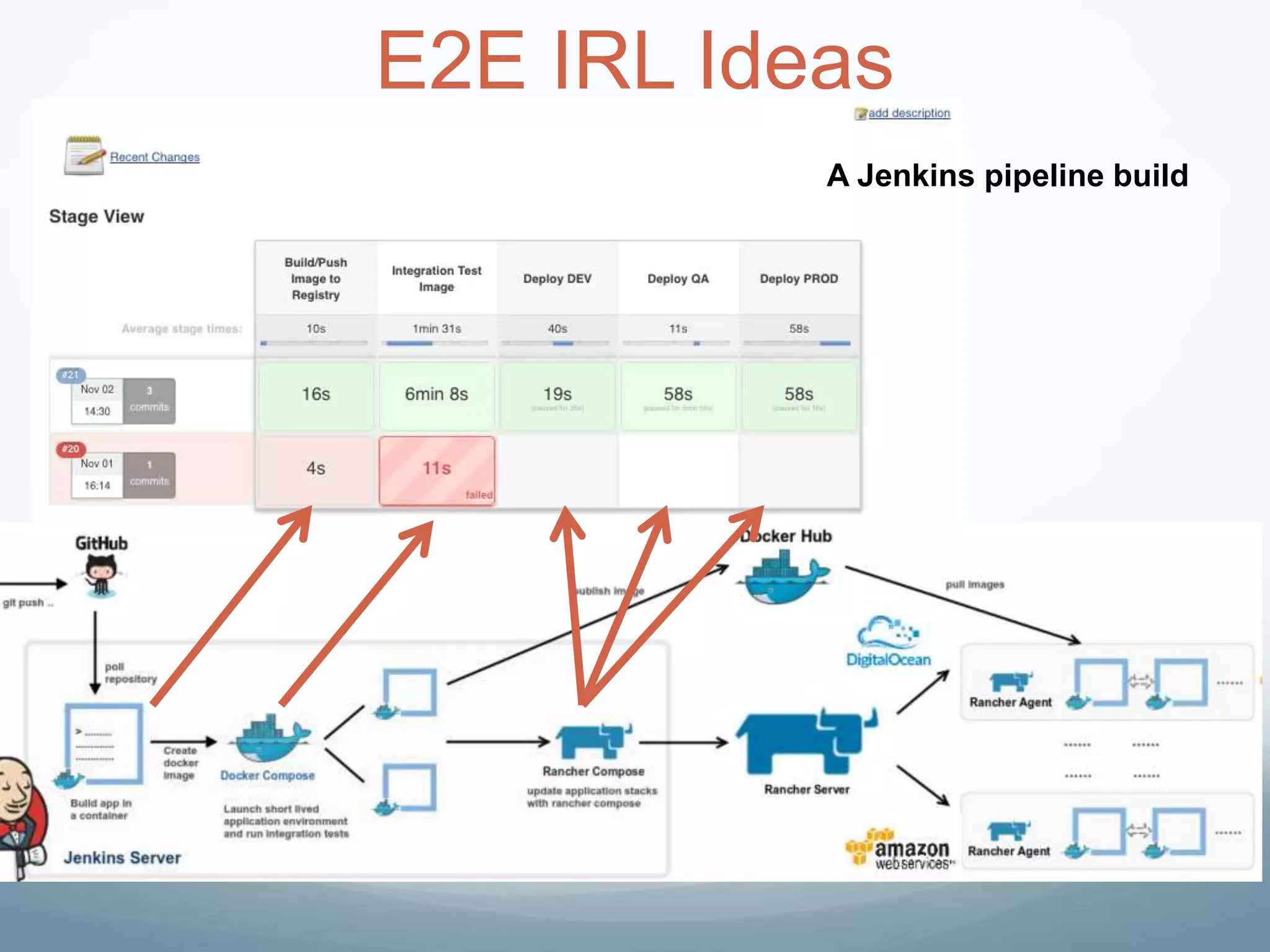

20. E2E IRL Ideas
A Jenkins pipeline build
