Deploying with Docker
Atlanta Docker Meetup
2014.05.13

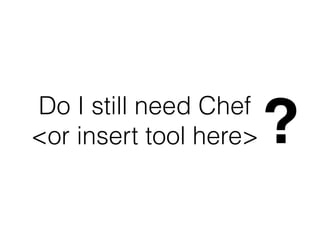

Do I still need Chef 
<or insert tool here>?

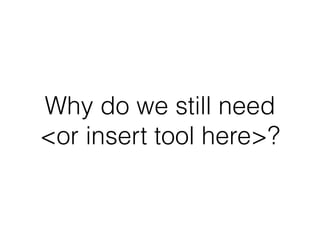

Why do we still need 
<or insert tool here>?

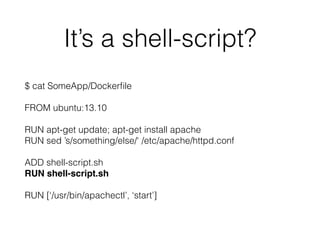

It’s a shell-script?
$ cat SomeApp/Dockerﬁle 
 
FROM ubuntu:13.10 
 
RUN apt-get update; apt-get install apache 
RUN sed ’s/something/else/‘ /etc/apache/httpd.conf 
 
ADD shell-script.sh 
RUN shell-script.sh 
 
RUN [‘/usr/bin/apachectl’, ‘start’]

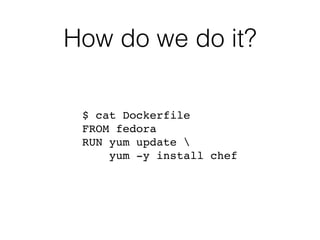

How do we do it?
$ cat Dockerfile 
FROM fedora 
RUN yum update  
yum -y install chef

Traditional Chef
Hardware
OS
Linux
Chef
Installs Chef
Runs
Conﬁgures

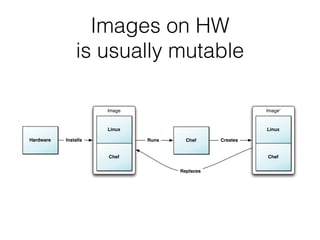

Images on HW 
is usually mutable
Hardware
Linux
Chef
Installs Chef
Image'
Linux
Chef
Creates
Replaces
Runs

Ephemeral environments 
are (somewhat) immutable.
Hypervisor
Linux
Chef
Runs
Image'
Linux
Chef
Chef
Runs
Conﬁgures
VM
Accesses
COW

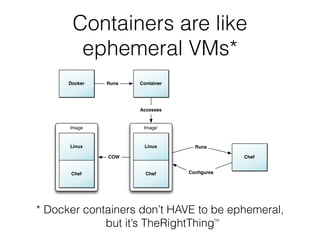

Containers are like
ephemeral VMs*
* Docker containers don’t HAVE to be ephemeral,
but it’s TheRightThing
Docker
Linux
Chef
Runs
Image'
Linux
Chef
Chef
Runs
Conﬁgures
Container
Accesses
COW
TM

Runtime Conﬁguration
• One image, several
conﬁgurations
• Conﬁguration based on
container environment
• Specify metadata or roles via
environment variables
(passed to ‘docker run -e’)

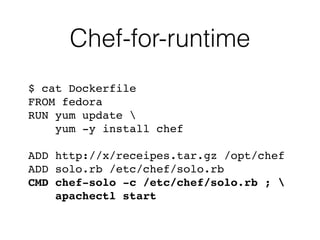

Chef-for-runtime
$ cat Dockerfile 
FROM fedora 
RUN yum update  
yum -y install chef 
ADD http://x/receipes.tar.gz /opt/chef"
ADD solo.rb /etc/chef/solo.rb"
CMD chef-solo -c /etc/chef/solo.rb ; !
apachectl start

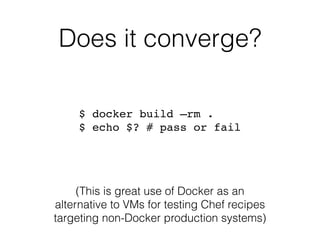

Does it converge?
$ docker build —rm . 
$ echo $? # pass or fail
(This is great use of Docker as an
alternative to VMs for testing Chef recipes
targeting non-Docker production systems)

Bootstrapping
Conﬁguration Management
on every boot is expensive

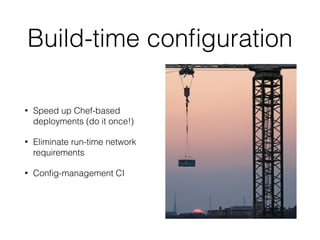

Build-time conﬁguration
• Speed up Chef-based
deployments (do it once!)
• Eliminate run-time network
requirements
• Conﬁg-management CI

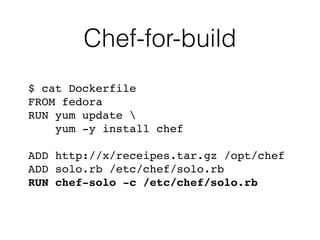

Chef-for-build
$ cat Dockerfile 
FROM fedora 
RUN yum update  
yum -y install chef"
 
ADD http://x/receipes.tar.gz /opt/chef"
ADD solo.rb /etc/chef/solo.rb"
RUN chef-solo -c /etc/chef/solo.rb

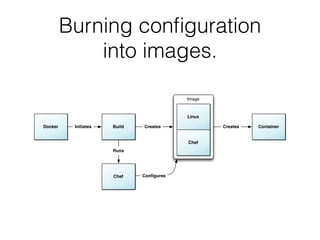

Burning conﬁguration 
into images.
Docker ContainerInitiates Creates
Linux
Chef
Chef
Runs
Conﬁgures
Build Creates

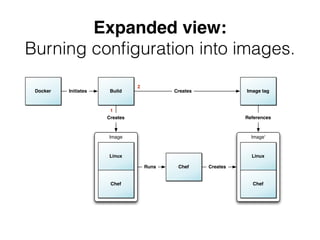

Expanded view: 
Burning conﬁguration into images.
Docker Image tagInitiates
Image'
Linux
Chef
Chef
Build
Linux
Chef
Creates
Creates
Runs Creates
References
1
2

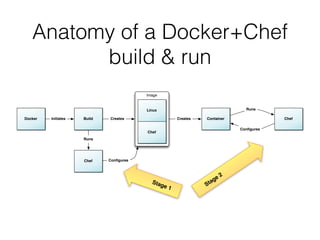

Anatomy of a Docker+Chef
build & run
Docker ContainerInitiates Creates
Linux
Chef
Chef
Runs
Conﬁgures
Chef
Runs
Conﬁgures
Build Creates
Stage 1 Stage 2

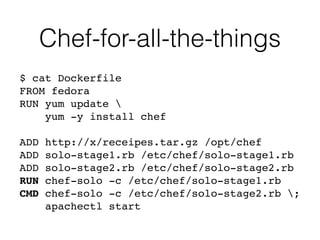

Chef-for-all-the-things
$ cat Dockerfile 
FROM fedora 
RUN yum update  
yum -y install chef 
 
ADD http://x/receipes.tar.gz /opt/chef"
ADD solo-stage1.rb /etc/chef/solo-stage1.rb"
ADD solo-stage2.rb /etc/chef/solo-stage2.rb"
RUN chef-solo -c /etc/chef/solo-stage1.rb"
CMD chef-solo -c /etc/chef/solo-stage2.rb ;"
apachectl start

This document discusses deployment automation using Docker. It begins by introducing Docker terminology like images, containers, and registries. It then covers installing Docker, building images from Dockerfiles, tagging and pushing images to private registries, and running containers. The document also discusses mounting host directories in containers, cluster operations, and next steps around orchestration, monitoring, and continuous delivery.

Docker puppetcamp london 2013

Tomas Doran

The document discusses using Docker containers and Puppet to compartmentalize services running on a personal server. Previously, many services like Postfix, Dovecot, DNS, etc. were running on the server with no isolation. The approach taken was to define Puppet profiles for each service, build Docker containers from those profiles, and run the containers independently with their own isolated environments. This improves security, ease of development and deployment, and allows immutable infrastructure by replacing containers instead of changing server configurations. Challenges discussed include Docker bugs, inconsistent Debian packages, and future plans to add HAProxy and a container registry.

How Puppet Enables the Use of Lightweight Virtualized Containers - PuppetConf...

Puppet

The document summarizes how Puppet can be used to enable lightweight virtualized containers by configuring applications and their dependencies into immutable container images during the build process. It compares deploying a Jenkins application with LDAP authentication on virtual machines versus containers. It discusses challenges with service resources in containers and provides solutions like overriding service resources or using multi-process images with systemd to build immutable Puppet-configured application images.

Baking docker using chef

Mukta Aphale

Mukta Aphale presented at ChefConf 2015. She discussed her background transitioning from developer to DevOps architect. She contributed to Chef development and created several Chef knife plugins. Aphale also discussed using Docker and Chef together to automate container management and deployment. She showed how to build a Docker image using Chef recipes and push it to a registry for deployment using Chef push jobs.

Deploying an application with Chef and Docker

Daniel Ku

Docker 캐주얼 토크 #1 (2014-10-15)에서 발표하기 위해 만든 자료. 원래 'Docker 실서비스 도입기'를 발표하려고 했으나, 아직 도입이 마무리되지 못한 관계로 그 과정에서 의미 있는 부분을 찾아보았다. 그래서 Chef와 Docker가 도입되면 StudyGPS에서 어플리케이션을 업데이트하는 기존의 방식이 어떻게 변화하는지에 대해 설명하고, 그 변화의 의미에 대해서 생각해보고 정리하였다.

Using Docker with Puppet - PuppetConf 2014

Puppet

This document discusses Docker containers and how they compare to virtual machines and configuration management tools like Puppet. It provides an overview of Docker, including how to build Docker images using Dockerfiles. It then compares Dockerfiles to shell scripts and configuration management, noting advantages and disadvantages of each. The document suggests using Puppet to install Docker and build Docker images, but not running Puppet inside containers. It provides examples of building Docker images that use Puppet for configuration.

Docker orchestration

Open Source Consulting

This document summarizes how to use Docker and orchestrate containers using Docker Compose and Docker Swarm. It begins with setting up a private Docker registry to store images. It then demonstrates building a WordPress site using Docker Compose, with linked MySQL and PHP containers. The images are committed and pushed to the private registry. Finally, it discusses running the composed WordPress application using images from the private registry.

Austin - Container Days - Docker 101

Bill Maxwell

1) The document discusses Docker containers and provides an introduction to Docker concepts like building images, running containers, storage, networking and linking containers. 2) It includes an agenda for the Docker 101 session which covers container basics, building images, storage, networking and a demo of images, building and networking modes. 3) Examples and exercises are provided around building an image, pushing to a registry, running containers with volumes, linking and networking.

The document outlines an 90 minute introduction to Ansible using Docker. It discusses setting up the environment with Docker, using ad-hoc commands and playbooks to automate tasks like installing Apache and configuring variables. Exercises demonstrate inventory management, templating configurations with Jinja2, and other core Ansible concepts. The document provides an overview but does not cover more advanced topics like dynamic inventory, roles, writing custom modules, or Ansible Tower.

Docker toolbox

Yonghwee Kim

The Docker Toolbox installs several components to allow users to run Docker on their Mac systems without running a Linux VM directly. It includes the Docker client, Docker Machine, Docker Compose, Docker Kitematic, and Oracle VirtualBox. Docker Machine is used to create and connect to a lightweight Linux VM hosted by VirtualBox where the Docker daemon runs. This allows users to work with Docker images and containers without having to manage a separate Linux environment.

Infrastructure testing with Jenkins, Puppet and Vagrant - Agile Testing Days ...

Carlos Sanchez

Extend Continuous Integration to automatically test your infrastructure. Continuous Integration can be extended to test deployments and production environments, in a Continuous Delivery cycle, using infrastructure-as-code tools like Puppet, allowing to manage multiple servers and their configurations, and test the infrastructure the same way continuous integration tools do with developers’ code. Puppet is an infrastructure-as-code tool that allows easy and automated provisioning of servers, defining the packages, configuration, services, … in code. Enabling DevOps culture, tools like Puppet help drive Agile development all the way to operations and systems administration, and along with continuous integration tools like Jenkins, it is a key piece to accomplish repeatability and continuous delivery, automating the operations side during development, QA or production, and enabling testing of systems configuration. Using Vagrant, a command line automation layer for VirtualBox, we can easily spin off virtual machines with the same configuration as production servers, run our test suite, and tear them down afterwards. We will show how to set up automated testing of an application and associated infrastructure and configurations, creating on demand virtual machines for testing, as part of your continuous integration process.

Dockerfile

Jeffrey Ellin

The document discusses Dockerfiles, which are used to build Docker images. A Dockerfile contains instructions like FROM, RUN, COPY, and CMD to set the base image, install dependencies, add files, and define the main process. Images are read-only layers built using these instructions. Dockerfiles can be built locally into images and published to repositories for sharing. Volumes are used to persist data outside the container.

Building and Testing from Scratch a Puppet Environment with Docker - PuppetCo...

Puppet

This document discusses using Docker containers to build and test Puppet code. It describes setting up a Docker container to mimic a production environment by specifying hostname, custom facts, and operating system. Tests can be run on this container to validate Puppet code works as expected before deploying changes. Future enhancements proposed include supporting more operating systems and Puppet versions, linking multiple test nodes, and using an existing Puppet master.

Continuous Infrastructure: Modern Puppet for the Jenkins Project - PuppetConf...

Puppet

This document summarizes Tyler Croy's presentation on managing the Jenkins infrastructure using Puppet. It describes how the infrastructure evolved from an unmanaged setup at Sun/Oracle to using masterless Puppet and eventually Puppet Enterprise. Key aspects covered include managing services, hardware, code layout, testing, and deployment process. Special thanks are given to Puppet Labs for their support of the project.

Docker 初探，實驗室中的運貨鯨

Ruoshi Ling

Hands-On Session Docker

LinetsChile

Docker slides

Jyotsna Raghuraman

Docker is an open source containerization platform that allows users to package applications and their dependencies into standardized executable units called containers. Docker relies on features of the Linux kernel like namespaces and cgroups to provide operating-system-level virtualization and allow containers to run isolated on a shared kernel. This makes Docker highly portable and allows applications to run consistently regardless of the underlying infrastructure. Docker uses a client-server architecture where the Docker Engine runs in the cloud or on-premises and clients interact with it via Docker APIs or the command line. Common commands include build to create images from Dockerfiles, run to launch containers, and push/pull to distribute images to registries. Docker is often used for microservices and multi-container

From Monolith to Docker Distributed Applications

Carlos Sanchez

Docker is revolutionizing the way people think about applications and deployments. It provides a simple way to run and distribute Linux containers for a variety of use cases, from lightweight virtual machines to complex distributed micro-services architectures. Containers allow to run services in isolation with a minimum performance penalty, increased speed, easier configuration and less complexity, making it ideal for continuous integration and continuous delivery based workloads. But migrating an existing application to a distributed microservices architecture is no easy task, requiring a shift in the software development, networking and storage to accommodate the new architecture. We will provide insight on our experience creating a Jenkins platform based on distributed Docker containers running on Apache Mesos and Marathon, applicable for all types of applications, but specially Java and JVM based nones.

Very Early Review - Rocket(CoreOS)

충섭 김

Rocket is a new container runtime created by CoreOS as an alternative to Docker. It aims to address some perceived flaws in Docker's design by having composable components for building, running, and distributing containers. It uses a new App Container format and tools like rkt and actool for working with containers. The document demonstrates migrating a Docker container to Rocket and running it, showing Rocket's capabilities. It also discusses the initial reactions and debate surrounding Rocket's introduction.

macos installation automation

Jon Fuller

Ansible Oxford - Cows & Containers

jonatanblue

Installaling Puppet Master and Agent

Ranjit Avasarala

Automating Dev Environment - Introduction to Docker and Chef

kamalikamj

Docker allows for the creation of lightweight Linux containers that provide portable environments on demand. Containers help address issues with local development environments like performance problems and inconsistencies with production. Docker images can be easily shared across teams using Docker registries. Chef is a tool for automated configuration management that ensures consistent configurations across environments and removes repetitive manual software installation tasks. It integrates well with cloud platforms. Using Docker and Chef together provides automated software configuration within portable Docker containers, addressing problems of local dev environments and speeding up the deployment cycle.

SEP DevOps Ignite Talk - Packer

Ryan Sweeney

Infrastructure Deployment with Docker & Ansible

Robert Reiz

Orchestration? You Don't Need Orchestration. What You Want is Choreography.

Julian Dunn

This document discusses the differences between orchestration and choreography in configuration management. Orchestration involves a central orchestrator executing ordered operations on independent machines, while choreography involves autonomous actors that make and verify promises to each other to achieve a desired state. The document argues that choreography is preferable because it avoids single points of failure, enables more autonomy between systems, and allows for better coordination across a fleet with less reliance on external real-time state systems.

Deploying Docker (Provisioning /w Docker + Chef/Puppet) - DevopsDaysPGH

Erica Windisch

This document discusses using Docker containers and Chef configuration management together. It begins by showing how to build Docker images that include Chef using Dockerfiles. It then explains how Chef can be used to configure containers during the image build process, essentially "baking" the configuration into the images. This allows immutable infrastructure where configured containers can be started without needing to rerun Chef provisioning. The document also discusses using multi-stage Dockerfiles and Chef runs to fully configure images. It briefly covers tools for deploying Docker containers, such as using Chef on EC2 instances or with OpenStack Heat orchestration.

The Docker "Gauntlet" - Introduction, Ecosystem, Deployment, Orchestration

Erica Windisch

What's hot

Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境

謝宗穎

Docker Command Line, Using and Choosing containers

Will Hall

Learn basic ansible using docker

Larry Cai

Docker toolbox

Yonghwee Kim

Infrastructure testing with Jenkins, Puppet and Vagrant - Agile Testing Days ...

Carlos Sanchez

Dockerfile

Jeffrey Ellin

Building and Testing from Scratch a Puppet Environment with Docker - PuppetCo...

Puppet

Continuous Infrastructure: Modern Puppet for the Jenkins Project - PuppetConf...

Puppet

Docker 初探，實驗室中的運貨鯨

Ruoshi Ling

Hands-On Session Docker

LinetsChile

Docker slides

Jyotsna Raghuraman

From Monolith to Docker Distributed Applications

Carlos Sanchez

Very Early Review - Rocket(CoreOS)

충섭 김

macos installation automation

Jon Fuller

Ansible Oxford - Cows & Containers

jonatanblue

Installaling Puppet Master and Agent

Ranjit Avasarala

Automating Dev Environment - Introduction to Docker and Chef

kamalikamj

SEP DevOps Ignite Talk - Packer

Ryan Sweeney

Infrastructure Deployment with Docker & Ansible

Robert Reiz

Orchestration? You Don't Need Orchestration. What You Want is Choreography.

Julian Dunn

What's hot (20)

Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境

Docker Command Line, Using and Choosing containers

Learn basic ansible using docker

Docker toolbox

Infrastructure testing with Jenkins, Puppet and Vagrant - Agile Testing Days ...

Dockerfile

Building and Testing from Scratch a Puppet Environment with Docker - PuppetCo...

Continuous Infrastructure: Modern Puppet for the Jenkins Project - PuppetConf...

Docker 初探，實驗室中的運貨鯨

Hands-On Session Docker

Docker slides

From Monolith to Docker Distributed Applications

Very Early Review - Rocket(CoreOS)

macos installation automation

Ansible Oxford - Cows & Containers

Installaling Puppet Master and Agent

Automating Dev Environment - Introduction to Docker and Chef

SEP DevOps Ignite Talk - Packer

Infrastructure Deployment with Docker & Ansible

Orchestration? You Don't Need Orchestration. What You Want is Choreography.

Similar to Provisioning & Deploying with Docker

Deploying Docker (Provisioning /w Docker + Chef/Puppet) - DevopsDaysPGH

Erica Windisch

The Docker "Gauntlet" - Introduction, Ecosystem, Deployment, Orchestration

Erica Windisch

Dockerfish-Tutorial

Brian Hood

1. This document provides instructions for creating a headless Ubuntu/XFCE container using Docker and Dockerfish. 2. It shows how to install Dockerfish, pull the Ubuntu image, create and run a container, install XFCE and VNC, and export the container configuration to a new reusable image. 3. Key steps include cloning the Dockerfish repo, pulling the Ubuntu image, running the container with XFCE and VNC installed, checking the container IP, and using Dockerfish to commit the container configuration to a new image called devel/headless-ubuntu-vnc.

Docker basics 30_01_21.ppx

Panuwat Boonrod

Puppet Camp Chicago 2014: Docker and Puppet: 1+1=3 (Intermediate)

Puppet

This document discusses Docker and Puppet and how they can be used together. It describes how Puppet can be used to install and configure Docker on a system and then how Dockerfiles can be used to build container images. However, it notes that using Puppet to build container images directly is not recommended and describes alternatives like using Puppet during the build process to configure "golden images" and then deploying them. It suggests approaches like running services externally to containers and using data containers to optimize container usage.

Docker in Action

Alper Kanat

Docker for (Java) Developers

Rafael Benevides

Baking Docker Using Chef - ChefConf 2015

Chef

Docker has changed the way Configuration Management is done. And Chef can be Docker's best friend to bake your favorite Config! This session will cover - - Using chef containers - Managing docker images using Chef - Using Chef push jobs to run docker containers on nodes - And most importantly - why Chef is needed to manage dockers and why it all cannot be done with "simple" docker files! https://youtu.be/5NiJ03r8h9E

Ansible Introduction

Robert Reiz

Devops Boise - Israel Shirk - Pragmatic Migration to Infrastructure As Code

Israel Shirk

Docker for mere mortals

Henryk Konsek

This document discusses Docker, including: 1. Docker is a platform for running and managing Linux containers that provides operating-system-level virtualization without the overhead of traditional virtual machines. 2. Key Docker concepts include images (immutable templates for containers), containers (running instances of images that have mutable state), and layers (the building blocks of images). 3. Publishing Docker images to registries allows them to be shared and reused across different systems. Volumes and networking allow containers to share filesystems and communicate.

Docker Continuous Delivery Workshop

Jirayut Nimsaeng

Docker and Puppet — Puppet Camp L.A. — SCALE12X

Jérôme Petazzoni

This document discusses Docker and Puppet for DevOps. It introduces Docker as a lightweight virtualization tool for containers and compares it to virtual machines. Puppet is a configuration management tool. The document outlines how Puppet can be used to install and configure Docker ("Puppetizing Docker") and how Docker can be used to deploy systems configured with Puppet ("Dockerizing Puppet"). It proposes ideas for the future like using Puppet to output Dockerfiles instead of configuring systems directly and having a single Puppet agent manage multiple containers.

2016 - Easing Your Way Into Docker: Lessons From a Journey to Production

devopsdaysaustin

The Dockerfile Explosion and the Need for Higher Level Tools by Gareth Rushgrove

Docker, Inc.

Dockerfiles are great. They provide a zero-barrier-to-entry format for describing a single Docker image which is immediately clear to anyone reading them. But with that simplicity comes problems that become apparent as your adoption of Docker gathers pace. * Dockerfiles can inherit from other docker images, but images are not Dockerfiles * Dockerfile provides no built-in mechanism for creating abstractions, so as usage grows identical or similar instructions can be duplicated across many files * The Docker APi exposes a build endpoint, but the API is very course, taking Dockerfile as the transport rather than exposing the individual instructions * Dockerfiles are just that, files. So they can come from anywhere The one layer per line in a Dockerfile limitation can lead to an explosion of layers, which fail to take advantage of the promised space and performance benefits.

Docker 101

schmidtbt

Introduction to Docker

Jian Wu

This document provides an introduction to Docker including Docker vocabulary, architecture, file systems, networking, volumes, registry services like Docker Hub, and clustering technologies like Docker Swarm, Kubernetes and Mesos. It also covers setting up a local Docker environment, building Docker images with Dockerfiles, running containers, and deploying containers on AWS EC2 Container Service.

Puppet Camp Seattle 2014: Docker and Puppet: 1+1=3

Puppet

This document discusses Docker and Puppet and how they can be used together. It suggests using Puppet to install and configure Docker on the host system, and then using Dockerfiles to build container images in a deterministic way. While Puppet could theoretically be used to build containers, the document argues it is better to use Dockerfiles for image builds and to separate operational concerns like logging and monitoring into separate containers for better portability and flexibility.

Introduction to telepresence

Kyohei Mizumoto

Telepresence allows developers to test applications locally that are deployed to Kubernetes clusters. It creates a network proxy between a local development environment and a pod running in the cluster, enabling local development and testing that reflects the cluster environment. Key features include deploying and debugging services locally without changing code in the cluster. The document provides an overview of Telepresence and examples for installing it and using it to swap a deployment for local development of both a Python HTTP server and Docker container-based application.

Docker - Lightweight Virtualization

Mehdi Hasan

This document discusses Docker, a tool that allows applications to be isolated and run in lightweight containers. It introduces key Docker concepts like images, containers, repositories and registries. It provides examples of using Docker commands like docker run, docker pull, docker push and docker build. It compares containers to virtual machines and explains how Docker utilizes namespaces and cgroups to provide isolation. Finally, it outlines a Docker workflow and references additional Docker resources.

Similar to Provisioning & Deploying with Docker (20)

Deploying Docker (Provisioning /w Docker + Chef/Puppet) - DevopsDaysPGH

The Docker "Gauntlet" - Introduction, Ecosystem, Deployment, Orchestration

Dockerfish-Tutorial

Docker basics 30_01_21.ppx

Puppet Camp Chicago 2014: Docker and Puppet: 1+1=3 (Intermediate)

Docker in Action

Docker for (Java) Developers

Baking Docker Using Chef - ChefConf 2015

Ansible Introduction

Devops Boise - Israel Shirk - Pragmatic Migration to Infrastructure As Code

Docker for mere mortals

Docker Continuous Delivery Workshop

Docker and Puppet — Puppet Camp L.A. — SCALE12X

2016 - Easing Your Way Into Docker: Lessons From a Journey to Production

The Dockerfile Explosion and the Need for Higher Level Tools by Gareth Rushgrove

Docker 101

Introduction to Docker

Puppet Camp Seattle 2014: Docker and Puppet: 1+1=3

Introduction to telepresence

Docker - Lightweight Virtualization

More from Erica Windisch

Debugging & Profiling of AWS Lambda: ServerlessConf - IOpipe

Erica Windisch

Embracing Serverless Ops (Lightning Talk)

Erica Windisch

Ops for NoOps - Operational Challenges for Serverless Apps

Erica Windisch

Building Composable Serverless Apps with IOpipe

Erica Windisch

This document discusses building composable serverless applications using the iopipe module. The iopipe module allows chaining together serverless functions, code sharing, and running functions anywhere including AWS Lambda, Docker, and local CPUs. It provides tools for function composition, monitoring performance metrics, and deploying functions. Composable serverless applications can be built by connecting together inline functions, stored functions, and deployed HTTP endpoints using iopipe.

Patterns for Secure Containerized Applications (Docker)

Erica Windisch

The document discusses containerization and isolation as security patterns for applications. It notes that consolidation is not actually a security pattern, and discusses hypervisors like Xen having vulnerabilities. Fragmentation through isolation into microservices is presented as a security pattern, while simply having more services is not. The document acknowledges that isolation patterns can require more work.

Orchestrating Docker with OpenStack

Erica Windisch

The Nova driver for Docker has been maturing rapidly since its mainline removal in Icehouse. During the Juno cycle, substantial improvements have been made to the driver, and greater parity has been reached with other  virtualization drivers. We will explore these improvements and what they mean to deployers. Eric will additionally showcase deployment scenarios for the deployment of OpenStack itself inside and underneath of Docker for powering traditional VM-based computing, storage, and other cloud services. Finally, users should expect a preview of the planned integration with the new OpenStack Containers Service effort to provide automation of advanced containers functionality and Docker-API semantics inside of an OpenStack cloud. Note that the included Heat templates are NOT usable. See the linked Heat resources for viable templates and examples.

Docker for Developers: Dev, Test, Deploy @ BucksCo Devops at MeetMe HQ

Erica Windisch

The document discusses Docker's platform and ecosystem, which has grown significantly over 19 months to include over 640 contributors, 2.75 million downloads, and extensive community support and documentation. It also outlines the key components of Docker's platform, including the Docker Engine for building, shipping, and running containers, and Docker Hub for sharing images. Finally, it provides examples of how to use Docker to build, run, and manage applications and services across infrastructure.

Things will Change - Usenix Keynote UCMS'14

Erica Windisch

Practical Docker for OpenStack (Juno Summit - May 15th, 2014)

Erica Windisch

This document discusses using Docker containers with OpenStack. It describes installing the Nova Docker compute driver plugin to enable launching and managing Docker containers via the OpenStack Nova API. The plugin allows spawning Docker containers from images in Glance and supports basic container operations. However, some Nova features like live migration and advanced Docker capabilities are not yet supported. Using Docker with Nova provides an alternative to Heat for container orchestration with OpenStack.

Practical Docker for OpenStack - NYC / PHL OpenStack meetup (4-23-2014)

Erica Windisch

This document discusses using Docker containers with OpenStack. Key points include: - A Docker plugin allows controlling Docker containers via the OpenStack Nova API and Horizon dashboard. This enables launching, terminating, rebooting and managing the lifecycle of Docker containers as if they were virtual machines. - Heat orchestration templates can be used to define Docker resources and automate the deployment of multi-container applications on OpenStack. Heat integrates with the Docker API to start and stop containers. - Developers can test OpenStack using Docker by running DevStack inside a container, allowing containers to be used like virtual machines for testing and development purposes.

Docker OpenStack - 3/27/2014

Erica Windisch

This document discusses Docker and its integration with OpenStack. It provides five major use cases for Docker: alternative virtualization, continuous integration/delivery, scaling applications, cross-cloud deployment, and resource/security isolation. It also describes a demo of pushing a containerized application through development testing and multiple clouds without downtime. Additionally, it outlines the Docker plugin for Nova in OpenStack which enables control of Docker containers via the Nova API and Horizon UI.

More from Erica Windisch (11)

Debugging & Profiling of AWS Lambda: ServerlessConf - IOpipe

Embracing Serverless Ops (Lightning Talk)

Ops for NoOps - Operational Challenges for Serverless Apps

Building Composable Serverless Apps with IOpipe

Patterns for Secure Containerized Applications (Docker)

Orchestrating Docker with OpenStack

Docker for Developers: Dev, Test, Deploy @ BucksCo Devops at MeetMe HQ

Things will Change - Usenix Keynote UCMS'14

Practical Docker for OpenStack (Juno Summit - May 15th, 2014)

Practical Docker for OpenStack - NYC / PHL OpenStack meetup (4-23-2014)

Docker OpenStack - 3/27/2014

Recently uploaded

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

Neo4j

A Deep Dive into ScyllaDB's Architecture

ScyllaDB

Y-Combinator seed pitch deck template PP

c5vrf27qcz

Christine's Product Research Presentation.pptx

christinelarrosa

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...

Fwdays

Direct losses from downtime in 1 minute = $5-$10 thousand dollars. Reputation is priceless. As part of the talk, we will consider the architectural strategies necessary for the development of highly loaded fintech solutions. We will focus on using queues and streaming to efficiently work and manage large amounts of data in real-time and to minimize latency. We will focus special attention on the architectural patterns used in the design of the fintech system, microservices and event-driven architecture, which ensure scalability, fault tolerance, and consistency of the entire system.

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Chart Kalyan

Skybuffer SAM4U tool for SAP license adoption

Tatiana Kojar

Manage and optimize your license adoption and consumption with SAM4U, an SAP free customer software asset management tool. SAM4U, an SAP complimentary software asset management tool for customers, delivers a detailed and well-structured overview of license inventory and usage with a user-friendly interface. We offer a hosted, cost-effective, and performance-optimized SAM4U setup in the Skybuffer Cloud environment. You retain ownership of the system and data, while we manage the ABAP 7.58 infrastructure, ensuring fixed Total Cost of Ownership (TCO) and exceptional services through the SAP Fiori interface.

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

Edge AI and Vision Alliance

For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2024/06/temporal-event-neural-networks-a-more-efficient-alternative-to-the-transformer-a-presentation-from-brainchip/ Chris Jones, Director of Product Management at BrainChip , presents the “Temporal Event Neural Networks: A More Efficient Alternative to the Transformer” tutorial at the May 2024 Embedded Vision Summit. The expansion of AI services necessitates enhanced computational capabilities on edge devices. Temporal Event Neural Networks (TENNs), developed by BrainChip, represent a novel and highly efficient state-space network. TENNs demonstrate exceptional proficiency in handling multi-dimensional streaming data, facilitating advancements in object detection, action recognition, speech enhancement and language model/sequence generation. Through the utilization of polynomial-based continuous convolutions, TENNs streamline models, expedite training processes and significantly diminish memory requirements, achieving notable reductions of up to 50x in parameters and 5,000x in energy consumption compared to prevailing methodologies like transformers. Integration with BrainChip’s Akida neuromorphic hardware IP further enhances TENNs’ capabilities, enabling the realization of highly capable, portable and passively cooled edge devices. This presentation delves into the technical innovations underlying TENNs, presents real-world benchmarks, and elucidates how this cutting-edge approach is positioned to revolutionize edge AI across diverse applications.

High performance Serverless Java on AWS- GoTo Amsterdam 2024

Vadym Kazulkin

Java is for many years one of the most popular programming languages, but it used to have hard times in the Serverless community. Java is known for its high cold start times and high memory footprint, comparing to other programming languages like Node.js and Python. In this talk I'll look at the general best practices and techniques we can use to decrease memory consumption, cold start times for Java Serverless development on AWS including GraalVM (Native Image) and AWS own offering SnapStart based on Firecracker microVM snapshot and restore and CRaC (Coordinated Restore at Checkpoint) runtime hooks. I'll also provide a lot of benchmarking on Lambda functions trying out various deployment package sizes, Lambda memory settings, Java compilation options and HTTP (a)synchronous clients and measure their impact on cold and warm start times.

"Choosing proper type of scaling", Olena Syrota

Fwdays

9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...

saastr

Apps Break Data

Ivo Velitchkov

How information systems are built or acquired puts information, which is what they should be about, in a secondary place. Our language adapted accordingly, and we no longer talk about information systems but applications. Applications evolved in a way to break data into diverse fragments, tightly coupled with applications and expensive to integrate. The result is technical debt, which is re-paid by taking even bigger "loans", resulting in an ever-increasing technical debt. Software engineering and procurement practices work in sync with market forces to maintain this trend. This talk demonstrates how natural this situation is. The question is: can something be done to reverse the trend?

Mutation Testing for Task-Oriented Chatbots

Pablo Gómez Abajo

Conversational agents, or chatbots, are increasingly used to access all sorts of services using natural language. While open-domain chatbots - like ChatGPT - can converse on any topic, task-oriented chatbots - the focus of this paper - are designed for specific tasks, like booking a flight, obtaining customer support, or setting an appointment. Like any other software, task-oriented chatbots need to be properly tested, usually by defining and executing test scenarios (i.e., sequences of user-chatbot interactions). However, there is currently a lack of methods to quantify the completeness and strength of such test scenarios, which can lead to low-quality tests, and hence to buggy chatbots. To fill this gap, we propose adapting mutation testing (MuT) for task-oriented chatbots. To this end, we introduce a set of mutation operators that emulate faults in chatbot designs, an architecture that enables MuT on chatbots built using heterogeneous technologies, and a practical realisation as an Eclipse plugin. Moreover, we evaluate the applicability, effectiveness and efficiency of our approach on open-source chatbots, with promising results.

Northern Engraving | Nameplate Manufacturing Process - 2024

Northern Engraving

Manufacturing custom quality metal nameplates and badges involves several standard operations. Processes include sheet prep, lithography, screening, coating, punch press and inspection. All decoration is completed in the flat sheet with adhesive and tooling operations following. The possibilities for creating unique durable nameplates are endless. How will you create your brand identity? We can help!

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

ScyllaDB

Nordic Marketo Engage User Group_June 13_ 2024.pptx

MichaelKnudsen27

Fueling AI with Great Data with Airbyte Webinar

Zilliz

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...

Jason Yip

The typical problem in product engineering is not bad strategy, so much as “no strategy”. This leads to confusion, lack of motivation, and incoherent action. The next time you look for a strategy and find an empty space, instead of waiting for it to be filled, I will show you how to fill it in yourself. If you’re wrong, it forces a correction. If you’re right, it helps create focus. I’ll share how I’ve approached this in the past, both what works and lessons for what didn’t work so well.

PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx

christinelarrosa

5th LF Energy Power Grid Model Meet-up Slides

DanBrown980551

5th Power Grid Model Meet-up It is with great pleasure that we extend to you an invitation to the 5th Power Grid Model Meet-up, scheduled for 6th June 2024. This event will adopt a hybrid format, allowing participants to join us either through an online Mircosoft Teams session or in person at TU/e located at Den Dolech 2, Eindhoven, Netherlands. The meet-up will be hosted by Eindhoven University of Technology (TU/e), a research university specializing in engineering science & technology. Power Grid Model The global energy transition is placing new and unprecedented demands on Distribution System Operators (DSOs). Alongside upgrades to grid capacity, processes such as digitization, capacity optimization, and congestion management are becoming vital for delivering reliable services. Power Grid Model is an open source project from Linux Foundation Energy and provides a calculation engine that is increasingly essential for DSOs. It offers a standards-based foundation enabling real-time power systems analysis, simulations of electrical power grids, and sophisticated what-if analysis. In addition, it enables in-depth studies and analysis of the electrical power grid’s behavior and performance. This comprehensive model incorporates essential factors such as power generation capacity, electrical losses, voltage levels, power flows, and system stability. Power Grid Model is currently being applied in a wide variety of use cases, including grid planning, expansion, reliability, and congestion studies. It can also help in analyzing the impact of renewable energy integration, assessing the effects of disturbances or faults, and developing strategies for grid control and optimization. What to expect For the upcoming meetup we are organizing, we have an exciting lineup of activities planned: -Insightful presentations covering two practical applications of the Power Grid Model. -An update on the latest advancements in Power Grid -Model technology during the first and second quarters of 2024. -An interactive brainstorming session to discuss and propose new feature requests. -An opportunity to connect with fellow Power Grid Model enthusiasts and users.

Recently uploaded (20)

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

A Deep Dive into ScyllaDB's Architecture

Y-Combinator seed pitch deck template PP

Christine's Product Research Presentation.pptx

"$10 thousand per minute of downtime: architecture, queues, streaming and fin...

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Skybuffer SAM4U tool for SAP license adoption

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

High performance Serverless Java on AWS- GoTo Amsterdam 2024

"Choosing proper type of scaling", Olena Syrota

9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...

Apps Break Data

Mutation Testing for Task-Oriented Chatbots

Northern Engraving | Nameplate Manufacturing Process - 2024

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

Nordic Marketo Engage User Group_June 13_ 2024.pptx

Fueling AI with Great Data with Airbyte Webinar

[OReilly Superstream] Occupy the Space: A grassroots guide to engineering (an...

PRODUCT LISTING OPTIMIZATION PRESENTATION.pptx

5th LF Energy Power Grid Model Meet-up Slides

Provisioning & Deploying with Docker

2. @ewindisch

3. Deploying with Docker Atlanta Docker Meetup 2014.05.13

4. Do I still need Chef  <or insert tool here>?

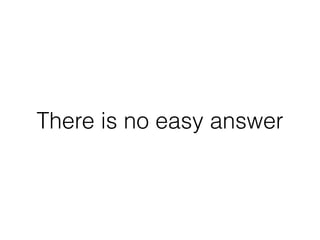

5. There is no easy answer

8. Why do we still need  <or insert tool here>?

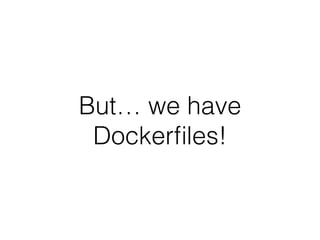

9. But… we have Dockerﬁles!

10. It’s a shell-script? $ cat SomeApp/Dockerﬁle    FROM ubuntu:13.10    RUN apt-get update; apt-get install apache  RUN sed ’s/something/else/‘ /etc/apache/httpd.conf    ADD shell-script.sh  RUN shell-script.sh    RUN [‘/usr/bin/apachectl’, ‘start’]

11. How do we do it? $ cat Dockerfile  FROM fedora  RUN yum update   yum -y install chef 

12. Traditional Chef Hardware OS Linux Chef Installs Chef Runs Conﬁgures

13.

14. Images on HW  is usually mutable Hardware Image Linux Chef Installs Chef Image' Linux Chef Creates Replaces Runs

15.

16. Ephemeral environments  are (somewhat) immutable. Hypervisor Image Linux Chef Runs Image' Linux Chef Chef Runs Conﬁgures VM Accesses COW

17.

18. Containers are like ephemeral VMs* * Docker containers don’t HAVE to be ephemeral, but it’s TheRightThing Docker Image Linux Chef Runs Image' Linux Chef Chef Runs Conﬁgures Container Accesses COW TM

19. Runtime Configuration • One image, several configurations • Configuration based on container environment • Specify metadata or roles via environment variables (passed to ‘docker run -e’)

20. Chef-for-runtime $ cat Dockerfile  FROM fedora  RUN yum update   yum -y install chef  ADD http://x/receipes.tar.gz /opt/chef" ADD solo.rb /etc/chef/solo.rb" CMD chef-solo -c /etc/chef/solo.rb ; ! apachectl start

21. Does it converge? $ docker build —rm .  $ echo $? # pass or fail (This is great use of Docker as an alternative to VMs for testing Chef recipes targeting non-Docker production systems)

22. Bootstrapping Conﬁguration Management on every boot is expensive

23. Let us use images!

24. Build-time conﬁguration • Speed up Chef-based deployments (do it once!) • Eliminate run-time network requirements • Conﬁg-management CI

25. Chef-for-build $ cat Dockerfile  FROM fedora  RUN yum update   yum -y install chef"   ADD http://x/receipes.tar.gz /opt/chef" ADD solo.rb /etc/chef/solo.rb" RUN chef-solo -c /etc/chef/solo.rb 

26. Burning conﬁguration  into images. Docker ContainerInitiates Creates Image Linux Chef Chef Runs Conﬁgures Build Creates

27. Expanded view:  Burning conﬁguration into images. Docker Image tagInitiates Image' Linux Chef Chef Build Image Linux Chef Creates Creates Runs Creates References 1 2

28. Anatomy of a Docker+Chef build & run Docker ContainerInitiates Creates Image Linux Chef Chef Runs Conﬁgures Chef Runs Conﬁgures Build Creates Stage 1 Stage 2

29. Chef-for-all-the-things $ cat Dockerfile  FROM fedora  RUN yum update   yum -y install chef    ADD http://x/receipes.tar.gz /opt/chef" ADD solo-stage1.rb /etc/chef/solo-stage1.rb" ADD solo-stage2.rb /etc/chef/solo-stage2.rb" RUN chef-solo -c /etc/chef/solo-stage1.rb" CMD chef-solo -c /etc/chef/solo-stage2.rb ;" apachectl start

Provisioning & Deploying with Docker

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Provisioning & Deploying with Docker

Similar to Provisioning & Deploying with Docker (20)

More from Erica Windisch

More from Erica Windisch (11)

Recently uploaded

Recently uploaded (20)

Provisioning & Deploying with Docker
