![#!/bin/bash -x
aws ec2 run-instances
--image-id ami-e55a648c
--key-name my-key
--user-data "#include https://get.docker.io”
ip=$(aws ec2 describe-instances
--output json
--filter Name=instance-state-name,Values=running | python
-c 'import json; import sys; print json.load(sys.stdin)
[“Reservations”][0]["Instances"][0]["PublicIpAddress"]')
ssh ubuntu@$ip sudo docker run cirros](https://image.slidesharecdn.com/plug-talk-140911095441-phpapp02/75/The-Docker-Gauntlet-Introduction-Ecosystem-Deployment-Orchestration-25-2048.jpg)
![Chef container
$ knife container docker init docker
-r 'recipe[apache2]' -z -b](https://image.slidesharecdn.com/plug-talk-140911095441-phpapp02/75/The-Docker-Gauntlet-Introduction-Ecosystem-Deployment-Orchestration-98-2048.jpg)

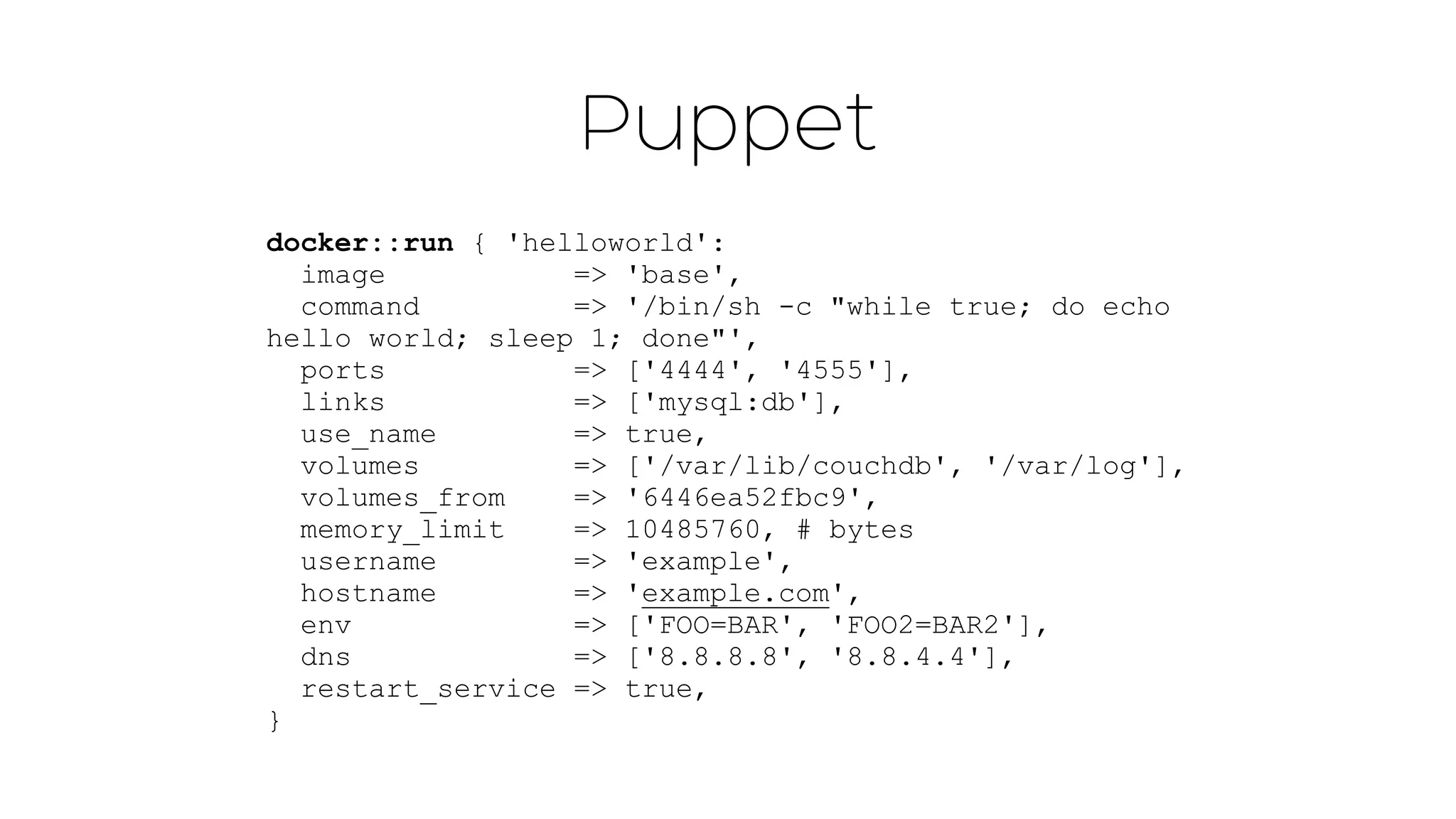

![Puppet
docker::run { 'helloworld':
image => 'base',
command => '/bin/sh -c "while true; do echo
hello world; sleep 1; done"',
ports => ['4444', '4555'],
links => ['mysql:db'],
use_name => true,
volumes => ['/var/lib/couchdb', '/var/log'],
volumes_from => '6446ea52fbc9',
memory_limit => 10485760, # bytes
username => 'example',
hostname => 'example.com',
env => ['FOO=BAR', 'FOO2=BAR2'],
dns => ['8.8.8.8', '8.8.4.4'],
restart_service => true,
}](https://image.slidesharecdn.com/plug-talk-140911095441-phpapp02/75/The-Docker-Gauntlet-Introduction-Ecosystem-Deployment-Orchestration-99-2048.jpg)
![heat_template_version: 2013-05-23
description: shared volumes example
resources:
my_instance:
type: OS::Nova::Server
properties:
key_name: ewindisch_key
image: ubuntu-precise
flavor: m1.large
user_data: #include https://get.docker.io
ftp_container:
type: DockerInc::Docker::Container
properties:
docker_endpoint: { get_attr:
[my_instance, first_address] }
image: mikz/vsftpd
ports: [ “21:21” ]
volumes: [ “/ftp” ]
name: “FTP”
apache_container:
type: DockerInc::Docker::Container
properties:
docker_endpoint: { get_attr:
[my_instance, first_address] }
image: fedora/apache
ports: [ “80:80” ]
volumes-from: “FTP”
cmd: “rm -rf /var/www;
ln -s /ftp /var/www;
/run-apache.sh”](https://image.slidesharecdn.com/plug-talk-140911095441-phpapp02/75/The-Docker-Gauntlet-Introduction-Ecosystem-Deployment-Orchestration-106-2048.jpg)
![OSC%Client%Use%Case%
$%source%./openrc%
$%osc%containerIcreate%IIport%pub:222:22%IIdaemon%II
image%uuid%IIcmd%“/usr/sbin/sshd%–D”%
$%osc%containerIshow%DEADBEEF%|%grep%ports%
ports:%[12.34.56.78:222]%
$%ssh%Ip%222%12.34.56.78%
foo$%
From: https://wiki.openstack.org/w/images/5/51/Containers_Proposal.pdf](https://image.slidesharecdn.com/plug-talk-140911095441-phpapp02/75/The-Docker-Gauntlet-Introduction-Ecosystem-Deployment-Orchestration-110-2048.jpg)
![Docker%Client%Use%Case%
$%source%./openrc%
$%export%DOCKER_SERVER=h:ps://…%
$%docker%run%Ip%pub:222:22%Id%foo%/usr/sbin/sshd%ID%
DEADBEEF%
$%osc%containerIshow%DEADBEEF%|%grep%ports%
ports:%[12.34.56.78:222]%
$%ssh%Ip%222%12.34.56.78%
foo$%
From: https://wiki.openstack.org/w/images/5/51/Containers_Proposal.pdf](https://image.slidesharecdn.com/plug-talk-140911095441-phpapp02/75/The-Docker-Gauntlet-Introduction-Ecosystem-Deployment-Orchestration-111-2048.jpg)
Uploaded byErica Windisch
The Docker "Gauntlet" - Introduction, Ecosystem, Deployment, Orchestration
This document summarizes Docker's growth over 15 months, including its community size, downloads, projects on GitHub, enterprise support offerings, and the Docker platform which includes the Docker Engine, Docker Hub, and partnerships. It also provides overviews of key Docker technologies like libcontainer, libchan, libswarm, and how images work in Docker.
More Related Content
![Docker for Developers - php[tek] 2017](https://cdn.slidesharecdn.com/ss_thumbnails/dockerfordevelopers-trainingtek2017-170523133513-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to The Docker "Gauntlet" - Introduction, Ecosystem, Deployment, Orchestration
The Docker "Gauntlet" - Introduction, Ecosystem, Deployment, Orchestration
- 9. Deploy services reliably& consistently • If it works locally, it will work on the server • With exactly the same behavior • Regardless of versions • Regardless of distros • Regardless of dependencies

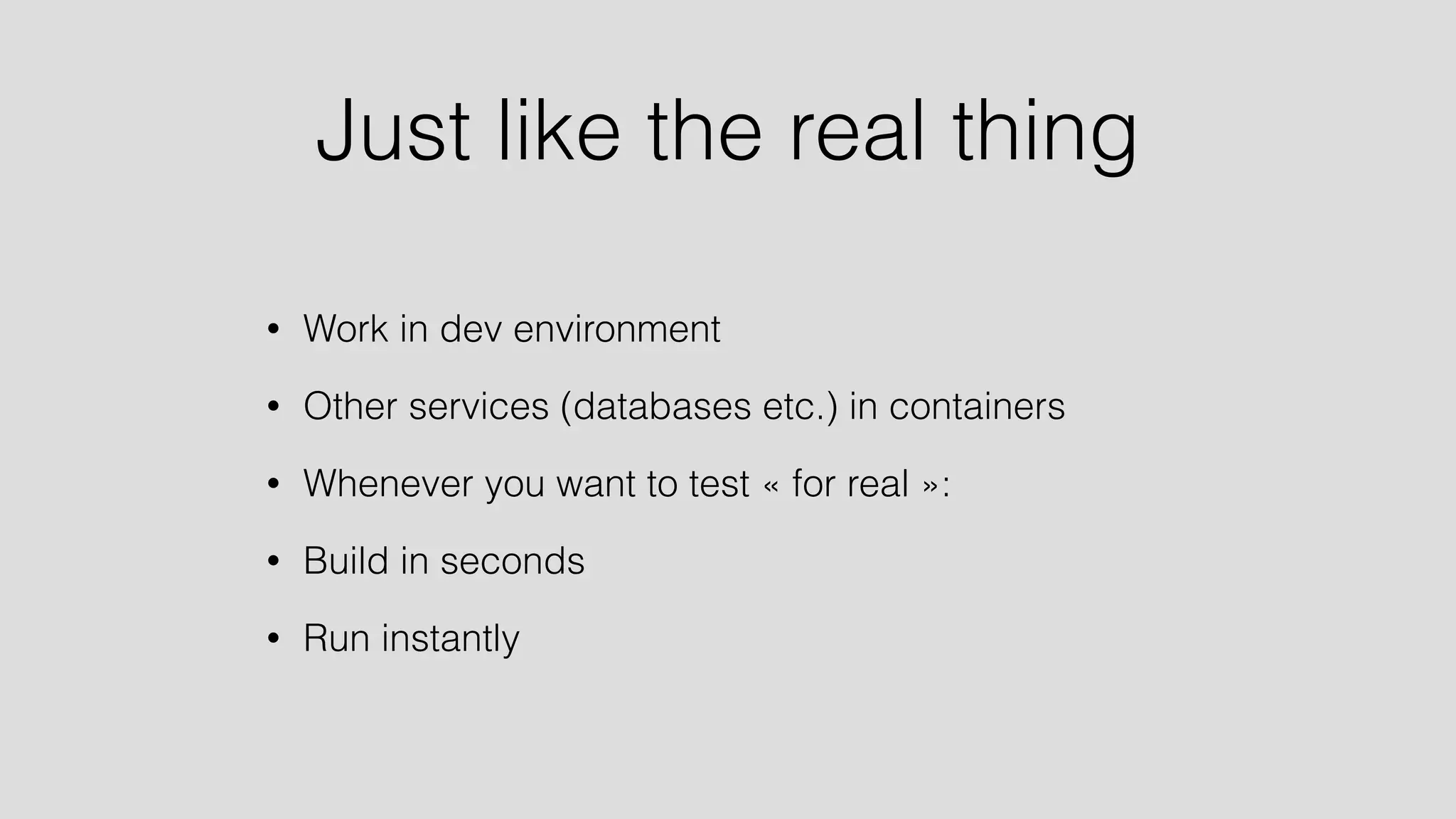

- 11. Just like thereal thing • Work in dev environment • Other services (databases etc.) in containers • Whenever you want to test « for real »: • Build in seconds • Run instantly
- 12.

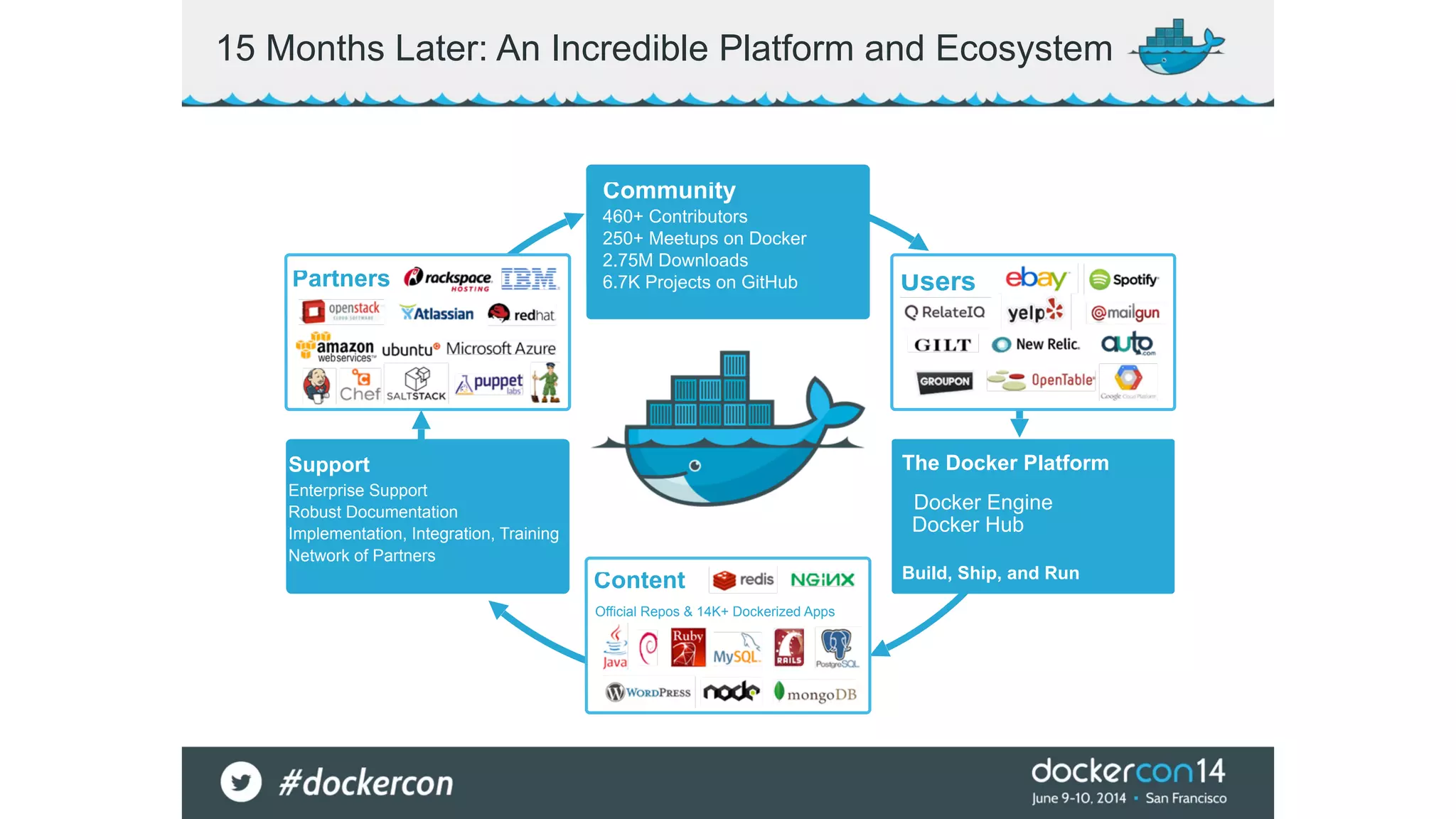

- 13. 15 Months Later:An Incredible Platform and Ecosystem Community 460+ Contributors 250+ Meetups on Docker 2.75M Downloads 6.7K Projects on GitHub Official Repos & 14K+ Dockerized Apps Support Enterprise Support Robust Documentation Implementation, Integration, Training Network of Partners The Docker Platform ! Docker Engine Docker Hub ! Build, Ship, and Run Partners Content Users
- 14. 55 People anda Turtle Now up to 55 people (and our pet turtle, Gordon)

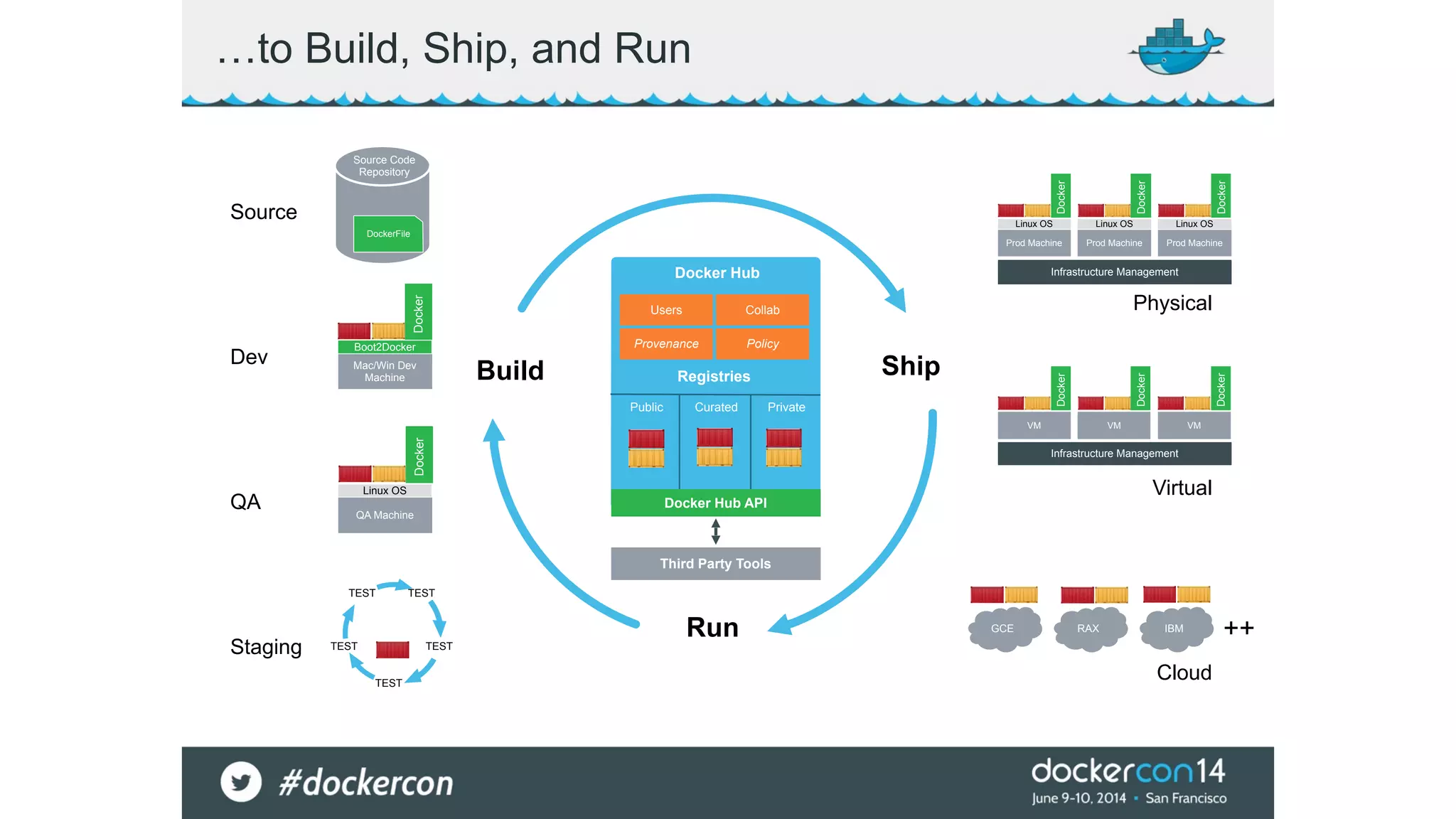

- 15. …to Build, Ship,and Run Docker Hub Build Ship Run Source Dev QA Staging Linux OS Doocckkeerr Linux OS Linux OS Doocckkeerr Infrastructure Management Physical Infrastructure Management Virtual Cloud Source Code Repository DockerFile Docker Boot2Docker Linux OS Doocckkeerr TEST TEST TEST TEST TEST GCE RAX IBM Mac/Win Dev Machine Analytics DB Prod Machine Doocckkeerr ++ Users Collab Provenance Policy Registries Public Curated Private Docker Hub API Third Party Tools Prod Machine Prod Machine VM DoDcokcekrer VM DoDcokcekrer VM DoDcokcekrer QA Machine

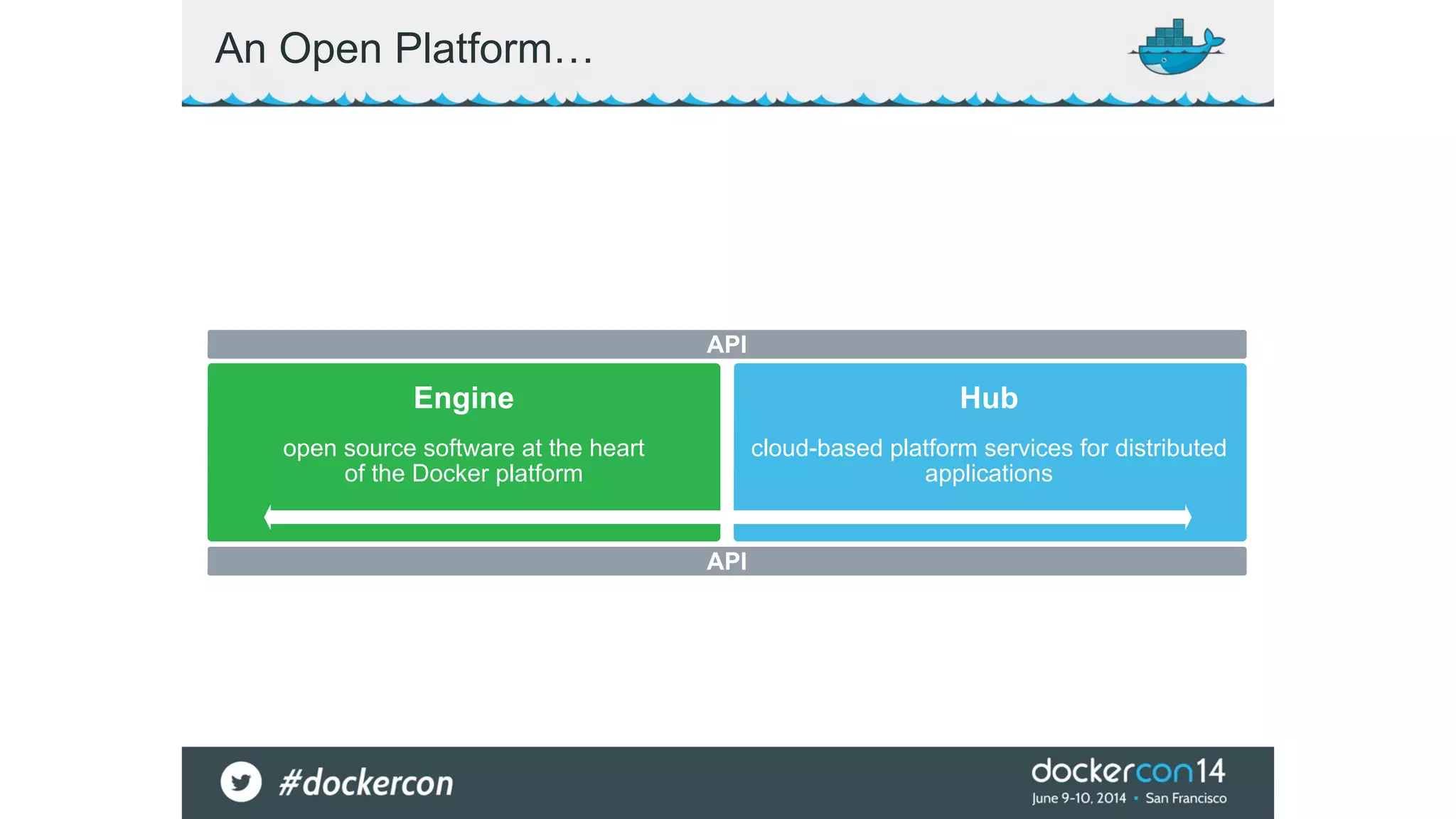

- 16. An Open Platform… API Engine Hub open source software at the heart of the Docker platform cloud-based platform services for distributed applications API
- 17. An Introduction to the Docker Engine

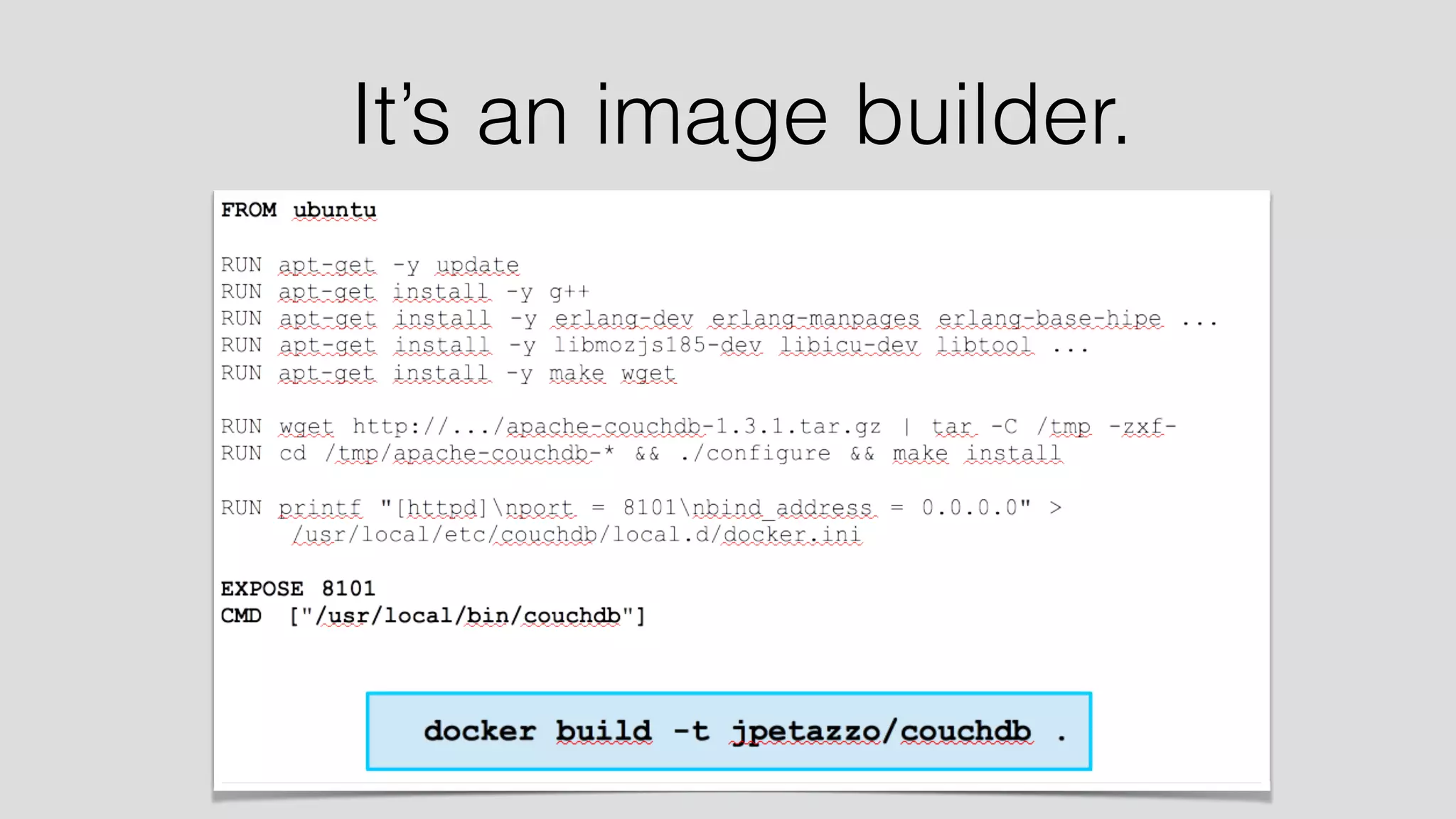

- 18. It’s an imagebuilder.

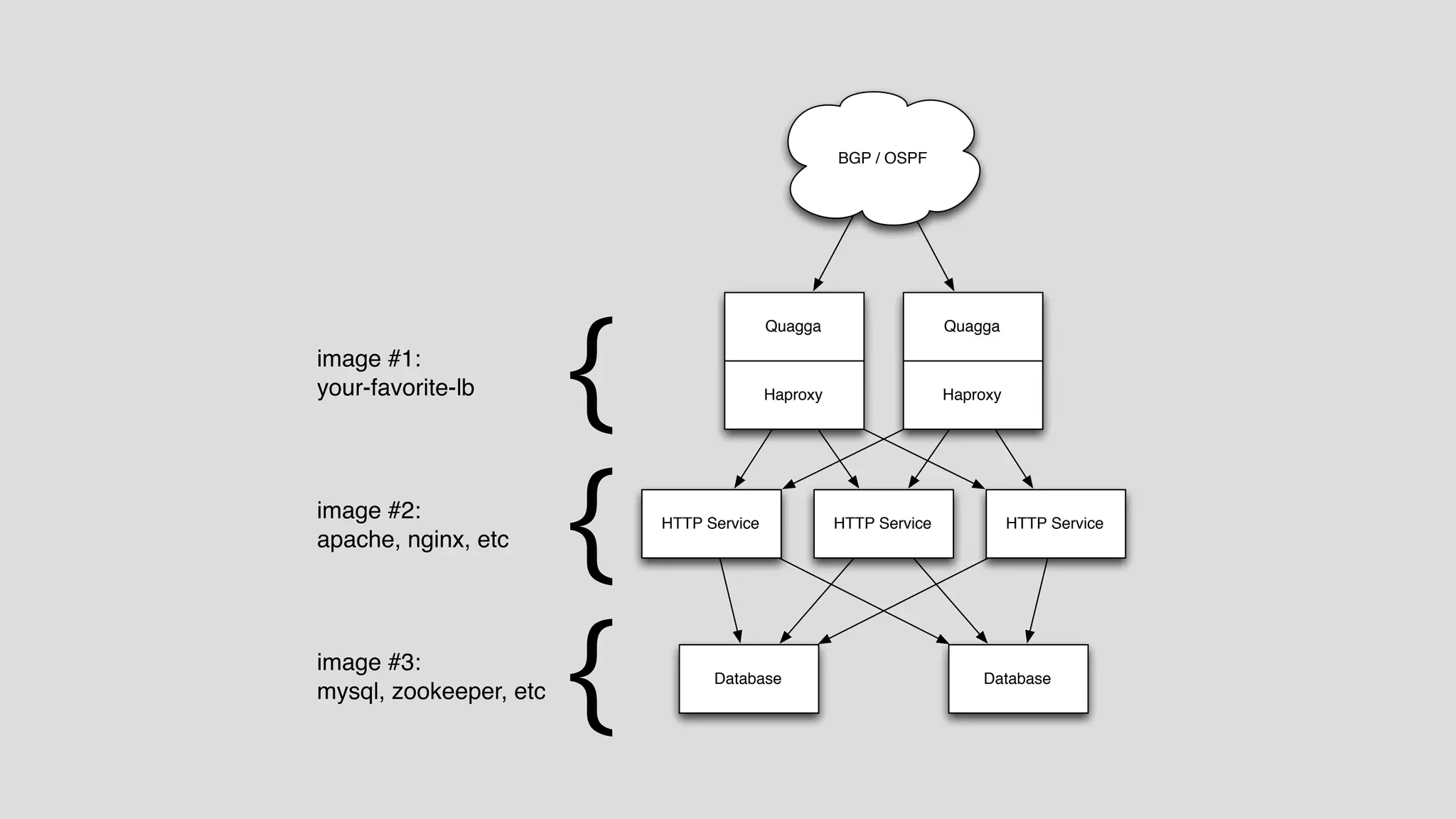

- 19. Quagga Quagga HaproxyHaproxy HTTP Service HTTP Service HTTP Service Database BGP / OSPF Database { { { image #1: your-favorite-lb image #2: apache, nginx, etc image #3: mysql, zookeeper, etc

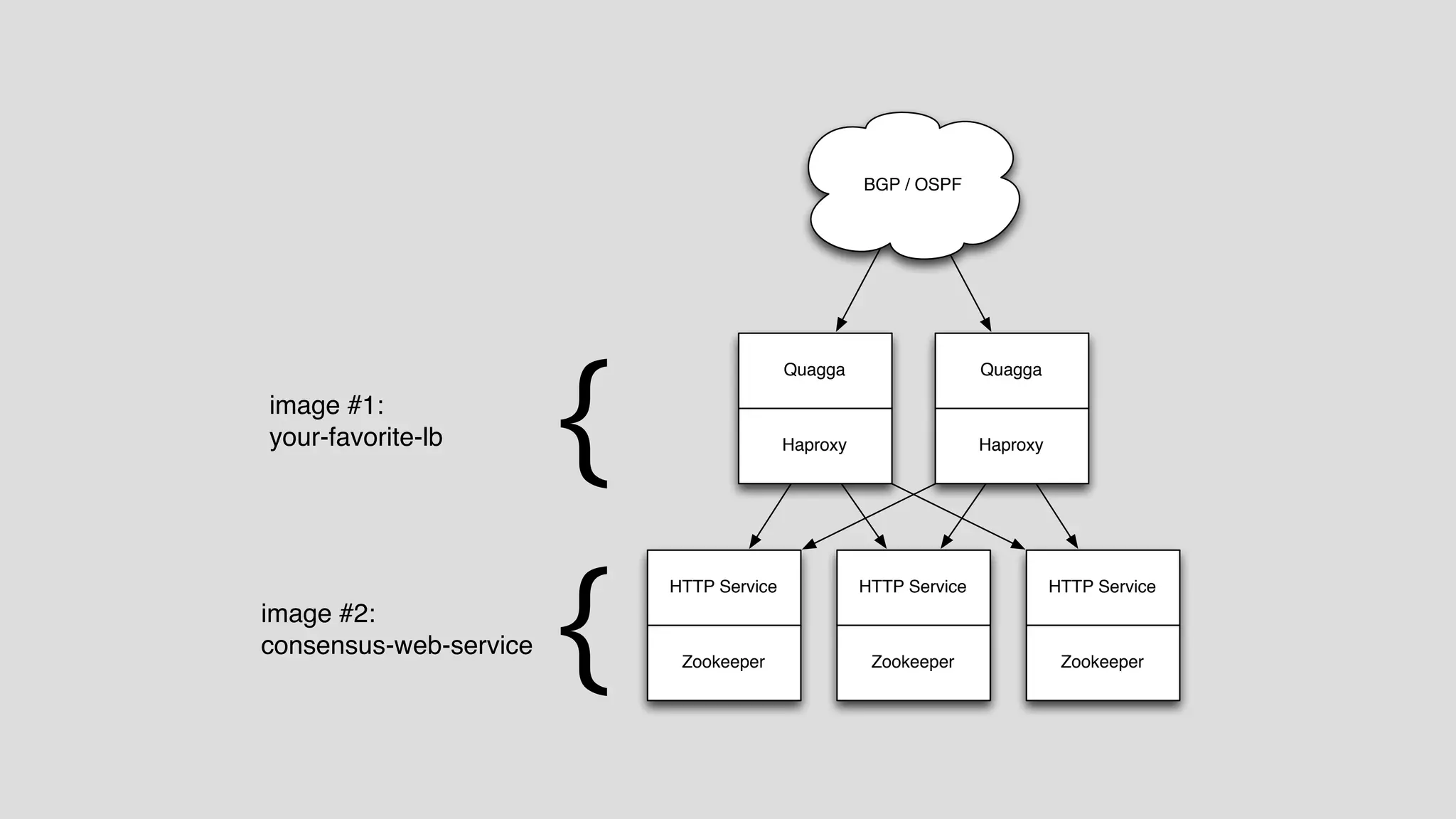

- 20. BGP / OSPF Quagga Quagga HTTP Service HTTP Service HTTP Service Zookeeper Haproxy Haproxy Zookeeper { { image #1: your-favorite-lb image #2: consensus-web-service Zookeeper

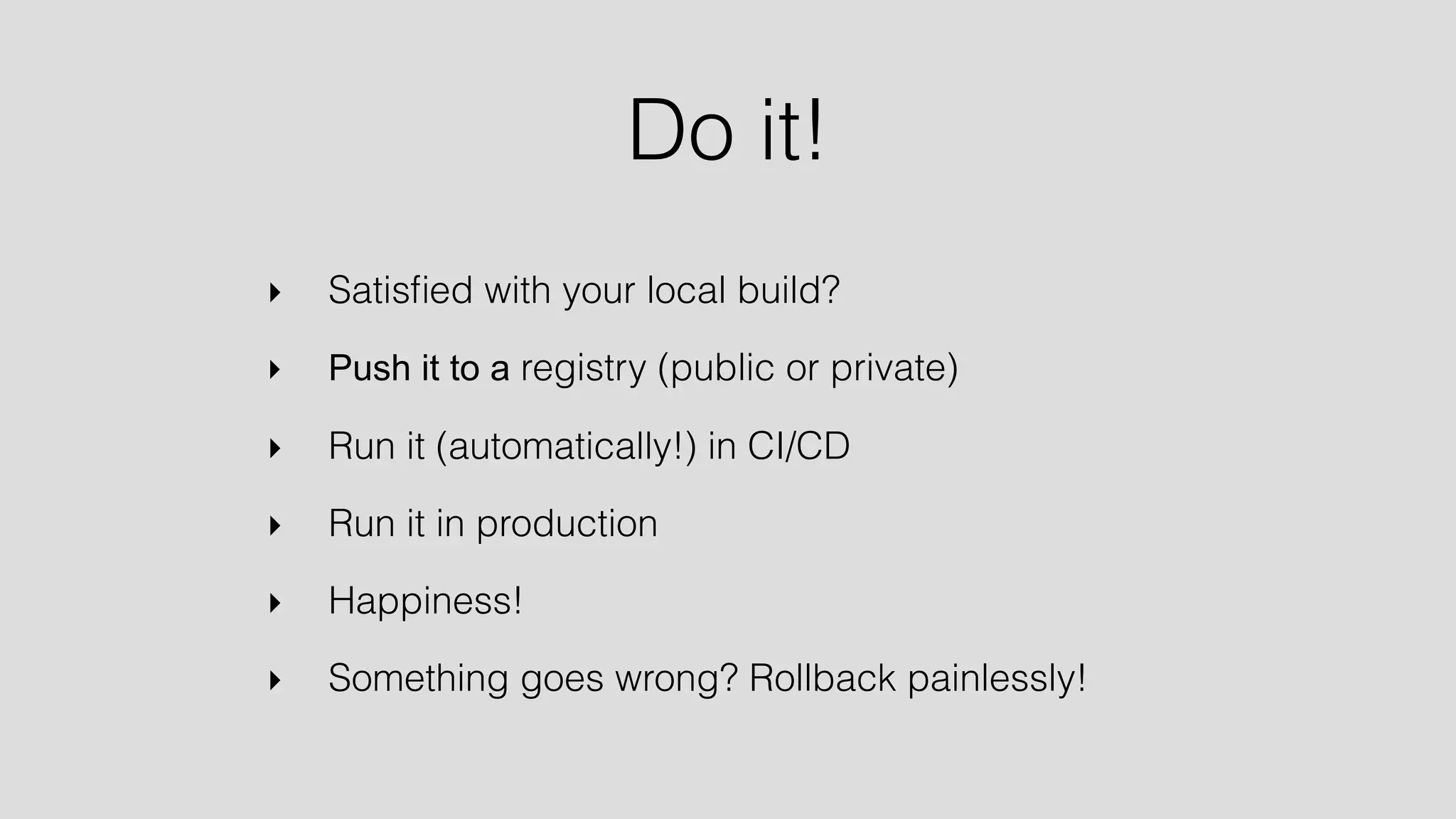

- 22. Do it! ‣Satisfied with your local build? ‣ Push it to a registry (public or private) ‣ Run it (automatically!) in CI/CD ‣ Run it in production ‣ Happiness! ‣ Something goes wrong? Rollback painlessly!
- 23.

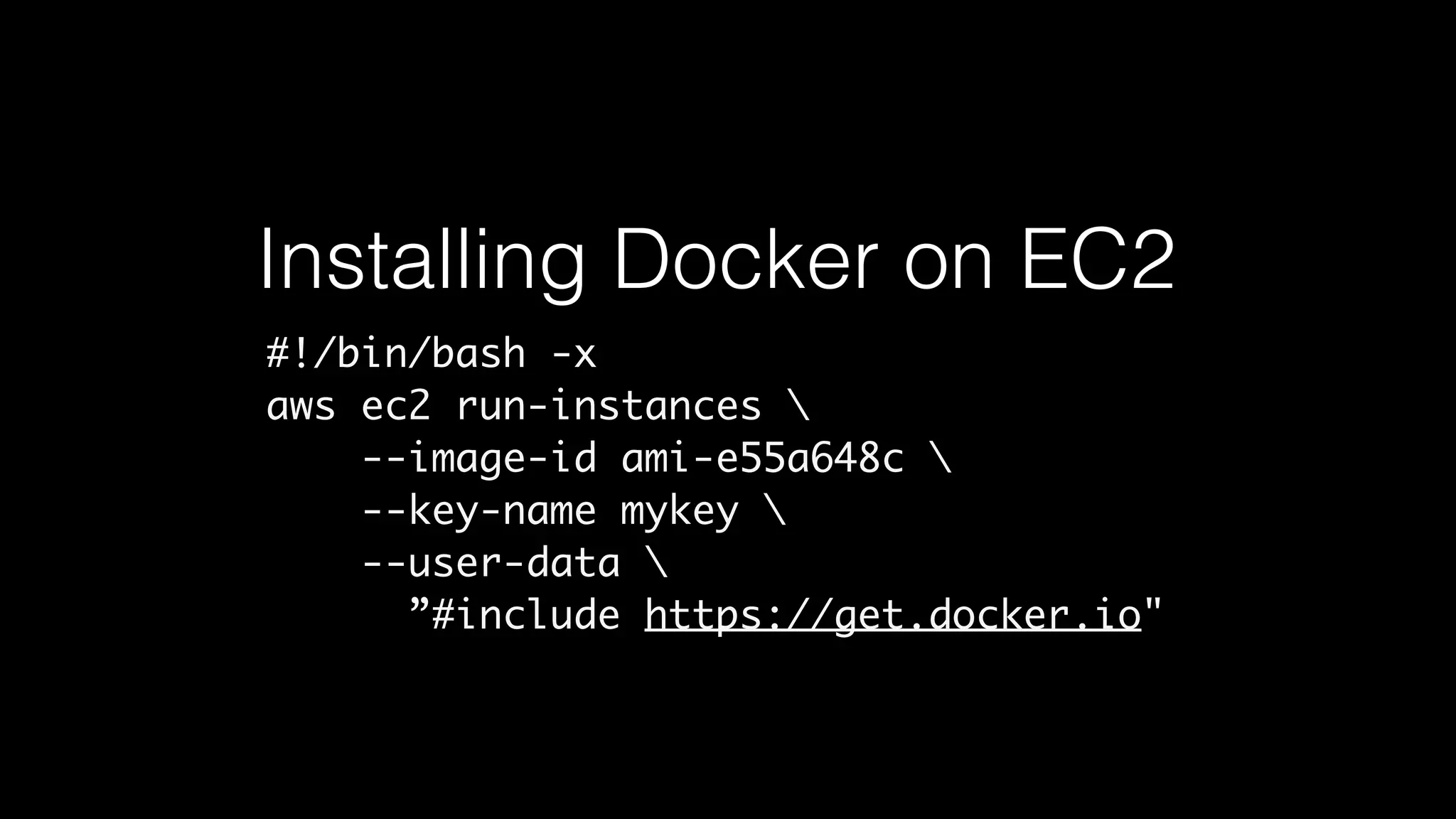

- 24. Installing Docker onEC2 #!/bin/bash -x aws ec2 run-instances --image-id ami-e55a648c --key-name mykey --user-data ”#include https://get.docker.io"

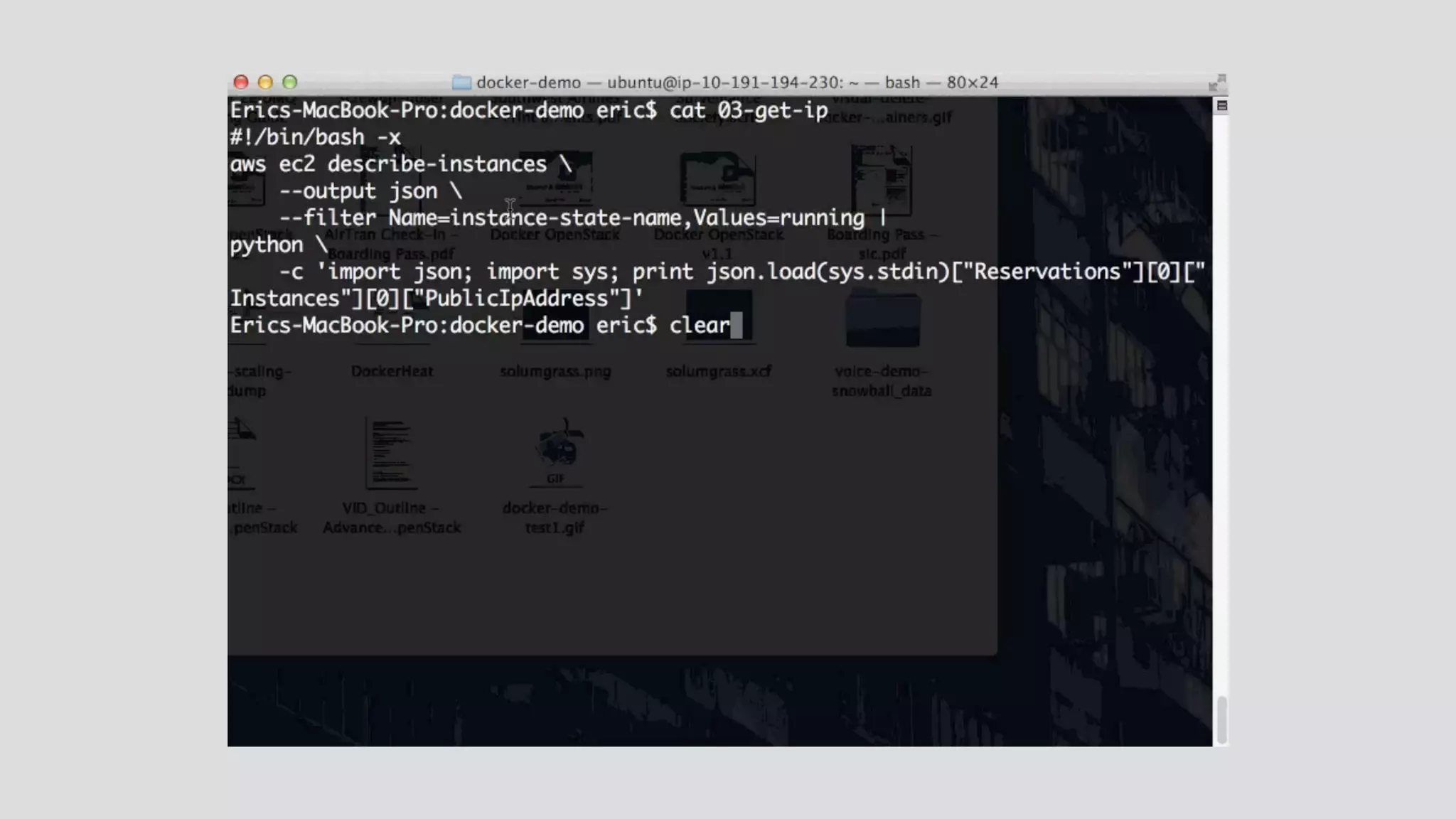

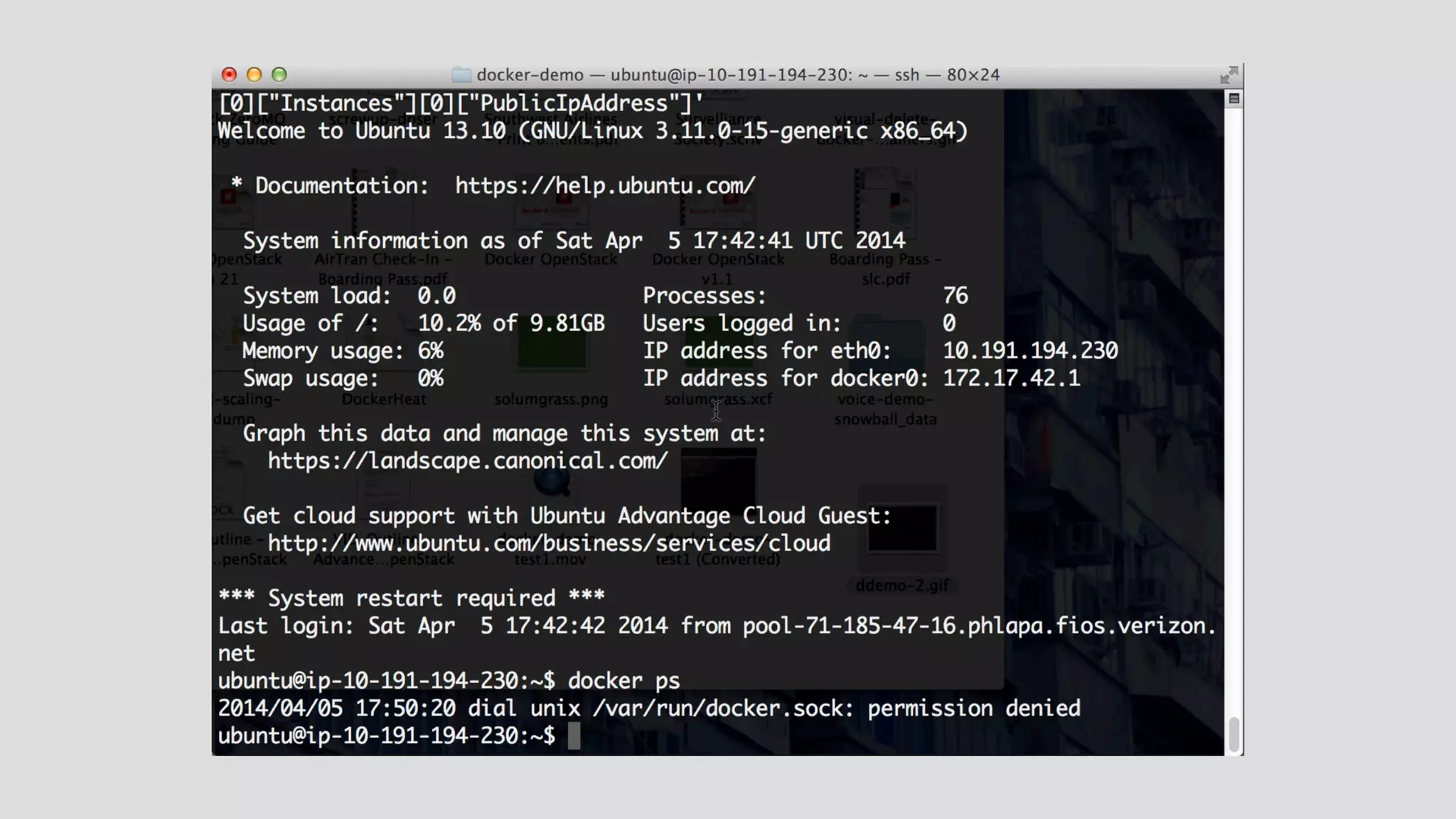

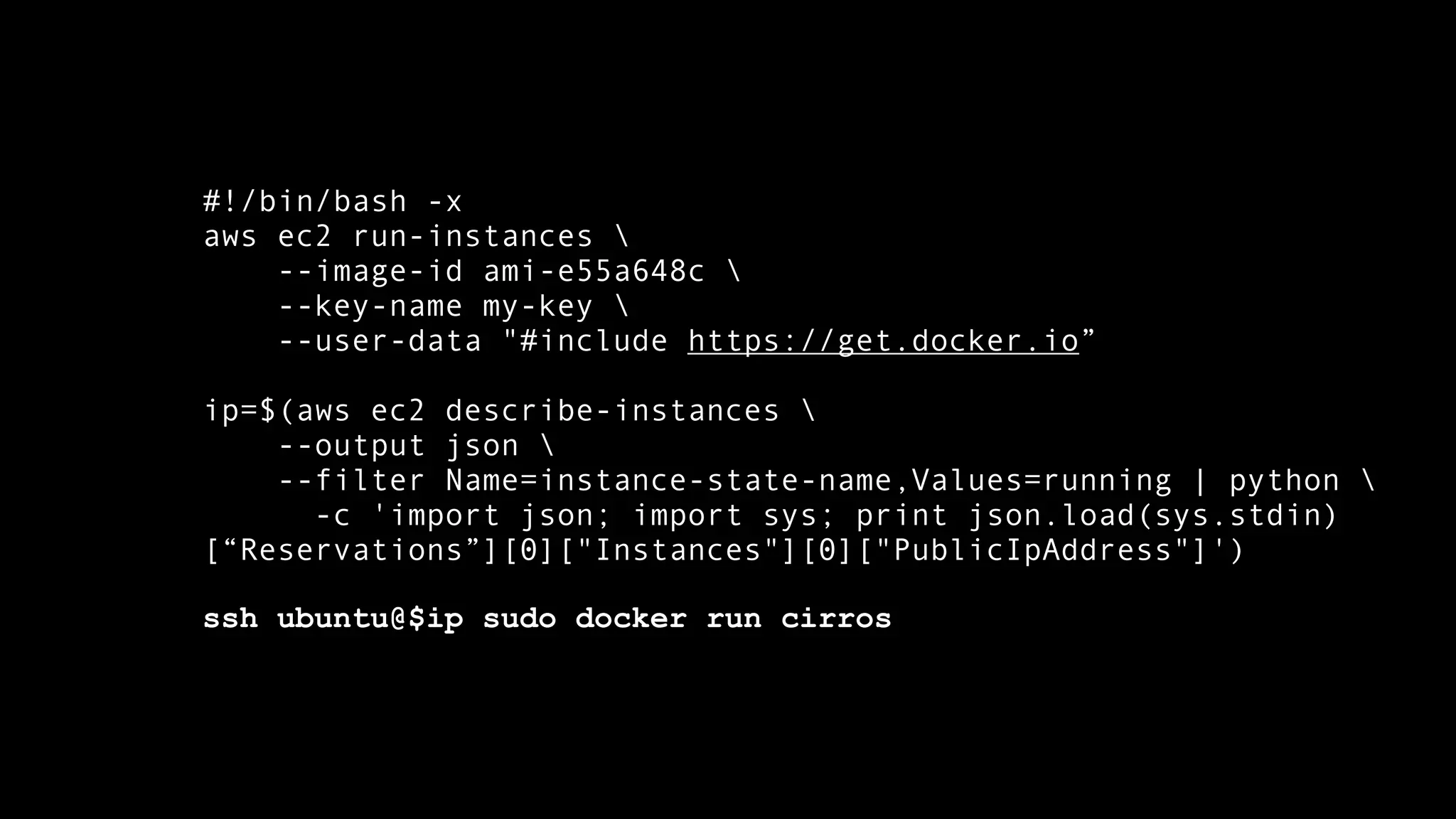

- 25. #!/bin/bash -x awsec2 run-instances --image-id ami-e55a648c --key-name my-key --user-data "#include https://get.docker.io” ip=$(aws ec2 describe-instances --output json --filter Name=instance-state-name,Values=running | python -c 'import json; import sys; print json.load(sys.stdin) [“Reservations”][0]["Instances"][0]["PublicIpAddress"]') ssh ubuntu@$ip sudo docker run cirros

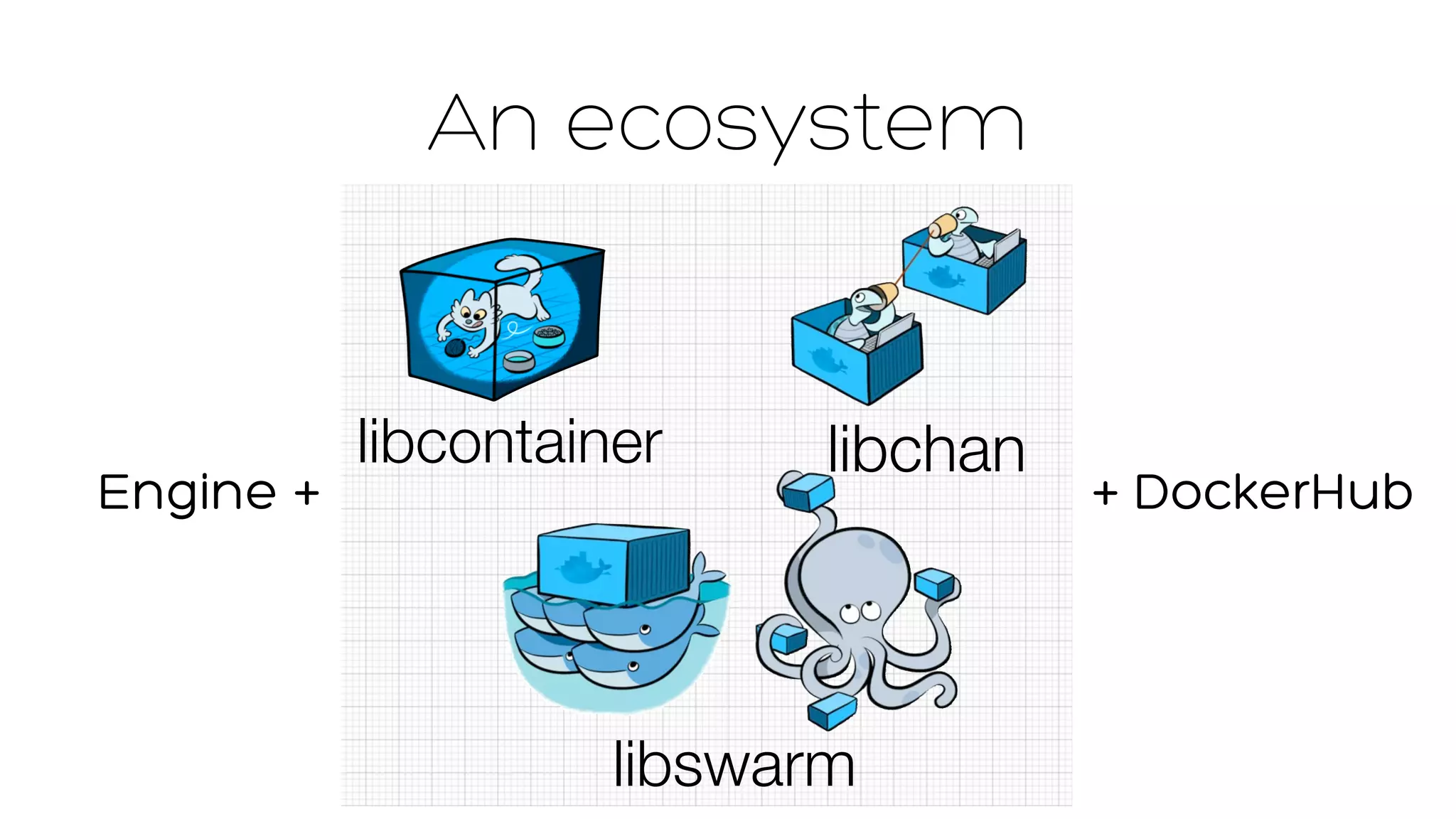

- 34. An ecosystem libcontainerlibchan Engine + + DockerHub libswarm

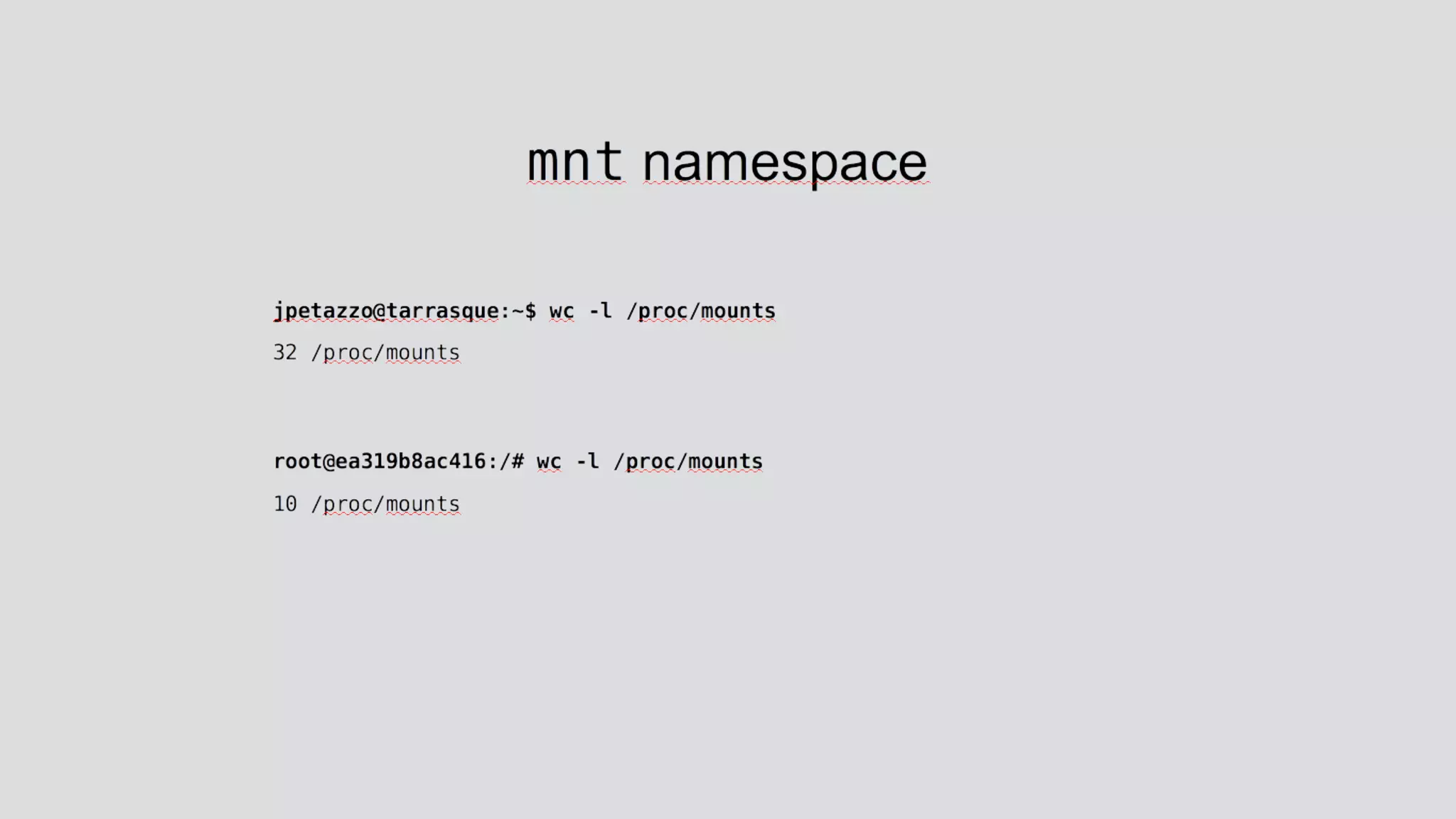

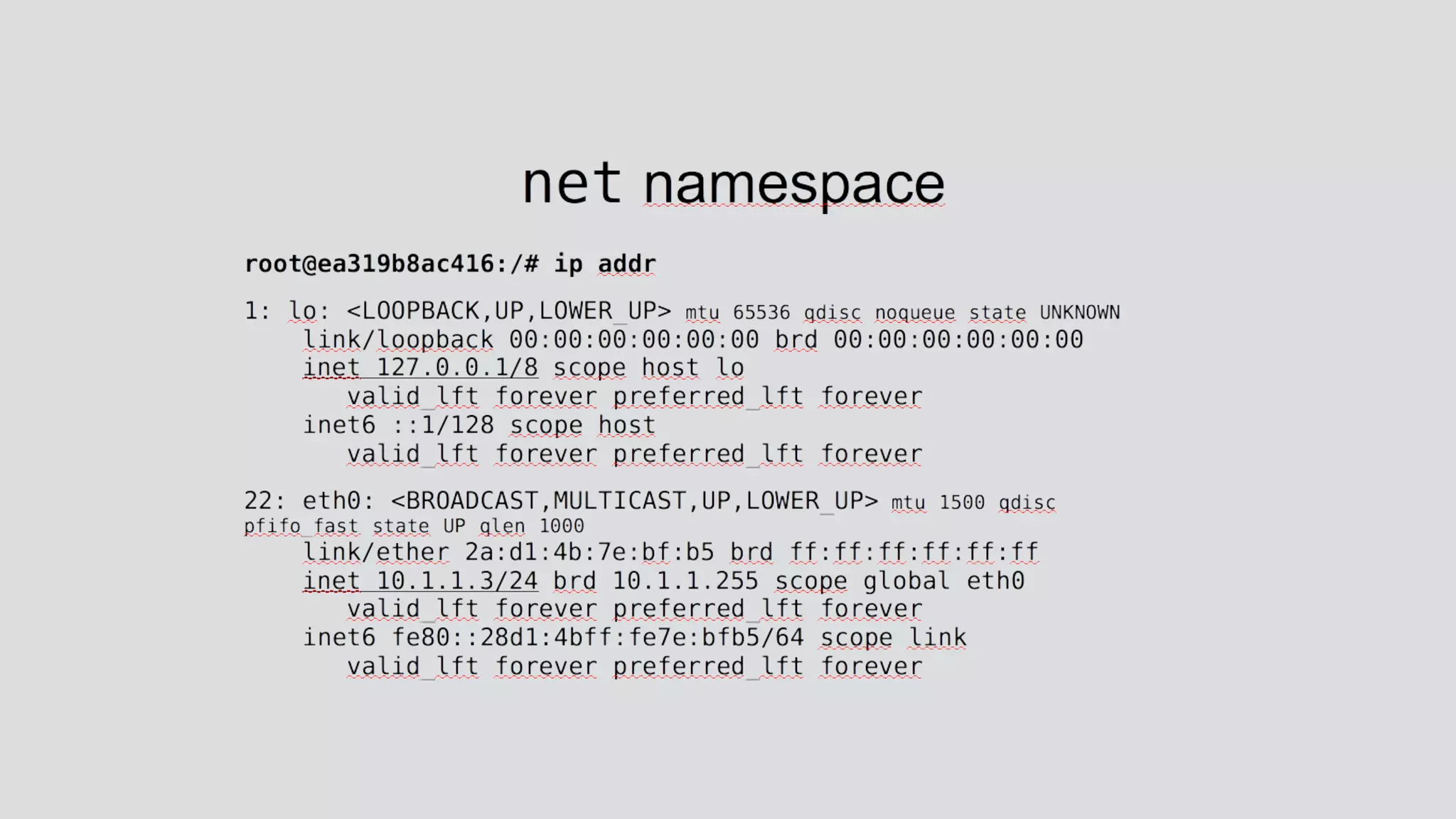

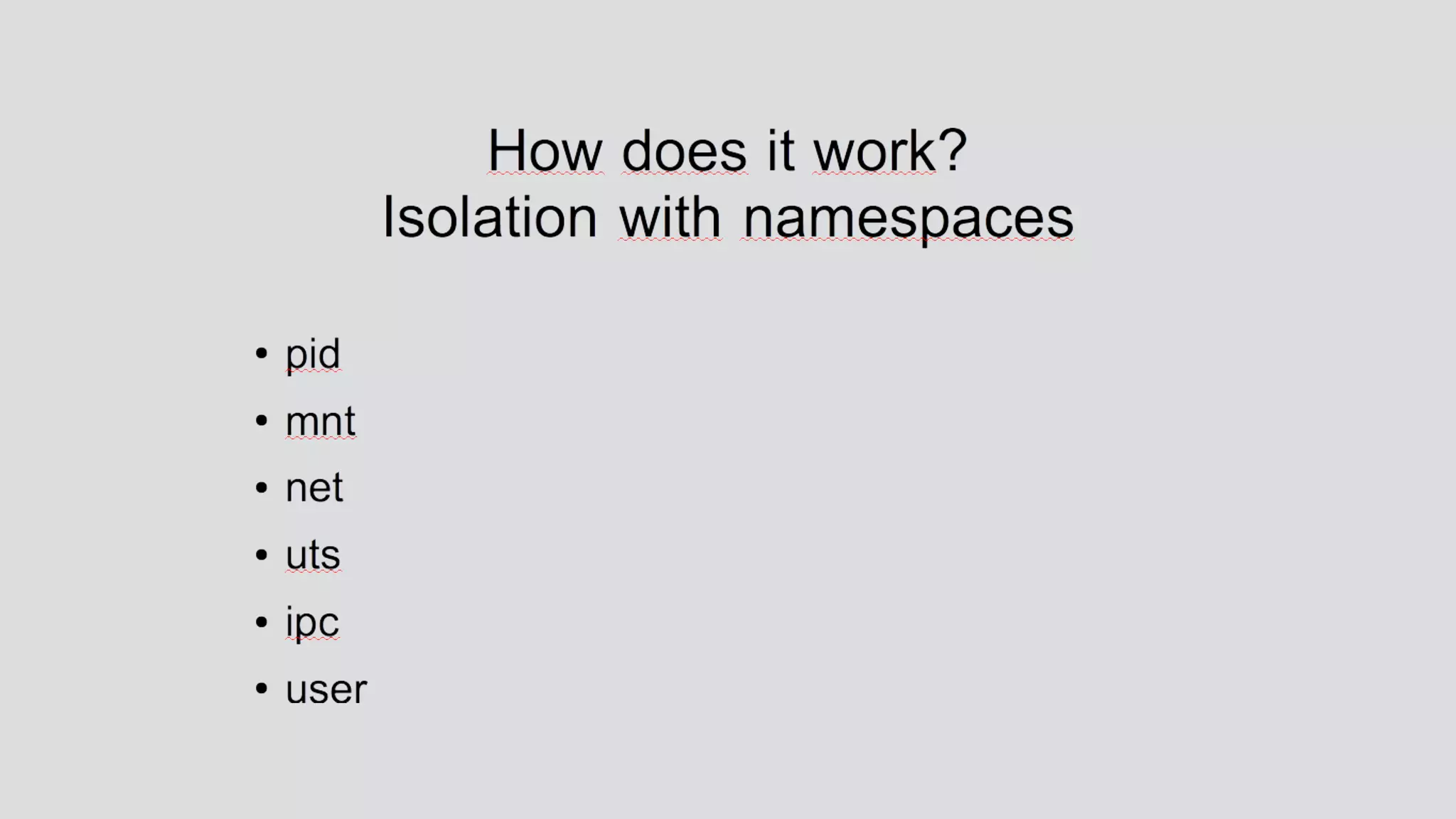

- 35. libcontainer… a storyof Linux namespaces

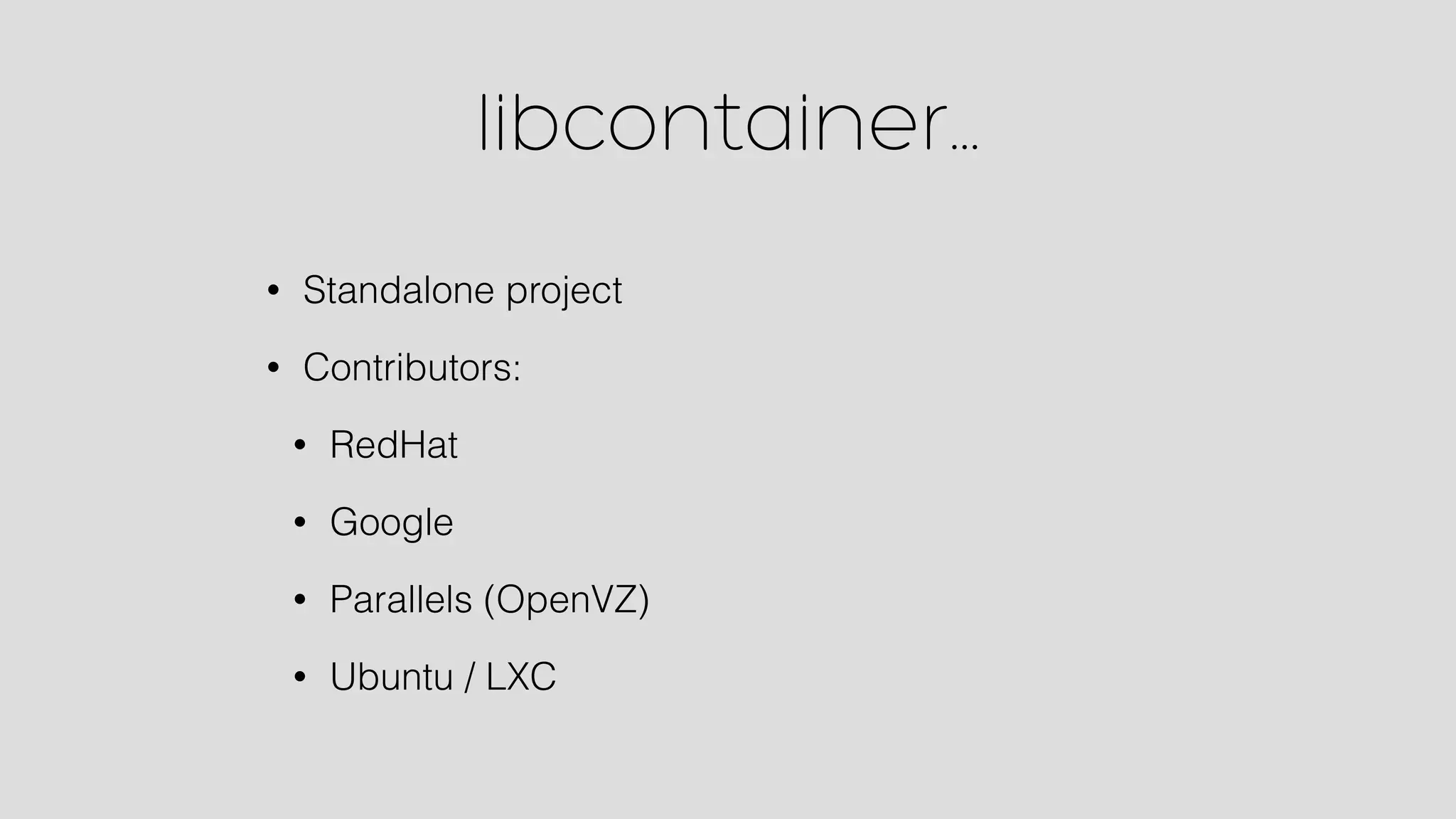

- 36. libcontainer… • Standaloneproject • Contributors: • RedHat • Google • Parallels (OpenVZ) • Ubuntu / LXC
- 44.
- 52.

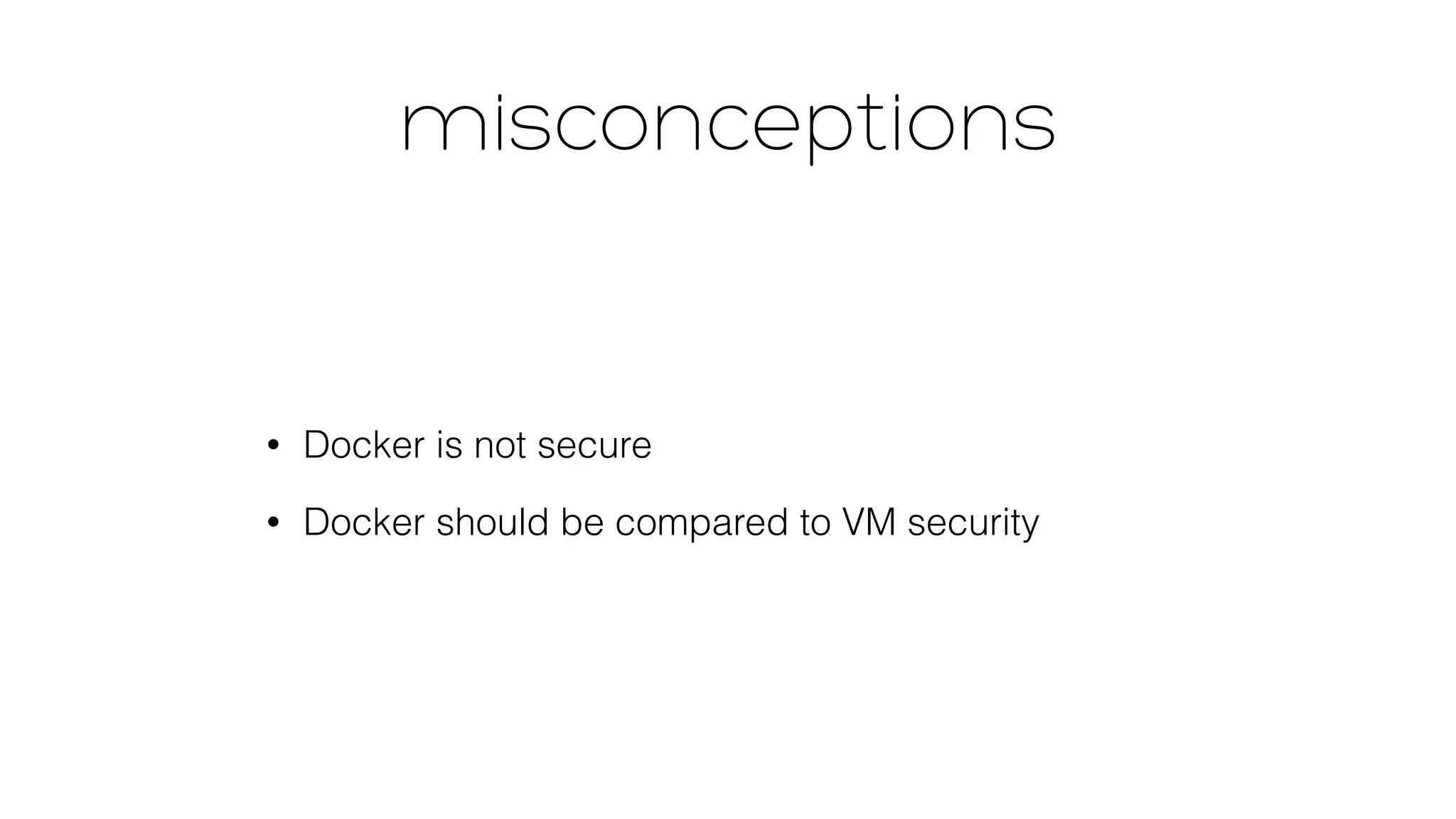

- 53. misconceptions • Dockeris not secure • Docker should be compared to VM security

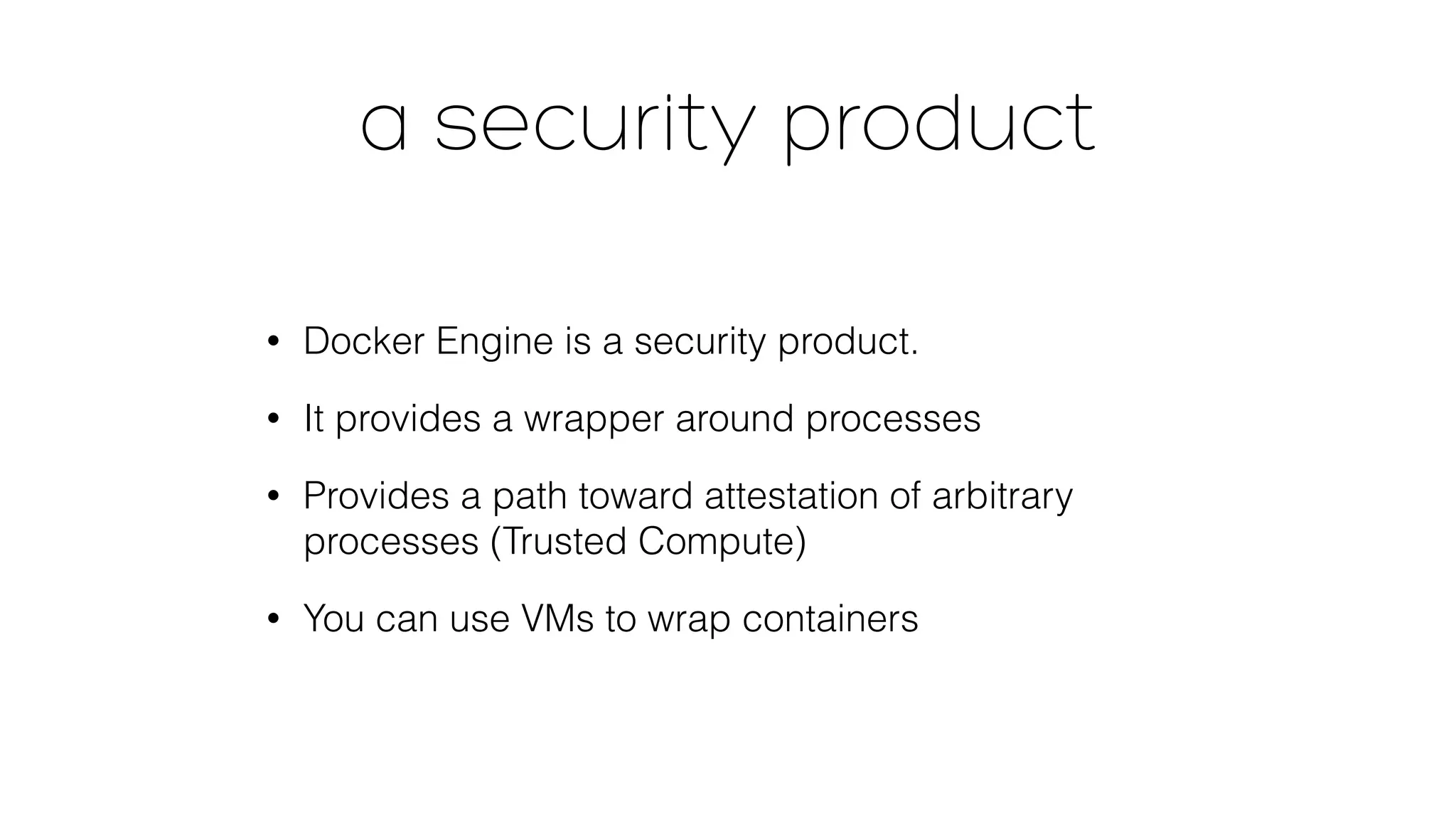

- 55. a security product • Docker Engine is a security product. • It provides a wrapper around processes • Provides a path toward attestation of arbitrary processes (Trusted Compute) • You can use VMs to wrap containers

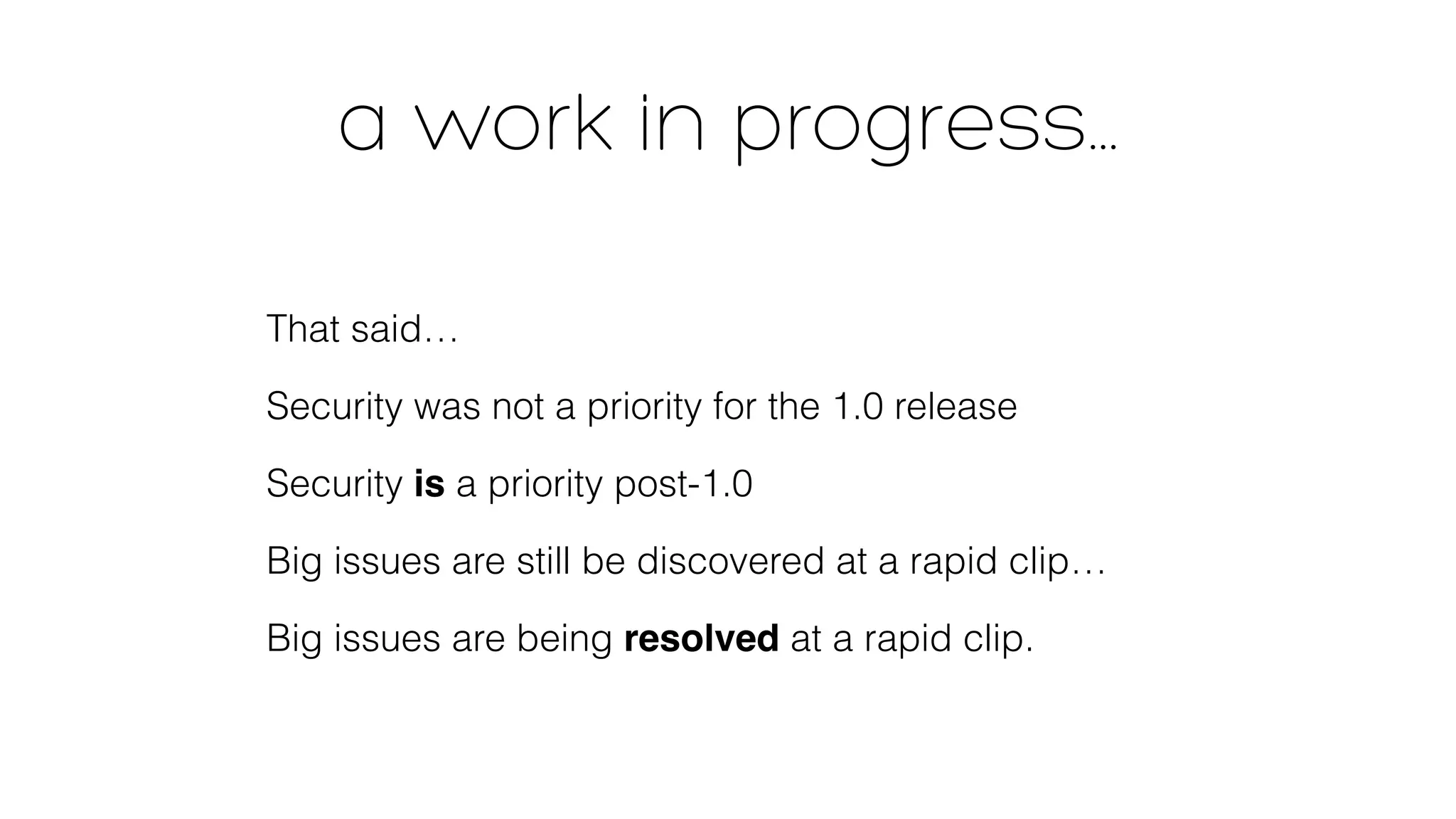

- 56. a work inprogress… That said… Security was not a priority for the 1.0 release Security is a priority post-1.0 Big issues are still be discovered at a rapid clip… Big issues are being resolved at a rapid clip.
- 57. libchan a lightweightcommunication protocol for distributed systems Tuesday, June 10, 14 25

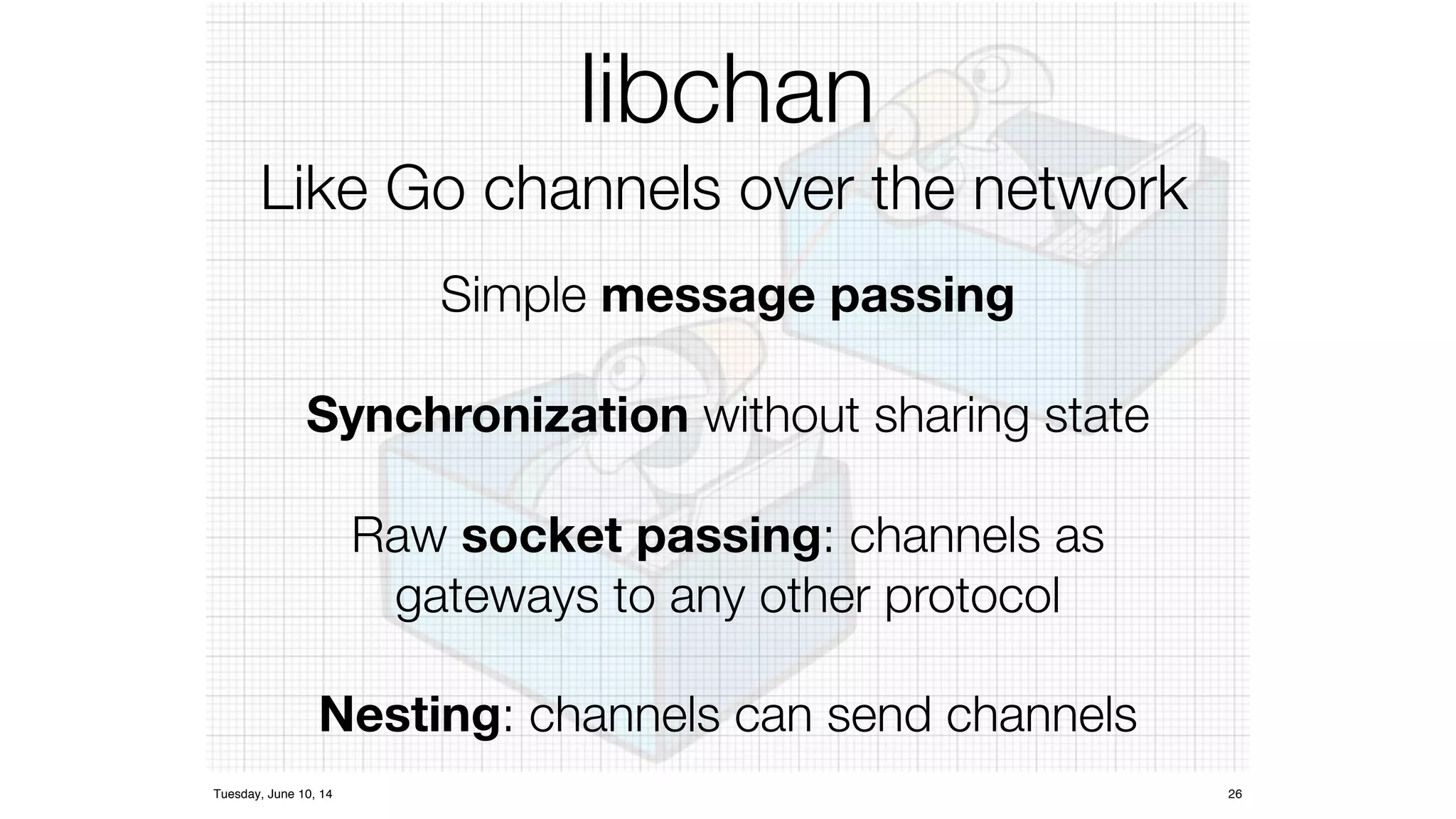

- 58. libchan Like Gochannels over the network Simple message passing Synchronization d without sharing state Raw socket passing: channels as gateways to any other protocol Nesting: channels can send channels Tuesday, June 10, 14 26

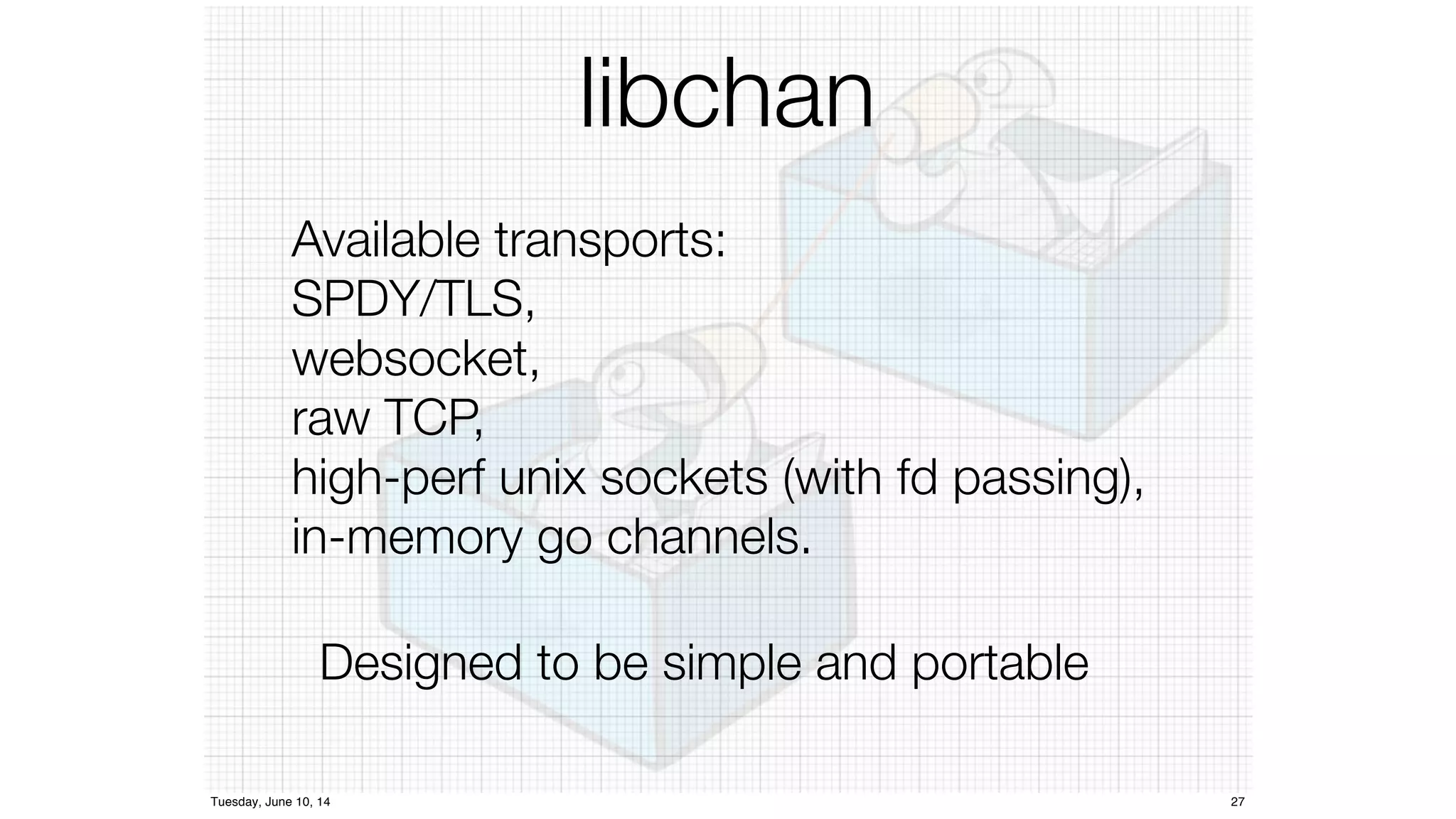

- 59. libchan Available transports: SPDY/TLS, websocket, raw TCP, high-perf unix sockets (with fd passing), in-memory go channels. Designed to be simple and portable Tuesday, June 10, 14 27
- 60. libswarm A minimalisttoolkit to compose network services Tuesday, June 10, 14 39

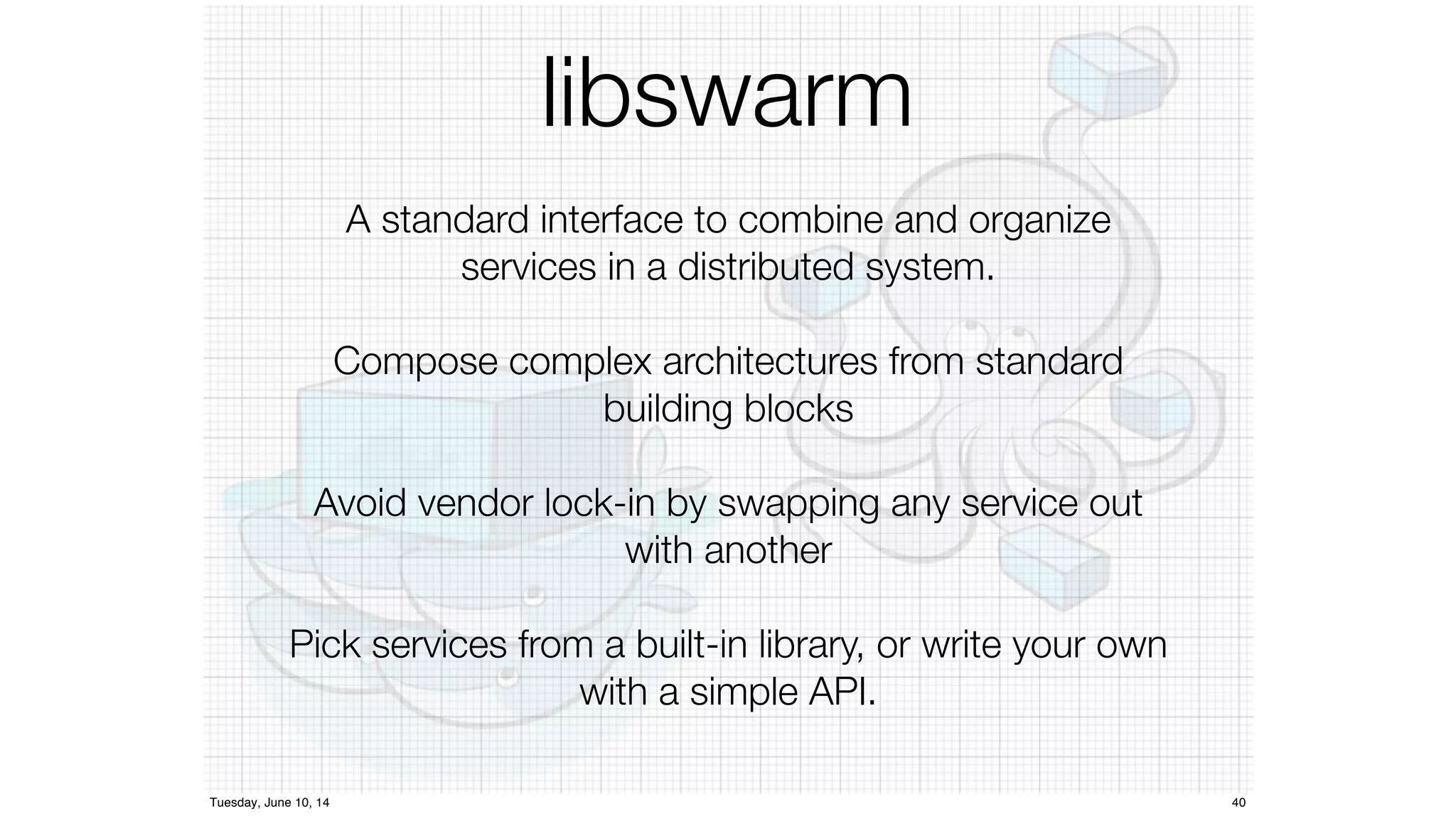

- 61. libswarm A standardinterface to combine and organize services in a distributed system. Compose complex architectures from standard building blocks Avoid vendor lock-in by swapping any service out with another Pick services from a built-in library, or write your own with a simple API. Tuesday, June 10, 14 40

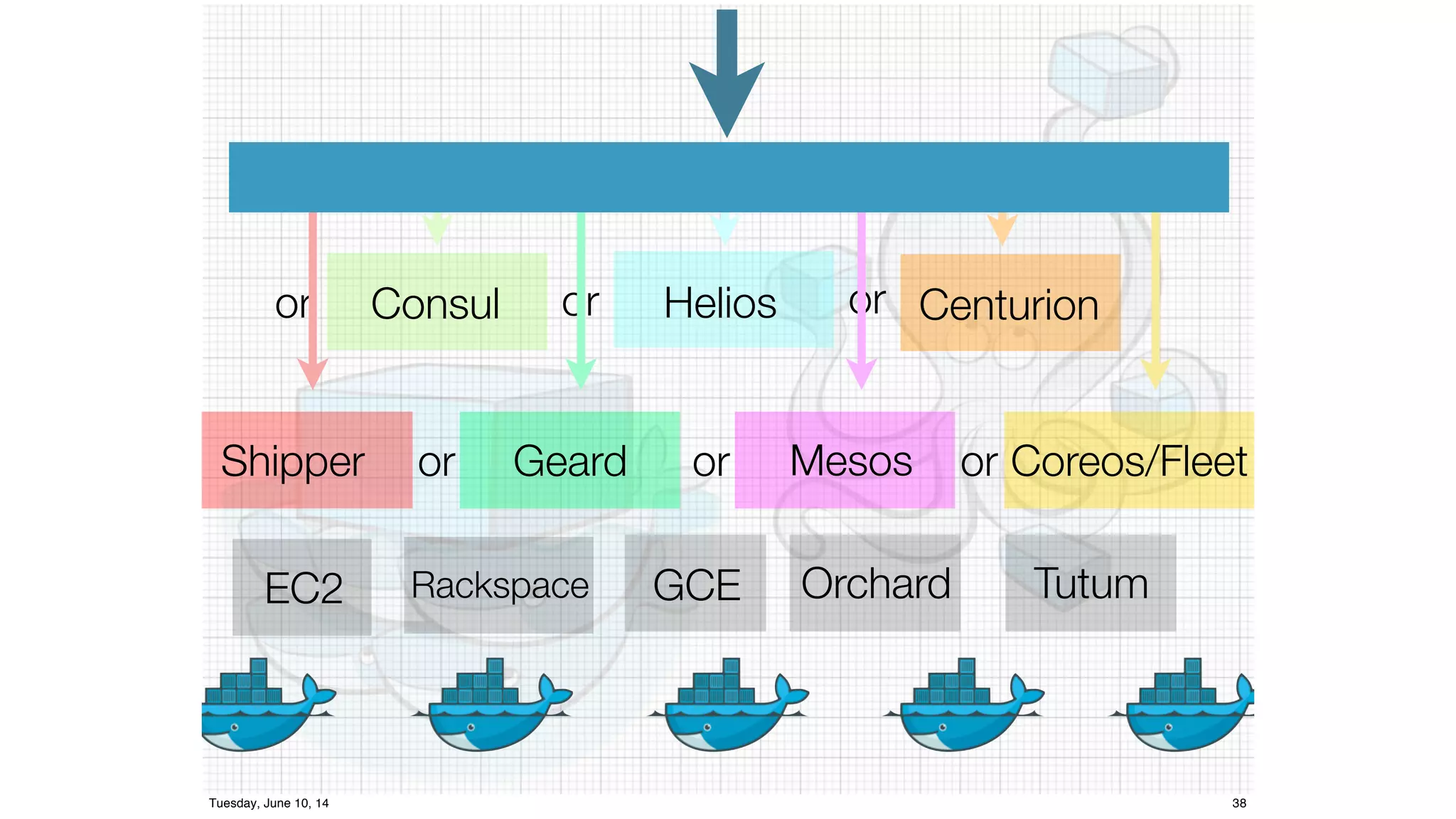

- 62. or Consul orHelios or Centurion Shipper or Geard or Mesos or Coreos/Fleet EC2 Rackspace GCE Orchard Tutum Tuesday, June 10, 14 38
- 63. Images… and anew way of looking at infrastructure

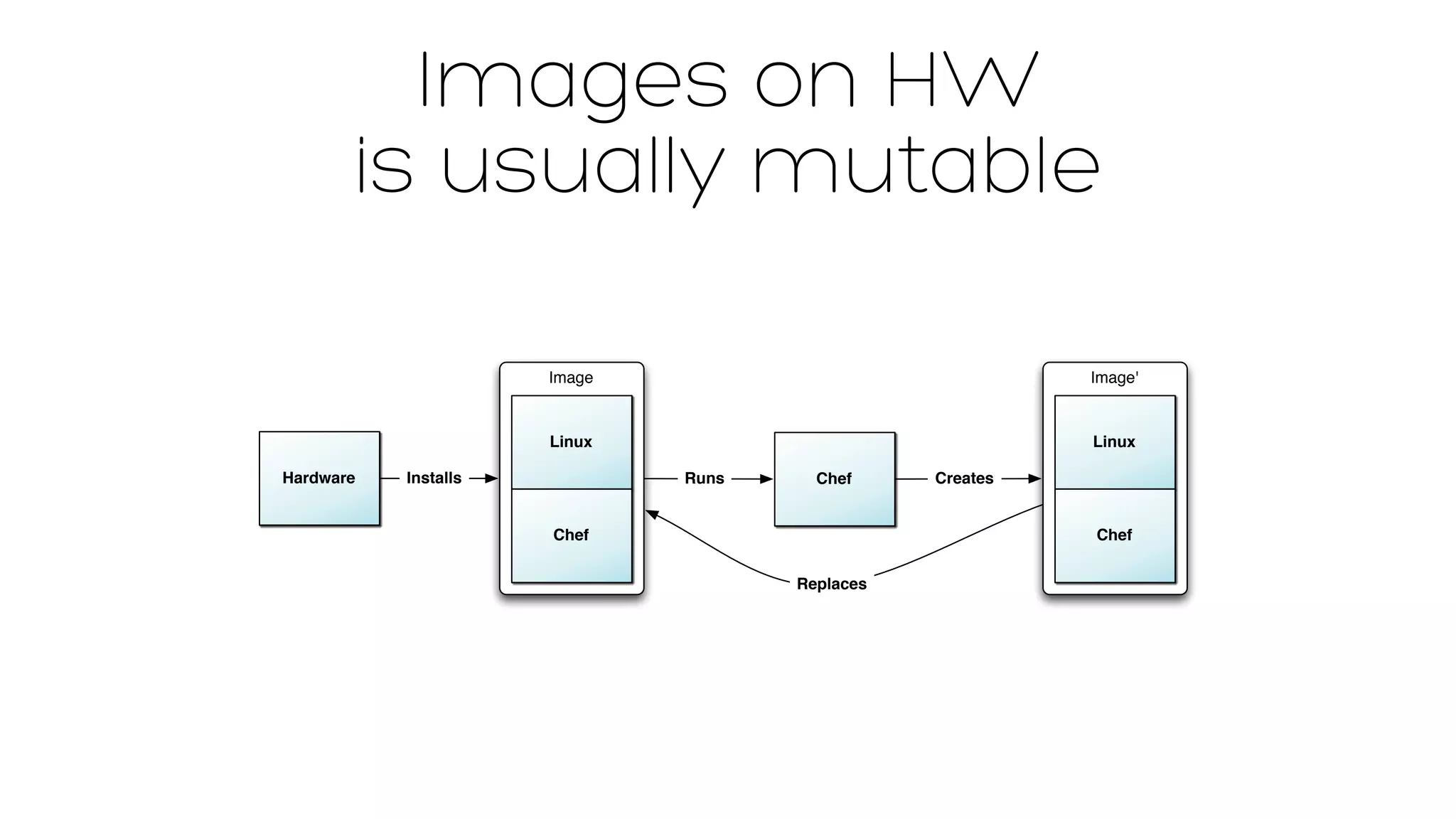

- 64. Images on HW is usually mutable Hardware Image Linux Installs Chef Chef Image' Linux Chef Creates Replaces Runs

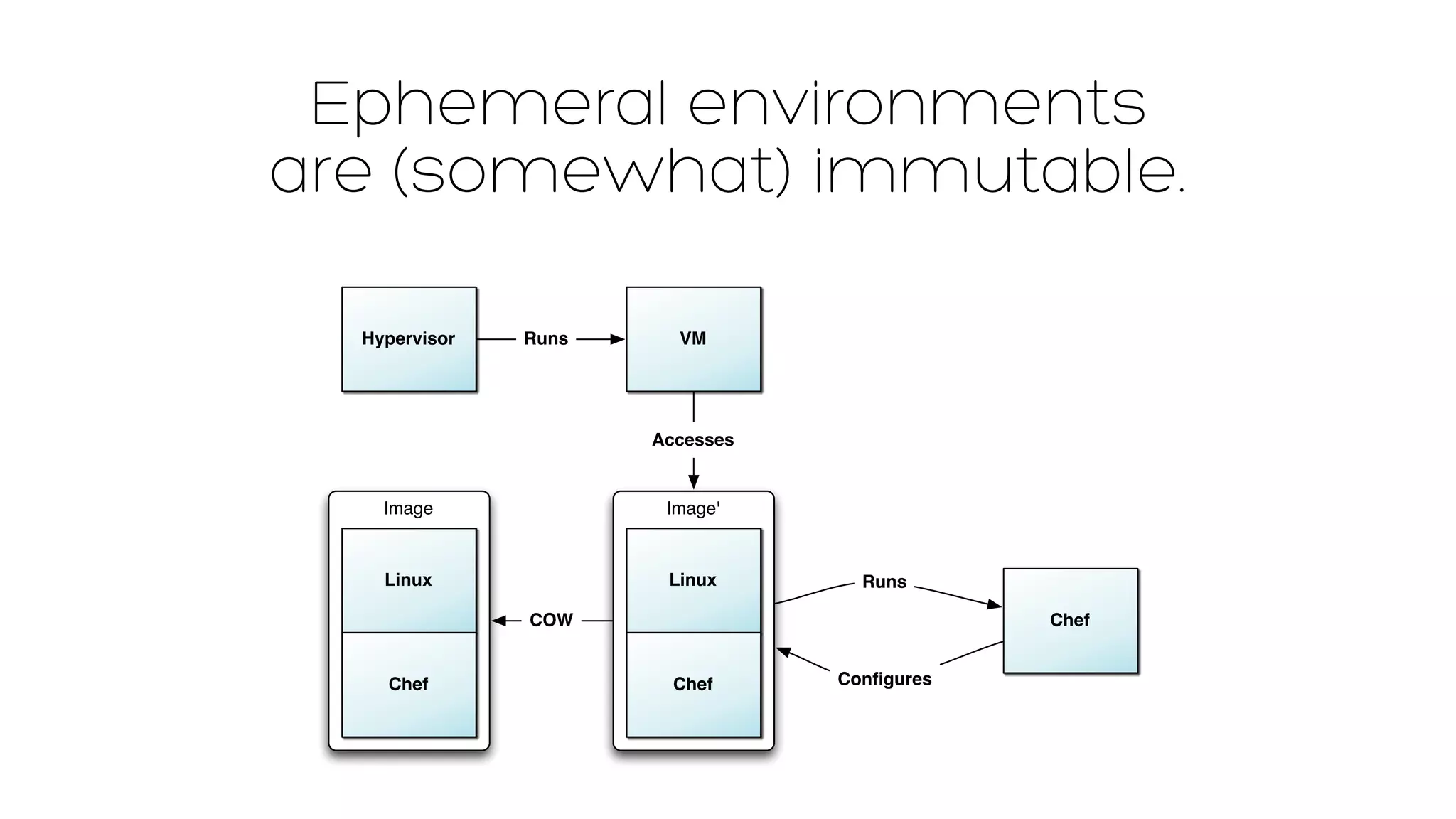

- 65. Ephemeral environments are(somewhat) immutable. Hypervisor Image Linux Chef Runs Image' Linux Chef Chef Runs Configures VM Accesses COW

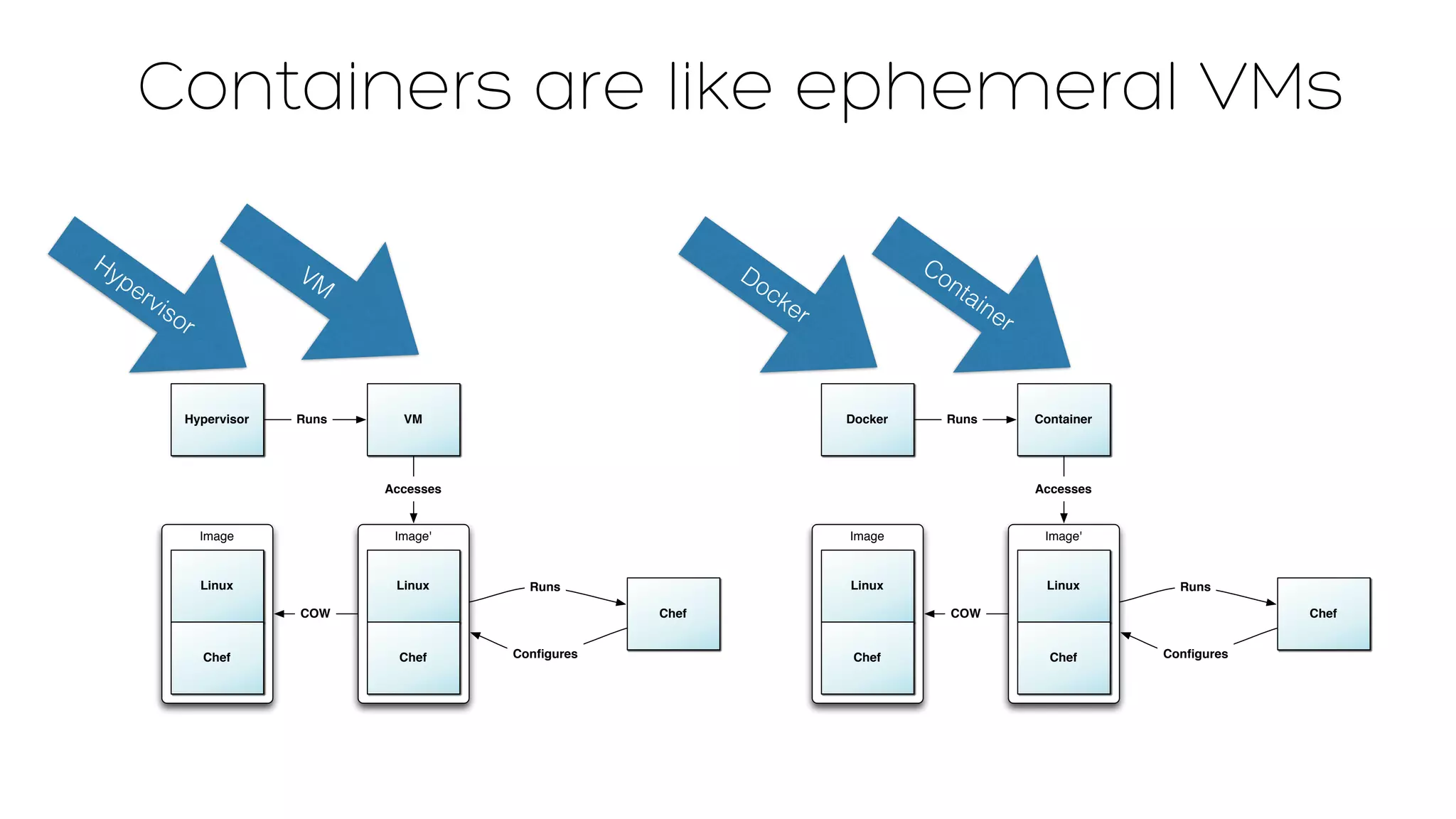

- 66. Containers are likeephemeral VMs Docker Image Linux Chef Runs Image' Linux Chef Chef Runs Configures Container Accesses COW Hypervisor Image Linux Chef Runs Image' Linux Chef Chef Runs Configures VM Accesses COW Hypervisor VM Docker Container

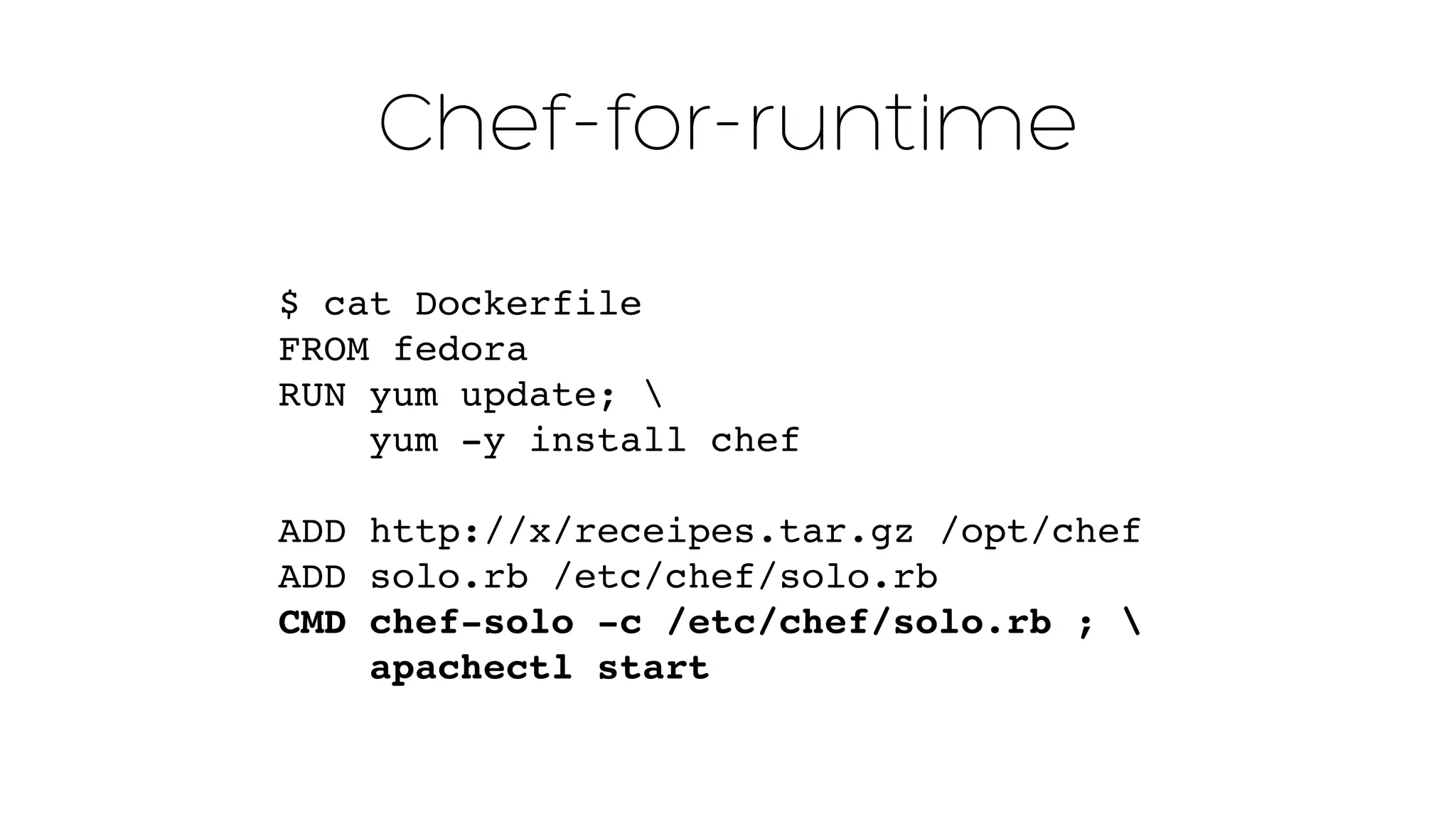

- 67. Chef-for-runtime $ catDockerfile FROM fedora RUN yum update; yum -y install chef ADD http://x/receipes.tar.gz /opt/chef" ADD solo.rb /etc/chef/solo.rb" CMD chef-solo -c /etc/chef/solo.rb ; ! apachectl start
- 74.
- 75.
- 76.
- 78. Pets vs Cattle Servers vs Things
- 79. LET US BAKE IMAGES! Let us images!

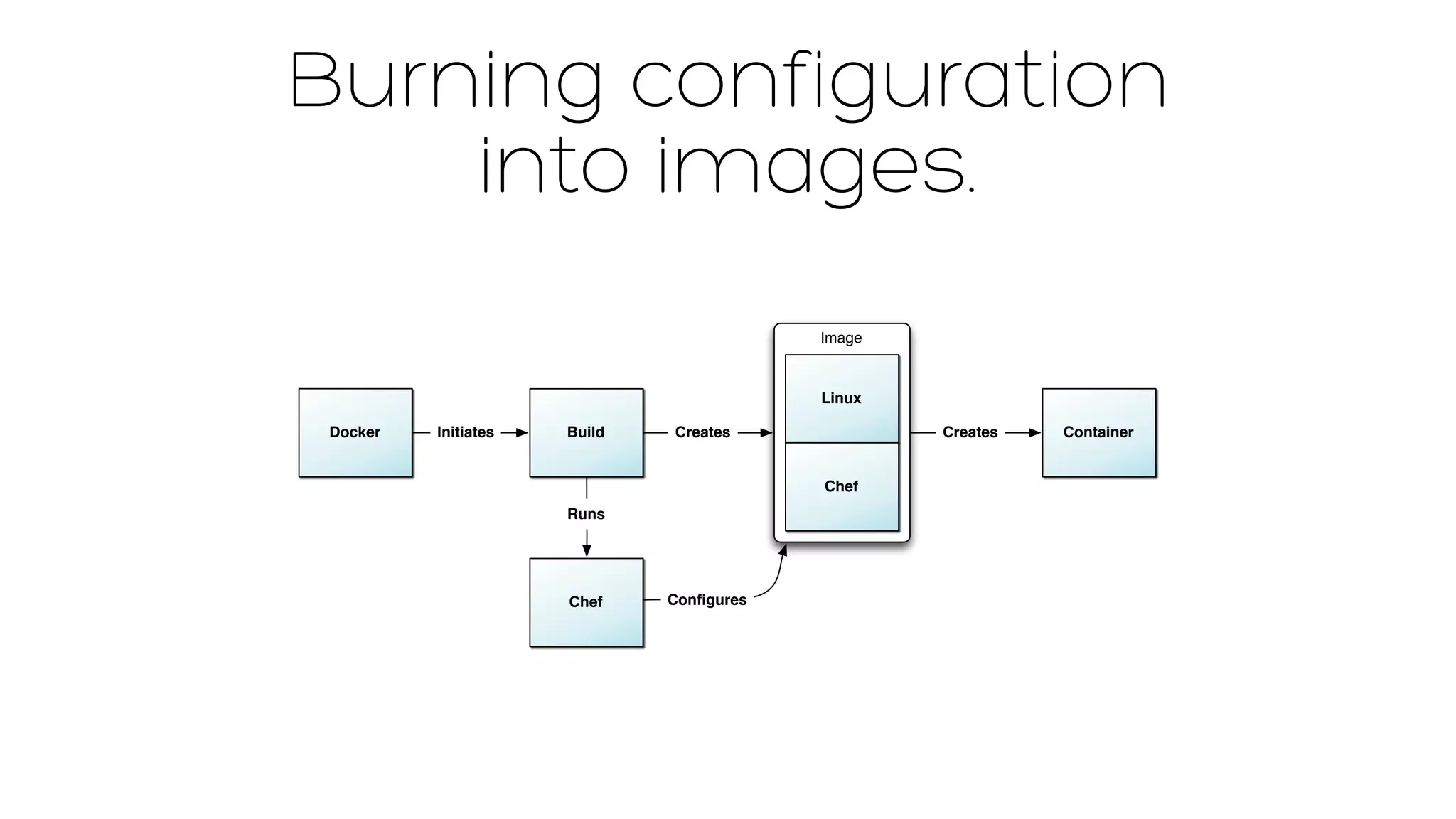

- 80. Burning configuration intoimages. Image Linux Docker Initiates Creates Container Chef Build Creates Runs Chef Configures

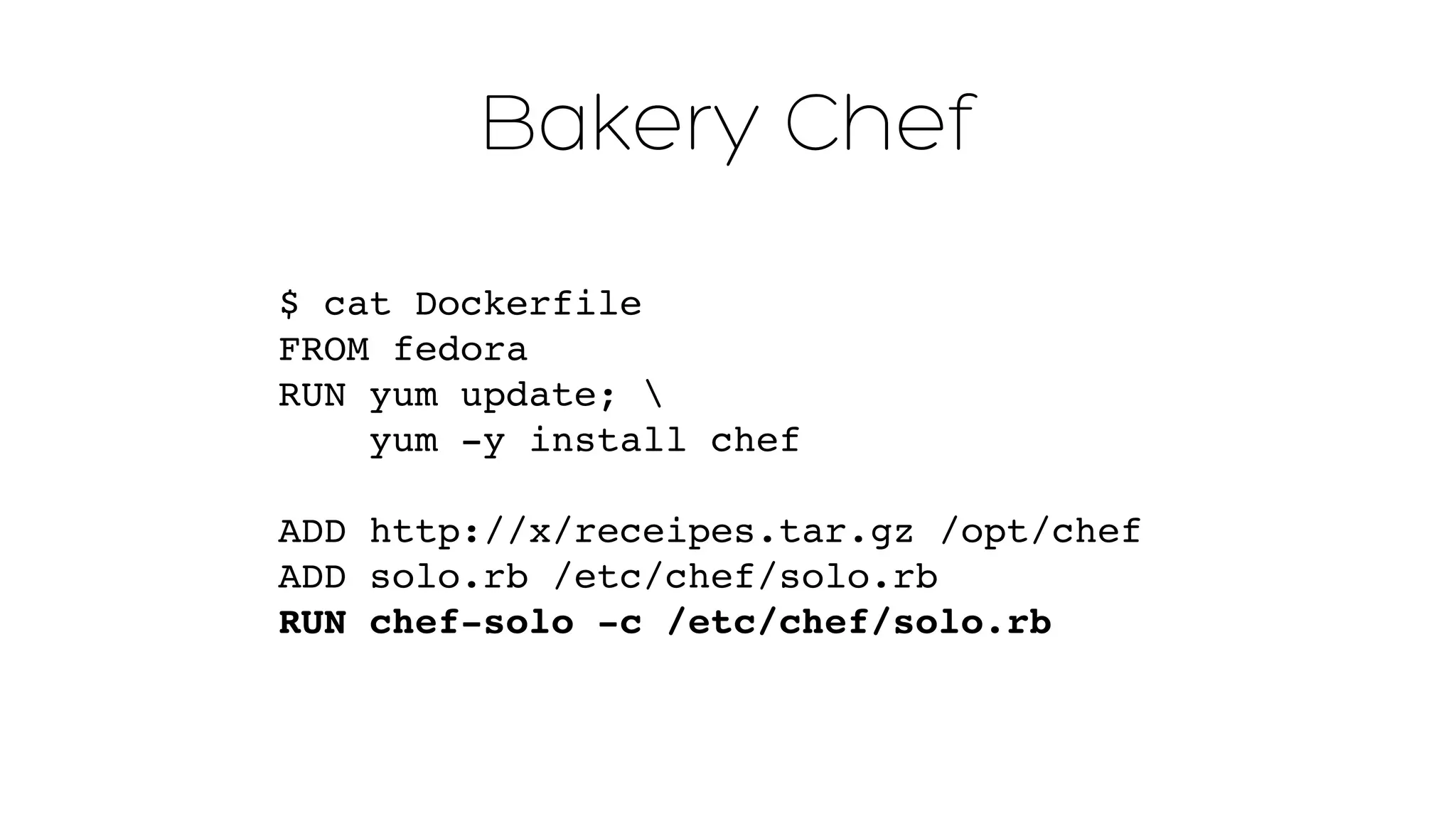

- 82. Bakery Chef $cat Dockerfile FROM fedora RUN yum update; yum -y install chef" ADD http://x/receipes.tar.gz /opt/chef" ADD solo.rb /etc/chef/solo.rb" RUN chef-solo -c /etc/chef/solo.rb

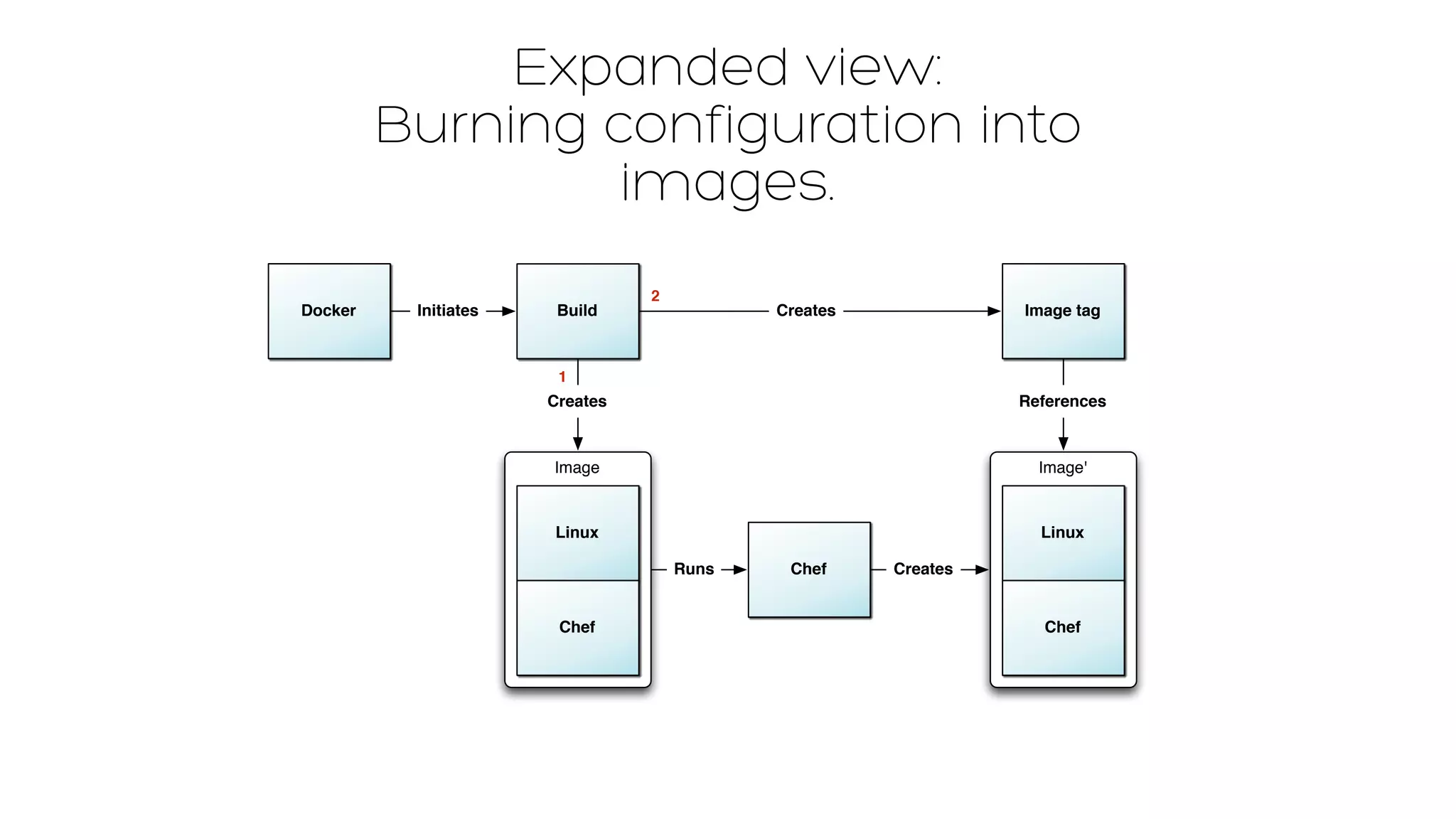

- 83. Expanded view: Burningconfiguration into images. Docker Initiates Image tag Image' Linux Chef Chef Build Creates Image Linux Chef Creates Runs Creates References 1 2

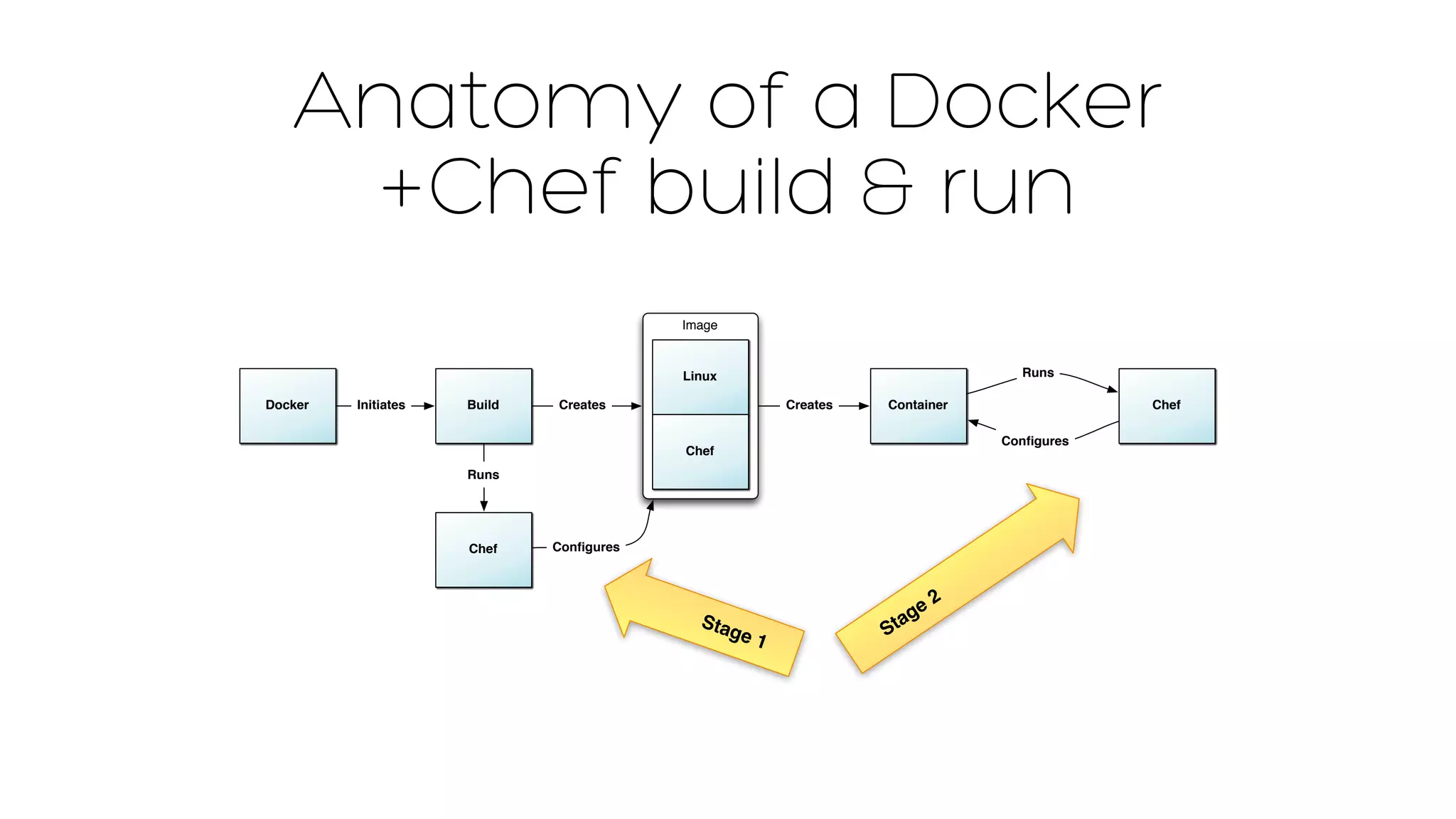

- 86. Anatomy of aDocker +Chef build & run Image Linux Docker Initiates Creates Container Chef Chef Runs Configures Build Creates Runs Chef Configures Stage 1 Stage 2

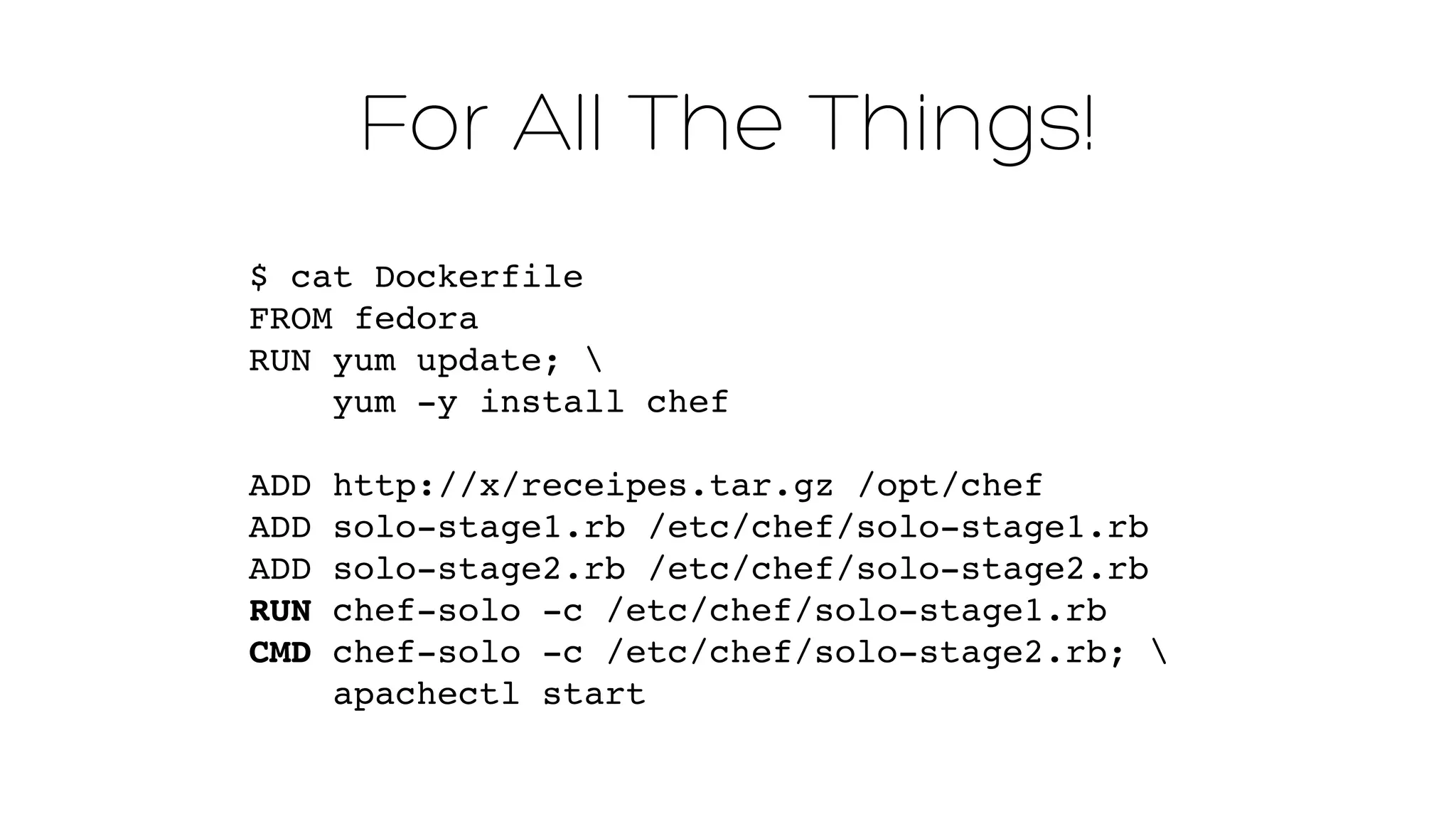

- 87. For All TheThings! $ cat Dockerfile FROM fedora RUN yum update; yum -y install chef ADD http://x/receipes.tar.gz /opt/chef" ADD solo-stage1.rb /etc/chef/solo-stage1.rb" ADD solo-stage2.rb /etc/chef/solo-stage2.rb" RUN chef-solo -c /etc/chef/solo-stage1.rb" CMD chef-solo -c /etc/chef/solo-stage2.rb; " apachectl start

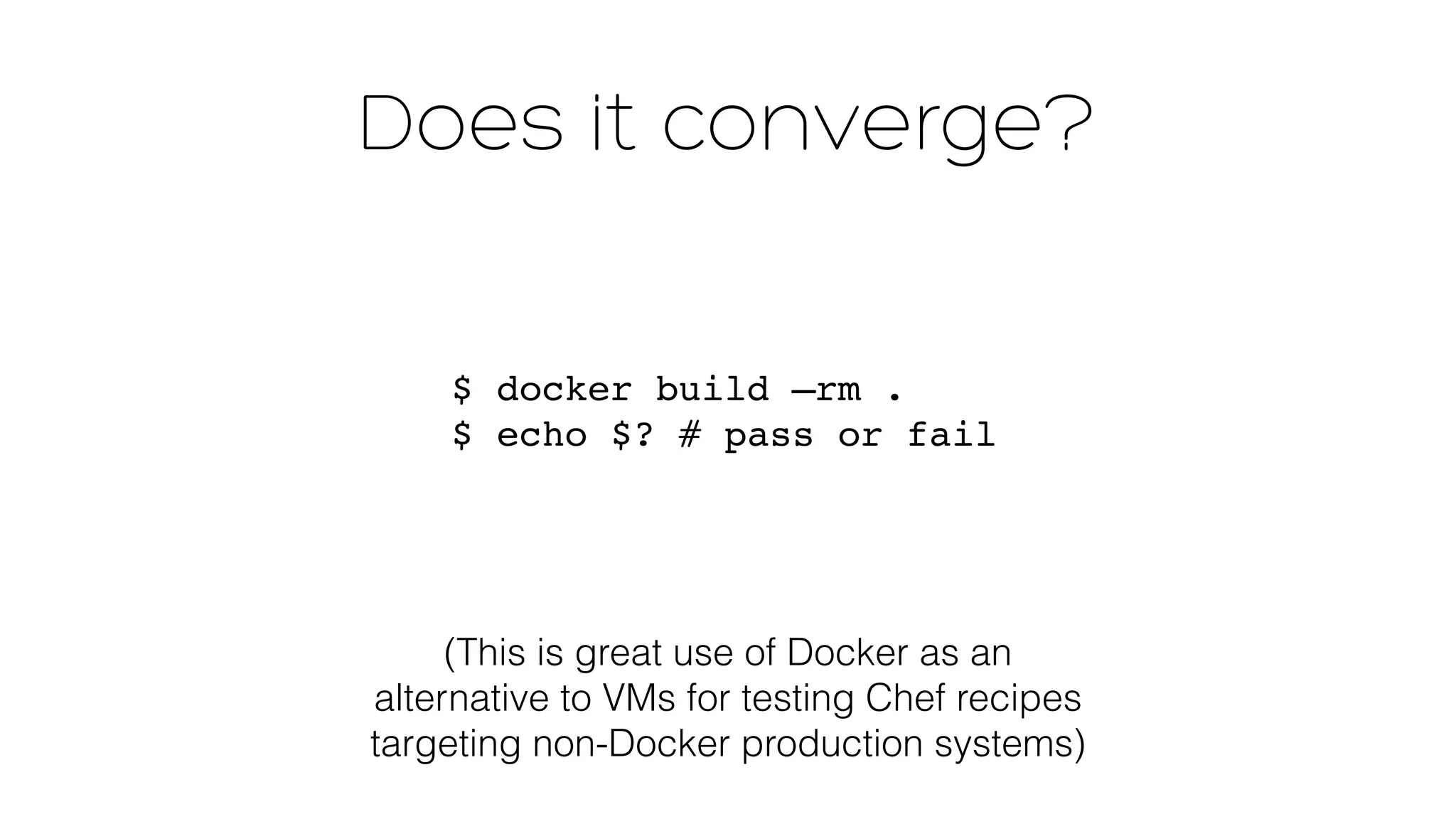

- 88. Does it converge? $ docker build —rm . $ echo $? # pass or fail (This is great use of Docker as an alternative to VMs for testing Chef recipes targeting non-Docker production systems)

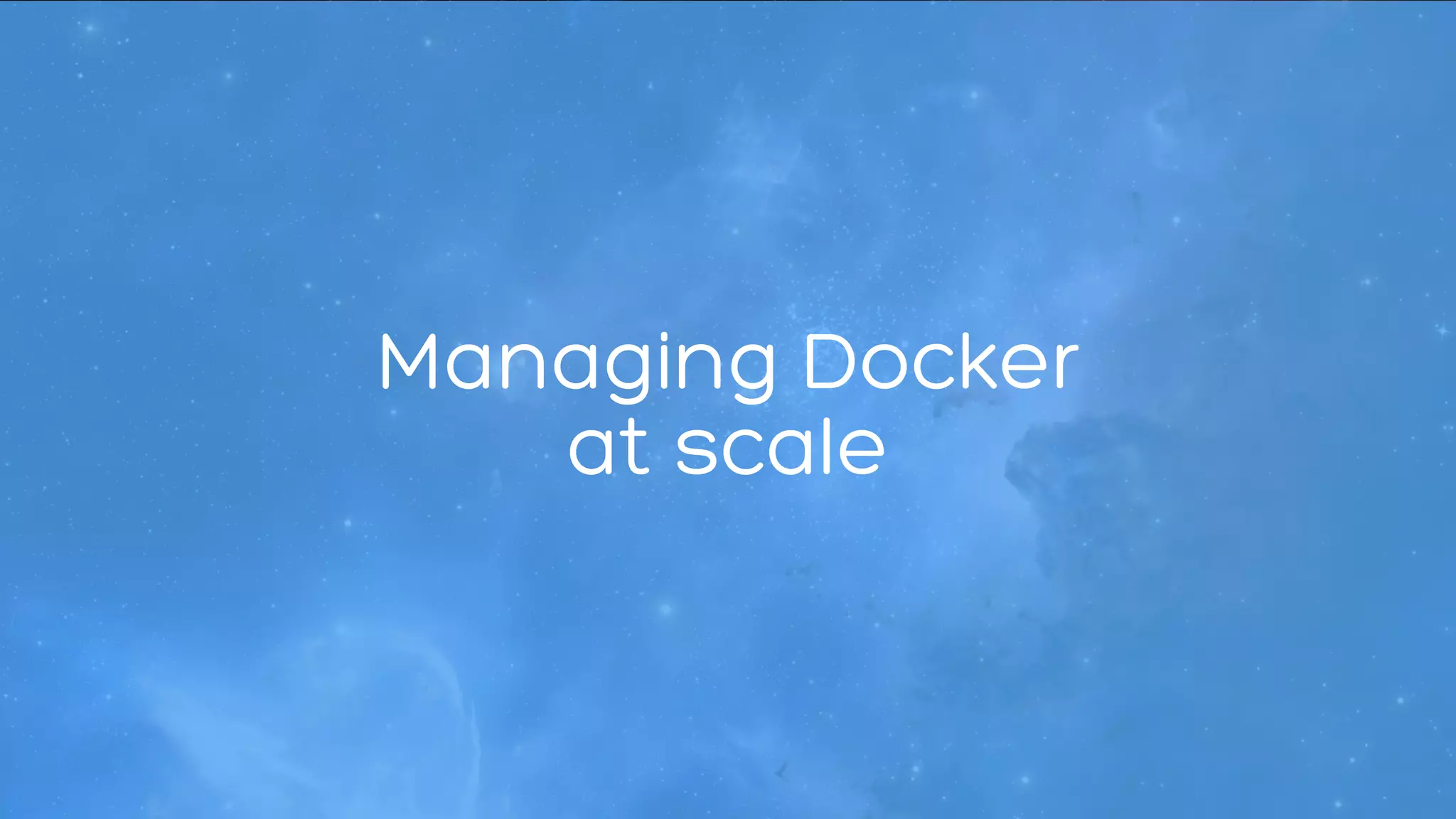

- 89. Managing Docker atscale
- 90.

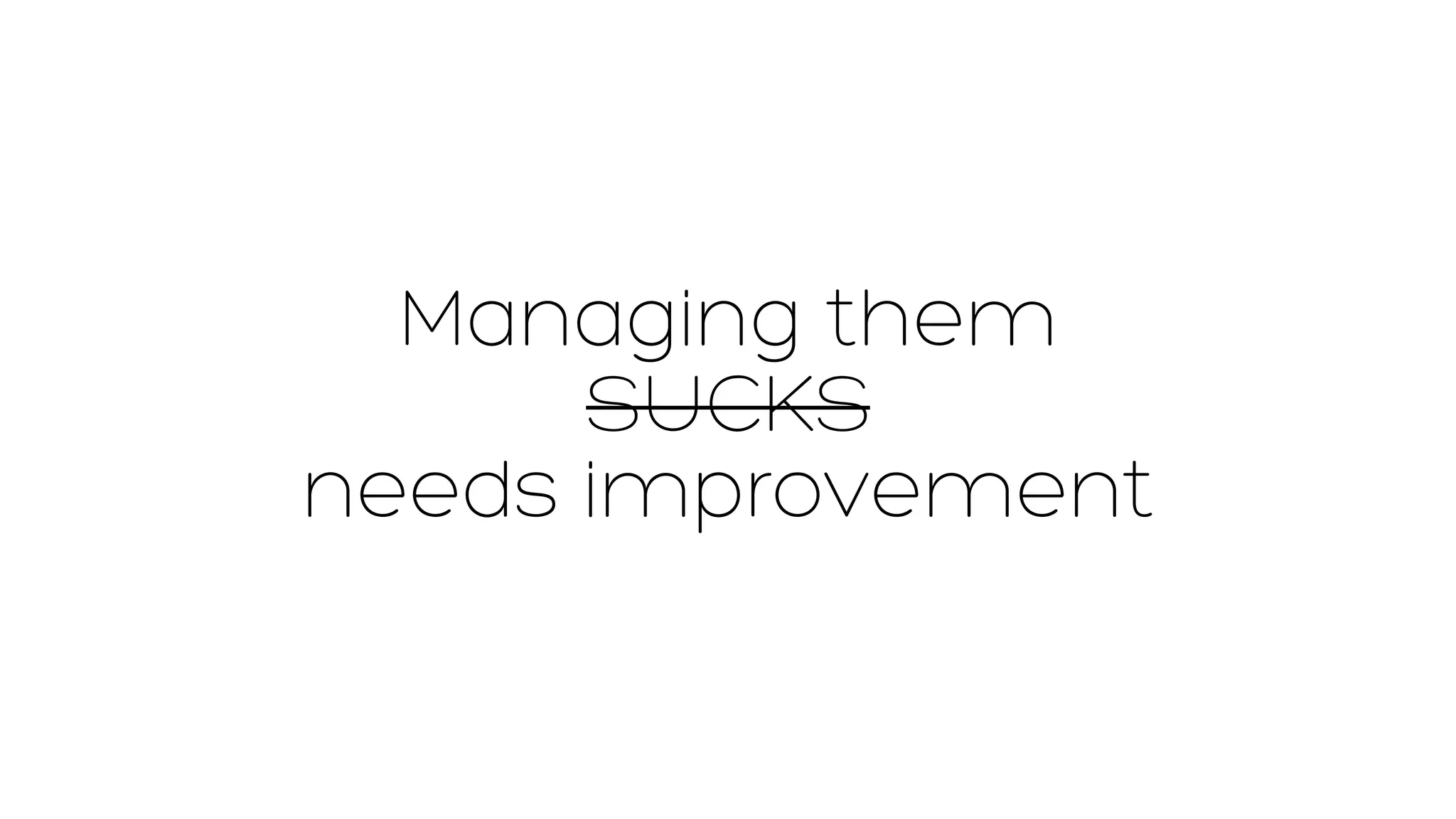

- 91. Managing them SUCKS needs improvement
- 92. Management Ecosystem Mesos ClusterHQ Clocker Flynn
- 93.

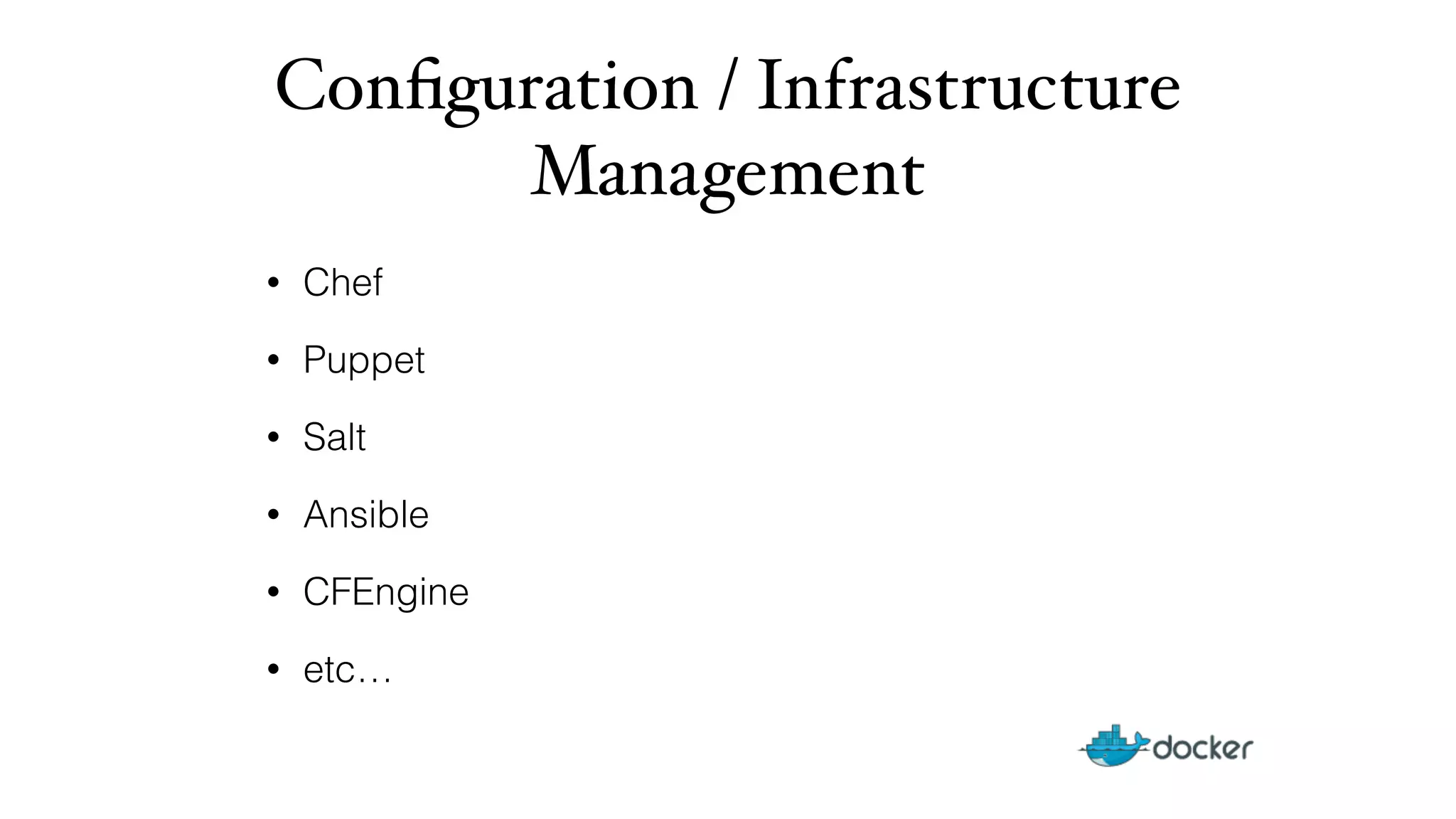

- 94. Configuration / Infrastructure Management • Chef • Puppet • Salt • Ansible • CFEngine • etc…

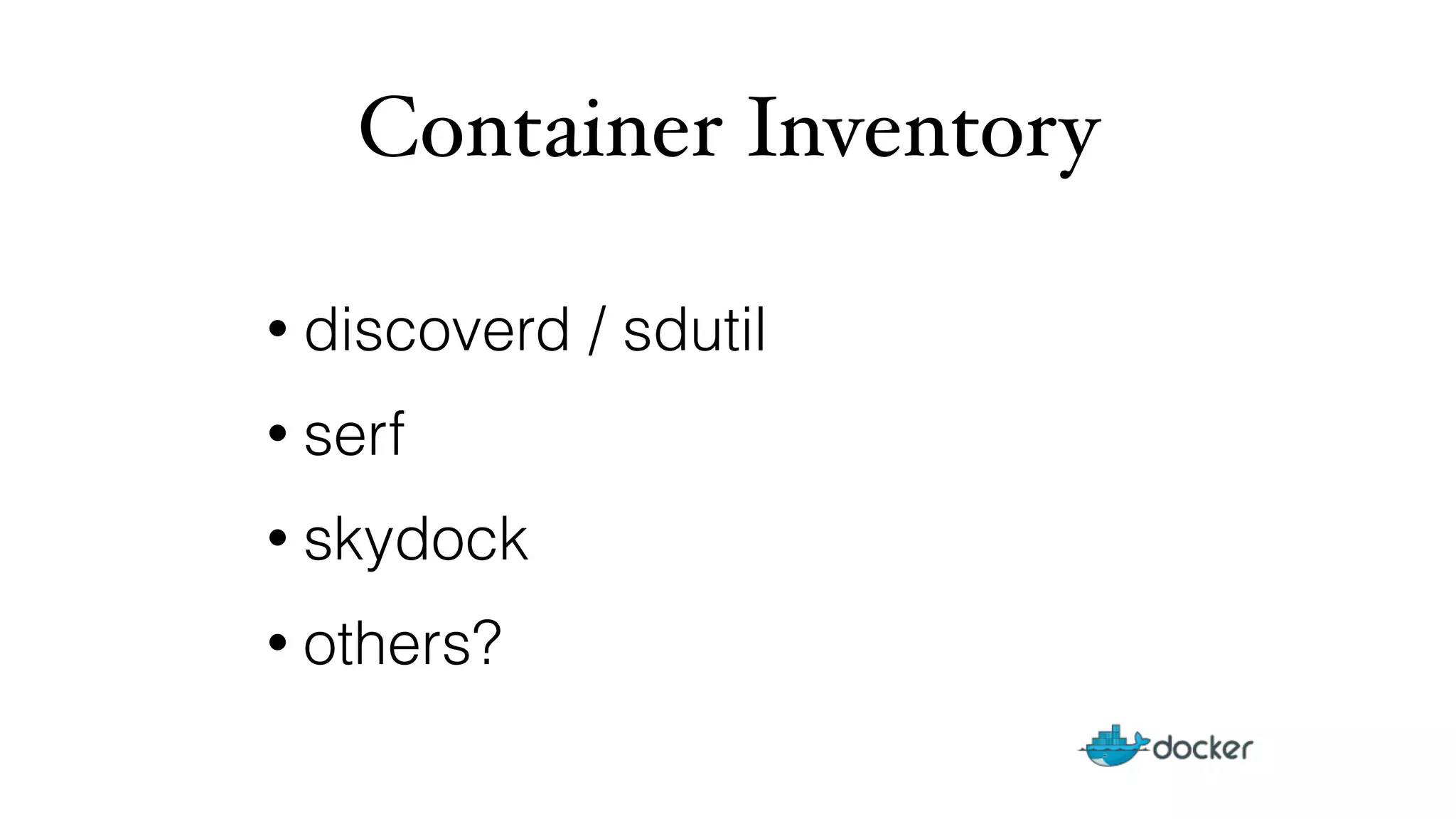

- 95. Container Inventory •discoverd / sdutil • serf • skydock • others?
- 96.

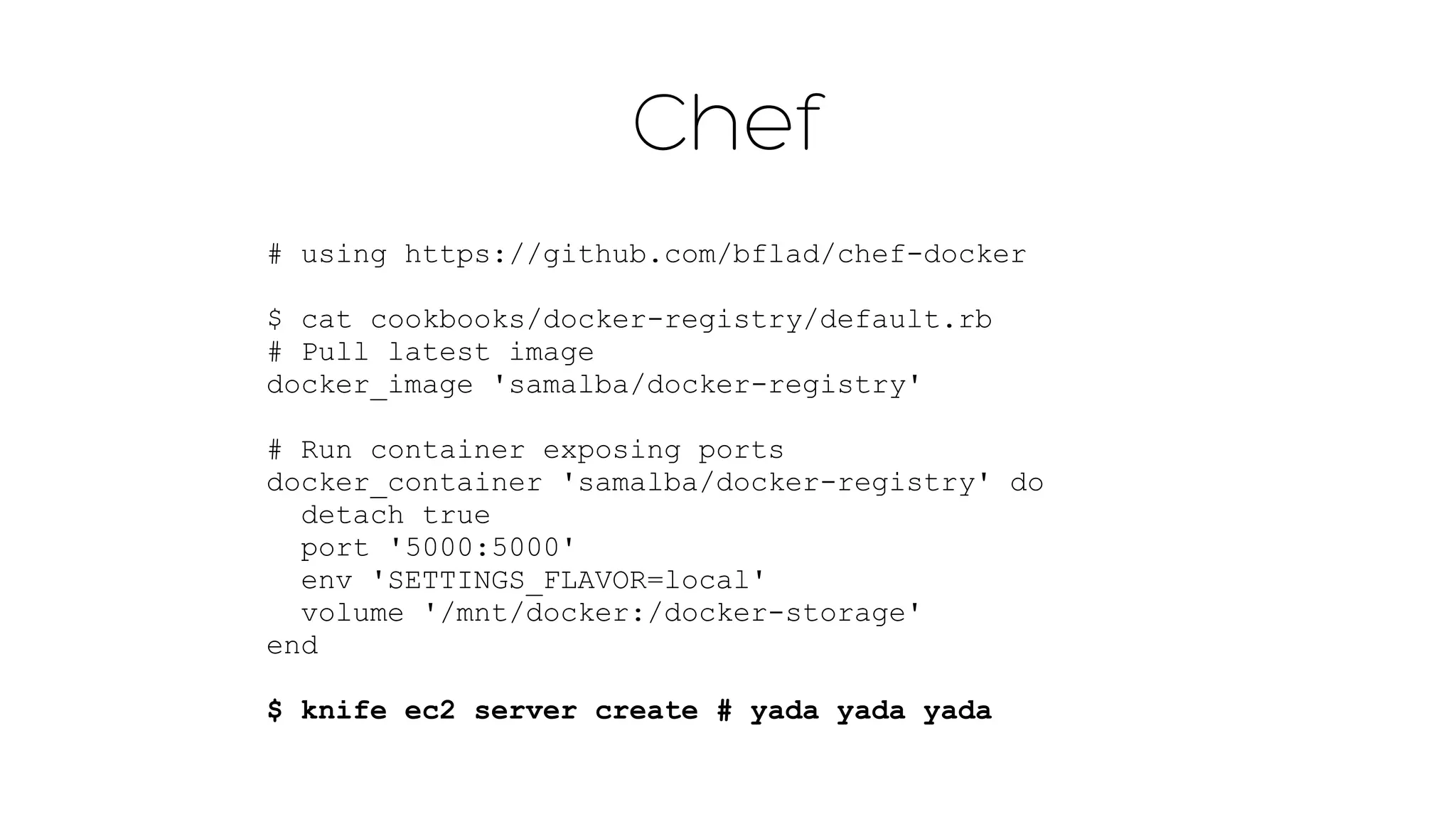

- 97. Chef # usinghttps://github.com/bflad/chef-docker $ cat cookbooks/docker-registry/default.rb # Pull latest image docker_image 'samalba/docker-registry' ! # Run container exposing ports docker_container 'samalba/docker-registry' do detach true port '5000:5000' env 'SETTINGS_FLAVOR=local' volume '/mnt/docker:/docker-storage' end $ knife ec2 server create # yada yada yada

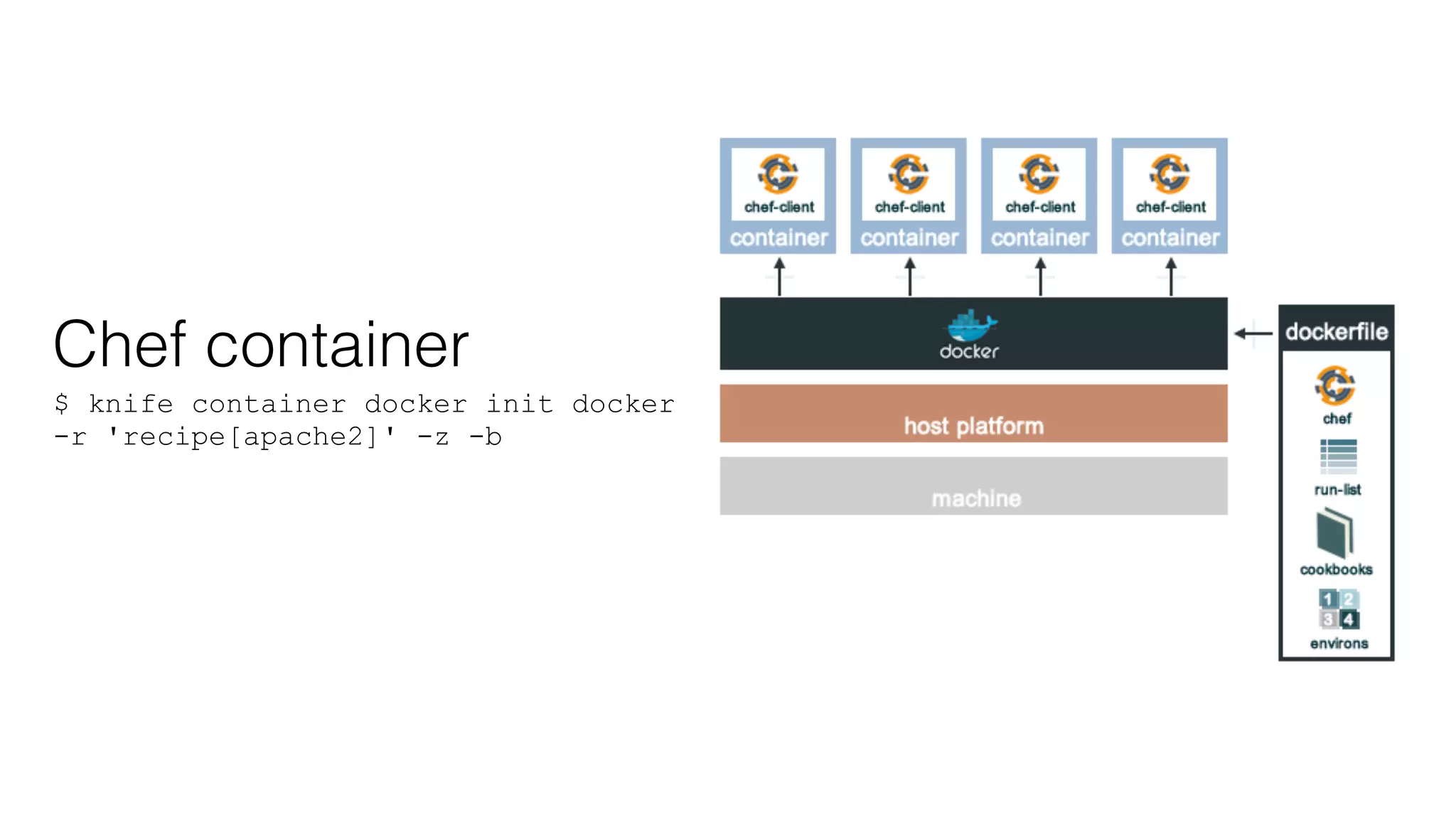

- 98. Chef container $knife container docker init docker -r 'recipe[apache2]' -z -b
- 99. Puppet docker::run {'helloworld': image => 'base', command => '/bin/sh -c "while true; do echo hello world; sleep 1; done"', ports => ['4444', '4555'], links => ['mysql:db'], use_name => true, volumes => ['/var/lib/couchdb', '/var/log'], volumes_from => '6446ea52fbc9', memory_limit => 10485760, # bytes username => 'example', hostname => 'example.com', env => ['FOO=BAR', 'FOO2=BAR2'], dns => ['8.8.8.8', '8.8.4.4'], restart_service => true, }

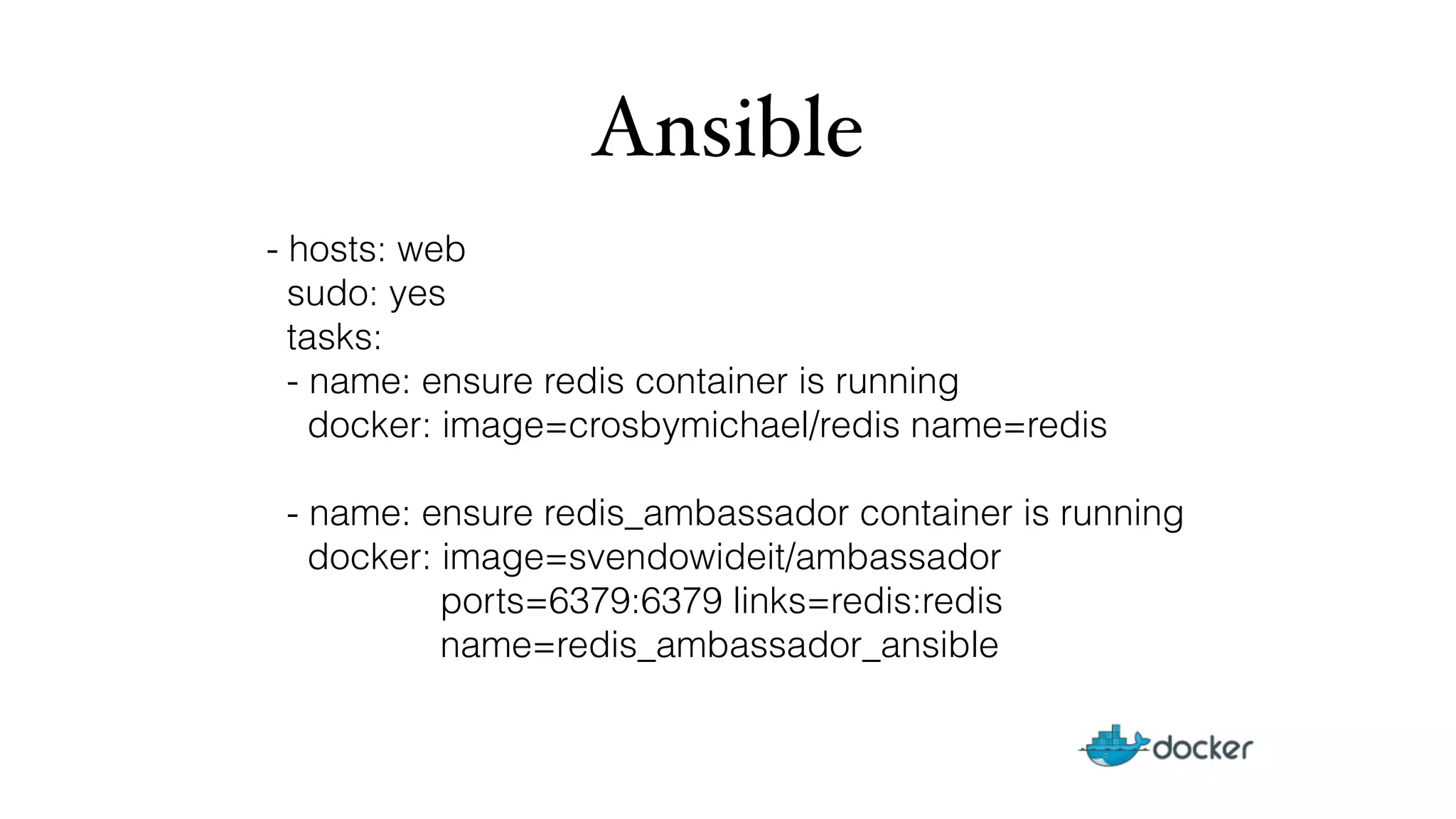

- 100. Ansible - hosts:web sudo: yes tasks: - name: ensure redis container is running docker: image=crosbymichael/redis name=redis - name: ensure redis_ambassador container is running docker: image=svendowideit/ambassador ports=6379:6379 links=redis:redis name=redis_ambassador_ansible
- 101.

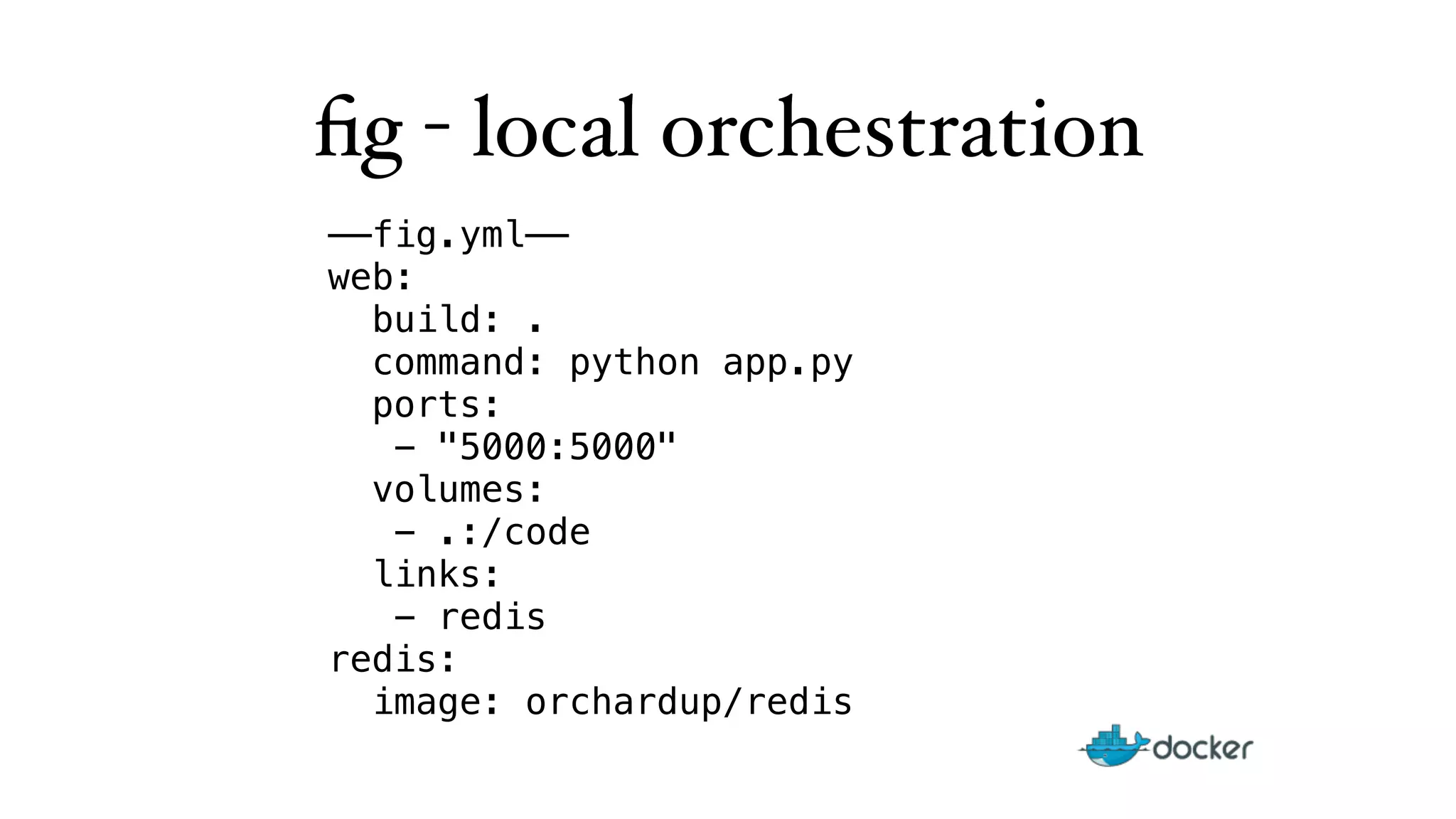

- 102. fig - localorchestration ——fig.yml—— web: build: . command: python app.py ports: - "5000:5000" volumes: - .:/code links: - redis redis: image: orchardup/redis

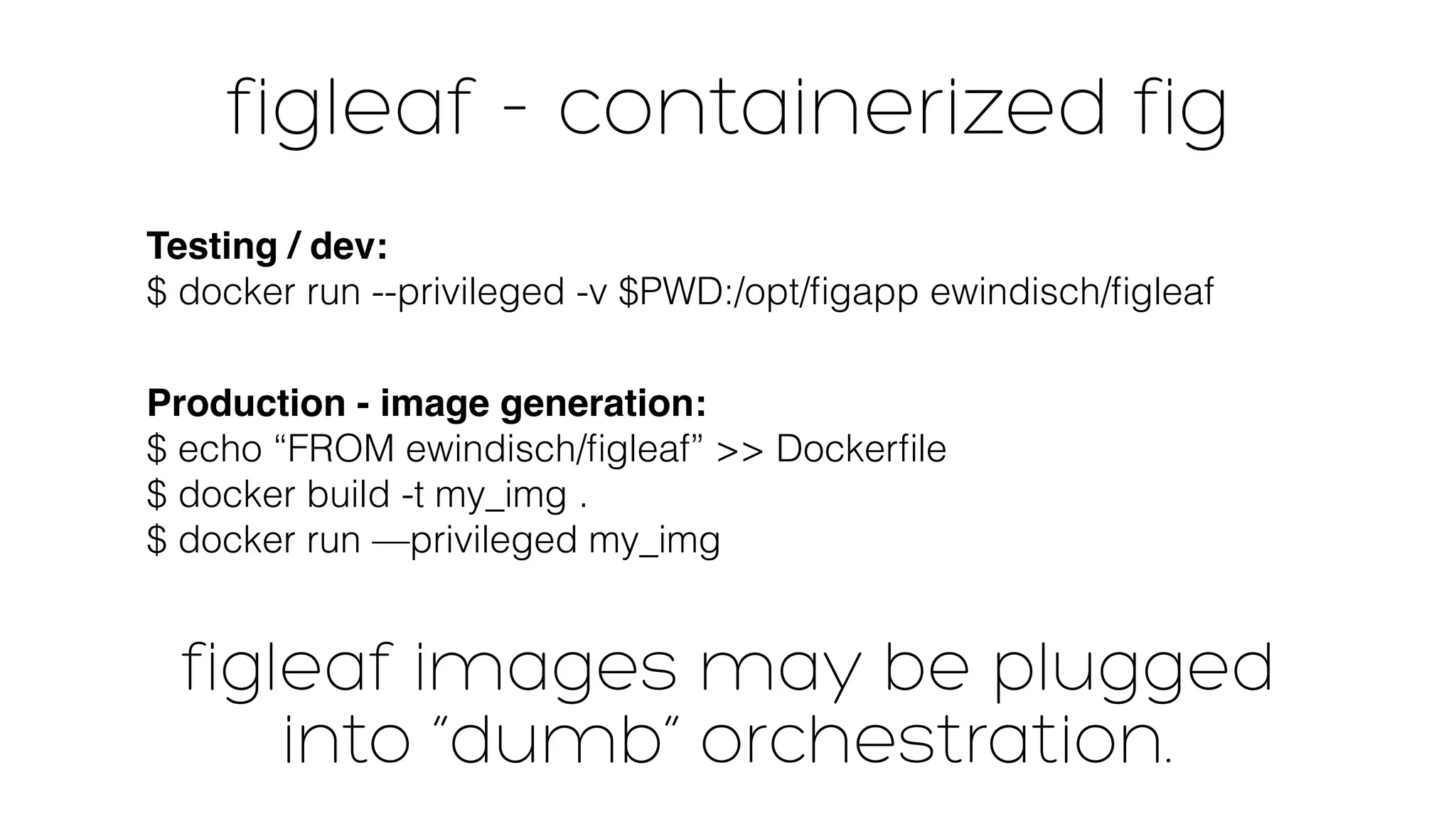

- 103. figleaf - containerizedfig Testing / dev: $ docker run --privileged -v $PWD:/opt/figapp ewindisch/figleaf Production - image generation: $ echo “FROM ewindisch/figleaf” >> Dockerfile $ docker build -t my_img . $ docker run —privileged my_img figleaf images may be plugged into “dumb” orchestration.

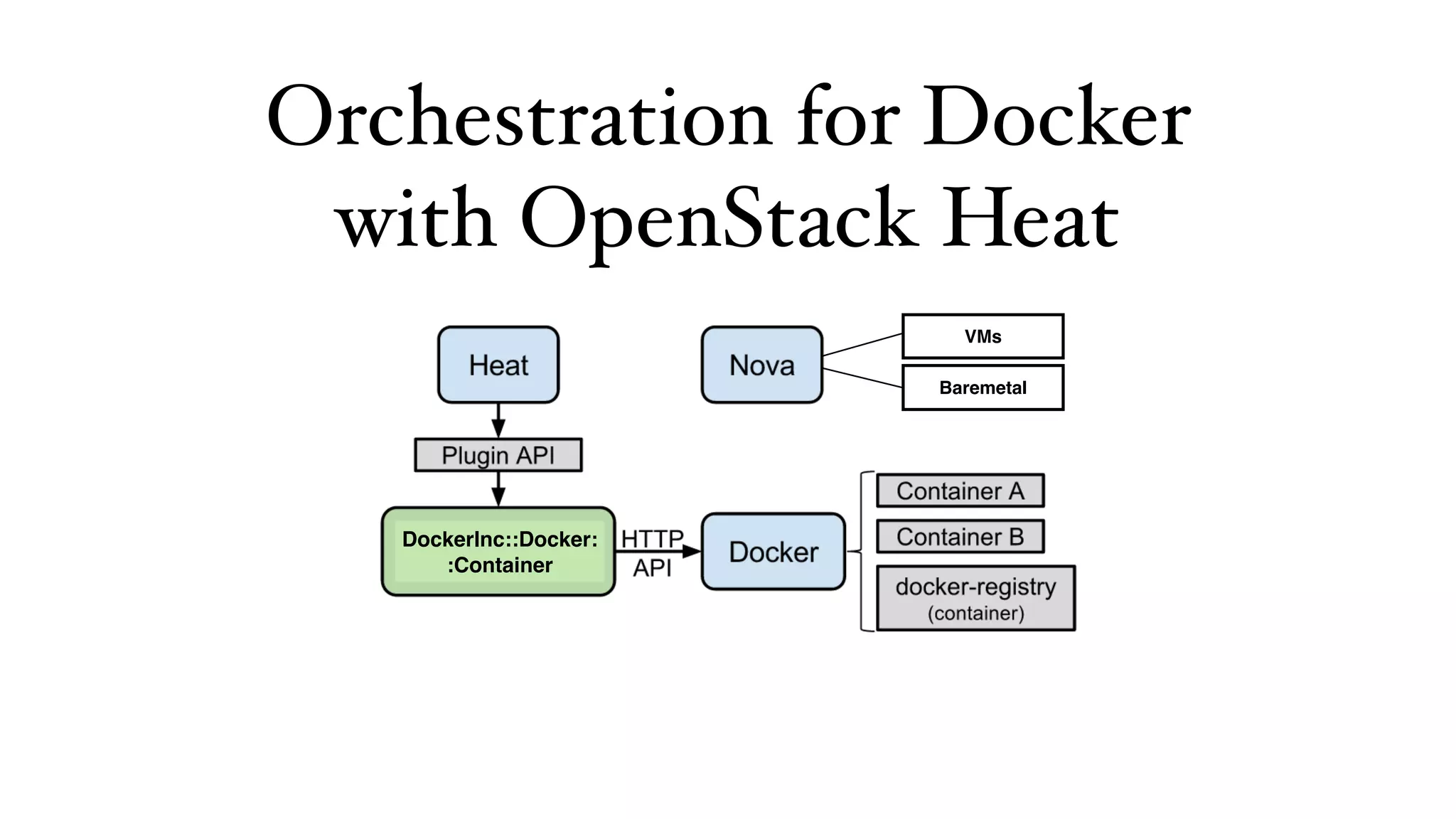

- 104. Orchestration 7KH'RFNHUSOXJLQIRU+HDW forDocker %XVLQJWKHSOXJLQ+HDWFDQWDONGLUHFWOWR'RFNHU with OpenStack Heat DockerInc::Docker: :Container VMs Baremetal

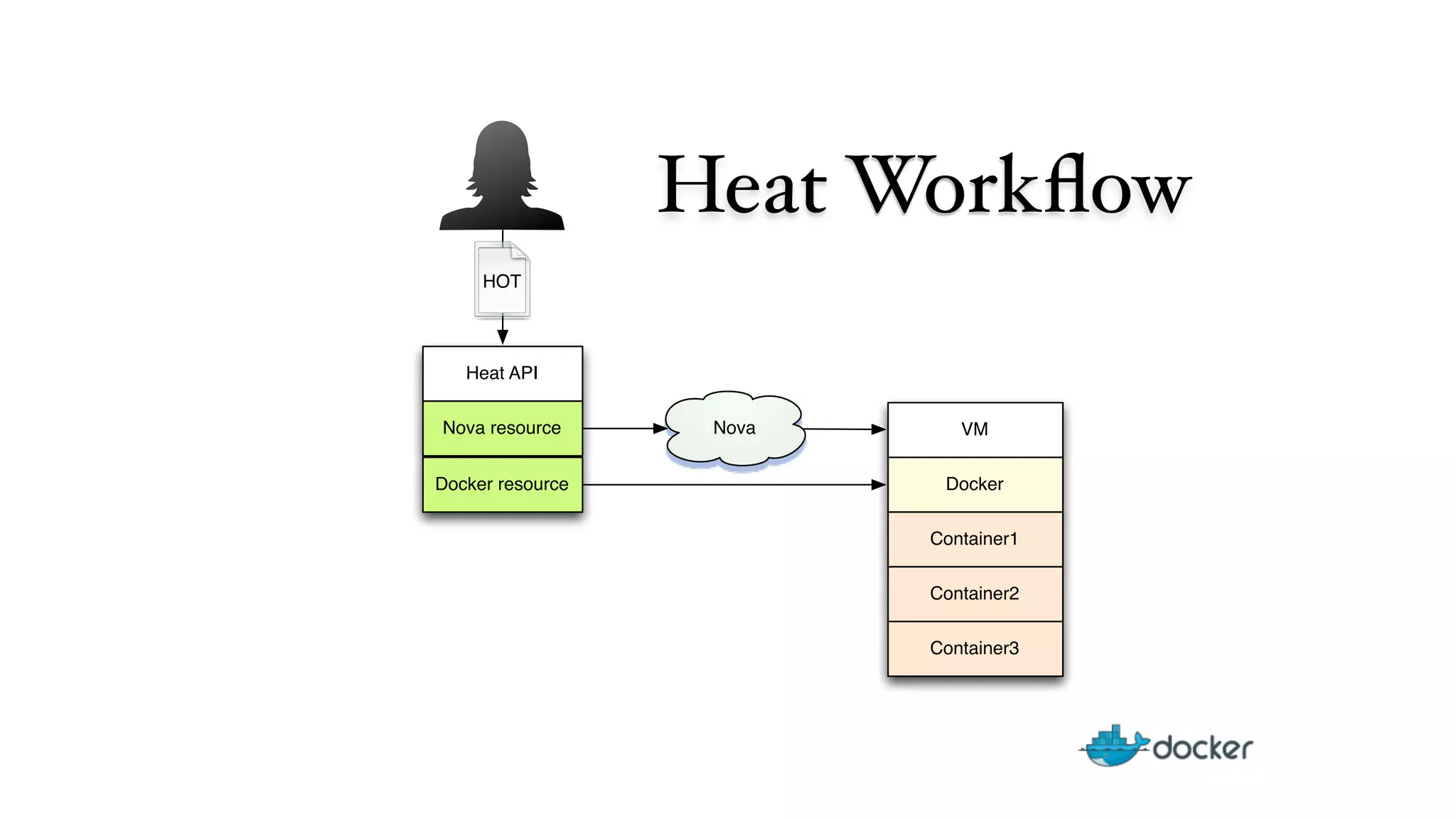

- 105. Heat Workflow HeatAPI VM Docker Nova resource Nova Docker resource Container1 Container2 Container3 HOT

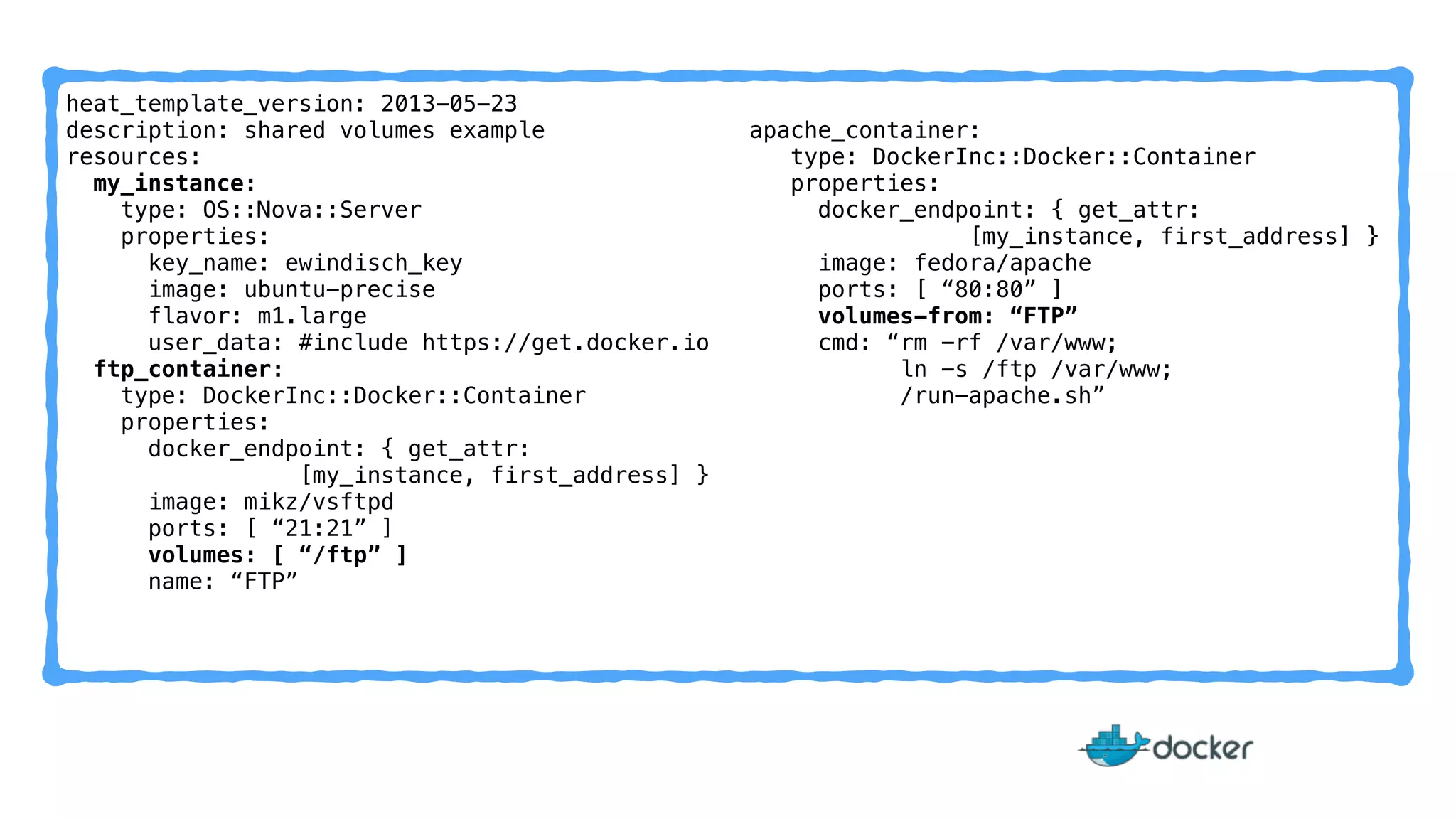

- 106. heat_template_version: 2013-05-23 description:shared volumes example resources: my_instance: type: OS::Nova::Server properties: key_name: ewindisch_key image: ubuntu-precise flavor: m1.large user_data: #include https://get.docker.io ftp_container: type: DockerInc::Docker::Container properties: docker_endpoint: { get_attr: [my_instance, first_address] } image: mikz/vsftpd ports: [ “21:21” ] volumes: [ “/ftp” ] name: “FTP” apache_container: type: DockerInc::Docker::Container properties: docker_endpoint: { get_attr: [my_instance, first_address] } image: fedora/apache ports: [ “80:80” ] volumes-from: “FTP” cmd: “rm -rf /var/www; ln -s /ftp /var/www; /run-apache.sh”

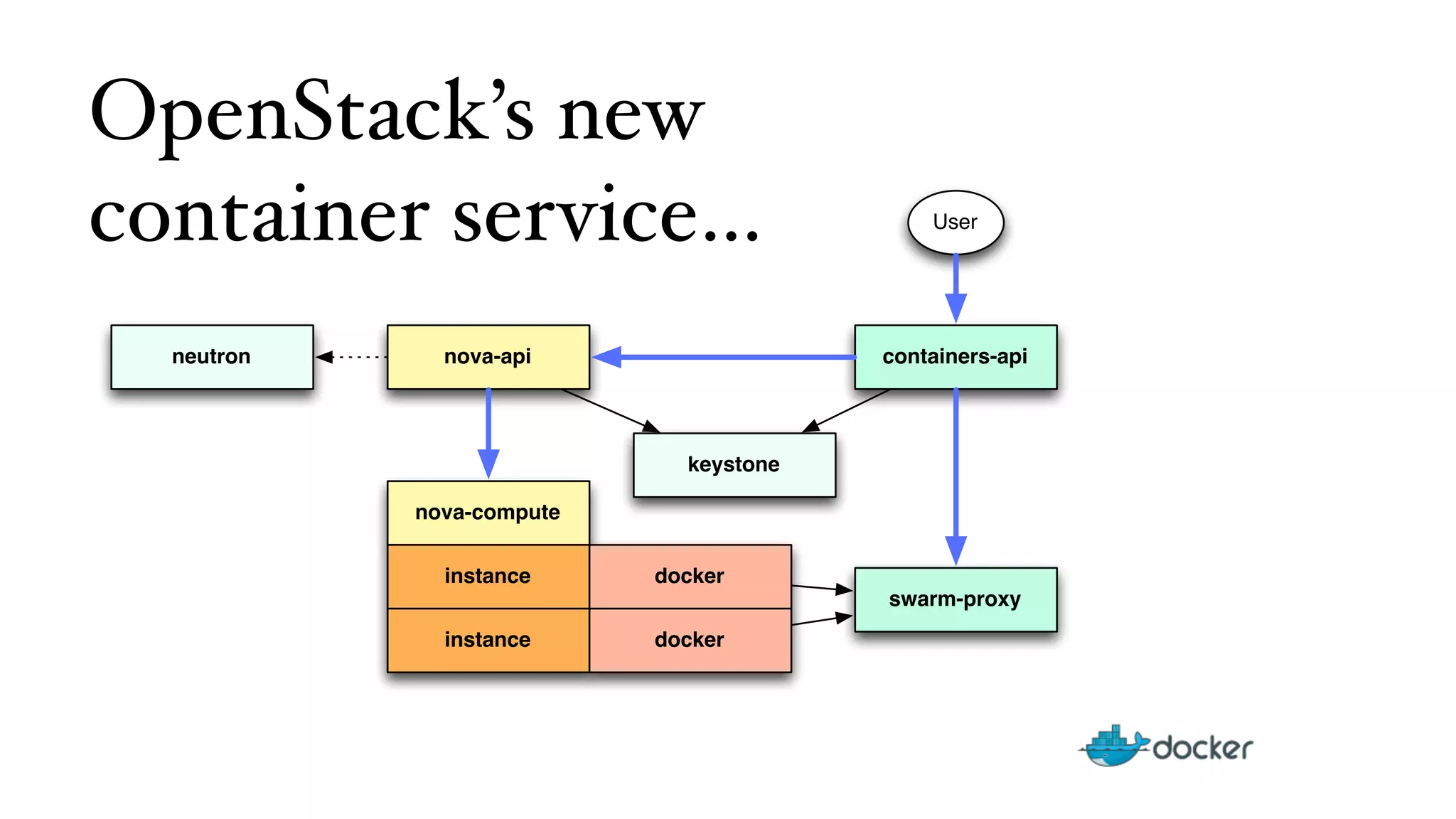

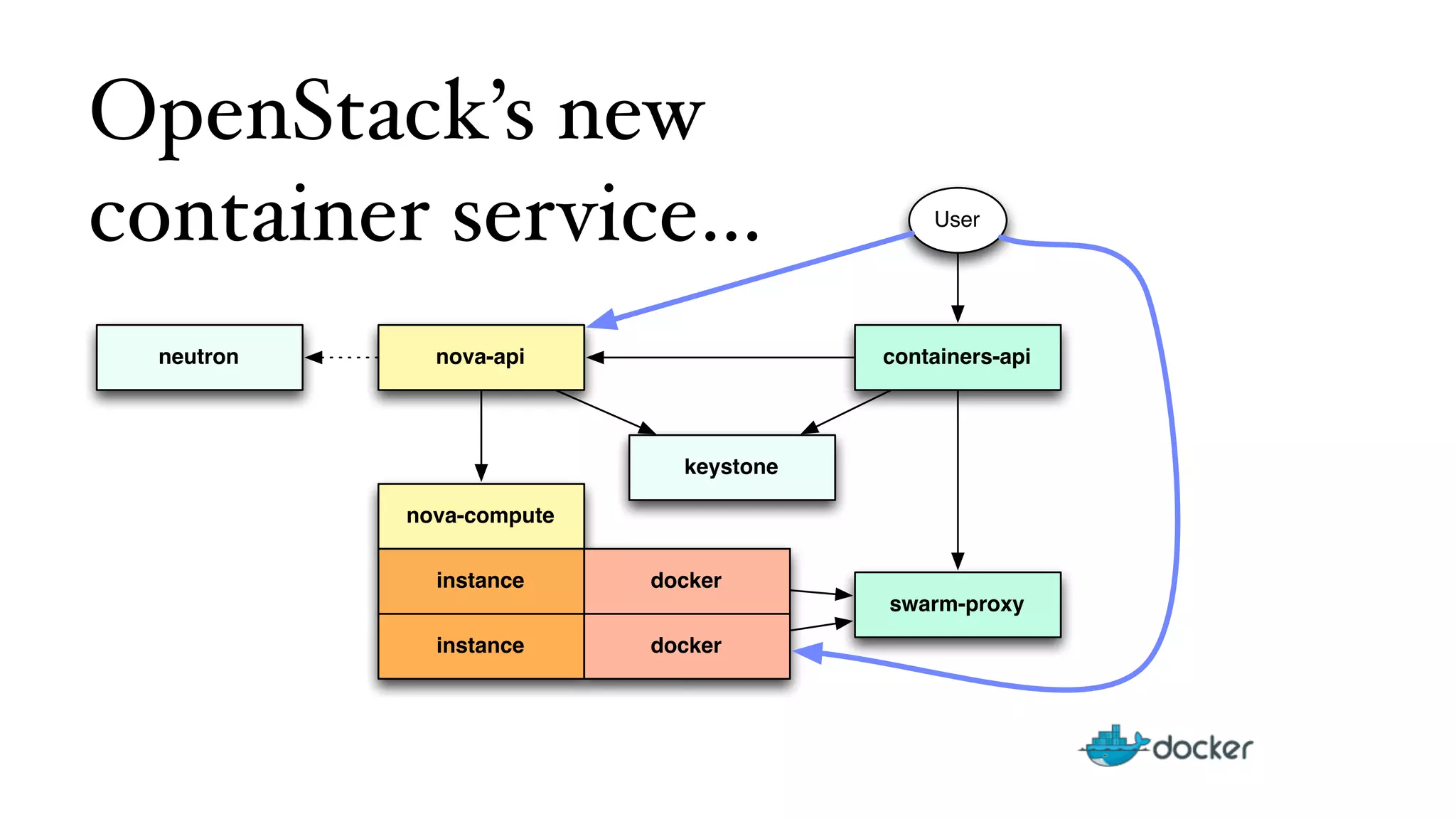

- 107. OpenStack’s new containerservice… nova-api nova-compute instance instance keystone docker containers-api swarm-proxy docker neutron User
- 108. OpenStack’s new containerservice… nova-api nova-compute instance instance keystone docker containers-api swarm-proxy docker neutron User

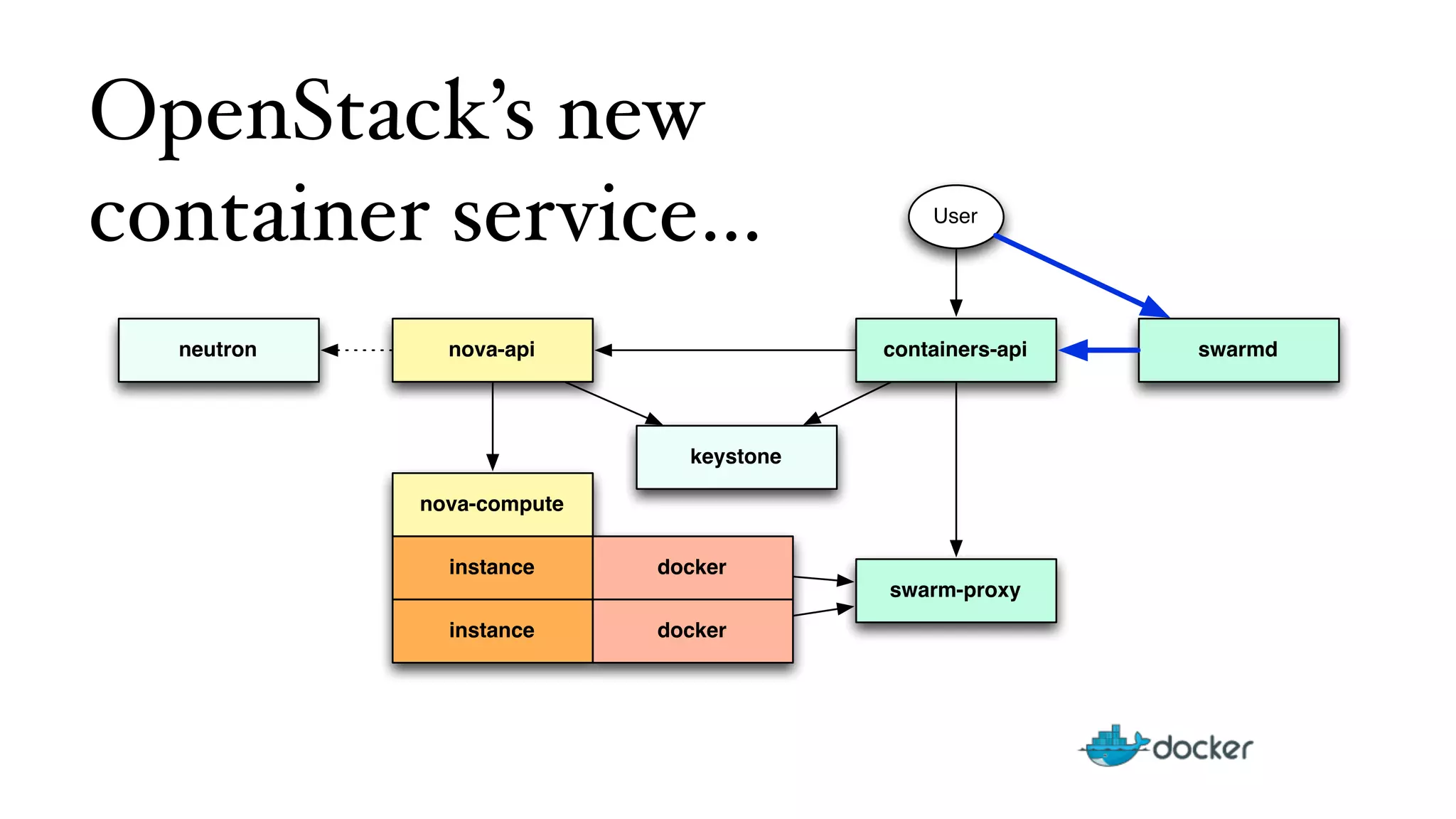

- 109. OpenStack’s new containerservice… nova-api nova-compute instance instance keystone docker containers-api swarm-proxy docker neutron User swarmd

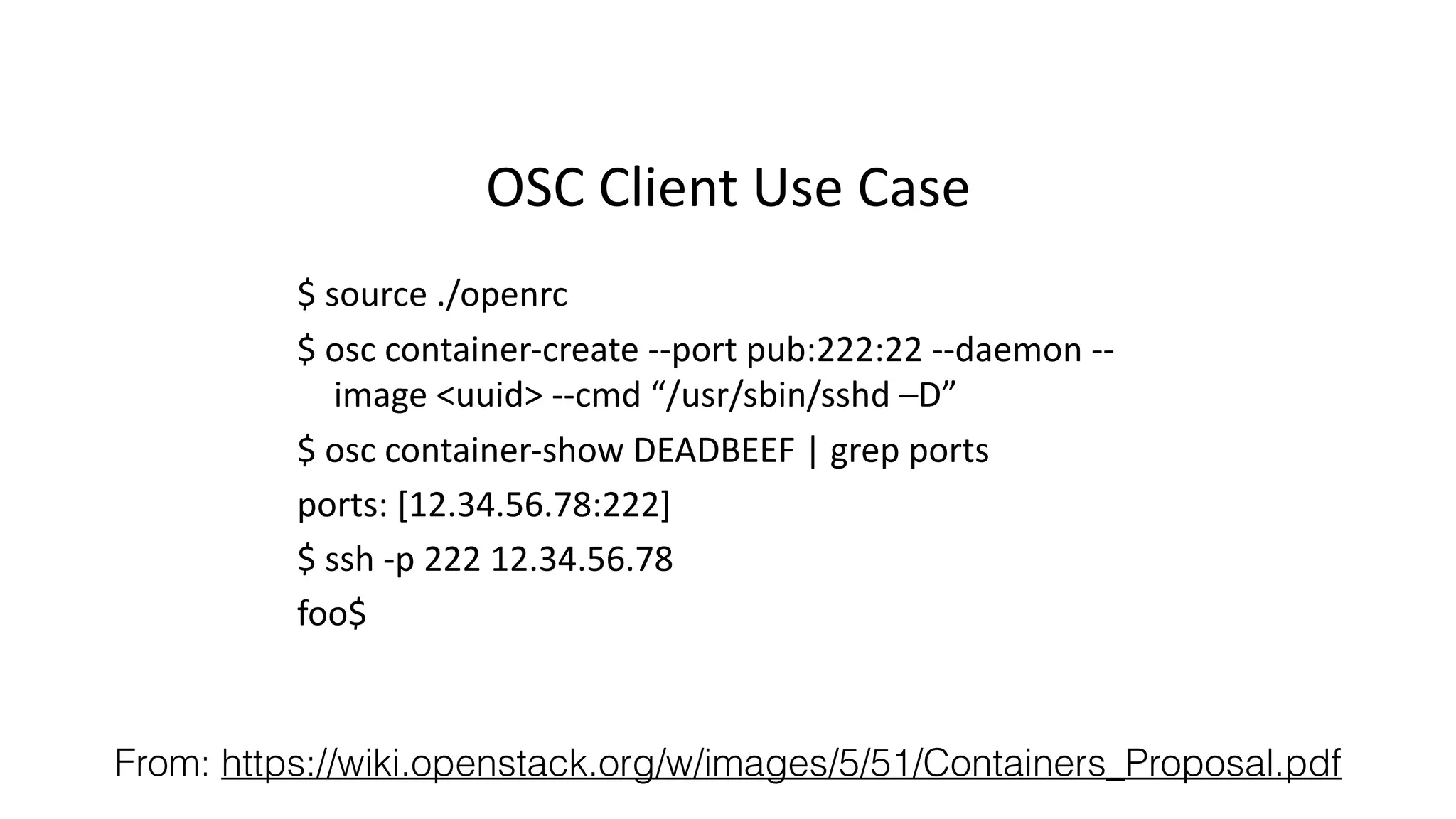

- 110. OSC%Client%Use%Case% $%source%./openrc% $%osc%containerIcreate%IIport%pub:222:22%IIdaemon%II image%uuid%IIcmd%“/usr/sbin/sshd%–D”% $%osc%containerIshow%DEADBEEF%|%grep%ports% ports:%[12.34.56.78:222]% $%ssh%Ip%222%12.34.56.78% foo$% From: https://wiki.openstack.org/w/images/5/51/Containers_Proposal.pdf

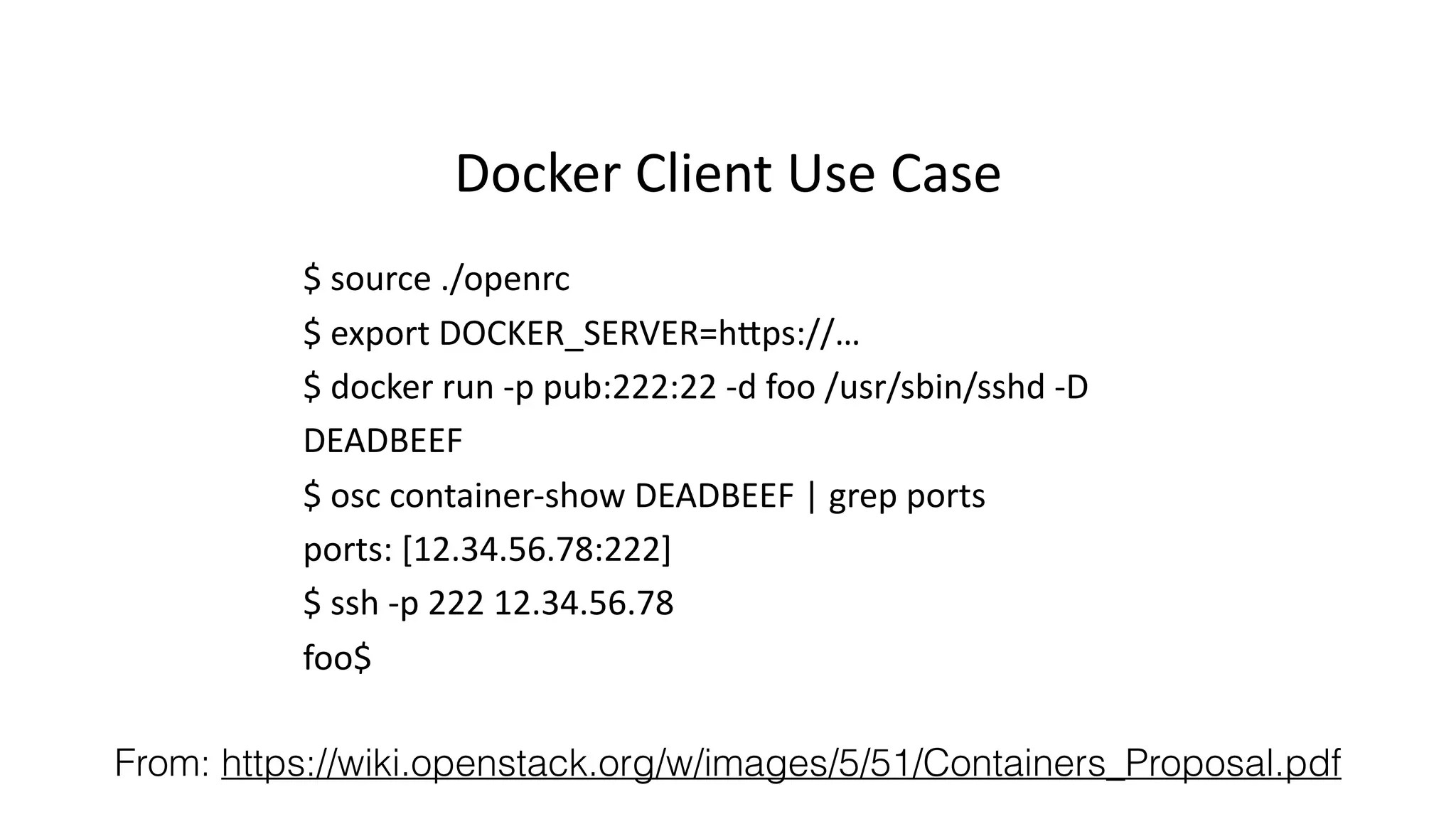

- 111. Docker%Client%Use%Case% $%source%./openrc% $%export%DOCKER_SERVER=h:ps://…% $%docker%run%Ip%pub:222:22%Id%foo%/usr/sbin/sshd%ID% DEADBEEF% $%osc%containerIshow%DEADBEEF%|%grep%ports% ports:%[12.34.56.78:222]% $%ssh%Ip%222%12.34.56.78% foo$% From: https://wiki.openstack.org/w/images/5/51/Containers_Proposal.pdf
- 112. insert here Mesos, Clocker, Fleet, Flynn, Deis, Kubernetes, etc
- 113.
- 114.
- 115.
- 116.

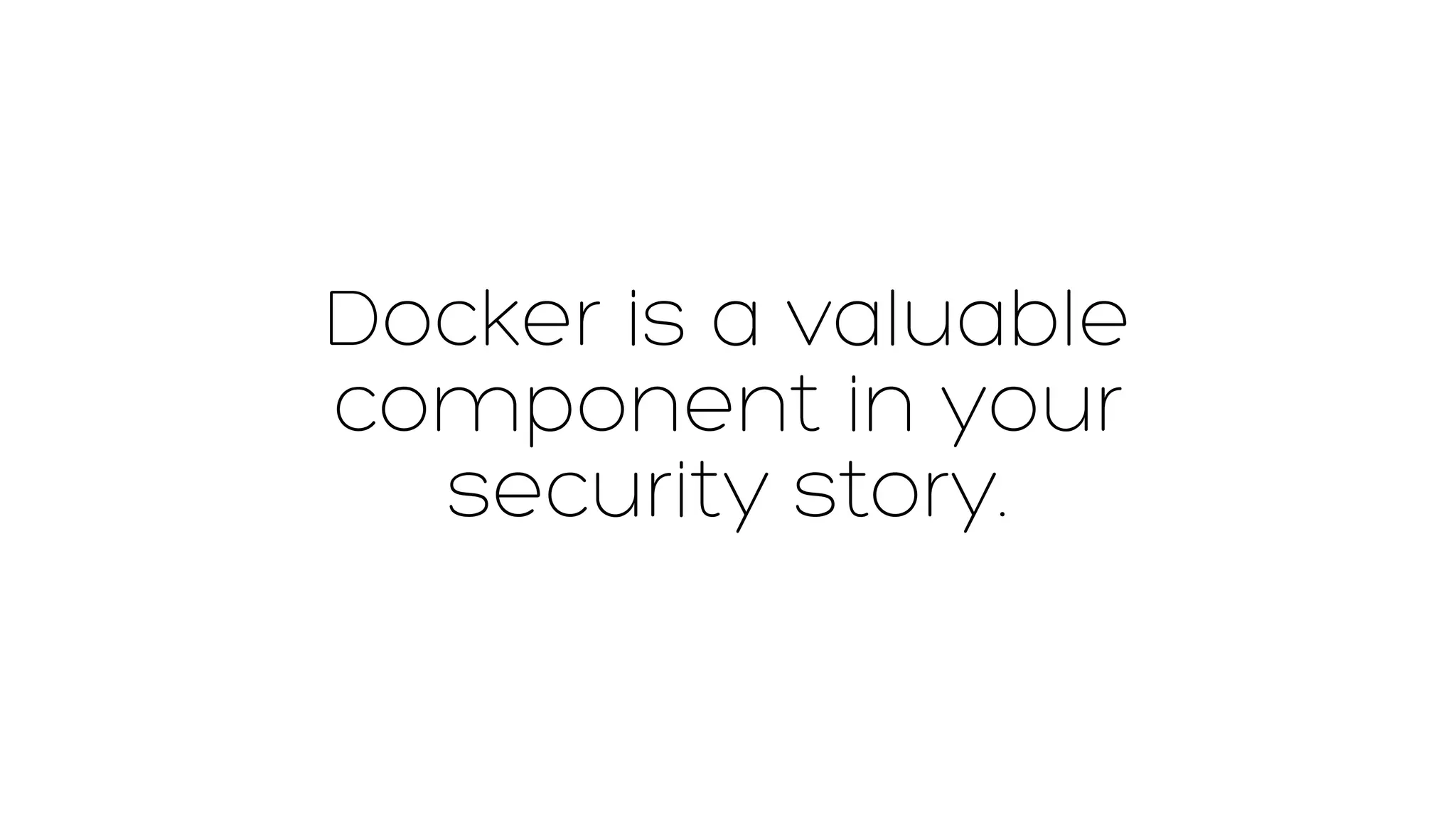

- 117. Docker is avaluable component in your security story.
- 119. Q A @ewindisch
