Offshore Pipelines Emergency
Repair Capability Enhancement
Diverless Services : (2014-17)
Rakesh Kumar
Sr Pipeline Engineer
14” – 4 numbers
30” – 3 numbers
4” – 1 number
Pipeline Inventory in SEIC

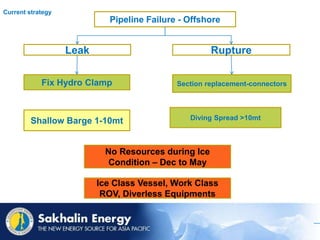

Pipeline Failure - Offshore
Leak Rupture
Fix Hydro Clamp Section replacement-connectors
Diving Spread >10mtShallow Barge 1-10mt
No Resources during Ice
Condition – Dec to May
Ice Class Vessel, Work Class
ROV, Diverless Equipments
Current strategy
Currently available OIL States Equipments-Diver assisted
Leak Clamp
Connector
MAF
Emergency pipes stocked
in Kholmsk (fully
refurbished)
Stored in Kholmsk

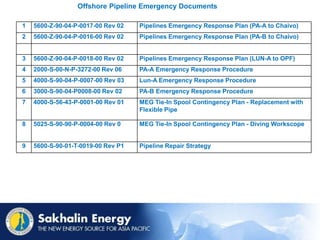

Offshore Pipeline Emergency Documents
1 5600-Z-90-04-P-0017-00 Rev 02 Pipelines Emergency Response Plan (PA-A to Chaivo)
2 5600-Z-90-04-P-0016-00 Rev 02 Pipelines Emergency Response Plan (PA-B to Chaivo)
3 5600-Z-90-04-P-0018-00 Rev 02 Pipelines Emergency Response Plan (LUN-A to OPF)
4 2000-S-00-N-P-3272-00 Rev 06 PA-A Emergency Response Procedure
5 4000-S-90-04-P-0007-00 Rev 03 Lun-A Emergency Response Procedure
6 3000-S-90-04-P0008-00 Rev 02 PA-B Emergency Response Procedure
7 4000-S-56-43-P-0001-00 Rev 01 MEG Tie-In Spool Contingency Plan - Replacement with
Flexible Pipe
8 5025-S-90-90-P-0004-00 Rev 0 MEG Tie-In Spool Contingency Plan - Diving Workscope
9 5600-S-90-01-T-0019-00 Rev P1 Pipeline Repair Strategy
Ice during
March
near
platforms
With both connectors placed the spoolpiece (flanged section)
replacement is descending.
The connector on the left has been set. The connector on the
right was pulled to the replacement section by the tightening of
the nuts on the replacement flange.
The concrete protective coating has been removed. The
pipeline has been cut in two places and the deteriorated section
is being hoisted away.
The ends of the pipeline have been cleaned more than the
length of the connector.
REPAIR OF PIPELINE SECTION USING MECHANICAL CONNECTOR
Standard Diverless Spread
Diverless Spread-Lowering Frame
Lowering Frame
Diverless Spread
Coating Removal Units
Diverless Spread
Weld Seam Removal
Diverless Spread
1. Oil States equipments (clamps, MAF, connectors and
handling tools) –SEIC
2. Remote Diverless Spread: Hire
H Frames
Excavation tools
Pipeline Cutting and concrete removal tools
ROV special tooling with manipulator
Pipeline retrieval tools
3. Vessel and Logistics – SEIC
-to improve with 100ton
