Vedam Design provides end-to-end solutions for ballast water treatment system (BWTS) retrofits. They offer feasibility studies using 3D scanning for accurate spatial analysis, workshop drawings to prefabricate pipe spools, and project management services during retrofits. Their experienced teams include naval architects, mechanical engineers, electrical engineers, and site leads to support BWTS retrofits from design to installation. Vedam has associations with major BWTS original equipment manufacturers and experience performing over 100 BWTS retrofits.

1. VEDAM DESIGN
India: vedam@vedamindia.com, +91 22 61088686 | UAE: info@vedamuae.com, +971 50 854 5028 | Netherlands: info@vedameruope.com, +31 50-2031998
www.vedamdesign.com
Services for BWTS Retrofits
1

2. AN IDEA THAT SET SAIL IN 2007

3. INDUSTRIES

4. INDUSTRIES
D

5. ACHIEVEMENTS

6. *All Trademarks are registered trademarks of their respective owners
CLIENTELE BASE

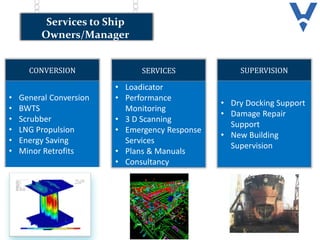

7. • Dry Docking Support
• Damage Repair
Support
• New Building
Supervision
SUPERVISION
• Loadicator
• Performance
Monitoring
• 3 D Scanning
• Emergency Response
Services
• Plans & Manuals
• Consultancy
SERVICES
• General Conversion
• BWTS
• Scrubber
• LNG Propulsion
• Energy Saving
• Minor Retrofits
CONVERSION
Services to Ship
Owners/Manager

8. SERVICES for BWTS
Feasibility
Feasibility
Class
Drawings
Workshop
Drawings
Project
Management
We provide End to End Solutions for BWTS retrofits

9. FEASIBILITY
OPTION 1: DESK BASED
• COST EFFECTIVE
• FAST EXECUTION
• ONLY BASIC LEVEL STUDY
OPTION 2: 3-D SCAN
BASED
– VERY ACCURATE
– COMPLETE SPATIAL FEASIBILITY
– DETAILED STUDY

10. CLASS DWGS
• GA, Machinery Layout
• LSW Est., Stability AnalysisBasic
• Foundation of Equipment
• ER/Pump Room Modification
Structural
Design
• Bilge & Ballast P&ID
• Misc.
Piping
Design
• Load Analysis
• Misc. SLDsElectrical

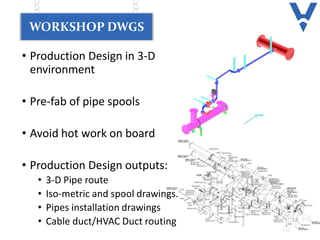

11. WORKSHOP DWGS
• Production Design in 3-D
environment
• Pre-fab of pipe spools
• Avoid hot work on board
• Production Design outputs:
• 3-D Pipe route
• Iso-metric and spool drawings.
• Pipes installation drawings
• Cable duct/HVAC Duct routing

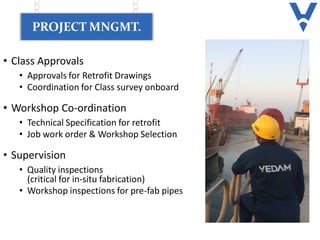

12. PROJECT MNGMT.
• Class Approvals
• Approvals for Retrofit Drawings
• Coordination for Class survey onboard
• Workshop Co-ordination
• Technical Specification for retrofit
• Job work order & Workshop Selection
• Supervision
• Quality inspections
(critical for in-situ fabrication)
• Workshop inspections for pre-fab pipes

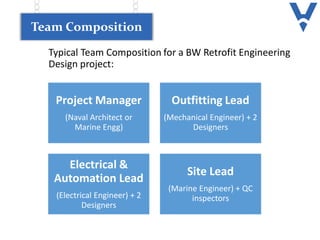

13. Typical Team Composition for a BW Retrofit Engineering
Design project:
Team Composition
Project Manager
(Naval Architect or
Marine Engg)
Outfitting Lead
(Mechanical Engineer) + 2
Designers
Electrical &
Automation Lead
(Electrical Engineer) + 2
Designers
Site Lead
(Marine Engineer) + QC
inspectors

14. ASSOCIATIONS
- With All Major OEMs
- Trainings and knowledge sharing
- Access to Technical drawings
*All Trademarks are registered trademarks of their respective owners
Alfa Laval
Erma First
Ecochlor
Panasia
Optimarin
Headway

15. BWTS TRACK RECORD

16. SAMPLE
DESIGN/DELIVERABLES
DETAILED FEASIBILITY USING 3-D ROUTE IN POINT CLOUD

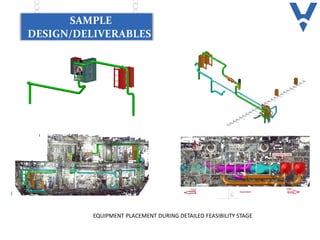

17. SAMPLE
DESIGN/DELIVERABLES
EQUIPMENT PLACEMENT DURING DETAILED FEASIBILITY STAGE

18. MODIFIED BALLAST SYSTEM
SAMPLE
DESIGN/DELIVERABLES

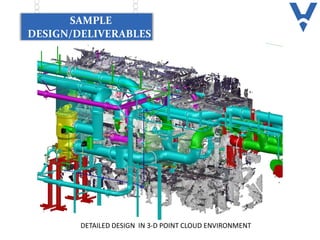

19. DETAILED DESIGN IN 3-D POINT CLOUD ENVIRONMENT
SAMPLE
DESIGN/DELIVERABLES

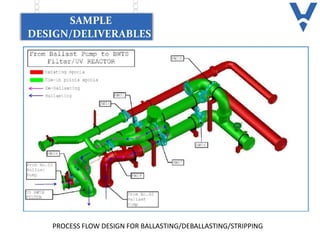

20. PROCESS FLOW DESIGN FOR BALLASTING/DEBALLASTING/STRIPPING
SAMPLE
DESIGN/DELIVERABLES

21. DETAILED DESIGN DELIVERABLES: PIPE ARRANGEMENTS, SPOOLS, SUPPORTS
SAMPLE
DESIGN/DELIVERABLES

22. THANK YOU
