1. Jim Dowling, Logical Clocks AB
Distributed Deep
Learning with Apache
Spark and TensorFlow
#SAISDL2
jim_dowling

2. The Cargobike Riddle
2/48
?

3. Spark &
TensorFlow
Dynamic
Executors
(release GPUs when
training finishes)
Container
(GPUs)
Blacklisting Executors
(for Fault Tolerant
Hyperparameter Optimization)
Optimizing GPU Resource Utilization
3/48

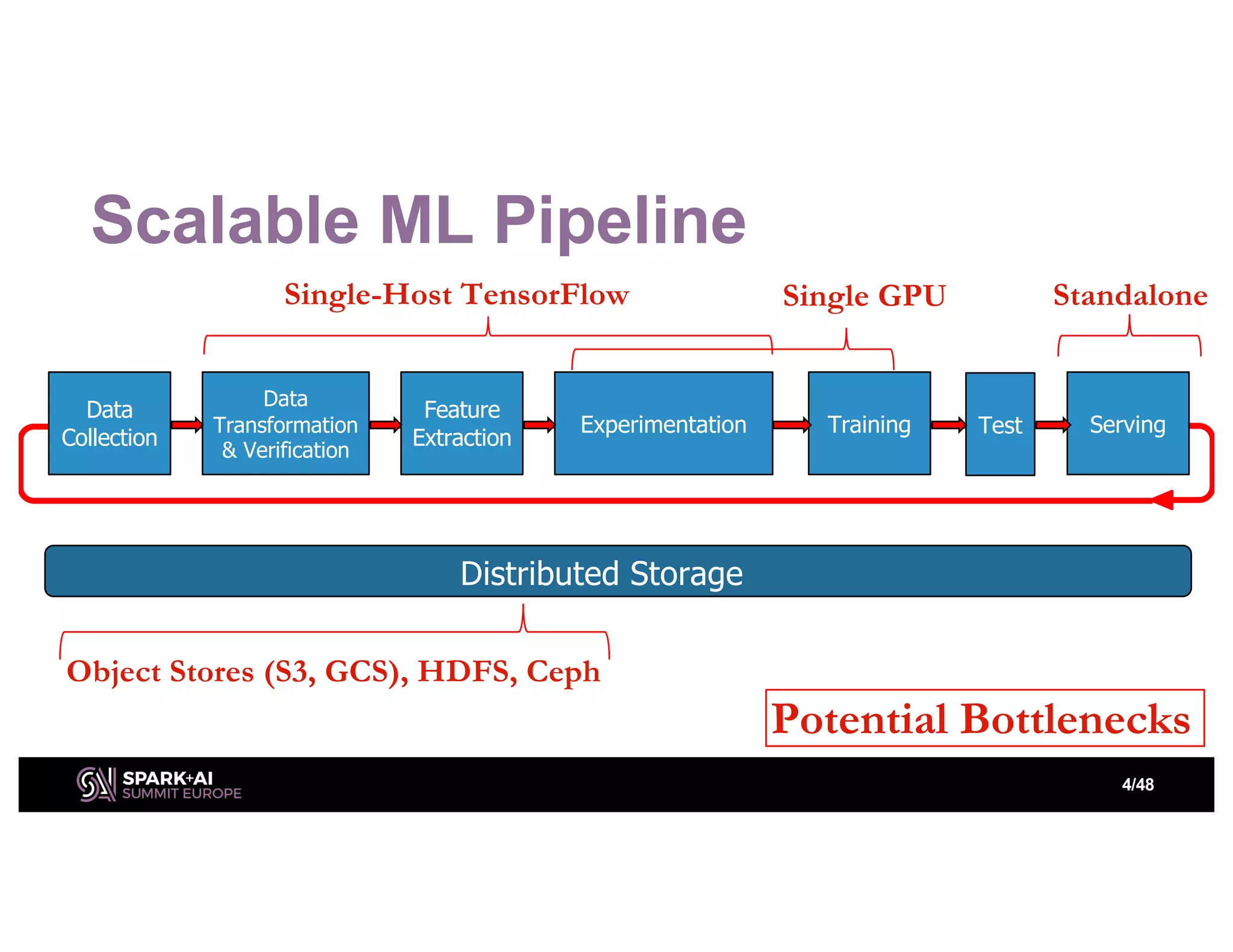

4. Scalable ML Pipeline
Data
Collection
Experimentation Training Serving
Feature
Extraction
Data
Transformation
& Verification
Test
Distributed Storage
Potential Bottlenecks
Object Stores (S3, GCS), HDFS, Ceph
StandaloneSingle-Host TensorFlow Single GPU
4/48

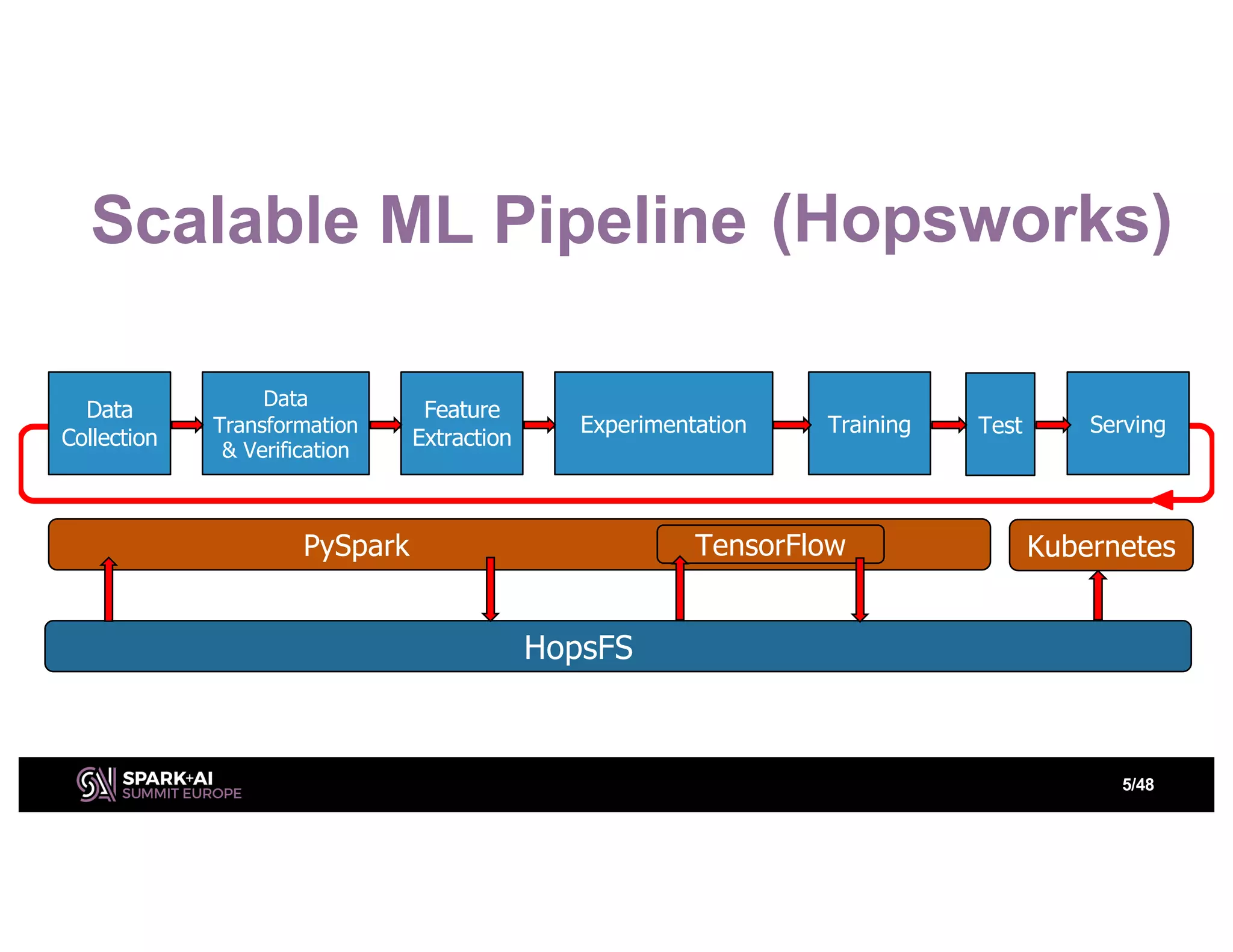

5. Scalable ML Pipeline
5/48
Data
Collection
Experimentation Training Serving
Feature
Extraction
Data
Transformation
& Verification
Test
HopsFS
(Hopsworks)
PySpark KubernetesTensorFlow

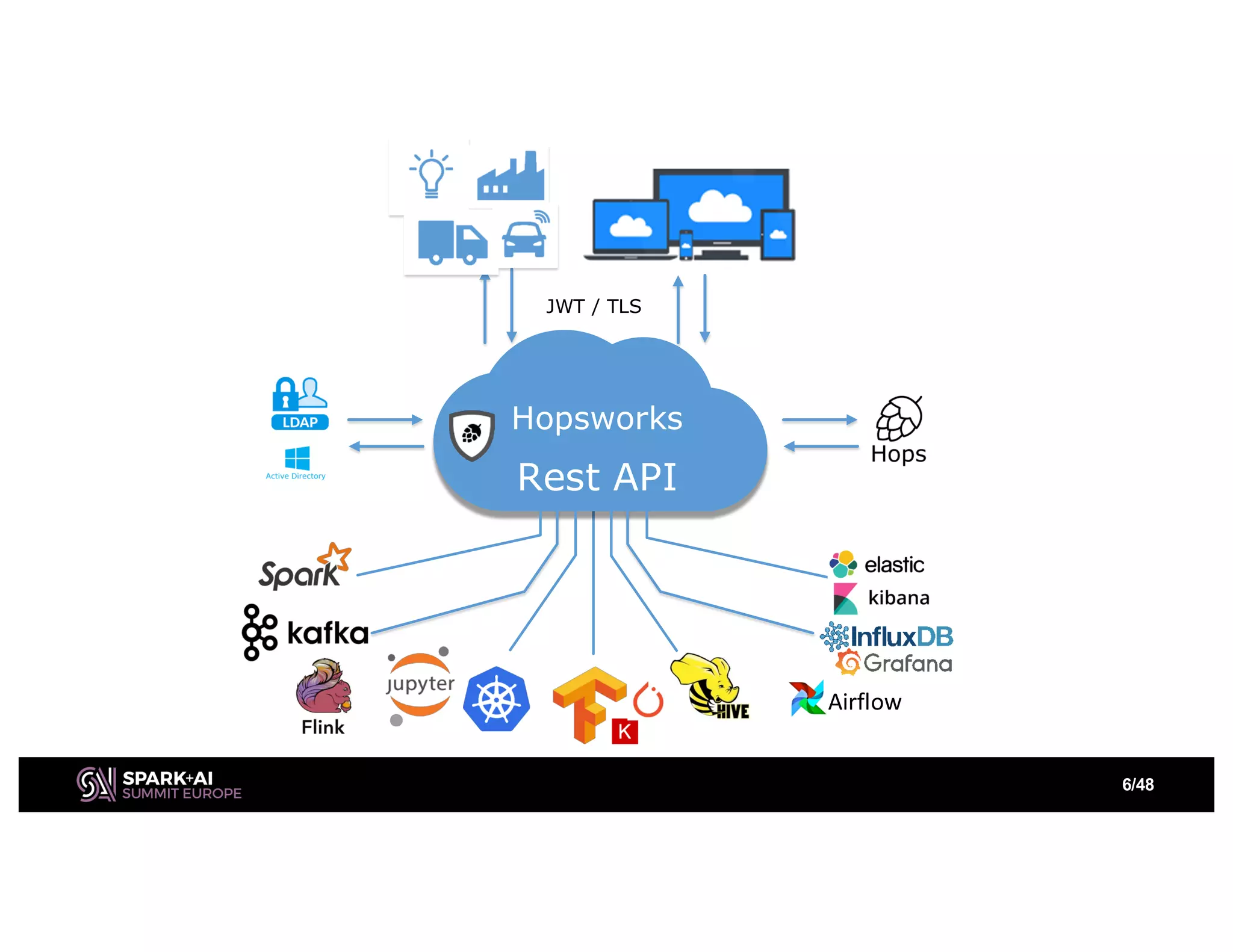

6. 6/48
Hopsworks
Rest API
JWT / TLS
Airflow

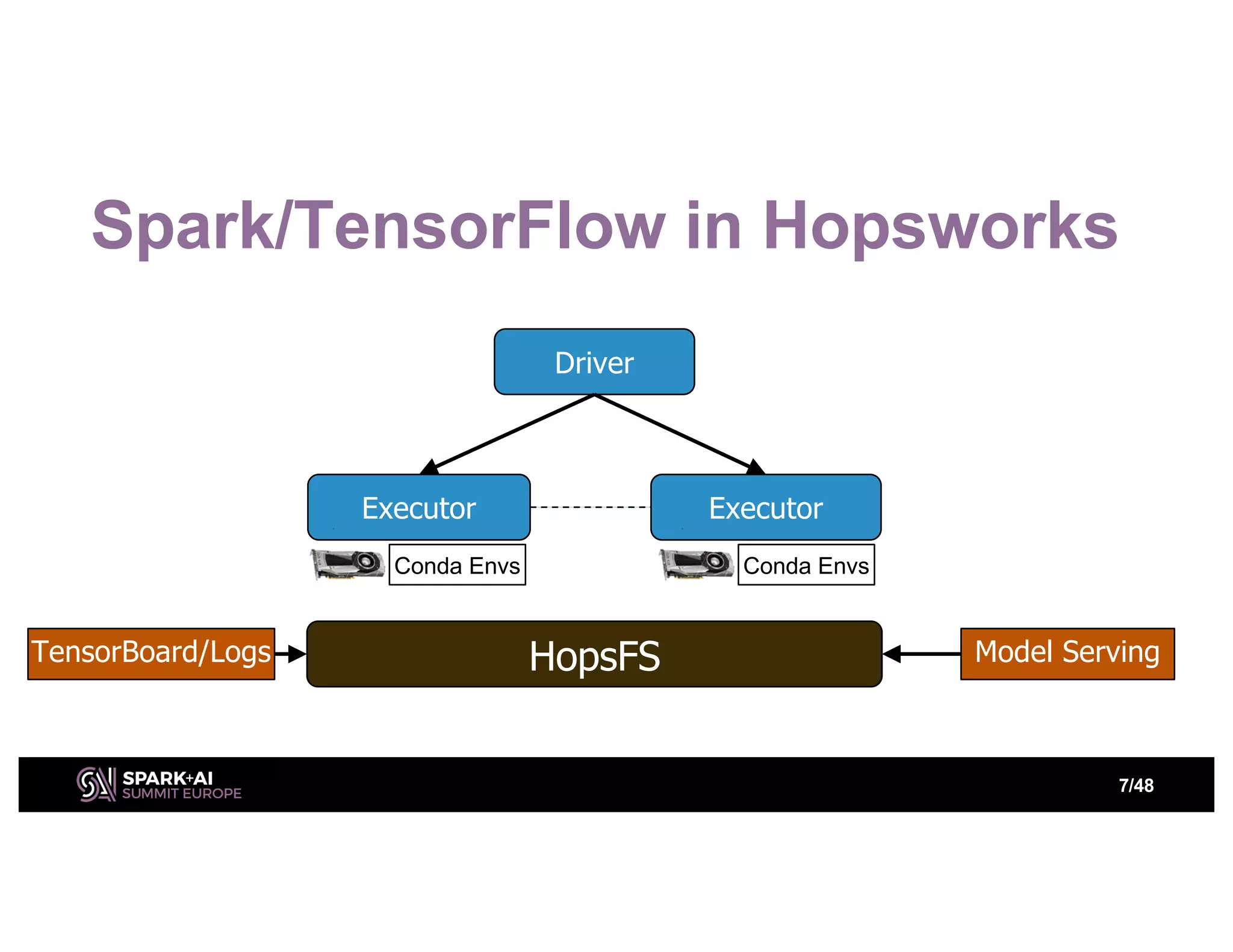

7. Spark/TensorFlow in Hopsworks
7/48
Executor Executor
Driver
HopsFSTensorBoard/Logs Model Serving
Conda Envs Conda Envs

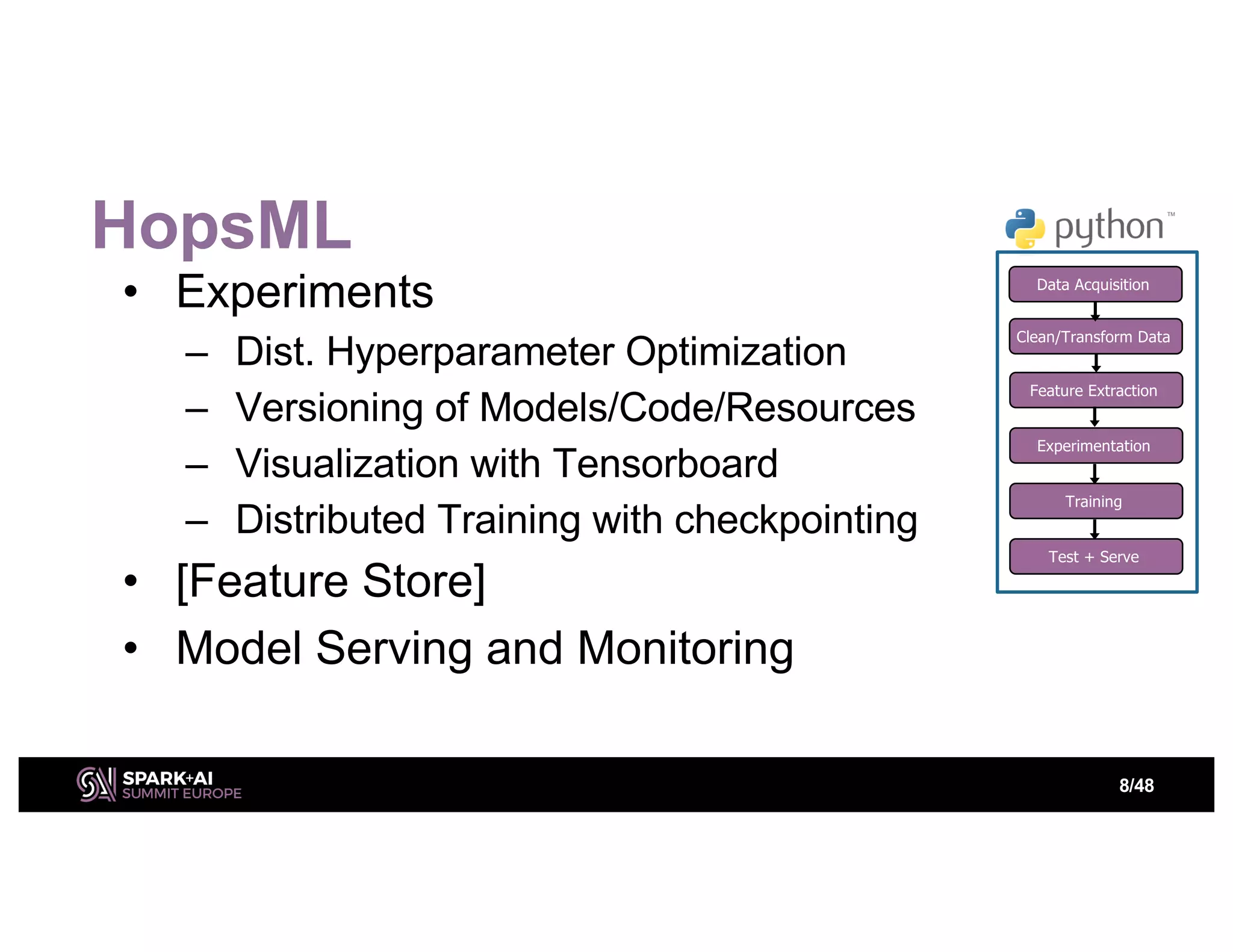

8. HopsML
8/48
• Experiments
– Dist. Hyperparameter Optimization
– Versioning of Models/Code/Resources
– Visualization with Tensorboard
– Distributed Training with checkpointing
• [Feature Store]
• Model Serving and Monitoring
Feature Extraction
Experimentation
Training
Test + Serve
Data Acquisition
Clean/Transform Data

9. Why Distributed Deep Learning?
9/48

10. 10/48
Prof Nando de Freitas @NandoDF
“ICLR 2019 lessons thus far: The deep neural
nets have to be BIGGER and they’re hungry for
data, memory and compute.”
https://twitter.com/NandoDF/status/1046371764211716096

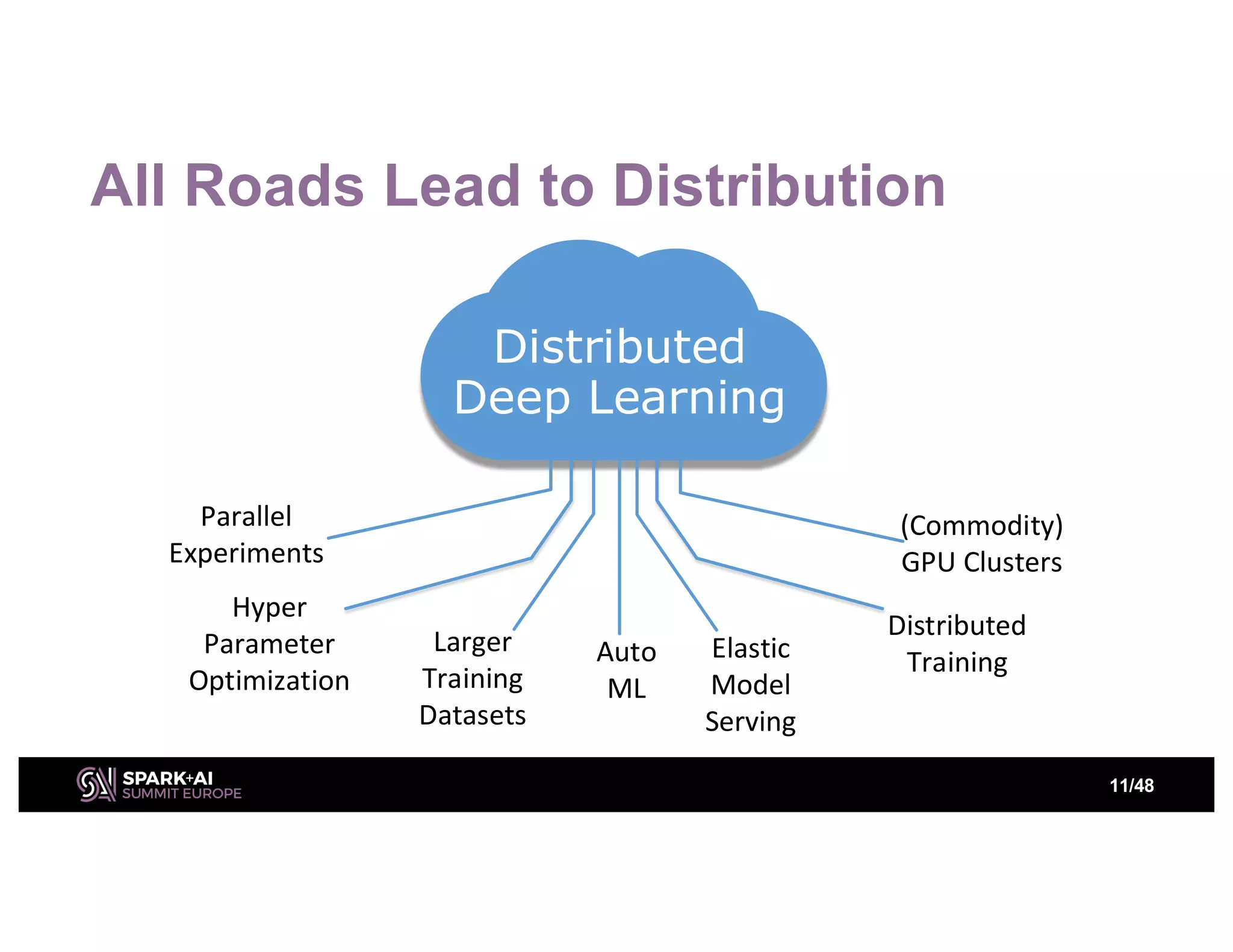

11. All Roads Lead to Distribution
11/48
Distributed
Deep Learning
Hyper
Parameter
Optimization
Distributed
Training
Larger
Training
Datasets
Elastic
Model
Serving
Parallel
Experiments
(Commodity)
GPU Clusters
Auto
ML

12. Hyperparameter Optimization
12/48
(Because DL Theory Sucks!)

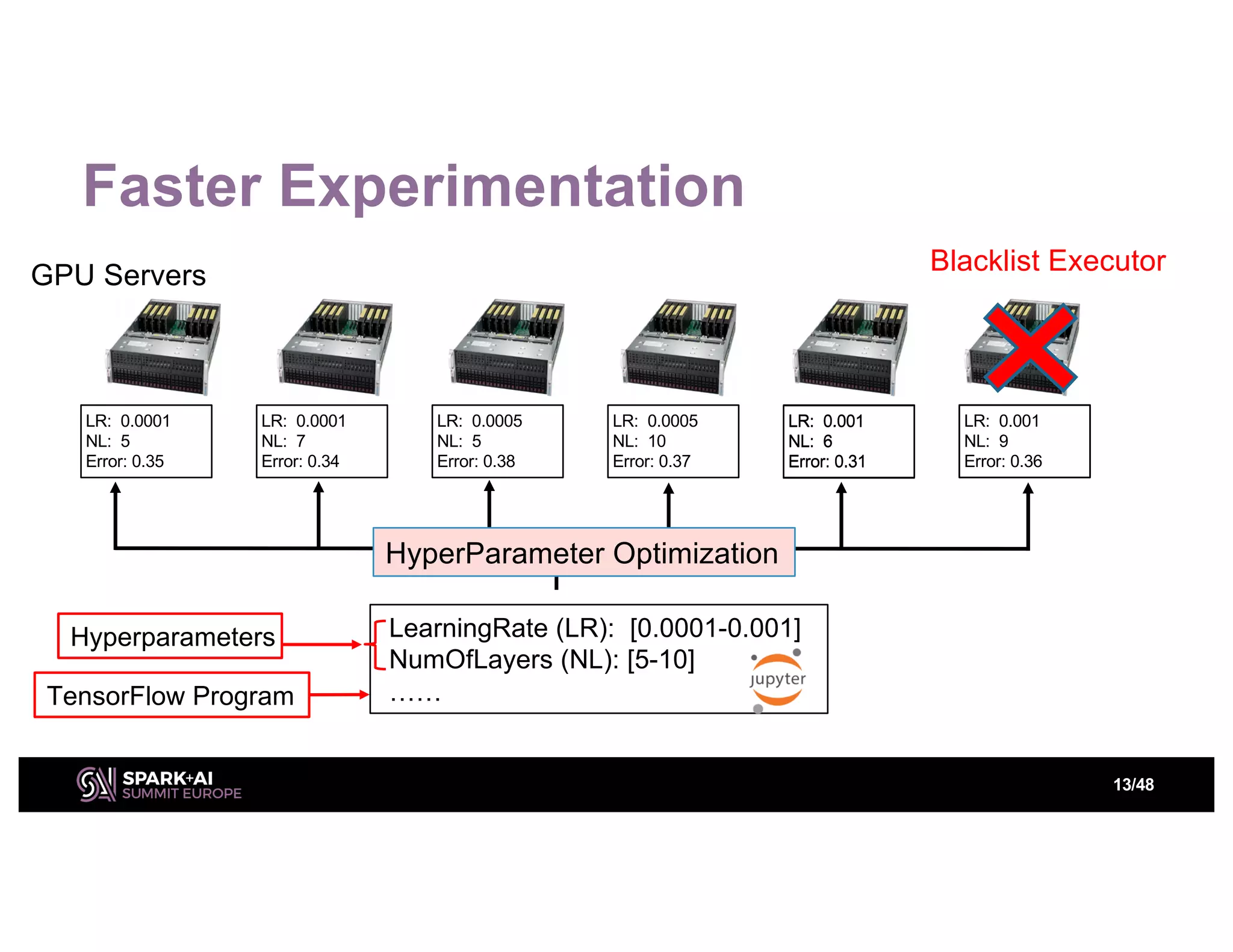

13. Faster Experimentation
13/48
GPU Servers
LearningRate (LR): [0.0001-0.001]
NumOfLayers (NL): [5-10]
……
LR: 0.0001
NL: 5
Error: 0.35
LR: 0.0001
NL: 7
Error: 0.34
LR: 0.0005
NL: 5
Error: 0.38
LR: 0.0005
NL: 10
Error: 0.37
LR: 0.001
NL: 6
Error: 0.31
LR: 0.001
NL: 9
HyperParameter Optimization
LR: 0.001
NL: 6
Error: 0.31
TensorFlow Program
Hyperparameters
Blacklist Executor
LR: 0.001
NL: 9
Error: 0.36

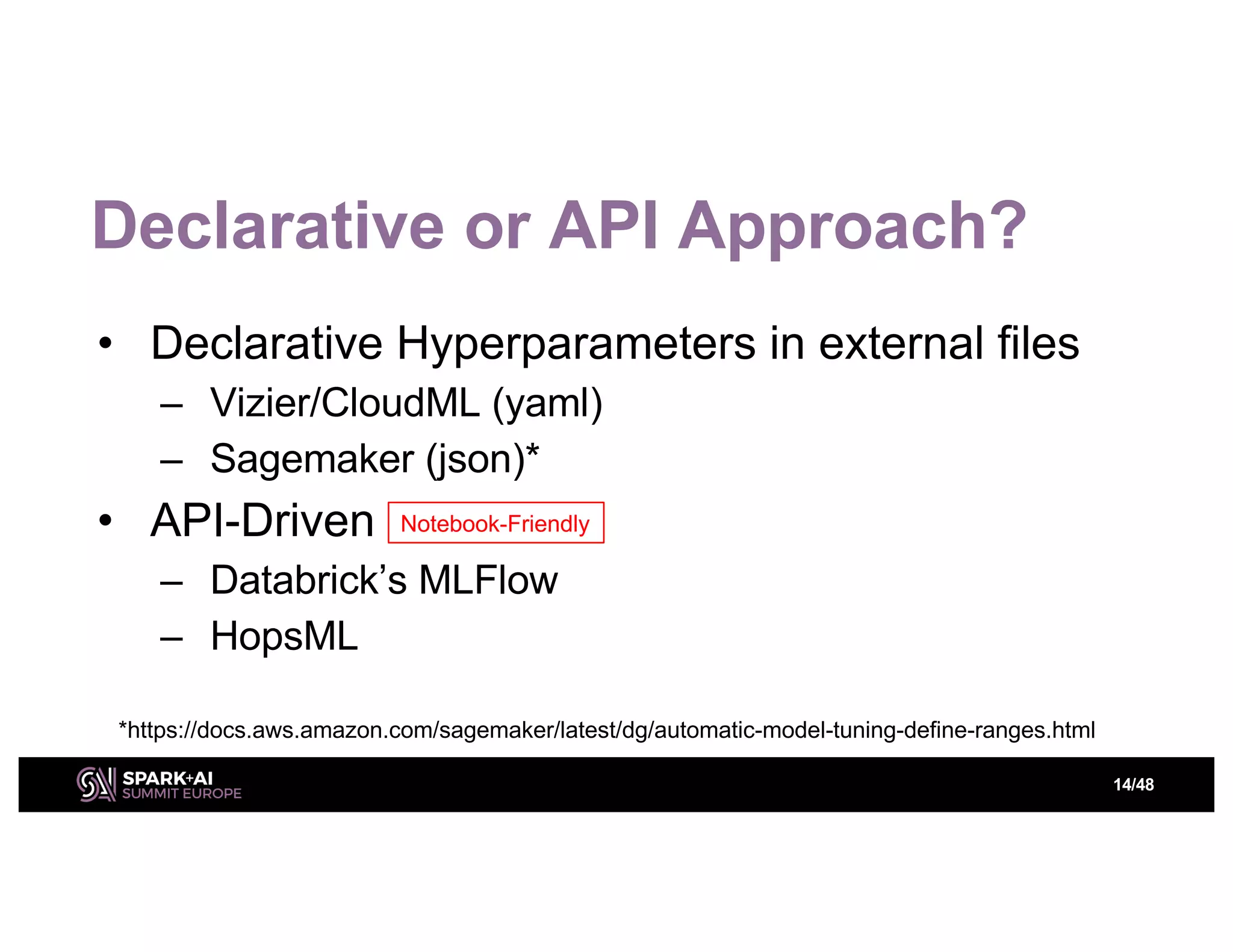

14. Declarative or API Approach?
• Declarative Hyperparameters in external files
– Vizier/CloudML (yaml)
– Sagemaker (json)*
• API-Driven
– Databrick’s MLFlow
– HopsML
14/48
*https://docs.aws.amazon.com/sagemaker/latest/dg/automatic-model-tuning-define-ranges.html
Notebook-Friendly

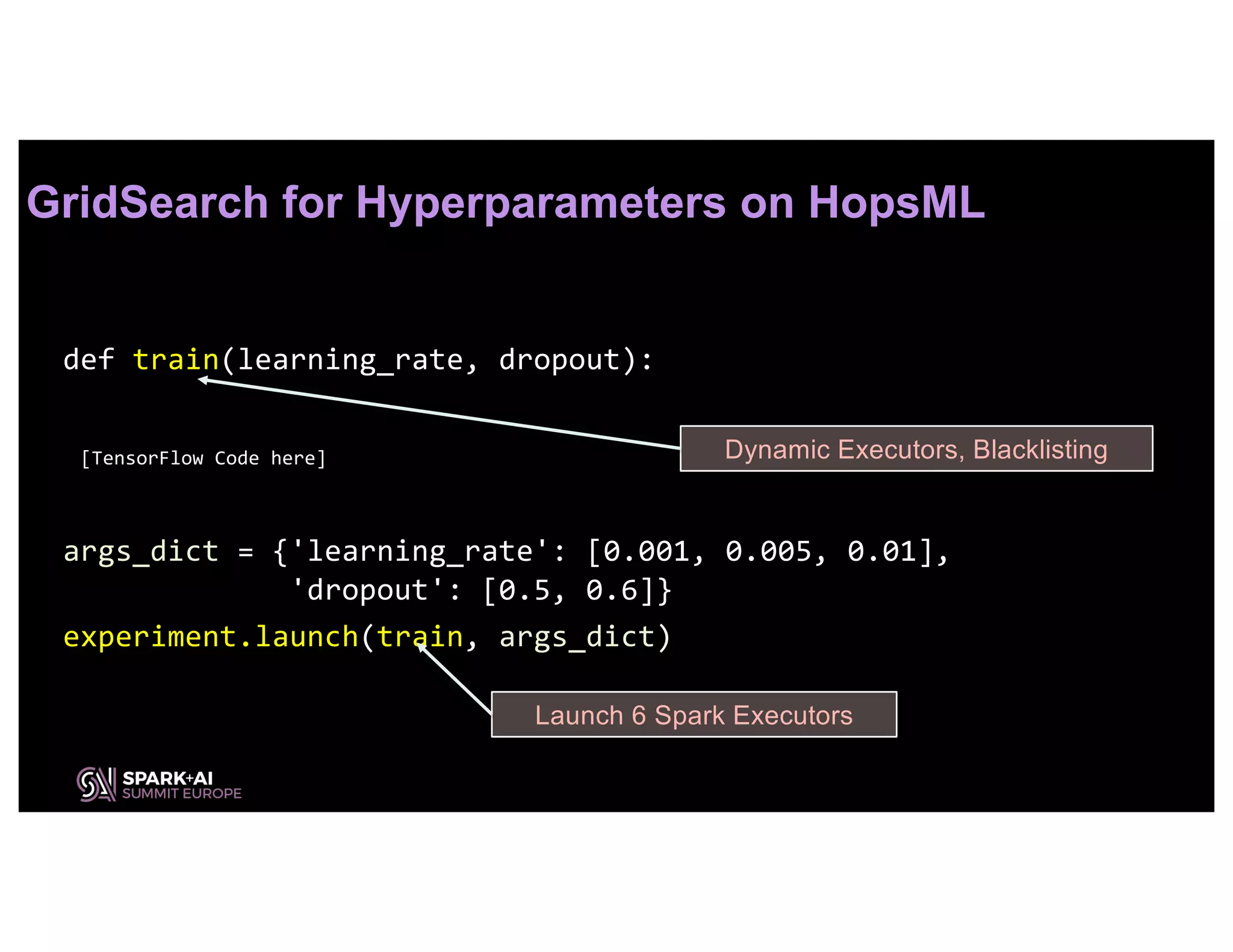

15. def train(learning_rate, dropout):
[TensorFlow Code here]
args_dict = {'learning_rate': [0.001, 0.005, 0.01],
'dropout': [0.5, 0.6]}
experiment.launch(train, args_dict)
GridSearch for Hyperparameters on HopsML
Launch 6 Spark Executors
Dynamic Executors, Blacklisting

16. Distributed Training
16/48
Image from @hardmaru on Twitter.

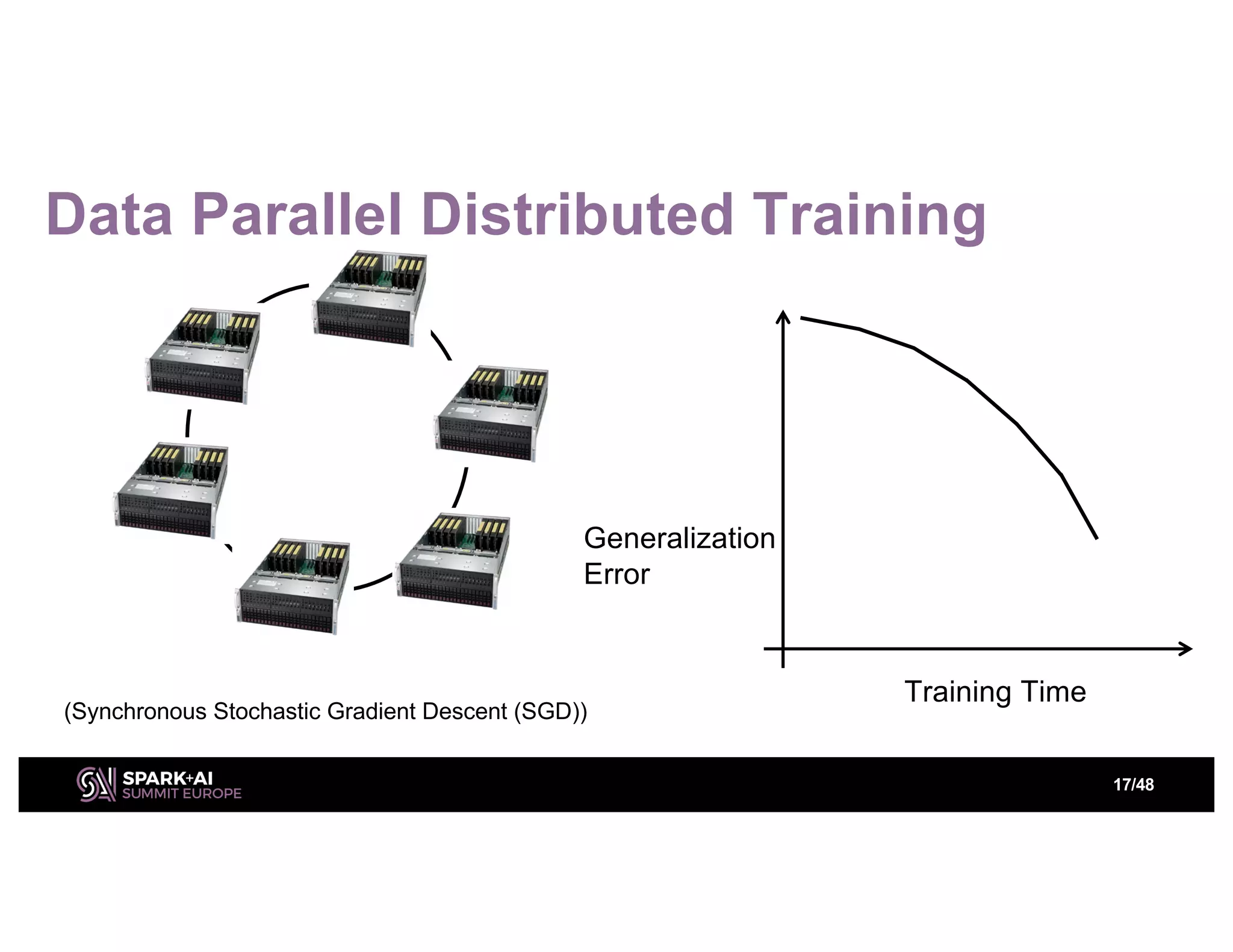

17. Data Parallel Distributed Training
17/48
Training Time
Generalization
Error
(Synchronous Stochastic Gradient Descent (SGD))

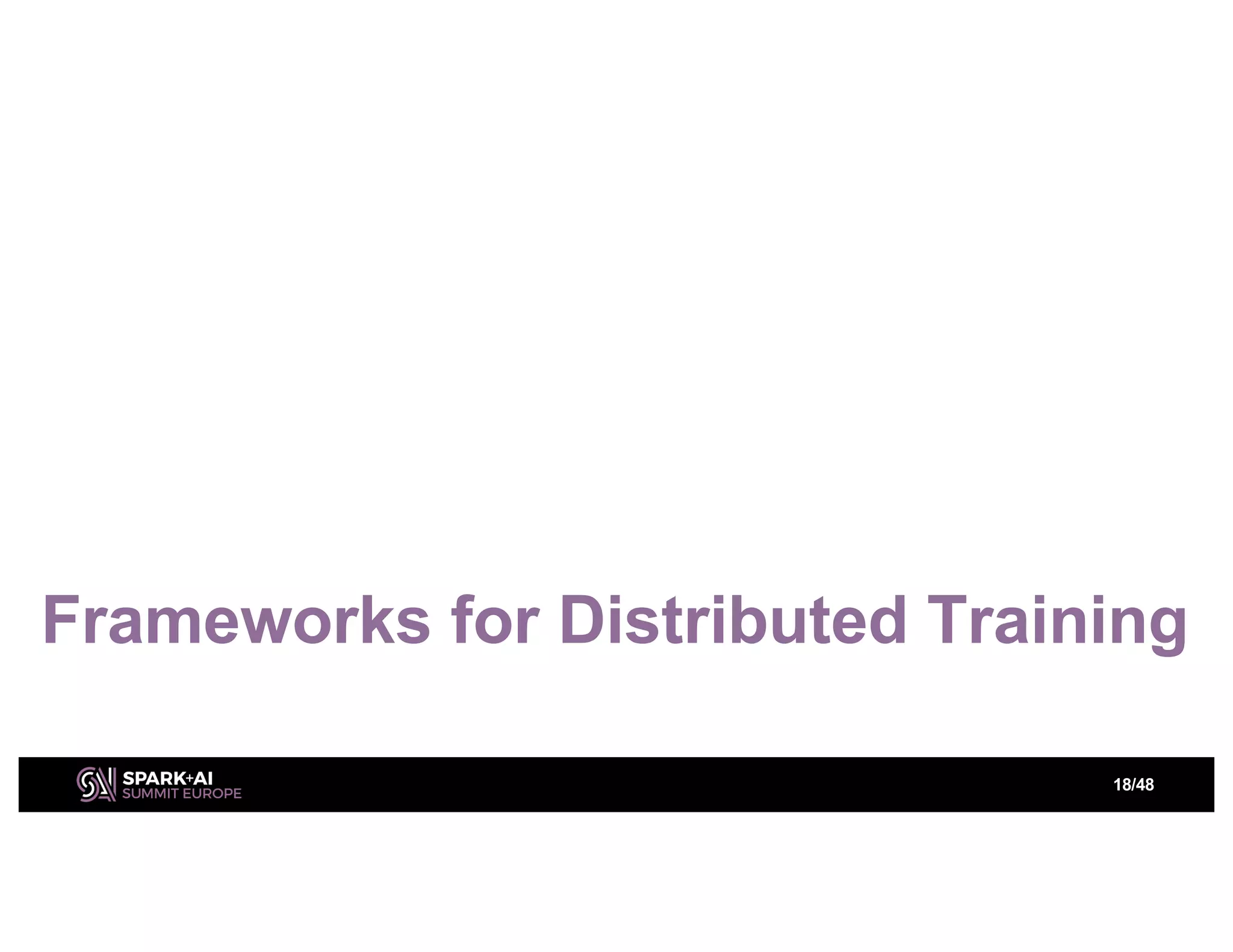

18. Frameworks for Distributed Training
18/48

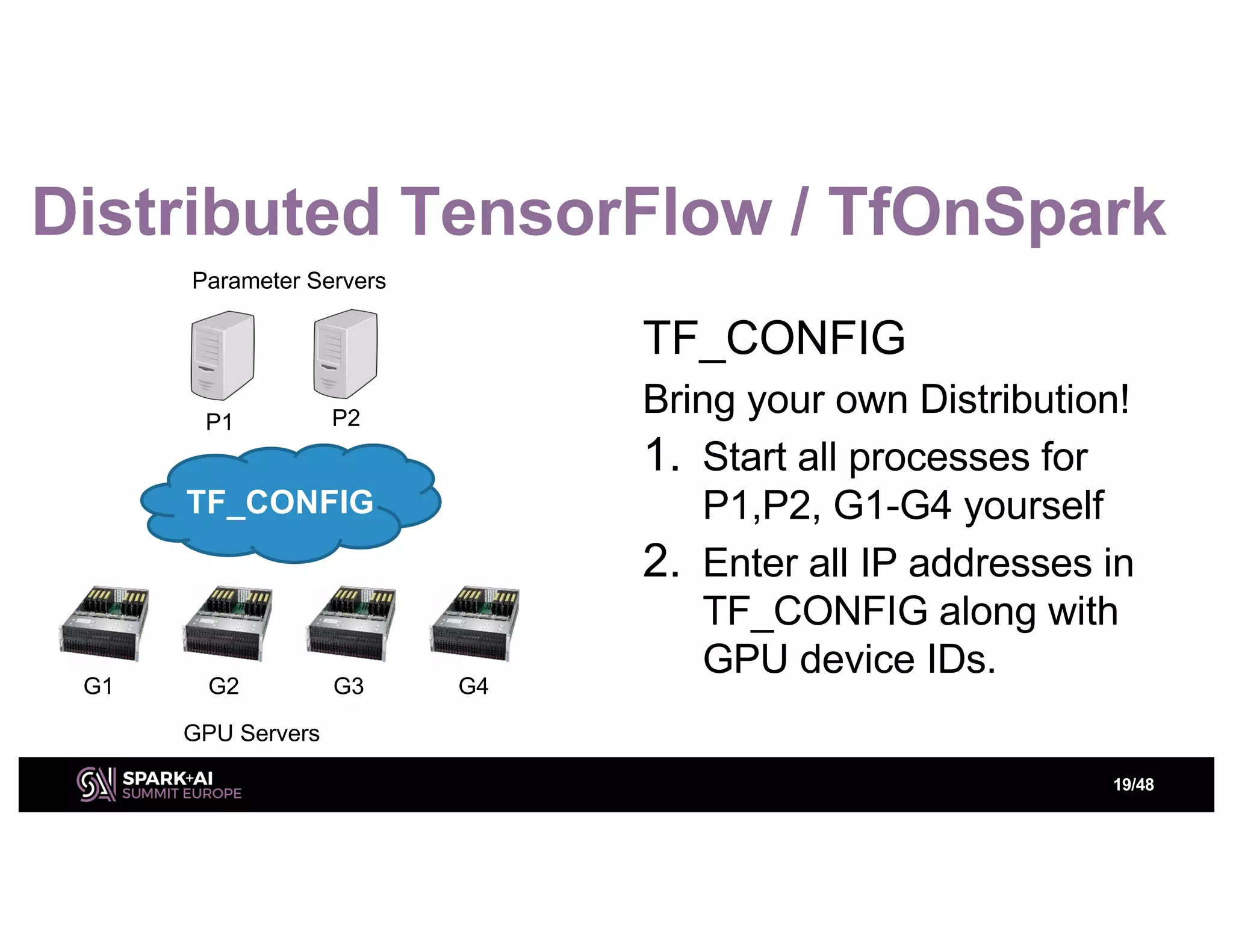

19. Distributed TensorFlow / TfOnSpark
TF_CONFIG
Bring your own Distribution!
1. Start all processes for
P1,P2, G1-G4 yourself
2. Enter all IP addresses in
TF_CONFIG along with
GPU device IDs.
19/48
Parameter Servers
G1 G2 G3 G4
P1 P2
GPU Servers
TF_CONFIG

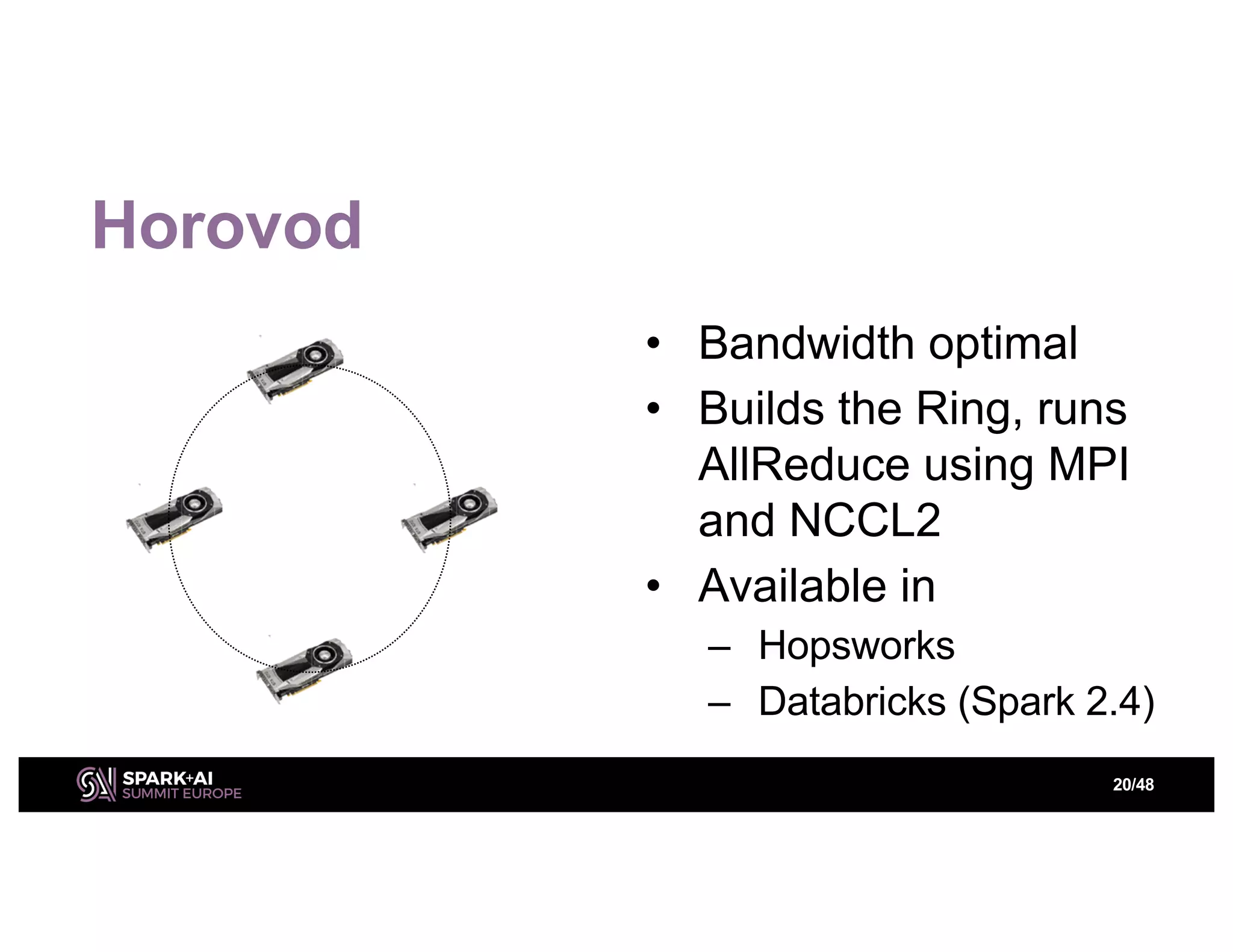

20. Horovod
• Bandwidth optimal
• Builds the Ring, runs
AllReduce using MPI
and NCCL2
• Available in
– Hopsworks
– Databricks (Spark 2.4)
20/48

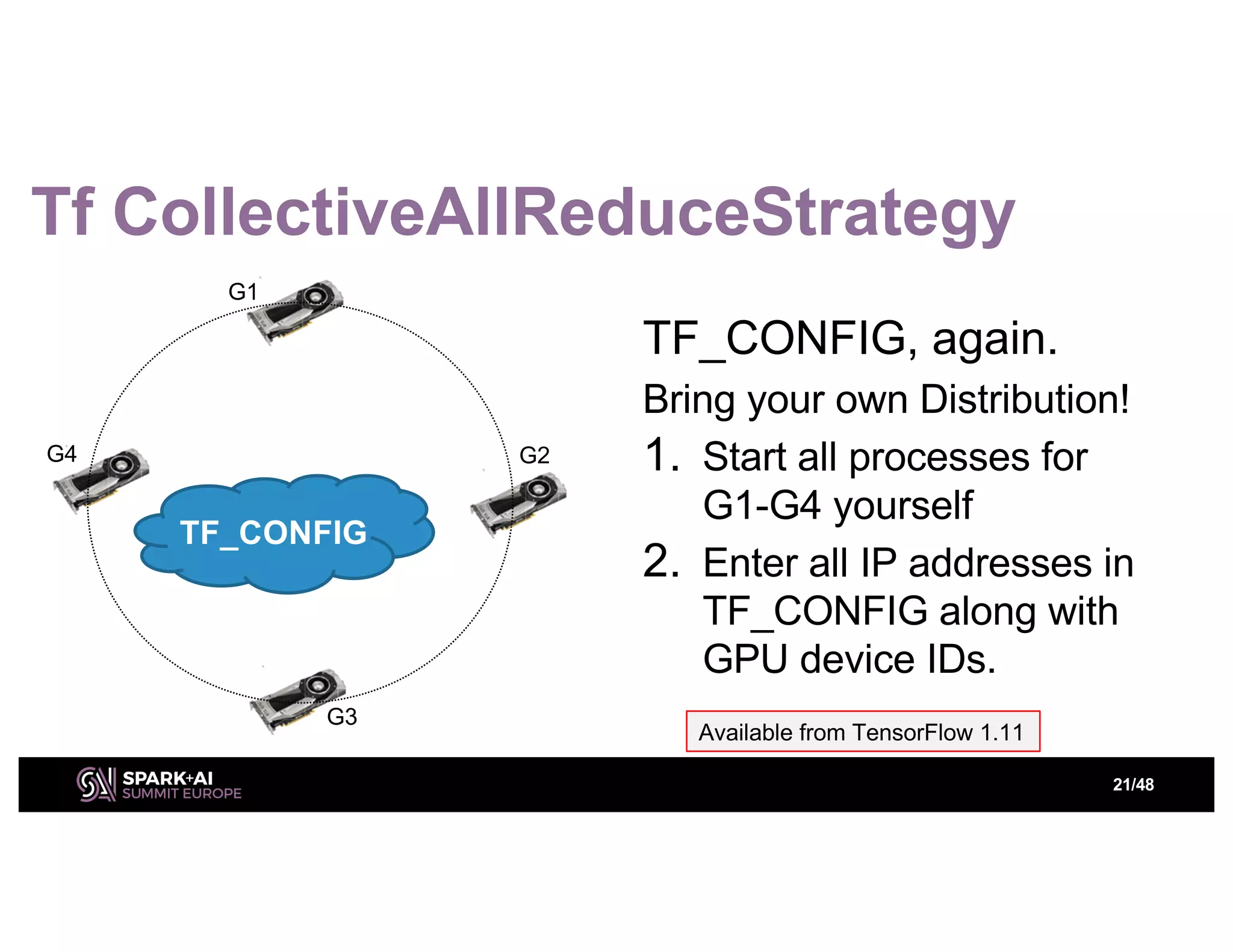

21. Tf CollectiveAllReduceStrategy
TF_CONFIG, again.
Bring your own Distribution!
1. Start all processes for
G1-G4 yourself
2. Enter all IP addresses in
TF_CONFIG along with
GPU device IDs.
21/48
G1
G2
G3
G4
TF_CONFIG
Available from TensorFlow 1.11

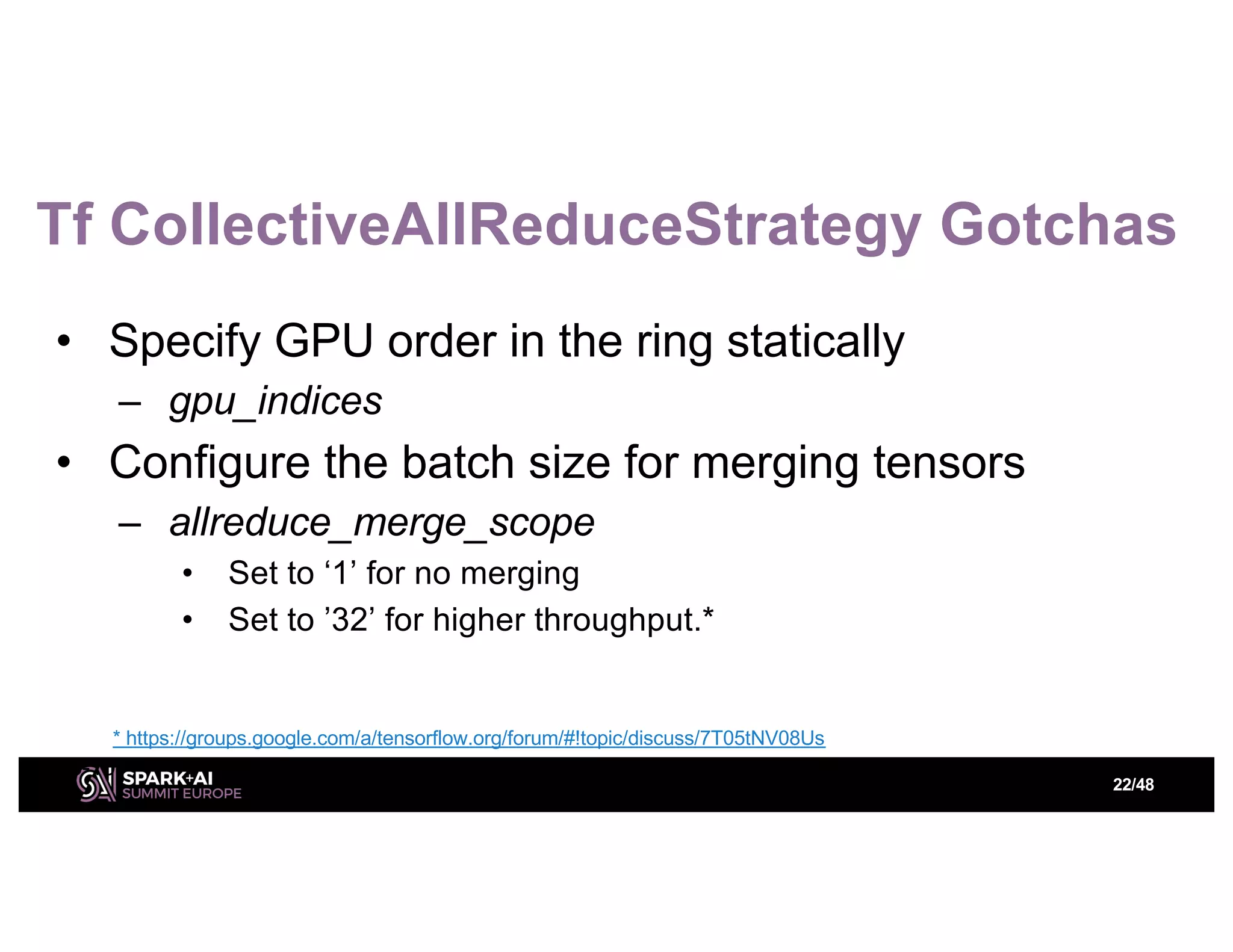

22. Tf CollectiveAllReduceStrategy Gotchas
• Specify GPU order in the ring statically
– gpu_indices
• Configure the batch size for merging tensors
– allreduce_merge_scope
• Set to ‘1’ for no merging
• Set to ’32’ for higher throughput.*
22/48
2018-10-
06
* https://groups.google.com/a/tensorflow.org/forum/#!topic/discuss/7T05tNV08Us

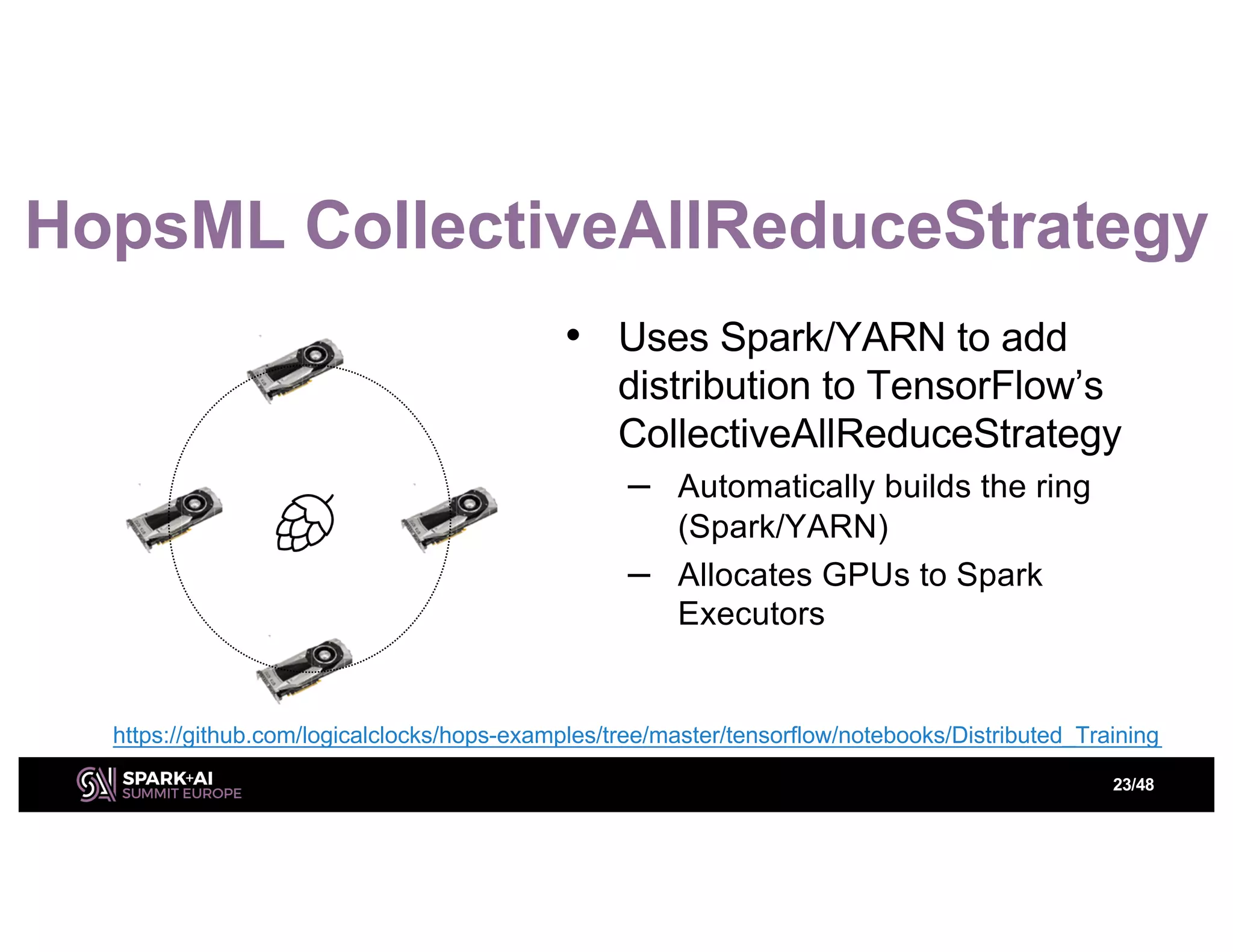

23. HopsML CollectiveAllReduceStrategy
• Uses Spark/YARN to add
distribution to TensorFlow’s
CollectiveAllReduceStrategy
– Automatically builds the ring
(Spark/YARN)
– Allocates GPUs to Spark
Executors
23/48
https://github.com/logicalclocks/hops-examples/tree/master/tensorflow/notebooks/Distributed_Training

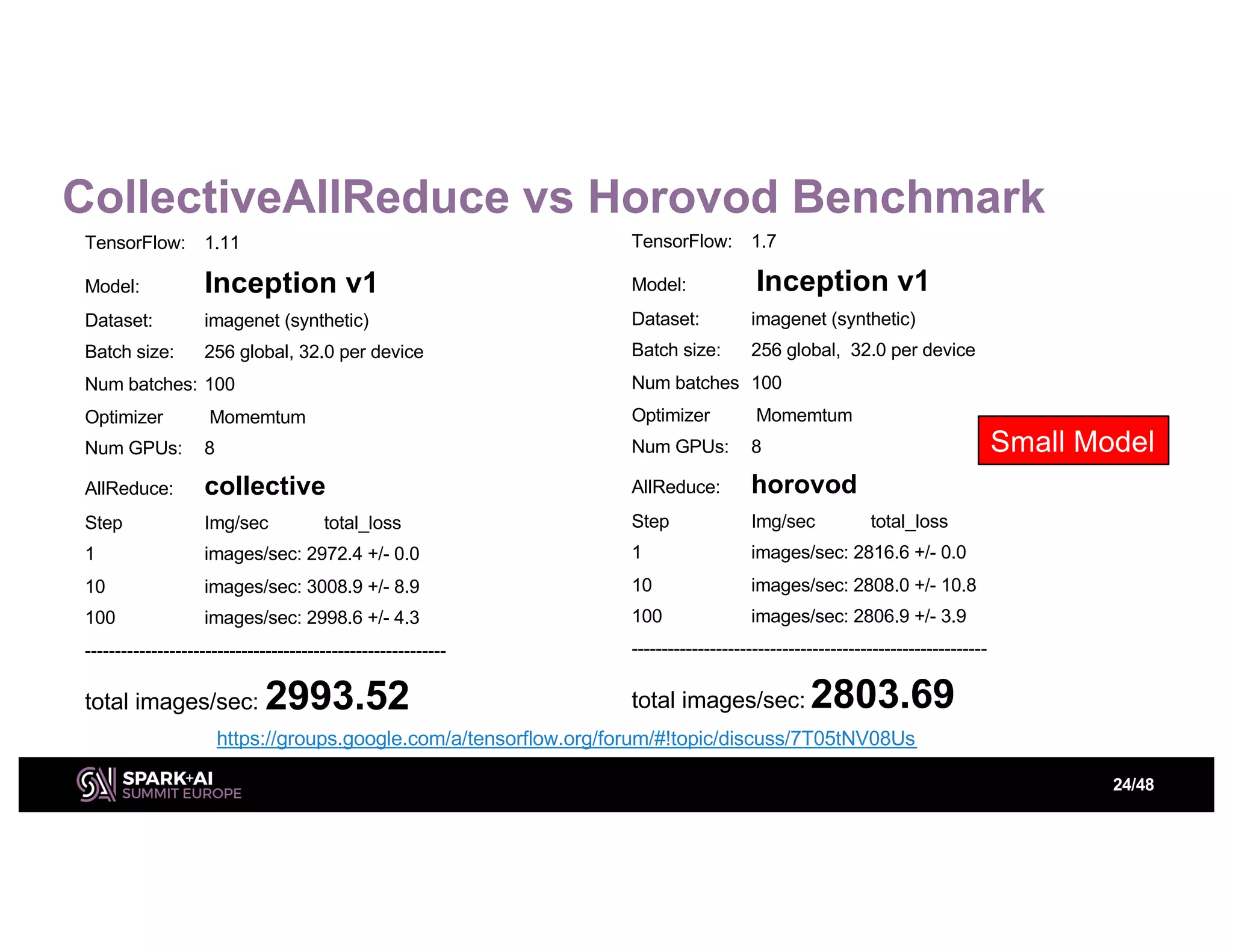

24. CollectiveAllReduce vs Horovod Benchmark
TensorFlow: 1.11
Model: Inception v1
Dataset: imagenet (synthetic)
Batch size: 256 global, 32.0 per device
Num batches: 100
Optimizer Momemtum
Num GPUs: 8
AllReduce: collective
Step Img/sec total_loss
1 images/sec: 2972.4 +/- 0.0
10 images/sec: 3008.9 +/- 8.9
100 images/sec: 2998.6 +/- 4.3
------------------------------------------------------------
total images/sec: 2993.52
TensorFlow: 1.7
Model: Inception v1
Dataset: imagenet (synthetic)
Batch size: 256 global, 32.0 per device
Num batches 100
Optimizer Momemtum
Num GPUs: 8
AllReduce: horovod
Step Img/sec total_loss
1 images/sec: 2816.6 +/- 0.0
10 images/sec: 2808.0 +/- 10.8
100 images/sec: 2806.9 +/- 3.9
-----------------------------------------------------------
total images/sec: 2803.69
https://groups.google.com/a/tensorflow.org/forum/#!topic/discuss/7T05tNV08Us
Small Model
24/48

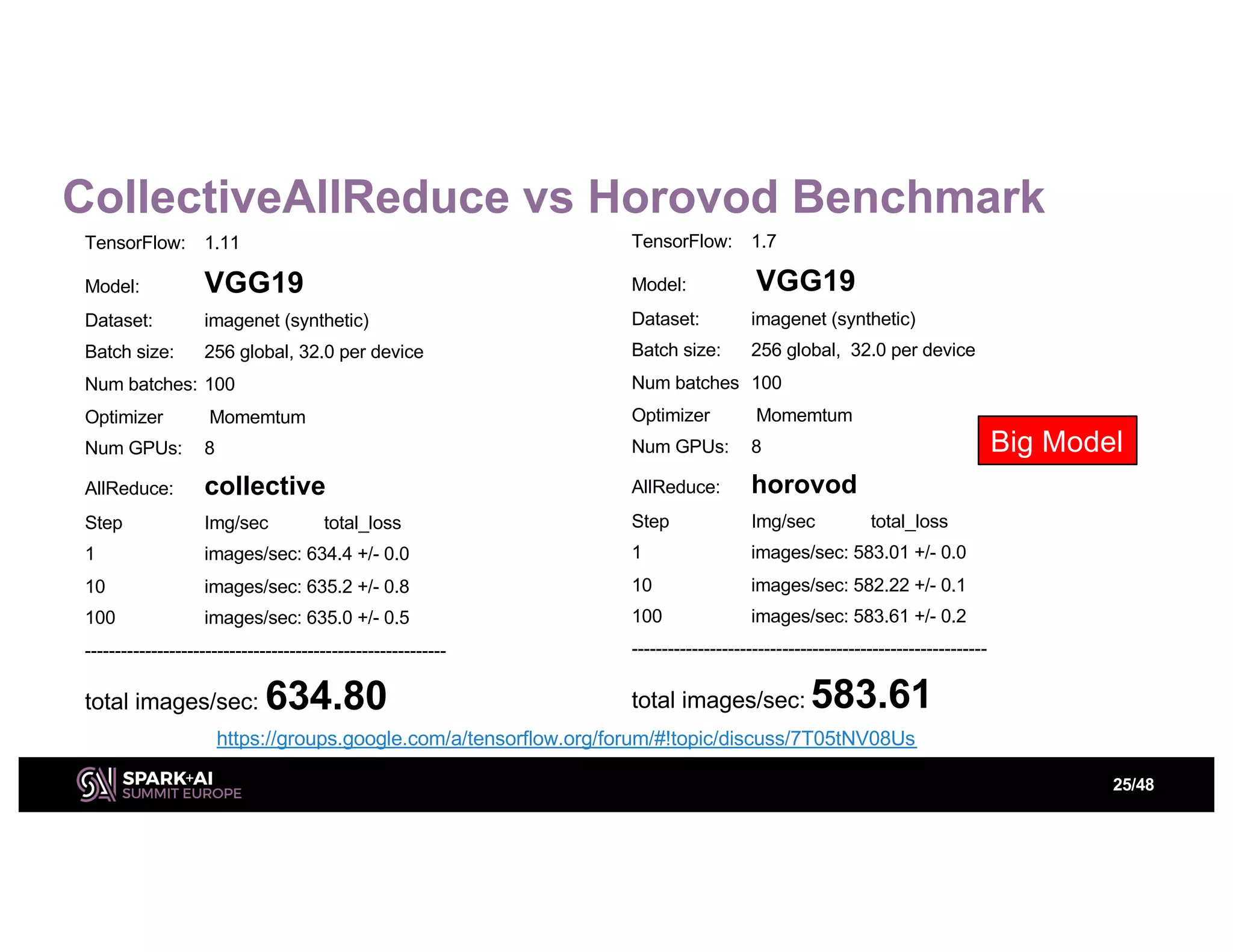

25. CollectiveAllReduce vs Horovod Benchmark
TensorFlow: 1.11
Model: VGG19
Dataset: imagenet (synthetic)
Batch size: 256 global, 32.0 per device
Num batches: 100
Optimizer Momemtum
Num GPUs: 8
AllReduce: collective
Step Img/sec total_loss
1 images/sec: 634.4 +/- 0.0
10 images/sec: 635.2 +/- 0.8
100 images/sec: 635.0 +/- 0.5
------------------------------------------------------------
total images/sec: 634.80
TensorFlow: 1.7
Model: VGG19
Dataset: imagenet (synthetic)
Batch size: 256 global, 32.0 per device
Num batches 100
Optimizer Momemtum
Num GPUs: 8
AllReduce: horovod
Step Img/sec total_loss
1 images/sec: 583.01 +/- 0.0
10 images/sec: 582.22 +/- 0.1
100 images/sec: 583.61 +/- 0.2
-----------------------------------------------------------
total images/sec: 583.61
https://groups.google.com/a/tensorflow.org/forum/#!topic/discuss/7T05tNV08Us
Big Model
25/48

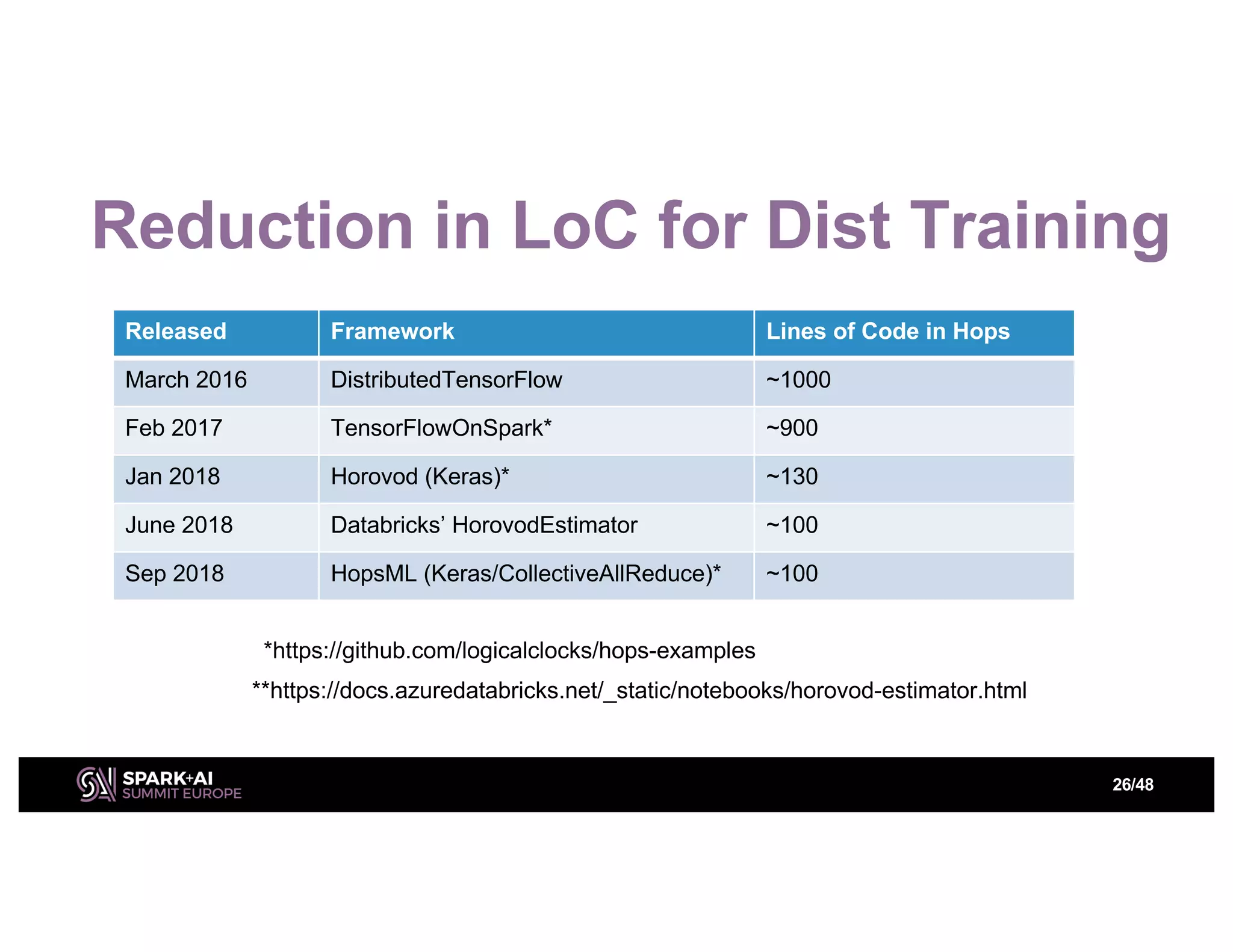

26. Reduction in LoC for Dist Training
26/48
Released Framework Lines of Code in Hops
March 2016 DistributedTensorFlow ~1000
Feb 2017 TensorFlowOnSpark* ~900
Jan 2018 Horovod (Keras)* ~130
June 2018 Databricks’ HorovodEstimator ~100
Sep 2018 HopsML (Keras/CollectiveAllReduce)* ~100
*https://github.com/logicalclocks/hops-examples
**https://docs.azuredatabricks.net/_static/notebooks/horovod-estimator.html

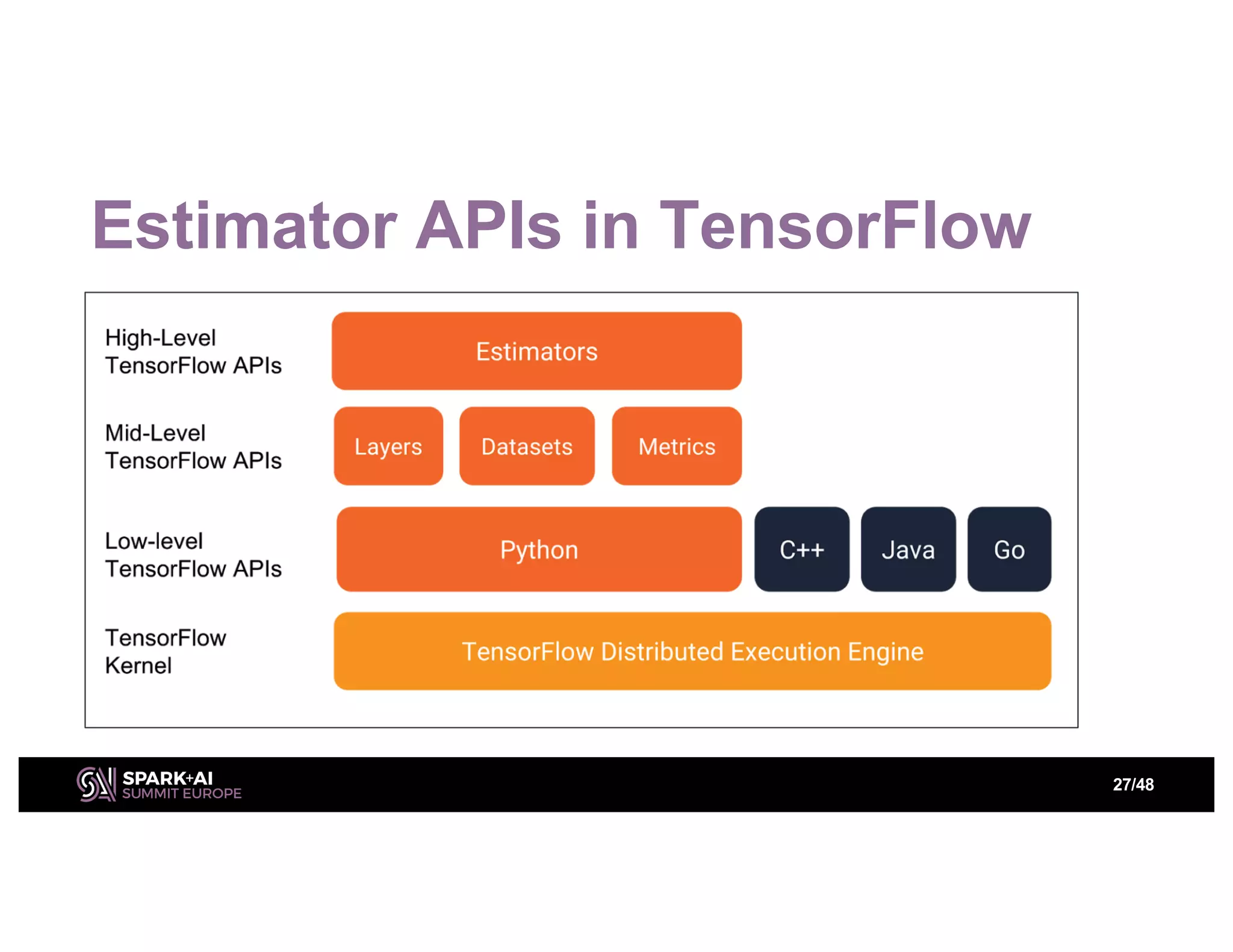

27. Estimator APIs in TensorFlow
27/48

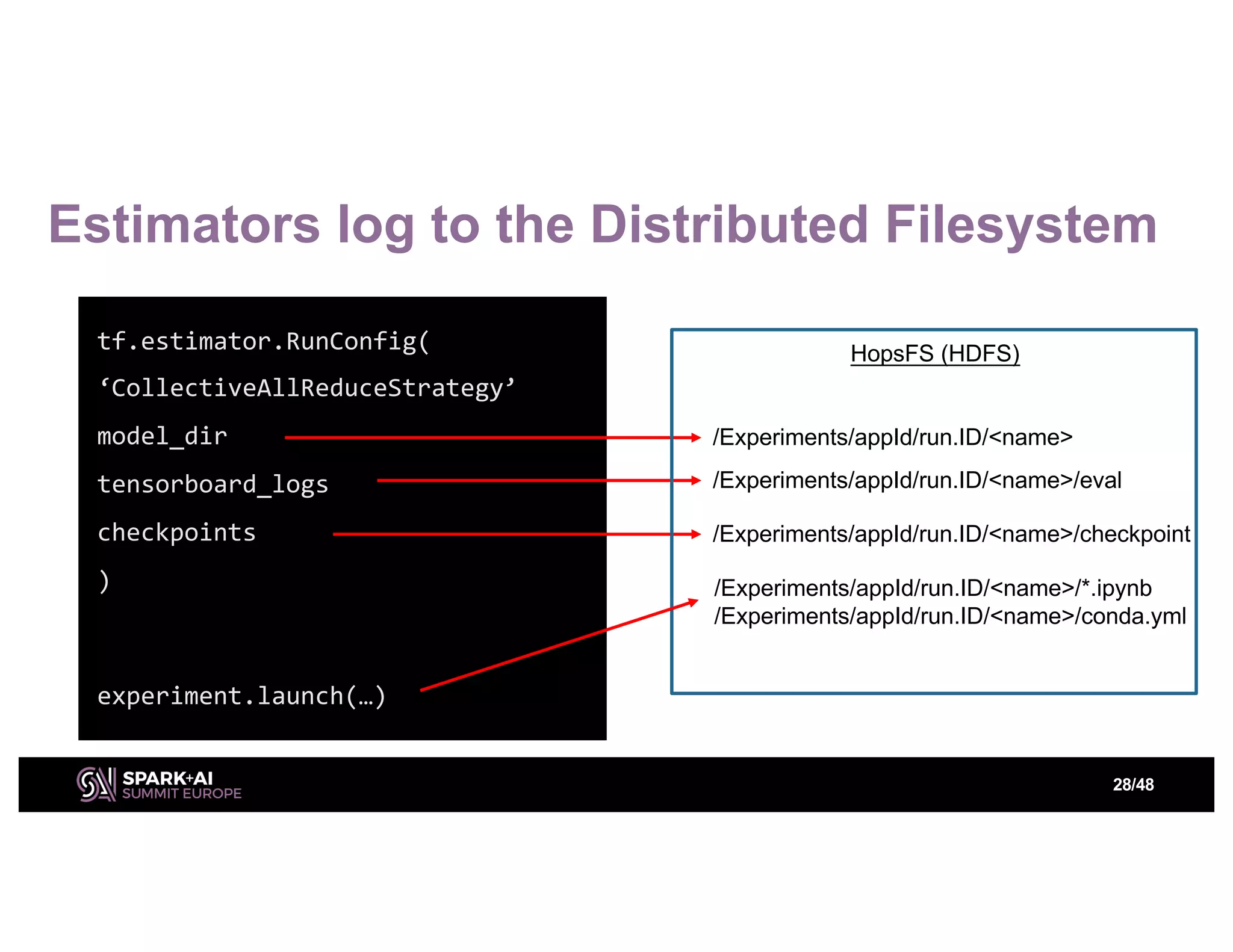

28. Estimators log to the Distributed Filesystem
tf.estimator.RunConfig(
‘CollectiveAllReduceStrategy’
model_dir
tensorboard_logs
checkpoints
)
experiment.launch(…)
/Experiments/appId/run.ID/<name>
/Experiments/appId/run.ID/<name>/eval
/Experiments/appId/run.ID/<name>/checkpoint
HopsFS (HDFS)
/Experiments/appId/run.ID/<name>/*.ipynb
/Experiments/appId/run.ID/<name>/conda.yml
28/48

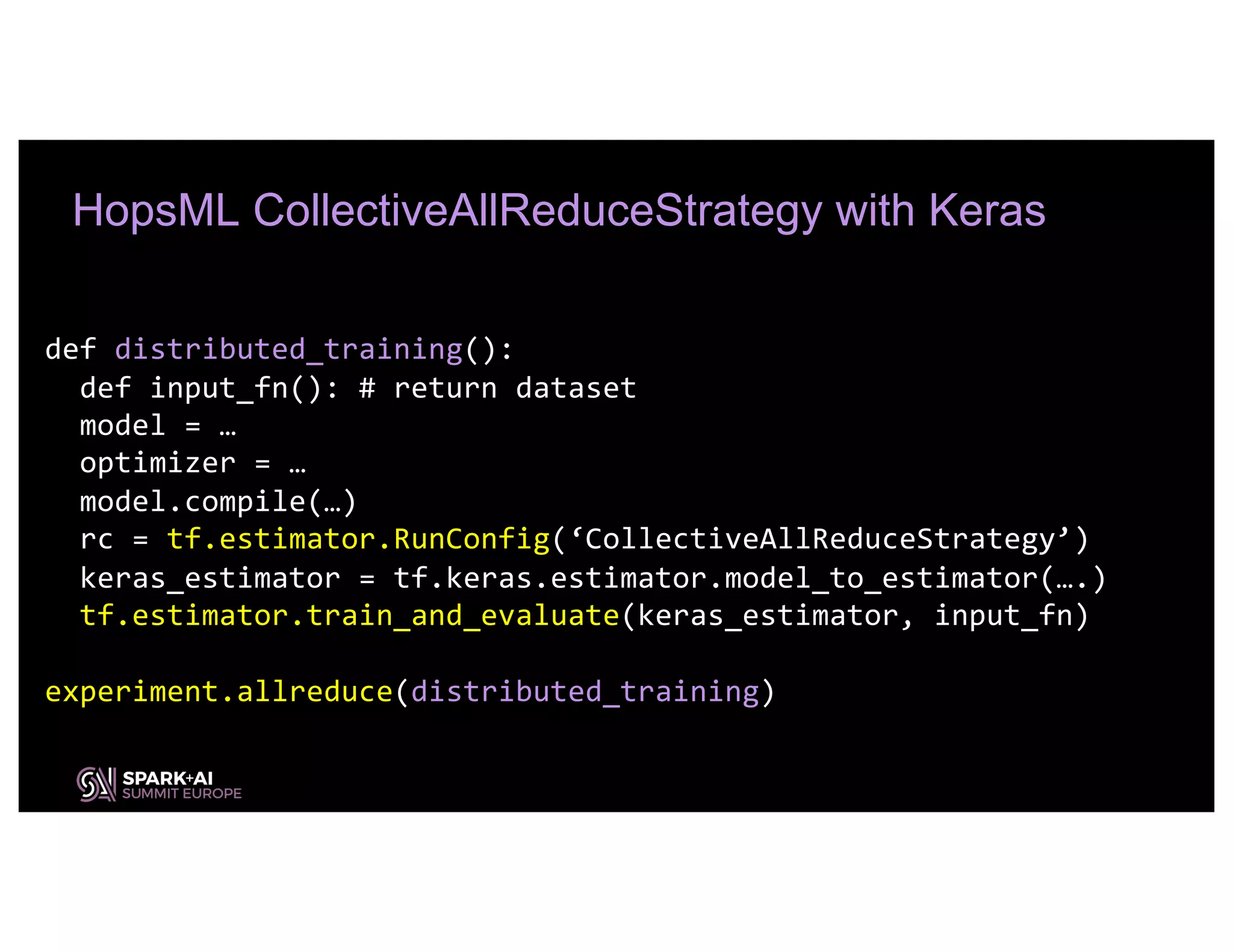

29. def distributed_training():
def input_fn(): # return dataset
model = …
optimizer = …
model.compile(…)
rc = tf.estimator.RunConfig(‘CollectiveAllReduceStrategy’)
keras_estimator = tf.keras.estimator.model_to_estimator(….)
tf.estimator.train_and_evaluate(keras_estimator, input_fn)
experiment.allreduce(distributed_training)
HopsML CollectiveAllReduceStrategy with Keras

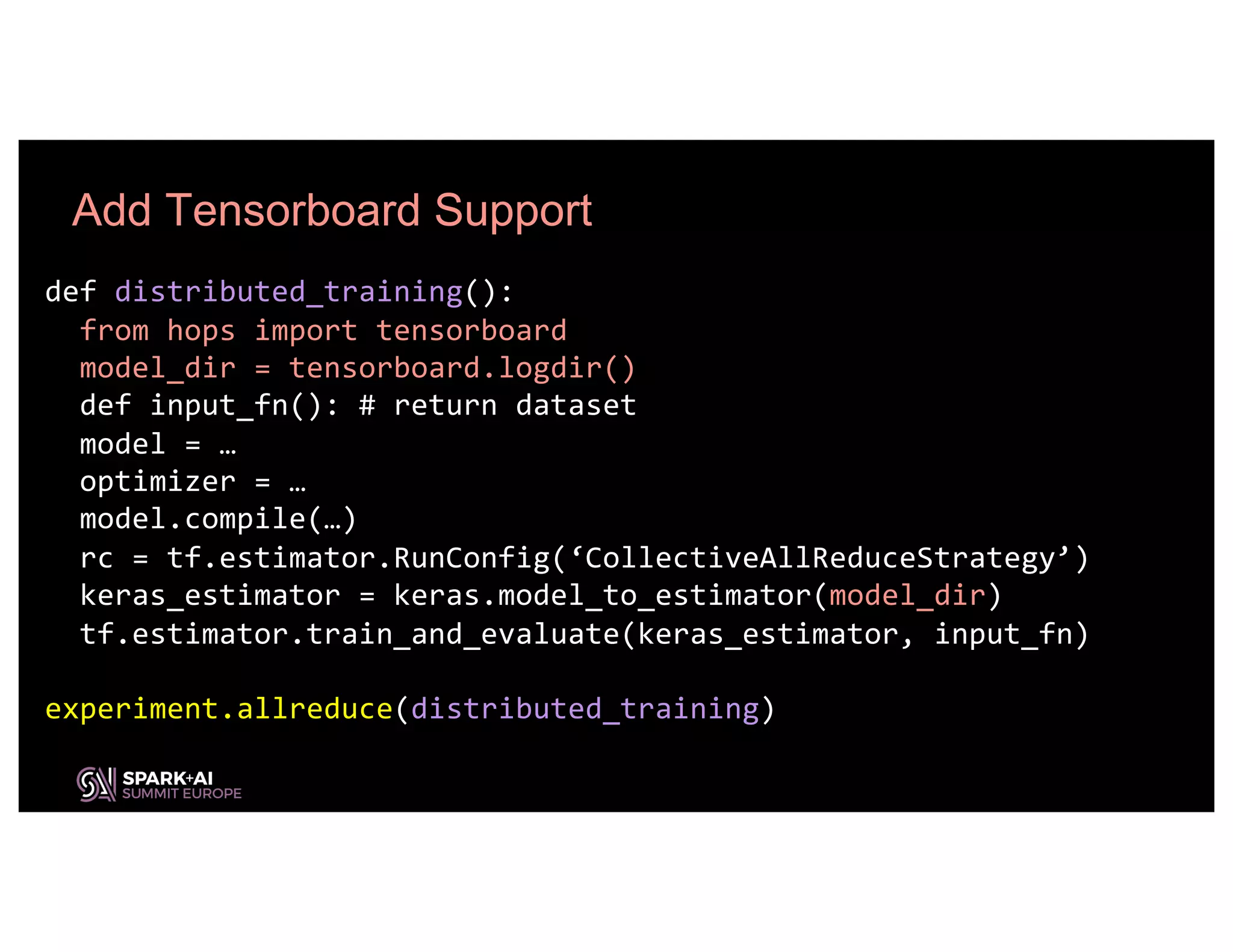

30. def distributed_training():
from hops import tensorboard
model_dir = tensorboard.logdir()
def input_fn(): # return dataset
model = …
optimizer = …
model.compile(…)
rc = tf.estimator.RunConfig(‘CollectiveAllReduceStrategy’)
keras_estimator = keras.model_to_estimator(model_dir)
tf.estimator.train_and_evaluate(keras_estimator, input_fn)
experiment.allreduce(distributed_training)
Add Tensorboard Support

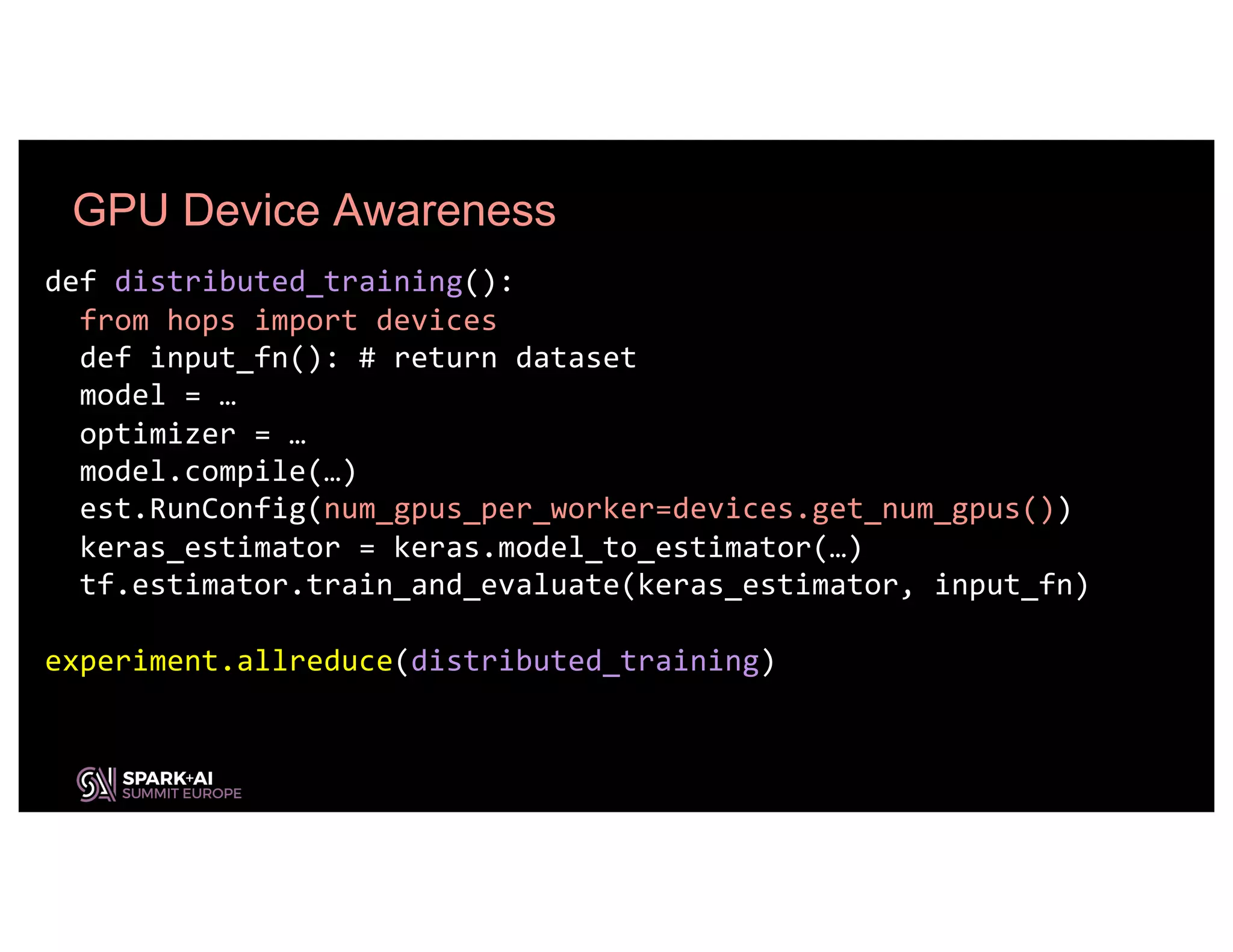

31. def distributed_training():
from hops import devices
def input_fn(): # return dataset
model = …
optimizer = …
model.compile(…)
est.RunConfig(num_gpus_per_worker=devices.get_num_gpus())
keras_estimator = keras.model_to_estimator(…)
tf.estimator.train_and_evaluate(keras_estimator, input_fn)
experiment.allreduce(distributed_training)
GPU Device Awareness

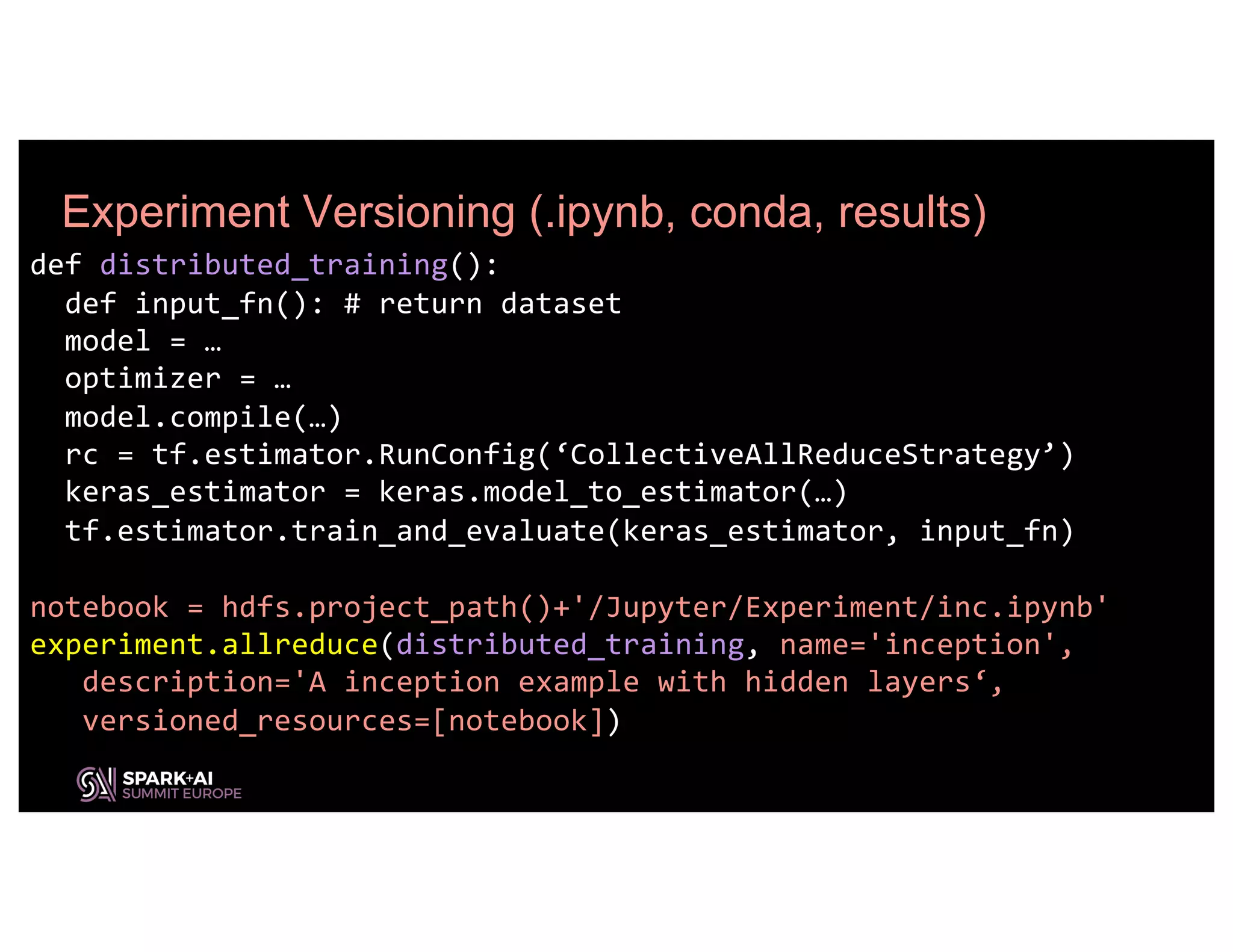

32. def distributed_training():
def input_fn(): # return dataset
model = …
optimizer = …
model.compile(…)
rc = tf.estimator.RunConfig(‘CollectiveAllReduceStrategy’)
keras_estimator = keras.model_to_estimator(…)
tf.estimator.train_and_evaluate(keras_estimator, input_fn)
notebook = hdfs.project_path()+'/Jupyter/Experiment/inc.ipynb'
experiment.allreduce(distributed_training, name='inception',
description='A inception example with hidden layers‘,
versioned_resources=[notebook])
Experiment Versioning (.ipynb, conda, results)

33. Experiments/Versioning in Hopsworks

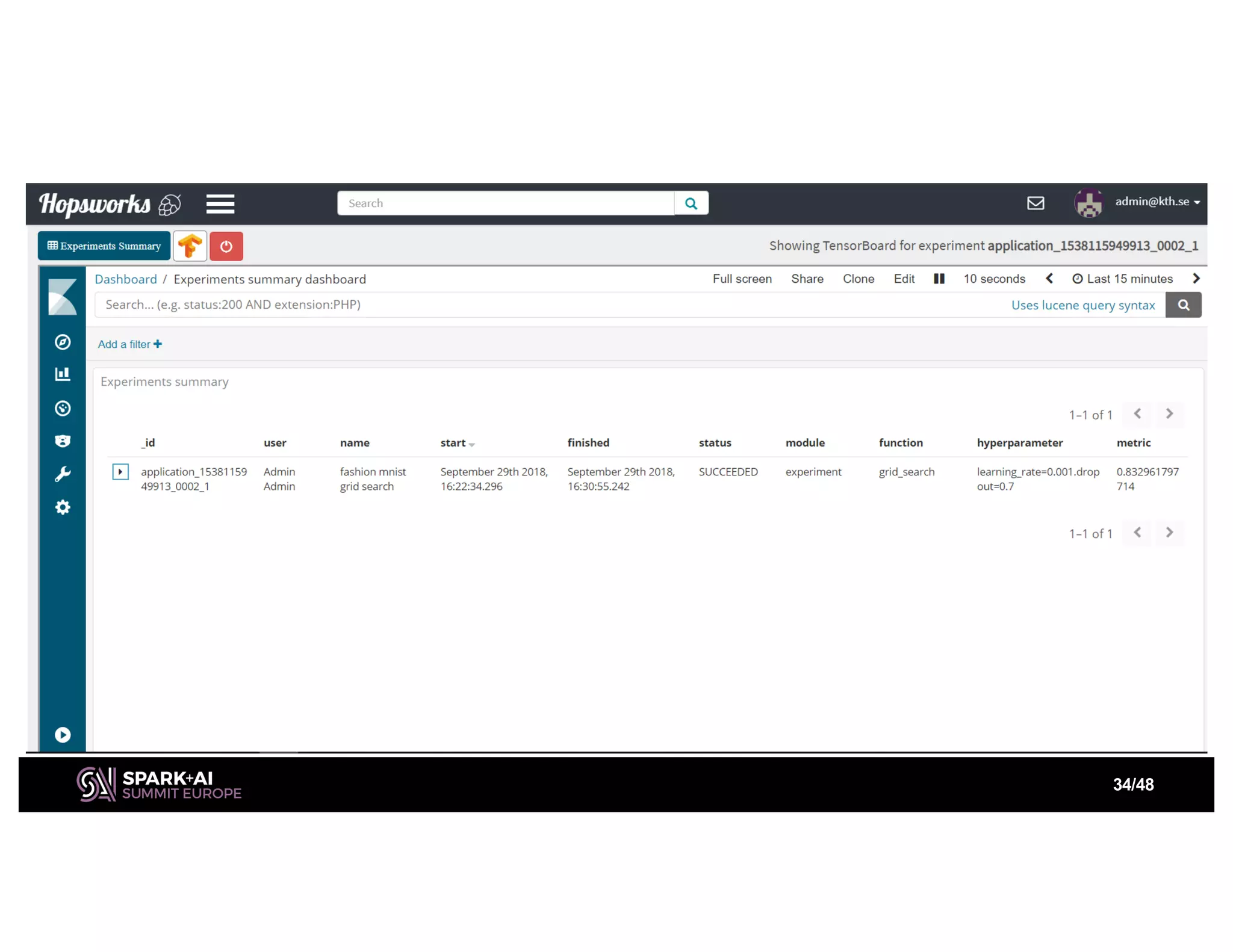

34. 34/48

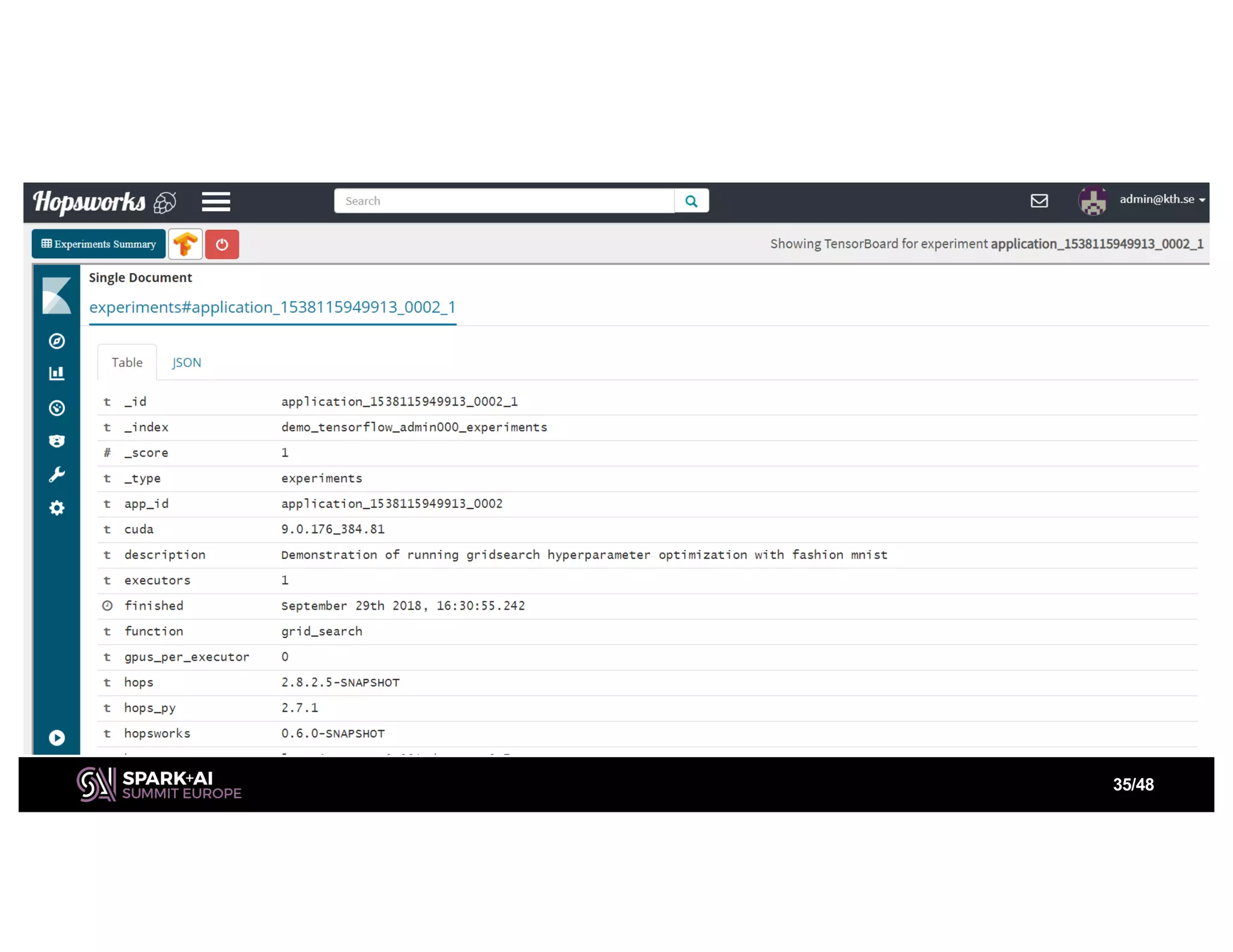

35. 35/48

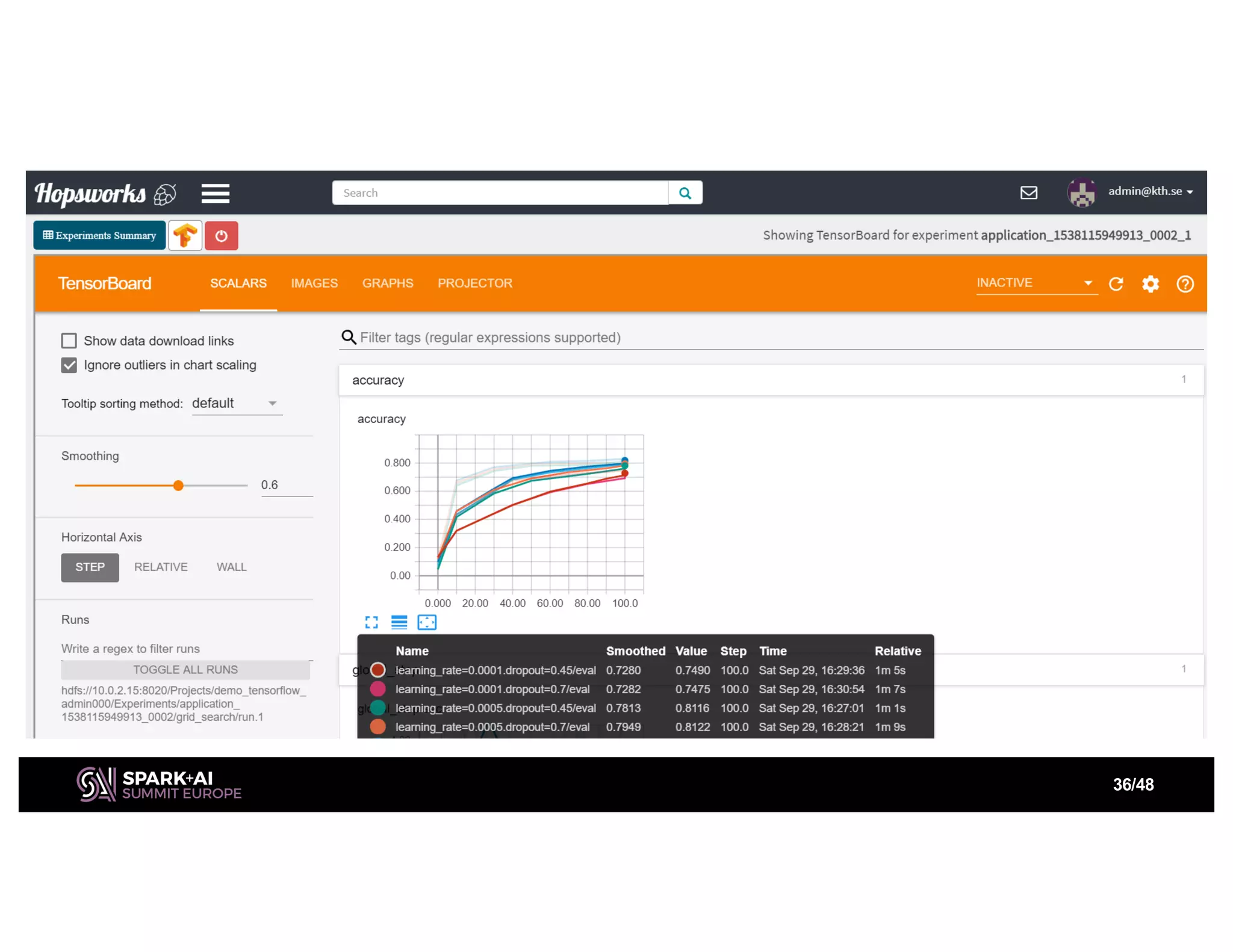

36. 36/48

37. The Data Layer (Foundations)

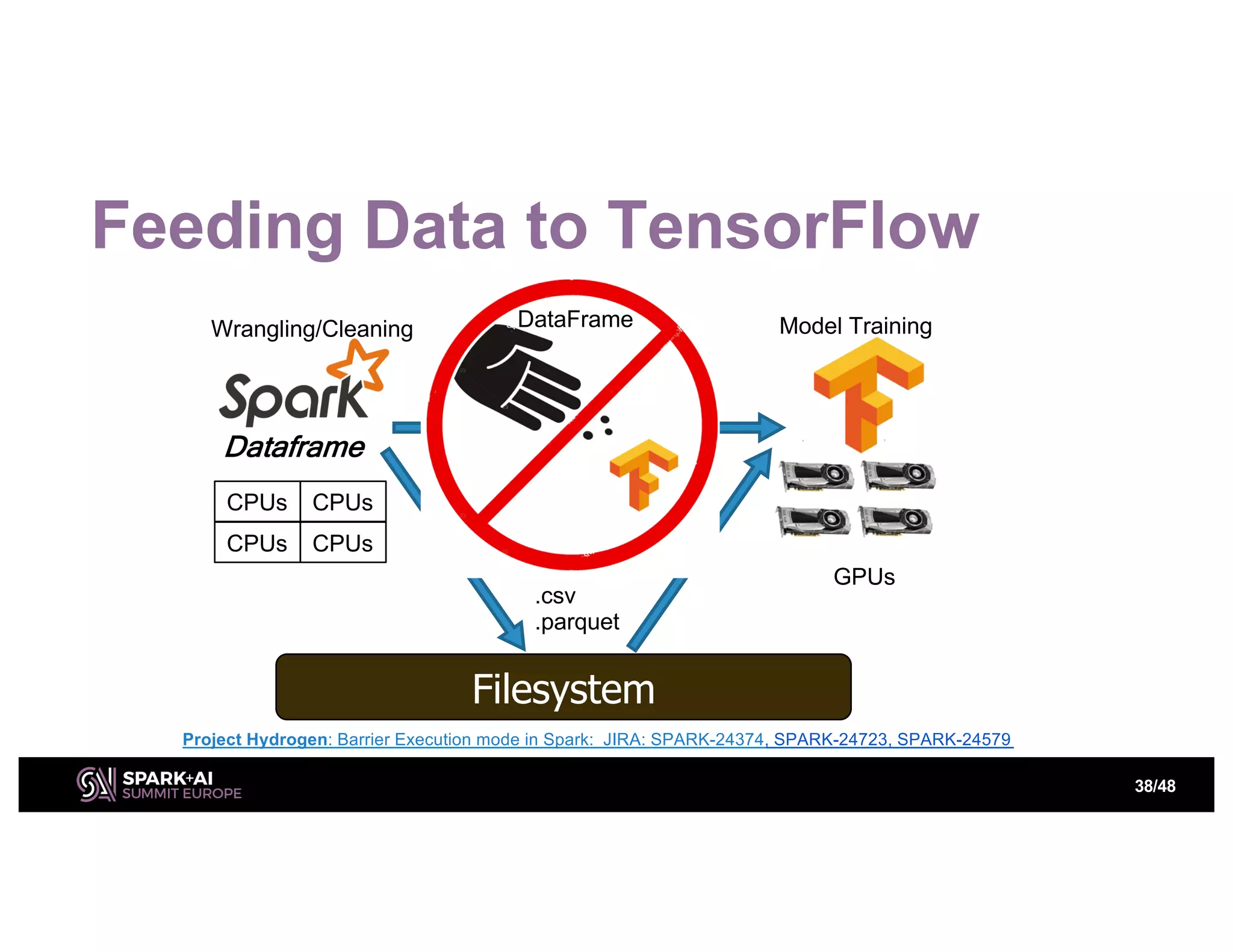

38. Feeding Data to TensorFlow
38/48
Dataframe
Model Training
GPUs
CPUs
CPUs
CPUs
CPUs
Filesystem
.tfrecords
.csv
.parquet
Project Hydrogen: Barrier Execution mode in Spark: JIRA: SPARK-24374, SPARK-24723, SPARK-24579
Wrangling/Cleaning DataFrame

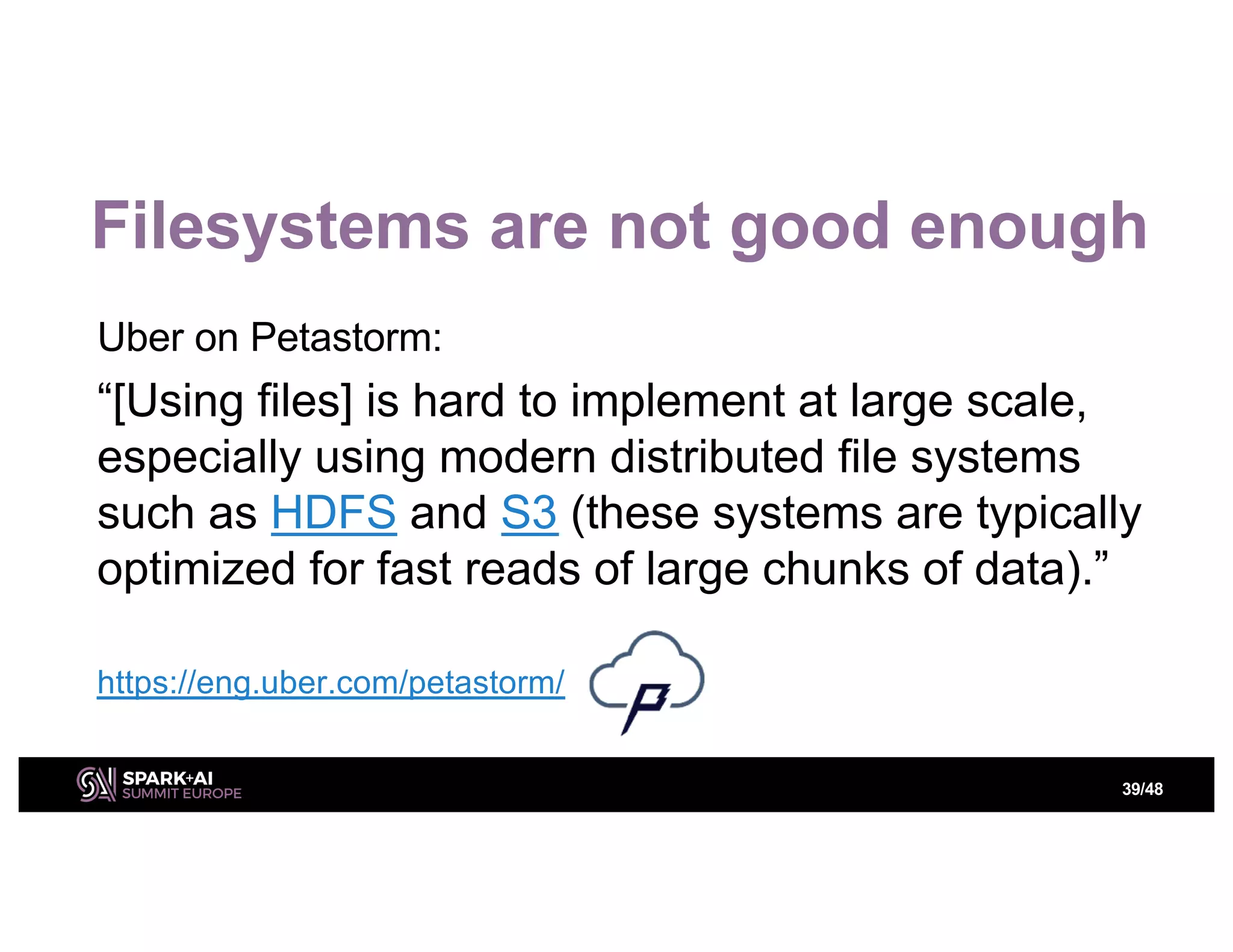

39. Filesystems are not good enough
Uber on Petastorm:
“[Using files] is hard to implement at large scale,
especially using modern distributed file systems
such as HDFS and S3 (these systems are typically
optimized for fast reads of large chunks of data).”
https://eng.uber.com/petastorm/
39/48

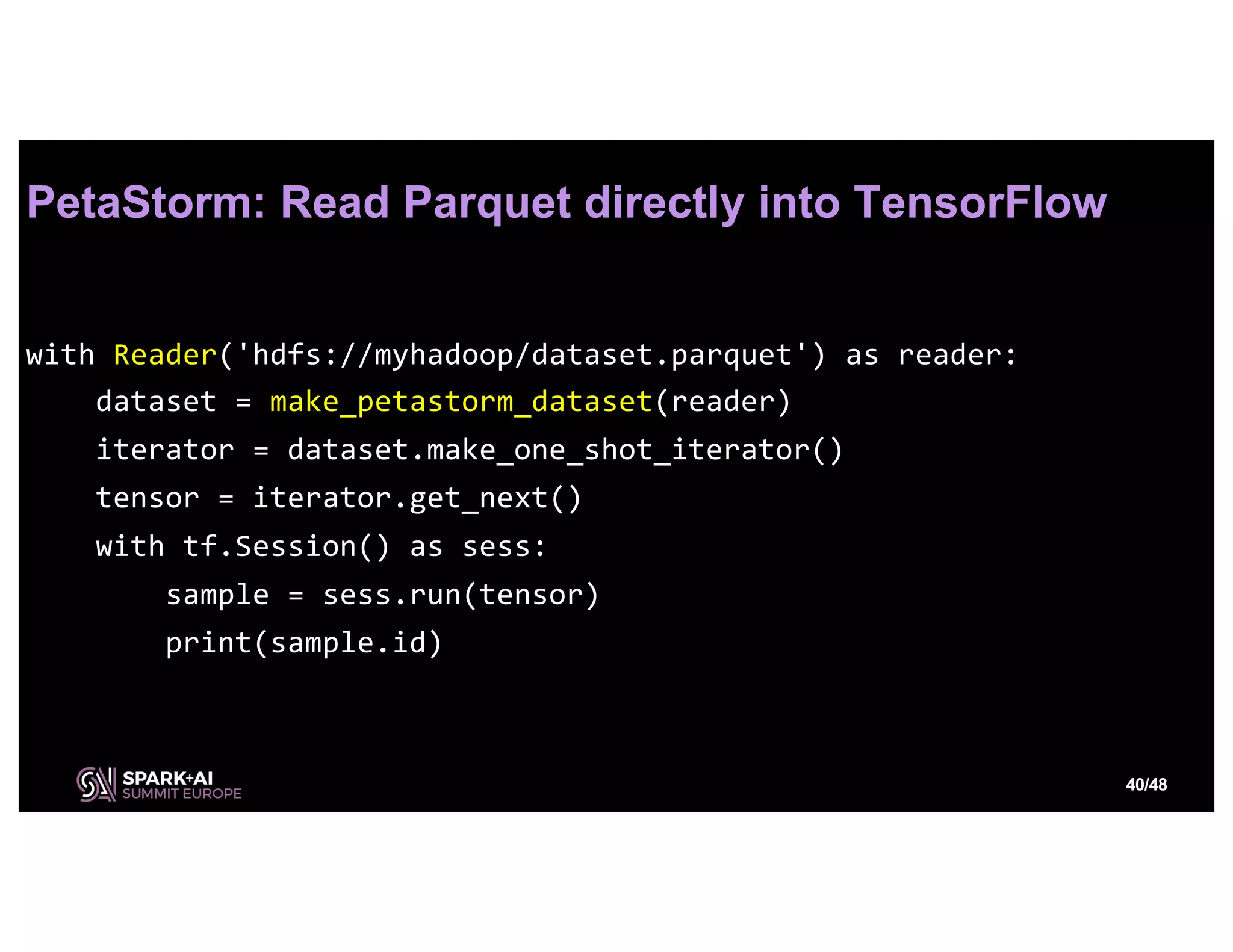

40. with Reader('hdfs://myhadoop/dataset.parquet') as reader:
dataset = make_petastorm_dataset(reader)
iterator = dataset.make_one_shot_iterator()
tensor = iterator.get_next()
with tf.Session() as sess:
sample = sess.run(tensor)
print(sample.id)
PetaStorm: Read Parquet directly into TensorFlow
40/48

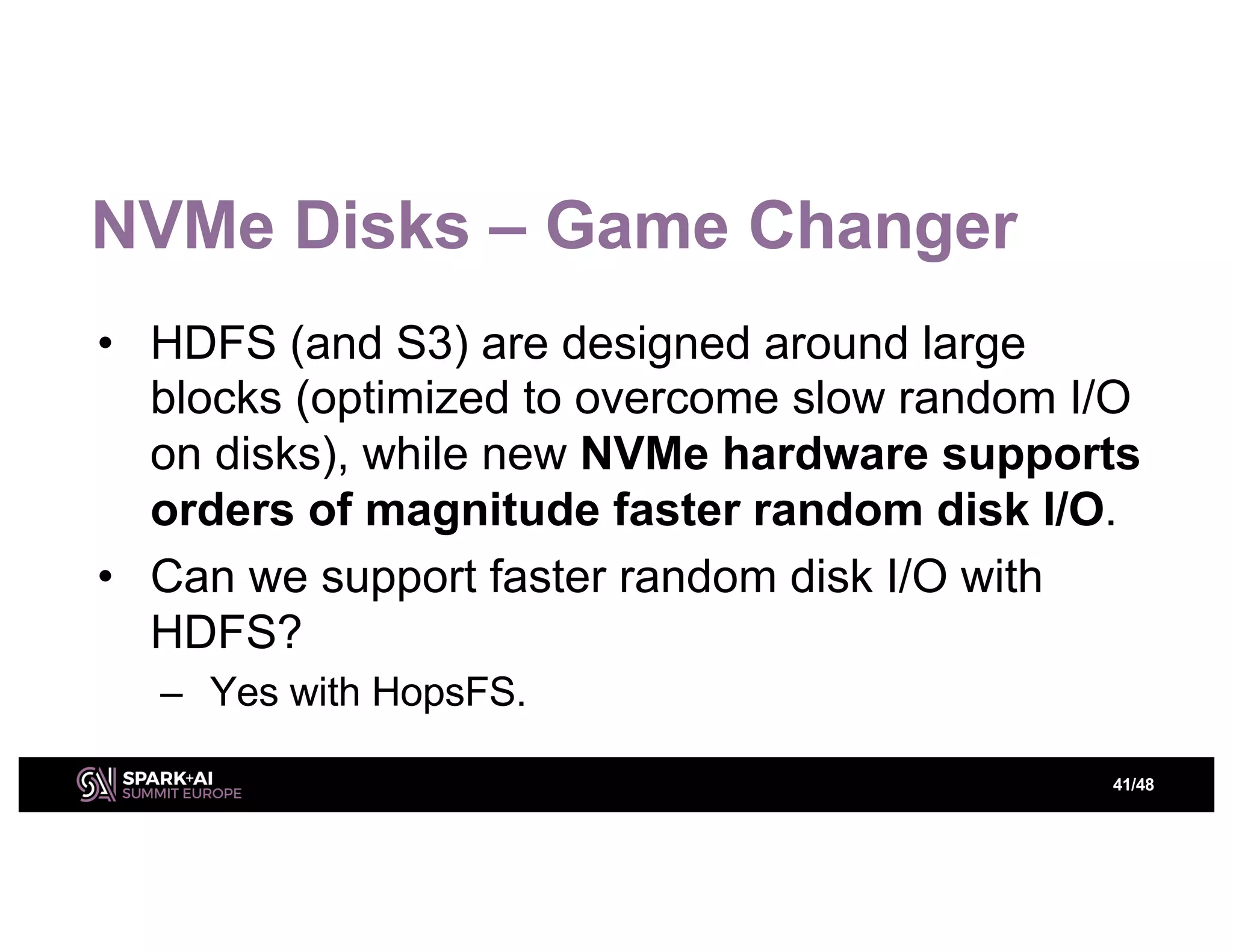

41. NVMe Disks – Game Changer
• HDFS (and S3) are designed around large
blocks (optimized to overcome slow random I/O
on disks), while new NVMe hardware supports
orders of magnitude faster random disk I/O.
• Can we support faster random disk I/O with
HDFS?
– Yes with HopsFS.
41/48

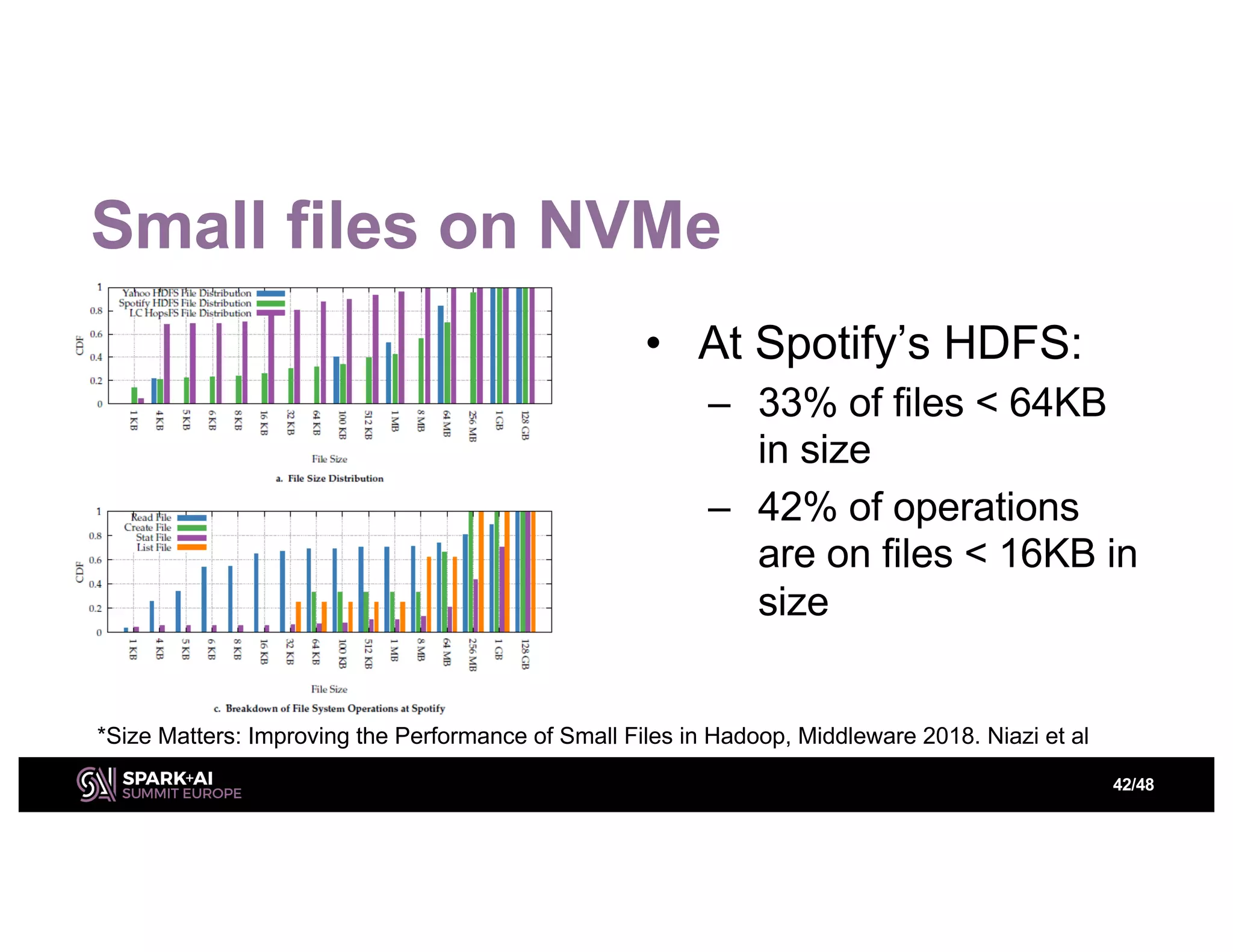

42. Small files on NVMe
• At Spotify’s HDFS:
– 33% of files < 64KB
in size
– 42% of operations
are on files < 16KB in
size
42/48
*Size Matters: Improving the Performance of Small Files in Hadoop, Middleware 2018. Niazi et al

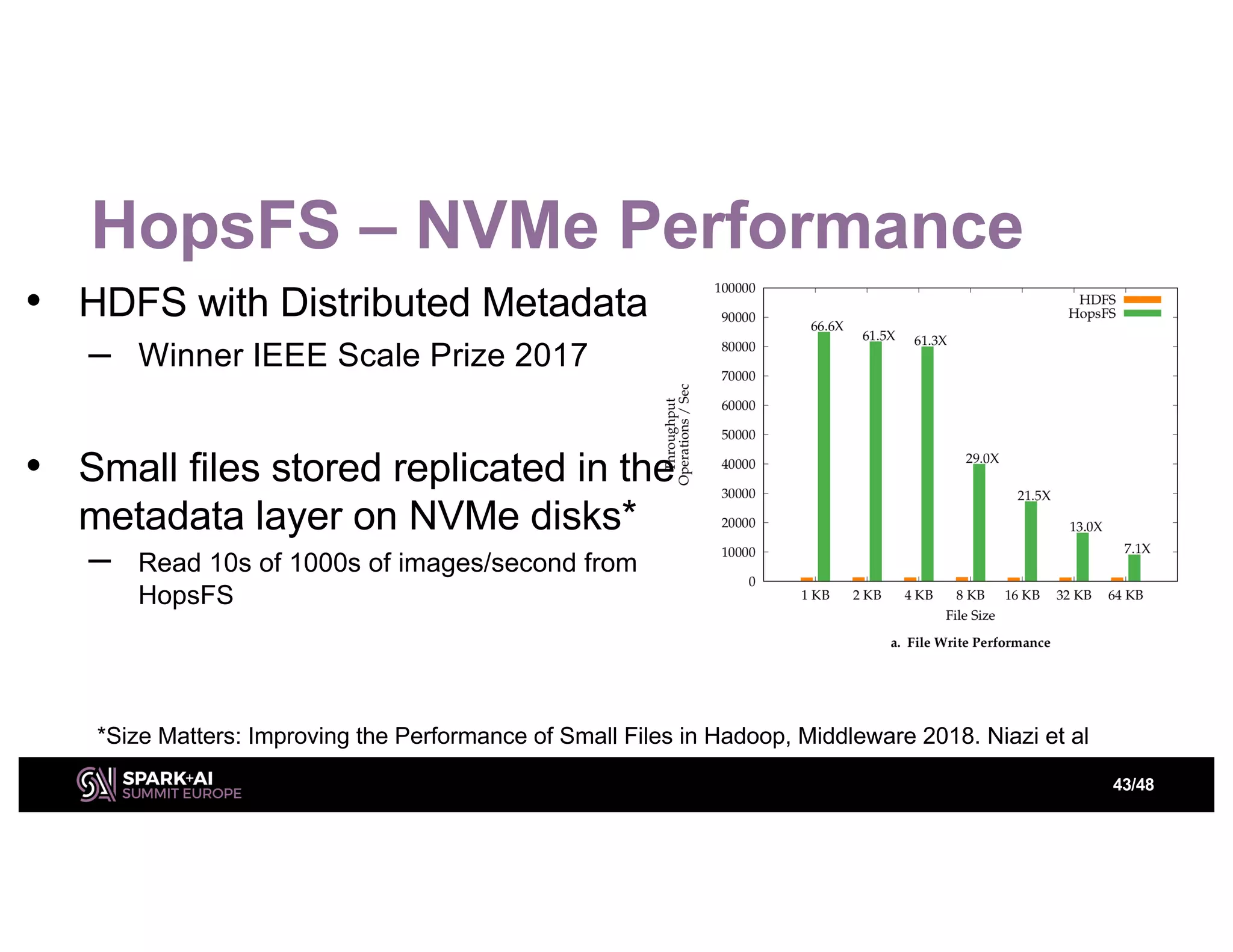

43. HopsFS – NVMe Performance
• HDFS with Distributed Metadata
– Winner IEEE Scale Prize 2017
• Small files stored replicated in the
metadata layer on NVMe disks*
– Read 10s of 1000s of images/second from
HopsFS
43/48
*Size Matters: Improving the Performance of Small Files in Hadoop, Middleware 2018. Niazi et al

44. Model Serving

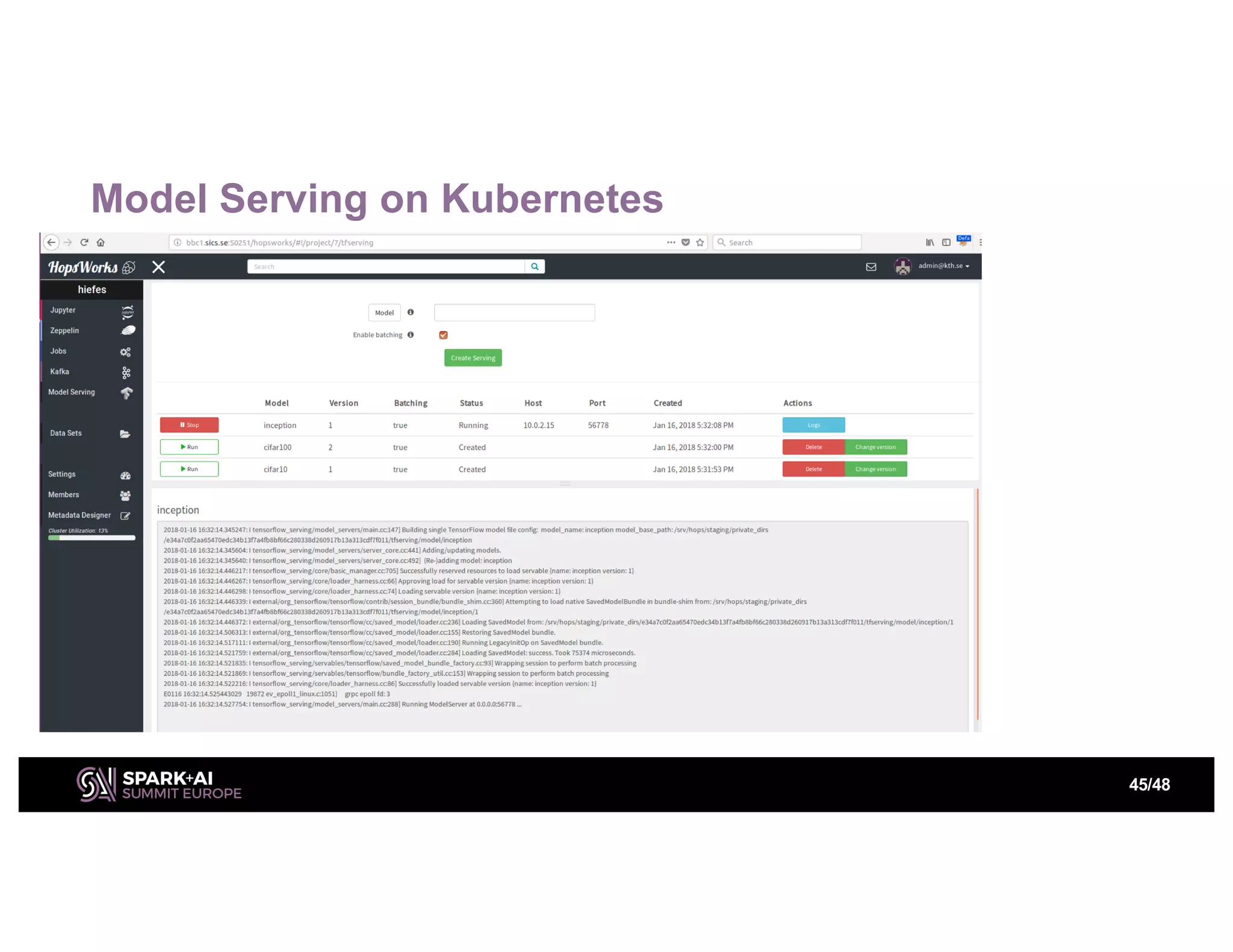

45. Model Serving on Kubernetes
45/48

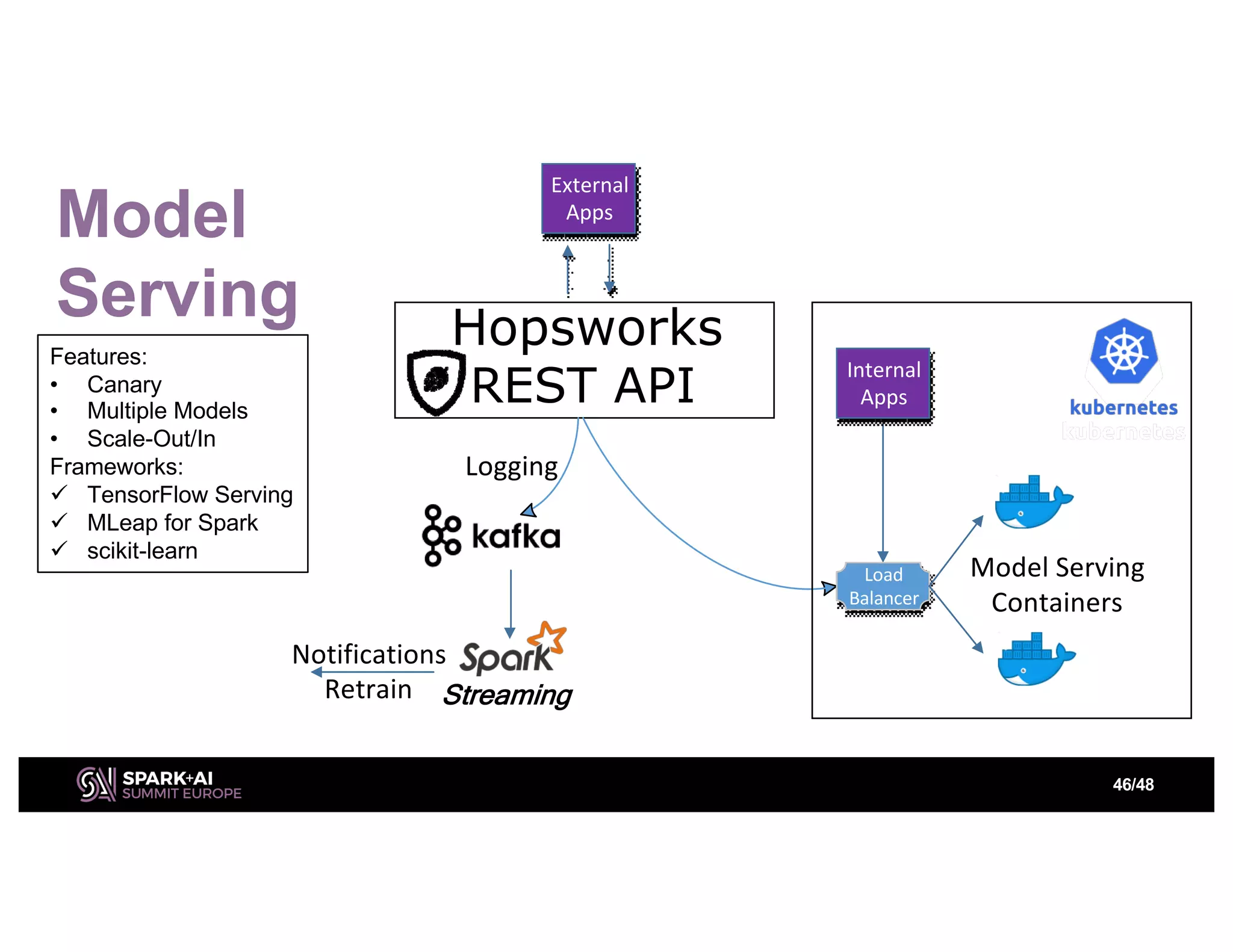

46. Model
Serving
46/48
Hopsworks
REST API
External
Apps
Internal
Apps
Logging
Load
Balancer
Model Serving
Containers
Streaming
Notifications
Retrain
Features:
• Canary
• Multiple Models
• Scale-Out/In
Frameworks:
ü TensorFlow Serving
ü MLeap for Spark
ü scikit-learn

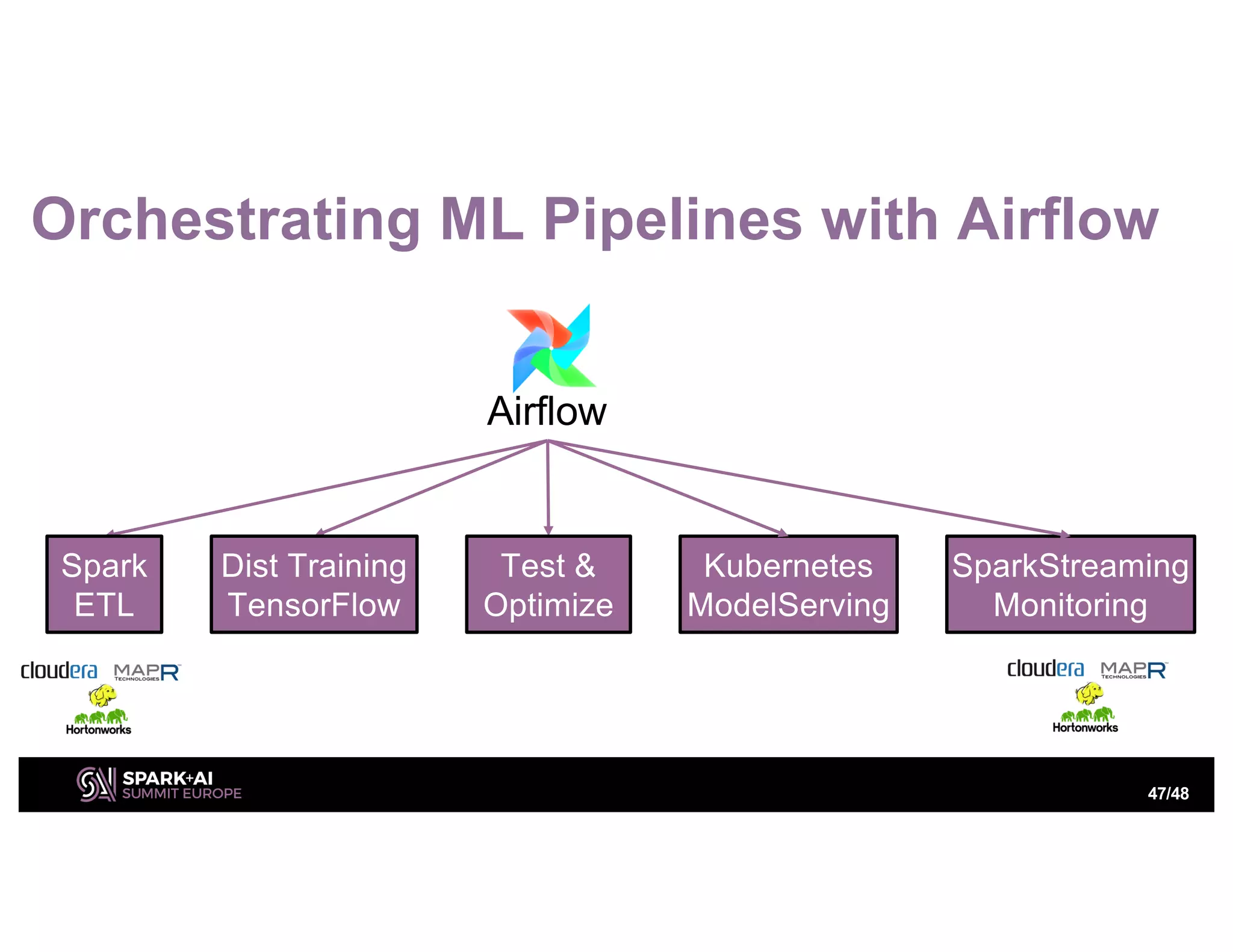

47. Orchestrating ML Pipelines with Airflow
47/48
Airflow
Spark
ETL
Dist Training
TensorFlow
Test &
Optimize
Kubernetes
ModelServing
SparkStreaming
Monitoring

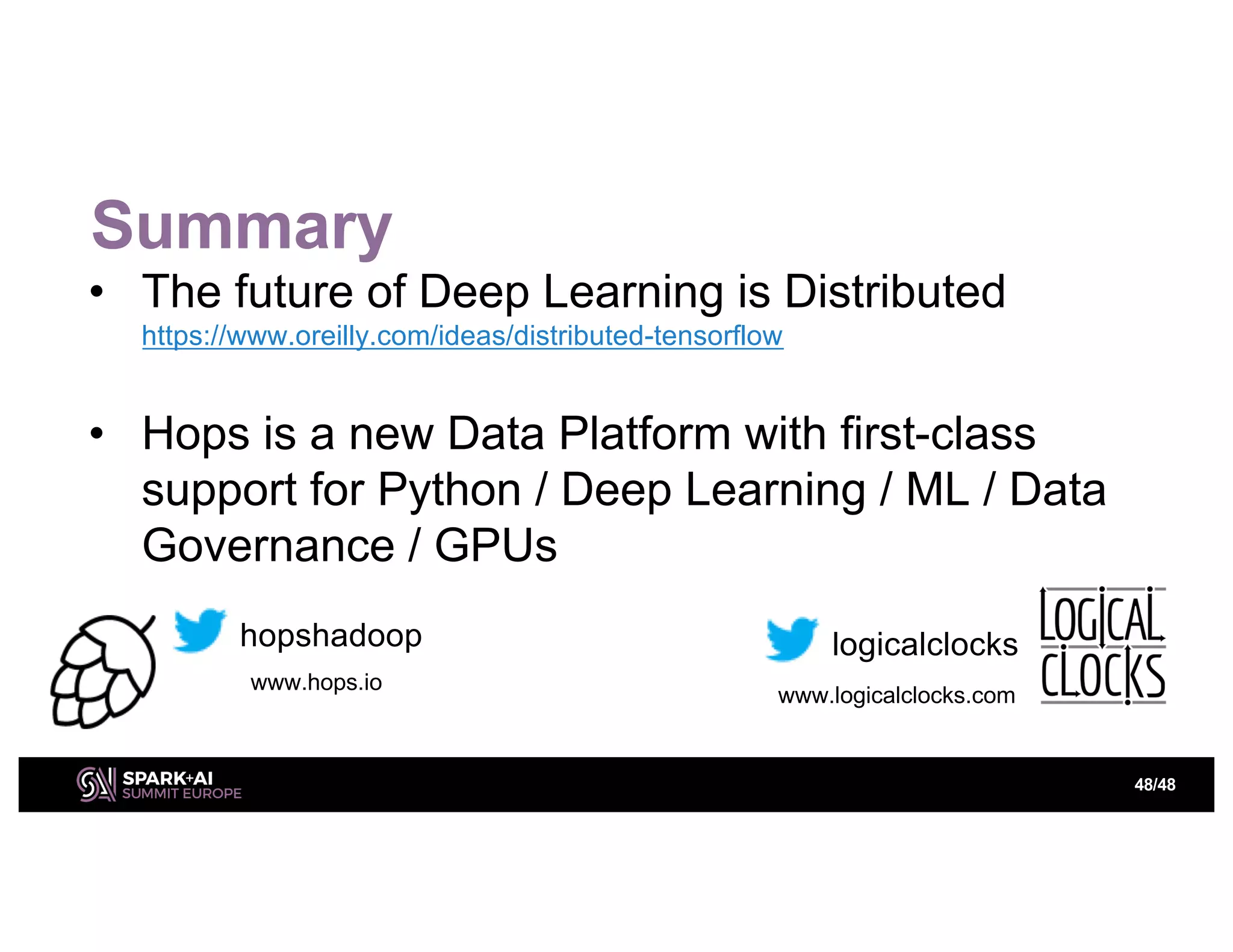

48. Summary
48/48
• The future of Deep Learning is Distributed
https://www.oreilly.com/ideas/distributed-tensorflow
• Hops is a new Data Platform with first-class
support for Python / Deep Learning / ML / Data
Governance / GPUs
hopshadoop logicalclocks
www.hops.io
www.logicalclocks.com
