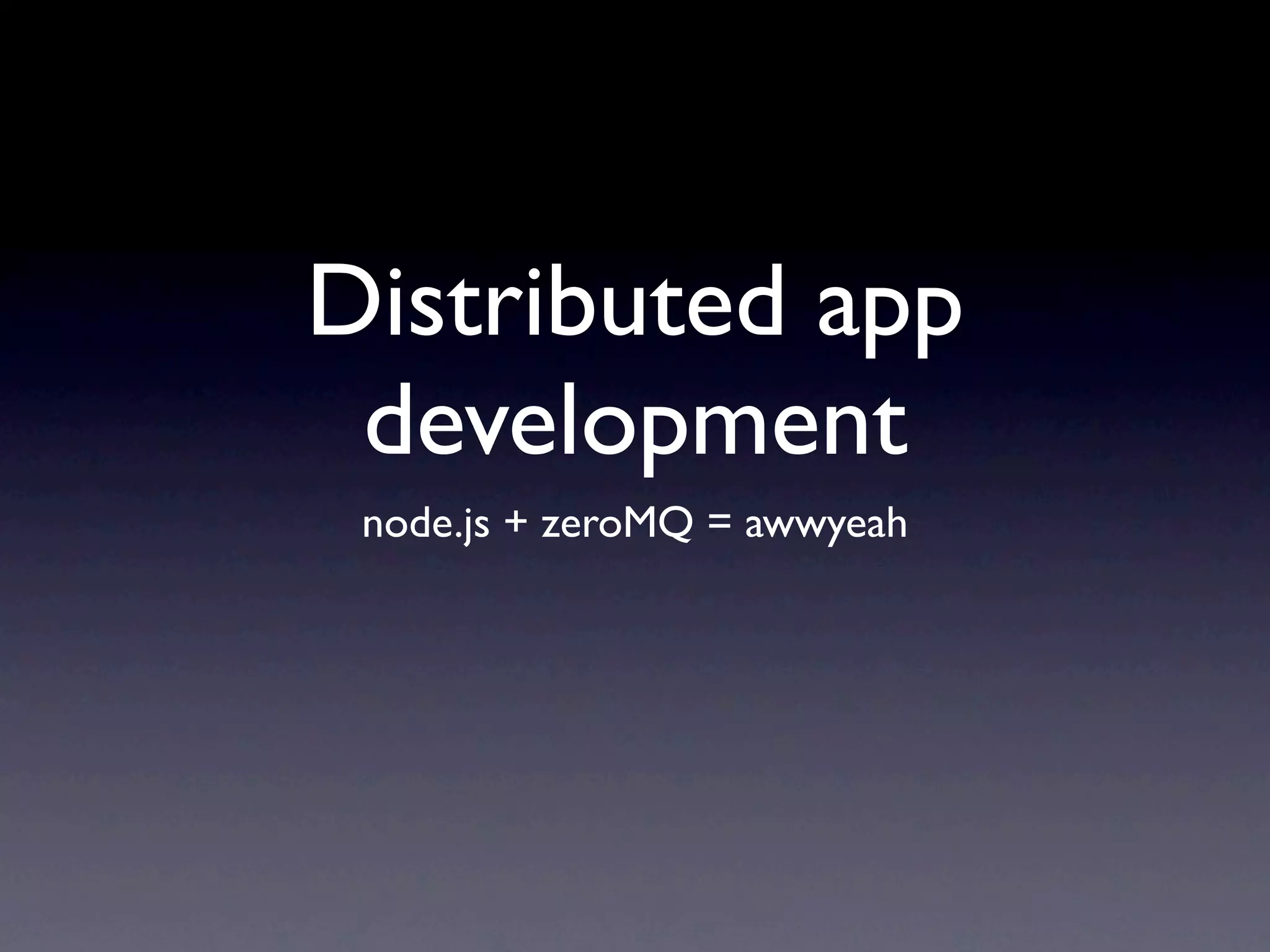

Distributed app
 development
 node.js + zeroMQ = awwyeah
ZeroMQ from a noob’s
     viewpoint

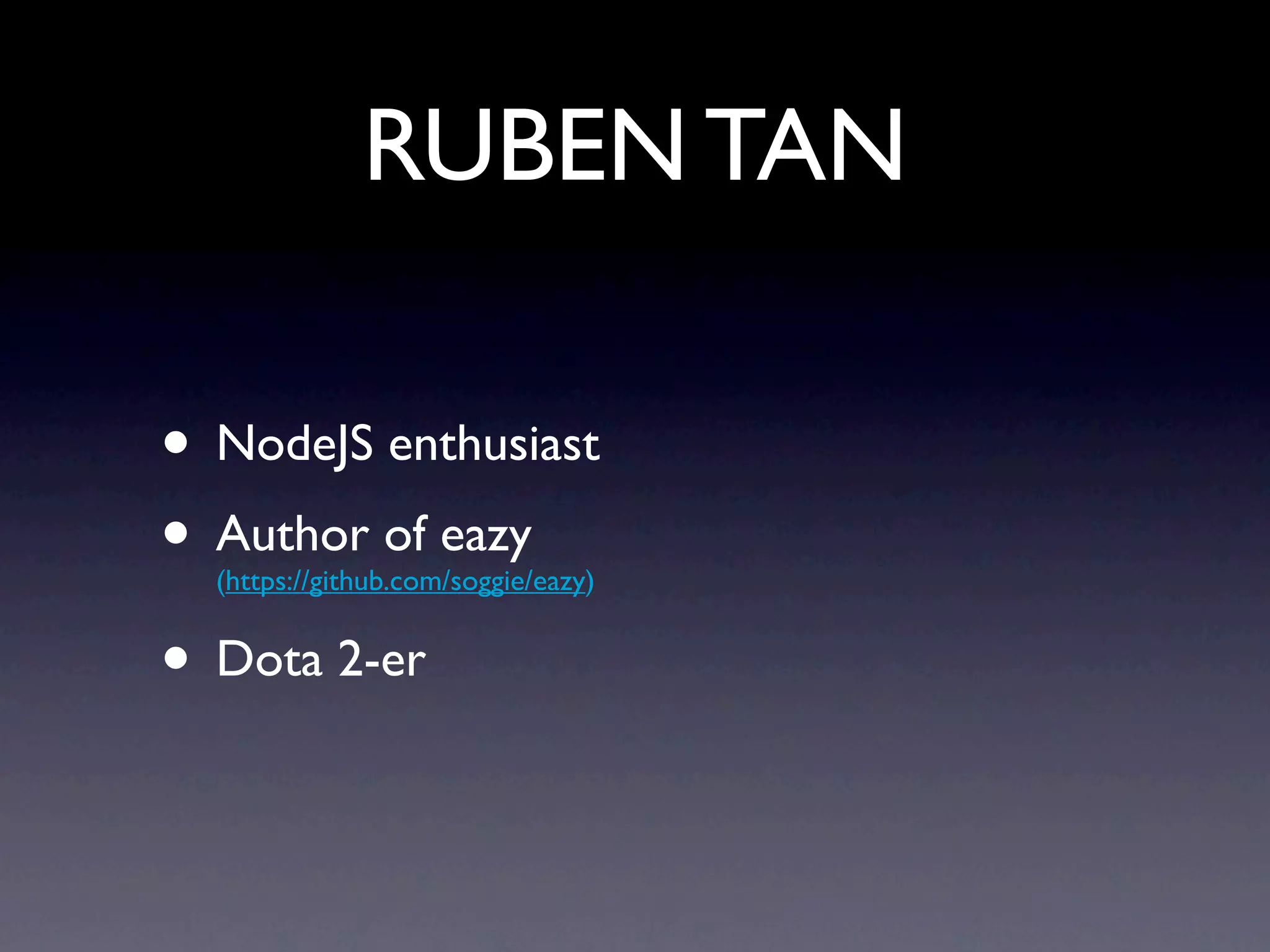

RUBEN TAN

• NodeJS enthusiast
• Author of eazy
  (https://github.com/soggie/eazy)


• Dota 2-er

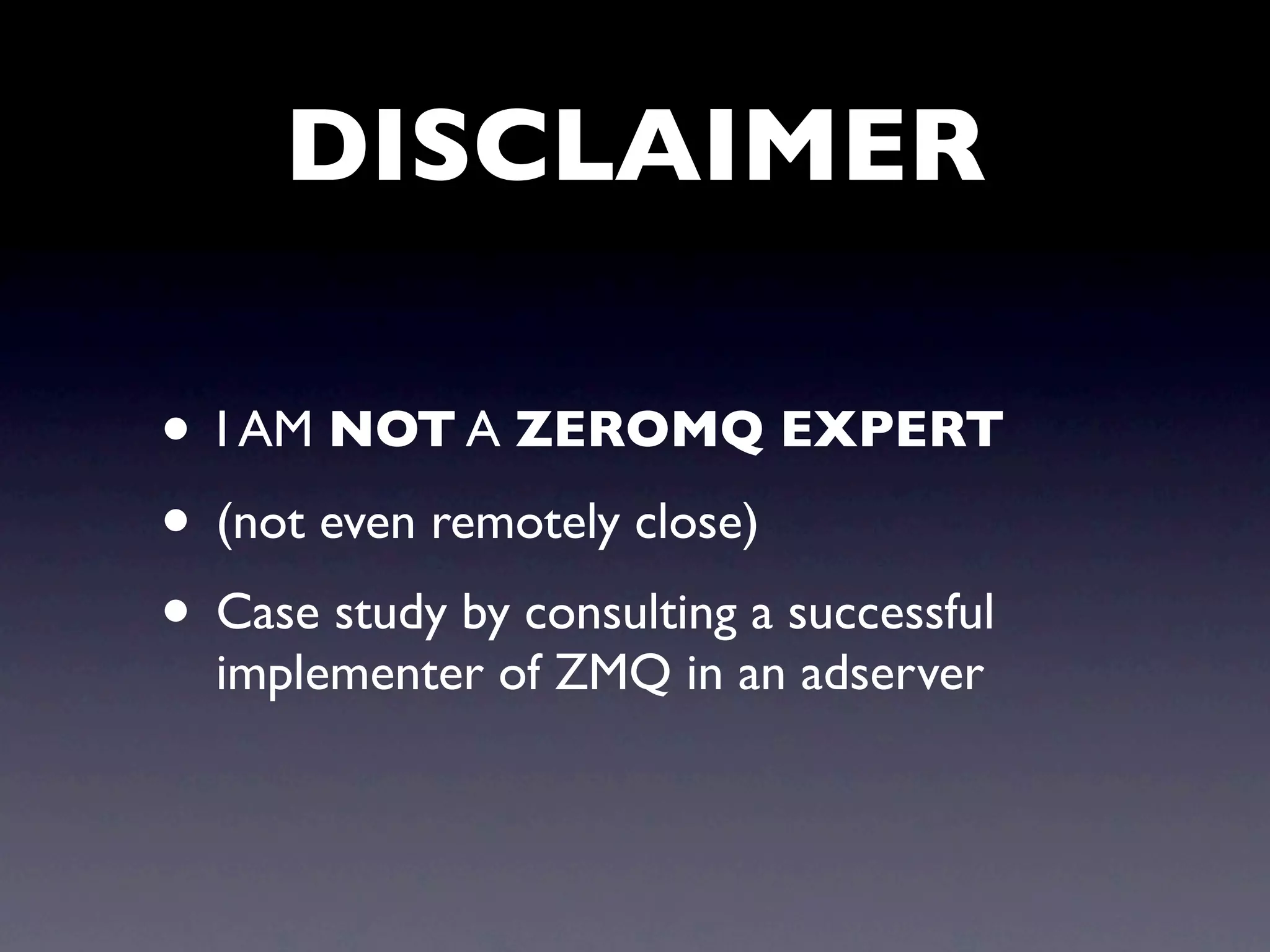

DISCLAIMER

• I AM NOT A ZEROMQ EXPERT
• (not even remotely close)
• Case study by consulting a successful
  implementer of ZMQ in an adserver

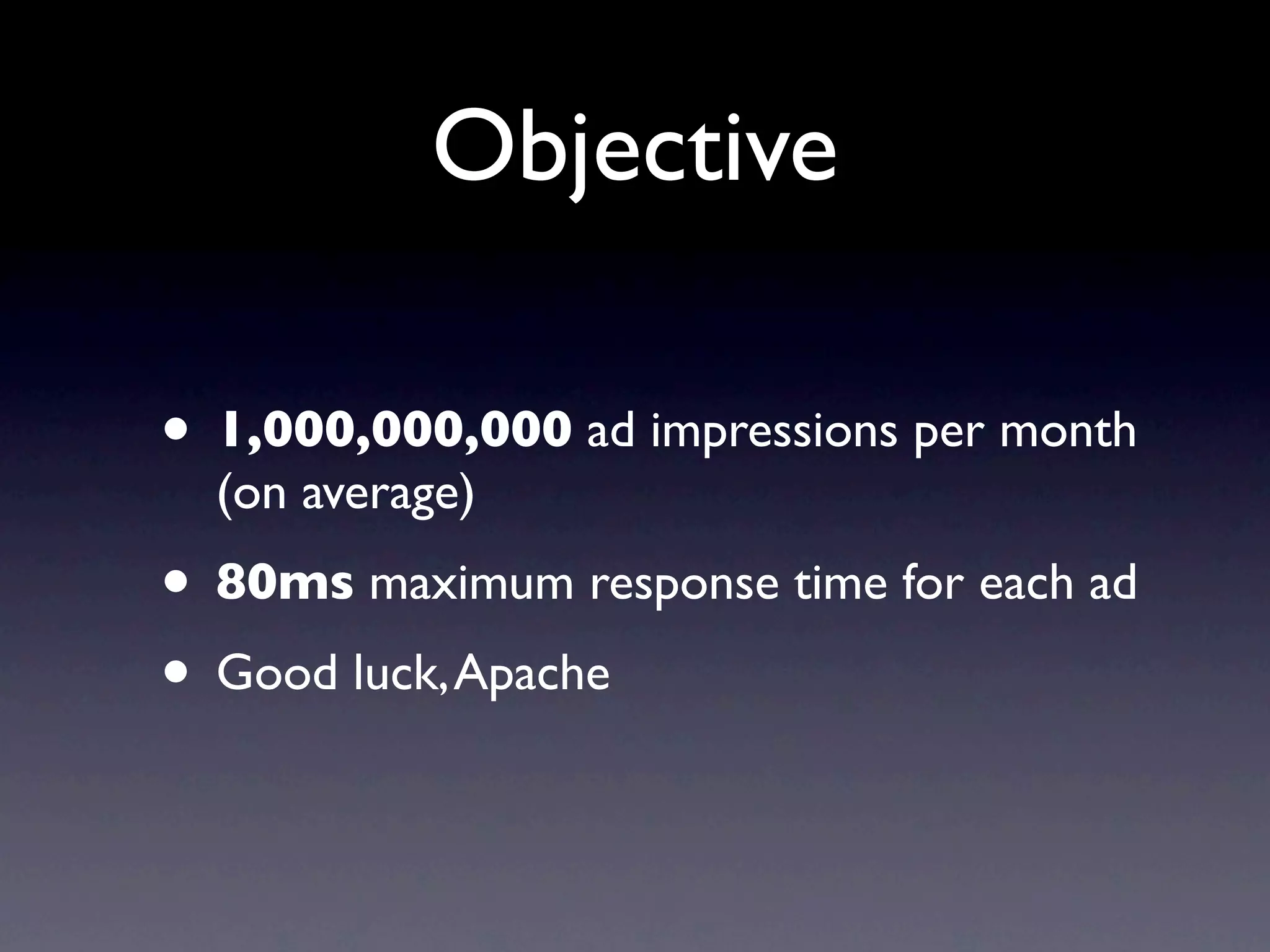

Objective

• 1,000,000,000 ad impressions per month
  (on average)
• 80ms maximum response time for each ad
• Good luck, Apache

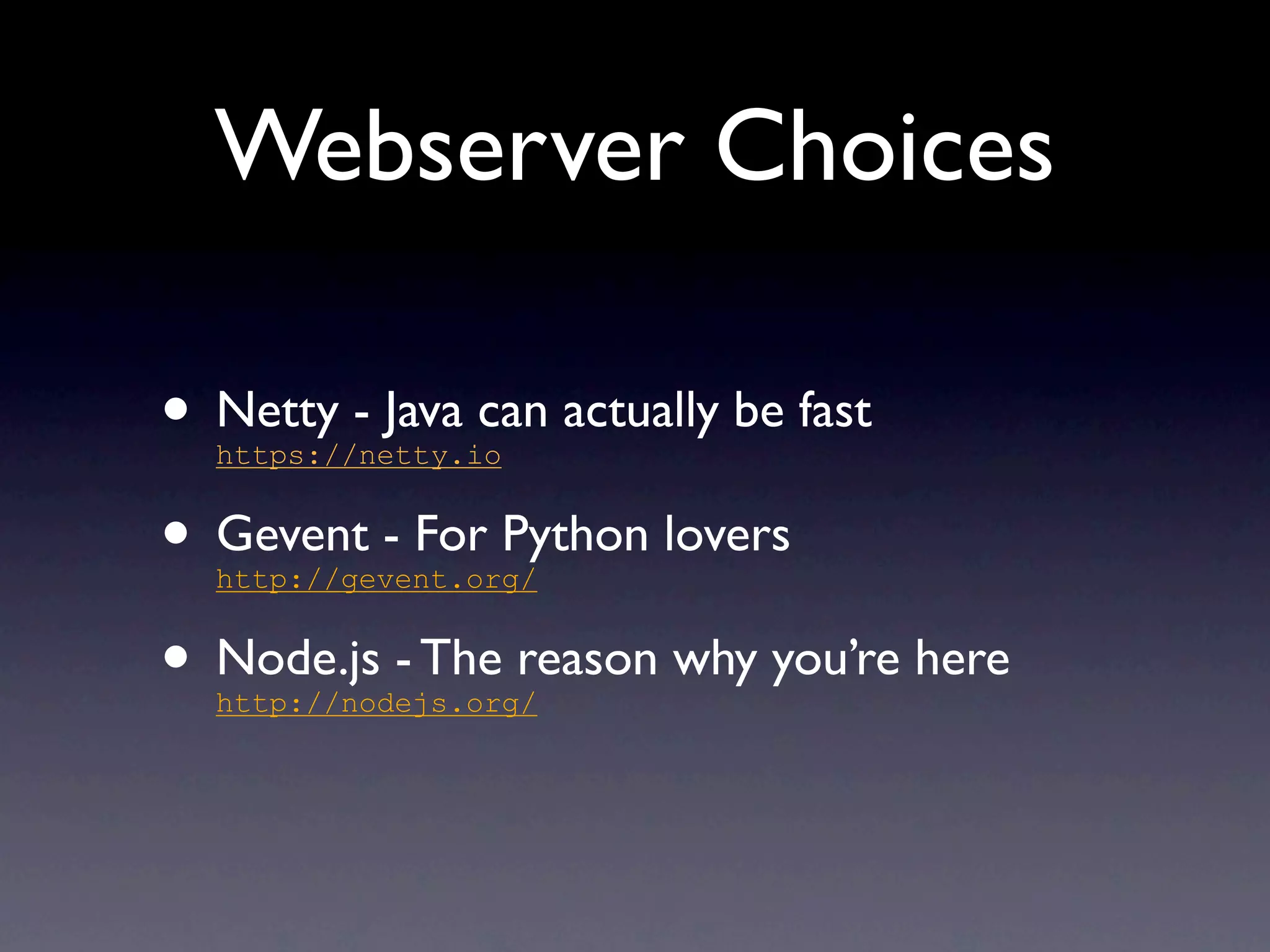

Webserver Choices

• Netty - Java can actually be fast
  https://netty.io


• Gevent - For Python lovers
  http://gevent.org/


• Node.js - The reason why you’re here
  http://nodejs.org/

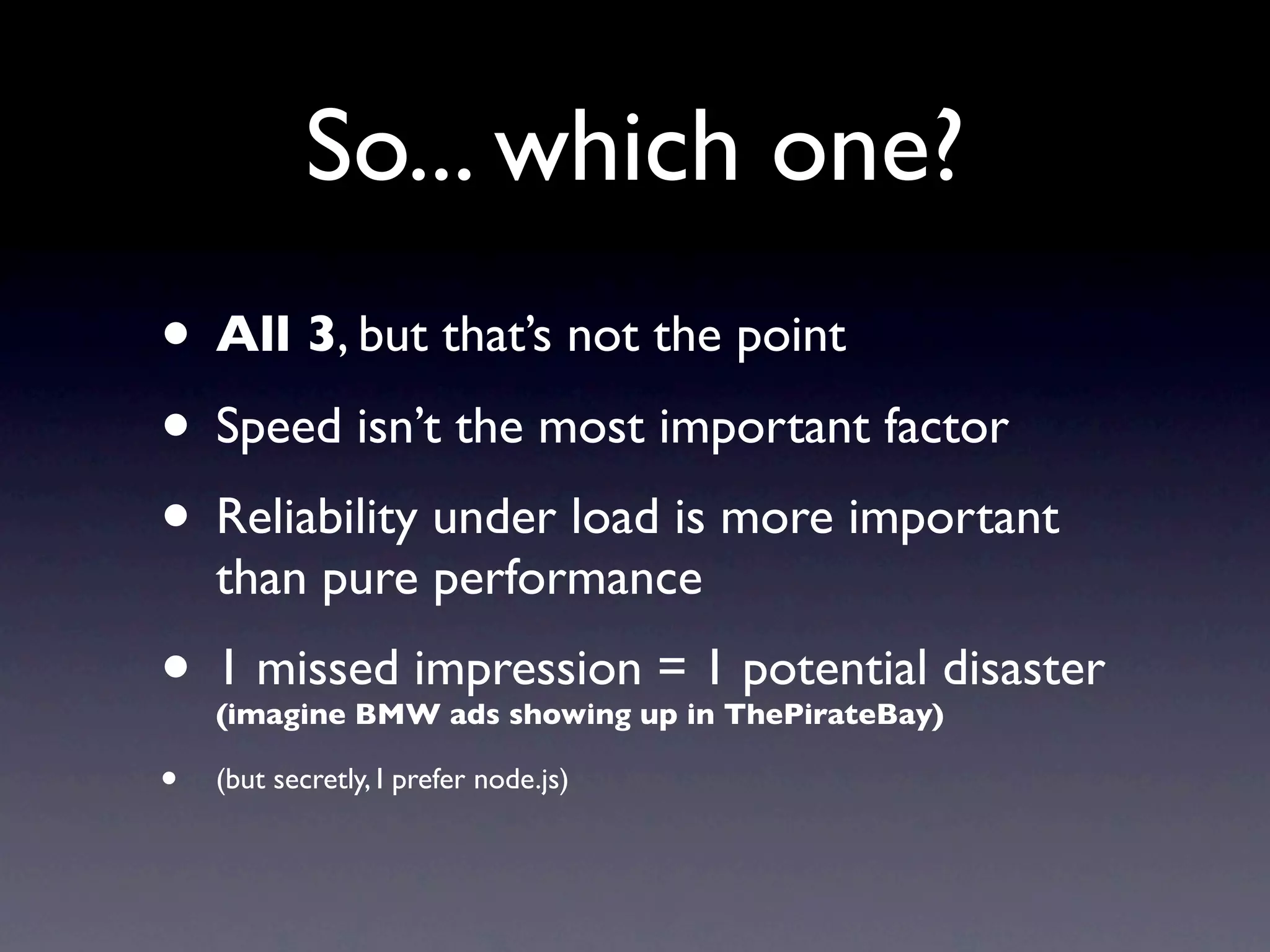

So... which one?
• All 3, but that’s not the point
• Speed isn’t the most important factor
• Reliability under load is more important
    than pure performance
• 1 missed impression = 1 potential disaster
    (imagine BMW ads showing up in ThePirateBay)

•   (but secretly, I prefer node.js)
Welcome to the
distributed app
   ecosystem

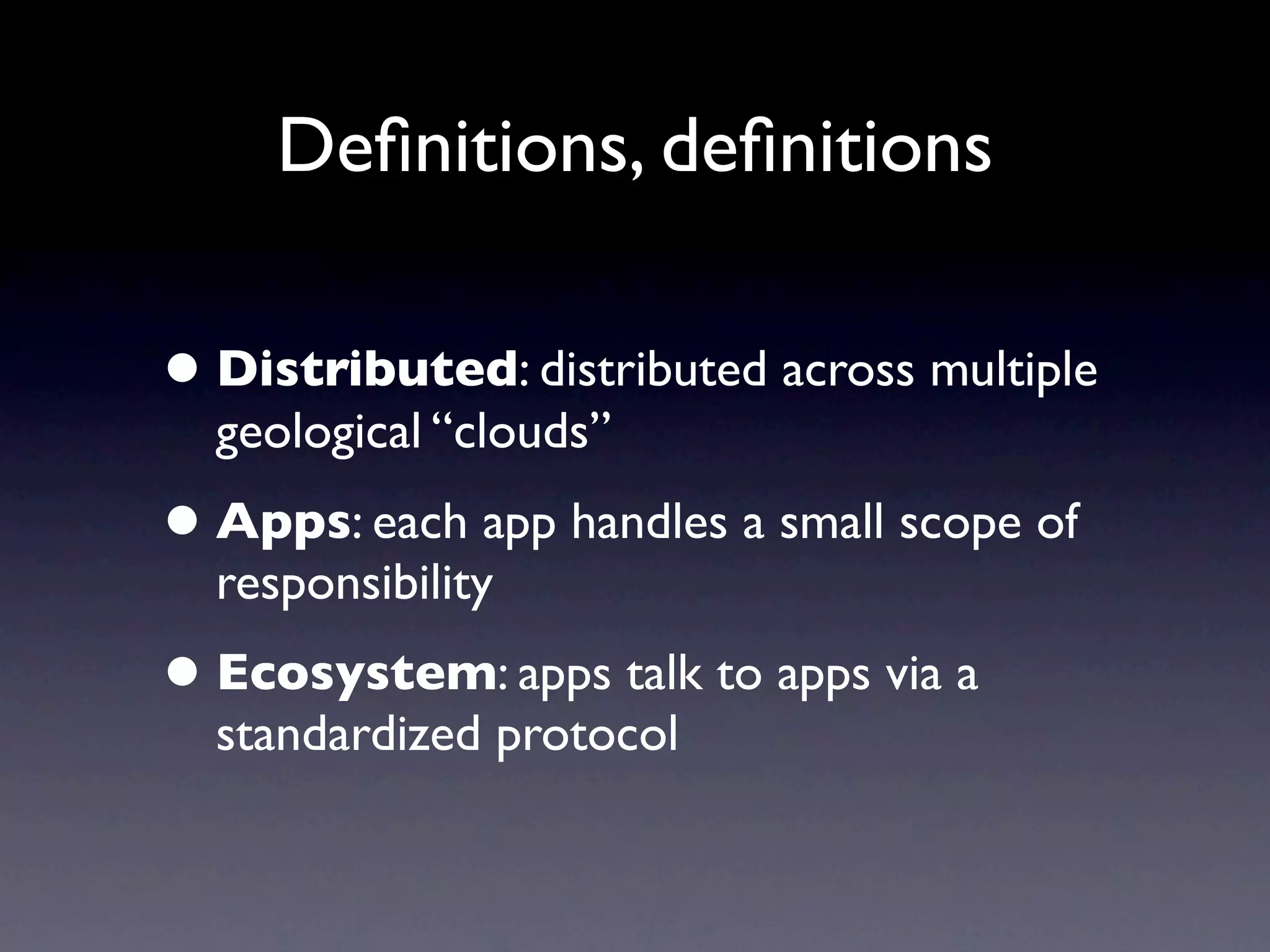

Definitions, definitions

• Distributed: distributed across multiple
  geological “clouds”
• Apps: each app handles a small scope of
  responsibility
• Ecosystem: apps talk to apps via a
  standardized protocol

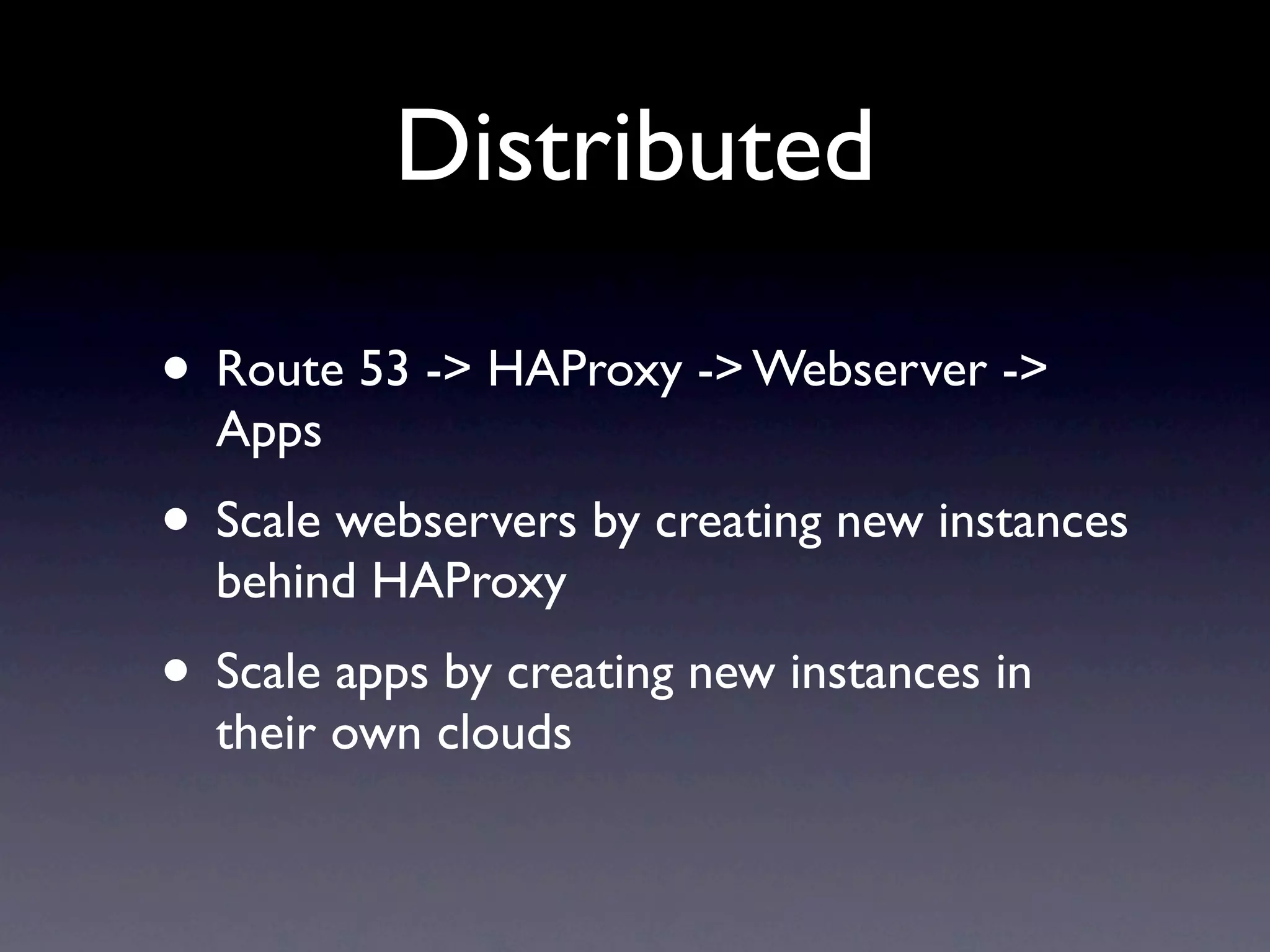

Distributed

• Route 53 -> HAProxy -> Webserver ->
  Apps
• Scale webservers by creating new instances
  behind HAProxy
• Scale apps by creating new instances in
  their own clouds

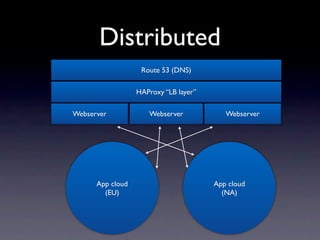

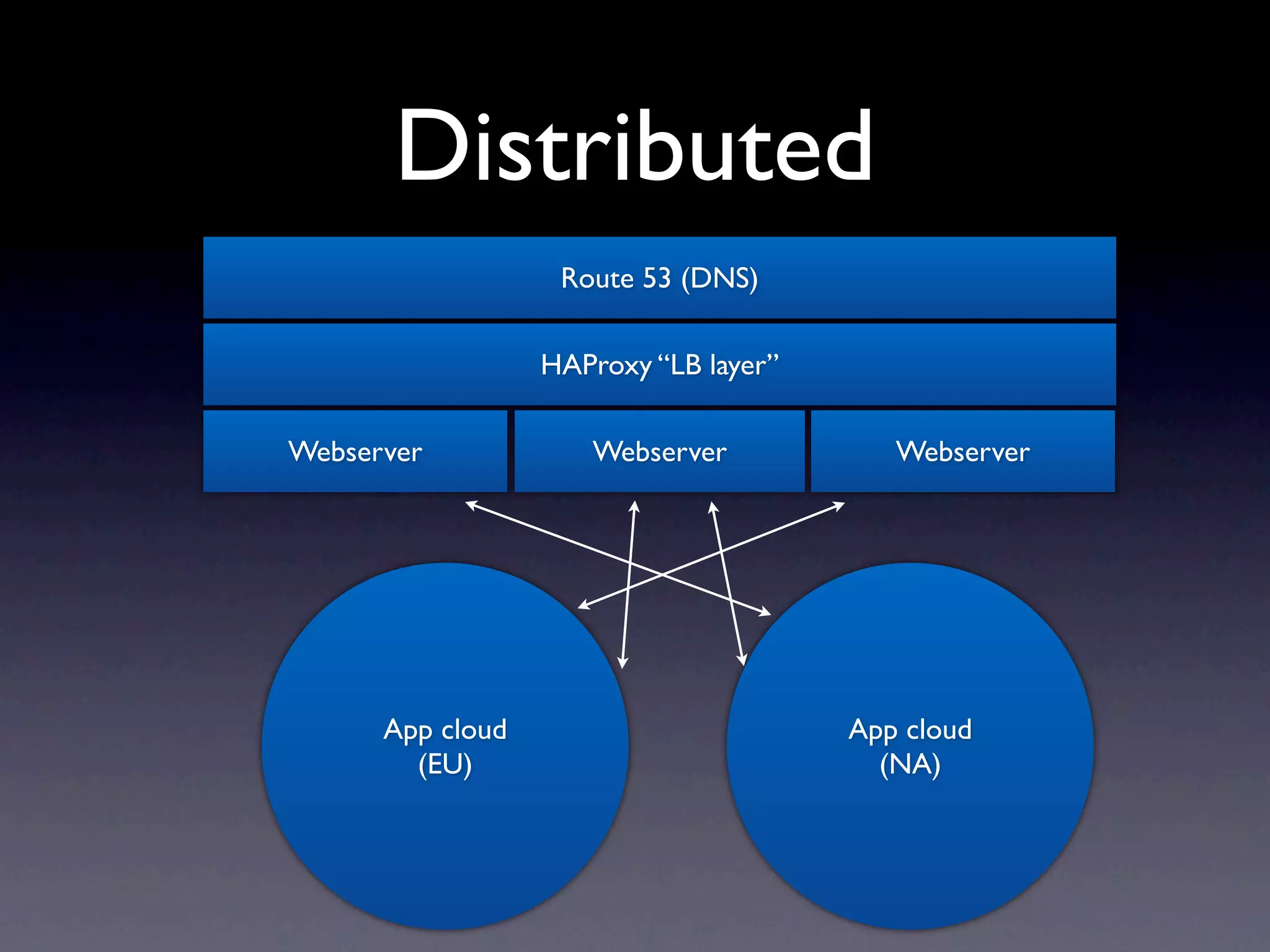

Distributed
                   Route 53 (DNS)

                  HAProxy “LB layer”

Webserver            Webserver            Webserver




      App cloud                        App cloud
        (EU)                             (NA)

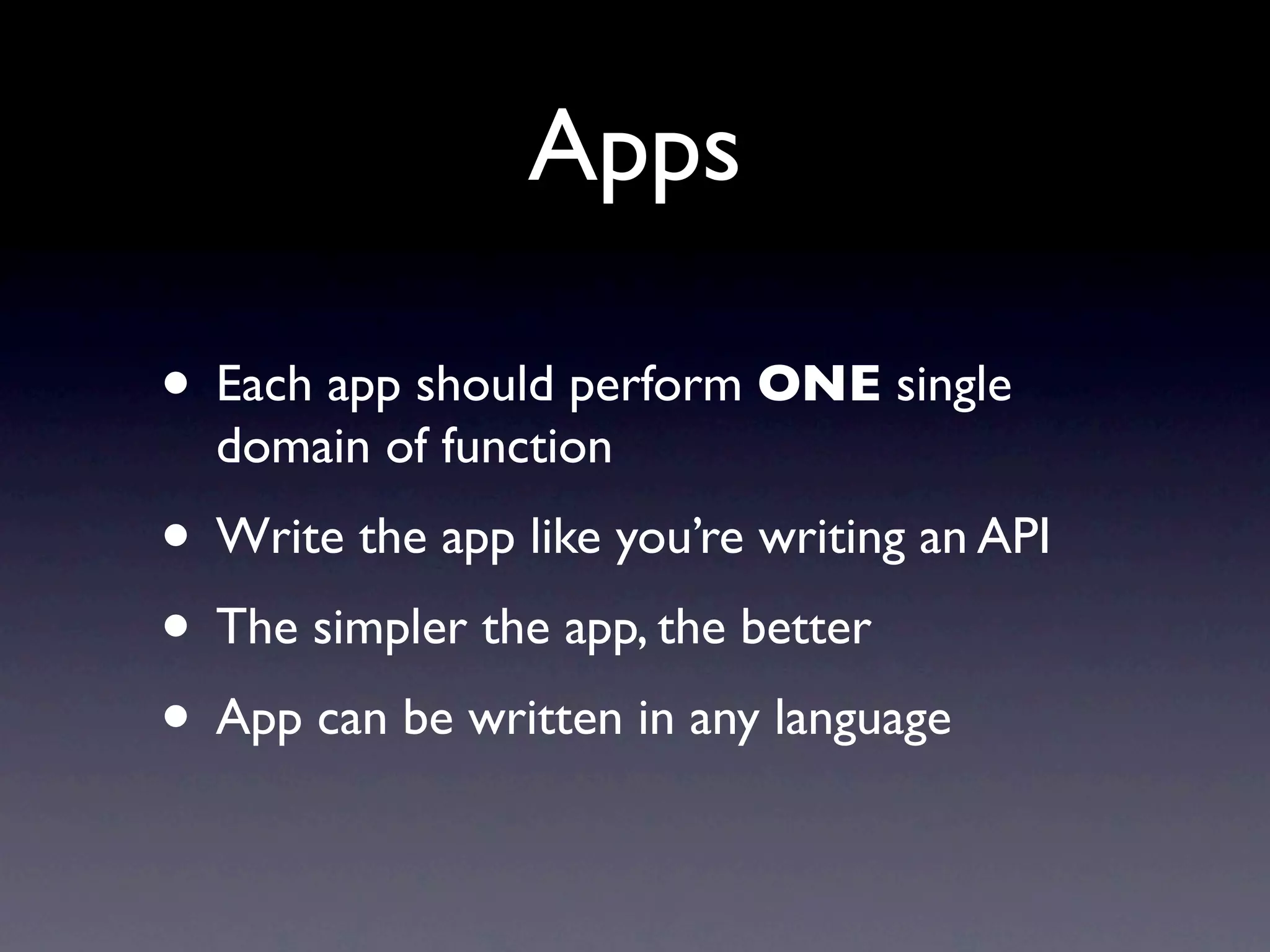

Apps

• Each app should perform ONE single
  domain of function
• Write the app like you’re writing an API
• The simpler the app, the better
• App can be written in any language

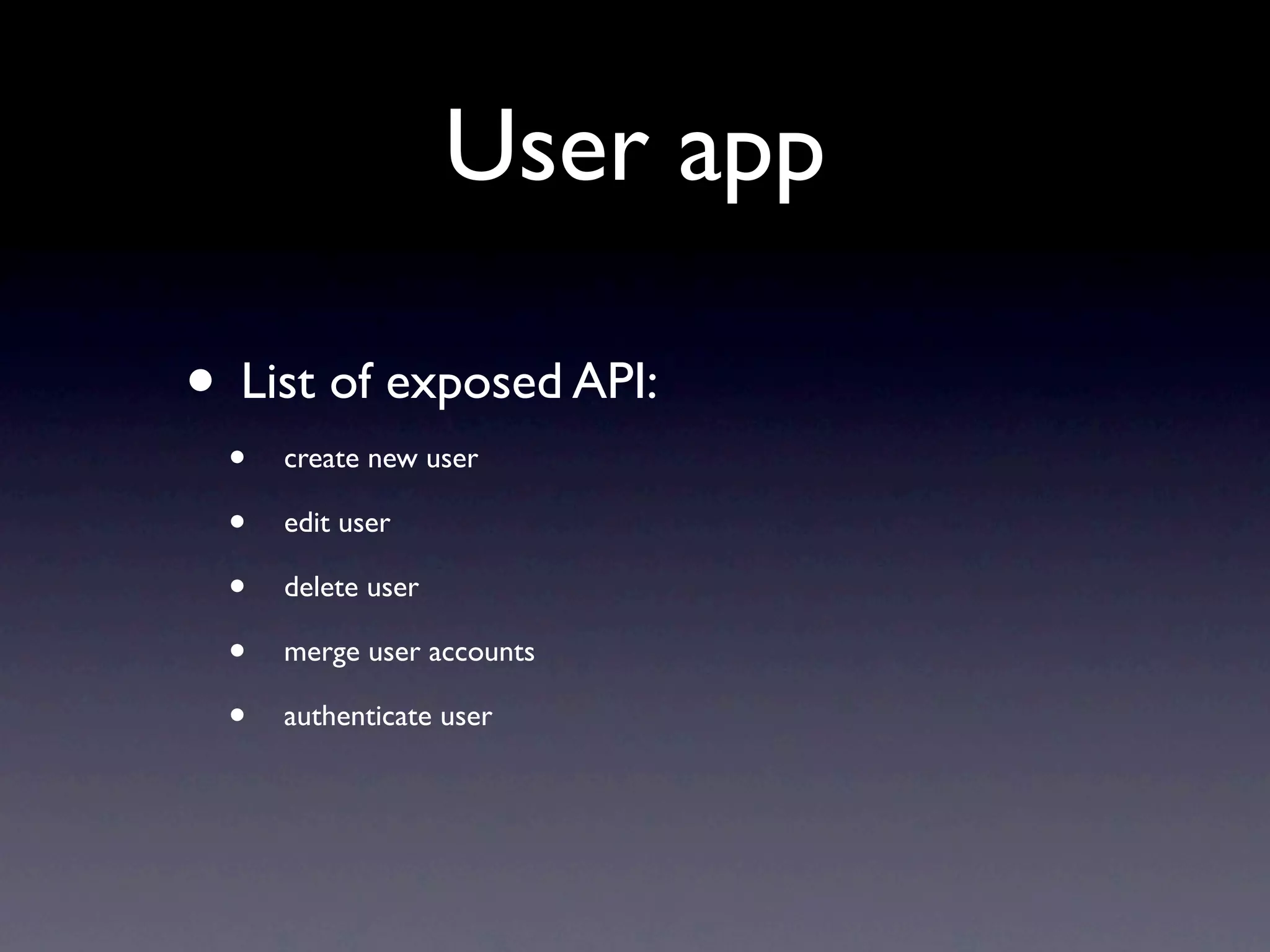

User app

• List of exposed API:
  •   create new user

  •   edit user

  •   delete user

  •   merge user accounts

  •   authenticate user

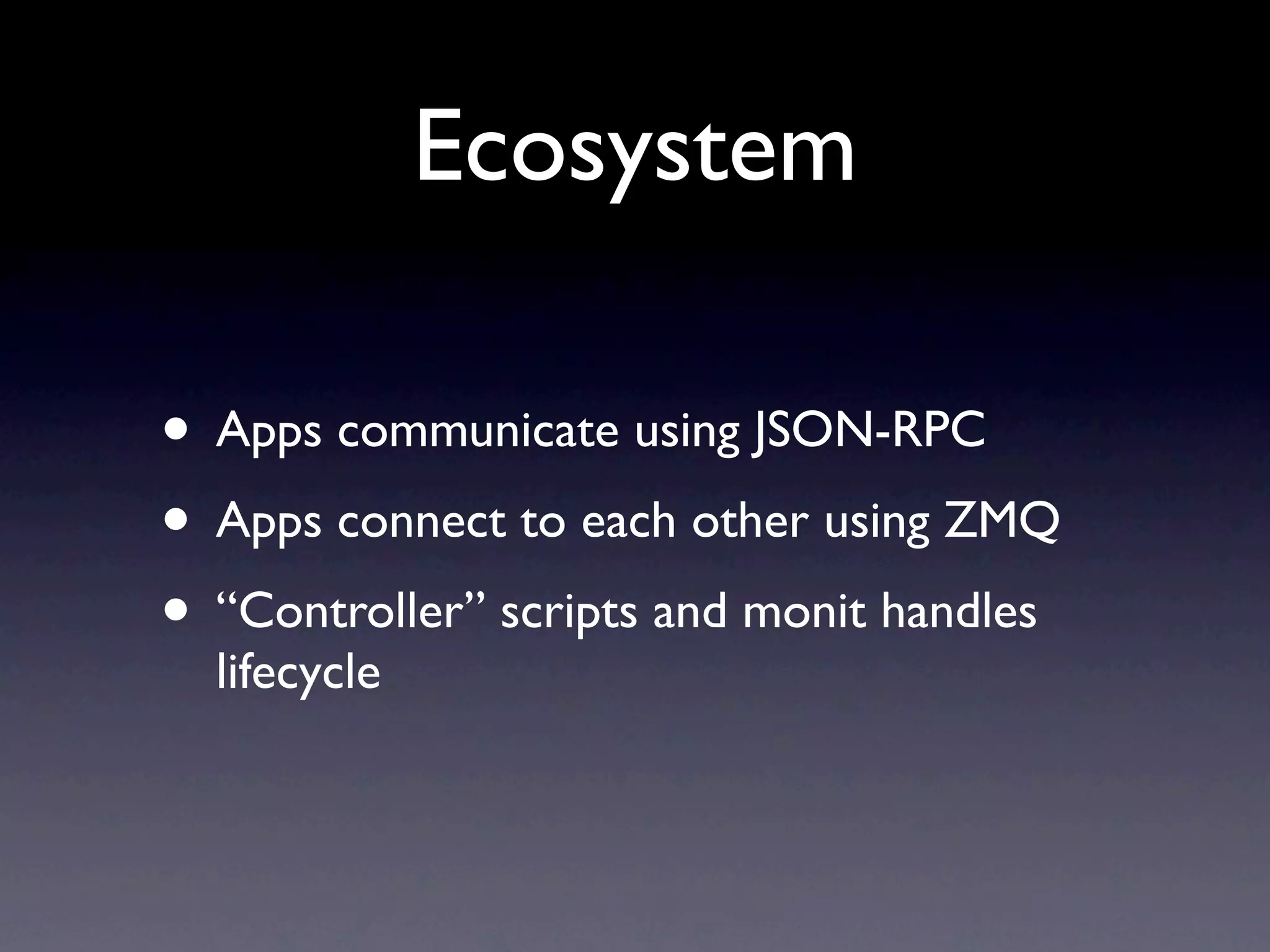

Ecosystem

• Apps communicate using JSON-RPC
• Apps connect to each other using ZMQ
• “Controller” scripts and monit handles
  lifecycle

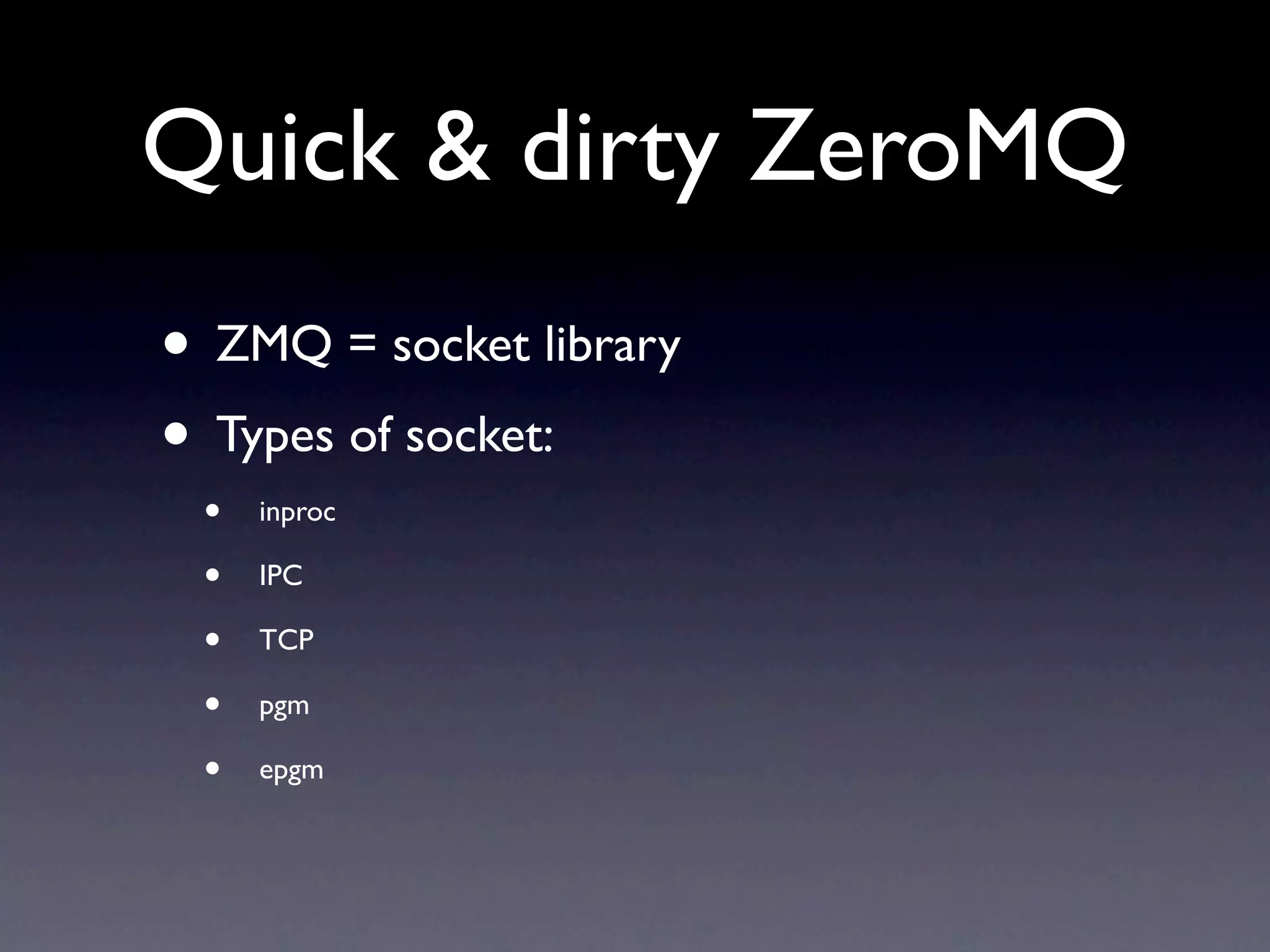

Quick & dirty ZeroMQ
• ZMQ = socket library
• Types of socket:
 •   inproc

 •   IPC

 •   TCP

 •   pgm

 •   epgm

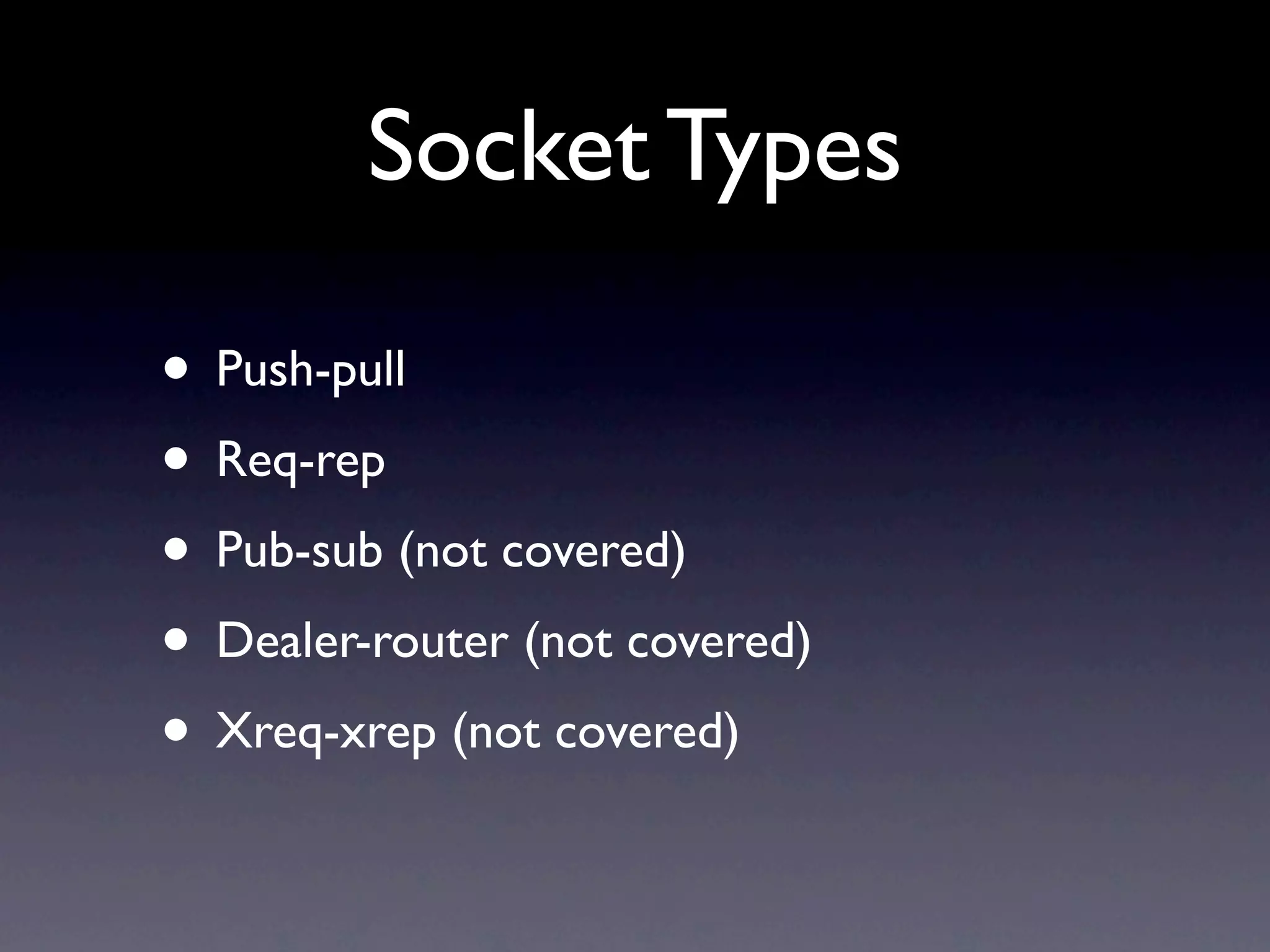

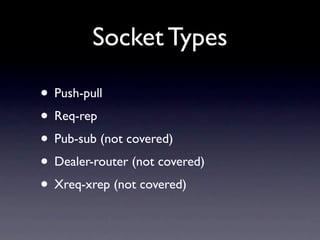

Socket Types

• Push-pull
• Req-rep
• Pub-sub (not covered)
• Dealer-router (not covered)
• Xreq-xrep (not covered)

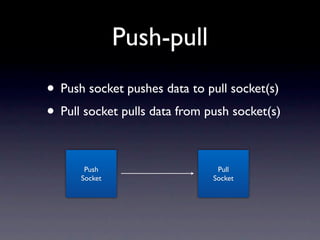

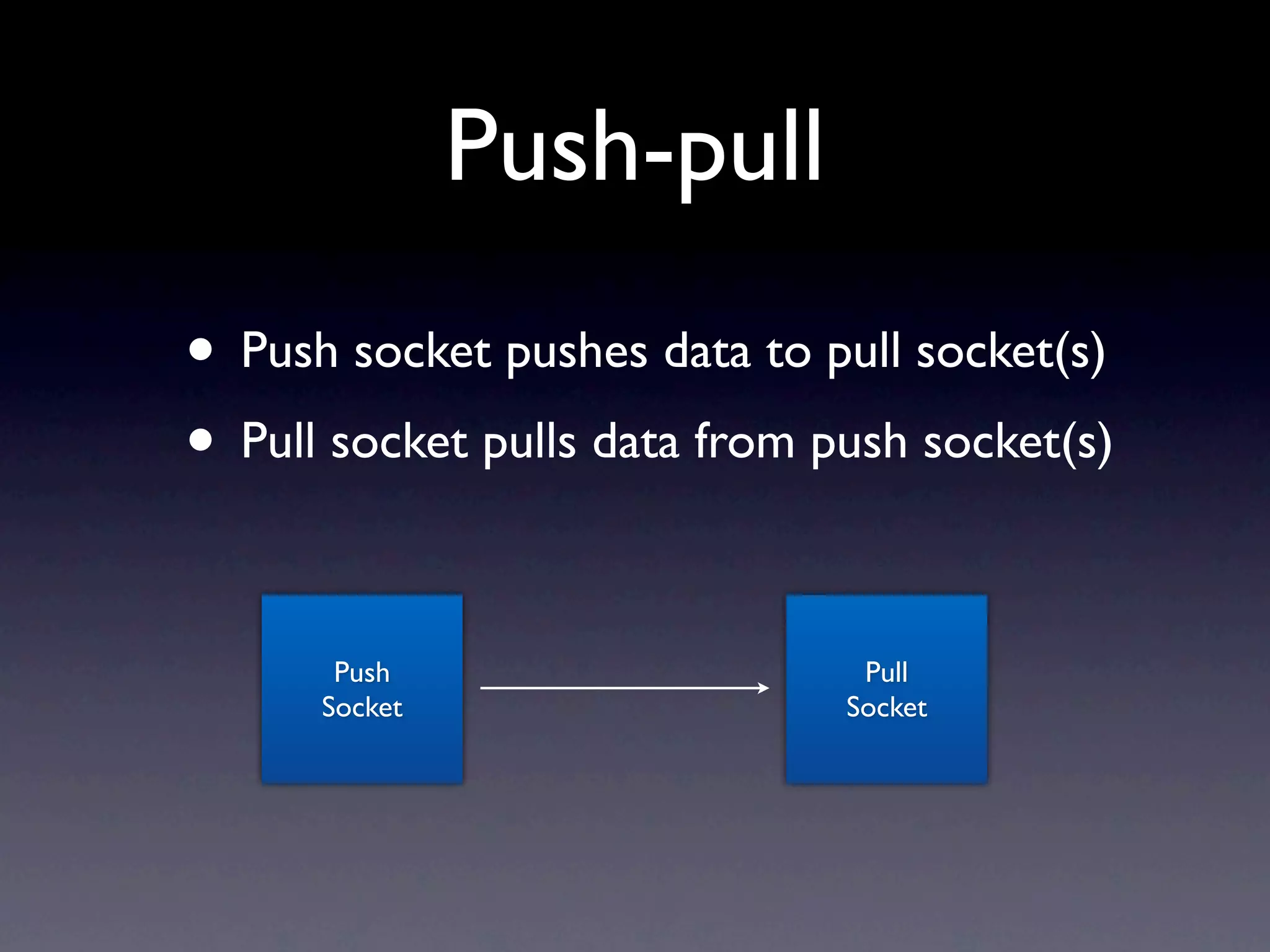

Push-pull
• Push socket pushes data to pull socket(s)
• Pull socket pulls data from push socket(s)

       Push                     Pull
      Socket                   Socket

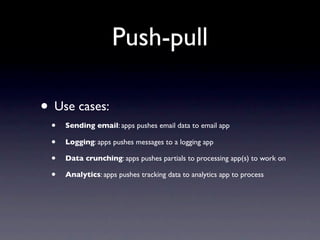

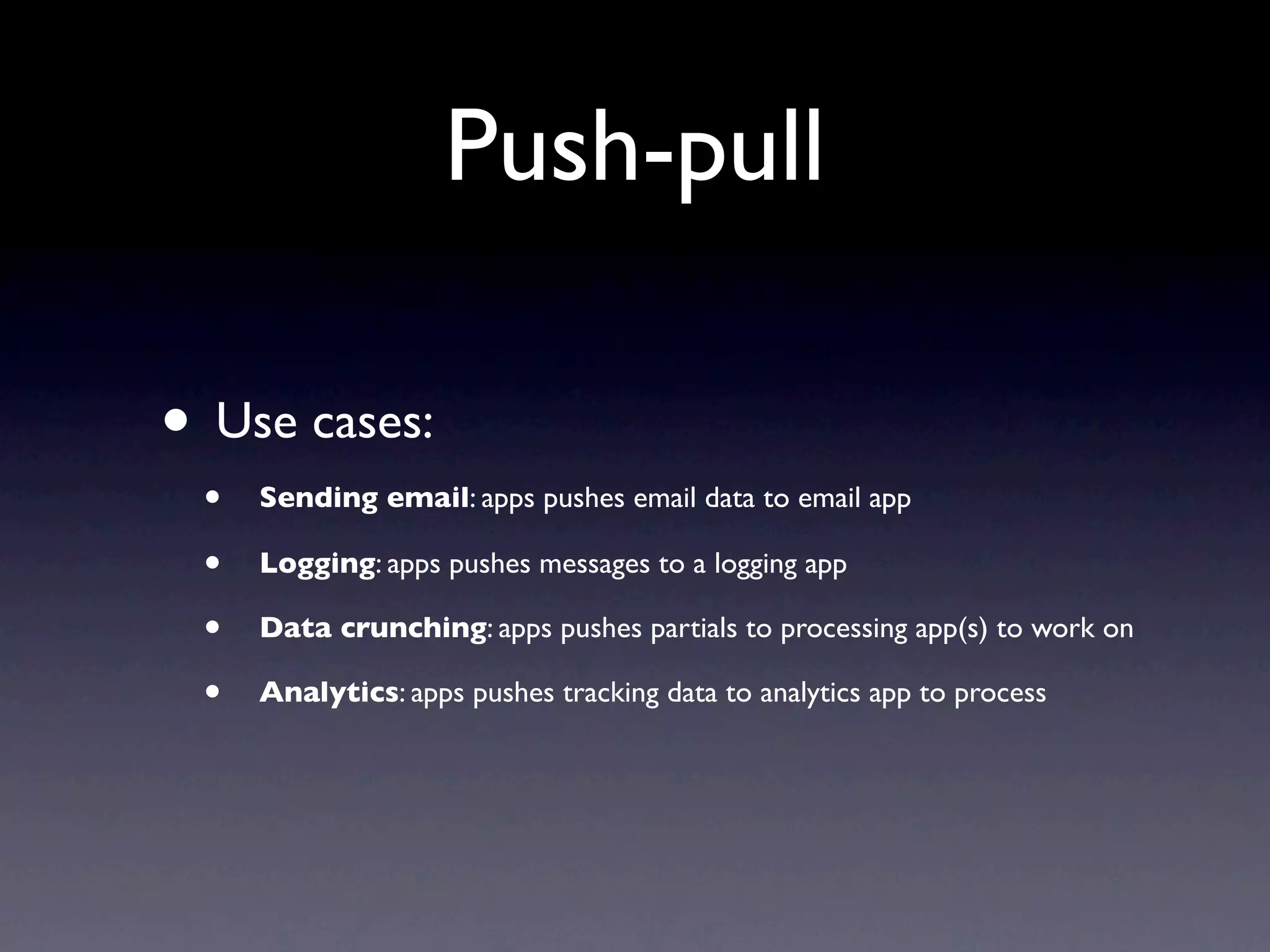

Push-pull

• Use cases:
 •   Sending email: apps pushes email data to email app

 •   Logging: apps pushes messages to a logging app

 •   Data crunching: apps pushes partials to processing app(s) to work on

 •   Analytics: apps pushes tracking data to analytics app to process

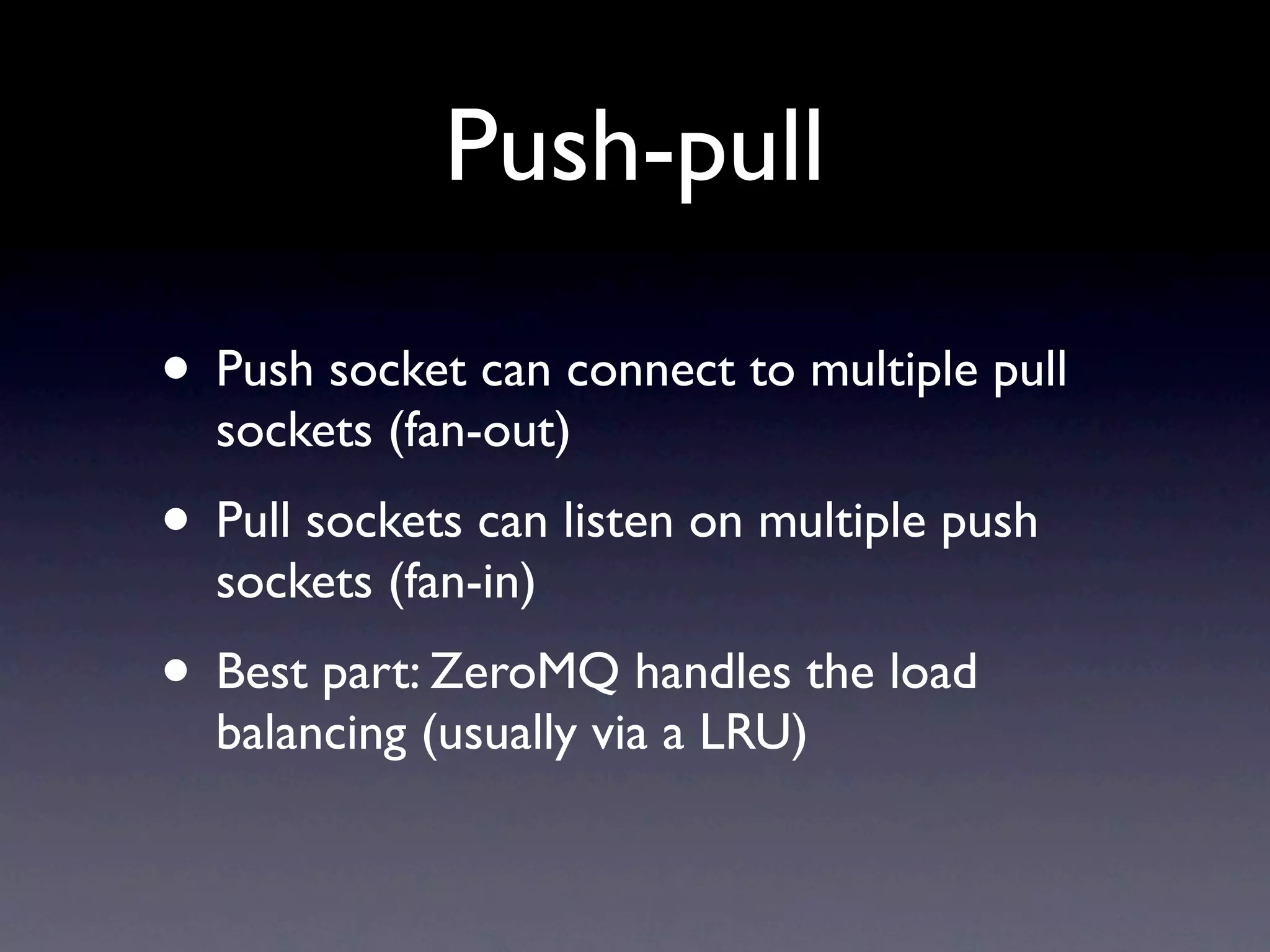

Push-pull

• Push socket can connect to multiple pull
  sockets (fan-out)
• Pull sockets can listen on multiple push
  sockets (fan-in)
• Best part: ZeroMQ handles the load
  balancing (usually via a LRU)

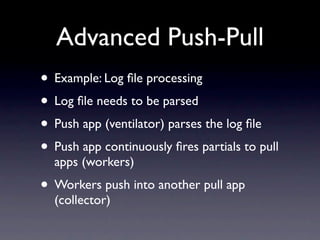

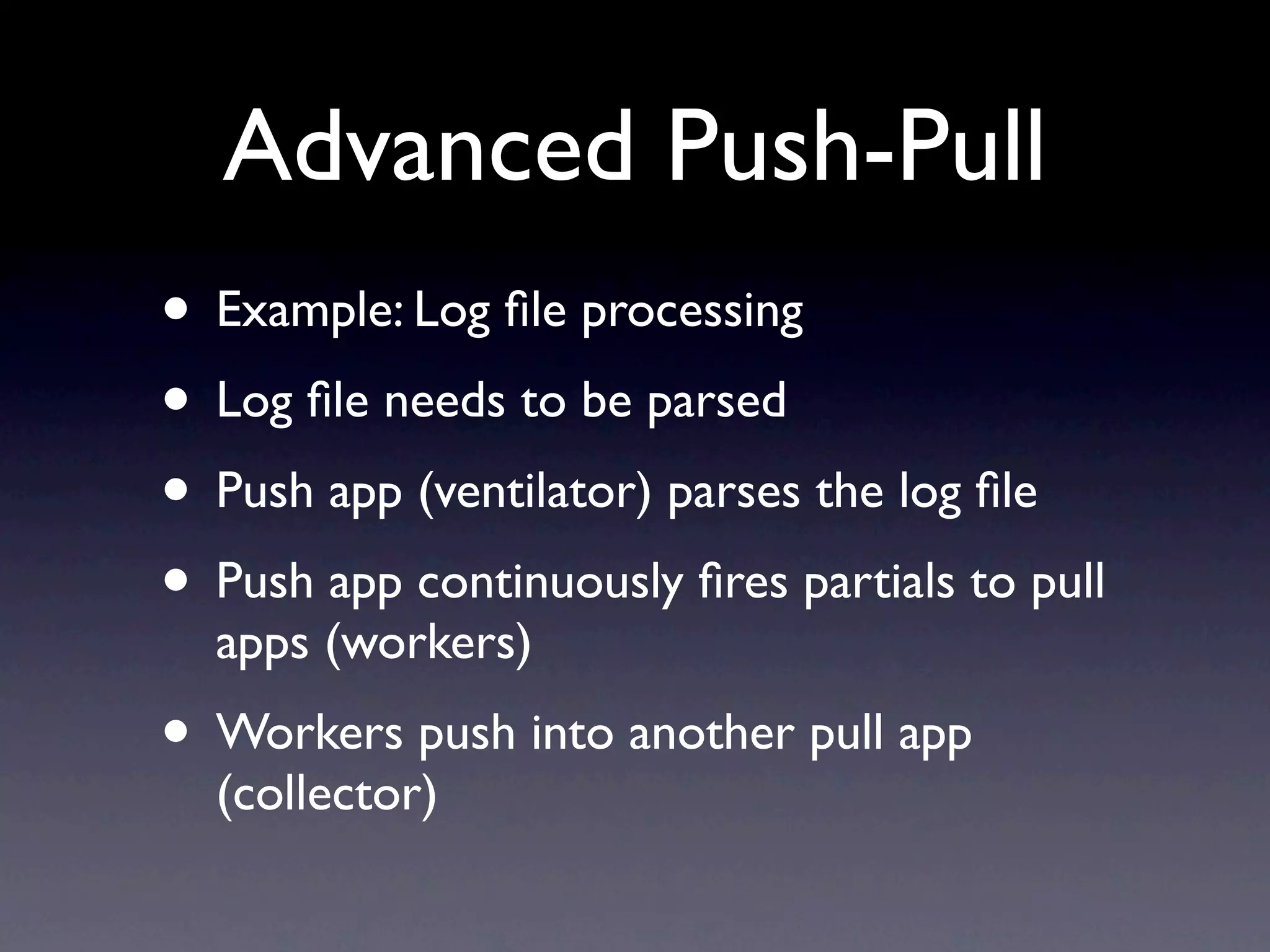

Advanced Push-Pull
• Example: Log file processing
• Log file needs to be parsed
• Push app (ventilator) parses the log file
• Push app continuously fires partials to pull
  apps (workers)
• Workers push into another pull app
  (collector)

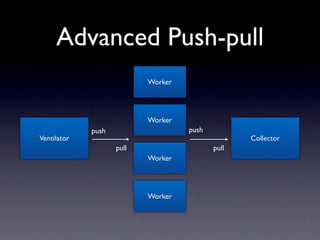

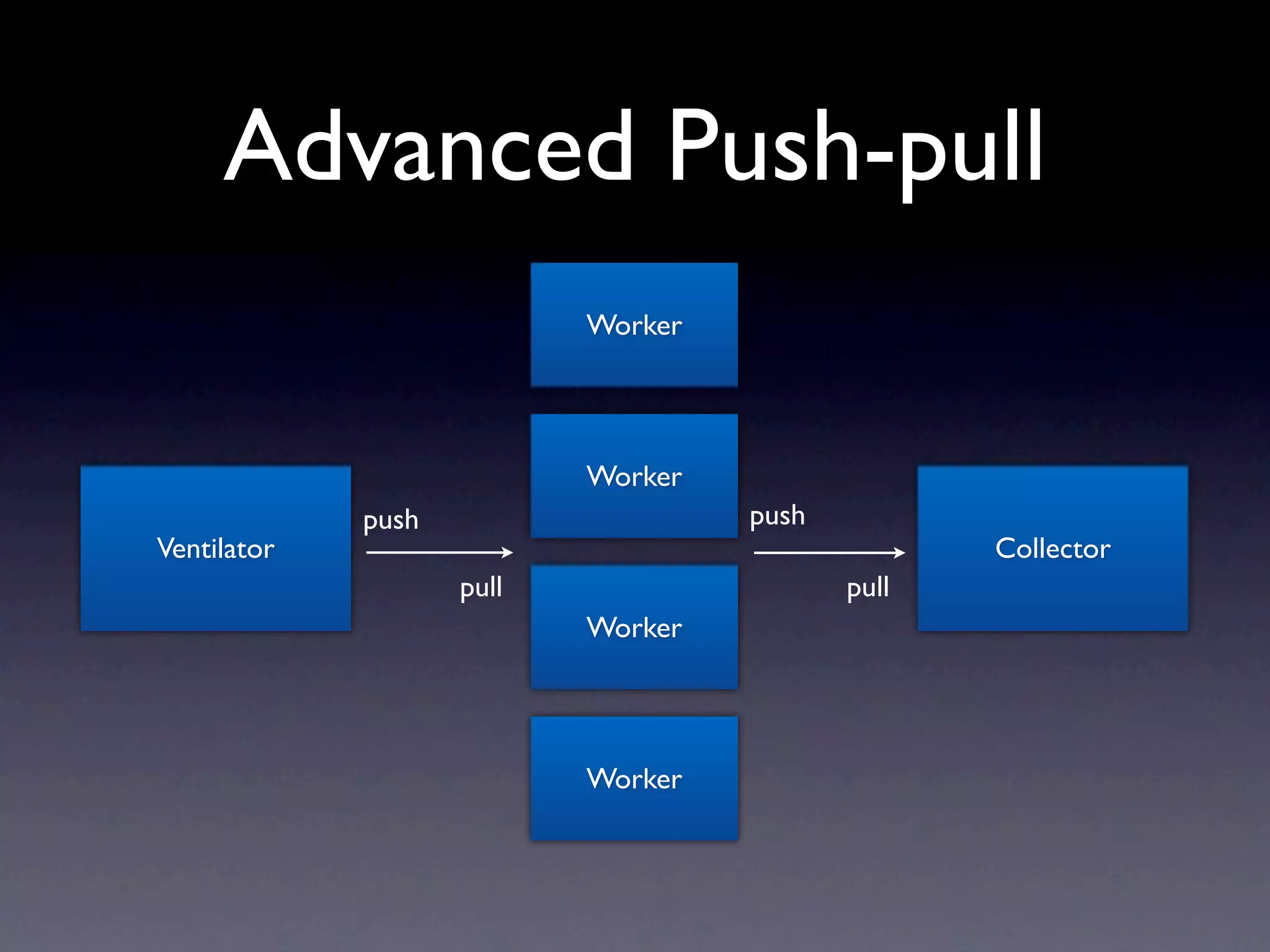

Advanced Push-pull
                           Worker




                           Worker
             push                   push
Ventilator                                        Collector
                    pull                   pull
                           Worker




                           Worker

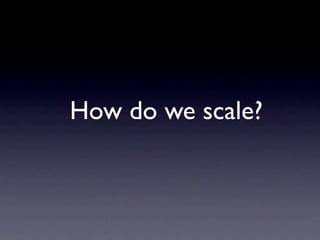

How do we scale?
ADD MORE
WORKERS

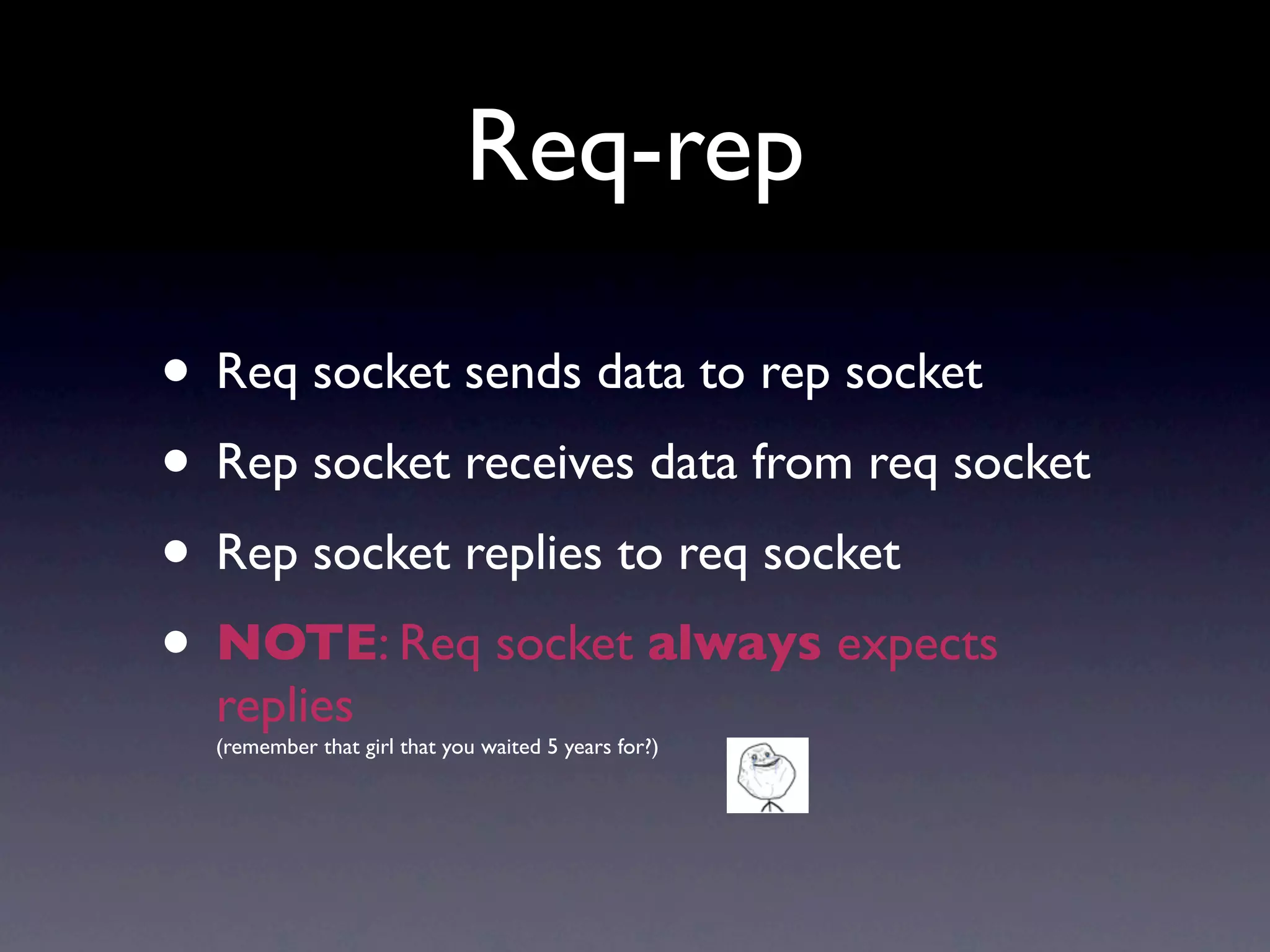

Req-rep

• Req socket sends data to rep socket
• Rep socket receives data from req socket
• Rep socket replies to req socket
• NOTE: Req socket always expects
  replies
  (remember that girl that you waited 5 years for?)
Req-rep

• Use cases:
 •   Inter-app communications: apps that has dependencies between
     each other uses a REQ-REP pattern

 •   Caching: apps req cached items from cache app, cache app rep with
     cached item

 •   API: 3rd party developers issue req to your API app, which filters the
     request and replies with the results

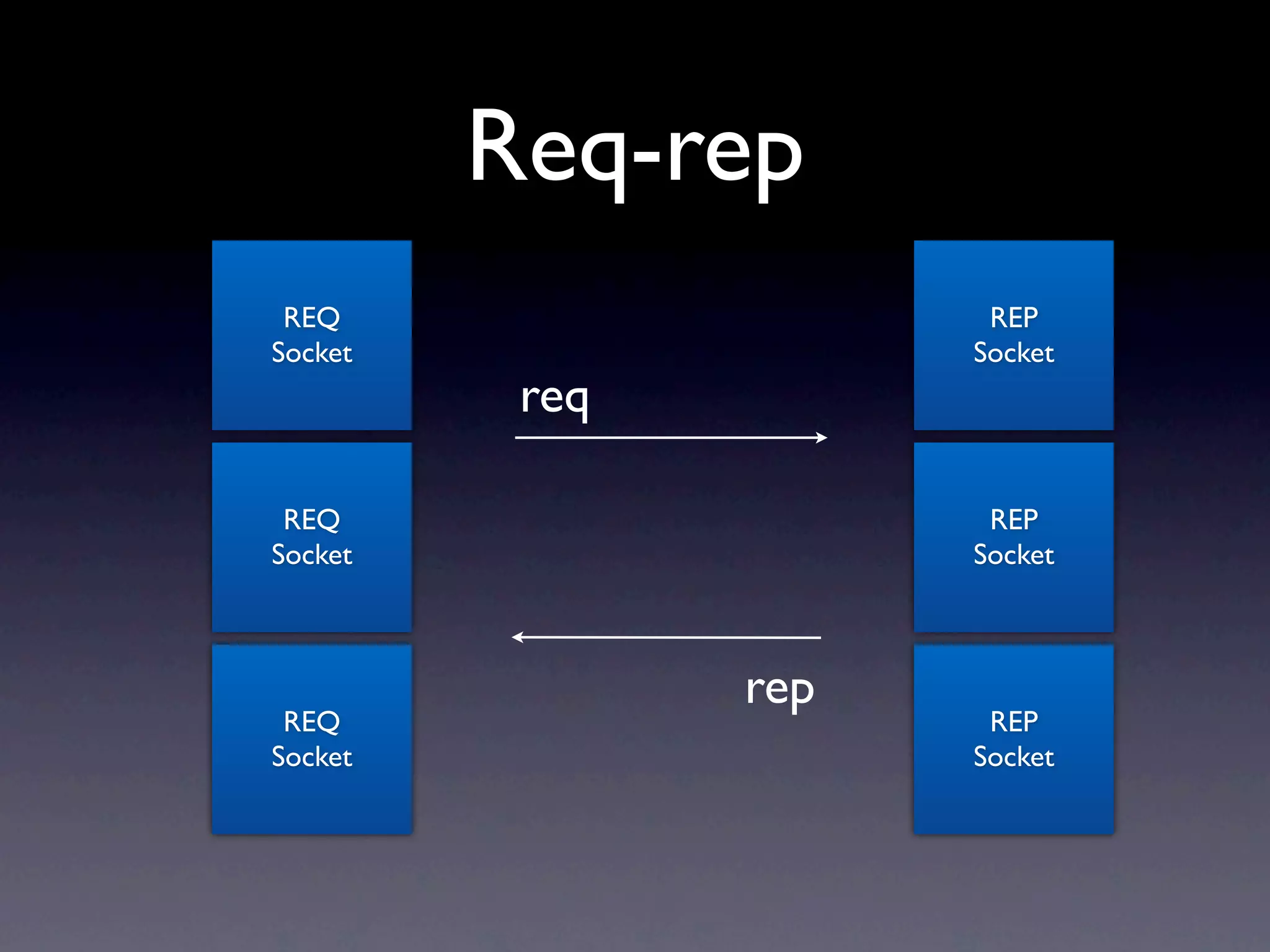

Req-rep
 REQ                   REP
Socket                Socket
          req

 REQ                   REP
Socket                Socket



                rep
 REQ                   REP
Socket                Socket

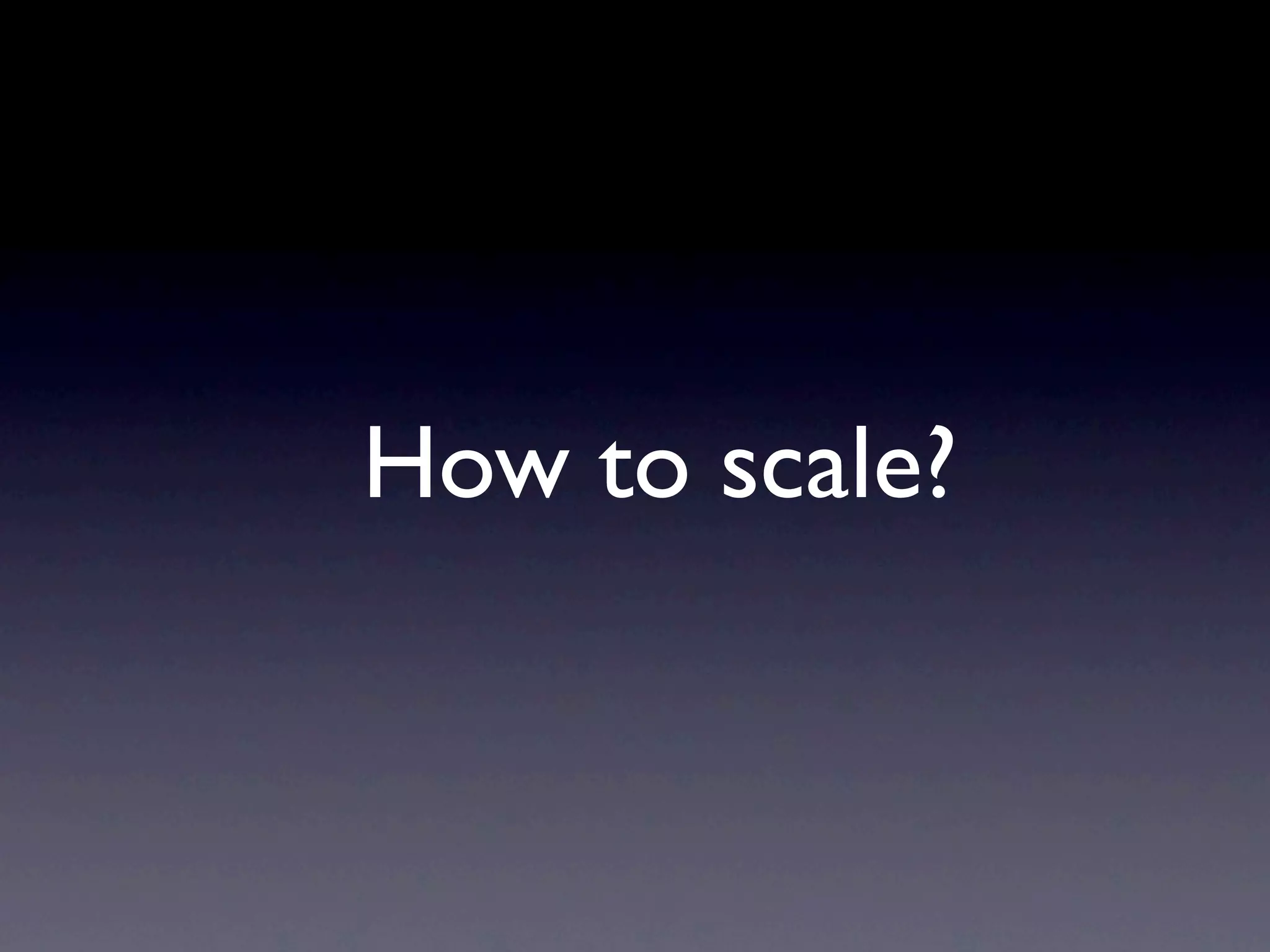

How to scale?
ADD MORE REP APPS

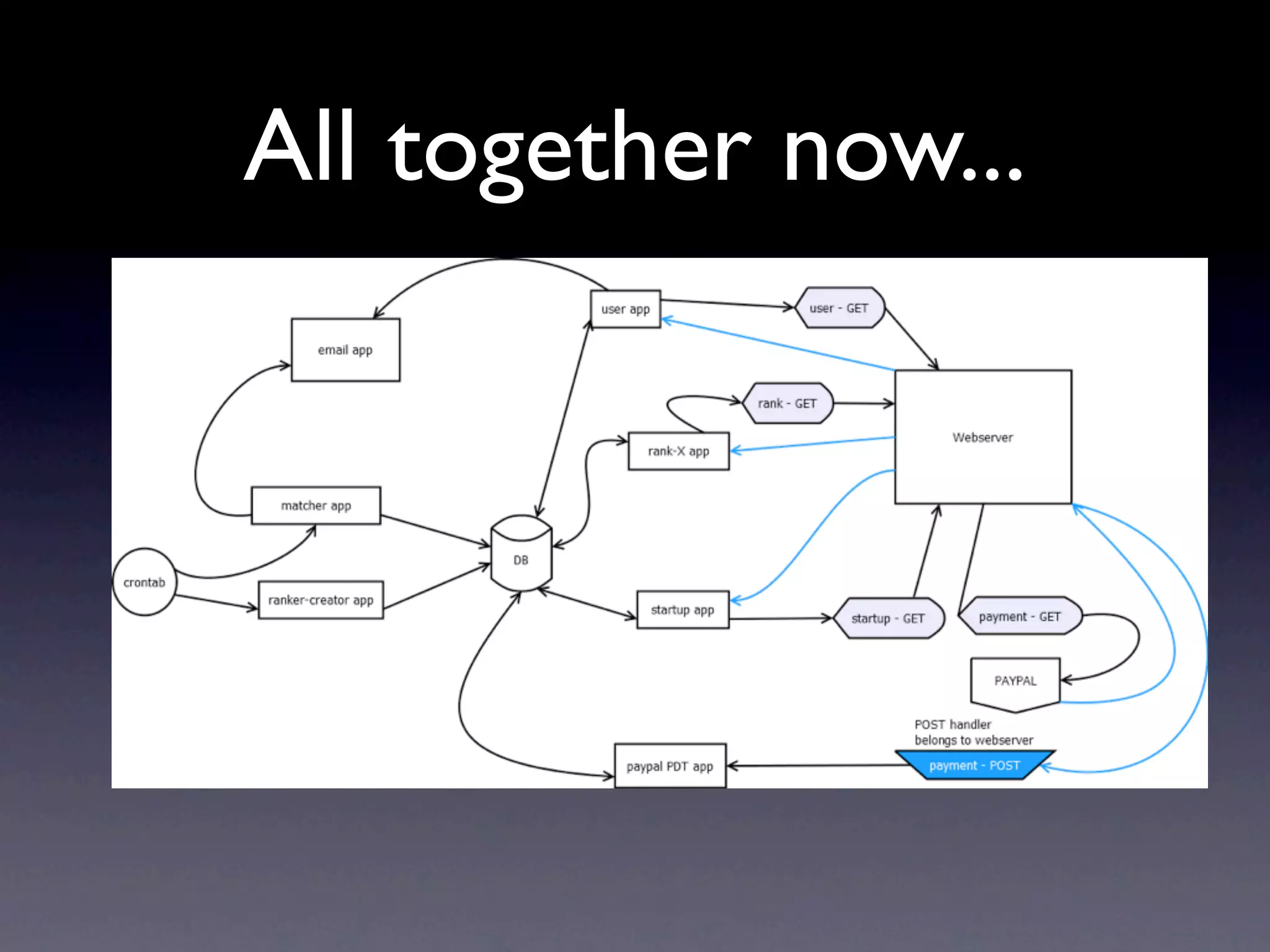

All together now...

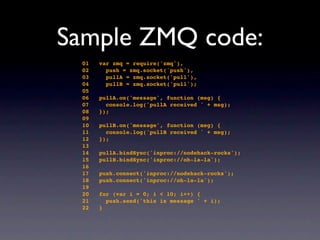

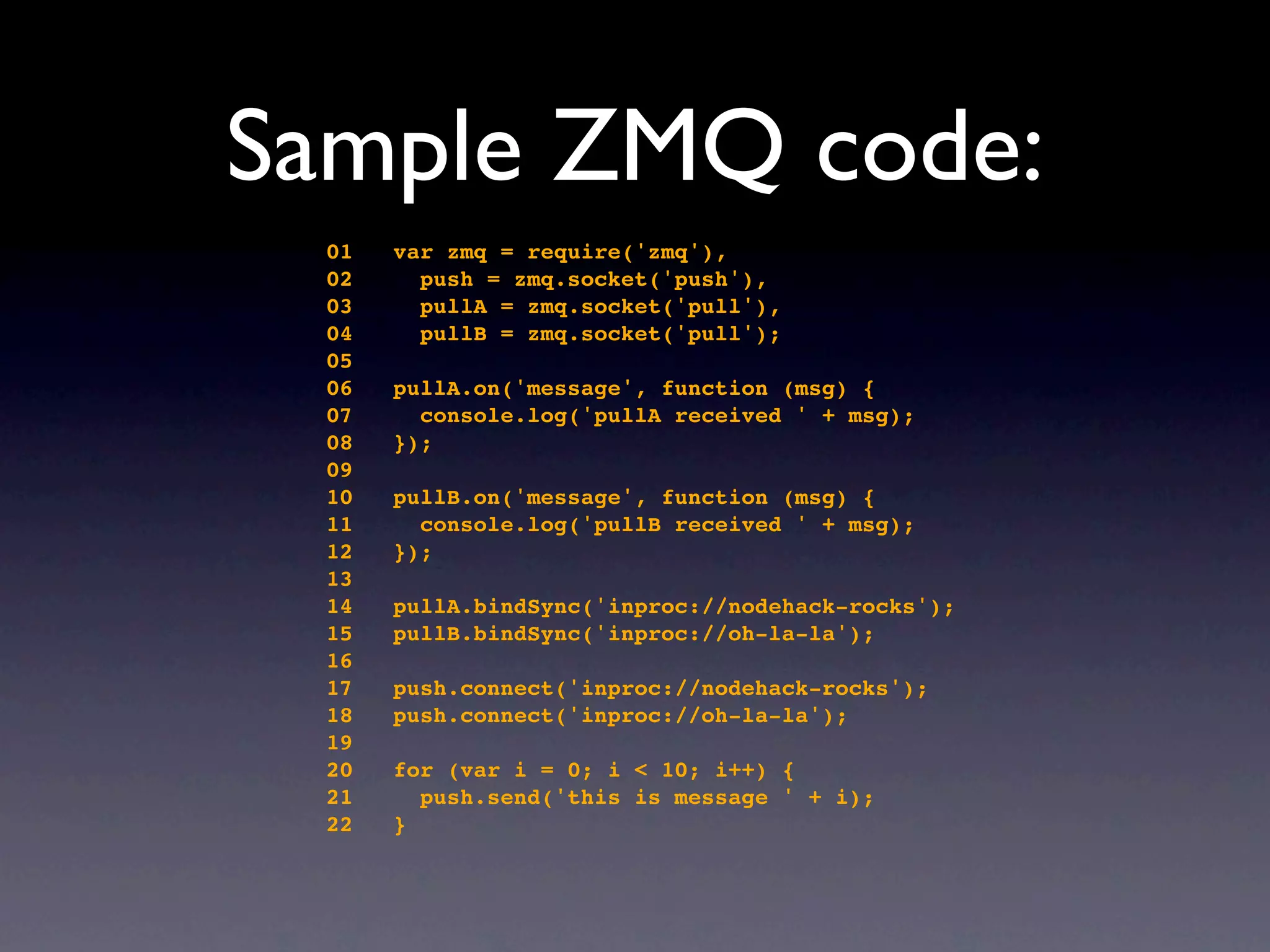

Sample ZMQ code:
 01   var zmq = require('zmq'),
 02     push = zmq.socket('push'),
 03     pullA = zmq.socket('pull'),
 04     pullB = zmq.socket('pull');
 05
 06   pullA.on('message', function (msg) {
 07     console.log('pullA received ' + msg);
 08   });
 09
 10   pullB.on('message', function (msg) {
 11     console.log('pullB received ' + msg);
 12   });
 13
 14   pullA.bindSync('inproc://nodehack-rocks');
 15   pullB.bindSync('inproc://oh-la-la');
 16
 17   push.connect('inproc://nodehack-rocks');
 18   push.connect('inproc://oh-la-la');
 19
 20   for (var i = 0; i < 10; i++) {
 21     push.send('this is message ' + i);
 22   }

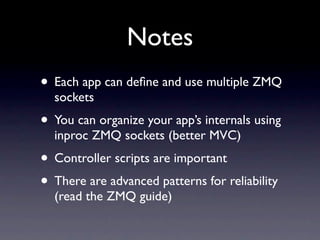

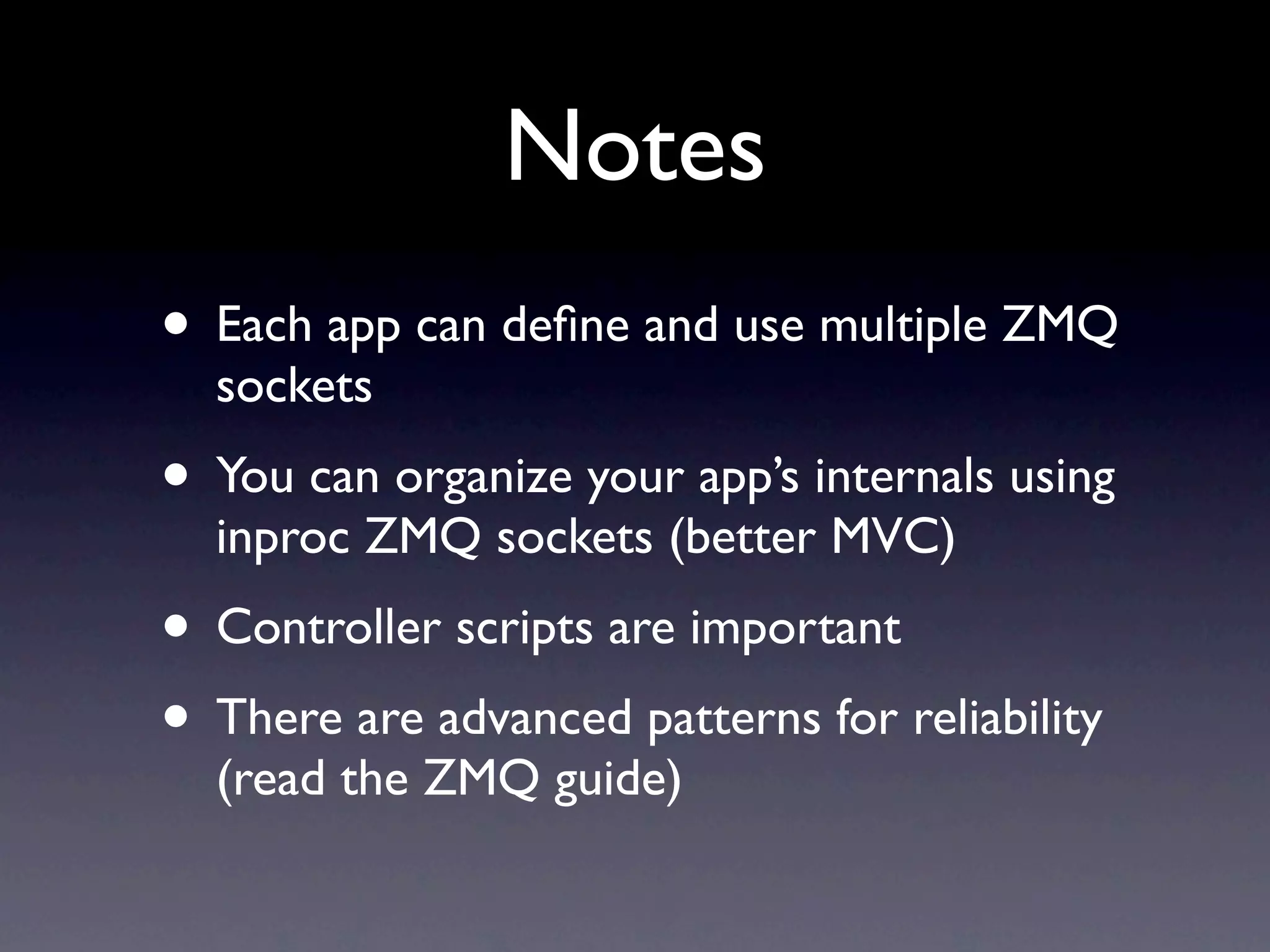

Notes
• Each app can define and use multiple ZMQ
  sockets
• You can organize your app’s internals using
  inproc ZMQ sockets (better MVC)
• Controller scripts are important
• There are advanced patterns for reliability
  (read the ZMQ guide)

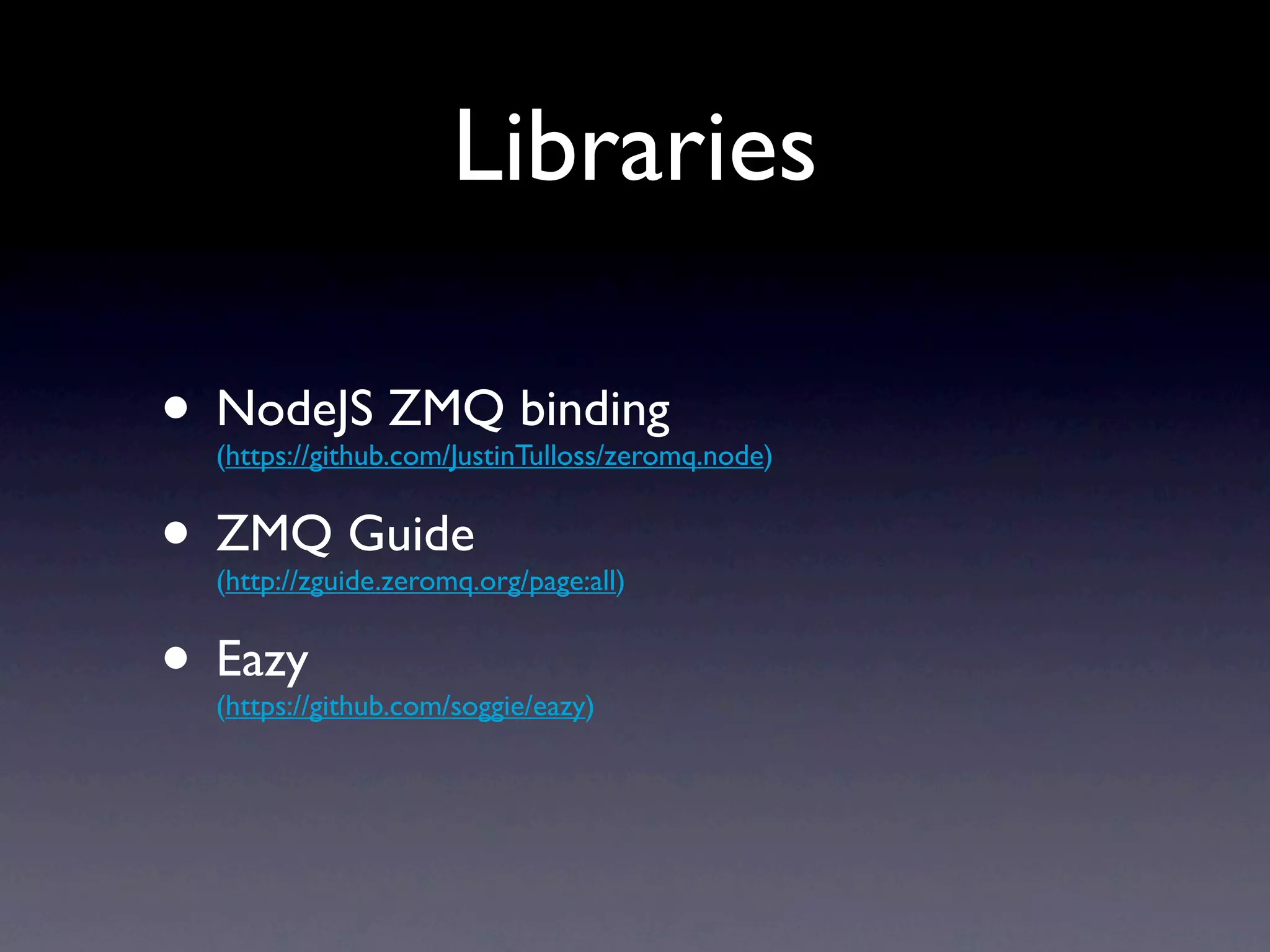

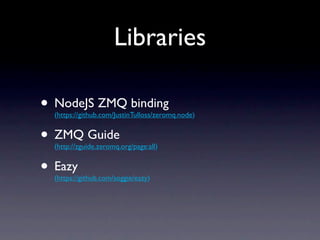

Libraries

• NodeJS ZMQ binding
  (https://github.com/JustinTulloss/zeromq.node)


• ZMQ Guide
  (http://zguide.zeromq.org/page:all)


• Eazy
  (https://github.com/soggie/eazy)
- the end -
