ZeroMQ in PHP
Ømq is an intelligent socket library for messaging that allows for highly flexible messaging patterns between applications. It is fast, fault tolerant, and language agnostic. Common patterns supported by Ømq include request-reply, publish-subscribe, and push-pull. Devices can be used to route messages and act as brokers or balancers to solve problems like load balancing. Ømq offers advantages over traditional solutions when advanced network interactions or high performance is required.
More Related Content
ZeroMQ in PHP
- 1. Ømq and CakePHP Socketprogramming brought to your web app

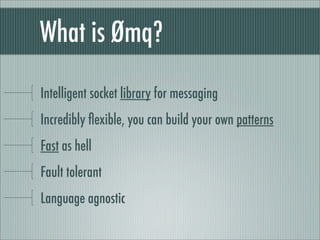

- 2. What is Ømq? Intelligentsocket library for messaging Incredibly flexible, you can build your own patterns Fast as hell Fault tolerant Language agnostic

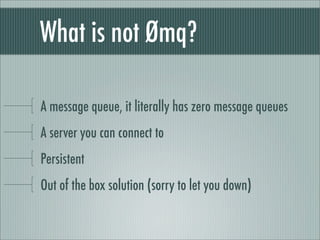

- 3. What is notØmq? A message queue, it literally has zero message queues A server you can connect to Persistent Out of the box solution (sorry to let you down)

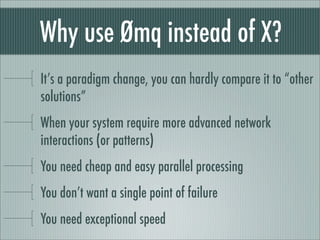

- 4. Why use Ømqinstead of X? It’s a paradigm change, you can hardly compare it to “other solutions” When your system require more advanced network interactions (or patterns) You need cheap and easy parallel processing You don’t want a single point of failure You need exceptional speed
- 5.
- 6. Supported transports INPROC (in-processcommunication) IPC (inter-process communication) Multicast (using a pgm multicast) TCP
- 7. Let’s talk about patterns
- 8. Patterns is allwhat Ømq is about You can choose to use any of the patterns or combine them all in a single application Combining patterns help you build more advanced distributed systems
- 9. ICANHAZ? Client Server Request - Reply

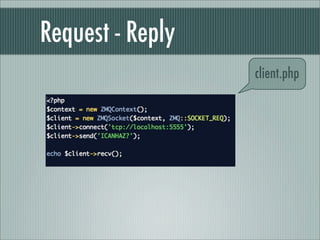

- 10. Request - Reply client.php

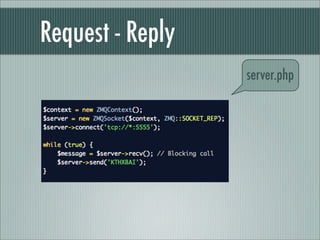

- 11. Request - Reply server.php

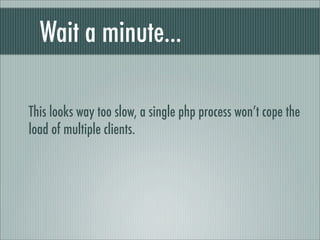

- 12. Wait a minute... Thislooks way too slow, a single php process won’t cope the load of multiple clients.
- 13. We need asolution

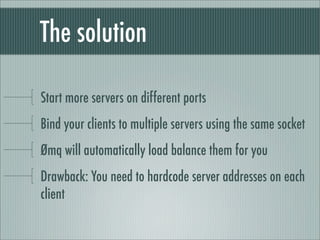

- 14. The solution Start moreservers on different ports Bind your clients to multiple servers using the same socket Ømq will automatically load balance them for you Drawback: You need to hardcode server addresses on each client

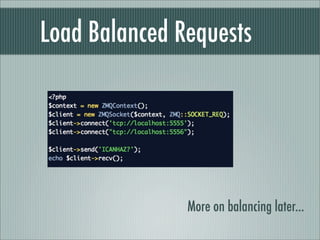

- 15. Load Balanced Requests More on balancing later...

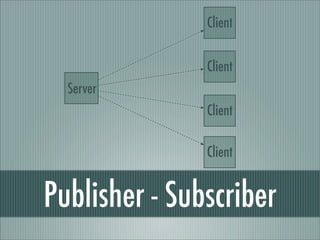

- 16. Client Client Server Client Client Publisher - Subscriber

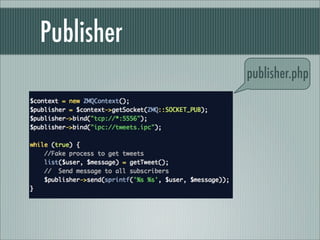

- 17. Publisher publisher.php

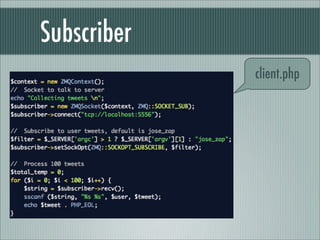

- 18. Subscriber client.php

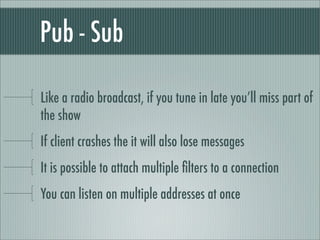

- 19. Pub - Sub Likea radio broadcast, if you tune in late you’ll miss part of the show If client crashes the it will also lose messages It is possible to attach multiple filters to a connection You can listen on multiple addresses at once

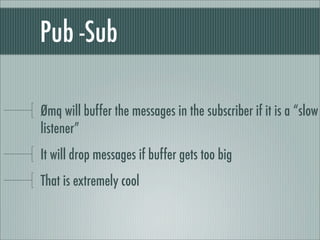

- 20. Pub -Sub Ømq willbuffer the messages in the subscriber if it is a “slow listener” It will drop messages if buffer gets too big That is extremely cool

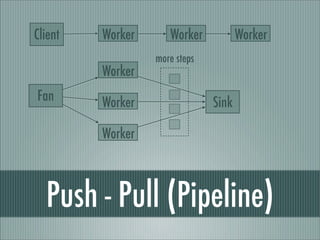

- 21. Client Worker Worker Worker more steps Worker Fan Worker Sink Worker Push - Pull (Pipeline)

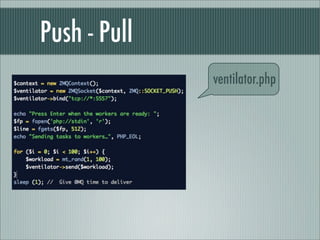

- 22. Push - Pull ventilator.php

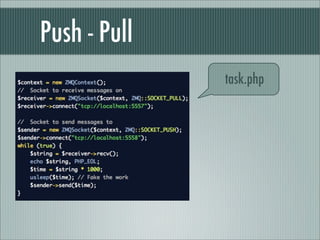

- 23. Push - Pull task.php

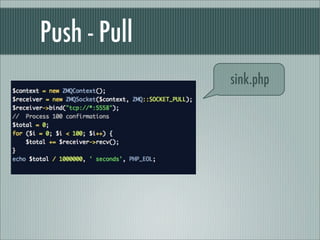

- 24. Push - Pull sink.php

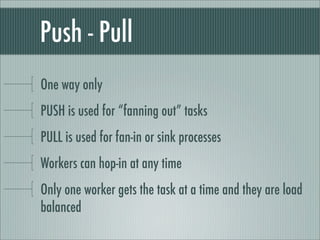

- 25. Push - Pull Oneway only PUSH is used for “fanning out” tasks PULL is used for fan-in or sink processes Workers can hop-in at any time Only one worker gets the task at a time and they are load balanced

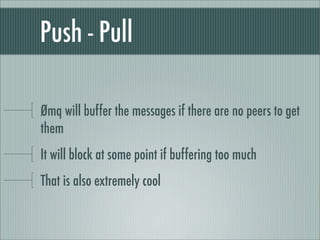

- 26. Push - Pull Ømqwill buffer the messages if there are no peers to get them It will block at some point if buffering too much That is also extremely cool
- 27.
- 28. Devices or Brokers Devicesare programs that will route messages between two nodes Devices are usually small but they can also be trusted with larger tasks, such as persisting messages Used to solve hard problems but also introduce single points of failure
- 29. We needed asolution
- 30. Devices as balancers Client Client Client Dealer Server Server Server

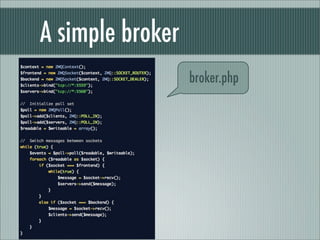

- 31. A simple broker broker.php

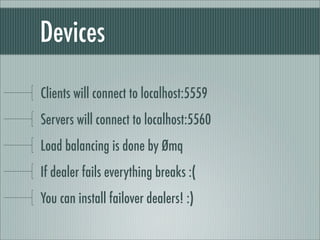

- 32. Devices Clients will connectto localhost:5559 Servers will connect to localhost:5560 Load balancing is done by Ømq If dealer fails everything breaks :( You can install failover dealers! :)

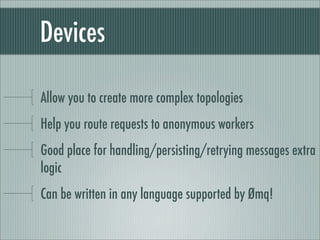

- 33. Devices Allow you tocreate more complex topologies Help you route requests to anonymous workers Good place for handling/persisting/retrying messages extra logic Can be written in any language supported by Ømq!
- 34. Let’s see some examples
