1. Network Connected
Development with ZeroMQ
1
June 13, 2019

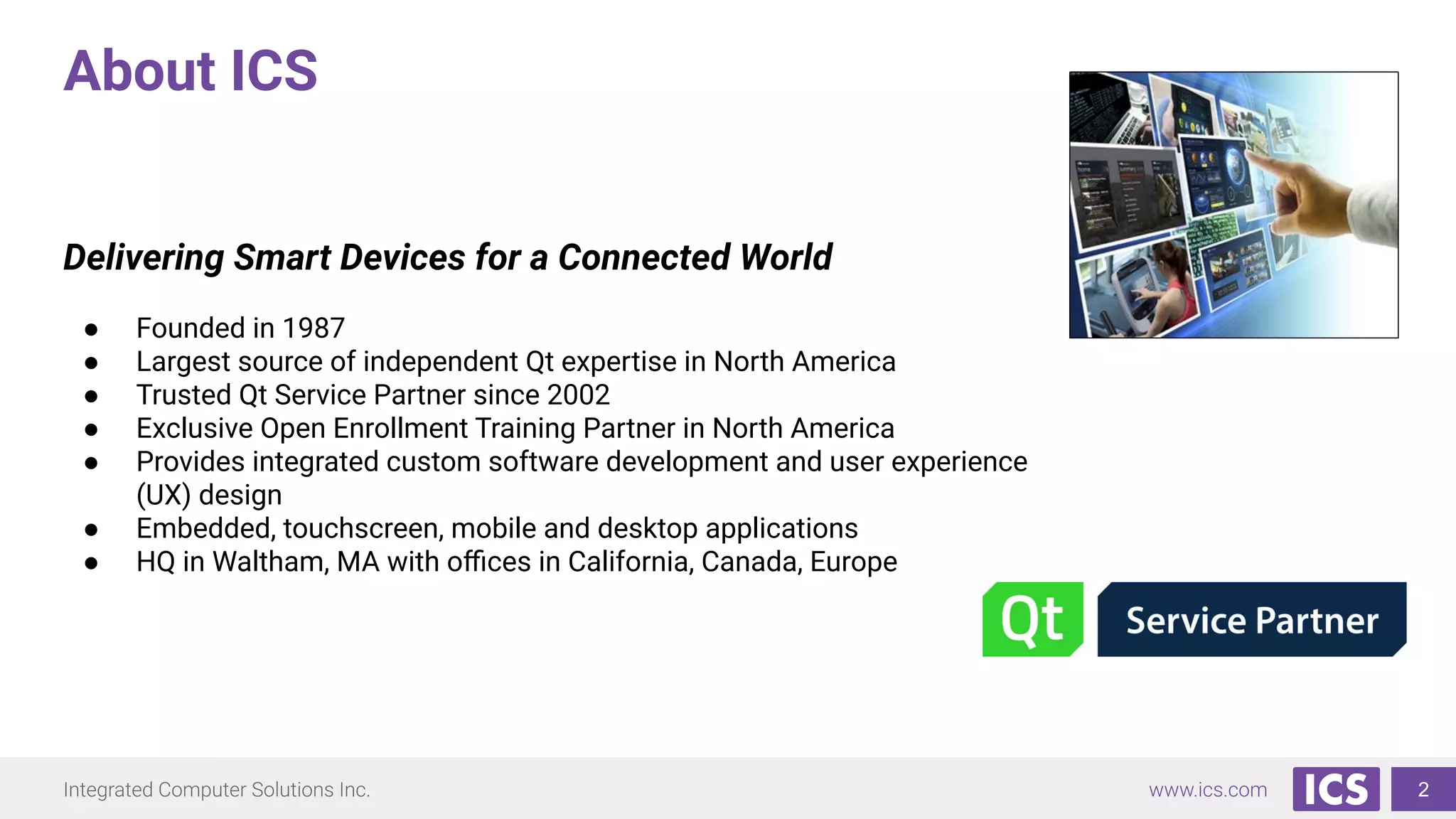

2. About ICS
2
Delivering Smart Devices for a Connected World
● Founded in 1987
● Largest source of independent Qt expertise in North America
● Trusted Qt Service Partner since 2002
● Exclusive Open Enrollment Training Partner in North America
● Provides integrated custom software development and user experience
(UX) design
● Embedded, touchscreen, mobile and desktop applications
● HQ in Waltham, MA with offices in California, Canada, Europe

3. 3
In today’s world everything is communicating, exchanging
messages of some form.
What to use as communication platform is an important choice
that will determine the architecture of your application.
From simple two way communication to complex multi node
architectures, 0MQ helps in providing a safe, fast and reliable
communication medium.
Introduction

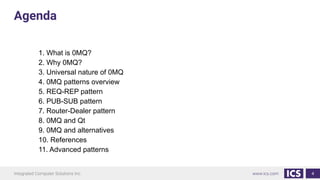

4. 4
1. What is 0MQ?
2. Why 0MQ?
3. Universal nature of 0MQ
4. 0MQ patterns overview
5. REQ-REP pattern
6. PUB-SUB pattern
7. Router-Dealer pattern
8. 0MQ and Qt
9. 0MQ and alternatives
10. References
11. Advanced patterns
Agenda

5. 5
ZeroMQ is an embeddable networking library.
It gives you sockets that carry atomic messages across
various transports like in-process, inter-process, TCP, and
multicast.
It has a score of language APIs and runs on most operating
systems
It is open source under LGPLv3 license
What is 0MQ

6. 6
● It handles I/O asynchronously. Concurrent 0MQ applications need no locks or
semaphores
● Component come and go dynamically, 0MQ reconnects them automatically
● It queues message automatically when needed and does it intelligently
● It has way dealing with over full queues ( “high water mark” )
● Supports multiple transports - TCP, multi-cast, in-process, interprocess
● It handles slow/blocked readers safely depending on messaging pattern
● It lets you to route messages using variety of patterns
● It lets you to create proxies to queue, forward and capture messages with single
call
● It delivers messages exactly as it sent
● It does not impose any format on messages
Why 0MQ

7. 7
● Written on C++
● Community officially supports CZMQ(C/C++),
JeroMQ(Java), NetMQ(.Net)
● Supports every modern language and platform
● Works in any architecture - centralized or distributed, small
or large
● 40+ language bindings - Ada, Fortran-77, LabView,
Node.js, Python, Swift, Obj-C, Ruby, Smalltalk, Tcl, etc
Universal Nature of 0MQ

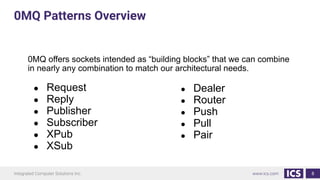

8. 8
● Dealer
● Router
● Push
● Pull
● Pair
0MQ offers sockets intended as “building blocks” that we can combine
in nearly any combination to match our architectural needs.
● Request
● Reply
● Publisher
● Subscriber
● XPub
● XSub
0MQ Patterns Overview

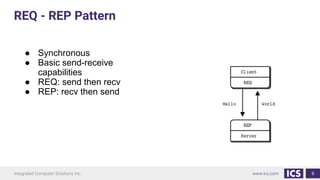

9. 9
● Synchronous
● Basic send-receive
capabilities
● REQ: send then recv
● REP: recv then send
REQ - REP Pattern

10. 10

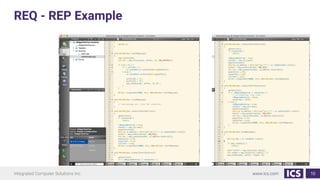

REQ - REP Example

11. 11

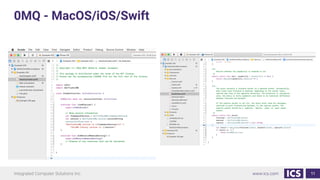

0MQ - MacOS/iOS/Swift

12. 12
● Asynchronous
● SUB will lose initial messages
after connection - slow joiner
syndrome
● SUB needs to register to a channel to
start receiving
● SUB can connect to multiple PUB
● PUB has the queue
PUB - SUB pattern

13. 13
#
# Weather update server
# Binds PUB socket to tcp://*:5556
# Publishes random weather updates
#
import zmq
from random import randrange
context = zmq.Context()
socket = context.socket(zmq.PUB)
socket.bind("tcp://*:5556")
while True:
zipcode = randrange(1, 100000)
temperature = randrange(-80, 135)
relhumidity = randrange(10, 60)
socket.send_string("%i %i %i" %
(zipcode, temperature, relhumidity))
#
# Weather update client
# Connects SUB socket to tcp://localhost:5556
#
import sys
import zmq
# Socket to talk to server
context = zmq.Context()
socket = context.socket(zmq.SUB)
socket.connect("tcp://localhost:5556")
# Subscribe to zipcode, default is NYC, 10001
zip_filter = sys.argv[1] if len(sys.argv) > 1 else "10001"
# Python 2 - ascii bytes to unicode str
if isinstance(zip_filter, bytes):
zip_filter = zip_filter.decode('ascii')
socket.setsockopt_string(zmq.SUBSCRIBE, zip_filter)
# Process 5 updates
total_temp = 0
for update_nbr in range(5):
string = socket.recv_string()
zipcode, temperature, relhumidity = string.split()
total_temp += int(temperature)
print("Average temperature for zipcode '%s' was %dF" % (
zip_filter, total_temp / (update_nbr+1))
)
PUB - SUB Example

14. 14

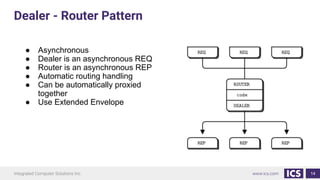

● Asynchronous
● Dealer is an asynchronous REQ
● Router is an asynchronous REP
● Automatic routing handling
● Can be automatically proxied
together
● Use Extended Envelope
Dealer - Router Pattern

15. 15
Building a basic file transfer protocol using only a dealer and a router
● Option #1:
Dealer sends request for a file, Router sends the file serialized
● Option #2:
Dealer sends request for a chunk of a file, Router sends that chunk -
repeat
● Option #3:
Dealer asks for the max amount of chunks that can handle, Router
sends multiple chunks - repeat
Dealer - Router Pattern

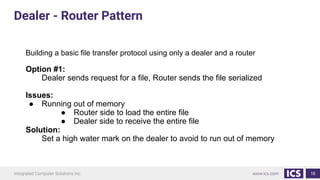

16. 16
Building a basic file transfer protocol using only a dealer and a router
Option #1:
Dealer sends request for a file, Router sends the file serialized
Issues:
● Running out of memory
● Router side to load the entire file
● Dealer side to receive the entire file
Solution:
Set a high water mark on the dealer to avoid to run out of memory
Dealer - Router Pattern

17. 17

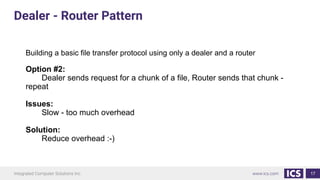

Building a basic file transfer protocol using only a dealer and a router
Option #2:
Dealer sends request for a chunk of a file, Router sends that chunk -
repeat
Issues:
Slow - too much overhead
Solution:
Reduce overhead :-)
Dealer - Router Pattern

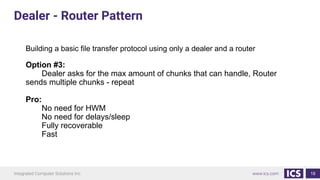

18. 18
Building a basic file transfer protocol using only a dealer and a router
Option #3:
Dealer asks for the max amount of chunks that can handle, Router
sends multiple chunks - repeat
Pro:
No need for HWM
No need for delays/sleep
Fully recoverable
Fast
Dealer - Router Pattern

19. 19

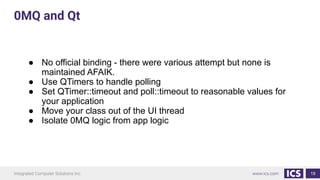

● No official binding - there were various attempt but none is
maintained AFAIK.
● Use QTimers to handle polling
● Set QTimer::timeout and poll::timeout to reasonable values for
your application
● Move your class out of the UI thread
● Isolate 0MQ logic from app logic
0MQ and Qt

20. 20

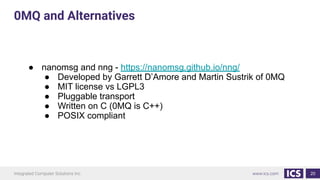

● nanomsg and nng - https://nanomsg.github.io/nng/
● Developed by Garrett D’Amore and Martin Sustrik of 0MQ
● MIT license vs LGPL3
● Pluggable transport
● Written on C (0MQ is C++)
● POSIX compliant
0MQ and Alternatives

21. 21
ZGuide: http://zguide.zeromq.org
FileMQ: https://github.com/zeromq/filemq
cppzmq: https://github.com/zeromq/cppzmq
libzmq: https://github.com/zeromq/libzmq
ICS Articles: https://www.ics.com/blog/build-high-performance-messaging-service-qt-and-ios
https://www.ics.com/blog/lets-build-zeromq-library
References

22. 22

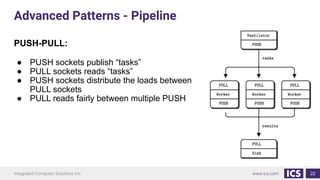

Advanced Patterns - Pipeline
PUSH-PULL:
● PUSH sockets publish “tasks”
● PULL sockets reads “tasks”
● PUSH sockets distribute the loads between
PULL sockets
● PULL reads fairly between multiple PUSH

23. 23

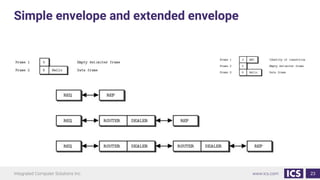

Simple envelope and extended envelope
