Developing realtime apps with Drupal and NodeJS

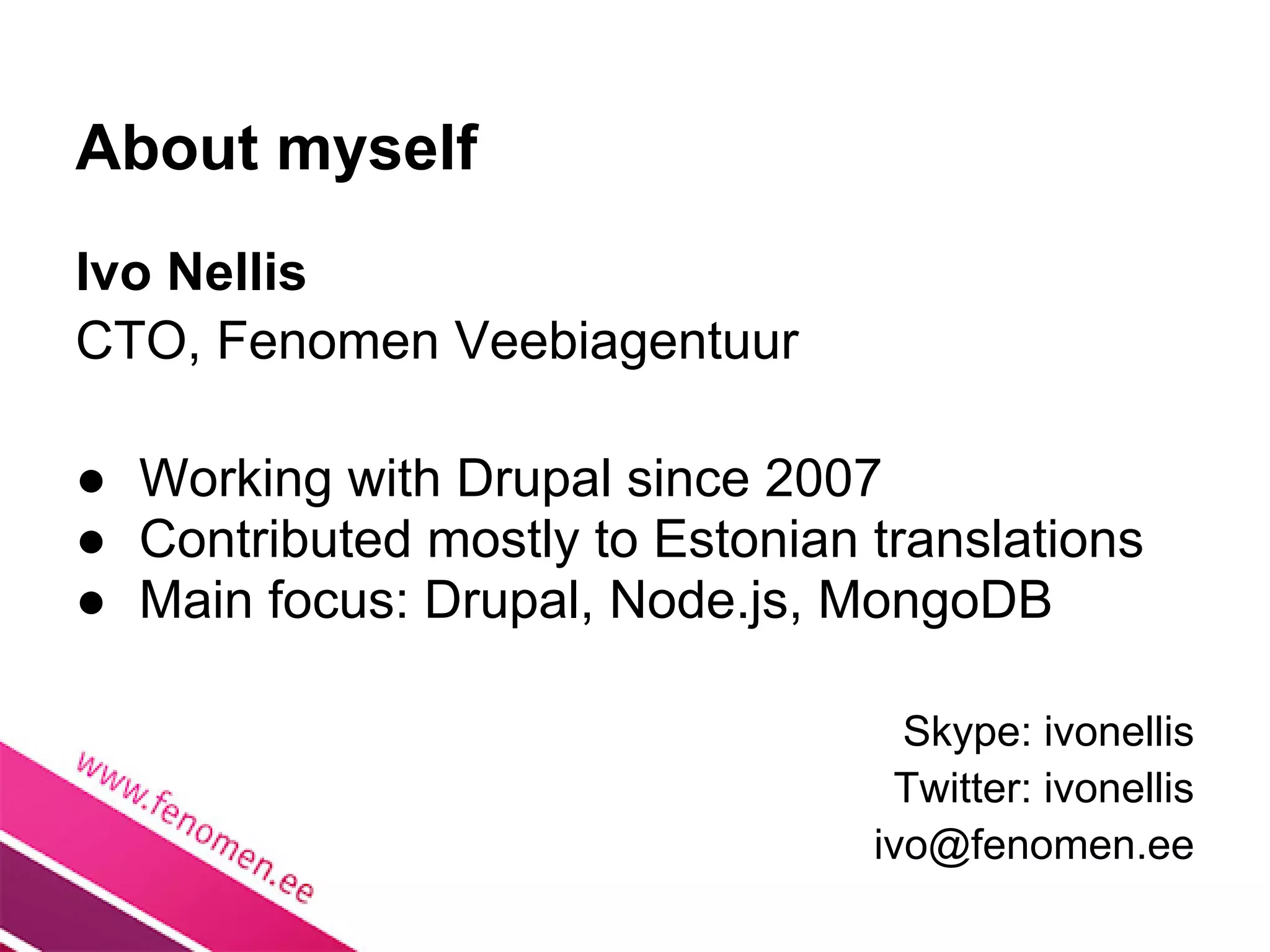

- 2. About myself Ivo Nellis CTO,Fenomen Veebiagentuur ● Working with Drupal since 2007 ● Contributed mostly to Estonian translations ● Main focus: Drupal, Node.js, MongoDB Skype: ivonellis Twitter: ivonellis ivo@fenomen.ee
- 3. Developing realtime apps with Node.js and Drupal Ivo Nellis Fenomen veebiagentuur

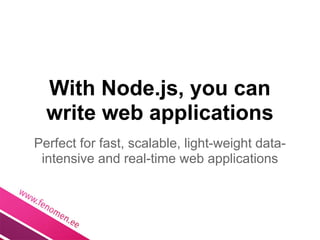

- 4. With Node.js, youcan write web applications Perfect for fast, scalable, light-weight data- intensive and real-time web applications
- 5. Node.js project isnew Relatively...

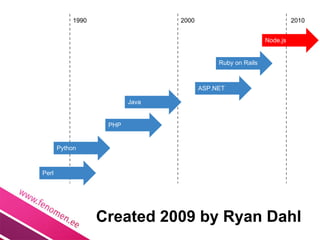

- 6. 1990 2000 2010 Node.js Ruby on Rails ASP.NET Java PHP Python Perl Created 2009 by Ryan Dahl

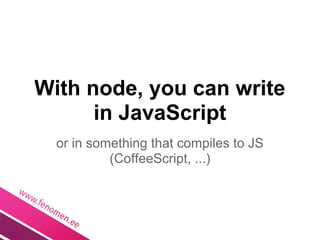

- 7. With node, youcan write in JavaScript or in something that compiles to JS (CoffeeScript, ...)

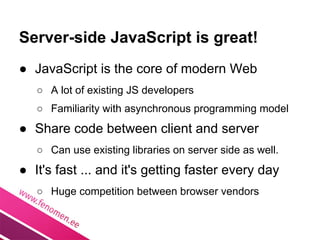

- 8. Server-side JavaScript isgreat! ● JavaScript is the core of modern Web ○ A lot of existing JS developers ○ Familiarity with asynchronous programming model ● Share code between client and server ○ Can use existing libraries on server side as well. ● It's fast ... and it's getting faster every day ○ Huge competition between browser vendors

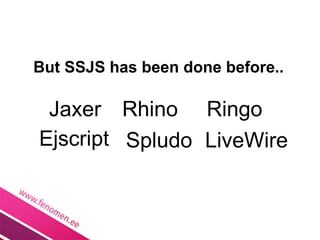

- 9. But SSJS hasbeen done before.. Jaxer Rhino Ringo Ejscript Spludo LiveWire

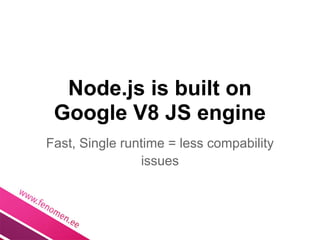

- 10. Node.js is builton Google V8 JS engine Fast, Single runtime = less compability issues

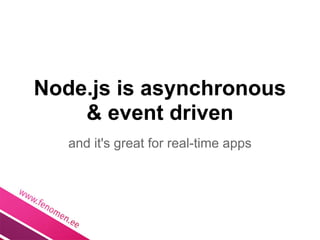

- 11. Node.js is asynchronous & event driven and it's great for real-time apps
- 12. Apache request lifecycle Incoming requests Child processes / threads

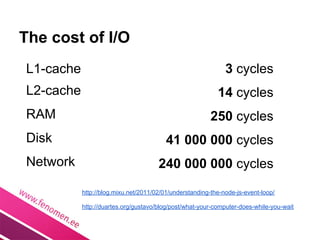

- 13. The cost ofI/O L1-cache 3 cycles L2-cache 14 cycles RAM 250 cycles Disk 41 000 000 cycles Network 240 000 000 cycles http://blog.mixu.net/2011/02/01/understanding-the-node-js-event-loop/ http://duartes.org/gustavo/blog/post/what-your-computer-does-while-you-wait

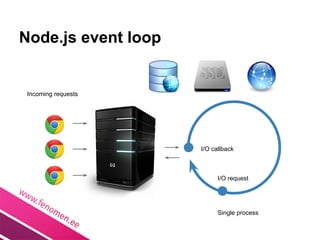

- 14. Node.js event loop Incoming requests I/O callback I/O request Single process
- 15. Hello World! var http= require('http'); http.createServer(function (req, res) { res.writeHead(200, {'Content-Type': text/plain'}); res.end('Hello Worldn'); }).listen(8000); ● Node itself does not provide much ● No "standard" webserver features: ● No authentication ● No session handling ● No cookies ● No email ● No templating system ● No MVC or framework layer

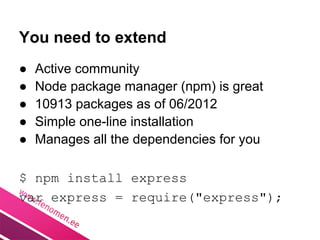

- 16. You need toextend ● Active community ● Node package manager (npm) is great ● 10913 packages as of 06/2012 ● Simple one-line installation ● Manages all the dependencies for you $ npm install express var express = require("express");

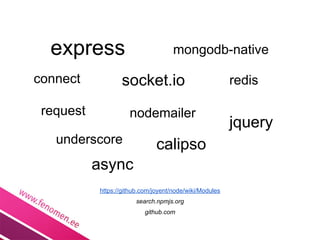

- 17. express mongodb-native connect socket.io redis request nodemailer jquery underscore calipso async https://github.com/joyent/node/wiki/Modules search.npmjs.org github.com

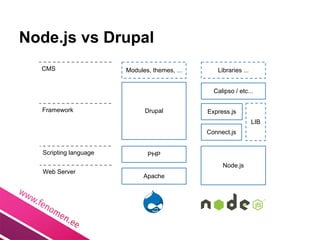

- 18. Node.js vs Drupal CMS Modules, themes, ... Libraries ... Calipso / etc... Framework Drupal Express.js LIB Connect.js Scripting language PHP Node.js Web Server Apache

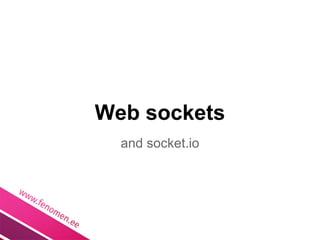

- 19. Web sockets and socket.io

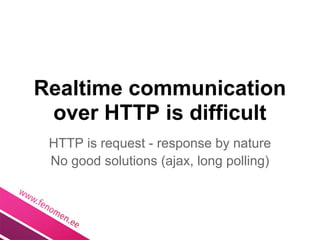

- 20. Realtime communication overHTTP is difficult HTTP is request - response by nature No good solutions (ajax, long polling)

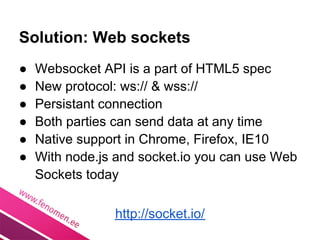

- 21. Solution: Web sockets ● Websocket API is a part of HTML5 spec ● New protocol: ws:// & wss:// ● Persistant connection ● Both parties can send data at any time ● Native support in Chrome, Firefox, IE10 ● With node.js and socket.io you can use Web Sockets today http://socket.io/

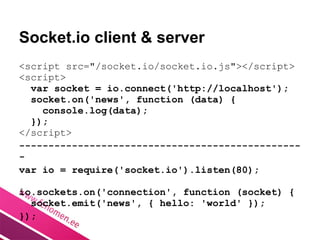

- 22. Socket.io client &server <script src="/socket.io/socket.io.js"></script> <script> var socket = io.connect('http://localhost'); socket.on('news', function (data) { console.log(data); }); </script> ------------------------------------------------ - var io = require('socket.io').listen(80); io.sockets.on('connection', function (socket) { socket.emit('news', { hello: 'world' }); });
- 23. Combining Drupal, Node. js and Web sockets When and how?

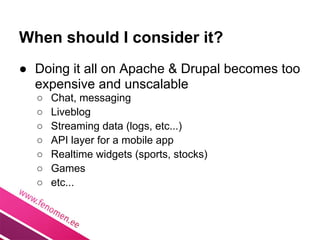

- 24. When should Iconsider it? ● Doing it all on Apache & Drupal becomes too expensive and unscalable ○ Chat, messaging ○ Liveblog ○ Streaming data (logs, etc...) ○ API layer for a mobile app ○ Realtime widgets (sports, stocks) ○ Games ○ etc...

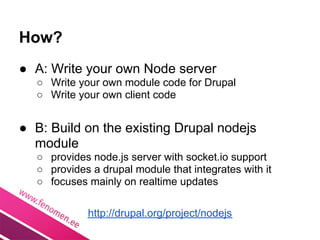

- 25. How? ● A: Writeyour own Node server ○ Write your own module code for Drupal ○ Write your own client code ● B: Build on the existing Drupal nodejs module ○ provides node.js server with socket.io support ○ provides a drupal module that integrates with it ○ focuses mainly on realtime updates http://drupal.org/project/nodejs
- 26. nodejs module forDrupal

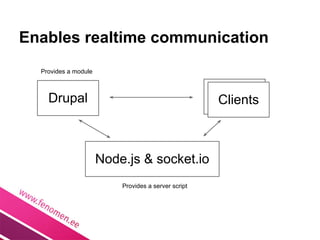

- 27. Enables realtime communication Provides a module Drupal Client Clients Node.js & socket.io Provides a server script
- 28.

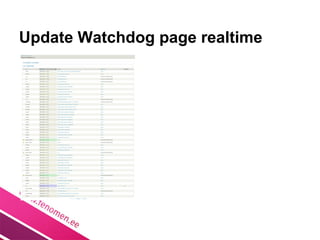

- 29. Update Watchdog pagerealtime

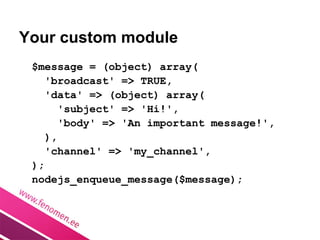

- 30. Your custom module $message = (object) array( 'broadcast' => TRUE, 'data' => (object) array( 'subject' => 'Hi!', 'body' => 'An important message!', ), 'channel' => 'my_channel', ); nodejs_enqueue_message($message);
- 31. And the clientside implementation Drupal.nodejs.callbacks.example = { callback: function(message) { if (message.channel == "my_channel") { alert(message.data); } } }
- 32.
