Skydive, real-time network analyzer, container integration
- 1. Sylvain AFCHAIN Principal Software Engineer 17/05/2016 Skydive A real-time network analyzer
- 3. WHY ?
- 4. SDN IS COMPLEX Troubleshooting/monitoring is even more complex

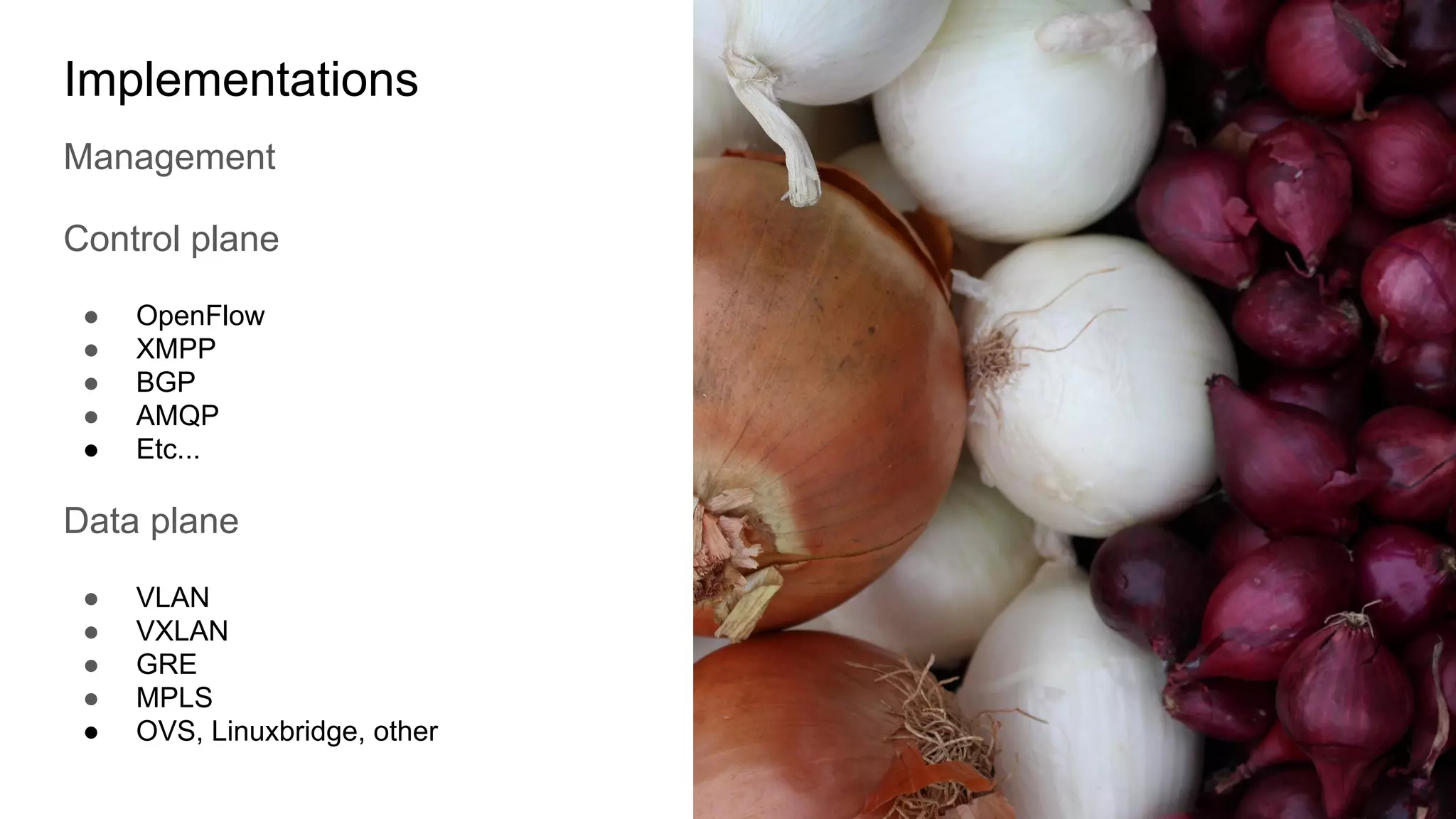

- 6. Implementations Management Control plane ● OpenFlow ● XMPP ● BGP ● AMQP ● Etc... Data plane ● VLAN ● VXLAN ● GRE ● MPLS ● OVS, Linuxbridge, other

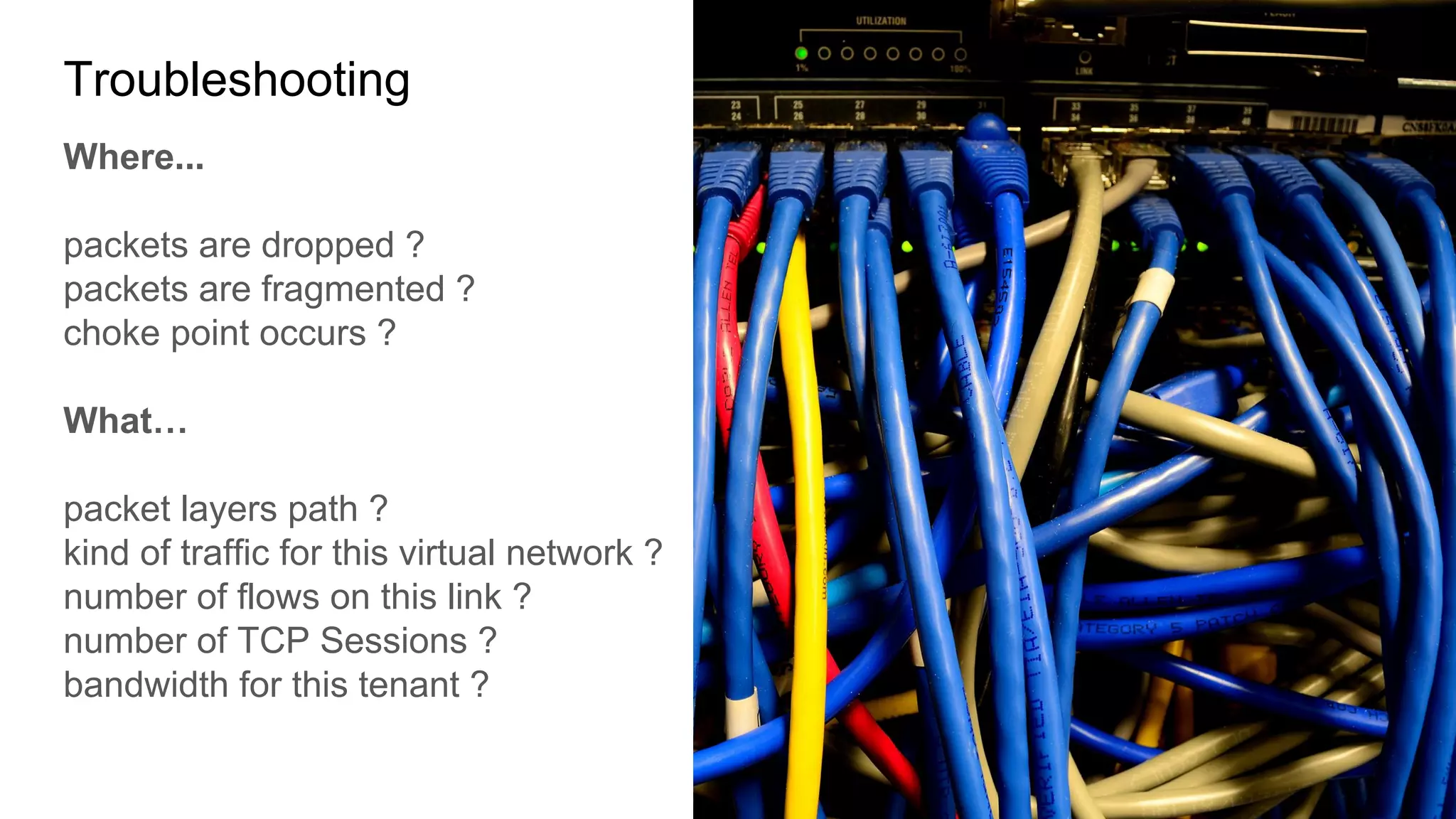

- 7. Troubleshooting Where... packets are dropped ? packets are fragmented ? choke point occurs ? What… packet layers path ? kind of traffic for this virtual network ? number of flows on this link ? number of TCP Sessions ? bandwidth for this tenant ?

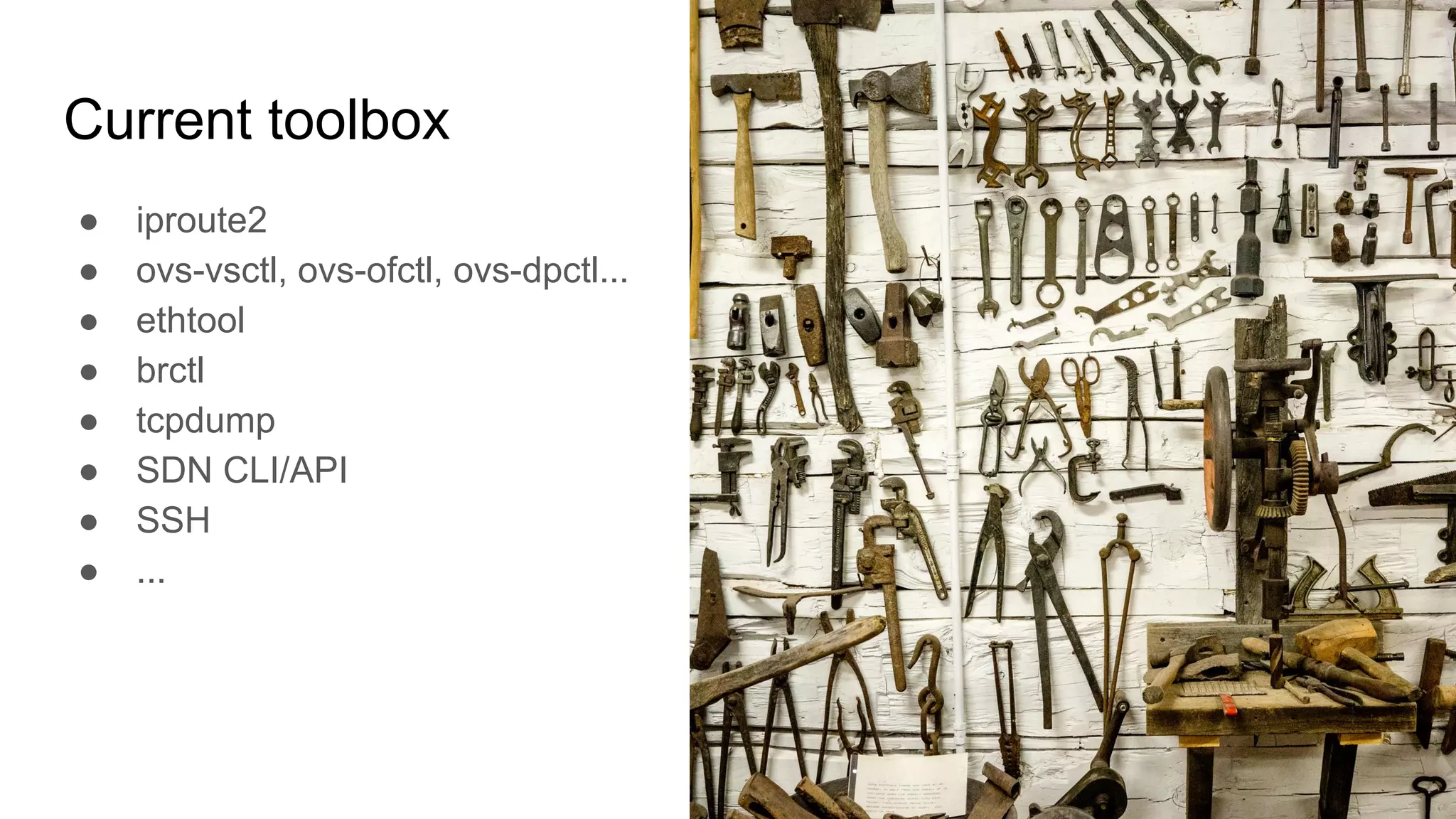

- 8. Current toolbox ● iproute2 ● ovs-vsctl, ovs-ofctl, ovs-dpctl... ● ethtool ● brctl ● tcpdump ● SDN CLI/API ● SSH ● ...

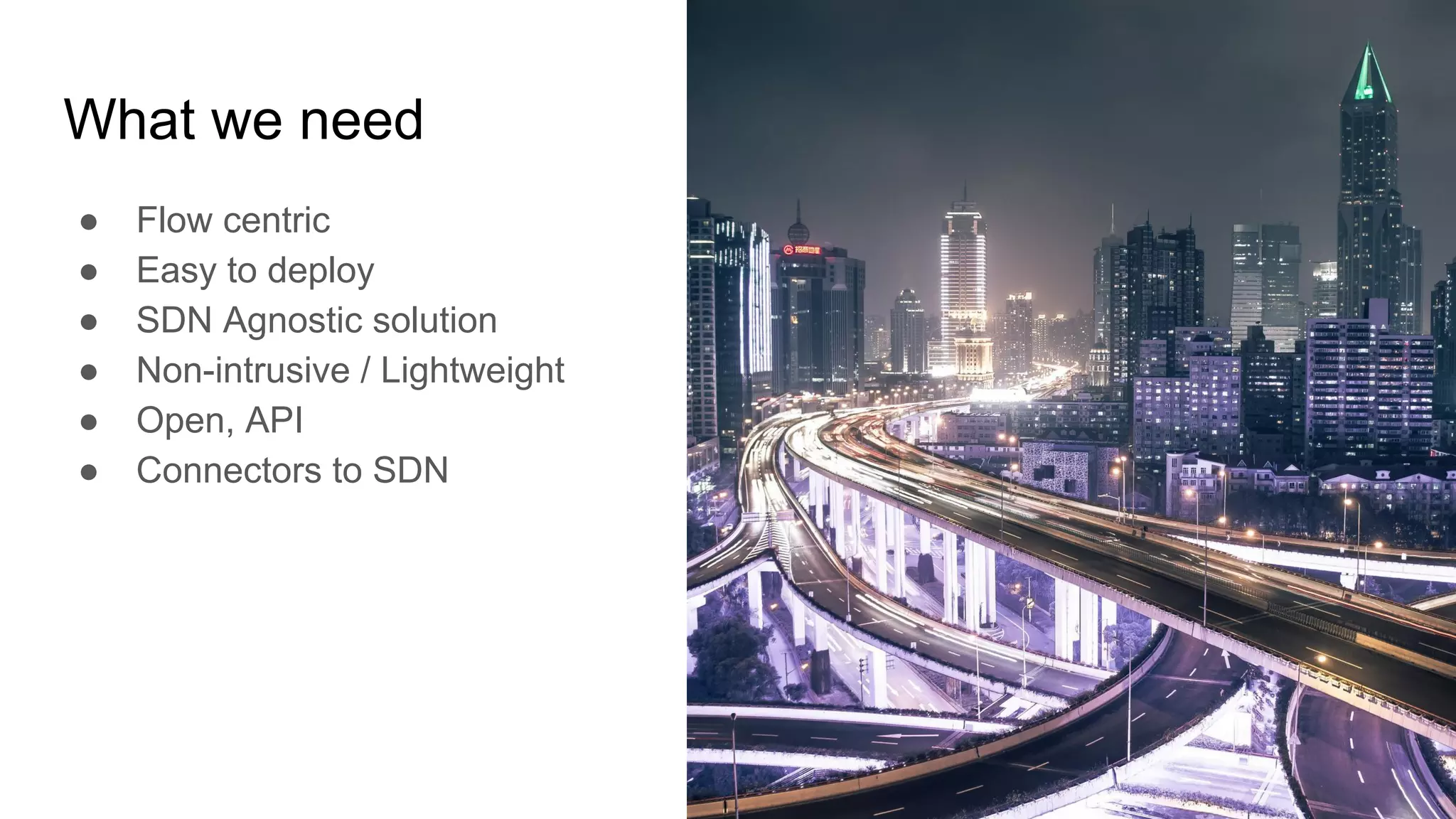

- 9. What we need ● Flow centric ● Easy to deploy ● SDN Agnostic solution ● Non-intrusive / Lightweight ● Open, API ● Connectors to SDN

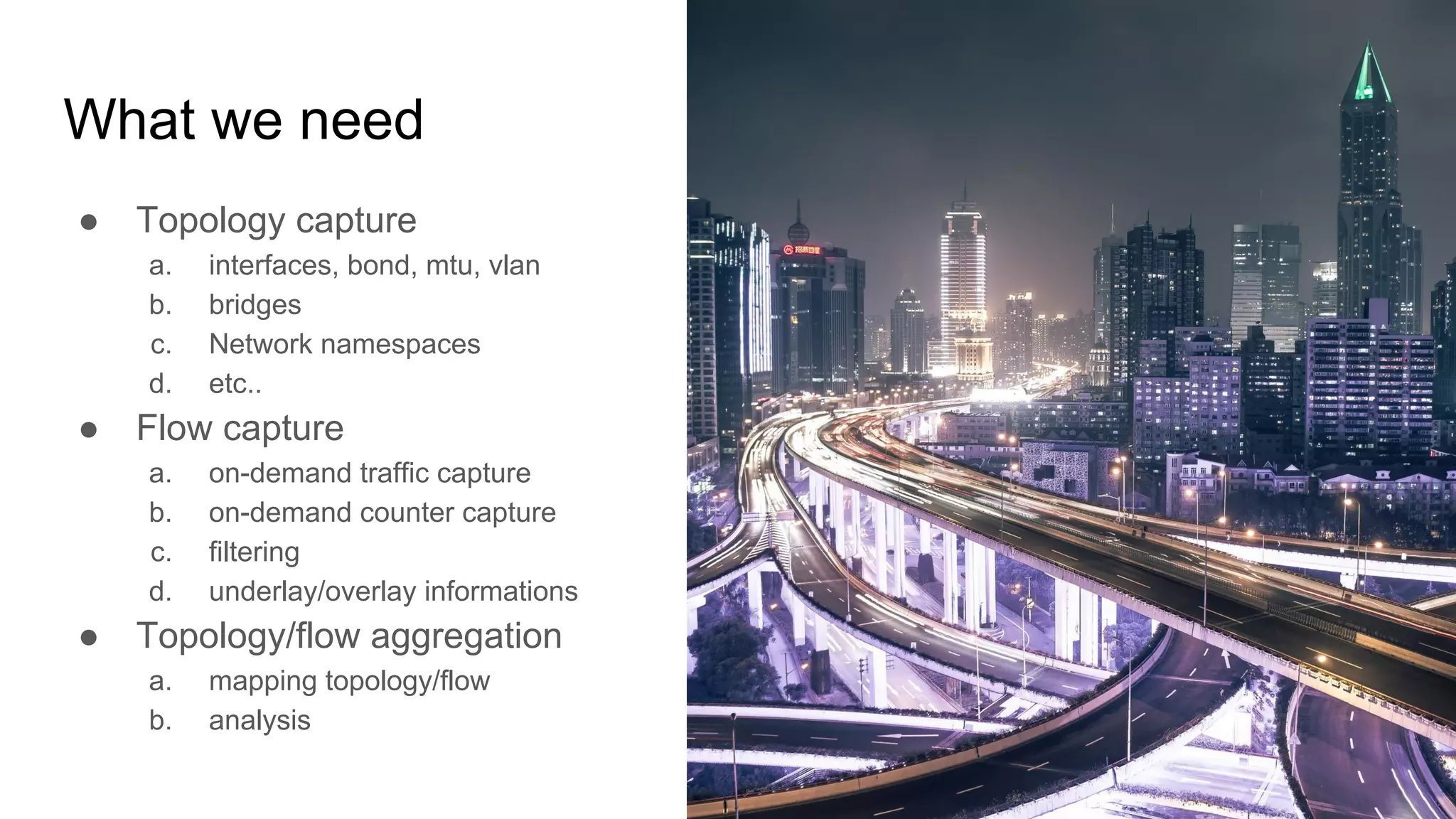

- 10. What we need ● Topology capture a. interfaces, bond, mtu, vlan b. bridges c. Network namespaces d. etc.. ● Flow capture a. on-demand traffic capture b. on-demand counter capture c. filtering d. underlay/overlay informations ● Topology/flow aggregation a. mapping topology/flow b. analysis

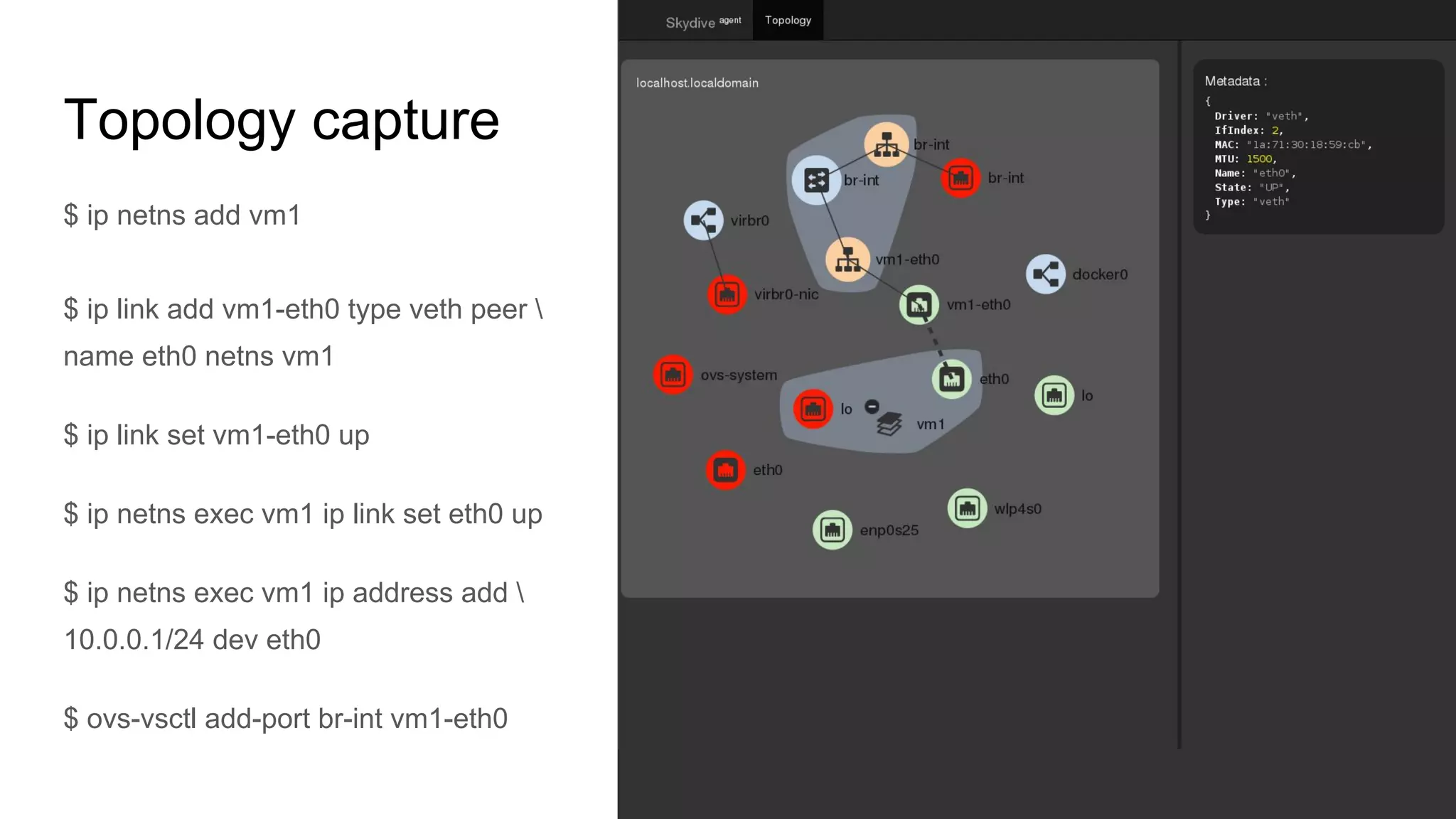

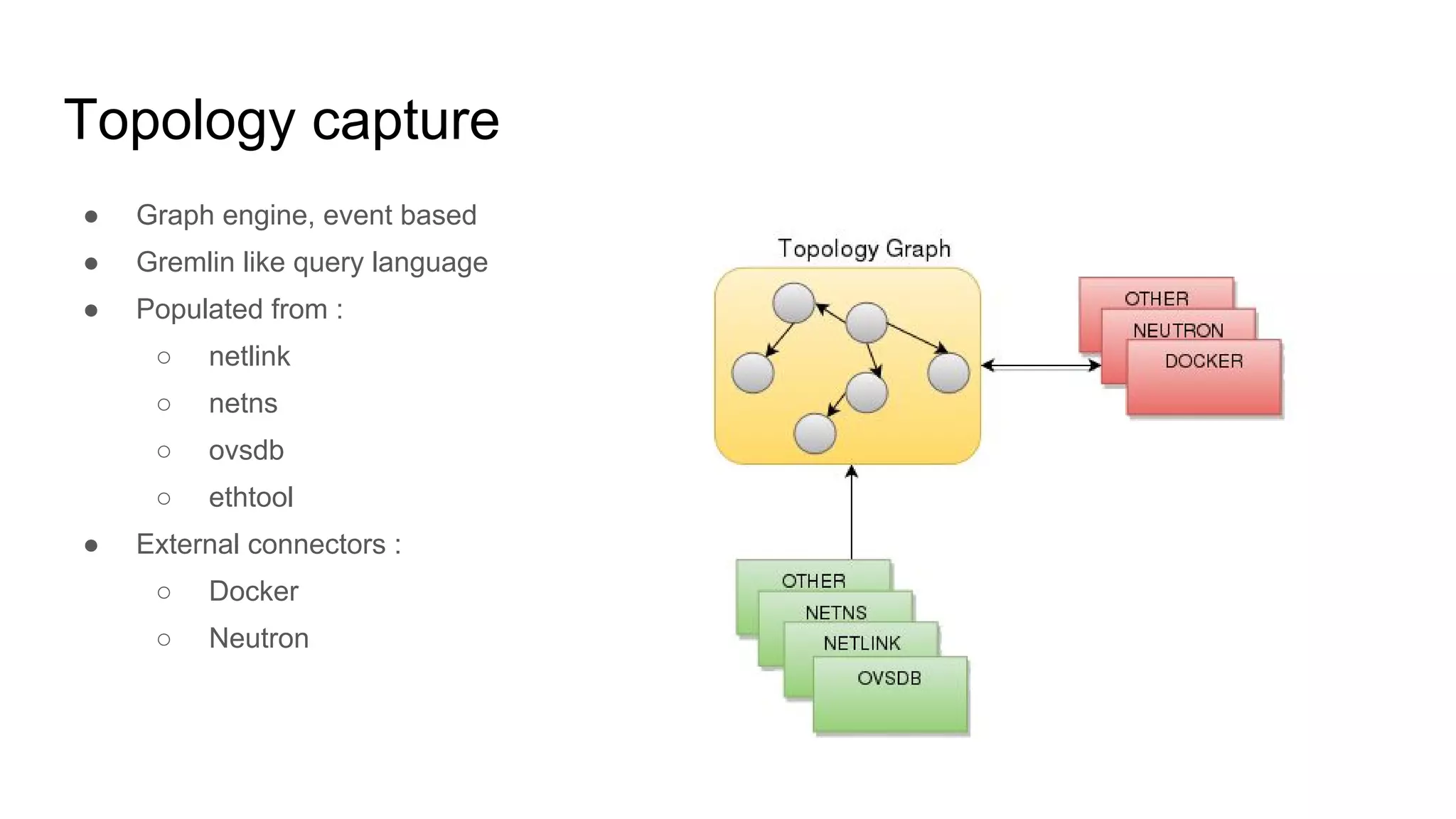

- 11. Topology capture ● Graph engine, event based ● Gremlin like query language ● Populated from : ○ netlink ○ netns ○ ovsdb ○ ethtool ● External connectors : ○ Docker ○ Neutron
- 12. Topology capture $ ip netns add vm1 $ ip link add vm1-eth0 type veth peer name eth0 netns vm1 $ ip link set vm1-eth0 up $ ip netns exec vm1 ip link set eth0 up $ ip netns exec vm1 ip address add 10.0.0.1/24 dev eth0 $ ovs-vsctl add-port br-int vm1-eth0

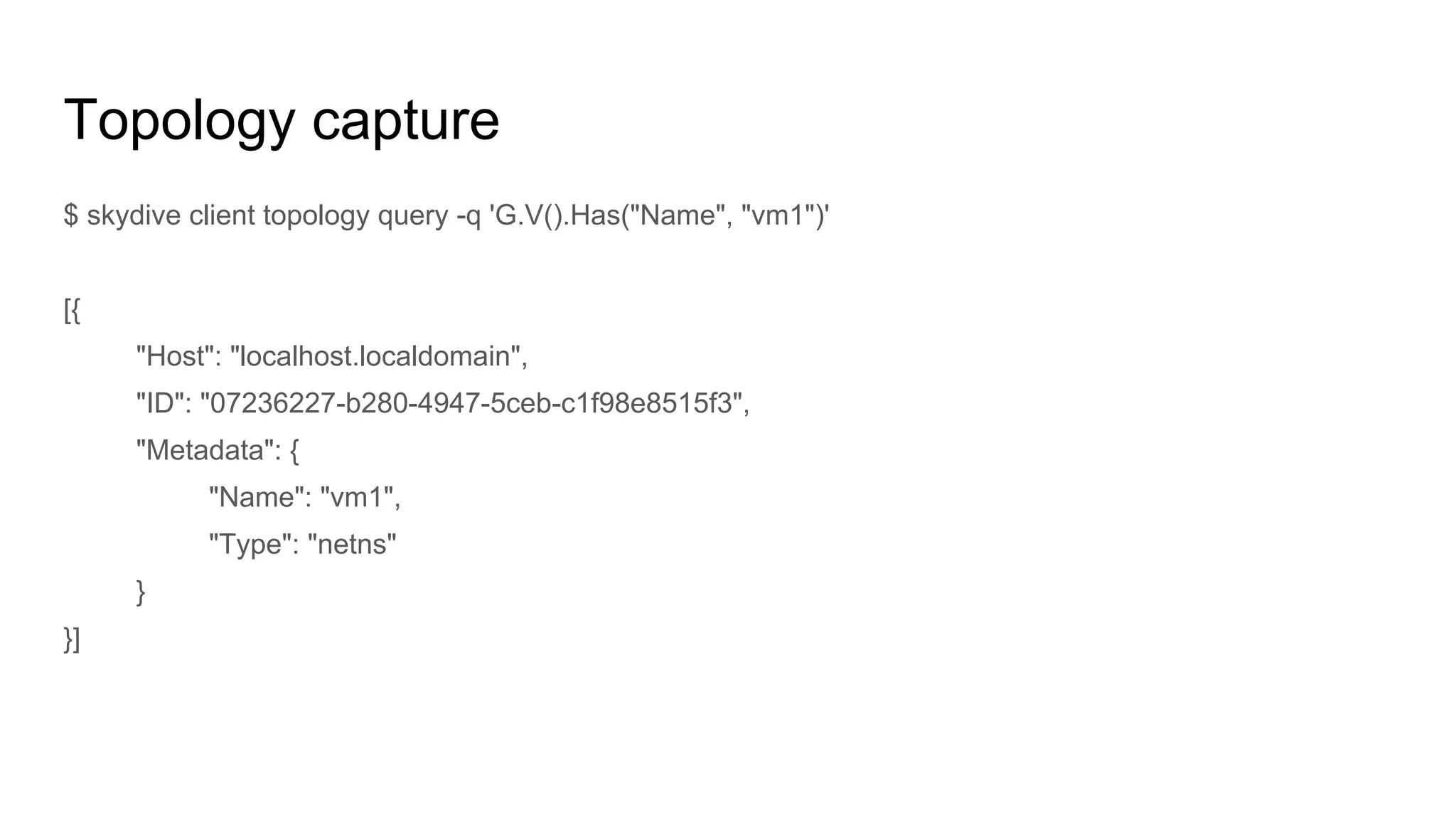

- 13. Topology capture $ skydive client topology query -q 'G.V().Has("Name", "vm1")' [{ "Host": "localhost.localdomain", "ID": "07236227-b280-4947-5ceb-c1f98e8515f3", "Metadata": { "Name": "vm1", "Type": "netns" } }]

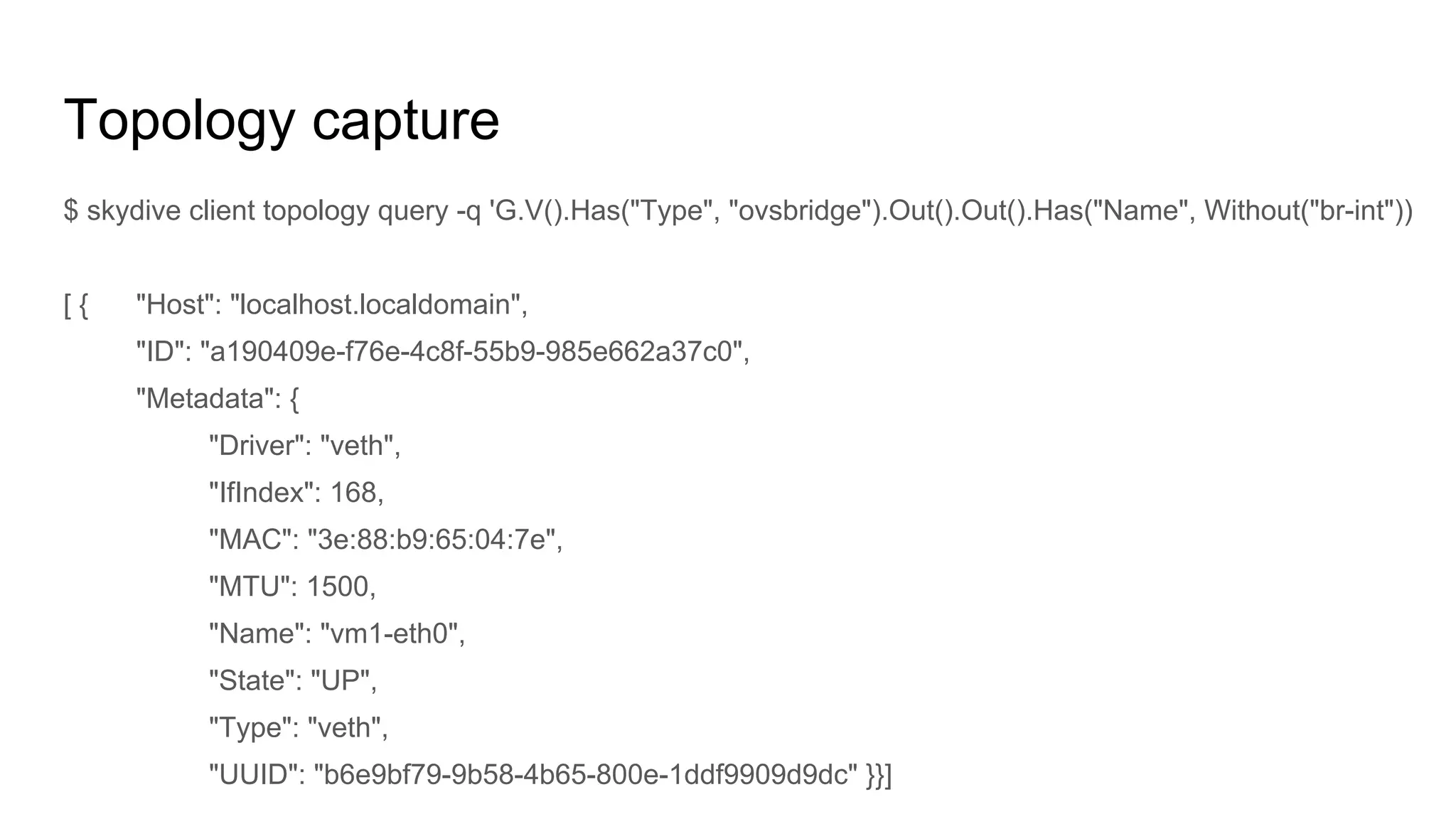

- 14. Topology capture $ skydive client topology query -q 'G.V().Has("Type", "ovsbridge").Out().Out().Has("Name", Without("br-int")) [ { "Host": "localhost.localdomain", "ID": "a190409e-f76e-4c8f-55b9-985e662a37c0", "Metadata": { "Driver": "veth", "IfIndex": 168, "MAC": "3e:88:b9:65:04:7e", "MTU": 1500, "Name": "vm1-eth0", "State": "UP", "Type": "veth", "UUID": "b6e9bf79-9b58-4b65-800e-1ddf9909d9dc" }}]

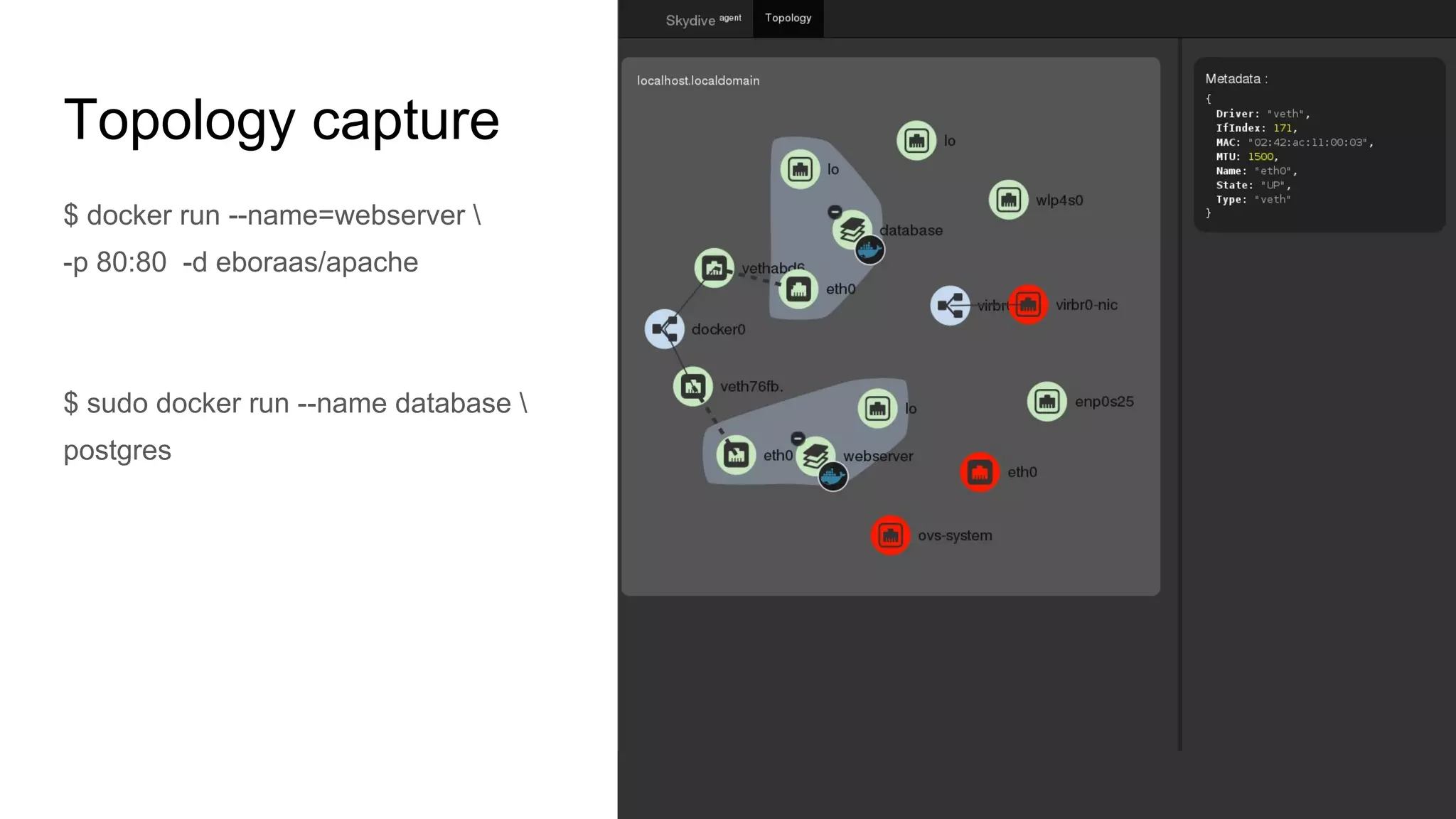

- 15. Topology capture $ docker run --name=webserver -p 80:80 -d eboraas/apache $ sudo docker run --name database postgres

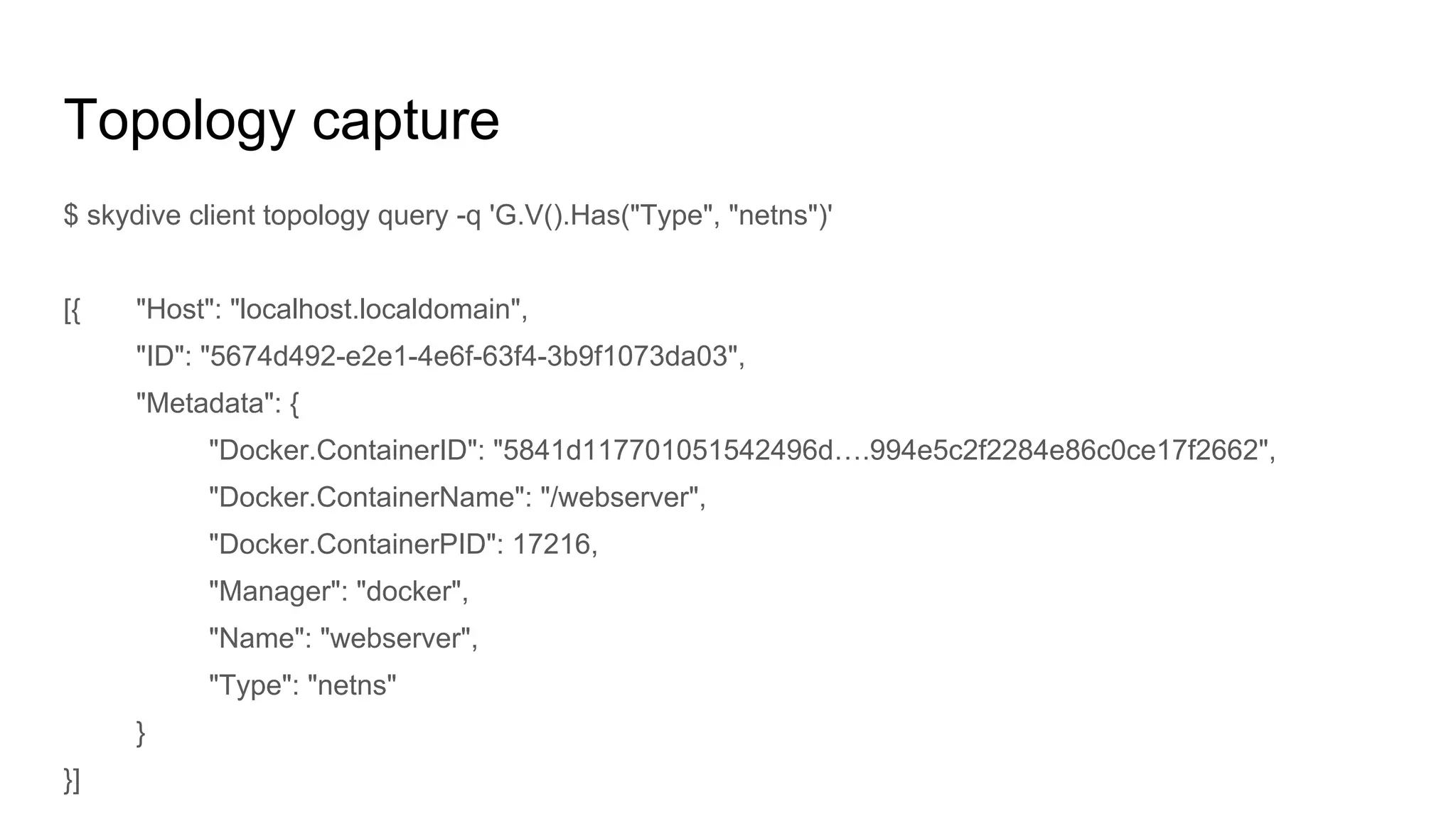

- 16. Topology capture $ skydive client topology query -q 'G.V().Has("Type", "netns")' [{ "Host": "localhost.localdomain", "ID": "5674d492-e2e1-4e6f-63f4-3b9f1073da03", "Metadata": { "Docker.ContainerID": "5841d117701051542496d….994e5c2f2284e86c0ce17f2662", "Docker.ContainerName": "/webserver", "Docker.ContainerPID": 17216, "Manager": "docker", "Name": "webserver", "Type": "netns" } }]

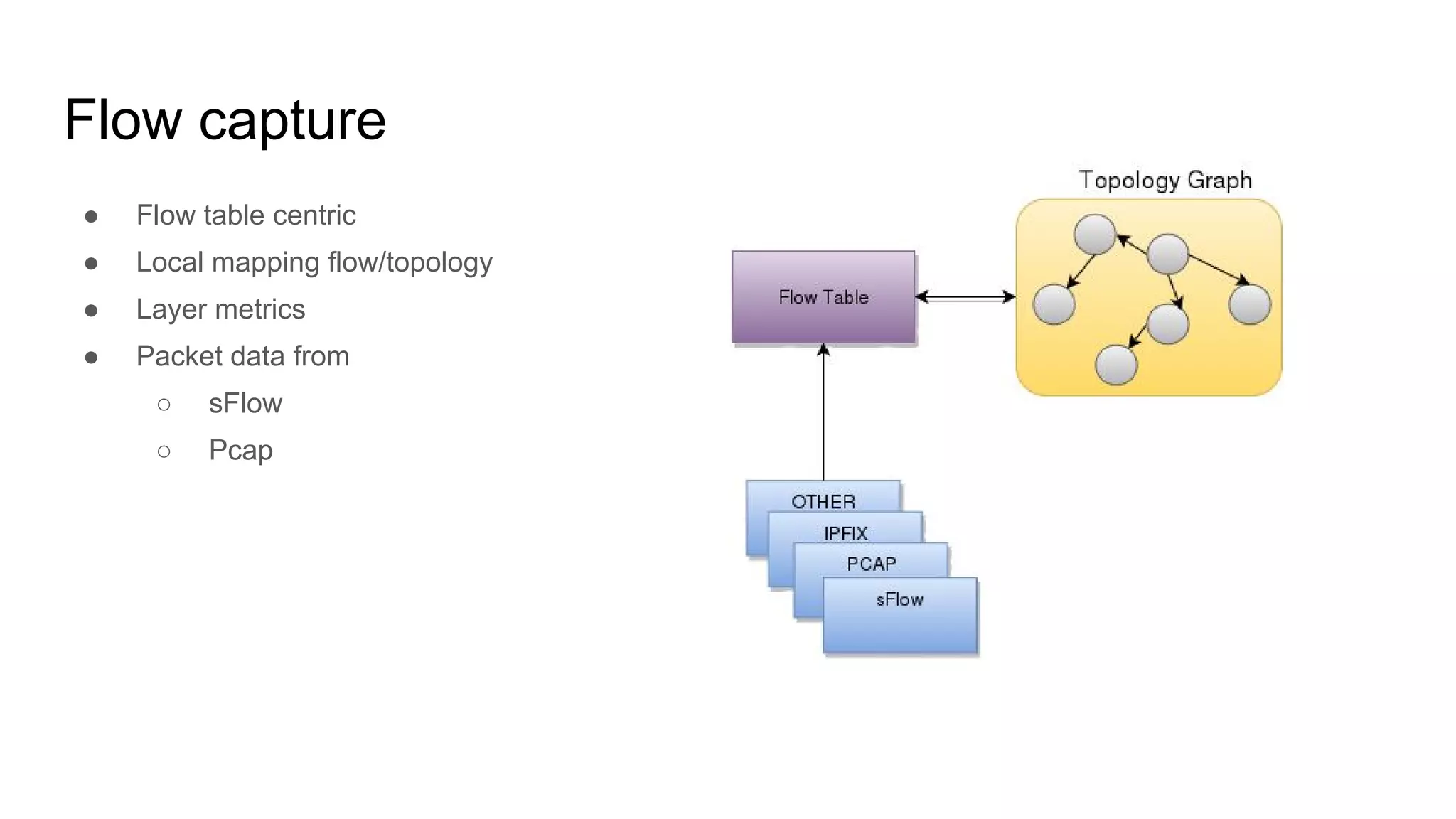

- 17. Flow capture ● Flow table centric ● Local mapping flow/topology ● Layer metrics ● Packet data from ○ sFlow ○ Pcap

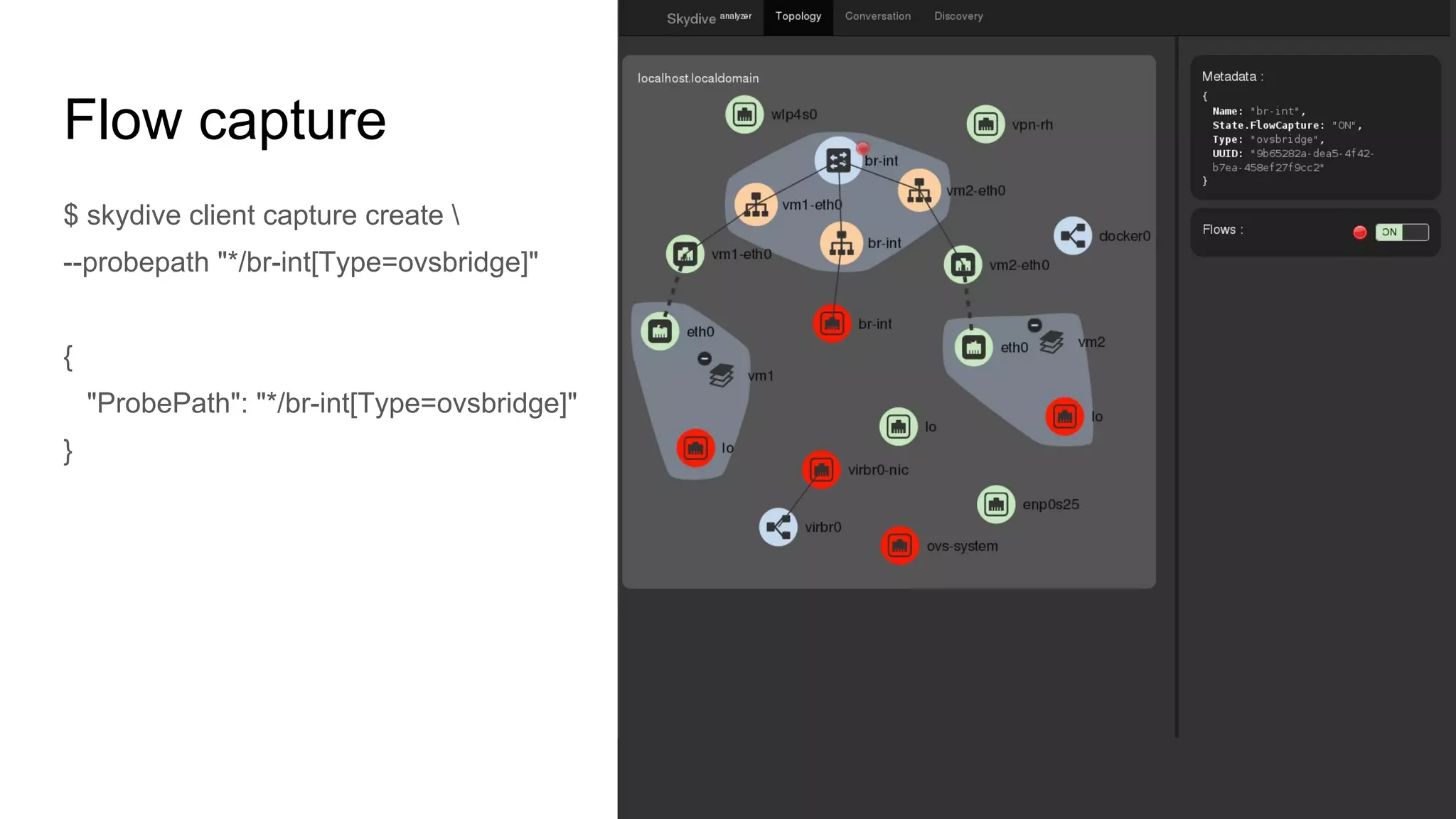

- 18. Flow capture $ skydive client capture create --probepath "*/br-int[Type=ovsbridge]" { "ProbePath": "*/br-int[Type=ovsbridge]" }

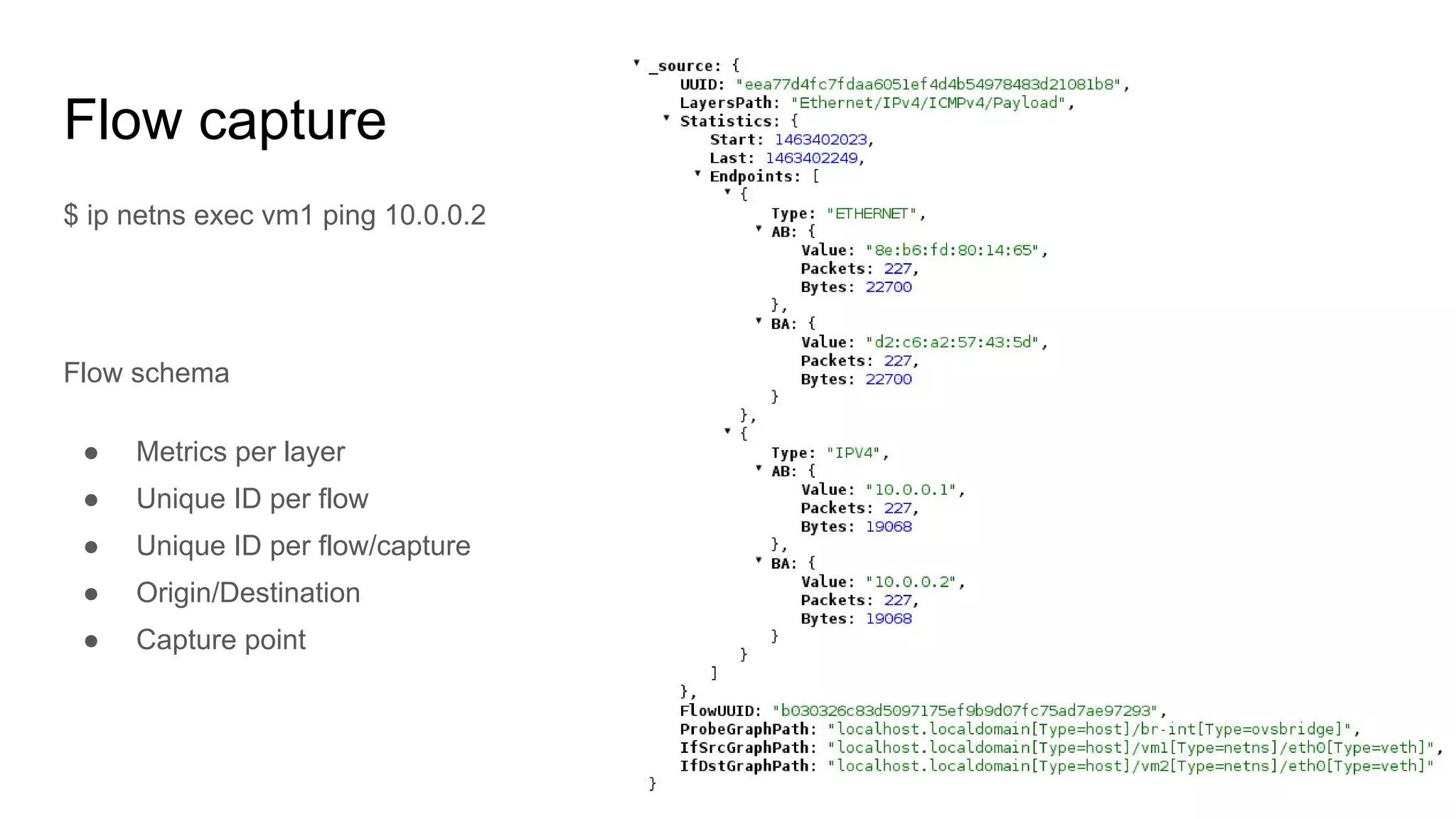

- 19. Flow capture $ ip netns exec vm1 ping 10.0.0.2 Flow schema ● Metrics per layer ● Unique ID per flow ● Unique ID per flow/capture ● Origin/Destination ● Capture point
- 20. Skydive architecture Agents : ● Capture topology ● Capture flows, maintains flow table ● Local topology/flow mapping ● Forward topology/flow to analyzers Analyzers : ● Aggregate topology/flow ● Global topology/flow mapping ● Stores topology/flow in a database

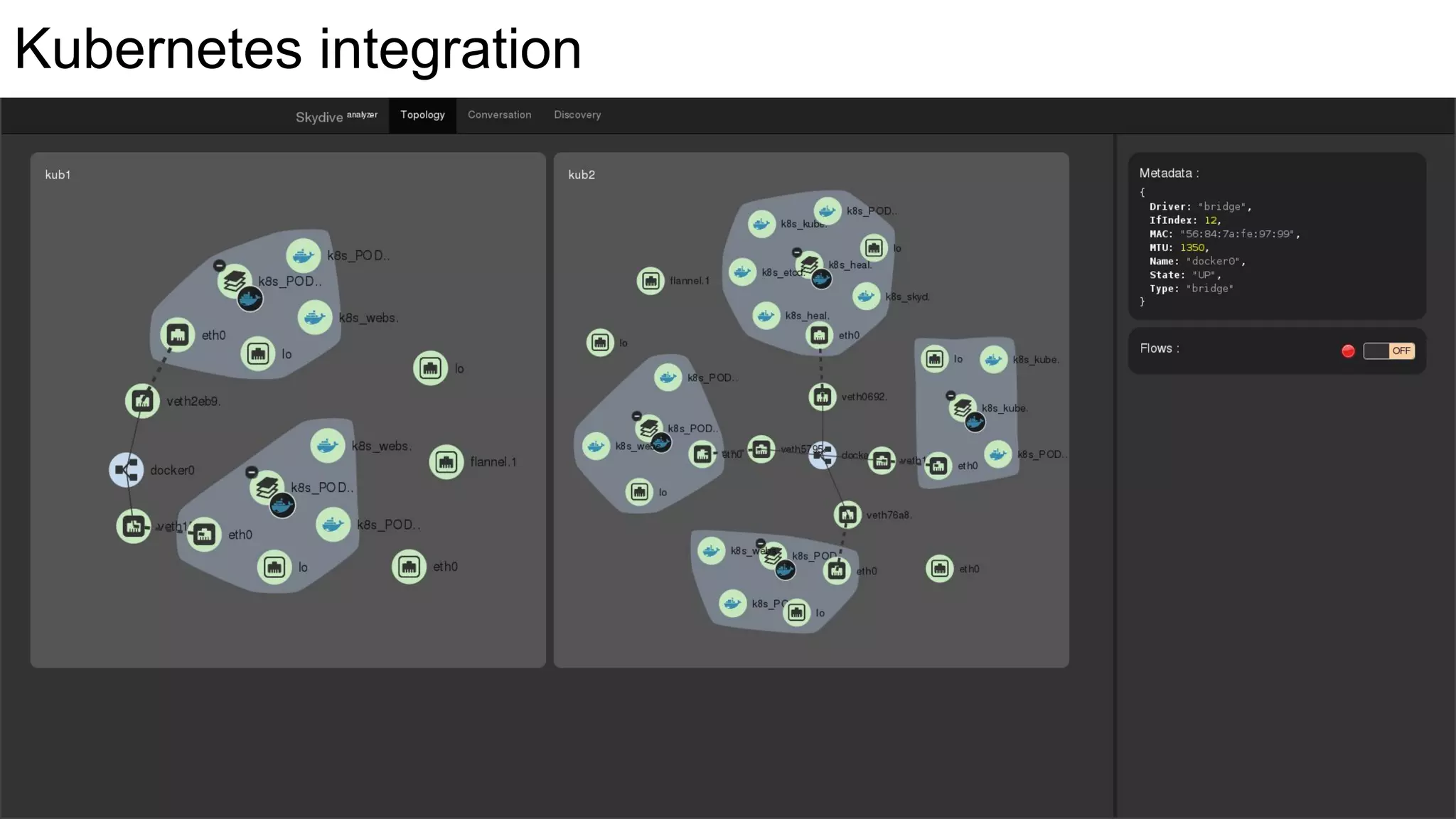

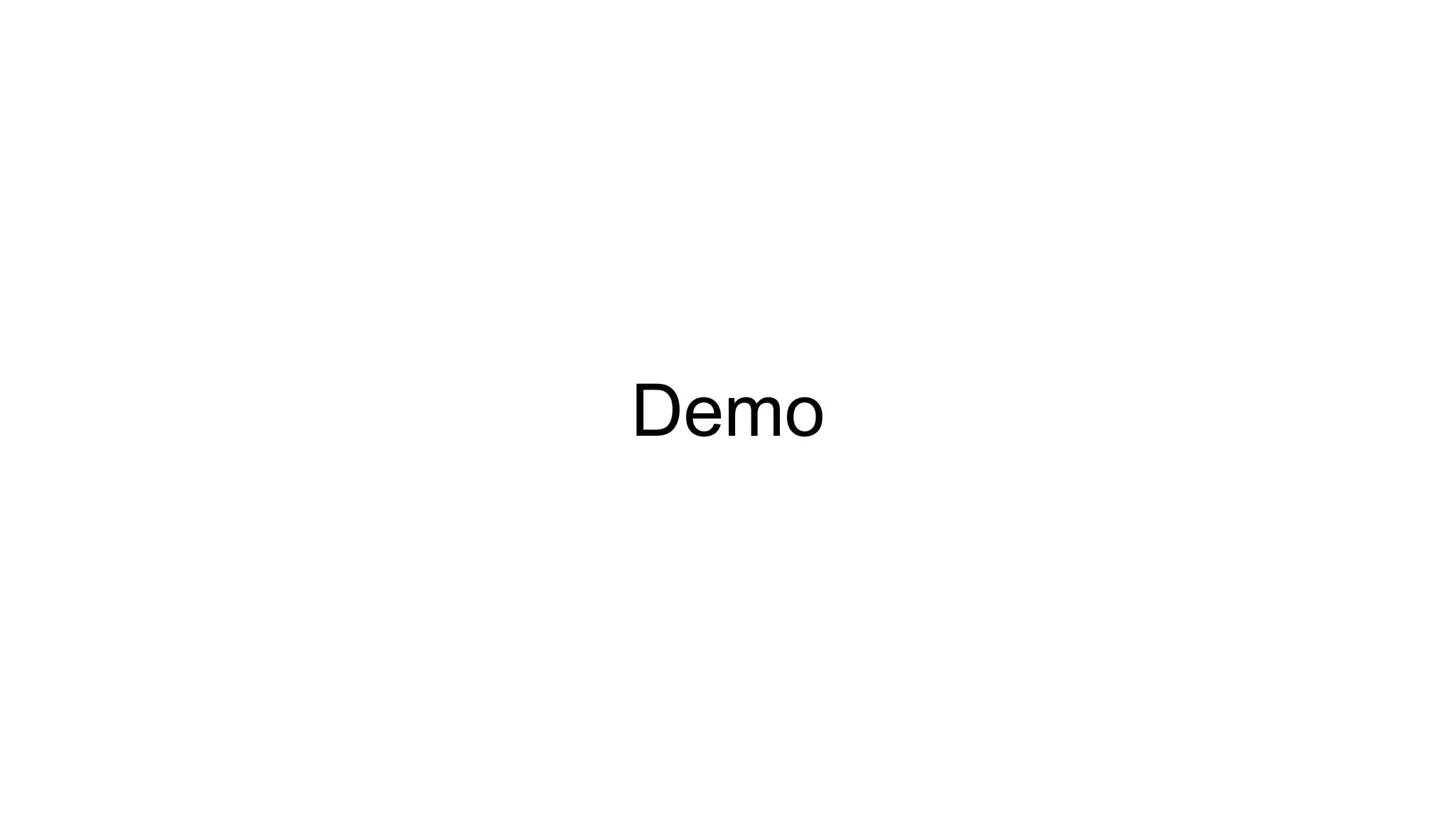

- 22. Demo

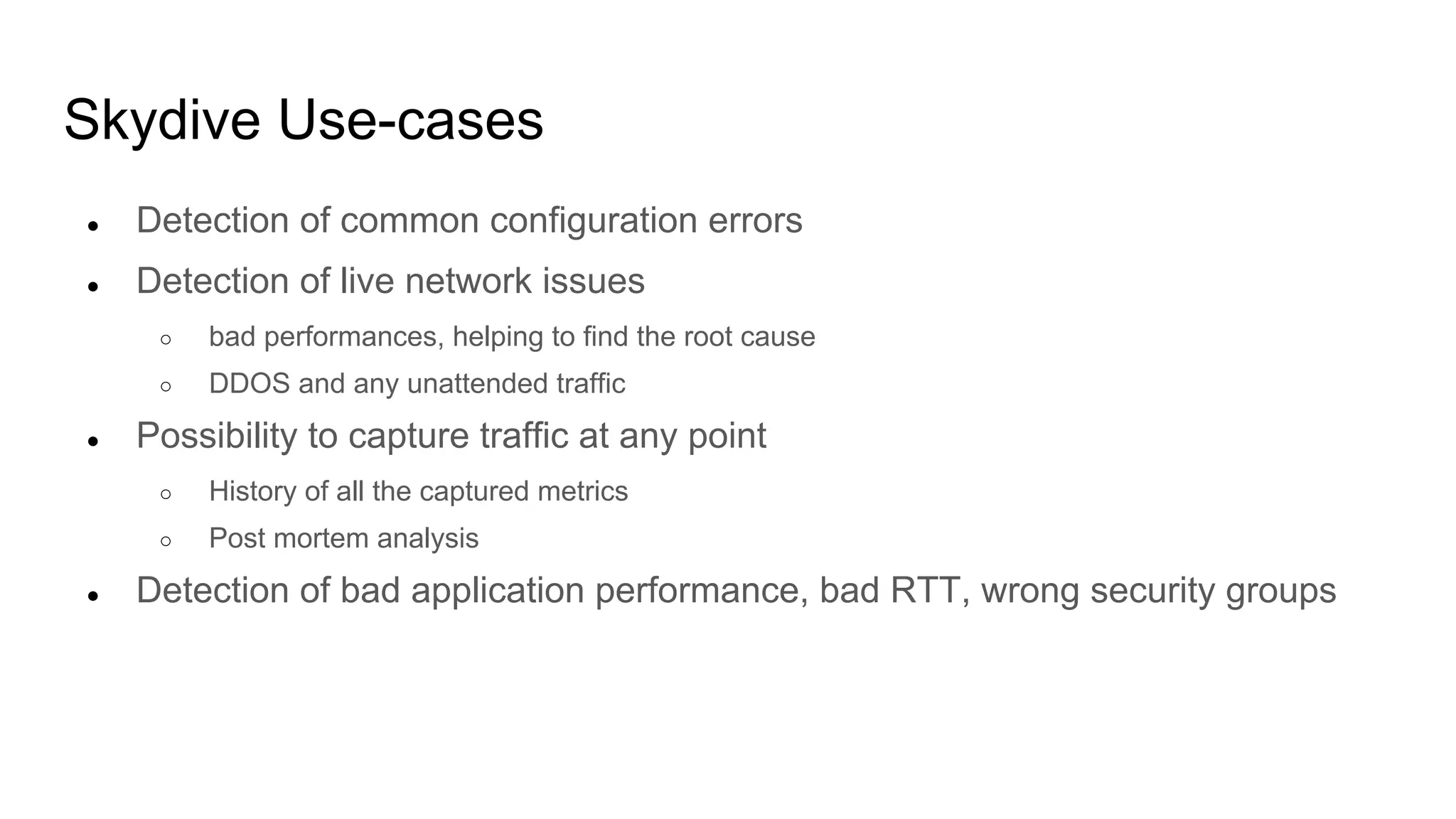

- 23. Skydive Use-cases ● Detection of common configuration errors ● Detection of live network issues ○ bad performances, helping to find the root cause ○ DDOS and any unattended traffic ● Possibility to capture traffic at any point ○ History of all the captured metrics ○ Post mortem analysis ● Detection of bad application performance, bad RTT, wrong security groups

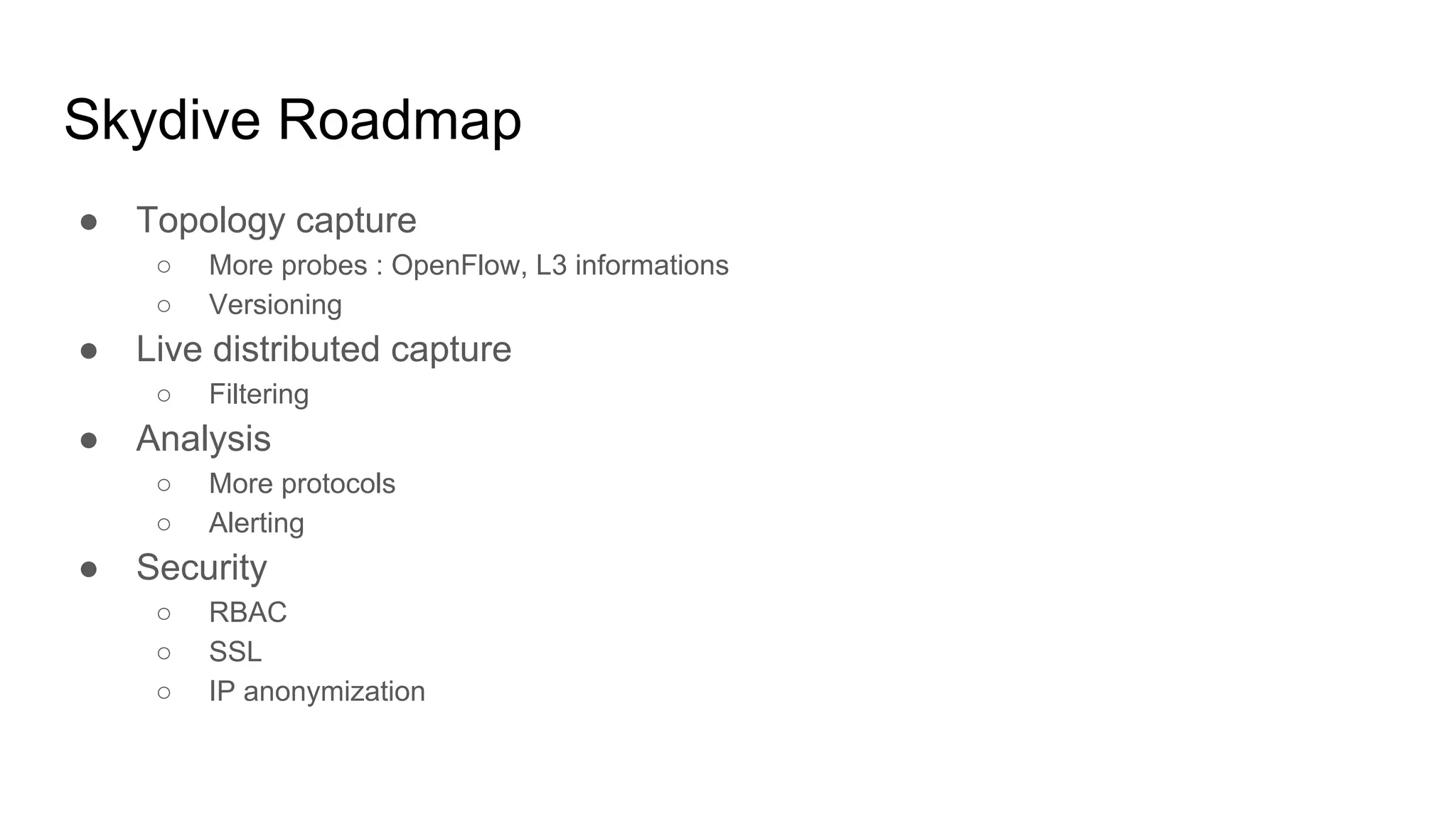

- 24. Skydive Roadmap ● Topology capture ○ More probes : OpenFlow, L3 informations ○ Versioning ● Live distributed capture ○ Filtering ● Analysis ○ More protocols ○ Alerting ● Security ○ RBAC ○ SSL ○ IP anonymization
- 25. Open source Apache License Written in Go Contributions are welcome
- 26. Questions ? https://github.com/redhat-cip/skydive IRC: #skydive-project @freenode.net nplanel@redhat.com safchain@redhat.com
