- 1. Elas-x and Digium hardware – the Perfect Combina-on Steve Sokol & David DuffeA Asterisk Marke-ng & Community Digium Confiden-al
- 2. So what does Digium have for Elas-x people? • Phones • Gateways • R-‐Series for Redundancy • Cards – a huge variety • SoJware add-‐ons • …All of which contribute to the ongoing development of Asterisk Open Source 2 Digium Confiden-al
- 3. Asterisk Sta-s-cs § 2M+ downloads for 2011 § 83,000+ registered asterisk.org members § 68,000+ forum users § 34,000+ forum topics § 109,000+ forum posts The Asterisk § 900+ ac-ve contributors Community § 9800+ developers over the life-me of the project § Worldwide Asterisk deployment in 170+ countries § Dedicated Industry Events: -‐ AstriCon for Asterisk Developers and Users -‐ Asterisk World for Business users -‐ Elas-x World for our friends in the Elas-x Community 3 Digium Confiden-al

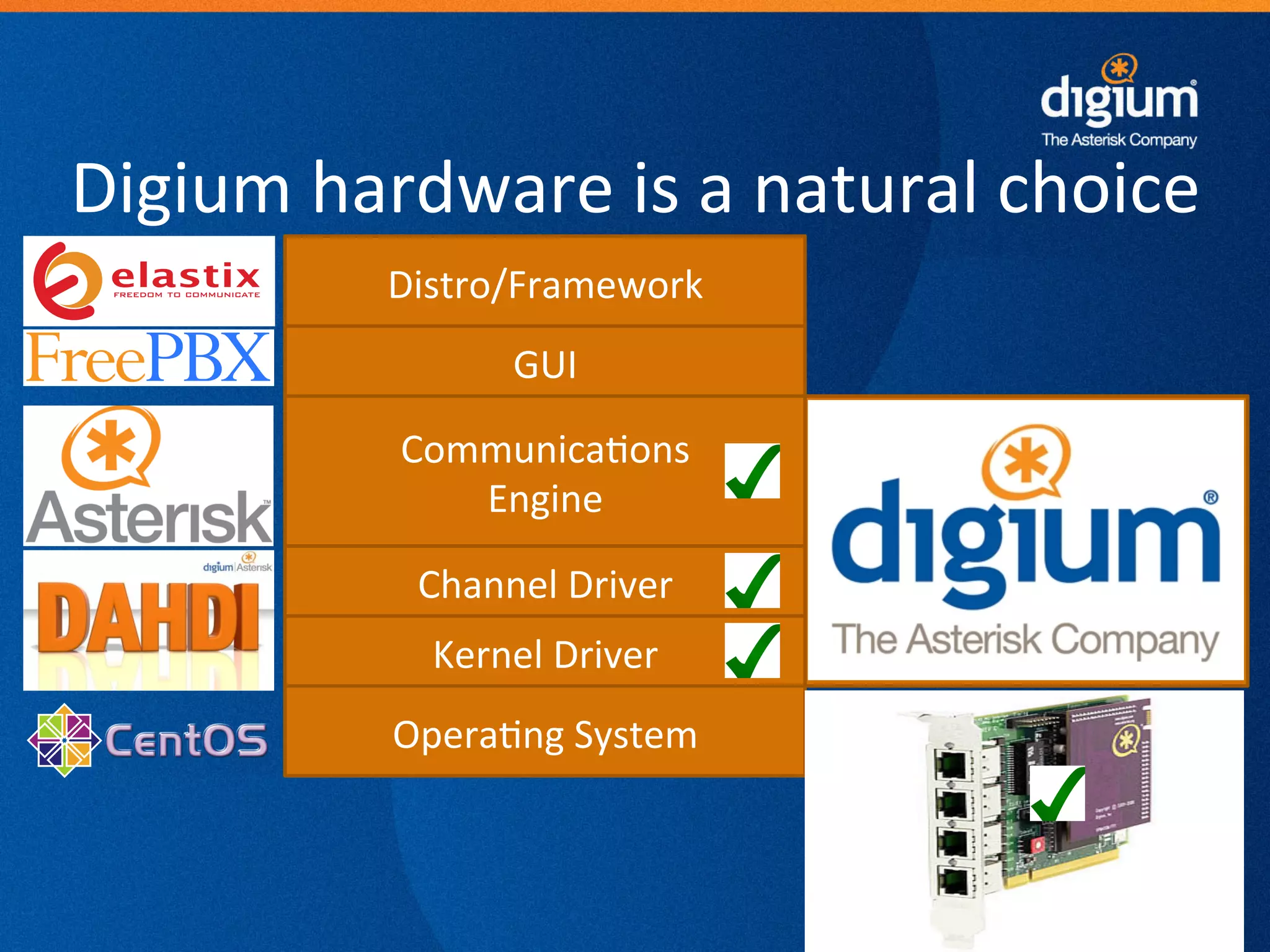

- 4. Digium hardware is a natural choice Distro/Framework GUI Communica-ons Engine Channel Driver Kernel Driver Opera-ng System Digium Confiden-al
- 5.

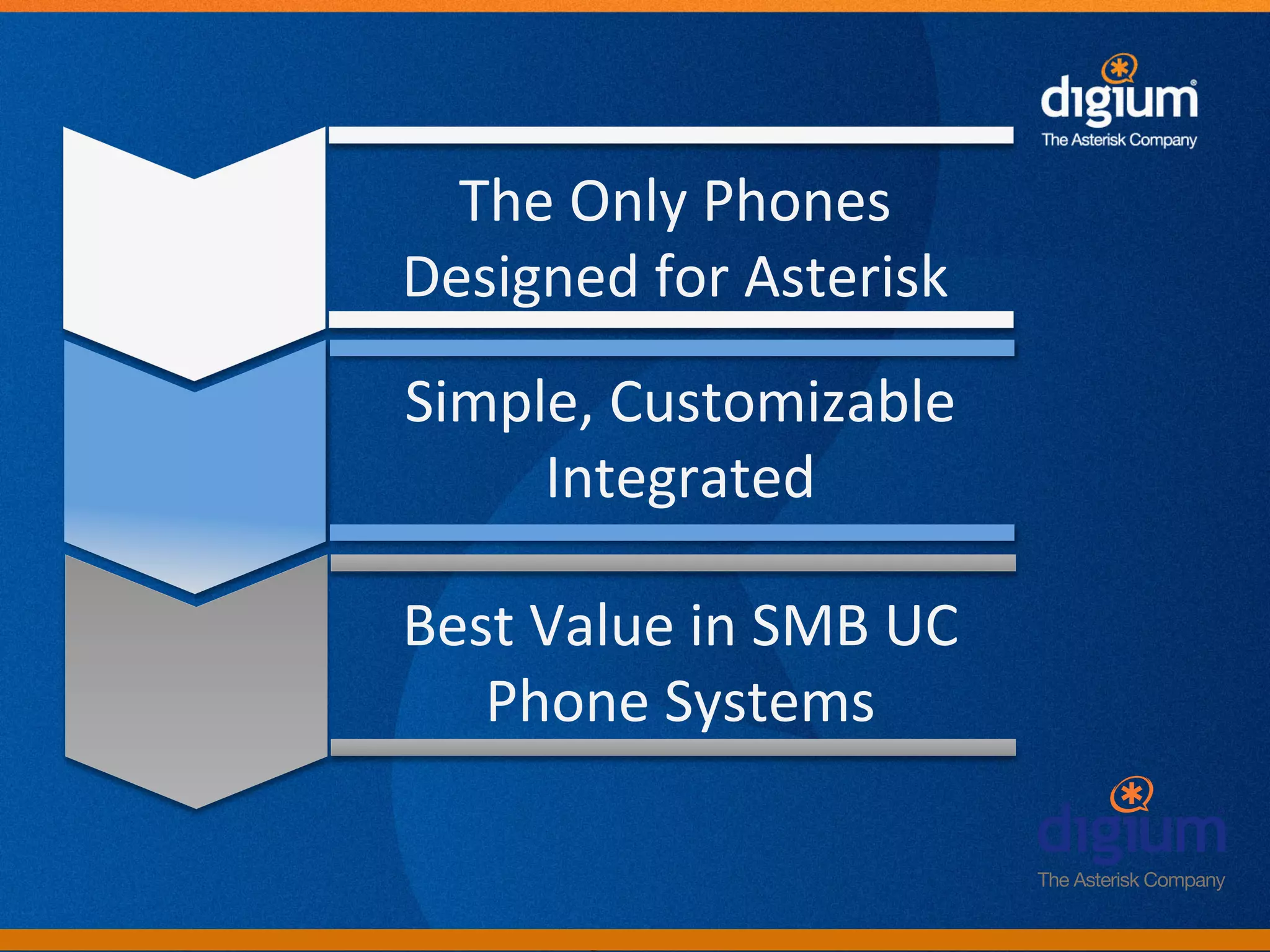

- 6. The Only Phones Designed for Asterisk Simple, Customizable Integrated Best Value in SMB UC Phone Systems Digium Confiden-al

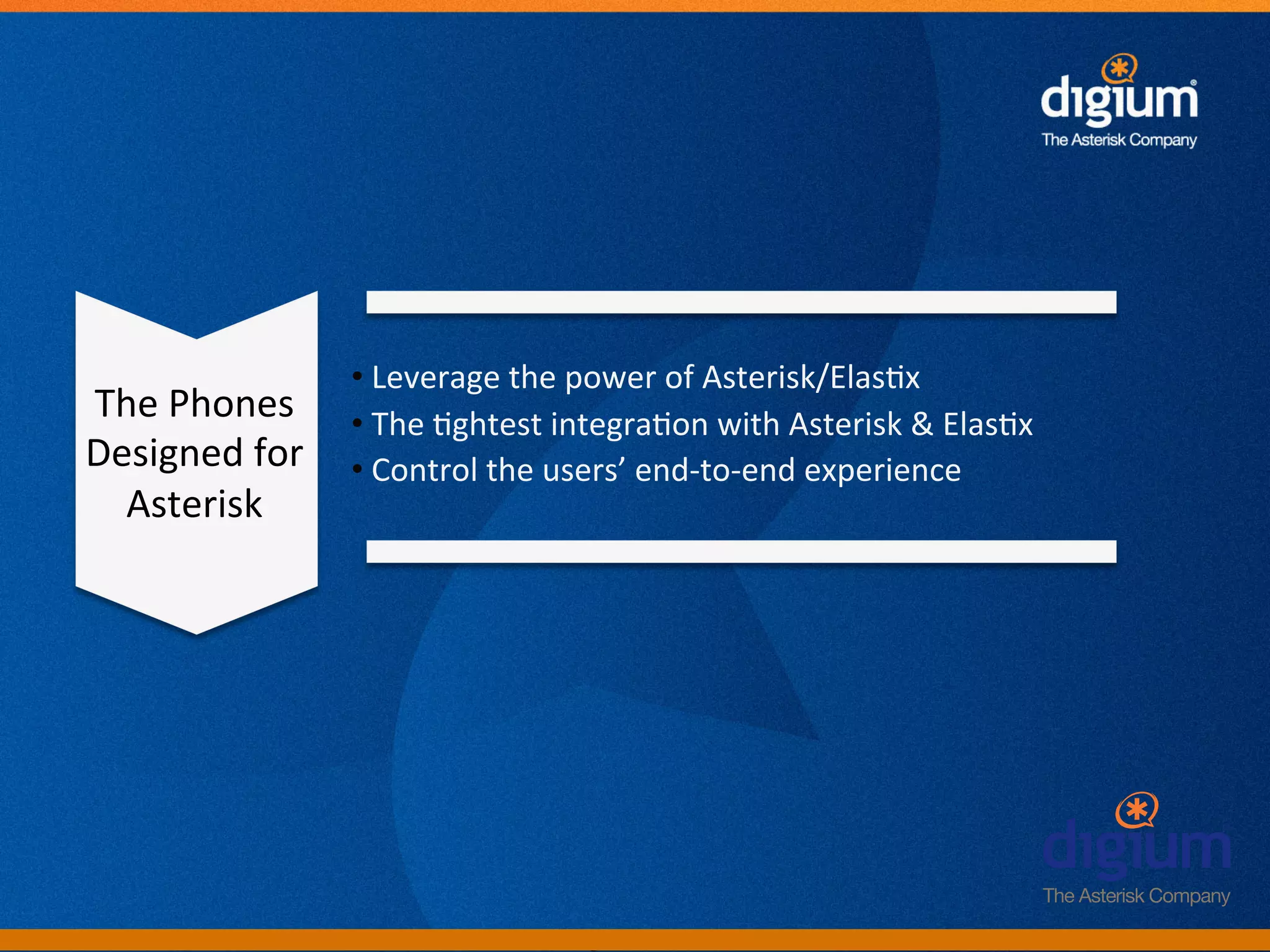

- 7. • Leverage the power of Asterisk/Elas-x The Phones • The -ghtest integra-on with Asterisk & Elas-x Designed for • Control the users’ end-‐to-‐end experience Asterisk Digium Confiden-al
- 8. • Easiest phones to install, integrate and provision Simple, • Digium App Engine – customs apps for the phone Customized, • Extend Switchboard to the desk phone Integrated Digium Confiden-al
- 9. • Compe--ve pricing and good margins Best Value • Does not require phone feature pack -‐ beAer pricing In UC • No extra licensing for features, add-‐ons Digium Confiden-al

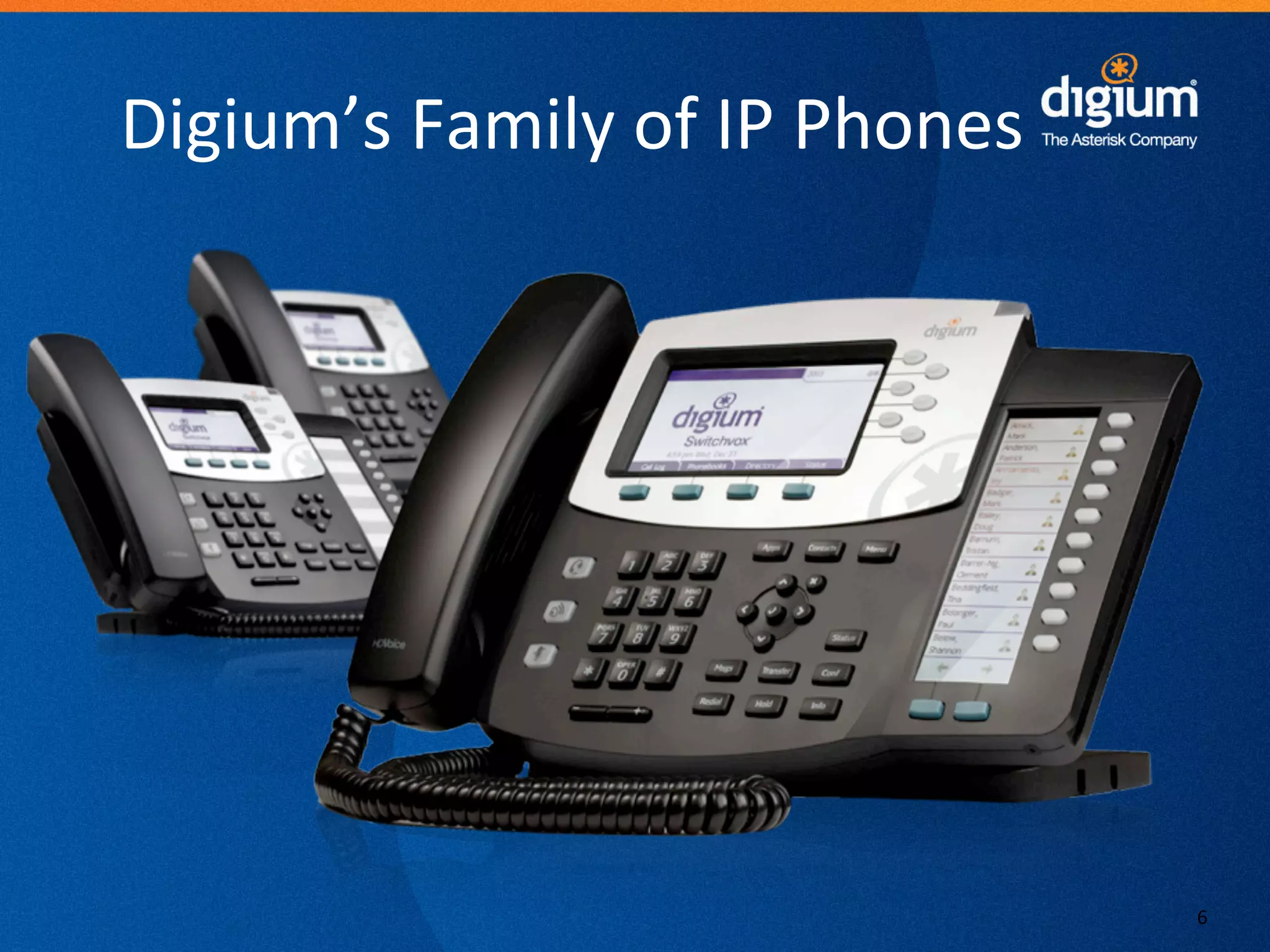

- 10. Digium’s Family of IP Phones 6 Digium Confiden-al

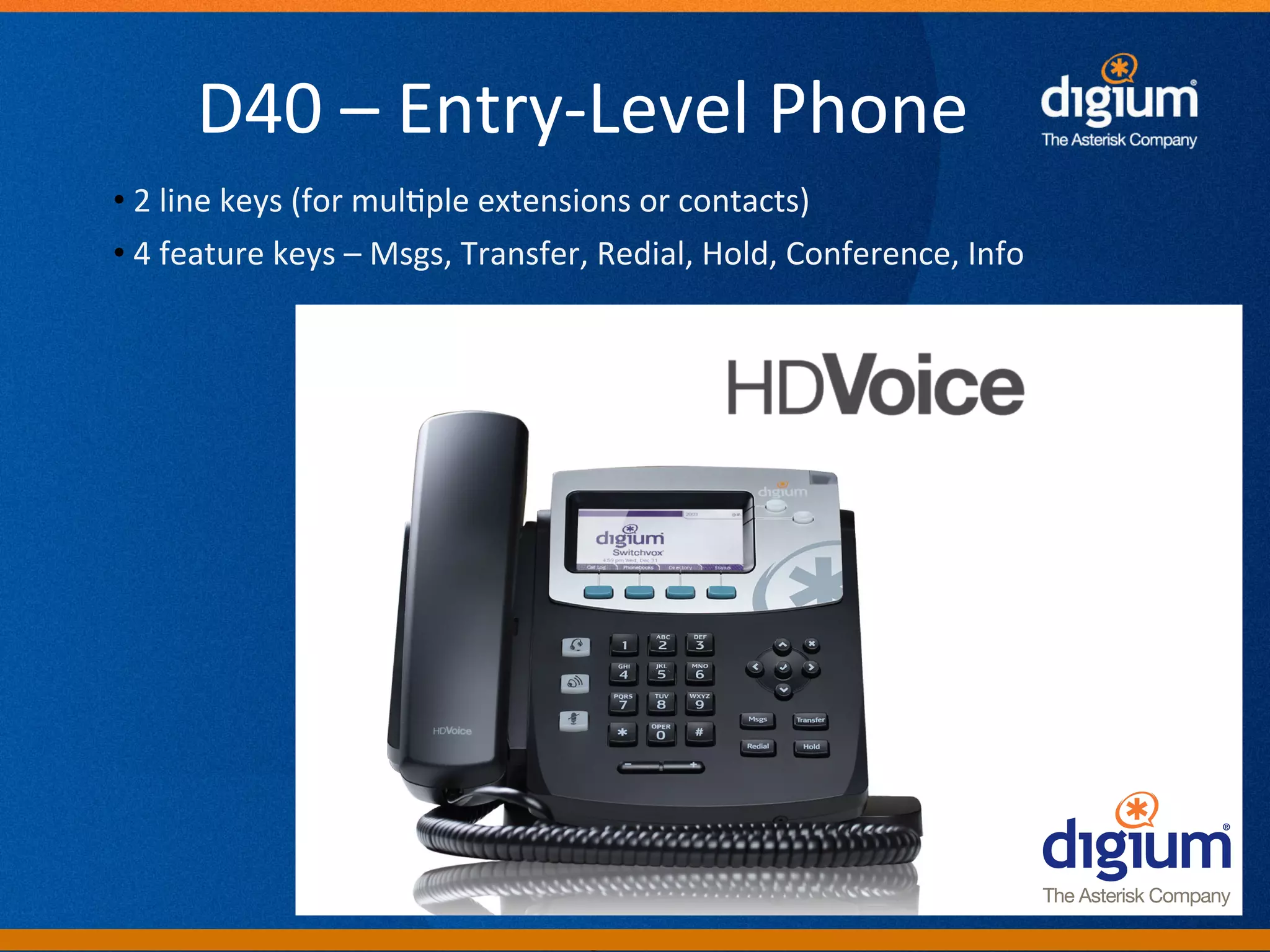

- 11. D40 – Entry-‐Level Phone • 2 line keys (for mul-ple extensions or contacts) • 4 feature keys – Msgs, Transfer, Redial, Hold, Conference, Info Digium Confiden-al

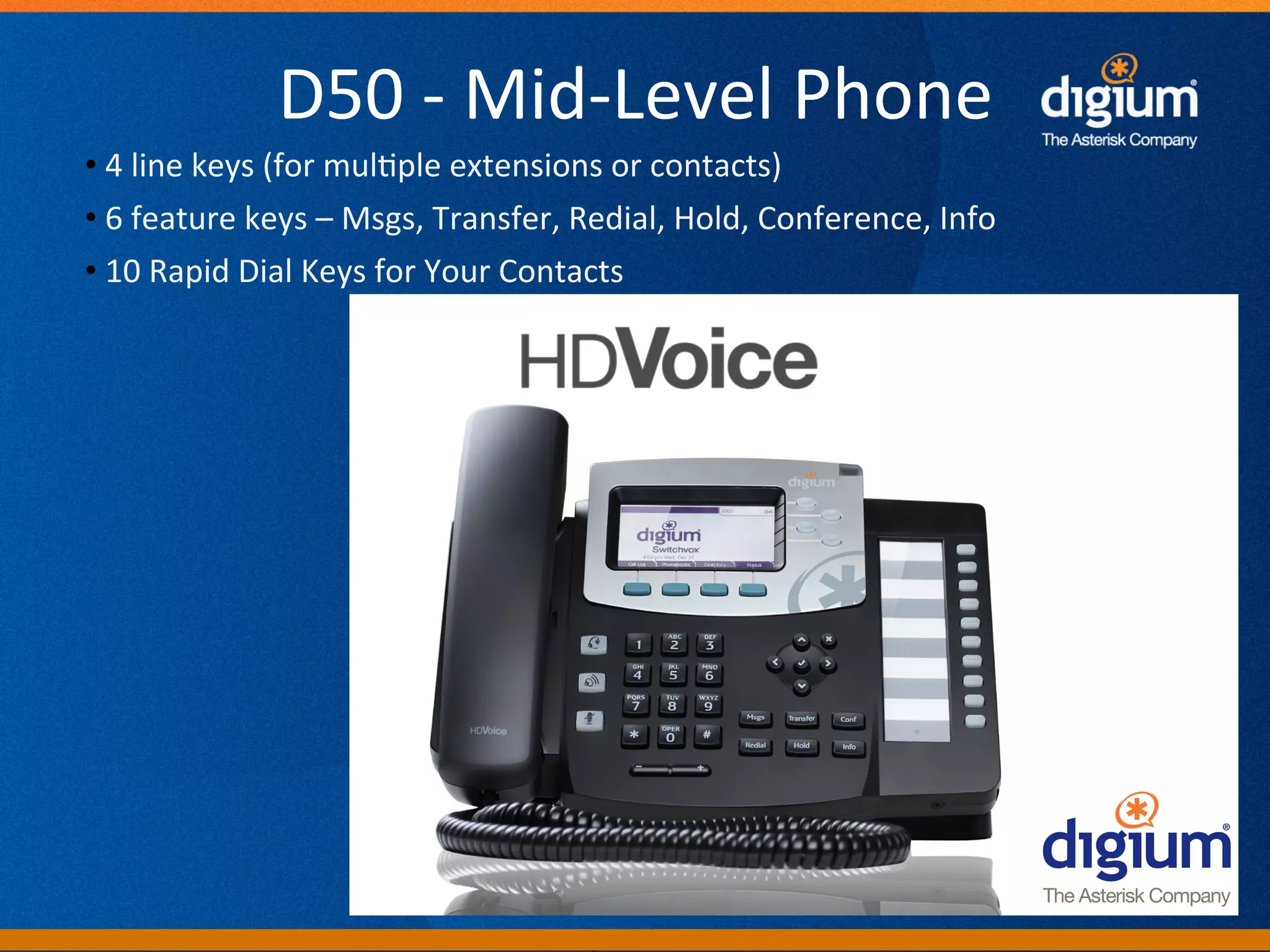

- 12. D50 -‐ Mid-‐Level Phone • 4 line keys (for mul-ple extensions or contacts) • 6 feature keys – Msgs, Transfer, Redial, Hold, Conference, Info • 10 Rapid Dial Keys for Your Contacts Digium Confiden-al
- 13. D70 -‐ Execu-ve-‐Level Phone • 6 line keys (for mul-ple extensions or contacts) • 10 feature keys – Msgs, Transfer, Redial, Hold, Conference, Info • LCD Display for 100 Rapid Dial Keys for Your Contacts Digium Confiden-al

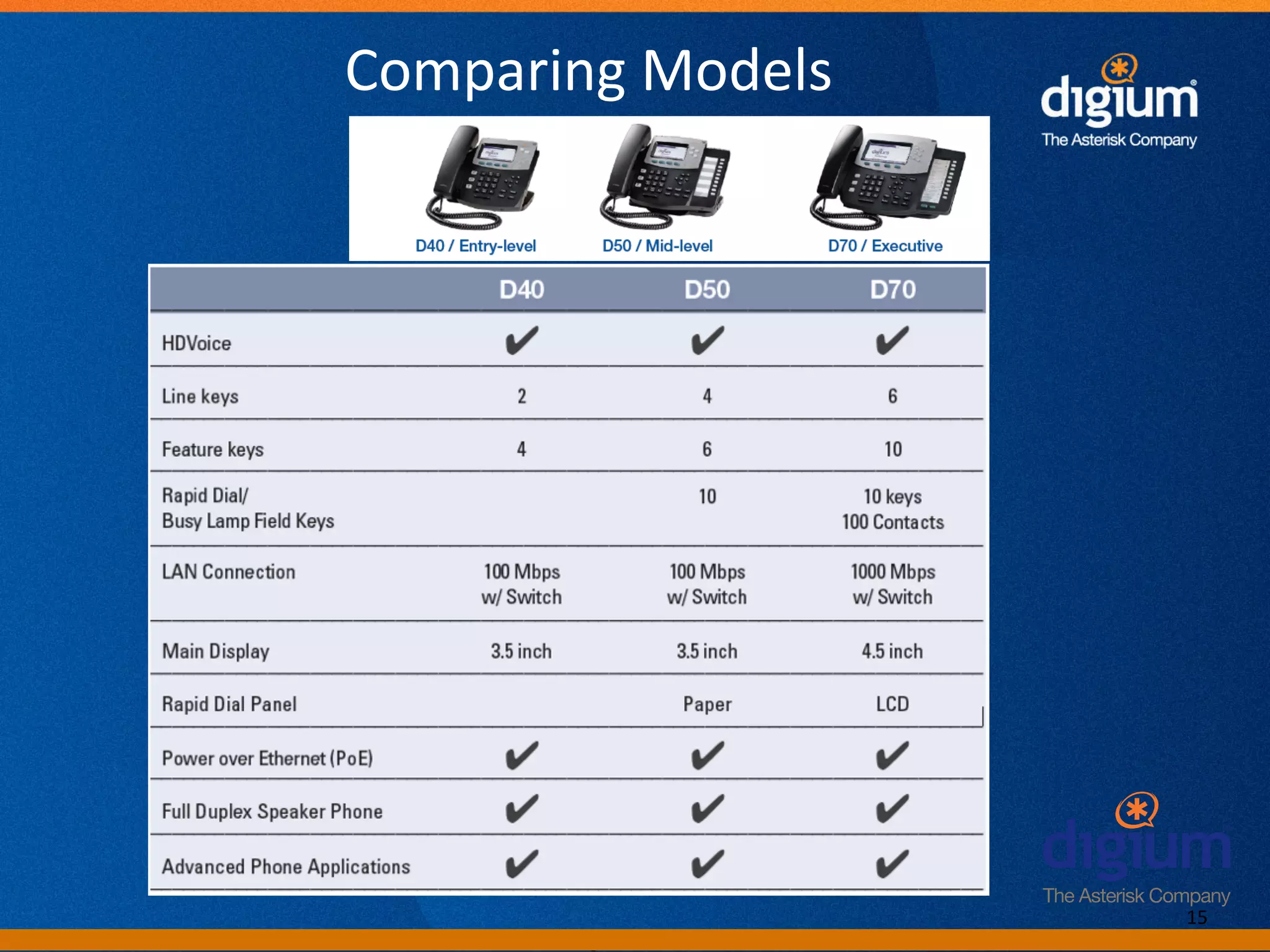

- 14. Comparing Models 15 Digium Confiden-al

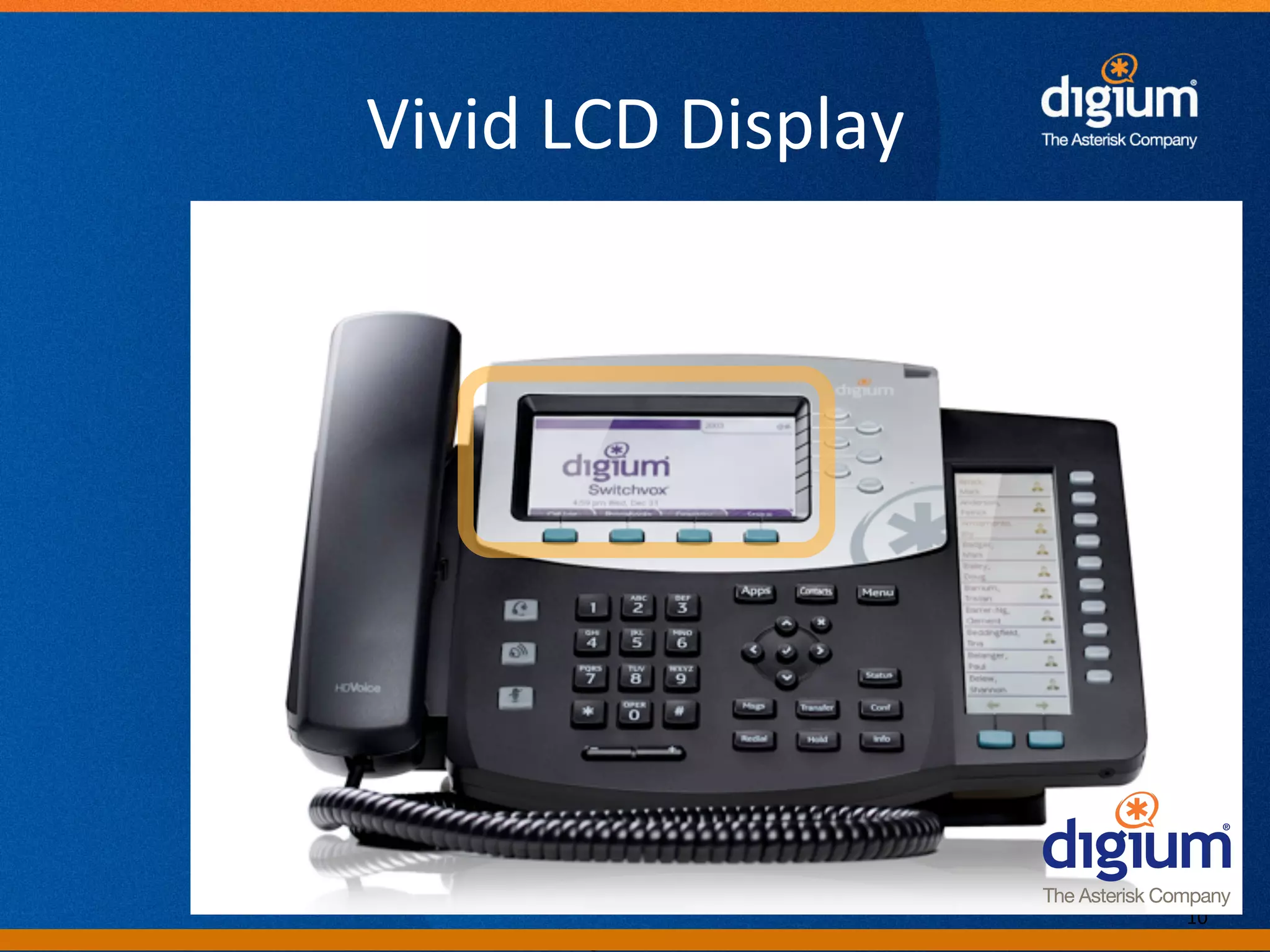

- 15. Vivid LCD Display 10 Digium Confiden-al

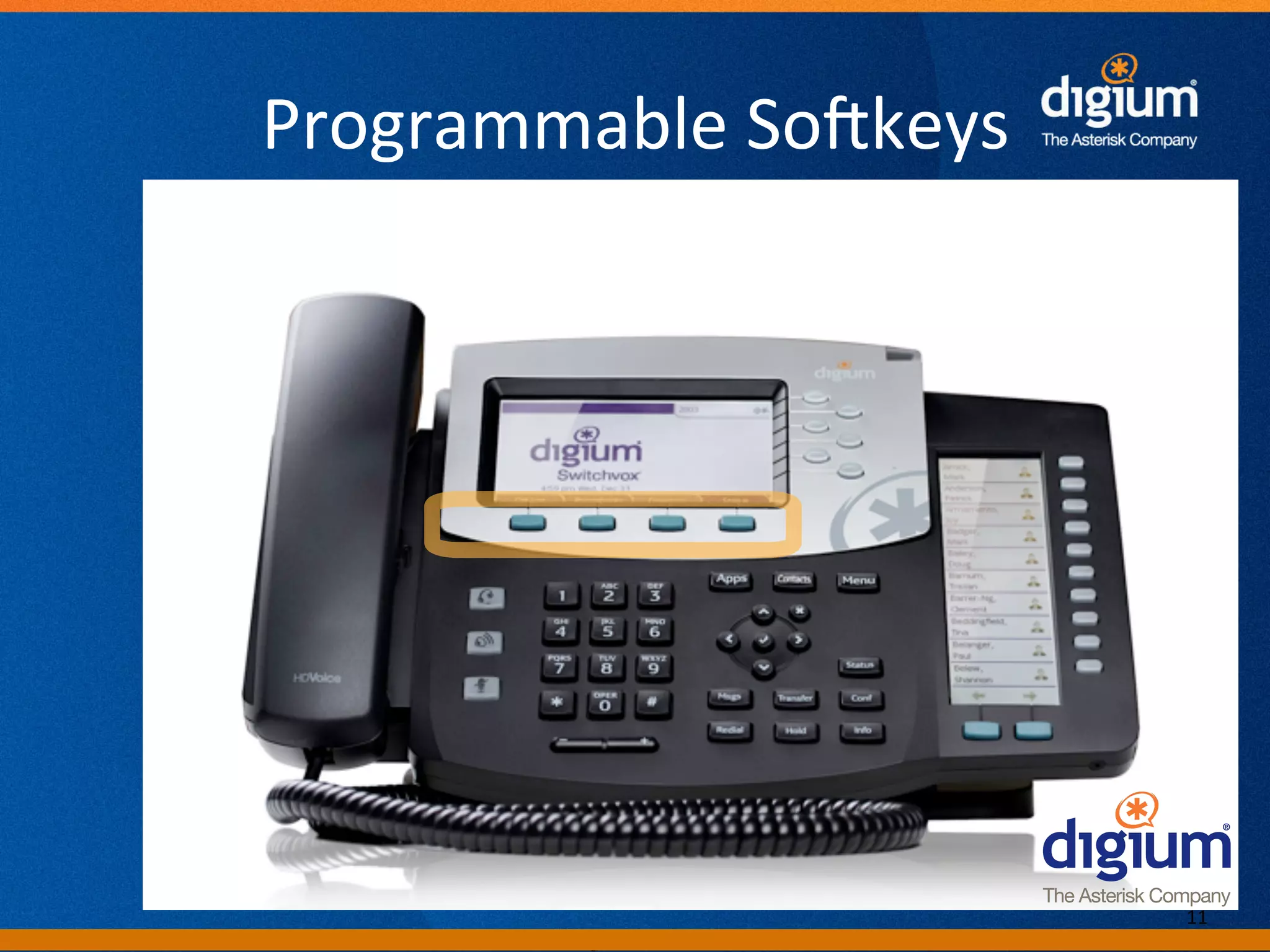

- 16. Programmable SoJkeys 11 Digium Confiden-al

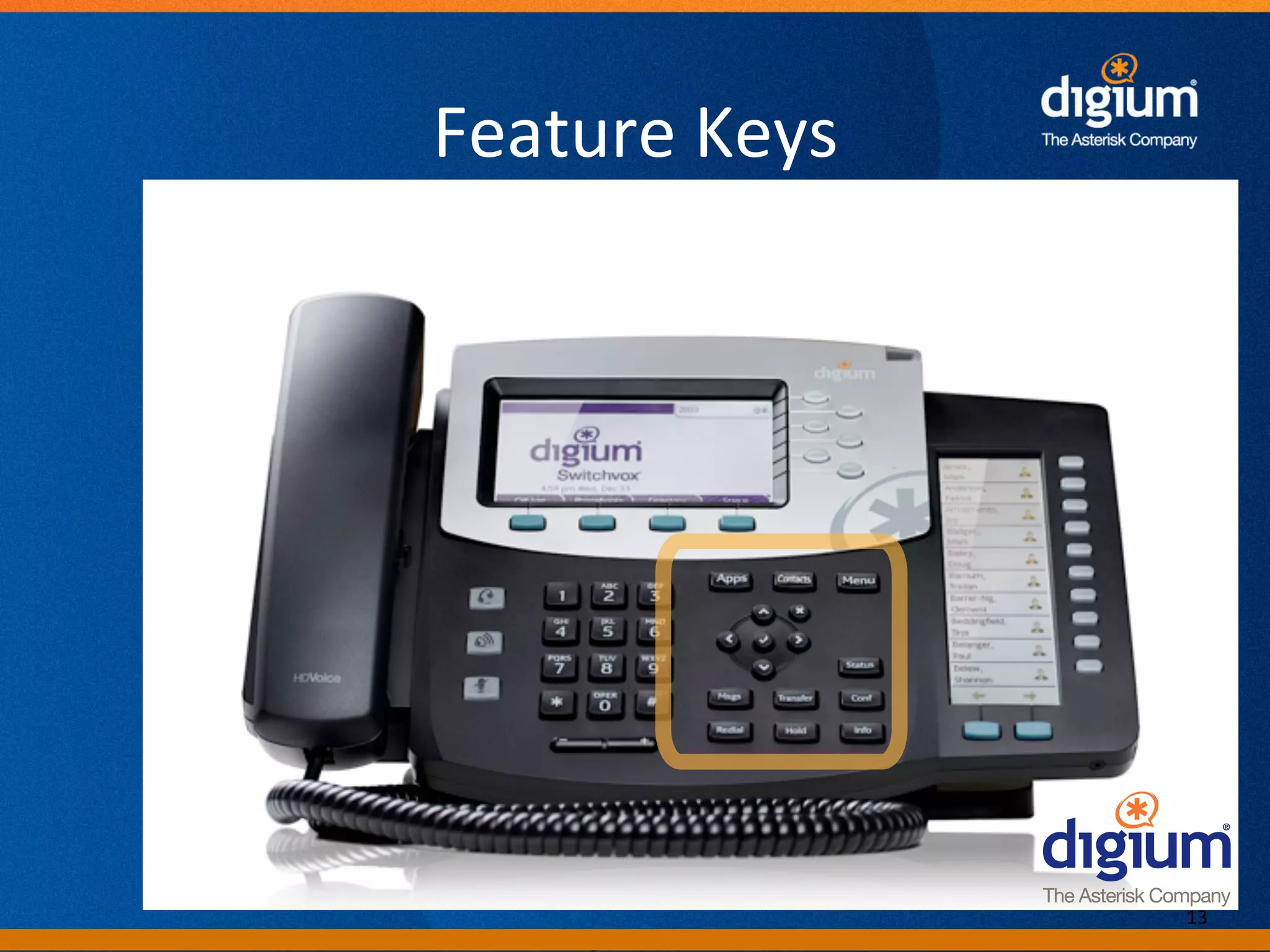

- 17. Feature Keys 13 Digium Confiden-al

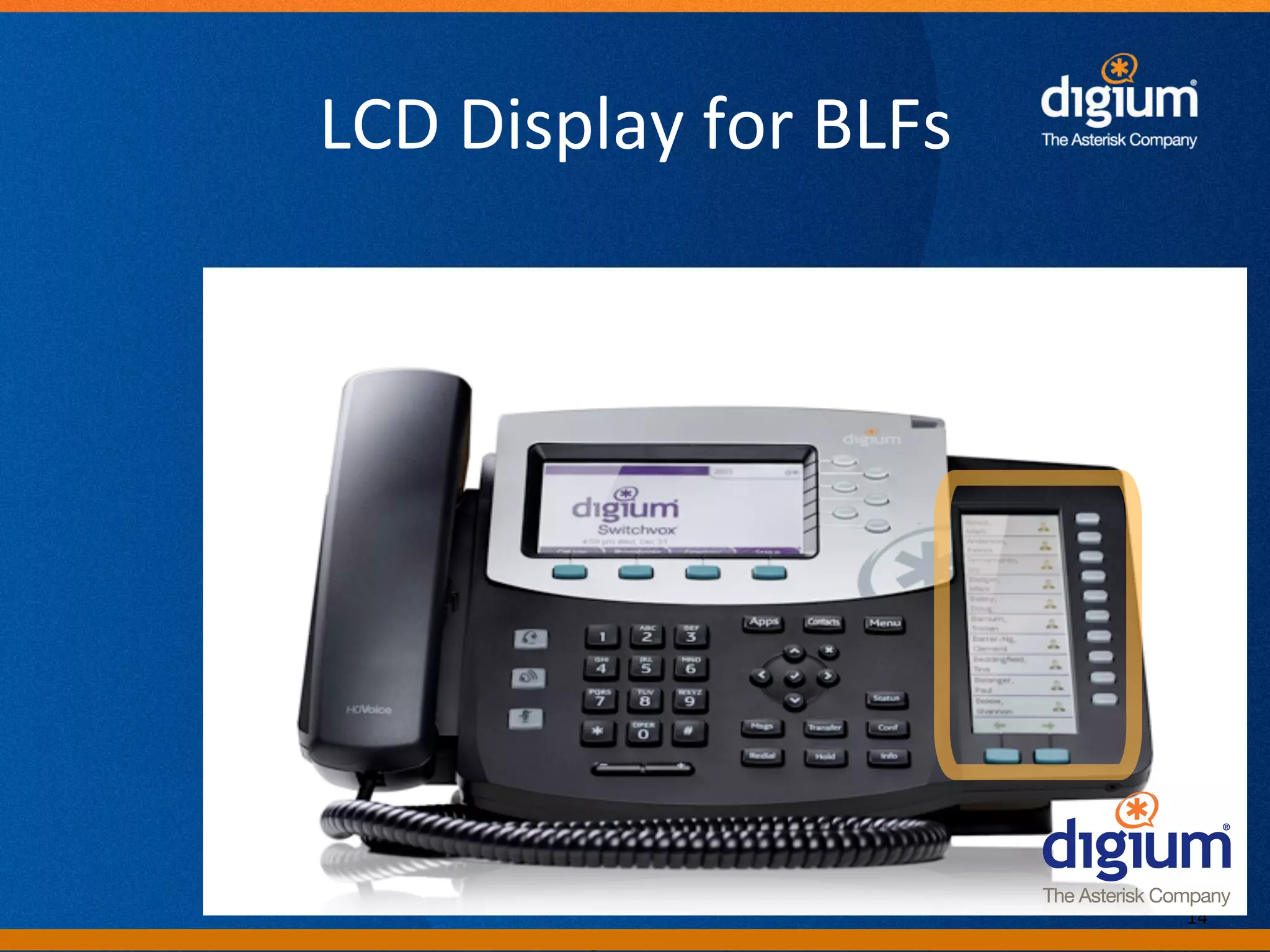

- 18. LCD Display for BLFs 14 Digium Confiden-al

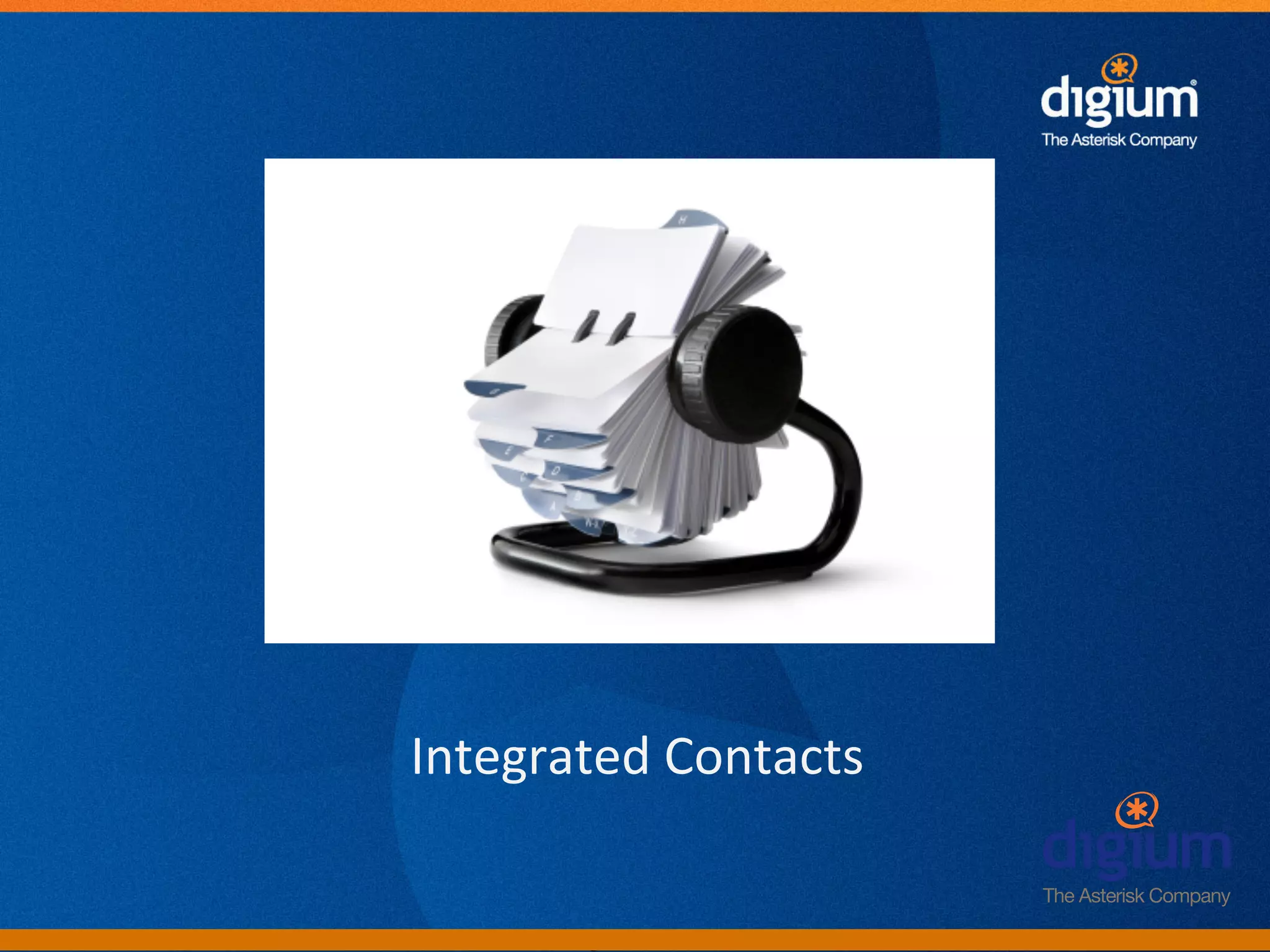

- 19. Integrated Contacts Digium Confiden-al
- 20. Parking Digium Confiden-al
- 21.
- 22. Visual Voicemail Digium Confiden-al

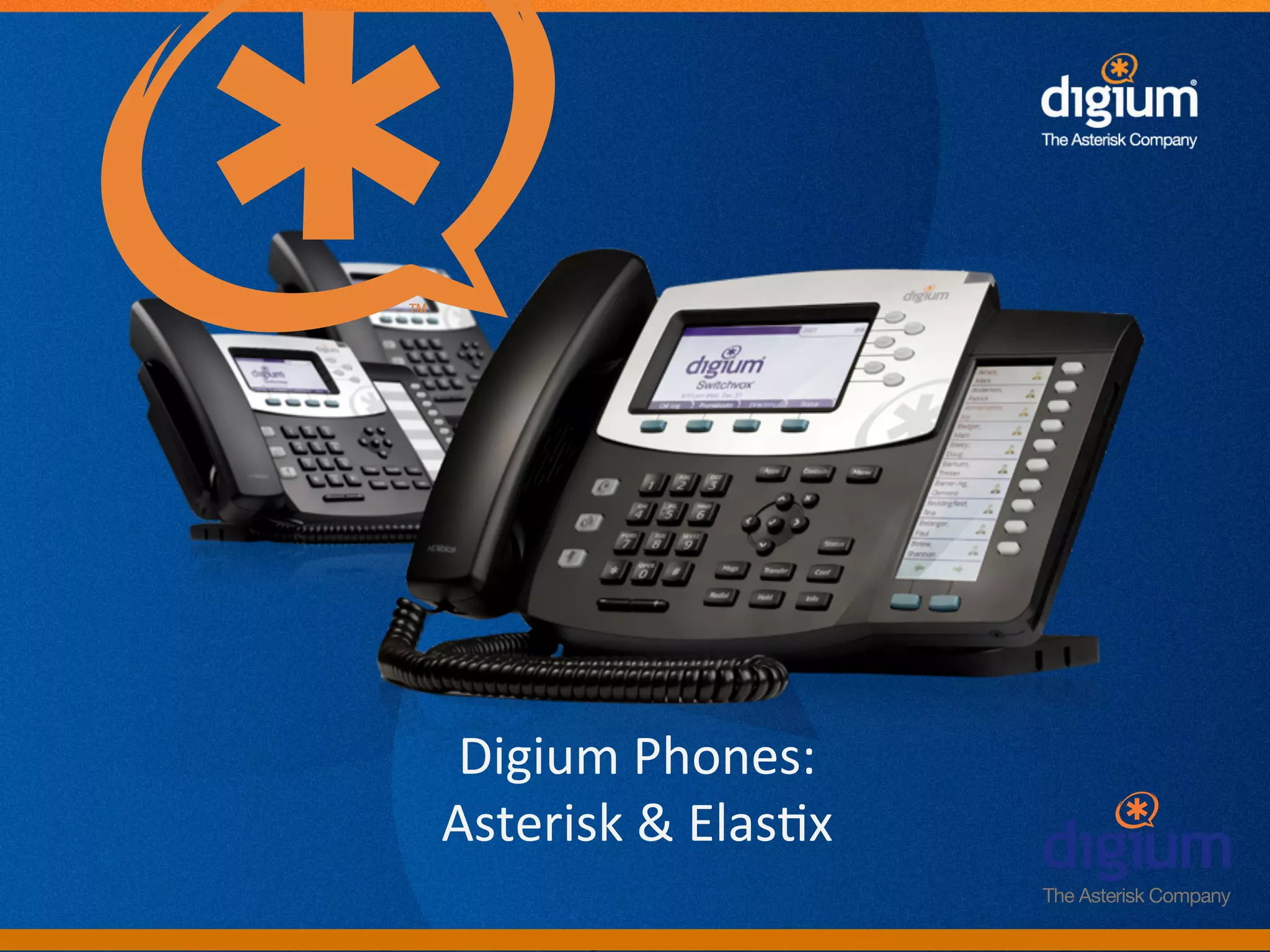

- 23. Digium Phones: Asterisk & Elas-x Digium Confiden-al

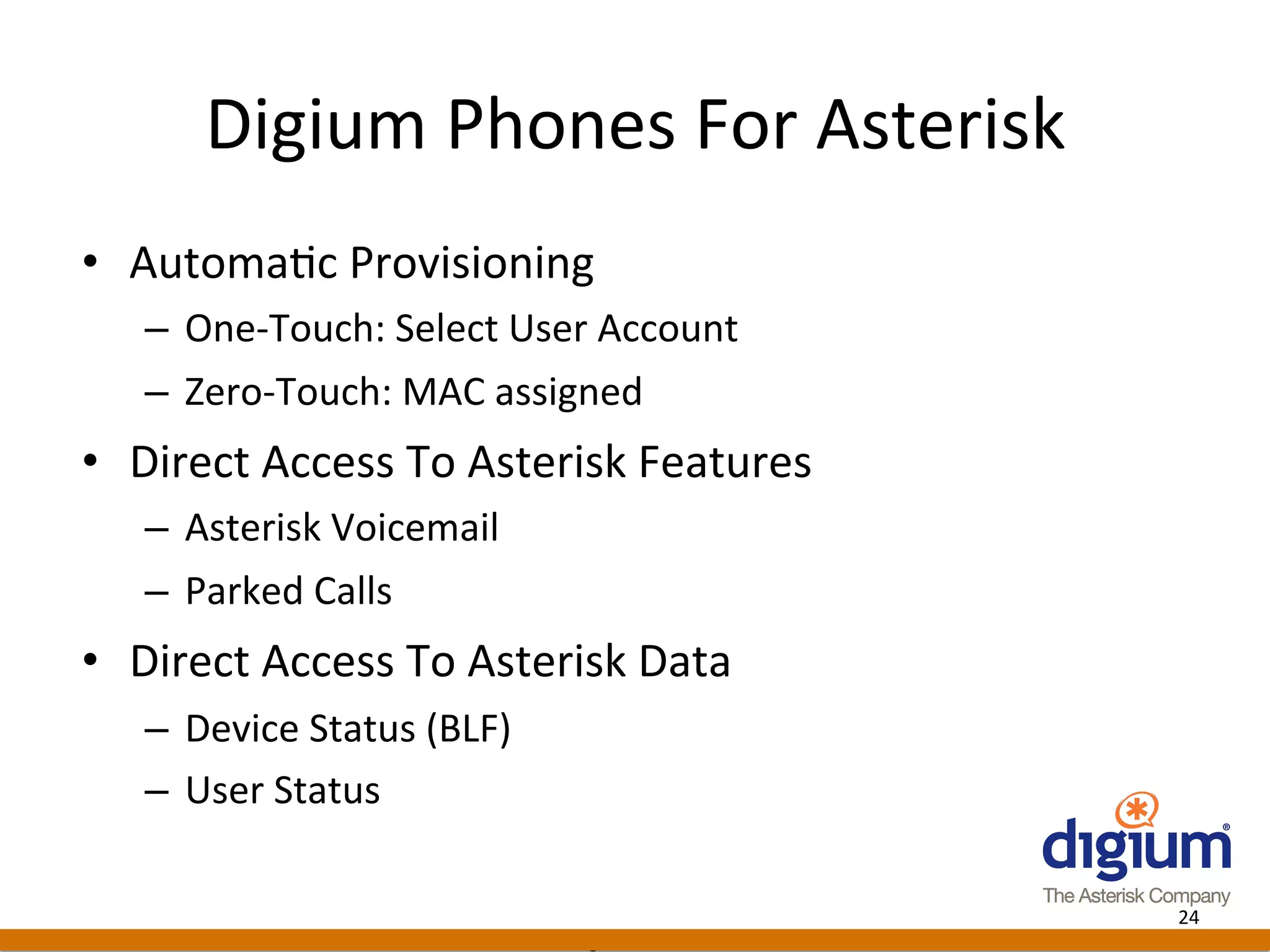

- 24. Digium Phones For Asterisk • Automa-c Provisioning – One-‐Touch: Select User Account – Zero-‐Touch: MAC assigned • Direct Access To Asterisk Features – Asterisk Voicemail – Parked Calls • Direct Access To Asterisk Data – Device Status (BLF) – User Status 24 Digium Confiden-al

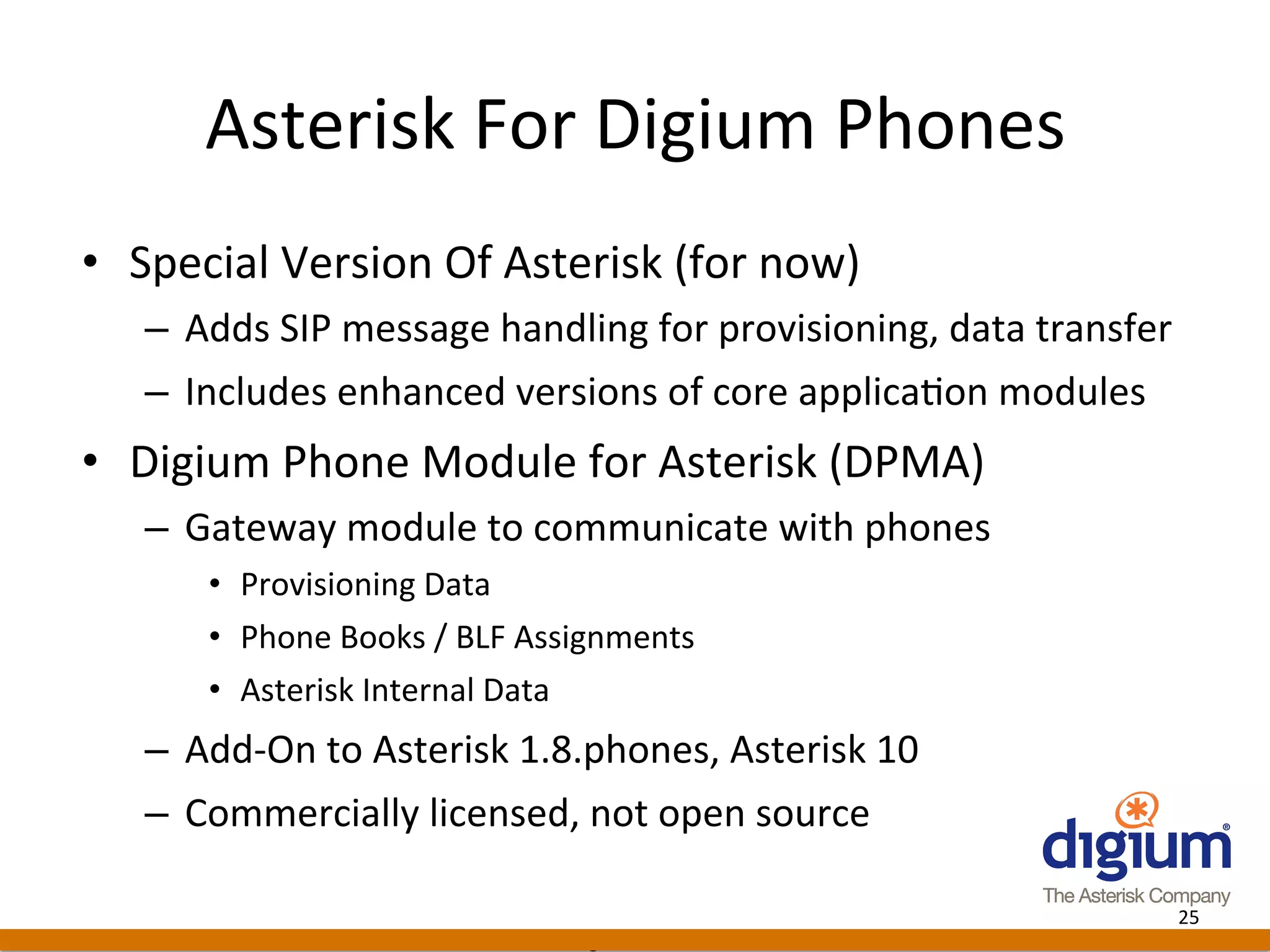

- 25. Asterisk For Digium Phones • Special Version Of Asterisk (for now) – Adds SIP message handling for provisioning, data transfer – Includes enhanced versions of core applica-on modules • Digium Phone Module for Asterisk (DPMA) – Gateway module to communicate with phones • Provisioning Data • Phone Books / BLF Assignments • Asterisk Internal Data – Add-‐On to Asterisk 1.8.phones, Asterisk 10 – Commercially licensed, not open source 25 Digium Confiden-al

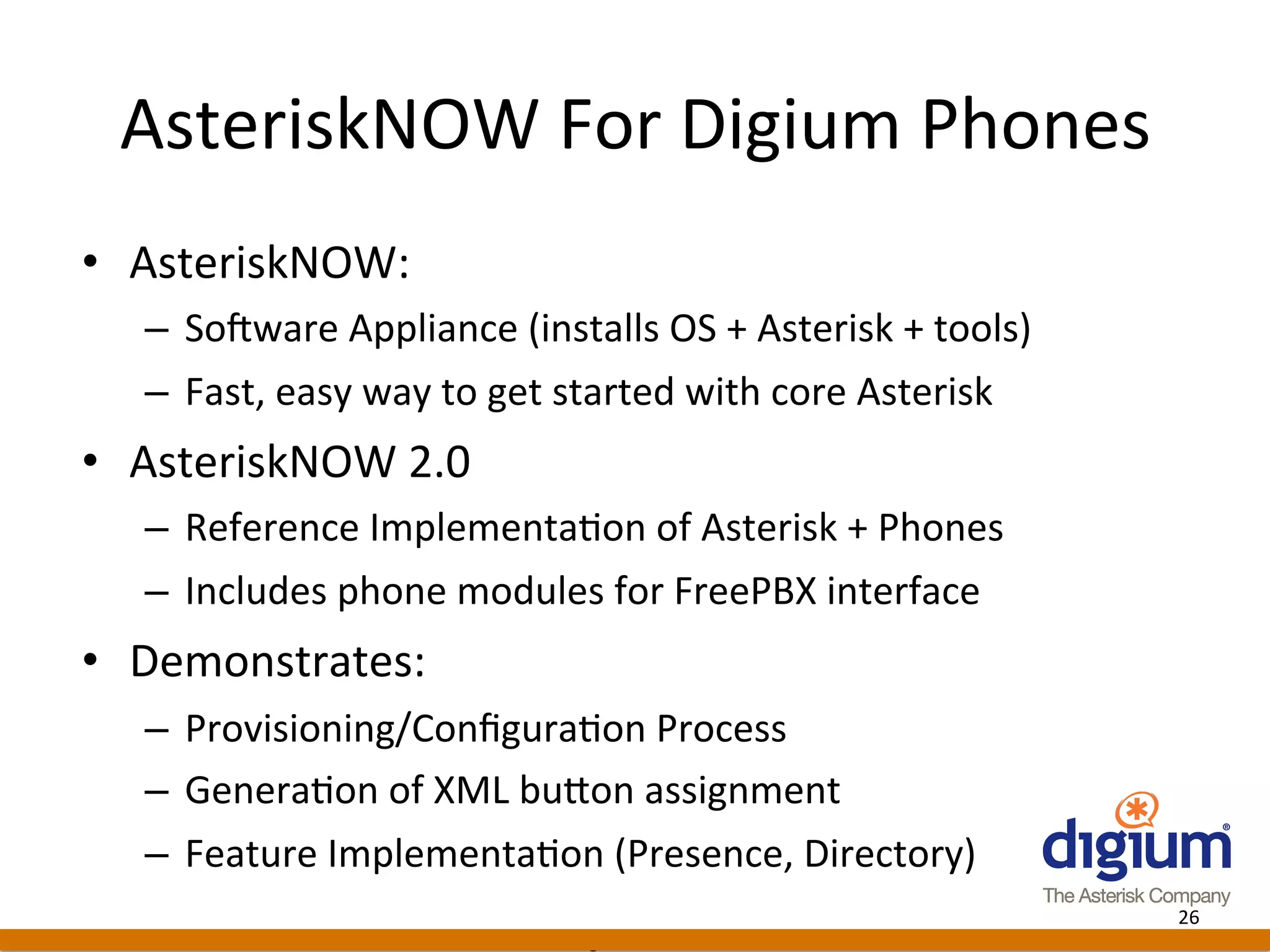

- 26. AsteriskNOW For Digium Phones • AsteriskNOW: – SoJware Appliance (installs OS + Asterisk + tools) – Fast, easy way to get started with core Asterisk • AsteriskNOW 2.0 – Reference Implementa-on of Asterisk + Phones – Includes phone modules for FreePBX interface • Demonstrates: – Provisioning/Configura-on Process – Genera-on of XML buAon assignment – Feature Implementa-on (Presence, Directory) 26 Digium Confiden-al

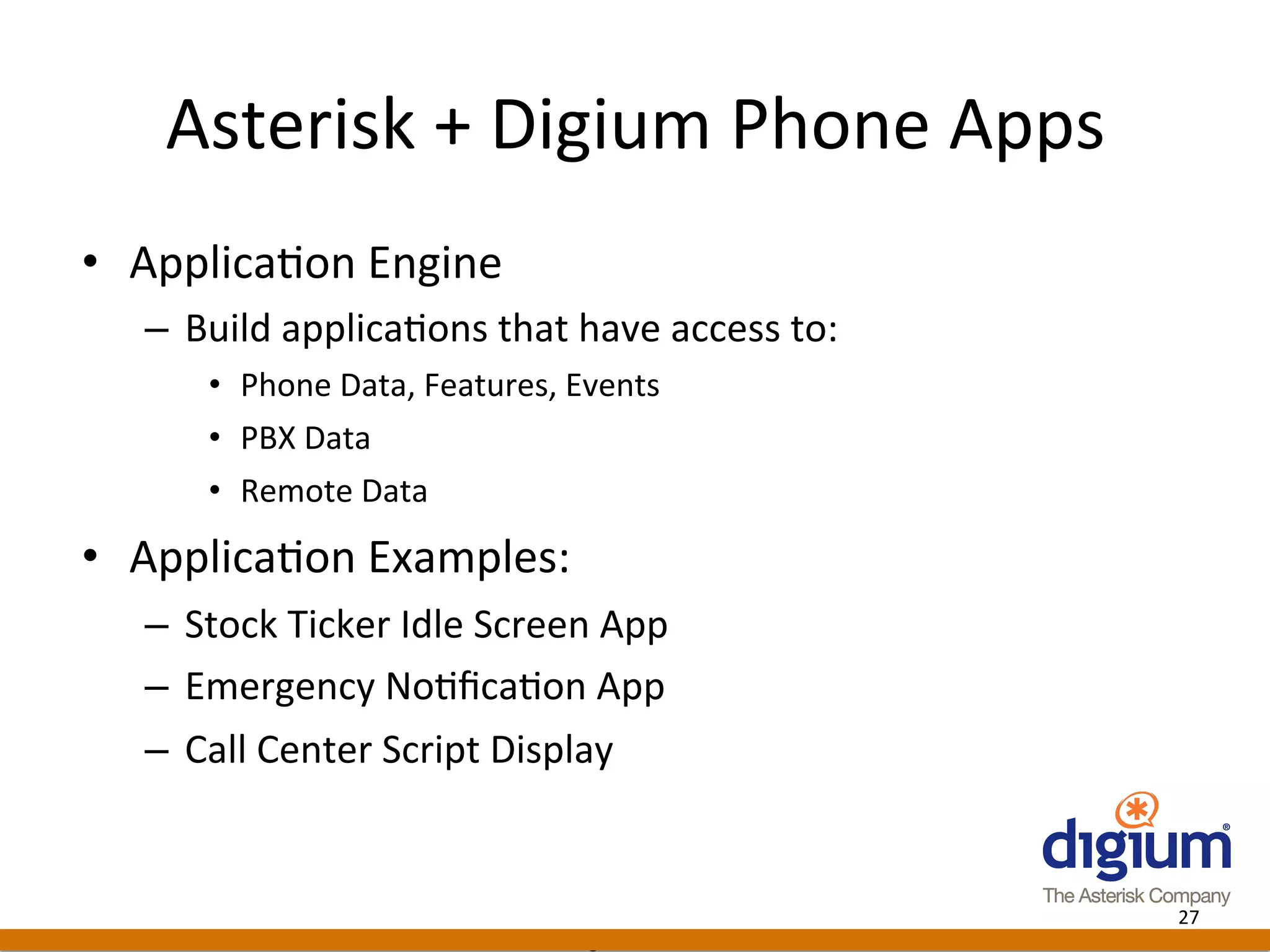

- 27. Asterisk + Digium Phone Apps • Applica-on Engine – Build applica-ons that have access to: • Phone Data, Features, Events • PBX Data • Remote Data • Applica-on Examples: – Stock Ticker Idle Screen App – Emergency No-fica-on App – Call Center Script Display 27 Digium Confiden-al
- 28.

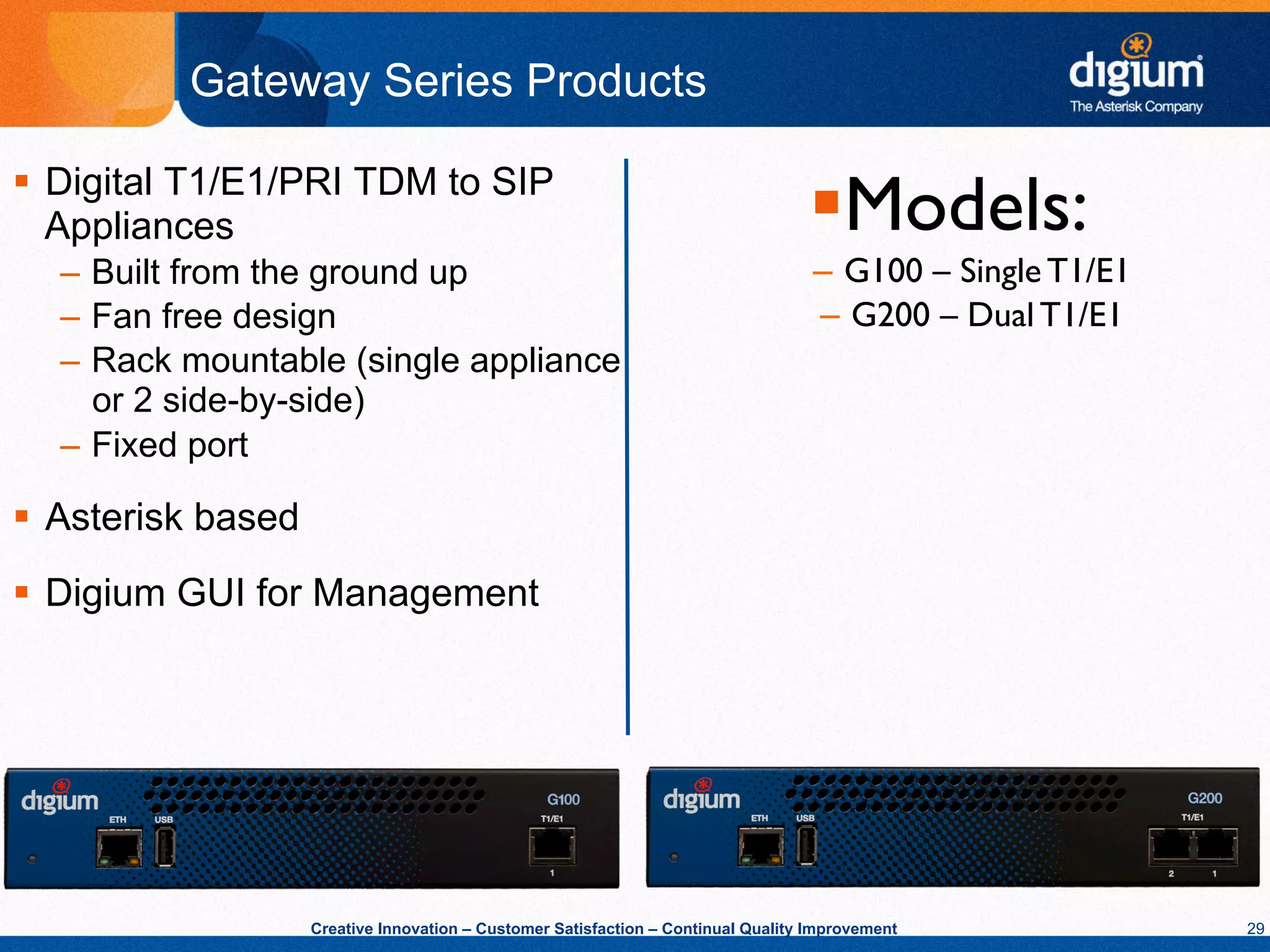

- 29. Gateway Series Products § Digital T1/E1/PRI TDM to SIP Appliances § Models: – Built from the ground up – G100 – Single T1/E1 – Fan free design – G200 – Dual T1/E1 – Rack mountable (single appliance or 2 side-by-side) – Fixed port § Asterisk based § Digium GUI for Management Creative Innovation – Customer Satisfaction – Continual Quality Improvement 29
- 30. Part Numbers andPricing § G100 Single T1/E1/PRI appliance: $1,195 List – 1G100F: North America – 1G101F: Europe – 1G102F: United Kingdom – 1G103F: Australia § G200 Dual T1/E1/PRI appliance: $1,995 – 1G200F: North America – 1G201F: Europe – 1G202F: United Kingdom – 1G203F: Australia § Single Unit Rack Mount Bracket - $15 – 3244-00042 Creative Innovation – Customer Satisfaction – Continual Quality Improvement 30

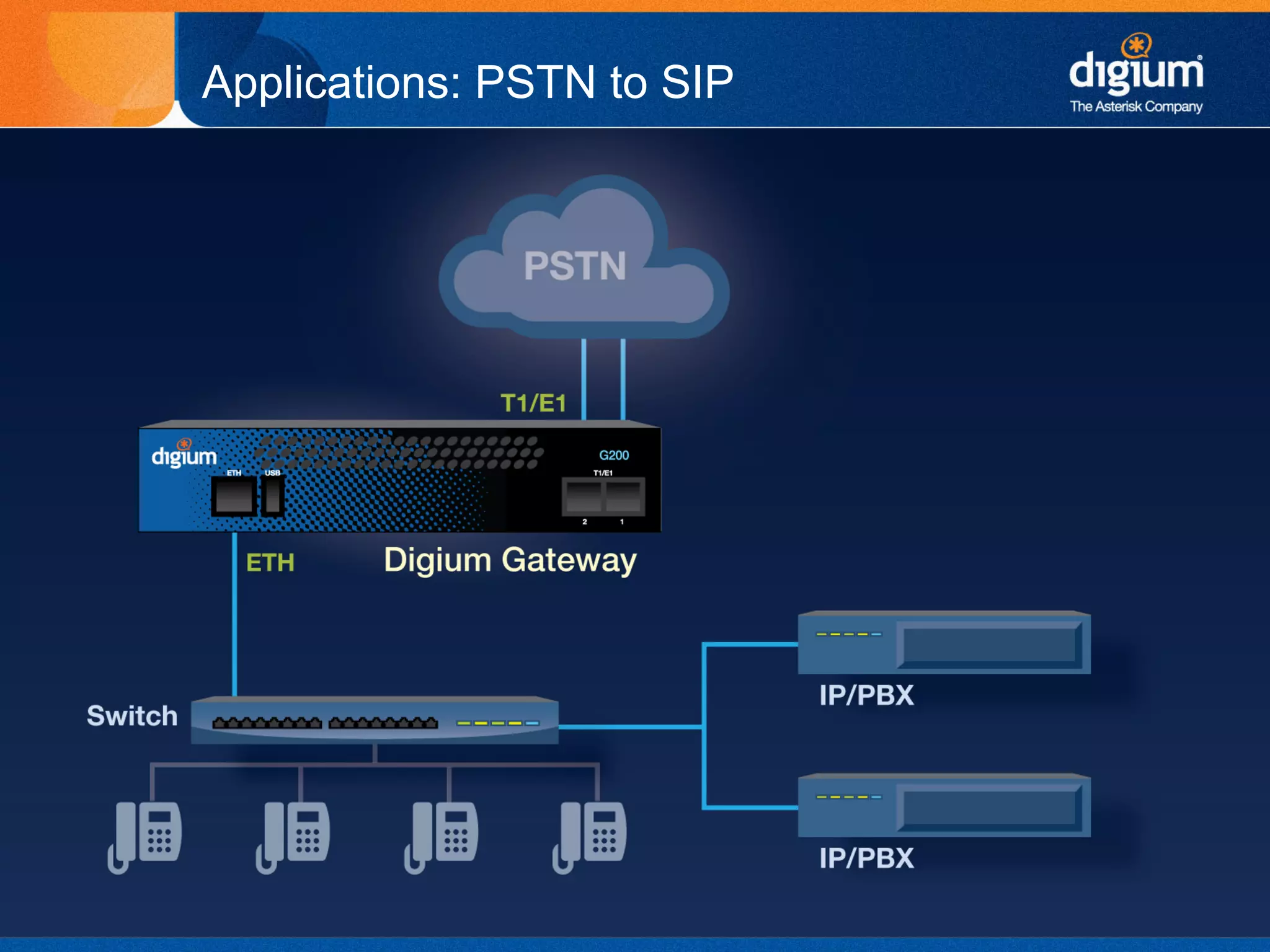

- 31. Applications: PSTN toSIP Creative Innovation – Customer Satisfaction – Continual Quality Improvement 31

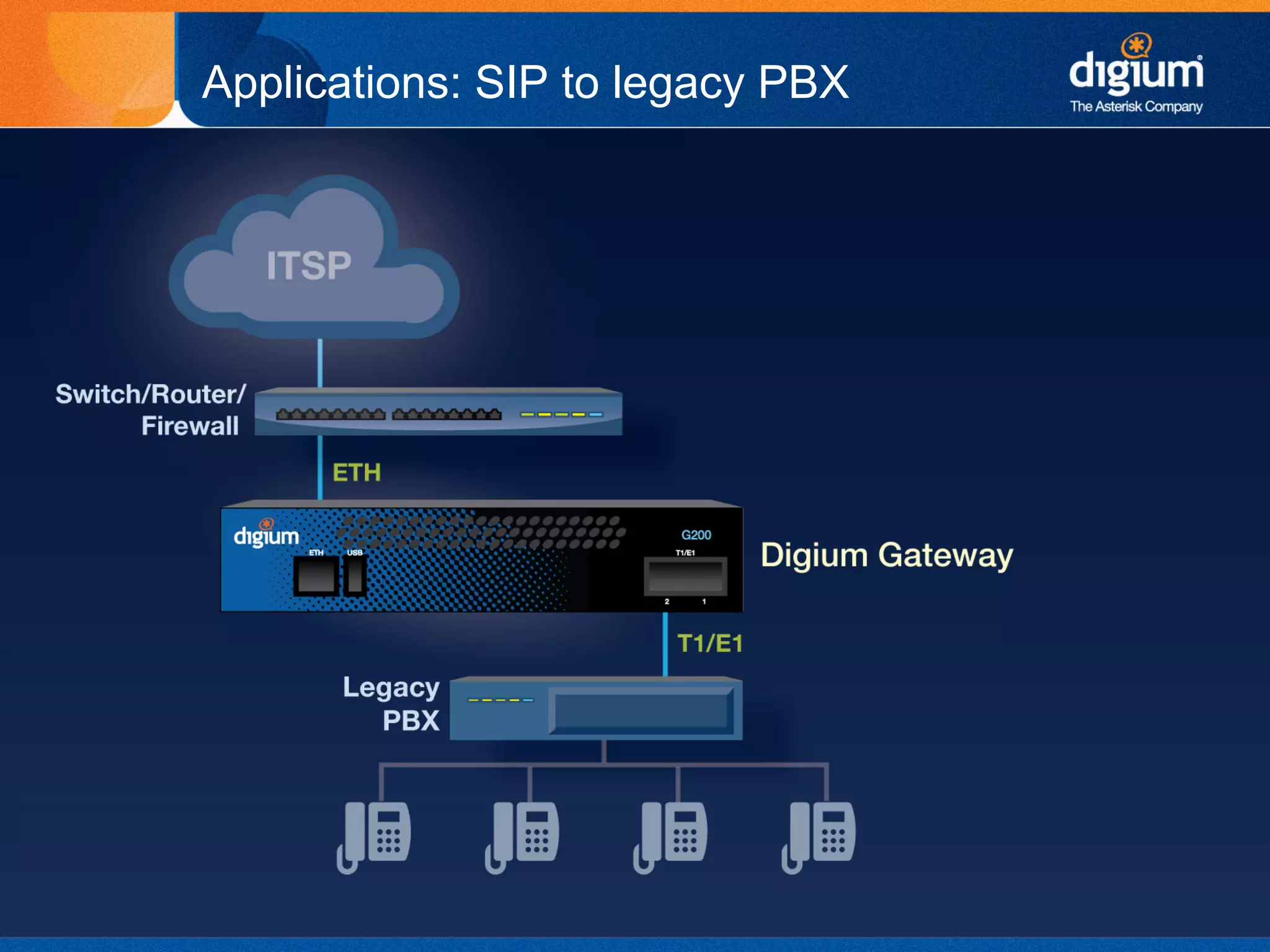

- 32. Applications: SIP tolegacy PBX Creative Innovation – Customer Satisfaction – Continual Quality Improvement 32

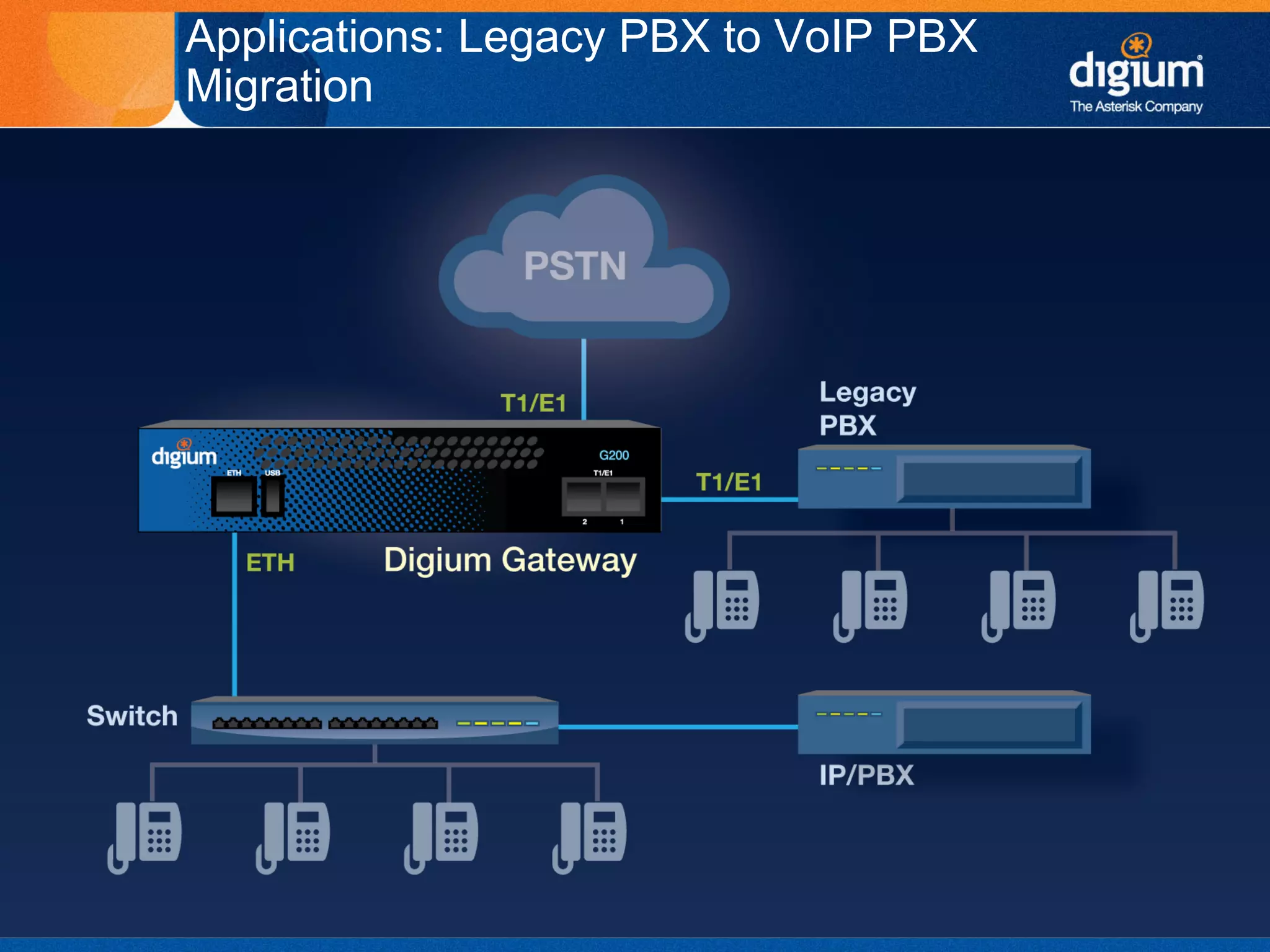

- 33. Applications: Legacy PBXto VoIP PBX Migration Creative Innovation – Customer Satisfaction – Continual Quality Improvement 33

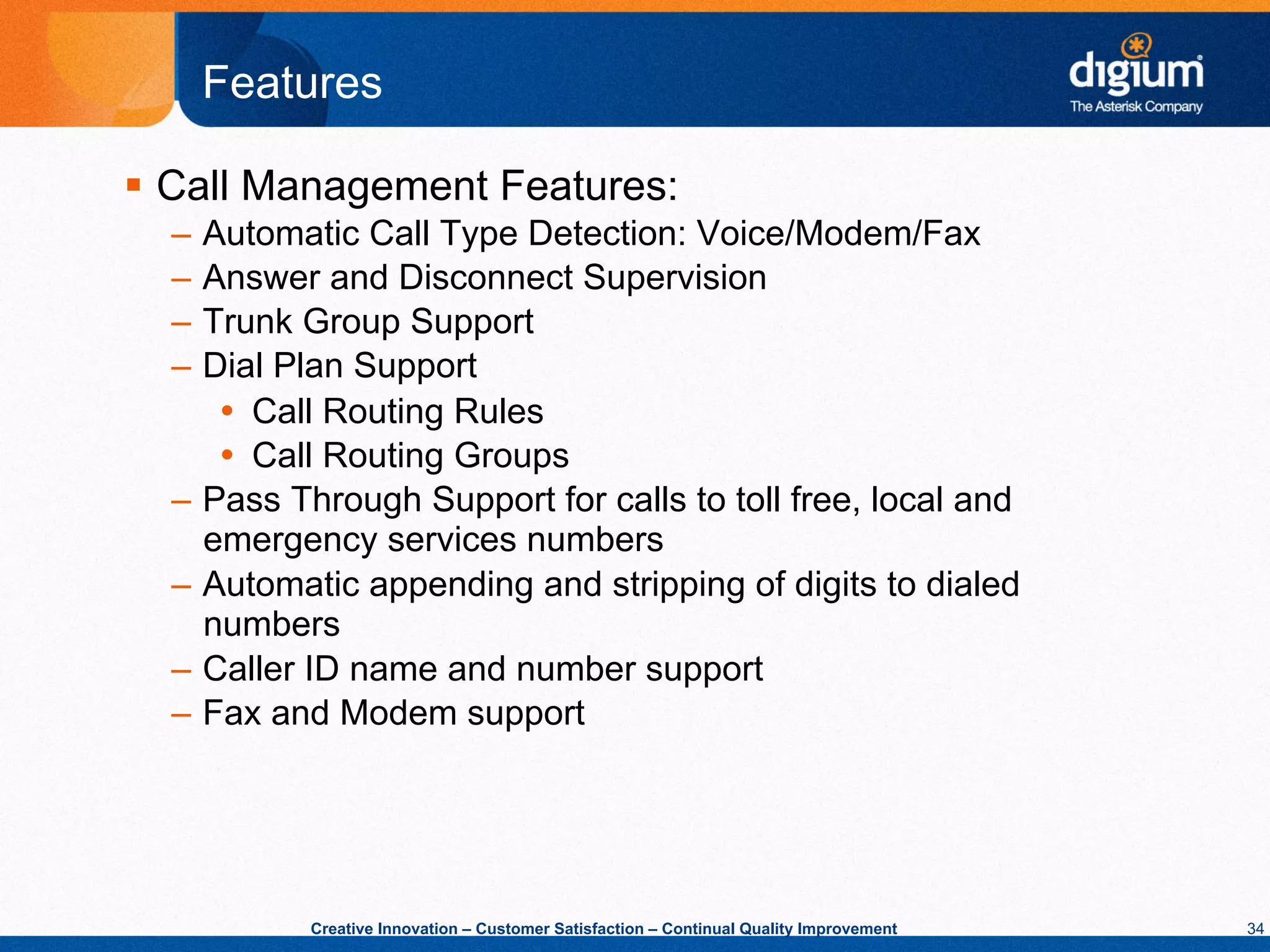

- 34. Features § Call ManagementFeatures: – Automatic Call Type Detection: Voice/Modem/Fax – Answer and Disconnect Supervision – Trunk Group Support – Dial Plan Support Ÿ Call Routing Rules Ÿ Call Routing Groups – Pass Through Support for calls to toll free, local and emergency services numbers – Automatic appending and stripping of digits to dialed numbers – Caller ID name and number support – Fax and Modem support Creative Innovation – Customer Satisfaction – Continual Quality Improvement 34
- 35. Features § Technical Specifications: – Single 10/100/1000Base-T Ethernet connection – Internal universal power supply for 100 – 240 VAC – RJ45 connectors – Echo cancellation – Auto codec negotiation via SIP § IP Telephony – SIP (Support for multiple SIP Agents) – Audio Codecs Ÿ G.729 Ÿ G.726 Ÿ G.711 (Coding Support for A-law and u-law) Ÿ GSM-FR Ÿ G.722 – Auto Codec Negotiation – Fax and Modem Support (T.38 and G.711) Creative Innovation – Customer Satisfaction – Continual Quality Improvement 35

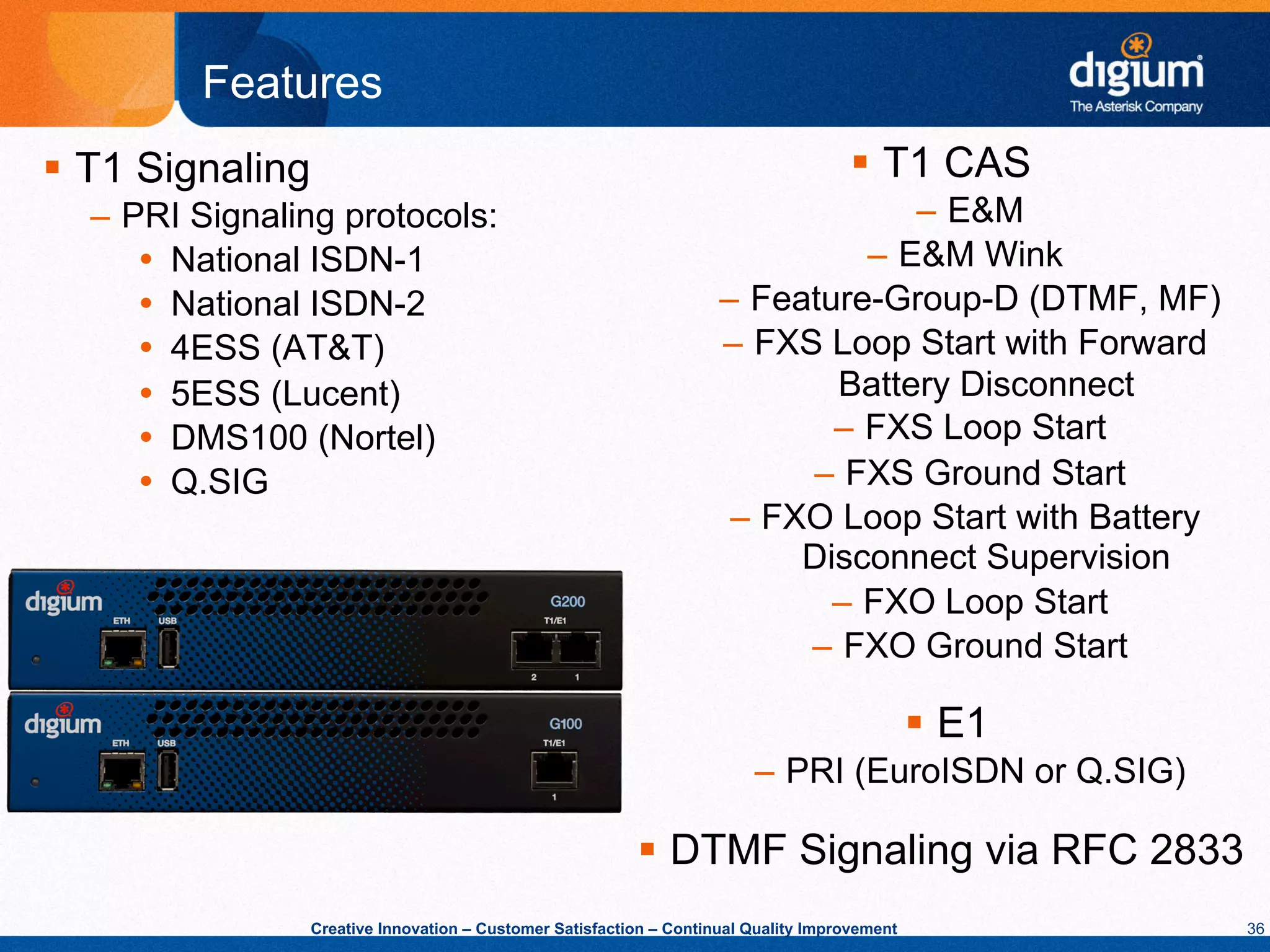

- 36. Features § T1 Signaling § T1 CAS – PRI Signaling protocols: – E&M Ÿ National ISDN-1 – E&M Wink Ÿ National ISDN-2 – Feature-Group-D (DTMF, MF) Ÿ 4ESS (AT&T) – FXS Loop Start with Forward Ÿ 5ESS (Lucent) Battery Disconnect Ÿ DMS100 (Nortel) – FXS Loop Start Ÿ Q.SIG – FXS Ground Start – FXO Loop Start with Battery Disconnect Supervision – FXO Loop Start – FXO Ground Start § E1 – PRI (EuroISDN or Q.SIG) § DTMF Signaling via RFC 2833 Creative Innovation – Customer Satisfaction – Continual Quality Improvement 36
- 37.
- 38.

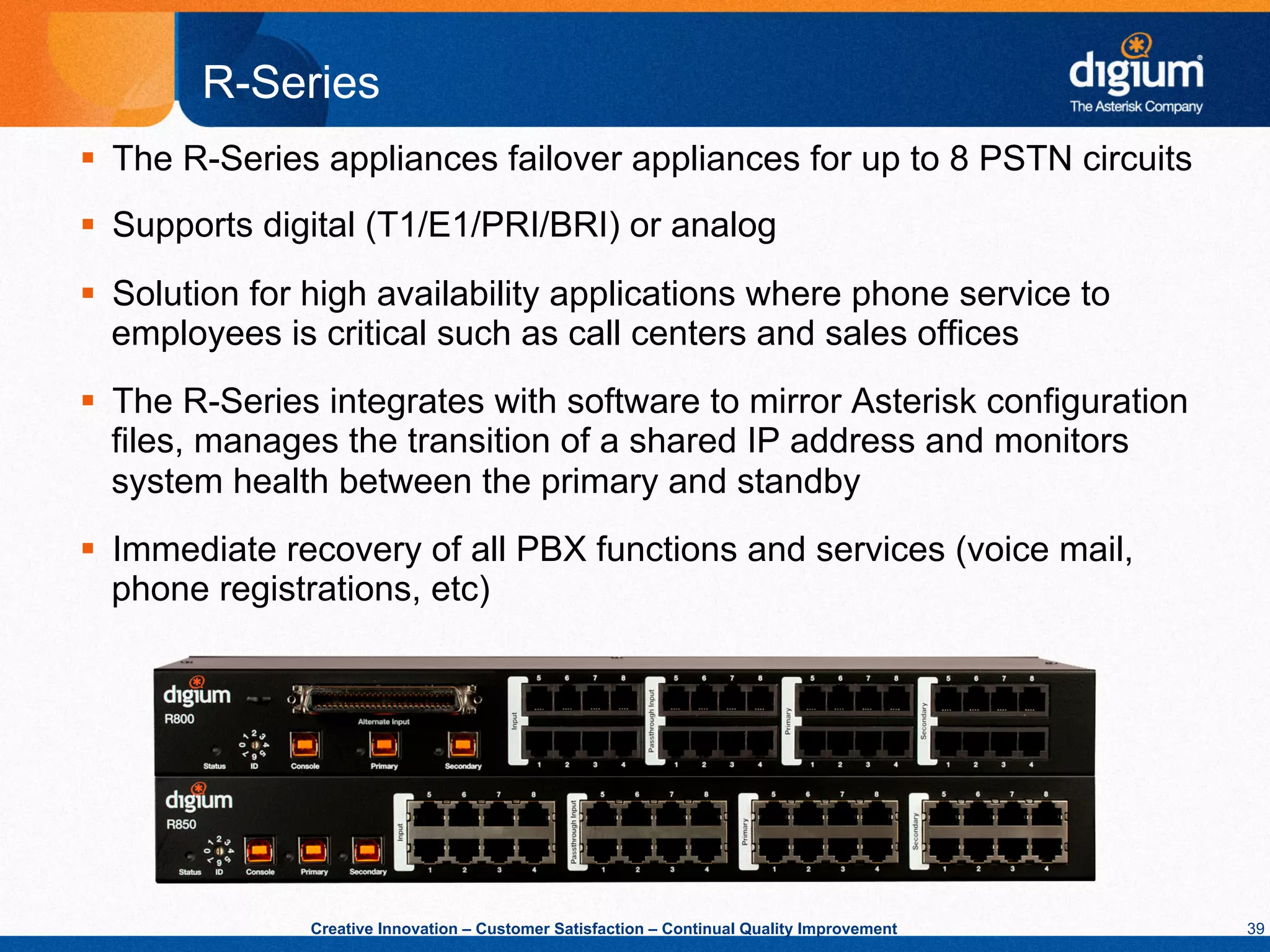

- 39. R-Series § The R-Seriesappliances failover appliances for up to 8 PSTN circuits § Supports digital (T1/E1/PRI/BRI) or analog § Solution for high availability applications where phone service to employees is critical such as call centers and sales offices § The R-Series integrates with software to mirror Asterisk configuration files, manages the transition of a shared IP address and monitors system health between the primary and standby § Immediate recovery of all PBX functions and services (voice mail, phone registrations, etc) Creative Innovation – Customer Satisfaction – Continual Quality Improvement 39
- 40. R-Series Pricing andPart Numbers § Part Numbers: – 1R800F: 8 Port Analog – 1R850F: 8 Port Digital (T1/E1/PRI/BRI) § List Price – 1R800F: $995 – 1R850F: $995 § Ship Dates: – 1R800F: December 7 – 1R850F: ?? Creative Innovation – Customer Satisfaction – Continual Quality Improvement 40

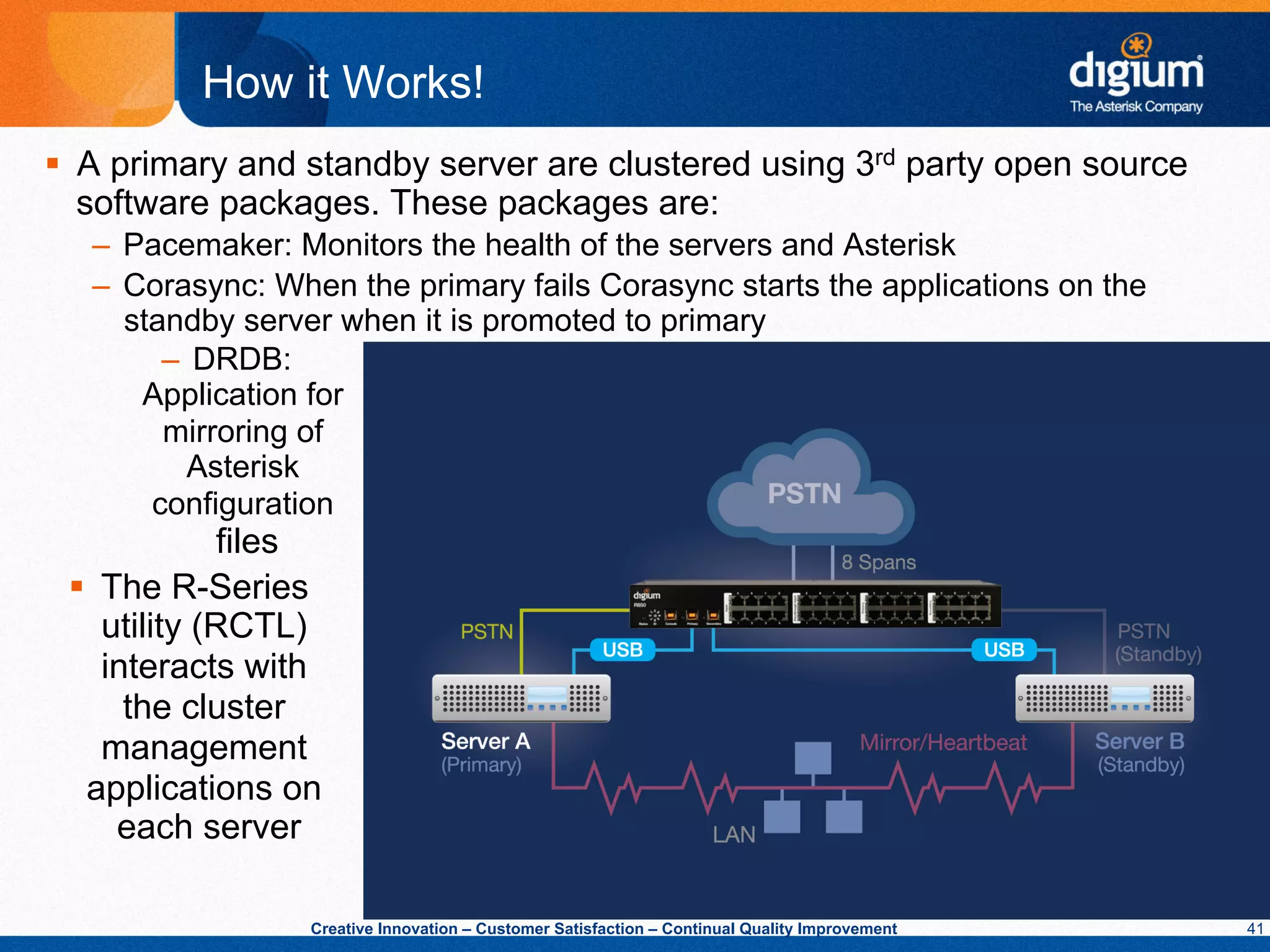

- 41. How it Works! § A primary and standby server are clustered using 3rd party open source software packages. These packages are: – Pacemaker: Monitors the health of the servers and Asterisk – Corasync: When the primary fails Corasync starts the applications on the standby server when it is promoted to primary – DRDB: Application for mirroring of Asterisk configuration files § The R-Series utility (RCTL) interacts with the cluster management applications on each server Creative Innovation – Customer Satisfaction – Continual Quality Improvement 41

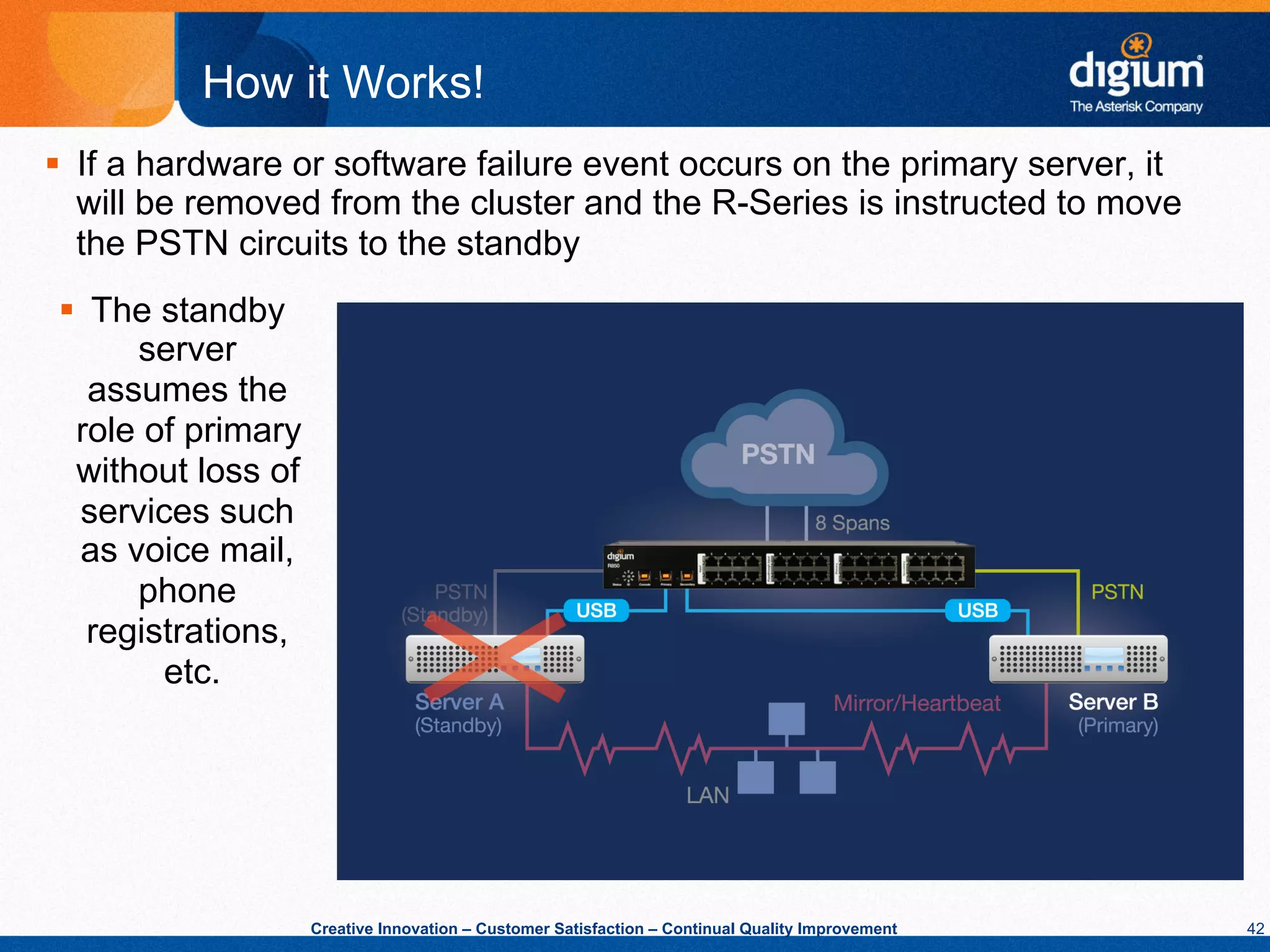

- 42. How it Works! § If a hardware or software failure event occurs on the primary server, it will be removed from the cluster and the R-Series is instructed to move the PSTN circuits to the standby § The standby server assumes the role of primary without loss of services such as voice mail, phone registrations, etc. Creative Innovation – Customer Satisfaction – Continual Quality Improvement 42

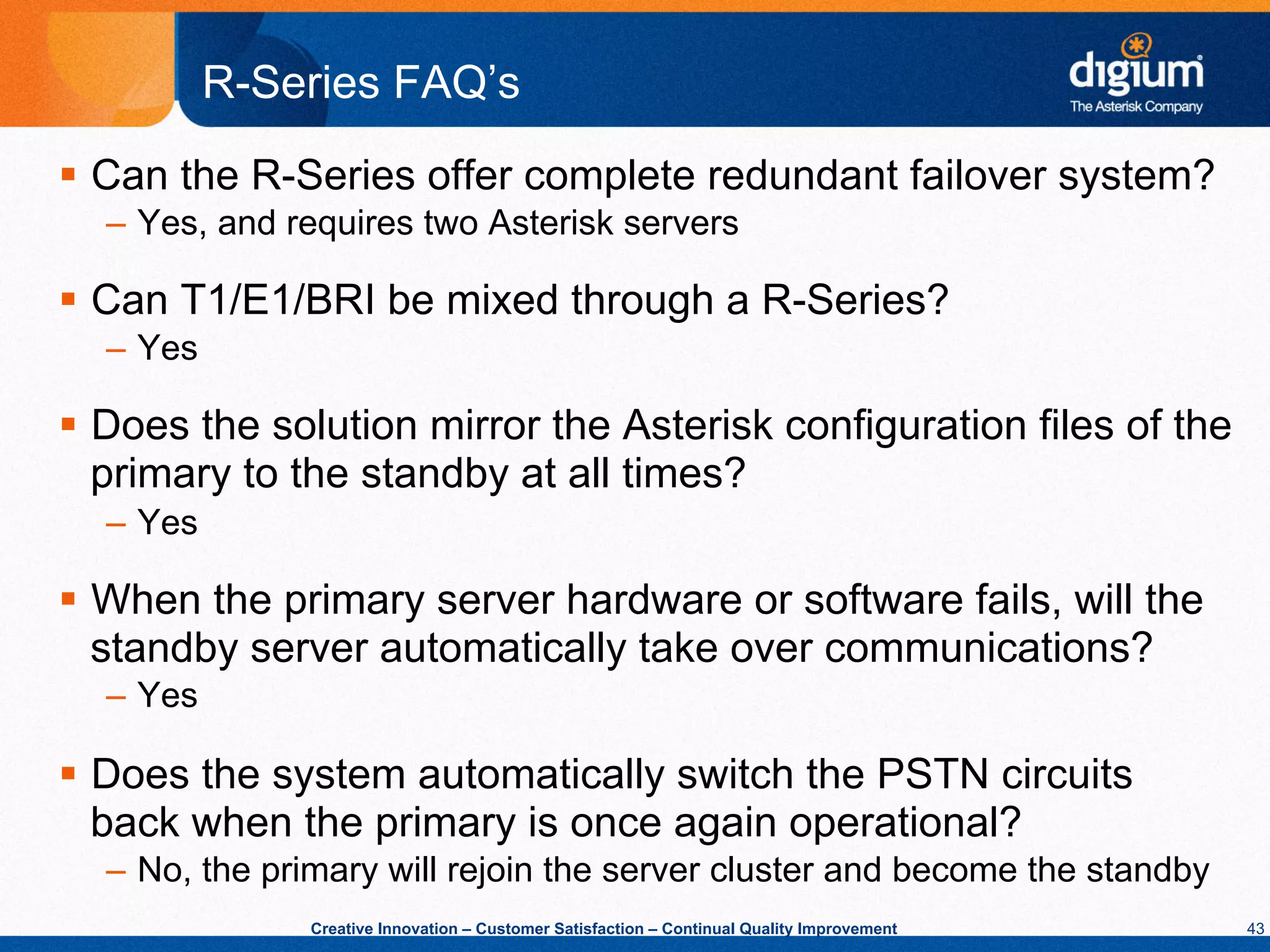

- 43. R-Series FAQ’s § Canthe R-Series offer complete redundant failover system? – Yes, and requires two Asterisk servers § Can T1/E1/BRI be mixed through a R-Series? – Yes § Does the solution mirror the Asterisk configuration files of the primary to the standby at all times? – Yes § When the primary server hardware or software fails, will the standby server automatically take over communications? – Yes § Does the system automatically switch the PSTN circuits back when the primary is once again operational? – No, the primary will rejoin the server cluster and become the standby Creative Innovation – Customer Satisfaction – Continual Quality Improvement 43

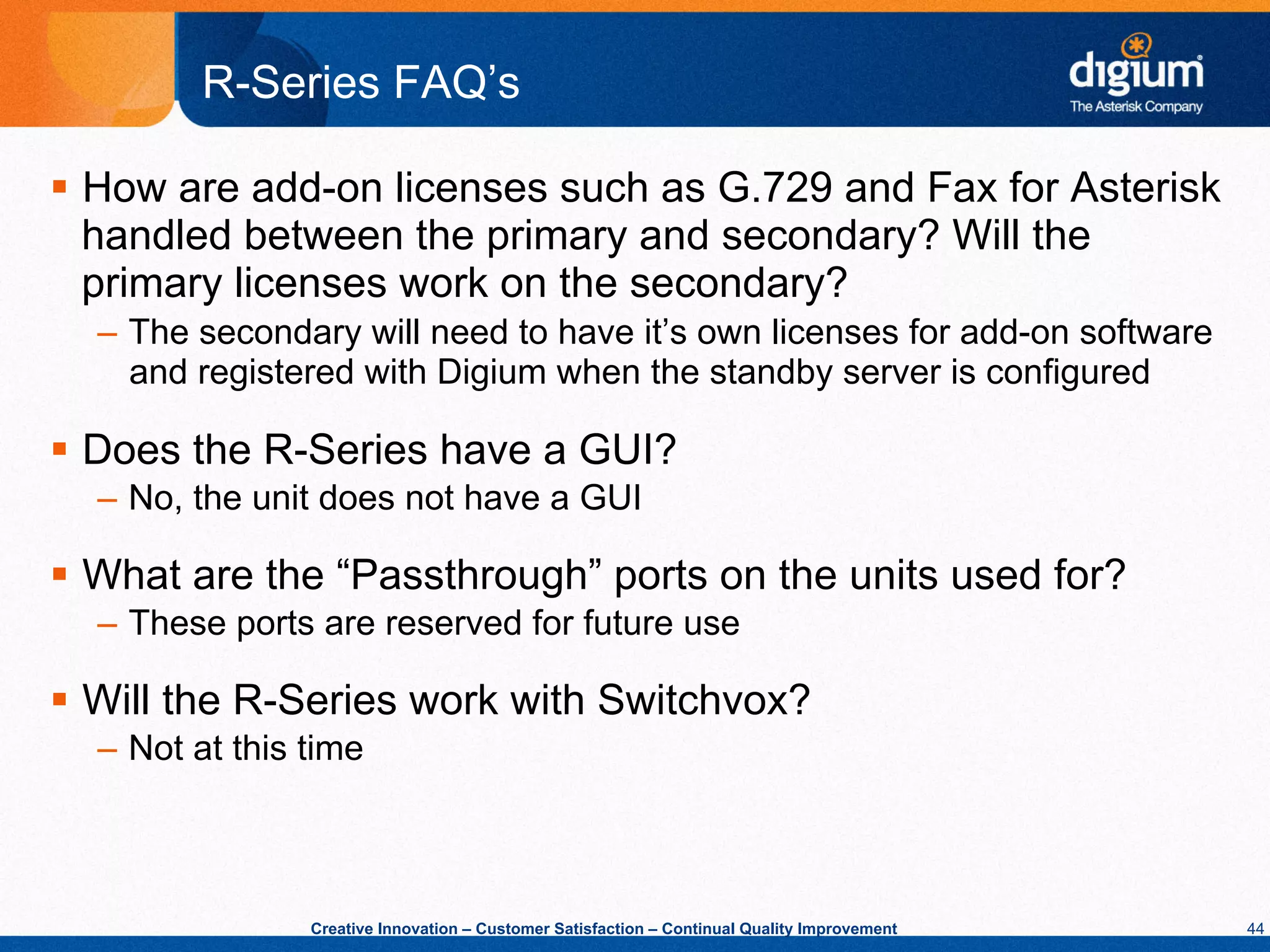

- 44. R-Series FAQ’s § Howare add-on licenses such as G.729 and Fax for Asterisk handled between the primary and secondary? Will the primary licenses work on the secondary? – The secondary will need to have it’s own licenses for add-on software and registered with Digium when the standby server is configured § Does the R-Series have a GUI? – No, the unit does not have a GUI § What are the “Passthrough” ports on the units used for? – These ports are reserved for future use § Will the R-Series work with Switchvox? – Not at this time Creative Innovation – Customer Satisfaction – Continual Quality Improvement 44
- 45. Digium Cards: Contributing toAsterisk Open Source since 2002
- 46. TE820 and VPMOCT256 § Newest Edition to the Digital Boards § 8 T1/E1/J1/PRI Capable § 256 Channel Echo Cancelation Available § DAHDI 2.6 Required Creative Innovation – Customer Satisfaction – Continual Quality Improvement 46

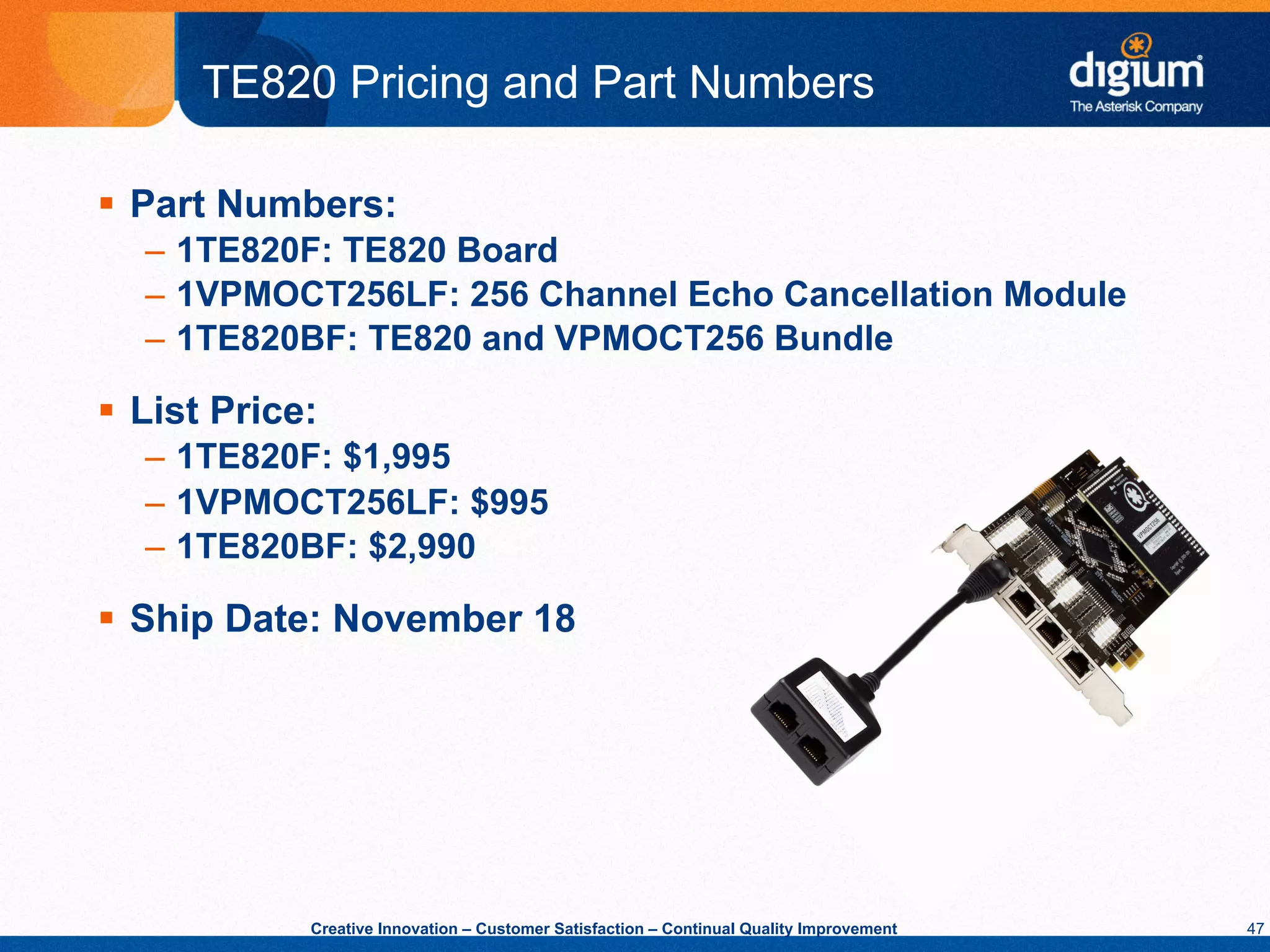

- 47. TE820 Pricing andPart Numbers § Part Numbers: – 1TE820F: TE820 Board – 1VPMOCT256LF: 256 Channel Echo Cancellation Module – 1TE820BF: TE820 and VPMOCT256 Bundle § List Price: – 1TE820F: $1,995 – 1VPMOCT256LF: $995 – 1TE820BF: $2,990 § Ship Date: November 18 Creative Innovation – Customer Satisfaction – Continual Quality Improvement 47

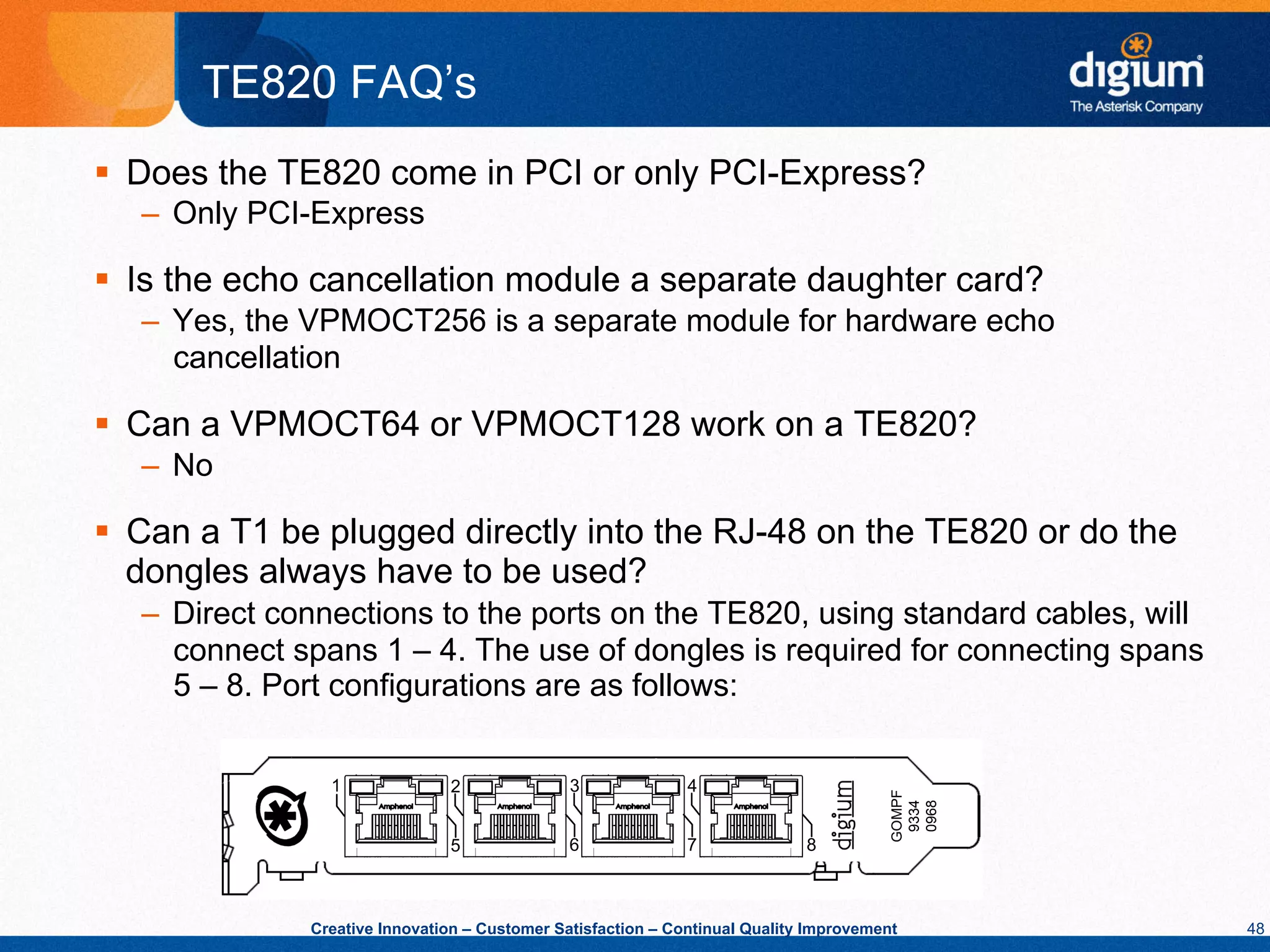

- 48. TE820 FAQ’s § Doesthe TE820 come in PCI or only PCI-Express? – Only PCI-Express § Is the echo cancellation module a separate daughter card? – Yes, the VPMOCT256 is a separate module for hardware echo cancellation § Can a VPMOCT64 or VPMOCT128 work on a TE820? – No § Can a T1 be plugged directly into the RJ-48 on the TE820 or do the dongles always have to be used? – Direct connections to the ports on the TE820, using standard cables, will connect spans 1 – 4. The use of dongles is required for connecting spans 5 – 8. Port configurations are as follows: Creative Innovation – Customer Satisfaction – Continual Quality Improvement 48

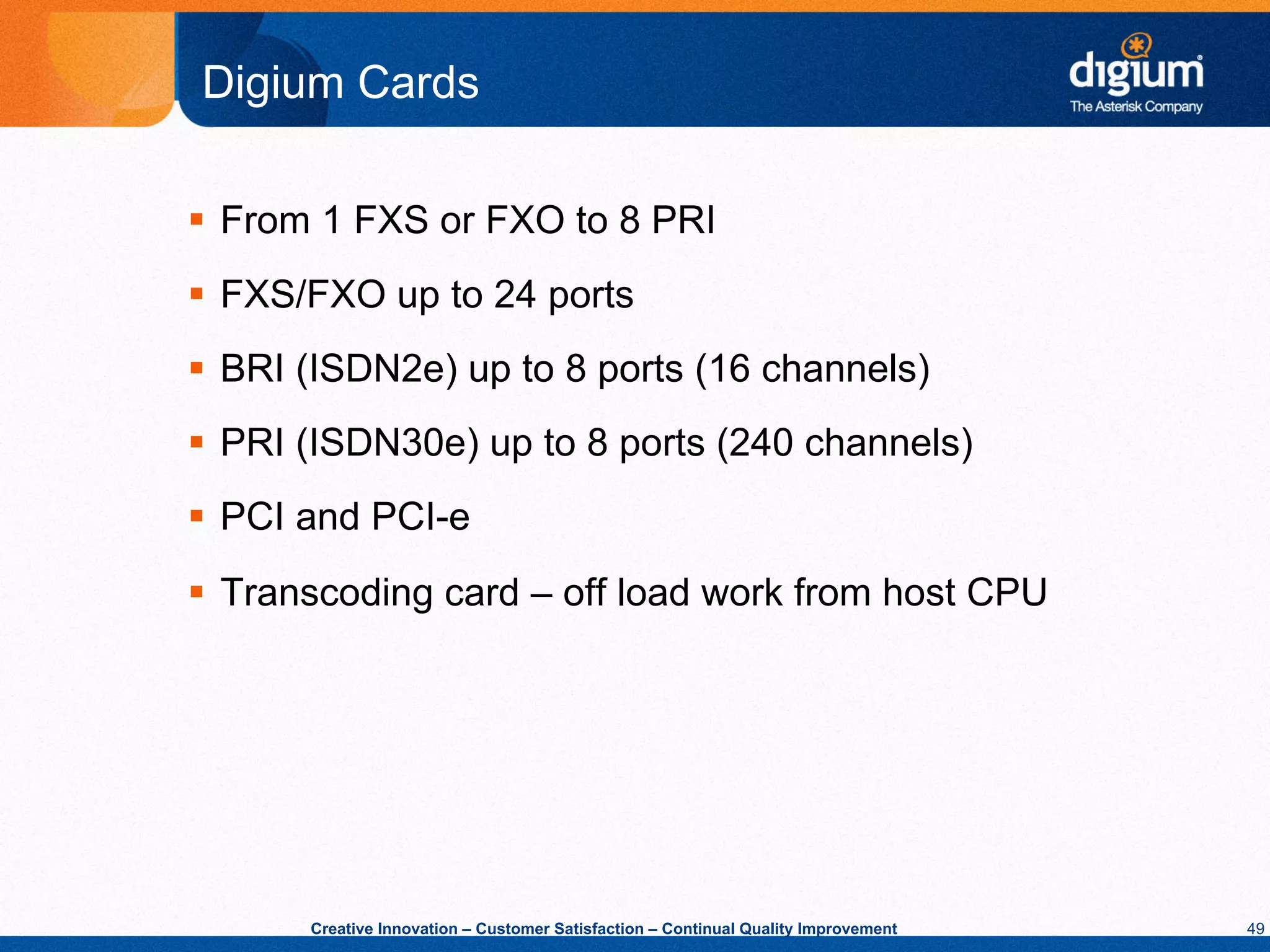

- 49. Digium Cards § From1 FXS or FXO to 8 PRI § FXS/FXO up to 24 ports § BRI (ISDN2e) up to 8 ports (16 channels) § PRI (ISDN30e) up to 8 ports (240 channels) § PCI and PCI-e § Transcoding card – off load work from host CPU Creative Innovation – Customer Satisfaction – Continual Quality Improvement 49
- 50. In Summary § Digiumhas EVERYTHING you need for a total solution § …from the people that created Creative Innovation – Customer Satisfaction – Continual Quality Improvement 50
