EXIACore is software that provides all the features of a proprietary PBX through an intuitive web interface without licensing costs. It allows real-time intelligent call management and integration with other applications. EXIACore offers advantages over competitors by providing personal customer attention, flexibility, and easy management without programming knowledge. It also enables unified communications and integration between Asterisk and other systems.

1. EXIACore
EXternal Intelligent Asterisk Core
CONEXIONA TELECOM S.L.
January 2012
EXIAcore

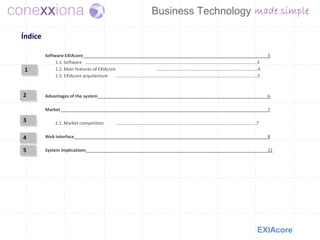

2. Índice
Software EXIAcore 3
1.1. Software ………………………................……………………………………………………………………………………………..3
1 1.2. Main features of EXIAcore …………………………………………..……………………………......4
1.3. EXIAcore arquitecture …………………………………………………………………………………..…………………………5
2 Advantages of the system 6
Market 7
3 2.1. Market competition …………………………………………………………………………………………………………….7
4 Web interface 8
5 System implications 11
EXIAcore

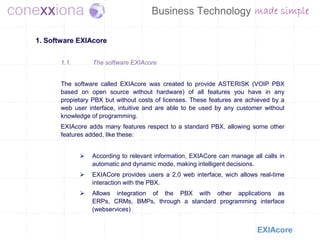

3. 1. Software EXIAcore
1.1. The software EXIAcore
The software called EXIAcore was created to provide ASTERISK (VOIP PBX
based on open source without hardware) of all features you have in any
propietary PBX but without costs of licenses. These features are achieved by a
web user interface, intuitive and are able to be used by any customer without
knowledge of programming.
EXIAcore adds many features respect to a standard PBX, allowing some other
features added, like these:
 According to relevant information, EXIACore can manage all calls in
automatic and dynamic mode, making intelligent decisions.
 EXIACore provides users a 2.0 web interface, wich allows real-time
interaction with the PBX.
 Allows integration of the PBX with other applications as
ERPs, CRMs, BMPs, through a standard programming interface
(webservices)
EXIAcore

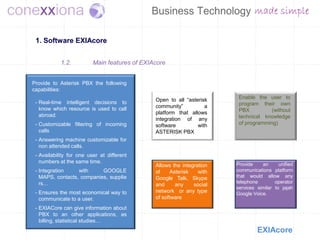

4. 1. Software EXIAcore
1.2. Main features of EXIAcore
Provide to Asterisk PBX the following
capabilities:
Open to all “asterisk Enable the user to
- Real-time intelligent decisions to program their own
know which resource is used to call community” a
platform that allows PBX (without
abroad. technical knowledge
integration of any
- Customizable filtering of incoming software with of programming)
calls ASTERISK PBX
- Answering machine customizable for
non attended calls.
- Availability for one user at different
numbers at the same time. Provide an unified
Allows the integration
- Integration with GOOGLE of Asterisk with communications platform
MAPS, contacts, companies, supplie Google Talk, Skype that would allow any
rs… telephone operator
and any social
services similar to jajah
- Ensures the most economical way to network or any type Google Voice.
communicate to a user. of software
- EXIACore can give information about
PBX to an other applications, as
billing, statistical studies…
EXIAcore

5. 1. Software EXIAcore

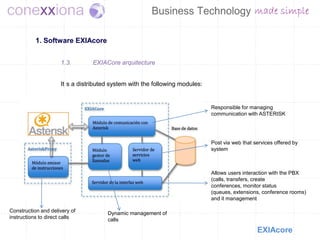

1.3. EXIACore arquitecture
It s a distributed system with the following modules:
Responsible for managing
communication with ASTERISK
Post via web that services offered by
system
Allows users interaction with the PBX
(calls, transfers, create
conferences, monitor status
(queues, extensions, conference rooms)
and it management
Construction and delivery of Dynamic management of
instructions to direct calls calls
EXIAcore

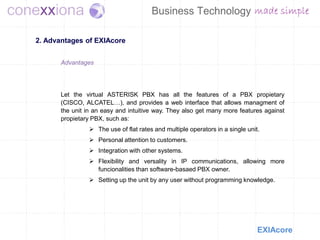

6. 2. Advantages of EXIAcore
Advantages
Let the virtual ASTERISK PBX has all the features of a PBX propietary
(CISCO, ALCATEL…), and provides a web interface that allows managment of
the unit in an easy and intuitive way. They also get many more features against
propietary PBX, such as:
 The use of flat rates and multiple operators in a single unit.
 Personal attention to customers.
 Integration with other systems.
 Flexibility and versality in IP communications, allowing more
funcionalities than software-basaed PBX owner.
 Setting up the unit by any user without programming knowledge.
EXIAcore

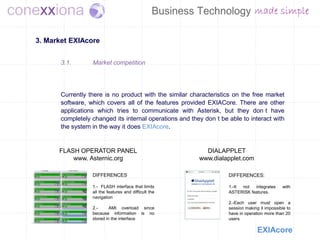

7. 3. Market EXIAcore
3.1. Market competition
Currently there is no product with the similar characteristics on the free market
software, which covers all of the features provided EXIACore. There are other
applications which tries to communicate with Asterisk, but they don t have
completely changed its internal operations and they don t be able to interact with
the system in the way it does EXIAcore.
FLASH OPERATOR PANEL DIALAPPLET
www. Asternic.org www.dialapplet.com
DIFFERENCES DIFFERENCES:
1.- FLASH interface that limits 1.-It not integrates with
all the features and difficult the ASTERISK features.
navigation
2.-Each user must open a
2.- AMI overload since session making it impossible to
because information is no have in operation more than 20
stored in the interface users
EXIAcore

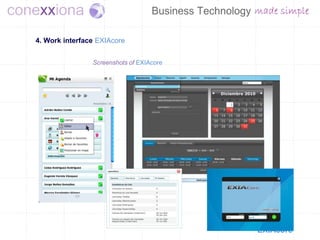

8. 4. Work interface EXIAcore
Screenshots of EXIAcore
EXIAcore

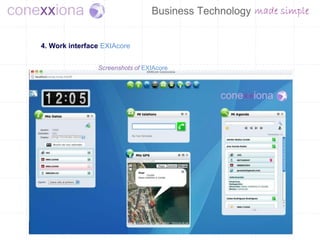

9. 4. Work interface EXIAcore
Screenshots of EXIAcore
EXIAcore

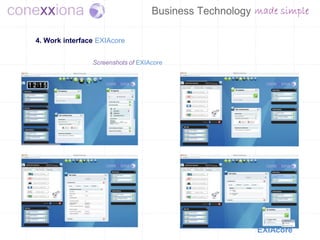

10. 4. Work interface EXIAcore
Screenshots of EXIAcore
EXIAcore

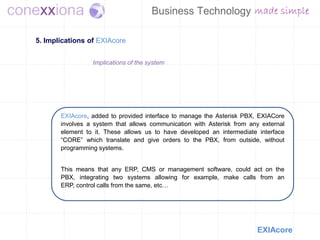

11. 5. Implications of EXIAcore
Implications of the system
EXIAcore, added to provided interface to manage the Asterisk PBX, EXIACore
involves a system that allows communication with Asterisk from any external
element to it. These allows us to have developed an intermediate interface
“CORE” which translate and give orders to the PBX, from outside, without
programming systems.
This means that any ERP, CMS or management software, could act on the
PBX, integrating two systems allowing for example, make calls from an
ERP, control calls from the same, etc…
