Televic: Plixus – The Conferencing Networking
The document details the advanced audiovisual equipment and conference technology offered by Televic for various sectors, including the European Parliament and international institutions. It highlights features such as high-quality video and audio transmission, customizable microphone solutions, and secure network architecture. Televic emphasizes innovative design, reliability, and a modular approach to meet the needs of modern conferencing and communication systems.
More Related Content
Similar to Televic: Plixus – The Conferencing Networking
Televic: Plixus – The Conferencing Networking

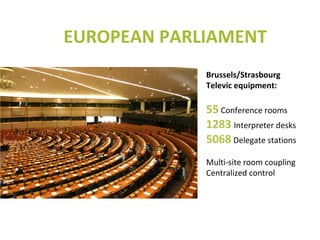

- 6. Brussels/Strasbourg Televic equipment: 55 Conferencerooms 1283 Interpreter desks 5068 Delegate stations Multi-site room coupling Centralized control EUROPEAN PARLIAMENT
- 7. Vertical Markets INTERNATIONAL INSTITUTIONS PARLIAMENTS MUNICIPALITIES & CITYHALLS EDUCATION & CONGRESS CORPORATE RENTAL & EVENTS
- 8.
- 9. MORE BANDWIDTH &LESS LATENCY Proprietary protocol with reserved bandwidth for audio and video o Transport of video: 1080p/60 at extremely low latency (< 1 frame) o Transport of audio: 64 channels, sampled at 48kHz, uncompressed Tunneling of regular IP traffic -> audio and video not affected Performance Security Reliability 1 2 3 FULLY ISOLATED NETWORK IP tunneling: no viruses possible Closed architecture on mission critial part of network No third party devices allowed on Plixus conference network => No accountability issues But open architecture by Dante interface on Plixus engine for communication with 3rd party systems SELF-HEALING TECHNOLOGY Automated re-routing of data packets in case of cable/unit failure (no in/out) Redundancy through loop cabling hot swapping for a minimized possibility of downtime Unique Benefits

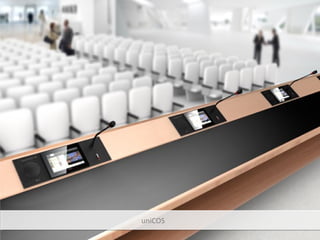

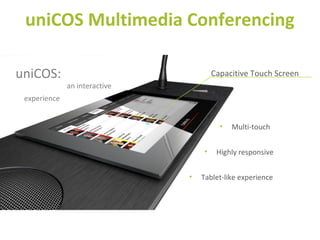

- 10. uniCOS Multimedia Conferencing CapacitiveTouch ScreenuniCOS: an interactive experience • Multi-touch • Highly responsive • Tablet-like experience
- 11. Confidea T –Plixus driven Microphone activiation Request to speak Microphone ‘on’ indication Next-in-line button (chairman) Priority button (chairman) Voting buttons (3 or 5) RFID card reader Built-in loadspeaker Information display for selected channel, corresponding language and volume control Headphone connectors Headphone volume adjustment Language channel selection Removable gooseneck microphone

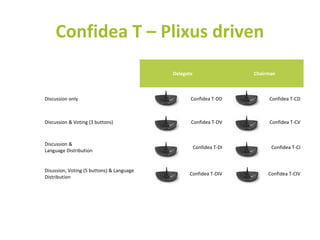

- 12. Delegate Chairman Discussion onlyConfidea T-DD Confidea T-CD Discussion & Voting (3 buttons) Confidea T-DV Confidea T-CV Discussion & Language Distribution Confidea T-DI Confidea T-CI Disussion, Voting (5 buttons) & Language Distribution Confidea T-DIV Confidea T-CIV Confidea T – Plixus driven
- 13. Microphone activiation Request tospeak Microphone ‘on’ indication Next-in-line button (chairman) Priority button (chairman) Voting buttons RFID card reader Built-in loadspeaker Information display for selected channel, corresponding language and volume control Headphone connector Headphone volume adjustment Language channel selection Removable gooseneck microphone Confidea F – Plixus driven
- 14. Delegate Chairman Microphone onlyConfidea F-DM Confidea F-CM Discussion only Confidea F-DD Confidea F-CD Discussion & Voting Confidea F-DV Confidea F-CV Discussion & Language Distribution Confidea F-DI Confidea F-CI Disussion, Voting & Language Distribution Confidea F-DIV Confidea F-CIV Channel Selector for Passive Listening Confidea F-CS Confidea F – Plixus driven

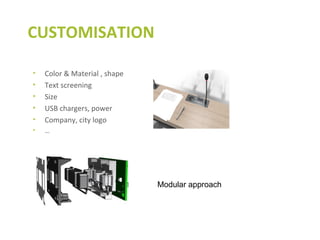

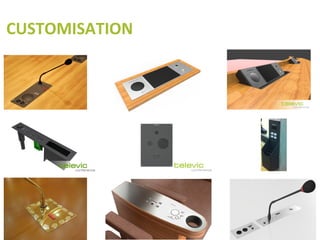

- 15. • Color &Material , shape • Text screening • Size • USB chargers, power • Company, city logo • … CUSTOMISATION Modular approach
- 16.

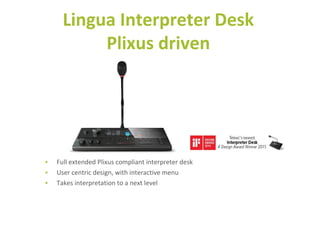

- 17. • Full extendedPlixus compliant interpreter desk • User centric design, with interactive menu • Takes interpretation to a next level Lingua Interpreter Desk Plixus driven

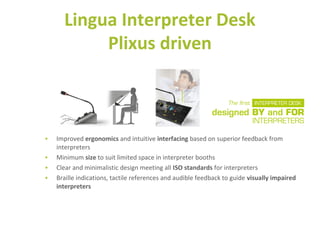

- 18. • Improved ergonomicsand intuitive interfacing based on superior feedback from interpreters • Minimum size to suit limited space in interpreter booths • Clear and minimalistic design meeting all ISO standards for interpreters • Braille indications, tactile references and audible feedback to guide visually impaired interpreters Lingua Interpreter Desk Plixus driven

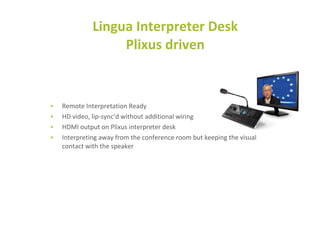

- 19. • Remote InterpretationReady • HD video, lip-sync’d without additional wiring • HDMI output on Plixus interpreter desk • Interpreting away from the conference room but keeping the visual contact with the speaker Lingua Interpreter Desk Plixus driven
- 20.
- 21.

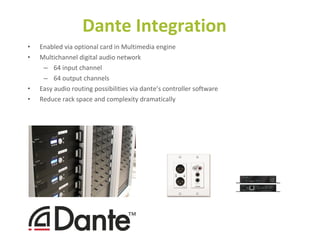

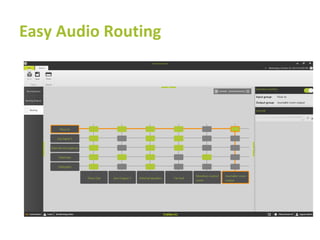

- 22. • Enabled viaoptional card in Multimedia engine • Multichannel digital audio network – 64 input channel – 64 output channels • Easy audio routing possibilities via dante’s controller software • Reduce rack space and complexity dramatically Dante Integration
- 23.

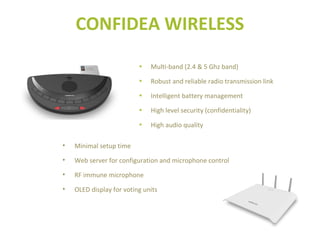

- 24. • Minimal setuptime • Web server for configuration and microphone control • RF immune microphone • OLED display for voting units • Multi-band (2.4 & 5 Ghz band) • Robust and reliable radio transmission link • Intelligent battery management • High level security (confidentiality) • High audio quality CONFIDEA WIRELESS

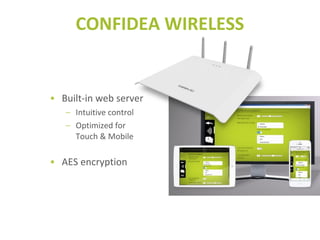

- 25. • Built-in webserver – Intuitive control – Optimized for Touch & Mobile • AES encryption CONFIDEA WIRELESS

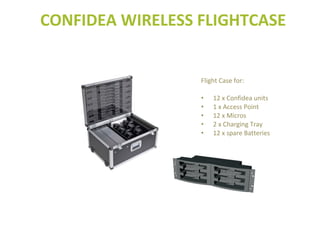

- 26. Flight Case for: •12 x Confidea units • 1 x Access Point • 12 x Micros • 2 x Charging Tray • 12 x spare Batteries CONFIDEA WIRELESS FLIGHTCASE
- 28.

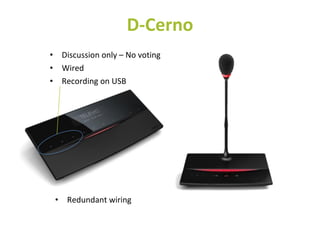

- 29. • Discussion only– No voting • Wired • Recording on USB D-Cerno • Redundant wiring

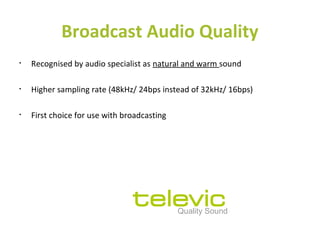

- 30. Broadcast Audio Quality •Recognised by audio specialist as natural and warm sound • Higher sampling rate (48kHz/ 24bps instead of 32kHz/ 16bps) • First choice for use with broadcasting Quality Sound
- 32. CONTINUOUS INNOVATION FULL PORTFOLIO MASSIVEWORLDWIDE REFERENCES FLEXIBLE FOR CUSTOMISATION BROADCAST QUALITY SOUND QUADBAND WIRELESS FROM SMALL CITY HALLS TO LARGE INSTITUTIONS
- 33. HIGHTECH COMMUNICATIONS SYSTEMS for5 specific niche markets RAIL EDUCATION AUDIOVISUAL CONFERENCE HEALTHCARE WE BUILDWE CREATE WE DELIVERresearch-based solutions unique customized servicesHigh quality products
- 34. Some FACTS &FIGURES
- 35. BELGIUM (3)UK FRANCE BULGARIA INDIA CHINA(2) GERMANY 10 SITES across the globe

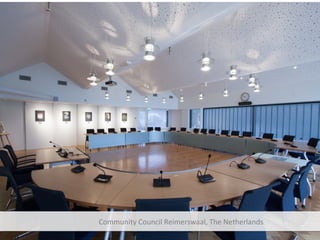

- 36. Community Council Reimerswaal,The Netherlands
- 37.

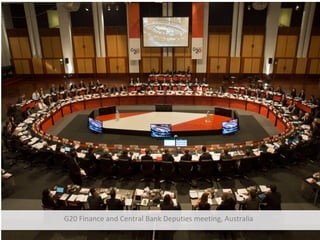

- 38. G20 Finance andCentral Bank Deputies meeting, Australia
- 39.
- 40.
- 41.
Editor's Notes
- #5 EGKS – EEC 1958 – 6 countries but rapidly growing to finally 28 Huge need for conference, interpreting etc - &gt; Televic
- #12 RFID: Authentication / Identification / free seating Automatic configuration (eg. audio parameters, preferred language, …) Voting rights Authority rights for votingsampling rate: 48kHz ipv 32 + 24bits/audio sample ipv 16
- #31 Higher sampling rate (48kHz/ 24bps instead of 32kHz/ 16bps)
