Diffusion, osmosis, and active transport practice questions
- 1. GCSE Biology Practice Questions Year 11 Diffusion, Osmosis, and Active Transport Name: __________________________________ Total Marks Achieved: ________________ Total Marks Available: ________________ Grade / Level: ________________
- 2. Questions Q1. (a)The table lists some structures that provide a large surface area for the diffusion of substances. Complete the table by naming the organ in which each structure is found. The first one has been done for you. (3) (b) What is meant by the term diffusion? (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (c) The nephron is involved in the removal of substances from the blood. Describe how substances are removed from the blood into the nephron. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (Total for question = 7 marks)

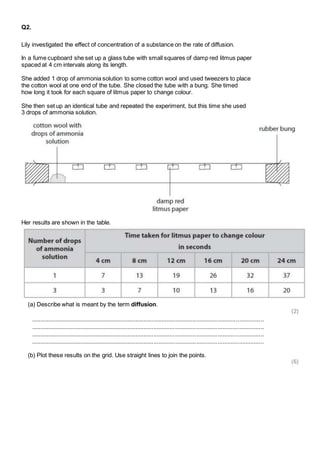

- 3. Q2. Lily investigatedthe effect of concentration of a substance on the rate of diffusion. In a fume cupboard she set up a glass tube with small squares of damp red litmus paper spaced at 4 cm intervals along its length. She added 1 drop of ammonia solution to some cotton wool and used tweezers to place the cotton wool at one end of the tube. She closed the tube with a bung. She timed how long it took for each square of litmus paper to change colour. She then set up an identical tube and repeated the experiment, but this time she used 3 drops of ammonia solution. Her results are shown in the table. (a) Describe what is meant by the term diffusion. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (b) Plot these results on the grid. Use straight lines to join the points. (6)

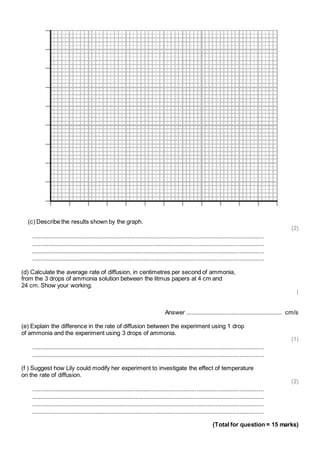

- 4. (c) Describe theresults shown by the graph. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (d) Calculate the average rate of diffusion, in centimetres per second of ammonia, from the 3 drops of ammonia solution between the litmus papers at 4 cm and 24 cm. Show your working. ( Answer ........................................................... cm/s (e) Explain the difference in the rate of diffusion between the experiment using 1 drop of ammonia and the experiment using 3 drops of ammonia. (1) .............................................................................................................................................. .............................................................................................................................................. (f ) Suggest how Lily could modify her experiment to investigate the effect of temperature on the rate of diffusion. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (Total for question = 15 marks)

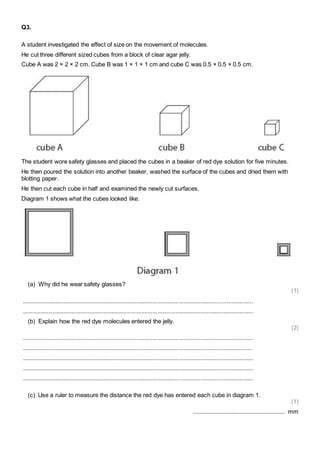

- 5. Q3. A studentinvestigated the effect of size on the movement of molecules. He cut three different sized cubes from a block of clear agar jelly. Cube A was 2 × 2 × 2 cm. Cube B was 1 × 1 × 1 cm and cube C was 0.5 × 0.5 × 0.5 cm. The student wore safety glasses and placed the cubes in a beaker of red dye solution for five minutes. He then poured the solution into another beaker, washed the surface of the cubes and dried them with blotting paper. He then cut each cube in half and examined the newly cut surfaces. Diagram 1 shows what the cubes looked like. (a) Why did he wear safety glasses? (1) ............................................................................................................................................. ............................................................................................................................................. (b) Explain how the red dye molecules entered the jelly. (2) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. (c) Use a ruler to measure the distance the red dye has entered each cube in diagram 1. (1) ......................................................... mm

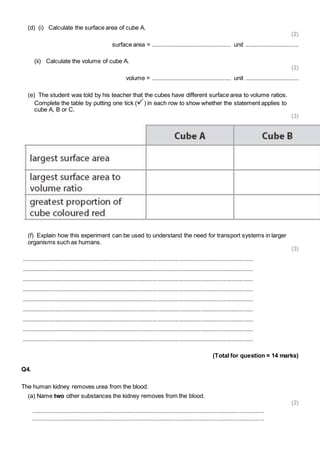

- 6. (d) (i) Calculatethe surface area of cube A. (2) surface area = ................................................. unit ................................. (ii) Calculate the volume of cube A. (2) volume = ................................................. unit ................................. (e) The student was told by his teacher that the cubes have different surface area to volume ratios. Complete the table by putting one tick ( ) in each row to show whether the statement applies to cube A, B or C. (3) (f) Explain how this experiment can be used to understand the need for transport systems in larger organisms such as humans. (3) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. (Total for question = 14 marks) Q4. The human kidney removes urea from the blood. (a) Name two other substances the kidney removes from the blood. (2) .............................................................................................................................................. ..............................................................................................................................................
- 7. (b) The diagramshows a simple kidney machine that uses dialysis to remove urea from the blood. Dialysis allows small molecules to be removed from the blood. This is done by passing the dialysis solution over the tube containing the blood. The small molecules move from a region of high concentration to a region of low concentration. (i) Give one way in which dialysis is similar to diffusion. (1) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (ii) Give one way in which dialysis is similar to osmosis. (1) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (iii) Describe how the kidney machine removes urea from the blood. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (iv) Another function of the kidney machine is to maintain normal blood glucose concentration. Suggest how the concentration of glucose in the dialysis solution helps to maintain a normal glucose concentration in the blood. (2) .............................................................................................................................................. .............................................................................................................................................. ..............................................................................................................................................

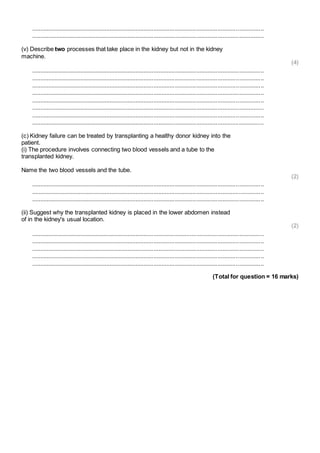

- 8. .............................................................................................................................................. .............................................................................................................................................. (v)Describe two processes that take place in the kidney but not in the kidney machine. (4) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (c) Kidney failure can be treated by transplanting a healthy donor kidney into the patient. (i) The procedure involves connecting two blood vessels and a tube to the transplanted kidney. Name the two blood vessels and the tube. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (ii) Suggest why the transplanted kidney is placed in the lower abdomen instead of in the kidney's usual location. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (Total for question = 16 marks)

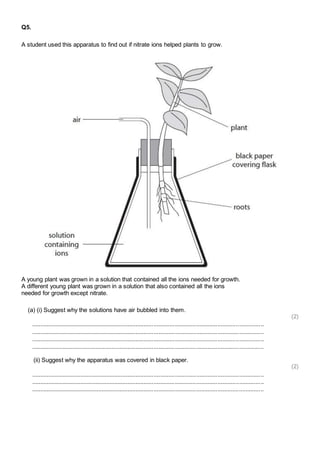

- 9. Q5. A studentused this apparatus to find out if nitrate ions helped plants to grow. A young plant was grown in a solution that contained all the ions needed for growth. A different young plant was grown in a solution that also contained all the ions needed for growth except nitrate. (a) (i) Suggest why the solutions have air bubbled into them. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (ii) Suggest why the apparatus was covered in black paper. (2) .............................................................................................................................................. .............................................................................................................................................. ..............................................................................................................................................
- 10. (b) The diagramshows the young plants after 55 days of growth. (i) Measure the length of the plants in mm and write your answers below. (2) plant grown in the solution containing all the ions ........................................................................... mm plant grown in the solution without nitrate ions .................................................................................. mm (ii) Suggest how the student could make the results of the investigation more reliable. (1) .............................................................................................................................................. .............................................................................................................................................. (iii) Suggest two factors, not seen in the diagram, that the student should keep the same for both plants while they are growing. (2) .............................................................................................................................................. .............................................................................................................................................. (c) Explain the consequences of fertiliser containing nitrates polluting a river. (6) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. ..............................................................................................................................................
- 11. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (Total for question = 15 marks)

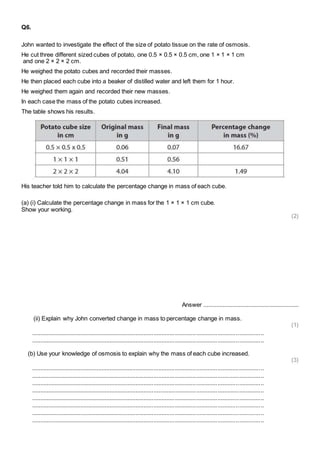

- 12. Q6. John wantedto investigate the effect of the size of potato tissue on the rate of osmosis. He cut three different sized cubes of potato, one 0.5 × 0.5 × 0.5 cm, one 1 × 1 × 1 cm and one 2 × 2 × 2 cm. He weighed the potato cubes and recorded their masses. He then placed each cube into a beaker of distilled water and left them for 1 hour. He weighed them again and recorded their new masses. In each case the mass of the potato cubes increased. The table shows his results. His teacher told him to calculate the percentage change in mass of each cube. (a) (i) Calculate the percentage change in mass for the 1 × 1 × 1 cm cube. Show your working. (2) Answer ........................................................... (ii) Explain why John converted change in mass to percentage change in mass. (1) .............................................................................................................................................. .............................................................................................................................................. (b) Use your knowledge of osmosis to explain why the mass of each cube increased. (3) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. ..............................................................................................................................................

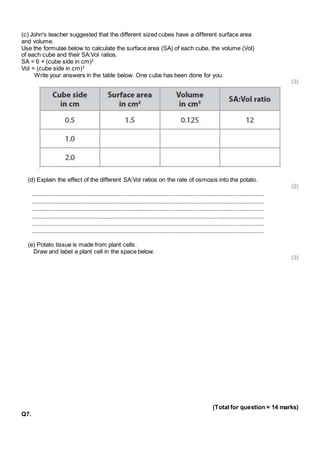

- 13. (c) John's teachersuggested that the different sized cubes have a different surface area and volume. Use the formulae below to calculate the surface area (SA) of each cube, the volume (Vol) of each cube and their SA:Vol ratios. SA = 6 × (cube side in cm)2 Vol = (cube side in cm)3 Write your answers in the table below. One cube has been done for you. (3) (d) Explain the effect of the different SA:Vol ratios on the rate of osmosis into the potato. (2) .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. .............................................................................................................................................. (e) Potato tissue is made from plant cells. Draw and label a plant cell in the space below. (3) (Total for question = 14 marks) Q7.
- 14. A student preparedsome plant cells taken from an onion. She placed the cells in a few drops of distilled water. She then used a camera attached to a microscope to photograph the cells. She then added a few drops of concentrated salt solution to the cells and waited a few minutes. She then took another photograph of the same cells. (a) Describe the differences in the appearance of the cells in concentrated salt solution compared with the cells in distilled water. (2) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. (b) The student thought that the differences in the cells were caused by osmosis. What is meant by the term osmosis? (2) ............................................................................................................................................. .............................................................................................................................................

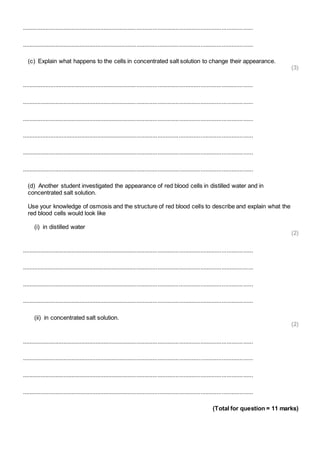

- 15. ............................................................................................................................................. ............................................................................................................................................. (c)Explain what happens to the cells in concentrated salt solution to change their appearance. (3) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. (d) Another student investigated the appearance of red blood cells in distilled water and in concentrated salt solution. Use your knowledge of osmosis and the structure of red blood cells to describe and explain what the red blood cells would look like (i) in distilled water (2) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. (ii) in concentrated salt solution. (2) ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. ............................................................................................................................................. (Total for question = 11 marks)
- 16. Q8. (a) Thediagram shows a plant cell drawn by a student. (i) Label the diagram to show the selectively permeable membrane. (1) (ii) Name three parts of a typical plant cell that are not found in an animal cell. (3) 1 ..................................................................................................................................................................... ................................... 2 ..................................................................................................................................................................... ................................... 3 ..................................................................................................................................................................... ................................... (b) The diagram shows a glass container divided in half by a selectively permeable membrane. One half contains water and the other half contains sucrose solution.

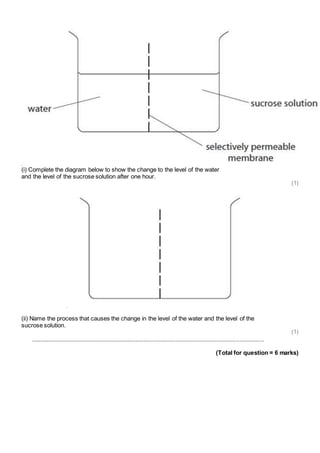

- 17. (i) Complete thediagram below to show the change to the level of the water and the level of the sucrose solution after one hour. (1) (ii) Name the process that causes the change in the level of the water and the level of the sucrose solution. (1) .............................................................................................................................................. (Total for question = 6 marks)
- 18.
- 20.
- 23.
- 25.
- 28.
- 30.
- 33.
- 36.
