1. Developing Applications
with Cisco OpenStack
Private Cloud
@vallard
DevNet

2. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
A New Startup!

3. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
• Keep as much in-house as possible
• Build for Portability
• Automate all the things
• Use containers
Requirements
3

4. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
• Cisco OpenStack Private Cloud (formerly Metacloud)
• CoreOS
• Docker
• Gitlab
• Jenkins
• Slack
• Ansible
What it Takes

5. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003

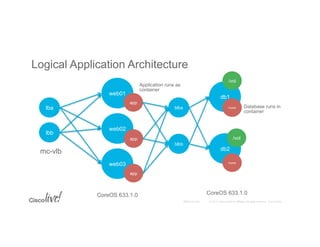

Logical Application Architecture
lba
mc-vlb
lbb
web01
web02
web03
CoreOS 633.1.0
app
app
app
Application runs as
container
blba
blbb
db1
db2
mysql
mysql
/vol
/vol
CoreOS 633.1.0
Database runs in
container

6. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
web-1-n

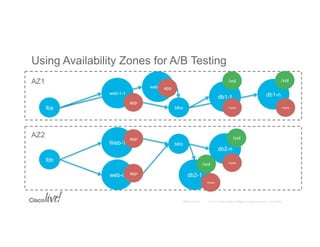

Using Availability Zones for A/B Testing
lba
lbb
web-1-1
Web-1
web-n
app
app
app
blba
blbb
db1-1
db2-n
mysql
mysql
/vol
/vol
db1-n
/vol
mysql
app
AZ1
AZ2
db2-1
mysql
/vol

7. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Using Projects
lbb
Web-1
web-n
app
app
blbb
db2-n
mysql
/vol
AZ1
db2-1
mysql
/vol
App-Prod1 DB-Prod1

8. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 8
Love in an Elevator
(Autoscaling)
• No Cielometer
• Build it yourself
• Salt Stack
• Mesos/ Consul
• Scripts that monitor and
do alerts e.g: Nagios
(yes, Nagios)
• Third Party Solutions

9. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
New in April Release
nova server-group-create –policy anti-affinity group-1
nova boot –image IMAGE_ID –flavor FLAVOR_ID –hint
group-SERVER_GROUP_UUID web01
nova server-group-list
Anti Affinity Rules

10. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
• Logging
• Analyzing Data
• (results of our A/B testing)
Analytics and Logging
Controller 1 Controller 2 Controller 3
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Hypervisor
Aggregate Designated
for BigData

11. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Jenkins
Continuous
Integration
Service
Developer
pushes
commits
Build new
Container /
Run Tests
Push to
production
New Metacloud
Instance created
1 2 3 4 5 6
Push to Local
Registry
Source Code
Repository
Developers are
notified
Ansible was used
to build all servers

12. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Bring up the Dev Env!
12

13. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Development Architecture
CoreOS
633.1.0
LG-dev
Jenkins
:8080
/vol
Registry
:5000
GitLab
:10080
:10022
nginx
:80
postgresql
redis

14. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 14

15. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Make sure our credentials work!
15

16. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 16

17. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 17
The only state in the entire system is held in the volume that is mounted to the
dev machine. (hostname: ci)

18. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 18
Nginx proxy
Requests for port 80
http://jenkins.lawngnomed.com
http://gitlab.lawngnomed.com
http://registry.lawngnomed.com
* Registry disabled because not
secured.
Registry :5000
Mounts /vol/docker-registry
Jenkins :8080
Mounts: /vol/jenkins_home
Gitlab :10022,10080
Mounts: /vol/jenkins_home
* Redis & Postgres maintain
state in
/vol/redis & /vol/postgresql

19. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 19
Steven Tyler Tip
“Feel free to experiment… You can
use any configuration management
tool in place of Ansible.”

20. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 20
Ansible Playbook
to deploy Dev Server

21. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Allow for insecure registries
21

22. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 22
Pro-Tip
Put SSH credentials in
~/.ssh/config
Host lg-dev
User core
Hostname 38.84.67.179
IdentityFile ~/.ssh/tco-gold.pem
ssh –i ~/.ssh/tco-gold.pem core@38.84.67.179
ssh lg-dev

23. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Web & Load Balancers
23

24. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003

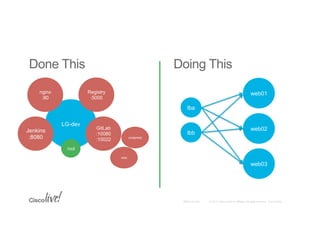

Done This Doing This
lba
lbb
web01
web02
web03
LG-dev
Jenkins
:8080
/vol
Registry
:5000
GitLab
:10080
:10022
nginx
:80
postgresql
redis

25. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 25
Ansible Playbook
to deploy load balancers
Use Metacloud provided
image and flavor

26. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 26
Ansible Playbook
to deploy Web Servers
• No floating IP

27. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 27
Install Python
Insecure Registry

28. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Jenkins CI Setup
28

29. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Jenkins
Continuous
Integration
Service
Developer
pushes
commits
Build new
Container /
Run Tests
Push to
production
New Metacloud
Instance created
1 2 3 4 5 6
Push to Local
Registry
Source Code
Repository
Developers are
notified
Continuous Integration
Continuous Delivery

30. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
• Creat Jenkins User in
Metacloud
• Use Packer or Build
image in Cisco
OpenStack Private
Cloud
• Copy Jenkins keys so
jenkins can login
Jenkins Slave
http://www.redguava.com.au/2014/03/jenkins-slaves-running-coreos-and-docker/

31. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Jenkins Plugins

32. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Manage Jenkins
32
From Manage Jenkins / Configure System

33. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 33
Add the slave image

34. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 34

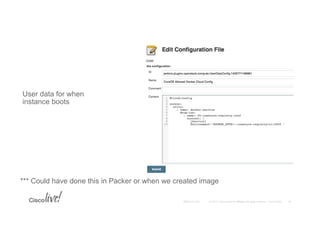

User data for when
instance boots
*** Could have done this in Packer or when we created image

35. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003

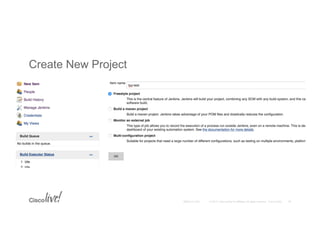

Create New Project
35

36. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Configure New Project
36
1
Make sure job only runs on
slaves
2 Allow git checkout

37. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Configure New Project
37
3
Tell it to build for GitLab
changes.
Allow git checkout

38. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003

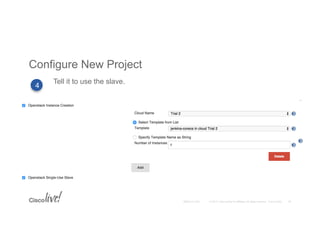

Configure New Project
38
4
Tell it to use the slave.

39. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 39
5 Build it.

40. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Integration with Gitlab
40

41. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003

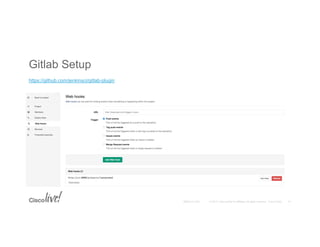

Gitlab Setup
41
https://github.com/jenkinsci/gitlab-plugin

42. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Integration with Slack
42

43. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 43
1
2
3
Create a WebHook
Define the Channel
Copy the URL

44. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 44
4 In Jenkins, add Slack to Configuration

45. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 45
5 In Jenkins, add Slack to Project

46. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 46

47. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Jenkins
Continuous
Integration
Service
Developer
pushes
commits
Build new
Container /
Run Tests
Push to
production
New Metacloud
Instance created
1 2 3 4 5 6
Push to Local
Registry
Source Code
Repository
Developers are
notified
Ansible was used
to build all servers

48. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
• We Demonstrated the application delivery pipeline.
• The pipeline stack can be used in any cloud.
• Different tools can be used and substituted for any place in the
pipeline.
• Your problems are not unique. No code was written, we just
configured existing open source projects.
Summary

49. © 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003
Breakout
Session
Title Date and Time
TECCLD-3001
Intercloud Fabric Technical Deepdive:
Mauricio Arregoces
Sun, Jun 7, 8-12
PM – 16B Mezz.
PSOCLD-1001
Hybrid Cloud with Intercloud Fabric
Percy Wadia, CNSG Product Mgr
Mon, Jun 8,
11:00AM-12:00PM
14B Mezz.
BRKCLD-2002
Cisco Cloud Services - Under the Hood
Ken Schroeder
Mon, Jun 8,
1:00-3:00 PM 16B
Mezz.
PSOCLD-1002
Cisco Cloud Services and Intercloud
Marketplace, Chandra Venkatapathy, Product
Mgr, CSG
Tues, Jun 9, 11:00
AM - 12:00 PM
3 Upper Lvl
PSOCLD-1005
Cisco Powered Architectures Under the Hood,
Jeff Minson, Technical Solutions Arch.
Thurs, Jun 11,
11:00 AM - 12:00
PM – 14B Mezz.
PSOCLD-1006
Cisco Cloud Architecture on OpenStack
Rohit Agarwalla, Technical Lead, OpenStack
Tues, Jun 9, 2:30 -
3:30 PM – 23C
Upper Level
BRKCLD-2003
Building Hybrid Cloud Applications with
Intercloud Fabric, Ben Del Vento
Wed, Jun 10,
8:00-10:00 AM 7A
Upper Lvl
DEVNET-1109
Cisco Executive Panel: All about the Cloud
Cisco's Executives Lew Tucker, Faiyaz
Shahpurwala and Ken Owens discuss the
current and future opportunities around public,
private and hybrid clouds.
Wed, Jun 10, 9:30 -
10:30 AM
DevNet Theater
Cisco Live 2015 Cloud Breakout Sessions
Breakout
Session
Title Date and Time
PSOCLD-1004
Cisco OpenStack® Private Cloud (Formerly
Metacloud) Niki Acosta, Marketing Manager
Wed, Jun 10,
9:30-10:30 AM – 28D
Upper Level
BRKCLD-2001
Building Scalable and Highly Available
Enterprise Applications on Cisco Cloud
Services: Chandra Venkatapathy, Ken
Schroeder, Technical Staff, CSG
Wed, Jun 10,
1:00-3:00 PM 25C
Upper Level
BRKCLD-1004
End-to-end Cloud Management: A holistic
approach for developing and managing the
platform and service offerings that transform
IT: Ben Del Vento
Wed, Jun 10,
3:30-5:00 PM 24C
Upper Lvl
BRKCLD-1002
Cloud Onboarding - Jeff Minson; Abhi Sing,
Technical Solutions Architects, CMS
Thurs, Jun 11,
8:00-9:30 AM, 30E
Upper Lvl
BRKCLD-1828
Designing Hybrid Cloud operations with
ServiceGrid and Intercloud Fabric
Ben Del Vento
Thurs, Jun 11,
8:00-9:30 AM 25C
Upper Lvl
BRKCLD-1003
A Practical Introduction to DevOps Practices
and Tools: Christopher Jackson, Vallard
Benincosa
Thurs, Jun 11,
1:00-2:30 PM 28C
Upper Lvl
LTRCLD-2011
Intercloud Fabric - Configuring and Deploying
Hybrid Cloud Solutions: Chris Martin

50. Thank you
© 2015 Cisco and/or its affiliates. All rights reserved. Cisco PublicBRKCLD-1003 50
